基于交叉细化和循环注意力的RGB-D显著性目标检测

doi:10.16182/j.issn1004731x.joss.22-1372

摘要/Abstract

摘要：

针对显著性目标检测区域边界模糊以及检测区域不精确不完整的问题，提出了基于交叉细化和循环注意力的RGB-D显著性目标检测方法。在利用编码器提取特征的阶段设计了交叉细化模块，用于补充对方的特征信息，改善了融合前的特征质量，抑制了质量较差的深度图带来的消极影响，解决了显著性目标边缘模糊的问题。针对融合后的特征，提出联合注意力机制与卷积长短期记忆网络单元的循环模块以模拟大脑的内部生成机制，通过检索过往的记忆帮助推断当前的决策，从而获得需要长期记忆的语义场景，可以全面学习融合特征的内部语义关系，生成检测区域更完整，更准确的显著性图。在6个公开数据集上进行的实验表明，所提的方法可以得到边缘清晰且准确度更高的显著图。

关键词: RGB-D, 显著性目标检测, 交叉细化, 注意力机制, 卷积长短期记忆网络, 循环模块

Abstract:

In order to solve the problems that the boundary of the saliency object detection area is vague, and the detection area is incomplete or inaccurate, an RGB-D saliency object detection method based on cross-refinement and circular attention is proposed. A cross-refinement module is designed at the stage of extracting features using encoders, which is used to supplement feature information of each other and improve the feature quality before fusion. It also suppresses the negative impact of poor-quality depth maps and addresses the issue that the edges of the saliency object are blurred. For the features after fusion, the circular module is proposed, which combines the attention mechanism with convolutional long short-term memory (LSTM) network unit to simulate the internal generation mechanism of the brain and help infer the current decision by retrieving past memories, so as to obtain semantic scenes that require long-term memory. The module can comprehensively learn the internal semantic relationships of fusion features to generate a more complete and accurate saliency map for the detection area. Experiments conducted on six public datasets show that the proposed method can obtain a saliency map with clear edges and high accuracy.

Key words: RGB-D, saliency object detection, cross-refinement, attention mechanism, convolutional long short-term memory network, circular module

中图分类号:

TP391.9

董庆庆,吴昊,钱文华等 . 基于交叉细化和循环注意力的RGB-D显著性目标检测[J]. 系统仿真学报, 2023, 35(9): 1931-1947.

Dong Qingqing,Wu Hao,Qian Wenhua,et al . RGB-D Saliency Object Detection Based on Cross-refinement and Circular Attention[J]. Journal of System Simulation, 2023, 35(9): 1931-1947.

图/表 16

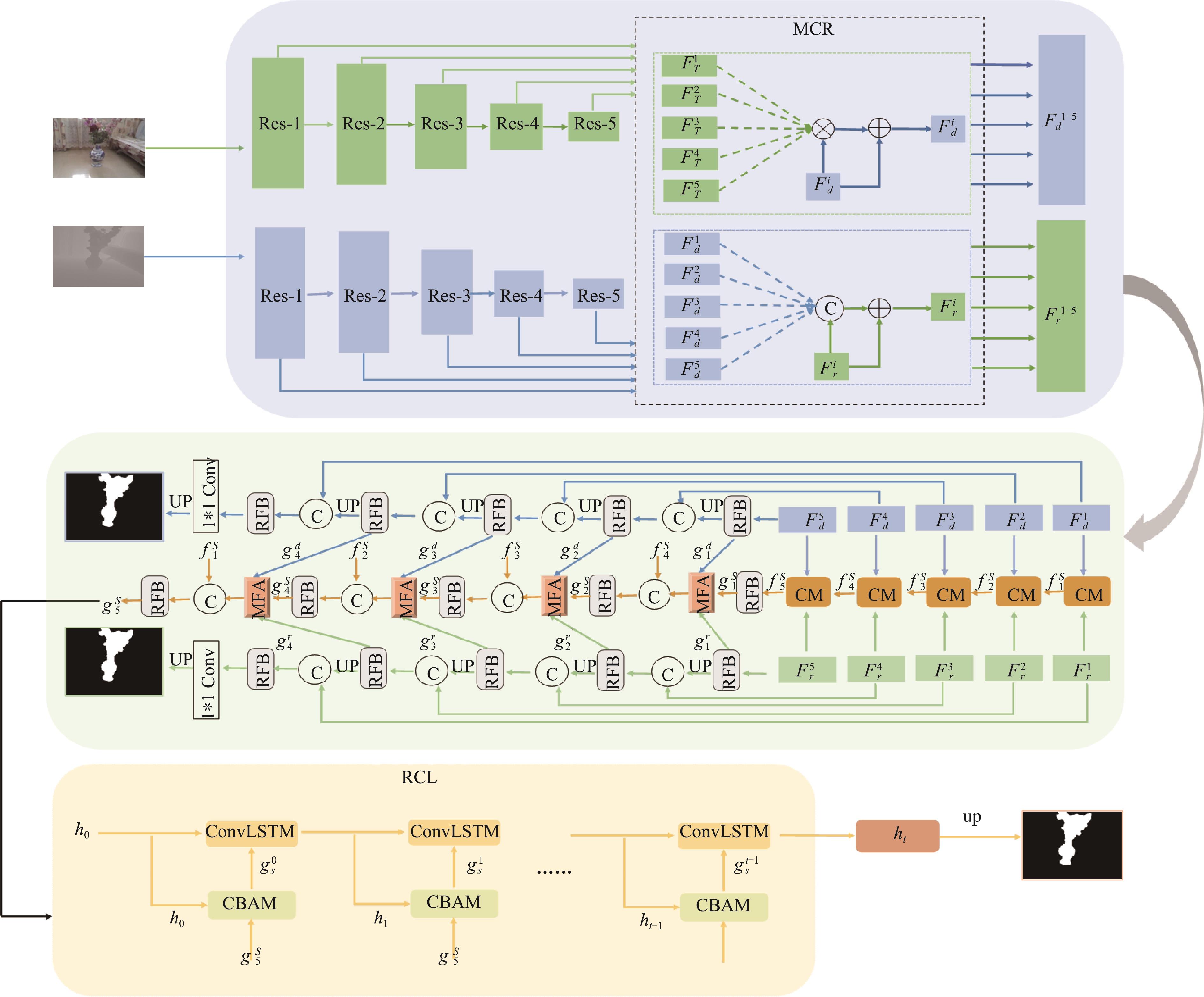

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

本文方法与11种模型在6种指标下的定量比较

数据集	指标	JLDCF	HAINet	CDNet	DSA^2F	JSM	Mobile Sal	DSU	CFIDnet	DCMF	SSL	C²DFnet	Ours
DES	$M A E ↓$	0.021	0.018	0.020	0.023	0.058	0.021	0.063	0.023	0.023	0.019	0.020	0.016
	$F β m a x ↑$	0.923	0.936	0.936	0.916	0.808	0.924	0.797	0.911	0.924	0.936	0.916	0.937
	$F β a v g ↑$	0.907	0.921	0.899	0.904	0.762	0.908	0.753	0.898	0.899	0.919	0.907	0.922
	$F β ω ↑$	0.889	0.910	0.863	0.889	0.742	0.896	0.682	0.886	0.879	0.908	0.898	0.910
	$s α ↑$	0.931	0.931	0.931	0.917	0.820	0.929	0.818	0.917	0.932	0.932	0.922	0.933
	$E ξ ↑$	0.968	0.971	0.971	0.954	0.875	0.970	0.888	0.940	0.968	0.972	0.959	0.973
LFSD	$M A E ↓$	0.070	0.079	0.088	0.055	0.127	0.080	0.129	0.071	0.069	0.079	0.065	0.070
	$F β m a x ↑$	0.867	0.853	0.841	0.889	0.781	0.841	0.792	0.865	0.875	0.835	0.867	0.869
	$F β a v g ↑$	0.848	0.842	0.822	0.879	0.757	0.825	0.759	0.850	0.847	0.826	0.859	0.859
	$F β ω ↑$	0.805	0.803	0.775	0.848	0.724	0.780	0.710	0.807	0.806	0.791	0.829	0.826
	$s α ↑$	0.861	0.854	0.842	0.883	0.767	0.847	0.778	0.869	0.877	0.844	0.864	0.878
	$E ξ ↑$	0.902	0.886	0.877	0.924	0.833	0.888	0.842	0.903	0.909	0.879	0.903	0.913
NJU2K	$M A E ↓$	0.036	0.038	0.060	0.040	0.133	0.047	0.135	0.038	0.051	0.043	0.035	0.029
	$F β m a x ↑$	0.915	0.915	0.871	0.907	0.710	0.896	0.720	0.915	0.873	0.902	0.919	0.926
	$F β a v g ↑$	0.902	0.903	0.847	0.898	0.673	0.875	0.683	0.899	0.868	0.887	0.897	0.916
	$F β ω ↑$	0.880	0.878	0.804	0.878	0.647	0.840	0.631	0.871	0.844	0.861	0.878	0.898
	$s α ↑$	0.912	0.912	0.876	0.904	0.713	0.895	0.727	0.914	0.871	0.901	0.908	0.925
	$E ξ ↑$	0.950	0.944	0.911	0.938	0.801	0.932	0.805	0.946	0.915	0.938	0.943	0.956
SIP	$M A E ↓$	0.049	0.053	0.059	0.057	0.146	0.053	0.156	0.060	0.043	0.058	0.053	0.043
	$F β m a x ↑$	0.889	0.892	0.878	0.875	0.645	0.880	0.624	0.870	0.899	0.874	0.877	0.902
	$F β a v g ↑$	0.873	0.876	0.848	0.866	0.622	0.862	0.605	0.857	0.891	0.862	0.864	0.889
	$F β ω ↑$	0.845	0.845	0.805	0.840	0.562	0.834	0.520	0.829	0.872	0.841	0.834	0.866
	$s α ↑$	0.880	0.880	0.870	0.862	0.697	0.873	0.687	0.864	0.886	0.868	0.872	0.892
	$E ξ ↑$	0.924	0.922	0.914	0.912	0.774	0.916	0.766	0.909	0.930	0.910	0.916	0.931
NLPR^]	$M A E ↓$	0.023	0.024	0.062	0.024	0.060	0.025	0.065	0.026	0.029	0.027	0.022	0.021
	$F β m a x ↑$	0.917	0.915	0.810	0.906	0.771	0.908	0.765	0.905	0.906	0.899	0.918	0.924
	$F β a v g ↑$	0.894	0.901	0.757	0.896	0.743	0.886	0.734	0.892	0.872	0.882	0.903	0.910
	$F β ω ↑$	0.866	0.877	0.684	0.873	0.706	0.858	0.652	0.867	0.836	0.859	0.882	0.890
	$s α ↑$	0.925	0.924	0.850	0.919	0.805	0.920	0.807	0.922	0.922	0.913	0.928	0.931
	$E ξ ↑$	0.963	0.960	0.892	0.952	0.875	0.961	0.875	0.955	0.954	0.949	0.963	0.965
STERE	$M A E ↓$	0.040	0.040	0.059	0.039	0.096	0.041	0.099	0.043	0.043	0.047	0.039	0.037
	$F β m a x ↑$	0.904	0.906	0.870	0.900	0.772	0.895	0.779	0.897	0.906	0.883	0.897	0.907
	$F β a v g ↑$	0.874	0.887	0.831	0.889	0.747	0.875	0.752	0.887	0.869	0.867	0.881	0.891
	$F β ω ↑$	0.831	0.852	0.769	0.866	0.709	0.842	0.689	0.850	0.825	0.837	0.849	0.860
	$s α ↑$	0.903	0.907	0.871	0.898	0.783	0.903	0.789	0.901	0.910	0.885	0.902	0.908
	$E ξ ↑$	0.945	0.944	0.922	0.942	0.852	0.940	0.861	0.942	0.946	0.930	0.943	0.947

表1

图11

表2

对本文方法的定量消融实验结果

模型	SIP				NLPR				STERE
模型	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$
Baseline	0.044	0.889	0.878	0.918	0.023	0.915	0.922	0.960	0.039	0.893	0.896	0.938
+MCR	0.043	0.899	0.886	0.927	0.022	0.919	0.928	0.962	0.038	0.900	0.903	0.942
+RCL	0.043	0.900	0.889	0.929	0.022	0.921	0.927	0.963	0.038	0.902	0.904	0.940
Ours	0.043	0.902	0.892	0.931	0.021	0.924	0.931	0.965	0.037	0.907	0.908	0.947

表2

表3

MCR模块中多模态交互细化策略的消融分析

不同策略的MCR	SIP				NLPR				STERE
不同策略的MCR	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$
Cat	0.044	0.898	0.891	0.931	0.022	0.924	0.929	0.963	0.037	0.906	0.908	0.946
Mul	0.044	0.899	0.890	0.930	0.022	0.923	0.927	0.961	0.038	0.905	0.906	0.943
Mul+Cat	0.045	0.895	0.889	0.929	0.022	0.922	0.926	0.962	0.038	0.904	0.905	0.942
Ours	0.043	0.902	0.892	0.931	0.021	0.924	0.931	0.965	0.037	0.907	0.908	0.947

表3

表4

对主干网络的有效性分析

骨干网络	SIP				NLPR				STERE
骨干网络	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$
VGG11	0.047	0.879	0.869	0.882	0.027	0.909	0.911	0.955	0.043	0.873	0.876	0.918
VGG16	0.045	0.882	0.872	0.898	0.025	0.915	0.918	0.957	0.041	0.881	0.882	0.922
ResNet34	0.044	0.899	0.890	0.925	0.024	0.922	0.929	0.960	0.039	0.899	0.900	0.939
ResNet50	0.043	0.902	0.892	0.931	0.021	0.924	0.931	0.965	0.037	0.907	0.908	0.947

表4

表5

本文方法与原始模型的定量比较

模型	HAINet				C²DFNet^[46]
模型	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$	$M A E ↓$	$F β m a x ↑$	$s α ↑$	$E ξ ↑$
Baseline	0.038	0.915	0.912	0.944	0.035	0.919	0.908	0.943
+MCR	0.034	0.920	0.919	0.948	0.031	0.923	0.917	0.953
+RCL	0.033	0.921	0.922	0.948	0.033	0.921	0.915	0.950

表5
