基于杀伤链和FDNA的能力依赖关系分析

doi:10.16182/j.issn1004731x.joss.23-1542

摘要/Abstract

摘要：

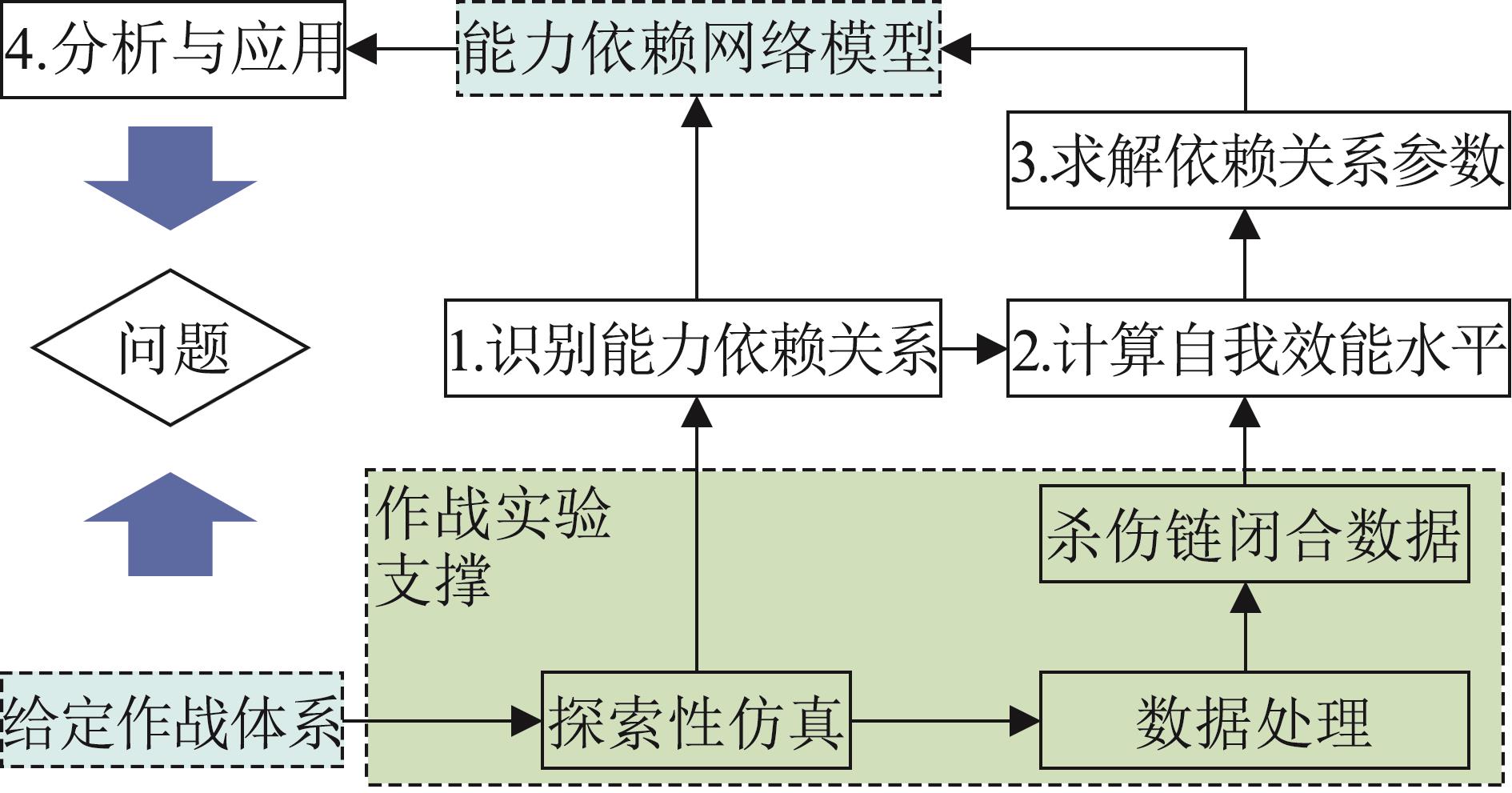

为了更好地支撑作战体系分析，深入分析任务完成过程中依赖关系的影响，准确把握体系能力生成的深层次逻辑，提出基于杀伤链和功能依赖网络分析(function dependency network analysis，FDNA)的能力依赖关系分析方法。结合能力依赖关系特点分析，从作战交互视角抽象作战体系的杀伤链闭合、杀伤网形成过程，提出了作战体系的能力依赖关系网络建模方法，并在作战实验支撑下给出了涵盖识别能力依赖关系、计算效能水平、求解关系参数以及分析应用的具体过程。实验表明：该建模和分析方法具有较强的可操作性、可行性和有效性，能够为作战体系分析提供一种可解释、能回溯的定性定量综合分析方法。

关键词: 功能依赖网络分析, 杀伤链, 能力依赖分析, 作战体系分析, 体系能力评估

Abstract:

To better support the operation SoS analysis, deeply analyze the impact of dependency relationship during mission accomplishment, and accurately grasp the deep logic of SoS capability generation, the capability dependency analysis method based on the kill chain and function dependency network analysis(FDNA) is proposed. Combined with the analysis of the characteristics of the capability dependency relationship, the kill chain closure and the kill web formation process are abstracted from the perspective of operational interaction, a capability dependency network modeling method for the SoS is proposed, and a specific process covering the identification of capability dependency, calculation of operability, solving of dependency parameters, and analysis & application is given under the support of operation experiments. Experimental results demonstrate the method's strong operability, feasibility, and effectiveness, providing an interpretable, traceable, qualitative, and quantitative comprehensive analysis method for the analysis of operation SoS.

Key words: functional dependence network analysis(FDNA), kill chain, capability dependency analysis, operations SoS analysis, SoS capability assessment

中图分类号:

TP391.9

王玉帅,司光亚 . 基于杀伤链和FDNA的能力依赖关系分析[J]. 系统仿真学报, 2025, 37(4): 1076-1089.

Wang Yushuai,Si Guangya . Capability Dependency Analysis Based on Kill Chain and FDNA[J]. Journal of System Simulation, 2025, 37(4): 1076-1089.

图/表 16

表1

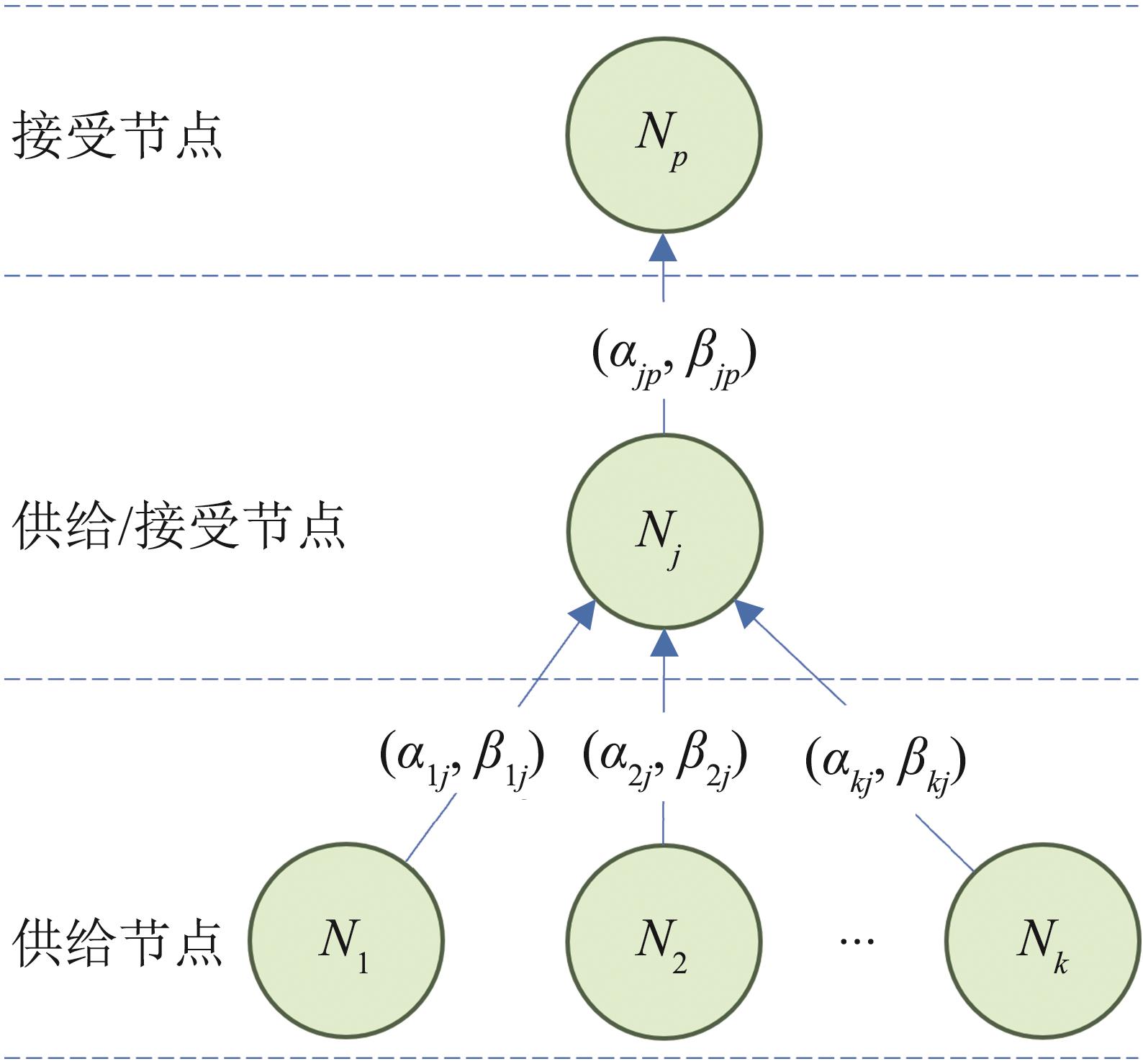

图1

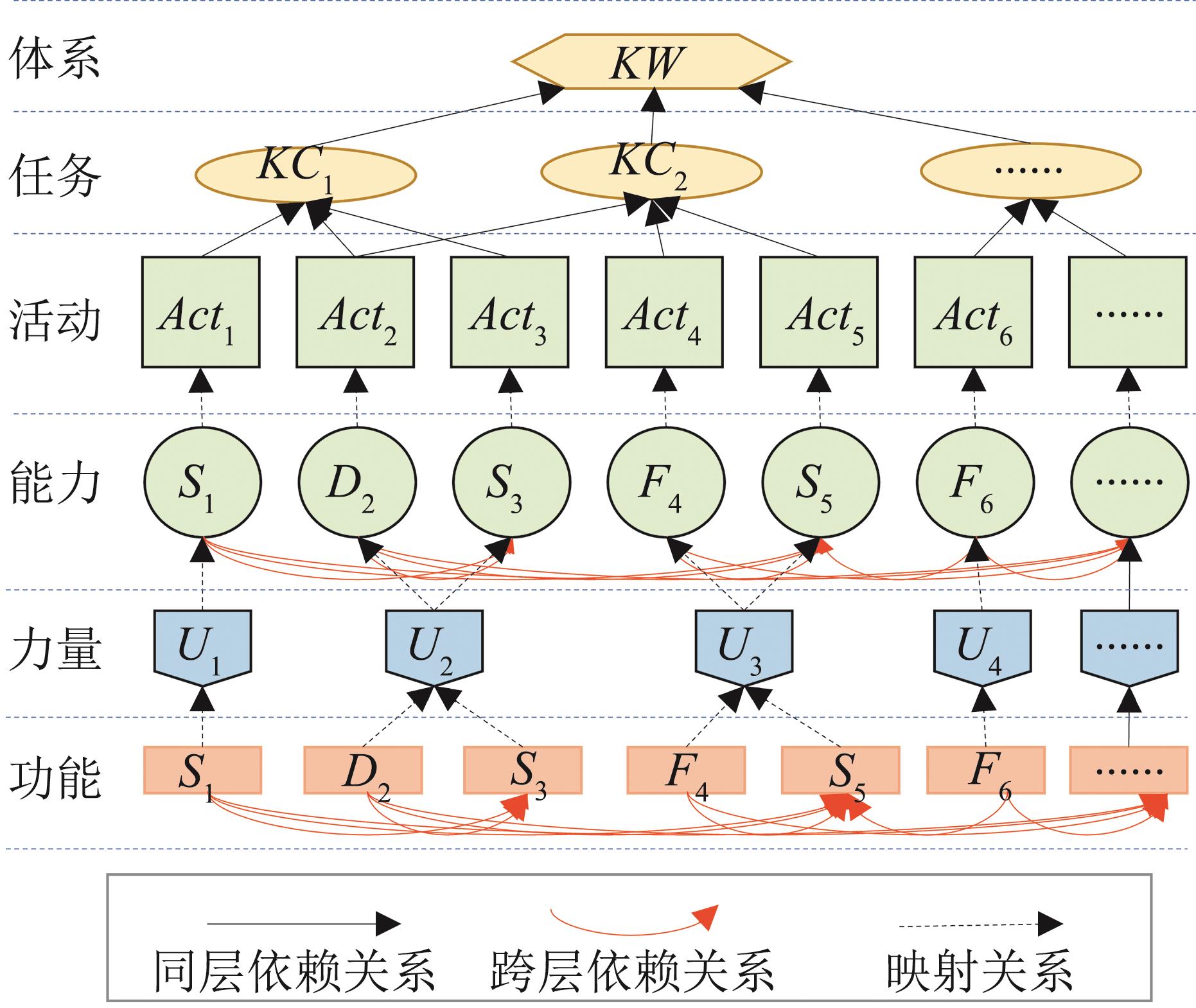

图2

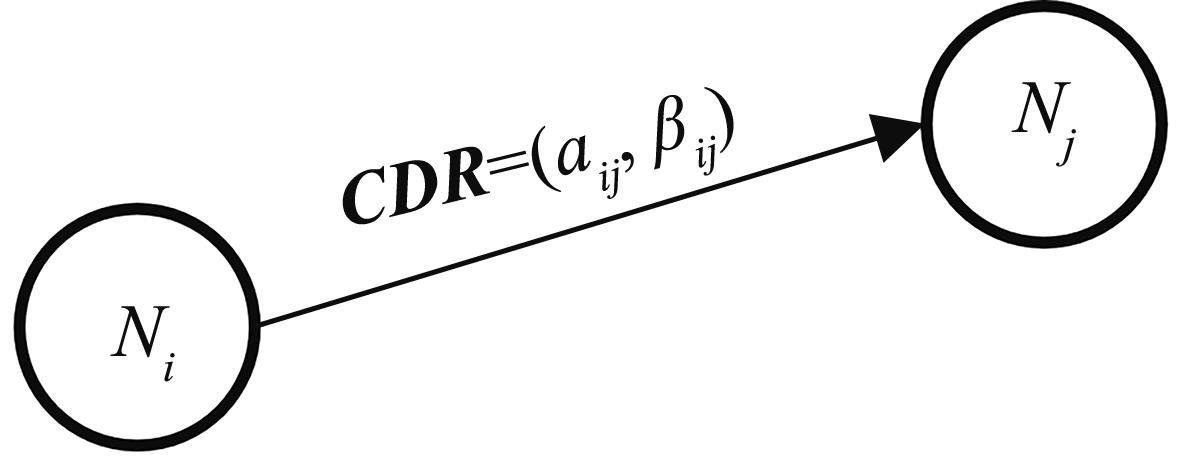

图3

图4

表2

表3

图5

表4

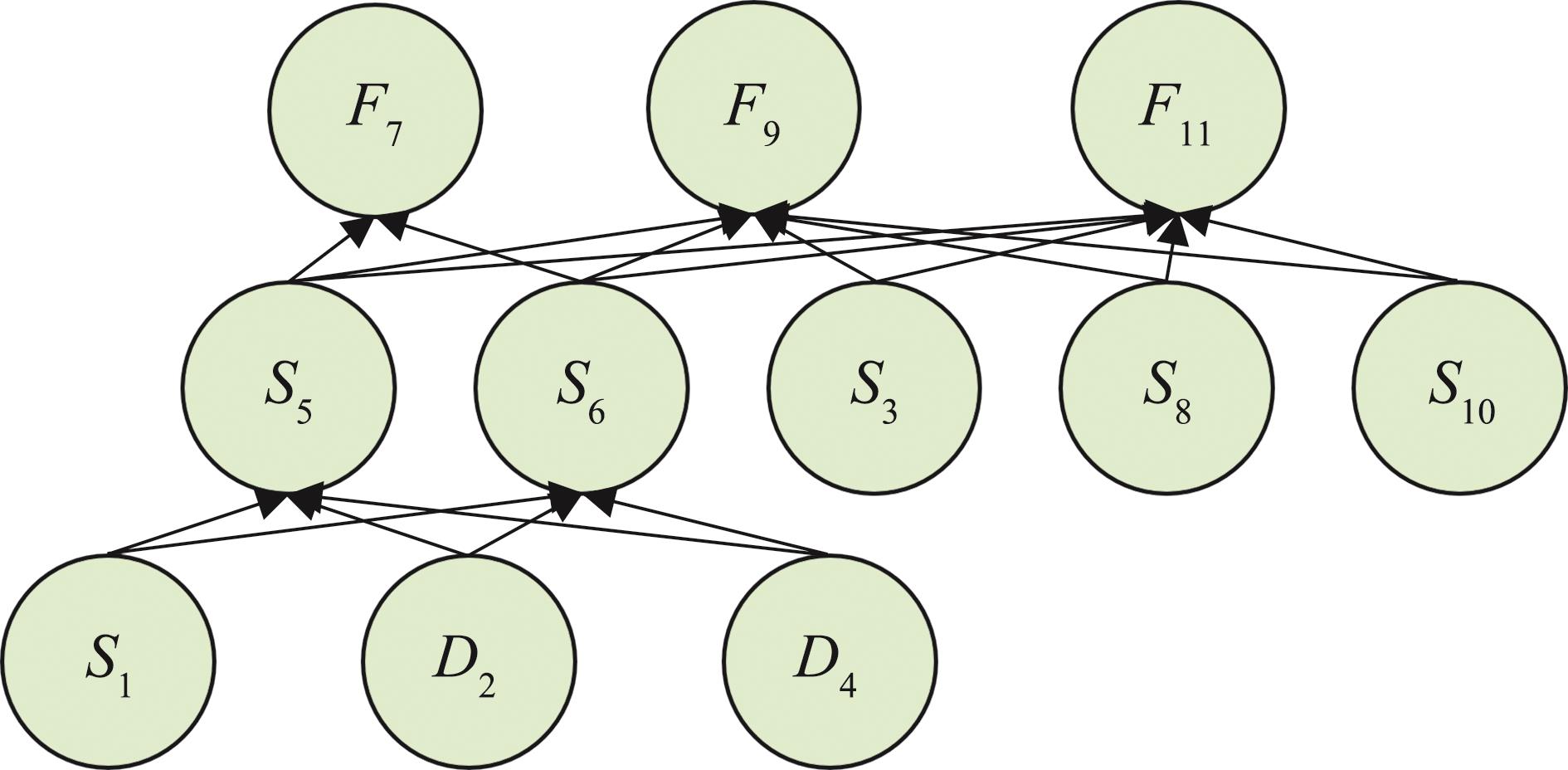

图6

表5

表6

表7

能力依赖关系参数求解结果

$(α i j, β i j)$		接受节点
$(α i j, β i j)$		S₅	S₆	F₇	F₉	F₁₁
供给节点	S₁	(0.21, 34)	(0.18, 48)	—	—	—
	D₂	(0.18, 56)	(0.23, 59)	—	—	—
	S₃	—	—	—	(0.12, 43)	(0.11, 49)
	D₄	(0.43, 62)	(0.51, 57)	—	—	—
	S₅	—	—	(0.33, 38)	(0.03, 68)	(0.04, 64)
	S₆	—	—	(0.37, 42)	(0.06, 69)	(0.08, 65)
	F₇	—	—	—	—	—
	S₈	—	—	—	(0.43, 26)	(0.15, 81)
	S₁₀	—	—	—	(0.17, 75)	(0.39, 33)

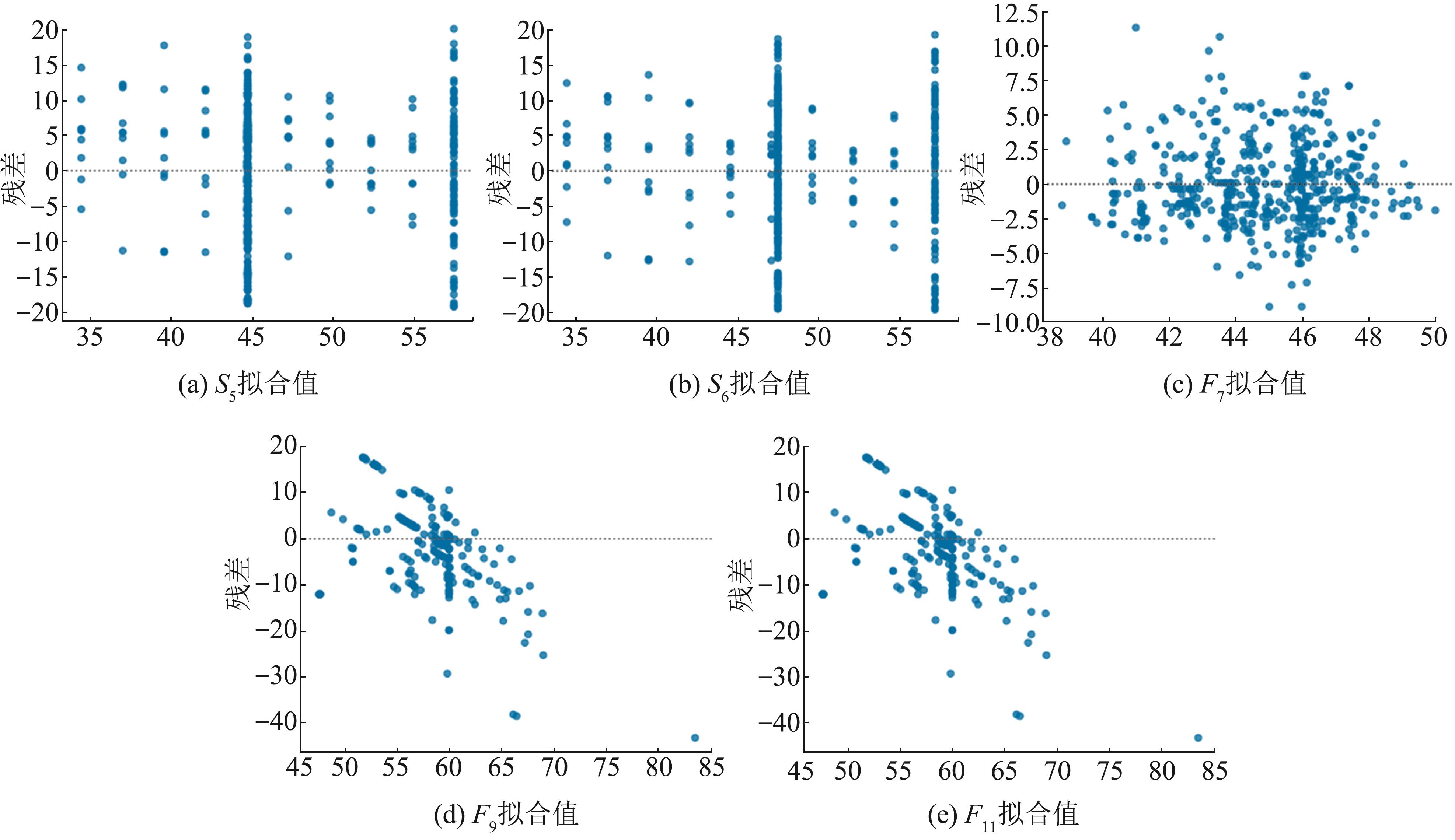

伪R方正汇总行²检验		0.65	0.72	0.77	0.63	0.61

表7

图7

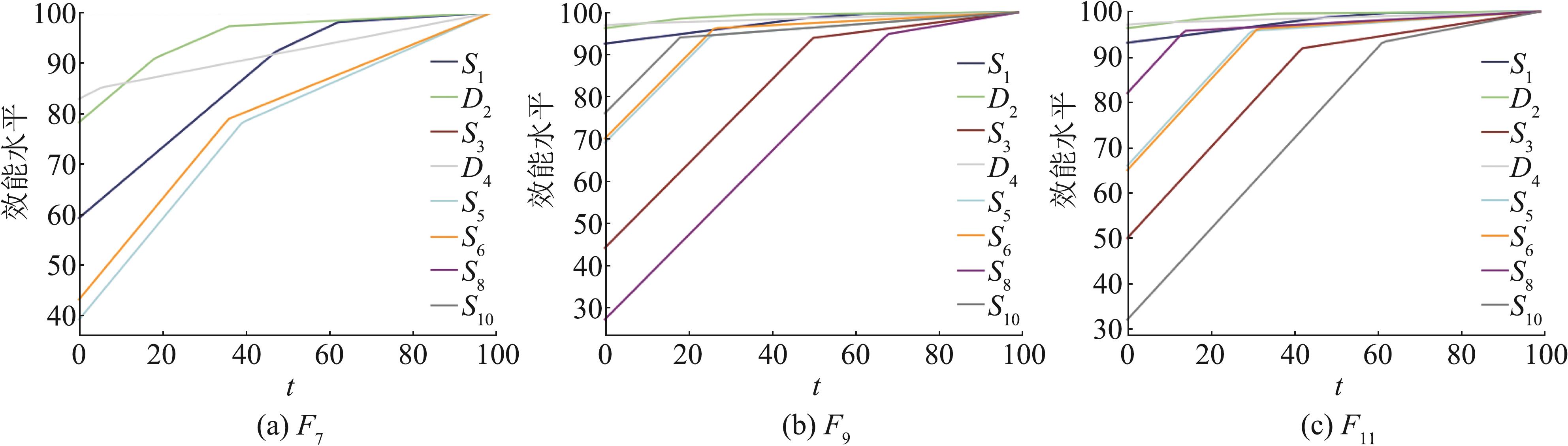

图8

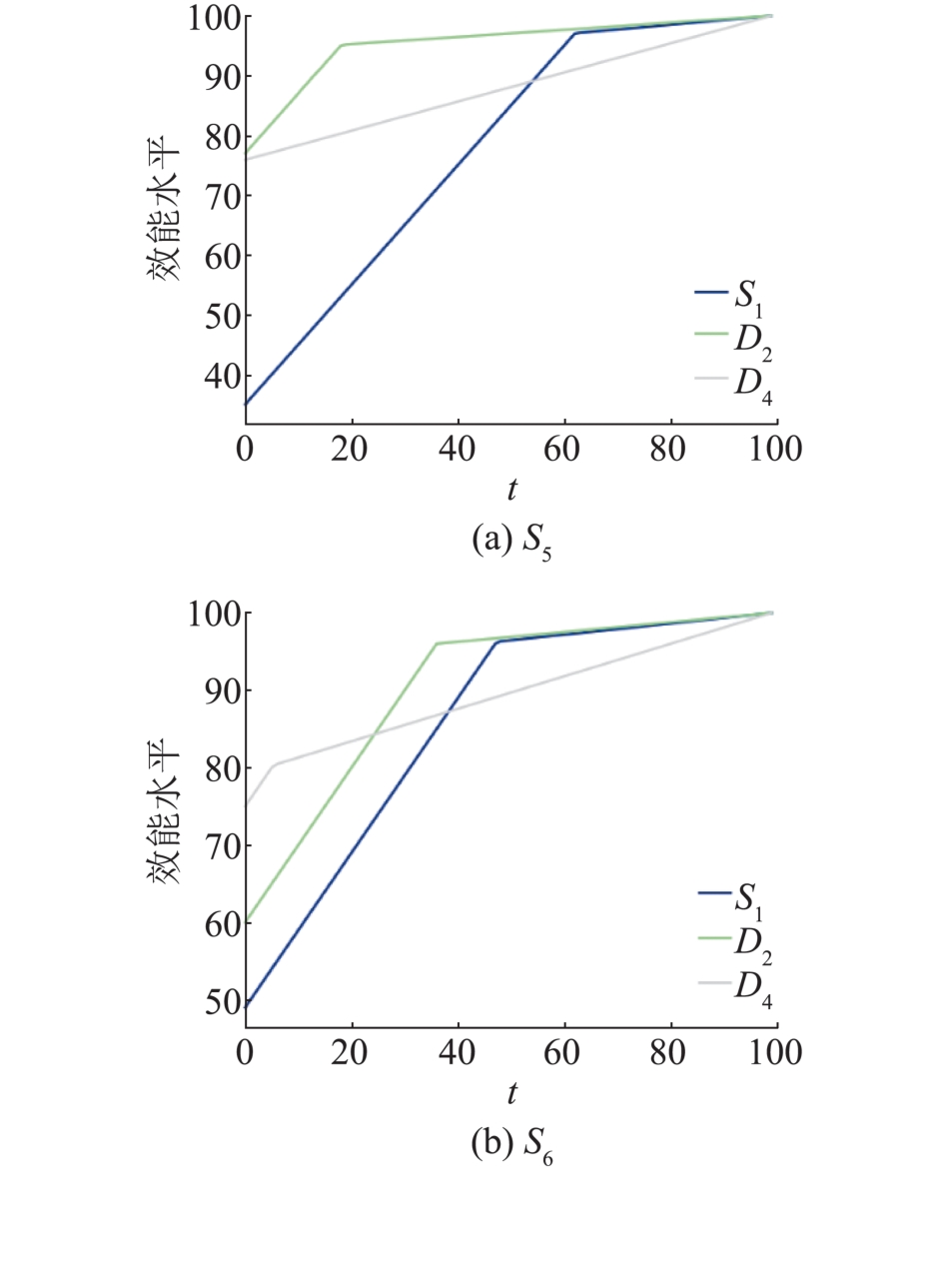

图9

参考文献 33

1	Cares J R. An Information Age Combat Model[C]//9th International Command and Control Research and Technology Symposium. Washington, DC: CCRP,2004, Paper ID 021. [S.l. : s.n.], 2004.
2	陈登, 陈楚湘, 周春华. 基于OODA环的杀伤网节点重要性评估[J]. 兵工学报, 2024, 45(2): 363-372.
	Chen Deng, Chen Chuxiang, Zhou Chunhua. Importance Evaluation of Kill Network Nodes Based on OODA Loop[J]. Acta Armamentarii, 2024, 45(2): 363-372.
3	杨圩生, 王钰, 杨洋, 等. 基于作战环的不同节点攻击策略下的作战网络效能评估[J]. 系统工程与电子技术, 2021, 43(11): 3220-3228.
	Yang Weisheng, Wang Yu, Yang Yang, et al. Combat Network Effectiveness Evaluation Under Different Node Attack Strategies Based on Operation Loop[J]. Systems Engineering and Electronics, 2021, 43(11): 3220-3228.
4	赵丹玲, 谭跃进, 李际超, 等. 基于异质网络的武器装备体系结构抗毁性研究[J]. 系统工程理论与实践, 2019, 39(12): 3197-3207.
	Zhao Danling, Tan Yuejin, Li Jichao, et al. Research on Structural Robustness of Weapon System-of-systems Based on Heterogeneous Network[J]. Systems Engineering-Theory & Practice, 2019, 39(12): 3197-3207.
5	王耀祖, 尚柏林, 宋笔锋, 等. 基于杀伤链的作战体系网络关键节点识别方法[J]. 系统工程与电子技术, 2023, 45(3): 736-744.
	Wang Yaozu, Shang Bailin, Song Bifeng, et al. Identification Method of Key Node in Operational System-of-systems Network Based on Kill Chain[J]. Systems Engineering and Electronics, 2023, 45(3): 736-744.
6	Khuri A I, Mukhopadhyay S. Response Surface Methodology[J]. Wiley Interdisciplinary Reviews: Computational Statistics, 2010, 2(1): 128-149.
7	于小岚, 熊伟. 基于贝叶斯网络的武器装备体系作战效能评估方法[J]. 火力与指挥控制, 2023, 48(5): 1-8, 17.
	Yu Xiaolan, Xiong Wei. Overview of Operational Effectiveness Evaluation Methods of System of Weapon Equipment Based on Bayesian Network[J]. Fire Control & Command Control, 2023, 48(5): 1-8, 17.
8	魏东涛, 刘晓东, 周骏, 等. 基于DSM与信息熵的装备体系结构贡献率分析[J]. 系统工程与电子技术, 2022, 44(6): 1927-1933.
	Wei Dongtao, Liu Xiaodong, Zhou Jun, et al. Evaluation of Equipment's Structure Contribution Rate to System-of-systems Based on DSM and Information Entropy[J]. Systems Engineering and Electronics, 2022, 44(6): 1927-1933.
9	翟豆豆. 基于系统动力学的装备体系建模与仿真[D]. 西安: 西安电子科技大学, 2020.
	Zhai Doudou. Equipment System Modeling and Simulation Based on System Dynamics[D]. Xi'an: XiDian University, 2020.
10	王竣德. 面向网电空间物理域信息域的相依网络鲁棒性研究[D]. 长沙: 国防科技大学, 2018.
	Wang Junde. Research on the Robustness of Interdependent Networks in Cyberspace Physical and Information Domain[D]. Changsha: National University of Defense Technology, 2018.
11	Garvey P R, Pinto C A. Introduction to Functional Dependency Network Analysis[C]//Proceedings of the the 2nd International Symposium on Engineering Systems. Washington D.C.: International Astronautical Federation (IAF), 2009: 1-12.
12	Guariniello C, Grande M, Brand C, et al. Quantifying the Impact of Systems Interdependencies in Space Systems Architectures[C]//70th International Astronautical Congress (IAC). Washington D.C.: International Astronautical Federation (IAF), 2019: 21-25.
13	Guariniello C, Marsh T B, Porter R, et al. Artificial Intelligence Agents to Support Data Mining for SoS Modeling of Space Systems Design[C]//2020 IEEE Aerospace Conference. Piscataway: IEEE, 2020: 1-11.
14	Costa A, Mcshane M, Pinto A. Investigating Interbank Contagion with Agent-based Modeling and Functional Dependency Network Analysis(FDNA)[J]. SSRN Electronic Journal, 2015. DOI: 10.2139/ssrn.2681693 .
15	Roman A, Pinto C A. Systemic Analysis of the Use of Artificial Intelligence (AI) in Regulating Terrorist Content on Social Media Ecosystem Using Functional Dependency Network Analysis (FDNA)[J]. OUR Journal: ODU Undergraduate Research Journal, 2020, 7: 7.
16	Guariniello C, DeLaurentis D. Dependency Analysis of System-of-systems Operational and Development Networks[J]. Procedia Computer Science. 2013, 16: 265-274.
17	Guariniello C, DeLaurentis D. Communications, Information, and Cyber Security in Systems-of-systems: Assessing the Impact of Attacks through Interdependency Analysis[J]. Procedia Computer Science, 2014, 28: 720-727.
18	浣顺启, 方哲梅, 王剑波. 基于功能依赖网的体系效能评估方法[J]. 系统工程与电子技术, 2022, 44(7): 2191-2200.
	Huan Shunqi, Fang Zhemei, Wang Jianbo. System-of-systems Effectiveness Evaluation Method Based on Functional Dependency Network[J]. Systems Engineering and Electronics, 2022, 44(7): 2191-2200.
19	陈宇奇, 徐廷学, 郝建平, 等. 基于FDN的装备体系任务能力依赖性分析[J]. 系统工程与电子技术, 2021, 43(6): 1721-1728.
	Chen Yuqi, Xu Tingxue, Hao Jianping, et al. Task Capability Dependency Analysis of Weapon System of Systems Based on FDN[J]. Systems Engineering and Electronics, 2021, 43(6): 1721-1728.
20	Delaurentis D, Marais K, Davendralingam N, et al. Increasing Robustness and Resilience: Assessing Disruptions and Dependencies in Analysis of System-of-Systems Alternatives[C]//Proceedings of the 16th Annual Information Security Symposium. West Lafayette: CERIAS - Purdue University, 2015: 38.
21	王哲, 李建华, 刘子杨, 等. 基于功能依赖的网络信息体系建模及重心分析[J]. 系统工程与电子技术, 2021, 43(10): 2876-2883.
	Wang Zhe, Li Jianhua, Liu Ziyang, et al. Modeling and Center of Gravity Analysis for Networked Information System of Systems Based on Function Dependency[J]. Systems Engineering and Electronics, 2021, 43(10): 2876-2883.
22	Xu Tingxue, Chen Yuqi, Lu Cheng, et al. Importance Measure of Equipment Task Based on Operational Dependency of SoS[J]. IEEE Access, 2021, 9: 15452-15466.
23	Zhang Wangxun, Li Zhifei, Wang Weiping, et al. System of Systems Safety Analysis of GNSS Based on Functional Dependency Network Analysis[J]. Applied Mathematics & Information Sciences, 2016, 10(6): 2227-2235.
24	张旺勋, 李群, 侯洪涛, 等. 卫星导航系统的体系安全性分析方法[J]. 国防科技大学学报, 2015, 37(2): 92-98.
	Zhang Wangxun, Li Qun, Hou Hongtao, et al. System of Systems Safety Analysis Method for GNSS[J]. Journal of National University of Defense Technology, 2015, 37(2): 92-98.
25	Guariniello C, DeLaurentis D. Supporting Design via the System Operational Dependency Analysis Methodology[J]. Research in Engineering Design, 2017, 28(1): 53-69.
26	张旺勋. 基于复杂交互网络的武器装备体系安全性分析方法[D]. 长沙: 国防科学技术大学, 2015.
	Zhang Wangxun. A Weapon System of Systems Safety Analysis Method Based on Complex Interaction Networks[D]. Changsha: National University of Defense Technology, 2015.
27	Servi L D, Garvey P R. Deriving Global Criticality Conditions from Local Dependencies Using Functional Dependency Network Analysis (FDNA)[J]. Systems Engineering, 2017, 20(4): 297-306.
28	邱禄芸, 方志耕, 陶良彦, 等. 网络体系效能评估改进FDNA模型[J]. 系统工程与电子技术, 2022, 44(12): 3728-3737.
	Qiu Luyun, Fang Zhigeng, Tao Liangyan, et al. Effectiveness Evaluation of Network SoS Based on Improved FDNA Model[J]. Systems Engineering and Electronics, 2022, 44(12): 3728-3737.
29	张昱. 武器装备体系仿真试验床方法与关键技术研究[D]. 北京: 国防大学, 2013.
	Zhang Yu. Research and Key Technologies on Methodology of Weaponry and Equipment System Simulation Testbed[D]. Beijing: University of Defense, 2013.
30	马心意, 叶雄兵, 高广渊. 作战实验数据因果关系网络化建模方法研究[J]. 军事运筹与系统工程, 2022, 36(1): 33-40.
	Ma Xinyi, Ye Xiongbing, Gao Guangyuan. A Network Modeling Method of Warfighting Experiment Data Causal Analysis[J]. Military Operations Research and Systems Engineering, 2022, 36(1): 33-40.
31	张传良, 丁浩淼. 从杀伤链到杀伤网-全域作战视角下的杀伤链战略[J]. 军事文摘, 2021(3): 7-12.
32	Qin Changjiang, Liang Yi, Huang Jincai, et al. Node Capability Dependency Importance Evaluation of Heterogeneous Target Operational Network[J]. Evolutionary Intelligence, 2024, 17(1): 283-290.
33	吉景溪. 基于DoDAF-QFD-FDNA的作战体系贡献度评估[D]. 武汉: 华中科技大学, 2021.
	Ji Jingxi. DoDAF-QFD-FDNA Based Combat System of Systems Contribution Degree Evaluation[D]. Wuhan: Huazhong University of Science & Technology, 2021.

F2T2EA	描述
Find	对作战空间进行广泛监视，以探测潜在目标并确定其特征
Fix	根据潜在目标的识别特征、精确位置信息等情报，确定其是否为交战目标
Track	持续跟踪目标，保持和更新目标的位置信息、身份信息等
Target	将目标分配给可用武器平台，为攻击做准备
Engage	结合情报信息进行机动，对目标进行攻击
Assess	评估交战结果，确定是否有必要重新攻击或采取其他后续行动

交战方	作战力量	主要作战行动

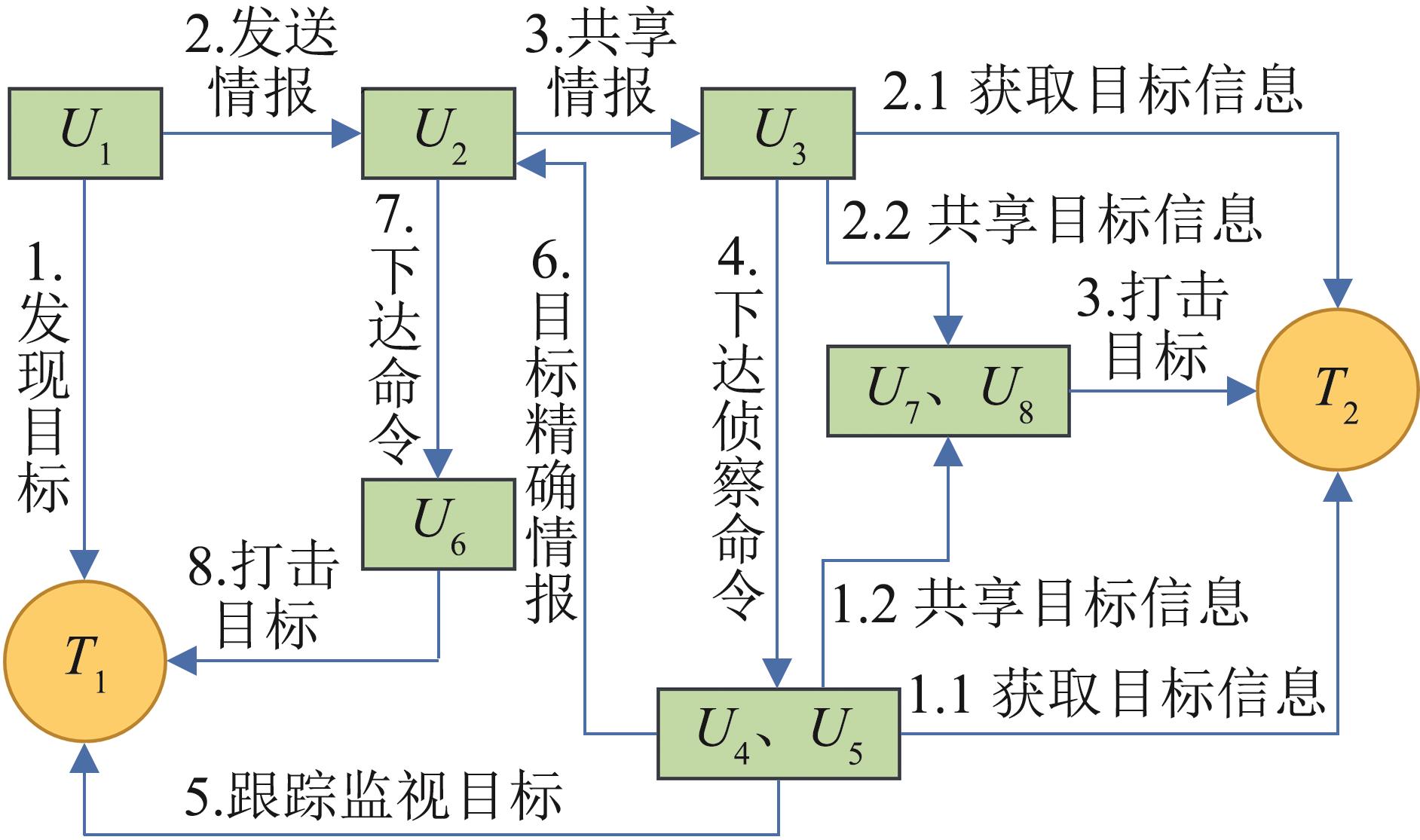

红方	天基信息系统U₁	发现蓝方目标并将情报信息发送至前沿指挥所
