考虑城市内部服务网络的城市群综合客运网络抗毁性研究

doi:10.16182/j.issn1004731x.joss.23-1451

摘要/Abstract

摘要：

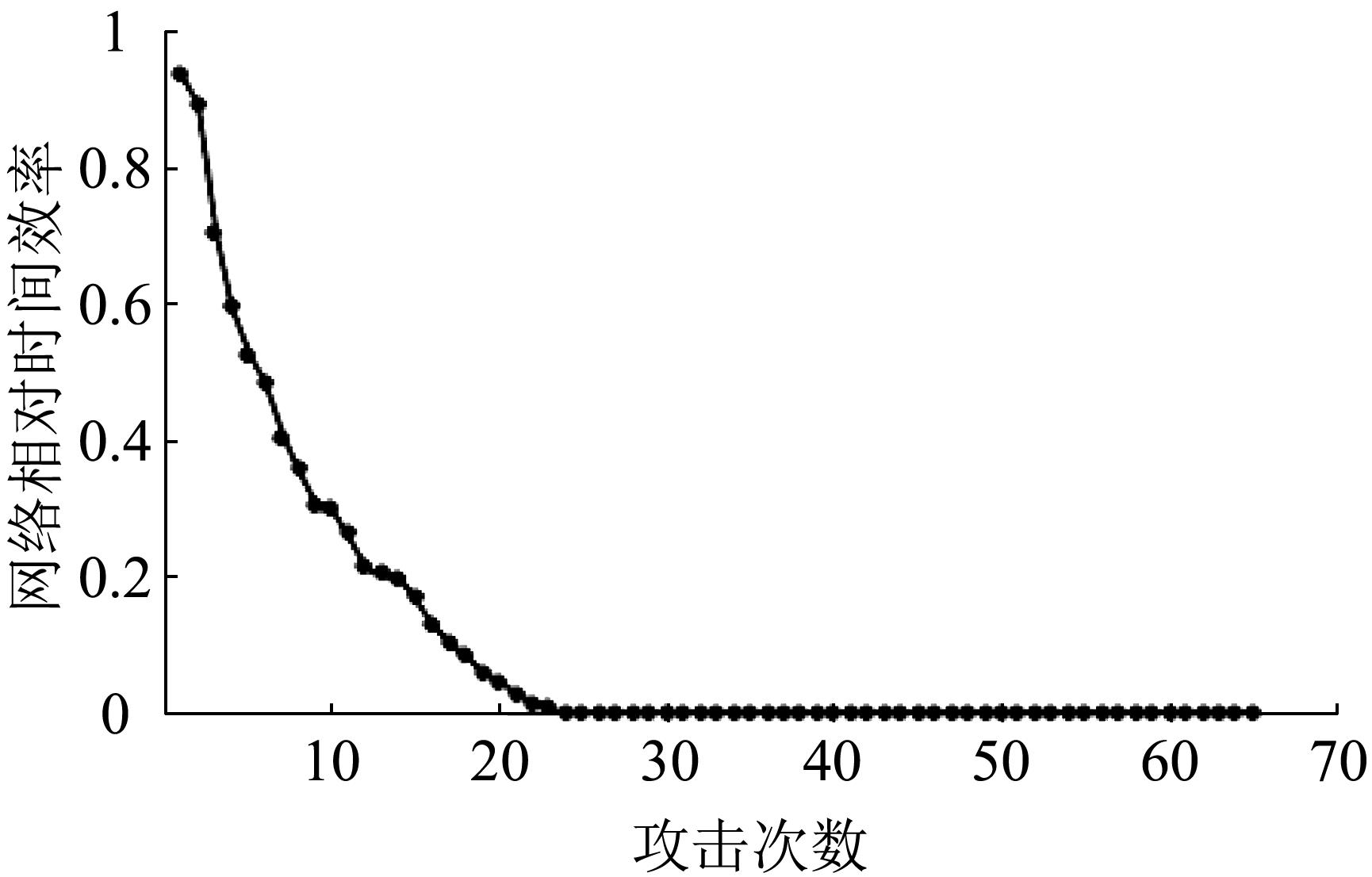

为解决城市群客运网络模型全面性和精细化不足的问题，采用复杂网络理论中Space L建模方法，构建考虑城市内部服务网络的城市群综合客运网络模型。构建由城际网络和城市内部服务网络复合构成的城市群综合客运网络，并考虑时间标定网络边权；提出考虑时间加权的网络时间效率模型评估网络抗毁性。仿真结果表明：随机性攻击策略下网络相对时间效率波动较小，城市群网络表现出较强的抗毁性；节点度攻击策略下，随着被攻击站点节点度的降低，前期网络效率呈断崖式下降，对整个网络造成毁灭性损害；逐一攻击策略下网络抗毁性会随攻击迭代的过程呈现波动性变化，能够识别关键站点。

关键词: 城市群, 复杂网络理论, 服务网络, MATSim, 抗毁性

Abstract:

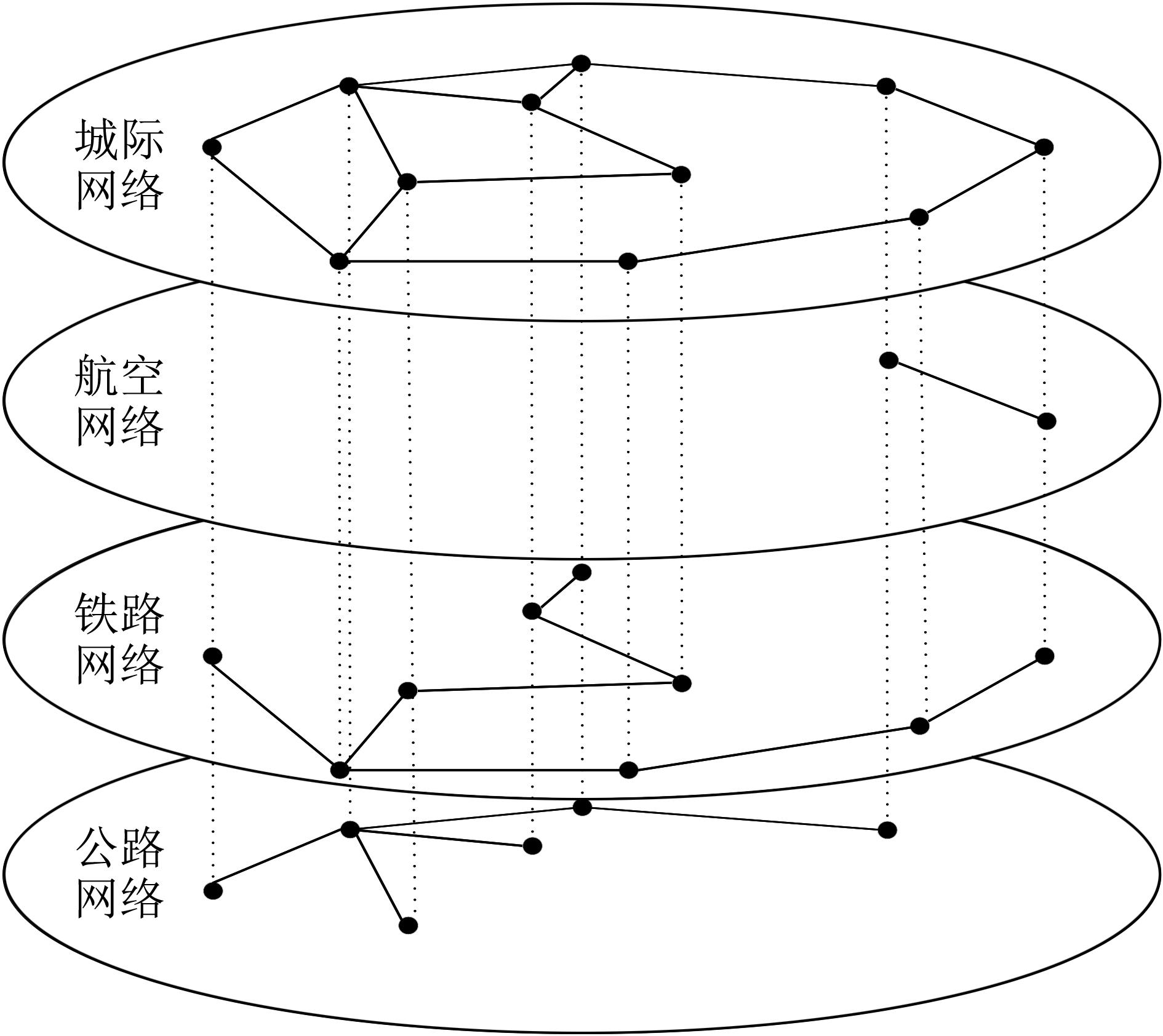

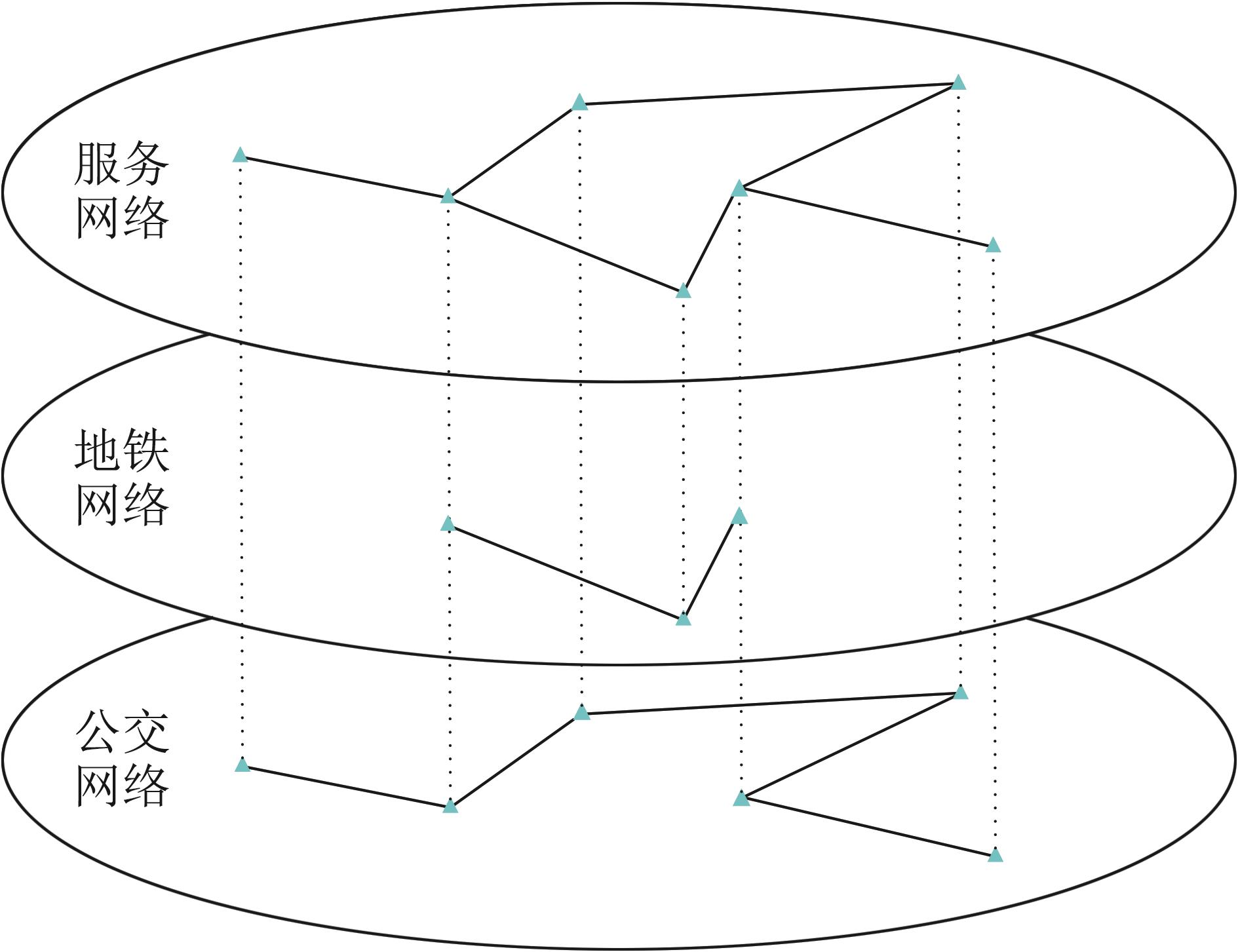

In order to solve the problem of insufficient comprehensiveness and refinement of the urban agglomeration passenger transport network model, Space L modelling method in complex network theory is adopted to construct a comprehensive urban passenger transport network model considering the urban internal service network. A comprehensive urban passenger transport network composed of intercity networks and intra-city service networks is built, and time-dependent edge weights in the network is considered. A time-weighted network efficiency model is proposed to evaluate the network resilience. The results show that under a random attack strategy, the relative time efficiency of the network fluctuates less, indicating strong resilience of the urban agglomeration network; under a node degree attack strategy, as the degree of attacked site node decreases, the early network efficiency shows a cliff-like decline, causing catastrophic damage to the entire network; Under an iterative attack strategy, the network resilience fluctuates with the attack process, identifying critical stations.

Key words: urban agglomeration, complex network theory, service networks, MATSim, resilience

中图分类号:

U113

聂士达,李成兵,贺博威等 . 考虑城市内部服务网络的城市群综合客运网络抗毁性研究[J]. 系统仿真学报, 2025, 37(4): 933-942.

Nie Shida,Li Chengbing,He Bowei,et al . Research on the Resilience of Integrated Urban Passenger Transport Network in Urban Agglomerations Considering the Intra-urban Service Network[J]. Journal of System Simulation, 2025, 37(4): 933-942.

图/表 12

图1

图2

图3

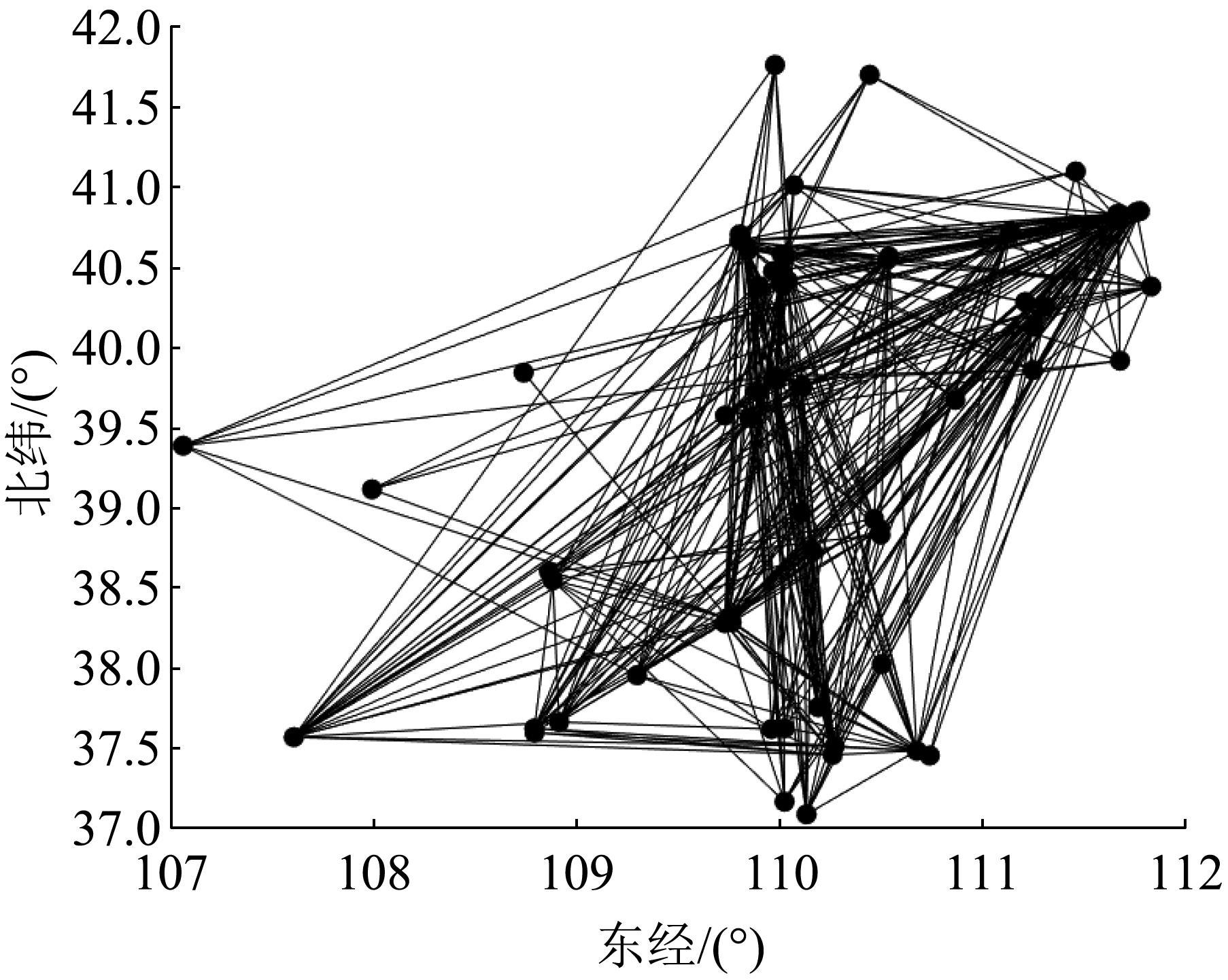

图4

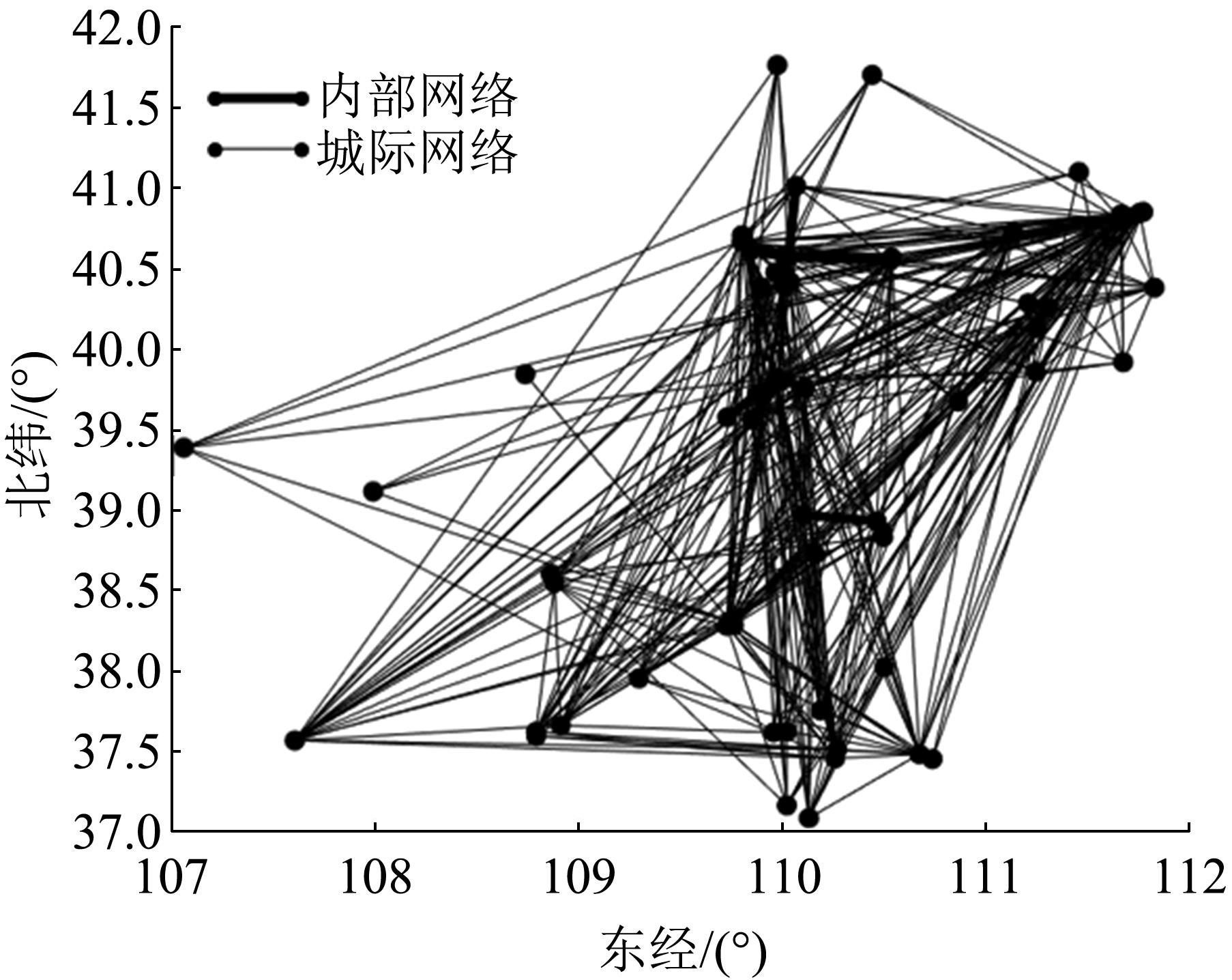

图5

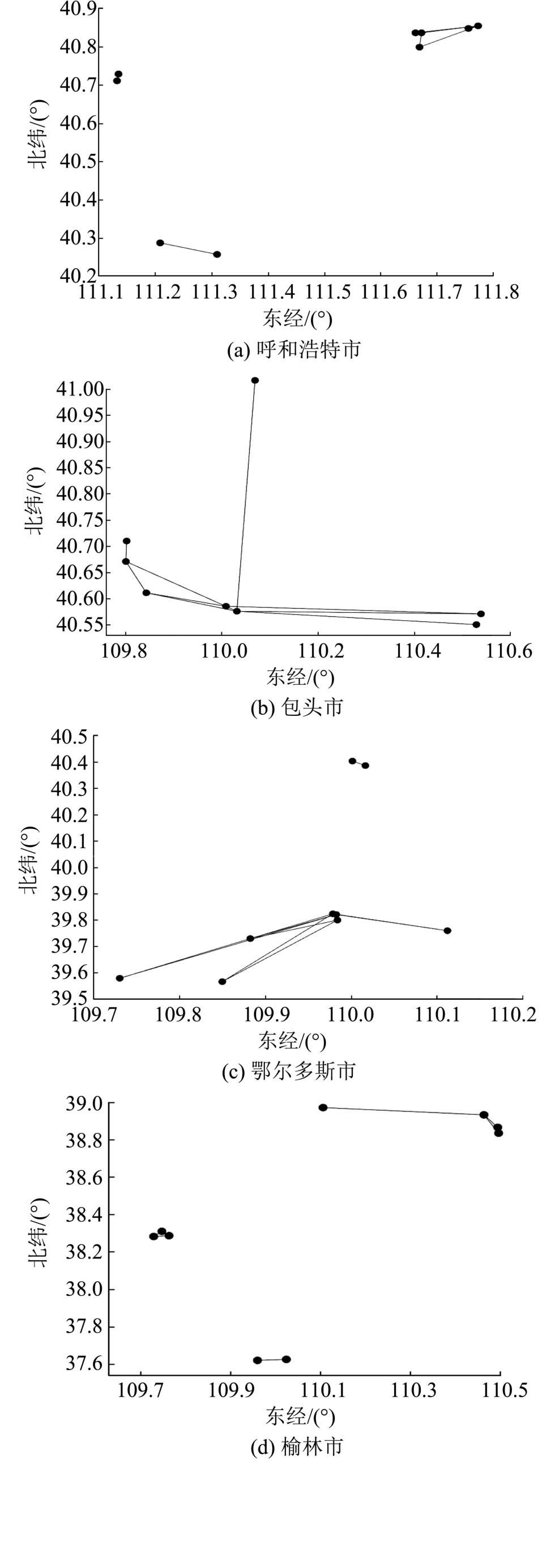

图6

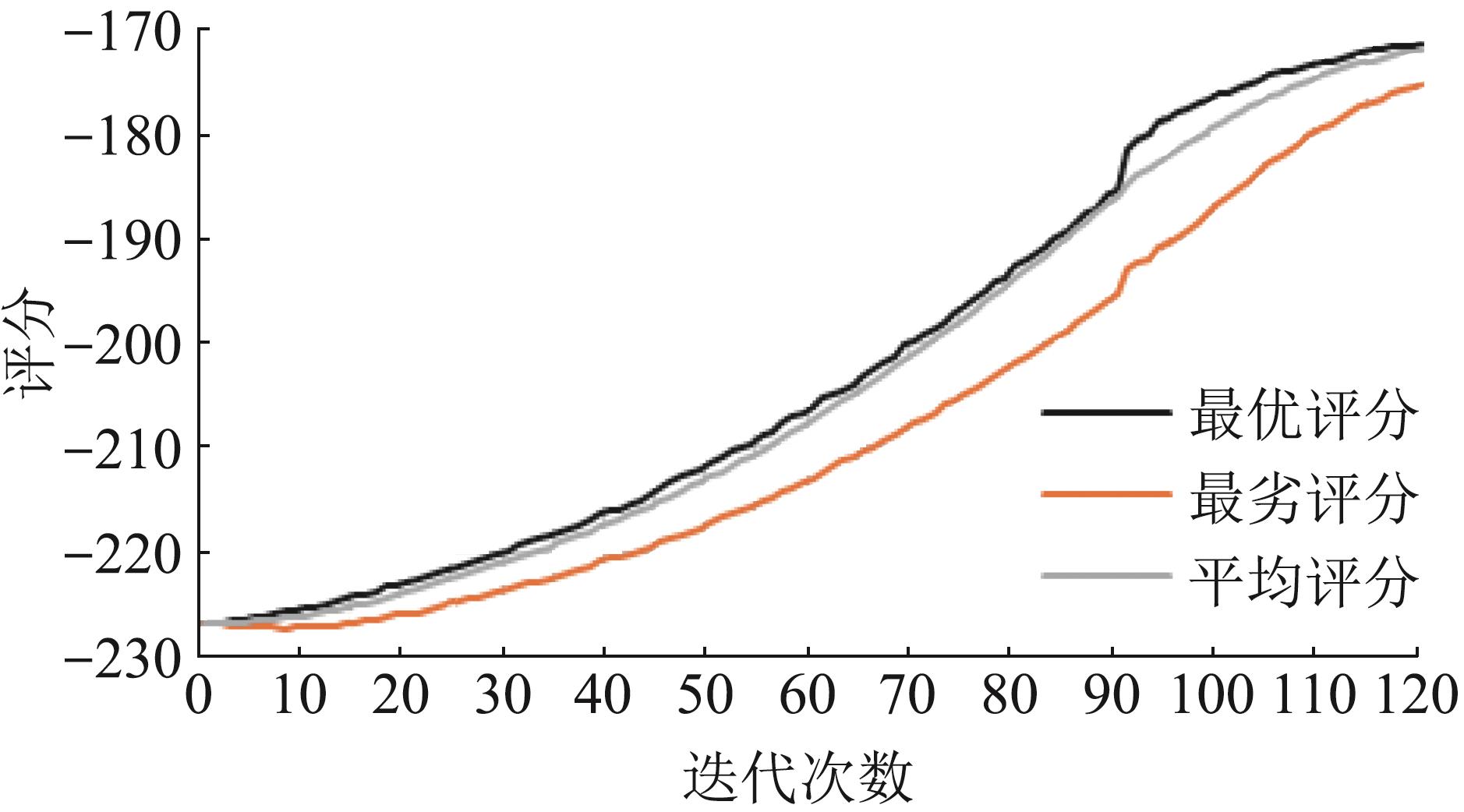

图7

图8

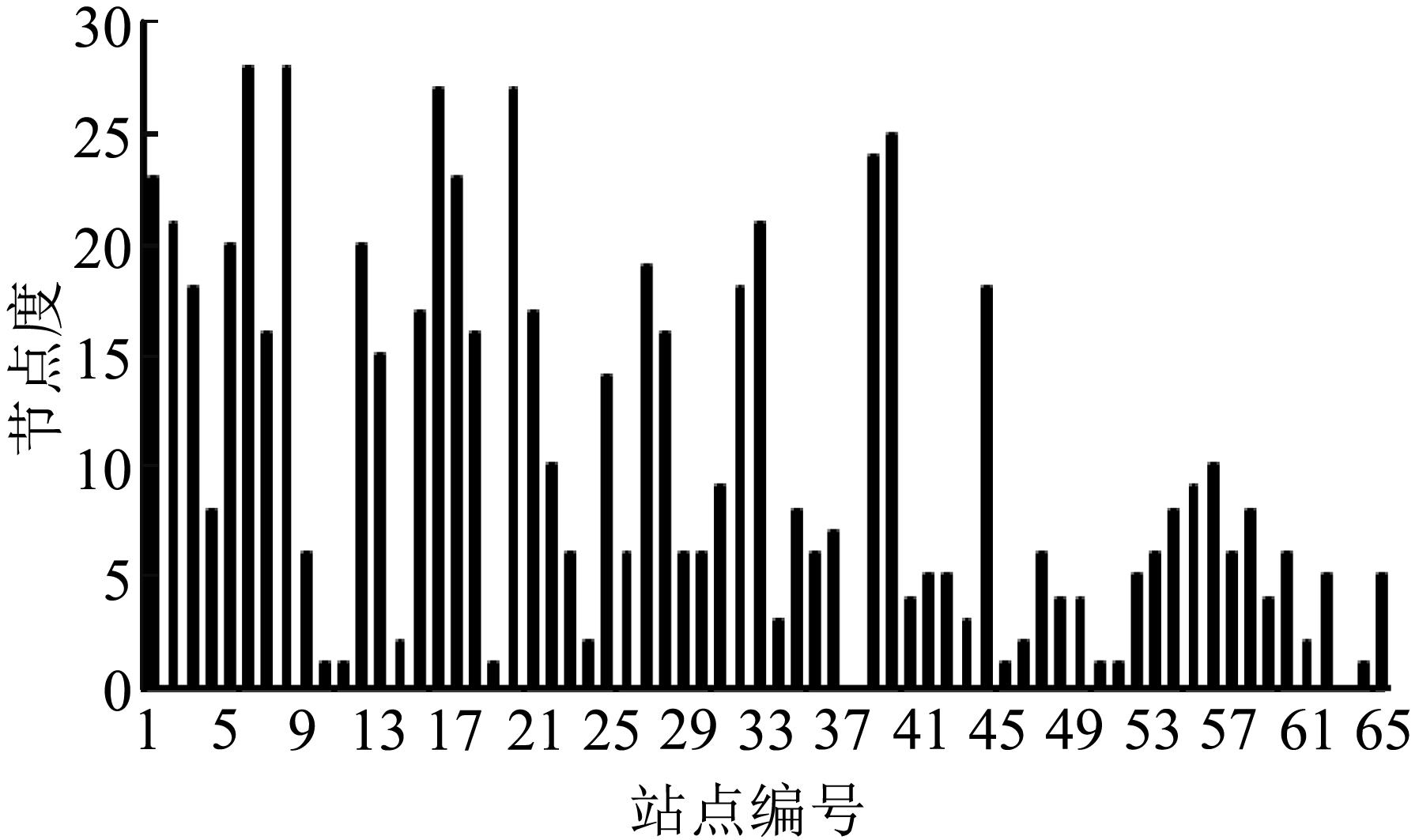

图9

图10

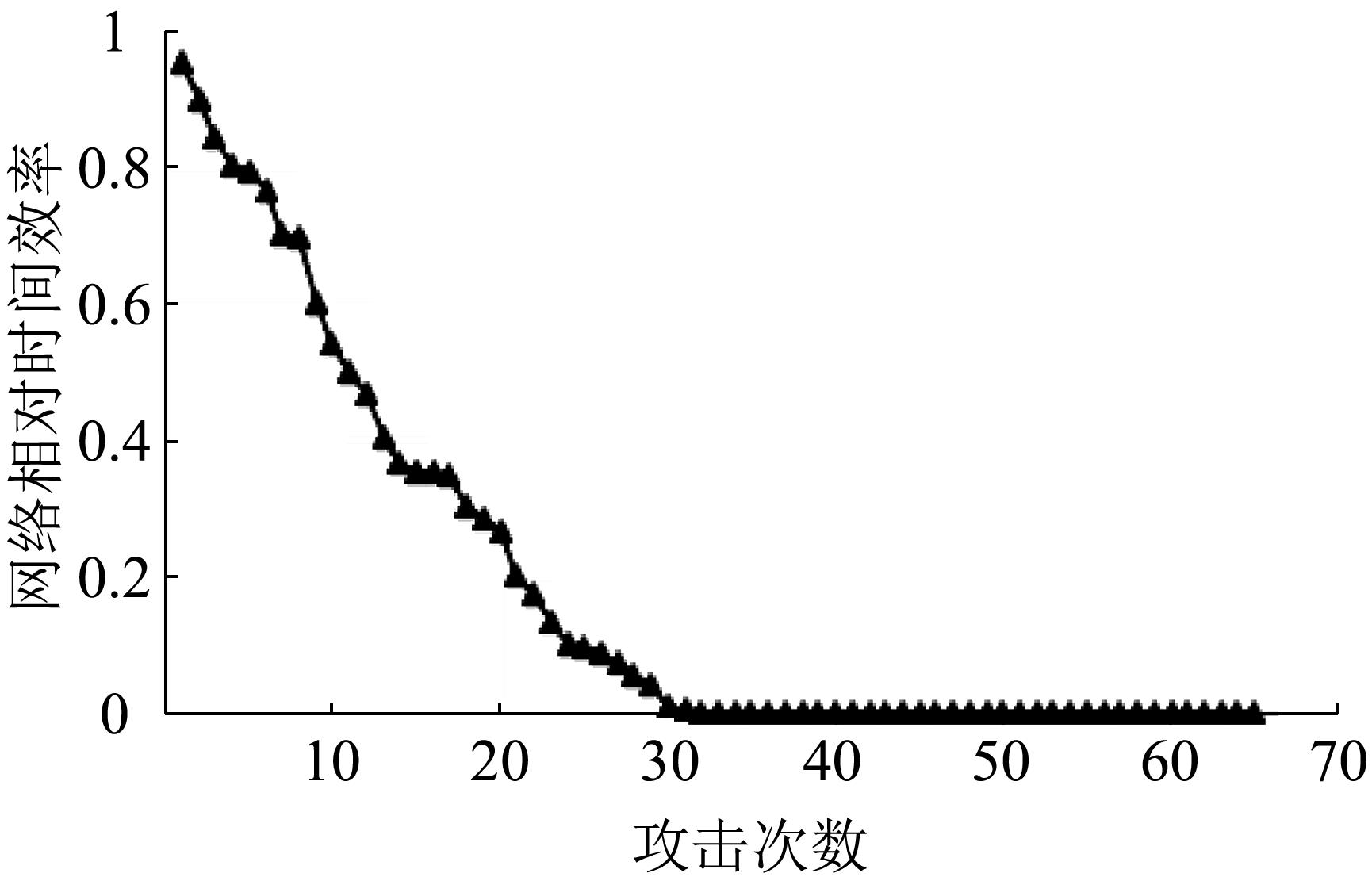

图11

表1

参考文献 24

1	封志明, 游世情, 游珍. 基于交通大数据网络的中国城市群空间识别和结构特征研究[J]. 地理研究, 2023, 42(7): 1729-1742.
	Feng Zhiming, You Shiqing, You Zhen. Spatial Identification and Structural Characteristics of Chinese Urban Agglomerations Based on Traffic Big Data Network[J]. Geographical Research, 2023, 42(7): 1729-1742.
2	马书红, 杨磊, 陈西芳. 风险扩散下城市群多模式交通网络的韧性演化[J]. 华南理工大学学报(自然科学版), 2023, 51(6): 42-51.
	Ma Shuhong, Yang Lei, Chen Xifang. Resilience Evolution of Multi-mode Transportation Network in Urban Agglomeration Based on Risk Diffusion[J]. Journal of South China University of Technology(Natural Science Edition), 2023, 51(6): 42-51.
3	李成兵, 张帅, 杨志成, 等. 蓄意攻击下城市群客运交通网络级联抗毁性仿真[J]. 交通运输系统工程与信息, 2019, 19(2): 14-21.
	Li Chengbing, Zhang Shuai, Yang Zhicheng, et al. Invulnerability Simulation in Urban Agglomeration Passenger Traffic Network Under Targeted Attacks[J]. Journal of Transportation Systems Engineering and Information Technology, 2019, 19(2): 14-21.
4	Li Chengbing, Yang Zhicheng, Zhu Yuan. Invulnerability Simulation of Urban Agglomeration Passenger Transport Network Under Incomplete Information Attack Strategy[J]. Advances in Civil Engineering, 2021, 2021(1): 6658299.
5	孙家庆, 李默涵, 修晓仪. 基于复杂网络理论的水上交通事故致因分析[J]. 大连海事大学学报, 2023, 49(2): 80-90, 160.
	Sun Jiaqing, Li Mohan, Xiu Xiaoyi. Causal Analysis of Water Traffic Accidents Based on Complex Network Theory[J]. Journal of Dalian Maritime University, 2023, 49(2): 80-90, 160.
6	Jia Jianlin, Chen Yanyan, Chen Ning, et al. Identifying Key Bus Stations Based on Complex Network Theory Considering the Hybrid Influence and Passenger Flow: A Case Study of Beijing, China[J]. Advances in Civil Engineering, 2020, 2020(1): 8824797.
7	Zhang Xu, Zhang Wei, Lee P T W. Importance Rankings of Nodes in the China Railway Express Network Under the Belt and Road Initiative[J]. Transportation Research Part A: Policy and Practice, 2020, 139: 134-147.
8	郭明健, 高岩. 基于复杂网络理论的电力网络抗毁性分析[J]. 复杂系统与复杂性科学, 2022, 19(4): 1-6.
	Guo Mingjian, Gao Yan. Invulnerability Analysis of Power Network Based on Complex Network[J]. Complex Systems and Complexity Science, 2022, 19(4): 1-6.
9	吴奇. 基于复杂网络理论的"一带一路"沿线国家天然气稀缺风险研究[D]. 镇江: 江苏大学, 2022.
	Wu Qi. Research on Natural Gas Scarcity Risk in Countries Along the "Belt and Road" Based on Complex Network Theory[D]. Zhenjiang: Jiangsu University, 2022.
10	陈晨. 基于复杂网络理论的地铁-公交复合网络脆弱性研究[D]. 大连: 大连海事大学, 2022.
	Chen Chen. Research on Vulnerability of Subway-bus Composite Network Based on Complex Network Theory[D]. Dalian: Dalian Maritime University, 2022.
11	尹航, 侯霁珊, 齐岳. 基于节点蓄意攻击的集群式供应链网络抗毁性研究[J/OL]. 中国管理科学. (2023-04-10) [2023-10-08]. .
	Yin Hang, Hou Jishan, Qi Yue. The Vulnerability of Cluster Supply Chain Networks Based on Deliberate Node Attack[J/OL]. Chinese Journal of Management Science. (2023-04-10) [2023-10-08]. .
12	李成兵, 李云飞, 吴鹏. 考虑时间特性的城市群客运网络抗毁性研究[J]. 系统仿真学报, 2022, 34(9): 2037-2045.
	Li Chengbing, Li Yunfei, Wu Peng. Study on Invulnerability of Urban Agglomeration Passenger Traffic Network Considering Time Characteristics[J]. Journal of System Simulation, 2022, 34(9): 2037-2045.
13	Wu Peng, Li Yunfei, Li Chengbing. Invulnerability of the Urban Agglomeration Integrated Passenger Transport Network Under Emergency Events[J]. International Journal of Environmental Research and Public Health, 2023, 20(1): 450.
14	赵瑞琳, 牟海波, 肖丁, 等. 基于复杂网络理论的城轨线网抗毁性对比分析[J]. 交通信息与安全, 2021, 39(3): 41-49.
	Zhao Ruilin, Mou Haibo, Xiao Ding, et al. A Contrastive Analysis of Survivability of Urban Rail Network Based on Complex Network Theory[J]. Journal of Transport Information and Safety, 2021, 39(3): 41-49.
15	Li Tao, Rong Lili, Yan Kesheng. Vulnerability Analysis and Critical Area Identification of Public Transport System: A Case of High-speed Rail and Air Transport Coupling System in China[J]. Transportation Research Part A: Policy and Practice, 2019, 127: 55-70.
16	刘杰, 陈锦渠, 彭其渊, 等. 城市轨道交通网络可靠性和运输服务质量评估[J]. 西南交通大学学报, 2021, 56(2): 395-402, 450.
	Liu Jie, Chen Jinqu, Peng Qiyuan, et al. Reliability and Service Quality Evaluation for Urban Rail Transit Network[J]. Journal of Southwest Jiaotong University, 2021, 56(2): 395-402, 450.
17	卢勇利, 朱昌锋, 侯耀文. 城市轨道交通车站应急疏散方案决策研究[J]. 中国安全生产科学技术, 2019, 15(3): 128-134.
	Lu Yongli, Zhu Changfeng, Hou Yaowen. Research on Decision-making of Emergency Evacuation Scheme for Urban Rail Transit Station[J]. Journal of Safety Science and Technology, 2019, 15(3): 128-134.
18	徐敏. 基于客流的地铁网络节点重要度评价方法[J]. 山东交通学院学报, 2021, 29(4): 39-45.
	Xu Min. Evaluation Method of Node Importance of Subway Network Based on Passenger Flow[J]. Journal of Shandong Jiaotong University, 2021, 29(4): 39-45.
19	杨景峰, 朱大鹏, 赵瑞琳. 城轨网络站点重要度评估与级联失效抗毁性分析[J]. 中国安全科学学报, 2022, 32(8): 161-167.
	Yang Jingfeng, Zhu Dapeng, Zhao Ruilin. Evaluation of Station Importance and Cascading Failure Resistance Analysis of Urban Rail Transit Network[J]. China Safety Science Journal, 2022, 32(8): 161-167.
20	聂士达, 李成兵, 李云飞, 等. 城市群客运网络被动应急策略动态仿真研究[J]. 内蒙古大学学报(自然科学版), 2022, 53(6): 636-643.
	Nie Shida, Li Chengbing, Li Yunfei, et al. Dynamic Simulation Study on Passive Emergency Strategy for Passenger Transport Network in Urban Agglomeration[J]. Journal of Inner Mongolia University(Natural Science Edition), 2022, 53(6): 636-643.
21	聂士达, 李成兵, 贺博威. 基于MATSim的城市群客运网络疏散行为分析和策略研究[J]. 内蒙古大学学报(自然科学版), 2023, 54(5): 491-498.
	Nie Shida, Li Chengbing, He Bowei. Analysis and Strategy Research on Emergency Evacuation Behavior of Urban Agglomeration Passenger Network Based on MATSim[J]. Journal of Inner Mongolia University(Natural Science Edition), 2023, 54(5): 491-498.
22	吕彪, 管心怡, 高自强. 地铁网络服务韧性评估与最优恢复策略[J]. 交通运输系统工程与信息, 2021, 21(5): 198-205, 221.
	Biao Lü, Guan Xinyi, Gao Ziqiang. Evaluation and Optimal Recovery Strategy of Metro Network Service Resilience[J]. Journal of Transportation Systems Engineering and Information Technology, 2021, 21(5): 198-205, 221.
23	詹斌, 袁野, 杨世武, 等. 基于加权网络的城市轨道交通网络特性与级联失效分析[J]. 武汉理工大学学报(信息与管理工程版), 2022, 44(6): 917-923, 929.
	Zhan Bin, Yuan Ye, Yang Shiwu, et al. Analysis of the Structural Characteristics and Cascading Failure of Urban Rail Transit Network Based on Weighted Network Model[J]. Journal of Wuhan University of Technology(Information & Management Engineering), 2022, 44(6): 917-923, 929.
24	郑乐, 高良鹏, 陈学武, 等. 地铁-公交加权复合网络关键站点识别及鲁棒性研究[J]. 交通运输系统工程与信息, 2023, 23(5): 120-129.
	Zheng Le, Gao Liangpeng, Chen Xuewu, et al. Critical Stations Identification and Robustness Analysis of Weighted Metro-Bus Composite Network[J]. Journal of Transportation Systems Engineering and Information Technology, 2023, 23(5): 120-129.

站点编号	站点名称	网络相对时间效率
65	清水河汽车站	0.995 684 20
64	绥德汽车站	0.994 589 64
38	神木汽车站	0.993 125 47
19	双龙汽车站	0.990 254 76
10	乌克图客运站	0.990 123 86
