考虑近邻度值之和的城市轨道网络抗毁性研究

doi:10.16182/j.issn1004731x.joss.23-0612

摘要/Abstract

摘要：

为解决城市轨道交通站点或线路失效引发的网络级联瘫痪问题，考虑了网络节点一阶邻域的影响作用，基于非线性容量负载模型，提出了负载分配阻抗系数，并建立了考虑近邻度值之和的非线性容量负载优化模型，通过优化负载结构来调整节点在负载重分配时的备择概率，减少级联过程中节点的失效数，提高网络抗毁性。以重庆市轨道网络为实例应用，仿真分析网络在两种模型下的抗毁性。结果表明：优化模型中负载容忍系数的增大对网络抗毁性的改善效果更显著；优化模型中节点的负载分配阻抗系数越大，节点在负载重分配时的备择概率越低，越不容易发生级联过载。

关键词: 轨道网络, 非线性容量负载模型, 近邻度值之和, 负载分配阻抗系数, 抗毁性

Abstract:

In order to solve the problem of network cascade paralysis caused by urban rail station or line failure, considering the influence of the first-order neighborhood of network nodes, the load distribution impedance coefficient is proposed based on the nonlinear capacity load model, and a nonlinear capacity load optimization model considering the sum of the neighbors degree is constructed. By optimizing load structure, the alternative probability of nodes during load redistribution is adjusted to reduce the number of node failures in the cascading process, thereby the rail network invulnerability is improved. Taking Chongqing rail network as an example, the rail network invulnerability under the two models was analyzed by simulation. The results show that the increase of load tolerance coefficient in the optimization model has a more significant effect on the improvement of network invulnerability. The larger the load distribution impedance coefficient of nodes in the optimization model, the lower the backup probability during load redistribution，the less likely to experience cascading overload.

Key words: rail network, nonlinear capacity load model, sum of the neighbor degree, load distribution impedance coefficient, invulnerability

中图分类号:

TP391.9

李淑庆,宋易宵,钟国剑 . 考虑近邻度值之和的城市轨道网络抗毁性研究[J]. 系统仿真学报, 2024, 36(9): 2127-2136.

Li Shuqing,Song Yixiao,Zhong Guojian . Study on Invulnerability of Urban Rail Network Considering Sum of the Neighbors Degree[J]. Journal of System Simulation, 2024, 36(9): 2127-2136.

图/表 10

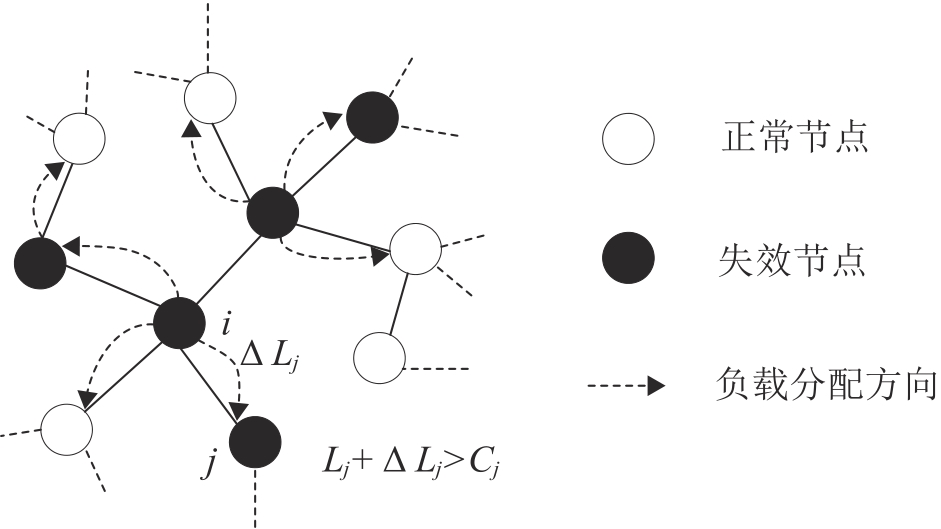

图1

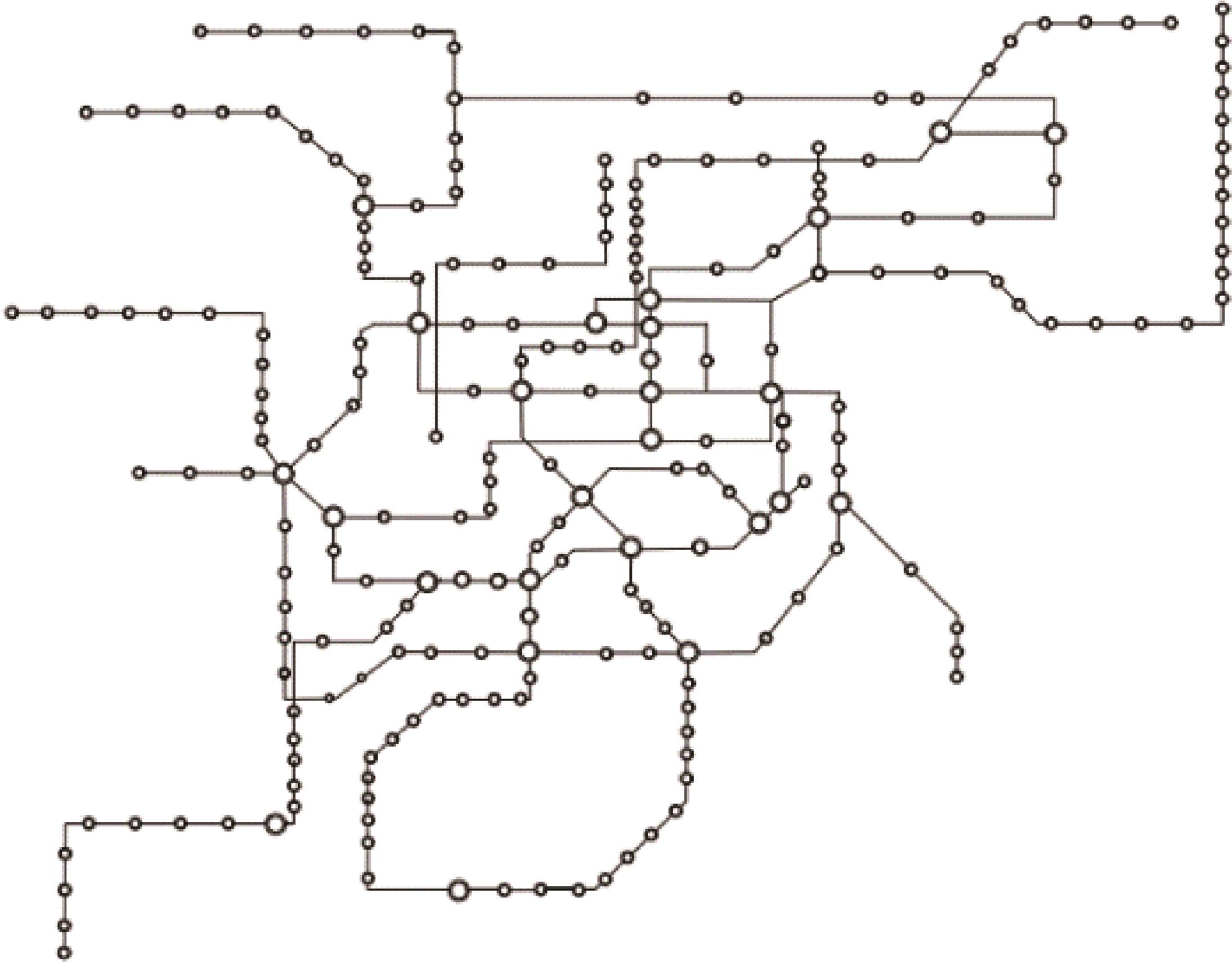

图2

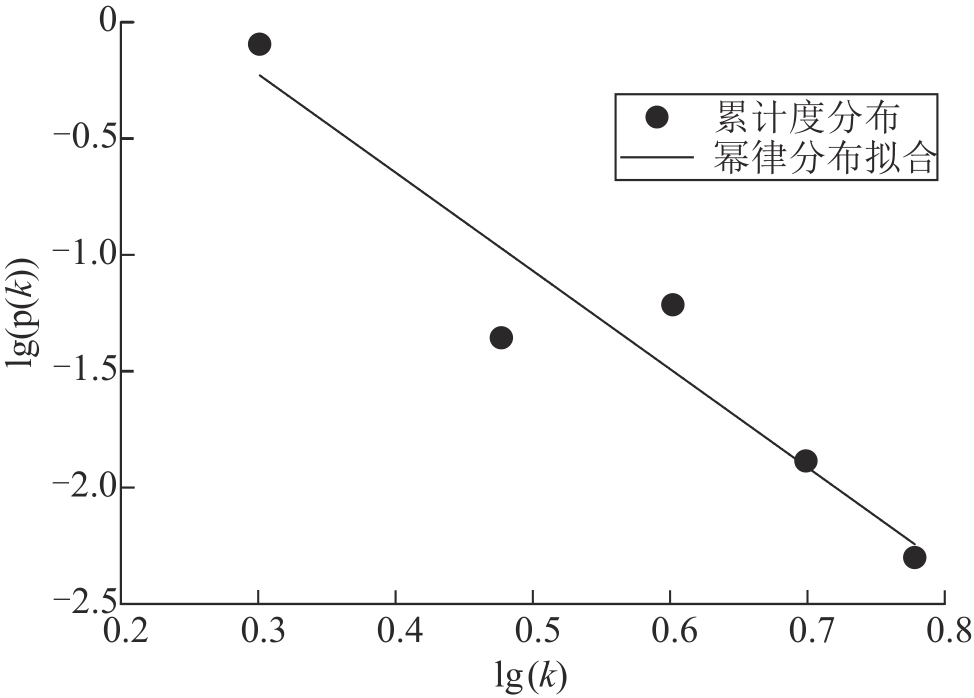

图3

表1

重庆市轨道网络关键站点

站点编号	站点名称	$D c, i$
72	重庆北站南广场	0.026 3
12	沙坪坝	0.021 9
126	冉家坝	0.021 9
150	五里店	0.021 9
19	大坪	0.017 5
21	两路口	0.017 5
24	小什字	0.017 5
39	谢家湾	0.017 5
43	牛角沱	0.017 5
61	四公里	0.017 5
66	观音桥	0.017 5
67	红旗河沟	0.017 5
92	重庆北站北广场	0.017 5
93	保税港	0.017 5
120	重庆西站	0.017 5
149	红土地	0.017 5
153	上新街	0.017 5
186	上湾路	0.017 5

表1

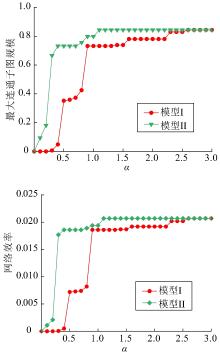

图4

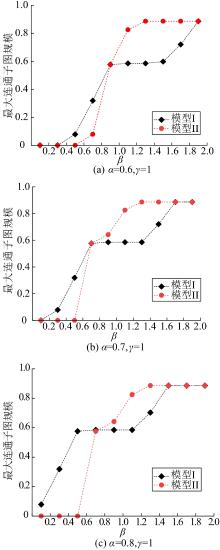

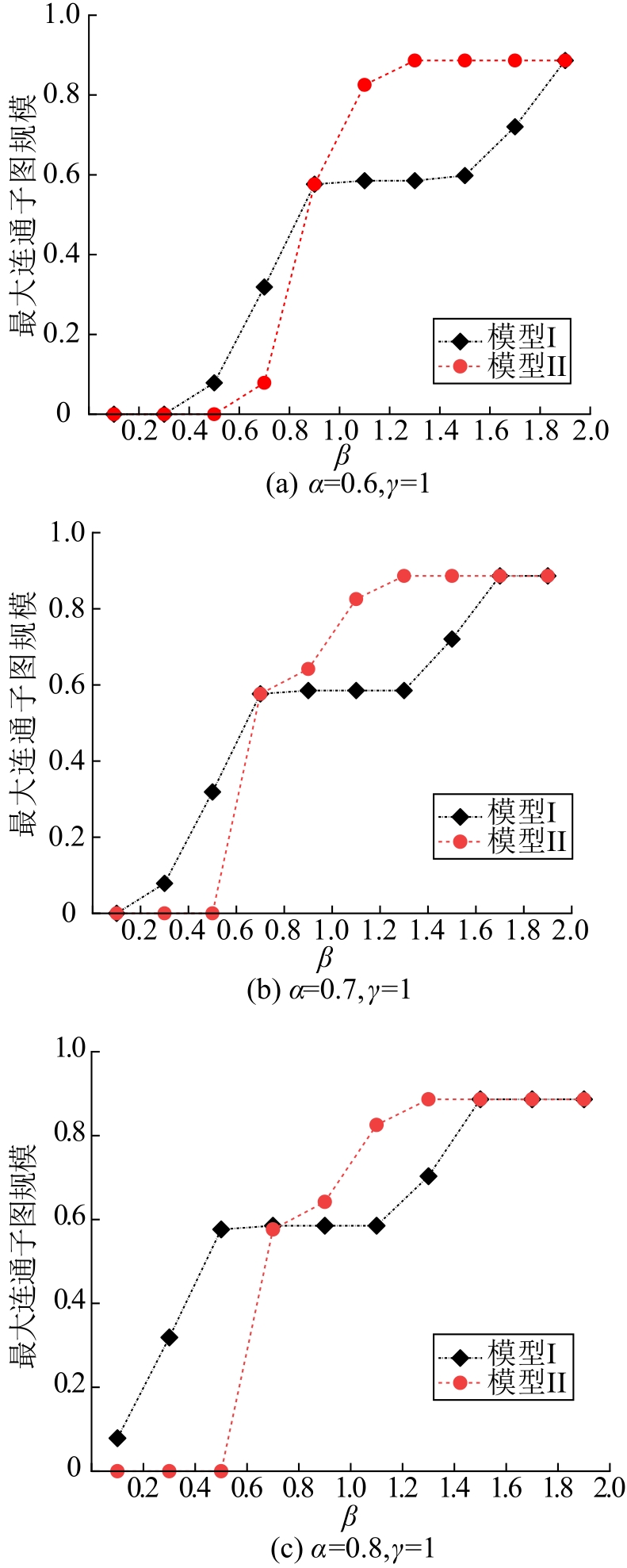

图5

表2

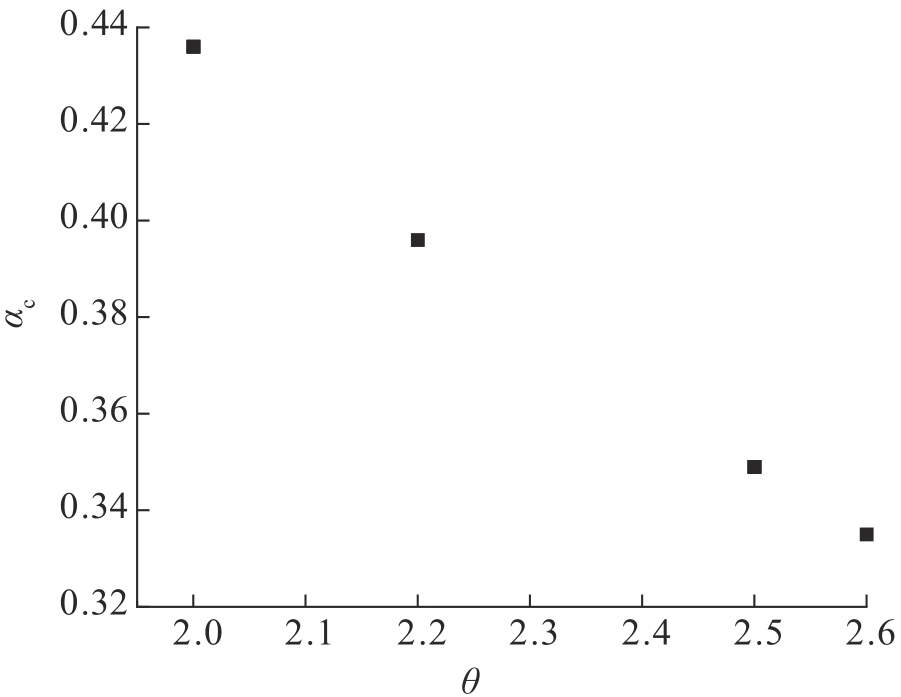

网络度值排名前10的节点θ与αc值（β=1.2、γ=1）

节点名称	$∑ n ∈ Γ i k n$	$k i$	$θ i$	$α c$
重庆北站南广场	15	6	2.5	0.349
沙坪坝	11	5	2.2	0.396
冉家坝	11	5	2.2	0.396
五里店	13	5	2.6	0.335
大坪	8	4	2.0	0.436
两路口	10	4	2.5	0.349
小什字	10	4	2.5	0.349
谢家湾	8	4	2.0	0.436
牛角沱	10	4	2.5	0.349
四公里	8	4	2.0	0.436

表2

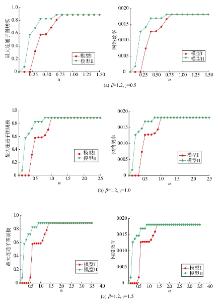

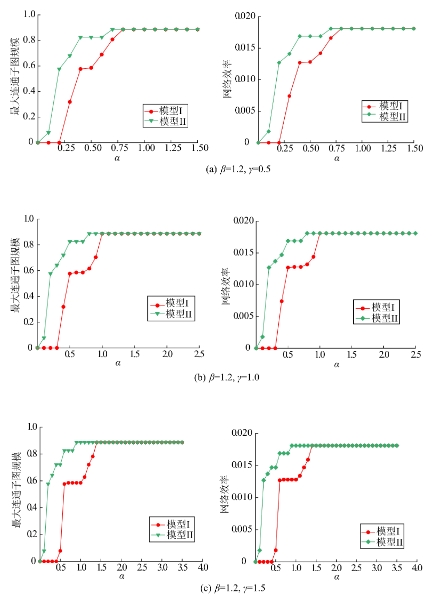

图6

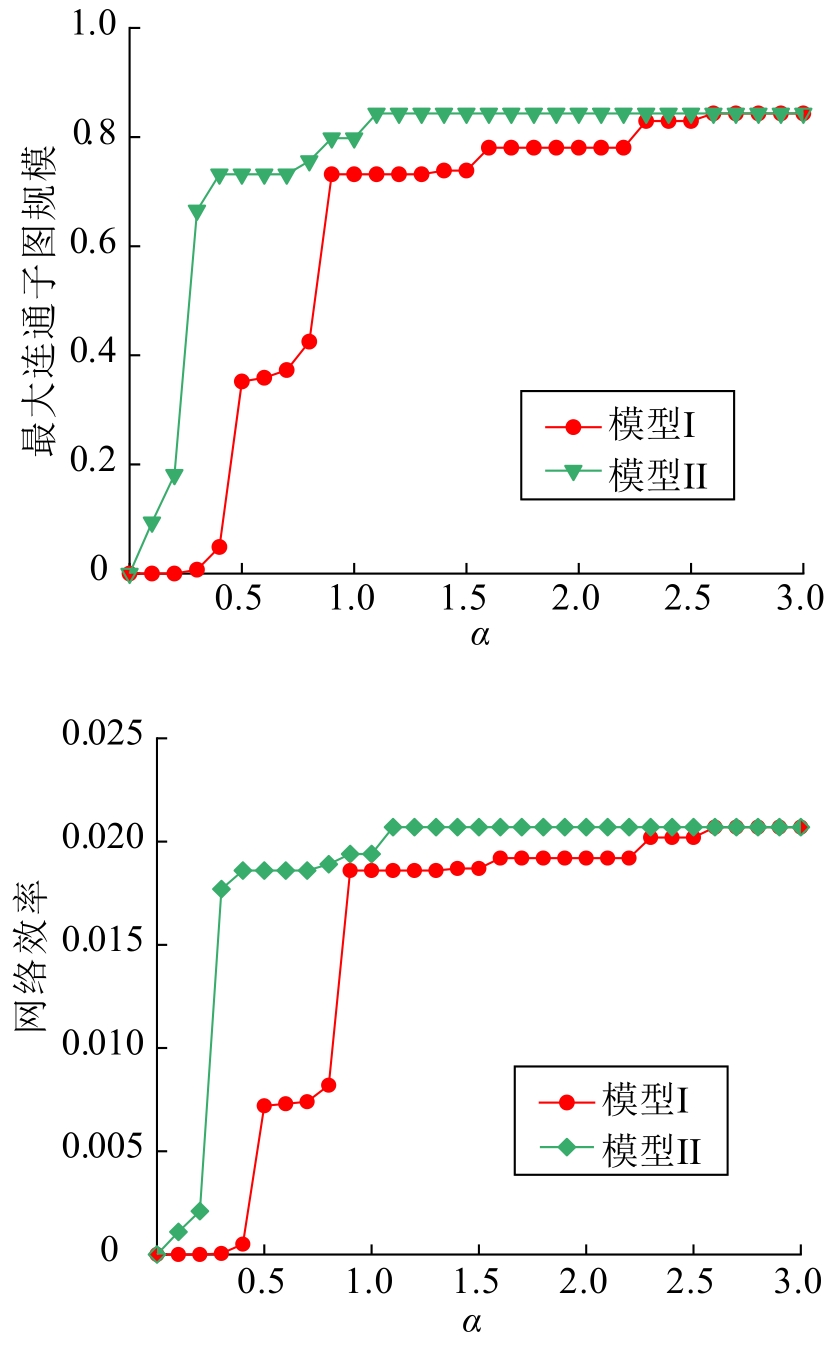

图7

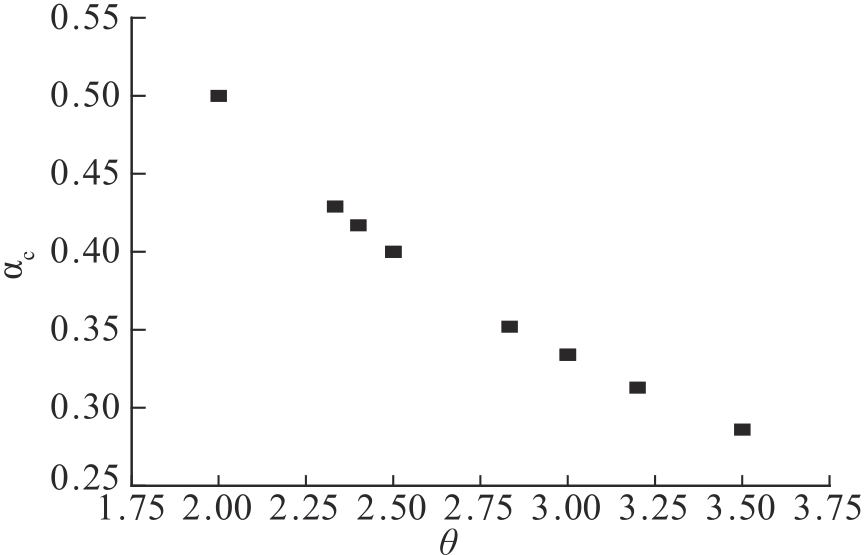

图8
