基于多智能体的城市群客运网络脆弱性动态仿真

doi:10.16182/j.issn1004731x.joss.22-0200

系统仿真学报 ›› 2023, Vol. 35 ›› Issue (6): 1183-1190.doi: 10.16182/j.issn1004731x.joss.22-0200

基于多智能体的城市群客运网络脆弱性动态仿真

李成兵¹(), 李云飞², 吴鹏²

^1.内蒙古大学交通学院，内蒙古呼和浩特 010070
^2.北京交通大学交通运输学院，北京 100044

收稿日期:2022-03-10 修回日期:2022-05-26 出版日期:2023-06-29 发布日期:2023-06-20
作者简介:李成兵(1982-)，男，教授，博士，研究方向为交通运输系统仿真与优化。Email:bingbingnihao2008@126.com
基金资助:
国家自然科学基金(62063023);内蒙古自治区高等学校青年科技英才支持计划(NJYT22099);内蒙古自治区自然科学基金(2019MS05083)

Dynamic Simulation of Urban Agglomeration Passenger Transport Network Vulnerability Based on Multi-agent

Chengbing Li¹(), Yunfei Li², Peng Wu²

^1.School of Transportation, Inner Mongolia University, Hohhot 010070, China
^2.School of Traffic and Transportation, Beijing Jiaotong University, Beijing 100044, China

Received:2022-03-10 Revised:2022-05-26 Online:2023-06-29 Published:2023-06-20

摘要/Abstract

摘要：

研究城市群综合客运交通网络脆弱性有助于保障城际出行的运输效率。为了更符合实际情况，采用多层复杂网络理论建立城市群综合客运网络，考虑城市交通换乘因素，利用实际客流标定站点负载及容量，构建网络级联失效动态模型，并用多智能体模型模拟实际客流，通过迪杰斯特拉算法寻找最短路径，并提出时空维度的脆弱性评价指标。实例动态仿真采用呼包鄂榆城市群，结果表明：大部分火车站受到攻击后对网络的影响范围及时间较大；站点受到攻击后对网络的影响范围与持续时间没有明显关系。

关键词: 城市群交通, 客运网络, 多智能体模型, 脆弱性, 动态仿真

Abstract:

Research on vulnerability of comprehensive passenger transportation network in urban agglomerations helps to ensure the transportation efficiency of intercity travel. A comprehensive passenger transport network model of urban agglomeration is built based on multi-layer complex network theory. Urban transportation transfer factors are considered, actual passenger flow is used to calibrate the station load and capacity and a dynamic model of network cascading failure is constructed. Multi-agents are used to simulate the actual passenger flow, Dijkstra algorithm is used to find the shortest path, and two time-dimensional vulnerability evaluation indicators are proposed. MATLAB is used to carry out the dynamic simulation of Hubao-Eyu urban agglomeration. The results show that most train stations have obvious range and time, impact on the network after being attacked, but the duration is not significantly different from the bus stations. The impact on the network of different sites being attacked has no obvious relationship with the duration.

Key words: urban agglomeration transport, passenger traffic network, multi-agent, vulnerability, dynamic simulation

中图分类号:

TP391

李成兵, 李云飞, 吴鹏. 基于多智能体的城市群客运网络脆弱性动态仿真[J]. 系统仿真学报, 2023, 35(6): 1183-1190.

Chengbing Li, Yunfei Li, Peng Wu. Dynamic Simulation of Urban Agglomeration Passenger Transport Network Vulnerability Based on Multi-agent[J]. Journal of System Simulation, 2023, 35(6): 1183-1190.

图/表 8

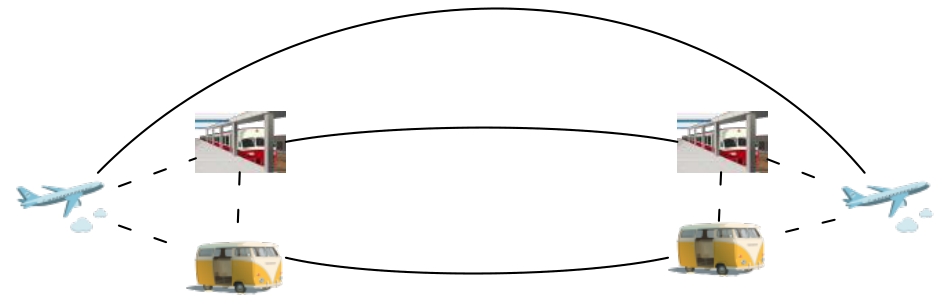

图1

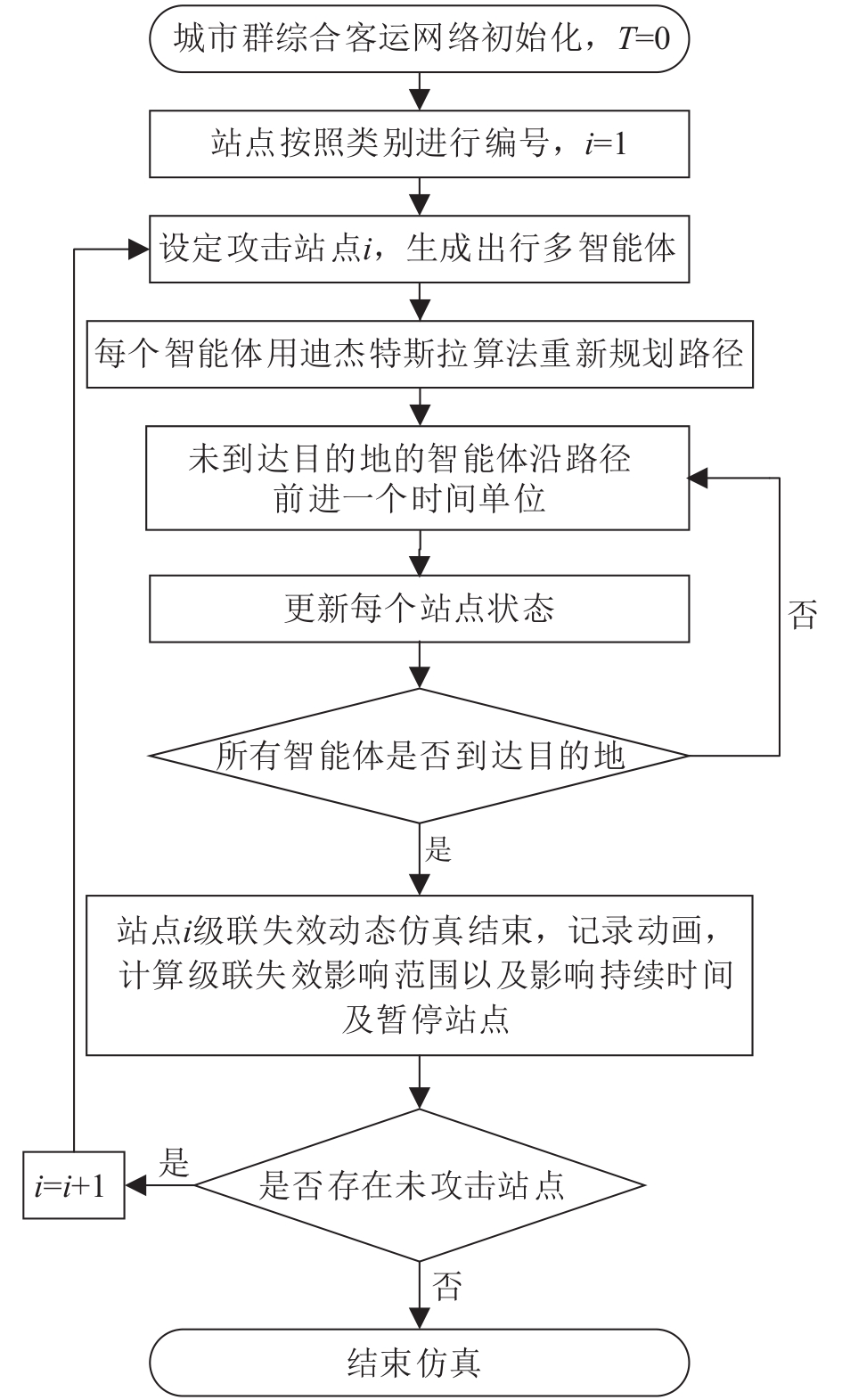

图2

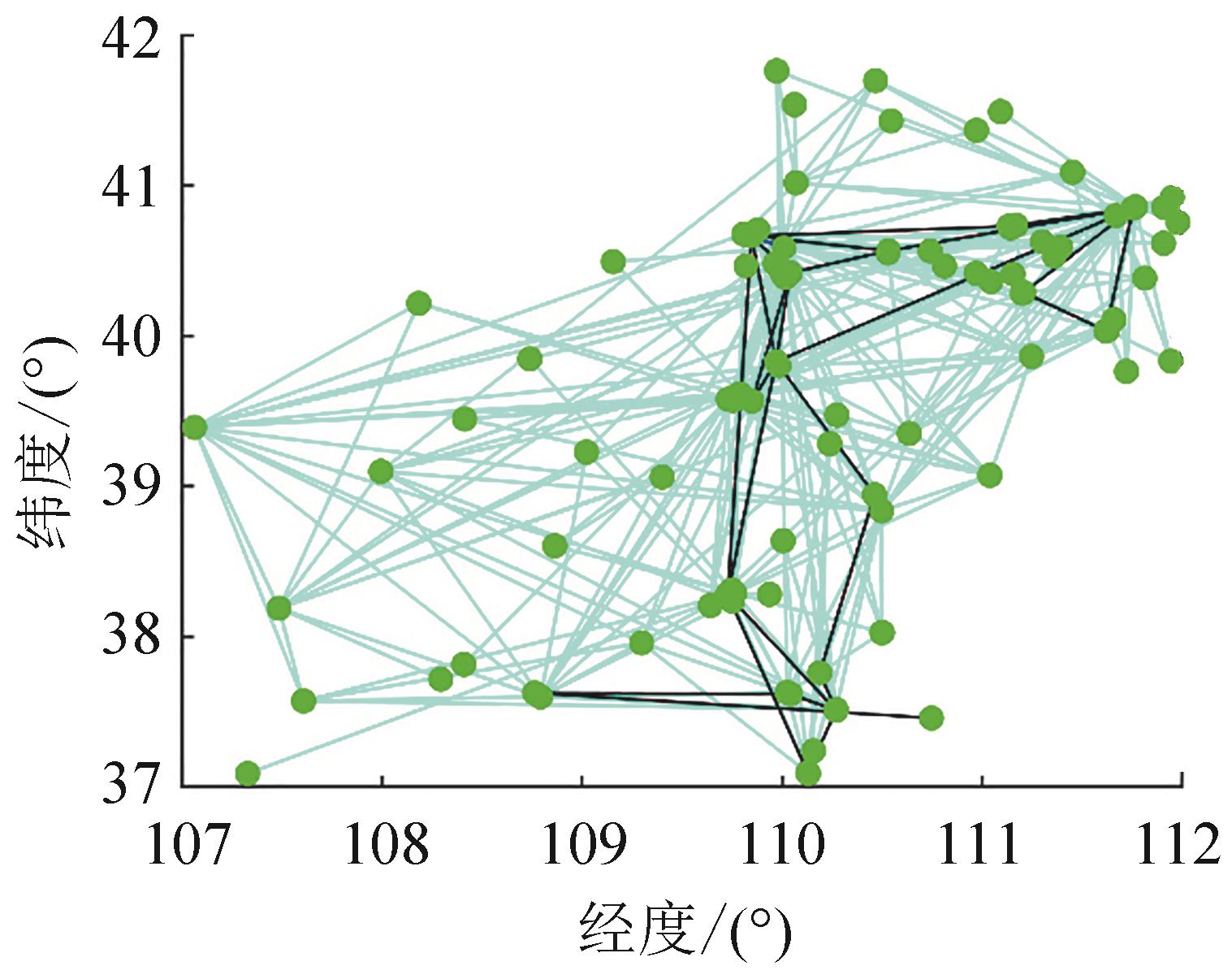

图3

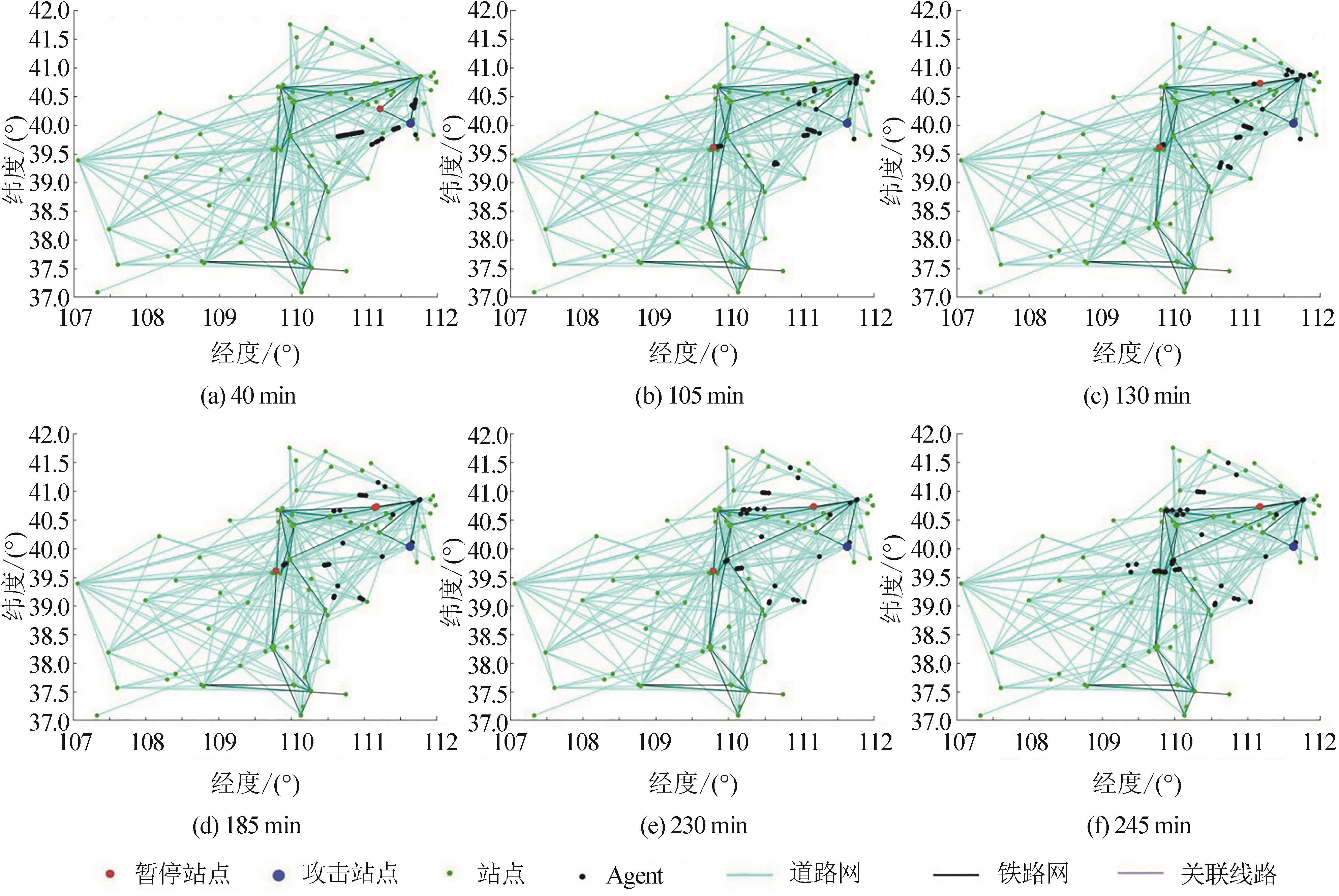

图4

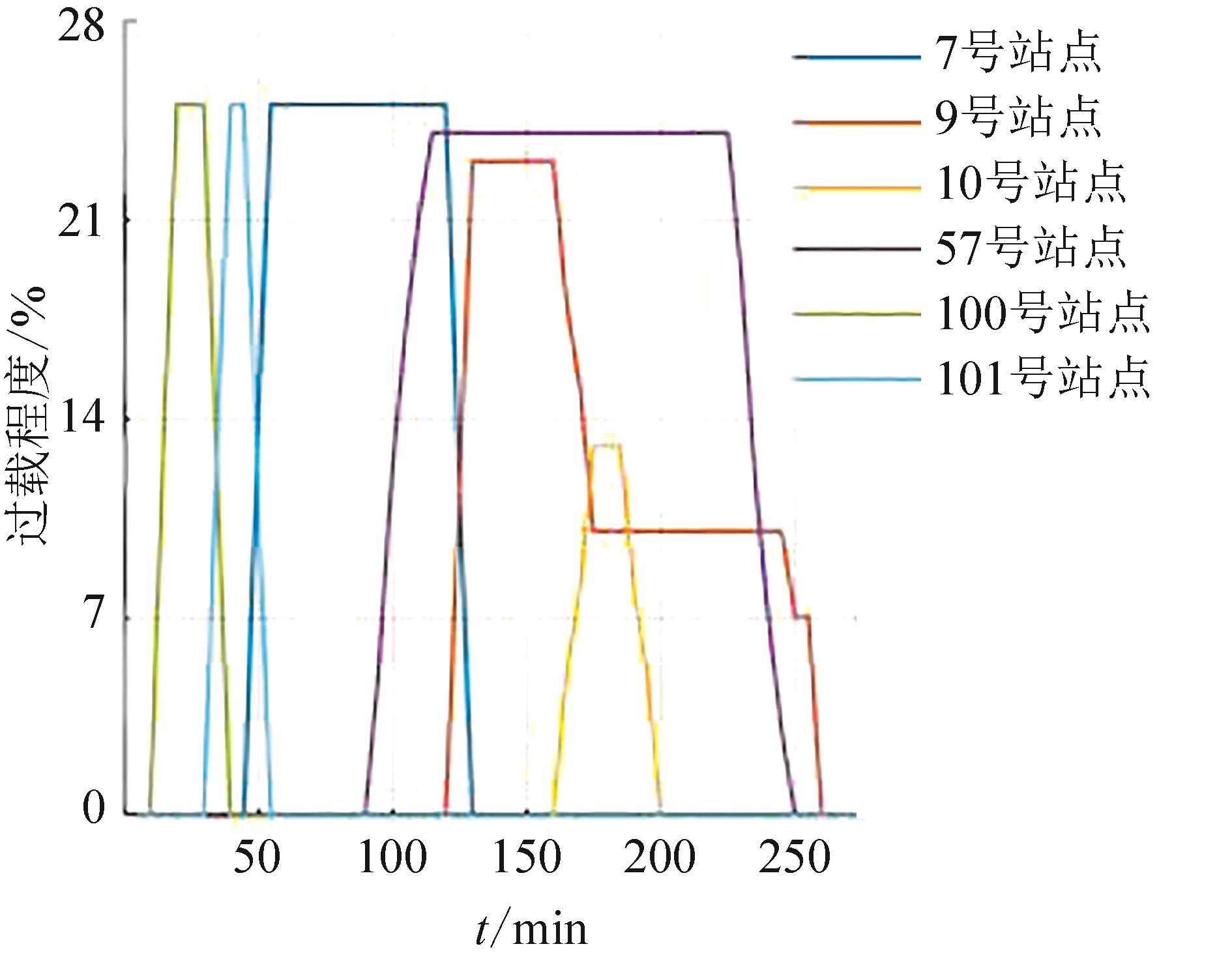

图5

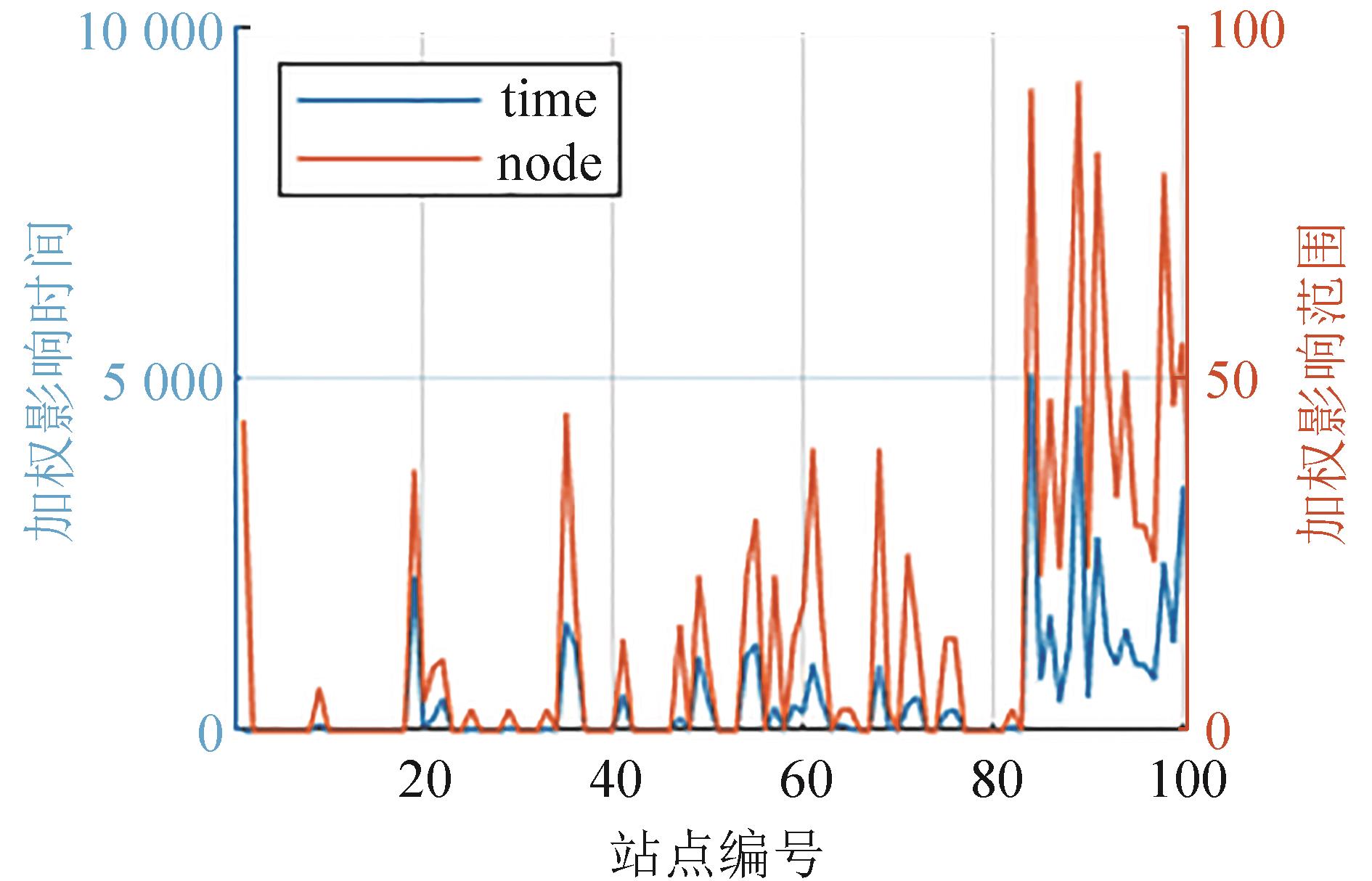

图6

表1

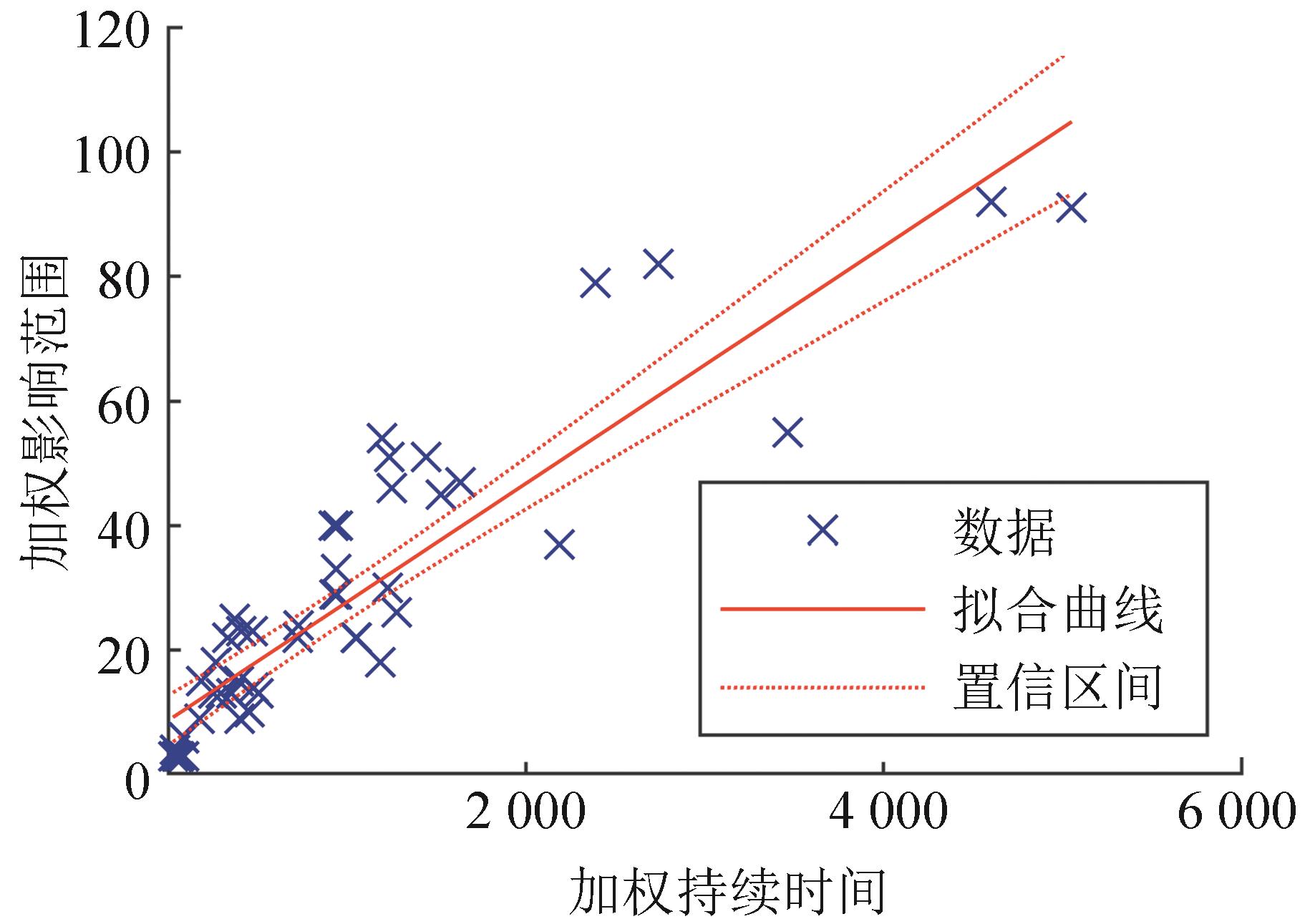

图7

参考文献 15

1	黄敏, 钮中铭, 张小兰, 等. 基于GIS-T的交通仿真路网构建研究[J]. 系统仿真学报, 2017, 29(3): 531-536.
	Huang Min, Niu Zhongming, Zhang Xiaolan, et al. Research of the Construction of GIS-T Traffic Simulation Road Network[J]. Journal of System Simulation, 2017, 29(3): 531-536.
2	何兆成, 林炫华, 聂佩林, 等. 考虑展宽设计的中观交通仿真模型及其标定[J]. 系统仿真学报, 2021, 33(4): 781-791.
	He Zhaocheng, Lin Xuanhua, Nie Peilin, et al. Mesoscopic Traffic Simulation Model and Calibration Considering Stretching-segment Design[J]. Journal of System Simulation, 2021, 33(4): 781-791.
3	姜安培, 吴海俊, 赵慧. 基于双层模型与仿真的区域交通组织优化研究[J]. 武汉理工大学学报(交通科学与工程版), 2022, 46(6): 1008-1012.
	Jiang Anpei, Wu Haijun, Zhao Hui. Research on Optimization of Regional Traffic Organization Based on Double-layer Model and Simulation[J]. Journal of Wuhan University of Technology(Transportation Science & Engineering), 2022, 46(6): 1008-1012.
4	李成兵, 张帅, 杨志成, 等. 蓄意攻击下城市群客运交通网络级联抗毁性仿真[J]. 交通运输系统工程与信息, 2019, 19(2): 14-21.
	Li Chengbing, Zhang Shuai, Yang Zhicheng, et al. Invulnerability Simulation in Urban Agglomeration Passenger Traffic Network under Targeted Attacks[J]. Journal of Transportation Systems Engineering and Information Technology, 2019, 19(2): 14-21.
5	周天星, 毛剑楠, 刘澜, 等. 城市群公路客运通道与城市交通网络衔接模式选择模型[J]. 交通运输系统工程与信息, 2018, 18(3): 22-28.
	Zhou Tianxing, Mao Jiannan, Liu Lan, et al. Connection Model of Highway Passenger Transportation Corridor and Urban Transit Network in Metropolitan Area[J]. Journal of Transportation Systems Engineering and Information Technology, 2018, 18(3): 22-28.
6	Lu Qingchang, Xu Pengcheng, Zhang Jingxiao. Infrastructure-based Transportation Network Vulnerability Modeling and Analysis[J]. Physica A: Statistical Mechanics and its Applications, 2021, 584: 126350.
7	张光远, 张帆, 刘泳博. 成渝地区城际铁路网络特性与脆弱性分析[J]. 铁道运输与经济, 2021, 43(7): 36-42.
	Zhang Guangyuan, Zhang Fan, Liu Yongbo. Characteristics and Vulnerabilities of Intercity Railway Network in Chengdu-chongqing Region[J]. Railway Transport and Economy, 2021, 43(7): 36-42.
8	Malandri C, Mantecchini L, Paganelli F, et al. Public Transport Network Vulnerability and Delay Distribution among Travelers[J]. Sustainability, 2021, 13(16): 8737.
9	Chen Jing, Zhang Yong, Liu Lei. Vulnerability Analysis of Multimodal Transport Networks Based on Complex Network Theory[J]. Journal of Southeast University (English Edition), 2021, 37(2): 209-215.
10	Balac M, Hörl S. Simulation of Intermodal Shared Mobility in the San Francisco Bay Area Using MATSim[C]//2021 IEEE International Intelligent Transportation Systems Conference(ITSC). Piscataway, NJ, USA: IEEE, 2021: 3278-3283.
11	Chen X, Zhan F B. Agent-based Modelling and Simulation of Urban Evacuation: Relative Effectiveness of Simultaneous and Staged Evacuation Strategies[J]. Journal of the Operational Research Society, 2008, 59(1): 25-33.
12	Onelcin P, Mutlu M M, Alver Y. Evacuation Plan of an Industrial Zone: Case Study of a Chemical Accident in Aliaga, Turkey and the Comparison of Two Different Simulation Softwares[J]. Safety Science, 2013, 60: 123-130.
13	吴健宏, 翁文国, 倪顺江. 基于GIS和Multi-Agent的城市应急疏散[J]. 清华大学学报(自然科学版), 2010, 50(8): 1168-1172.
	Wu Jianhong, Weng Wenguo, Ni Shunjiang. Urban Emergency Evacuation Plans Based on GIS and Multi-agent Systems[J]. Journal of Tsinghua University(Science and Technology), 2010, 50(8): 1168-1172.
14	於家, 温家洪, 陈芸, 等. 基于应急疏散智能体模型模拟的城市避难所空间配置—以上海市静安区为例[J]. 地理学报, 2017, 72(8): 1458-1475.
	Yu Jia, Wen Jiahong, Chen Yun, et al. Spatial Configuration of Urban Shelters Based on Simulation Using Emergency Evacuation Agent-based Model: A Case Study in Jing'an District, Shanghai[J]. Acta Geographica Sinica, 2017, 72(8): 1458-1475.
15	Namoun A, TufailA, Mehandjiev N, et al. An Eco-friendly Multimodal Route Guidance System for Urban Areas Using Multi-agent Technology[J]. Applied Sciences, 2021, 11(5): 2057.

站点编号	范围	时间	站点名称
19	37	2 188	呼和浩特长途汽车东站
84	91	5 051	呼和浩特火车西站
89	92	4 602	呼和浩特火车东站
91	82	2 741	榆林火车站
98	79	2 387	靖边县火车站
100	55	3 462	清水河站
