基于改进SIR模型的反转事件舆情传播控制研究

doi:10.16182/j.issn1004731x.joss.21-0607

摘要/Abstract

摘要：

为识别恶性新闻反转事件中谣言的传播规律和更有针对性地制定引导决策，提出了一种模拟病毒信息传播的短期预测模型。改进了传统SIR(susceptible infected removed)模型，解决了以往与SD(systems dynamics)模型结合时受限于马尔可夫链而导致转化率固定单一的问题，且以“哮喘女童”事件为例，进行了数据验证。结果表明，模型不仅能有效模拟单次反转事件中的舆情传播危机，分析往期事件处理满意度、官方信息透明度和政府响应时间等控制因素对事件走向的影响，并且能够复现出传统模型中不易看到的传播特征。

关键词: 新闻反转, 舆情传播, SIR模型, 系统动力学

Abstract:

In order to identify the spreading rules of rumors in vicious news reversal events and make more targeted guiding decisions, a short-term prediction model is proposed to simulate the spread of virus information. This paper improves the traditional susceptible infected removed (SIR) model and solves the problem that the conversion rate is fixed and single due to the limitation of Markov chain when it is combined with systems dynamics (SD) model. The data is validated with the example of "asthmatic girls" . The results show that the model not only effectively simulates the crisis of public opinion communication in a single reversal event, but also analyzes the influence of control factors such as the satisfaction of previous events, the transparency of official information and the government response time on the trend of the event, and reproduces the transmission characteristics that are not easily revealed in the traditional model.

Key words: news inversion, public opinion dissemination, susceptible infected removed (SIR) model, system dynamics

中图分类号:

TP391.9

唐建荣, 鲍佳彤. 基于改进SIR模型的反转事件舆情传播控制研究[J]. 系统仿真学报, 2022, 34(11): 2406-2415.

Jianrong Tang, Jiatong Bao. Research on Network Public Opinion Transmission Mechanism of Inversion Event Based on Integrating Improved SIR Model[J]. Journal of System Simulation, 2022, 34(11): 2406-2415.

图/表 11

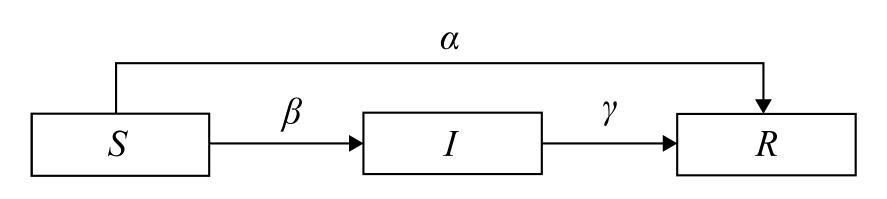

图1

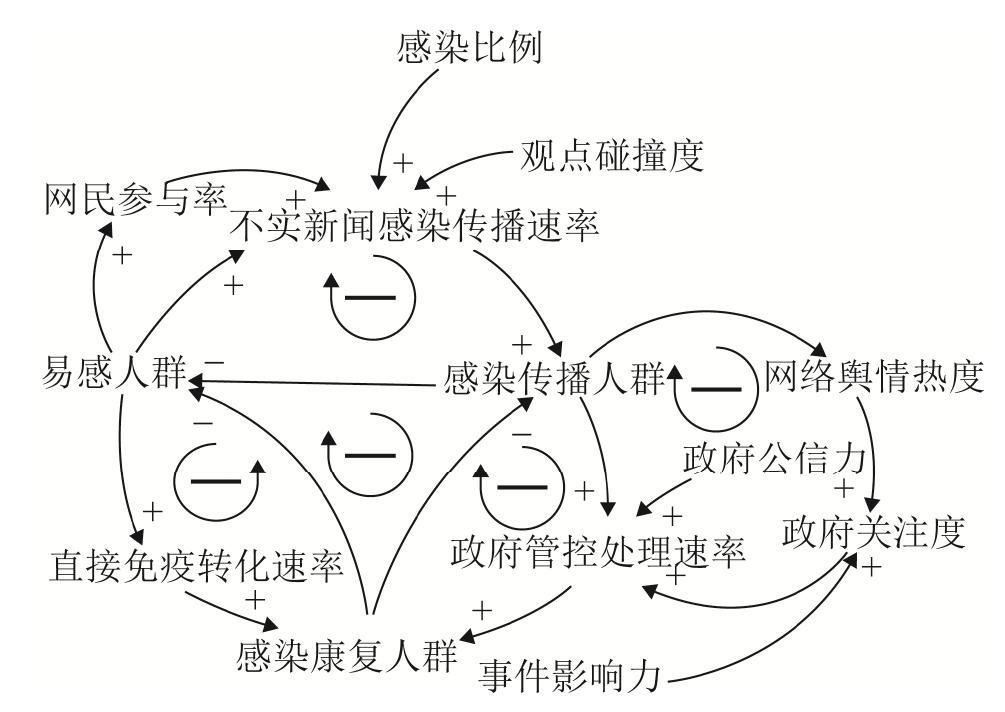

图2

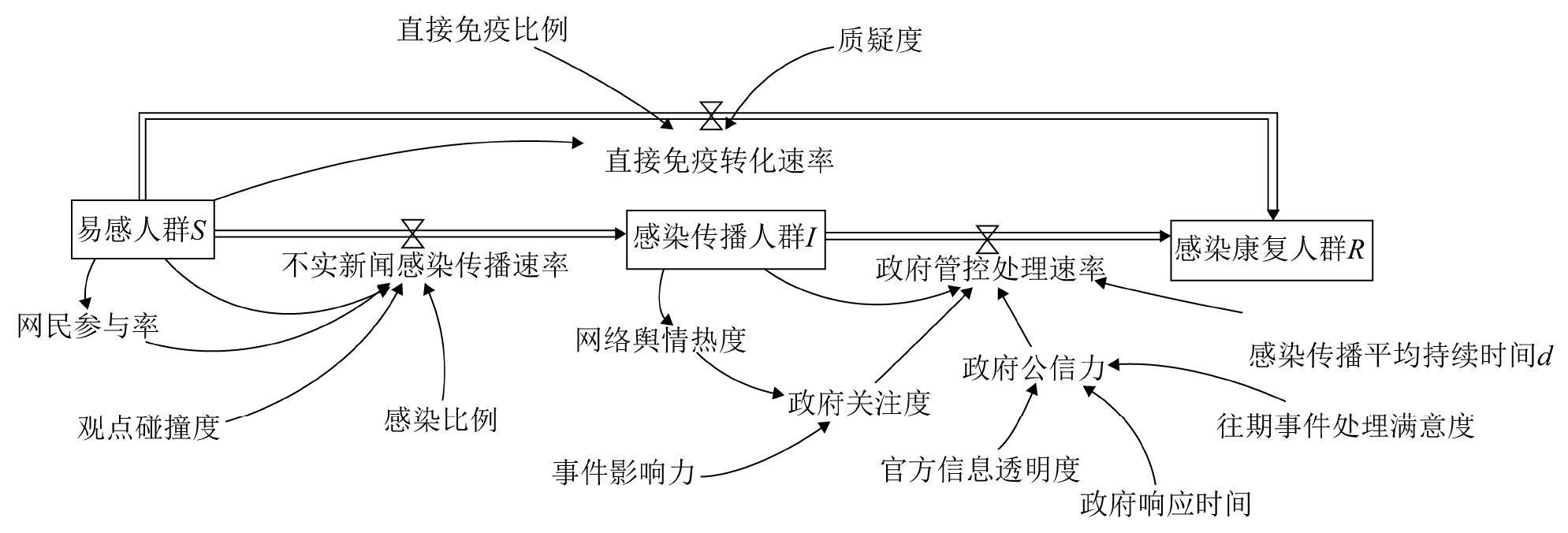

图3

表1

表2

图4

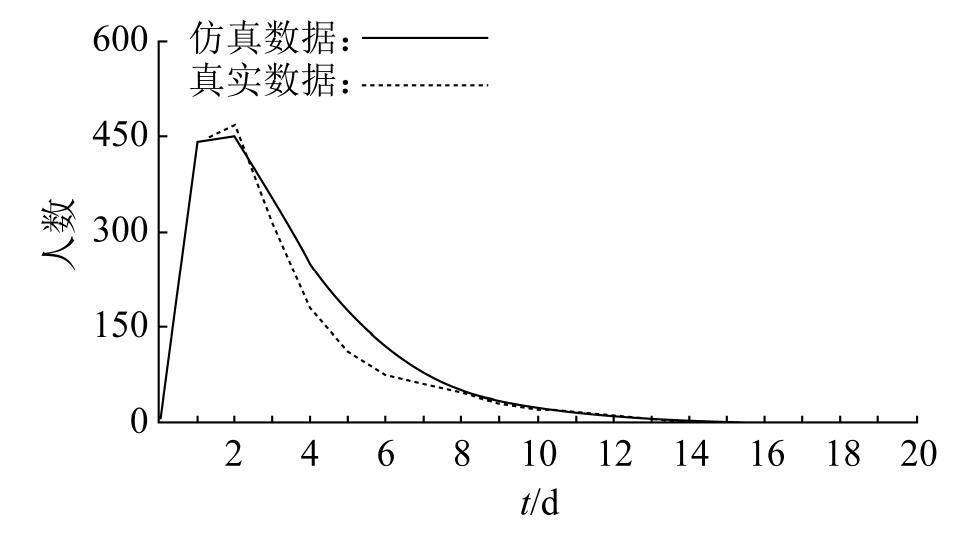

图5

表3

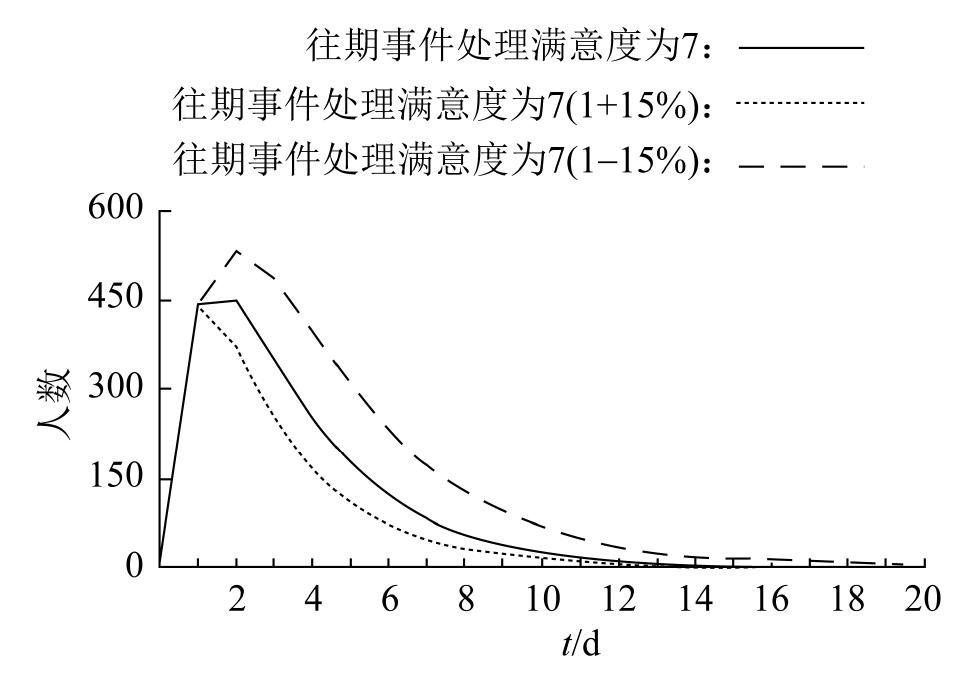

图6

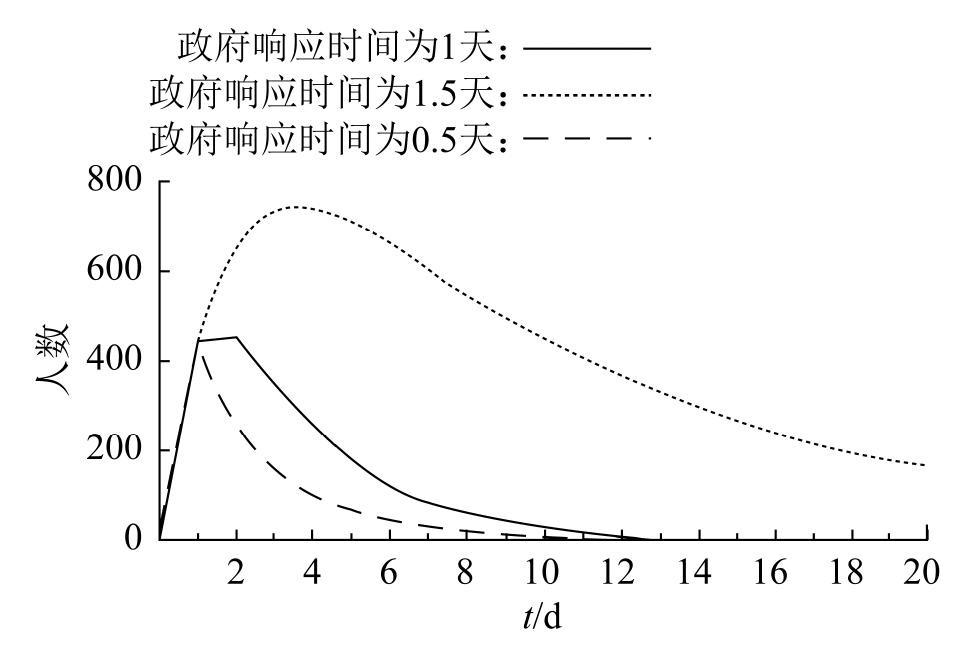

图7

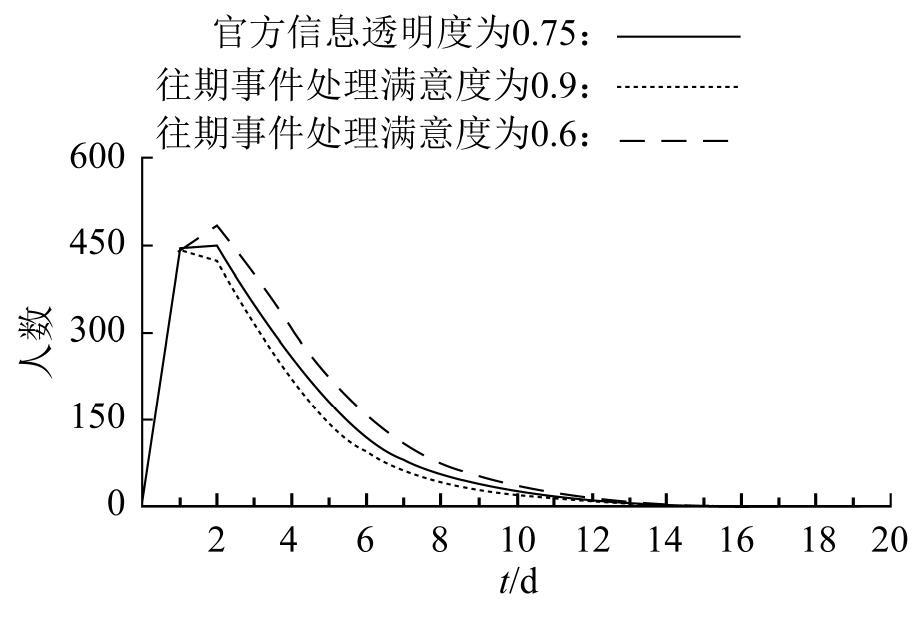

图8

参考文献 34

[1]	Kermack W O, Mckendrick A G. A Contribution to the Mathematical Theory of Epidemics[J]. Proceedings of the Royal Society a Mathematical Physical & Engineering Sciences (S1364-5021), 1927, 115(772): 700-721.
[2]	Watts D J, Strogatz S H. Collective Dynamics of Smallworld Networks[J]. Nature (S0028-0836), 1998, 393: 440-442.
[3]	赵俊, 霍良安, 刘霞. 具有发酵期的舆情传播与控制模型[J]. 系统管理学报, 2016, 25(4): 717-724.
	Zhao Jun, Huo Liang’an, Liu Xia. Public Opinion Propagation and Control Model with Fermentation Period[J]. Journal of Systems & Management, 2016, 25(4): 717-724.
[4]	尹楠. 有限群体内舆情危机扩散SIR模型及仿真模拟实现[J]. 统计与决策, 2018, 34(18): 62-66.
	Yin Nan. SIR Model and Simulation Implementation of Public Opinion Crisis Diffusion in Limited Groups[J]. Statistics & Decision, 2018, 34(18): 62-66.
[5]	魏德志, 陈福集, 林丽娜. 基于博弈论和SIRS的热点事件传播仿真研究[J]. 系统仿真学报, 2018, 30(6): 2050-2057.
	Wei Dezhi, Chen Fuji, Lin Li’na. Research on Hot Event Propagation Simulation Based on Game Theory and SIRS[J]. Journal of System Simulation, 2018, 30(6): 2050-2057.
[6]	彭程, 祁凯, 黎冰雪. 基于SIR-EGM模型的复杂网络舆情传播与预警机制研究[J]. 情报科学, 2020, 38(3): 145-153.
	Peng Cheng, Qi Kai, Li Bingxue. Research on the Propagation and Early Warning Mechanism of Complex Network Public Opinion Based on Sir-Egm Model[J]. Information Science, 2020, 38(3): 145-153.
[7]	陈帅. 基于多层耦合网络的舆情传播控制研究[J]. 系统仿真学报, 2020, 32(12): 2353-2361.
	Chen Shuai. Research on Public Opinion Communication Control Based on Multi-Layer Coupling Network[J]. Journal of System Simulation, 2020, 32(12): 2353-2361.
[8]	狄岚, 顾雨迪. 媒体干预下三分意见群体网络舆情传播模型[J]. 系统仿真学报, 2018, 30(8): 2958-2965.
	Di Lan, Gu Yudi. Network Public Opinion Communication Model of Three Opinion Groups under Media Intervention[J]. Journal of System Simulation, 2018, 30(8): 2958-2965.
[9]	Isham V, Harden S, Nekovee M. Stochastic Epidemics and Rumours on Finite Random Networks[J]. Physica A: Statal Mechanics & Its Applications (S0378-4371), 2010, 389(3): 561-576.
[10]	李仕争, 丁菊玲, 蒋鹏, 等. 移动社交网络谣言演化的系统动力学模型与仿真[J]. 情报杂志, 2016, 35(9): 117-123, 103.
	Li Shizheng, Ding Juling, Jiang Peng, et al. System Dynamics Model and Simulation of Rumor Evolution in Mobile Social Networks[J]. Journal of Intelligence, 2016, 35(9): 117-123, 103.
[11]	高航. 政府舆情应对能力系统动力学建模与仿真研究[J]. 情报科学, 2016, 34(2): 133-138.
	Gao Hang. System Dynamics Modeling and Simulation of Government Public Opinion Response Capability[J]. Information Science, 2016, 34(2): 133-138.
[12]	王光辉, 刘怡君. 基于系统动力学的舆论风险形成及干预策略[J]. 系统工程, 2014, 32(5): 82-91.
	Wang Guanghui, Liu Yijun. Public Opinion Risk Formation and Intervention Strategy Based on System Dynamics[J]. Systems Engineering, 2014, 32(5): 82-91.
[13]	苏懋康, 王浣尘. ’88上海市甲肝暴发流行的建模及分析[J]. 系统仿真学报, 1991, 3(2): 30-39, 61.
	Su Maokang, Wang Huanchen. ’88 Modeling and Analysis of Hepatitis A Outbreak in Shanghai[J]. Journal of System Simulation, 1991, 3(2): 30-39, 61.
[14]	陈福集, 游丹丹. 基于系统动力学的网络舆情事件传播研究[J]. 情报杂志, 2015, 34(9): 118-122.
	Chen Fuji, You Dandan. Research on the Communication of Internet Public Opinion Events Based on System Dynamics[J]. Journal of Intelligence, 2015, 34(9): 118-122.
[15]	李鑫, 张军. 基于系统动力学的SIRS信息传播模型研究[J]. 情报科学, 2017, 35(11): 17-22.
	Li Xin, Zhang Jun. Research on SIRS Information Dissemination Model Based on System Dynamics[J]. Information Science, 2017, 35(11): 17-22.
[16]	White A S. Trajectory Sensitivity of Non-Linear System Dynamics Models to Parameter Variations[J]. Journal of Simulation (S1747-7778), 2013, 7(1): 25-37.
[17]	Hebert Dufresne L, Scarpino S V, Young J, et al. Macroscopic Patterns of Interacting Contagions are Indistinguishable from Social Reinforcement[J]. Nature Physics (S1745-2473), 2020, 16: 426-431.
[18]	张春颜, 刘煊. 后真相视角下网络舆论反转的主体行为、情境类型与规避策略分析[J]. 学习论坛, 2019(7): 58-63.
	Zhang Chunyan, Liu Xuan. Analysis of Subject Behavior, Situation Types and Avoidance Strategies of Online Public Opinion Reversal from the Perspective of Post Truth[J]. Tribune of Study, 2019(7): 58-63.
[19]	Huang C, Hu B, Jiang G, et al. Modeling of Agent-Based Complex Network under Cyber-Violence[J]. Physica A: Statal Mechanics & Its Applications (S0378-4371), 2016, 458: 399-411.
[20]	陈波, 于冷, 刘君亭, 等. 泛在媒体环境的网络舆情传播控制观[J]. 系统工程理论与实践, 2011, 31(11): 2140-2150.
	Chen Bo, Yu Leng, Liu Junting, et al. Dissemination and Control Code of Internet Public Opinion in the Ubiquitous Media Environments[J]. Systems Engineering-Theory & Practice, 2011, 31(11): 2140-2150.
[21]	李爱玲, 卢敏思. 探析网络“反转新闻”的舆论引导策略—以“青岛天价龙虾”事件为例[J]. 传媒论坛, 2018, 1(14): 5-6.
	Li Ailing, Lu Minsi. On the Public Opinion Guidance Strategy of Online “Reverse News”-Taking the “Qingdao Sky High Price Lobster” Event as an Example[J]. Media Forum, 2018, 1(14): 5-6.
[22]	徐俊青. 后真相时代下高校学生对反转新闻态度和行为的研究[J]. 戏剧之家, 2018(31): 135-136.
	Xu Junqing. Research on College Students' Attitude and Behavior towards Reverse Journalism in the Post Truth Era[J]. Home Drama, 2018(31): 135-136.
[23]	张晓鹏. 探析网络舆论反转的发展特点及其影响—以榆林产妇跳楼案为例[J]. 新闻爱好者, 2020(12): 72-74.
	Zhang Xiaopeng. Analysis on the Development Characteristics and Impact of Internet Public Opinion Reversal - Taking Yulin Maternal Jumping off a Building as an Example[J]. Journalism Lover, 2020(12): 72-74.
[24]	汪明艳, 余丽彬, 朱译冰. 舆论反转中群体极化效应的影响因素研究[J]. 情报杂志, 2018, 37(9): 106-112, 119.
	Wang Mingyan, Yu Libin, Zhu Yibing. Study on Influencing Factors of Group Polarization Effect in Public Opinion Reversal[J]. Journal of Intelligence, 2018, 37(9): 106-112, 119.
[25]	陈旭辉, 李尘, 柯铭, 等. 时间连续马尔可夫链的复杂网络上SIRS模型分析[J]. 计算机科学, 2014, 41(10): 117-121.
	Chen Xuhui, Li Chen, Ke Ming, et al. Analysis of SIRS Model on Complex Networks with Time Continuous Markov Chains[J]. Computer Science, 2014, 41(10): 117-121.
[26]	宋红玉. 水环境突发事件下的群体行为系统动力学模拟[J]. 学海, 2015(4): 118-125.
	Song Hongyu. System Dynamics Simulation of Group Behavior under Water Environment Emergencies[J]. Academia Bimestrie, 2015(4): 118-125.
[27]	张明. 广州方圆小学哮喘女孩遭体罚致吐血反转事件[EB/OL]. (2020-06-04) [2021-05-27]. .
[28]	邓建高, 张璇, 傅柱, 等. 基于系统动力学的突发事件网络舆情传播研究：以“江苏响水爆炸事故”为例[J]. 数据分析与知识发现, 2020, 4(增1): 110-121.
	Deng Jiangao, Zhang Xuan, Fu Zhu, et al. Research on Network Public Opinion Communication of Emergencies Based on System Dynamics: a Case Study of Xiangshui Explosion in Jiangsu Province[J]. Data Analysis and Knowledge Discover, 2020, 4(S1): 110-121.
[29]	广州白云公安. 警方通报[EB/OL]. (2020-06-01) [2021-05-27]. .
[30]	张一文. 突发性公共危机事件与网络舆情作用机制研究[D]. 北京: 北京邮电大学, 2012.
	Zhang Yiwen. Research on the Mechanism of Sudden Public Crisis and Internet Public Opinion[D]. Beijing: Beijing University of Posts and Telecommunications, 2012.
[31]	余乐安, 李玲, 武佳倩, 等. 基于系统动力学的危化品水污染突发事件中网络舆情危机应急策略研究[J]. 系统工程理论与实践, 2015, 35(10): 2687-2697.
	Yu Le’an, Li Ling, Wu Jiaqian, et al. Research on Network Public Opinion Crisis Emergency Strategy in Dangerous Chemicals Water Pollution Emergencies Based on System Dynamics[J]. Systems Engineering- Theory & Practice, 2015, 35(10): 2687-2697.
[32]	曹海军, 李明. 基于系统动力学的社交网络舆情应对策略仿真分析—以“亚布力事件”为例[J]. 东北大学学报(社会科学版), 2019, 21(1): 57-63.
	Cao Haijun, Li Ming. Simulation Analysis of Social Network Public Opinion Response Strategies Based on System Dynamics - Taking “Yabuli Incident” as an Example[J]. Journal of Northeastern University(Social Science), 2019, 21(1): 57-63.
[33]	王冰冰, 夏志杰, 于丽萍. 在线社会网络中应急信息共享的系统动力学仿真研究[J]. 现代情报, 2015, 35(1): 42-48.
	Wang Bingbing, Xia Zhijie, Yu Liping. System Dynamics Simulation of Emergency Information Sharing in Online Social Networks[J]. Journal of Modern Information, 2015, 35(1): 42-48.
[34]	狄国强, 曾华艺, 勒中坚, 等. 网络舆情事件的系统动力学模型与仿真[J]. 情报杂志, 2012, 31(8): 12-20.
	Di Guoqiang, Zeng Huayi, Le Zhongjian, et al. System Dynamics Model and Simulation of Network Public Opinion Events[J]. Journal of Intelligence, 2012, 31(8): 12-20.

变量类型	变量名称	变量表达式
水平变量	易感人群S	Integ(-直接免疫转化速率-不实新闻感染传播速率，20 000)
	感染传播人群I	integ(不实新闻感染传播速率-政府管控处理速率，0)
	感染康复人群R(含免疫者)	integ(直接免疫转化速率+政府管控处理速率，0)
速率变量	不实新闻感染传播速率^[15]	易感人群S×感染比例×观点碰撞度
	政府管控处理速率^[15]	感染传播人群I×(政府公信力+政府关注度)/感染传播平均持续时间d
	直接免疫转化速率	易感人群S×直接免疫比例×质疑度
辅助变量	政府关注度^[27]	0.5×事件影响力+0.5×网络舆情热度
	政府公信力^[27]	(事件处理满意度-政府响应时间×5)×官方信息透明度/2
	网民参与度^[28]	1-0.348×exp(-0.000 083×易感人群S)
	网络舆情热度^[28]	1-0.953×exp(-0.000 422×感染传播人群I)

官方信息透明度	往期事件处理满意度	MAPE/%	备注
0.5^[31]	7^[31]	88.85
	7.377^[28]	48.67
	1.923^[34]	>100	不符合模型约束条件，舍去
0.68^[32]	7^[31]	33.99
0.68^[32]	7.377^[28]	21.97
0.7^[31]	7^[31]	31.18
0.7^[31]	7.377^[28]	20.93
0.73^[28]	7^[31]	25.73
0.73^[28]	7.377^[28]	19.55
0.75^[33]	7^[31]	18.78	MAPE值最小，得最优参数值
0.75^[33]	7.377^[28]	26.61
