层级引导的增强型多目标萤火虫算法

doi:10.16182/j.issn1004731x.joss.22-1486

摘要/Abstract

摘要：

针对多目标萤火虫算法在求解过程中易产生振荡和聚集现象，导致开发能力较弱、求解精度不佳的问题，提出一种层级引导的增强型多目标萤火虫算法（hierarchical guided enhanced multi- objective firefly algorithm， HGEMOFA）。构建层级引导模型，利用非支配排序获得不同层级个体，用优势层个体引导劣势层个体进化，明确引导方向，解决了进化过程中出现的振荡，减少了聚集现象的出现，增强了算法收敛性；引入莱维飞行扰动最优层个体，增强算法的全局搜索能力；每代进化完成后，对当前种群采用变异机制，增强算法的局部开发能力；把变异后的种群和前一代种群合并进行环境选择，筛选出和前一代种群规模相同的子代，避免优势解丢失。实验结果表明：HGEMOFA能有效增强解的收敛性和多样性。

关键词: 多目标优化, 萤火虫算法, 层级引导, 莱维飞行, 变异

Abstract:

The multi-objective firefly algorithm is easy to produce oscillation and aggregation phenomenon in the solution process, which leads to weak development ability and poor solution accuracy. This paper proposes a hierarchical guided enhanced multi-objective firefly algorithm (HGEMOFA). HGEMOFA builds a hierarchical guidance model, uses non-dominated sorting to obtain different levels of individuals. The individuals in the dominant layer are used to guide the evolution of the individuals in the inferior layer, the guidance direction is clear, the oscillation in the evolution process is solved, the aggregation phenomenon is reduced, and the convergence of the algorithm is enhanced. The Lévy flight is introduced to disturb the optimal layer individuals to enhance the global search ability of the algorithm; After each generation of evolution, the mutation mechanism is adopted for the current population to enhance the local development ability of the algorithm; The mutated population is combined with the previous generation population for environmental selection to screen out offspring with the same population size as the previous generation to avoid loss of dominance solution. The experimental results show that HGEMOFA can effectively enhance the convergence and diversity of solutions.

Key words: multi-objective optimization, firefly algorithm, hierarchical guidance, Lévy flight, mutation

中图分类号:

TP391.9

赵嘉,赖智臻,吴润秀等 . 层级引导的增强型多目标萤火虫算法[J]. 系统仿真学报, 2024, 36(5): 1152-1164.

Zhao Jia,Lai Zhizhen,Wu Runxiu,et al . Hierarchical Guided Enhanced Multi-objective Firefly Algorithm[J]. Journal of System Simulation, 2024, 36(5): 1152-1164.

图/表 12

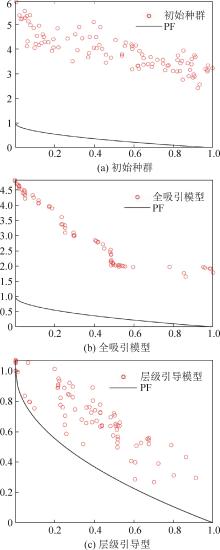

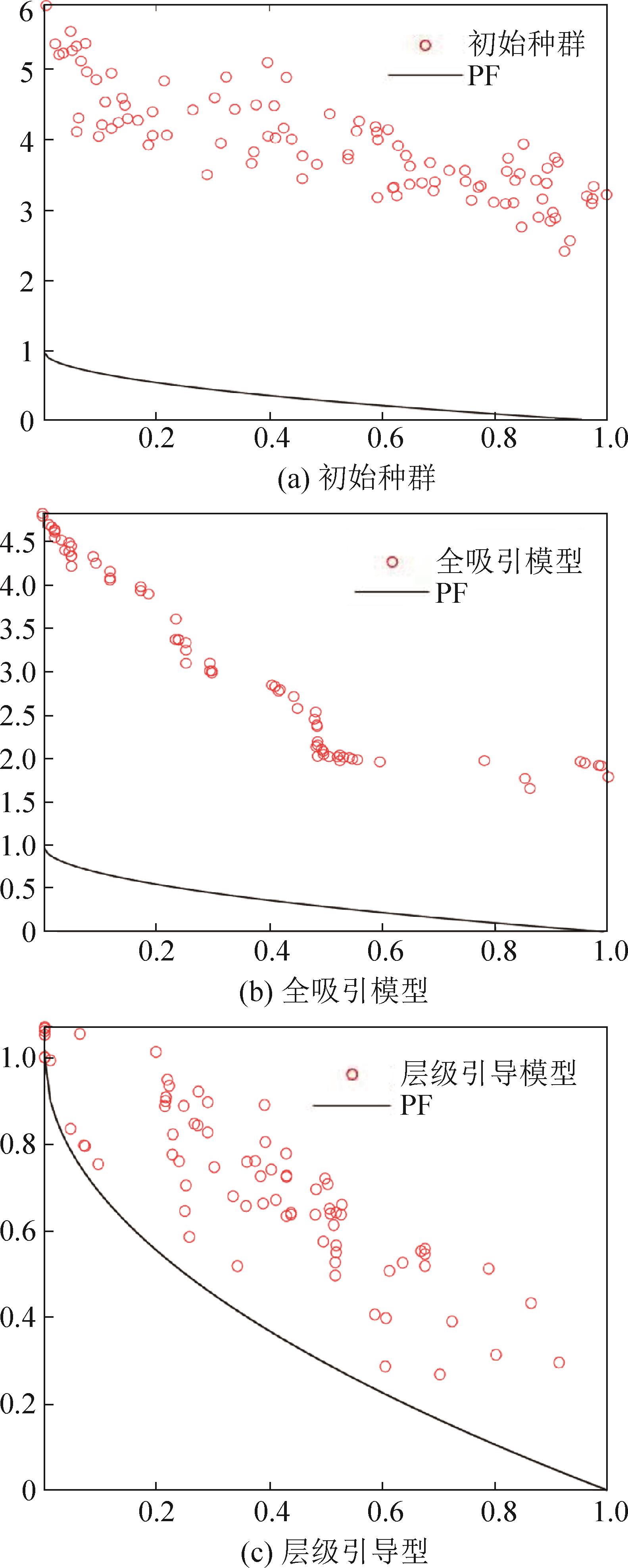

图1

表1

测试函数集

问题	目标数	约束	问题特征
ZDT1	2	$n = 30$	凸型
ZDT2	2	$n = 30$	凹型
ZDT3	2	$n = 30$	非连续型
ZDT6	2	$n = 10$	凹型+多模态+有偏
DTLZ1	3	$n = 7$	线性+多模态
DTLZ2	3	$n = 12$	凹型
DTLZ4	3	$n = 12$	凹型+有偏
DTLZ6	3	$n = 12$	凹型+退化+有偏
DTLZ7	3	$n = 12$	不连续+混合+多模态

表1

表2

表3

表4

表5

表6

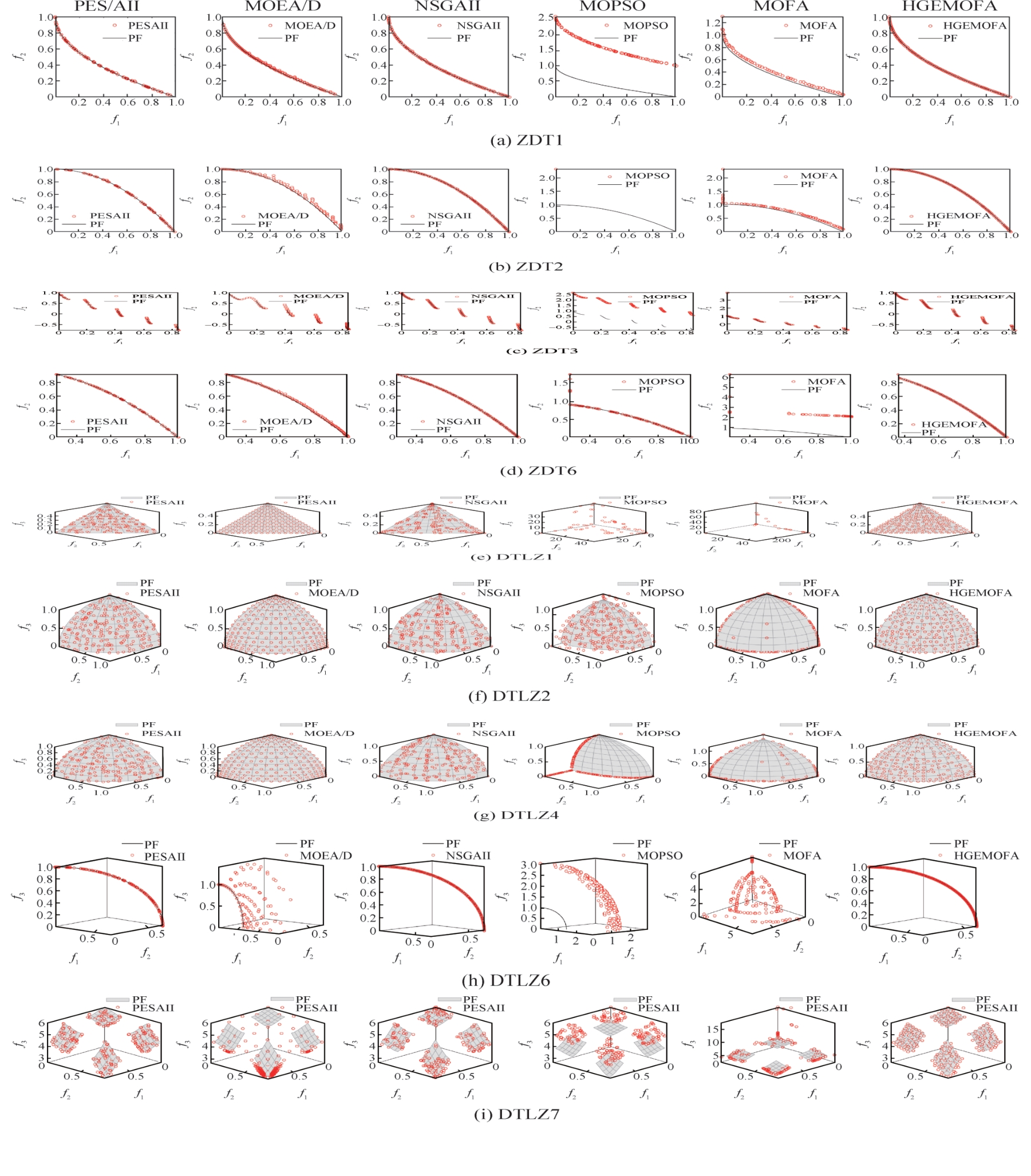

图2

表7

表8

表9

表10

参考文献 41

1	Farag M A, El-Shorbagy M A, Mousa A A, et al. A New Hybrid Metaheuristic Algorithm for Multiobjective Optimization Problems[J]. International Journal of Computational Intelligence Systems, 2020, 13(1): 920-940.
2	Meghwani Suraj S, Thakur Manoj. Adaptively Weighted Decomposition Based Multi-objective Evolutionary Algorithm[J]. Applied Intelligence, 2021, 51(6): 3801-3823.
3	Barocio Emilio, Regalado Jose, Cuevas Erick, et al. Modified Bio-inspired Optimisation Algorithm with a Centroid Decision Making Approach for Solving a Multi-objective Optimal Power Flow Problem[J]. IET Generation, Transmission & Distribution, 2017, 11(4): 1012-1022.
4	Liagkouras K, Metaxiotis K. Enhancing the Performance of MOEAs: An Experimental Presentation of a New Fitness Guided Mutation Operator[J]. Journal of Experimental & Theoretical Artificial Intelligence, 2017, 29(1): 91-131.
5	程鹏宇, 赵嘉, 韩龙哲, 等. 双向多尺度LSTM的短时温度预测[J]. 江西师范大学学报(自然科学版), 2022, 46(2): 134-139.
	Cheng Pengyu, Zhao Jia, Han Longzhe, et al. The Short-term Temperature Prediction Based on Bidirectional Multi-scale LSTM[J]. Journal of Jiangxi Normal University(Natural Sciences Edition), 2022, 46(2): 134-139.
6	Khan A, Baig A R. Multi-objective Feature Subset Selection Using Non-dominated Sorting Genetic Algorithm[J]. Journal of Applied Research and Technology, 2015, 13(1): 145-159.
7	Deb K, Pratap A, Agarwal S, et al. A Fast and Elitist Multiobjective Genetic Algorithm: NSGA-II[J]. IEEE Transactions on Evolutionary Computation, 2002, 6(2): 182-197.
8	Deb K, Jain Himanshu. An Evolutionary Many-objective Optimization Algorithm Using Reference-point-based Nondominated Sorting Approach, Part I: Solving Problems with Box Constraints[J]. IEEE Transactions on Evolutionary Computation, 2014, 18(4): 577-601.
9	Christian von Lücken, Barán Benjamín, Brizuela Carlos. A Survey on Multi-objective Evolutionary Algorithms for Many-objective Problems[J]. Computational Optimization and Applications, 2014, 58(3): 707-756.
10	Zhang Qingfu, Li Hui. MOEA/D: A Multiobjective Evolutionary Algorithm Based on Decomposition[J]. IEEE Transactions on Evolutionary Computation, 2007, 11(6): 712-731.
11	Li Hui, Zhang Qingfu. Multiobjective Optimization Problems with Complicated Pareto Sets, MOEA/D and NSGA-II[J]. IEEE Transactions on Evolutionary Computation, 2009, 13(2): 284-302.
12	Liu Ruochen, Zhou Runan, Ren Rui, et al. Multi-layer Interaction Preference Based Multi-objective Evolutionary Algorithm Through Decomposition[J]. Information Sciences, 2020, 509: 420-436.
13	Basseur M, Liefooghe A, Le K, et al. The Efficiency of Indicator-based Local Search for Multi-objective Combinatorial Optimisation Problems[J]. Journal of Heuristics, 2012, 18(2): 263-296.
14	Bader Johannes, Zitzler Eckart. Hype: An Algorithm for Fast Hypervolume-based Many-objective Optimization[J]. Evolutionary Computation, 2011, 19(1): 45-76.
15	Coello C A C, Pulido G T, Lechuga M S. Handling Multiple Objectives with Particle Swarm Optimization[J]. IEEE Transactions on Evolutionary Computation, 2004, 8(3): 256-279.
16	Mirjalili Seyedali, Saremi Shahrzad, Seyed Mohammad Mirjalili, et al. Multi-objective Grey Wolf Optimizer: A Novel Algorithm for Multi-criterion Optimization[J]. Expert Systems with Applications, 2016, 47: 106-119.
17	赵嘉, 谢智峰, 吕莉, 等. 深度学习萤火虫算法[J]. 电子学报, 2018, 46(11): 2633-2641.
	Zhao Jia, Xie Zhifeng, Li Lü, et al. Firefly Algorithm with Deep Learning[J]. Acta Electronica Sinica, 2018, 46(11): 2633-2641.
18	Yang Xinshe. Multiobjective Firefly Algorithm for Continuous Optimization[J]. Engineering with Computers, 2013, 29(2): 175-184.
19	Tsai C W, Huang Yaoting, Chiang M C. A Non-dominated Sorting Firefly Algorithm for Multi-objective Optimization[C]//2014 14th International Conference on Intelligent Systems Design and Applications. Piscataway, NJ, USA: IEEE, 2014: 62-67.
20	谢承旺, 肖驰, 丁立新, 等. HMOFA: 一种混合型多目标萤火虫算法[J]. 软件学报, 2018, 29(4): 1143-1162.
	Xie Chengwang, Xiao Chi, Ding Lixin, et al. HMOFA: A Hybrid Multi-objective Firefly Algorithm[J]. Journal of Software, 2018, 29(4): 1143-1162.
21	Li Lü, Zhao Jia, Wang Jiayuan, et al. Multi-objective Firefly Algorithm Based on Compensation Factor and Elite Learning[J]. Future Generation Computer Systems, 2019, 91: 37-47.
22	赵嘉, 陈丹丹, 肖人彬, 等. 一种基于最大最小策略和非均匀变异的萤火虫算法[J]. 智能系统学报, 2022, 17(1): 116-130.
	Zhao Jia, Chen Dandan, Xiao Renbin, et al. A Heterogeneous Variation Firefly Algorithm with Maximin Strategy[J]. CAAI Transactions on Intelligent Systems, 2022, 17(1): 116-130.
23	Fogedby H C. Lévy Flights in Random Environments[J]. Physical Review Letters, 1994, 73(19): 2517.
24	郑树泉. 工业智能技术与应用[M]. 上海: 上海科学技术出版社, 2019: 250-251.
25	Zhang Xingyi, Zheng Xiutao, Cheng Ran, et al. A Competitive Mechanism Based Multi-objective Particle Swarm Optimizer with Fast Convergence[J]. Information Sciences, 2018, 427: 63-76.
26	Zitzler Eckart, Deb Kalyanmoy, Thiele Lothar. Comparison of Multiobjective Evolutionary Algorithms: Empirical Results[J]. Evolutionary Computation, 2000, 8(2): 173-195.
27	Deb K, Thiele L, Laumanns M, et al. Scalable Multi-objective Optimization Test Problems[C]//Proceedings of the 2002 Congress on Evolutionary Computation. Piscataway, NJ, USA: IEEE, 2002: 825-830.
28	Gadhvi Bhargav, Savsani Vimal, Patel Vivek. Multi-objective Optimization of Vehicle Passive Suspension System Using NSGA-II, SPEA2 and PESA-II[J]. Procedia Technology, 2016, 23: 361-368.
29	Tian Ye, Cheng Ran, Zhang Xingyi, et al. PlatEMO: A MATLAB Platform for Evolutionary Multi-objective Optimization[J]. IEEE Computational Intelligence Magazine, 2017, 12(4): 73-87.
30	Zheng Liming, Wang Qiang, Zhang Shengxin, et al. Population Recombination Strategies for Multi-objective Particle Swarm Optimization[J]. Soft Computing, 2017, 21(16): 4693-4705.
31	Schott J R. Fault Tolerant Design Using Single and Multicriteria Genetic Algorithm Optimization[D]. Cambridge: Massachusetts Institute of Technology, 1995.
32	A Coello Coello Carlos, Nareli Cruz Cortés. Solving Multiobjective Optimization Problems Using an Artificial Immune System[J]. Genetic Programming and Evolvable Machines, 2005, 6(2): 163-190.
33	Lin Qiuzhen, Liu Songbai, Zhu Qingling, et al. Particle Swarm Optimization with a Balanceable Fitness Estimation for Many-objective Optimization Problems[J]. IEEE Transactions on Evolutionary Computation, 2018, 22(1): 32-46.
34	Liu Qiqi, Jin Yaochu, Heiderich M, et al. An Adaptive Reference Vector-guided Evolutionary Algorithm Using Growing Neural Gas for Many-objective Optimization of Irregular Problems[J]. IEEE Transactions on Cybernetics, 2022, 52(5): 2698-2711.
35	Lin Qiuzhen, Li Jianqiang, Du Zhihua, et al. A Novel Multi-objective Particle Swarm Optimization with Multiple Search Strategies[J]. European Journal of Operational Research, 2015, 247(3): 732-744.
36	Nebro A J, Durillo J J, Garcia-Nieto J, et al. SMPSO: A New PSO-based Metaheuristic for Multi-objective Optimization[C]//2009 IEEE Symposium on Computational Intelligence in Multi-criteria Decision-making(MCDM). Piscataway, NJ, USA: IEEE, 2009: 66-73.
37	Tian Ye, Cheng Ran, Zhang Xingyi, et al. A Strengthened Dominance Relation Considering Convergence and Diversity for Evolutionary Many-objective Optimization[J]. IEEE Transactions on Evolutionary Computation, 2019, 23(2): 331-345.
38	Raquel Carlo R, Naval Prospero C. An Effective Use of Crowding Distance in Multiobjective Particle Swarm Optimization[C]//Proceedings of the 7th Annual Conference on Genetic and Evolutionary Computation. New York, NY, USA: Association for Computing Machinery, 2005: 257-264.
39	Chen Bili, Zeng Wenhua, Lin Yangbin, et al. A New Local Search-based Multiobjective Optimization Algorithm[J]. IEEE Transactions on Evolutionary Computation, 2015, 19(1): 50-73.
40	Saúl Zapotecas Martínez, A Coello Coello Carlos. A Multi-objective Particle Swarm Optimizer Based on Decomposition[C]//Proceedings of the 13th Annual Conference on Genetic and Evolutionary Computation. New York, NY, USA: Association for Computing Machinery, 2011: 69-76.
41	Tian Ye, Lu Chang, Zhang Xingyi, et al. Solving Large-scale Multiobjective Optimization Problems with Sparse Optimal Solutions via Unsupervised Neural Networks[J]. IEEE Transactions on Cybernetics, 2021, 51(6): 3115-3128.

算法	GD	SP	IGD
HGEMOFA	1.44	1.44	1.22
MOPSO	5.67	4.33	5.67
MOEA/D	2.89	3.89	3.56
NSGAII	2.56	3.00	2.56
PESAII	3.33	4.44	3.11
MOFA	5.11	3.89	4.89

算法	ZDT1	ZDT2	ZDT3	ZDT6	DTLZ1	DTLZ2	DTLZ4	DTLZ6	DTLZ7
HGEMOFA	3.82e-03	3.87e-03	5.24e-03	3.10e-03	1.62e-02	3.67e-02	3.96e-02	2.04e-03	3.95e-02
CMOPSO	4.21e-03	4.12e-03	4.64e-03	3.10e-03	7.57e-01	3.97e-02	4.12e-02	2.09e-03	5.23e-02
NMPSO	2.79e-02	1.92e-02	1.01e-01	4.41e-03	1.69e-02	5.67e-02	1.06e-01	1.29e-02	4.58e-02
NSLS	2.43e-01	4.49e-01	2.17e-01	5.89e-03	1.54e-01	3.79e-02	1.48e-01	2.19e-03	8.58e-02
CFMOFA	8.79e-03	1.31e-02	1.45e-02	9.77e-02	1.56e+02	6.01e-02	9.10e-02	5.65e-01	5.59e-02
RVEAiGNG	4.07e-03	4.14e-03	7.80e-03	3.28e-03	1.44e-02	4.00e-02	3.97e-02	2.32e-03	5.00e-02
MMOPSO	4.91e-03	5.03e-03	5.41e-03	4.29e-03	2.82e-02	4.93e-02	4.88e-02	3.37e-03	9.42e-02
SMPSO	4.95e-03	4.96e-03	5.37e-03	3.86e-03	1.27e+00	4.86e-02	2.54e-01	2.64e-03	8.82e-02
NSGAIISDR	6.92e-03	5.23e-03	1.38e-02	4.40e-03	1.84e-02	4.35e-01	3.87e-01	3.40e-02	5.97e-02
MOPSOCD	4.00e-03	4.11e-03	4.75e-03	3.39e-03	1.19e+01	4.83e-02	1.18e-01	2.63e-03	5.73e-02
dMOPSO	1.52e-02	1.33e-01	1.66e-02	3.22e-03	1.45e+00	9.03e-02	2.39e-01	2.25e-02	1.00e-01
MOEAPSL	4.62e-03	4.75e-03	6.27e-03	3.62e-03	1.97e-02	5.04e-02	4.91e-02	2.66e-03	5.43e-02

平均排名	算法	秩平均值
1	HGEMOFA	1.33
2	CMOPSO	3.33
3	RVEAiGNG	3.56
4	MOPSOCD	5.22
5	MOEAPSL	5.78
6	MMOPSO	6.89
7	SMPSO	7.33
8	NMPSO	8.00
9	NSLS	8.56
10	NSGAIISDR	8.89
11	CFMOFA	9.44
12	dMOPSO	9.67

问题	MOFA	MOFA+S1	MOFA+S2	MOFA+S1+S2	MOFA+S2+S3	HGEMOFA
ZDT1	3.70e-02	7.36e-03	6.08e-03	5.98e-03	4.19e-03	3.82e-03
ZDT2	4.62e-02	7.47e-03	6.35e-03	6.11e-03	4.19e-03	3.86e-03
ZDT3	1.87e-02	1.14e-02	7.12e-03	7.07e-03	5.89e-03	5.24e-03
ZDT6	1.56e+0	6.80e-03	5.93e-03	5.79e-03	3.47e-03	3.09e-03
DTLZ1	5.21e-02	2.47e-01	3.31e-02	2.64e-02	2.05e-02	1.62e-02
DTLZ2	1.30e-01	5.19e-02	5.11e-02	5.08e-02	4.10e-02	3.67e-02
DTLZ4	1.32e-01	6.30e-02	4.94e-02	4.86e-02	4.22e-02	3.95e-02
DTLZ6	3.13e+00	3.92e-03	3.27e-03	3.34e-03	2.35e-03	2.04e-03
DTLZ7	8.45e-02	5.92e-02	5.37e-02	5.33e-02	4.22e-02	3.94e-02

平均排名	算法	秩平均值
1	HEGMOFA	1.00
2	MOFA+S2+S3	2.00
3	MOFA+S1+S2	3.11
4	MOFA+S2	3.89
5	MOFA+S1	5.11
6	MOFA	5.89
