基于车速引导和感应控制的干线协调优化方法

doi:10.16182/j.issn1004731x.joss.23-0315

摘要/Abstract

摘要：

干线信号协调通常基于固定带速和时段性统计流量，但实际运行中，车辆的行驶车速和交通流量往往呈波动变化，导致信号方案与实际最优带速和交通流需求不相匹配，影响交叉口的通行效率。基于车路协同环境，运用Maxband模型，以绿波带宽最大、干线车辆延误、干线停车次数与次路方向延误最小为优化目标，建立了干线信号协调多目标优化模型，并采用改进的多目标粒子群算法对模型求解，获得协调路口全局控制方案参数；根据交叉口进口道车辆位置和信号状态提出了车速引导模型；根据干线交叉口进口道的车辆饱和度情况，应用感应控制策略在全局协调的基础上对各路口绿灯时间进行实时调整。仿真结果表明：优化模型将车速引导和信号协调相结合，考虑主线路口负荷度情况，动态调整绿灯时间，降低了交叉口处的延误和停车次数，有效提升了干线协调控制效率。

关键词: 车速引导, 多目标优化, 信号交叉口, 干线信号协调, 交通仿真

Abstract:

Arterial signal coordination is usually based on fixed belt speeds and time-of-day statistical flows. Actually, vehicle speeds and traffic flows are fluctuating, which causes to the mismatch between the signal scheme and the actual optimal belt speeds and traffic flow demands, and affects the intersection's traffic efficiency. Based on the vehicle infrastructure cooperation, by applying Maxband model and the maximum green wave bandwidth, the minimum number of arterial vehicle delays, arterial stops and the minor direction delays being the optimization objectives, a multi-objective optimization model for arterial signal coordination is established. Through using an improved multi-objective particle swarm algorithm the model is solved to obtain the parameters of the coordinated intersection global control scheme. A vehicle speed guidance model is proposed based on the intersection inlet lane vehicle location and signal state. According to the vehicle saturation of the inlet lane of the arterial intersection, an inductive control strategy is applied to adjust the green light timing of each intersection in real time on the basis of global coordination. The results show that the optimization model combines the speed guidance and signal coordination, considers the mainline intersection loading degree situation, dynamically adjusts the green time, reduces the number of delays and stops at intersections, and can effectively improve the efficiency of arterial coordination control.

Key words: speed guidance, multi-objective optimization, signal intersections, arterial signal coordination, traffic simulation

中图分类号:

TP391.9

邓明君,胡辛瑕,李响等 . 基于车速引导和感应控制的干线协调优化方法[J]. 系统仿真学报, 2024, 36(6): 1309-1321.

Deng Mingjun,Hu Xinxia,Li Xiang,et al . Arterial Coordination Optimization Method Based on Vehicle Speed Guidance and Inductive Control[J]. Journal of System Simulation, 2024, 36(6): 1309-1321.

图/表 11

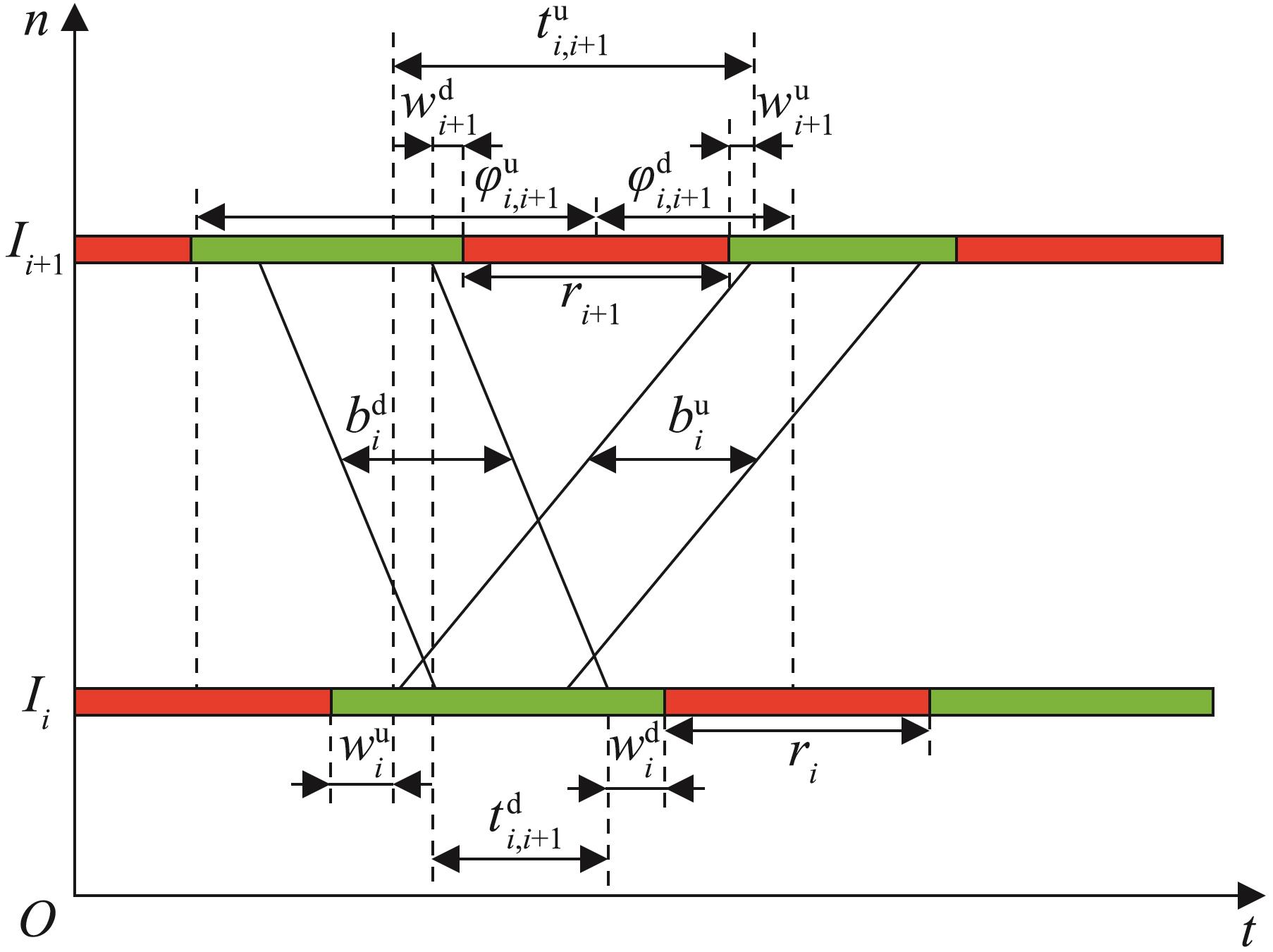

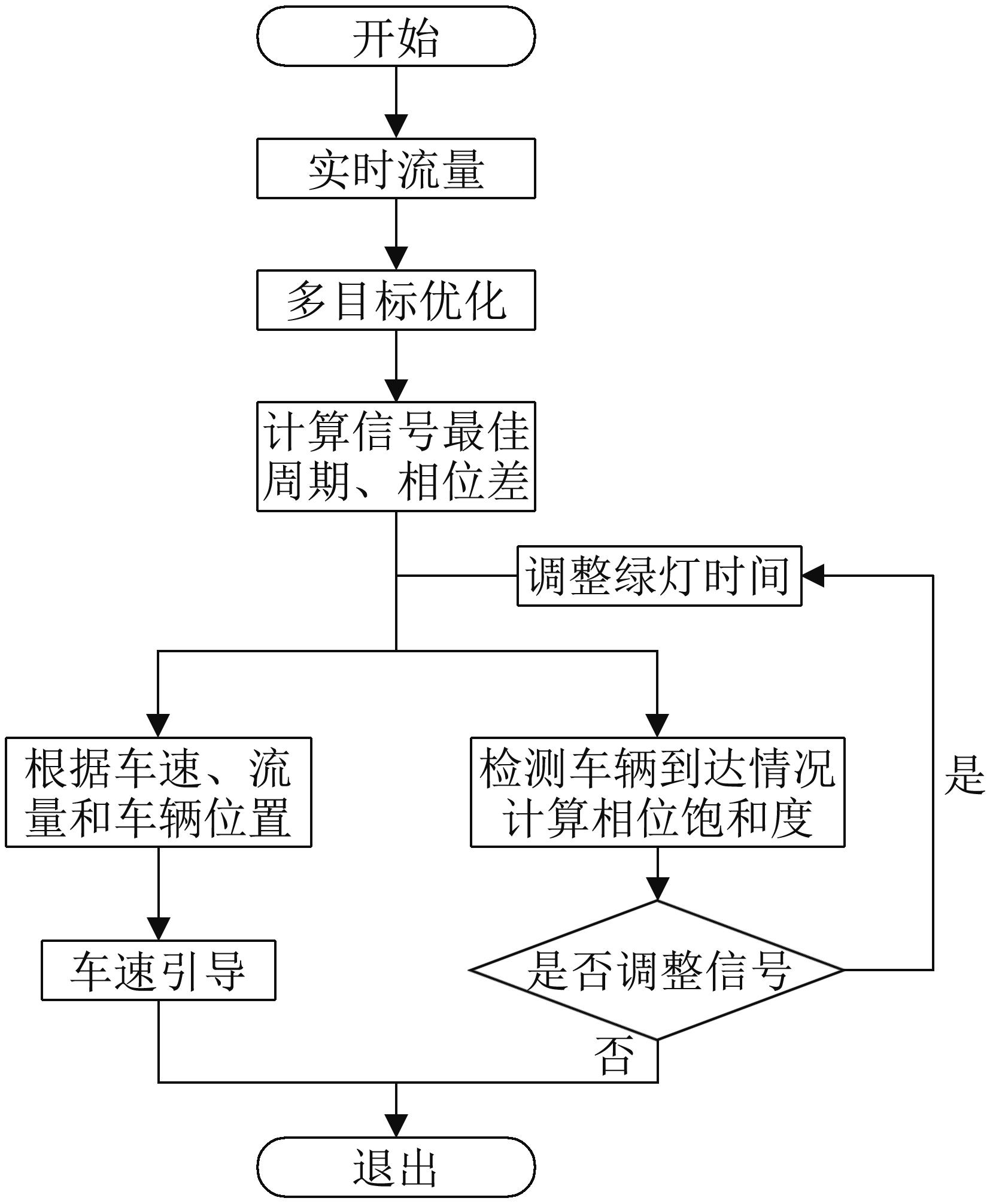

图1

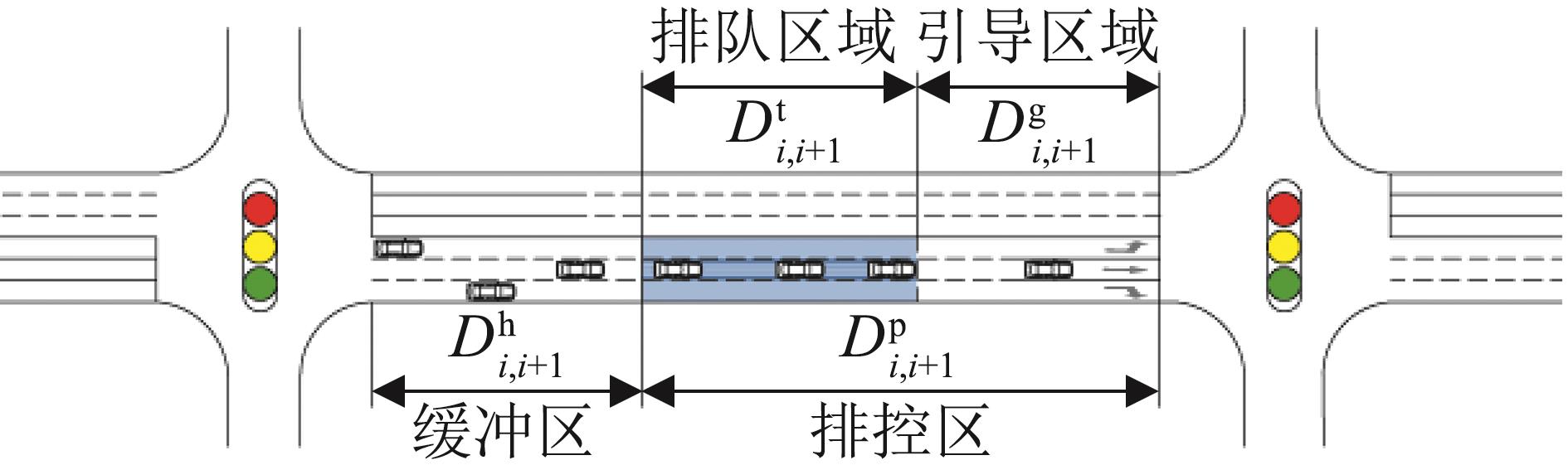

图2

图3

图4

表1

表2

表3

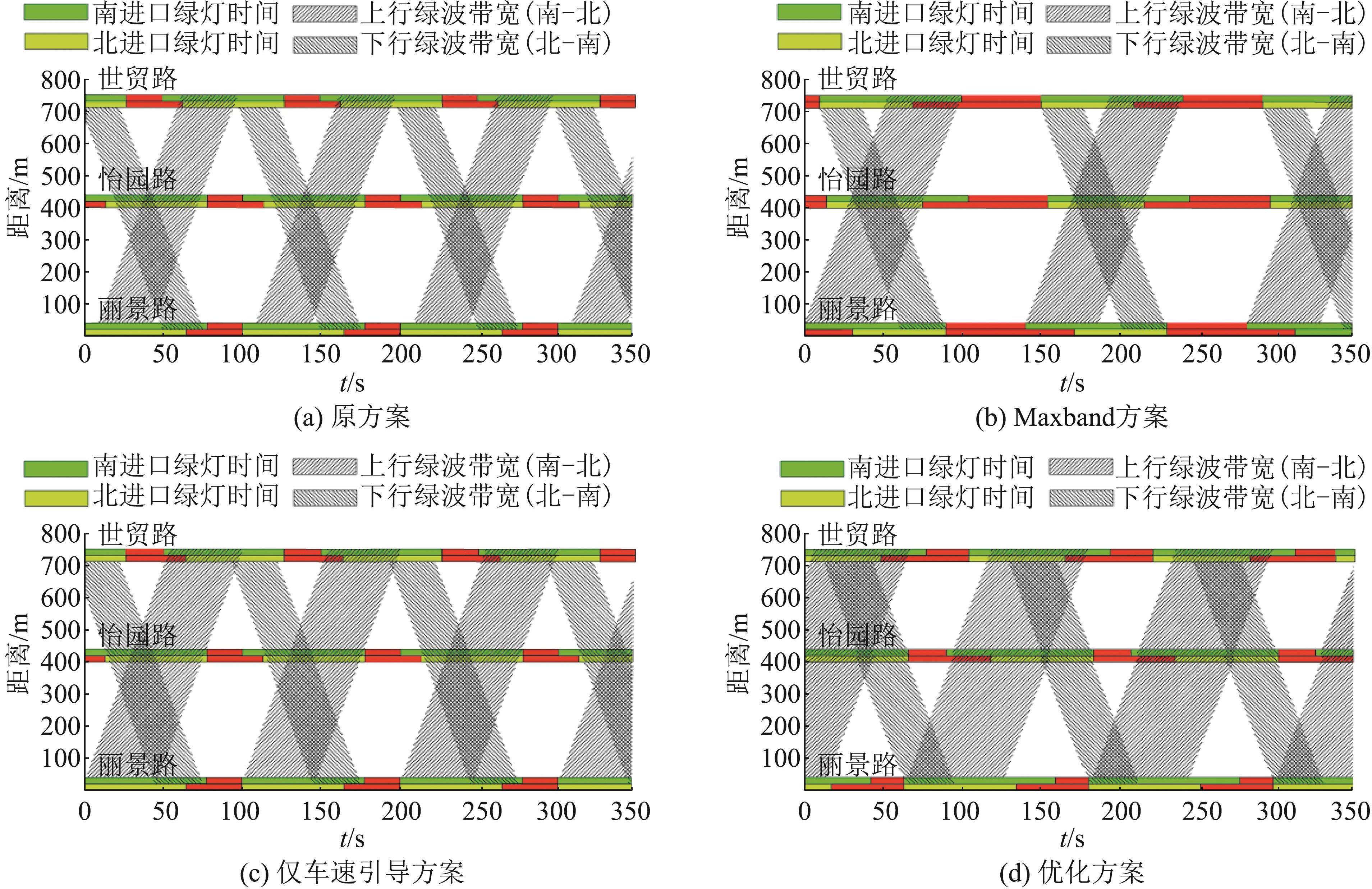

图5

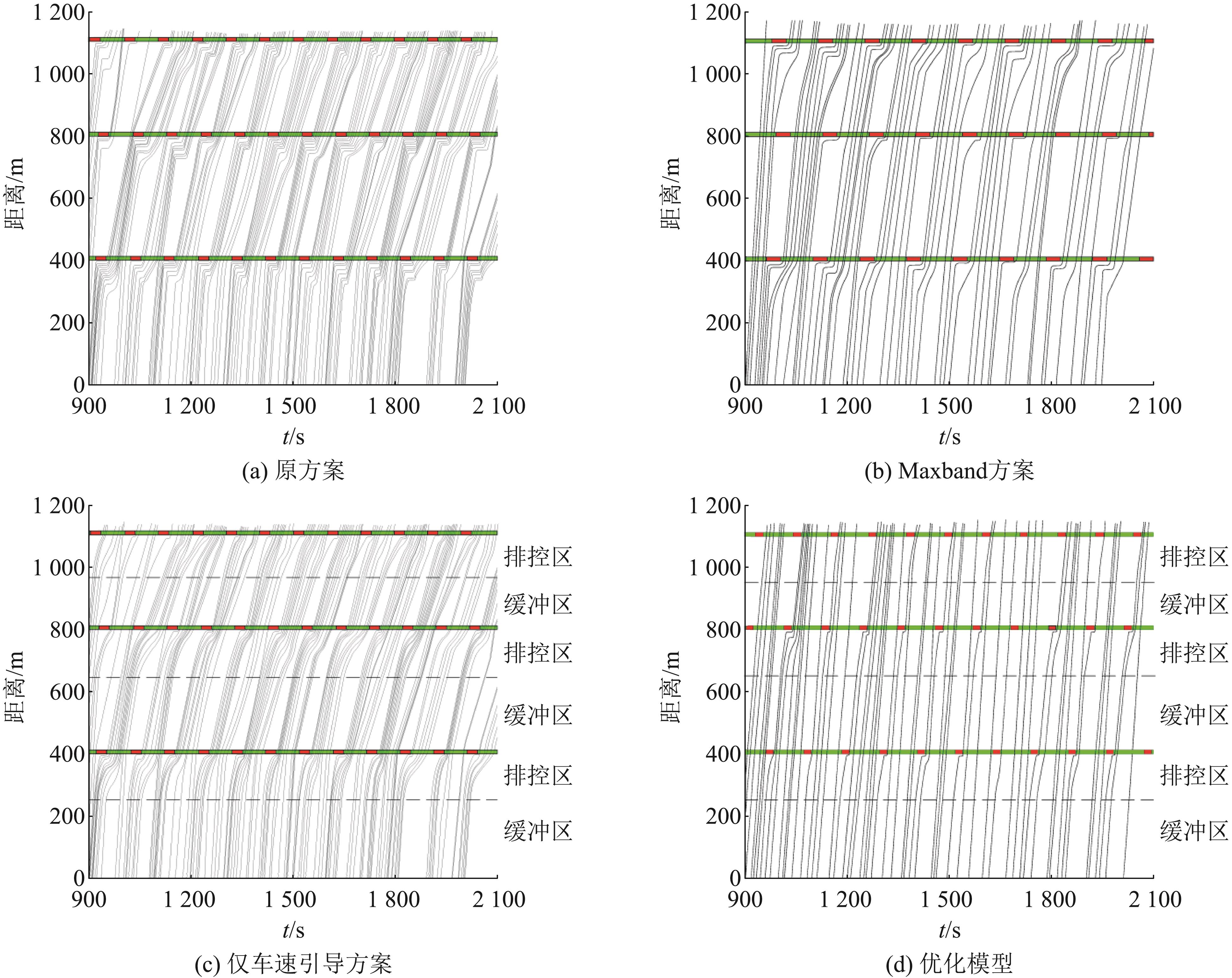

图6

表4

表5

参考文献 21

1	高志波. 基于车路协同环境的干线信号控制方法研究[D]. 长沙: 长沙理工大学, 2018.
	Gao Zhibo. The Research on Arterial Signal Control Method Based on Cooperative Vehicle Infrastructure Environment[D]. Changsha: Changsha University of Science & Technology, 2018.
2	王殿海, 杨希锐, 宋现敏. 交通信号干线协调控制经典数值计算法的改进[J]. 吉林大学学报(工学版), 2011, 41(1): 29-34.
	Wang Dianhai, Yang Xirui, Song Xianmin. Improvement of Classical Numerical Method for Arterial Road Signal Coordinate Control[J]. Journal of Jilin University(Engineering and Technology Edition), 2011, 41(1): 29-34.
3	Abu-Lebdeh G. Integrated Adaptive-signal Dynamic-speed Control of Signalized Arterials[J]. Journal of Transportation Engineering, 2002, 128(5): 447-451.
4	Liang Xiao, Guler S I, Gayah V V. Decentralized Arterial Traffic Signal Optimization with Connected Vehicle Information[J]. Journal of Intelligent Transportation Systems, 2023, 27(2): 145-160.
5	王昊, 彭显玥. 临界饱和状态交通干线协调控制模型[J]. 中国公路学报, 2022, 35(7): 228-240.
	Wang Hao, Peng Xianyue. Signal Coordination Control Model for Near Saturated Arterial Intersections[J]. China Journal of Highway and Transport, 2022, 35(7): 228-240.
6	余佳洁, 季彦婕, 卜卿, 等. 考虑断点成本的长干线分段绿波控制方法[J]. 浙江大学学报(工学版), 2022, 56(4): 640-648.
	Yu Jiajie, Ji Yanjie, Bu Qing, et al. Partitioned Green-wave Control Scheme for Long Arterial Considering Breakpoint Cost[J]. Journal of Zhejiang University(Engineering Science), 2022, 56(4): 640-648.
7	Liu Shuai, Zhang Weitong, Wu Xiaojun, et al. A Simulation System and Speed Guidance Algorithms for Intersection Traffic Control Using Connected Vehicle Technology[J]. Tsinghua Science and Technology, 2019, 24(2): 160-170.
8	Gao Yuhong, Qu Zhaowei, Song Xianmin, et al. A Novel Relationship Model Between Signal Timing, Queue Length and Travel Speed[J]. Physica A: Statistical Mechanics and its Applications, 2021, 583: 126331.
9	李浩然, 褚端峰, 梁栋才, 等. 考虑驾驶风格的闭环反馈车速引导方法研究[J]. 交通运输系统工程与信息, 2021, 21(3): 94-100.
	Li Haoran, Chu Duanfeng, Liang Dongcai, et al. Closed-loop Feedback Speed Guidance Method Considering Driving Style[J]. Journal of Transportation Systems Engineering and Information Technology, 2021, 21(3): 94-100.
10	徐丽萍, 邓明君. 基于车路协同环境的信号交叉口车速引导方法[J]. 交通信息与安全, 2021, 39(2): 78-86.
	Xu Liping, Deng Mingjun. A Speed Guidance Method at Signalized Intersections Based on Vehicle Infrastructure Cooperation[J]. Journal of Transport Information and Safety, 2021, 39(2): 78-86.
11	龙科军, 高志波, 吴伟, 等. 城市道路干线信号协调控制与车速引导集成优化[J]. 长安大学学报(自然科学版), 2018, 38(2): 94-102.
	Long Kejun, Gao Zhibo, Wu Wei, et al. Integrated Optimization for Urban Arterial Traffic Signal Coordination and Vehicle Active Speed Guidance[J]. Journal of Chang'an University (Natural Science Edition), 2018, 38(2): 94-102.
12	Wang Pangwei, Jiang Yilun, Xiao Lin, et al. A Joint Control Model for Connected Vehicle Platoon and Arterial Signal Coordination[J]. Journal of Intelligent Transportation Systems, 2020, 24(1): 81-92.
13	蒋贤才, 金宇, 谢志云. 车联网环境下干线交通信号协调控制方法[J]. 哈尔滨工业大学学报, 2021, 53(3): 18-25.
	Jiang Xiancai, Jin Yu, Xie Zhiyun. Arterial Coordinated Signal Control Method Under Connected Vehicle Environment[J]. Journal of Harbin Institute of Technology, 2021, 53(3): 18-25.
14	卢凯, 张杰华, 邓兴栋, 等. 基于车速与信号协同优化的区域绿波协调控制模型[J]. 中国公路学报, 2021, 34(7): 31-41.
	Lu Kai, Zhang Jiehua, Deng Xingdong, et al. Regional Green Wave Coordinated Control Model Based on Cooperative Optimization of Vehicle Speed and Traffic Signal[J]. China Journal of Highway and Transport, 2021, 34(7): 31-41.
15	张靖思, 李振龙, 邢冠仰. 考虑动态车速的双周期干线信号协调控制多目标优化[J]. 交通信息与安全, 2021, 39(3): 60-67.
	Zhang Jingsi, Li Zhenlong, Xing Guanyang. Multi-objective Optimization for Coordinated Control of Double-cycling Arterial Signals Considering Dynamic Vehicle Speeds[J]. Journal of Transport Information and Safety, 2021, 39(3): 60-67.
16	张存保, 冉斌, 梅朝辉, 等. 车路协同下道路交叉口信号控制优化方法[J]. 交通运输系统工程与信息, 2013, 13(3): 40-45.
	Zhang Cunbao, Ran Bin, Mei Zhaohui, et al. An Optimization Method of Traffic Signal Control Based on Cooperative Vehicle Infrastructure System[J]. Journal of Transportation Systems Engineering and Information Technology, 2013, 13(3): 40-45.
17	Liu Meiyu, Shi Jing. A Cellular Automata Traffic Flow Model Combined with a BP Neural Network Based Microscopic Lane Changing Decision Model[J]. Journal of Intelligent Transportation Systems, 2019, 23(4): 309-318.
18	Little J D C. The Synchronization of Traffic Signals by Mixed-integer Linear Programming[J]. Operations Research, 1966, 14(4): 568-594.
19	Michael R M, Neil J P, Robert E S, et al. High Capacity Manual 2010[M]. Washington, DC: [s.n.], 2010.
20	李巧茹, 李欣, 陈亮. 基于Pareto粒子群算法的路口多目标信号控制模型[J]. 铁道科学与工程学报, 2018, 15(4): 1076-1087.
	Li Qiaoru, Li Xin, Chen Liang. The Multi-objective Signal Control Model for Intersections Based on Particle Swarm Algorithm with Pareto Optimal Solution Set[J]. Journal of Railway Science and Engineering, 2018, 15(4): 1076-1087.
21	张运涛, 李以农, 张志达, 等. 基于改进粒子群算法的非对称传动主轴多目标优化[J]. 振动与冲击, 2022, 41(2): 130-139.
	Zhang Yuntao, Li Yinong, Zhang Zhida, et al. Multi Objective Optimization of an Asymmetric Transmission Spindle Based on Improved Particle Swarm Optimization[J]. Journal of Vibration and Shock, 2022, 41(2): 130-139.

交叉口	相位	绿灯时间	红灯时间	周期
丽景路	西进口左转	15	3	100
	南北直行	65	0
	南直行左转	14	3
怡园路	西进口左转	15	3	100
	南北直行	65	0
	南直行左转	14	3
世贸路	西进口左转	18	3	100
	南北直行	60	0
	南直行左转	16	3

交叉口	西进口		南进口		北进口
交叉口	左转	右转	左转	直行	直行	右转
丽景路	157	331	133	1 994	1 182	113
怡园路	285	176	151	2 287	1 257	132
世贸路	131	159	229	1 995	618	123

方案	绿波带宽/s		平均行程时间/s	干线车均延误/(s/pcu)	干线平均停车次数/(次/pcu)	次路方向车均延误/(s/pcu)
方案	上行	下行	平均行程时间/s	干线车均延误/(s/pcu)	干线平均停车次数/(次/pcu)	次路方向车均延误/(s/pcu)
原方案	39	22	156.56	40.12	1.14	89.49
Maxband方案	52	26	129.87	27.61	0.74	55.23
仅车速引导方案	47	29	125.39	21.83	0.61	41.40
本文优化方案 (车速引导+绿灯调整)	63	33	113.56	17.88	0.43	38.03

结果对比	平均行程时间	干线车均延误	干线平均停车次数	次路方向车均延误
本文相对于原方案	-27.5	-55.4	-62.3	-57.5
本文相对于Maxband方案	-12.6	-35.2	-41.9	-31.1
本文相对于仅车速引导方案	-9.4	-18.1	-29.5	-8.1
