流形对齐与双预测自适应动态多目标优化算法

doi:10.16182/j.issn1004731x.joss.26-0401

摘要/Abstract

摘要：

针对动态多目标优化问题中现有预测型算法在复杂非线性环境和小样本条件下易出现预测失效、流形拓扑失真和环境响应与算子配置缺乏自适应性的问题，提出一种流形对齐与双预测自适应动态多目标优化算法（manifold alignment and dual prediction-based adaptive dynamic multi-objective evolutionary algorithm， MADP-DMOEA）。在环境变化时将决策变量流形解耦为中心与形状，利用二分图最优匹配实现相邻时刻流形的有效对齐，并依据几何位移判定环境变化强度；构建双预测模型，在剧烈变化时采用广义回归神经网络进行中心外推，在平缓变化时结合回声状态网络估计认知不确定性并自适应调节扰动尺度；设计基于动态收敛反馈的算子调度策略和决策空间拓扑保持的环境选择机制。基准测试结果表明：该算法在复杂时变环境下具有较好的收敛精度、分布多样性和动态跟踪能力，能够有效提升Pareto最优解集的追踪效果。

关键词: 动态多目标优化, 流形对齐, 自适应策略, 广义回归神经网络, 二分图匹配

Abstract:

To address prediction failure, manifold topology distortion, and insufficient adaptability in environmental response and operator configuration in existing prediction-based algorithms for dynamic multi-objective optimization under complex nonlinear environments and small-sample settings, this paper proposes a manifold alignment and dual prediction-based adaptive dynamic multi-objective evolutionary algorithm, termed MADP-DMOEA. When the environment changes, the algorithm decomposes the decision-variable manifold into center and shape components, effectively aligns manifolds at adjacent time instants via bipartite optimal matching, and identifies environmental change severity using geometric displacement. A dual prediction model is developed, in which a GRNN performs center extrapolation under severe changes, while an echo state network (ESN) estimates epistemic uncertainty to adaptively adjust the perturbation scale under mild changes. Operator scheduling based on dynamic convergence feedback and environmental selection that preserves decision-space topology are introduced. Experimental results demonstrate that the proposed algorithm achieves good convergence accuracy, diversity of solution distribution, and dynamic tracking performance in complex time-varying environments and effectively improves the tracking of the Pareto-optimal solution set.

Key words: dynamic multi-objective optimization, manifold alignment, adaptive strategy, generalized regression neural network, bipartite graph matching

中图分类号:

TP301

岳雪芝,熊超,蒋延申等 . 流形对齐与双预测自适应动态多目标优化算法[J]. 系统仿真学报, 2026, 38(10): 2887-2904.

Yue Xuezhi,Xiong Chao,Jiang Yanshen,et al . Manifold Alignment and Dual Prediction-based Adaptive Dynamic Multi-objective Evolutionary Algorithm[J]. Journal of System Simulation, 2026, 38(10): 2887-2904.

图/表 11

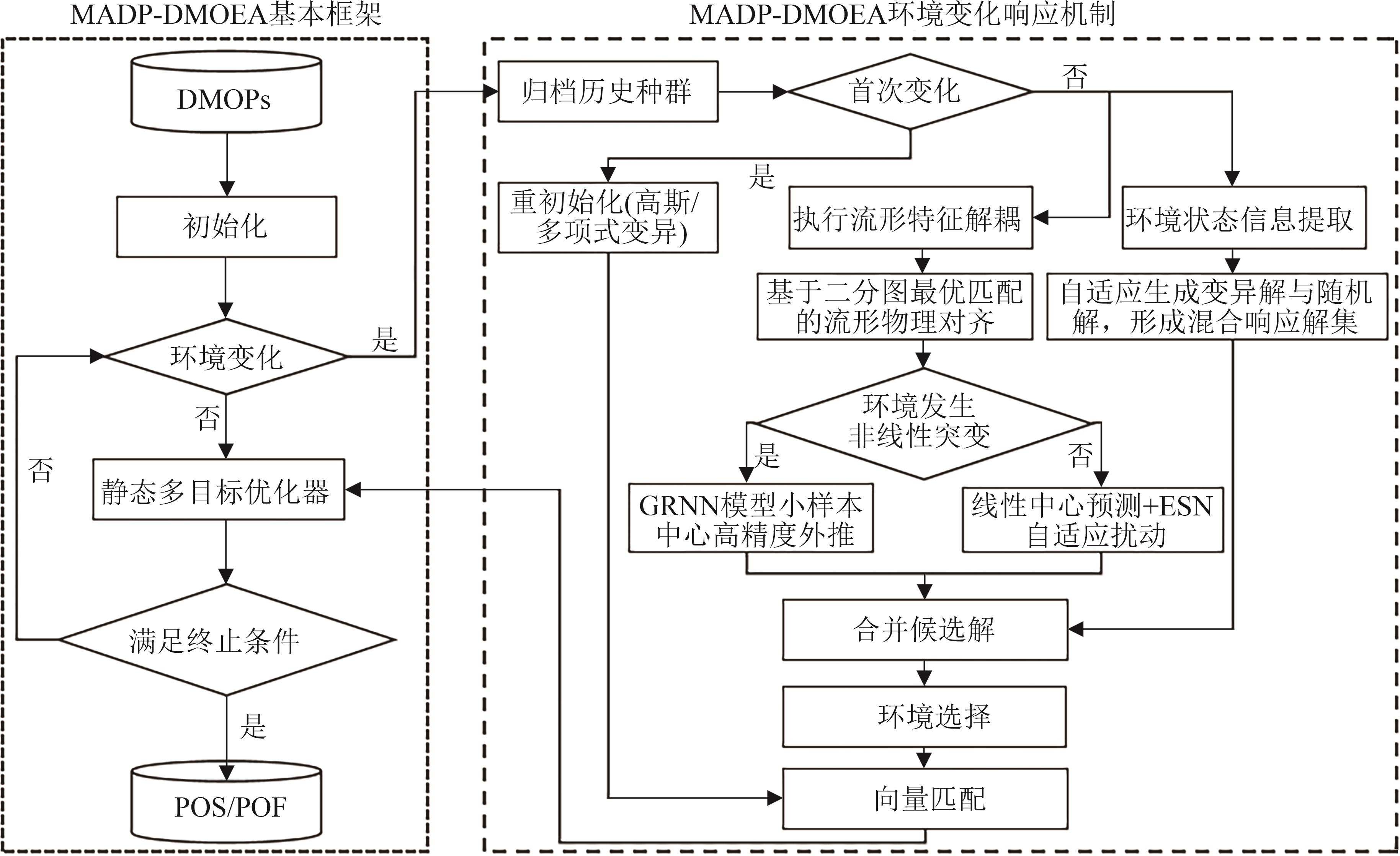

图1

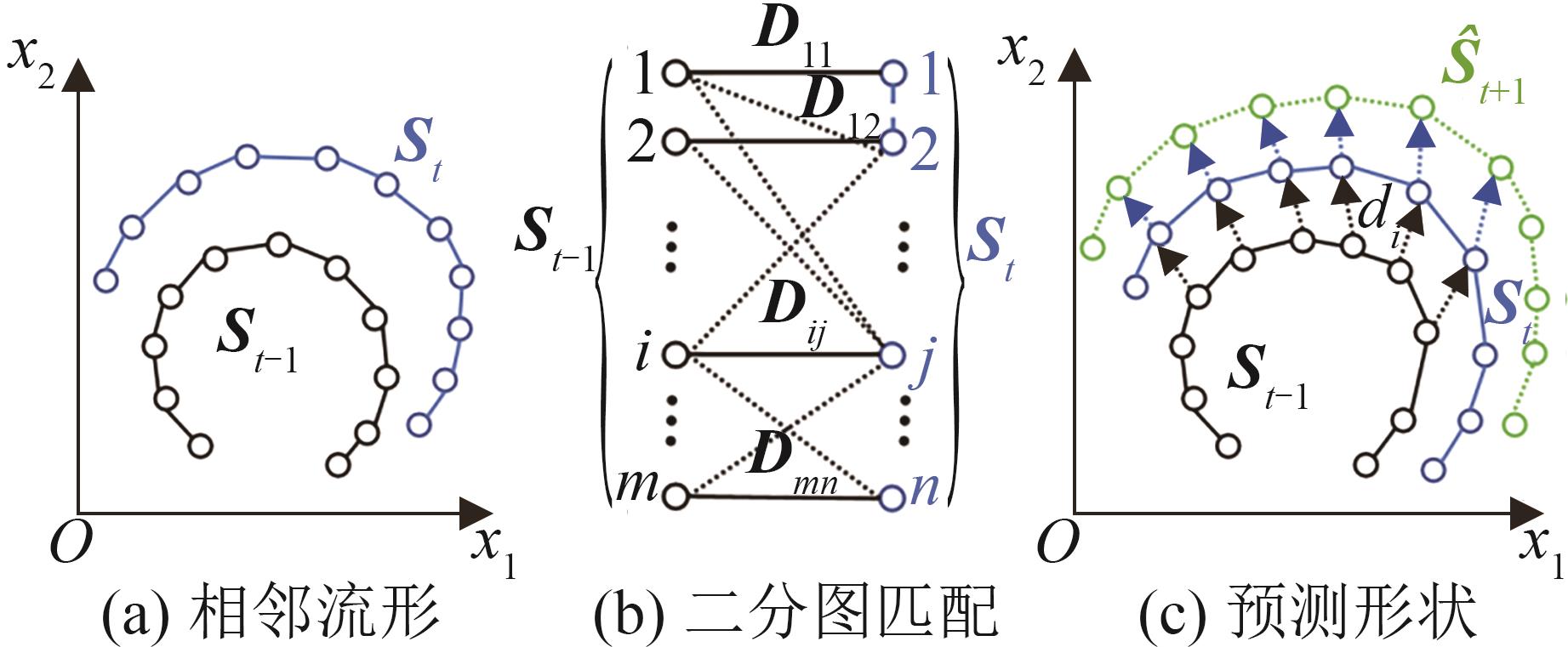

图2

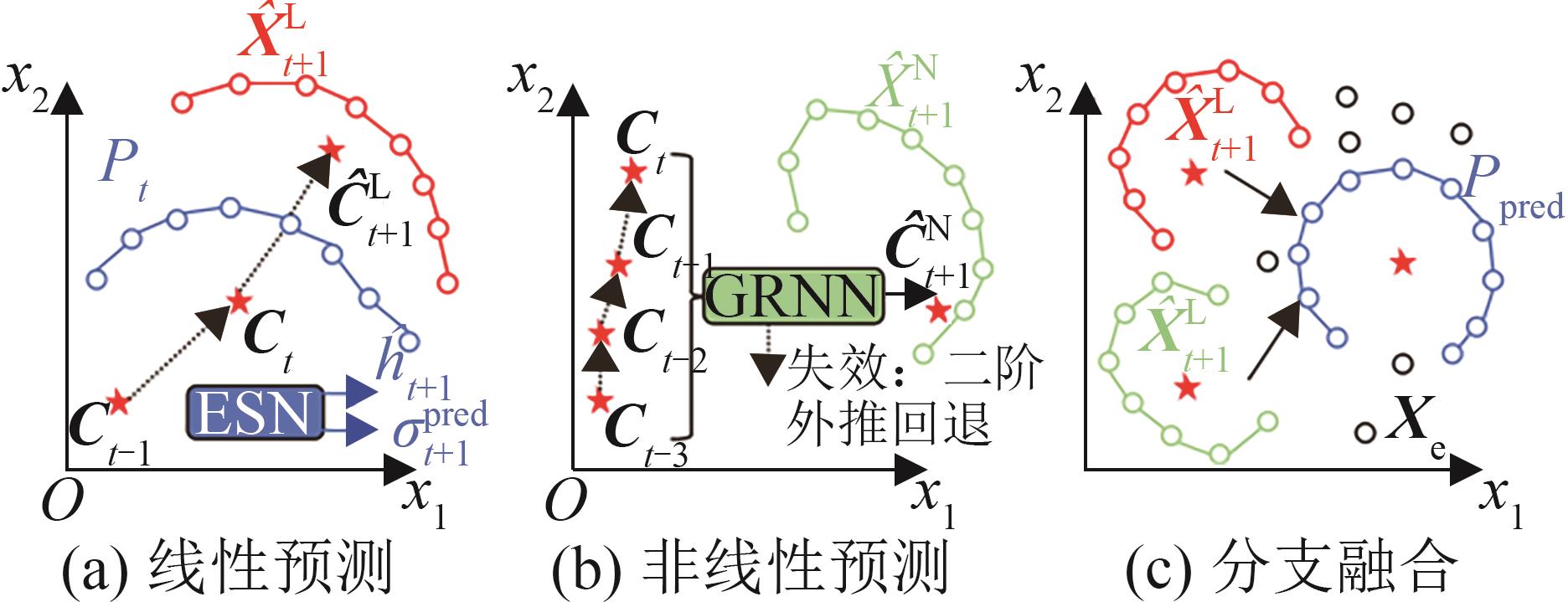

图3

表1

MIGD 平均值和标准差

问题	( $τ t$ , $n t$ )	AE-DMOEA	DIP-DMOEA	KL-DMOEA	KTM-DMOEA	SVR-DMOEA	MADP-DMOEA
DF1	(5,5)	127.53×10⁻³ (7.73×10⁻³) -	350.04×10⁻³ (62.7×10⁻³) -	171.63×10⁻³ (11.5×10⁻³) -	179.31×10⁻³ (29.6×10⁻³) -	503.58×10⁻³ (109×10⁻³) -	64.403×10⁻³ (9.30×10⁻³)
	(5,10)	67.534×10⁻³ (6.52×10⁻³) -	108.45×10⁻³ (24.6×10⁻³) -	123.45×10⁻³ (9.80×10⁻³) -	106.49×10⁻³ (13.3×10⁻³) -	207.12×10⁻³ (71.2×10⁻³) -	43.648×10⁻³ (3.68×10⁻³)
	(10,5)	67.664×10⁻³ (5.29×10⁻³) -	98.053×10⁻³ (19.6×10⁻³) -	81.744×10⁻³ (4.69×10⁻³) -	63.693×10⁻³ (12.6×10⁻³) -	130.02×10⁻³ (39.2×10⁻³) -	20.520×10⁻³ (1.47×10⁻³)
	(10,10)	24.939×10⁻³ (1.71×10⁻³) -	30.945×10⁻³ (4.67×10⁻³) -	55.265×10⁻³ (4.57×10⁻³) -	43.344×10⁻³ (6.39×10⁻³) -	47.674×10⁻³ (11.9×10⁻³) -	15.305×10⁻³ (1.13×10⁻³)
DF2	(5,5)	103.53×10⁻³ (9.22×10⁻³) -	260.66×10⁻³ (24.9×10⁻³) -	122.09×10⁻³ (9.62×10⁻³) -	168.54×10⁻³ (16.9×10⁻³) -	312.95×10⁻³ (85.4×10⁻³) -	59.481×10⁻³ (4.78×10⁻³)
	(5,10)	103.20×10⁻³ (13.4×10⁻³) -	153.17×10⁻³ (18.1×10⁻³) -	94.084×10⁻³ (5.88×10⁻³) -	132.49×10⁻³ (16.6×10⁻³) -	217.30×10⁻³ (53.5×10⁻³) -	44.906×10⁻³ (4.26×10⁻³)
	(10,5)	123.74×10⁻³ (13.2×10⁻³) -	118.36×10⁻³ (17.4×10⁻³) -	61.215×10⁻³ (4.80×10⁻³) -	88.255×10⁻³ (6.38×10⁻³) -	147.99×10⁻³ (30.5×10⁻³) -	20.544×10⁻³ (1.87×10⁻³)
	(10,10)	122.00×10⁻³ (8.71×10⁻³) -	74.280×10⁻³ (6.87×10⁻³) -	48.699×10⁻³ (4.53×10⁻³) -	71.319×10⁻³ (7.67×10⁻³) -	98.023×10⁻³ (12.9×10⁻³) -	16.405×10⁻³ (1.51×10⁻³)
DF3	(5,5)	525.02×10⁻³ (43.6×10⁻³) -	343.26×10⁻³ (90.5×10⁻³) -	645.48×10⁻³ (74.3×10⁻³) -	469.16×10⁻³ (131×10⁻³) -	586.91×10⁻³ (99.8×10⁻³) -	172.85×10⁻³ (59.1×10⁻³)
	(5,10)	324.99×10⁻³ (47.6×10⁻³) -	297.12×10⁻³ (62.1×10⁻³) -	378.95×10⁻³ (29.8×10⁻³) -	407.47×10⁻³ (80.9×10⁻³) -	390.68×10⁻³ (34.6×10⁻³) -	157.04×10⁻³ (70.0×10⁻³)
	(10,5)	361.94×10⁻³ (28.0×10⁻³) -	180.04×10⁻³ (70.9×10⁻³) -	373.65×10⁻³ (21.1×10⁻³) -	177.04×10⁻³ (54.3×10⁻³) -	380.61×10⁻³ (45.2×10⁻³) -	57.229×10⁻³ (27.9×10⁻³)
	(10,10)	271.51×10⁻³ (46.3×10⁻³) -	142.94×10⁻³ (79.7×10⁻³) -	301.60×10⁻³ (26.5×10⁻³) -	234.99×10⁻³ (44.9×10⁻³) -	295.13×10⁻³ (34.3×10⁻³) -	44.586×10⁻³ (21.6×10⁻³)
DF4	(5,5)	304.60×10⁻³ (37.5×10⁻³) -	233.56×10⁻³ (34.0×10⁻³) -	289.96×10⁻³ (45.5×10⁻³) -	479.99×10⁻³ (39.3×10⁻³) -	428.25×10⁻³ (72.6×10⁻³) -	196.09×10⁻³ (22.3×10⁻³)
	(5,10)	249.55×10⁻³ (34.7×10⁻³) -	232.37×10⁻³ (24.2×10⁻³) -	284.09×10⁻³ (38.3×10⁻³) -	382.40×10⁻³ (50.0×10⁻³) -	430.28×10⁻³ (63.4×10⁻³) -	192.44×10⁻³ (18.4×10⁻³)
	(10,5)	166.04×10⁻³ (10.3×10⁻³) -	144.79×10⁻³ (6.04×10⁻³) -	164.06×10⁻³ (7.86×10⁻³) -	306.29×10⁻³ (10.2×10⁻³) -	198.79×10⁻³ (21.0×10⁻³) -	141.00×10⁻³ (2.46×10⁻³)
	(10,10)	160.79×10⁻³ (9.92×10⁻³) -	142.86×10⁻³ (6.79×10⁻³) =	172.41×10⁻³ (12.9×10⁻³) -	230.60×10⁻³ (10.2×10⁻³) -	200.18×10⁻³ (21.0×10⁻³) -	139.91×10⁻³ (3.47×10⁻³)
DF5	(5,5)	253.21×10⁻³ (36.6×10⁻³) -	192.29×10⁻³ (62.0×10⁻³) -	366.37×10⁻³ (30.6×10⁻³) -	68.456×10⁻³ (7.43×10⁻³) +	433.75×10⁻³ (88.6×10⁻³) -	76.205×10⁻³ (6.07×10⁻³)
	(5,10)	147.35×10⁻³ (19.3×10⁻³) -	71.692×10⁻³ (10.1×10⁻³) -	259.60×10⁻³ (23.6×10⁻³) -	47.529×10⁻³ (5.00×10⁻³) -	225.95×10⁻³ (55.6×10⁻³) -	44.710×10⁻³ (3.96×10⁻³)
	(10,5)	93.760×10⁻³ (9.83×10⁻³) -	41.117×10⁻³ (5.77×10⁻³) -	168.13×10⁻³ (10.1×10⁻³) -	27.849×10⁻³ (1.86×10⁻³) -	107.45×10⁻³ (28.4×10⁻³) -	22.592×10⁻³ (1.32×10⁻³)
	(10,10)	29.741×10⁻³ (3.17×10⁻³) -	21.237×10⁻³ (2.65×10⁻³) -	60.154×10⁻³ (5.09×10⁻³) -	22.804×10⁻³ (0.916×10⁻³) -	60.912×10⁻³ (17.1×10⁻³) -	14.932×10⁻³ (0.879×10⁻³)
DF6	(5,5)	5 266.2×10⁻³ (528×10⁻³) -	5 541.7×10⁻³ (779×10⁻³) -	7 241.5×10⁻³ (467×10⁻³) -	3 318.5×10⁻³ (836×10⁻³) +	9 373.3×10⁻³ (2 240×10⁻³) -	4 025.5×10⁻³ (723×10⁻³)
	(5,10)	4 424.5×10⁻³ (399×10⁻³) -	4 112.6×10⁻³ (1 010×10⁻³) =	5 659.0×10⁻³ (385×10⁻³) -	3 263.3×10⁻³ (845×10⁻³) +	6 466.5×10⁻³ (1 260×10⁻³) -	4 059.6×10⁻³ (762×10⁻³)
	(10,5)	1 612.6×10⁻³ (109×10⁻³) +	2 048.9×10⁻³ (581×10⁻³) =	2 448.9×10⁻³ (217×10⁻³) -	1 573.4×10⁻³ (740×10⁻³) +	3 271.3×10⁻³ (935×10⁻³) -	1 983.4×10⁻³ (533×10⁻³)
	(10,10)	1 496.3×10⁻³ (192×10⁻³) +	2 800.6×10⁻³ (760×10⁻³) =	1 995.9×10⁻³ (192×10⁻³) +	1 716.5×10⁻³ (675×10⁻³) +	2 633.3×10⁻³ (1 670×10⁻³) -	2 592.6×10⁻³ (470×10⁻³)
DF7	(5,5)	295.63×10⁻³ (72.7×10⁻³) -	585.85×10⁻³ (46.5×10⁻³) -	505.71×10⁻³ (38.8×10⁻³) -	388.94×10⁻³ (84.1×10⁻³) -	903.97×10⁻³ (434×10⁻³) -	90.228×10⁻³ (30.9×10⁻³)
	(5,10)	324.81×10⁻³ (53.0×10⁻³) -	341.78×10⁻³ (79.9×10⁻³) -	293.88×10⁻³ (49.2×10⁻³) -	308.30×10⁻³ (16.6×10⁻³) -	500.96×10⁻³ (86.2×10⁻³) -	121.45×10⁻³ (54.2×10⁻³)
	(10,5)	325.09×10⁻³ (63.5×10⁻³) -	429.50×10⁻³ (86.3×10⁻³) -	460.28×10⁻³ (47.8×10⁻³) -	305.09×10⁻³ (61.9×10⁻³) -	614.25×10⁻³ (61.2×10⁻³) -	70.331×10⁻³ (28.6×10⁻³)
	(10,10)	354.74×10⁻³ (32.2×10⁻³) -	163.36×10⁻³ (79.9×10⁻³) -	258.14×10⁻³ (46.2×10⁻³) -	280.14×10⁻³ (22.1×10⁻³) -	443.64×10⁻³ (39.8×10⁻³) -	86.641×10⁻³ (51.4×10⁻³)
DF8	(5,5)	90.196×10⁻³ (3.69×10⁻³) +	247.52×10⁻³ (55.2×10⁻³) -	95.146×10⁻³ (8.81×10⁻³) +	245.94×10⁻³ (34.7×10⁻³) -	101.35×10⁻³ (28.2×10⁻³) +	134.05×10⁻³ (15.4×10⁻³)
	(5,10)	83.857×10⁻³ (2.39×10⁻³) +	267.86×10⁻³ (81.2×10⁻³) -	86.523×10⁻³ (5.46×10⁻³) +	246.12×10⁻³ (49.4×10⁻³) -	95.397×10⁻³ (6.46×10⁻³) +	129.01×10⁻³ (12.0×10⁻³)
	(10,5)	83.411×10⁻³ (1.89×10⁻³) +	197.59×10⁻³ (42.5×10⁻³) -	84.297×10⁻³ (7.87×10⁻³) +	193.97×10⁻³ (23.4×10⁻³) -	92.922×10⁻³ (7.07×10⁻³) =	94.250×10⁻³ (9.90×10⁻³)
	(10,10)	76.290×10⁻³ (3.14×10⁻³) +	211.86×10⁻³ (52.5×10⁻³) -	71.465×10⁻³ (2.95×10⁻³) +	179.01×10⁻³ (24.9×10⁻³) -	88.229×10⁻³ (12.6×10⁻³) =	88.007×10⁻³ (8.98×10⁻³)
DF9	(5,5)	569.34×10⁻³ (31.5×10⁻³) -	1 844.6×10⁻³ (343×10⁻³) -	672.63×10⁻³ (36.7×10⁻³) -	463.79×10⁻³ (87.7×10⁻³) -	1 122.6×10⁻³ (405×10⁻³) -	240.79×10⁻³ (35.4×10⁻³)
	(5,10)	393.01×10⁻³ (34.3×10⁻³) -	1 040.6×10⁻³ (177×10⁻³) -	547.42×10⁻³ (41.8×10⁻³) -	318.46×10⁻³ (89.4×10⁻³) -	1 087.0×10⁻³ (315×10⁻³) -	149.06×10⁻³ (24.8×10⁻³)
	(10,5)	323.84×10⁻³ (25.2×10⁻³) -	1 116.6×10⁻³ (185×10⁻³) -	410.65×10⁻³ (30.5×10⁻³) -	237.52×10⁻³ (50.0×10⁻³) -	670.98×10⁻³ (218×10⁻³) -	124.48×10⁻³ (24.5×10⁻³)
	(10,10)	247.53×10⁻³ (26.3×10⁻³) -	606.94×10⁻³ (175×10⁻³) -	310.69×10⁻³ (26.7×10⁻³) -	129.86×10⁻³ (32.8×10⁻³) -	714.96×10⁻³ (103×10⁻³) -	58.476×10⁻³ (11.7×10⁻³)
DF10	(5,5)	89.831×10⁻³ (8.95×10⁻³) +	279.16×10⁻³ (45.2×10⁻³) +	114.24×10⁻³ (12.0×10⁻³) +	333.95×10⁻³ (35.4×10⁻³) -	145.24×10⁻³ (12.4×10⁻³) +	285.55×10⁻³ (22.1×10⁻³)
	(5,10)	101.91×10⁻³ (10.1×10⁻³) +	311.44×10⁻³ (48.6×10⁻³) =	118.81×10⁻³ (12.7×10⁻³) +	333.90×10⁻³ (54.1×10⁻³) =	173.38×10⁻³ (31.6×10⁻³) +	316.90×10⁻³ (18.9×10⁻³)
	(10,5)	77.491×10⁻³ (4.81×10⁻³) +	191.25×10⁻³ (24.4×10⁻³) -	80.807×10⁻³ (4.47×10⁻³) +	241.46×10⁻³ (28.4×10⁻³) -	110.62×10⁻³ (7.27×10⁻³) +	162.44×10⁻³ (14.0×10⁻³)
	(10,10)	87.178×10⁻³ (7.99×10⁻³) +	224.40×10⁻³ (54.7×10⁻³) -	89.907×10⁻³ (6.07×10⁻³) +	281.21×10⁻³ (55.5×10⁻³) -	126.33×10⁻³ (7.22×10⁻³) +	176.27×10⁻³ (14.5×10⁻³)
DF11	(5,5)	690.81×10⁻³ (3.62×10⁻³) -	707.05×10⁻³ (8.00×10⁻³) -	698.30×10⁻³ (3.44×10⁻³) -	652.58×10⁻³ (16.2×10⁻³) +	705.70×10⁻³ (8.63×10⁻³) -	682.21×10⁻³ (3.53×10⁻³)
	(5,10)	676.59×10⁻³ (3.29×10⁻³) -	688.89×10⁻³ (8.51×10⁻³) -	685.11×10⁻³ (5.15×10⁻³) -	619.55×10⁻³ (11.3×10⁻³) +	694.88×10⁻³ (13.1×10⁻³) -	668.25×10⁻³ (4.24×10⁻³)
	(10,5)	676.37×10⁻³ (1.96×10⁻³) -	668.39×10⁻³ (1.99×10⁻³) -	681.28×10⁻³ (2.51×10⁻³) -	582.12×10⁻³ (4.97×10⁻³) +	686.38×10⁻³ (2.63×10⁻³) -	661.71×10⁻³ (1.09×10⁻³)
	(10,10)	658.35×10⁻³ (2.20×10⁻³) -	652.11×10⁻³ (3.15×10⁻³) -	662.54×10⁻³ (2.62×10⁻³) -	574.61×10⁻³ (4.01×10⁻³) +	671.79×10⁻³ (4.28×10⁻³) -	646.92×10⁻³ (1.16×10⁻³)
DF12	(5,5)	556.79×10⁻³ (117×10⁻³) -	382.59×10⁻³ (45.2×10⁻³) -	383.41×10⁻³ (41.5×10⁻³) -	471.06×10⁻³ (183×10⁻³) -	636.29×10⁻³ (104×10⁻³) -	294.01×10⁻³ (23.0×10⁻³)
	(5,10)	515.69×10⁻³ (58.3×10⁻³) -	301.01×10⁻³ (26.7×10⁻³) -	356.63×10⁻³ (90.4×10⁻³) -	280.24×10⁻³ (69.4×10⁻³) -	589.03×10⁻³ (49.9×10⁻³) -	233.50×10⁻³ (11.6×10⁻³)
	(10,5)	419.44×10⁻³ (102×10⁻³) -	257.26×10⁻³ (30.5×10⁻³) -	315.98×10⁻³ (35.2×10⁻³) -	308.05×10⁻³ (155×10⁻³) -	616.16×10⁻³ (93.0×10⁻³) -	206.12×10⁻³ (15.0×10⁻³)
	(10,10)	230.46×10⁻³ (77.8×10⁻³) -	172.60×10⁻³ (12.2×10⁻³) -	154.60×10⁻³ (5.93×10⁻³) -	183.43×10⁻³ (34.4×10⁻³) -	478.36×10⁻³ (126×10⁻³) -	144.25×10⁻³ (8.06×10⁻³)
DF13	(5,5)	1 928.6×10⁻³ (137×10⁻³) -	467.58×10⁻³ (82.5×10⁻³) -	617.65×10⁻³ (49.4×10⁻³) -	260.88×10⁻³ (16.2×10⁻³) +	692.79×10⁻³ (154×10⁻³) -	327.05×10⁻³ (9.92×10⁻³)
	(5,10)	765.80×10⁻³ (167×10⁻³) -	349.76×10⁻³ (38.0×10⁻³) -	461.55×10⁻³ (29.4×10⁻³) -	240.10×10⁻³ (18.0×10⁻³) +	412.28×10⁻³ (118×10⁻³) -	297.58×10⁻³ (7.42×10⁻³)
	(10,5)	701.90×10⁻³ (93.9×10⁻³) -	289.16×10⁻³ (11.6×10⁻³) -	364.48×10⁻³ (25.8×10⁻³) -	164.89×10⁻³ (6.80×10⁻³) +	301.67×10⁻³ (36.0×10⁻³) -	250.08×10⁻³ (3.88×10⁻³)
	(10,10)	185.87×10⁻³ (15.0×10⁻³) +	259.37×10⁻³ (7.99×10⁻³) -	237.20×10⁻³ (12.6×10⁻³) =	164.16×10⁻³ (4.58×10⁻³) +	182.42×10⁻³ (14.1×10⁻³) +	242.56×10⁻³ (3.70×10⁻³)
DF14	(5,5)	1 552.6×10⁻³ (518×10⁻³) -	149.94×10⁻³ (33.6×10⁻³) -	711.51×10⁻³ (69.4×10⁻³) -	115.39×10⁻³ (9.80×10⁻³) -	827.00×10⁻³ (178×10⁻³) -	94.932×10⁻³ (2.86×10⁻³)
	(5,10)	1 327.5×10⁻³ (470×10⁻³) -	95.242×10⁻³ (6.46×10⁻³) -	549.77×10⁻³ (86.5×10⁻³) -	88.562×10⁻³ (8.35×10⁻³) -	650.84×10⁻³ (166×10⁻³) -	81.057×10⁻³ (2.07×10⁻³)
	(10,5)	942.87×10⁻³ (362×10⁻³) -	74.803×10⁻³ (3.70×10⁻³) -	532.05×10⁻³ (59.9×10⁻³) -	62.665×10⁻³ (2.46×10⁻³) +	696.39×10⁻³ (184×10⁻³) -	65.922×10⁻³ (1.38×10⁻³)
	(10,10)	579.63×10⁻³ (190×10⁻³) -	63.912×10⁻³ (1.54×10⁻³) -	328.78×10⁻³ (36.9×10⁻³) -	49.356×10⁻³ (2.15×10⁻³) +	615.16×10⁻³ (133×10⁻³) -	63.048×10⁻³ (1.39×10⁻³)
FDA1	(5,5)	173.65×10⁻³ (22.9×10⁻³) -	182.25×10⁻³ (55.1×10⁻³) -	279.78×10⁻³ (33.3×10⁻³) -	117.40×10⁻³ (22.2×10⁻³) -	351.72×10⁻³ (141×10⁻³) -	62.480×10⁻³ (5.71×10⁻³)
	(5,10)	73.190×10⁻³ (9.78×10⁻³) -	80.709×10⁻³ (21.3×10⁻³) -	167.96×10⁻³ (19.1×10⁻³) -	68.430×10⁻³ (18.1×10⁻³) -	111.94×10⁻³ (28.9×10⁻³) -	39.565×10⁻³ (3.30×10⁻³)
	(10,5)	73.122×10⁻³ (8.98×10⁻³) -	46.051×10⁻³ (10.1×10⁻³) -	109.53×10⁻³ (6.76×10⁻³) -	31.481×10⁻³ (6.86×10⁻³) -	76.388×10⁻³ (16.1×10⁻³) -	20.658×10⁻³ (1.09×10⁻³)
	(10,10)	22.130×10⁻³ (1.61×10⁻³) -	23.706×10⁻³ (4.07×10⁻³) -	37.311×10⁻³ (1.96×10⁻³) -	22.151×10⁻³ (5.97×10⁻³) -	37.336×10⁻³ (8.08×10⁻³) -	14.103×10⁻³ (0.629×10⁻³)
FDA2	(5,5)	43.662×10⁻³ (7.53×10⁻³) -	72.355×10⁻³ (12.5×10⁻³) -	80.498×10⁻³ (7.17×10⁻³) -	209.80×10⁻³ (98.0×10⁻³) -	151.05×10⁻³ (49.5×10⁻³) -	41.548×10⁻³ (17.8×10⁻³)
	(5,10)	26.216×10⁻³ (7.02×10⁻³) +	92.806×10⁻³ (160×10⁻³) -	47.569×10⁻³ (7.57×10⁻³) -	131.78×10⁻³ (97.1×10⁻³) -	108.70×10⁻³ (28.3×10⁻³) -	39.266×10⁻³ (25.3×10⁻³)
	(10,5)	14.196×10⁻³ (2.04×10⁻³) +	27.866×10⁻³ (10.4×10⁻³) -	26.667×10⁻³ (3.75×10⁻³) -	95.731×10⁻³ (9.77×10⁻³) -	39.193×10⁻³ (7.01×10⁻³) -	16.540×10⁻³ (5.23×10⁻³)
	(10,10)	11.009×10⁻³ (1.40×10⁻³) +	22.239×10⁻³ (6.05×10⁻³) -	15.048×10⁻³ (2.43×10⁻³) =	93.057×10⁻³ (136×10⁻³) -	31.679×10⁻³ (11.7×10⁻³) -	16.169×10⁻³ (12.6×10⁻³)
FDA3	(5,5)	177.53×10⁻³ (13.6×10⁻³) -	270.98×10⁻³ (60.6×10⁻³) -	323.46×10⁻³ (95.4×10⁻³) -	276.24×10⁻³ (68.8×10⁻³) -	330.24×10⁻³ (76.6×10⁻³) -	117.93×10⁻³ (4.06×10⁻³)
	(5,10)	85.778×10⁻³ (5.23×10⁻³) =	122.76×10⁻³ (12.5×10⁻³) -	158.33×10⁻³ (10.0×10⁻³) -	129.32×10⁻³ (9.55×10⁻³) -	188.76×10⁻³ (50.6×10⁻³) -	86.236×10⁻³ (4.50×10⁻³)
	(10,5)	88.417×10⁻³ (10.7×10⁻³) -	104.40×10⁻³ (7.86×10⁻³) -	122.78×10⁻³ (7.48×10⁻³) -	162.27×10⁻³ (7.59×10⁻³) -	137.56×10⁻³ (40.7×10⁻³) -	58.907×10⁻³ (2.46×10⁻³)
	(10,10)	51.496×10⁻³ (3.78×10⁻³) -	63.464×10⁻³ (3.32×10⁻³) -	58.455×10⁻³ (3.97×10⁻³) -	80.098×10⁻³ (4.88×10⁻³) -	85.275×10⁻³ (16.7×10⁻³) -	46.070×10⁻³ (1.88×10⁻³)
FDA4	(5,5)	687.52×10⁻³ (41.6×10⁻³) -	302.47×10⁻³ (46.6×10⁻³) -	283.77×10⁻³ (14.4×10⁻³) -	187.03×10⁻³ (11.6×10⁻³) -	628.10×10⁻³ (99.9×10⁻³) -	153.00×10⁻³ (11.2×10⁻³)
	(5,10)	365.77×10⁻³ (56.5×10⁻³) -	177.04×10⁻³ (16.1×10⁻³) -	217.84×10⁻³ (11.8×10⁻³) -	135.58×10⁻³ (10.7×10⁻³) =	507.00×10⁻³ (135×10⁻³) -	131.27×10⁻³ (4.12×10⁻³)
	(10,5)	405.91×10⁻³ (33.8×10⁻³) -	143.36×10⁻³ (11.7×10⁻³) -	171.30×10⁻³ (7.78×10⁻³) -	95.897×10⁻³ (3.54×10⁻³) +	337.59×10⁻³ (76.8×10⁻³) -	98.904×10⁻³ (1.50×10⁻³)
	(10,10)	134.30×10⁻³ (10.0×10⁻³) -	104.74×10⁻³ (4.04×10⁻³) -	148.37×10⁻³ (6.64×10⁻³) -	76.379×10⁻³ (4.37×10⁻³) +	160.15×10⁻³ (32.5×10⁻³) -	93.252×10⁻³ (1.03×10⁻³)
FDA5	(5,5)	684.91×10⁻³ (82.1×10⁻³) -	511.42×10⁻³ (82.5×10⁻³) -	383.54×10⁻³ (20.3×10⁻³) -	589.94×10⁻³ (67.5×10⁻³) -	765.51×10⁻³ (129×10⁻³) -	270.31×10⁻³ (9.83×10⁻³)
	(5,10)	410.47×10⁻³ (60.4×10⁻³) -	338.59×10⁻³ (28.4×10⁻³) -	292.98×10⁻³ (16.3×10⁻³) -	510.46×10⁻³ (123×10⁻³) -	538.59×10⁻³ (133×10⁻³) -	237.33×10⁻³ (8.37×10⁻³)
	(10,5)	450.84×10⁻³ (30.2×10⁻³) -	267.71×10⁻³ (43.4×10⁻³) -	225.71×10⁻³ (7.66×10⁻³) -	400.96×10⁻³ (77.1×10⁻³) -	420.86×10⁻³ (73.2×10⁻³) -	178.13×10⁻³ (2.90×10⁻³)
	(10,10)	207.88×10⁻³ (12.5×10⁻³) -	211.24×10⁻³ (15.8×10⁻³) -	200.23×10⁻³ (5.44×10⁻³) -	261.72×10⁻³ (15.6×10⁻³) -	221.15×10⁻³ (31.9×10⁻³) -	168.71×10⁻³ (3.13×10⁻³)
dMOP1	(5,5)	172.61×10⁻³ (52.3×10⁻³) -	143.68×10⁻³ (43.8×10⁻³) -	241.64×10⁻³ (57.4×10⁻³) -	192.91×10⁻³ (97.3×10⁻³) -	339.39×10⁻³ (158×10⁻³) -	25.886×10⁻³ (10.9×10⁻³)
	(5,10)	182.03×10⁻³ (74.5×10⁻³) -	157.84×10⁻³ (47.8×10⁻³) -	202.69×10⁻³ (56.3×10⁻³) -	173.16×10⁻³ (73.0×10⁻³) -	371.35×10⁻³ (177×10⁻³) -	34.323×10⁻³ (24.3×10⁻³)
	(10,5)	63.200×10⁻³ (25.6×10⁻³) -	37.108×10⁻³ (14.2×10⁻³) -	68.804×10⁻³ (29.3×10⁻³) -	71.951×10⁻³ (15.2×10⁻³) -	80.091×10⁻³ (36.3×10⁻³) -	10.496×10⁻³ (5.01×10⁻³)
	(10,10)	56.982×10⁻³ (21.7×10⁻³) -	43.303×10⁻³ (11.6×10⁻³) -	62.552×10⁻³ (31.9×10⁻³) -	68.012×10⁻³ (21.3×10⁻³) -	87.021×10⁻³ (31.9×10⁻³) -	9.681 4×10⁻³ (4.41×10⁻³)
dMOP2	(5,5)	127.70×10⁻³ (7.35×10⁻³) -	359.23×10⁻³ (47.9×10⁻³) -	172.49×10⁻³ (12.6×10⁻³) -	181.49×10⁻³ (34.5×10⁻³) -	500.04×10⁻³ (144×10⁻³) -	62.624×10⁻³ (6.65×10⁻³)
	(5,10)	69.029×10⁻³ (7.06×10⁻³) -	115.79×10⁻³ (27.1×10⁻³) -	127.00×10⁻³ (10.9×10⁻³) -	108.49×10⁻³ (13.6×10⁻³) -	228.40×10⁻³ (92.2×10⁻³) -	43.788×10⁻³ (5.65×10⁻³)
	(10,5)	66.998×10⁻³ (4.22×10⁻³) -	97.317×10⁻³ (12.4×10⁻³) -	83.783×10⁻³ (7.16×10⁻³) -	62.518×10⁻³ (8.44×10⁻³) -	138.10×10⁻³ (34.9×10⁻³) -	21.002×10⁻³ (1.43×10⁻³)
	(10,10)	25.609×10⁻³ (1.90×10⁻³) -	31.028×10⁻³ (5.80×10⁻³) -	56.046×10⁻³ (4.73×10⁻³) -	42.907×10⁻³ (5.55×10⁻³) -	48.354×10⁻³ (11.7×10⁻³) -	15.603×10⁻³ (1.10×10⁻³)
dMOP3	(5,5)	101.55×10⁻³ (5.43×10⁻³) -	256.87×10⁻³ (46.6×10⁻³) -	113.80×10⁻³ (6.88×10⁻³) -	129.49×10⁻³ (17.0×10⁻³) -	312.48×10⁻³ (69.1×10⁻³) -	44.054×10⁻³ (3.58×10⁻³)
	(5,10)	57.100×10⁻³ (4.95×10⁻³) -	86.755×10⁻³ (21.4×10⁻³) -	85.909×10⁻³ (6.29×10⁻³) -	65.180×10⁻³ (9.36×10⁻³) -	167.06×10⁻³ (68.5×10⁻³) -	31.956×10⁻³ (3.32×10⁻³)
	(10,5)	58.588×10⁻³ (6.83×10⁻³) -	76.181×10⁻³ (13.2×10⁻³) -	58.222×10⁻³ (4.15×10⁻³) -	41.385×10⁻³ (5.36×10⁻³) -	100.29×10⁻³ (23.8×10⁻³) -	17.010×10⁻³ (1.44×10⁻³)
	(10,10)	20.107×10⁻³ (1.87×10⁻³) -	26.143×10⁻³ (4.82×10⁻³) -	39.847×10⁻³ (2.73×10⁻³) -	24.144×10⁻³ (4.65×10⁻³) -	35.469×10⁻³ (7.39×10⁻³) -	12.748×10⁻³ (0.895×10⁻³)
+/-/=		14/73/1	1/82/5	9/77/2	17/69/2	7/79/2

表1

图4

图5

图6

图7

图8

表2

表3

参考文献 21

[1]	王国荣, 邓海顺, 寇子明, 等. 考虑模糊需求与时间容忍度的井工矿车辆路径优化研究[J]. 系统仿真学报, 2026, 38(4): 903-915.
	Wang Guorong, Deng Haishun, Kou Ziming, et al. Vehicle Routing Optimization for Underground Mines Considering Fuzzy Demand and Time Tolerance[J]. Journal of System Simulation, 2026, 38(4): 903-915.
[2]	郭肇禄, 刘千辉. 面向低并发设备的矿山边缘计算任务卸载仿真与优化[J]. 系统仿真学报, 2026, 38(7): 2091-2104.
	Guo Zhaolu, Liu Qianhui. Simulation and Optimization of Task Offloading in Mine Edge Computing for Low-concurrency Devices[J]. Journal of System Simulation, 2026, 38(7): 2091-2104.
[3]	彭青蓝, 夏云霓, 郑万波, 等. 一种去中心化的在线边缘任务调度与资源分配方法[J]. 计算机学报, 2022, 45(7): 1462-1477.
	Peng Qinglan, Xia Yunni, Zheng Wanbo, et al. A Decentralized Online Edge Task Scheduling and Resource Allocation Approach[J]. Chinese Journal of Computers, 2022, 45(7): 1462-1477.
[4]	Jiang Min, Wang Zhenzhong, Qiu Liming, et al. A Fast Dynamic Evolutionary Multiobjective Algorithm via Manifold Transfer Learning[J]. IEEE Transactions on Cybernetics, 2021, 51(7): 3417-3428.
[5]	Lin Qiuzhen, Ye Yulong, Ma Lijia, et al. Dynamic Multiobjective Evolutionary Optimization via Knowledge Transfer and Maintenance[J]. IEEE Transactions on Systems, Man, and Cybernetics: Systems, 2024, 54(2): 936-949.
[6]	Yang Cuili, Wang Danlei, Tang Jian, et al. Multi-reservoir ESN-based Prediction Strategy for Dynamic Multi-objective Optimization[J]. Information Sciences, 2024, 652: 119495.
[7]	Wang Zhenwu, Xue Liang, Guo Yinan, et al. Solving Dynamic Multi-objective Optimization Problems via Quantifying Intensity of Environment Changes and Ensemble Learning-based Prediction Strategies[J]. Applied Soft Computing, 2024, 154: 111317.
[8]	闵芬, 董文波, 丁炜超. 基于决策变量时域变化特征分类的动态多目标进化算法[J]. 自动化学报, 2024, 50(11): 2154-2176.
	Min Fen, Dong Wenbo, Ding Weichao. Dynamic Multi-objective Evolutionary Algorithm Based on Classification of Decision Variable Temporal Change Characteristics[J]. Acta Automatica Sinica, 2024, 50(11): 2154-2176.
[9]	Li Jianxia, Liu Ruochen, Wang Ruinan. A Change Type-based Self-adaptive Response Strategy for Dynamic Multi-objective Optimization[J]. Knowledge-Based Systems, 2022, 243: 108447.
[10]	Chen Ying, Zou Juan, Liu Yuan, et al. Combining a Hybrid Prediction Strategy and a Mutation Strategy for Dynamic Multiobjective Optimization[J]. Swarm and Evolutionary Computation, 2022, 70: 101041.
[11]	Wang Maocai, Li Bin, Dai Guangming, et al. A Dynamic Multi-objective Optimization Algorithm with a Dual Mechanism Based on Prediction and Archive[J]. Swarm and Evolutionary Computation, 2024, 90: 101693.
[12]	Farina M, Deb K, Amato P. Dynamic Multiobjective Optimization Problems: Test Cases, Approximations, and Applications[J]. IEEE Transactions on Evolutionary Computation, 2004, 8(5): 425-442.
[13]	Kuhn H W. The Hungarian Method for the Assignment Problem[J]. Naval Research Logistics Quarterly, 1955, 2(1/2): 83-97.
[14]	Yue Xuezhi, Zuo Xiang, Ling Pengfei, et al. High-dimensional Multi-objective Feature Selection with Niche-based Binary Differential Evolution[J]. Expert Systems with Applications, 2026, 298: 129478.
[15]	Goh Chi-Keong, Chen Tan Kay. A Competitive-cooperative Coevolutionary Paradigm for Dynamic Multiobjective Optimization[J]. IEEE Transactions on Evolutionary Computation, 2009, 13(1): 103-127.
[16]	Jiang Shouyong, Yang Shengxiang, Yao Xin, et al. Benchmark Problems for CEC2018 Competition on Dynamic Multiobjective Optimisation[EB/OL]. [2026-04-18]..
[17]	Zitzler E, Thiele L, Laumanns M, et al. Performance Assessment of Multiobjective Optimizers: An Analysis and Review[J]. IEEE Transactions on Evolutionary Computation, 2003, 7(2): 117-132.
[18]	Cao Leilei, Xu Lihong, Goodman E D, et al. Evolutionary Dynamic Multiobjective Optimization Assisted by a Support Vector Regression Predictor[J]. IEEE Transactions on Evolutionary Computation, 2020, 24(2): 305-319.
[19]	Feng Liang, Zhou Wei, Liu Weichen, et al. Solving Dynamic Multiobjective Problem via Autoencoding Evolutionary Search[J]. IEEE Transactions on Cybernetics, 2022, 52(5): 2649-2662.
[20]	Ye Yulong, Liu Songbai, Zhou Junwei, et al. Learning-based Directional Improvement Prediction for Dynamic Multiobjective Optimization[J]. IEEE Transactions on Evolutionary Computation, 2025, 29(4): 948-962.
[21]	Tian Ye, Cheng Ran, Zhang Xingyi, et al. PlatEMO: A MATLAB Platform for Evolutionary Multi-objective Optimization[J]. IEEE Computational Intelligence Magazine, 2017, 12(4): 73-87.

模型	MIGD(+/-/=)	MHV(+/-/=)
MADP-DMOEA vs MADP-Ⅰ	14/4/1	14/1/4
MADP-DMOEA vs MADP-Ⅱ	15/1/3	15/0/4
MADP-DMOEA vs MADP-Ⅲ	15/1/3	15/0/4
MADP-DMOEA vs MADP-Ⅳ	18/1/0	18/0/1
MADP-DMOEA vs MADP-Ⅴ	15/4/0	14/4/1
