面向飞行员认知负荷评估的数字化仿真方法研究

doi:10.16182/j.issn1004731x.joss.25-0311

摘要/Abstract

摘要：

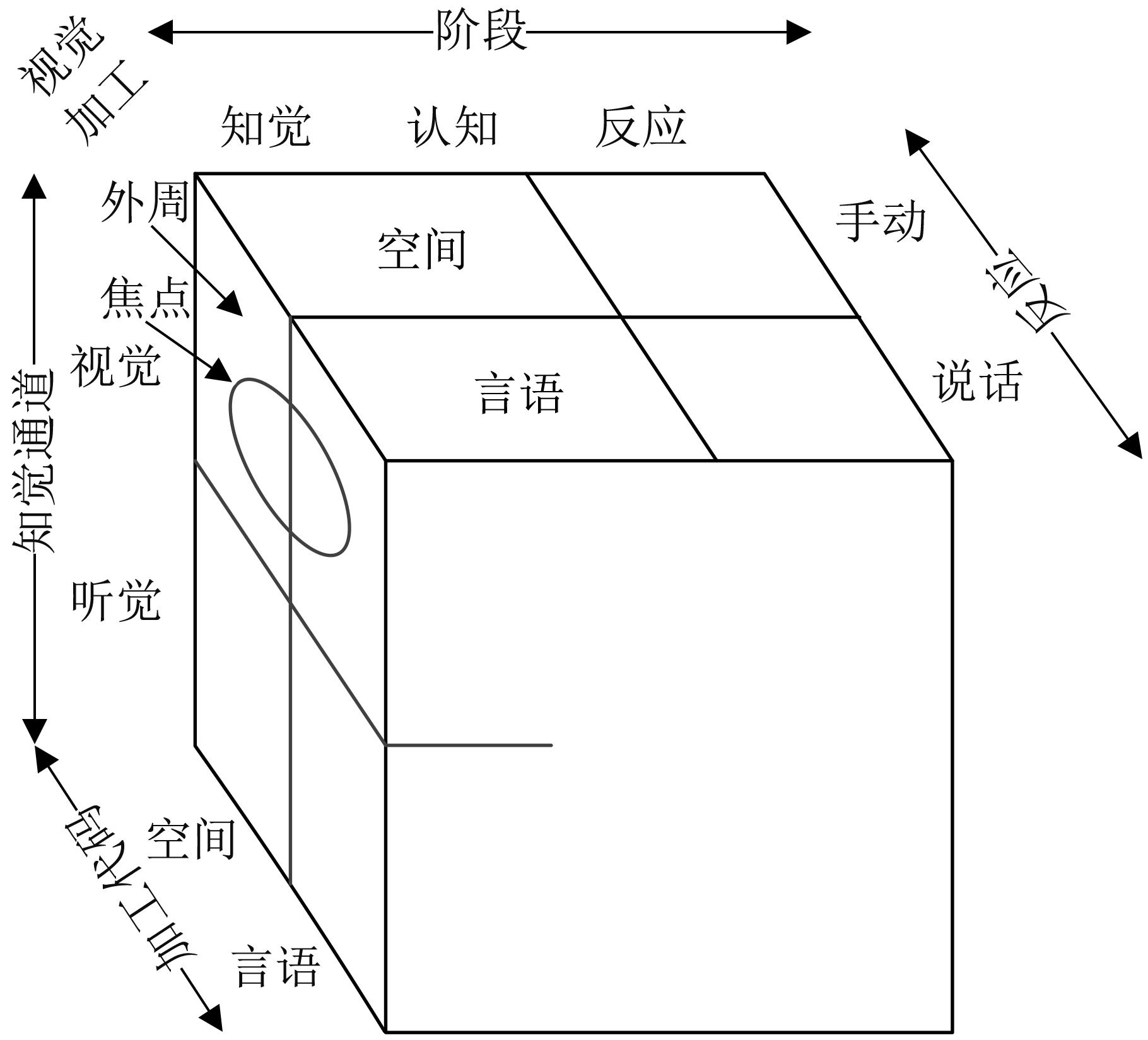

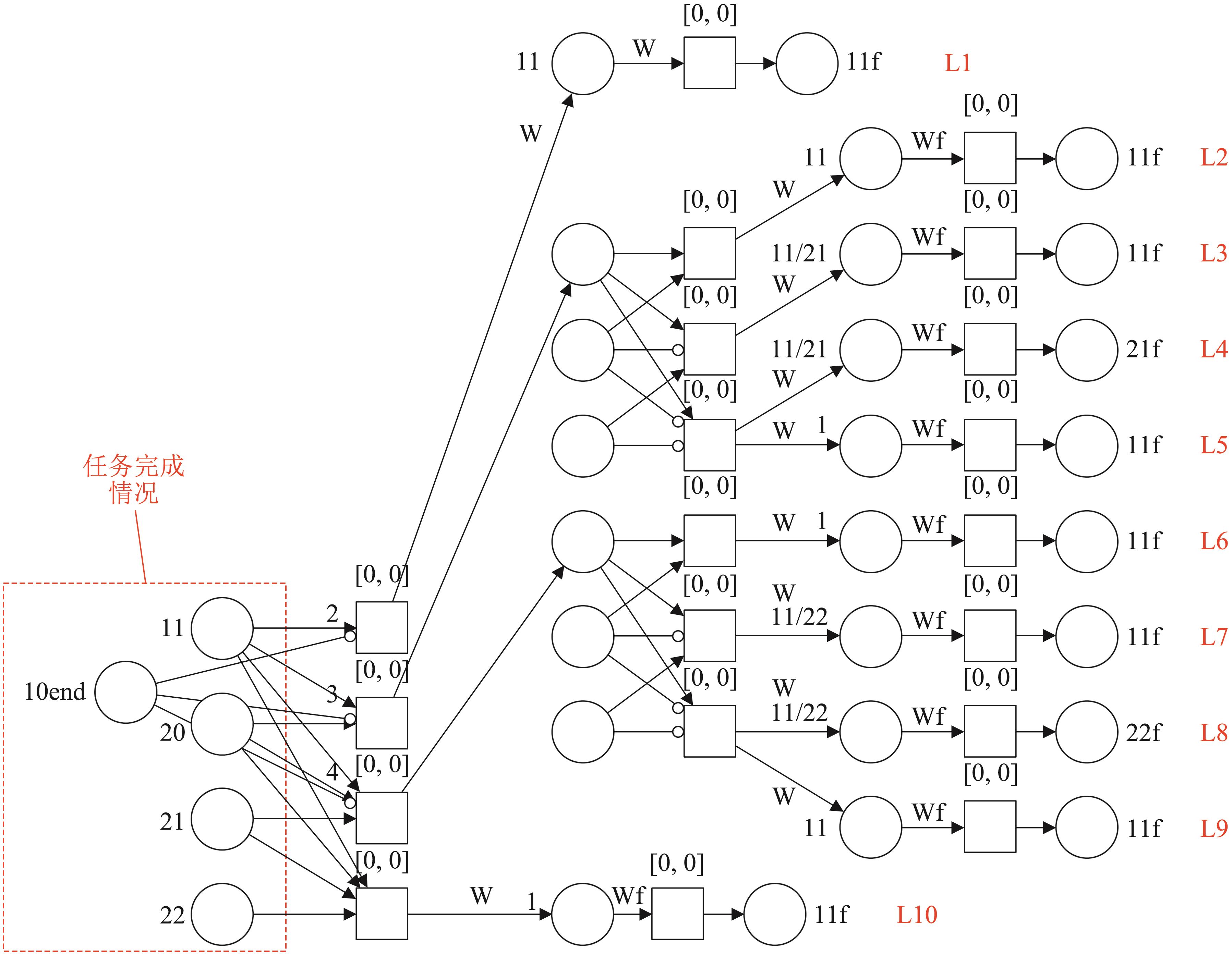

操作者的认知负荷是影响其任务绩效的重要因素。飞行员作为飞机的主要操作者，在执行复杂任务时将面临大量信息的判断和处理，极易导致认知过载和人为失误。评估任务过程中认知负荷水平将有助于改善设计、减少人误、提高系统安全性。针对多任务场景，建立一种仿真模型用于任务过程中飞行员认知负荷动态预计。基于多资源理论，引出多任务的认知负荷量化方法；考虑认知能力、任务时限、任务优先级和时间随机性，基于时间随机的增广加权Petri网，建立任务过程动态模型；基于实验测量数据计算认知负荷预计值并验证认知负荷评估模型的有效性。结果表明：敏感生理参数与认知负荷预计值显著相关。

关键词: 认知负荷, 多资源理论, 多任务, Petri网, 任务过程动态模型

Abstract:

The operator's cognitive load constitutes a critical determinant of task performance. Pilots, as the primary operators of aircraft, must face an overwhelming volume of information during complex missions, which significantly heightens the risk of cognitive overload and operational errors. Evaluating cognitive load during tasks helps reduce human errors and improve system safety by optimizing design schemes. A simulation model was established to dynamically predict the pilots' cognitive load during tasks for multi-task scenarios. Based on the multiple resource theory, a method for quantifying cognitive load in multi-task conditions was established. By considering cognitive capacity, task time constraints, task priority, and temporal randomness, a dynamic model of task process was constructed based on the random-time extended weighted Petri net. Based on the experimental data, cognitive load values were predicted, and the effectiveness of the cognitive load evaluation model was verified. The results indicate that the sensitive physiological parameter is significantly correlated with predicted values of cognitive load.

Key words: cognitive load, multiple resource theory, multi-task scenario, Petri net, dynamic model of task process

中图分类号:

TP391.9

范增,何明君,邢翔宇 . 面向飞行员认知负荷评估的数字化仿真方法研究[J]. 系统仿真学报, 2025, 37(8): 1921-1932.

Fan Zeng,He Mingjun,Xing Xiangyu . Research on Digital Simulation Method for Cognitive Load Evaluation of pilots[J]. Journal of System Simulation, 2025, 37(8): 1921-1932.

图/表 13

图1

表1

图2

图3

图4

图5

图6

表2

表3

实验测量数据

测量数据

指标

绩效测量

TRACK任务：目标圆心与中心距离的均方根偏差(RMSD)

其余任务：反应时间(RT)和正确率

主观测量

NASA-TLX量表主观认知负荷

资源需求水平

生理测量

眼动数据(注视点、注视时间)

脑电数据( $θ$ [4~7 Hz]、 $α$ [8~12 Hz]频带功率)

表3

表4

图7

图8

表5

参考文献 19

[1]	Naval Institute Staff U.S.. Report of National Commission on Military Aviation Safety on Aviation Mishaps from 2013 to 2020[EB/OL]. (2020-12-03) [2025-04-08]. .
[2]	Sweller J. Cognitive Load During Problem Solving: Effects on Learning[J]. Cognitive Science, 1988, 12(2): 257-285.
[3]	余琦玮, 唐为昊, 耿洁. 面向复杂装配任务的脑力负荷综合评估方法[J]. 工业工程, 2024, 27(2): 67-73, 97.
	Yu Qiwei, Tang Weihao, Geng Jie. A Synthetic Evaluation Method for Mental Workload in Complex Assembly Task[J]. Industrial Engineering Journal, 2024, 27(2): 67-73, 97.
[4]	李文斌, 谢小萍, 常耀明. 任务绩效在脑力负荷测量中的理论基础与应用[J]. 人类工效学, 2020, 26(1): 75-79.
[5]	钱锋, 贺强. 航空器孔探人员脑力负荷预测[J]. 机械设计与制造, 2024(5): 35-40.
	Qian Feng, He Qiang. Workload Prediction of Aircraft Borescope Inspection[J]. Machinery Design & Manufacture, 2024(5): 35-40.
[6]	Mansikka Heikki, Virtanen Kai, Harris D. Comparison of NASA-TLX Scale, Modified Cooper-harper Scale and Mean Inter-beat Interval as Measures of Pilot Mental Workload During Simulated Flight Tasks[J]. Ergonomics, 2019, 62(2): 246-254.
[7]	汪磊, 张之洋, 邵铿睿, 等. 模拟SPO情境中的飞行员脑力负荷测量与分析[J]. 中国安全生产科学技术, 2022, 18(12): 26-32.
	Wang Lei, Zhang Zhiyang, Shao Kengrui, et al. Measurement and Analysis on Mental Workload of Pilot in Simulated SPO Scenario[J]. Journal of Safety Science and Technology, 2022, 18(12): 26-32.
[8]	Yin Zhong, Zhang Jianhua. Cross-session Classification of Mental Workload Levels Using EEG and an Adaptive Deep Learning Model[J]. Biomedical Signal Processing and Control, 2017, 33: 30-47.
[9]	Wu Qi, Xiong Pengwen, Tang Zhiri, et al. Detecting Dynamic Behavior of Brain Fatigue Through 3-D-CNN-LSTM[J]. IEEE Transactions on Systems, Man, and Cybernetics: Systems, 2022, 52(1): 90-100.
[10]	刘承平, 肖旭, 赵竞全. 基于认知过程的飞行员脑力负荷动态预测[J]. 北京航空航天大学学报, 2023, 49(11): 2921-2928.
	Liu Chengping, Xiao Xu, Zhao Jingquan. Pilots' Mental Workload Dynamic Prediction Based on Cognitive Process[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(11): 2921-2928.
[11]	陆旭, 王天博, 庞丽萍, 等. 执飞任务中剩余脑力负荷量化评估模型[J]. 北京航空航天大学学报, 2023, 49(5): 1184-1192.
	Lu Xu, Wang Tianbo, Pang Liping, et al. Quantitative Evaluation Model of Surplus Mental Workload in Flight Task[J]. Journal of Beijing University of Aeronautics and Astronautics, 2023, 49(5): 1184-1192.
[12]	Wickens C D. Multiple Resources and Performance Prediction[J]. Theoretical Issues in Ergonomics Science, 2002, 3(2): 159-177.
[13]	王洁, 方卫宁, 李广燕. 基于多资源理论的脑力负荷评价方法[J]. 北京交通大学学报, 2010, 34(6): 107-110.
	Wang Jie, Fang Weining, Li Guangyan. Mental Workload Evaluation Method Based on Multi-resource Theory Model[J]. Journal of Beijing Jiaotong University, 2010, 34(6): 107-110.
[14]	Wang Peng, Fang Weining, Guo Beiyuan. A Measure of Mental Workload During Multitasking: Using Performance-based Timed Petri Nets[J]. International Journal of Industrial Ergonomics, 2020, 75: 102877.
[15]	Wang Peng, Fang Weining, Guo Beiyuan. Mental Workload Evaluation and Its Application in Train Driving Multitasking Scheduling: A Timed Petri Net-based Model[J]. Cognition, Technology & Work, 2021, 23(2): 299-313.
[16]	Horrey W J, Wickens C D. Multiple Resource Modeling of Task Interference in Vehicle Control, Hazard Awareness and In-vehicle Task Performance[C]//Proceedings of the Second International Driving Symposium on Human Factors in Driver Assessment, Training, and Vehicle Design. Iowa City: Human Factors Research Program, 2003: 7-12.
[17]	Liu Shijing, Nam C S. Quantitative Modeling of User Performance in Multitasking Environments[J]. Computers in Human Behavior, 2018, 84: 130-140.
[18]	So W K Y, Wong S W H, Mak J N, et al. An Evaluation of Mental Workload with Frontal EEG[J]. PLoS One, 2017, 12(4): e0174949.
[19]	Brookings J B, Wilson G F, Swain C R. Psychophysiological Responses to Changes in Workload During Simulated Air Traffic Control[J]. Biological Psychology, 1996, 42(3): 361-377.

			任务2
			知觉				认知		反应
			VF	VA	AS	AV	CS	CV	RS	RV
任务1	知觉	VF	0.8	0.6	0.6	0.4	0.7	0.5	0.4	0.2
		VA		0.8	0.4	0.6	0.5	0.7	0.2	0.4
		AS			0.8	0.4	0.7	0.5	0.4	0.2
		AV				0.8	0.5	0.7	0.2	0.4
	认知	CS					0.8	0.6	0.6	0.4
	认知	CV						0.8	0.4	0.6
	反应	RS							0.8	0.6
	反应	RV								1.0

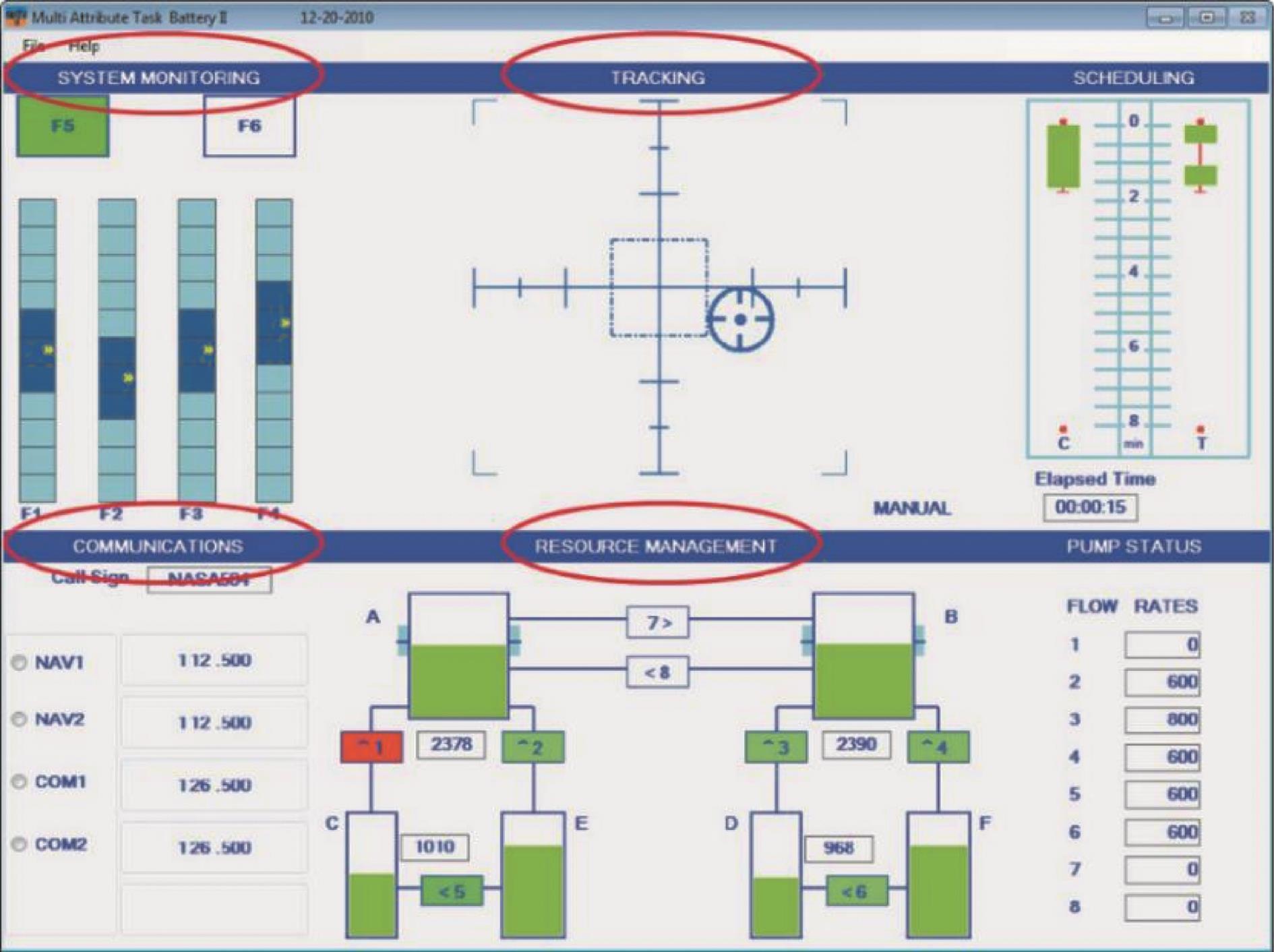

任务编号	子任务
1*	TRACK
2*	SYSMON
3*	COMM
4*	RESMAN
1	TRACK	SYSMON
2	TRACK	COMM
3	TRACK	RESMAN
4	TRACK	SYSMON	COMM
5	TRACK	SYSMON	RESMAN
6	TRACK	COMM	RESMAN

子任务绩效	任务	显著性
SYSMON	1&4	p = 0.031*
COMM	2&4	p = 0.645
RESMAN	3&6	p = 0.005**
COMM	2&6	p = 0.866
RESMAN	1&5	p = 0.097
SYSMON	3&5	p = 0.258

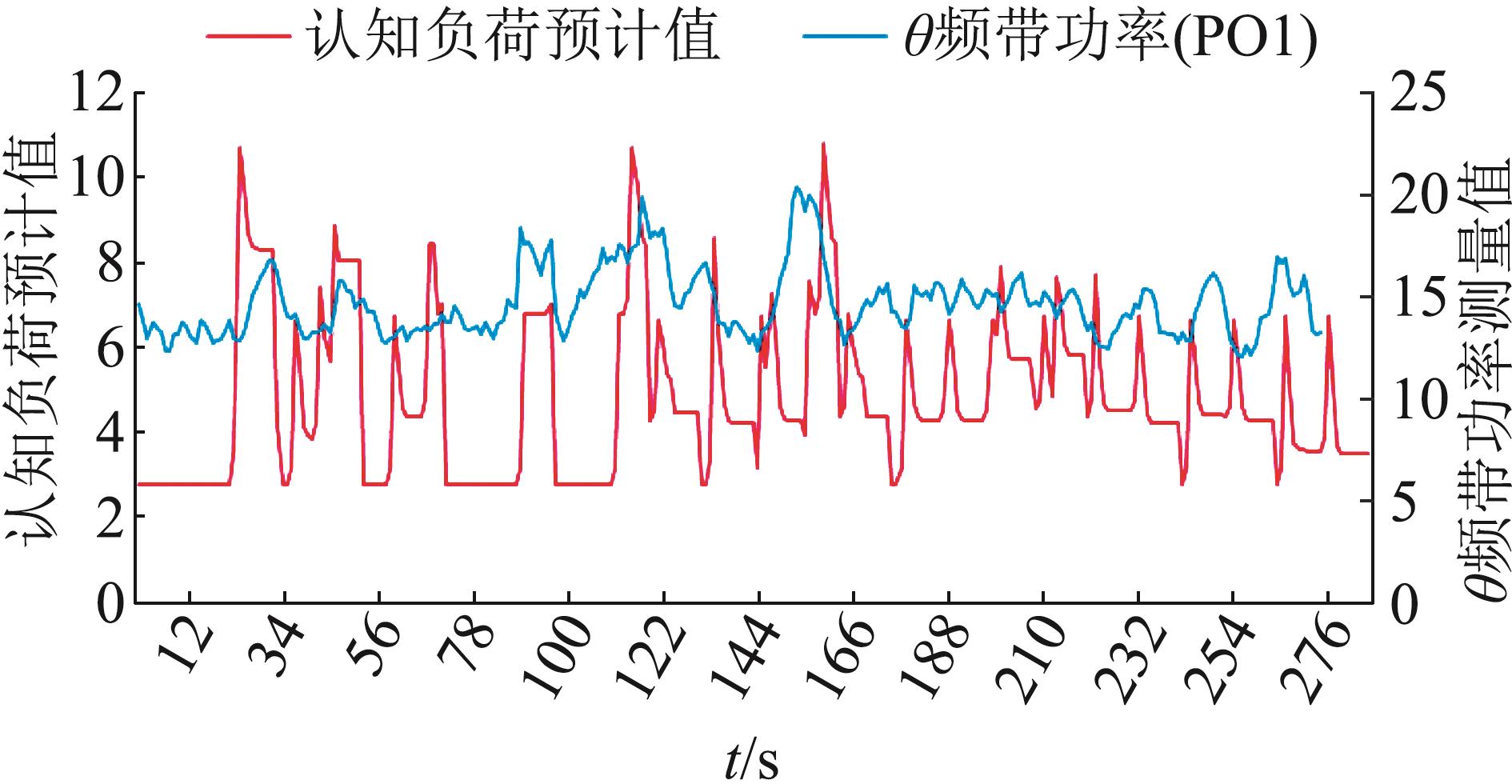

分析阶段	被试	CCPZ	PO1
全任务过程	被试1	0.04	0.13*
	被试5	0.29**	0.29**
	被试6	0.21**	0.16**
	被试7	0.03	0.16**
	所有被试均值	0.14**	0.28**
高负荷阶段	被试1	0.19	0.44*
	被试3	0.64**	0.51**
	被试4	0.13	0.40*
	被试7	0.22	0.43*
	所有被试均值	0.12	0.40*
