基于动态耦合模型的CAE仿真优化方法

doi:10.16182/j.issn1004731x.joss.23-1348

摘要/Abstract

摘要：

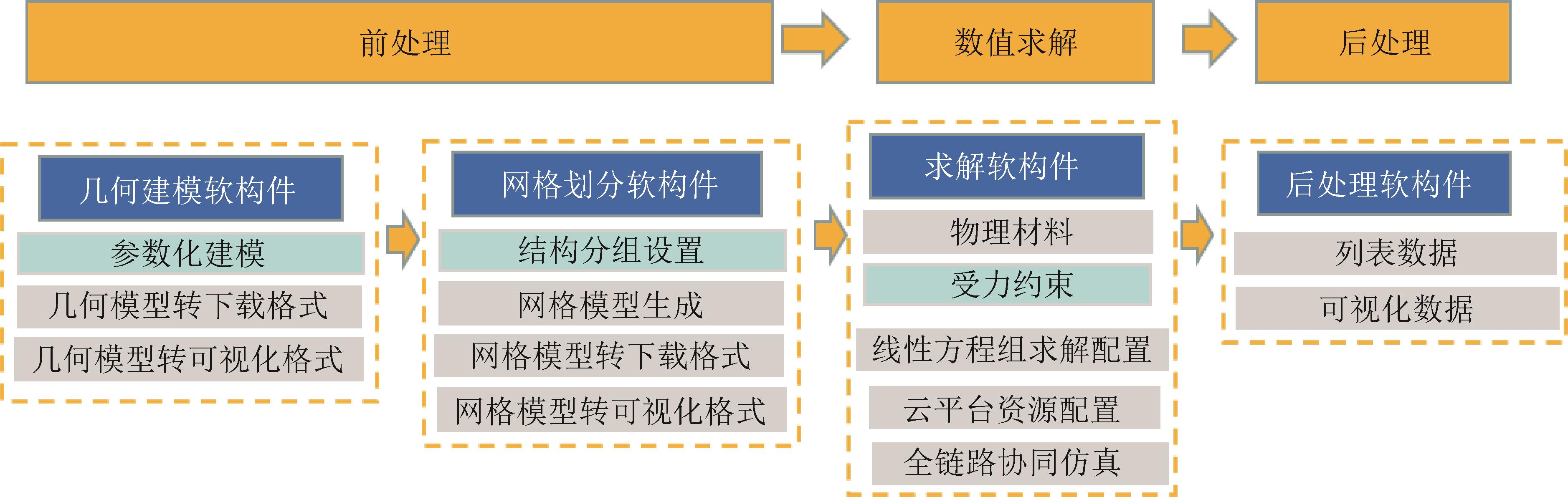

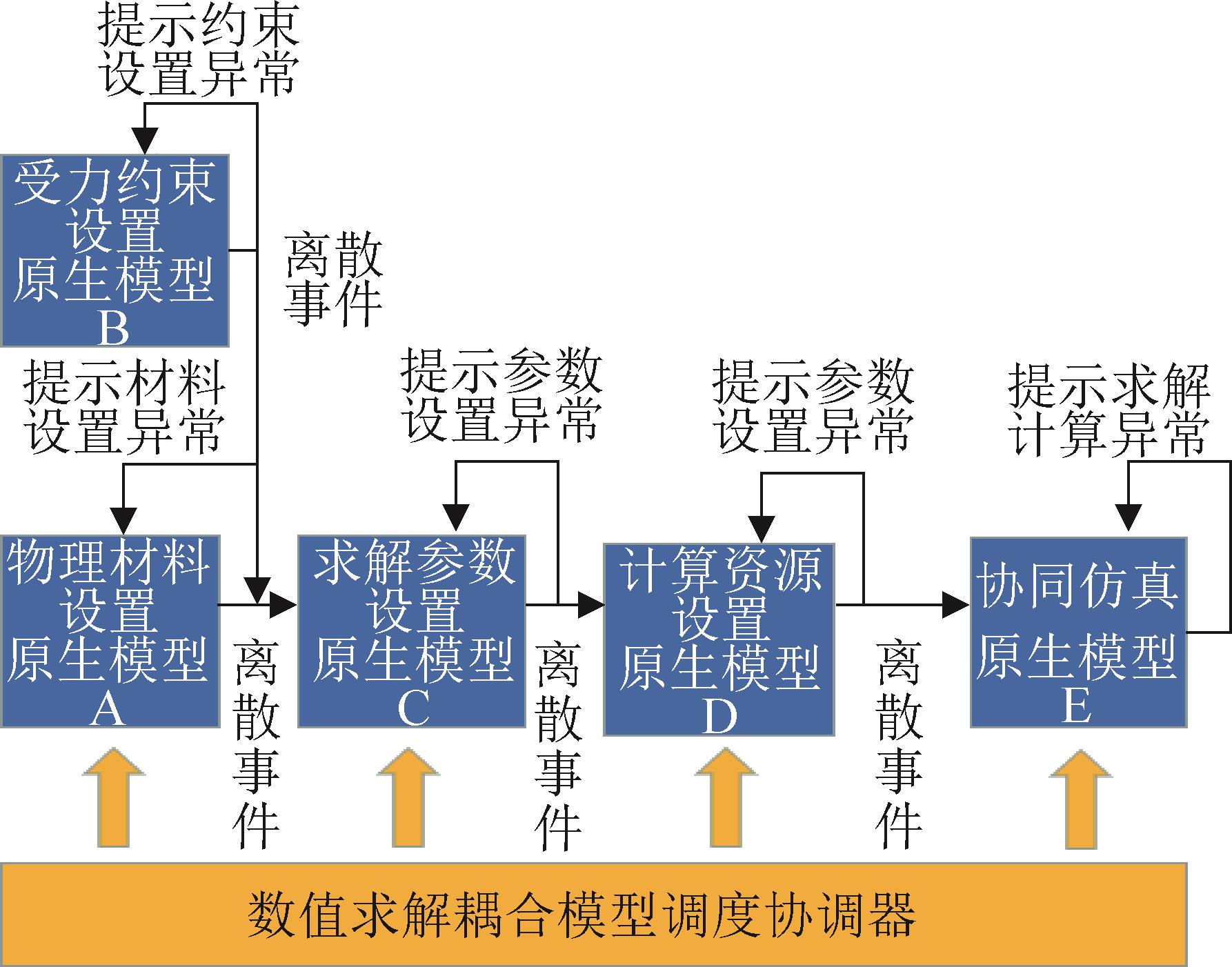

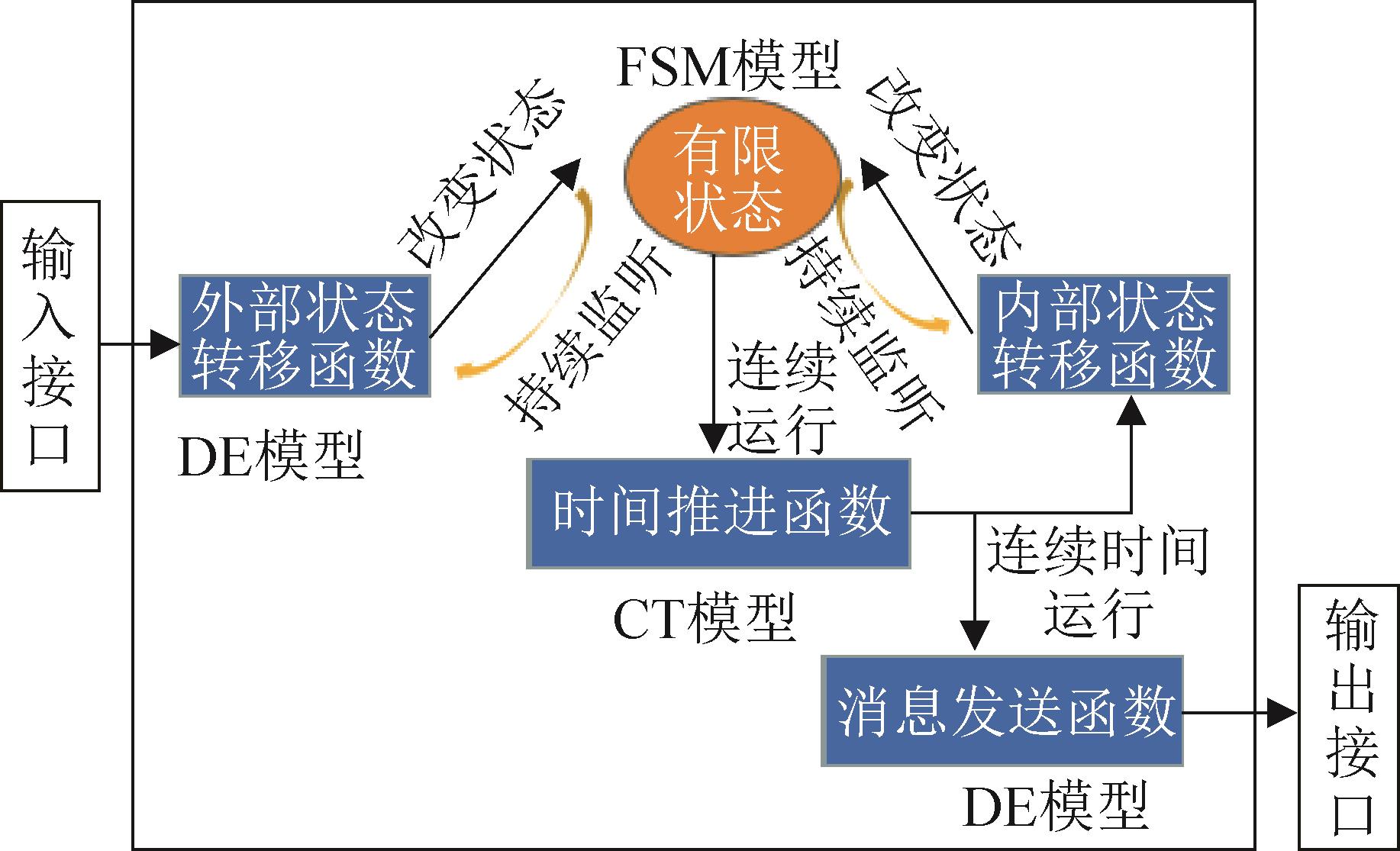

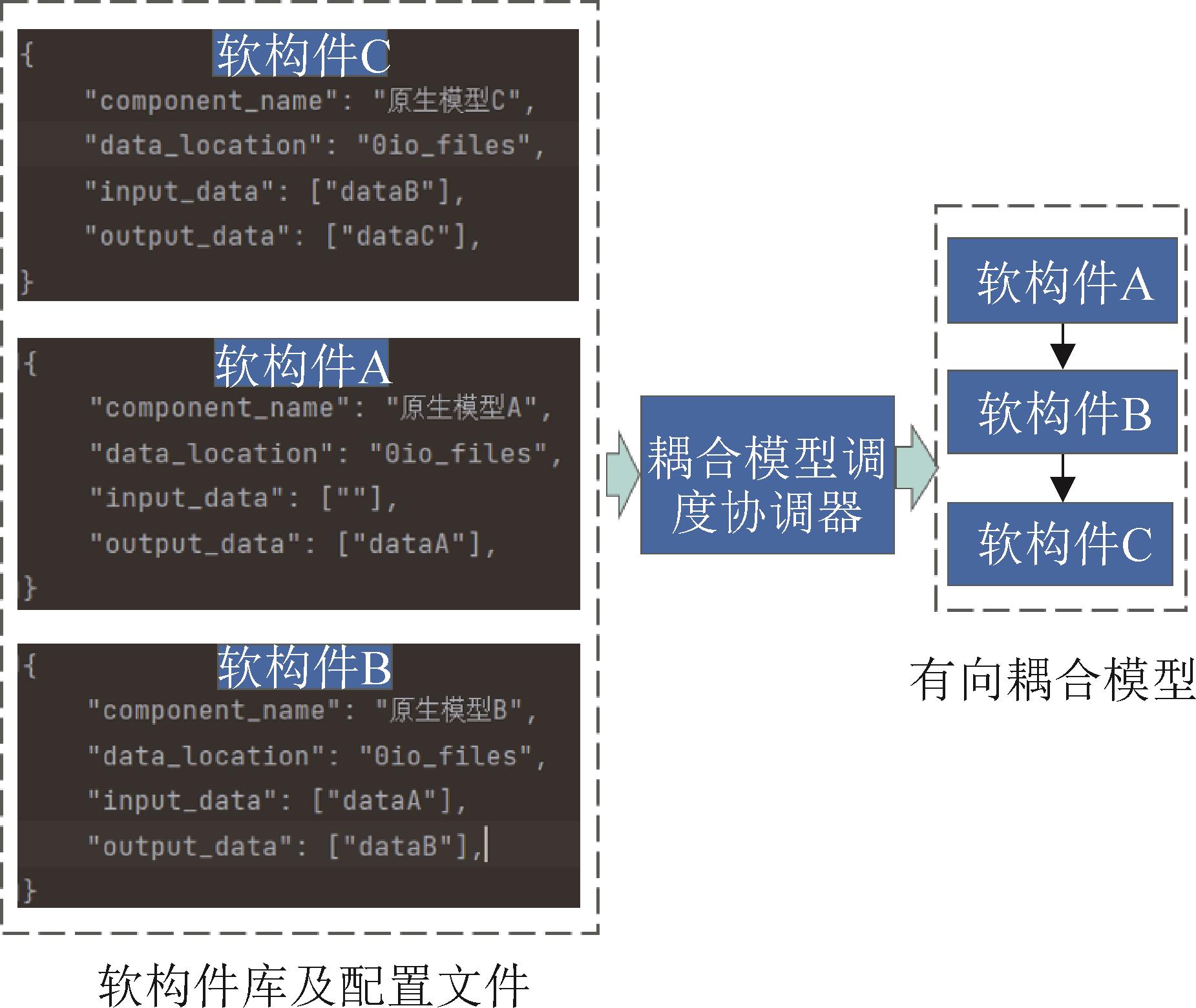

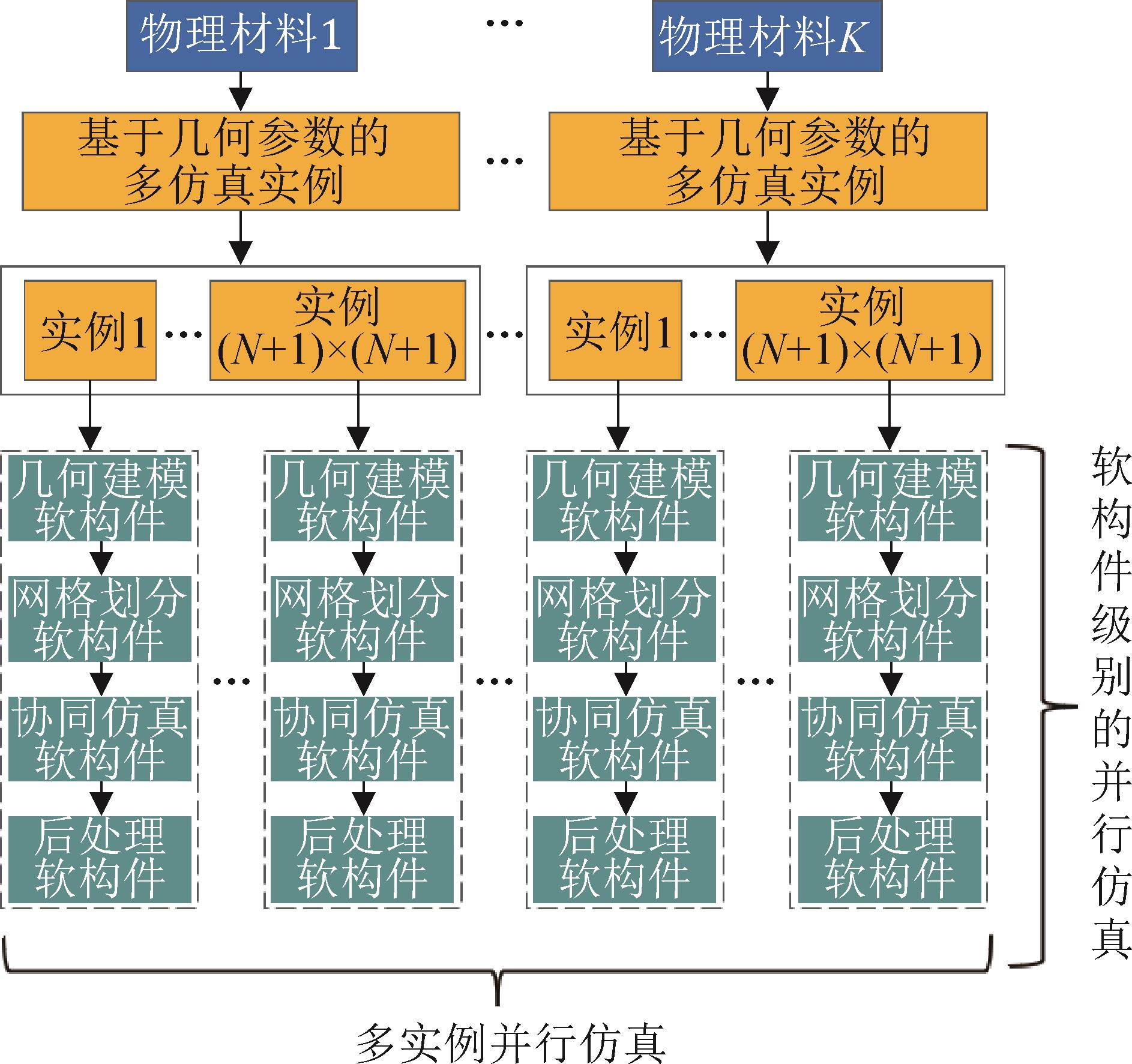

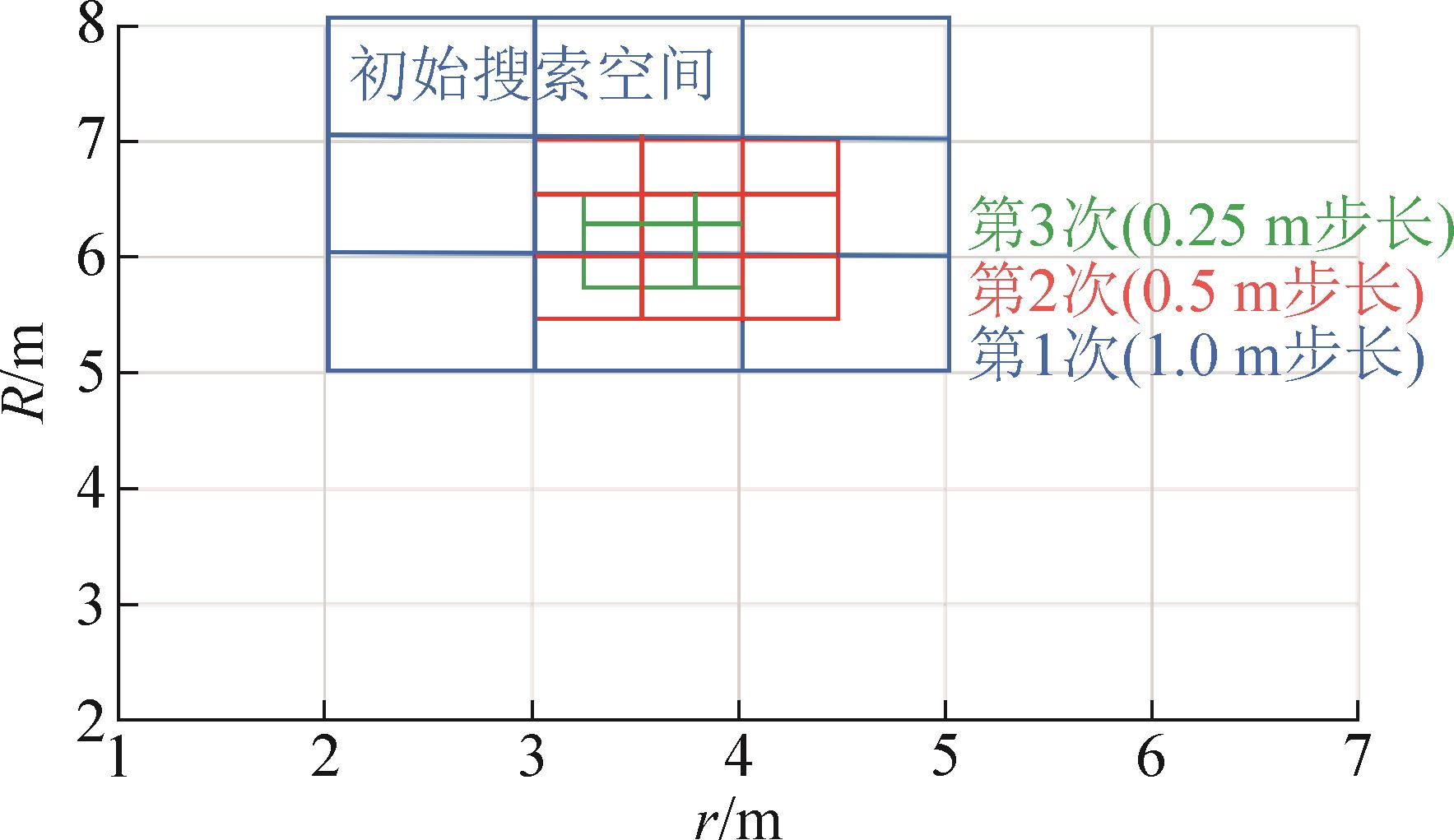

为解决多因素耦合作用下复杂装备产品的设计优化问题，提出一种基于动态耦合模型和多分支并行仿真策略的CAE仿真优化方法。采用动态结构的分层分级的DEVS模型，自适应地构建CAE软件前处理、数值求解、后处理阶段的自动化耦合模型；针对CAE模型的关键参数，基于贪心算法构建多因素约束下的多分支实例模型；采用多任务并行仿真策略，高效计算多分支仿真结果；经过装备造价评估指标，实现方案优选。通过高铁/盾构装备设计仿真案例验证了其有效性和应用价值。

关键词: 动态结构, 耦合模型, 仿真优化, 多任务并行, 多分支实例

Abstract:

In order to solve the optimization problem of designing complex equipment under multi-factor coupling scene, a CAE simulation optimization method based on dynamic coupling model and multi-branch parallel inference strategy is proposed. The dynamic hierarchical DEVS model is used to construct the automatic coupling model from pre-processing, numerical solution and post-processing phases of CAE software adaptively. Aiming at the key parameters of CAE model, multi-branch instance models with multi-factor constraints are constructed based on greedy algorithm. The multi-task parallel inference strategy is used to compute the multi-branch simulation results efficiently. The scheme optimization is realized based on the evaluation index of cost. The simulation cases of designing high-speed rail/shield equipment verify the effectiveness and application value.

Key words: dynamic structure, coupling model, simulation optimization, multi-task parallel, multi-branch instances

中图分类号:

TP391.9

陈雪,曹建文 . 基于动态耦合模型的CAE仿真优化方法[J]. 系统仿真学报, 2025, 37(3): 718-731.

Chen Xue,Cao Jianwen . CAE Simulation Optimization Method Based on Dynamic Coupling Model[J]. Journal of System Simulation, 2025, 37(3): 718-731.

图/表 27

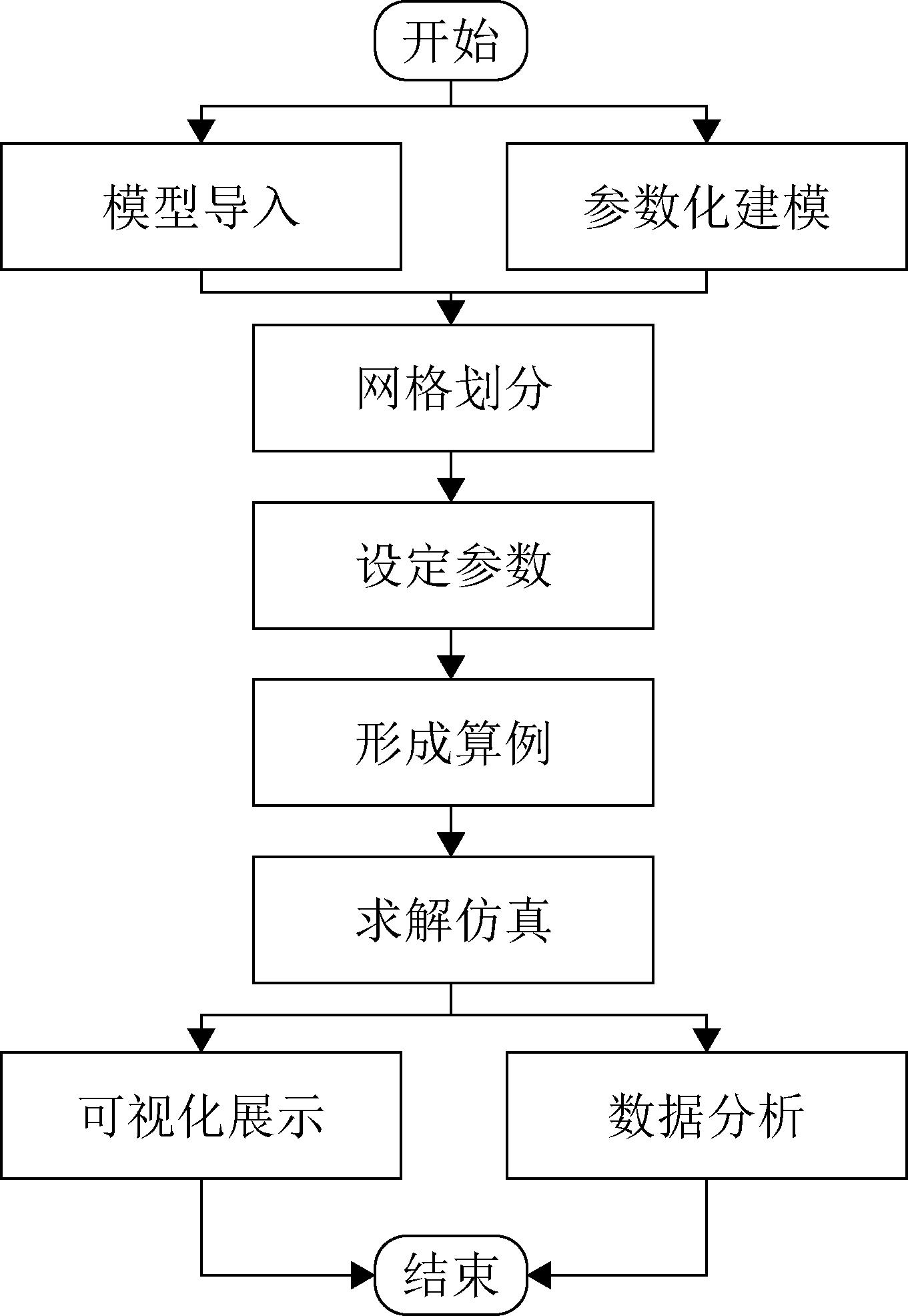

图1

图2

图3

图4

图5

图6

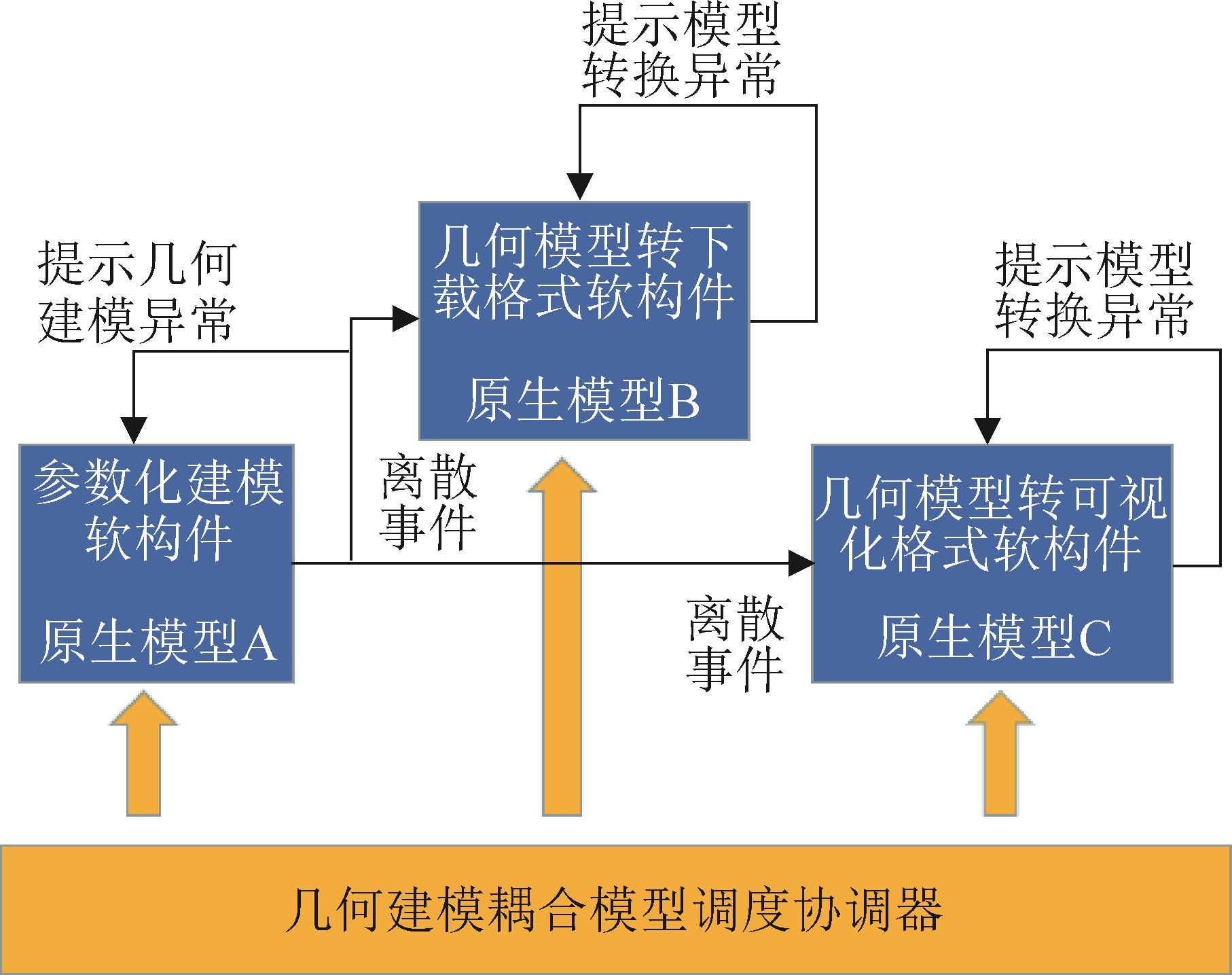

图7

图8

图9

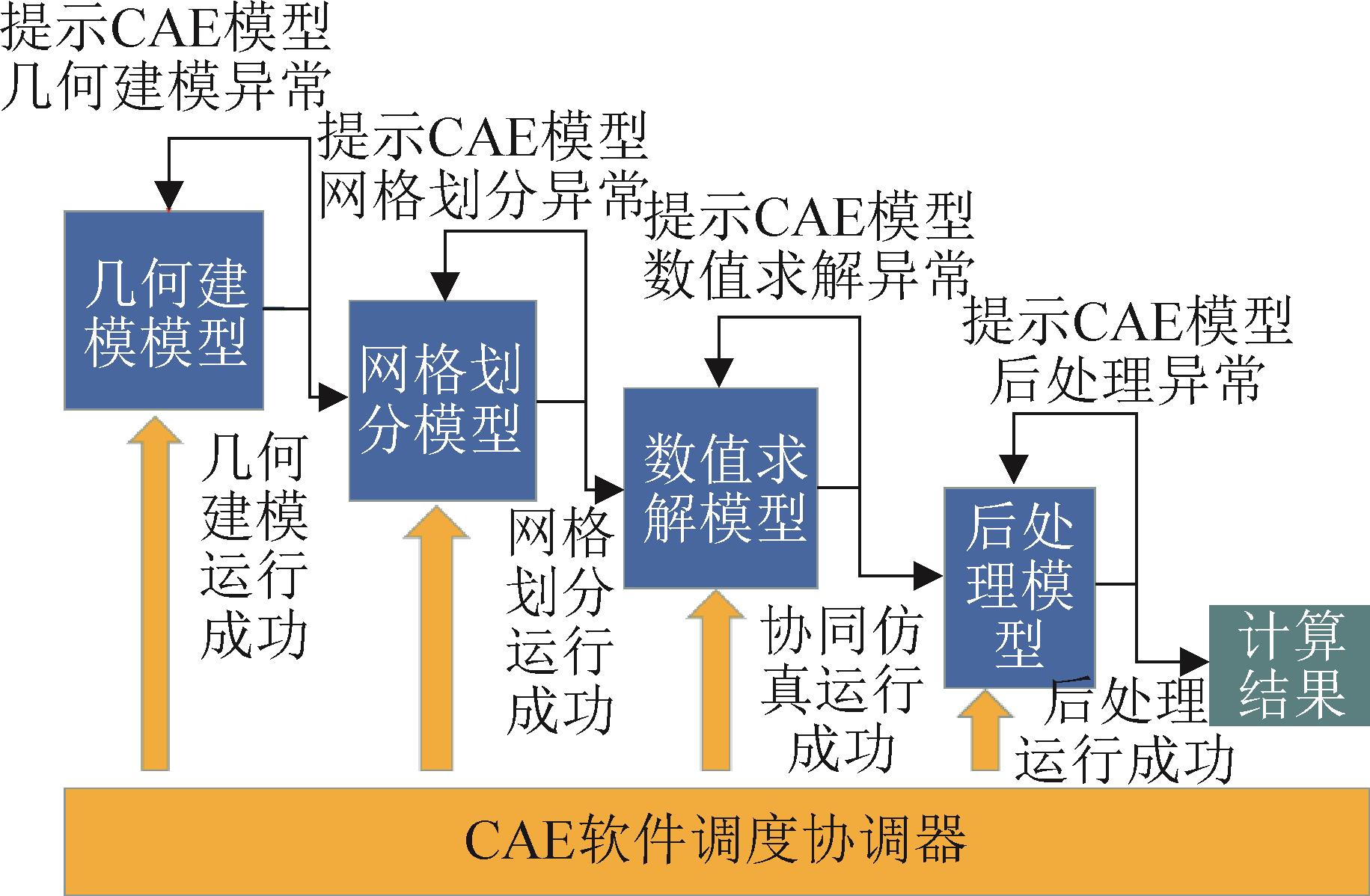

图10

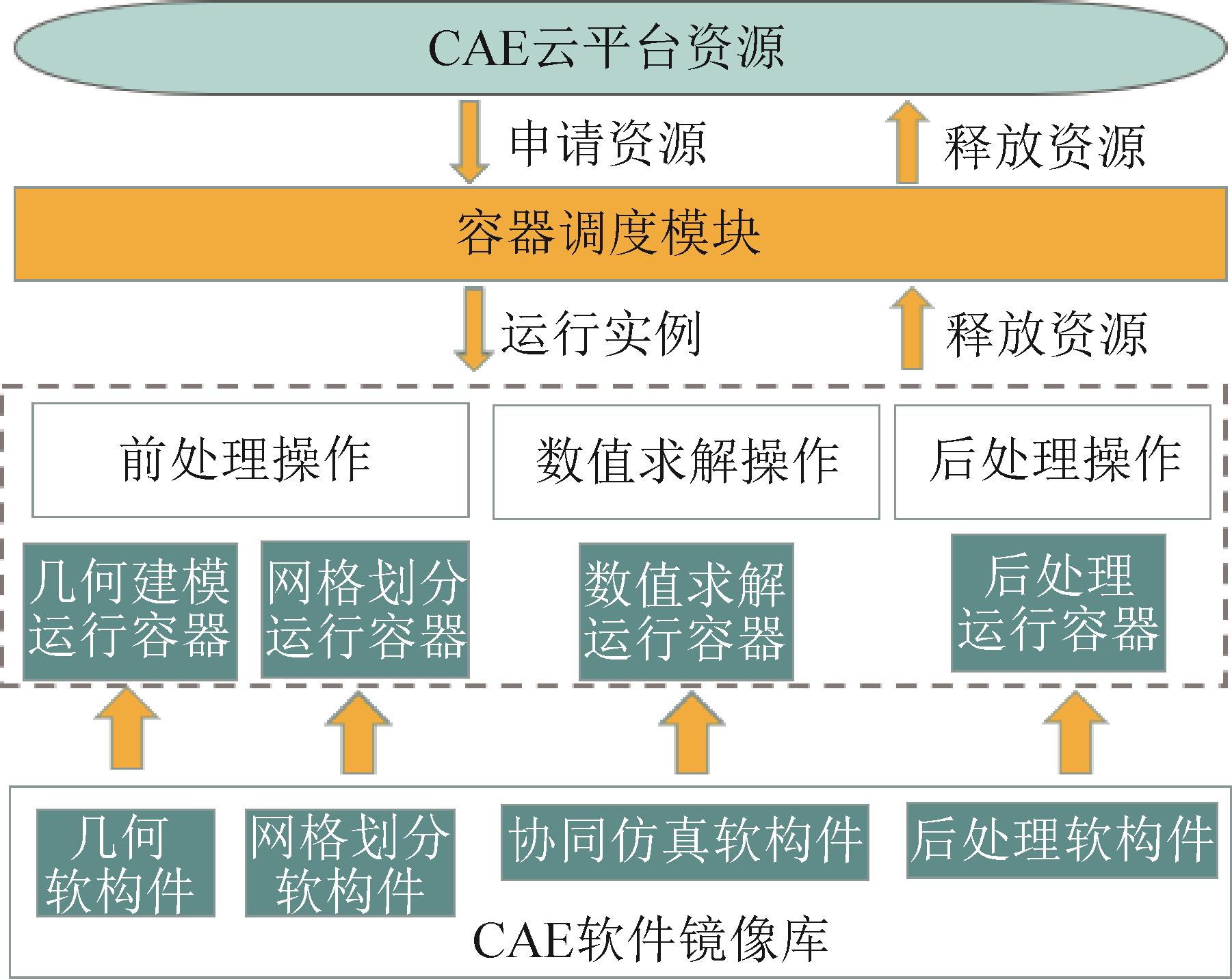

图11

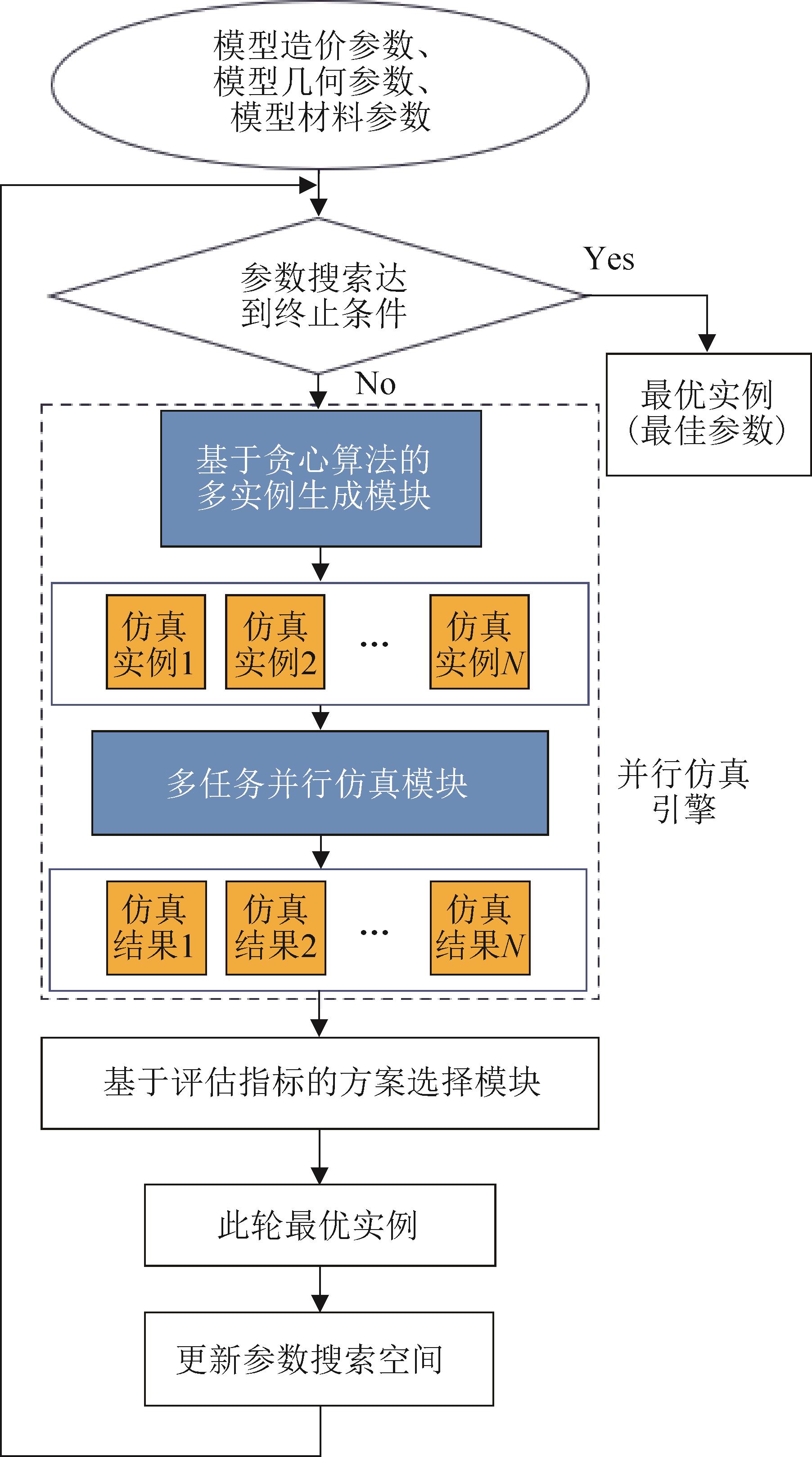

图12

图13

图14

表1

图15

图16

表2

表3

表4

表5

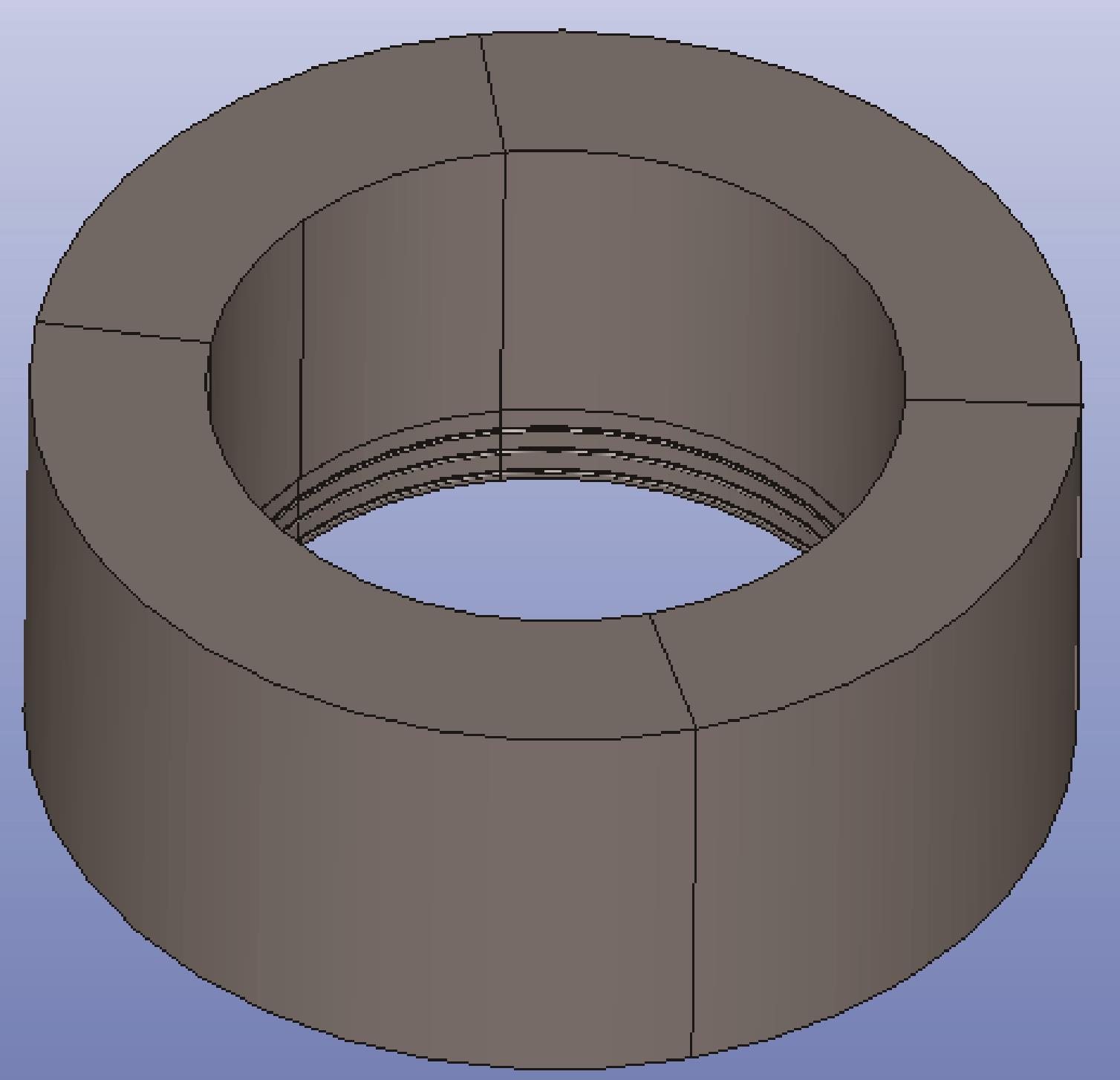

图17

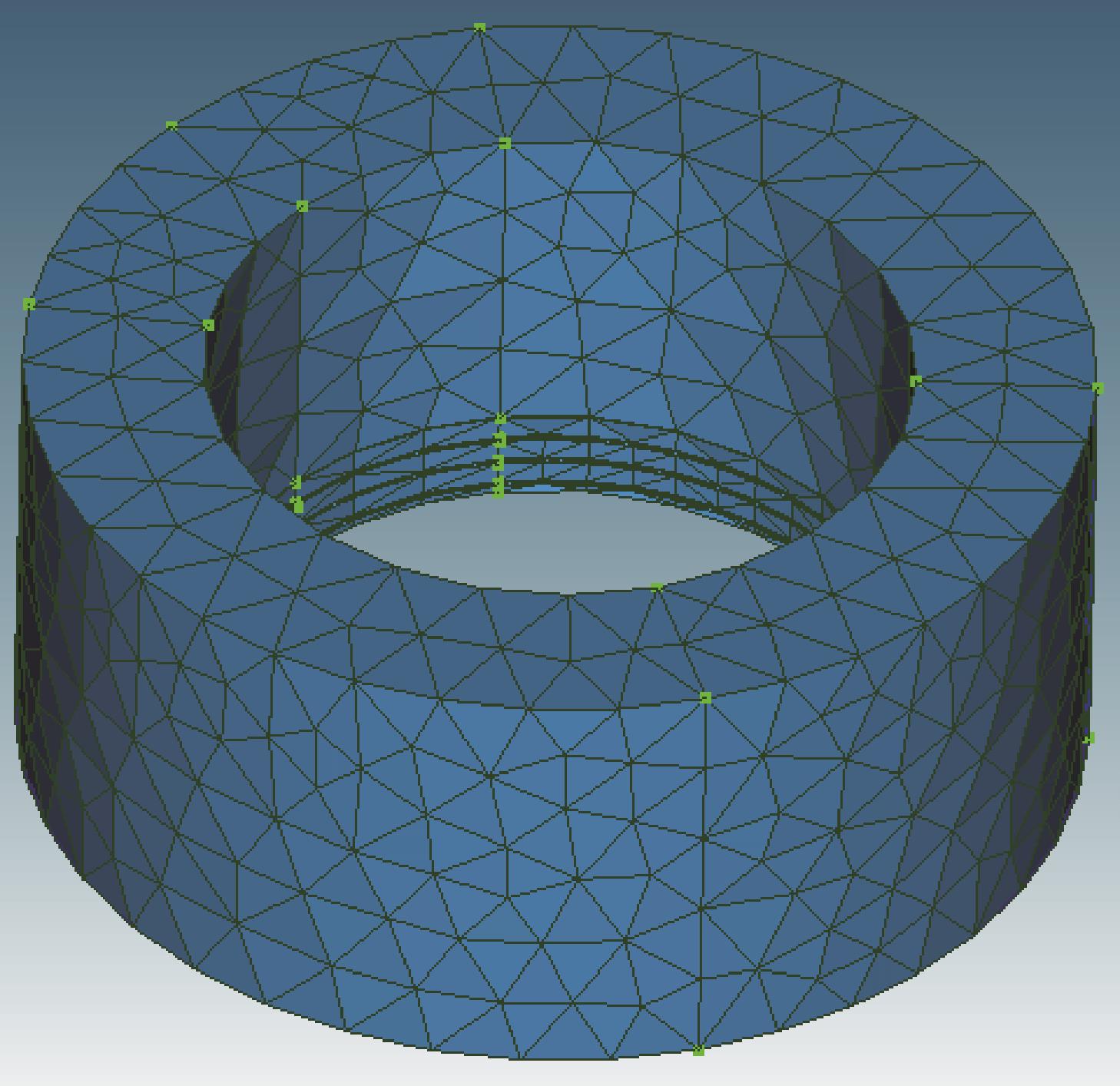

图18

图19

图20

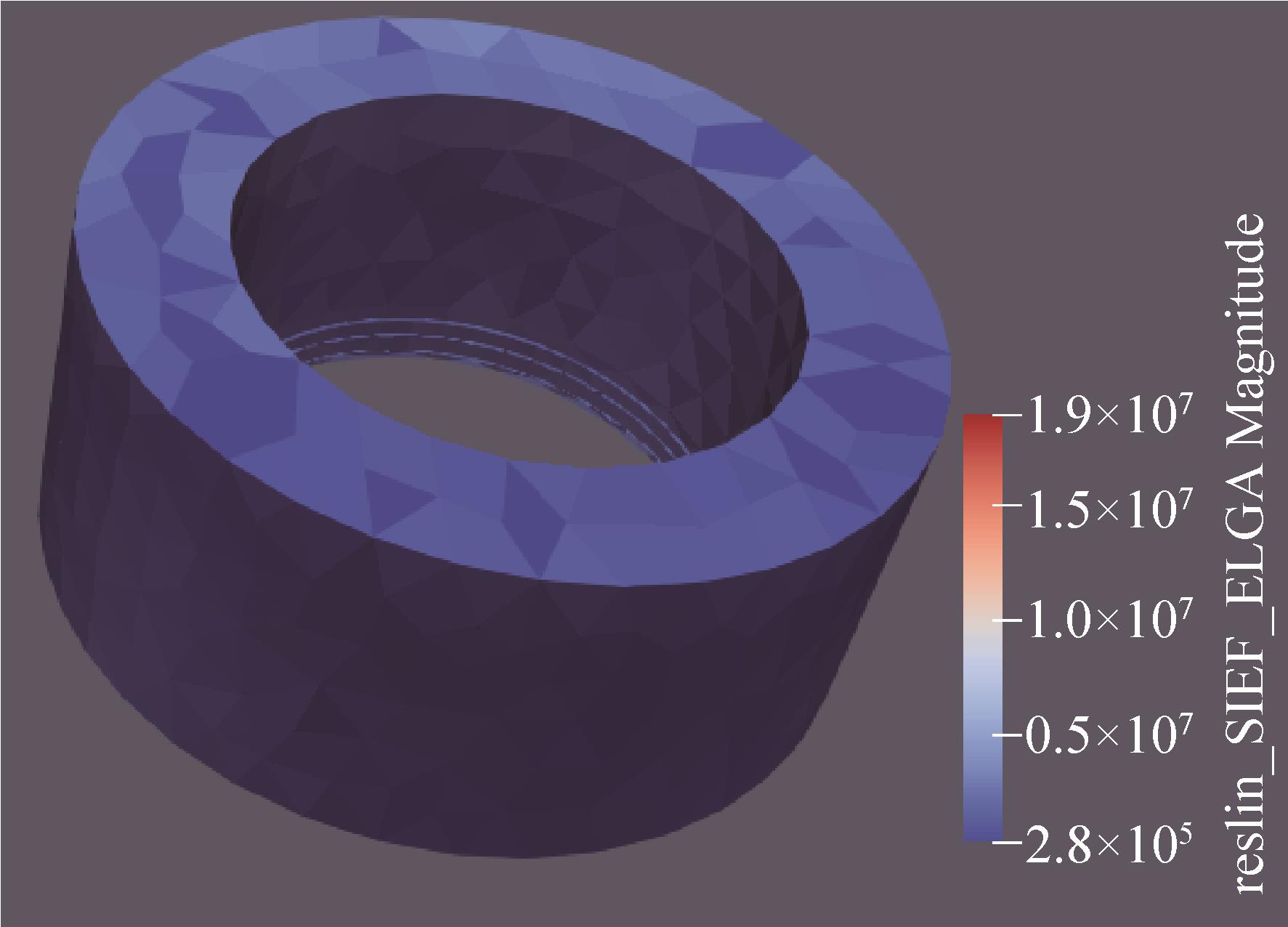

图21

表6

参考文献 16

1	祁鹏. 计算机辅助工程(CAE)技术及其应用[J]. 信息与电脑, 2019(14): 9-10.
	Qi Peng. Computer Aided Engineering(CAE) Technology and Its Application[J]. China Computer & Communication, 2019(14): 9-10.
2	何忆南. CAE软件操作小百科[J]. 计算机辅助工程, 2022, 31(3): 74-75.
	He Yinan. CAE Software Operation Tips[J]. Computer Aided Engineering, 2022, 31(3): 74-75.
3	杨楠. CAE软件操作小百科(47)[J]. 计算机辅助工程, 2019, 28(2): 74-75.
	Yang Nan. CAE Software Operation Tips (47)[J]. Computer Aided Engineering, 2019, 28(2): 74-75.
4	Zhang Xuewei, Ren Gaolin, Zou Ye, et al. Design Optimization and Improvement of Water Cooling Jacket Based on ANSYS Workbench[C]//2023 4th International Conference on Mechatronics Technology and Intelligent Manufacturing (ICMTIM). Piscataway: IEEE, 2023: 26-29.
5	Yin Zhiqin, Xu Lianjiang. Finite Element Analysis and Optimization Design of Paper Cutter Cutting Blade Based on ANSYS[C]//2018 International Conference on Robots & Intelligent System (ICRIS). Piscataway: IEEE, 2018: 475-478.
6	Wang Yingsong, Tong Ling, Hu Yanling. Optimization Analysis Method for Piston Rod of an Automatic Weapon Based on Secondary Development of ABAQUS[C]//2021 IEEE International Conference on Advances in Electrical Engineering and Computer Applications (AEECA). Piscataway: IEEE, 2021: 950-955.
7	Shan Dongri, Han Yuhua. Static & Dynamic Performances Analysis and Optimization Design for the Whole Casting Column of a Certain High-speed Horizontal Machining Center Using ABAQUS[C]//2010 2nd IEEE International Conference on Information Management and Engineering. Piscataway: IEEE, 2010: 367-371.
8	Ma Hongwei, Hu Zhihui, Hu Yong, et al. Research on Structure Analysis and Simulation Optimization of Parallel Grooved Multi-layer Drum Based on ANSYS Workbench[C]//2015 IEEE 19th International Conference on Computer Supported Cooperative Work in Design (CSCWD). Piscataway: IEEE, 2015: 372-376.
9	姚锋. 大规模复杂系统云仿真支撑技术研究[D]. 长沙: 国防科技大学, 2019.
	Yao Feng. Research on Support Technology of Cloud Simulation for Large Scale Complex System[D]. Changsha: National University of Defense Technology, 2019.
10	Zeigler B P. Guide to Modeling and Simulation of Systems of Systems: User's Reference[M]. London: Springer London, 2013.
11	Wainer Gabriel A, Mosterman Pieter J. Discrete-event Modeling and Simulation: Theory and Applications[M]. Boca Raton: CRC Press, 2011.
12	刘名远, 谢家翔, 吴豪, 等. 基于有限状态机的车间逻辑建模与仿真研究[J]. 系统仿真学报, 2023, 35(4): 853-861.
	Liu Mingyuan, Xie Jiaxiang, Wu Hao, et al. Research on Workshop Logic Modeling and Simulation Based on Finite State Machine[J]. Journal of System Simulation, 2023, 35(4): 853-861.
13	蔡远利, 林志民. 基于连续时间系统仿真的神经网络学习算法[J]. 系统仿真学报, 2009, 21(20): 6387-6390.
	Cai Yuanli, Lin Zhimin. Learning Algorithm for Neural Networks Based upon Continuous-time System Simulation[J]. Journal of System Simulation, 2009, 21(20): 6387-6390.
14	Deng Ziyun, Zhang Jing. A Cloud Platform for CAE Simulation in Supercomputing Enviroment[C]//2016 International Conference on Intelligent Networking and Collaborative Systems (INCoS). Piscataway: IEEE, 2016: 49-52.
15	徐胜超, 叶朝武. 基于贪心算法的容器云资源低能耗部署方法[J]. 计算机测量与控制, 2023, 31(5): 265-270.
	Xu Shengchao, Ye Zhaowu. Low Energy Consumption Deployment Method of Container Cloud Resources Based on a Greedy Algorithm[J]. Computer Measurement & Control, 2023, 31(5): 265-270.
16	张书, 马睿, 胡昱, 等. 基于应力应变疲劳准则的混凝土疲劳寿命分析[J]. 清华大学学报(自然科学版), 2024, 64(8): 1330-1335.
	Zhang Shu, Ma Rui, Hu Yu, et al. Analysis of Concrete Fatigue Life Based on Stress-strain Fatigue Criterion[J]. Journal of Tsinghua University(Science and Technology), 2024, 64(8): 1330-1335.

材料	弹性模量/Pa	泊松比	密度/(kg/m³)	每立方米造价
Steel1	2.1×10¹¹	0.3	7 850	1
Steel2	2.0×10¹¹	0.33	8 000	2
Steel3	2.5×10¹¹	0.35	7 600	3

内径/m	外径/m
内径/m	4.5	5	5.5
7.25	507	432	350
7.5	565	490	408
7.75	625	550	468

内径/m	外径/m
内径/m	4	4.25	4.5
7	1 037	971	902
7.125	1 091	1 026	958
7.25	1 148	1 083	1 014

内径/m	外径/m
内径/m	4.5	5	5.5
7	1 354	1 130	883
7.125	1 437	1 213	966
7.25	1 521	1 298	1 050
