用于动态柔性作业车间调度的实时调度方法

doi:10.16182/j.issn1004731x.joss.23-0385

摘要/Abstract

摘要：

针对制造加工中的动态事件对调度方案的干扰，构建了带有机器故障和随机工件到达的多目标动态柔性作业车间调度问题模型，提出多目标近端策略优化(multi-objective proximal policy optimization, MPPO)的实时调度方法。MPPO算法训练了RA(routing agent)和SA(sequencing agent)两个智能体以实现实时调度并实时处理动态事件；采用权重向量与奖励向量线性组合作为奖励信号，并保存每个权重向量的智能体参数以优化多个目标；结合目标函数为两个智能体定义了所需的状态信息、调度规则、奖励信号。在不同规模的动态调度问题下与9种调度规则组合进行对比，验证了MPPO算法训练的智能体学习到了合适的调度策略，能够保证实时调度的表现且能优化所有目标。

关键词: 动态调度, 柔性作业车间调度, 强化学习, 多智能体, 多目标优化

Abstract:

A multi-objective dynamic flexible job shop scheduling problem model with machine breakdown and random jobs arrival is constructed to address the interference of dynamic events in manufacturing processing on the scheduling scheme, and a real-time scheduling method with multi-objective proximal policy optimization (MPPO) algorithm is proposed. The MPPO algorithm trains two agents, routing agent (RA) and sequencing agent (SA), for real-time scheduling and real-time processing of dynamic events. It employs a linear combination of weight vectors and reward vectors as reward signals and stores the agents' parameters for each weight vector to optimize multiple objectives. The required state information, scheduling rules, and reward signals are defined for the two agents in conjunction with the objective functions. A comparison with nine combinations of scheduling rules for dynamic scheduling problems of different scales verifies that the MPPO algorithm-trained agents have learned an appropriate scheduling policy, which can guarantee the performance of real-time scheduling and optimize all objectives.

Key words: dynamic scheduling, flexible job shop scheduling, reinforcement learning, multi-agent, multi-objective optimization

中图分类号:

TP391.4

蒋权,魏静萱 . 用于动态柔性作业车间调度的实时调度方法[J]. 系统仿真学报, 2024, 36(7): 1609-1620.

Jiang Quan,Wei Jingxuan . Real-time Scheduling Method for Dynamic Flexible Job Shop Scheduling[J]. Journal of System Simulation, 2024, 36(7): 1609-1620.

图/表 12

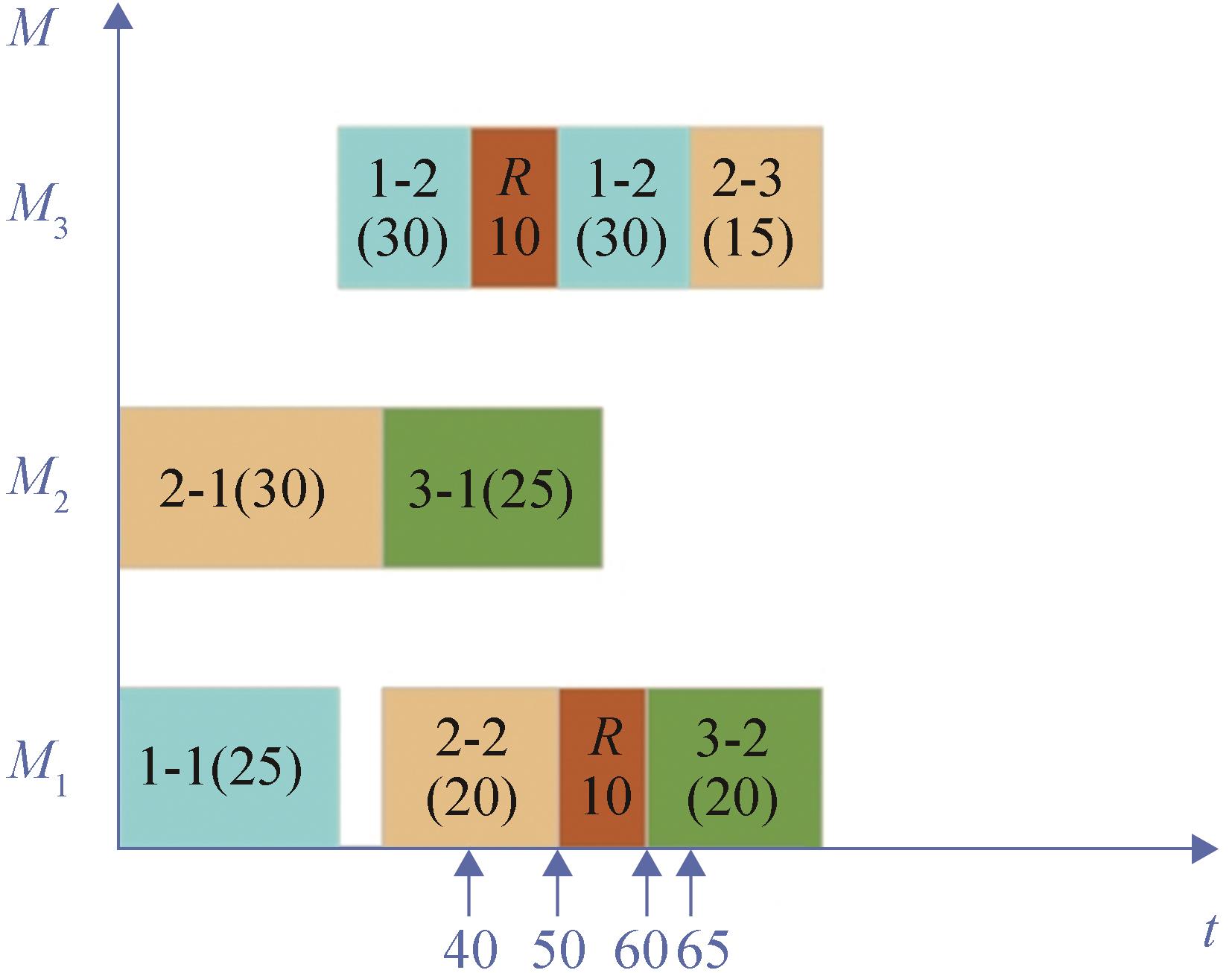

图1

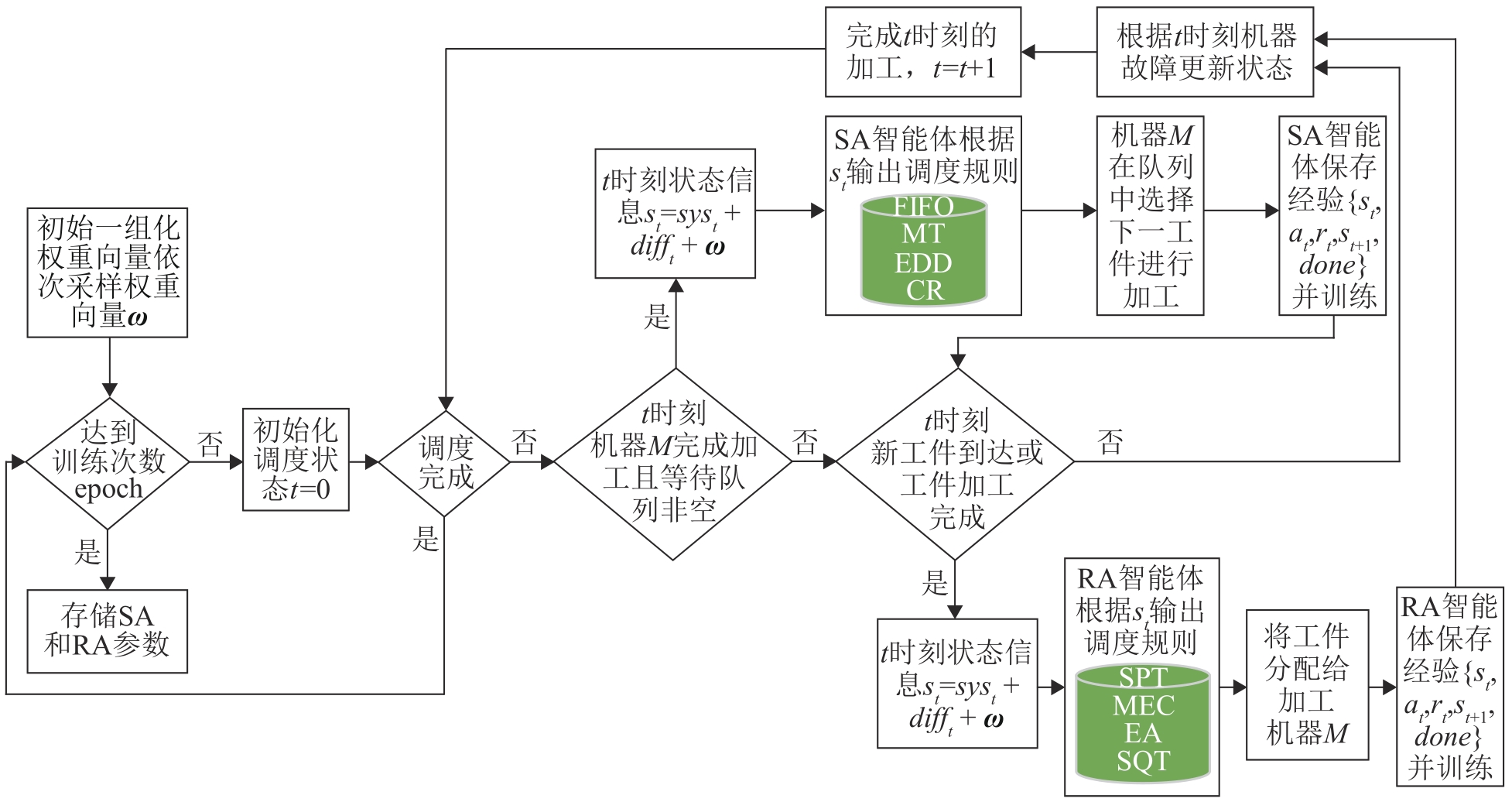

图2

表1

表2

表3

参数的fmean值及重要性等级

取值水平	E	BS	S
1	0.536 37	0.578 41	0.528 99
2	0.434 00	0.252 14	0.342 79
3	0.267 18	0.407 00	0.365 77
$∇ f m e a n$	0.269 19	0.326 27	0.186 10
重要性等级	2	1	3

表3

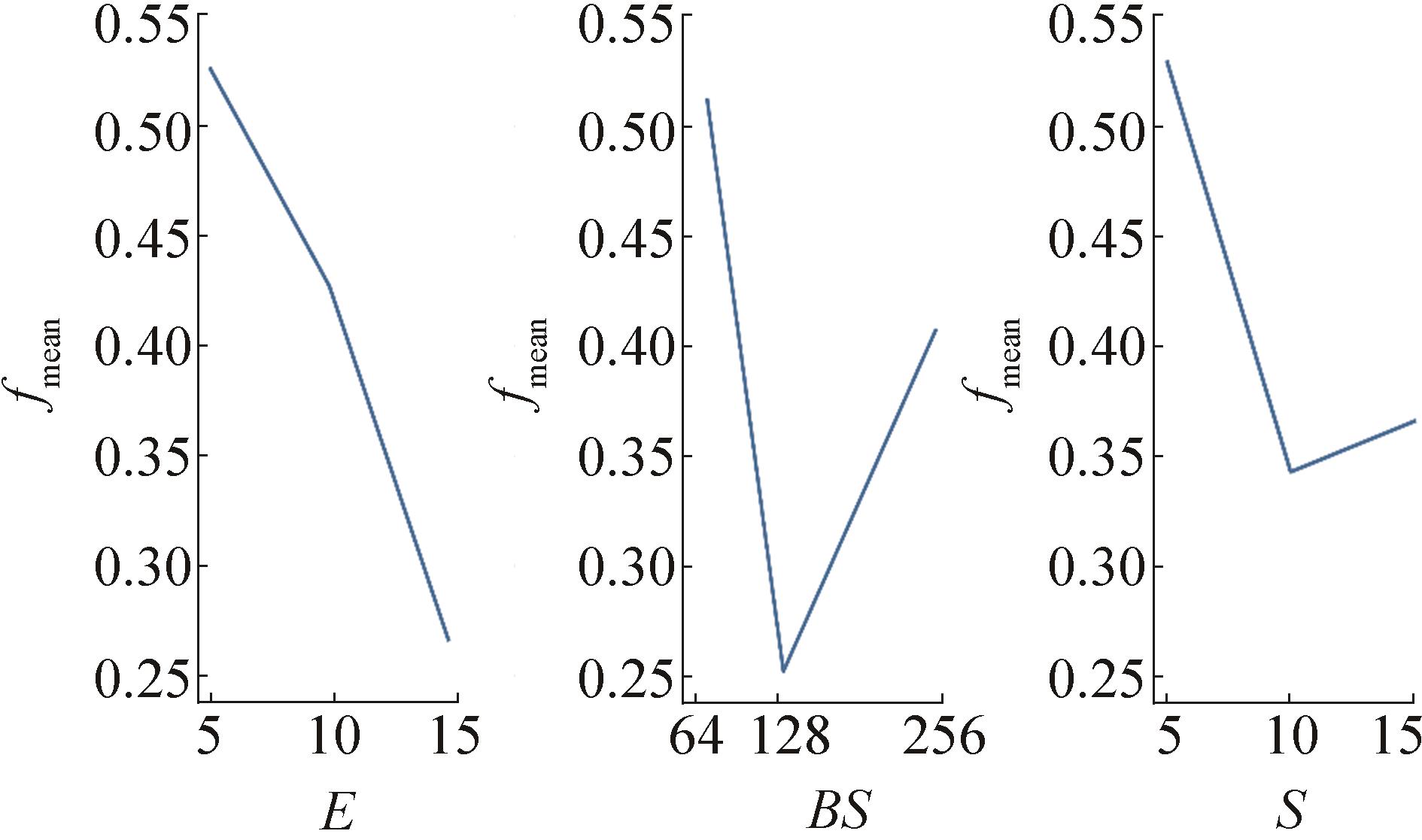

图3

表4

表5

表6

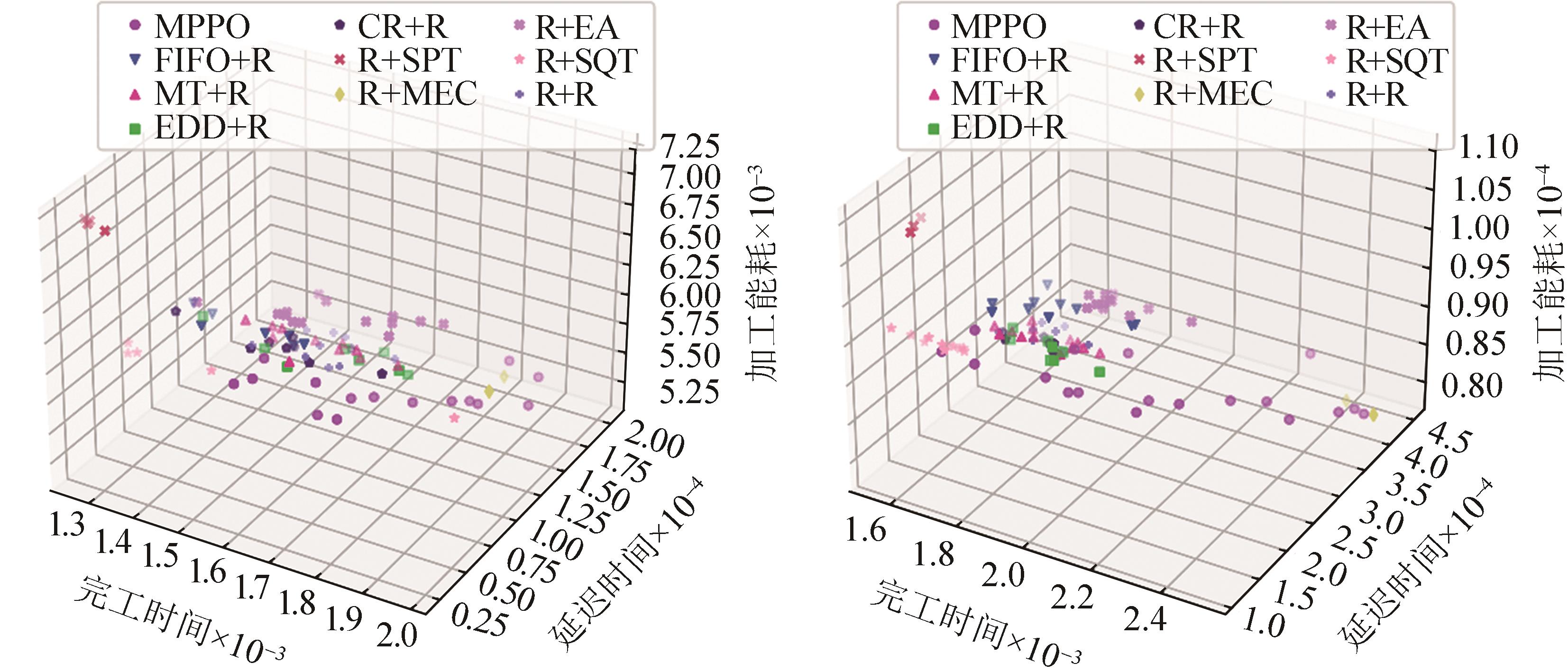

图4

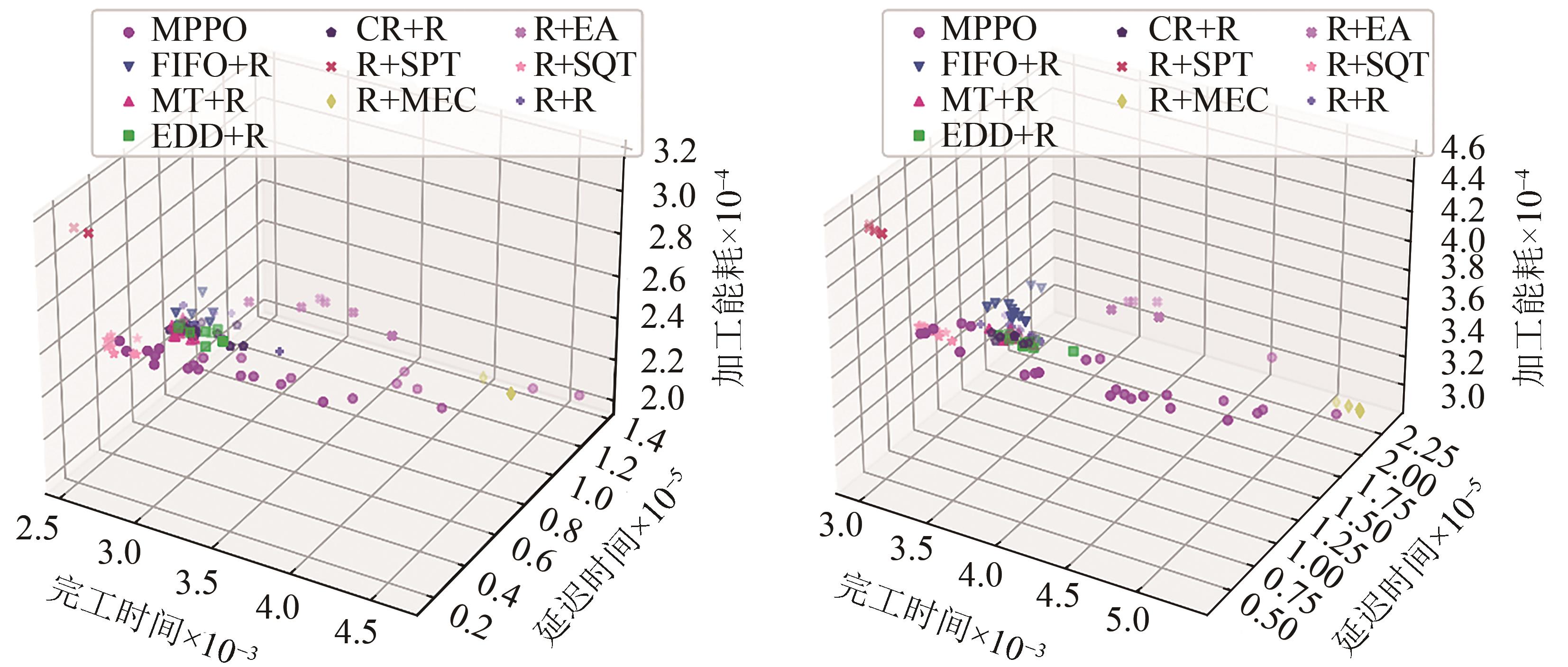

图5

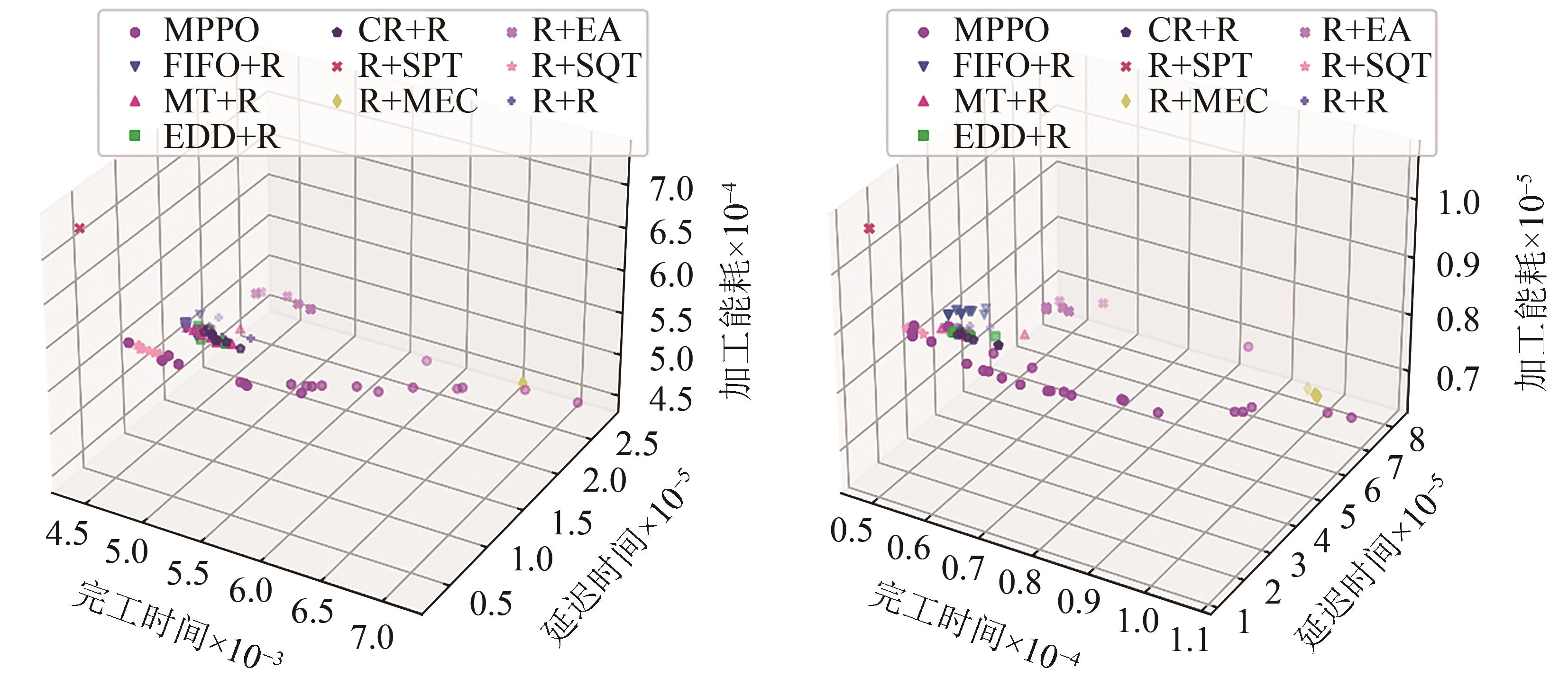

图6

参考文献 21

1	Luo Shu. Dynamic Scheduling for Flexible Job Shop with New Job Insertions by Deep Reinforcement Learning[J]. Applied Soft Computing, 2020, 91: 106208.
2	尤一琛, 王艳, 纪志成. 基于博弈论的柔性作业车间动态调度研究[J]. 系统仿真学报, 2021, 33(11): 2579-2588.
	You Yichen, Wang Yan, Ji Zhicheng. Research on Flexible Job-shop Dynamic Scheduling Based on Game Theory[J]. Journal of System Simulation, 2021, 33(11): 2579-2588.
3	An Youjun, Chen Xiaohui, Gao Kaizhou, et al. A Hybrid Multi-objective Evolutionary Algorithm for Solving an Adaptive Flexible Job-shop Rescheduling Problem with Real-time Order Acceptance and Condition-based Preventive Maintenance[J]. Expert Systems with Applications, 2023, 212: 118711.
4	Wen Xiaoyu, Lian Xiaonan, Qian Yunjie, et al. Dynamic Scheduling Method for Integrated Process Planning and Scheduling Problem with Machine Fault[J]. Robotics and Computer-Integrated Manufacturing, 2022, 77: 102334.
5	Holthaus Oliver, Rajendran Chandrasekharan. Efficient Dispatching Rules for Scheduling in a Job Shop[J]. International Journal of Production Economics, 1997, 48(1): 87-105.
6	Jun S, Lee S, Chun H. Learning Dispatching Rules Using Random Forest in Flexible Job Shop Scheduling Problems[J]. International Journal of Production Research, 2019, 57(10): 3290-3310.
7	Priore Paolo, Ponte B, Puente Javier, et al. Learning-based Scheduling of Flexible Manufacturing Systems Using Ensemble Methods[J]. Computers & Industrial Engineering, 2018, 126: 282-291.
8	Paulo Roberto do O da Costa, Rhuggenaath Jason, Zhang Yingqian, et al. Learning 2-opt Heuristics for the Traveling Salesman Problem via Deep Reinforcement Learning[C]//Proceedings of the 12th Asian Conference on Machine Learning. Chia Laguna Resort, Sardinia, Italy: PMLR, 2020: 465-480.
9	Lu Hao, Zhang Xingwen, Yang Shuang. A Learning-based Iterative Method for Solving Vehicle Routing Problems[C]//ICLR 2020 Conference Blind Submission. New York, USA: ICLR, 2020.
10	Zeng Yunhui, Liao Zijun, Dai Yuanzhi, et al. Hybrid Intelligence for Dynamic Job-shop Scheduling with Deep Reinforcement Learning and Attention Mechanism[EB/OL]. (2022-01-03) [2023-03-20]. .
11	Luo Shu, Zhang Linxuan, Fan Yushun. Real-time Scheduling for Dynamic Partial-no-wait Multiobjective Flexible Job Shop by Deep Reinforcement Learning[J]. IEEE Transactions on Automation Science and Engineering, 2022, 19(4): 3020-3038.
12	Liu Renke, Piplani R, Toro Carlos. Deep Reinforcement Learning for Dynamic Scheduling of a Flexible Job Shop[J]. International Journal of Production Research, 2022, 60(13): 4049-4069.
13	Li Funing, Lang Sebastian, Hong Bingyuan, et al. A Two-stage RNN-based Deep Reinforcement Learning Approach for Solving the Parallel Machine Scheduling Problem with Due Dates and Family Setups[J]. Journal of Intelligent Manufacturing, 2024, 35(3): 1107-1140.
14	Schulman J, Wolski F, Dhariwal P, et al. Proximal Policy Optimization Algorithms[EB/OL]. (2017-08-28) [2023-03-14]. .
15	Mnih V, Kavukcuoglu K, Silver D, et al. Human-level Control Through Deep Reinforcement Learning[J]. Nature, 2015, 518(7540): 529-533.
16	Li Kaiwen, Zhang Tao, Wang Rui. Deep Reinforcement Learning for Multiobjective Optimization[J]. IEEE Transactions on Cybernetics, 2021, 51(6): 3103-3114.
17	Shen Xiaoning, Yao Xin. Mathematical Modeling and Multi-objective Evolutionary Algorithms Applied to Dynamic Flexible Job Shop Scheduling Problems[J]. Information Sciences, 2015, 298: 198-224.
18	Zitzler Eckart, Deb Kalyanmoy, Thiele Lothar. Comparison of Multiobjective Evolutionary Algorithms: Empirical Results[J]. Evolutionary Computation, 2000, 8(2): 173-195.
19	Zitzler E, Thiele L. Multiobjective Evolutionary Algorithms: A Comparative Case Study and the Strength Pareto Approach[J]. IEEE Transactions on Evolutionary Computation, 1999, 3(4): 257-271.
20	Deb K, Pratap A, Agarwal S, et al. A Fast and Elitist Multiobjective Genetic Algorithm: NSGA-II[J]. IEEE Transactions on Evolutionary Computation, 2002, 6(2): 182-197.
21	Leung Y W, Wang Yuping. An Orthogonal Genetic Algorithm with Quantization for Global Numerical Optimization[J]. IEEE Transactions on Evolutionary Computation, 2001, 5(1): 41-53.

参数	含义	值
m	加工机器数量	{5,10,20,30}
n_f	初始工件数量	1.5 m或2 m
n_s	新工件数量	2 m或3 m
PR_i	工件优先级	randi[1, 3]
ddt_i	工件的截止日期紧急度	randn[1.0, 1.5]
n_i	工件所包含的工序数	n_i = randi[m//2, m]
M_ij	可用加工机器集合大小	randi[1, m]
P_ijk	加工时间	randi[20, 50]
E_ijk	加工能耗	round(randi[0, 5])+40-P_ijk /2)
A_i	新工件的到达时间	服从指数分布exp(1/λ_new), λ_new=randi[25, 100]
B_k	机器的故障时间	服从指数分布exp(1/λ_MTBF), λ_MTBF=500
R_k	机器故障修复时间	服从指数分布exp(1/λ_MTTR),，λ_MTTR=50

编号	E	BS	S	f_mean
1	5	64	5	0.809 89
2	5	128	10	0.310 65
3	5	256	15	0.488 57
4	10	64	10	0.534 64
5	10	128	15	0.218 04
6	10	256	5	0.549 34
7	15	64	15	0.390 70
8	15	128	5	0.227 75
9	15	256	10	0.183 09

n_f	m	n_s	MPPO	FIFO+R	MT+R	EDD+R	CR+R	R+SPT	R+MEC	R+EA	R+SQT	R+R
7	5	10	0.036	0.045	0.039	0.048	0.039	0.027	0.023	0.047	0.021	0.044
10	5	15	0.052	0.066	0.067	0.06	0.067	0.050	0.019	0.064	0.031	0.071
15	10	20	0.022	0.029	0.028	0.033	0.027	0.058	0.024	0.042	0.026	0.031
20	10	30	0.022	0.047	0.031	0.034	0.033	0.014	0.017	0.056	0.007	0.036
30	20	40	0.018	0.033	0.028	0.035	0.032	0.017	0.014	0.059	0.005	0.03
40	20	60	0.018	0.040	0.027	0.028	0.026	0.019	0.022	0.063	0.020	0.026
45	30	60	0.014	0.018	0.020	0.024	0.023	0.018	0.019	0.054	0.026	0.019
60	30	90	0.019	0.037	0.024	0.027	0.026	0.005	0.009	0.056	0.003	0.028

n_f	m	n_s	MPPO	FIFO+R	MT+R	EDD+R	CR+R	R+SPT	R+MEC	R+EA	R+SQT	R+R
7	5	10	0.040	0.035	0.034	0.039	0.034	0.131	0.131	0.040	0.045	0.042
10	5	15	0.099	0.093	0.111	0.096	0.085	0.244	0.364	0.136	0.138	0.096
15	10	20	0.058	0.080	0.082	0.072	0.069	0.152	0.175	0.073	0.095	0.082
20	10	30	0.026	0.068	0.069	0.070	0.073	0.15	0.176	0.075	0.095	0.068
30	20	40	0.024	0.072	0.084	0.073	0.082	0.163	0.186	0.083	0.110	0.08
40	20	60	0.023	0.071	0.069	0.07	0.067	0.133	0.162	0.078	0.087	0.075
45	30	60	0.015	0.071	0.072	0.066	0.068	0.142	0.173	0.070	0.089	0.071
60	30	90	0.026	0.085	0.086	0.081	0.087	0.158	0.188	0.084	0.109	0.081

n_f	m	n_s	MPPO	FIFO+R	MT+R	EDD+R	CR+R	R+SPT	R+MEC	R+EA	R+SQT	R+R
7	5	10	0.681	0.725	0.670	0.673	0.660	0.976	1.019	0.753	0.684	0.740
10	5	15	0.800	0.649	0.666	0.682	0.682	1.012	0.994	0.812	0.897	0.760
15	10	20	0.710	0.715	0.707	0.711	0.780	0.944	0.932	0.774	0.811	0.773
20	10	30	0.747	0.788	0.791	0.805	0.837	0.966	0.926	0.78	0.885	0.745
30	20	40	0.742	0.889	0.887	0.799	0.807	0.942	0.952	0.857	0.901	0.870
40	20	60	0.798	0.828	0.849	0.860	0.879	0.981	0.946	0.878	0.940	0.894
45	30	60	0.785	0.856	0.880	0.826	0.836	0.984	0.939	0.823	0.906	0.854
60	30	90	0.822	0.899	0.884	0.888	0.872	0.996	0.965	0.887	0.959	0.888
