基于Wiener模型的风力发电系统变桨距控制

doi:10.16182/j.issn1004731x.joss.22-0284

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (8): 1741-1749.doi: 10.16182/j.issn1004731x.joss.22-0284

基于Wiener模型的风力发电系统变桨距控制

徐樾¹(), 贾立¹(), 付轩熠²

^1.上海大学机电工程与自动化学院，上海 200072
^2.南瑞集团有限公司(国网电力科学研究院有限公司)，江苏南京 211106

收稿日期:2022-03-29 修回日期:2022-05-07 出版日期:2022-08-30 发布日期:2022-08-15
通讯作者: 贾立 E-mail:xu_yue0813@163.com;jiali@staff.shu.edu.cn
作者简介:徐樾(1994-)，女，博士生，研究方向为能源互联网系统的建模与控制。E-mail：xu_yue0813@163.com
基金资助:
国家自然科学基金(92067105)

Variable Pitch Control of Wind Power Generation System Based on Wiener Model

Yue Xu¹(), Li Jia¹(), Xuanyi Fu²

^1.College of Mechatronics Engineering and Automation, Shanghai University, Shanghai 200072, China
^2.NARI Group Co. , Ltd. (State Grid Electric Power Research Institute Co. , Ltd. ), Nanjing 211106, China

Received:2022-03-29 Revised:2022-05-07 Online:2022-08-30 Published:2022-08-15
Contact: Li Jia E-mail:xu_yue0813@163.com;jiali@staff.shu.edu.cn

摘要/Abstract

摘要：

风力发电系统具有非线性强和波动性大的特点，如何在风速随机变化的工况下，快速地将风电机组输出功率控制在额定范围内是风电系统控制面临的重大难题。针对5 MW风电机组的变桨距控制问题，提出一种基于Wiener模型的风力发电系统变桨距控制方案。根据Wiener模型线性和非线性环节可分离的特殊结构，通过计算非线性环节的逆，构造具有线性性质的广义风电系统被控对象，将风电系统非线性变桨距控制问题简化为线性模型控制问题。采用独立可分离信号分步辨识风电机组Wiener模型，可以更加精准地预测风电机组输出功率。仿真实例表明：该控制方法有效地提高了变桨距系统的控制效果。

关键词: 风电机组, 变桨距控制系统, Wiener模型, 分步辨识

Abstract:

Strong nonlinearity and large fluctuation are the characteristics of wind power generation system. Quickly controlling the output power of wind turbines within the rated range under wind speed random changes is the major problem of wind power system control. Aiming at the pitch control of 5 MW wind turbines, a pitch control scheme for wind power generation systems based on the Wiener model is proposed. On the basis of the special structure in which the linear and nonlinear links of the Wiener model can be separated, the controlled object of a generalized wind power system with linear properties is constructed by calculating the inverse of the nonlinear part, which simplifies the nonlinear pitch control problem of the wind power system to a linear model control. The independent separable signal is used to identify the Wiener model of wind turbines by separate steps, which can accurately predict the output power of the wind turbines. The simulation examples show that the control method can effectively improve the control effect of the pitch system.

Key words: wind turbine, pitch control system, wiener model, separate step identification

中图分类号:

TP273

徐樾, 贾立, 付轩熠. 基于Wiener模型的风力发电系统变桨距控制[J]. 系统仿真学报, 2022, 34(8): 1741-1749.

Yue Xu, Li Jia, Xuanyi Fu. Variable Pitch Control of Wind Power Generation System Based on Wiener Model[J]. Journal of System Simulation, 2022, 34(8): 1741-1749.

图/表 10

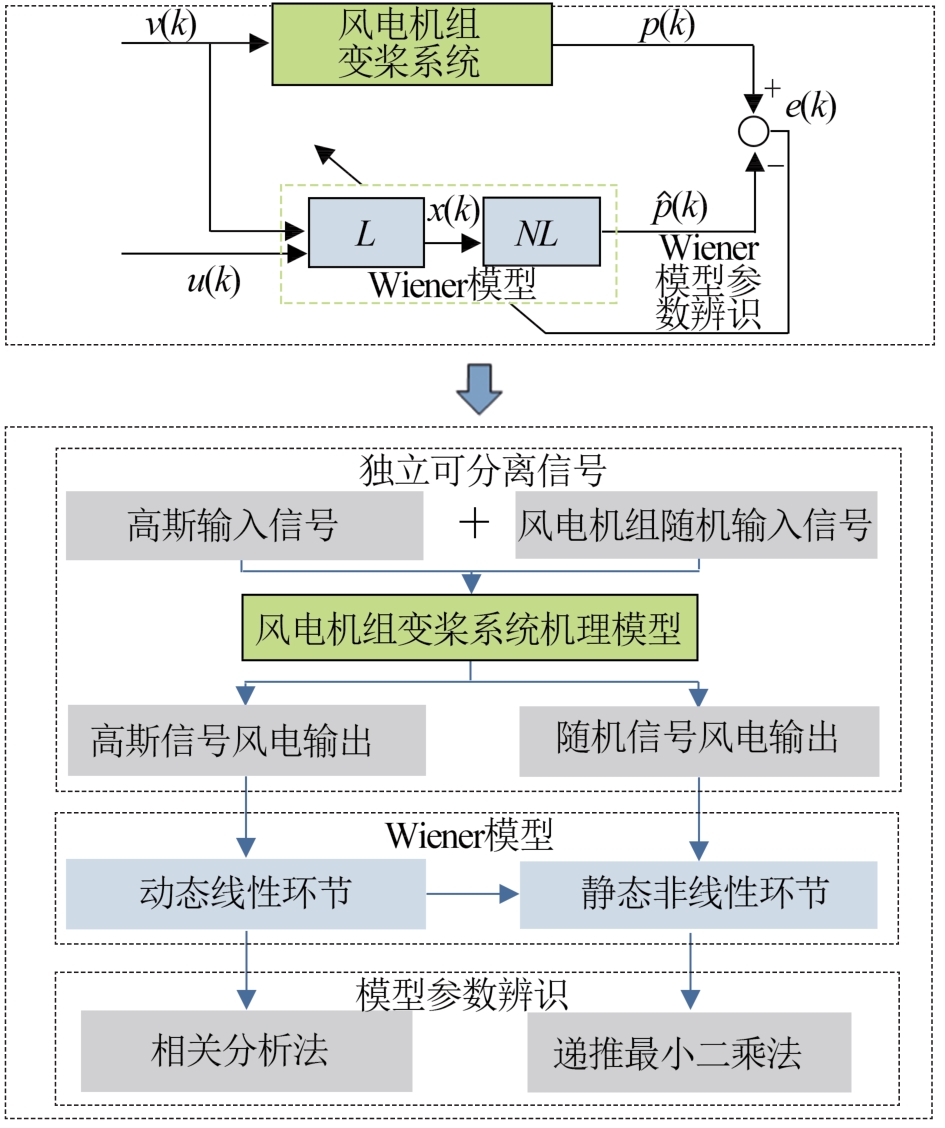

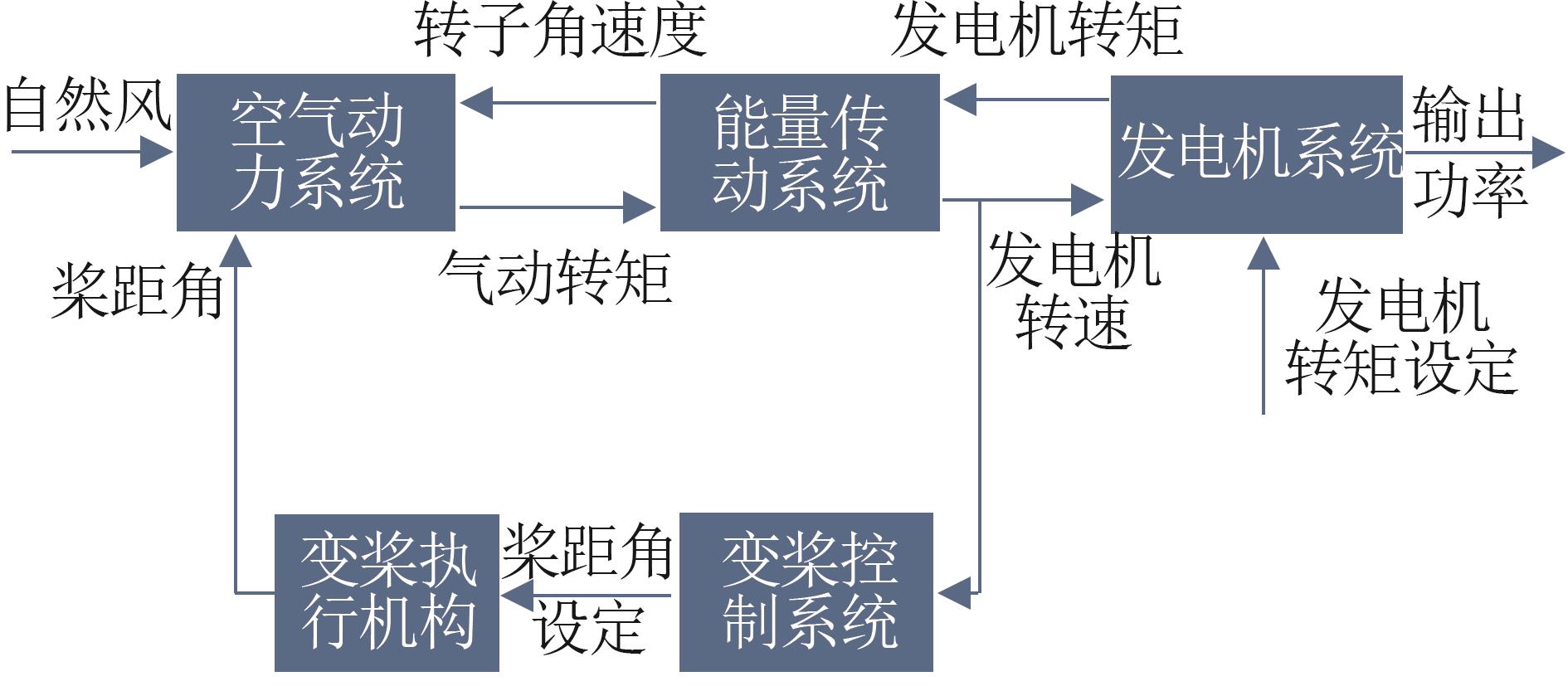

图1

图2

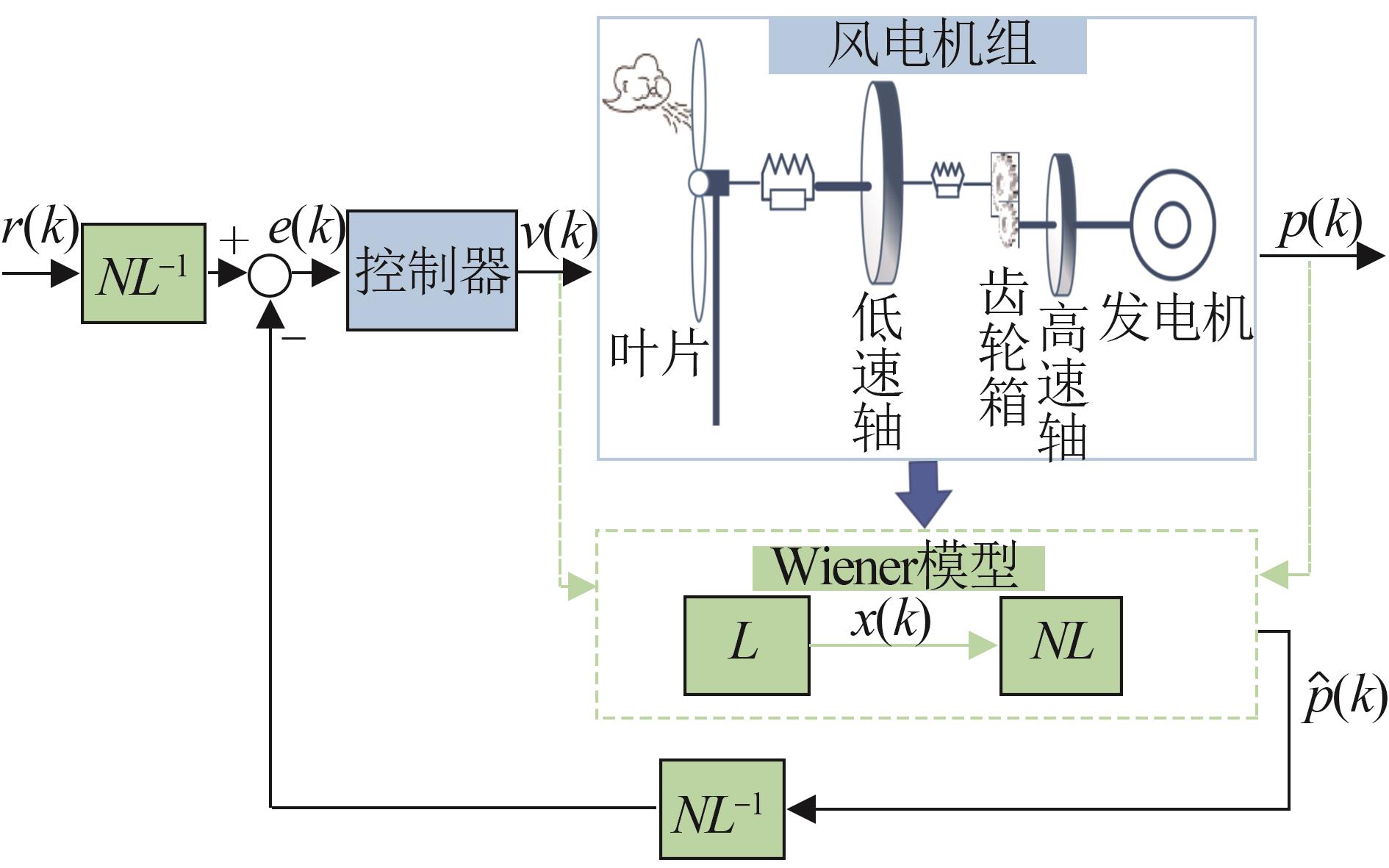

图3

表1

NREL海上5MW基准风机模型参数

主要参数	量值
额定功率/MW	5
切入、额定、切出风速/(m/s)	3、 11.4、 25
切入、额定转子速度/(r/min)	6.9、 12.1
固有频率 $ω n$ /(rad/s)	0.88
桨距角机构阻尼系数 $ξ$	0.1
齿轮箱传动比 $N g$	97
风机转动惯量 $J r$ /(kg·m²)	38 768 000
发电机转动惯量 $J g$ /(kg·m²)	534.116
刚度系数 $K θ$ /(N·m/rad)	867 636 000
传动系统阻尼系数 $B θ$ /(N·m/(rad·s^-1))	6 215 000
发电机时间常数 $τ g$	0.1
空气密度 $ρ a$ /(kg·m³)	1.225
风轮半径 $R r$ /m	63
发电机效率 $η$ /%	94.4

表1

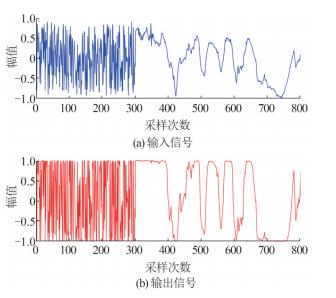

图4

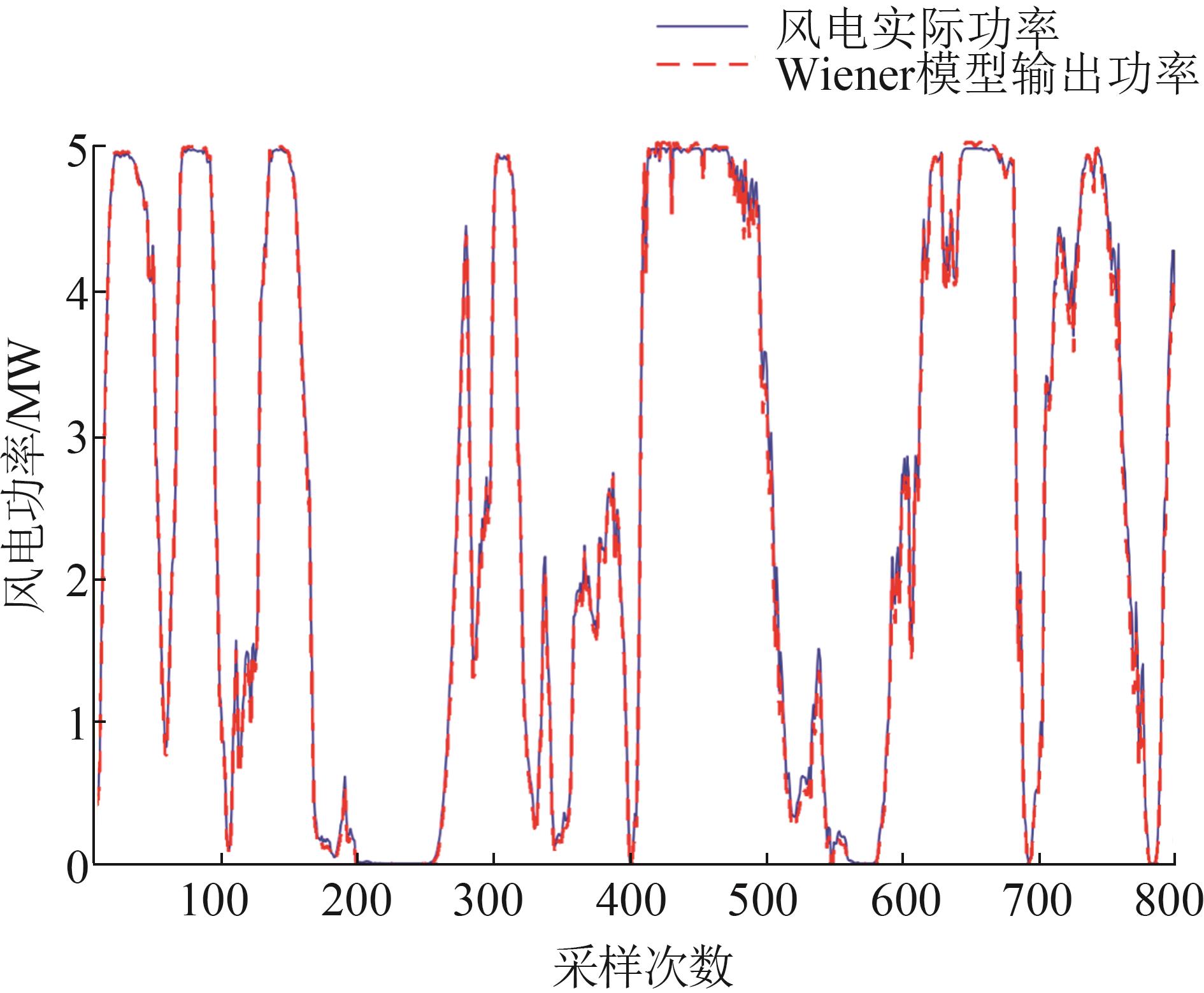

图5

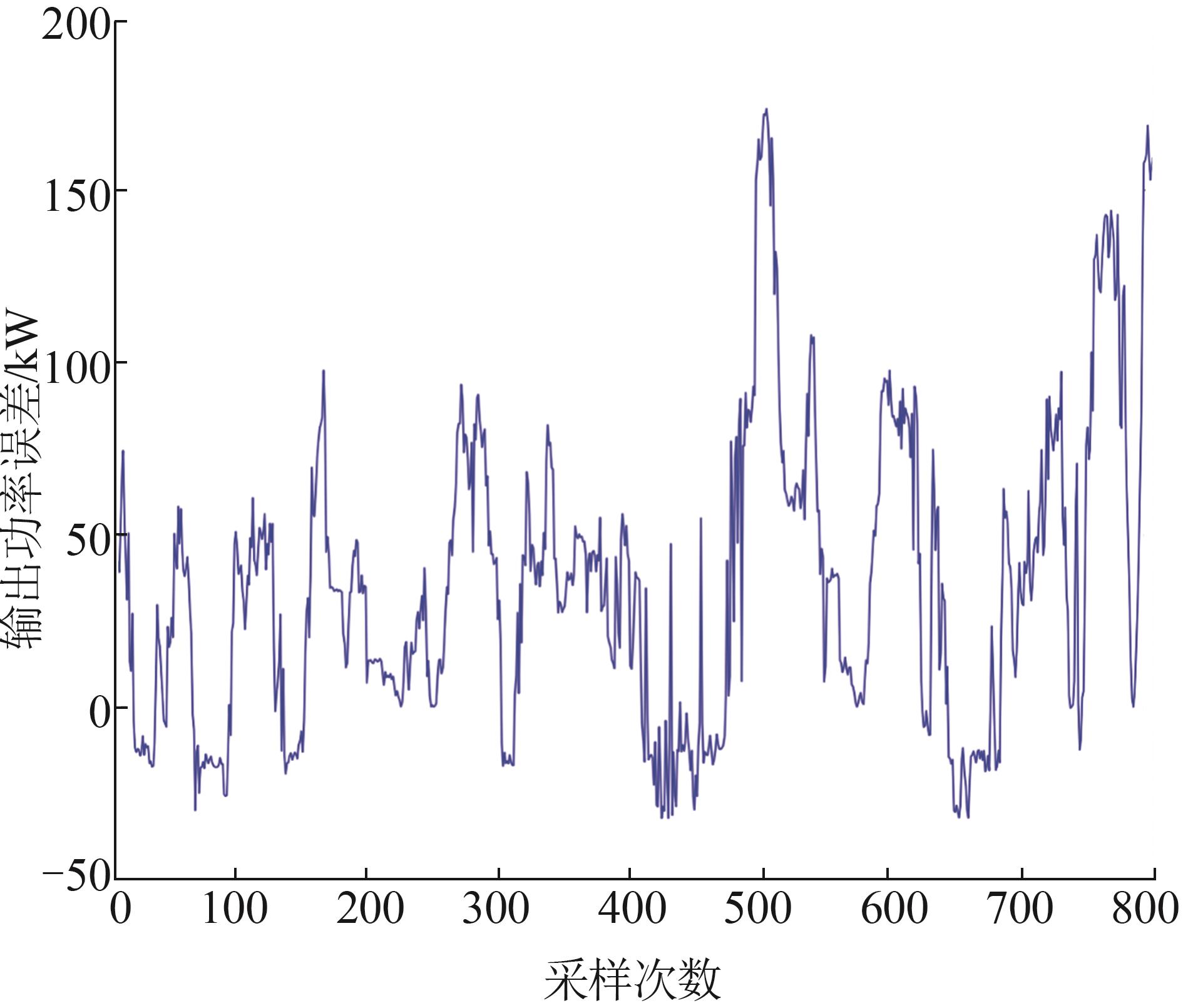

图6

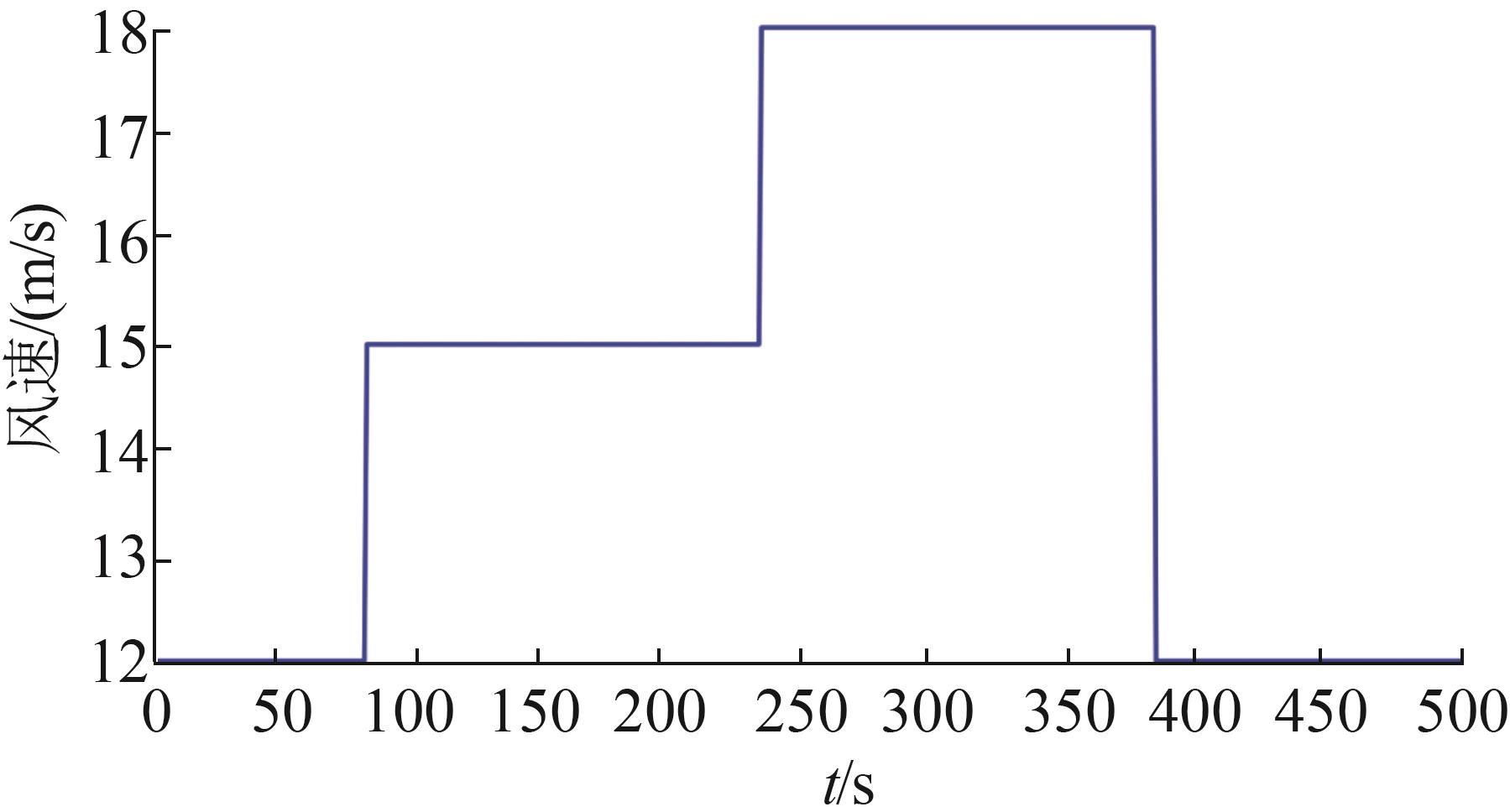

图7

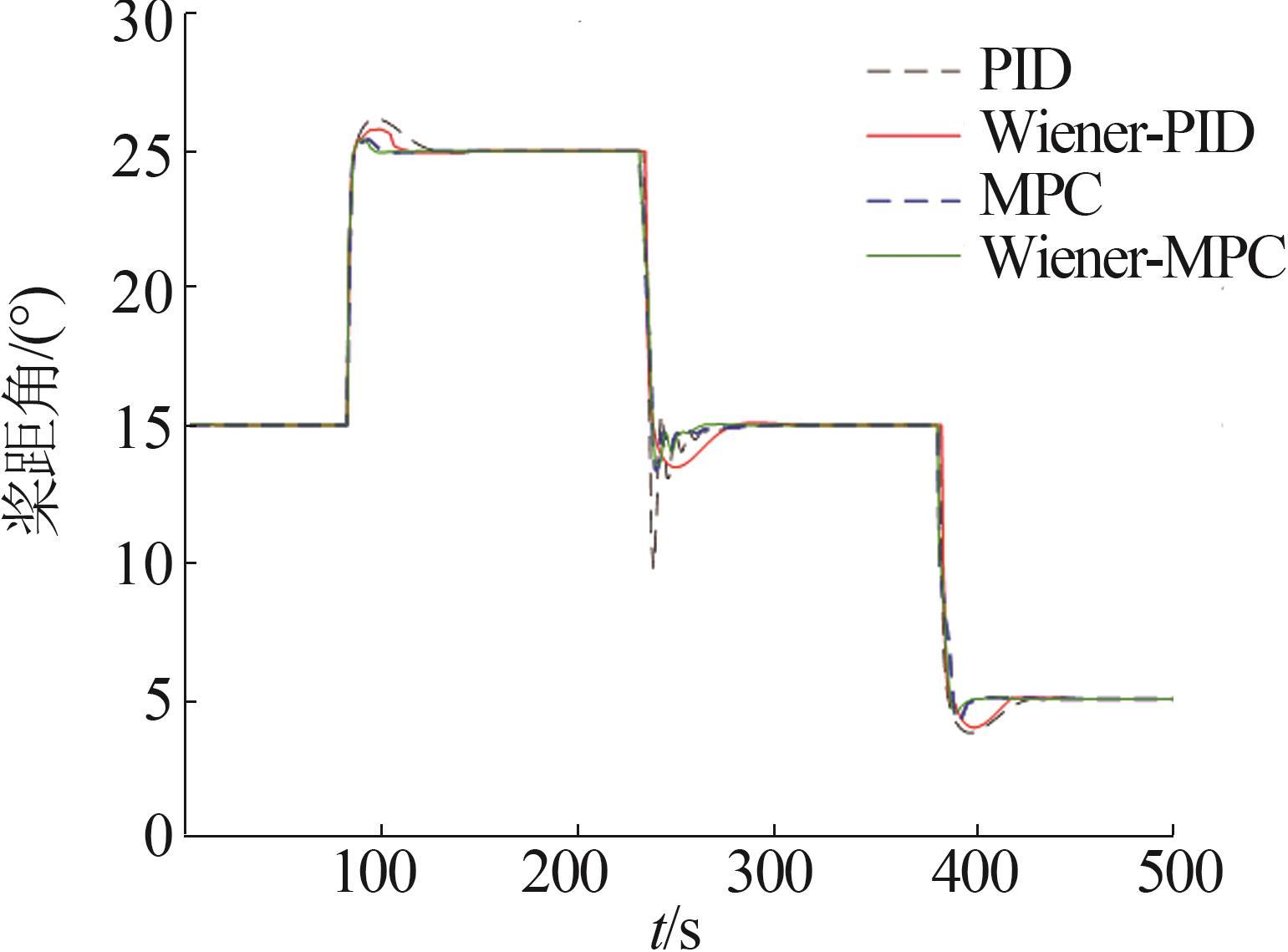

图8

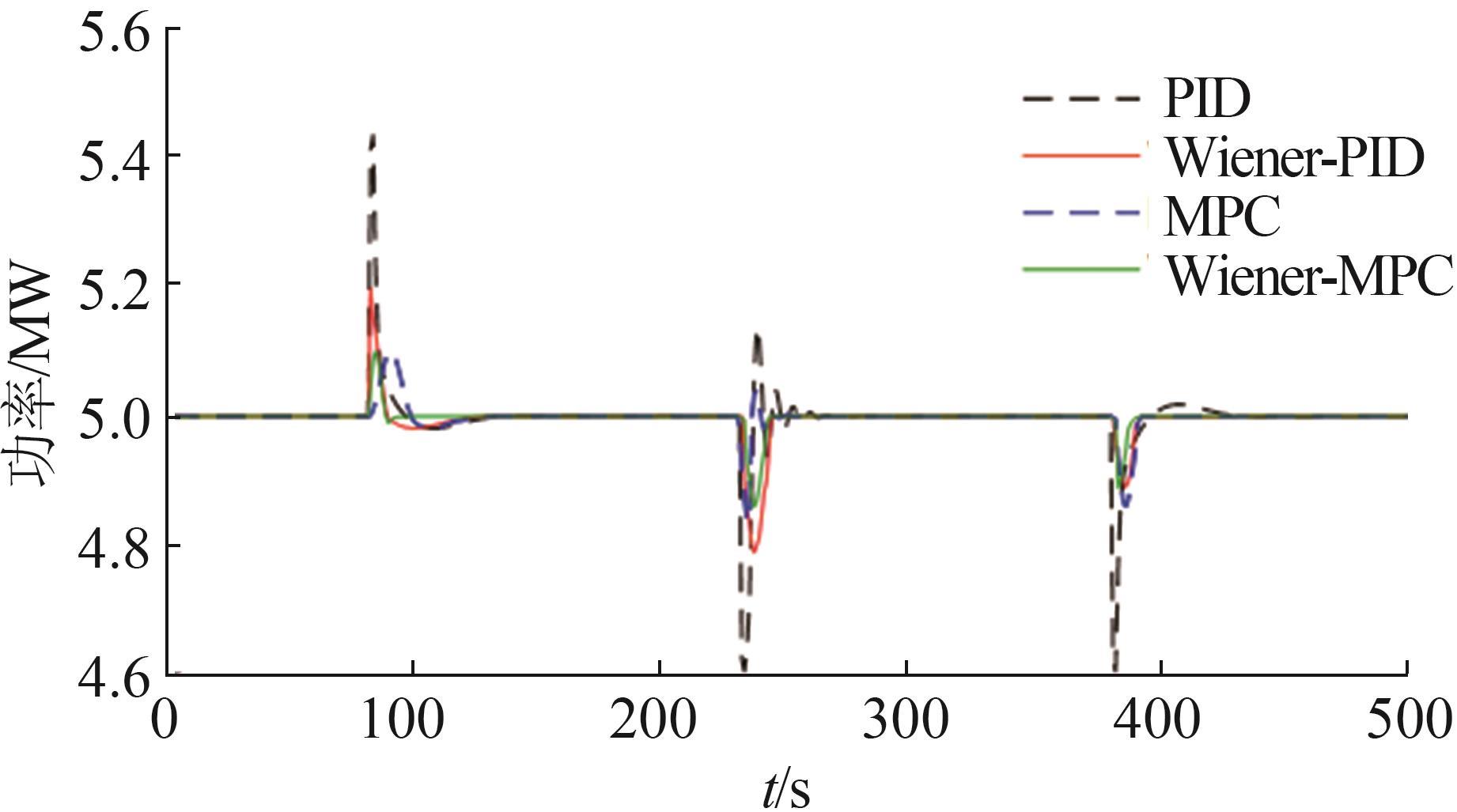

图9

参考文献 16

1	苑晨阳, 李静, 陈健云, 等. 大型风电机组变桨距ABC-PID控制研究[J]. 太阳能学报, 2019, 40(10): 3002-3008.
	Yuan Chenyang, Li Jing, Chen Jianyun, et al. Research on ABC-PID Pitch Control of Large-Scale Wind Turbines[J]. Acta Energiae Solaris Sinica, 2019, 40(10): 3002-3008.
2	崔天依, 褚孝国. 大转动惯量风电机组变桨控制技术研究[J]. 热力发电, 2020, 49(1): 55-62.
	Cui Tianyi, Chu Xiaoguo. Research on Pitch Control Technology of Large Moment of Inertia Wind Turbines [J]. Thermal Power Generation, 2020, 49(1): 55-62.
3	田猛, 张波文, 周腊吾, 等. 基于RBF神经网络滑模变结构独立变桨控制研究[J]. 电力系统保护与控制, 2019, 47(4): 107-114.
	Tian Meng, Zhang Bowen, Zhou Lawu, et al. Research on Independent Pitch Control of Sliding Mode Variable Structure Based on RBF Neural Network[J]. Power System Protection and Control, 2019, 47(4): 107-114.
4	张真源, 刘国荣, 杨小亮, 等. 基于RBF神经网络的参数自适应PID变桨控制器的设计[J]. 电力系统及其自动化学报, 2020, 32(5): 16-23.
	Zhang Zhenyuan, Liu Guorong, Yang Xiaoliang, et al. Design of RBF Neural Network Based Parameter Adaptive PID Pitch Controller[J]. Proceedings of the CSU-EPSA, 2020, 32(5): 16-23.
5	殷绪强, 赵彬, 孟宏. 基于迭代自适应方法的风机变桨系统优化控制[J]. 节能, 2021, 40(6): 28-30.
	Yin Xuqiang, Zhao Bin, Meng Hong. Optimal Control of Wind Turbine Pitch System Based on Iterative Adaptive Method[J]. Energy Conservation, 2021, 40(6): 28-30.
6	王乐, 蔺红. 减载风电机组协调控制策略及PI参数优化[J]. 控制工程, 2021, 28(4): 744-750.
	Wang Le, Lin Hong. Coordinated Control Strategy and PI Parameter Optimization of Load Shedding Wind Turbines[J]. Control Engineering of China, 2021, 28(4): 744-750.
7	于国强, 谢振华, 张天海, 等. 参与电网调频的风电机组线性变参数变桨控制策略[J]. 热能动力工程, 2021, 36(5): 119-125.
	Yu Guoqiang, Xie Zhenhua, Zhang Tianhai, et al. Linear Parameter Varying-based Pitch Control Strategy for Wind Turbines Participating in Power Grid Frequency Regulation [J]. Journal of Engineering for Thermal Energy and Power, 2021, 36(5): 119-125.
8	郭鹏. 模糊前馈与模糊PID结合的风力发电机组变桨距控制[J]. 中国电机工程学报, 2010, 30(8): 123-128.
	Guo Peng. Variable Pitch Control of Wind Turbine Generator Combined with Fuzzy Feed Forward and Fuzzy PID Controller [J]. Proceedings of the CSEE, 2010, 30(8): 123-128.
9	李飞飞. 基于双模糊PID控制策略的风力发电机组变桨系统研究[J]. 模糊系统与数学, 2019, 33(3): 29-34.
	Li Feifei. Pitch System of the Wind Turbines Based on the Double Fuzzy PID Control Strategy[J]. Fuzzy Systems and Mathematics, 2019, 33(3): 29-34.
10	Liu W, Na W, Zhu L, et al. A Wiener-Type Dynamic Neural Network Approach to the Modeling of Nonlinear Microwave Devices[J]. IEEE Transactions on Microwave Theory and Techniques (S0018-9480), 2017, 65(6): 2043-2062.
11	吴倩. 风电场的分布式经济模型预测控制[D]. 北京: 华北电力大学, 2020.
	Wu Qian. Distributed Economic Model Predictive Control of Wind Farms [D]. Beijing: North China Electric Power University, 2020.
12	周志超, 王成山, 郭力, 等. 变速变桨距风电机组的全风速限功率优化控制[J]. 中国电机工程学报, 2015, 35(8): 1837-1844.
	Zhou Zhichao, Wang Chengshan, Guo Li, et al. Output Power Curtailment Control of Variable-Speed Variable-Pitch Wind Turbine Generator at All Wind Speed Regions[J]. Proceedings of the CSEE, 2015, 35(8): 1837-1844.
13	Jonkman J, Butterfield S, Musial W, et al. Definition of a 5-MW Reference Wind Turbine for Offshore System Development[R]. Golden, CO (United States): National Renewable Energy Laboratory, 2009.
14	Xu Y, Jia L, Yang W. Correlation Based Neuro-Fuzzy Wiener Type Wind Power Forecasting Model by Using Special Separate Signals[J]. Energy Conversion and Management (S0196-8904), 2022, 253: 115173.
15	Jia Li, Xiong Qi, Li Feng. Correlation Analysis Method Based Siso Neuro-Fuzzy Wiener Model[J]. Journal of Process Control (S0959-1524), 2017, 58: 73-89.
16	贾立, 杨爱华, 邱铭森. 含过程噪声的Hammerstein- Wiener神经模糊模型多信号源辨识[J]. 上海交通大学学报, 2016, 50(6): 884-890.
	Jia Li, Yang Aihua, Qiu Mingsen. Multi-Signal Identification of Hammerstein-Wiener Models Based on Bias Compensation Recursive Least Squares[J]. Journal of Shanghai Jiaotong University, 2016, 50(6): 884-890.
