基于截断迁移与并行残差网络的调制识别算法

doi:10.16182/j.issn1004731x.joss.21-0282

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (09): 2009-2018.doi: 10.16182/j.issn1004731x.joss.21-0282

基于截断迁移与并行残差网络的调制识别算法

郭业才¹^,²(), 王庆伟¹

^1.南京信息工程大学　电子与信息工程学院，江苏　南京　210044
^2.南京信息工程大学　江苏省大气环境与装备技术协同创新中心，江苏　南京　210044

收稿日期:2021-04-02 修回日期:2021-05-17 出版日期:2022-09-18 发布日期:2022-09-23
作者简介:郭业才（1962-），男，博士，教授，研究方向为通信信号处理、自适应盲均衡技术。E-mail：guo-yecai@163.com
基金资助:
国家自然科学基金(61673222);江苏省高校自然科学研究重大项目(13KJA510001);江苏高校品牌专业建设项目(PPZY2015B134)

Modulation Recognition Algorithm Based on Truncated Migration and Parallel ResNet

Yecai Guo¹^,²(), Qingwei Wang¹

^1.School of Electronic and Information Engineering, Nanjing University of Information Science & Technology, Nanjing 210044, China
^2.Jiangsu Collaborative Innovation Center on Atmospheric Environment and Equipment, Nanjing University of Information Science & Technology, Nanjing 210044, China

Received:2021-04-02 Revised:2021-05-17 Online:2022-09-18 Published:2022-09-23

摘要/Abstract

摘要：

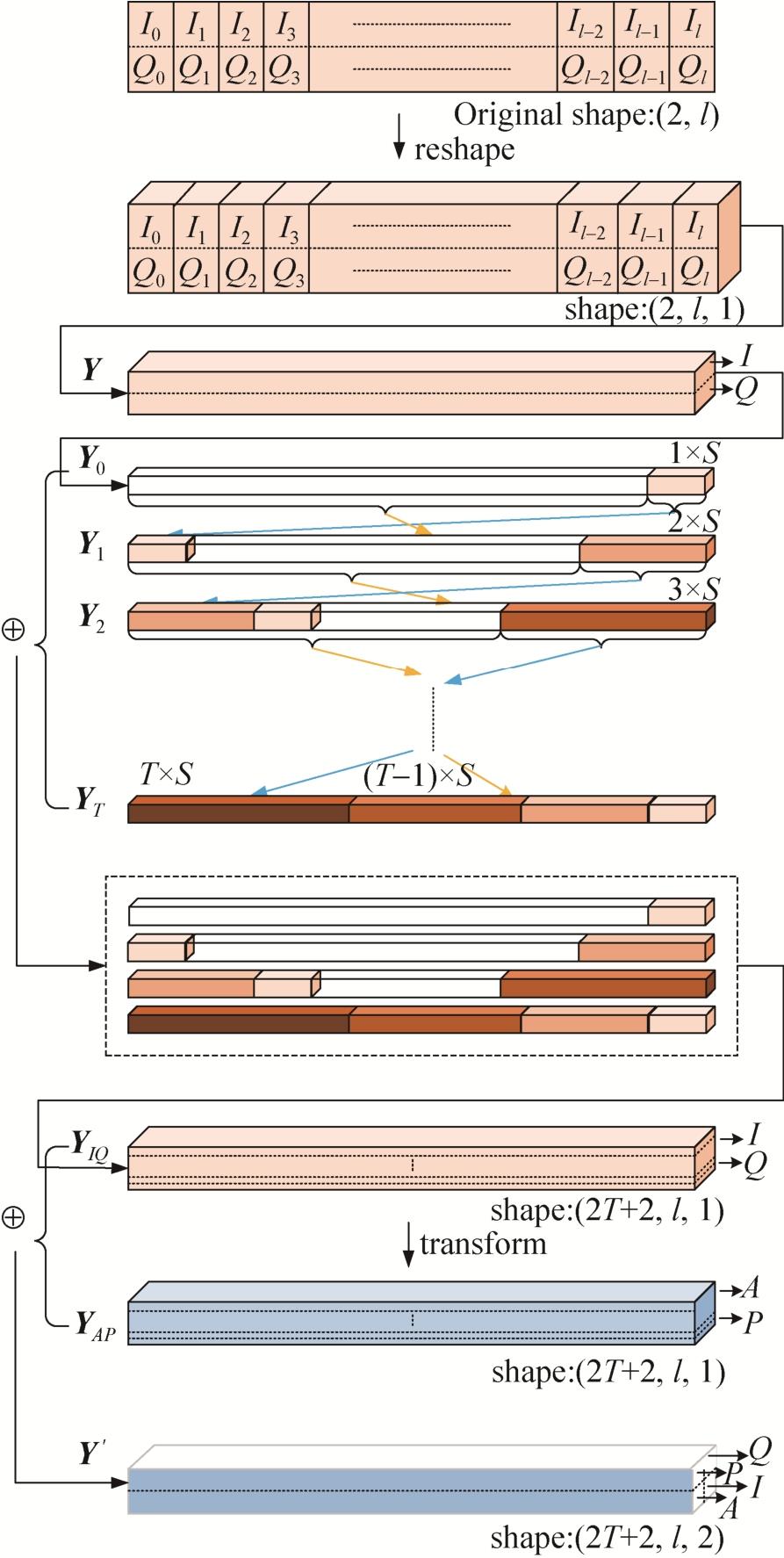

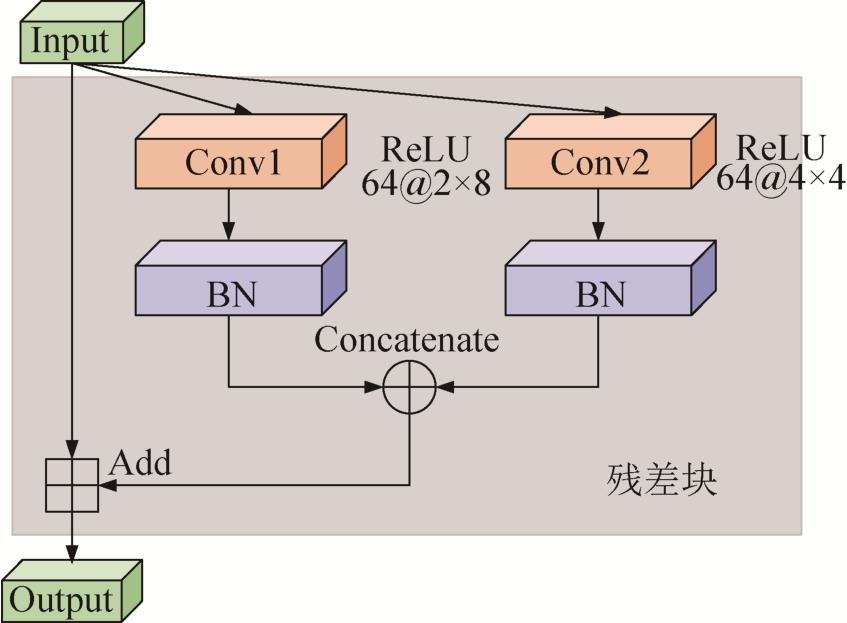

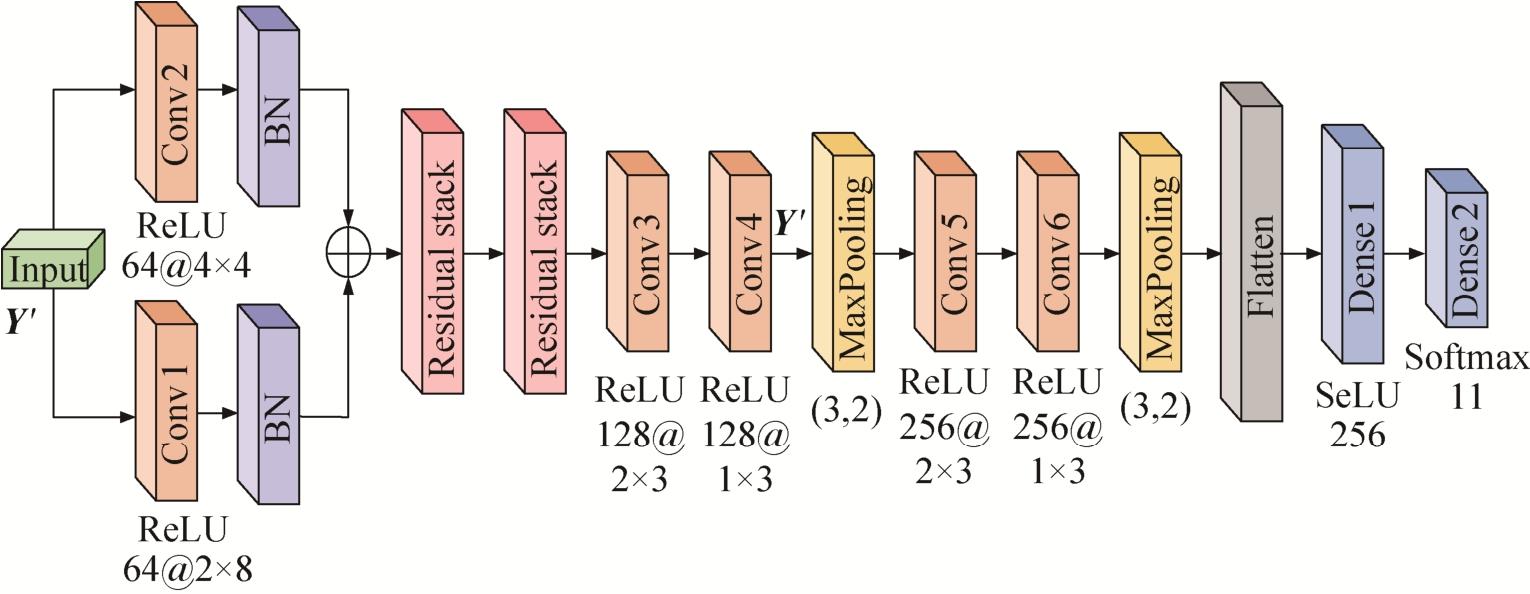

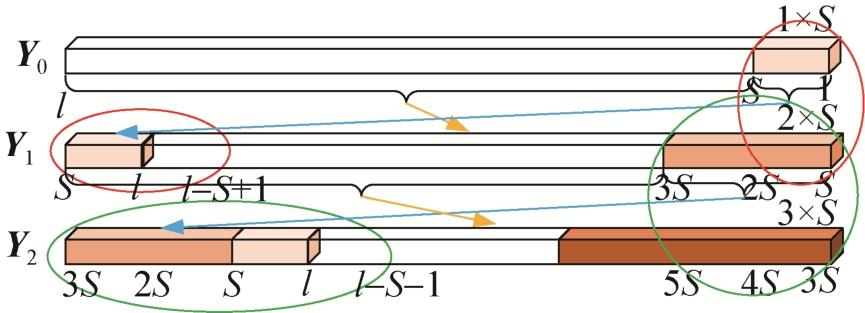

针对卷积神经网络提取的信号时序特征受限问题，提出一种截断迁移的数据预处理算法，将采样矩阵一端的距离单位截断，迁移到另一端，依次合并成新的矩阵，使卷积神经网络提取到更多的采样点，比较更多的符号信息。同时提出一种改进的并行残差神经网络，通过两路并行的支路同时关注水平和垂直2个方向的特征。结果表明，该算法比普通卷积网络提高约10%的准确率，改进的网络在信噪比为14 dB时，准确率为93.78%，信噪比大于0 dB时，准确率均在91%以上。

关键词: 卷积神经网络, 截断迁移, 数据预处理, 并行残差神经网络

Abstract:

A truncated migration data preprocessing algorithm is proposed for the problem of limited time series characteristics of the signal extracted by convolutional neural network. The distance unit at one end of the sampling matrix is truncated, migrated to the other end to form a new matrix, allowing the convolutional neural network to extract more sampling points and compare more symbolic information.An improved parallel ResNet is proposed, which focuses on features in both horizontal and vertical directions simultaneously by two parallel branches. The results show that the algorithm has an accuracy rate of about 10% higher than that of ordinary convolutional networks. When the signal-to-noise ratio is 14 dB, the improved network has an accuracy rate of 93.78% and when the signal-to-noise ratio is greater than 0 dB, the accuracy rate is above 91%.

Key words: convolutional neural network, truncated migration, data preprocessing, parallel ResNet

中图分类号:

TP183
TP391

郭业才, 王庆伟. 基于截断迁移与并行残差网络的调制识别算法[J]. 系统仿真学报, 2022, 34(09): 2009-2018.

Yecai Guo, Qingwei Wang. Modulation Recognition Algorithm Based on Truncated Migration and Parallel ResNet[J]. Journal of System Simulation, 2022, 34(09): 2009-2018.

图/表 15

图1

图2

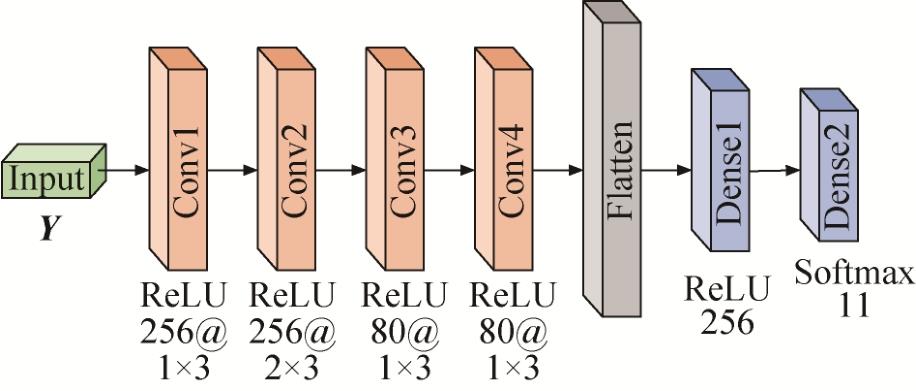

图3

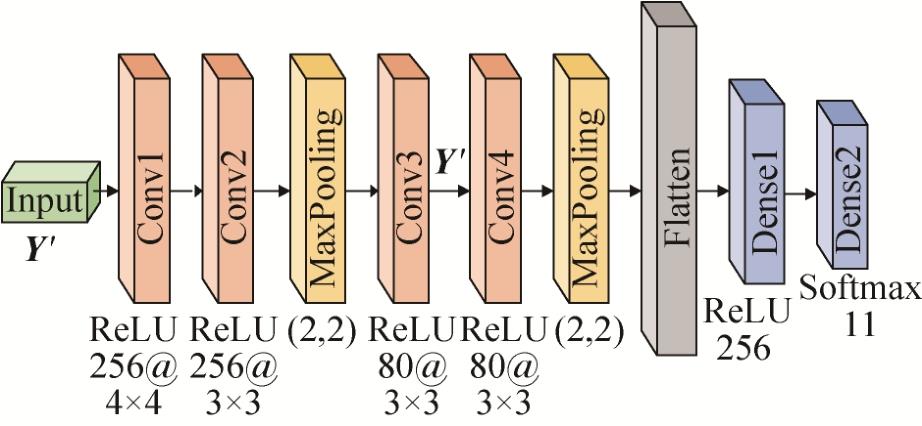

图4

图5

图6

表1

表2

表3

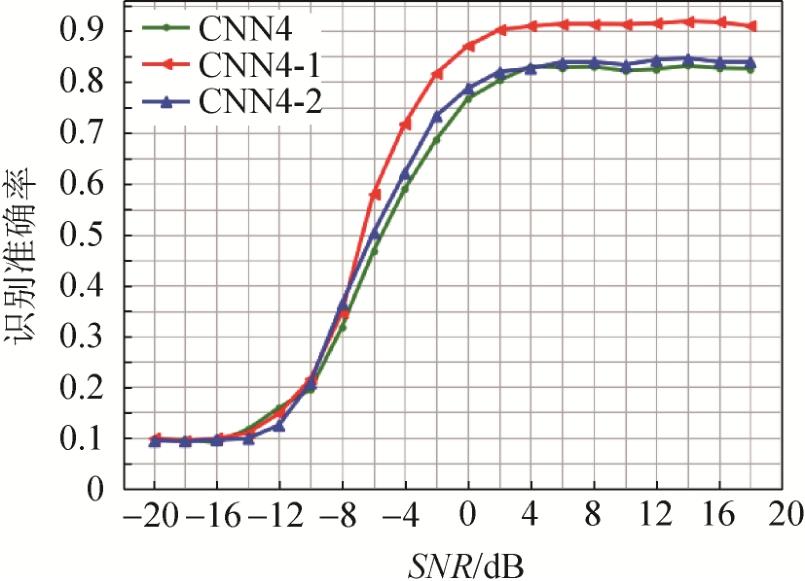

图7

表4

图8

表5

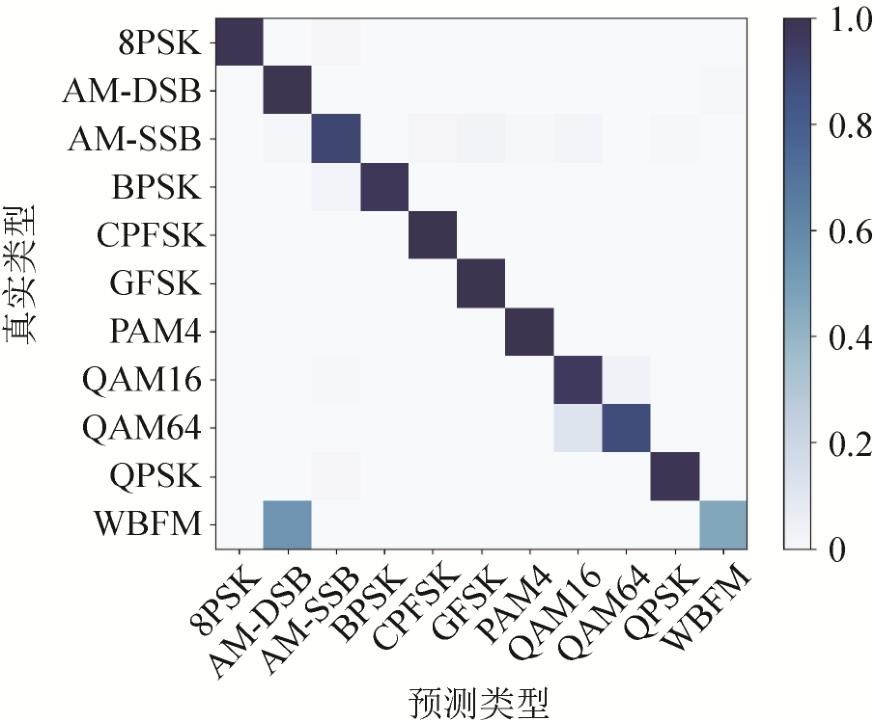

图9

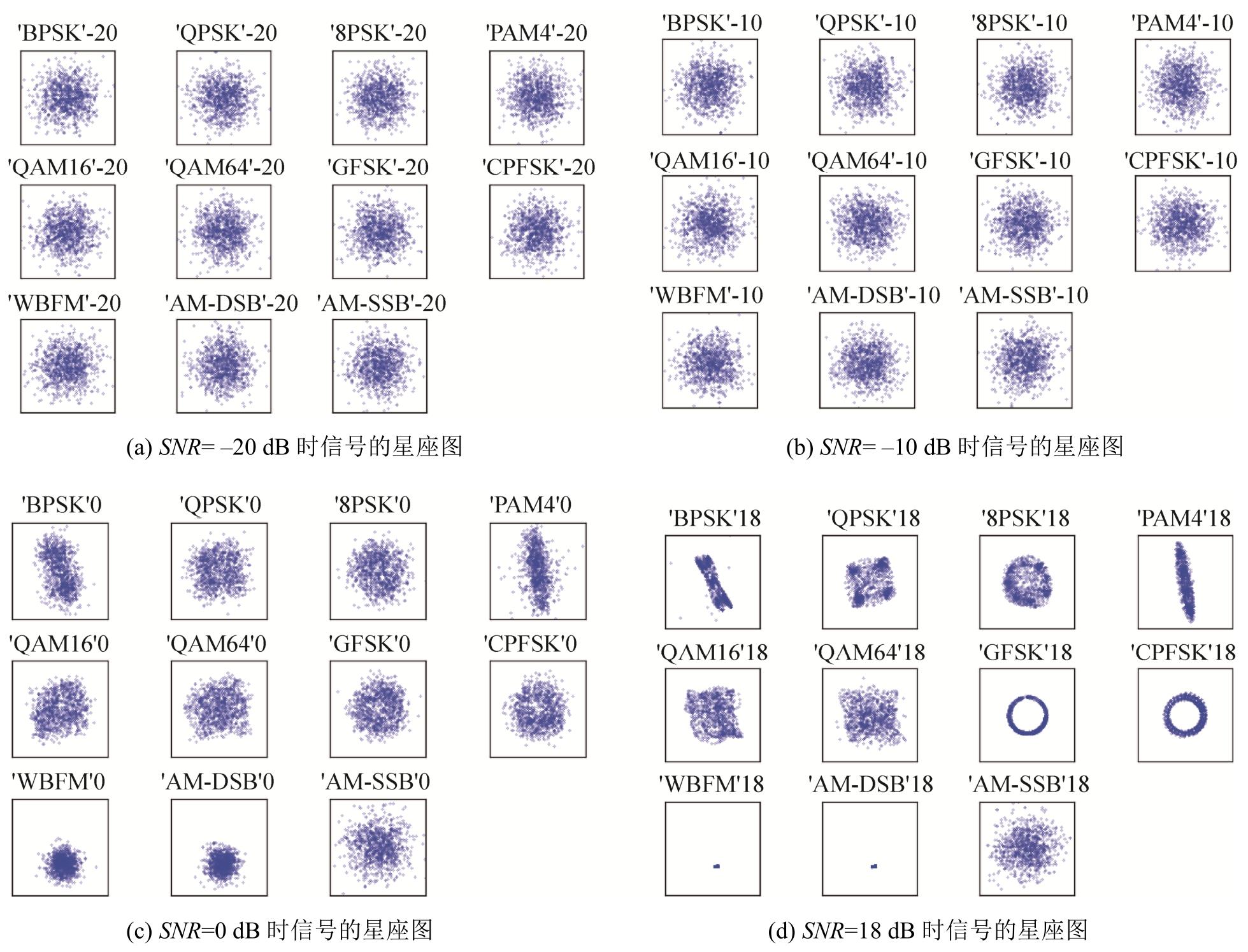

图10

参考文献 20

[1]	Zhu D, Mathews V J, Detienne D H. A Likelihood-Based Algorithm for Blind Identification of QAM and PSK Signals[J]. IEEE Transactions on Wireless Communications (S1536-1276), 2018, 17(5): 3417-3430.
[2]	Chen W, Xie Z, Ma L, et al. A Faster Maximum Likelihood Modulation Classification in Flat Fading Non-gaussian Channels[J]. IEEE Communications Letters (S1089-7798), 2019, 23(3): 454-457.
[3]	Ramezani-Kebrya A, Kim I M, Kim D I, et al. Likelihood-Based Modulation Classification for Multiple-antenna Receiver[J]. IEEE Transactions on Communications (S0090-6778), 2013, 61(9): 3816-3829.
[4]	Teng C F, Liao C C, Chen C H, et al. Polar Feature Based Deep Architectures for Automatic Modulation Classification Considering Channel Fading[C]// 2018 IEEE Global Conference on Signal and Information Processing (GlobalSIP). Anaheim, California, USA:IEEE, 2018: 554-558.
[5]	Zhang Z, Zhong H, Liu Y. Modulation Classification in Multipath Fading Channels Using Sixth-order Cumulants and Stacked Convolutional Auto-encoders[J]. Iet Communications (S1751-8628), 2017, 11(6): 910-915.
[6]	Wang Y, Liu M, Yang J, et al. Data-driven Deep Learning for Automatic Modulation Recognition in Cognitive Radios[J]. IEEE Transactions on Vehicular Technology (S0018-9545), 2019, 68(4): 4074-4077.
[7]	O'Shea T J, Corgan J, Clancy T C. Convolutional Radio Modulation Recognition Networks[C]// International Conference on Engineering Applications of Neural Networks. Aberdeen, Scotland, UK: Springer, 2016: 213-226.
[8]	Liu X, Yang D, Gamal A E. Deep Neural Network Architectures for Modulation Classification[C]// 2017 51st Asilomar Conference on Signals, Systems, and Computers. Pacific Grove, California, USA: IEEE, 2017: 915-919.
[9]	Mossad S, ElNainay M, Torki M. Deep Convolutional Neural Network with Multi-task Learning Scheme for Modulations Recognition[C]// 2019 15th International Wireless Communications & Mobile Computing Conference (IWCMC). Tangier, Morocco: IEEE, 2019: 1644-1649.
[10]	Huang L, Zhang Y, Pan W, et al. Visualizing Deep Learning-based Radio Modulation Classifier[J]. IEEE Transactions on Cognitive Communications and Networking (S2332-7731), 2020, 7(1): 47-58.
[11]	Wang J, Wang W, Luo F, et al. Modulation Classification Based on Denoising Autoencoder and Convolutional Neural Network with GNU Radio[J]. The Journal of Engineering (S2051-3305), 2019(19): 6188-6191.
[12]	Huang L, Pan W, Zhang Y, et al. Data Augmentation for Deep Learning-based Radio Modulation Classification[J].IEEE Access (S2169-3536), 2019, 8: 1498-1506.
[13]	Zhang Z, Wang C, Gan C, et al. Automatic Modulation Classification Using Convolutional Neural Network with Features Fusion of SPWVD and BJD[J]. IEEE Transactions on Signal & Information Processing Over Networks (S2373-776X), 2019, 5(3): 469-478.
[14]	张清. 机器学习在通信信号调制识别中的应用研究[D].南京: 南京邮电大学, 2020.
	Zhang Qing. Research on Applications of Machine Learning in Modulation Recognition of Communication Signals[D]. Nanjing: Nanjing University of Posts and Telecommunications, 2020.
[15]	Kumar Y, Sheoran M, Jajoo G, et al. Automatic Modulation Classification Based on Constellation Density using Deep Learning[J]. IEEE Communications Letters (S1558-2558), 2020, 24(6): 1275-1278.
[16]	Luo W, Li Y, Urtasun R, et al. Understanding the Effective Receptive Field in Deep Convolutional Neural Networks[C]//30th International Conference on Neural Information Processing Systems (NIPS'16).Barcelona: Curran Associates Inc, 2017: 4905-4913.
[17]	Emam A, Shalaby M, Aboelazm M A, et al. A Comparative Study between CNN, LSTM, and CLDNN Models in The Context of Radio Modulation Classification[C]// 2020 12th International Conference on Electrical Engineering (ICEENG). Cairo, Egypt:IEEE, 2020: 190-195.
[18]	West N E, O'Shea T J. Deep Architectures for Modulation Recognition[C]// 2017 IEEE International Symposium on Dynamic Spectrum Access Networks(DySPAN). Baltimore, Maryland, USA: IEEE, 2017: 1-6.
[19]	Rajendran S, Meert W, Giustiniano D, et al. Deep Learning Models for Wireless Signal Classification with Distributed Low-cost Spectrum Sensors[J]. IEEE Transactions on Cognitive Communications and Networking (S2332-7731), 2018, 4(3): 433-445.
[20]	Xu J, Luo C, Parr G, et al. A Spatiotemporal Multi-channel Learning Framework for Automatic Modulation Recognition[J]. IEEE Wireless Communication Letters (S2162-2337), 2020, 9(10): 1629-1632.

训练集∶测试集	平均准确率/%	验证损失值	迭代一次
5∶5	61.81	1.08	177
6∶4	62.40	1.06	205
7∶3	63.48	1.03	228
8∶2	63.67	1.02	236

耐心值	平均识别率/%	最终损失值	最终验证损失值	迭代次数
5	62.19	1.04	1.07	36
10	63.08	1.01	1.05	58
15	63.48	1.00	1.03	64
20	63.14	0.98	1.07	93

超参数	最大识别准确率/%	平均识别准确率/%	输入形状	一次迭代时间/s
S=1	91.78	61.50	(32,128,2)	116
S=2	91.69	61.46	(22,128,2)	86
S=3	91.91	61.53	(18,128,2)	60
S=4	91.35	61.03	(16,128,2)	55
S=5	90.12	60.22	(14,128,2)	53
S=6	88.67	58.60	(12,128,2)	50

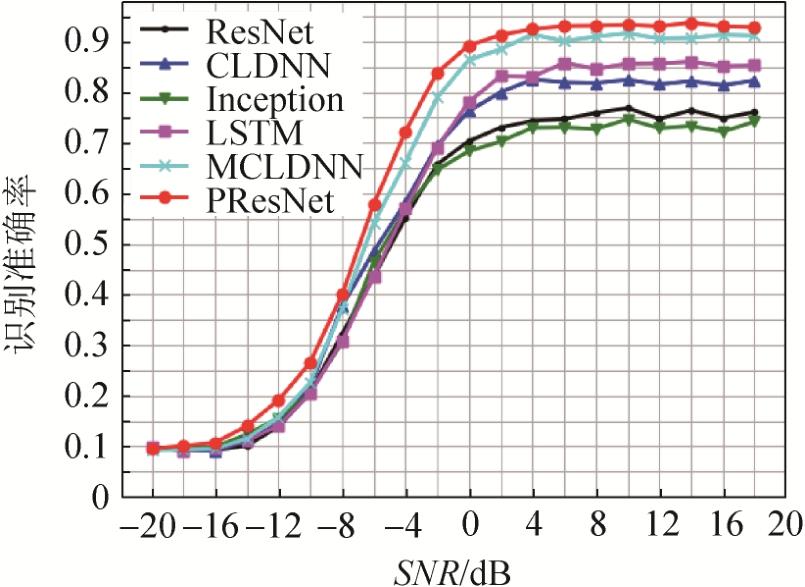

模型	最高准确率	平均准确率
ResNet	76.87	50.86
CLDNN	82.44	55.12
Inception	74.70	50.06
LSTM	86.07	55.87
MCLDNN	91.64	60.88
PResNet	93.78	63.48

模型	FLOPs	参数个数
PResNet	1.71G	31 719 179
ResNet152^[13]	22.6G	60 419 944
VGGNet^[14]	18.2G	93 337 594
ResNet50^[15]	7.76G	25 636 712
Inception-ResNet-V2^[15]	26.4G	55 873 736
