ANFIS优化磁链滑模观测器的PMSM无传感器控制

doi:10.16182/j.issn1004731x.joss.21-0270

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (8): 1682-1690.doi: 10.16182/j.issn1004731x.joss.21-0270

ANFIS优化磁链滑模观测器的PMSM无传感器控制

张会林¹(), 金玉洁¹(), 杨海马²

^1.上海理工大学机械工程学院，上海 200093
^2.上海理工大学光电信息与计算机工程学院，上海 200093

收稿日期:2021-03-31 修回日期:2021-06-15 出版日期:2022-08-30 发布日期:2022-08-15
通讯作者: 金玉洁 E-mail:zhanghuilin@usst.edu.cn;1941186661@qq.com
作者简介:张会林(1971-)，男，博士，副教授，研究方向为电力电子与电气控制，电机控制，嵌入式系统，模式识别，智能电网与人工智能。E-mail：zhanghuilin@usst.edu.cn
基金资助:
国家自然科学基金(61701296);上海市自然科学基金(17ZR1443500)

Sensorless Control of PMSM Based on an ANFIS Optimized Flux Sliding Mode Observer

Huilin Zhang¹(), Yujie Jin¹(), Haima Yang²

^1.School of Mechanical Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China
^2.School of Optical-Electrical and Computer Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China

Received:2021-03-31 Revised:2021-06-15 Online:2022-08-30 Published:2022-08-15
Contact: Yujie Jin E-mail:zhanghuilin@usst.edu.cn;1941186661@qq.com

摘要/Abstract

摘要：

针对永磁同步电机(permanent magnet synchronous motor，PMSM)无传感器控制中转子速度和位置的估计精度不高、系统抖振等问题，提出一种基于自适应模糊神经网络(adaptive neuro-fuzzy inference system，ANFIS)优化的磁链滑模观测器(flux sliding mode observer，FSMO)。采用经过ANFIS优化的FSMO，实现对观测器增益的在线调节，减少系统抖振；采用改进的锁相环(phase locked loop，PLL)，提高对转子速度及位置的估计精度。实验结果表明：ANFIS优化的FSMO能够有效地提高PMSM无传感器控制中转子速度和位置的估计精度，减少系统抖振。

关键词: 磁链滑模, 自适应模糊神经网络, 锁相环, 无传感器控制, 永磁同步电机

Abstract:

Aiming at the low estimation accuracy of rotor speed and position and the system chattering in sensorless control of permanent magnet synchronous motor (PMSM), an adaptive neuro-fuzzy inference system (ANFIS) is proposed to optimize the flux sliding mode observer(FSMO). Compared with the traditional sliding mode observer, the FSMO improves the estimation accuracy of the rotor flux. The FSMO optimized by ANFIS realizes the on-line adjustment of the observer gain and reduces the system chattering. The improved PLL improves the estimation accuracy of the rotor speed and position. A simulation platform is established to verify the results which show that the ANFIS optimized FSMO can effectively improve the accuracy of the rotor speed and position estimation in PMSM sensorless control and reduce the system chattering.

Key words: flux sliding mode, adaptive neuro fuzzy inference system, phase locked loop, sensorless control, permanent magnet synchronous motor

中图分类号:

TP391.9

张会林, 金玉洁, 杨海马. ANFIS优化磁链滑模观测器的PMSM无传感器控制[J]. 系统仿真学报, 2022, 34(8): 1682-1690.

Huilin Zhang, Yujie Jin, Haima Yang. Sensorless Control of PMSM Based on an ANFIS Optimized Flux Sliding Mode Observer[J]. Journal of System Simulation, 2022, 34(8): 1682-1690.

图/表 11

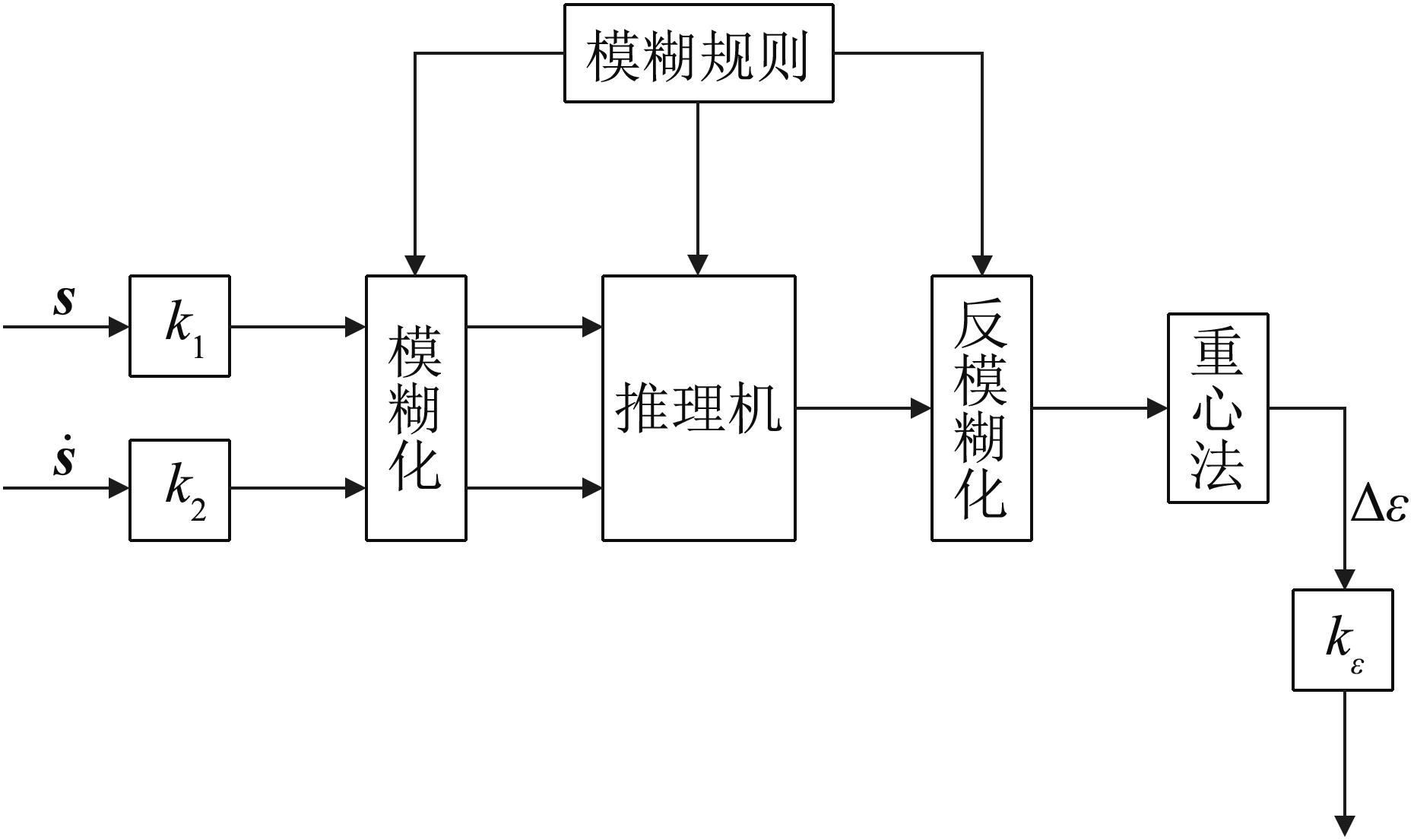

图1

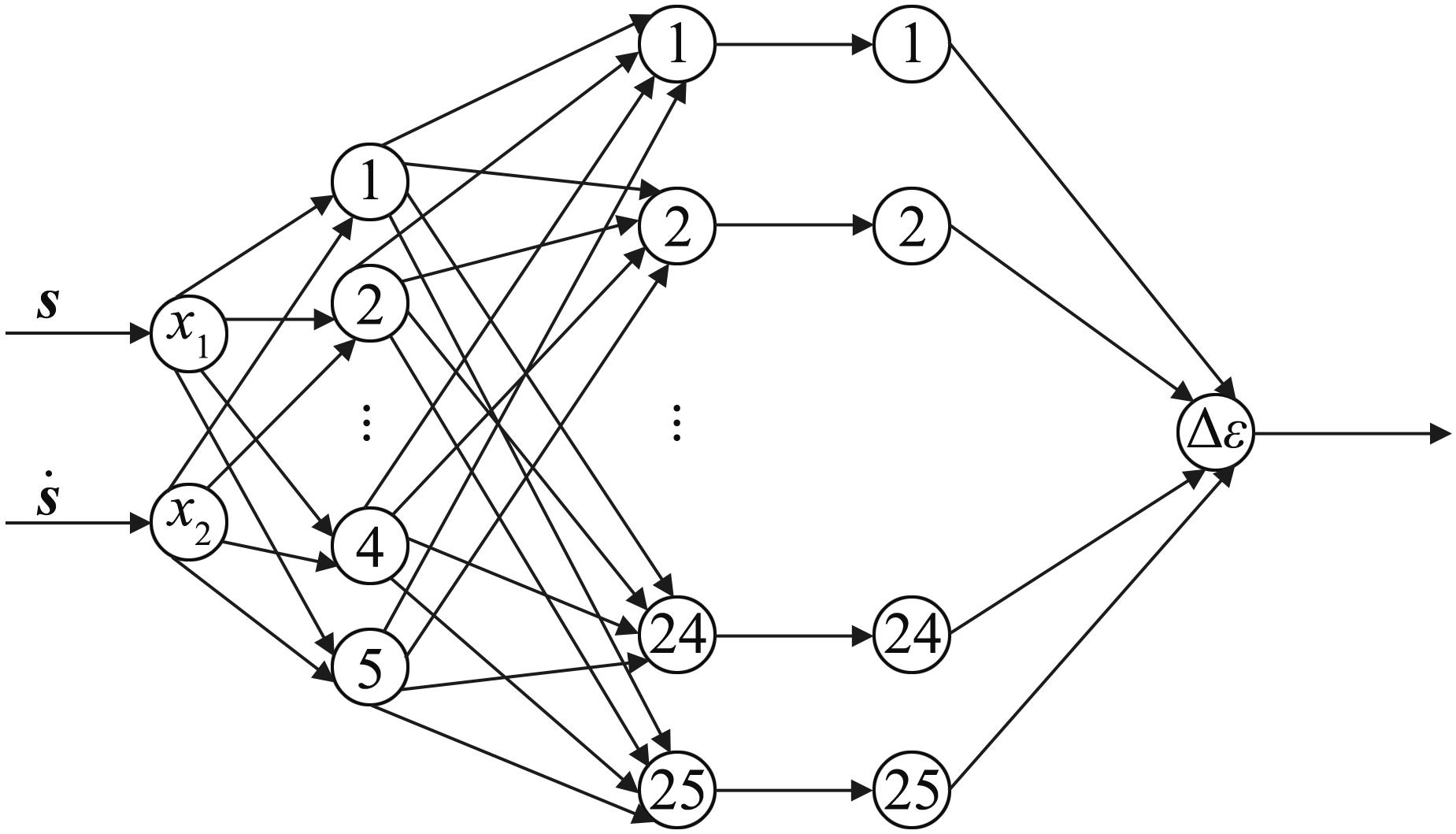

图2

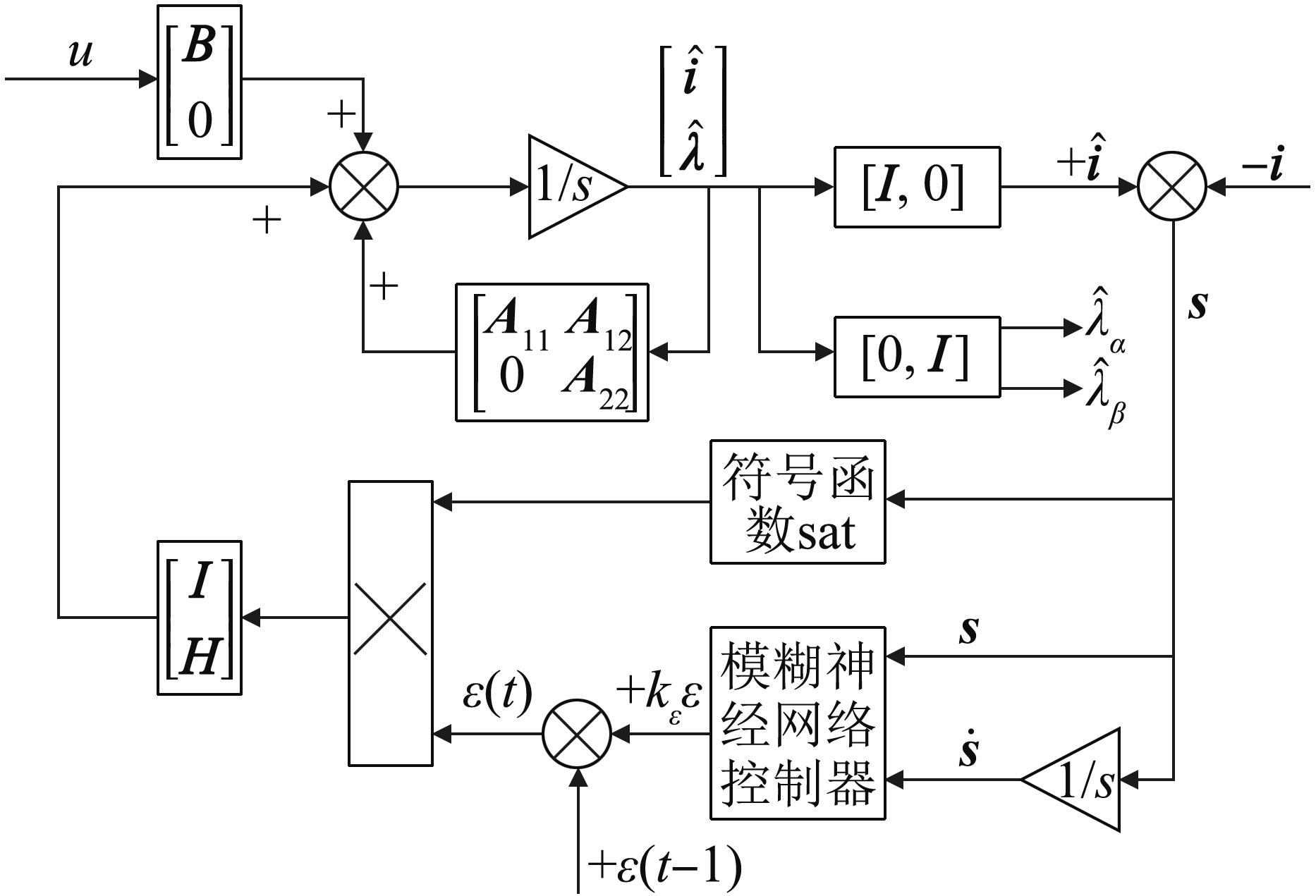

图3

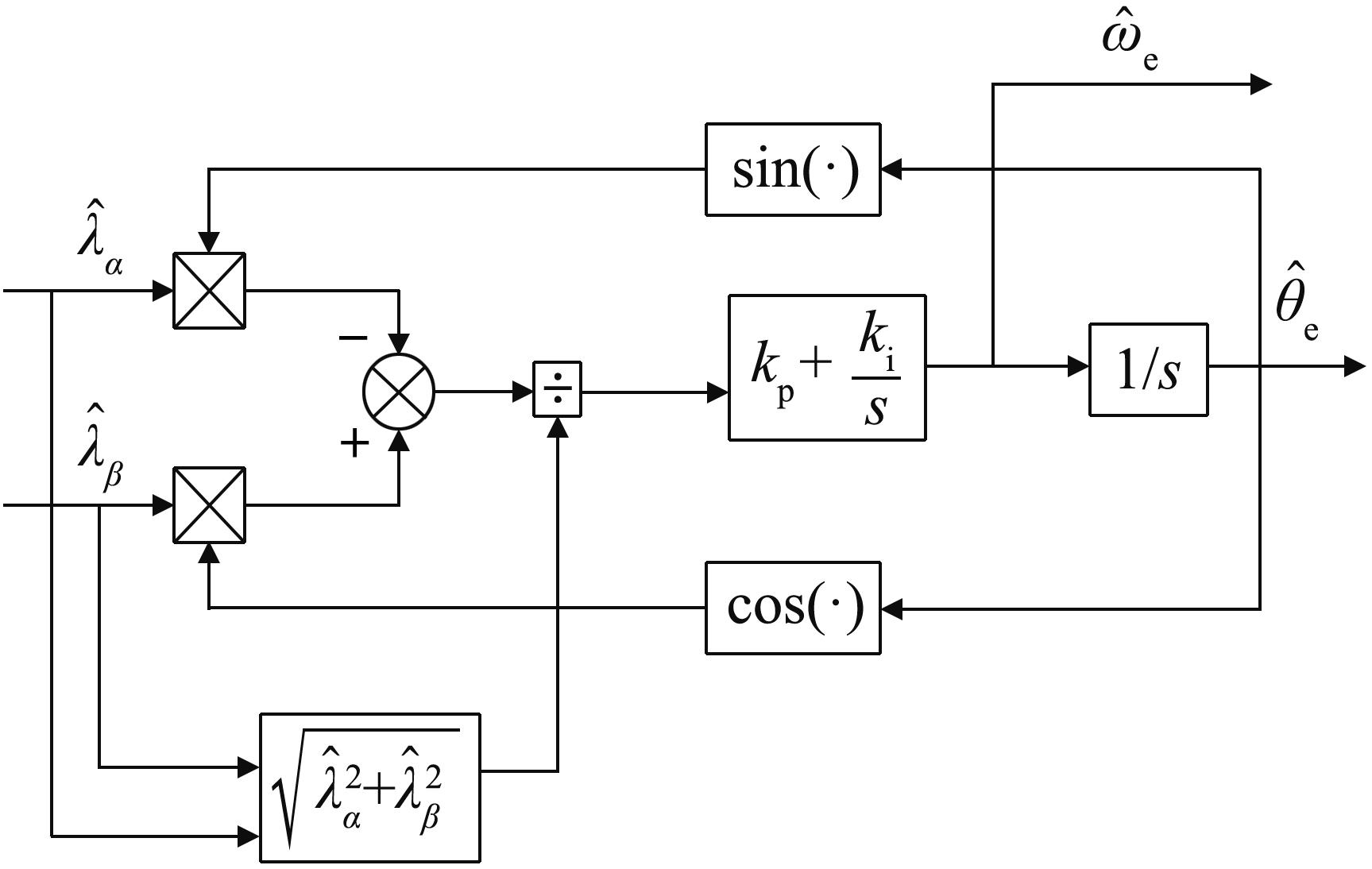

图4

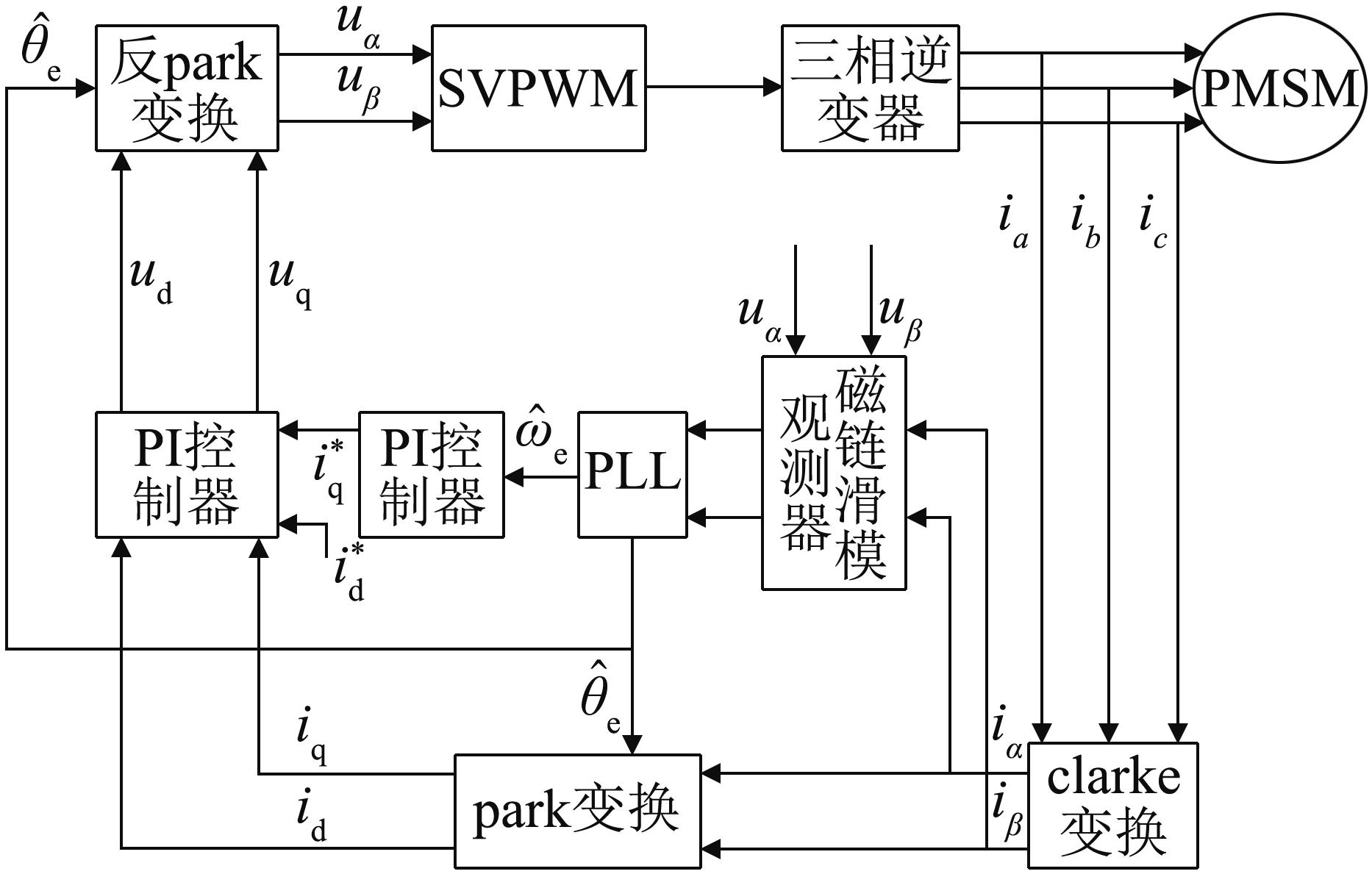

图5

表1

PMSM参数

参考变量	数值
阻尼系数B/(N·m·s)	0
极对数 $n p$	4
定子电感 $L s / m H$	8.5
定子电阻 $R s / Ω$	2.875
磁链 $λ f / W b$	0.175
转动惯量J/(kg·m²)	0.001

表1

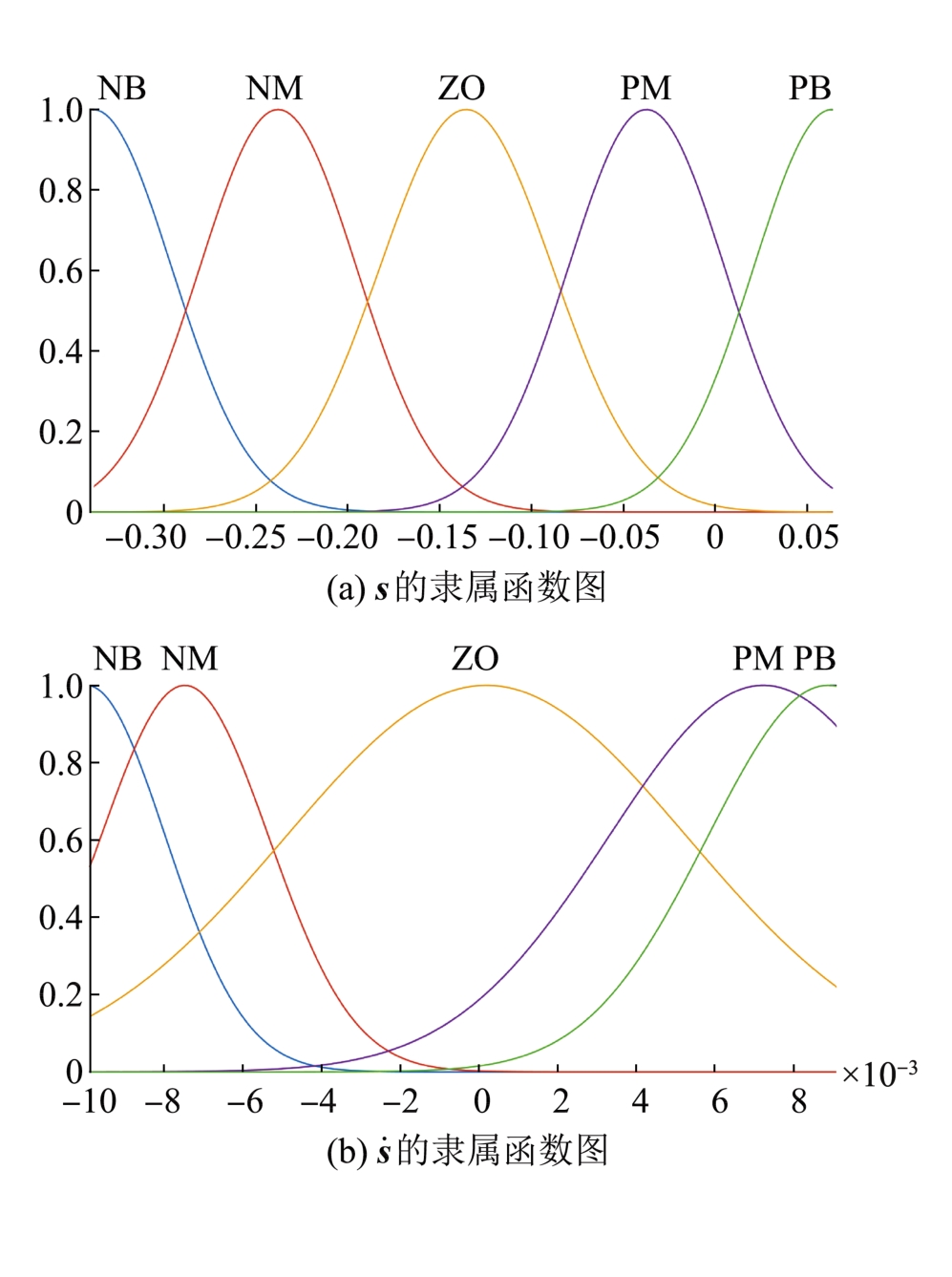

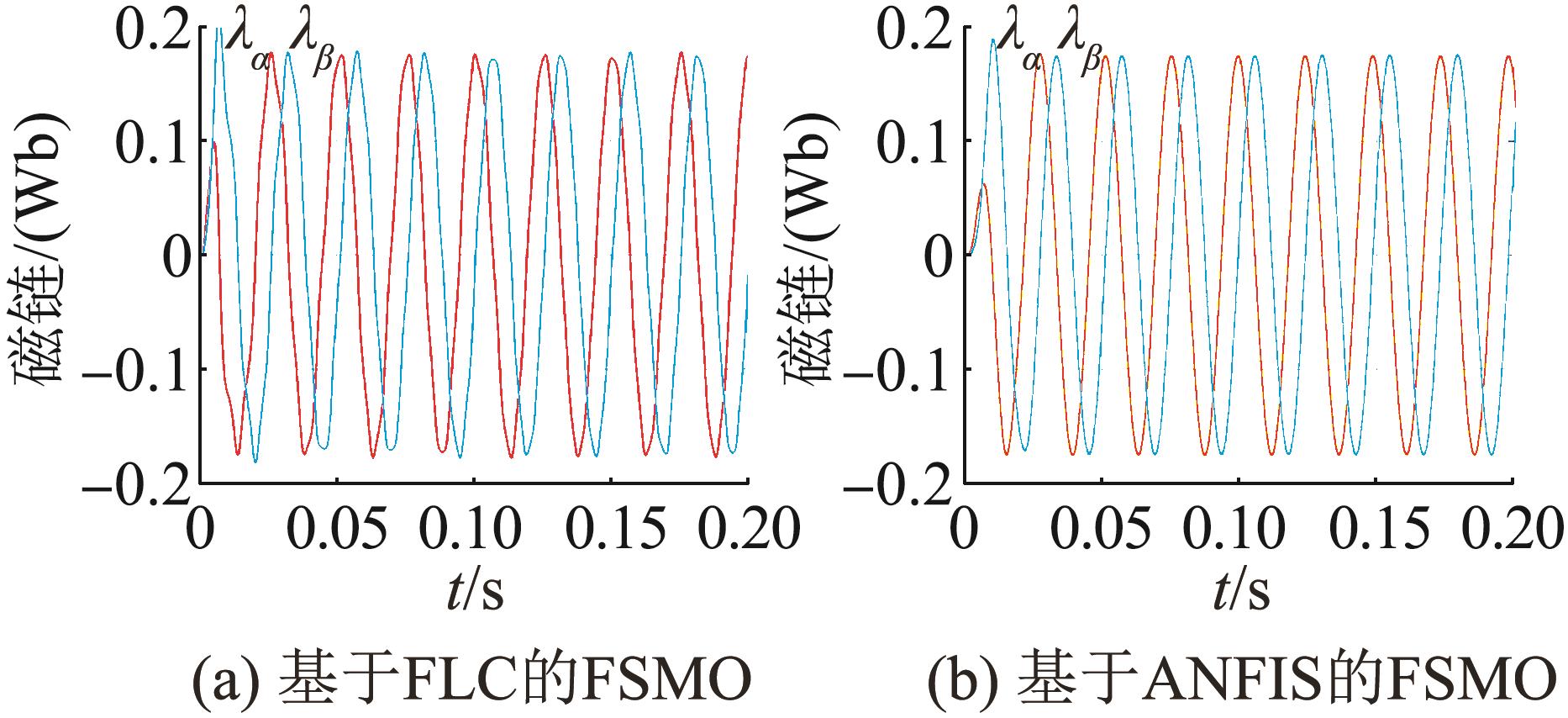

图6

图7

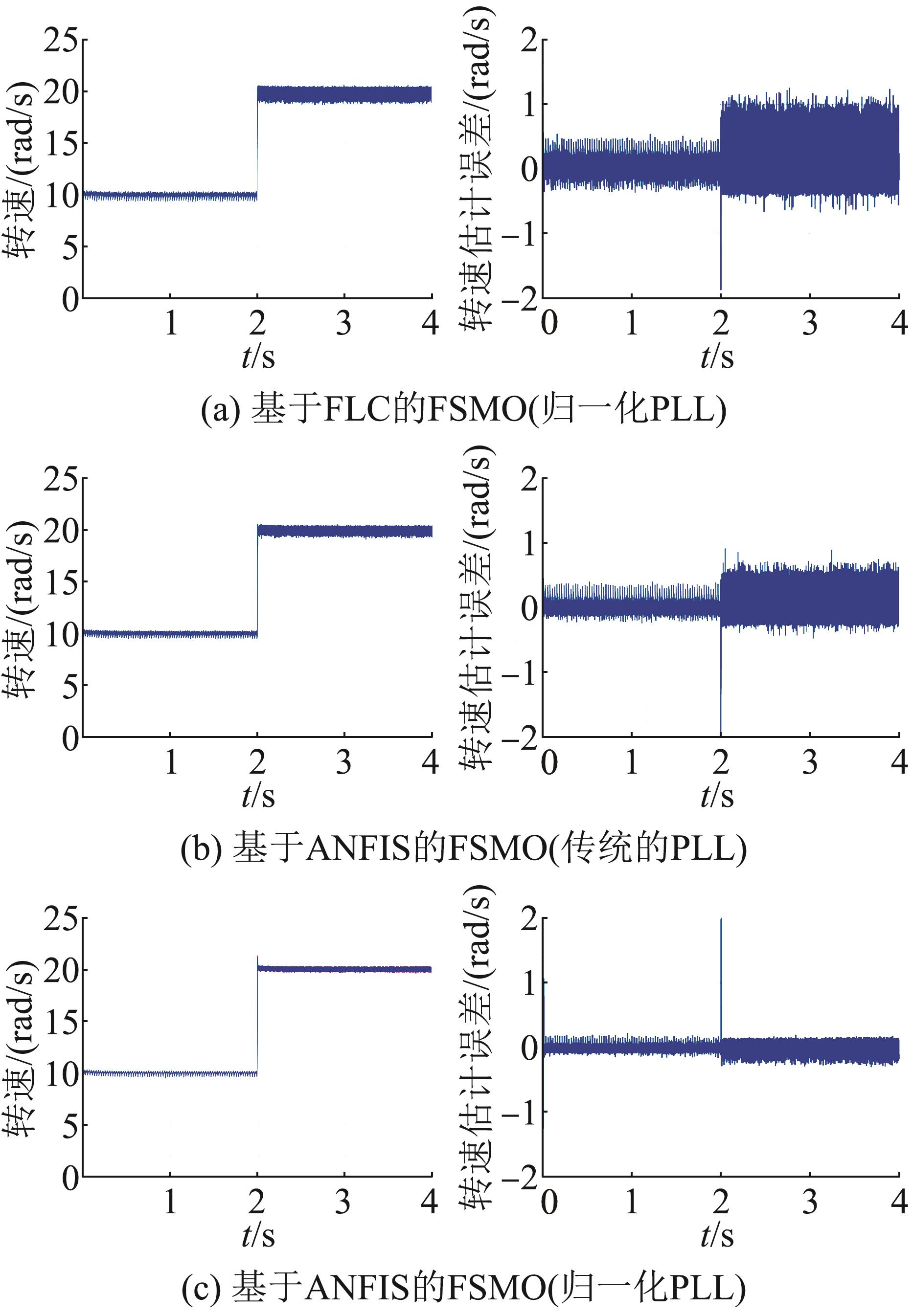

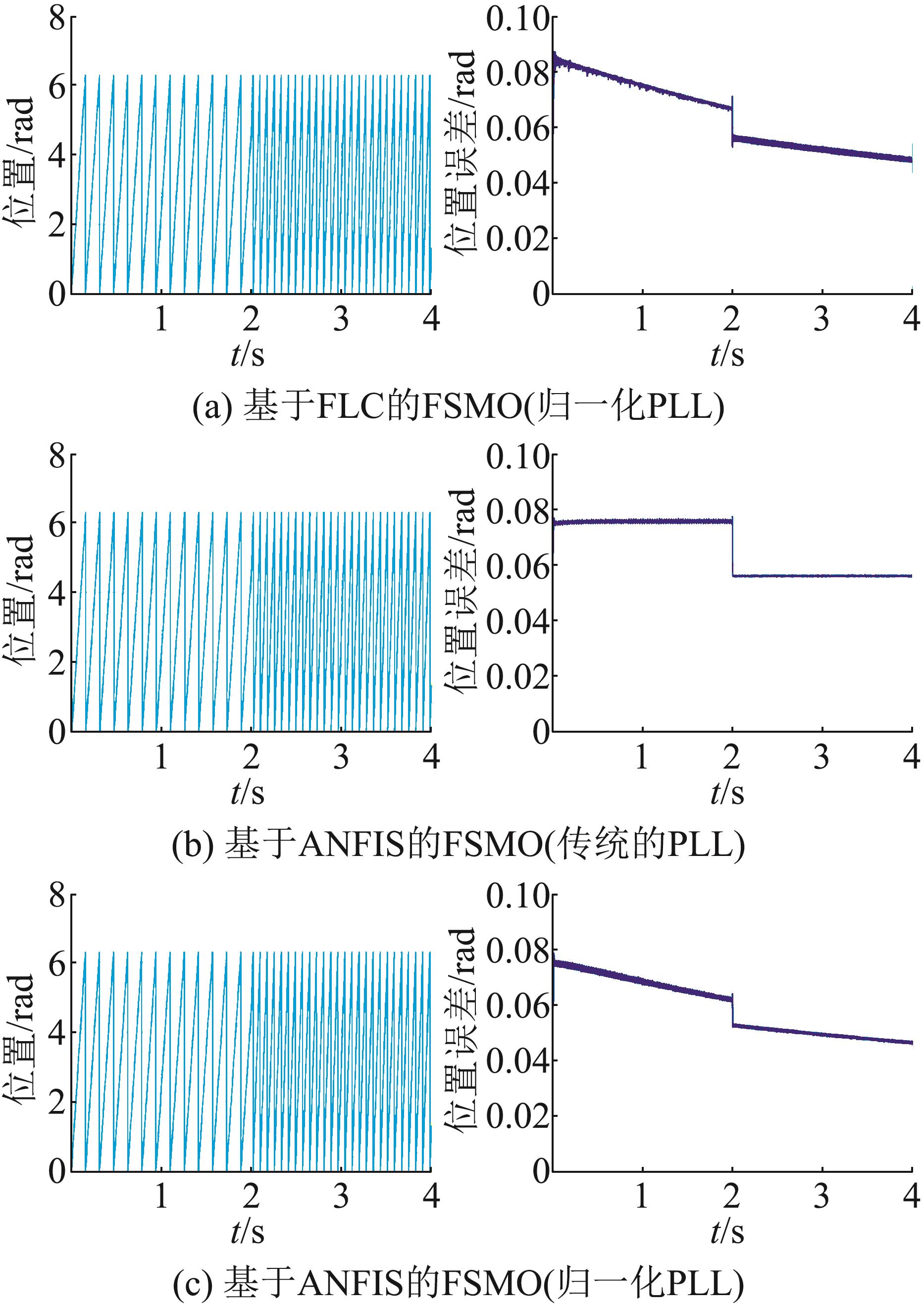

图8

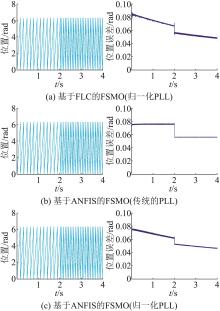

图9

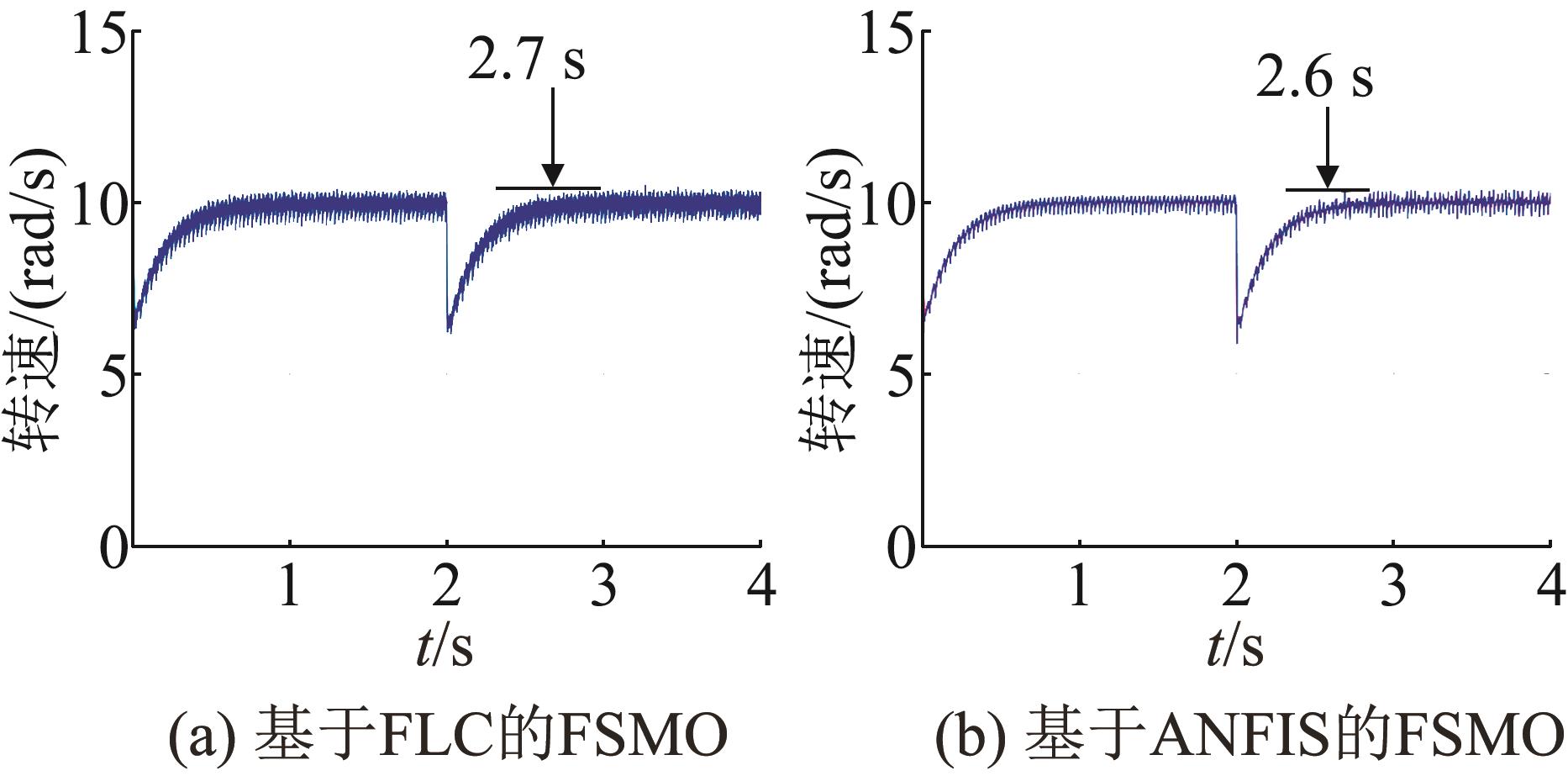

图10

参考文献 18

1	邵俊波, 王辉. 一种表贴式永磁同步电机无位置传感器低速控制策略[J]. 中国电机工程学报, 2018, 38(5): 1534-1541.
	Shao Junbo, Wang Hui. A Sensorless Low Speed Control Strategy for Surface Mounted Permanent Magnet Synchronous Motor [J]. Proceedings of the Chinese Society for Electrical Engineering, 2018, 38(5): 1534-1541.
2	袁雷. 现代永磁同步电机控制原理及MATLAB仿真[M]. 北京: 北京航天航空大学出版社, 2016.
	Yuan Lei. Control Principle and MATLAB Simulation of Modern Permanent Magnet Synchronous Motor [M]. Beijing: Beijing Aerospace University Press, 2016.
3	汤瑞洁. 基于自适应扩展卡尔曼滤波的永磁同步电机转动惯量辨识方法[D]. 西安: 西安理工大学, 2020.
	Tang Ruijie. Moment of Inertia Identification Based on Adaptive Extended Kalman Filter for Interior Permanent Magnet Synchronous Motors[D]. Xi'an: Xi'an University of Technology, 2020.
4	时维国, 刘坤亮. 基于MRAS的永磁同步电机无位置传感器控制策略研究[J]. 电机与控制应用, 2019, 46(7): 39-44.
	Shi Weiguo, Liu Kunliang. Research on Sensorless Control Strategy of Permanent Magnet Synchronous Motor Based on MRAS [J]. Electric Machines and Control Application, 2019, 46(7): 39-44.
5	潘峰, 秦国锋. 电动汽车用永磁同步电机模型预测MRAS无速度传感器控制[J]. 电机与控制应用, 2019, 46(10): 104-110.
	Pan Feng, Qin Guofeng. Model Predictive MRAS Speed Sensorless Control of Permanent Magnet Synchronous Motor for Electric Vehicle [J]. Electric Machines and Control Application, 2019, 46(10): 104-110.
6	Liu G, Zhang H, Song X. Position Estimation Deviation Suppression Technology of PMSM Combining Phase Self-Compensation SMO and Feed-Forward PLL[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics(S2168-6777), 2021, 9(1): 335-344.
7	Gianluca Brando, Adolfo Dannier, Ivan Spina. Performance Analysis of a Full Order Sensorless Control Adaptive Observer for Doubly-Fed Induction Generator in Grid Connected Operation[J]. Energies(S1996-1073), 2021, 14(5): 1254.
8	Long Linghui, Sun Tianfu, Liang Jianing. Five Phase Permanent Magnet Synchronous Motor Decoupled Model with Dual Frame Frequency Adaptive Flux Observer[J]. Energy Reports(S2352-4847), 2020, 6(S9): 1403-1408.
9	Xu Yanping, Wang Li, Yuan Weiwen, et al. Disturbance Rejection Speed Sensorless Control of PMSMs Based on Full Order Adaptive Observer[J]. Journal of Power Electronics(S1598-2092), 2021, 21: 804-814.
10	Inoue Y, Yamada K, Morimoto S, et al. Effectiveness of Voltage Error Compensation and Parameter Identification for Model-Based Sensorless Control of IPMSM[J]. IEEE Transactions on Industry Applications(S0093-9994), 2009, 45(1): 213-215.
11	Hoshino T, Itoh J. Output Voltage Correction for a Voltage Source Type Inverter of an Induction Motor Drive[J]. IEEE Transactions on Power Electron(S0885-8993), 2010, 25(9): 2440-2449.
12	Jung S, Kobayashi H, Doki S, et al. An Improvement of Sensorless Control Performance by a Mathematical Modelling Method of Spatial Harmonics for a Synrm[C]//The 2010 International Power Electronics Conference-ECCE ASIA. Sapporo, Japan: IEEE, 2010: 2010-2015.
13	Wibowo W K, Jeong S K. Improved Estimation of Rotor Position for Sensor-Less Control of a PMSM Based on a Sliding Mode Observer[J]. Journal of Central South University(S2095-2899), 2016, 23(7): 1643-1656.
14	Wang G, Zhan H, Zhang G, et al. Adaptive Compensation Method of Position Estimation Harmonic Error for EMF-Based Observer in Sensorless IPMSM Drives[J]. IEEE Transactions on Power Electron (S0885-8993), 2014, 29(6): 3055-3064.
15	边疆. 永磁同步电机扩展状态磁链滑模观测器设计[J]. 控制工程, 2019, 26(5): 886-891.
	Bian Jiang. Design of Sliding Mode Observer for Extended State Flux Chain of PMSM [J]. Control Engineering of China, 2019, 26(5): 886-891.
16	Ye Shuaichen. A Novel Fuzzy Flux Sliding-Mode Observer for the Sensorless Speed and Position Tracking of PMSMs[J]. International Journal for Light and Electron Optics(S0030-4026), 2018, 171: 319-325.
17	Ye Shuaichen. Design and Performance Analysis of an Iterative Flux Sliding-Mode Observer for the Sensorless Control of PMSM Drives[J]. ISA Transactions(S0019-0578), 2019, 94: 255-264.
18	申永鹏, 郑竹风, 王耀南, 等. 基于PLL自适应滑模观测器的PMSM无传感器控制[J]. 电子测量与仪器学报, 2020, 34(8): 22-29.
	Shen Yongpeng, Zheng Zhufeng, Wang Yaonan, et al. Adaptive Sliding Mode Observer Based on PLL in Sensorless Control of PMSM[J].Journal of Eletronic Measurement and Instrument, 2020, 34(8): 22-29.
