基于社会力模型的客船人员疏散仿真研究

doi:10.16182/j.issn1004731x.joss.21-0226

摘要/Abstract

摘要：

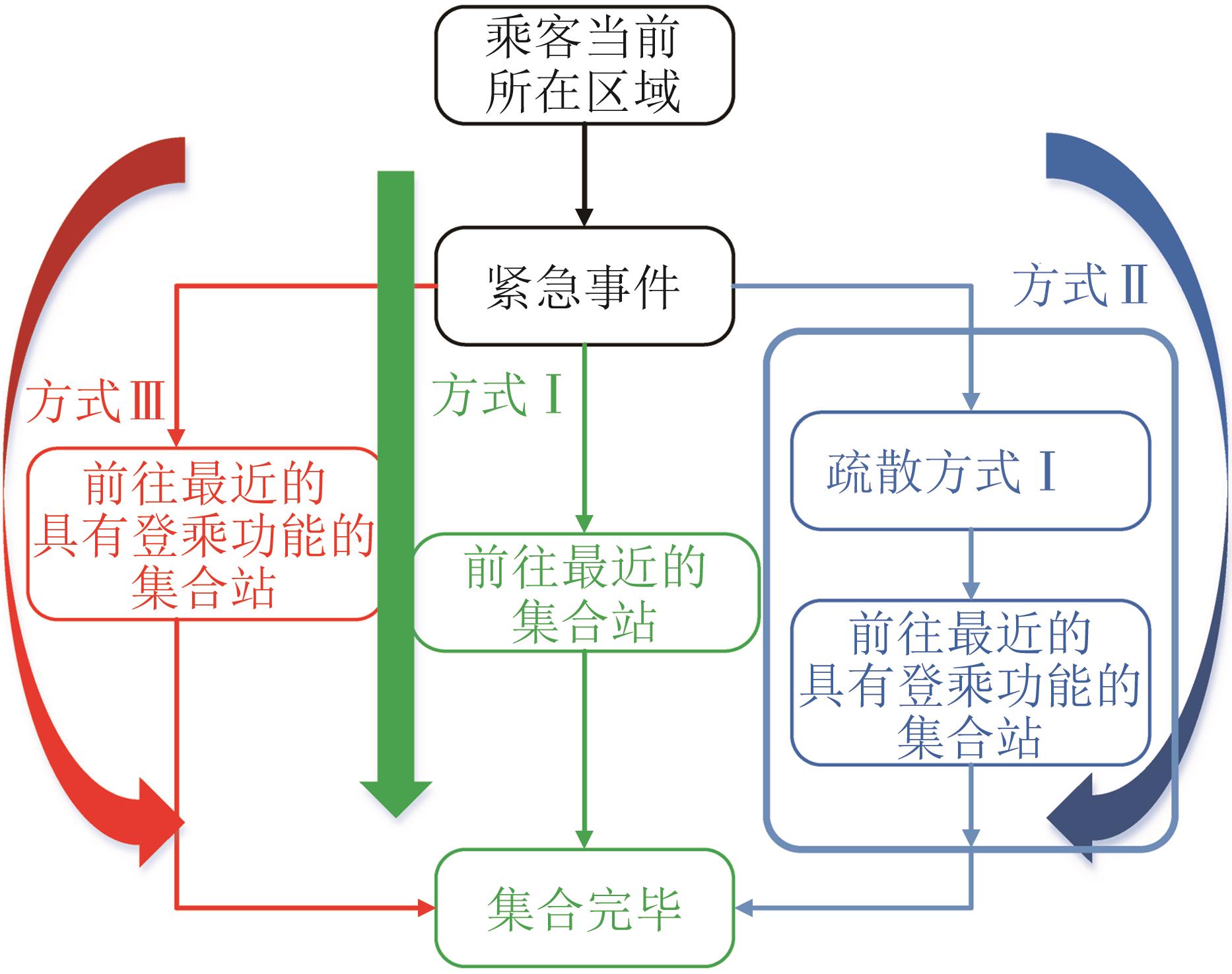

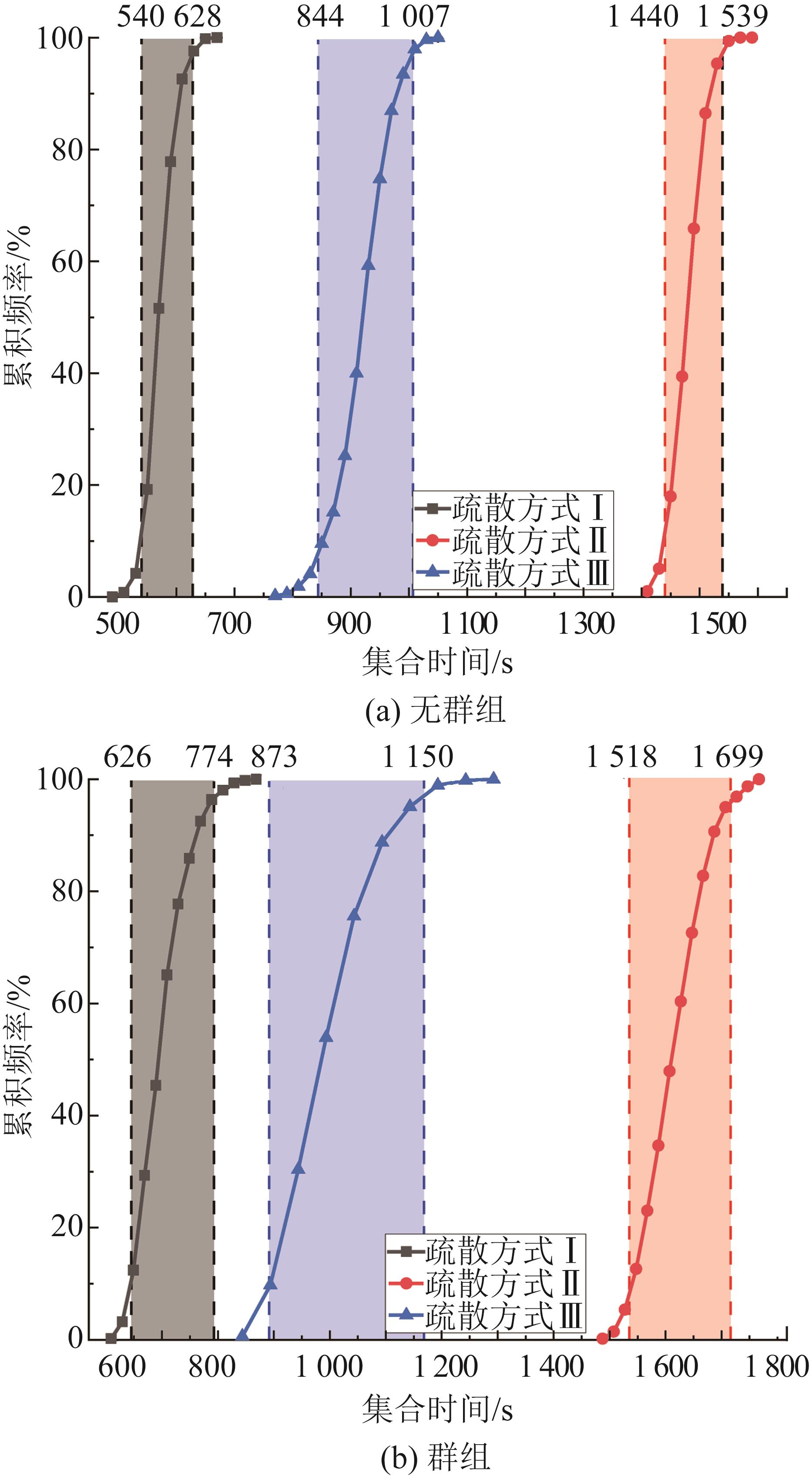

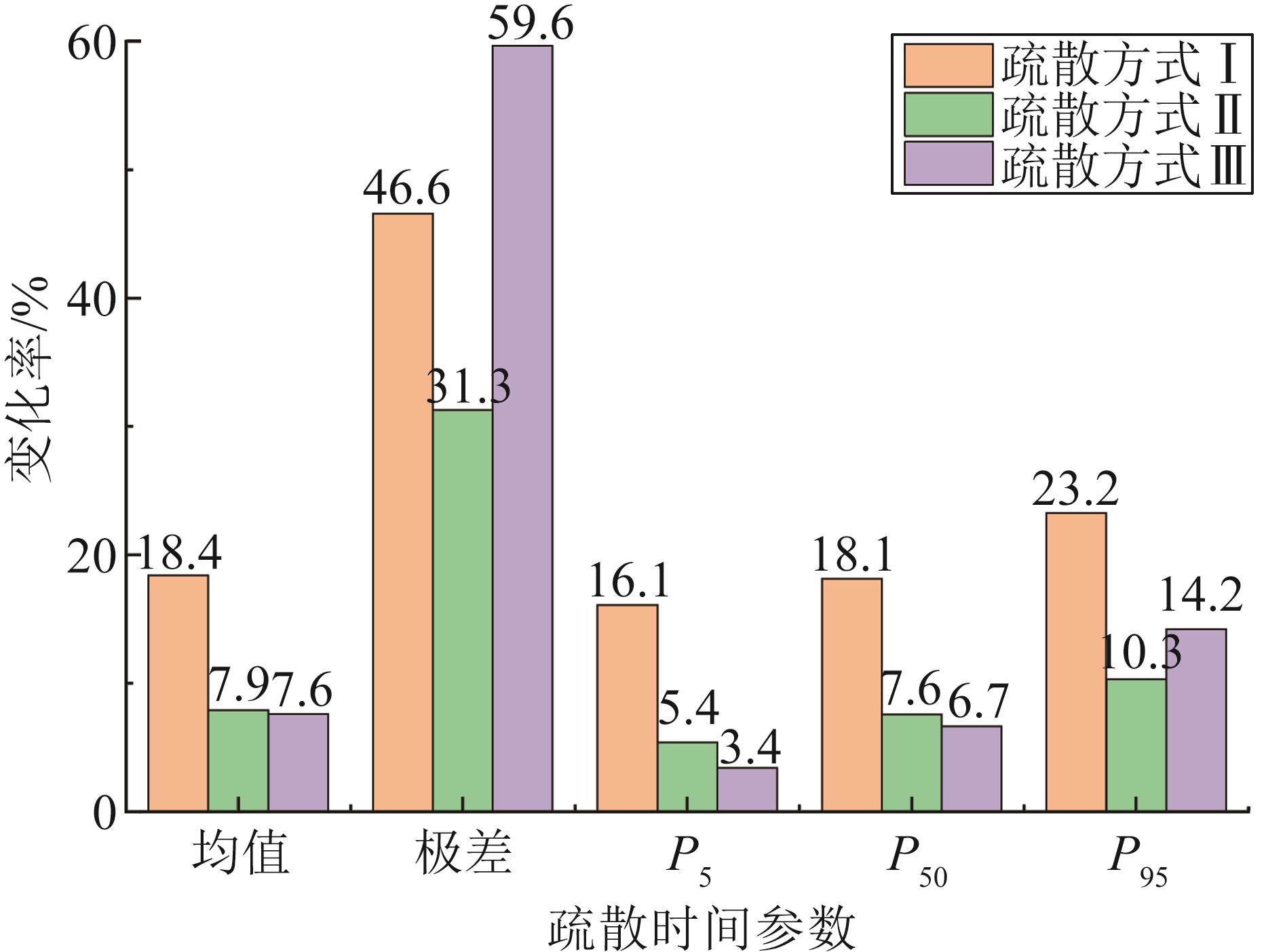

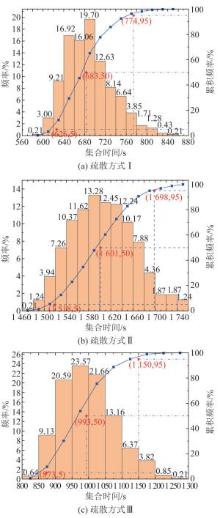

为研究群组行为和不同疏散方式对客船人员疏散过程的影响，提出了乘客到达集合站的3种疏散方式，分析了有无群组情况下该艘乘客的集合时间、拥堵区域和拥堵形成时刻，以及持续时间。仿真结果表明：群组行为对乘客的集合时间具有较为显著的影响，并增大集合时间的变化范围，而有无群组行为情况下的拥堵区域基本相同。而群组行为对拥堵形成时刻以及持续时间的影响较为复杂，与区域的位置以及不同区域内群组组员的响应时间有较大关系。需结合事故类型及严重程度来对客船人员疏散过程进行分析，确定不同的疏散方式。

关键词: 客船安全, 社会力模型, 智能体模型, 拥堵区域, 疏散方式

Abstract:

Aiming at the influence of group behavior and different evacuation methods on the passenger ship evacuation process. Three evacuation methods of passengers arriving at the assembly stations with and without group behavior are provided, and the passenger assembly time, congestion area, congestion timing and duration are analyzed. The simulation results show that the group behavior has a significant effect on the passenger assembly time and increases the variation range of the passenger assembly time, and the congestion area with and without group behavior remains the same. The influences of group behavior on the congestion timing and duration are complicated, which are associated with the location of the congestion area and the response time of the group members. Evacuation analysis on the passenger ship must consider the type and severity of the accidents. The study provides a theory and decision making support for the evacuation safety design and evaluation of the passengers in the large passenger ships.

Key words: passenger ship safety, social force model, agent model, congestion area, evacuation mode

中图分类号:

TP391.9

谢启苗, 郭帅帅. 基于社会力模型的客船人员疏散仿真研究[J]. 系统仿真学报, 2022, 34(8): 1710-1724.

Qimiao Xie, Shuaishuai Guo. Research on Passenger Ship Evacuation Simulation Based on Social Force Model[J]. Journal of System Simulation, 2022, 34(8): 1710-1724.

图/表 18

图1

表1

图2

表2

表3

图3

表4

图4

图5

表5

图6

表6

表7

图7

图8

图9

图10

图11

参考文献 51

1	Xie Q, Wang P, Li S, et al. An Uncertainty Analysis Method for Passenger Travel Time Under Ship Fires: A Coupling Technique of Nested Sampling and Polynomial Chaos Expansion Method[J]. Ocean Engineering(S0029-8018), 2020, 195: 106604.
2	郑茂, 郑晗. 基于图论算法的船舶疏散方案研究[J]. 计算机仿真, 2018, 35(10): 403-407.
	Zheng Mao, Zheng Han. Research for Ship Evacuation Plan Based on Graph Theory[J]. Computer Simulation, 2018, 35(10): 403-407.
3	余为波, 吴晓光, 王涛, 等. 基于最短路径算法的舰船通道逃逸路线研究[J]. 中国舰船研究, 2008, 3(2): 16-20.
	Yu Weibo, Wu Xiaoguang, Wang Tao, et al. Research on the Evacuation Route of Passage in Ship Based on Shortest Paths Algorithm[J]. Chinese Journal of Ship Research, 2008, 3(2): 6-20.
4	廖全蜜, 黄胜, 王宇, 等. 舰船疏散网络模型通达性分析[J]. 上海交通大学学报, 2015, 49(2): 227-231.
	Liao Quanmi, Huang Sheng, Wang Yu, et al. Accessibility Analysis of Ship Evacuation Network Model[J]. Journal of Shanghai Jiao Tong Nuversity, 2015, 49(2): 227-231.
5	郭冰. 大型船舶中人员流动模型的研究[D]. 哈尔滨: 哈尔滨工程大学, 2008.
	Guo Bing. The Research on Models of People's Flowing in the Large-Scale Marine[D]. Harbin: Harbin Engineering University, 2008.
6	Qiao Y, Han D, Shen J, et al. A study on the Route Selection Problem for Ship Evacuation[C]//IEEE International Conference on Systems, Man and Cybernetics. San Diego: IEEE, 2014: 1958-1962.
7	房斯明, 刘正江, 王新建, 等. 乘员折返行为对船舶疏散效率影响的计算分析[J]. 船海工程, 2020, 49(5): 122-126.
	Fang Siming, Liu Zhengjiang, Wang Xinjian, et al. Calculation and Analysis of the Influence of Human Reentry Behavior on Ship Evacuation Efficiency[J]. Ship ＆ Ocean Engineering, 2020, 49(5): 122-126.
8	郭琳, 卢春霞. 基于IMO标准的客轮正常状态下疏散实证研究[J]. 科学技术与工程, 2011, 11(5): 1022-1029.
	Guo Lin, Lu Chunxia. Empirical Study on Passenger Ship Evacuation Based on IMO Standards[J]. Science Technology and Engineering, 2011, 11(5): 1022-1029.
9	陈淼, 韩端锋. 船舶人员疏散仿真模型[J]. 哈尔滨工程大学学报, 2011, 32(7): 862-866, 872. DOI:10.3969/j.issn.1006-7043.2011.07.005 .
	Chen Miao, Han Duanfeng. A Simulation Model of Passengers' Evacuation in Ships[J]. Journal of Harbin Engineering University, 2011, 32(7): 862-866, 872. DOI:10.3969/j.issn.1006-7043.2011.07.005 .
10	Sarshar P, Radianti J, Granmo O C, et al. A Dynamic Bayesian Network Model for Predicting Congestion During a Ship Fire Evacuation[C]// The World Congress on Engineering and Computer Science. San Francisco: Newswood Limited, 2013: 23-25.
11	Mawson A R. Mass Panic and Social Attachment: The Dynamics of Human Behavior[M]. London: Routledge, 2007.
12	Bartolucci A, Magni M. Survivors' Solidarity and Attachment in the Immediate Aftermath of the Typhoon Haiyan (Philippines)[J]. PLoS Currents (S2157-3999), 2017, 9: 1-16.
13	邓媛媛, 郑利平, 蔡瑞文. 社会行为驱动的疏散仿真方法研究[J]. 系统仿真学报, 2020, 32(1): 130-141.
	Deng Yuanyuan, Zheng Liping, Cai Ruiwen. Research on Evacuation Simulation Method Considering Social Behavior[J]. Journal of System Simulation, 2020, 32(1): 130-141.
14	Sime J D. Affiliative Behaviour During Escape to Building Exits[J]. Journal of Environmental Psychology(S0272-4944), 1983, 3(1): 21-41.
15	郑霞忠, 向蕾蕾, 陈艳. 小群体行为作用下的地铁站疏散模型研究[J]. 中国安全生产科学技术, 2018, 14(11): 129-134.
	Zheng Xiazhong, Xiang Leilei, Chen Yan. Study on Evacuation Model of Subway Station Considering Small Group Behavior[J]. Journal of Safety Science and Technology, 2018, 14(11): 129-134.
16	李芳, 狄月, 陈绍宽, 等. 考虑客流引导和小群体行为的地铁车站疏散模型[J]. 西南交通大学学报, 2019, 54(3): 587-594.
	Li Fang, Di Yue, Chen Shaokuan, et al. Modelling Passenger Evacuation from Metro Platforms Considering Passenger Flow Guidance and Small Group Behaviour[J]. Journal of Southwest Jiaotong University, 2019, 54(3): 587-594.
17	Xie W, Lee E W M, Li T, et al. A Study of Group Effects in Pedestrian Crowd Evacuation: Experiments, Modelling and Simulation[J]. Safety Science(S0925-7535), 2020, 133: 105029.
18	Hu J, You L, Wei J, et al. The Effects of Group and Position Vacancy on Pedestrian Evacuation Flow Model[J]. Physics Letters A(S0375-9601), 2014, 378(28/29): 1913-1918.
19	Haghani M, Sarvi M, Shahhoseini Z, et al. Dynamics of Social Groups' Decision-Making in Evacuations[J]. Transportation Research(S0968-090X), 2019, 104: 135-157.
20	Yang L Z, Zhao D L, Li J, et al. Simulation of the Kin Behavior in Building Occupant Evacuation Based on Cellular Automaton[J]. Building and Environment(S0360-1323), 2005, 40(3): 411-415.
21	Beverley Raphael. Crowds and Other Collectives: Complexities of Human Behaviors in Mass Emergencies[J]. Psychiatry-Interpersonal & Biological Processes(S0033-2747), 2005, 68(2): 115-120.
22	Hou L, Liu J G, Pan X, et al. A Social Force Evacuation Model with the Leadership Effect[J]. Physica A Statistical Mechanics & Its Applications(S0378-4371), 2014, 400: 93-99.
23	Bernardini G, Azzolini M, Orazio M D, et al. Intelligent Evacuation Guidance Systems for Improving Fire Safety of Italian-Style Historical Theatres Without Altering their Architectural Characteristics[J]. Journal of Cultural Heritage(S1296-2074), 2016, 22: S828729882.
24	MSC/Circular IMO.846. Guidelines on Human Element Considerations for the Design and Management of Emergency Escape Arrangements on Passenger Ships [S]. IMO, 1998.
25	Casareale C, Bernardini G, Bartolucci A, et al.
	Cruise Ships Like Buildings: Wayfinding Solutions to
	Improve Emergency Evacuation[J]. Building Simulation
	S1996-8744), 2017, 10(3: 1-15.
26	Drabek T E. Understanding Disaster Warning Responses[J]. The Social Science Journal(S0362-3319), 1999, 36(3): 515-523.
27	D'Orazio M, Bernardini G. An Experimental Study on the Correlation Between "Attachment to Belongings" "Pre-Movement" Time[M]// Pedestrian and Evacuation Dynamics 2012. Cham: 2014: 167-178.
28	Zoumpoulaki A, Avradinis N, Vosinakis S. A Multi-Agent Simulation Framework for Emergency Evacuations Incorporating Personality and Emotions[C]//Hellenic Conference on Artificial Intelligence. Springer, Berlin: Heidelberg, 2010: 423-428.
29	Carattin E. Wayfinding Architectural Criteria for the Design of Complex Environments in Emergency Scenarios[C]// Evacuation & Human Behavior in Emergency Situations Advanced Research Workshop. USA: SAGE Publishing, 2011: 209-222.
30	Kobes M, Post J, Helsloot I, et al. Fire Risk of High-Rise Buildings Based on Human Behavior in Fires[C]// First International Conference on Fire Safety of High-Rise Buildings. Bucharest, Romania, 2008: 7-9.
31	IMO MSC. 1/Circ.1533. Revised Guidelines on Evacuation Analysis for the New and Existing Passenger Ships [S]. 2016.
32	Xie Q, Li S, Ma C, et al. Uncertainty Analysis of Passenger Evacuation Time for Ships' Safe Return to Port in Fires Using Polynomial Chaos Expansion with Gauss Quadrature[J]. Applied Ocean Research(S0141-1187), 2020, 101: 102190.
33	Meyer-König T, Klüpfel H, Schreckenberg M. A Microscopic Model for Simulating Mustering and Evacuation Processes Onboard Passenger Ships[C]//International Emergency Management Society Conference. 2001: 20.
34	Xie Q, Zhang S, Wang J, et al. A Surrogate-Based Optimization Method for the Issuance of Passenger Evacuation Orders Under Ship Fires[J]. Ocean Engineering(S0029-8018), 2020, 209: 107456.
35	IMO Version 9.4. International Convention for the Safety of Life at Sea (SOLAS) [S]. London, UK: IMO, 2005.
36	黄璜. 考虑建筑火灾因素影响的人群疏散智能体仿真平台研究[D]. 北京: 清华大学, 2018.
	Huang Huang. Research on Agent Based Simulation Platform for Crowd Evacuation Considering Building Fire Impacts[D]. Beijing: Tsinghua University, 2018.
37	刘全平, 梁加红, 李猛, 等. 基于多智能体和元胞自动机人群疏散行为研究[J]. 计算机仿真, 2014, 31(1): 328-332.
	Liu Quanping, Liang Jiahong, Li Meng, et al. Study on Crowd Evacuation Behaviors Based on Multi-Agent and Cellular Automata Technology[J]. Computer Simulation, 2014, 31(1): 328-332.
38	李泽群, 闫丰亭, 史志才, 等. 基于多智能体的虚拟化地铁站乘客行为仿真[J]. 系统仿真学报, 2020, 32(12): 2341-2352.
	Li Zequn, Yan Fengting, Shi Zhicai, et al. Multi-agent Behavior Simulation for Metro Station Passenger[J]. Journal of System Simulation, 2020, 32(12): 2341-2352.
39	张学锋, 张成俊, 白晨曦, 等. 基于智能体技术的多重灾难人员疏散感知模型[J]. 系统仿真学报, 2016, 28(3): 534-541.
	Zhang Xuefeng, Zhang Chengjun, Bai Chenxi, et al. Multiple Disasters Evacuation Perceptual Model Based on Agent Technology[J]. Journal of System Simulation, 2016, 28(3): 534-541.
40	张学锋, 白晨曦. 双层教学楼人员疏散仿真研究[J]. 系统仿真学报, 2017, 29(5): 1070-1076.
	Zhang Xuefeng, Bai Chenxi. Study of Crowd Evacuation in Two-story Teaching Building[J]. Journal of System Simulation, 2017, 29(5): 1070-1076.
41	杨琪, 王维莉, 胡志华. 突发事件下邮轮应急疏散模拟及其验证[J]. 大连海事大学学报, 2018, 44(2): 27-32.
	Yang Qi, Wang Weili, Hu Zhihua. Simulation and Verification of Passenger Ship Emergency Evacuation Under Emergency[J]. Journal of Dalian Maritime University, 2018, 44(2): 27-32.
42	钟少波, 余致辰, 杨永胜, 等. 基于社会力模型的机场人员疏散建模研究[J]. 系统仿真学报, 2018, 30(10): 3648-3656.
	Zhong Shaobo, Yu Zhichen, Yang Yongsheng, et al. Study on Evacuation Modeling of Airport Based on Social Force Model[J]. Journal of System Simulation, 2018, 30(10): 3648-3656.
43	陈悦峰, 董原生, 邓立群. 基于Agent仿真平台的比较研究[J]. 系统仿真学报, 2011, 23(增1): 110-116.
	Chen Yuefeng, Dong Yuansheng, Deng Liqun. Comparison of Agent-based Simulation Platforms[J]. Journal of System Simulation, 2011, 23(S1): 110-116.
44	许慧, 田铖, 王永. 轨道交通换乘站密集客流应急疏散仿真研究[J]. 系统仿真学报, 2020, 32(3): 492-500.
	Xu Hui, Tian Cheng, Wang Yong. Emergency Evacuation Simulation for Dense Passenger Flow in a Rail Transit Transfer Station[J]. Journal of System Simulation, 2020, 32(3): 492-500.
45	Helbing D, Pedestrian Johansson A., Crowd, and Evacuation Dynamics[M]//Encyclopedia of Complexity and Systems Science, Meyers R A, New York: Springer, 2009: 1-28.
46	Galea E R, Deere S, Brown R, et al. An Evacuation Validation Data Set for Large Passenger Ships[M]//Pedestrian and Evacuation Dynamics 2012. Cham: Springer, 2014: 109-123.
47	Brown R, Galea E R, Deere S, et al. Passenger Response Time Data-Sets for Large Passenger Ferries and Cruise Ships Derived from Sea Trials[J]. International Journal of Maritime Engineering(S1479-8751), 2013, 155(A1): 33-48.
48	Deere S, Galea E R, Filippidis L, et al. Data Collection Methodologies Used in the SAFEGUARD Project to Collect Human Factors Data[C]//Safeguard: Passenger Evacuation Seminar. Royal Institution of Naval Architects, 2012: 13-23.
49	Wang X, Liu Z, Zhao Z, et al. Passengers' Likely Behaviour Based on Demographic Difference During an Emergency Evacuation in a Ro-Ro Passenger Ship[J]. Safety Science(S0925-7535), 2020, 129: 104803.
50	王赤心. 采用蒙特卡洛法计算隧道人员疏散时间[J]. 现代隧道技术, 2017, 54(2): 144-148.
	Wang Chixin. Calculation of Evacuation Time by the Monte Carlo Method[J]. Modern Tunnelling Technology, 2017, 54(2): 144-148.
51	郭海湘, 曾杨, 陈卫明. 基于社会力模型的多出口室内应急疏散仿真研究[J]. 系统仿真学报, 2021, 33(3): 721-731.
	Guo Haixiang, Zeng Yang, Chen Weiming. Research on Indoor Emergency Evacuation Simulation of Multi-Exit Based on Social Force Model[J]. Journal of System Simulation, 2021, 33(3): 721-731.

楼梯	连接甲板(下层)	连接甲板(上层)	楼梯宽度/m
1和5	1	2	1.00
2和6	1	2	1.35
6和9	2	3	1.35
3和7	1	2	1.35
7和10	2	3	1.20
7和8	1	2	1.35

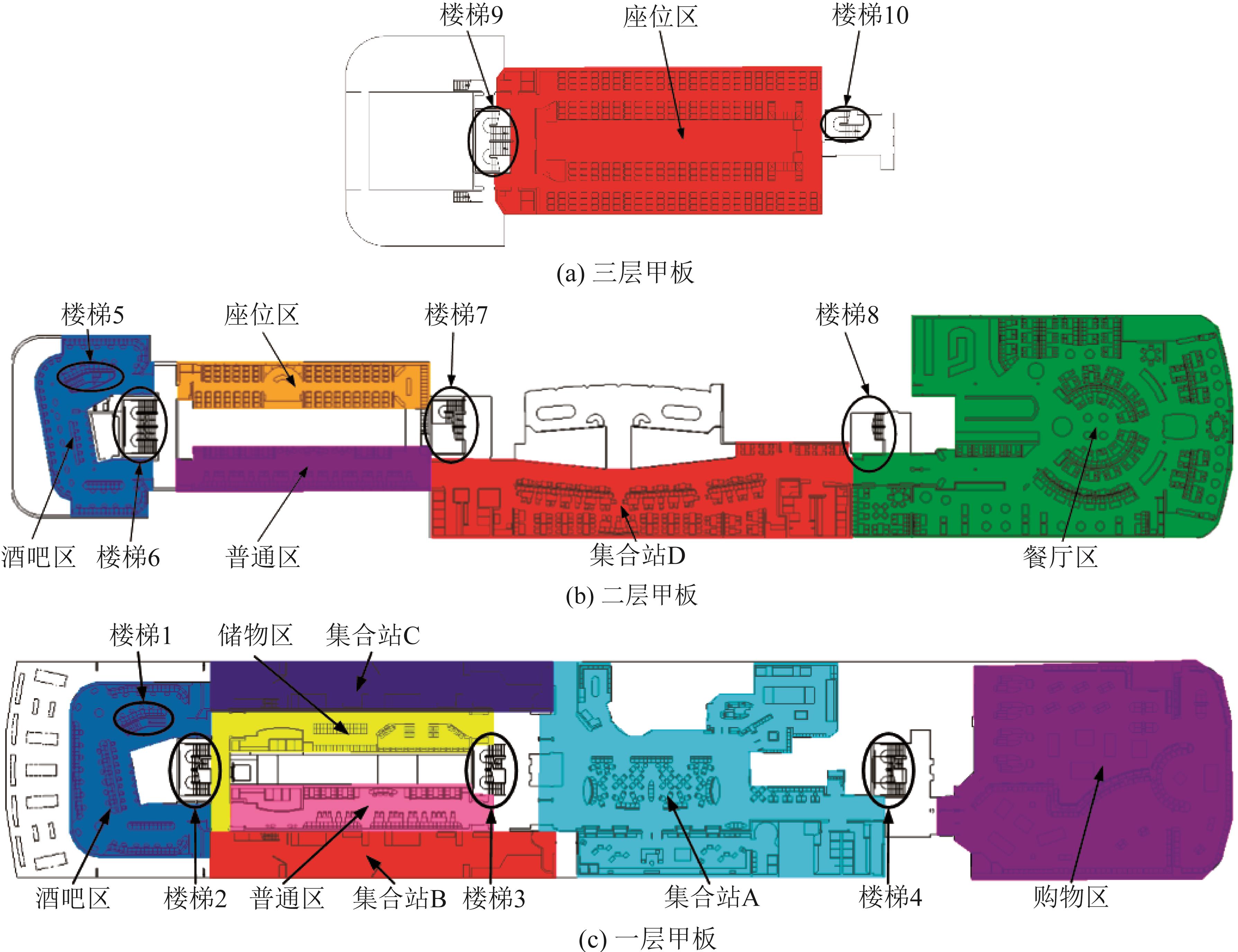

乘客初始分布位置	人数
总人口	1 014
甲板-1 吧台区	59
甲板-1 储物区	17
甲板-1 普通区	46
甲板-1 购物区	9
甲板-2 吧台区	52
甲板-2 座位区	5
甲板-2 普通区	46
甲板-2 餐厅区	251
甲板-3 座位区	107
甲板-1 集合站 A	131
甲板-1 集合站 B	55
甲板-1 集合站 C	45
甲板-2 集合站 D	191

群组人数	占总人数比例/%
1	8.8
2	15.1
3~6	40.1
7~11	36.0

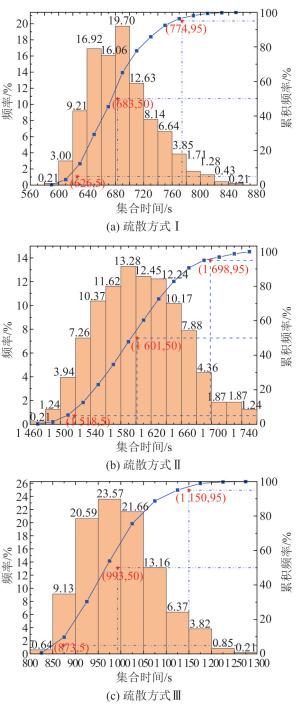

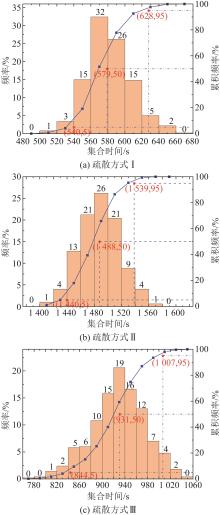

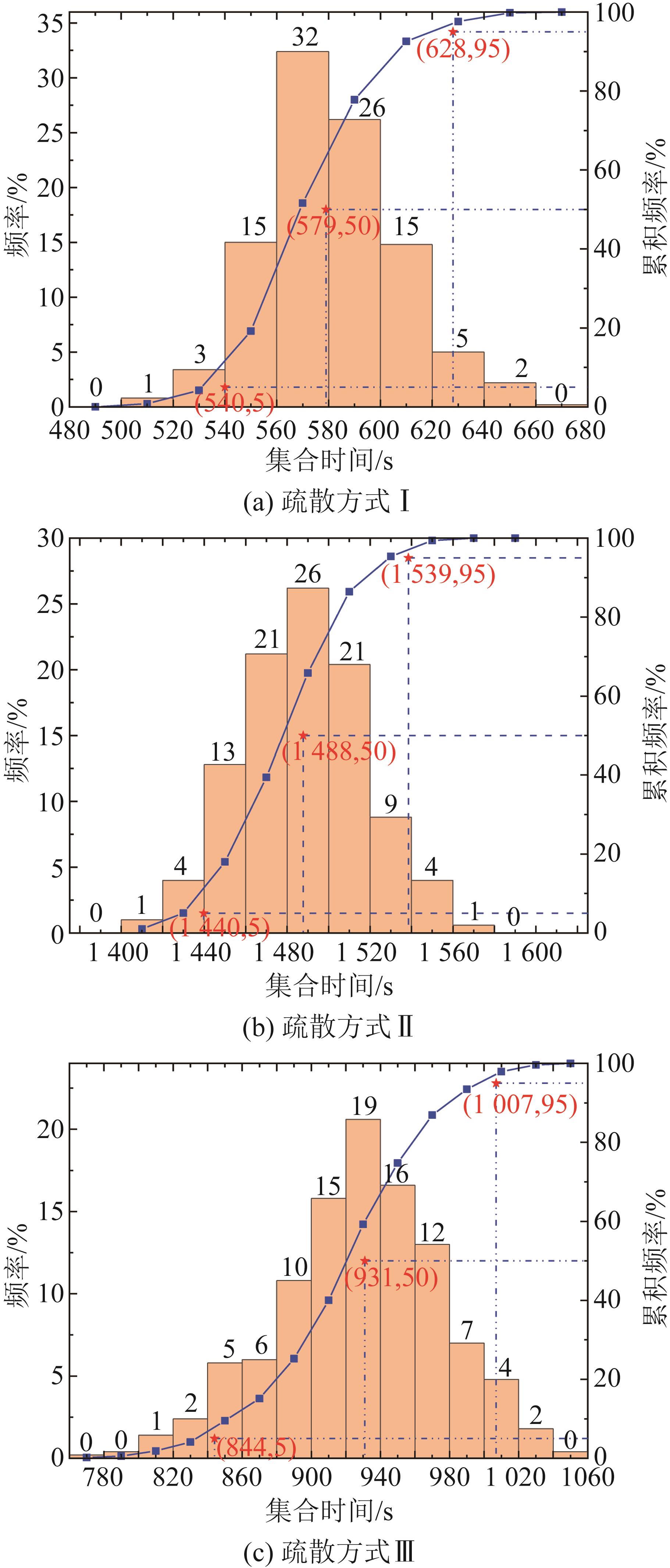

参数	疏散方式
参数	I	II	III
均值/s	581.08	1 487.79	928.12
标准差/s	26.18	29.27	47.67
方差/s²	685.34	856.57	2 272.66
最小值/s	500	1 406	775
中位数/s	579	1 488	931
最大值/s	674	1 580	1 045
极差/s	174	802	270
P₅/s	540	1 440	844
P₅₀/s	579	1 488	931
P₉₅/s	628	1 539	1 006
均值/s	581.08	1 487.79	928.12

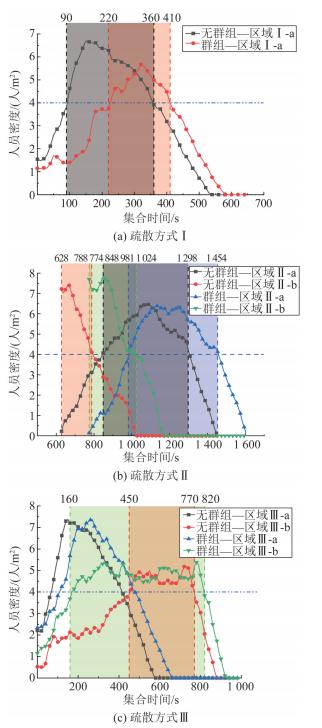

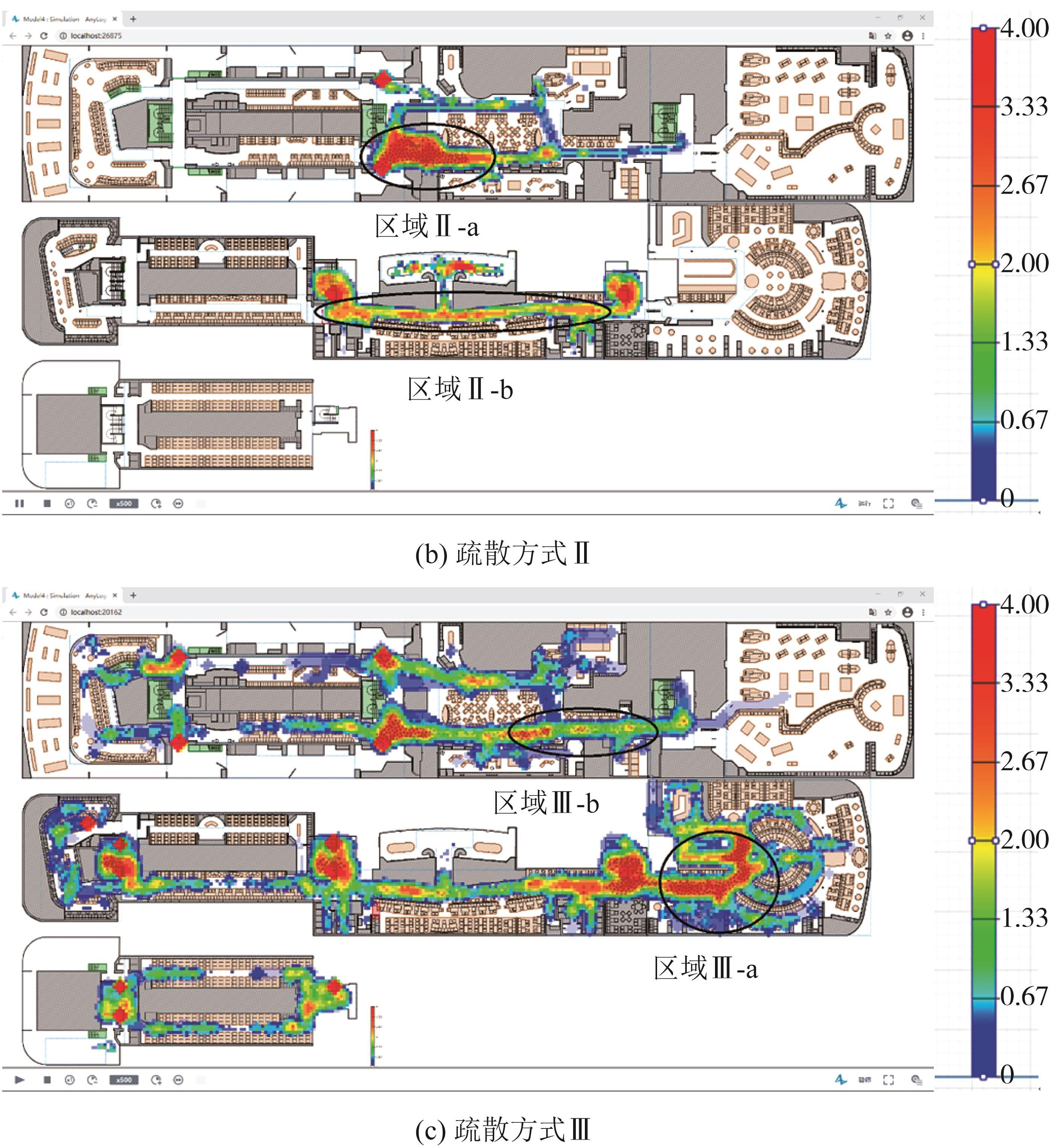

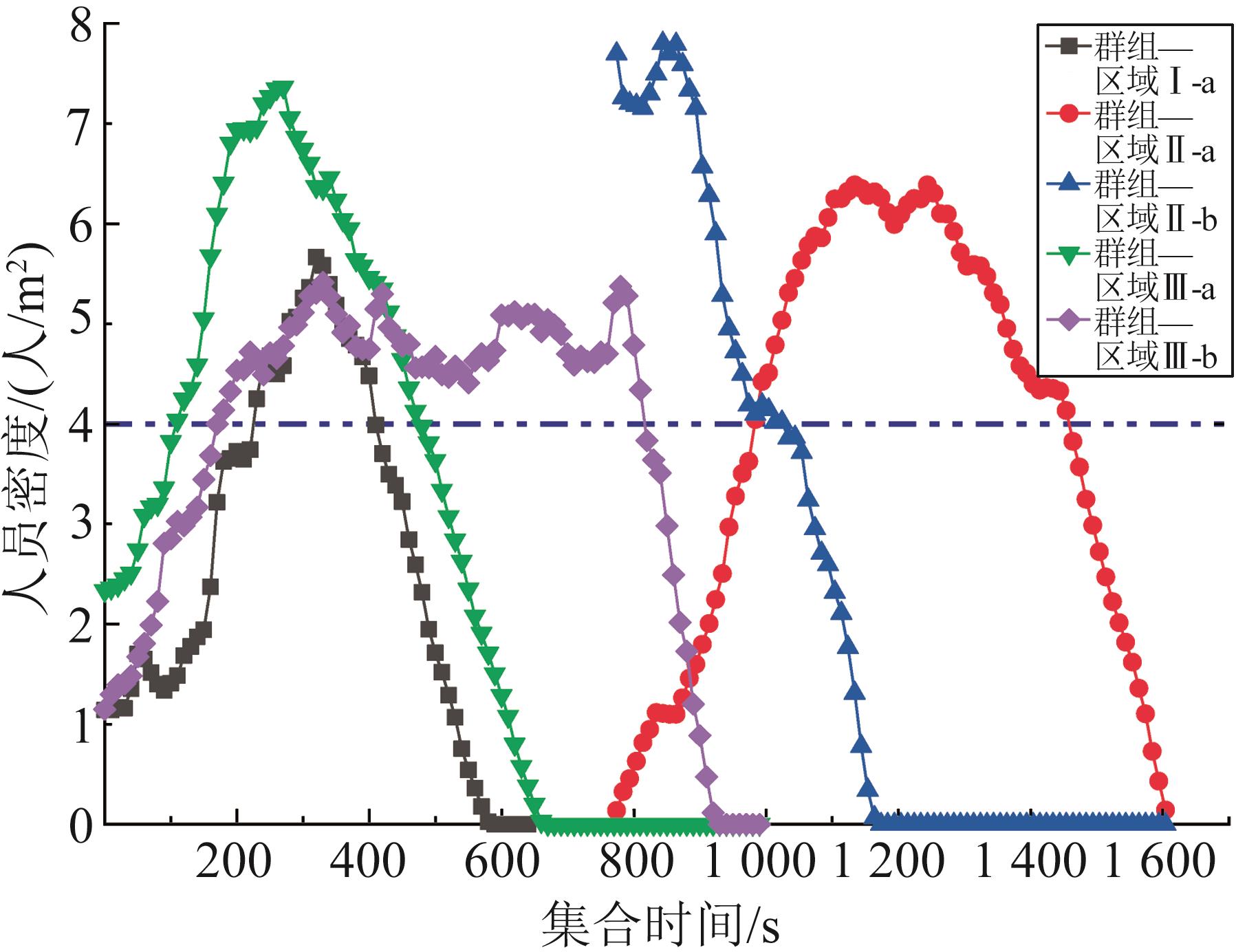

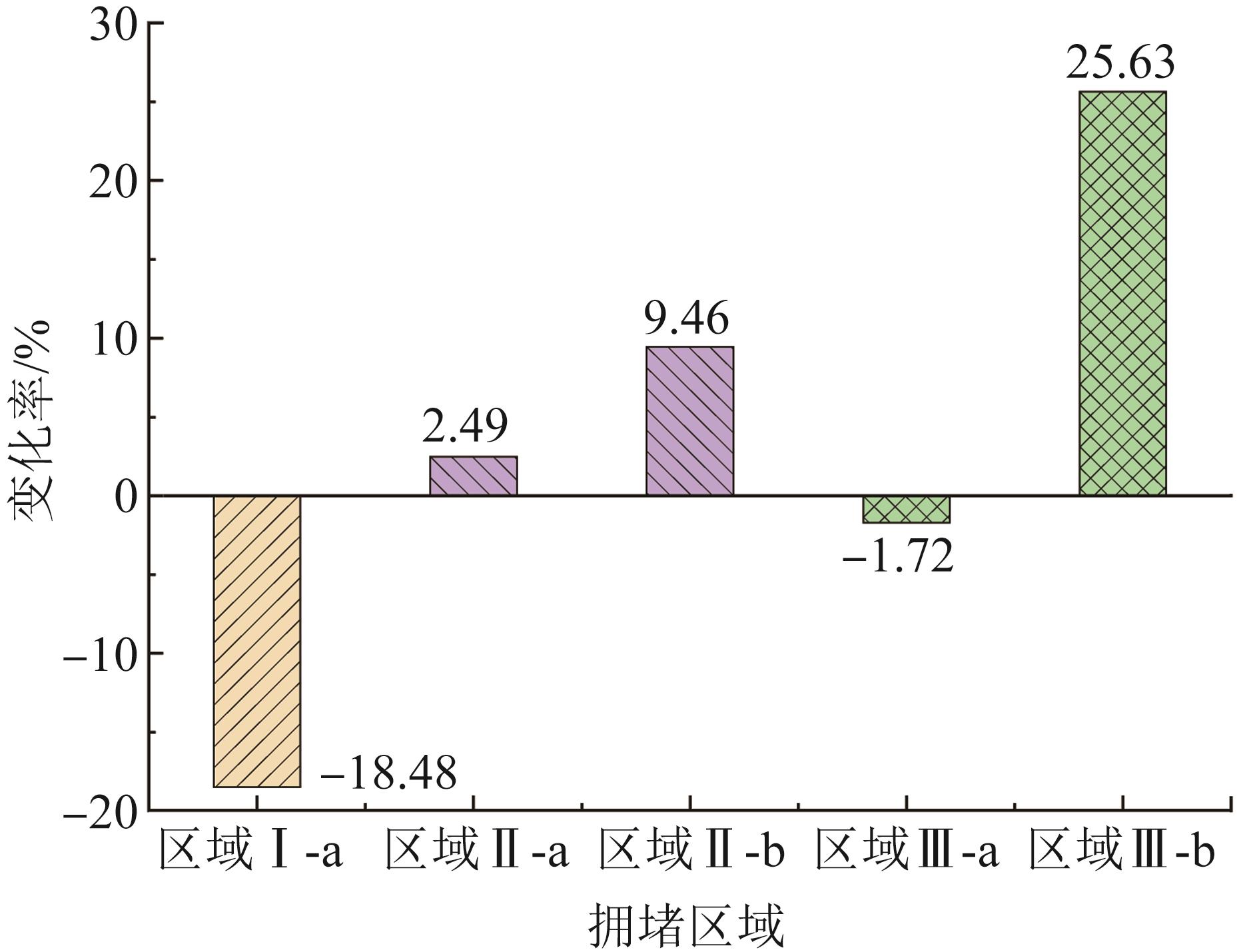

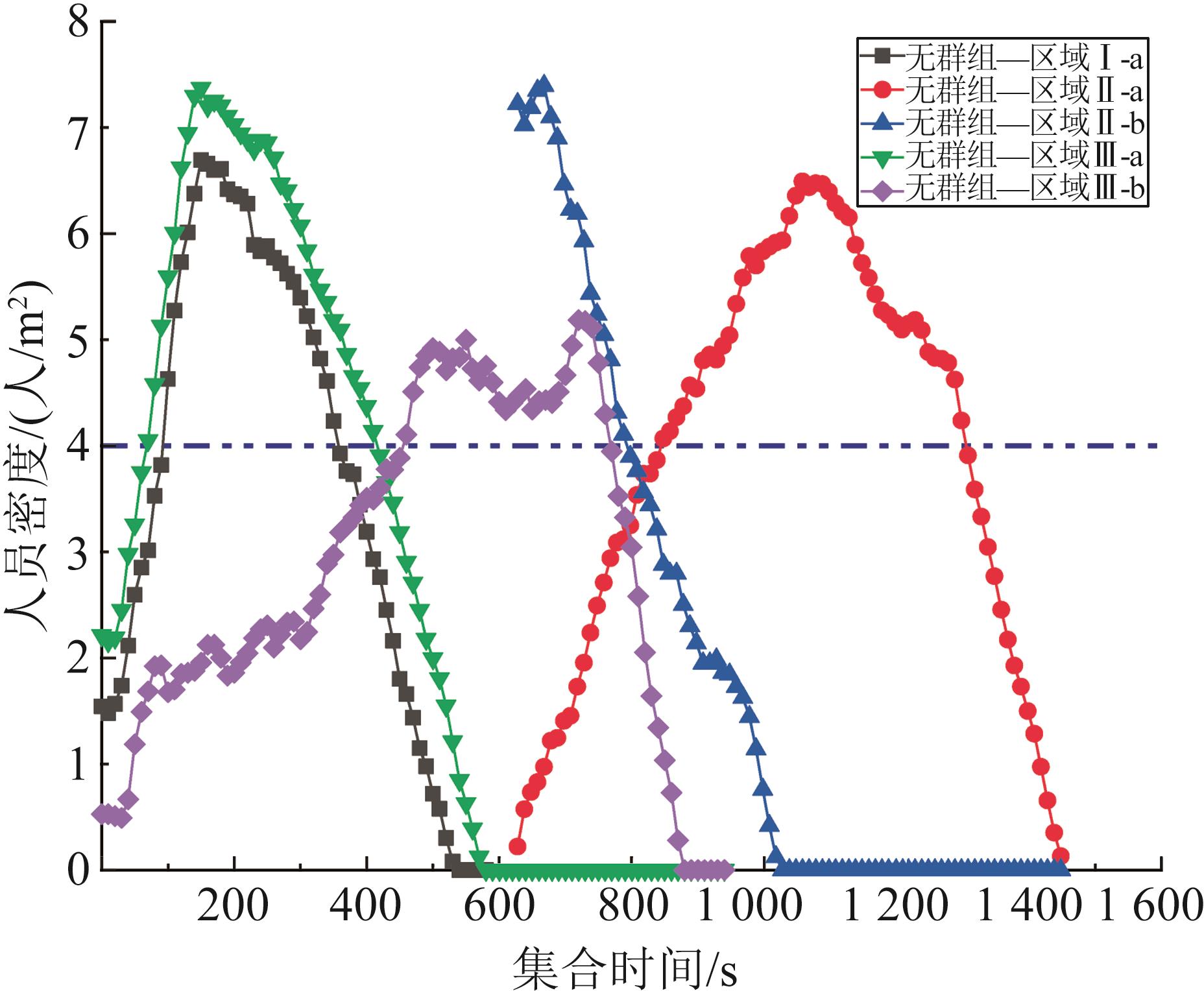

拥堵区域	拥堵持续时间/s	占比总疏散时间/%
I-a	270	43.03
II-a	460	50.52
II-b	170	18.67
III-a	350	34.79
III-b	320	31.81
