基于频率补偿的导弹弹性抑制验证方法研究

doi:10.16182/j.issn1004731x.joss.24-0264

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (5): 1251-1256.doi: 10.16182/j.issn1004731x.joss.24-0264

• 研究论文 • 上一篇

基于频率补偿的导弹弹性抑制验证方法研究

苏日新¹^,²(), 张欧³

^1.国防科技大学空天科学学院，湖南长沙 410073
^2.航天江南集团有限公司，贵州贵阳 550009
^3.江南机电设计研究所，贵州贵阳 550009

收稿日期:2024-03-19 修回日期:2024-04-08 出版日期:2024-05-15 发布日期:2024-05-21
第一作者简介:苏日新(1975-)，女，研究员，博士生，研究方向为制导控制。E-mail：rixinsu@163.com

Research on Verification Method of Missile Elastic Suppression Based on Frequency Compensation

Su Rixin¹^,²(), Zhang Ou³

^1.College of Aerospace Science and Engineering, National University of Defense Technology, Changsha 410073, China
^2.Aerospace Jiangnan Group;Co. , Ltd, Guiyang 550009, China
^3.Jiangnan Design & Research Institute of Machinery & Electricity, Guiyang 550009, China

Received:2024-03-19 Revised:2024-04-08 Online:2024-05-15 Published:2024-05-21

摘要/Abstract

摘要：

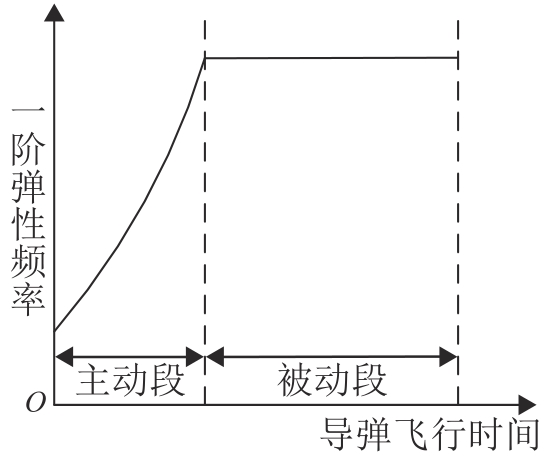

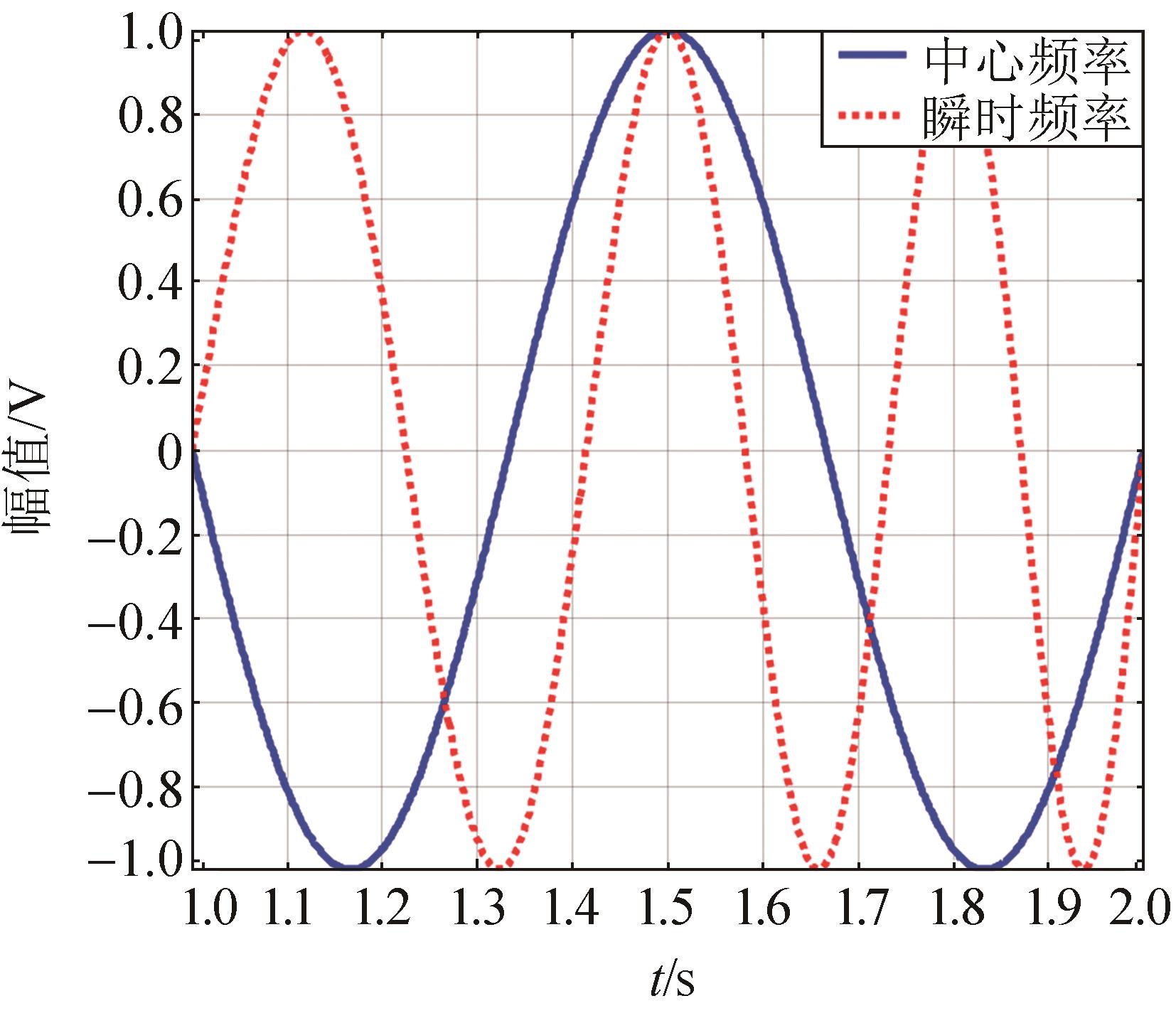

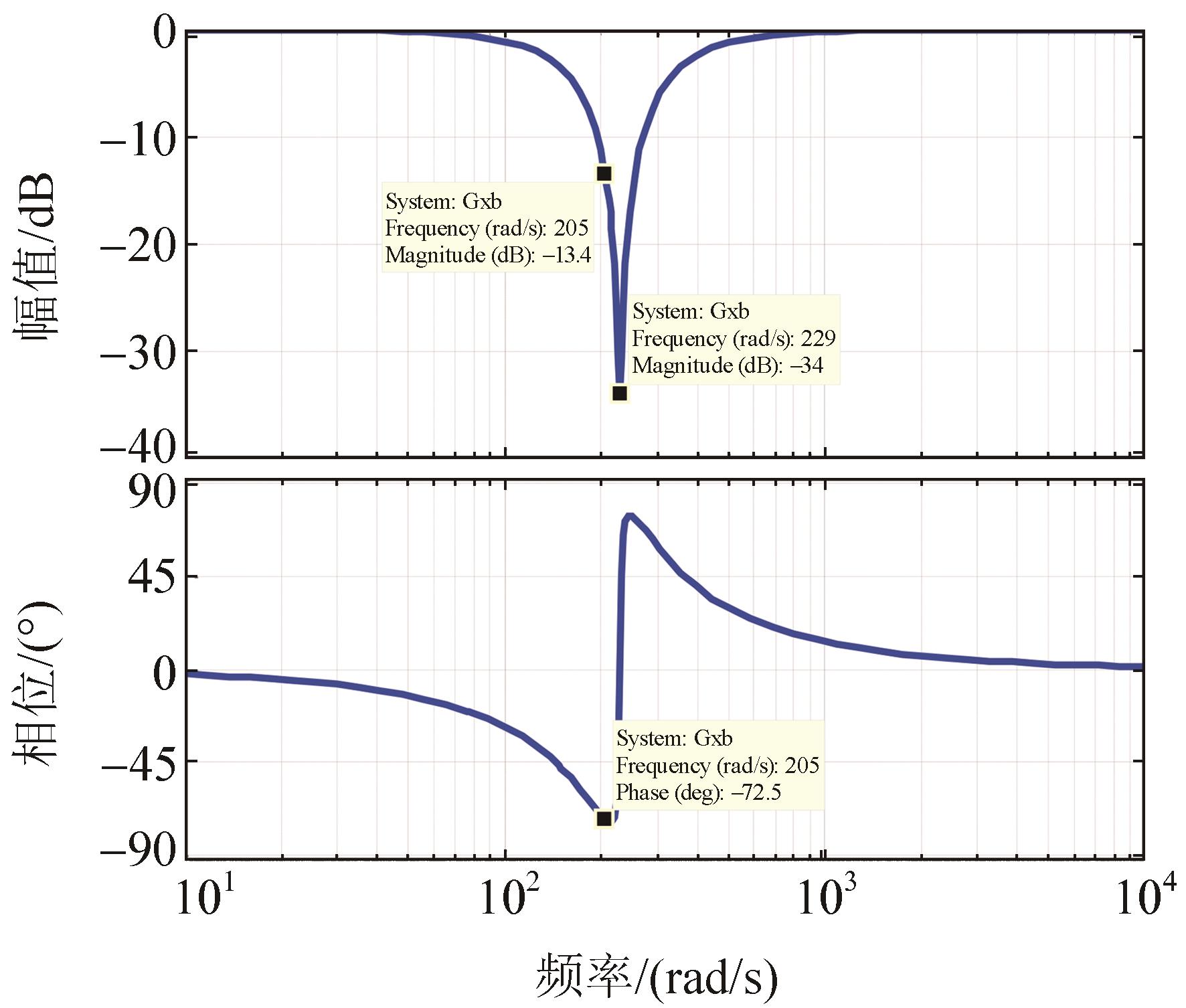

针对导弹六自由度数学仿真中的弹体弹性模型，开展弹性振动抑制的验证方法研究。介绍了用于导弹弹性振动抑制的陷波滤波器，分析了导弹飞行主动段和被动段中滤波器设计的验证思路，指出了目前在数学仿真验证中存在的问题。基于调频现象提出了一种频率补偿的陷波滤波器在线验证方法，通过对频率补偿函数进行理论推导可发现，该函数可适用于任何阶次的弹性频率验证。通过构建弹体弹性频率补偿函数实现了对所设计陷波滤波器的验证，不仅验证了弹性频率的陷波深度与理论设计值一致，还可以模拟不同弹性频率的基本特性。

关键词: 弹性抑制, 陷波滤波器, 验证方法, 调频现象

Abstract:

For the elastic model of missile body in six degree of freedom mathematical simulation, the research on the verification method of elastic vibration suppression is carried out.. The notch filter used for elastic vibration suppression is introduced, the verification idea for filter design in boost-phase and passive-phase stages of missile flight is analyzed, and the problem currently existing in mathematical simulation verification is pointed out. Based on the frequency modulation phenomenon, an online verification method of frequency compensation for the notch filter is put forward, and it can be found that the function can be applied to any order of elastic frequency verification through the theoretical derivation of the frequency compensation function. The verification of the designed notch filter is achieved by constructing the frequency compensation function of the missile body elastic, which not only verifies that the notch depth of the elastic frequency is consistent with the theoretical design value, but also simulates the basic characteristics of different elastic frequencies.

Key words: elastic suppression, notch filter, verification method, frequency modulation phenomenon

中图分类号:

TP765.2

苏日新,张欧 . 基于频率补偿的导弹弹性抑制验证方法研究[J]. 系统仿真学报, 2024, 36(5): 1251-1256.

Su Rixin,Zhang Ou . Research on Verification Method of Missile Elastic Suppression Based on Frequency Compensation[J]. Journal of System Simulation, 2024, 36(5): 1251-1256.

图/表 6

参考文献 11

1	张志健, 王小虎, 王铁军. 基于插值DFT的弹体弹性自适应陷波方法[J]. 宇航学报, 2013, 34(9): 1239-1245.
	Zhang Zhijian, Wang Xiaohu, Wang Tiejun. An Interpolated DFT Based Adaptive Notch Filter for Missile Bending Mode Suppression[J]. Journal of Astronautics, 2013, 34(9): 1239-1245.
2	蒲利东, 罗务揆, 严泽洲. 气动伺服弹性系统结构陷幅滤波器优化设计[J]. 工程力学, 2018, 35(4): 235-241.
	Pu Lidong, Luo Wukui, Yan Zezhou. Optimal Design for Notch Filter of Aeroservoelastic Systems[J]. Engineering Mechanics, 2018, 35(4): 235-241.
3	刘莉, 王岩松, 周思达, 等. 考虑弹体弹性的导弹半物理仿真方法与影响分析[J]. 北京航空航天大学学报, 2016, 42(4): 639-645.
	Liu Li, Wang Yansong, Zhou Sida, et al. Hardware-in-the-loop Simulation Method and Influence Analysis of Missiles Considering Body Elasticity[J]. Journal of Beijing University of Aeronautics and Astronautics, 2016, 42(4): 639-645.
4	宿常鹏, 王雪梅, 许哲, 等. 导弹姿态控制系统弹性振动抑制问题研究[J]. 弹箭与制导学报, 2019, 39(5): 154-157, 162.
	Su Changpeng, Wang Xuemei, Xu Zhe, et al. Research on Elastic Vibration Suppression of Missile Attitude Control System[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2019, 39(5): 154-157, 162.
5	雷虎民, 楼顺天, 刘兴堂, 等. 六自由度导弹制导系统的建模与仿真研究[J]. 系统仿真学报, 1999, 11(1): 30-33.
	Lei Humin, Lou Shuntian, Liu Xingtang, et al. Six-degree-of-freedom Modelling and Simulation for Missile Guidance Systems[J]. Journal of System Simulation, 1999, 11(1): 30-33.
6	陈文俊. 飞航导弹气动弹性研究工作探讨[J]. 战术导弹技术, 1998(3): 21-28.
	Chen Wenjun. Exploration on Aeroelastic Study for Aerodynamic Missile[J]. Tactical Missile Technology, 1998(3): 21-28.
7	许志, 马宗占, 唐硕. 一种高超声速试飞器助推段主动弹性抑制方法[J]. 宇航学报, 2019, 40(10): 1234-1242.
	Xu Zhi, Ma Zongzhan, Tang Shuo. Active Elastic Control for Boost Stage of a Hypersonic Test Vehicle[J]. Journal of Astronautics, 2019, 40(10): 1234-1242.
8	郜阳, 李彦彬, 王颖, 等. 基于颤振特性的导弹变后掠翼方式研究[J]. 系统仿真学报, 2021, 33(5): 1224-1232.
	Gao Yang, Li Yanbin, Wang Ying, et al. Research on Variable Swept Wing Mode of Missile Based on Flutter Characteristics[J]. Journal of System Simulation, 2021, 33(5): 1224-1232.
9	董小萌, 刘晓东, 王建敏. 摆动喷管推力矢量控制弹性弹体的建模研究[J]. 系统仿真学报, 2014, 26(3): 650-656, 681.
	Dong Xiaomeng, Liu Xiaodong, Wang Jianmin. Modeling Research of Elastic Missile Body with Swing Nozzle Thrust Vector Control[J]. Journal of System Simulation, 2014, 26(3): 650-656, 681.
10	李良, 李友年, 陈星阳. 基于广义最小二乘法的空空导弹幅值滤波器设计方法[J]. 航空兵器, 2020, 27(1): 46-51.
	Li Liang, Li Younian, Chen Xingyang. Amplitude Filter Design of Air-to-air Missile Based on the Generalized Least Square Method[J]. Aero Weaponry, 2020, 27(1): 46-51.
11	郑子元, 林俊, 孔寒雪, 等. 导弹弹性振动在线辨识及自适应抑制[J]. 飞控与探测, 2019, 2(6): 41-47.
	Zheng Ziyuan, Lin Jun, Kong Hanxue, et al. Missile Elastic Vibration Identification and Adaptive Suppression[J]. Flight Control & Detection, 2019, 2(6): 41-47.
