风力发电控制系统的实时非线性经济模型预测控制

doi:10.16182/j.issn1004731x.joss.23-1396

摘要/Abstract

摘要：

为应对风电系统经济效益控制和实时性要求的新挑战，针对风力发电控制系统，提出了一种非线性经济模型预测控制策略。在最大化发电功率的同时减少了塔架和齿轮箱等关键结构的疲劳负荷，设计了一个滚动时域估计器为优化提供有意义的初始化。优化问题求解方面，利用相邻采样时刻间非线性规划程序的相似性，实现了算法的实时迭代求解。以5 MW风电机组作为研究对象，在ACADOS框架下实时迭代求解最优控制问题。仿真结果表明：所提控制策略能够有效提高系统运行经济效益并且能够实现实时控制。

关键词: 风力发电控制系统, 非线性经济模型预测控制, 滚动时域估计, 疲劳负荷, 实时迭代

Abstract:

To address the new challenges of economic control and real-time requirements in wind energy conversion systems (WECS), this study proposes a nonlinear economic model predictive control (NEMPC) strategy. This strategy aims to maximize power generation and while reducing fatigue loads on critical structures, such as towers and gearboxes. Additionally, a moving horizon estimator (MHE) has been designed to provide an effective initialization for optimization. By exploiting the similarity of nonlinear programs between adjacent sampling moments, the algorithm achieves real-time iterative (RTI) solutions. Using a 5 MW wind turbine as the research object, the proposed strategy is implemented in the ACADOS framework for real-time optimization. Simulation results demonstrate that the strategy effectively improves the economic performance of the system while ensuring real-time control.

Key words: wind energy conversion system, nonlinear economic model predictive control, moving horizon estimation, fatigue load, real-time iteration

中图分类号:

TP273

王文文,刘向杰,孔小兵 . 风力发电控制系统的实时非线性经济模型预测控制[J]. 系统仿真学报, 2025, 37(3): 679-690.

Wang Wenwen,Liu Xiangjie,Kong Xiaobing . Real-time Nonlinear Economic Model Predictive Control of Wind Energy Conversion System[J]. Journal of System Simulation, 2025, 37(3): 679-690.

图/表 14

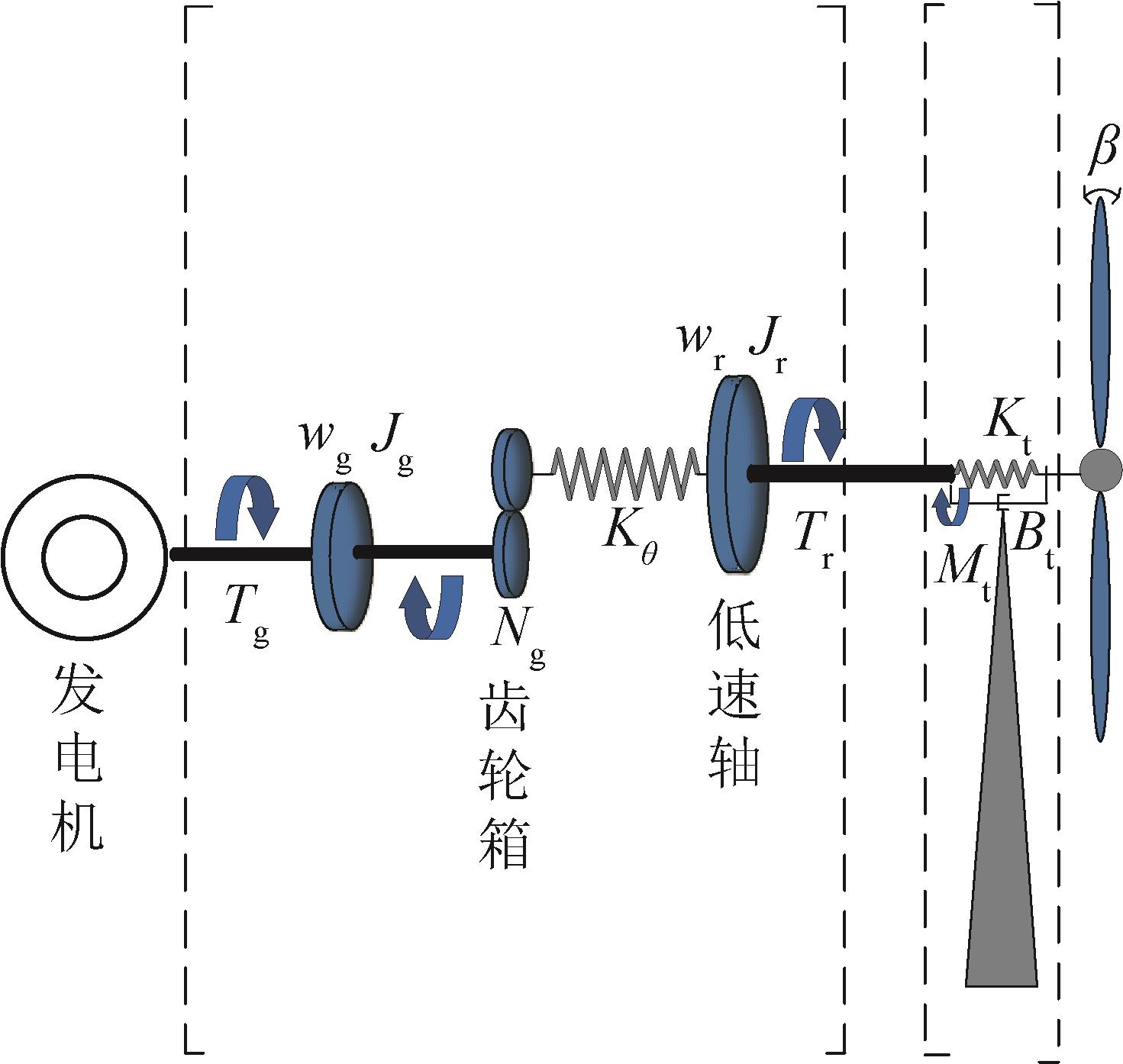

图1

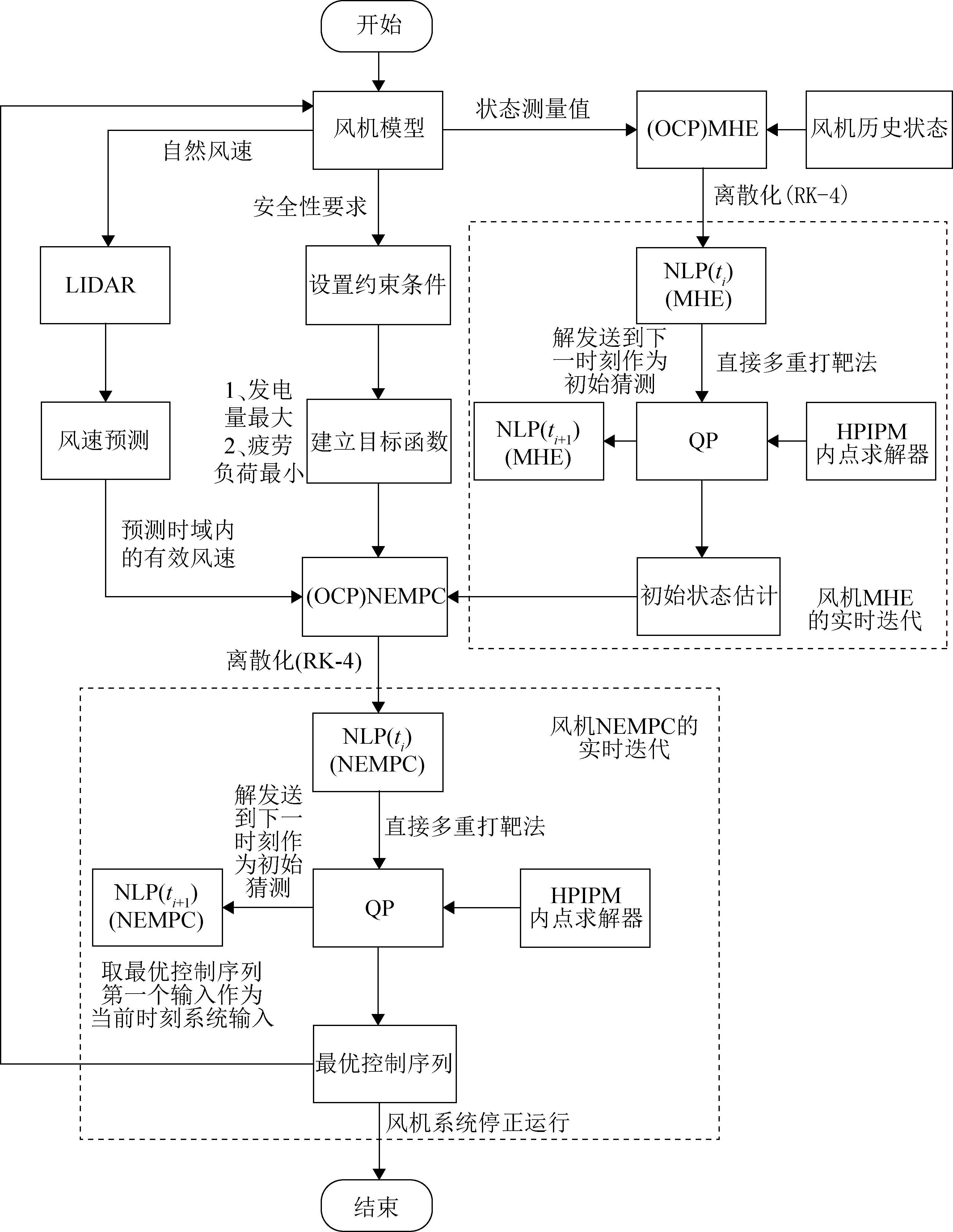

图2

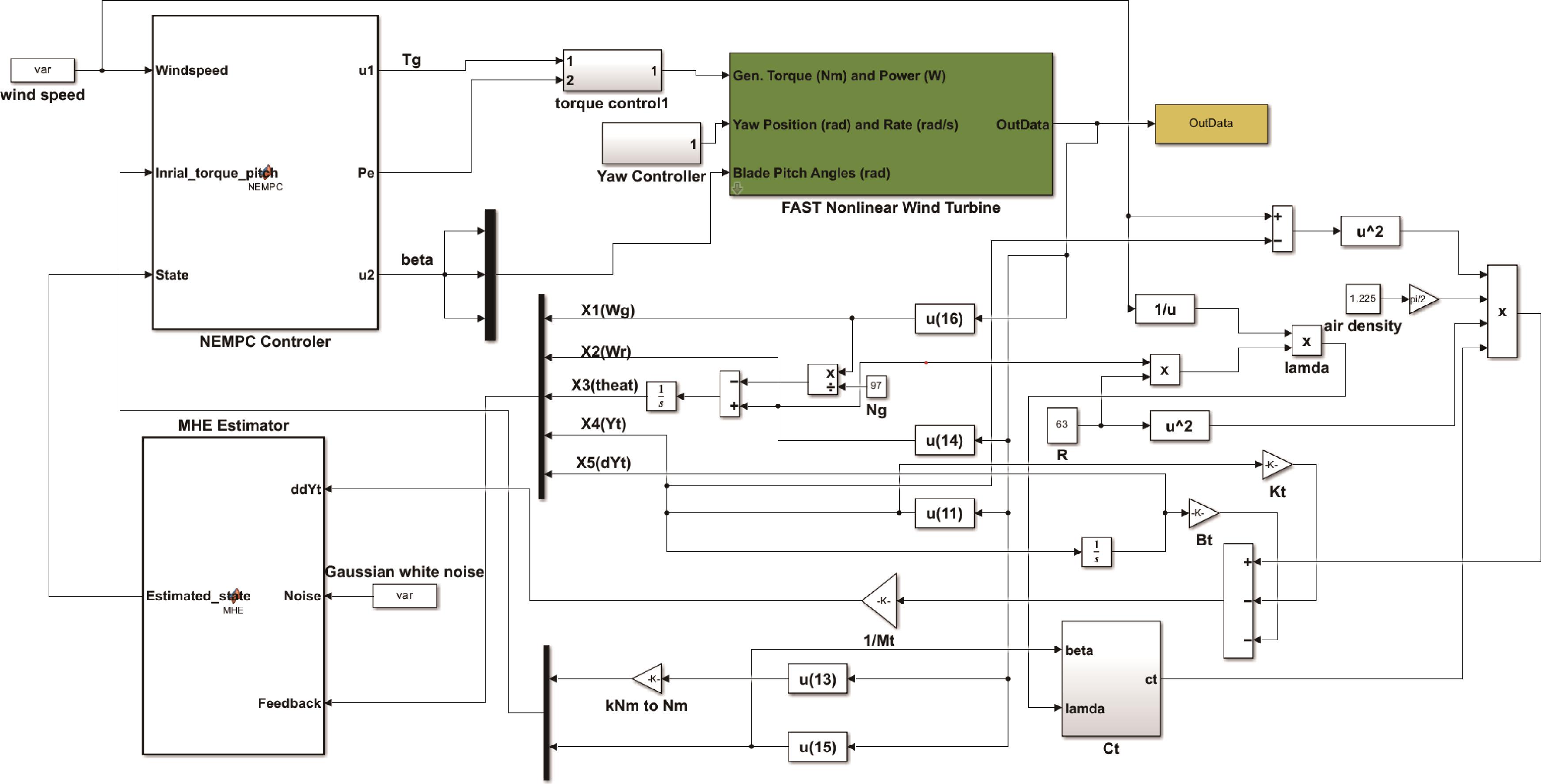

图3

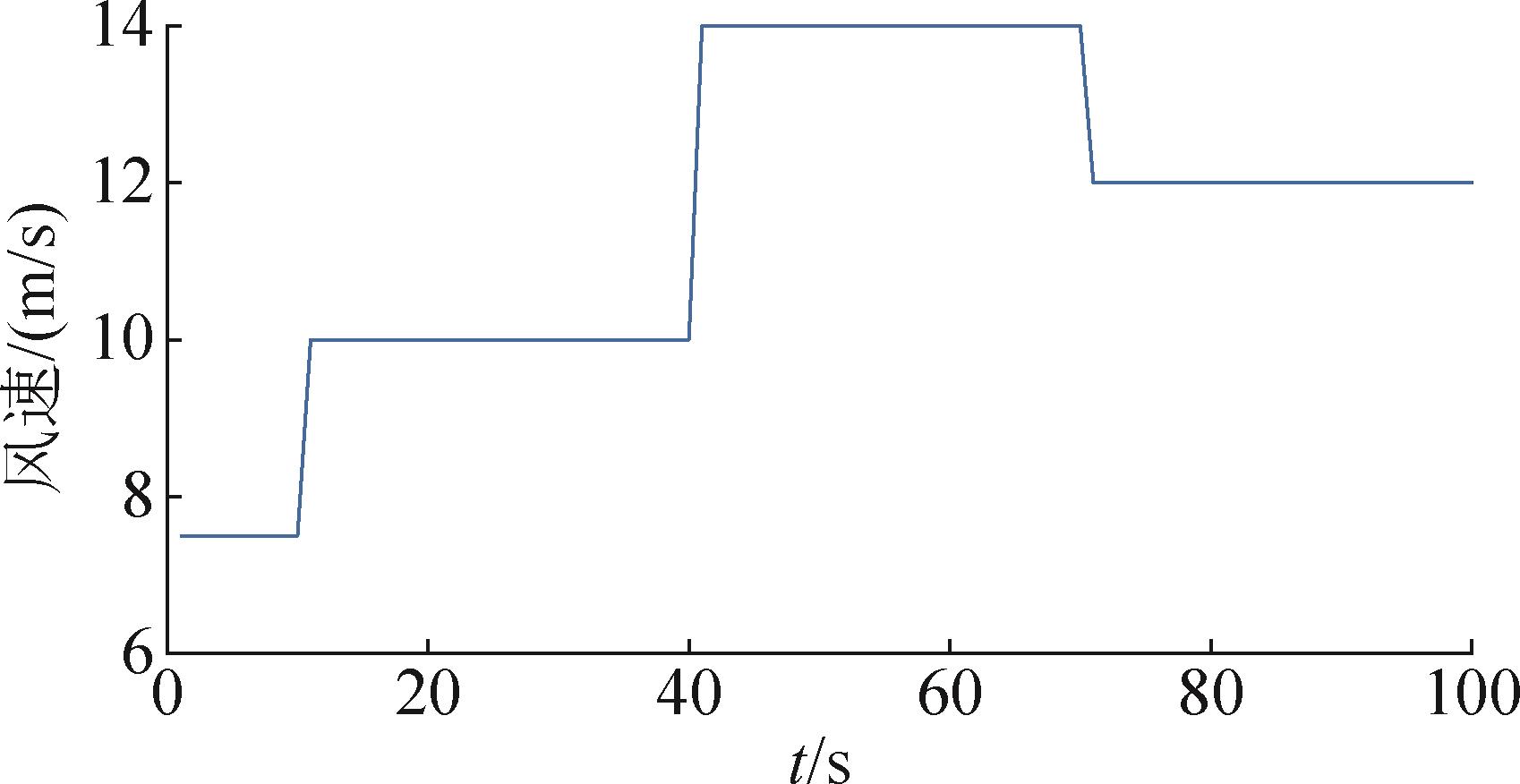

图4

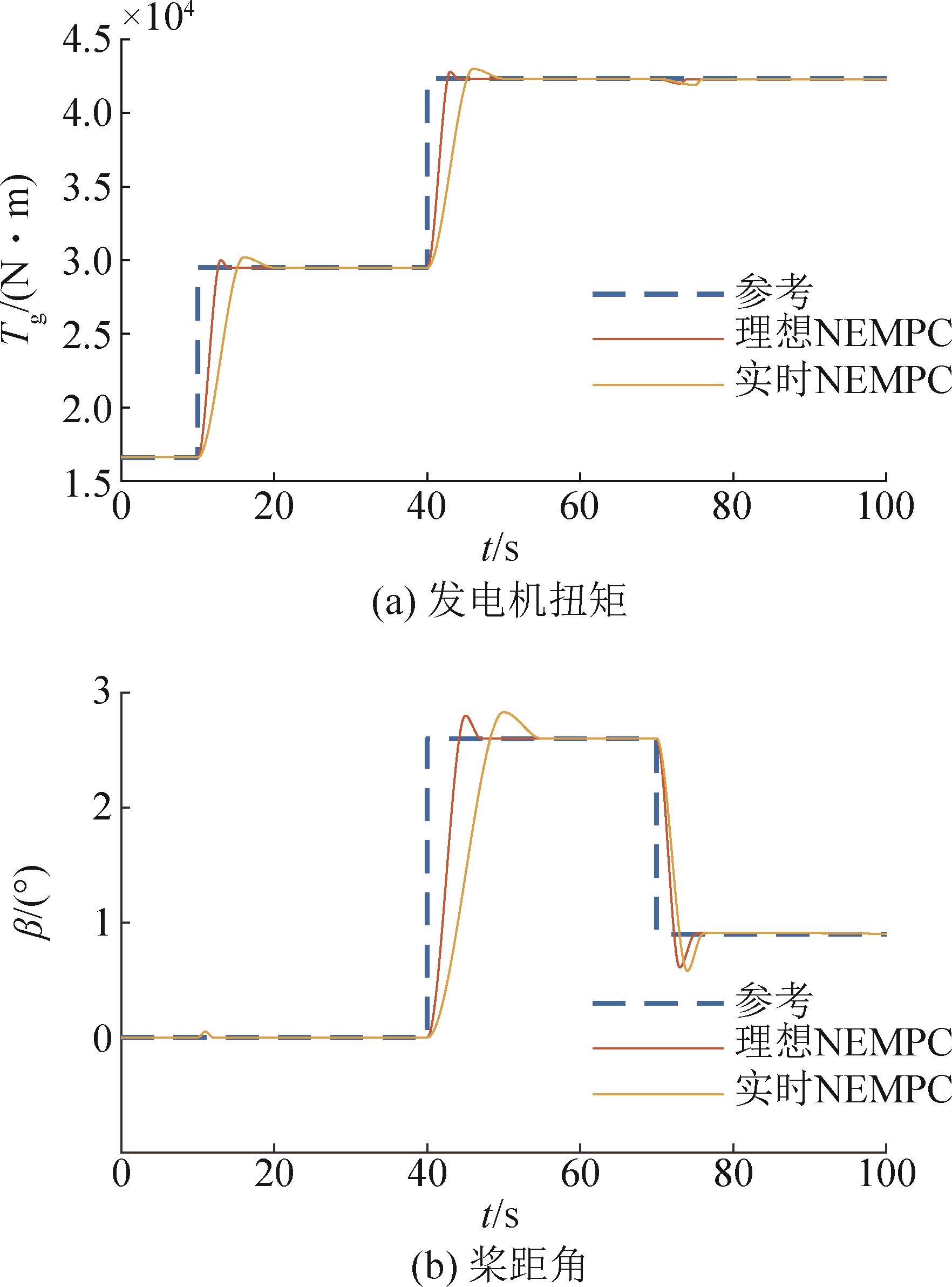

图5

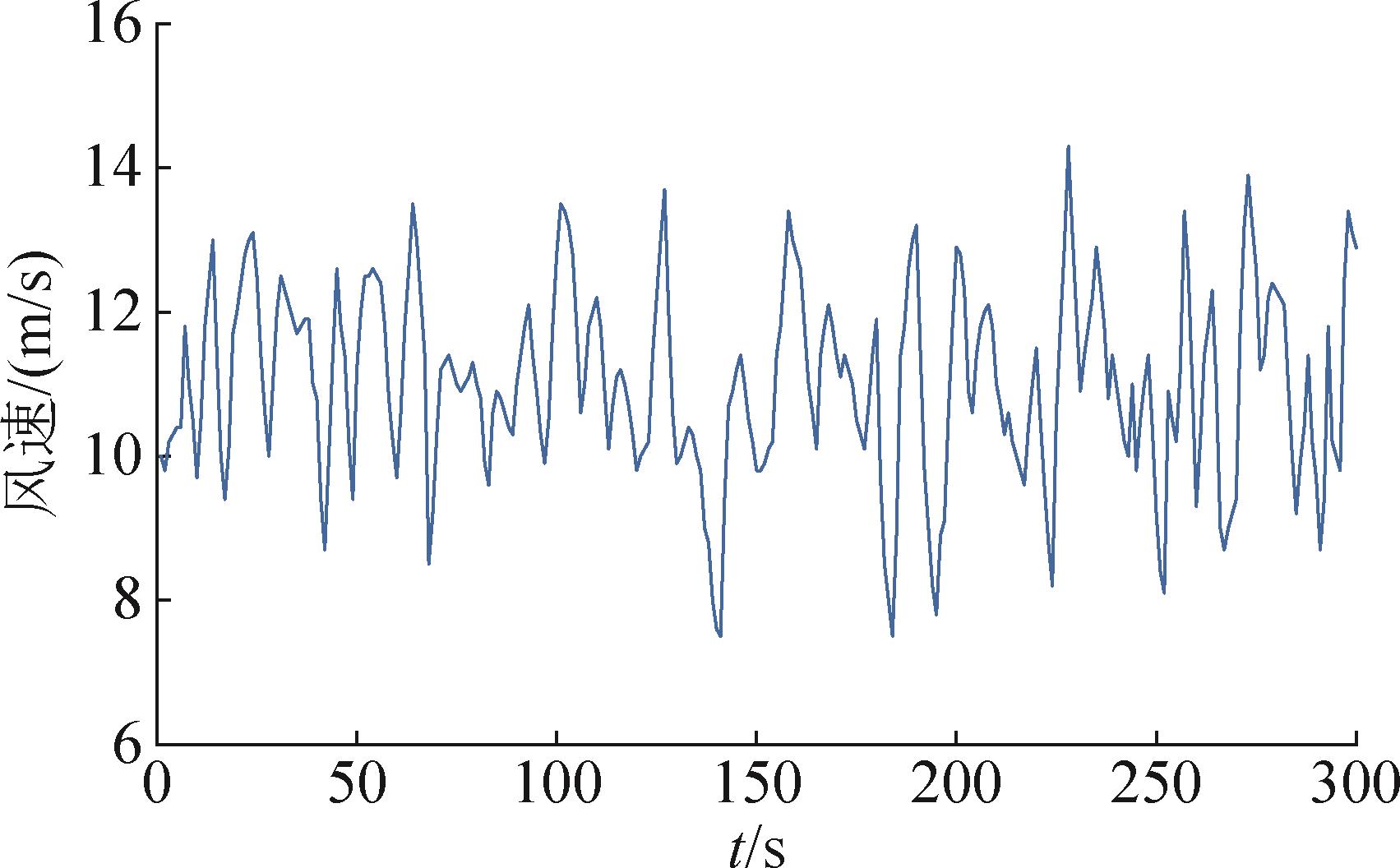

图6

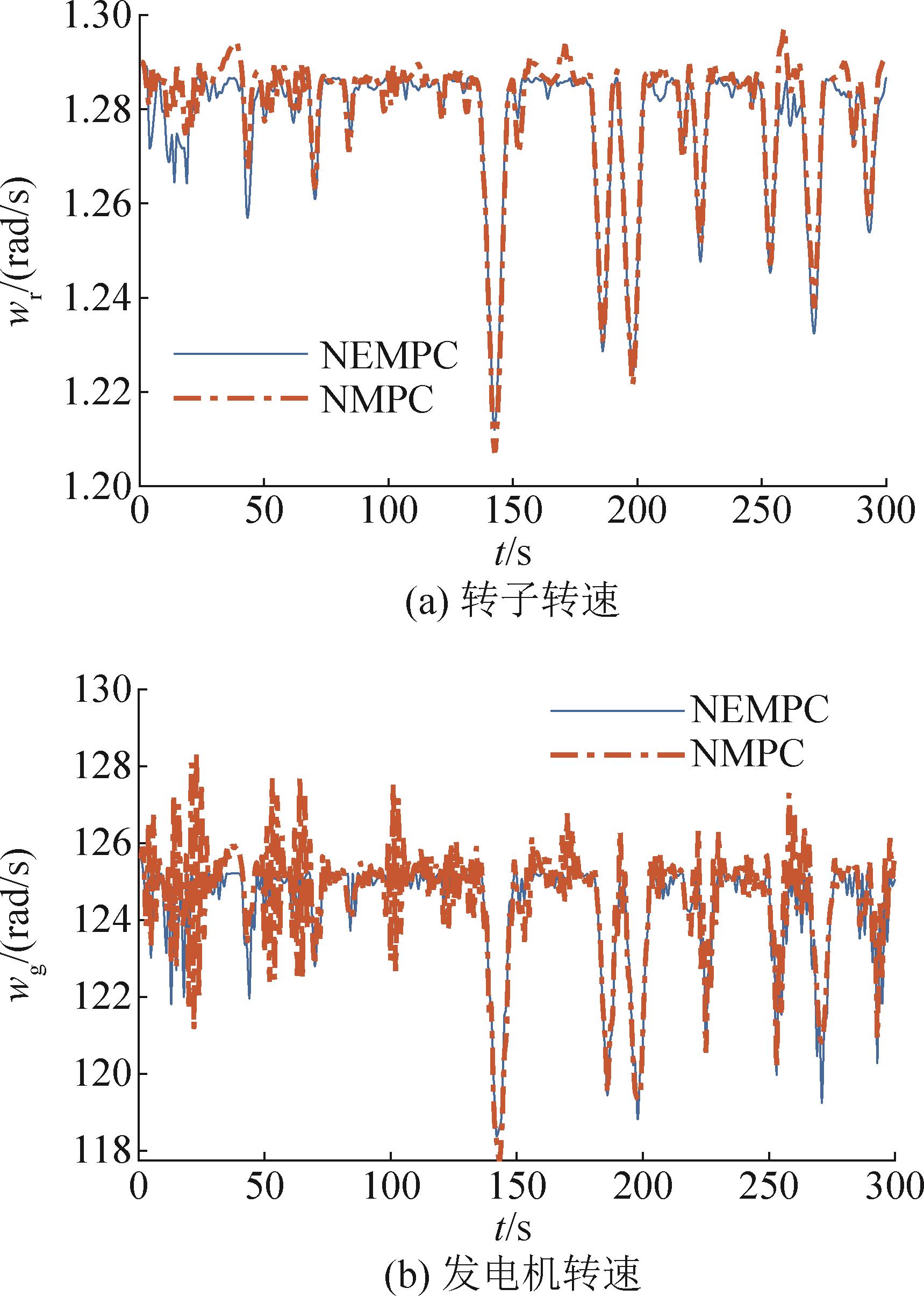

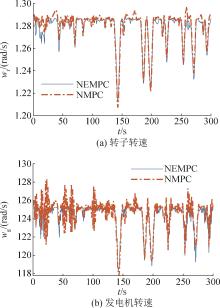

图7

表1

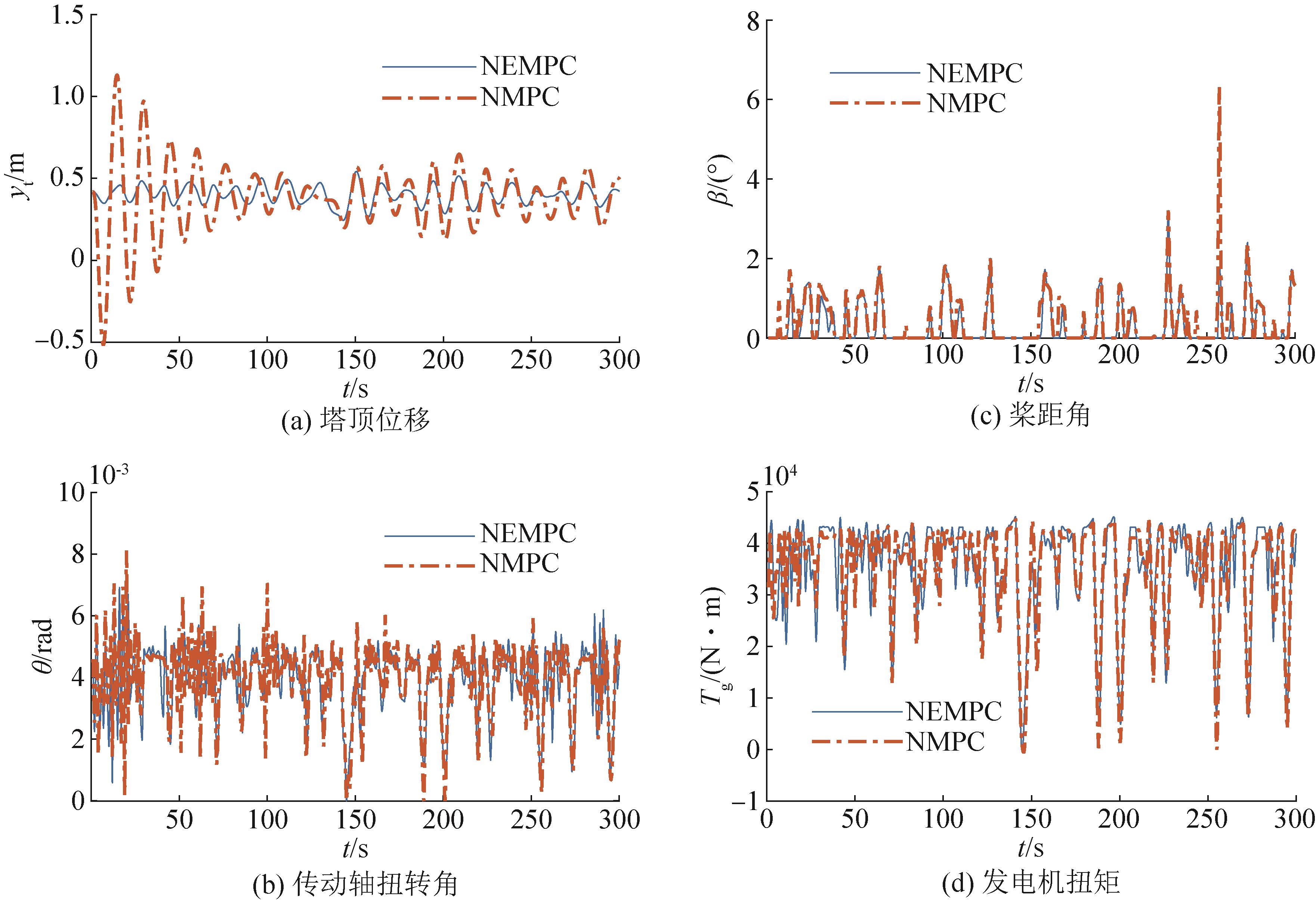

图8

表2

各疲劳负荷对比

指标	NMPC	NEMPC
$T t o w e r$	0.138 9	0.007 5
$T g e a r b o x$	2.270 0×10^-6	1.525 1×10^-6
$T p i t c h$	0.339 4	0.197 3
$T t o r q u e$	4.989 7×10⁷	4.966 1×10⁷

表2

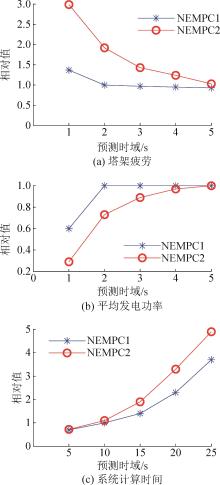

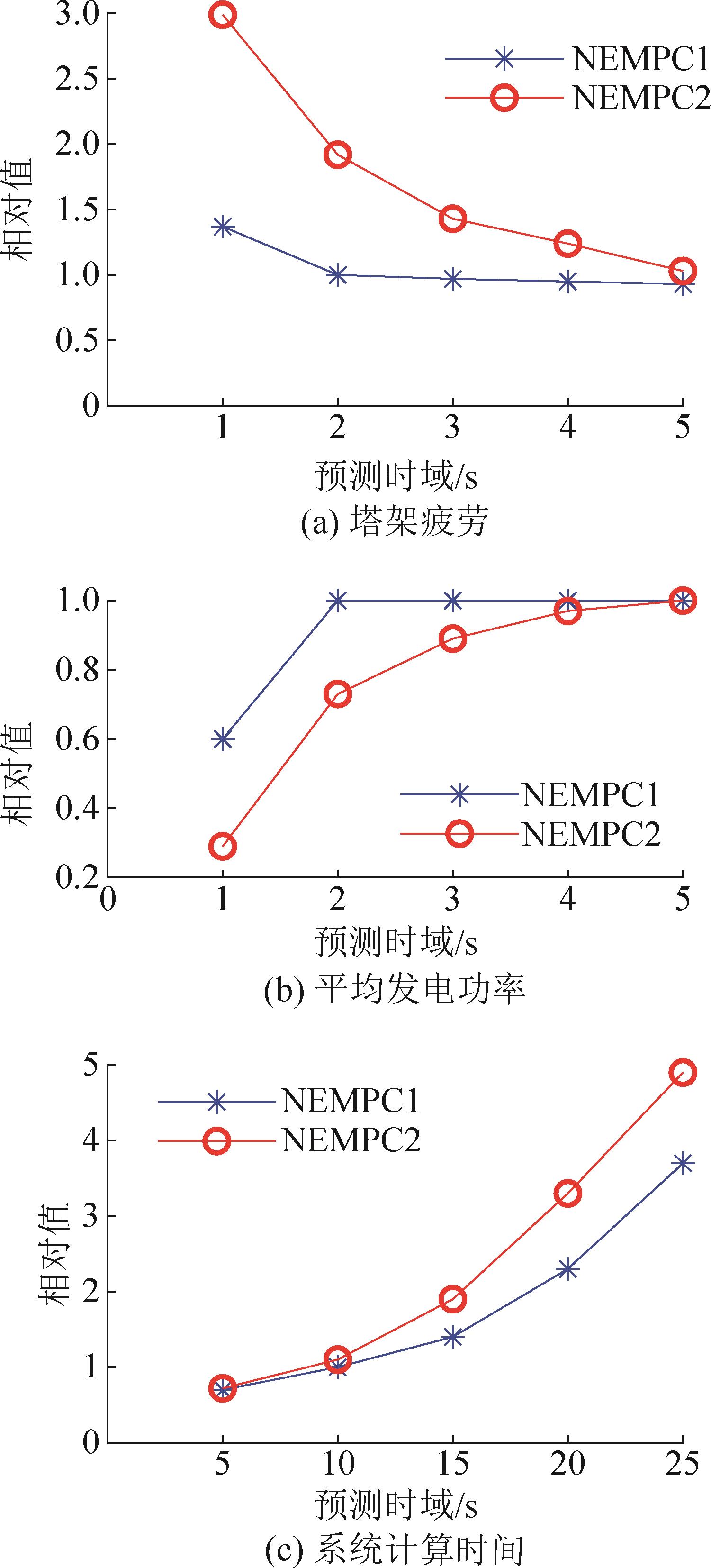

图9

图10

表3

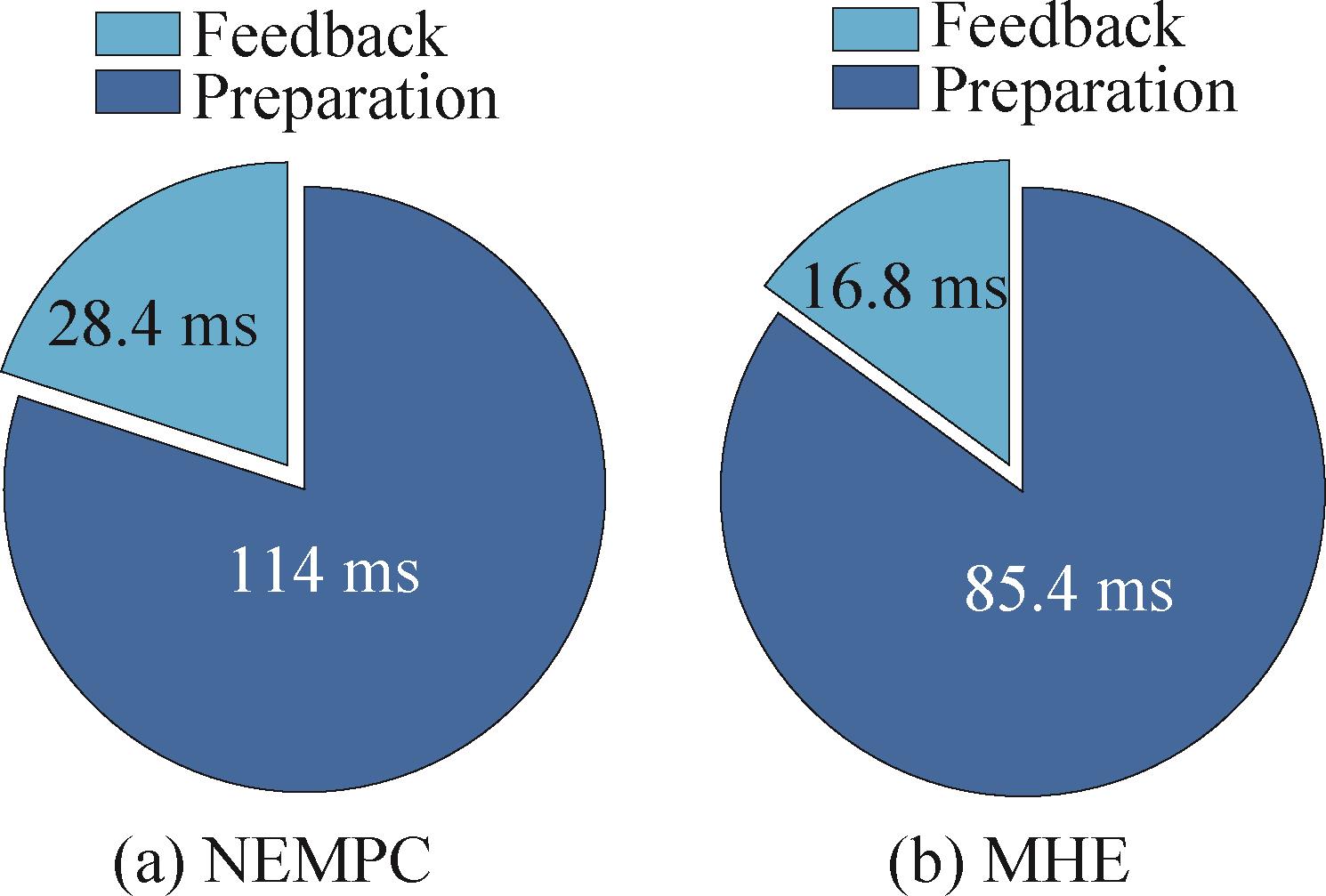

图11

参考文献 25

1	GWEC. Global Wind Report 2022[EB/OL]. [2023-12-25]. .
2	徐樾, 贾立, 付轩熠. 基于Wiener模型的风力发电系统变桨距控制[J]. 系统仿真学报, 2022, 34(8): 1741-1749.
	Xu Yue, Jia Li, Fu Xuanyi. Variable Pitch Control of Wind Power Generation System Based on Wiener Model[J]. Journal of System Simulation, 2022, 34(8): 1741-1749.
3	Jiao Xuguo, Yang Qinmin, Xu Bin. Hybrid Intelligent Feedforward-feedback Pitch Control for VSWT with Predicted Wind Speed[J]. IEEE Transactions on Energy Conversion, 2021, 36(4): 2770-2781.
4	刘其辉, 田若菡, 贾瑞媛, 等. 基于模糊控制的双馈风电机组次同步振荡自适应抑制策略[J]. 太阳能学报, 2023, 44(7): 392-401.
	Liu Qihui, Tian Ruohan, Jia Ruiyuan, et al. Adaptive Subsynchronous Oscillation Suppression Strategy of Double-fed Wind Power Generator Based on Fuzzy Control[J]. Acta Energiae Solaris Sinica, 2023, 44(7): 392-401.
5	吴熙, 王梦婷, 施星宇, 等. 基于无模型自适应控制的双馈风机次同步振荡附加阻尼控制方法[J]. 中国电机工程学报, 2022, 42(10): 3601-3613.
	Wu Xi, Wang Mengting, Shi Xingyu, et al. SSO Supplementary Damping Control Method for DFIG Based on Model-free Adaptive Control[J]. Proceedings of the CSEE, 2022, 42(10): 3601-3613.
6	李大中, 邬峰. 一种风电机组非奇异快速终端滑模MPPT控制方法[J]. 系统仿真学报, 2018, 30(3): 1109-1117.
	Li Dazhong, Wu Feng. A MPPT Control Method of Wind Turbines with Nonsingular and Fast Terminal Sliding Mode[J]. Journal of System Simulation, 2018, 30(3): 1109-1117.
7	Huang Congzhi, Zhuang Jini. Error-based Active Disturbance Rejection Control for Pitch Control of Wind Turbine by Improved Coyote Optimization Algorithm[J]. IEEE Transactions on Energy Conversion, 2022, 37(2): 1394-1405.
8	Ravasco Francisco, Rui Melicio, Batista Nelson, et al. A Wind Turbine and Its Robust Control Using the CRONE Method[J]. Renewable Energy, 2020, 160: 483-497.
9	田德, 周臣凯, 唐世泽, 等. 基于自适应模型预测控制的大型风电机组MPPT方法[J]. 太阳能学报, 2023, 44(6): 501-508.
	Tian De, Zhou Chenkai, Tang Shize, et al. MPPT Method for Large Wind Turbines Based on Adaptive Model Predictive Control[J]. Acta Energiae Solaris Sinica, 2023, 44(6): 501-508.
10	Petrović Vlaho, Jelavić Mate, Baotić Mato. MPC Framework for Constrained Wind Turbine Individual Pitch Control[J]. Wind Energy, 2021, 24(1): 54-68.
11	孔小兵, 刘向杰. 双馈风力发电机非线性模型预测控制[J]. 自动化学报, 2013, 39(5): 636-643.
	Kong Xiaobing, Liu Xiangjie. Nonlinear Model Predictive Control for DFIG-based Wind Power Generation[J]. Acta Automatica Sinica, 2013, 39(5): 636-643.
12	Lio W H, Rossiter J A, Jones B L. A Review on Applications of Model Predictive Control to Wind Turbines[C]//2014 UKACC International Conference on Control (CONTROL). Piscataway: IEEE, 2014: 673-678.
13	Bottasso C L, Croce A, Savini B. Performance Comparison of Control Schemes for Variable-speed Wind Turbines[J]. Journal of Physics: Conference Series, 2007, 75(1): 012079.
14	Gros Sébastien. An Economic NMPC Formulation for Wind Turbine Control[C]//52nd IEEE Conference on Decision and Control. Piscataway: IEEE, 2013: 1001-1006.
15	Faulwasser T, Grüne L, Müller M A. Economic Nonlinear Model Predictive Control[J]. Foundations and Trends® in Systems and Control, 2018, 5(1): 1-98.
16	崔靖涵, 刘向杰. 变速风力发电机组的经济模型预测控制[J]. 控制工程, 2019, 26(3): 431-439.
	Cui Jinghan, Liu Xiangjie. Economic Model Predictive Control of Variable-speed Wind Energy Conversation Systems[J]. Control Engineering of China, 2019, 26(3): 431-439.
17	Kong Xiaobing, Ma Lele, Liu Xiangjie, et al. Wind Turbine Control Using Nonlinear Economic Model Predictive Control over All Operating Regions[J]. Energies, 2020, 13(1): 184.
18	王志飞, 曾静. 滚动时域估计在连续搅拌釜式反应器中的应用研究[J]. 计算机应用与软件, 2021, 38(9): 67-71, 85.
	Wang Zhifei, Zeng Jing. Application of Moving Horizon Estimation in Continuous Stirred Tank Reactors[J]. Computer Applications and Software, 2021, 38(9): 67-71, 85.
19	Venturino Antonello, Cristina Stoica Maniu, Bertrand Sylvain, et al. Multi-vehicle Localization by Distributed MHE Over a Sensor Network with Sporadic Measurements: Further Developments and Experimental Results[J]. Control Engineering Practice, 2023, 132: 105410.
20	韩兵, 周腊吾, 陈浩, 等. 大型风电机组激光雷达辅助模型预测控制方法[J]. 中国电机工程学报, 2016, 36(18): 5062-5069.
	Han Bing, Zhou Lawu, Chen Hao, et al. Approach to Model Predictive Control of Large Wind Turbine Using Light Detection and Ranging Measurements[J]. Proceedings of the CSEE, 2016, 36(18): 5062-5069.
21	Faulwasser Timm, Korda Milan, Jones Colin N, et al. Turnpike and Dissipativity Properties in Dynamic Real-time Optimization and Economic MPC[C]//53rd IEEE Conference on Decision and Control. Piscataway: IEEE, 2014: 2734-2739.
22	Gros Sebastien, Schild Axel. Real-time Economic Nonlinear Model Predictive Control for Wind Turbine Control[J]. International Journal of Control, 2017, 90(12): 2799-2812.
23	Diedam H, Sager S. Global Optimal Control with the Direct Multiple Shooting Method[J]. Optimal Control Applications and Methods, 2018, 39(2): 449-470.
24	Frison Gianluca, Diehl Moritz. HPIPM: A High-performance Quadratic Programming Framework for Model Predictive Control[J]. IFAC-PapersOnLine, 2020, 53(2): 6563-6569.
25	Vukov M, Gros S, Horn G, et al. Real-time Nonlinear MPC and MHE for a Large-scale Mechatronic Application[J]. Control Engineering Practice, 2015, 45: 64-78.

算法	w_r	w_g
NMPC	0.013 3	1.521 2
NEMPC	0.012 9	1.291 3

求解器/OCP	平均每次迭代求解时间/ms	系统采样时间/ms
HPIPM/NEMPC	142.4	200
IPOPT/NEMPC	234.6	200
HPIPM/MHE	101.2	200
IPOPT/MHE	196.5	200
