面向空间机器人辅助操作的任务规划方法研究

doi:10.16182/j.issn1004731x.joss.23-1185

摘要/Abstract

摘要：

针对空间机器人辅助操作时任务流程复杂、任务约束众多，导致任务规划困难的情况，提出了一种快速前向搜索算法和分层网络算法相结合的任务规划方法。将空间辅助操作任务规划过程分为任务规划和重规划。基于操作代价的快速前向搜索任务规划方法，得到操作代价最小的动作执行序列；基于分层网络的任务自适应重规划方法，根据问题排列移动、抓取、释放的修正补偿优先级对问题修正补偿。针对空间机器人在轨辅助加注任务进行了对比仿真，得到了操作代价最小的动作序列，并采用重规划算法解决了任务执行过程中环境信息变化导致的错误，验证了算法的有效性，为空间辅助操作提供了一种有效的任务规划方法。

关键词: 空间机器人, 任务规划, 重规划, 快速前向搜索, 分层任务网络

Abstract:

In view of the difficulties caused by the complicated task process and numerous task constraints during the space robot assisted operation,a task planning method combining fast forward search algorithm and hierarchical network algorithm is proposed, in which the task planning process is divided into task planning and replanning. Based on the fast forward search task planning method of operation cost, the execution sequence of actions with minimum operation cost is obtained. The task adaptive replanning method based on hierarchical network corrects and compensates the problems according to the priority of compensation for the movement, grab and release actions. A comparative simulation is carried out for the space robot's on-orbit auxiliary filling task, and the action sequence with the lowest operational cost is obtained. The error caused by the change of environmental information during the task execution is solved by using the replanning algorithm, which verifies the effectiveness of the algorithm and provides an effective task planning algorithm for the space auxiliary operation.

Key words: space robot, task plan, replan, fast forward search, hierarchical task network

中图分类号:

TP242

房国强,常海涛,刘星等 . 面向空间机器人辅助操作的任务规划方法研究[J]. 系统仿真学报, 2025, 37(2): 325-334.

Fang Guoqiang,Chang Haitao,Liu Xing,et al . Research on Task Planning Methods for Space Robot Assisted Operation[J]. Journal of System Simulation, 2025, 37(2): 325-334.

图/表 11

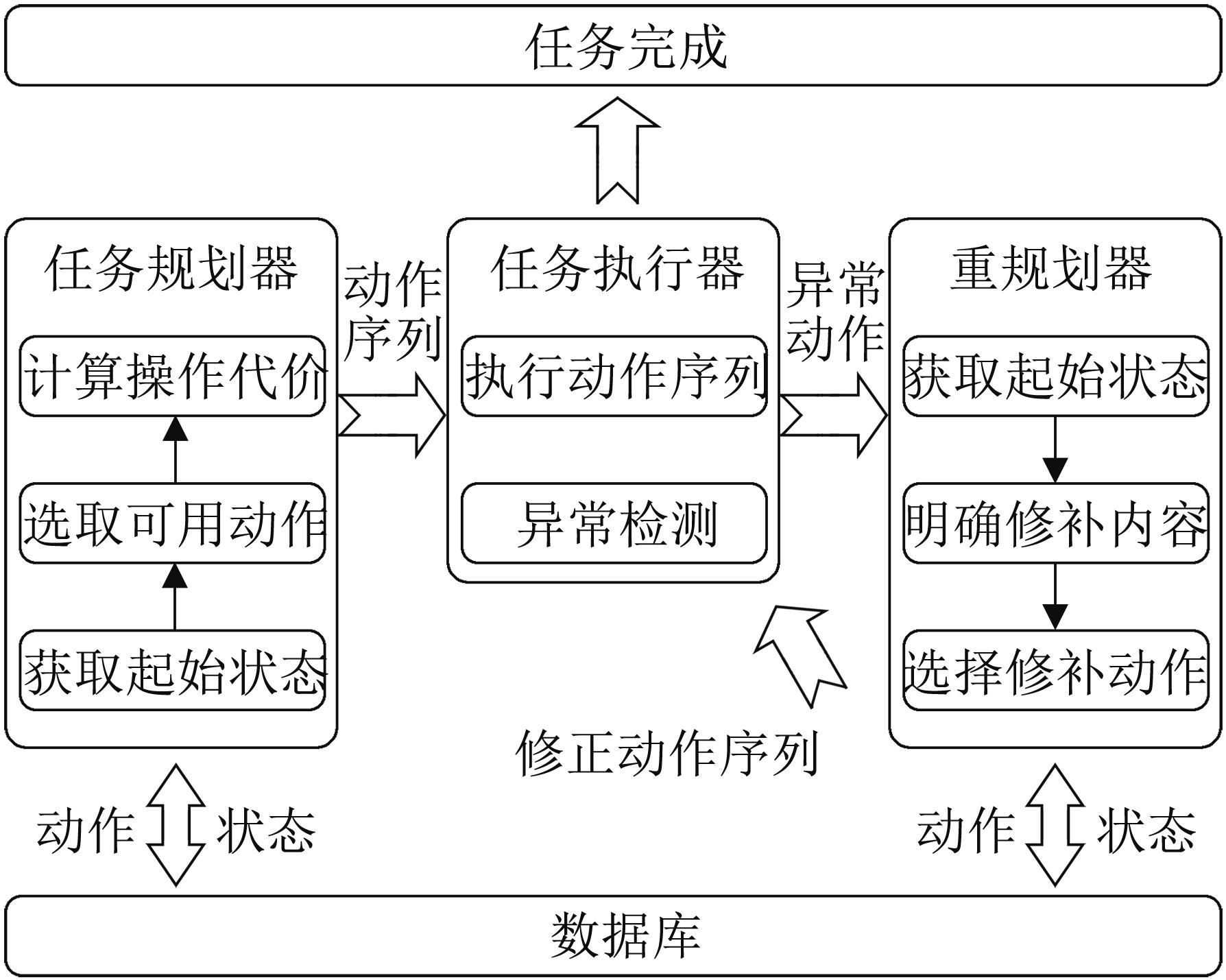

图1

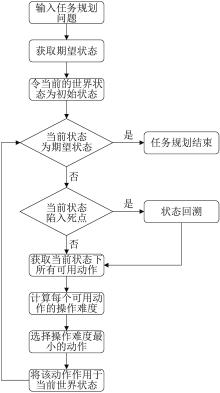

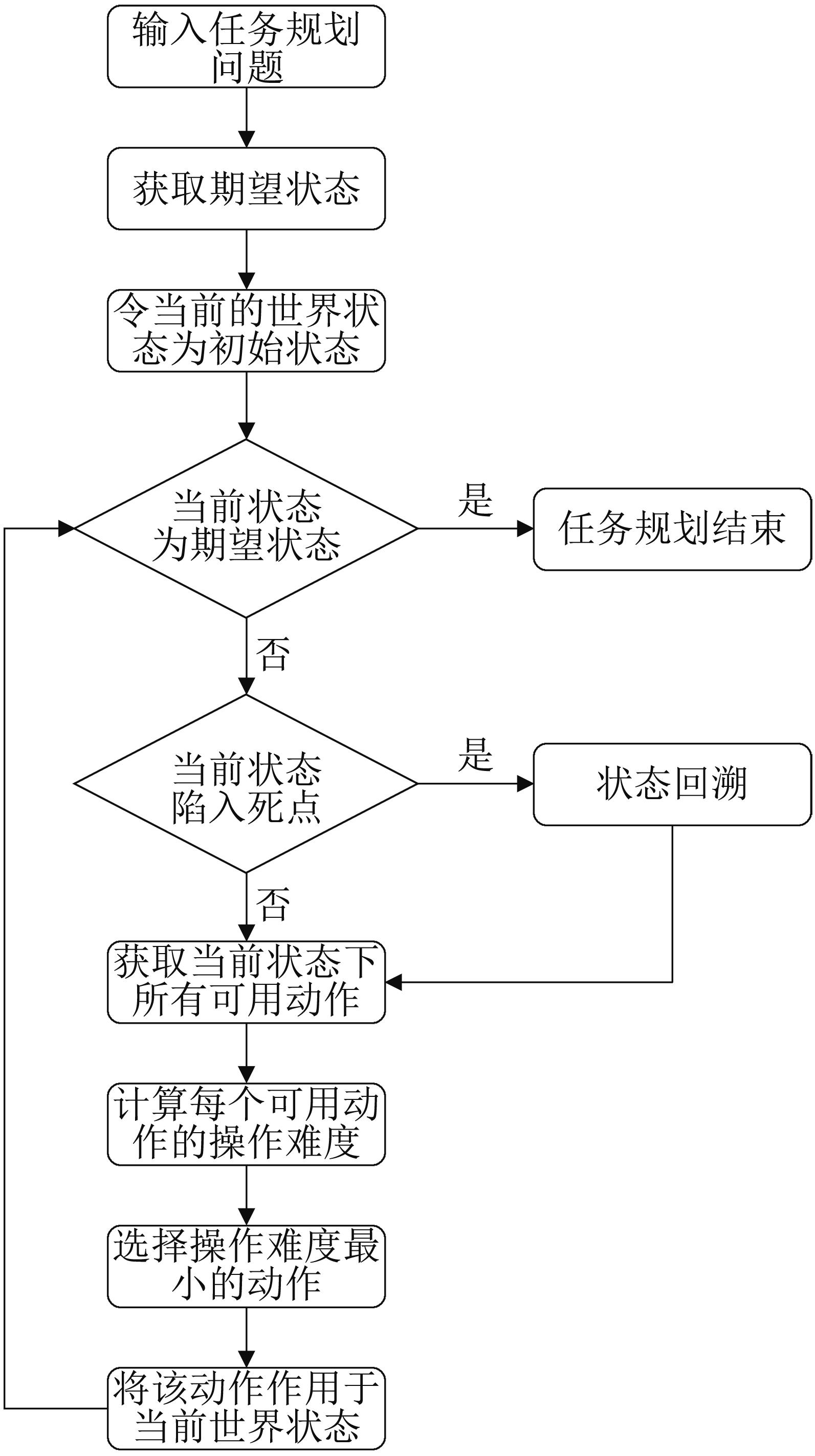

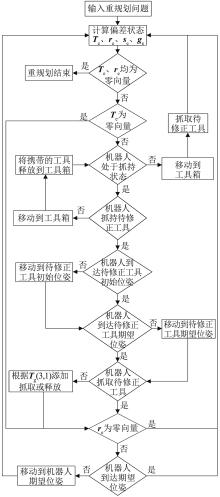

图2

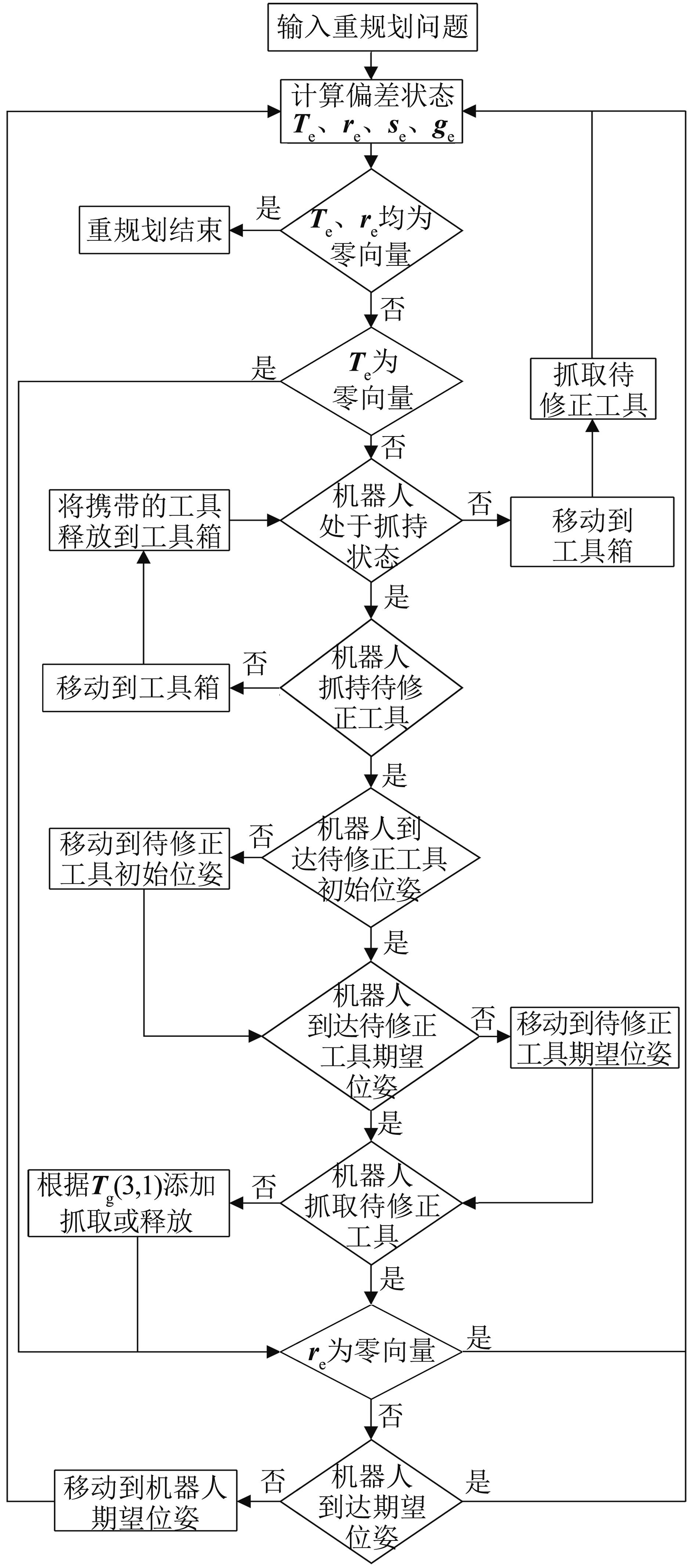

图3

表1

任务点的位姿信息

名称	位置/m	姿态/(°)
工具箱	$- 7.3, 0.5, 0.5$	$- 30, 86, 30$
起始位置	$4.1, 4.1, 1.2$	$- 30, 90, 30$
开盖位置	$2.4, 3.9, 1.5$	$0, 90, 90$
旋拧位置1	$1.9, 3.6, 1.2$	$0, 90, 90$
旋拧位置2	$5.5, 2.8, 1.2$	$0, 90, 90$
插入位置	$2.7, 6.6, 1.1$	$46.7, 62.6, 46.7$
加注位置	$1.6, 6.9, 0.4$	$58.2, 62.6, 35.1$

表1

表2

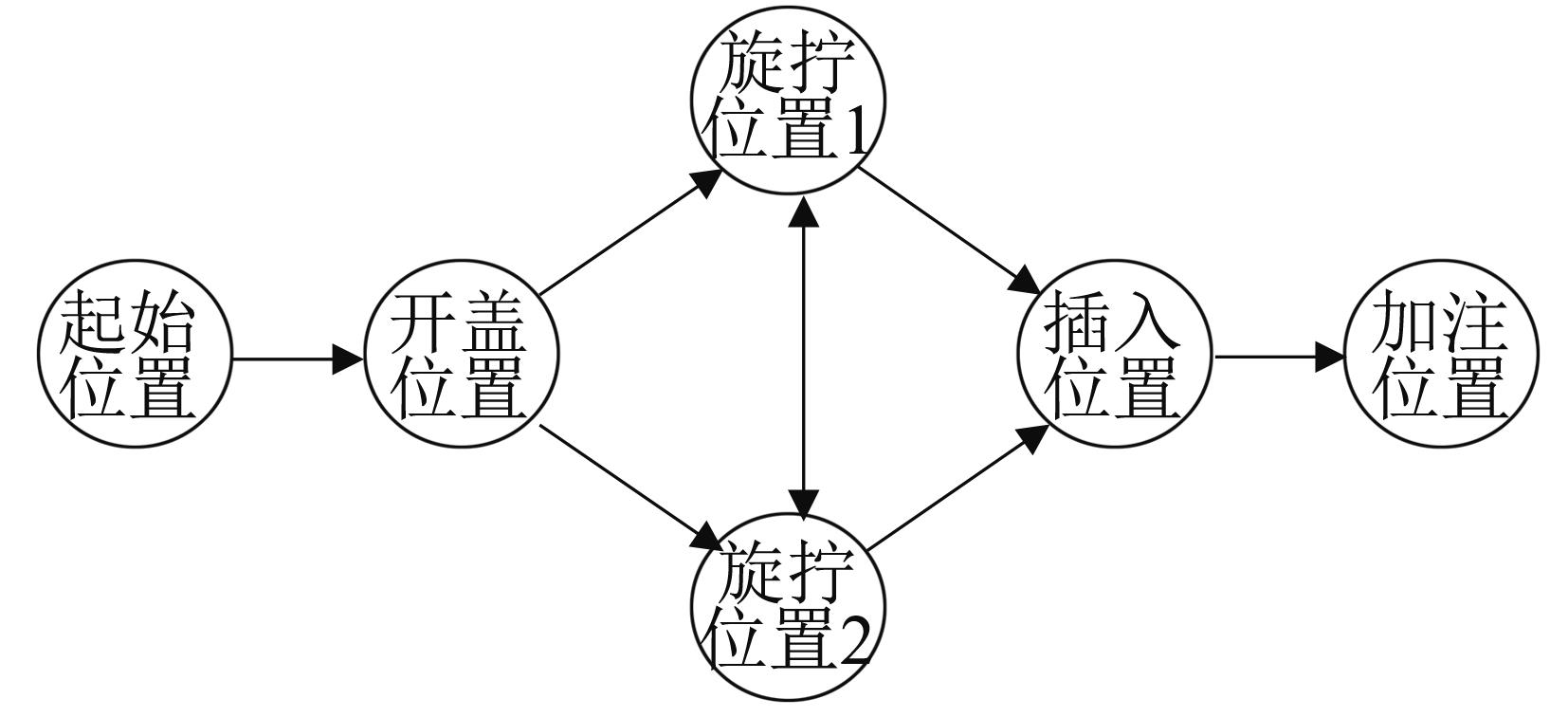

图4

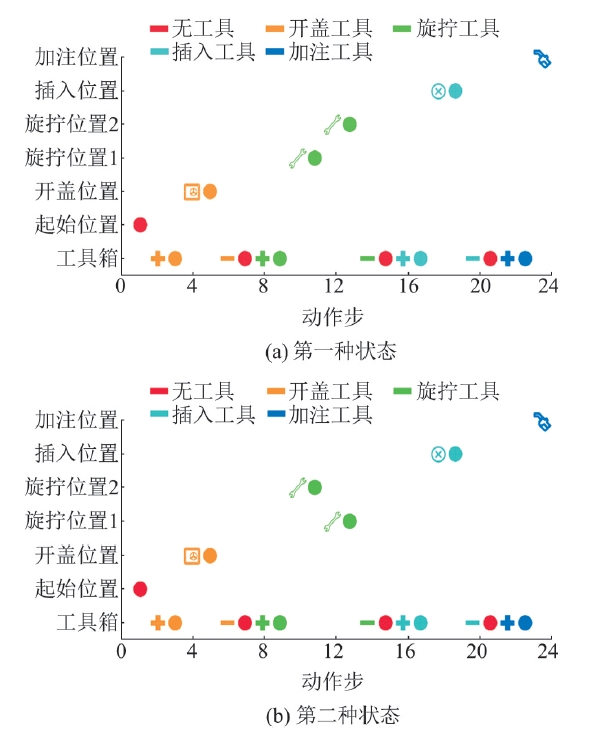

图5

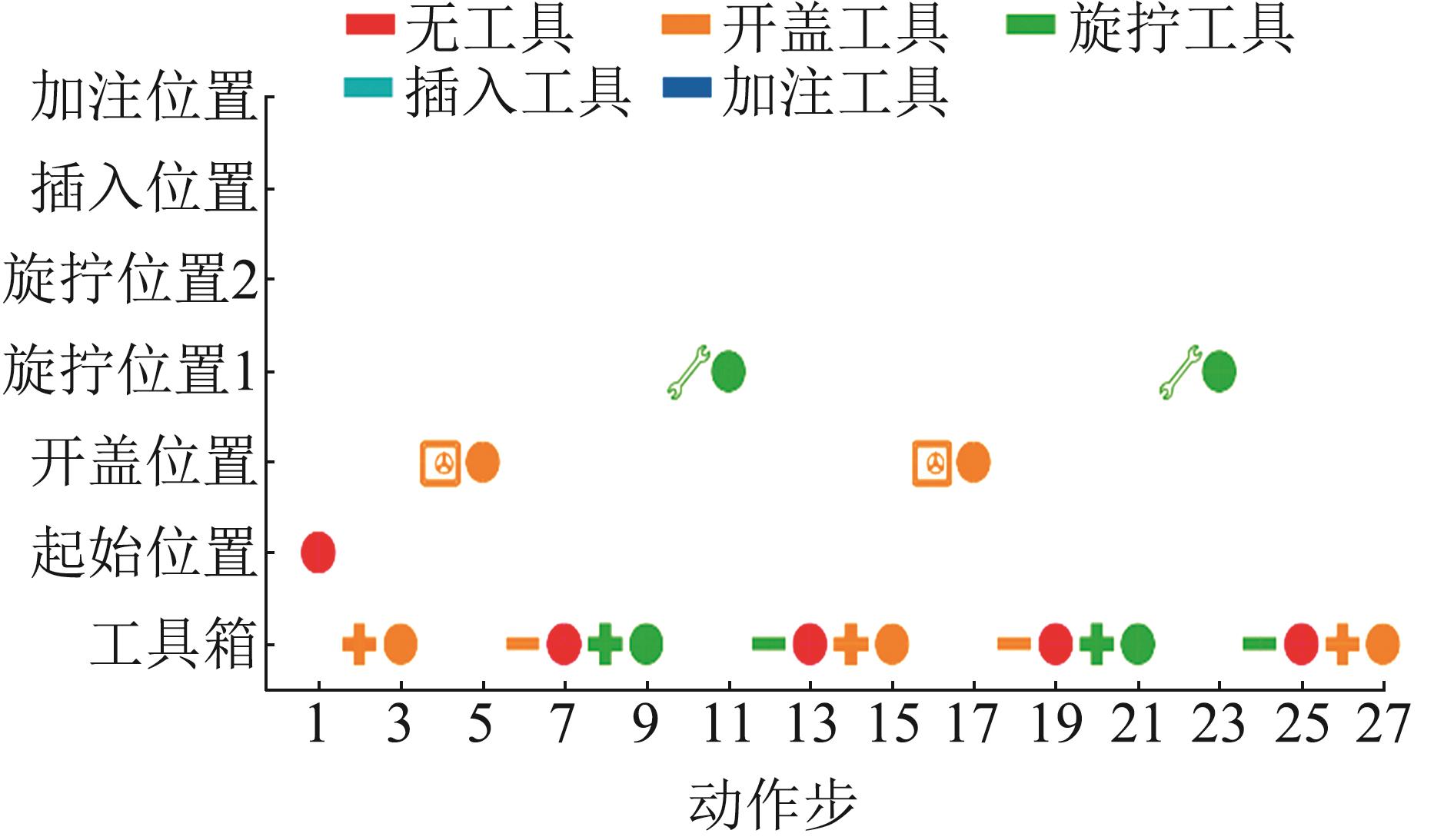

图6

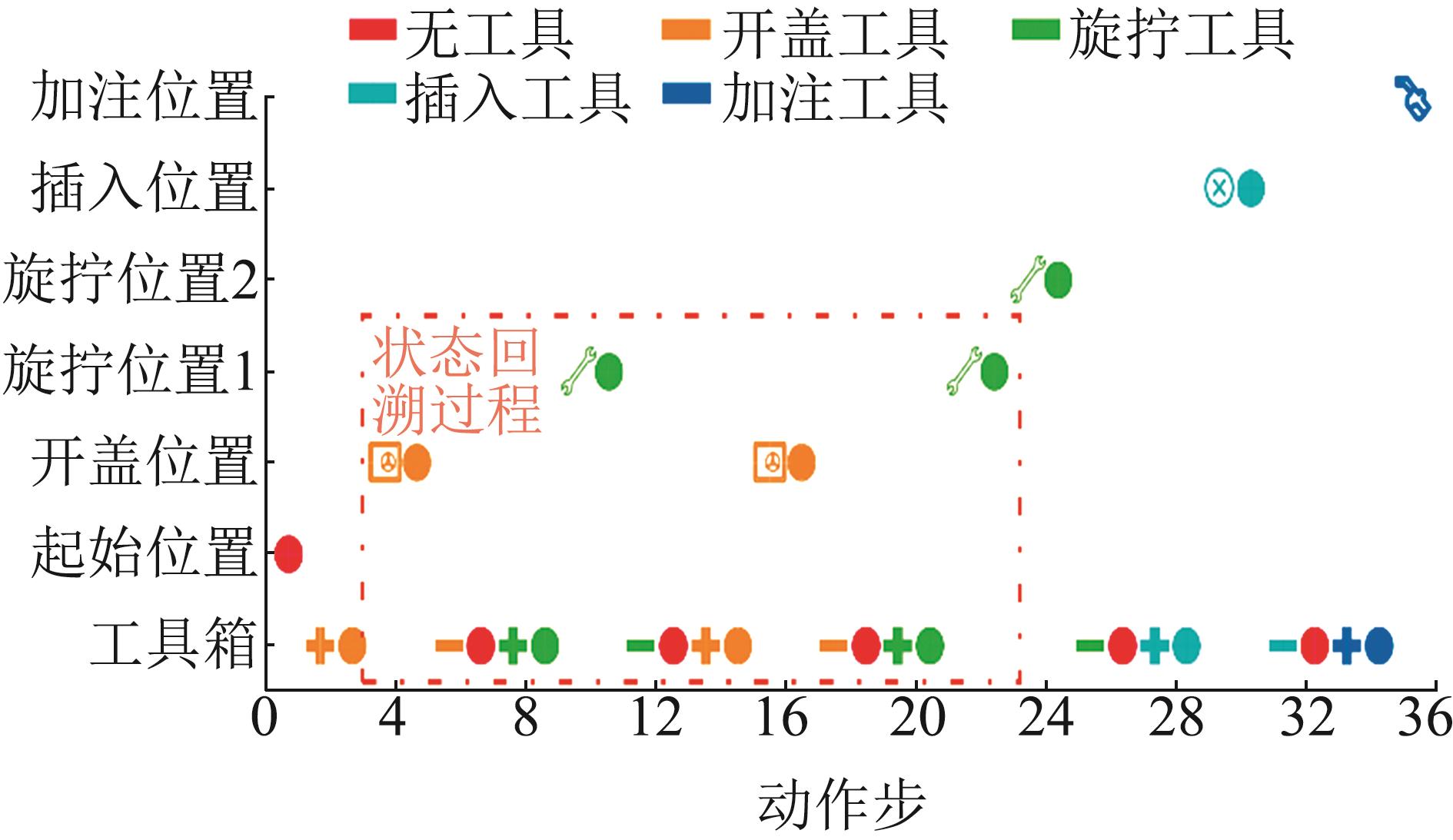

图7

表3

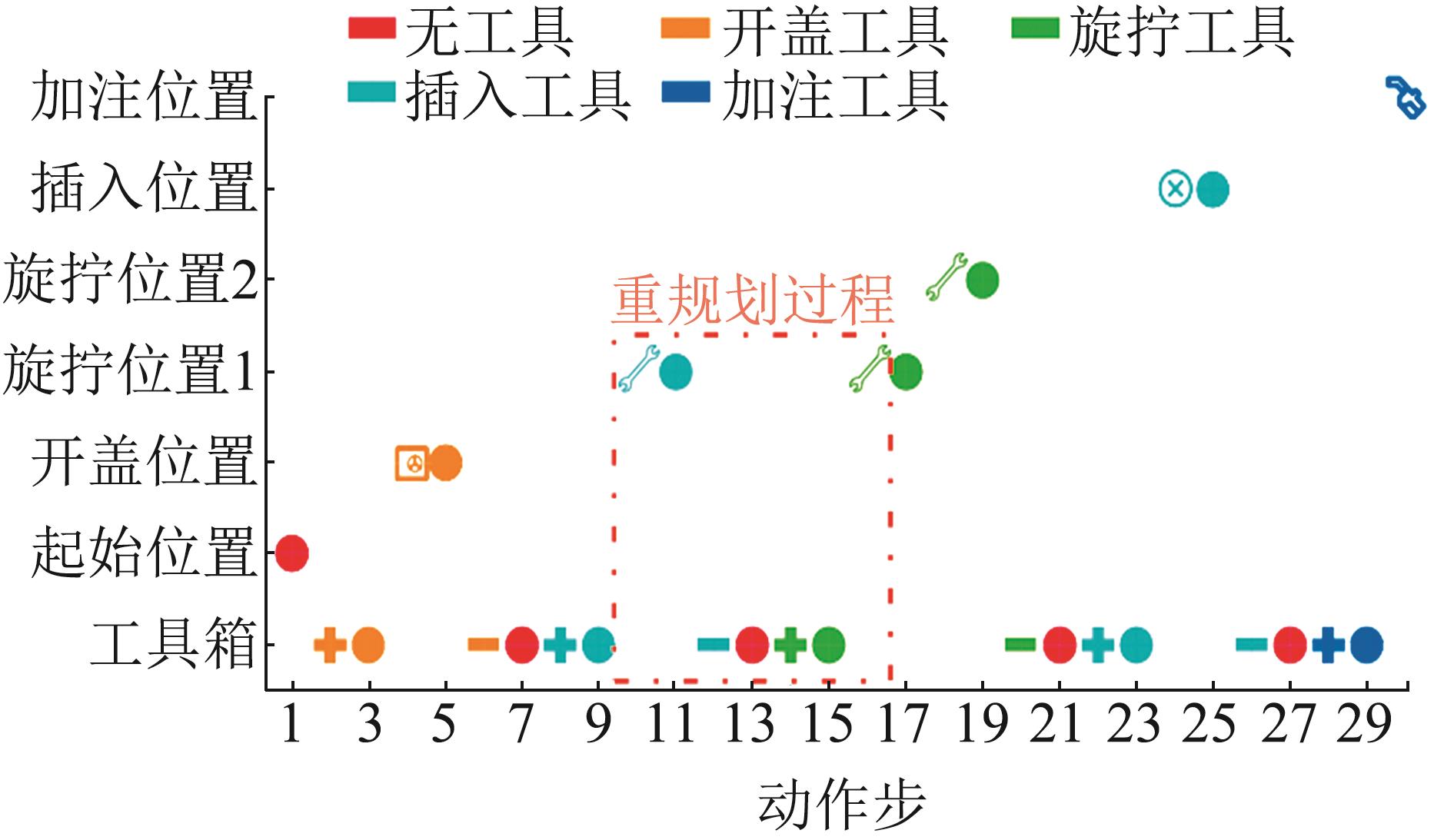

图8

参考文献 20

1	高振良, 孙小凡, 刘育强, 等. 航天器在轨延寿服务发展现状与展望[J]. 航天器工程, 2022, 31(4): 98-107.
	Gao Zhenliang, Sun Xiaofan, Liu Yuqiang, et al. Development and Prospect of Spacecraft On-orbit Life Extension Servicing[J]. Spacecraft Engineering, 2022, 31(4): 98-107.
2	陈钢, 高贤渊, 赵治恺, 等. 空间机械臂智能规划与控制技术[J]. 南京航空航天大学学报, 2022, 54(1): 1-16.
	Chen Gang, Gao Xianyuan, Zhao Zhikai, et al. Review on Intelligent Planning and Control Technology of Space Manipulator[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2022, 54(1): 1-16.
3	Fikes R E, Nilsson N J. Strips: A New Approach to the Application of Theorem Proving to Problem Solving[J]. Artificial Intelligence, 1971, 2(3/4): 189-208.
4	Helmert Malte. Concise Finite-domain Representations for PDDL Planning Tasks[J]. Artificial Intelligence, 2009, 173(5/6): 503-535.
5	Blum A L, Furst M L. Fast Planning Through Planning Graph Analysis[J]. Artificial Intelligence, 1997, 90(1/2): 281-300.
6	贾庆轩, 黄旭东, 陈钢, 等. 基于改进图规划的机械臂任务规划方法[J]. 北京邮电大学学报, 2018, 41(3): 27-31.
	Jia Qingxuan, Huang Xudong, Chen Gang, et al. Manipulator Task Planning Method Based on Improved Graph Planning[J]. Journal of Beijing University of Posts and Telecommunications, 2018, 41(3): 27-31.
7	Hoffmann Jörg, Nebel Bernhard. The FF Planning System: Fast Plan Generation Through Heuristic Search[J]. Journal of Artificial Intelligence Research, 2001, 14(1): 253-302.
8	梁瑞仕, 姜云飞, 杨会志. 基于有序爬山法的前向启发式搜索规划[J]. 电子科技大学学报, 2013, 42(3): 464-468.
	Liang Ruishi, Jiang Yunfei, Yang Huizhi. Forward Heuristic Search Planning Based on Ordered Hill Climbing Algorithm[J]. Journal of University of Electronic Science and Technology of China, 2013, 42(3): 464-468.
9	Erol K, Hendler J, Nau D S. HTN Planning: Complexity and Expressivity[C]// Proceedings of the Twelfth AAAI National Conference on Artificial Intelligence. Palo Alto: AAAI Press, 1994: 1123-1128.
10	Erol K, Hendler J, Nau D S. Semantics for Hierarchical Task-network Planning[J].University of Maryland at College Park, 1994.
11	Erol K, Hendler J, Nau D S. UMCP: A Sound and Complete Procedure for Hierarchical Task-network Planning[C]//Proceedings of the Second International Conference on Artificial Intelligence Planning Systems. Palo Alto: AAAI Press, 1994: 249-254.
12	Stock Sebastian, Mansouri Masoumeh, Pecora Federico, et al. Hierarchical Hybrid Planning in a Mobile Service Robot[C]//KI 2015: Advances in Artificial Intelligence. Cham: Springer International Publishing, 2015: 309-315.
13	Lozano-Pérez Tomás, Kaelbling L P. A Constraint-based Method for Solving Sequential Manipulation Planning Problems[C]//Proceedings of 2014 IEEE/RSJ International Conference on Intelligent Robots and Systems. Piscataway: IEEE, 2014: 3684-3691.
14	路飞, 田国会, 李擎. 智能空间环境下基于本体的机器人服务自主认知及规划[J]. 机器人, 2017, 39(4): 423-430.
	Lu Fei, Tian Guohui, Li Qing. Autonomous Cognition and Planning of Robot Service Based on Ontology in Intelligent Space Environment[J]. Robot, 2017, 39(4): 423-430.
15	张汝波, 童海波, 史长亭, 等. 不确定海洋环境下AUV分层任务规划与重规划研究[J]. 南京大学学报(自然科学), 2015, 51(1): 148-156.
	Zhang Rubo, Tong Haibo, Shi Changting, et al. Research on Autonomous Underwater Vehicle Hierarchical Mission Planning and Re-planning in Uncertain Environment[J]. Journal of Nanjing University(Natural Science), 2015, 51(1): 148-156.
16	宋沐民, 路飞, 陆娜, 等. 智能空间下基于分层任务网络的服务机器人任务规划[J]. 控制理论与应用, 2014, 31(7): 901-907.
	Song Mumin, Lu Fei, Lu Na, et al. Task Planning for Service Robot with Hierarchical Task Network in Intelligent Space[J]. Control Theory & Applications, 2014, 31(7): 901-907.
17	阎慧, 吴止锾, 高永明, 等. 面向空间机器人在轨操控的任务规划模型研究[J]. 现代电子技术, 2017, 40(4): 4-8.
	Yan Hui, Wu Zhihuan, Gao Yongming, et al. Research on Mission Planning Model for on-orbit Control of Space Robot[J]. Modern Electronics Technique, 2017, 40(4): 4-8.
18	Wang Yifan, Sun Hanxu, Chen Gang, et al. Hierarchical Task Planning for Multiarm Robot with Multiconstraint[J]. Mathematical Problems in Engineering, 2016, 2016(1): 2508304.
19	刘茜, 高宇辉, 刘传凯, 等. 月面采样机械臂动态任务规划方法研究[J]. 中国科学(技术科学), 2021, 51(12): 1492-1506.
	Liu Qian, Gao Yuhui, Liu Chuankai, et al. Dynamic Mission Planning Method for the Lunar Sampling Robotic Arm[J]. Scientia Sinica(Technologica), 2021, 51(12): 1492-1506.
20	黄旭东. 多约束条件下空间机械臂多目标任务规划方法研究[D]. 北京: 北京邮电大学, 2018.
	Huang Xudong. Study of Multi-objective Task Planning of Space Manipulator Under Multi-constraint[D]. Beijing: Beijing University of Posts and Telecommunications, 2018.

动作编号	任务	动作	工具
任务1	移动空间机器人	移动	无
任务2	抓取物体	抓取	无
任务3	释放物体	释放	无
任务4	旋拧螺栓	旋拧	旋拧工具
任务5	打开盖子	开盖	开盖工具
任务6	插入输油孔	插入	插入工具
任务7	燃料加注补充	加注	加注工具

算法	时间/min
图规划算法	16.068
快速前向搜索算法	4.051
