面向飞机装配批架次完工时间的仿真预测方法

doi:10.16182/j.issn1004731x.joss.23-0337

摘要/Abstract

摘要：

针对传统离散事件仿真方法缺乏对产品间差异化分析的局限性，提出一种面向飞机装配批架次作业过程的仿真预测方法。围绕飞机架次标签，研究对批架次装配作业过程中各类基本要素与交互关系的形式化定义，由此完成站位、整线仿真模型的构建；研究支持产品差异化分析的仿真推进框架与执行机制；以仿真结果数据为基础，提出基于区间估计法的架次完工时间预测方法。实验结果表明：该方法能准确地输出各架次预计完工时间的置信区间，为现场提供可靠的评估依据。

关键词: 飞机装配, 批架次, 离散事件仿真, 仿真过程控制, 预计完工时间

Abstract:

Aiming at the product differentiation analysis limitation of traditional discrete event simulation method, a simulation prediction method for aircraft assembly process with batch and sortie is proposed. Around the aircraft sortie number, the formal definition of various basic elements and interactions in the assembly process with batch and sortie is studied, and the construction of station and whole line simulation model is carried out. The simulation promotion framework and execution mechanism supporting the product differentiation analysis are studied. Based on the simulation results, a method for predicting the completion time of sorties based on interval estimation method is proposed. The test results of the historical sorties data show that the proposed simulation prediction method can accurately output the confidence interval of the estimated completion time of each sortie, and can provide the reliable evaluation for the site.

Key words: aircraft assembly, batch and sortie, discrete event simulation, simulation process control, estimated completion time

中图分类号:

TP391.9

蒋昌健,樊虎,罗陶等 . 面向飞机装配批架次完工时间的仿真预测方法[J]. 系统仿真学报, 2024, 36(6): 1404-1413.

Jiang Changjian,Fan Hu,Luo Tao,et al . Completion Time Simulation Prediction Method for Aircraft Assembly Process with Batch and Sortie[J]. Journal of System Simulation, 2024, 36(6): 1404-1413.

图/表 10

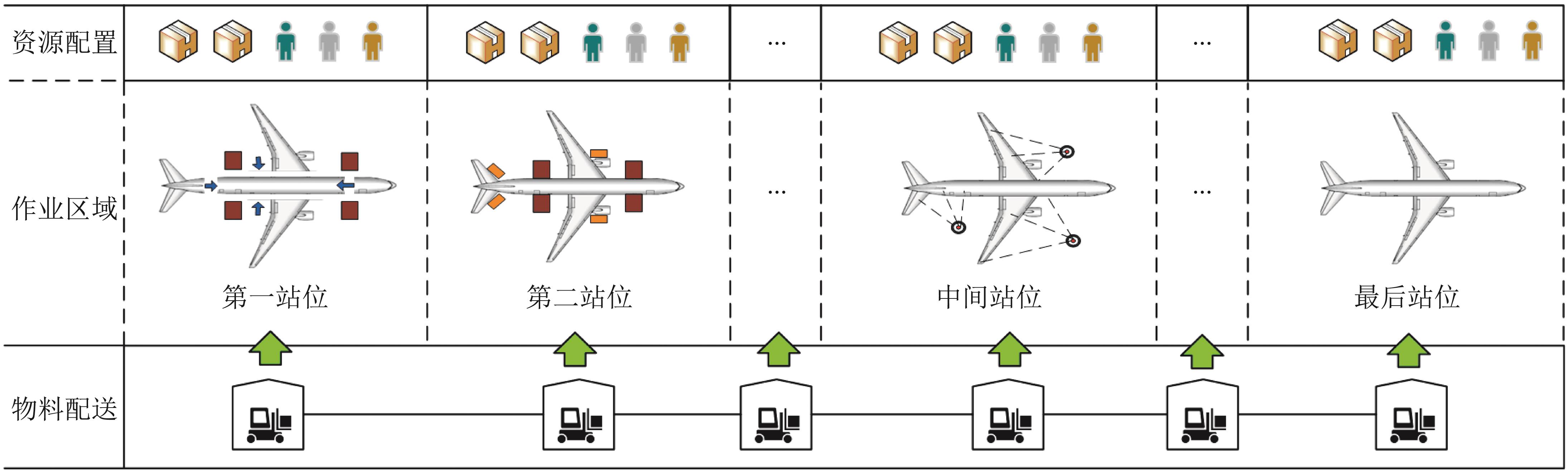

图1

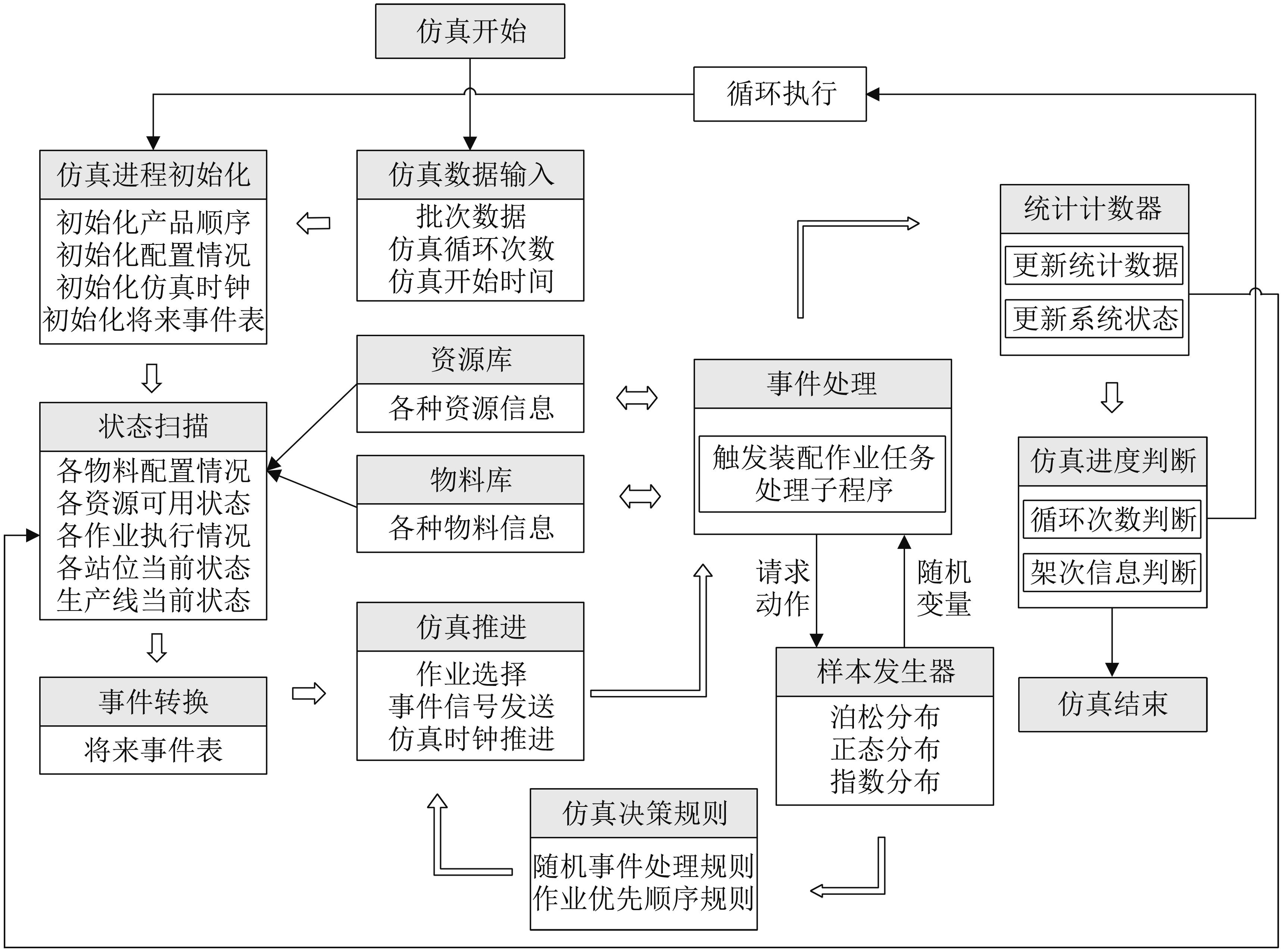

图2

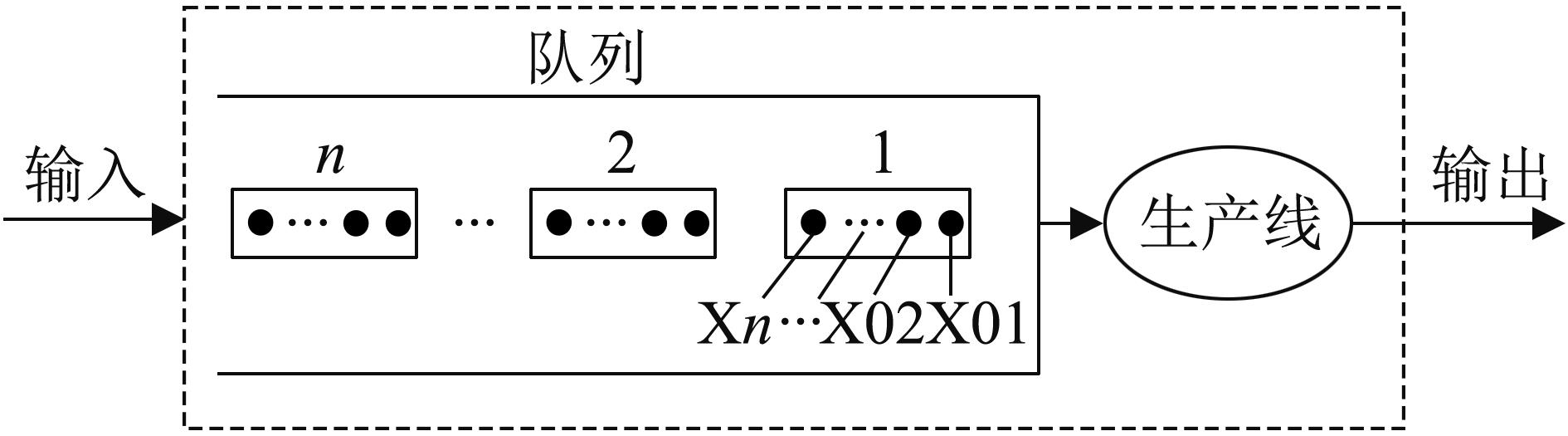

图3

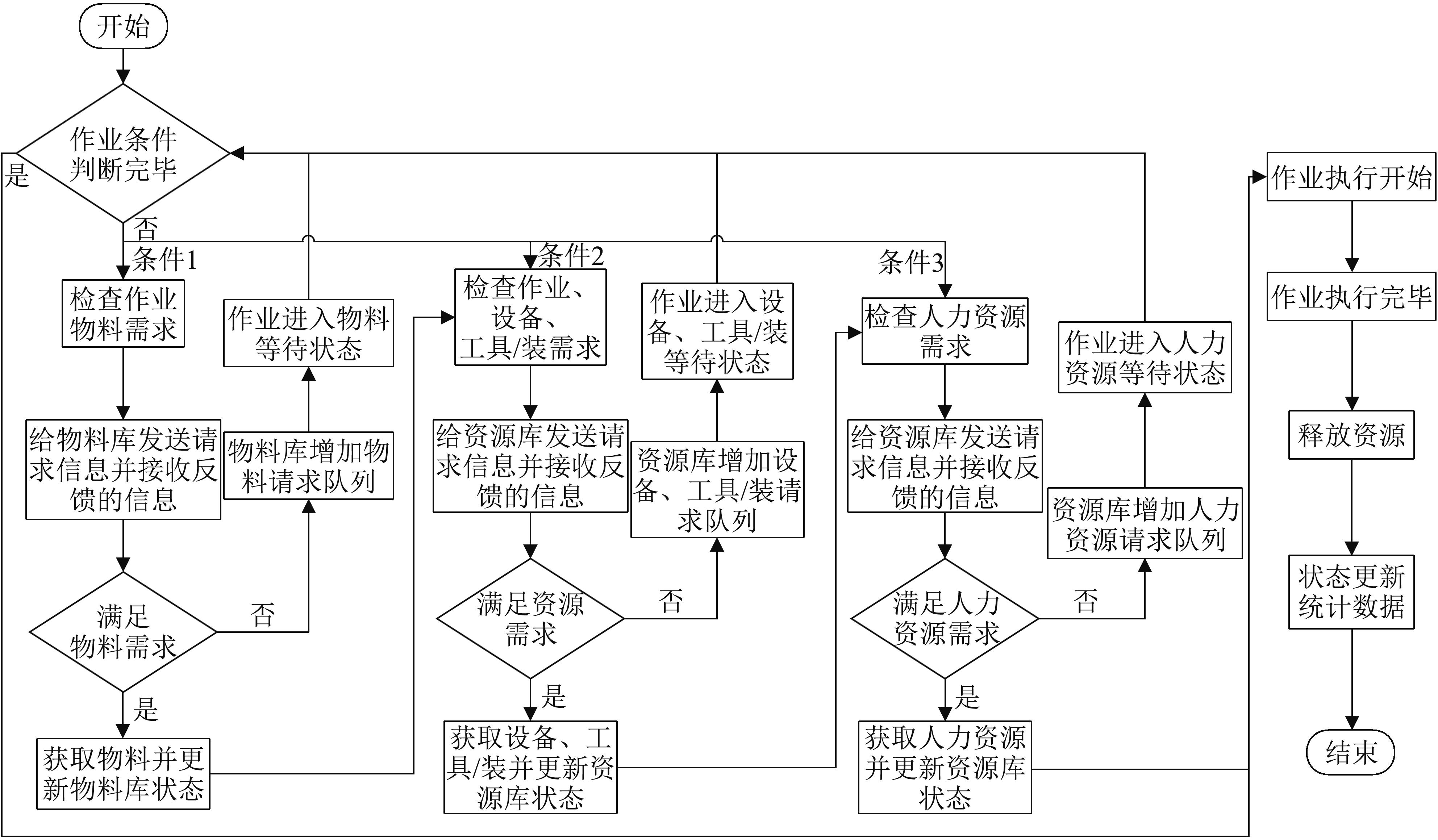

图4

表1

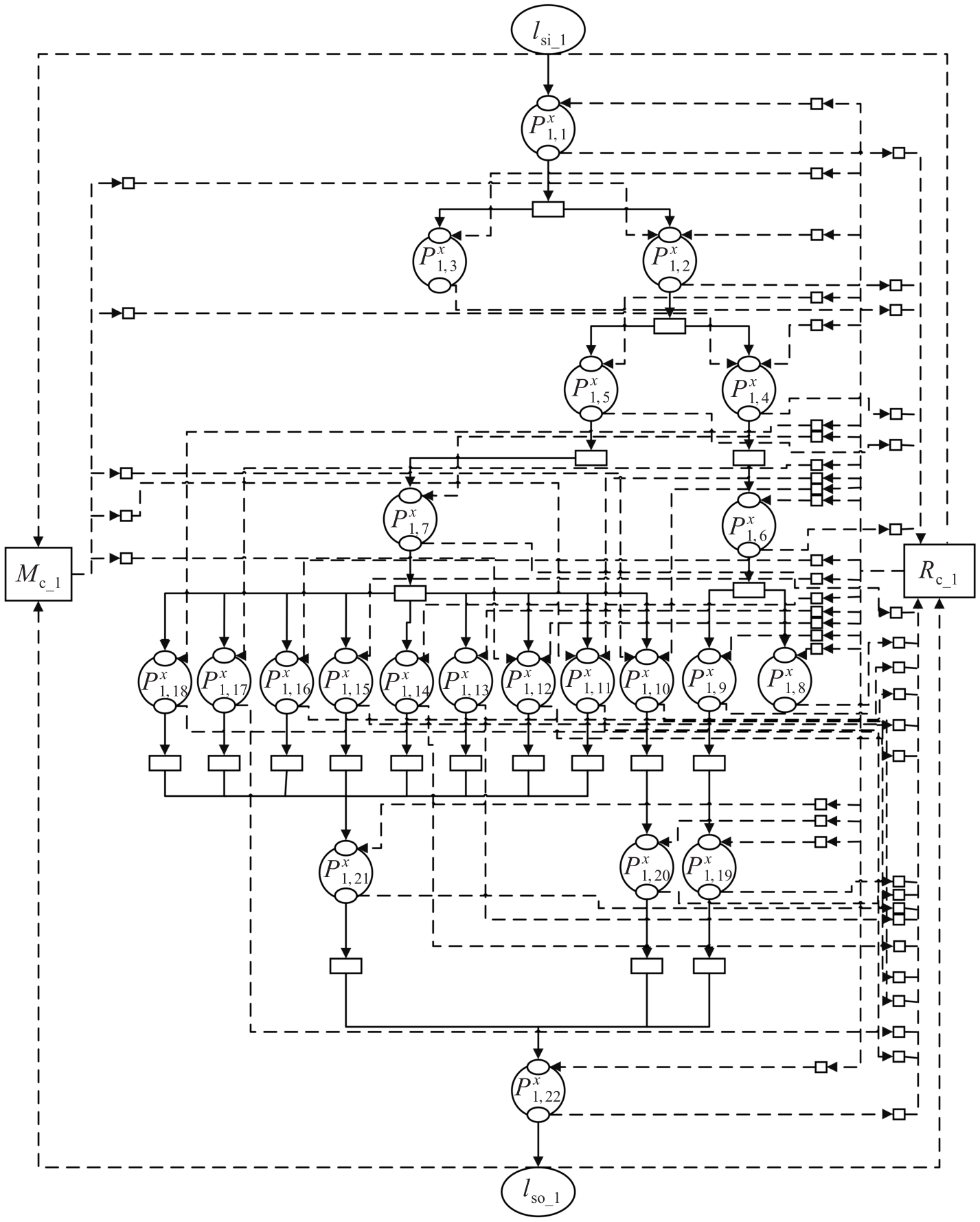

图5

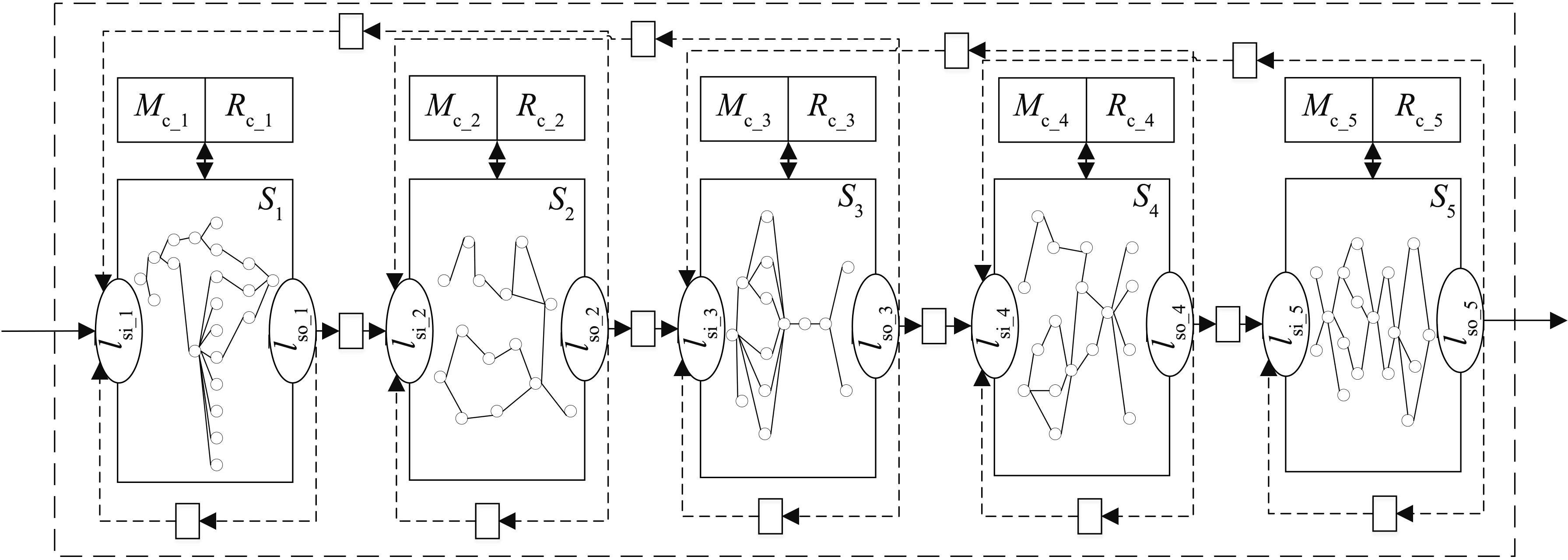

图6

表2

表3

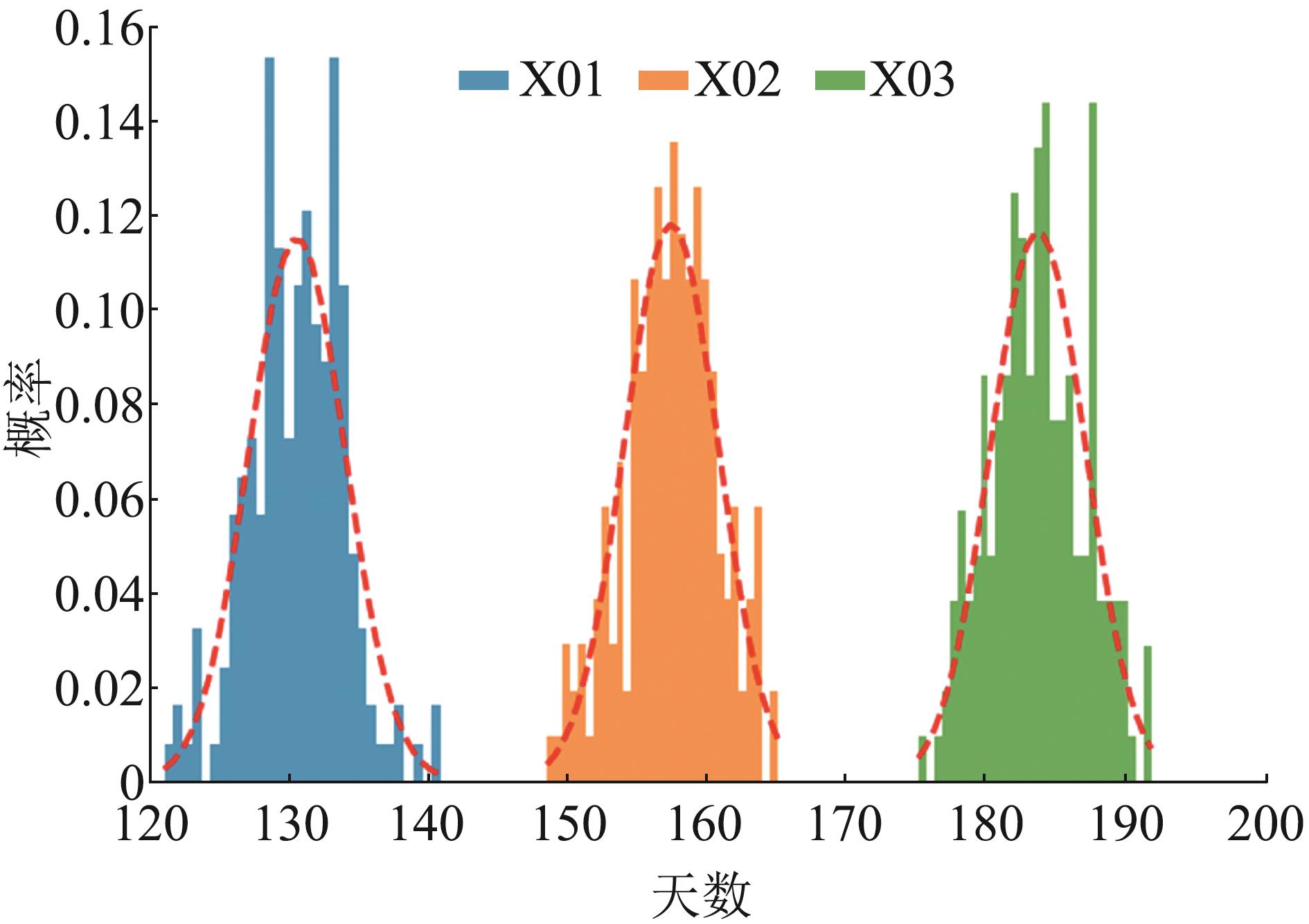

图7

参考文献 19

1	Ren Yifei, Lu Zhiqiang. A Flexible Resource Investment Problem Based on Project Splitting for Aircraft Moving Assembly Line[J]. Assembly Automation, 2019, 39(4): 532-547.
2	方水良, 刘猛男, 鲜果, 等. 飞机移动装配线-脉动与续动[J]. 航空制造技术, 2021, 64(16): 40-50.
	Fang Shuiliang, Liu Mengnan, Xian Guo, et al. Aircraft Moving Assembly Line-pulsation and Continuation[J]. Aeronautical Manufacturing Technology, 2021, 64(16): 40-50.
3	魏方剑. 飞机脉动生产线的建模仿真与优化方法研究[D]. 南京: 南京航空航天大学, 2016.
	Wei Fangjian. Research on Modeling Simulation and Optimization for Aircraft Pulse Production Line[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2016.
4	王伟, 王旭东, 孟飙. 飞机生产中的批架次管理技术[J]. 沈阳航空航天大学学报, 2015, 32(6): 87-92.
	Wang Wei, Wang Xudong, Meng Biao. Shipset Management Technology in Aircraft Production[J]. Journal of Shenyang Aerospace University, 2015, 32(6): 87-92.
5	黄文亮. 试析面向飞机装配的生产管理技术要点[J]. 中国设备工程, 2020(15): 11-12.
6	陈尚宇. 飞机制造企业生产管控中心设计与实现[D]. 成都: 电子科技大学, 2021.
	Chen Shangyu. The Design and Implementation of Production Control Center in Aircraft Manufacturing Enterprises[D]. Chengdu: University of Electronic Science and Technology of China, 2021.
7	He Jianxin, Jiang Dongxiao. Theoretical Research on Pull-production of Final Assembly Pulsating Line Based on General Aircraft[C]//2019 6th Asia-Pacific Conference on Social Sciences, Humanities (APSSH 2019). London: Web of Proceedings, 2018: 571-574.
8	贾玉辉. 生产线可用性的指标体系及其建模[D]. 长春: 吉林大学, 2018.
	Jia Yuhui. Indicator System and Modeling of Availability Evaluation for Production Line[D]. Changchun: Jilin University, 2018.
9	闫飞, 甘斌, 陈招迪, 等. 离散事件仿真中实体被动式空间感知交互机制设计[J]. 系统仿真学报, 2021, 33(9): 2234-2242.
	Yan Fei, Gan Bin, Chen Zhaodi, et al. Mechanism Design for Entities' Passive Dimensional Sensing Interaction in Discrete Event Simulations[J]. Journal of System Simulation, 2021, 33(9): 2234-2242.
10	付建林, 丁国富, 张剑, 等. 基于响应面和NSGA-Ⅱ的AGV系统多目标优化配置[J]. 系统仿真学报, 2022, 34(5): 994-1002.
	Fu Jianlin, Ding Guofu, Zhang Jian, et al. Multi-objective Optimization Configuration of AGV System Based on Response Surface and NSGA-Ⅱ[J]. Journal of System Simulation, 2022, 34(5): 994-1002.
11	屈琦, 贾晓亮, 郑植元, 等. 飞机部件装配生产线仿真研究[J]. 航空制造技术, 2017, 60(4): 54-59.
	Qu Qi, Jia Xiaoliang, Zheng Zhiyuan, et al. Simulation of Aircraft Components Assembly Line[J]. Aeronautical Manufacturing Technology, 2017, 60(4): 54-59.
12	刘闽东, 吴龙军, 汤明超, 等. 项目型制造过程信息流集成建模仿真研究[J]. 系统仿真学报, 2022, 34(3): 555-563.
	Liu Mindong, Wu Longjun, Tang Mingchao, et al. Research on Information Flow Integrated M&S Method for Project Type Manufacturing Process[J]. Journal of System Simulation, 2022, 34(3): 555-563.
13	Carlos Henrique dos Santos, José Arnaldo Barra Montevechi, José Antônio de Queiroz. Decision Support in Productive Processes Through DES and ABS in the Digital Twin Era: A Systematic Literature Review[J]. International Journal of Production Research, 2022, 60(8): 2662-2681.
14	Liu Xia, Ye Wenhua, Wei Bisheng, et al. Research on Multi-level Modeling Method for Aircraft Assembly Line[J]. Advanced Materials Research, 2012, 490-495: 538-542.
15	龚小容, 李孝斌, 尹超. 云制造环境下基于贝叶斯网络的机床装备资源优化决策方法[J]. 中国机械工程, 2018, 29(20): 2438-2445.
	Gong Xiaorong, Li Xiaobin, Yin Chao. Optimization Decision Method of Machine Tool Resources Based on Bayesian Network Under Cloud Manufacturing Environments[J]. China Mechanical Engineering, 2018, 29(20): 2438-2445.
16	Xin Bo, Li Yuan, Yu Jianfeng, et al. An Adaptive BPSO Algorithm for Multi-skilled Workers Assignment Problem in Aircraft Assembly Lines[J]. Assembly Automation, 2015, 35(4): 317-328.
17	Jiang Changjian, Zhang Jie, Long Tengfei, et al. An Optimization Framework for Worker Allocation in Aircraft Final Assembly Lines Based on Simulation Alternative Modelling and Historical Data[J]. Engineering Optimization, 2023, 55(8): 1387-1402.
18	秘慧杰. 可视化离散事件仿真系统设计[D]. 上海: 上海交通大学, 2009.
	Mi Huijie. The Design of a Visual Discrete Event Simulation System[D]. Shanghai: Shanghai Jiao Tong University, 2009.
19	王津剑, 杜吉旺, 范秀敏, 等. 基于仿真的船舶分段建造动态空间调度[J]. 中国机械工程, 2015, 26(14): 1900-1907.
	Wang Jinjian, Du Jiwang, Fan Xiumin, et al. Simulation-based Ship Block Building Dynamic Spatial Scheduling[J]. China Mechanical Engineering, 2015, 26(14): 1900-1907.

序号随机事件	事件发生分布	持续时间分布
工时波动	必然发生	正态分布
设备故障	泊松分布	指数分布
工人请假	泊松分布	指数分布
物料供应频率波动	必然发生	正态分布

架次	均值	方差	天数置信区间	架次	均值	方差	天数置信区间
X01	131.43	23.25	(129.63, 133.23)	X04	209.76	15.78	(208.28, 211.24)
X02	160.84	24.99	(158.98, 162.70)	X05	237.25	16.33	(235.74, 238.76)
X03	184.10	12.57	(182.78, 185.42)	X06	261.93	13.26	(260.57, 263.29)

架次	均值	方差	天数置信区间	转化为日期的置信区间	历史架次的实际完工日期
X01	130.63	12.07	(130.13, 131.13)	(2022-09-03, 2022-09-04)	2022-09-03
X02	157.51	11.44	(157.03, 158.02)	(2022-10-15, 2022-10-16)	2022-10-16
X03	183.87	11.75	(183.38, 184.36)	(2022-11-28, 2022-11-29)	2022-12-01
X04	208.98	11.83	(208.49, 209.47)	(2023-01-10, 2023-01-11)	2023-01-09
X05	236.62	11.37	(236.14, 237.10)	(2023-02-24, 2023-02-25)	2023-02-25
X06	260.80	11.89	(260.31, 261.29)	(2023-03-29, 2023-03-30)	2023-03-27
