面向碳减排的城市交通微观仿真模型优化研究

doi:10.16182/j.issn1004731x.joss.22-1531

摘要/Abstract

摘要：

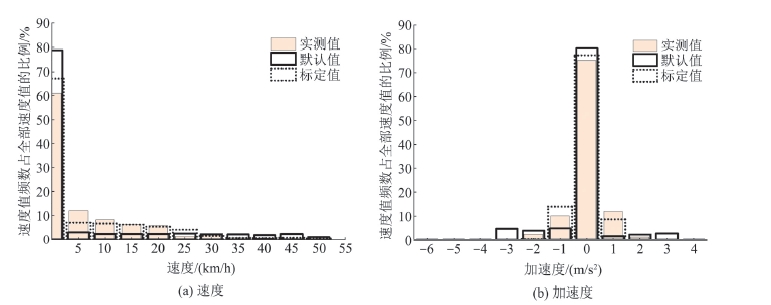

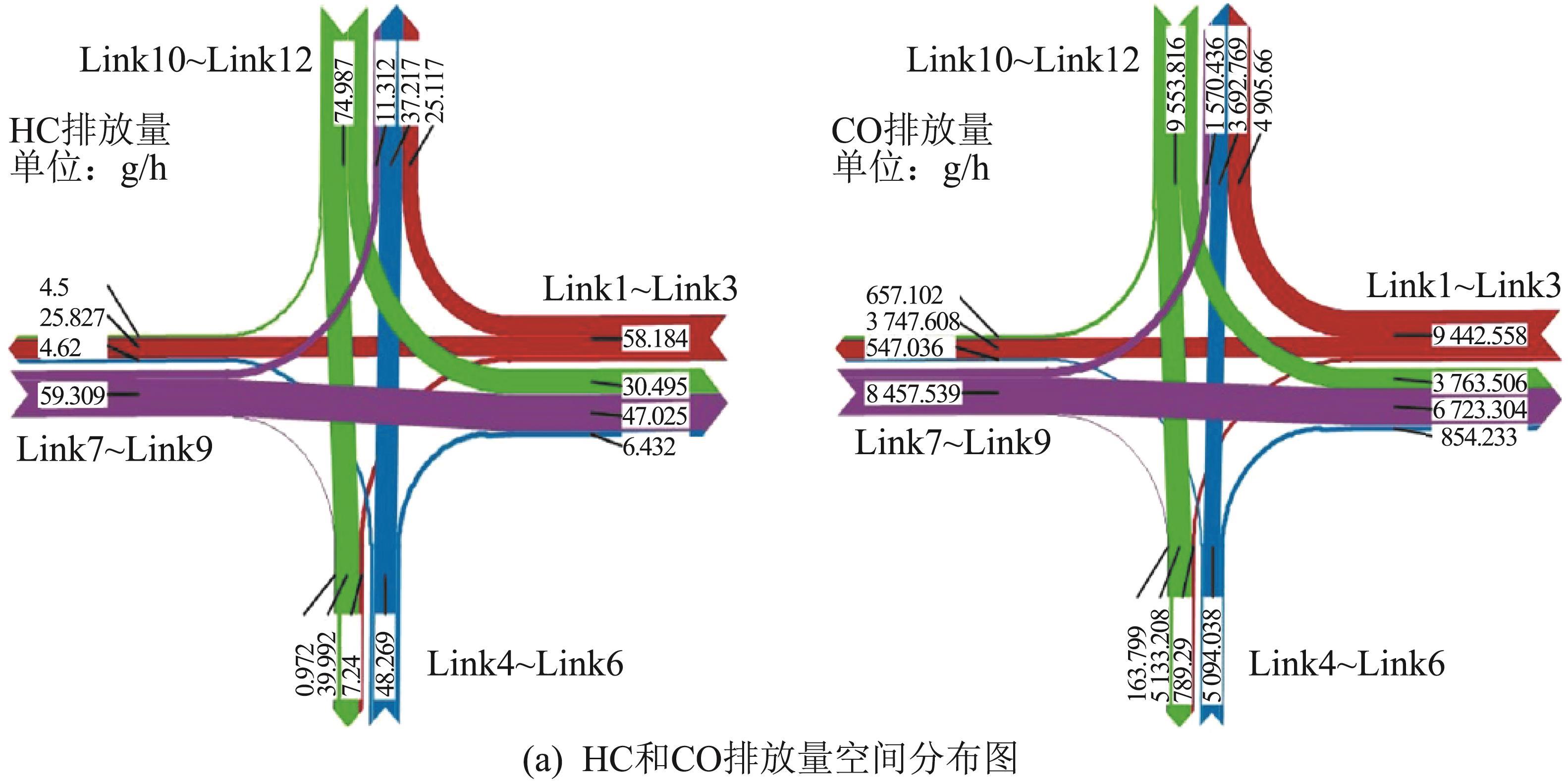

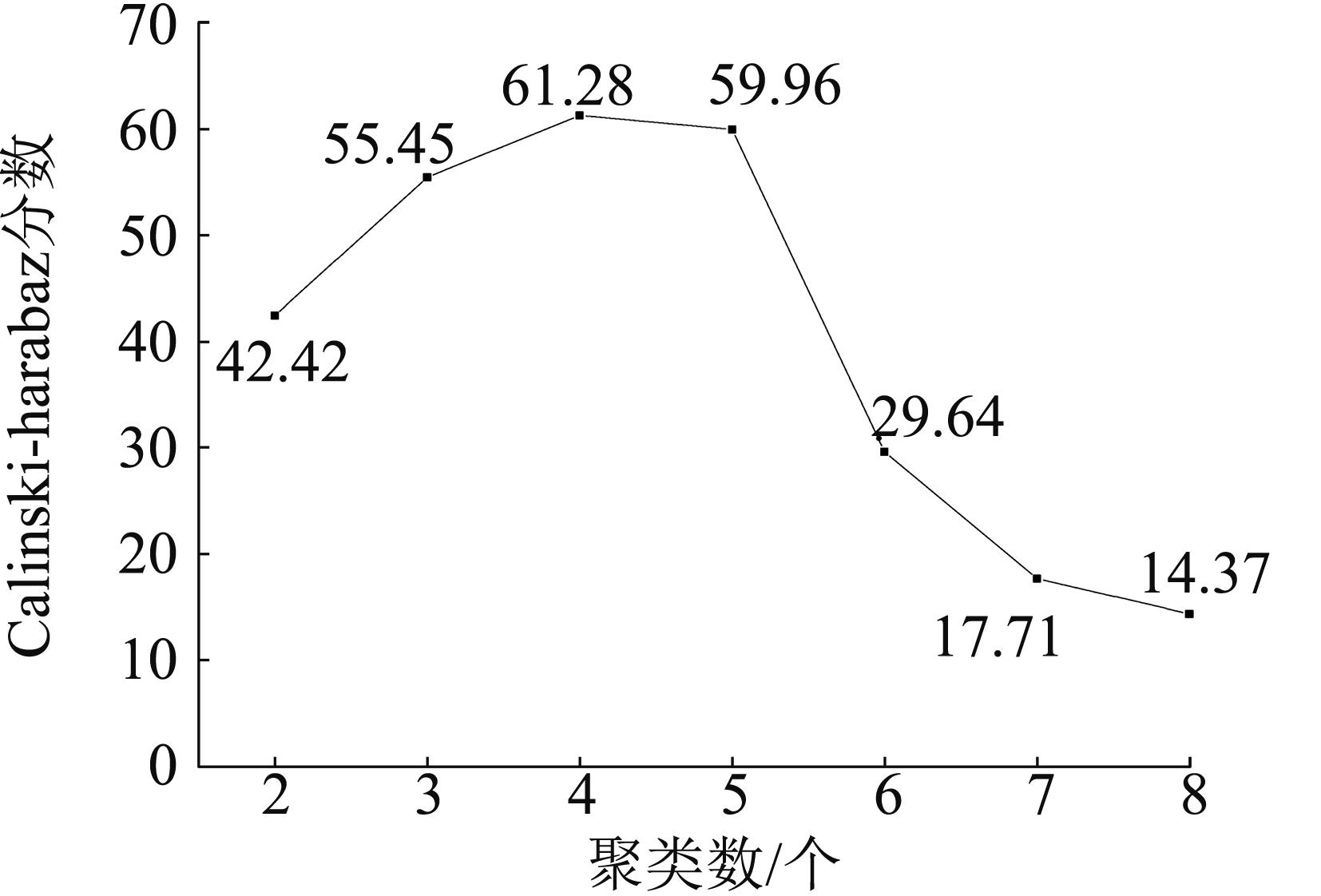

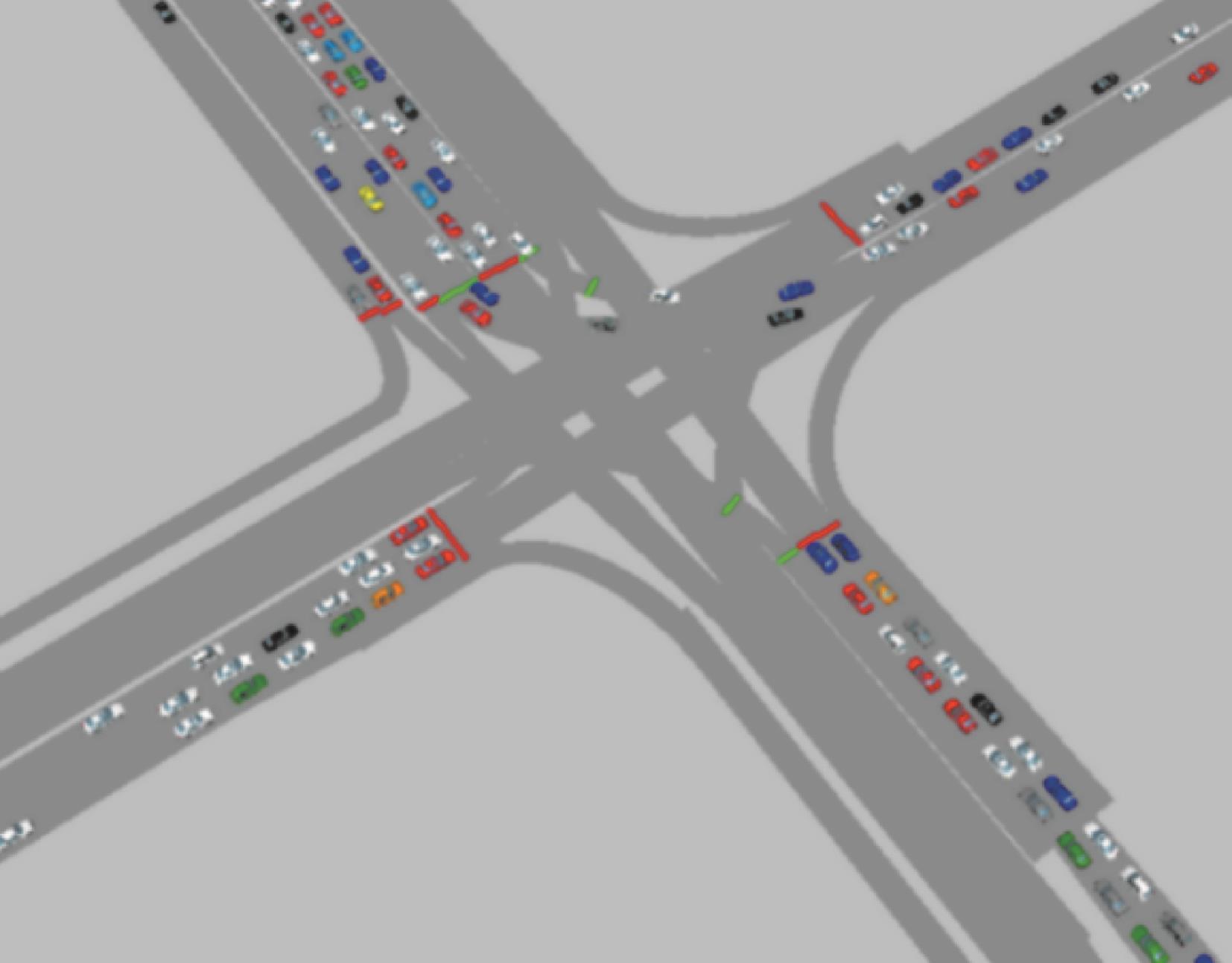

为评估交通管控策略的环境效益，提出有效融合微观交通仿真模型和微观车辆排放模型的方法。利用VISSIM平台构建案例微观交通仿真模型，提出基于轨迹数据的不同速度区间的加减速特征，应用K-means聚类方法划分4种驾驶行为，通过驾驶特性标定仿真模型全局参数，描述了参数总敏感度以及参数之间相互作用的敏感度。利用DBSCAN(density-based spatial clustering of applications with noise)聚类分析并标定局部参数值，优化了参数标定流程。计算仿真轨迹工况，本地化MOVES(motor vehicle emission simulator)微观排放模型，得到交叉口不同流向和不同驾驶行为下的HC、CO、NOx、CO₂排放。研究表明：仿真模型优化效果显著，所提方法可精确识别高排放的空间位置，解析排放与驾驶行为之间的联系。应用DBSCAN聚类分析参数寻优值有助于实现自动化标定流程，全局参数标定将速度分布 $χ 2$ 误差由0.632 7降至0.130 6，加速度分布 $χ 2$ 误差由0.144 1降至0.052 8，对于环境视角下仿真模型构建至关重要。

关键词: 交通工程, 微观交通仿真, 量化排放, 微观排放模型, 驾驶行为, 参数标定

Abstract:

To assess the environmental benefits of transportation management or control strategies, a method to effectively integrate the micro-traffic simulation model and the micro-vehicle emission model is proposed. VISSIM platform is used to build a case micro traffic simulation model. K-means clustering method is used to divide the driving behavior into 4 types based on the acceleration and deceleration characteristics of different speed intervals of the trajectory data, and the global parameters of the simulation model are calibrated based on the driving characteristics, which quantitatively describe the total sensitivity of the parameters and the sensitivity of the interactions between the parameters. The local parameter values are analyzed and calibrated by density-based spatial clustering of applications with noise(DBSCAN) clustering, which optimize the parameter calibration process. The simulated trajectory conditions are calculated, and motor vehicle emission simulator(MOVES) micro-emission model is localized.The emissions of HC, CO, NOx, and CO₂ pollutants under different flow directions and different driving behaviors at the intersection are obtained.Research results show that the optimization effect of the simulation model is remarkable. The proposed method can accurately identify the high-emission spatial locations and resolve the link between emissions and driving behavior. The application of DBSCAN cluster analysis parameter optimization value is conducive to the realization of the automatic calibration process. The calibration of global parameters reduces the $χ 2$ of velocity distribution from 0.632 7 to 0.130 6, and the $χ 2$ of acceleration distribution from 0.144 1 to 0.052 8, which is very important for the construction of simulation model from the environmental perspective.

Key words: traffic engineering, micro traffic simulation, quantitative emission, micro emission model, driving behavior, parameter calibration

中图分类号:

U491.92

刘博,林建新,刘依妮等 . 面向碳减排的城市交通微观仿真模型优化研究[J]. 系统仿真学报, 2024, 36(4): 859-872.

Liu Bo,Lin Jianxin,Liu Yini,et al . Optimization of Urban Traffic Microsimulation Model for Carbon Emission Reduction[J]. Journal of System Simulation, 2024, 36(4): 859-872.

图/表 21

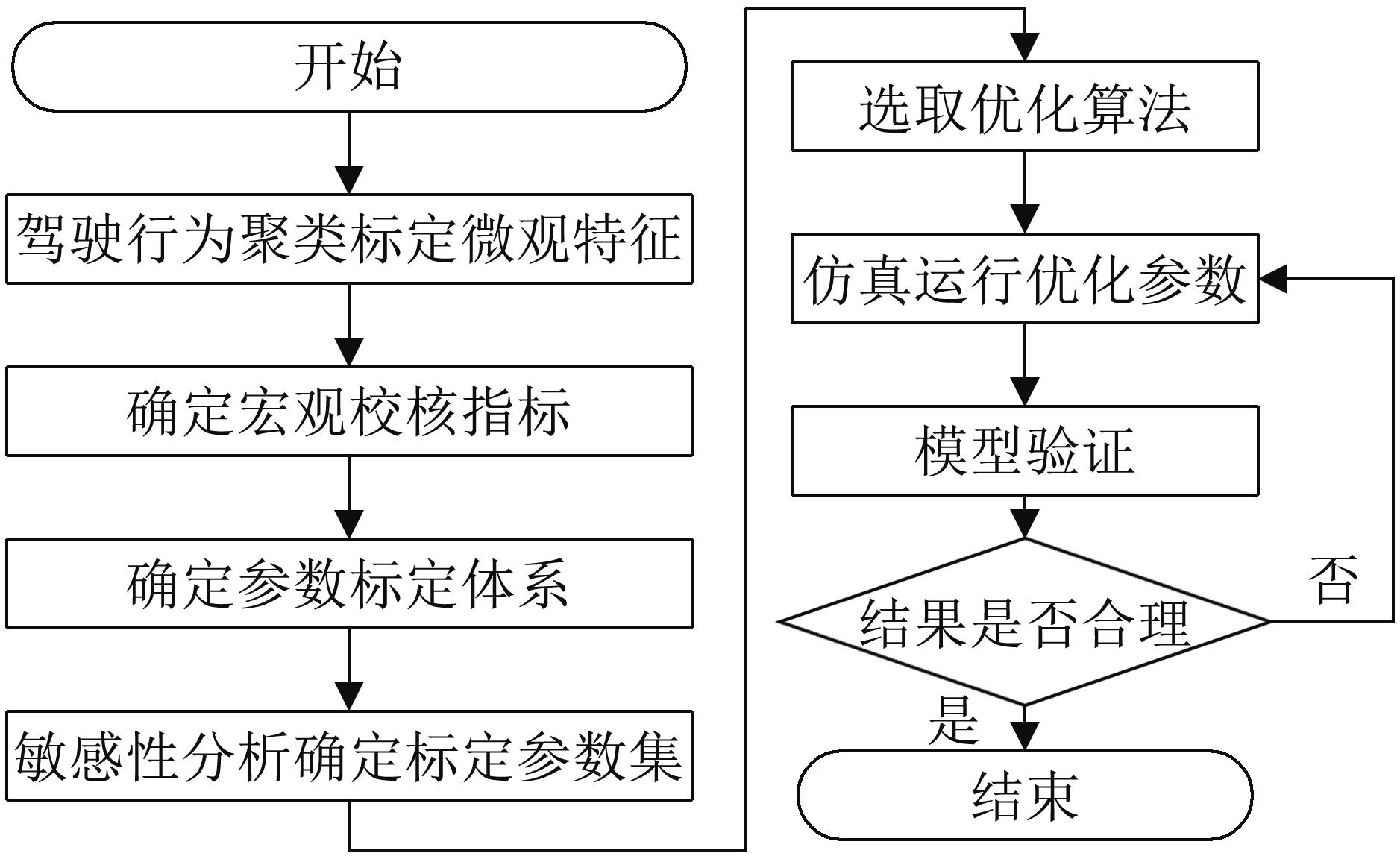

图 1

图2

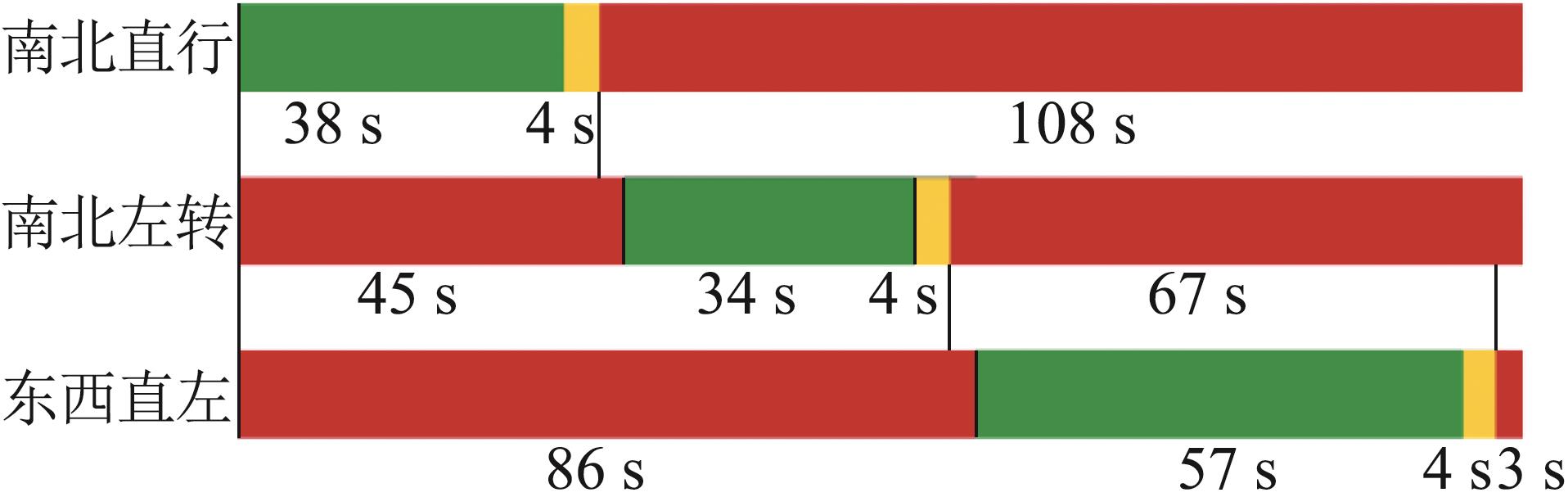

图3

图4

表1

图5

表2

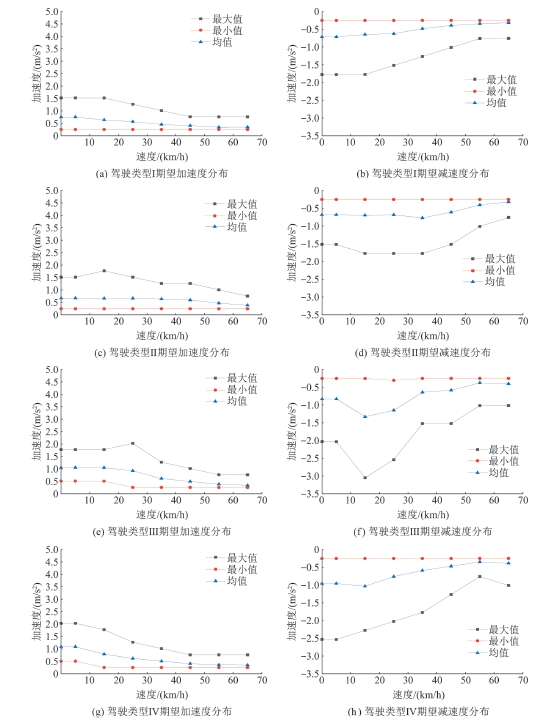

图6

图7

表3

全部参数敏感性分析指标值计算结果

参数	S_i 一阶指数	排序	$S T i$ 总效应指数	排序
最大前视距离	0.10	9	0.41	6
观察到的车辆数	0	12	0	12
平均停车间距	0.51	2	0.53	4
安全距离附加部分	0.43	4	1.95	1
安全距离倍数部分	0.21	6	0.48	5
最大减速度	0.01	11	0.03	11
可接受减速度	0.56	1	0.57	3
-1 m/s²/距离	0.20	7	0.33	8
消失前等待时间	0.38	5	0.22	10
最小车头空距	0.06	10	0.26	9
安全距离折减系数	0.49	3	0.93	2
协调刹车最大减速	0.14	8	0.33	7

表3

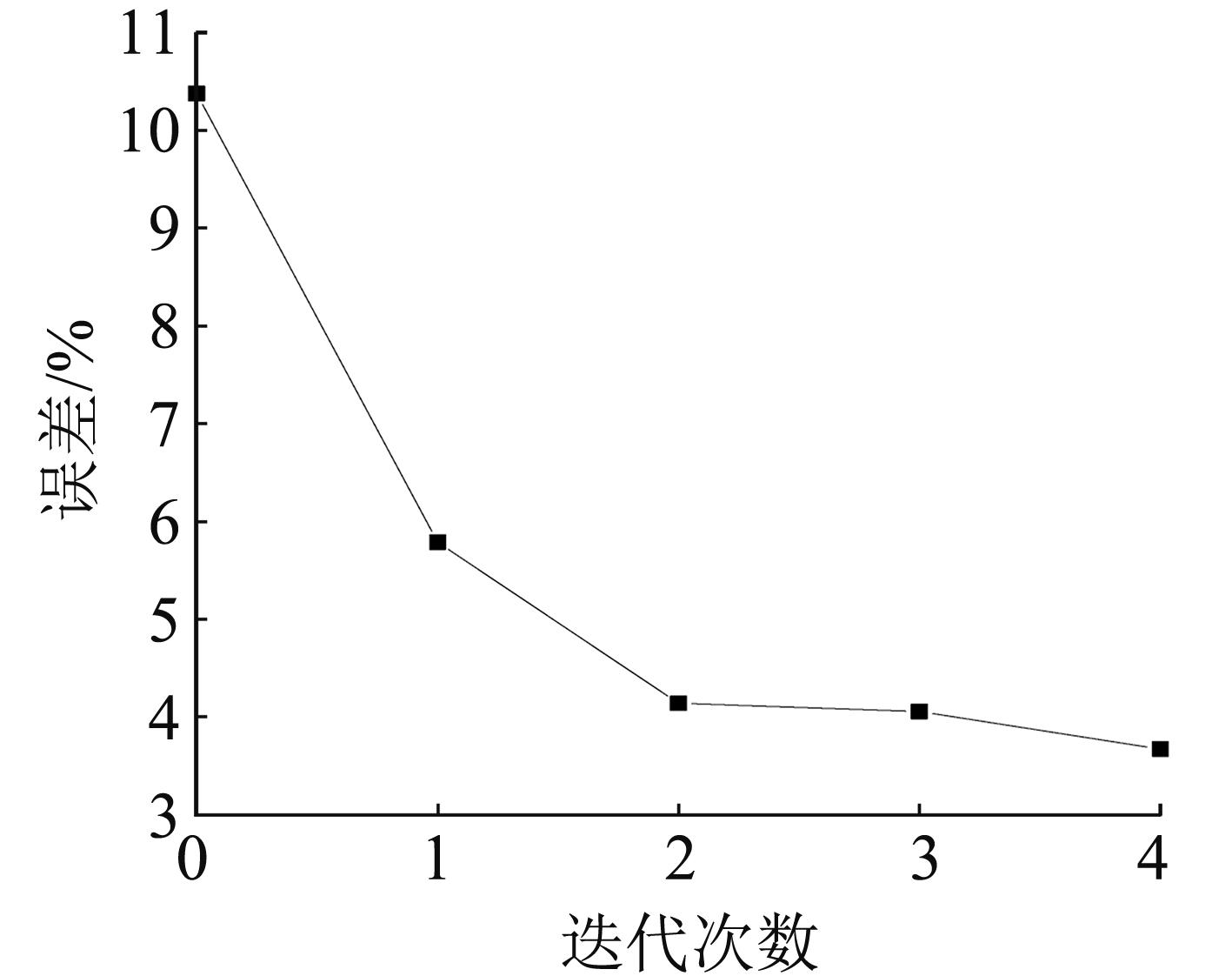

图8

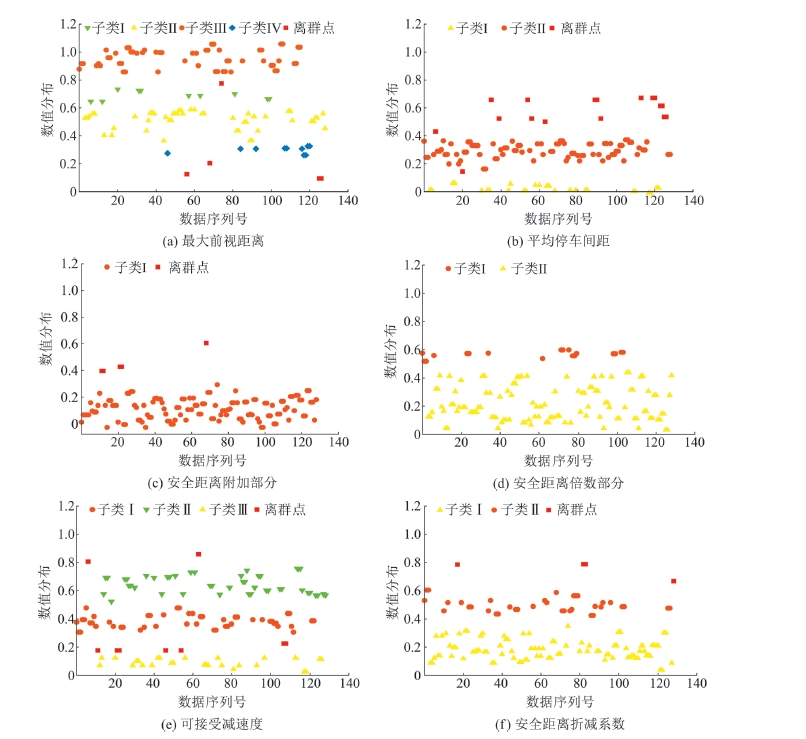

图9

表4

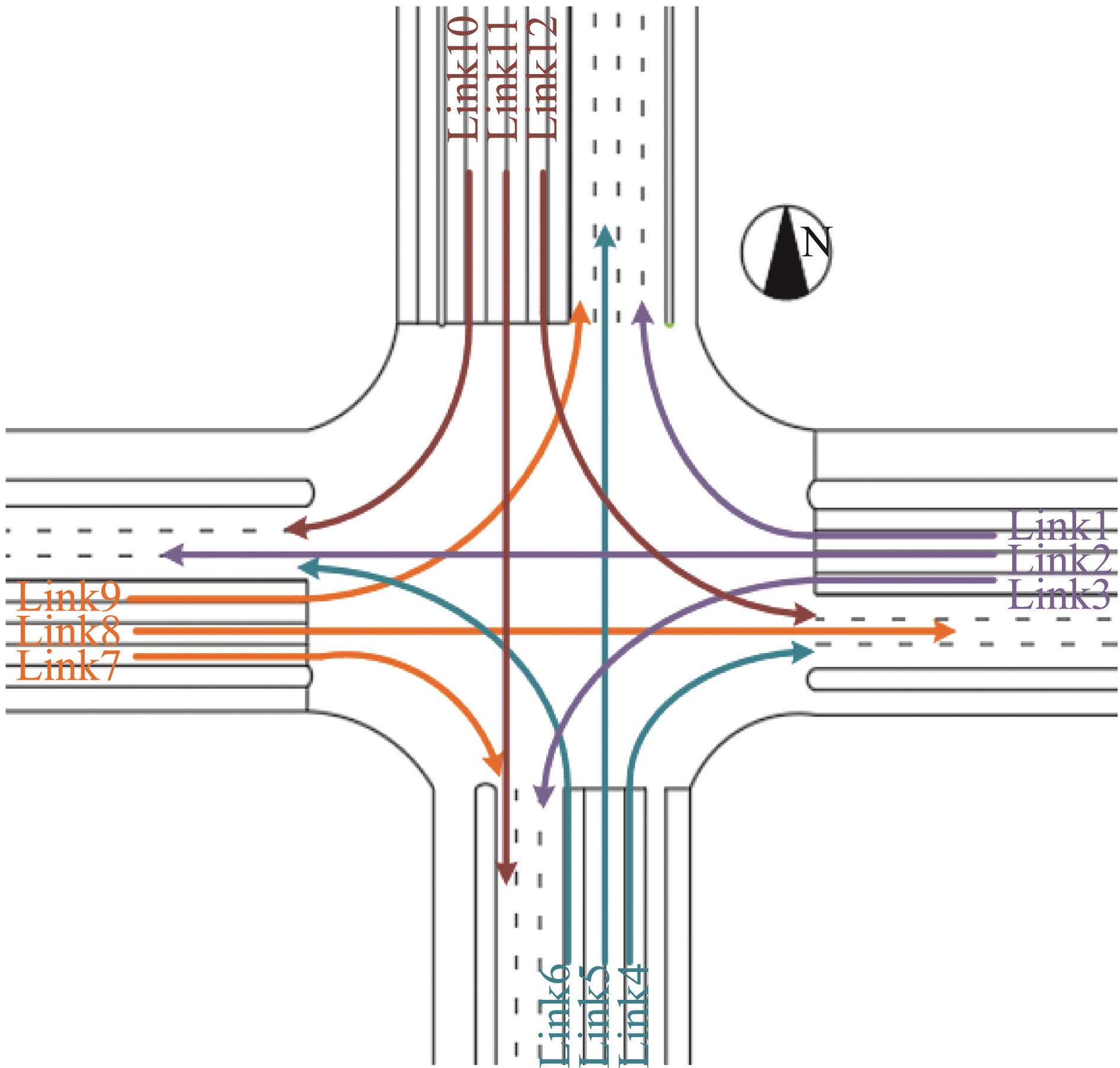

图10

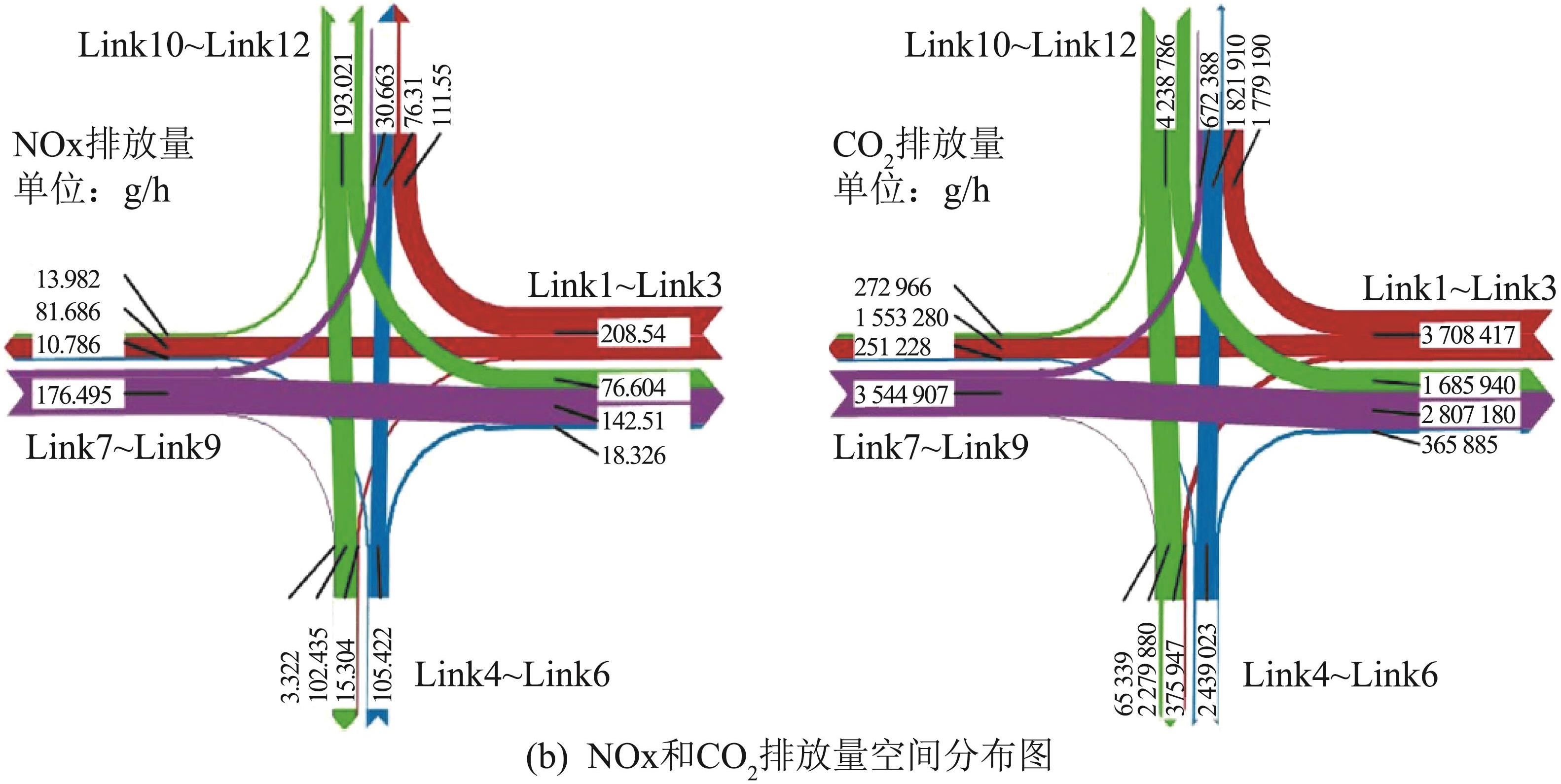

图11

图12

图13

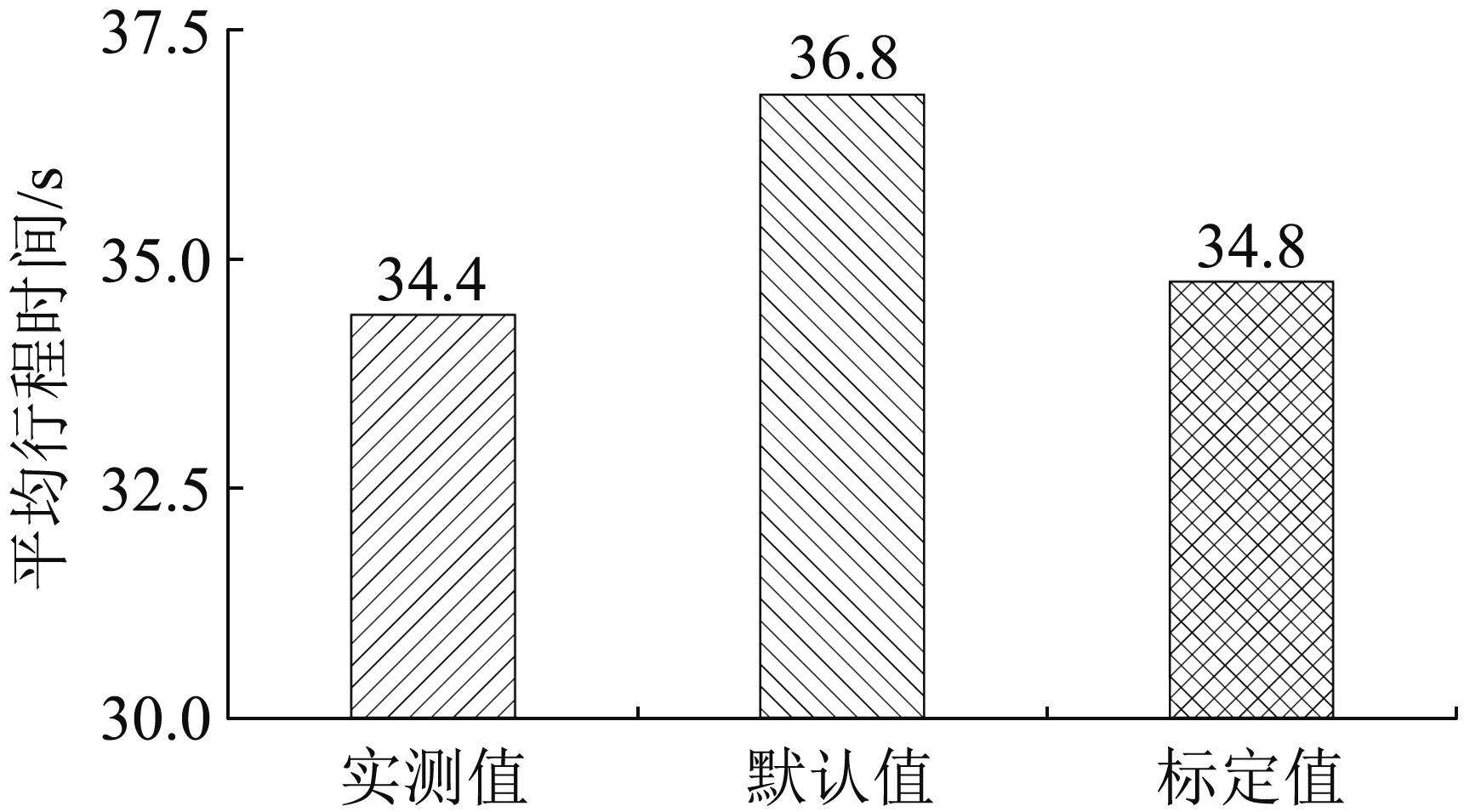

图14

图15

参考文献 20

1	程颖, 陈艳艳, 刘莹, 等. 城市交通排放高分辨率分析方法研究-北京实证[J]. 交通运输系统工程与信息, 2018, 18(2): 236-244.
	Cheng Ying, Chen Yanyan, Liu Ying, et al. An Method of High-resolution of Urban Traffic Emission for Pollution Control: A Case Study in Beijing[J]. Journal of Transportation Systems Engineering and Information Technology, 2018, 18(2): 236-244.
2	Xue Yifeng, Cao Xizi, Ai Yi, et al. Primary Air Pollutants Emissions Variation Characteristics and Future Control Strategies for Transportation Sector in Beijing, China[J]. Sustainability, 2020, 12(10): 4111.
3	Liu Yonghong, Huang Wenfeng, Lin Xiaofang, et al. Variation of Spatio-temporal Distribution of On-road Vehicle Emissions Based on Real-time RFID Data[J]. Journal of Environmental Sciences, 2022, 116: 151-162.
4	单肖年, 陈小鸿. 交通仿真模型融合微观车辆排放模型研究综述[J]. 交通运输工程与信息学报, 2021, 19(2): 11-24.
	Shan Xiaonian, Chen Xiaohong. Review of Studies that Integrate Traffic-simulation Models with Microscopic Vehicle-emissions Models[J]. Journal of Transportation Engineering and Information, 2021, 19(2): 11-24.
5	Chen Yuhong, Wen Chao, Jiang Chaozhe, et al. Global Sensitivity Analysis of VISSIM Parameters for Project-level Traffic Emissions: A Case Study at a Signalized Intersection[J]. Environmental Technology, 2022, 43(24): 3801-3820.
6	K D Saharidis Georgios, Giorgos E Konstantzos. Critical Overview of Emission Calculation Models in Order to Evaluate Their Potential Use in Estimation of Greenhouse Gas Emissions from in Port Truck Operations[J]. Journal of Cleaner Production, 2018, 185: 1024-1031.
7	朱庆功, 刘俊女, 赵笑春, 等. 北京市轻型汽油车蒸发排放总量评估[J]. 中国环境科学, 2022, 42(3): 1066-1072.
	Zhu Qinggong, Liu Junnü, Zhao Xiaochun, et al. Estimation of Light-duty Vehicles Total Evaporative Emissions in Beijing[J]. China Environmental Science, 2022, 42(3): 1066-1072.
8	Chen Meiyan. Modeling and Simulation Analysis of Road Network Based on VISSIM[C]//2019 International Conference on Intelligent Transportation, Big Data & Smart City (ICITBS). Piscataway, NJ, USA: IEEE, 2019: 32-35.
9	Jaehyun (Jason) So, Motamedidehkordi Nassim, Wu Yingjie, et al. Estimating Emissions Based on the Integration of Microscopic Traffic Simulation and Vehicle Dynamics Model[J]. International Journal of Sustainable Transportation, 2018, 12(4): 286-298.
10	Benekohal R F. A Procedure for Validation of Microscopic Traffic Flow Simulation Models[M]//Freeway Operations, Highway Capacity, and Traffic Flow. [S.l.]: Transportation Research Board, 1991: 190-202.
11	刘昕, 刘志远, 聂品, 等. 微观交通仿真模型参数标定研究综述[J]. 铁道科学与工程学报, 2022, 19(11): 3179-3189.
	Liu Xin, Liu Zhiyuan, Nie Pin, et al. A Survey of Microscopic Traffic Simulation Calibration Methods[J]. Journal of Railway Science and Engineering, 2022, 19(11): 3179-3189.
12	刘博, 周晨静, 林建新. 无信号交叉口仿真模型参数标定优化与验证[J]. 公路交通科技, 2021, 38(10): 129-136.
	Liu Bo, Zhou Chenjing, Lin Jianxin. Optimization and Verification of Calibrating Parameters of Simulation Model of Unsignalized Intersection[J]. Journal of Highway and Transportation Research and Development, 2021, 38(10): 129-136.
13	Li Jie, Van Zuylen Henk, Chen Yusen, et al. Calibration of a Microscopic Simulation Model for Emission Calculation[J]. Transportation Research Part C: Emerging Technologies, 2013, 31: 172-184.
14	高亚聪, 周晨静, 荣建. 基于行程时间累积分布曲线的微观交通仿真模型参数标定[J]. 公路交通科技, 2021, 38(4): 121-130.
	Gao Yacong, Zhou Chenjing, Rong Jian. Parameter Calibration of Microscopic Traffic Simulation Model Based on Cumulative Distribution Curve of Travel Time[J]. Journal of Highway and Transportation Research and Development, 2021, 38(4): 121-130.
15	Song Guohua, Yu Lei, Xu Long. Comparative Analysis of Car-following Models for Emissions Estimation[J]. Transportation Research Record, 2013, 2341(1): 12-22.
16	周晨静, 荣建, 郭琳科. 微观交通仿真模型参数标定结果取值方法研究[J]. 系统仿真学报, 2019, 31(12): 2802-2809.
	Zhou Chenjing, Rong Jian, Guo Linke. Research on the Value Accessing Method for Calibrating Micro Traffic Simulation Model Parameters[J]. Journal of System Simulation, 2019, 31(12): 2802-2809.
17	Guo Miao, Zhao Xiaohua, Yao Ying, et al. A Study of Freeway Crash Risk Prediction and Interpretation Based on Risky Driving Behavior and Traffic Flow Data[J]. Accident Analysis & Prevention, 2021, 160: 106328.
18	Xu Jiawei, Pan Sicheng, Sun Poly Z H,et al. Human-factors-in-driving-loop: Driver Identification and Verification via a Deep Learning Approach Using Psychological Behavioral Data[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24(3): 3383-3394.
19	孙剑, 杨晓光. 微观交通仿真模型系统参数校正研究-以VISSIM的应用为例[J]. 交通与计算机, 2004, 22(3): 3-6.
	Sun Jian, Yang Xiaoguang. Research into Microscopic Traffic Simulation Model Systematic Parameter Calibration: A Case Study of VISSIM[J]. Computer and Communications, 2004, 22(3): 3-6.
20	潘星, 张振宇, 张艳梅, 等. 基于Sobol敏感性分析的装备体系保障效能评估[J]. 系统工程与电子技术, 2021, 43(2): 390-398.
	Pan Xing, Zhang Zhenyu, Zhang Yanmei, et al. Equipment SoS Support Effectiveness Evaluation Based on Sobol Sensitivity Analysis[J]. Systems Engineering and Electronics, 2021, 43(2): 390-398.

特征参数	主成分1	主成分2	主成分3
0~10 km/h平均加速度	-0.542	0.037	-0.416
0~10 km/h平均减速度	0.490	-0.283	0.638
10~20 km/h平均加速度	-0.549	0.227	0.027
10~20 km/h平均减速度	0.899	-0.146	0.097
20~30 km/h平均加速度	-0.577	-0.081	0.434
20~30 km/h平均减速度	0.756	0.063	-0.399
30~40 km/h平均加速度	-0.220	-0.538	0.011
30~40 km/h平均减速度	0.115	0.834	0.306
40~50 km/h平均加速度	-0.036	-0.583	0.185
40~50 km/h平均减速度	0.276	0.744	0.021

特征参数	驾驶类型Ⅰ	驾驶类型Ⅱ	驾驶类型Ⅲ	驾驶类型Ⅳ
0~10 km/h平均加速度	2.83	2.74	3.57	3.79
0~10 km/h平均减速度	-2.90	-2.78	-3.37	-3.92
10~20 km/h平均加速度	2.71	2.88	4.14	3.28
10~20 km/h平均减速度	-2.92	-3.04	-5.21	-4.31
20~30 km/h平均加速度	2.36	2.85	3.97	2.64
20~30 km/h平均减速度	-2.75	-3.00	-4.77	-3.40
30~40 km/h平均加速度	1.95	2.70	2.46	2.16
30~40 km/h平均减速度	-2.21	-3.56	-2.52	-2.82
40~50 km/h平均加速度	1.82	2.60	2.17	1.75
40~50 km/h平均减速度	-1.79	-2.93	-2.63	-2.20

参数	分散度	标定值
最大前视距离	0.245	329.78
平均停车间距	0.173	1.88
安全距离附加部分	0.308	1.76
安全距离倍数部分	0.362	2.47
可接受减速度	0.387	-1.51
安全距离折减系数	0.266	0.42

驾驶行为	HC	CO	NOx	CO₂
I	0.003 67	0.471 9	0.009 65	207.681 3
II	0.003 85	0.480 4	0.010 19	213.112 1
III	0.003 81	0.472 8	0.010 22	209.852 0
IV	0.003 80	0.479 5	0.009 77	211.871 4
