虚拟环境中面向灭火指挥的火场信息可视分析

doi:10.16182/j.issn1004731x.joss.22-1534

摘要/Abstract

摘要：

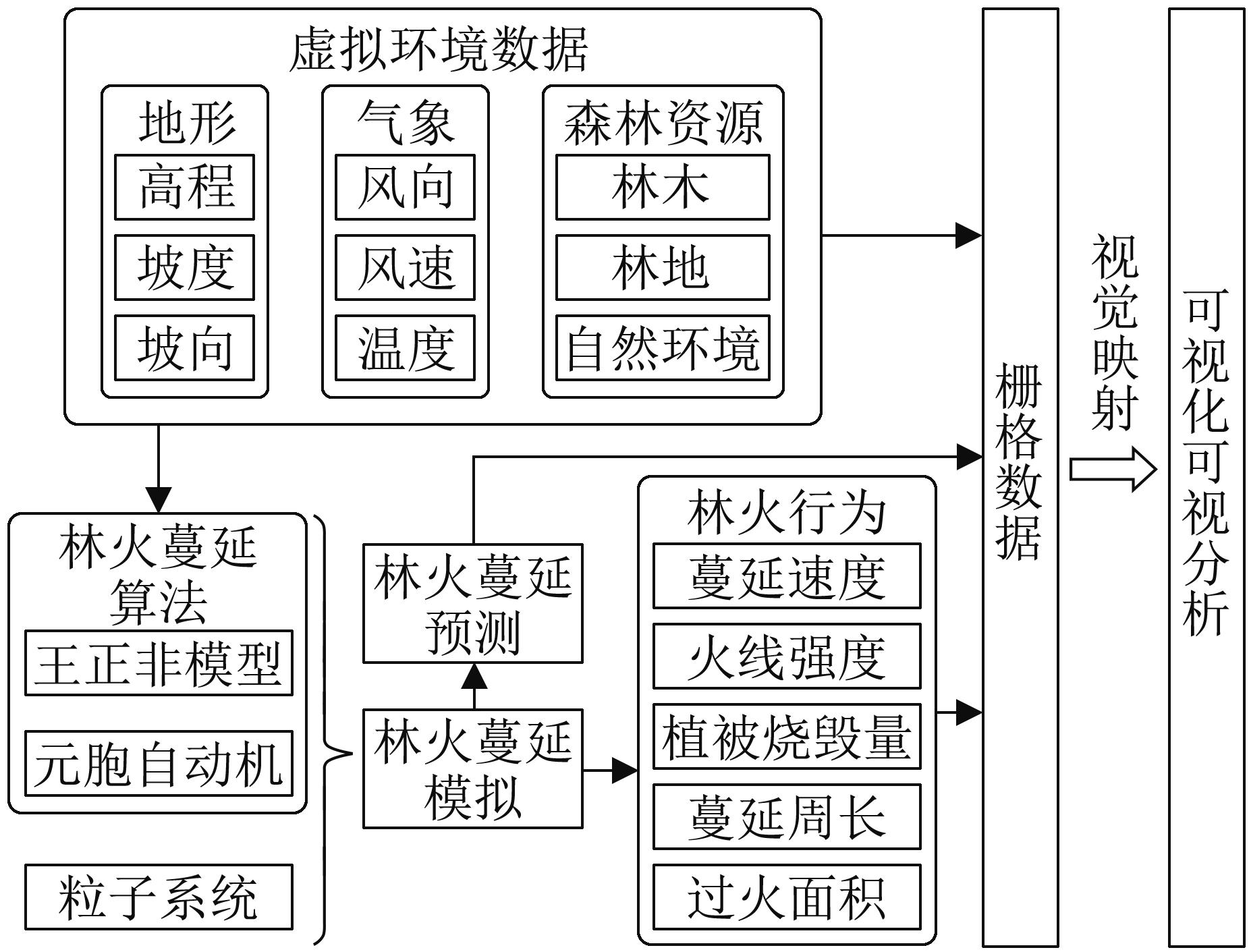

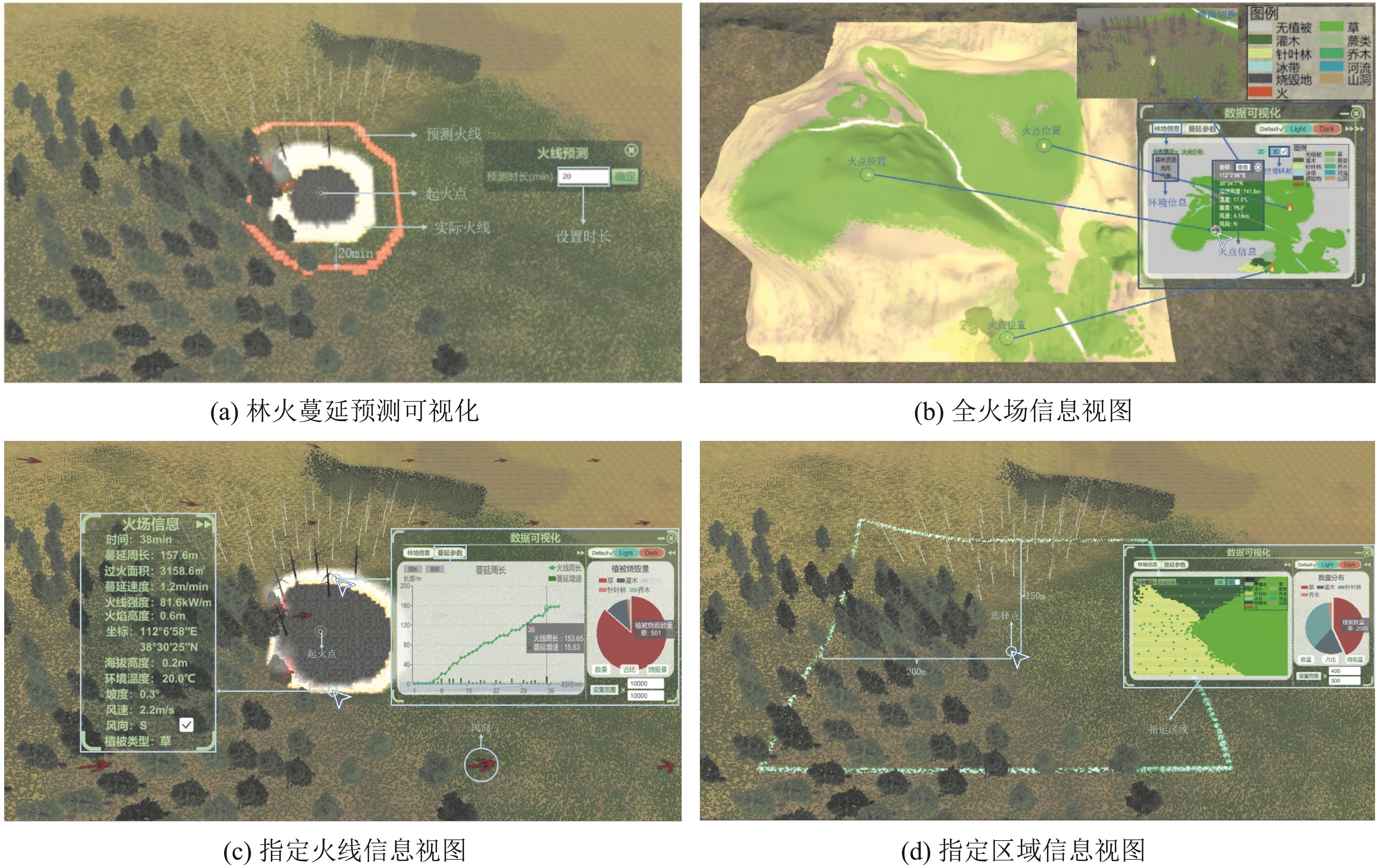

针对森林火灾现场指挥的需求，综合分析地理环境、气象条件、森林资源和林火行为等灭火指挥所需信息，设计实现了在虚拟林火环境中的数据可视化可视分析方法。使用王正非-3D混合元胞自动机模型模拟林火蔓延过程；采取差时方法预测林火蔓延行为；实时捕捉不同兴趣域内环境数据的变化，结合多视图面板及图层叠加的方法，构建火场信息可视分析模块。通过调整虚拟林场的环境参数，对不同场景下的林火蔓延过程进行模拟仿真，并对火场信息进行可视化可视分析。实验结果表明：该方法能够在一定条件下较准确地预测林火蔓延行为，还可以较全面地描述火场信息。

关键词: 三维虚拟环境, 林火蔓延模型, 可视化, 可视分析, 林火仿真

Abstract:

Aiming at the demand of forest fire fighting command, the information required for the command, such as geographical environment, meteorological conditions, forest resources and forest fire behavior are comprehensively analyzed, and the data visualization visual analysis method in the virtual forest fire environment is designed and realized. Wang Zhengfei-3D mixed cellular automata model is used to simulate the process of forest fire spread and the difference time method is adopted to predict the forest fire spreading behavior. The change of environmental data in different interest domains is captured in real time, and the multi-view panel and overlay layers are combined to construct the visual analysis module of fire field information. The process of forest fire spread in different scenes is simulated by adjusting the environmental parameters of virtual forest scene, and the information of the fire field is visually analyzed. The experimental results show that the visual analysis method can not only more accurately predict the forest fire spread behavior under certain conditions, but also more comprehensively describe the fire field information.

Key words: 3D virtual environment, fire spreading model, visualization, visual analytics, forest fire simulation

中图分类号:

TP391

张本润,曹卫群 . 虚拟环境中面向灭火指挥的火场信息可视分析[J]. 系统仿真学报, 2024, 36(4): 1001-1016.

Zhang Benrun,Cao Weiqun . Study on Forest Fire Visual Analysis Method for Extinguishing Command in Virtual Environment[J]. Journal of System Simulation, 2024, 36(4): 1001-1016.

图/表 24

图1

图2

图3

图4

图5

表1

表2

图6

图7

表3

图8

图9

表4

图10

图11

图12

图13

表5

图14

图15

图16

图17

图18

图19

参考文献 26

1	龙朝夕. 森林火灾现场指挥信息集成研究[D]. 长沙: 中南林业科技大学, 2015.
	Long Zhaoxi. The Research of Forest Fire Scene Command Information Integration[D]. Changsha: Central South University of Forestry & Technology, 2015.
2	付婧婧, 吴志伟, 闫赛佳, 等. 气候、植被和地形对大兴安岭林火烈度空间格局的影响[J]. 生态学报, 2020, 40(5): 1672-1682.
	Fu Jingjing, Wu Zhiwei, Yan Saijia, et al. Effects of Climate, Vegetation, and Topography on Spatial Patterns of Burn Severity in the Great Xing'an Mountains[J]. Acta Ecologica Sinica, 2020, 40(5): 1672-1682.
3	蔡霁初, 邱建秀, 王大刚, 等. 基于土壤水分和气象要素的林火预报研究-以广东省为例[J]. 地理科学, 2021, 41(9): 1676-1686.
	Cai Jichu, Qiu Jianxiu, Wang Dagang, et al. Forest Fire Prediction Based on Soil Moisture and Meteorological Factors: Taking Guangdong Province as an Example[J]. Scientia Geographica Sinica, 2021, 41(9): 1676-1686.
4	张平. 森林火灾现场指挥扑救决策研究[D]. 长沙: 中南林业科技大学, 2009.
	Zhang Ping. The Research on Decision-making of Forest Fire Direct Suppression on the Spot[D]. Changsha: Central South University of Forestry & Technology, 2009.
5	宗学政, 田晓瑞. 林火行为和扑救技术研究进展[J]. 世界林业研究, 2019, 32(6): 31-36.
	Zong Xuezheng, Tian Xiaorui. Research Progress in Forest Fire Behavior and Suppression Technology[J]. World Forestry Research, 2019, 32(6): 31-36.
6	程前进. 基于GIS的森林火灾扑救指挥系统设计与实现[D]. 西安: 西安科技大学, 2011.
	Cheng Qianjin. Design and Implementation of Forest Fire Fighting and Rescue System Based on GIS[D]. Xi'an: Xi'an University of Science and Technology, 2011.
7	唐丽玉, 毛行辉, 陈崇成, 等. 基于FARSITE的林火蔓延三维可视化模拟[J]. 自然灾害学报, 2015, 24(2): 221-227.
	Tang Liyu, Mao Xinghui, Chen Chongcheng, et al. Three-dimensional Visual Simulation of Forest Fire Spread Based on FARSITE[J]. Journal of Natural Disasters, 2015, 24(2): 221-227.
8	You Jiawei, Huai Yongjian, Nie Xiaoying, et al. Real-time 3D Visualization of Forest Fire Spread Based on Tree Morphology and Finite State Machine[J]. Computers & Graphics, 2022, 103: 109-120.
9	周国雄, 吴淇, 陈爱斌. 基于多智能体算法的CA林火空间扩散模型[J]. 系统仿真学报, 2018, 30(3): 824-830, 839.
	Zhou Guoxiong, Wu Qi, Chen Aibin. Forestry Fire Spatial Diffusion Model Based on Multi-agent Algorithm with Cellular Automata[J]. Journal of System Simulation, 2018, 30(3): 824-830, 839.
10	刘世光, 傅应坻, 蒋浴芹. 地表火蔓延的真实感仿真[J]. 自然灾害学报, 2012, 21(2): 180-186.
	Liu Shiguang, Fu Yingchi, Jiang Yuqin. Surface Fire Spreading Simulation with Realistic Impression[J]. Journal of Natural Disasters, 2012, 21(2): 180-186.
11	姚艳霞, 苗双喜, 黄旭, 等. 耦合Rothermel模型与粒子系统的林火蔓延模拟方法[J]. 测绘通报, 2022(8): 75-80.
	Yao Yanxia, Miao Shuangxi, Huang Xu, et al. A Forest Fire Spread Simulation Method of Coupling Rothermel Model and Particle System[J]. Bulletin of Surveying and Mapping, 2022(8): 75-80.
12	陈喆, 孙涛, 张凌寒, 等. 三维元胞自动机各向异性林火蔓延快速模型[J]. 北京林业大学学报, 2012, 34(1): 86-91.
	Chen Zhe, Sun Tao, Zhang Linghan, et al. Forest Fire Spread Fast Model Based on 3D Cellular Automaton in Spatially Heterogeneous Area[J]. Journal of Beijing Forestry University, 2012, 34(1): 86-91.
13	周国雄, 吴淇, 陈爱斌. 林火蔓延模拟元胞自动机算法研究[J]. 仪器仪表学报, 2017, 38(2): 288-294.
	Zhou Guoxiong, Wu Qi, Chen Aibin. Research of Cellular Automata Model for Forest Fire Spreading Simulation[J]. Chinese Journal of Scientific Instrument, 2017, 38(2): 288-294.
14	陈爱斌, 丁福博, 周国雄, 等. 基于群体智能的森林火灾蔓延仿真模型[J]. 系统仿真学报, 2022, 34(7): 1439-1448.
	Chen Aibin, Ding Fubo, Zhou Guoxiong, et al. Simulation Model of Forest Fire Spread Based on Swarm Intelligence[J]. Journal of System Simulation, 2022, 34(7): 1439-1448.
15	唐勇, 张晓碧, 刘浩阳, 等. 林火蔓延模型的改进及可视化验证[J]. 小型微型计算机系统, 2020, 41(4): 893-896.
	Tang Yong, Zhang Xiaobi, Liu Haoyang, et al. Improvement and Visual Verification of Forest Fire Spread Model[J]. Journal of Chinese Computer Systems, 2020, 41(4): 893-896.
16	吴瑞旭, 徐伟恒, 王秋华, 等. 基于ArcGIS的高原林火蔓延三维可视化系统[J]. 西部林业科学, 2018, 47(1): 80-85, 91.
	Wu Ruixu, Xu Weiheng, Wang Qiuhua, et al. Three-dimensional Visualization System of Forest Fire Spread Based on ArcGIS[J]. Journal of West China Forestry Science, 2018, 47(1): 80-85, 91.
17	Hoang R V, Sgambati M R, Brown T J, et al. VFire: Immersive Wildfire Simulation and Visualization[J]. Computers & Graphics, 2010, 34(6): 655-664.
18	Denham Monica, Waidelich Sigfrido, Laneri Karina. Fire Propagation Visualization in Real Time[J]. Journal of Computer Science and Technology, 2018, 18(3): e27.
19	毛贤敏. 风和地形对林火蔓延速度的作用[J]. 应用气象学报, 1993, 4(1): 100-104.
	Mao Xianmin. The Influence of Wind and Relief on the Speed of the Forest Fire Spreading[J]. Quarterly Journal of Applied Meteorology, 1993, 4(1): 100-104.
20	Innocenti Eric, Silvani Xavier, Muzy Alexandre, et al. A Software Framework for Fine Grain Parallelization of Cellular Models with OpenMP: Application to Fire Spread[J]. Environmental Modelling & Software, 2009, 24(7): 819-831.
21	杨福龙, 曹佳, 白夜. 基于元胞自动机的林火蔓延三维模拟仿真研究[J]. 计算机工程与应用, 2016, 52(19): 37-41.
	Yang Fulong, Cao Jia, Bai Ye. Study on Simulation of Three Dimensional Simulation of Forest Fire Spread Based on Cellular Automaton[J]. Computer Engineering and Applications, 2016, 52(19): 37-41.
22	崔步礼, 常学礼, 左登华, 等. 沙地景观中矢量数据栅格化方法及尺度效应[J]. 生态学报, 2009, 29(5): 2463-2472.
	Cui Buli, Chang Xueli, Zuo Denghua, et al. Rasterizing Vector Data and Its Scaling Effect for a Sand Landscape[J]. Acta Ecologica Sinica, 2009, 29(5): 2463-2472.
23	刘军, 张正福, 胡燕凌. 应用DEM数据进行耕地坡度分级量算方法研究[J]. 遥感技术与应用, 2009, 24(5): 691-697.
	Liu Jun, Zhang Zhengfu, Hu Yanling. Study on the Slope Calculating of Farmland Based on the DEM Data[J]. Remote Sensing Technology and Application, 2009, 24(5): 691-697.
24	田圆, 周汝良, 张志勇, 等. 多边形地形要素的向量计算方法[J]. 遥感信息, 2017, 32(2): 180-184.
	Tian Yuan, Zhou Ruliang, Zhang Zhiyong, et al. Vector Algebra Calculation Method of Polygonal Terrain Elements[J]. Remote Sensing Information, 2017, 32(2): 180-184.
25	余琦, 刘原中. 复杂地形上的风场内插方法[J]. 辐射防护, 2001, 21(4): 213-218.
	Yu Qi, Liu Yuanzhong. Vector Interpolation of Wind Fields over Complex Terrain[J]. Radiation Protection, 2001, 21(4): 213-218.
26	郑焕能, 骆介禹, 耿玉超. 几种林火强度计算方法的评价[J]. 东北林业大学学报, 1988, 16(5): 103-108.
	Zheng Huanneng, Luo Jieyu, Geng Yuchao. Evaluation of Methods of Calculation Fire Intensity[J]. Journal of Northeast Forestry University, 1988, 16(5): 103-108.

颜色名	颜色(R, G, B, A)[0, 255]
color1	(234, 85, 20, 255)
color2	(250, 192, 61, 255)
color3	(73, 148, 196, 255)
color4	(18, 38, 79, 255)
color5	(108, 168, 175, 255)

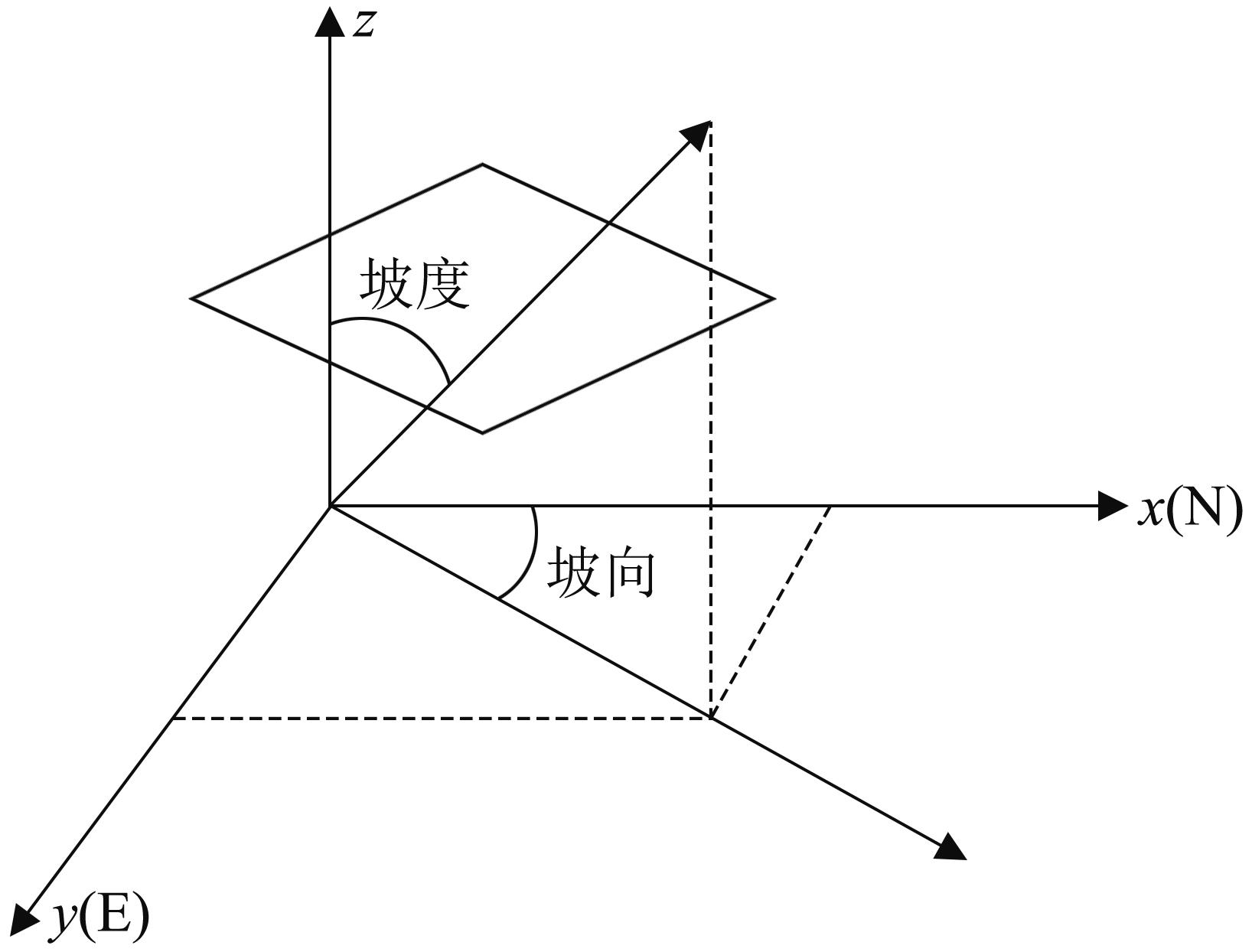

坡向归一化[0, 1]	坡向方位(0~360°)	颜色名
(0, 0.25]	东(0~90°)	color1
(0.25, 0.5]	南(90°~180°)	color2
(0.5, 0.75]	西(180°~270°)	color3
(0.75, 1.0]	北(270°~360°)	color4
0	平地(0)	color5

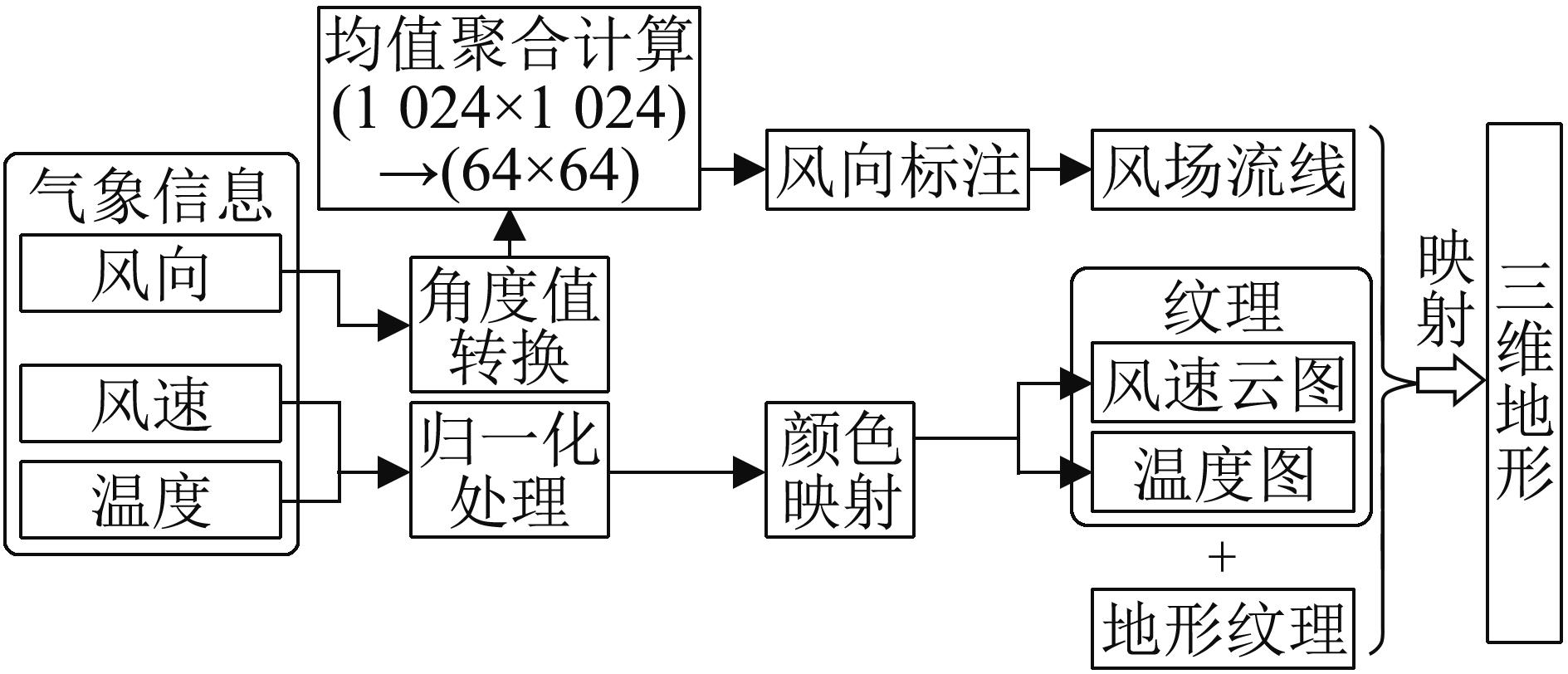

风速值归一化[0, 1]	温度值归一化[0, 1]	颜色(R, G, B, A) [0, 255]
[0, 0.1)	[0, 0.1)	(0, 180, 255, 255)
[0.1, 0.2)	[0.1, 0.2)	(0, 255, 235, 255)
[0.2, 0.3)	[0.2, 0.3)	(0, 255, 45, 255)
[0.3, 0.4)	[0.3, 0.4)	(0, 255, 135, 255)
[0.4, 0.5)	[0.4, 0.5)	(45, 255, 0, 255)
[0.5, 0.6)	[0.5, 0.6)	(135, 255, 0, 255)
[0.6, 0.7)	[0.6, 0.7)	(225, 255, 0, 255)
[0.7, 0.8)	[0.7, 0.8)	(255, 185, 0, 255)
[0.8, 0.9)	[0.8, 0.9)	(255, 100, 0, 255)
[0.9, 1.0]	[0.9, 1.0]	(255, 0, 0, 255)

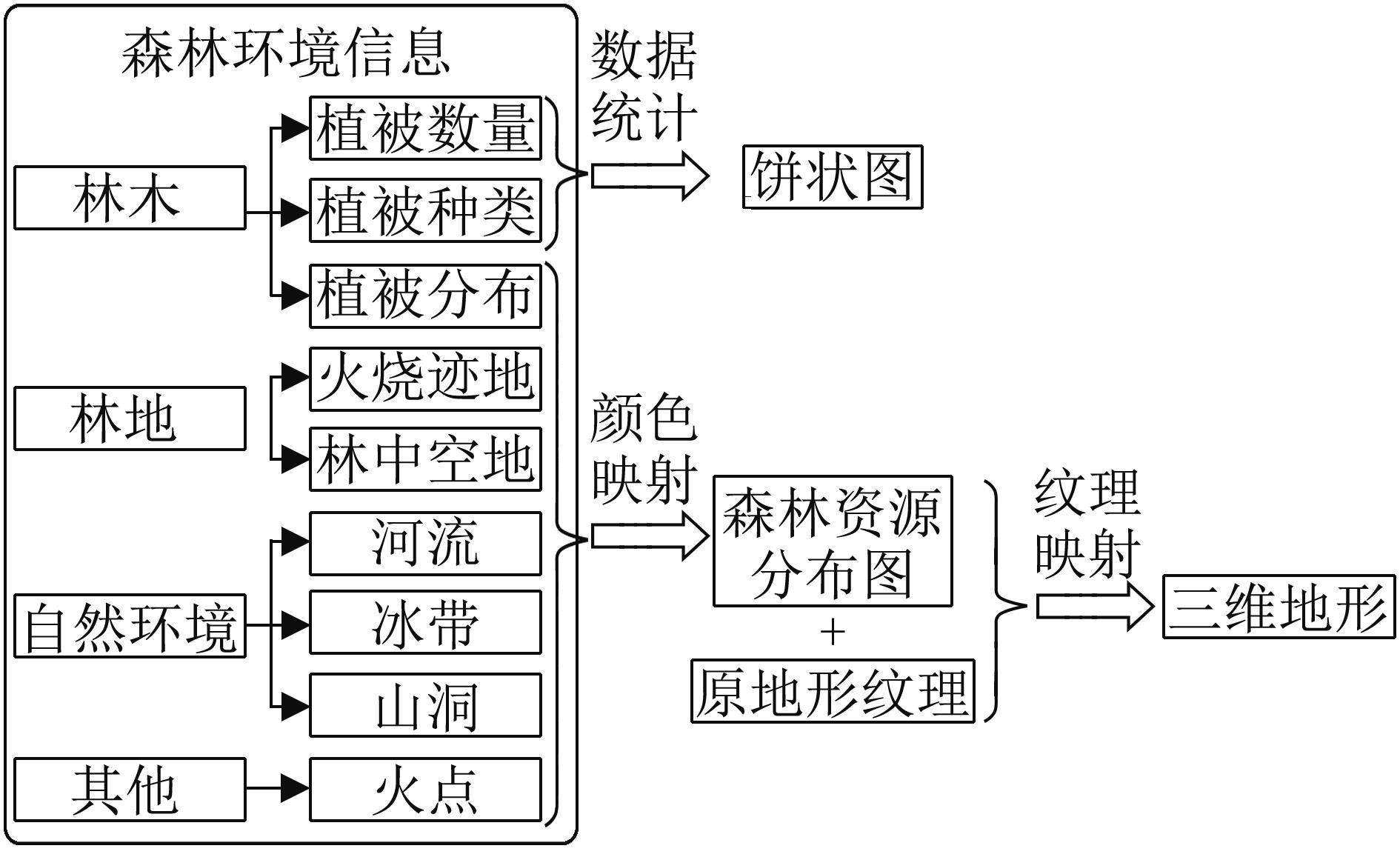

森林环境信息	颜色(R, G, B, A)[0, 255]
草	(20, 220, 0, 255)
灌木	(20, 100, 0, 255)
蕨类	(150, 200, 150, 255)
针叶林	(200, 255, 130, 255)
乔木	(0, 190, 100, 255)
冰带	(150, 255, 255, 255)
河流	(11, 172, 207, 255)
山洞	(184, 156, 96, 255)
火烧迹地	(40, 40, 40, 255)
火	(220, 60, 0, 255)
无植被	(200, 200, 200, 255)

可视化方法	应用范围	最小时延/ms	最大时延/ms	平均时延/ms
林火蔓延模拟	0~60 min	16.09	40.56	24.98
火线预测	0~100 min	22.82	343.93	58.33
环境数据(森林资源、风速、温度、高程、坡度、坡向)	1 024×1 024 (栅格单元)	283.07	418.82	312.29
风向标注	64×64 (栅格单元)	10.39	22.76	14.18
指定区域划分	10×10~1 024×1 024 (栅格单元)	11.05	360.44	125.18
火场信息	指定火线	11.96	25.80	16.22
统计图表	指定区域	20.50	43.50	28.99
