基于人体骨骼特征的三维服装碰撞模拟

doi:10.16182/j.issn1004731x.joss.22-1406

摘要/Abstract

摘要：

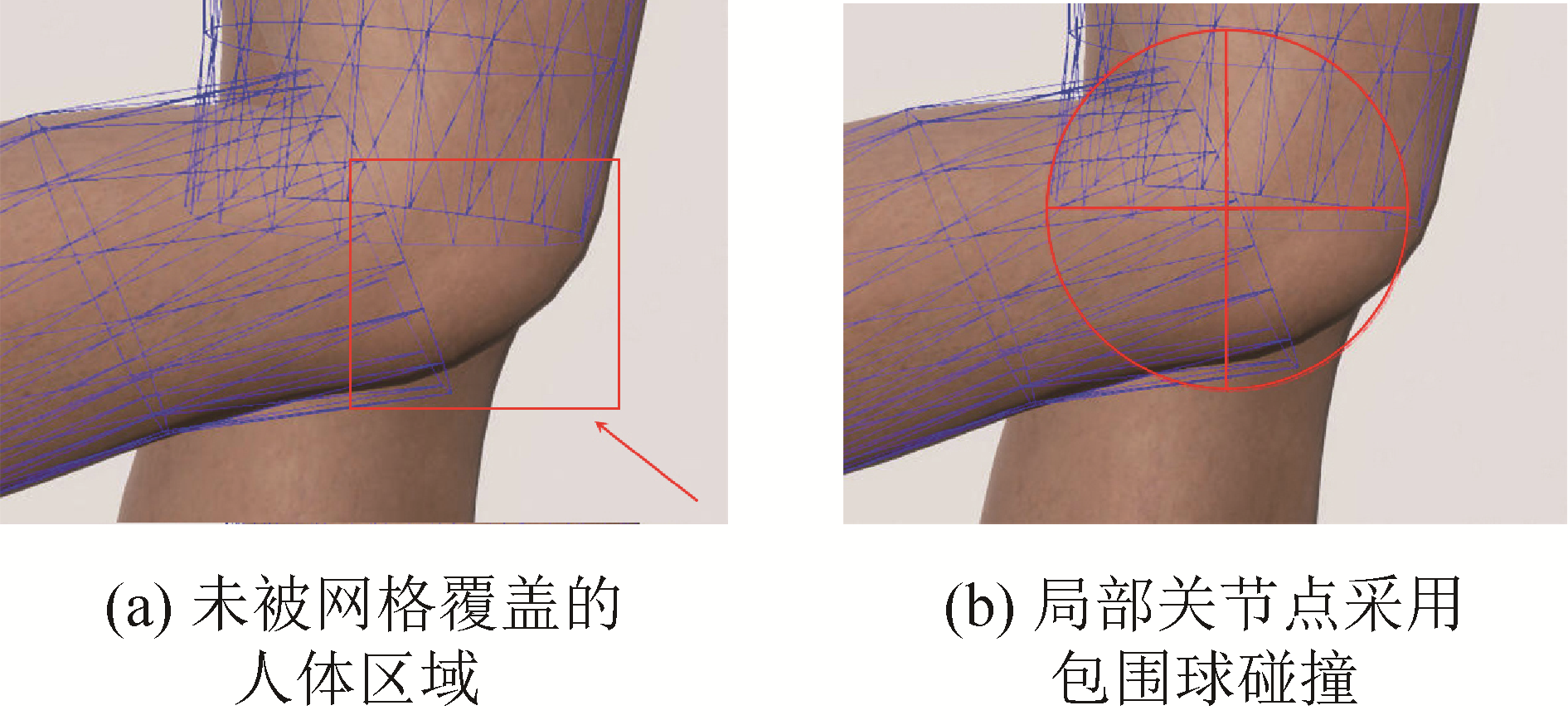

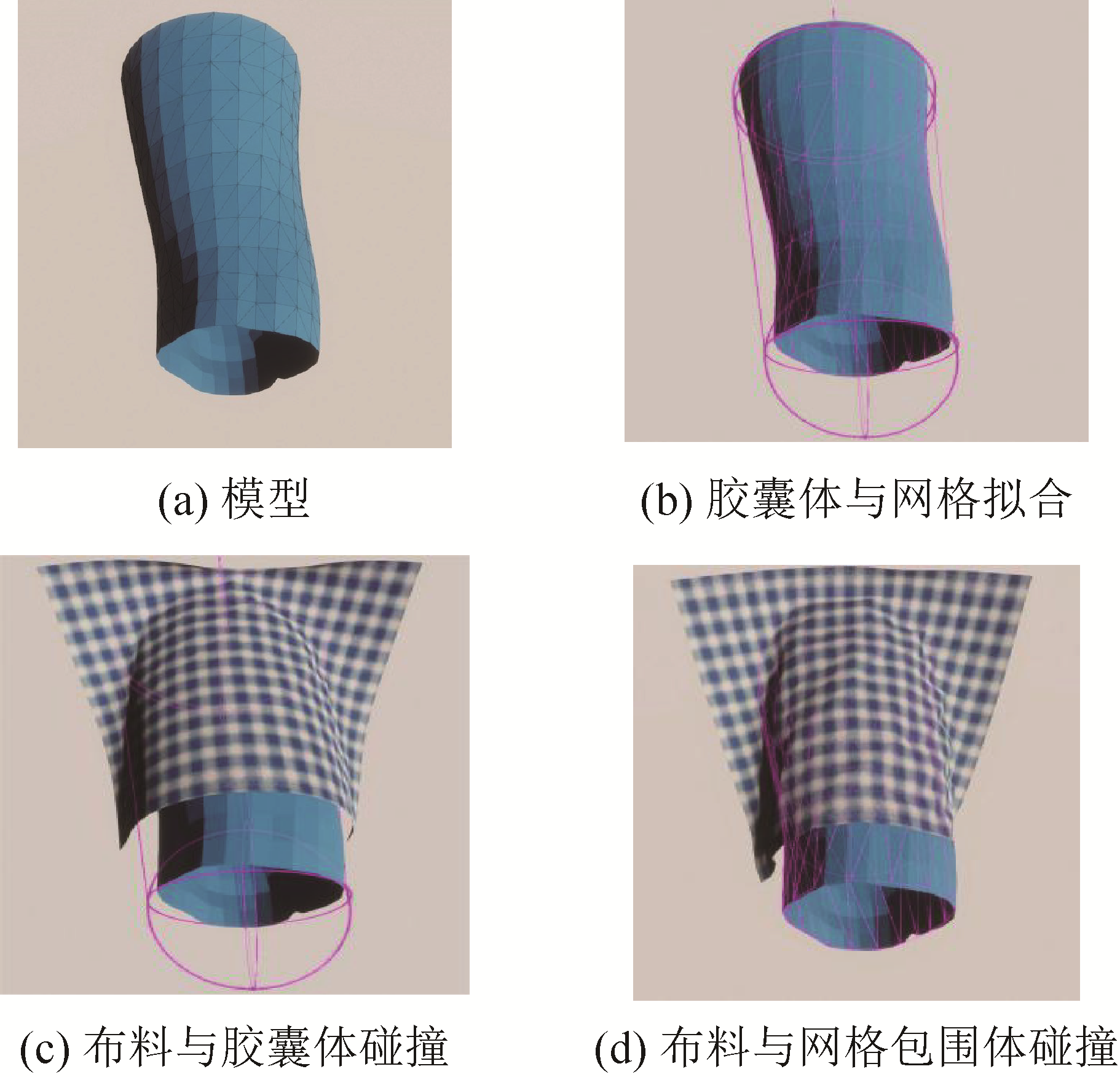

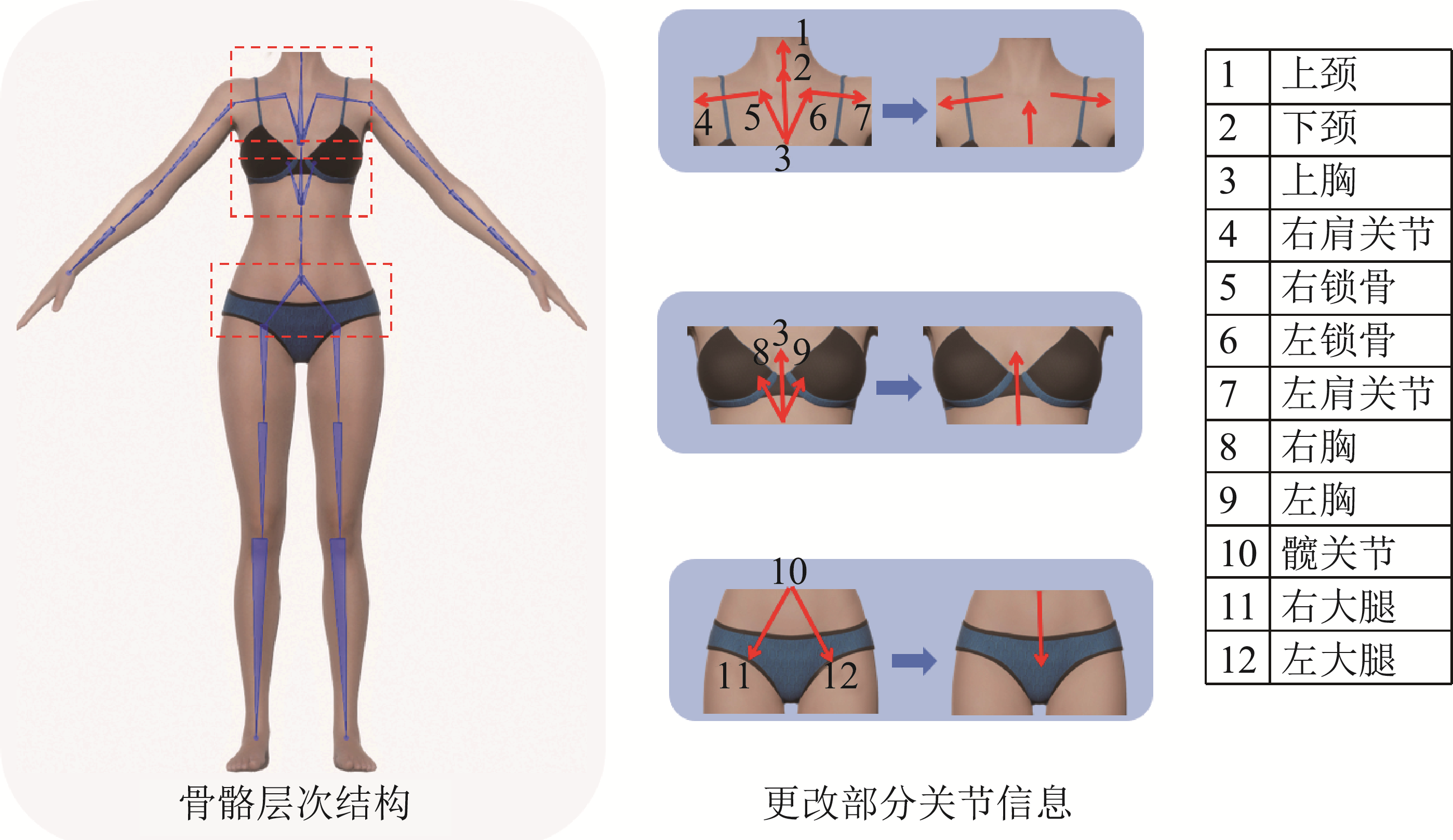

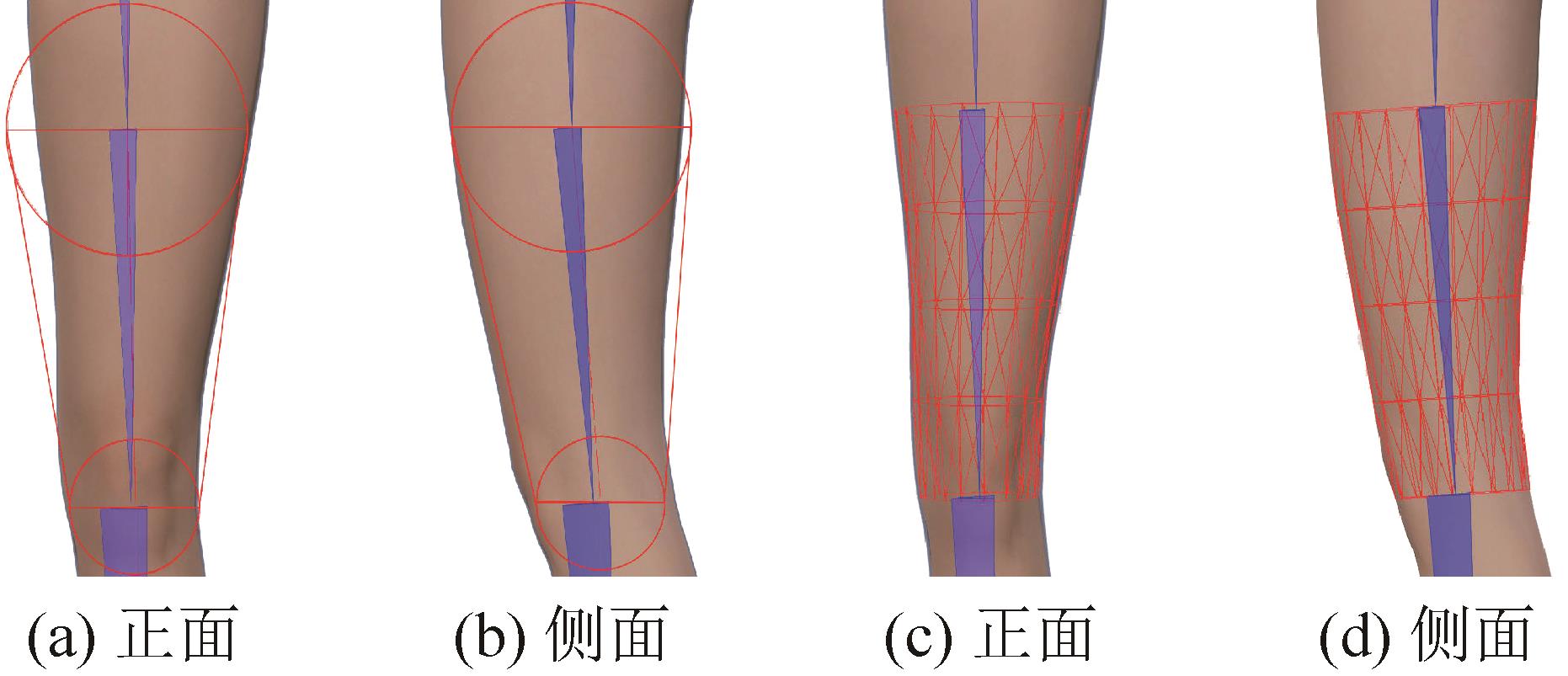

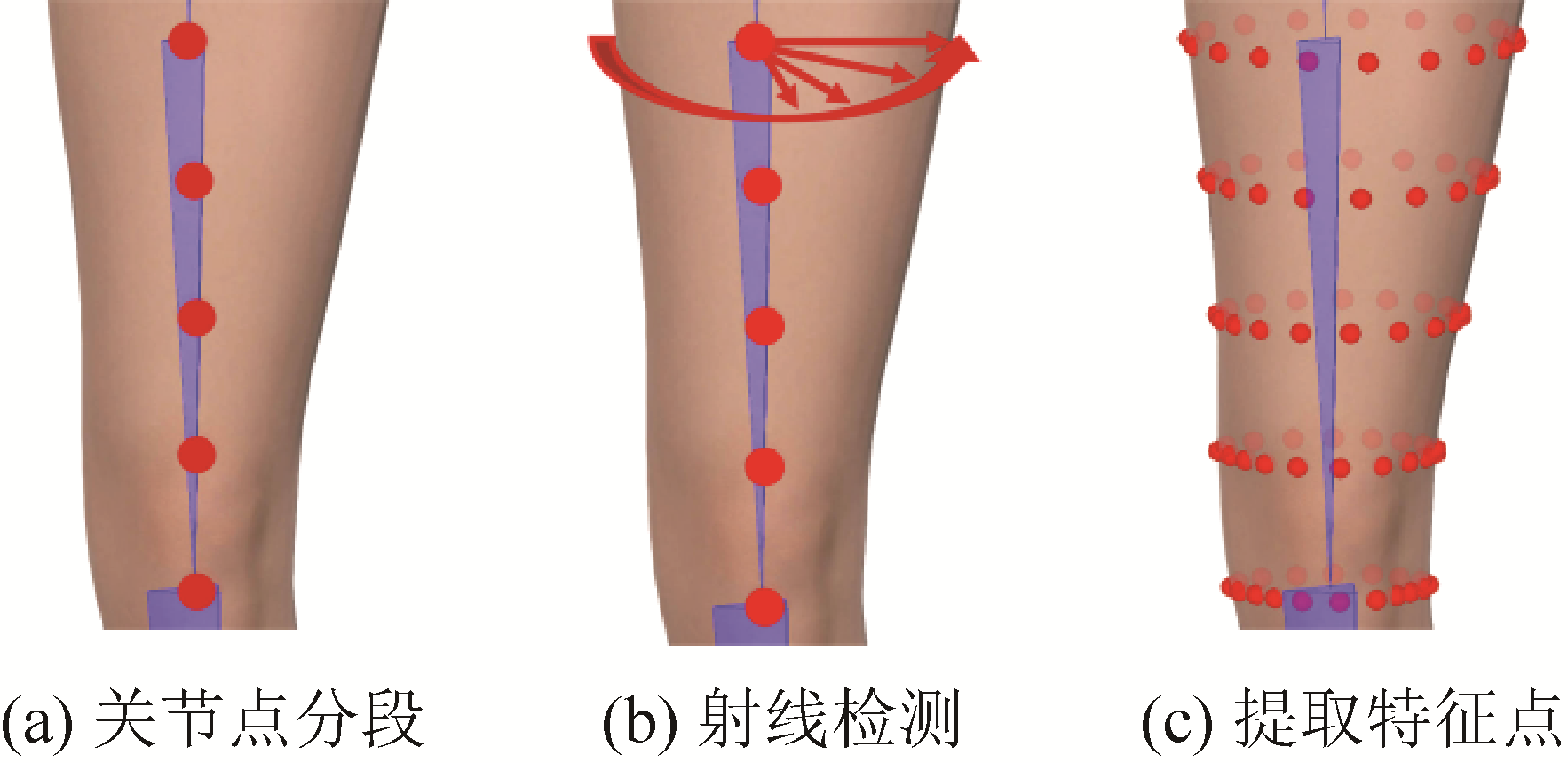

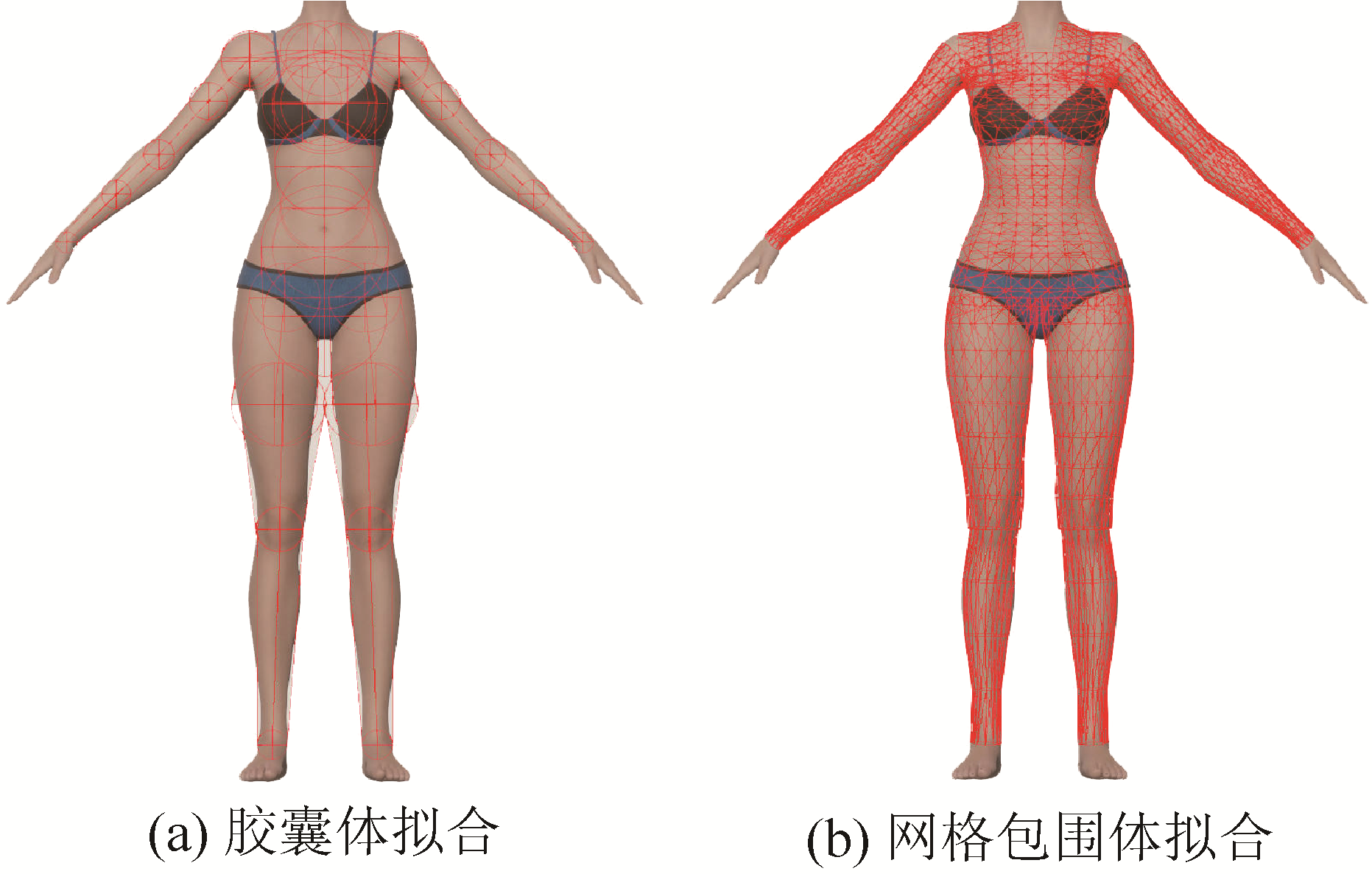

为了提升实时布料模拟过程中服装与人体碰撞的真实感，提出一种基于包围盒与网格法的自动化人体拟合的碰撞方法。结合人体骨骼结构和服装类型，有效优化参与碰撞模拟的骨骼信息，方便获取人体各部位特征点，并进行语义分割。依据蒙皮动画的特点，生成简单胶囊体和网格包围体拟合人体的几何形状，并实现碰撞体的动态跟随。使用生成的胶囊体代替人体进行粗略碰撞，排除较远端不可能发生碰撞的网格，基于网格方法实现精细化碰撞模拟，有效减少人体与服装模型之间的相互穿透。在弯曲时变形较大导致网格覆盖不全的关节处采用球体拟合，避免局部穿模。实验结果表明，文中方法可以自适应地生成拟合人体的碰撞体。粗略碰撞与精确碰撞结合的方法不仅有效提高服装与人体碰撞模拟的逼真度，而且能够确保高效的三维服装实时模拟效果。

关键词: 碰撞, 布料模拟, 骨骼, 特征点, 网格, 碰撞检测

Abstract:

In order to enhance the realism of garment and human body collision in real-time fabric simulation, an automated human body fitting collision method based on the bounding box and mesh method is proposed. According to the human skeletal structure and garment type, the skeletal information involved in collision simulation is effectively optimized, so as to better obtain the feature points of the human body and semantically segment them. According to the characteristics of skinning animation, simple capsule colliders and mesh colliders are generated to fit the geometric shape of the human body, and the dynamic following of colliders is realized. The generated capsule colliders can realize rough collision instead of the human body and eliminate meshes that are unlikely to collide at distant ends. It achieves accurate collision simulation based on the mesh method and effectively reduces the penetration between the human body and the garment model. Sphere fitting is used at joints where large deformation during bending results in incomplete mesh coverage to avoid local model penetration. The experiment results demonstrate that the proposed method can generate colliders that fit the human body automatically. The method of combining rough collision with a precise collision can not only effectively improve the fidelity of collision simulation between garment and human body but also ensure efficient real-time 3D garment simulation effect.

Key words: collision, fabric simulation, skeleton, feature points, mesh, collision detection

中图分类号:

TP391.41

陈园园,淮永建,聂笑盈等 . 基于人体骨骼特征的三维服装碰撞模拟[J]. 系统仿真学报, 2023, 35(9): 2023-2034.

Chen Yuanyuan,Huai Yongjian,Nie Xiaoying,et al . 3D Garment Collision Simulation Based on Human Skeletal Features[J]. Journal of System Simulation, 2023, 35(9): 2023-2034.

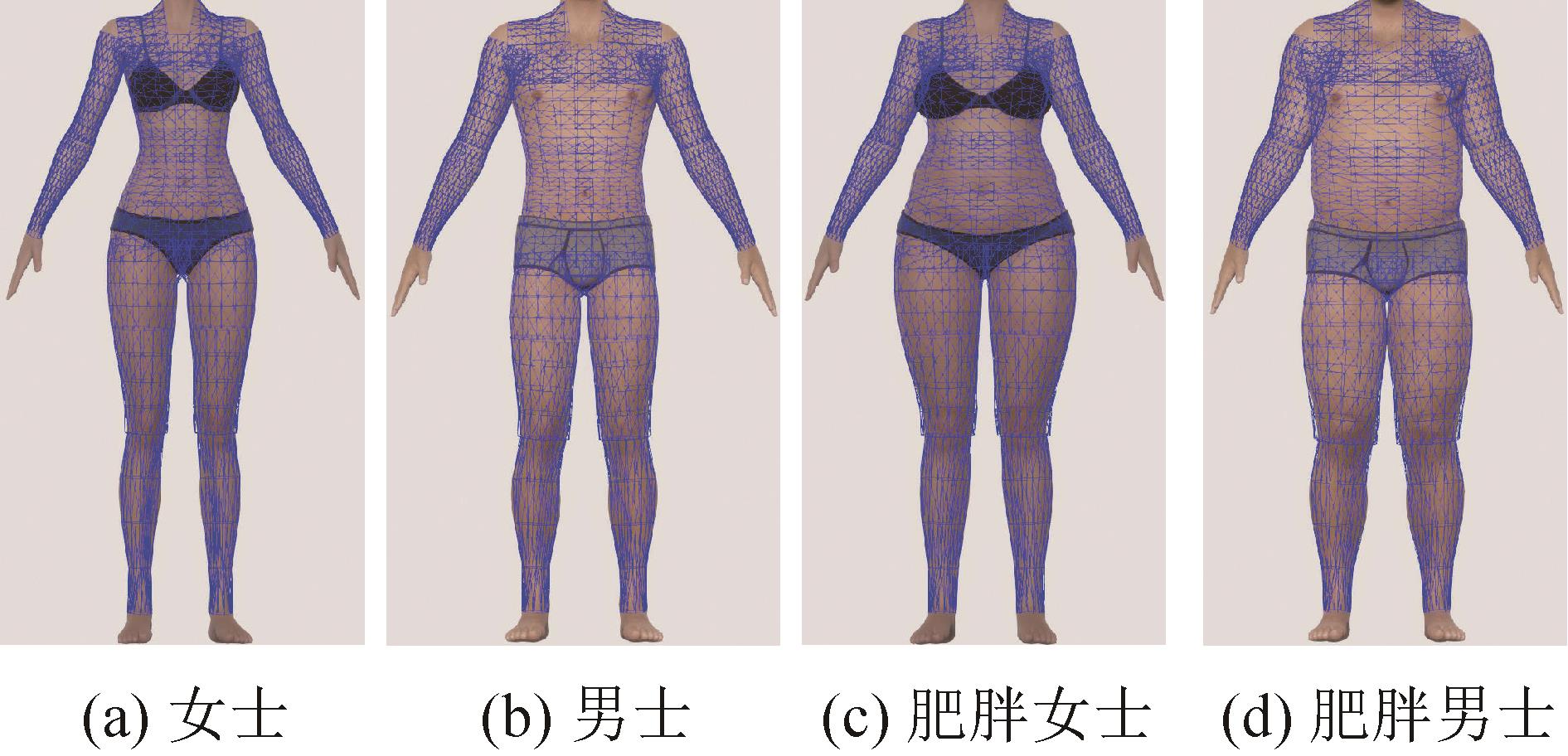

图/表 17

图1

图2

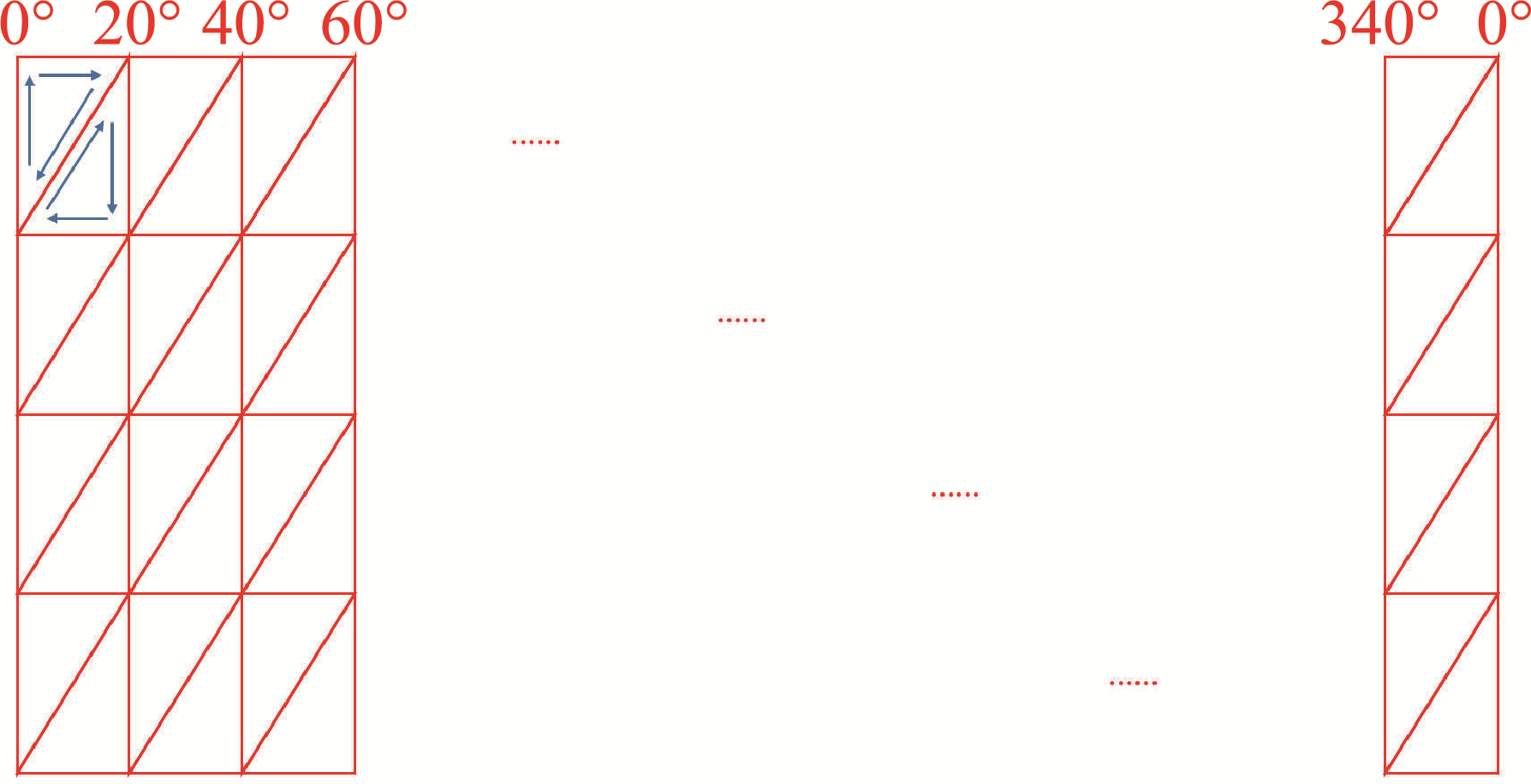

图3

图4

图5

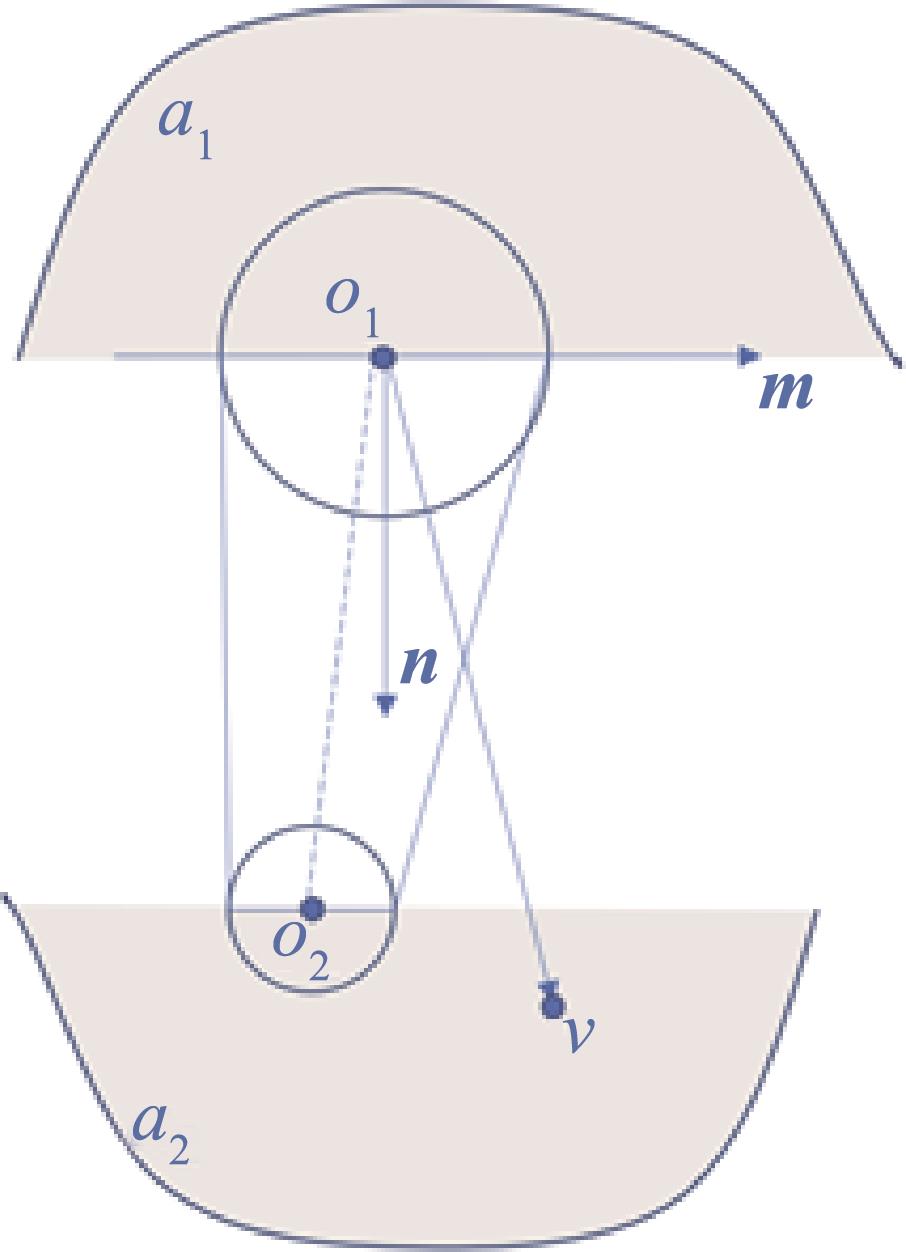

图6

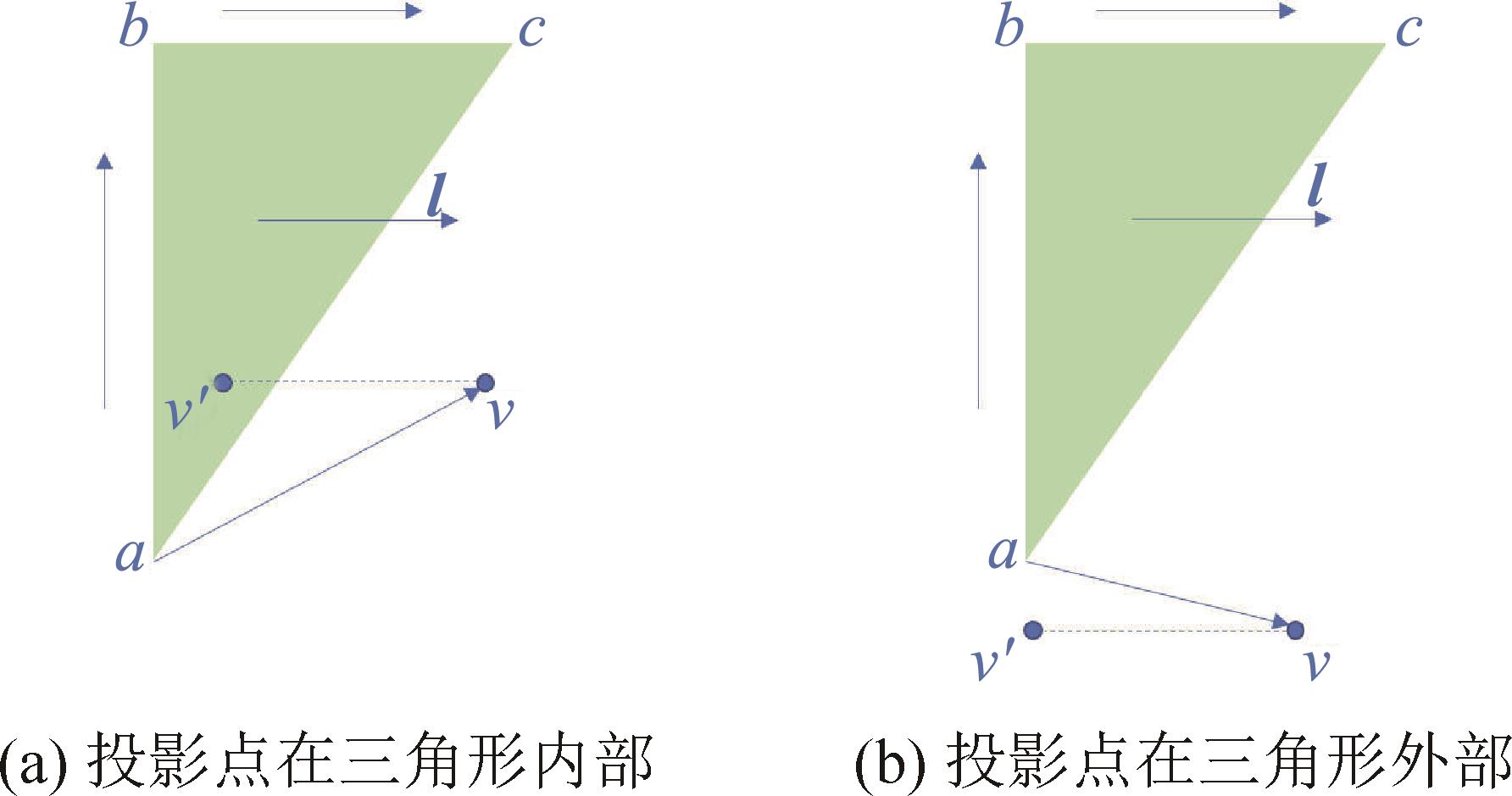

图7

图8

图9

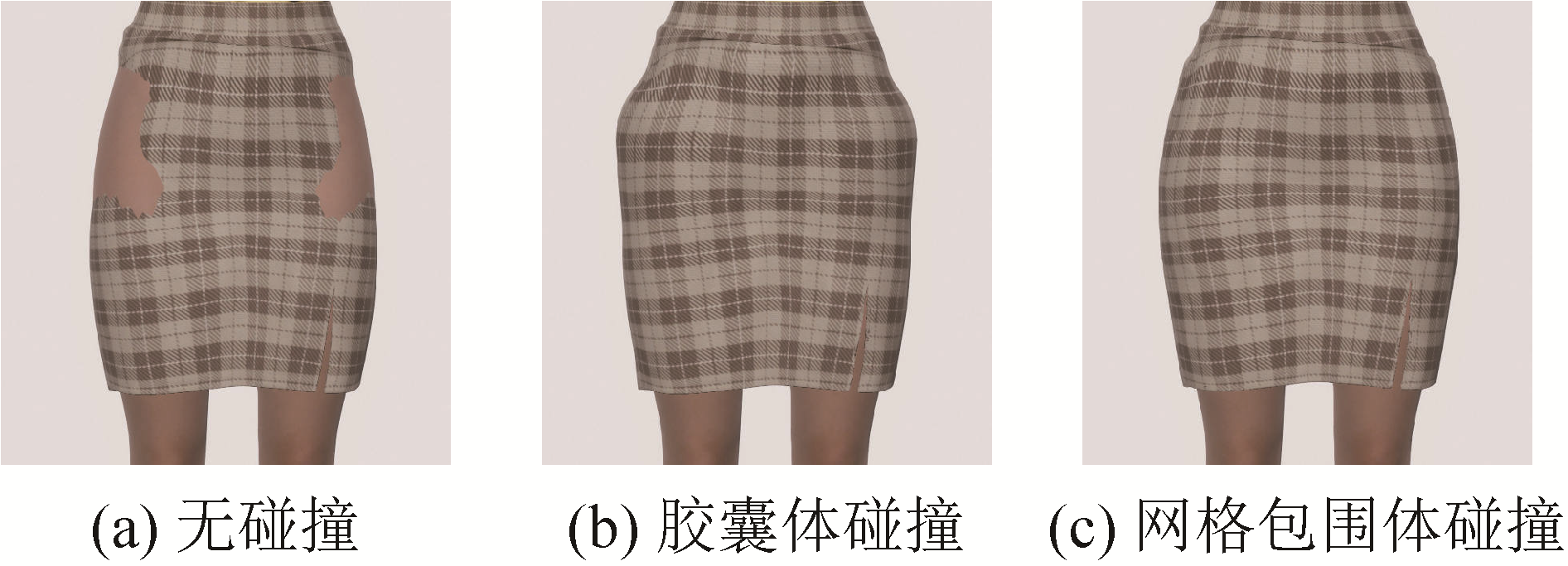

图10

图11

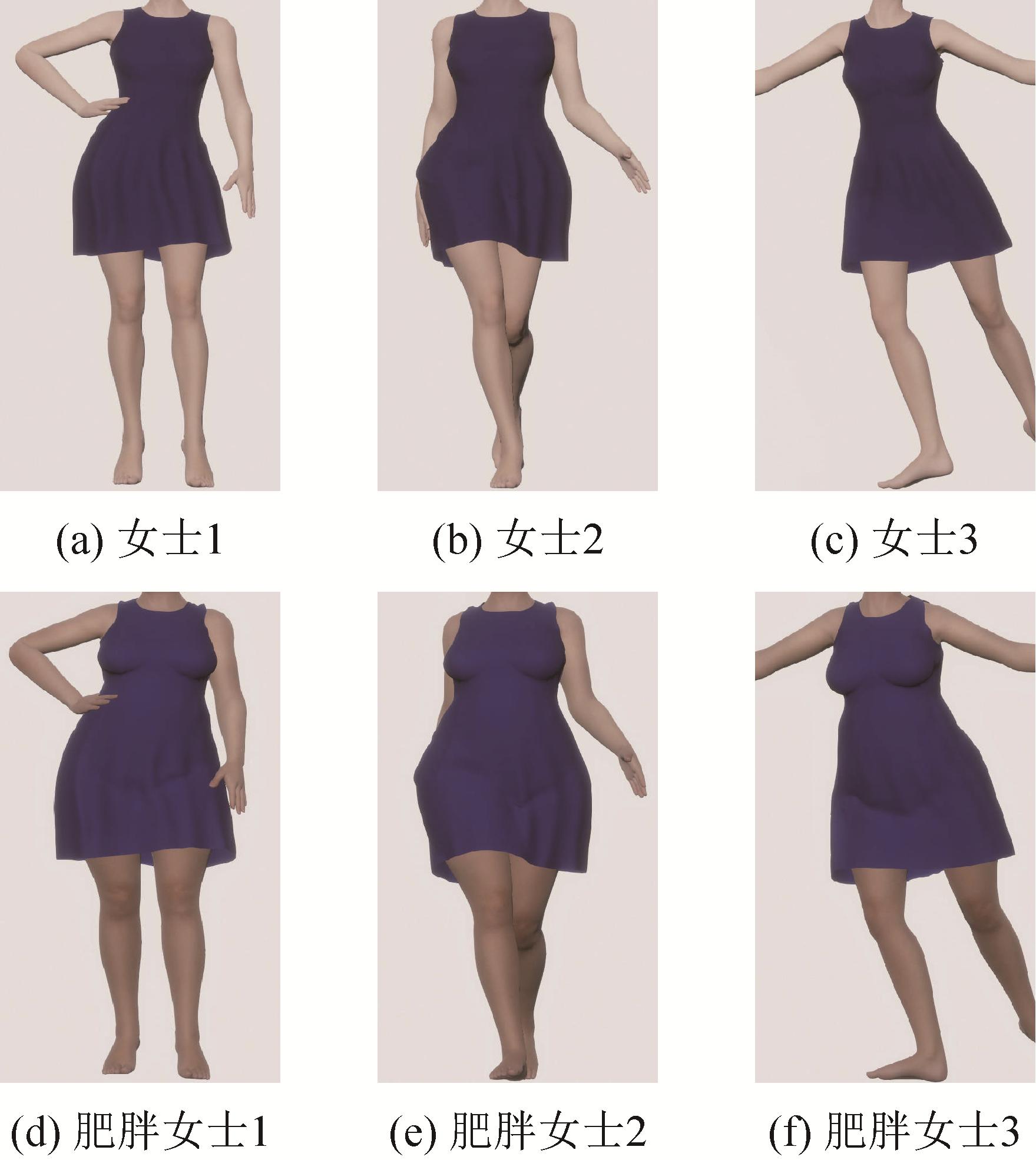

图12

表1

图13

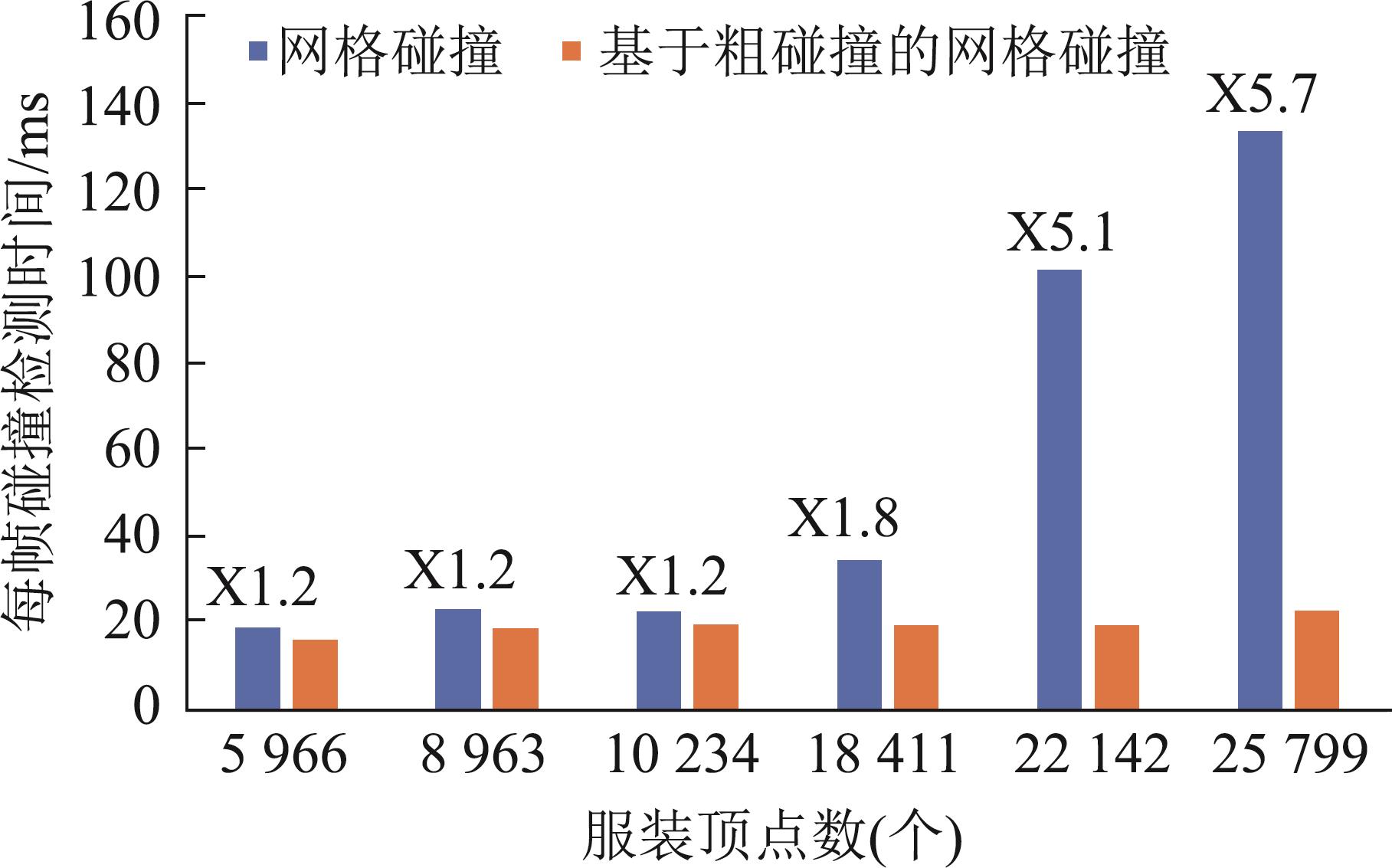

图14

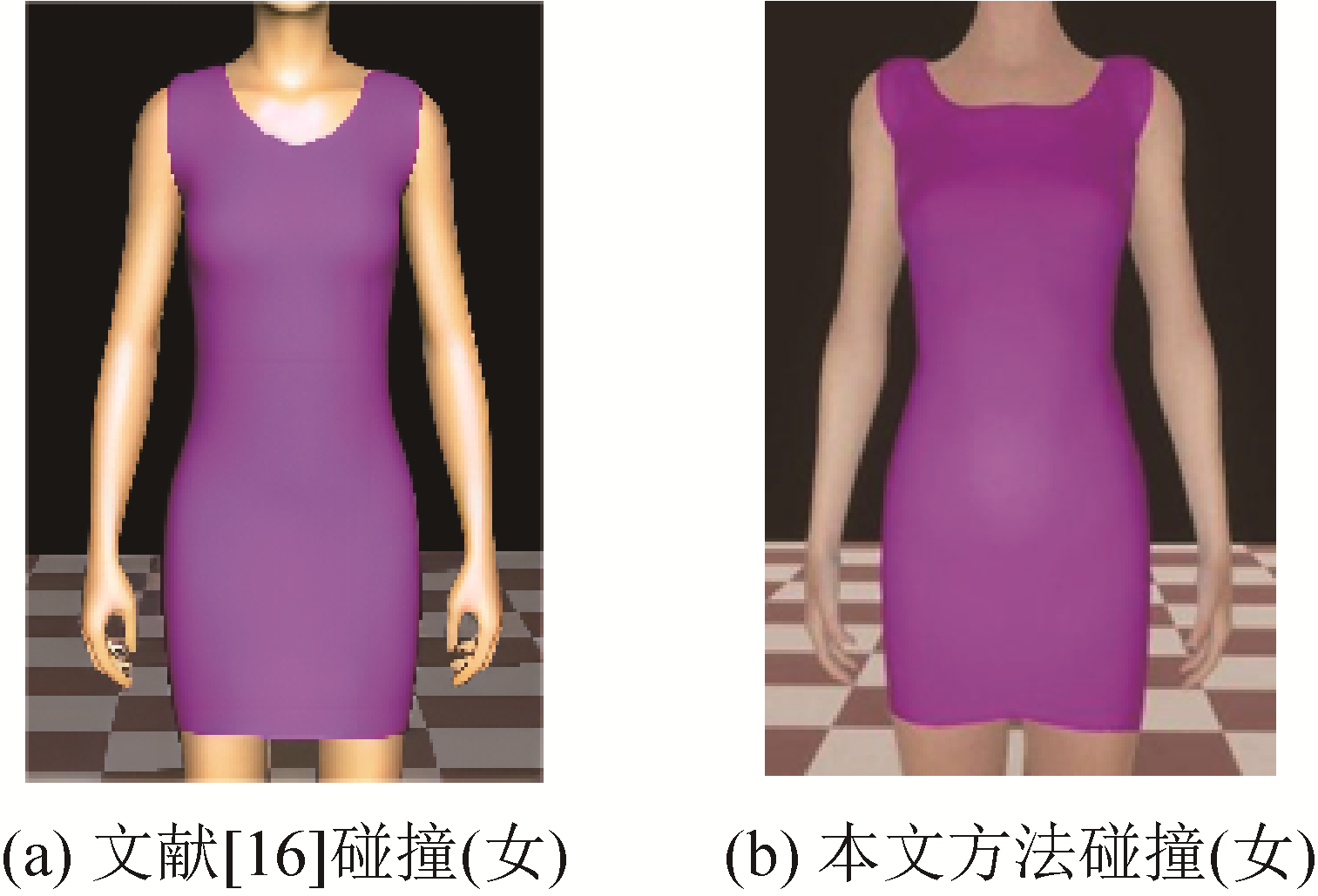

图15

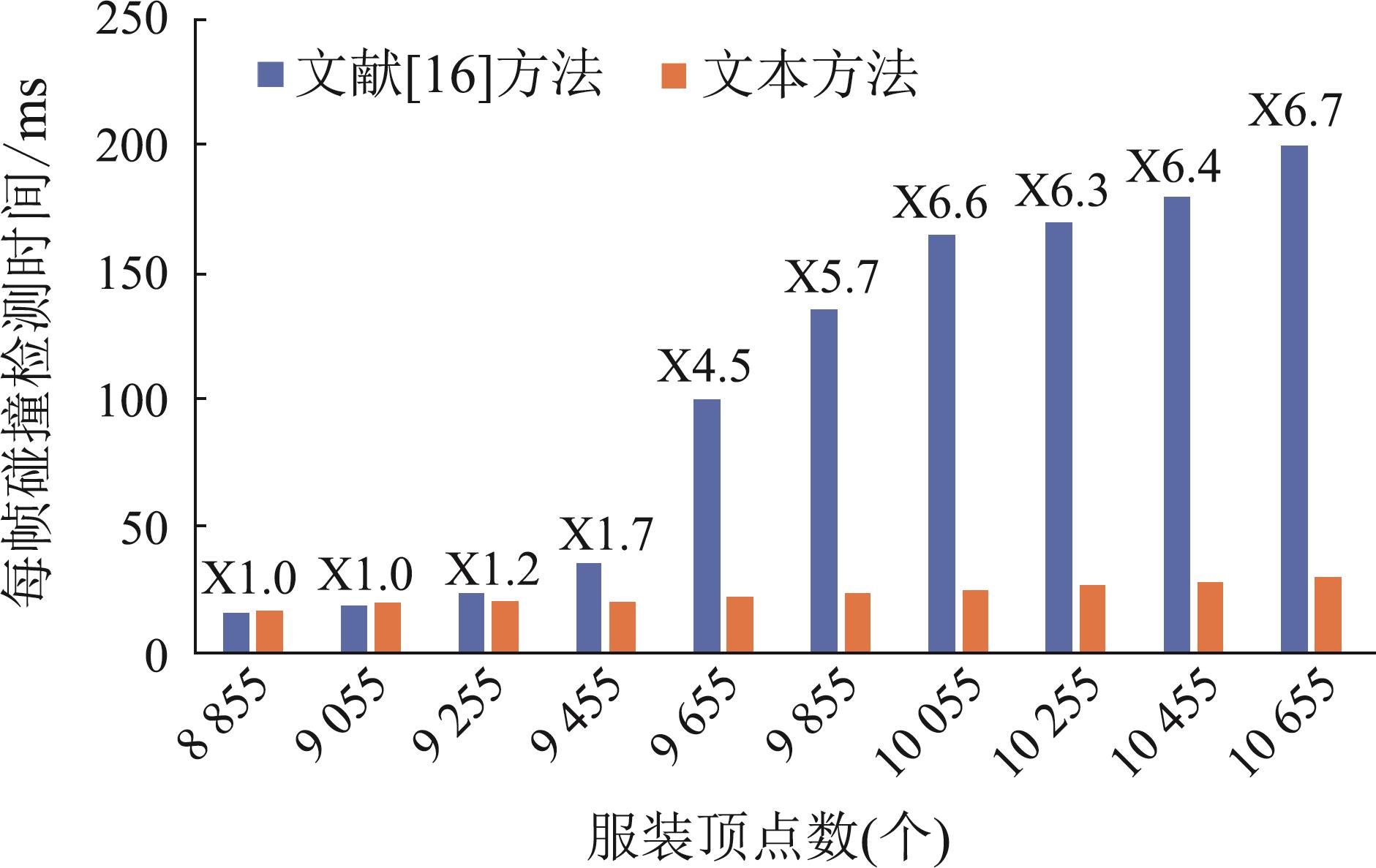

图16

参考文献 23

1	Wang Huamin. GPU-based Simulation of Cloth Wrinkles at Submillimeter Levels[J]. ACM Transactions on Graphics, 2021, 40(4): 169.
2	雍俊海, 陈梓苗. 基于物理的布料模拟研究综述[J]. 包装工程, 2021, 42(14): 28-39.
	Yong Junhai, Chen Zimiao. Review of Physics-based Cloth Simulation[J]. Packaging Engineering, 2021, 42(14): 28-39.
3	马晓萌, 孙红岩, 孙晓鹏. 层次八叉的三维模型并行碰撞检测[J]. 计算机工程与设计, 2019, 40(4): 1077-1084.
	Ma Xiaomeng, Sun Hongyan, Sun Xiaopeng. Parallel Collision Detection of 3D Mesh Using Hierarchical Octree[J]. Computer Engineering and Design, 2019, 40(4): 1077-1084.
4	石敏, 王俊铮, 毛天露, 等. 基于物理的可交互性虚拟服装动画模拟[J]. 系统仿真学报, 2018, 30(7): 2583-2592.
	Shi Min, Wang Junzheng, Mao Tianlu, et al. Physically-based Interactive Virtual Clothing Animation Simulation[J]. Journal of System Simulation, 2018, 30(7): 2583-2592.
5	邓峻生, 毛世峰, 刘旭峰, 等. 基于AABB树的聚变堆形变部件碰撞检测算法[J]. 计算机系统应用, 2018, 27(11): 161-167.
	Deng Junsheng, Mao Shifeng, Liu Xufeng, et al. Collision Detecting Algorithm for Deformable Components in Fusion Reactor Based on AABB Tree[J]. Computer Systems & Applications, 2018, 27(11): 161-167.
6	Qu Huiyan. Research on Parallel Algorithm Based on AABB Bounding Box Coordinate Chain Method[J]. Journal of Physics: Conference Series, 2021, 1732(1): 012067.
7	杨帆. 基于B+树存储的AABB包围盒碰撞检测算法[J]. 计算机科学, 2021, 48(增1): 331-333, 348.
	Yang Fan. Collision Detection Algorithm of AABB Bounding Box Based on B+ Tree[J]. Computer Science, 2021, 48(S1): 331-333, 348.
8	Shen Yanchun, Sun Xingyi. Research and Improvement of Collision Detection Based on Oriented Bounding Box in Physics Engine[C]//2011 IEEE 3rd International Conference on Communication Software and Networks. Piscataway, NJ, USA: IEEE, 2011: 73-76.
9	靳雁霞, 程琦甫, 张晋瑞, 等. 融合DNN与AABB—圆形包围盒自碰撞检测[J]. 中国图象图形学报, 2020, 25(8): 1674-1683.
	Jin Yanxia, Cheng Qifu, Zhang Jinrui, et al. Self-collision Detection Algorithm Based on Fused DNN and AABB-circular Bounding Box[J]. Journal of Image and Graphics, 2020, 25(8): 1674-1683.
10	燕楠, 林支慨. 基于包围盒与碰撞的模型填充算法研究[J]. 软件工程, 2022, 25(3): 5-8.
	Yan Nan, Lin Zhikai. Research on Model Filling Algorithm Based on Bounding Box and Collision[J]. Software Engineering, 2022, 25(3): 5-8.
11	Kim M, Sung N J, Kim S J, et al. Parallel Cloth Simulation with Effective Collision Detection for Interactive AR Application[J]. Multimedia Tools and Applications, 2019, 78(4): 4851-4868.
12	王君良, 李重, 金小刚, 等. 基于内部球的三维模型逼近与聚类[J]. 计算机辅助设计与图形学学报, 2013, 25(10): 1446-1453.
	Wang Junliang, Li Zhong, Jin Xiaogang, et al. 3D Model Approximation and Clustering Based on Inner Spheres[J]. Journal of Computer-Aided Design & Computer Graphics, 2013, 25(10): 1446-1453.
13	Thiery J M, Guy Émilie, Boubekeur T, et al. Animated Mesh Approximation with Sphere-meshes[J]. ACM Transactions on Graphics, 2016, 35(3): 30.
14	Ali I R, Mohammed M A, Al-Sharify A T, et al. Real-time Cloth Simulation on Virtual Human Character Using Enhanced Position Based Dynamic Framework Technique[J]. Baghdad Science Journal, 2020, 17(4): 1294-1303.
15	唐勇, 杨偲偲, 吕梦雅, 等. 自适应椭球包围盒改进织物碰撞检测方法[J]. 计算机辅助设计与图形学学报, 2013, 25(10): 1589-1596.
	Tang Yong, Yang Caicai, Mengya Lü, et al. Collision Detection for Cloth Based on Adaptive Enclosing Ellipsoids[J]. Journal of Computer-Aided Design & Computer Graphics, 2013, 25(10): 1589-1596.
16	龚随, 侯进, 钟李涛, 等. 基于椭球拟合的人体—服装碰撞检测方法[J]. 计算机应用研究, 2019, 36(1): 273-277, 283.
	Gong Sui, Hou Jin, Zhong Litao, et al. Cloth-body Collision Detection Method Based on Ellipsoid Fitting[J]. Application Research of Computers, 2019, 36(1): 273-277, 283.
17	Meng Yuwei, Mok P Y, Jin Xiaogang. Interactive Virtual Try-on Clothing Design Systems[J]. Computer Aided Design, 2010, 42(4): 310-321.
18	Wu Nannan, Zhang Dongliang, Deng Zhigang, et al. Variational Mannequin Approximation Using Spheres and Capsules[J]. IEEE Access, 2018, 6: 25921-25929.
19	国家市场监督管理总局, 国家标准化管理委员会. 数字化试衣虚拟人体用术语和定义: [S]. 北京: 中国标准出版社, 2022.
	State Administration for Market Regulation, Administration Standardization. Digital Fittings- vocabulary and Terminology Used for the Virtual Human Body: [S]. Beijing: Standards Press of China, 2022.
20	薛传宇, 董洪伟, 张明敏, 等. 一种基于人体胖瘦模型的穿衣实时仿真方法[J]. 系统仿真学报, 2017, 29(11): 2847-2855.
	Xue Chuanyu, Dong Hongwei, Zhang Mingmin, et al. Real-time Simulation on Virtual Dressing Based on Virtual Human Body Model[J]. Journal of System Simulation, 2017, 29(11): 2847-2855.
21	陈善言, 关永, 施智平, 等. 机器人碰撞检测方法形式化[J]. 软件学报, 2022, 33(6): 2246-2263.
	Chen Shanyan, Guan Yong, Shi Zhiping, et al. Formalization of Collision Detection Method for Robots[J]. Journal of Software, 2022, 33(6): 2246-2263.
22	浙江大学. 一种基于胶囊的人体模型逼近方法: CN201810441191.3[P]. 2020-08-04.
23	孙守迁, 徐爱国, 黄琦, 等. 基于角色几何碰撞体估计的实时服装仿真[J]. 软件学报, 2007, 18(11): 2921-2931.
	Sun Shouqian, Xu Aiguo, Huang Qi, et al. Real-time Garment Simulation Based on Geometrically Approximating Character with Colliding Objects[J]. Journal of Software, 2007, 18(11): 2921-2931.

服装类型	模型顶点数(个)	实际碰撞网格包围体数(个)	每帧碰撞处理时间/ms
丝绸长裙	22 142	7	20.1
棉布长裤	6 699	7	23.5
蕾丝舞裙	11 718	9	19.8
毛线上衣	26 286	11	22.8
