计及阶梯式碳交易的综合能源系统优化调度

doi:10.16182/j.issn1004731x.joss.22-0189

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (7): 1393-1404.doi: 10.16182/j.issn1004731x.joss.22-0189

• 专栏：电力和能源自动化仿真 • 上一篇下一篇

计及阶梯式碳交易的综合能源系统优化调度

王俐英¹(), 林嘉琳¹, 董厚琦¹, 曾鸣¹, 王雨晴²()

^1.华北电力大学，北京 102206
^2.华北电力大学（保定），河北保定 071000

收稿日期:2022-03-09 修回日期:2022-06-08 出版日期:2022-07-30 发布日期:2022-07-20
通讯作者: 王雨晴 E-mail:wangliying613@ncepu.edu.cn;wangyuqingncepu@foxmail.com
作者简介:王俐英（1997-），女，蒙古族，博士生，研究方向为综合能源系统优化调度，电力需求侧管理。E-mail：wangliying613@ncepu.edu.cn
基金资助:
国家社会科学基金重大项目(19ZDA081);中央高校基本科研业务费(2020MS067)

Optimal Dispatch of Integrated Energy System Considering Ladder-Type Carbon Trading

Liying Wang¹(), Jialin Lin¹, Houqi Dong¹, Ming Zeng¹, Yuqing Wang²()

^1.North China Electric Power University, Beijing 102206, China
^2.North China Electric Power University(Baoding Campus), Baoding 071000, China

Received:2022-03-09 Revised:2022-06-08 Online:2022-07-30 Published:2022-07-20
Contact: Yuqing Wang E-mail:wangliying613@ncepu.edu.cn;wangyuqingncepu@foxmail.com

摘要/Abstract

摘要：

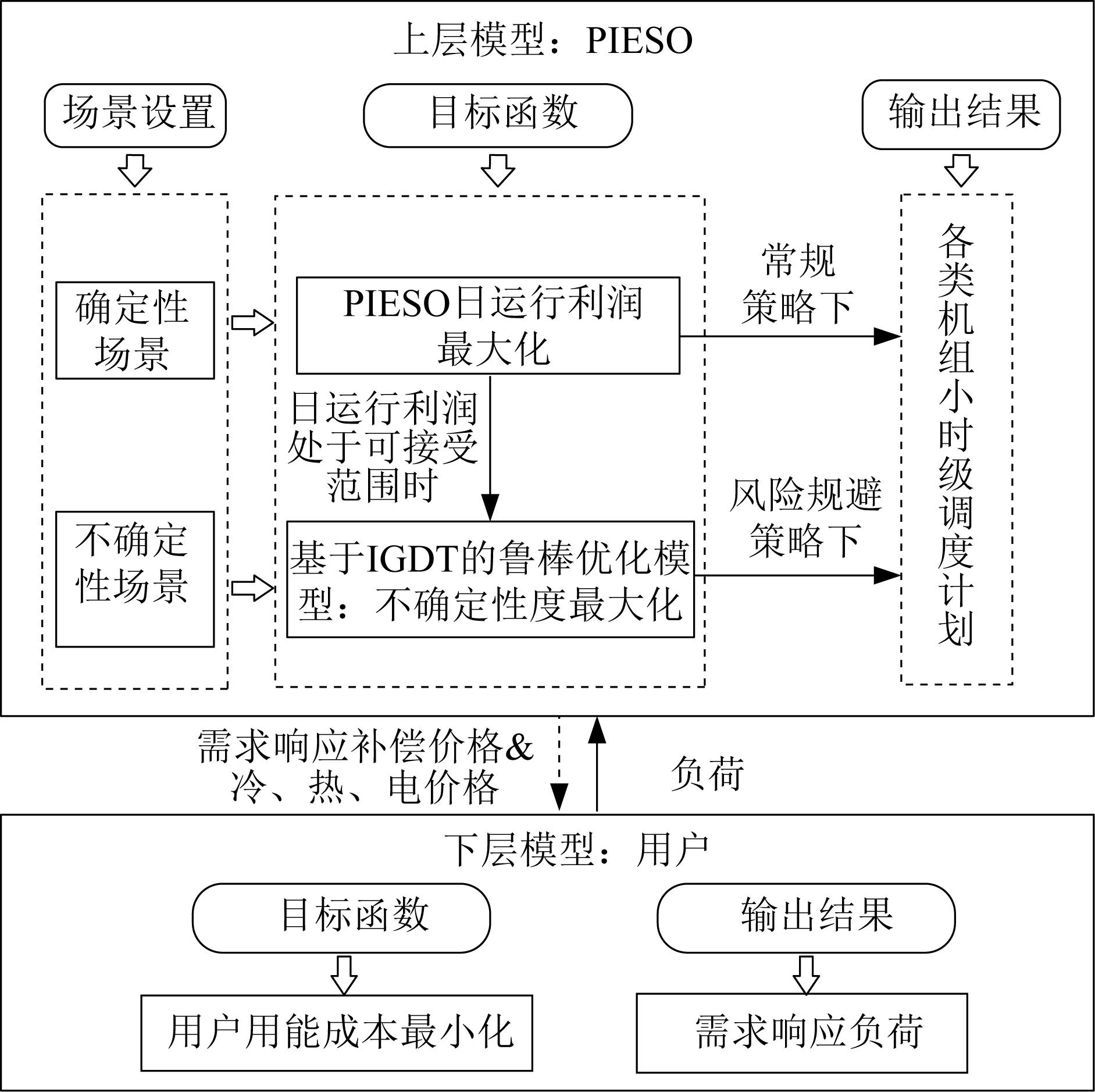

随着电力市场和碳市场的发展，将需求响应和碳交易机制引入综合能源系统运行调度中，有助于引导用户和系统运营商优化用电和调度计划。通过分时电价和需求响应激励补贴等综合型激励措施引导用户参与需求响应，并基于IGDT（information gap decision theory）理论构建了考虑阶梯式碳交易机制以及需求响应的综合能源系统双层随机优化调度模型，并通过KKT条件和大M法将双层模型转化为单层模型进行求解。结果表明，引入需求响应和阶梯式碳交易机制之后能够实现综合能源系统的低碳环保运行。

关键词: 综合能源系统, 需求响应, IGDT, 阶梯式碳交易机制, 双层模型

Abstract:

With the development of the electricity market and carbon market,the introduction of demand response and carbon trading mechanisms into the operation and dispatch of integrated energy systems will help guide users and system operators to optimize electricity consumption and dispatch plans.The comprehensive incentive measures such as time-of-use electricity prices and demand response incentive subsidies are used to guide users to participate in demand response.A two-layer stochastic optimal scheduling model for a comprehensive energy system considering the ladder-type carbon trading mechanism and demand response is constructed based on IGDT (information gap decision theory) theory.The two-layer model is converted into a single-layer model by KKT condition and big M method for solving.The results show that the introduction of the demand response and carbon trading mechanisms can achieve low-carbon and environmentally friendly operation of the integrated energy system.

Key words: integrated energy system, demand response, IGDT, ladder-type carbon trading mechanism, two-layer model

中图分类号:

TP391

王俐英, 林嘉琳, 董厚琦, 曾鸣, 王雨晴. 计及阶梯式碳交易的综合能源系统优化调度[J]. 系统仿真学报, 2022, 34(7): 1393-1404.

Liying Wang, Jialin Lin, Houqi Dong, Ming Zeng, Yuqing Wang. Optimal Dispatch of Integrated Energy System Considering Ladder-Type Carbon Trading[J]. Journal of System Simulation, 2022, 34(7): 1393-1404.

图/表 16

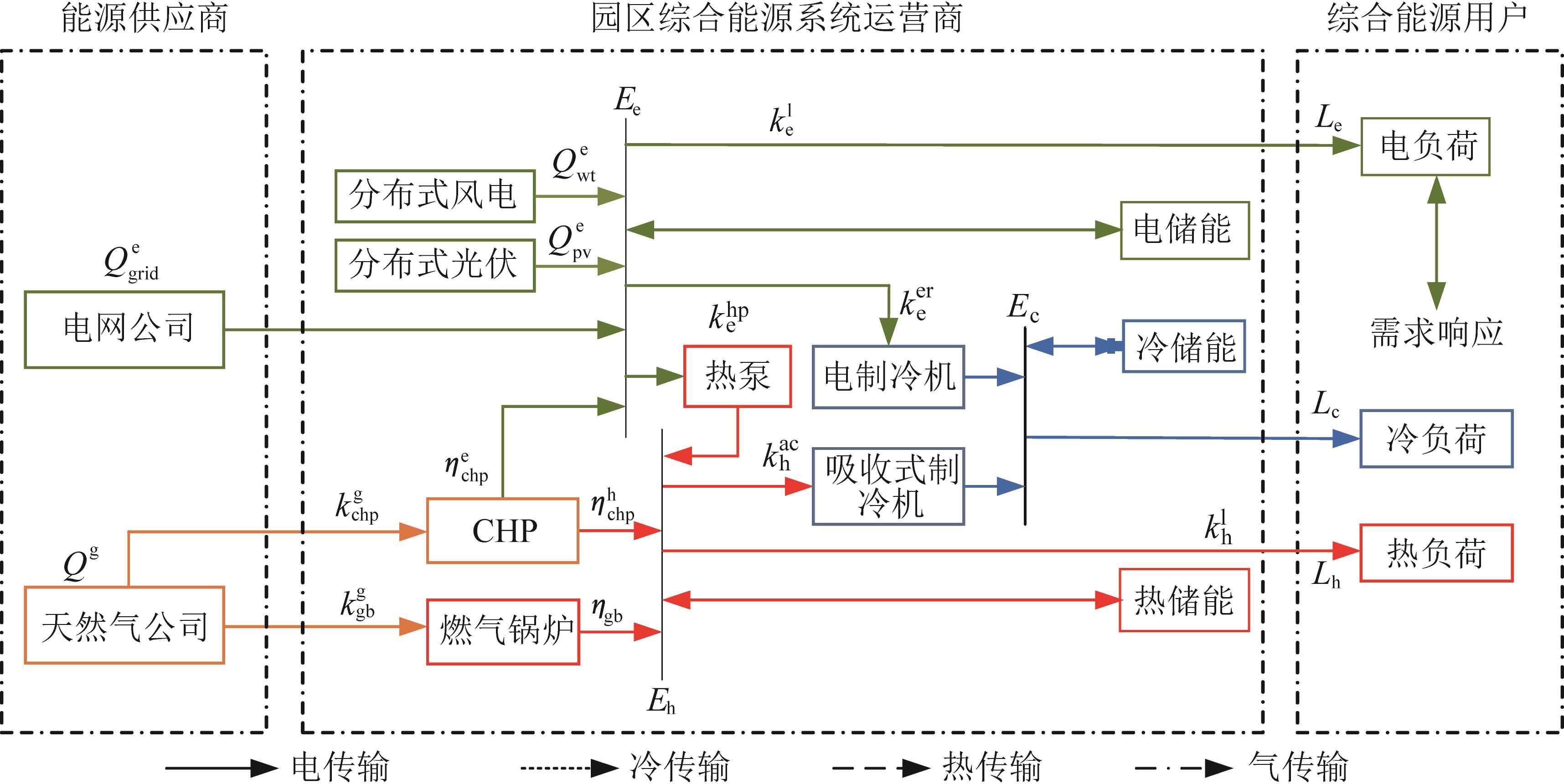

图1

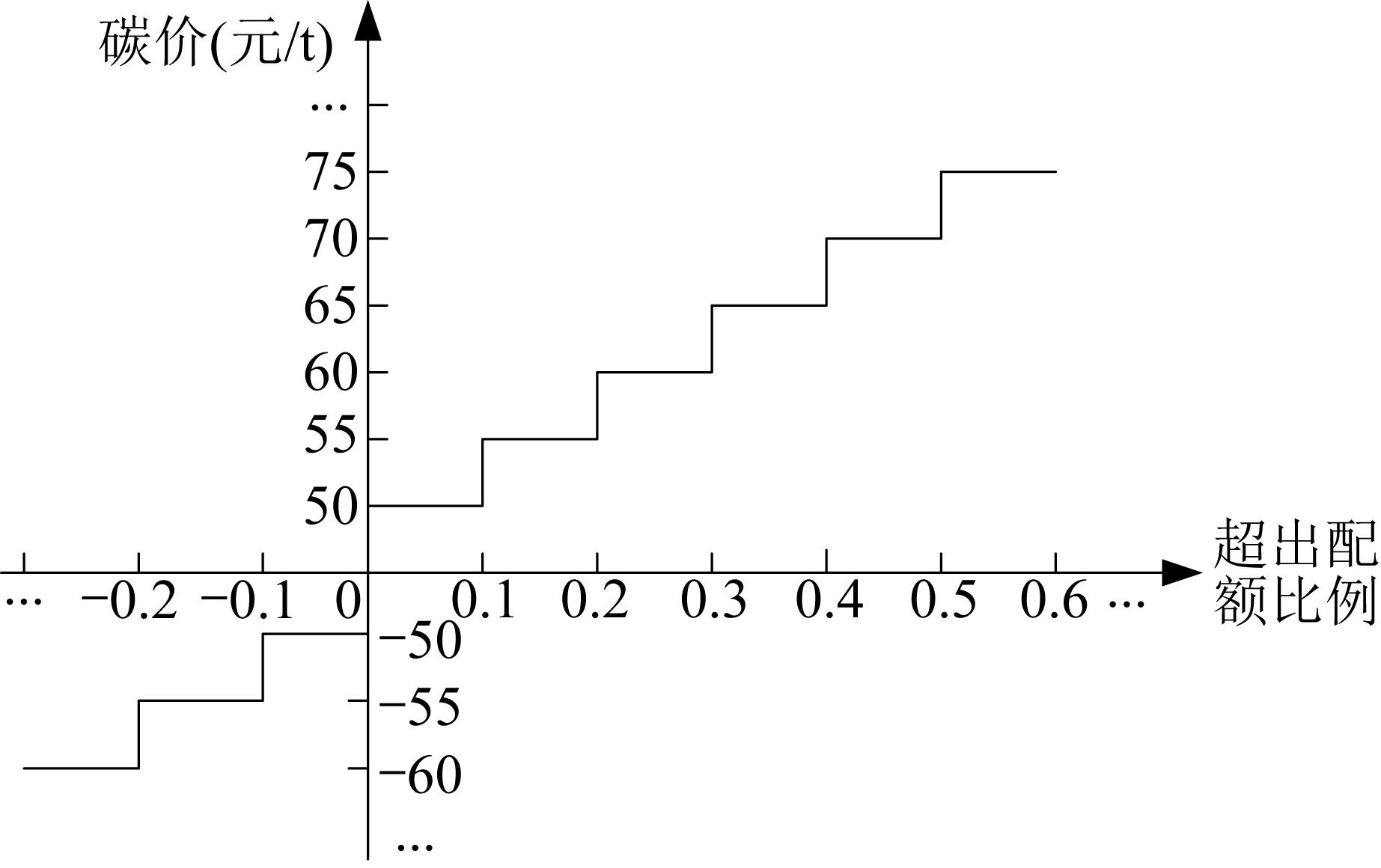

图2

图3

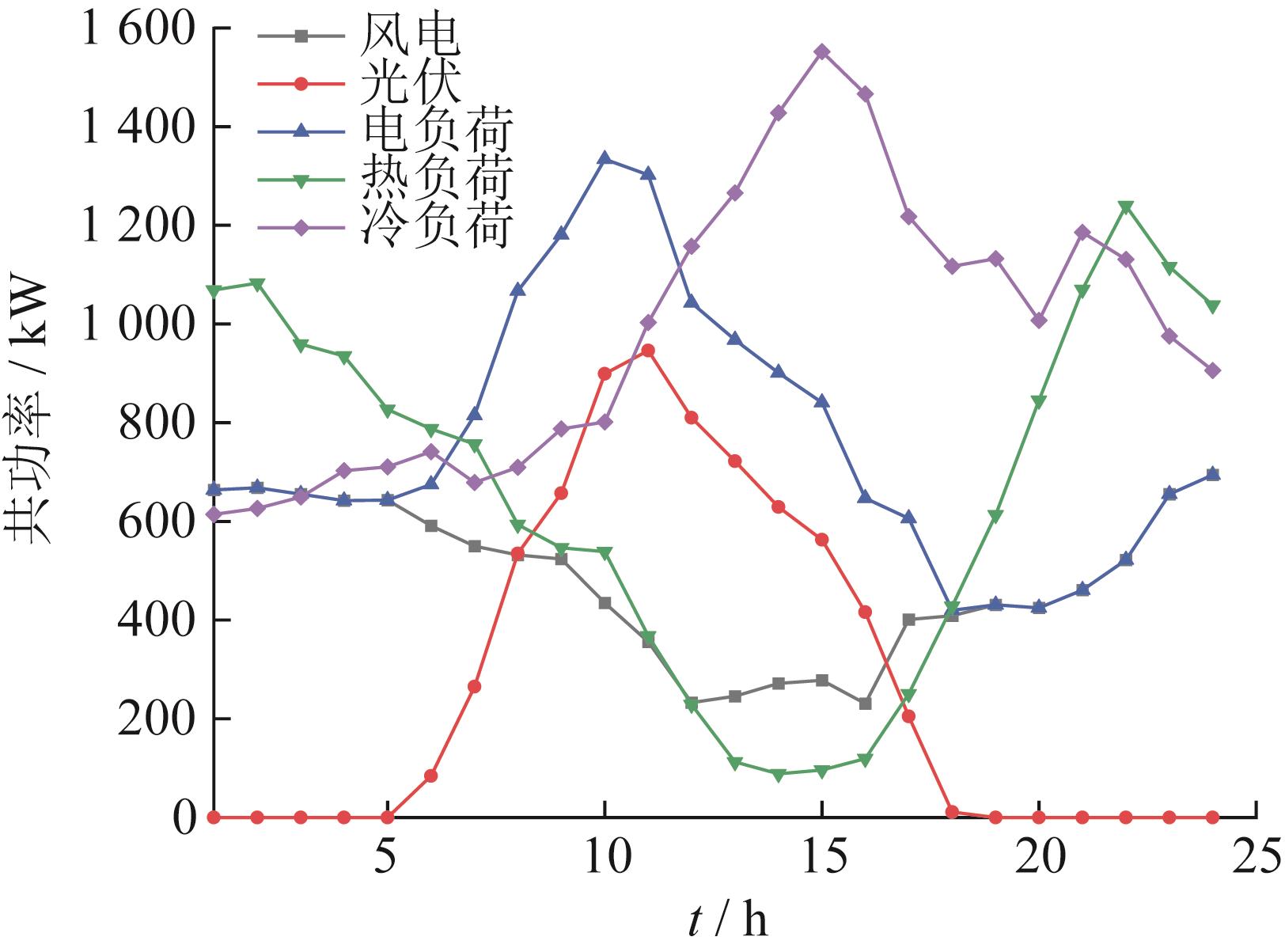

图4

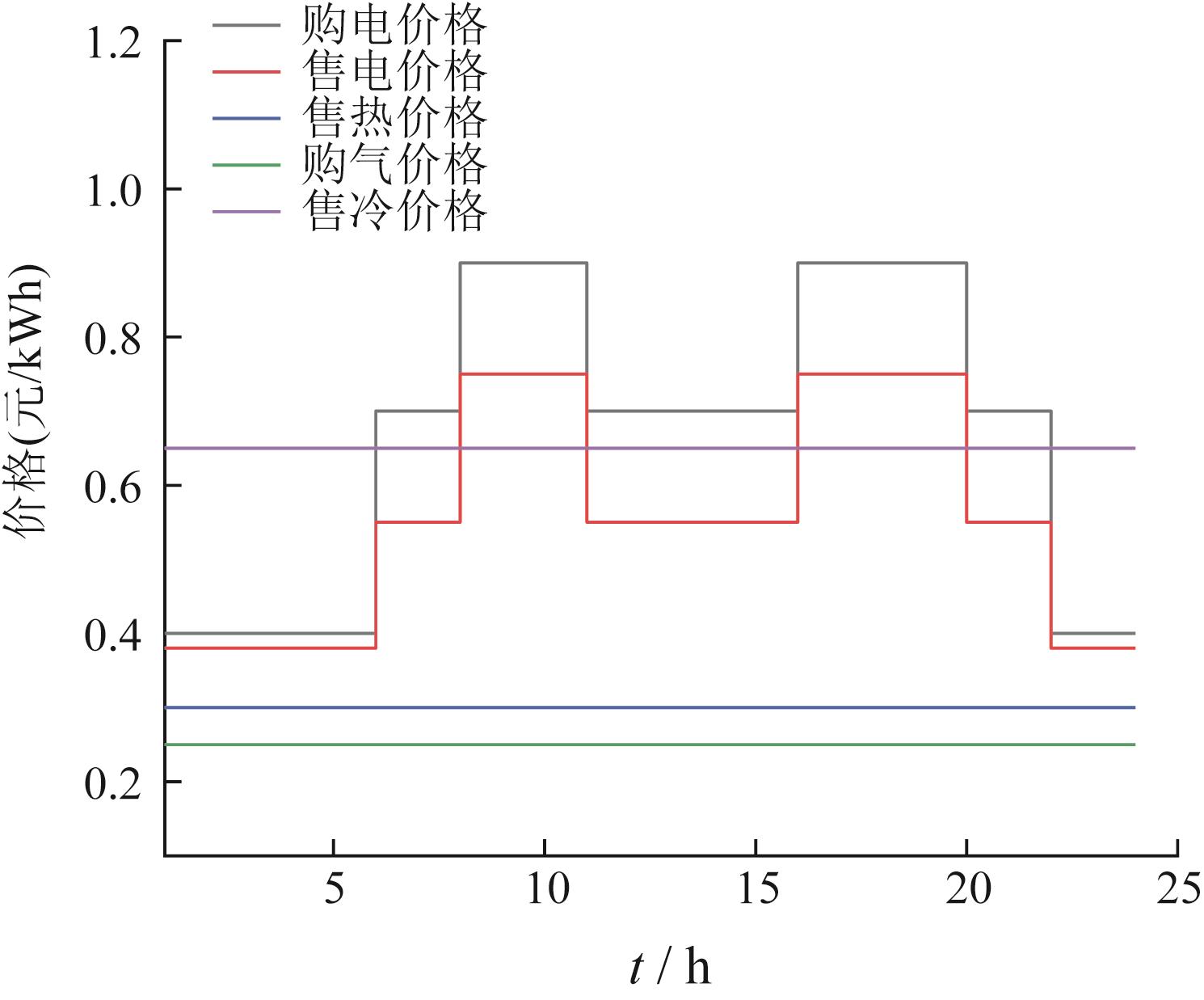

图5

表1

储能系统参数

EES	$E e e s$ /(kWh)	$q m a x e e s$ /(kW)	$ε e e s$	$c e e s$ (¥/kW)	$η c h e e s / η d i s e e s$	$S O C m a x e e s / S O C m i n e e s$	$S O C 0 e e s$
EES	1 000	500	0.003 5	0.35	0.85/0.98	0.8/0.2	0.5
TES	$E t e s$ /(kWh)	$q m a x t e s$ /(kW)	$ε t e s$	$c t e s$ (¥/kW)	$η c h t e s / η d i s t e s$	$S O C m a x t e s / S O C m i n t e s$	$S O C 0 t e s$
TES	1 000	500	0.003 5	0.35	0.85/0.95	0.8/0.1	0.5
CES	$E c e s$ /(kWh)	$q m a x c e s$ /(kW)	$ε c e s$	$c c e s$ (¥/kW)	$η c h c e s / η d i s c e s$	$S O C m a x c e s / S O C m i n c e s$	$S O C 0 c e s$
CES	1 000	500	0.003 5	0.35	0.85/0.92	0.8/0.1	0.5

表1

表2

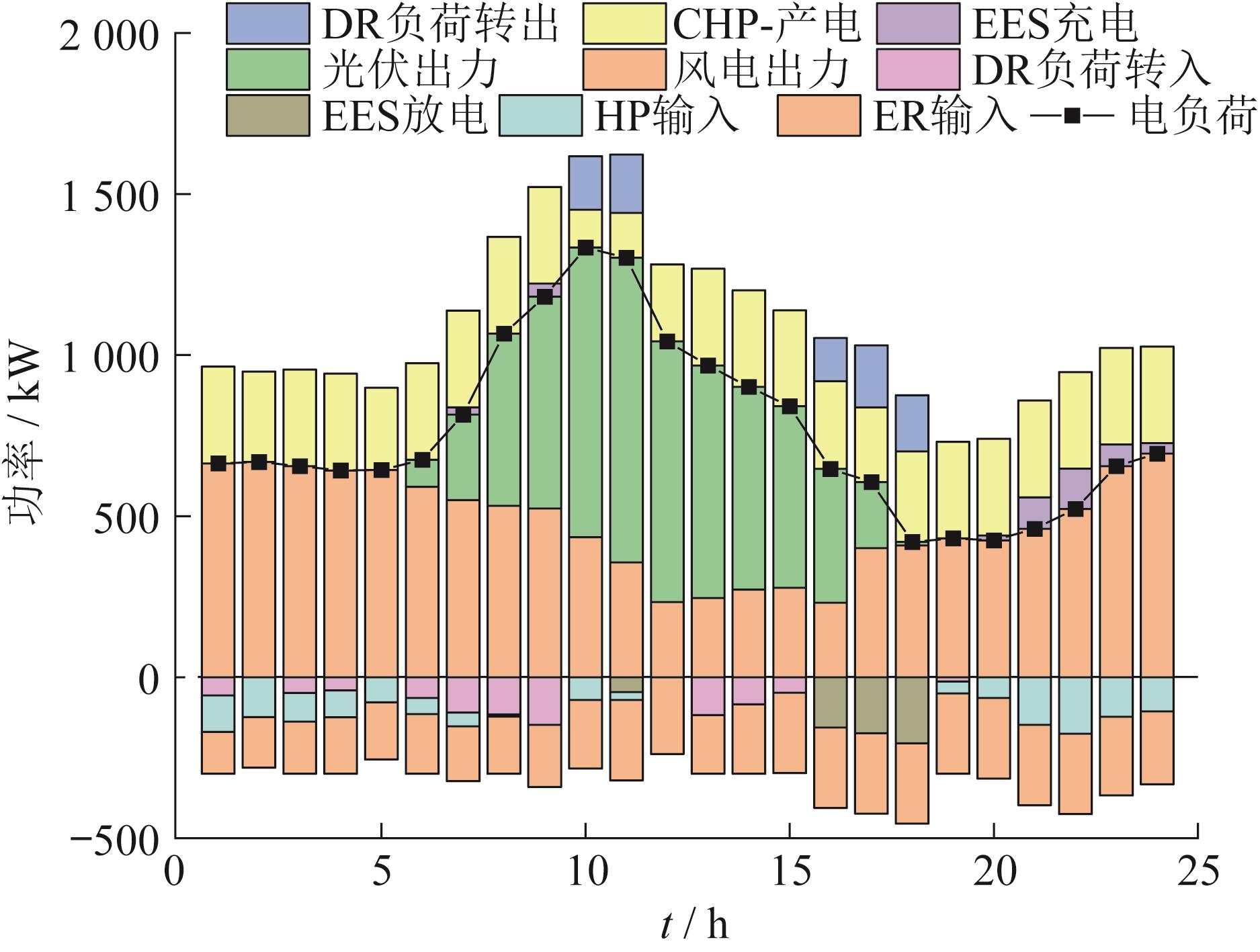

图6

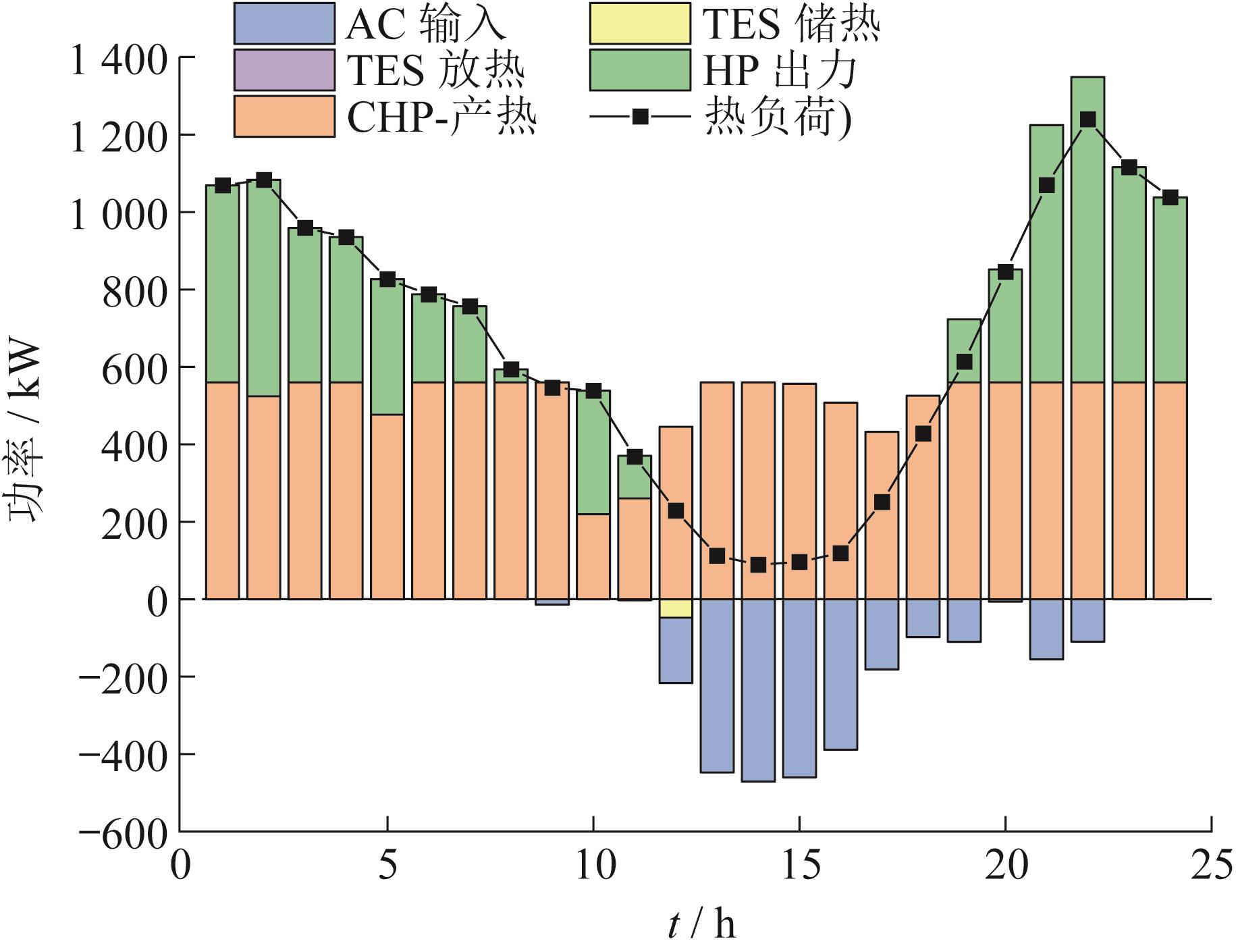

图7

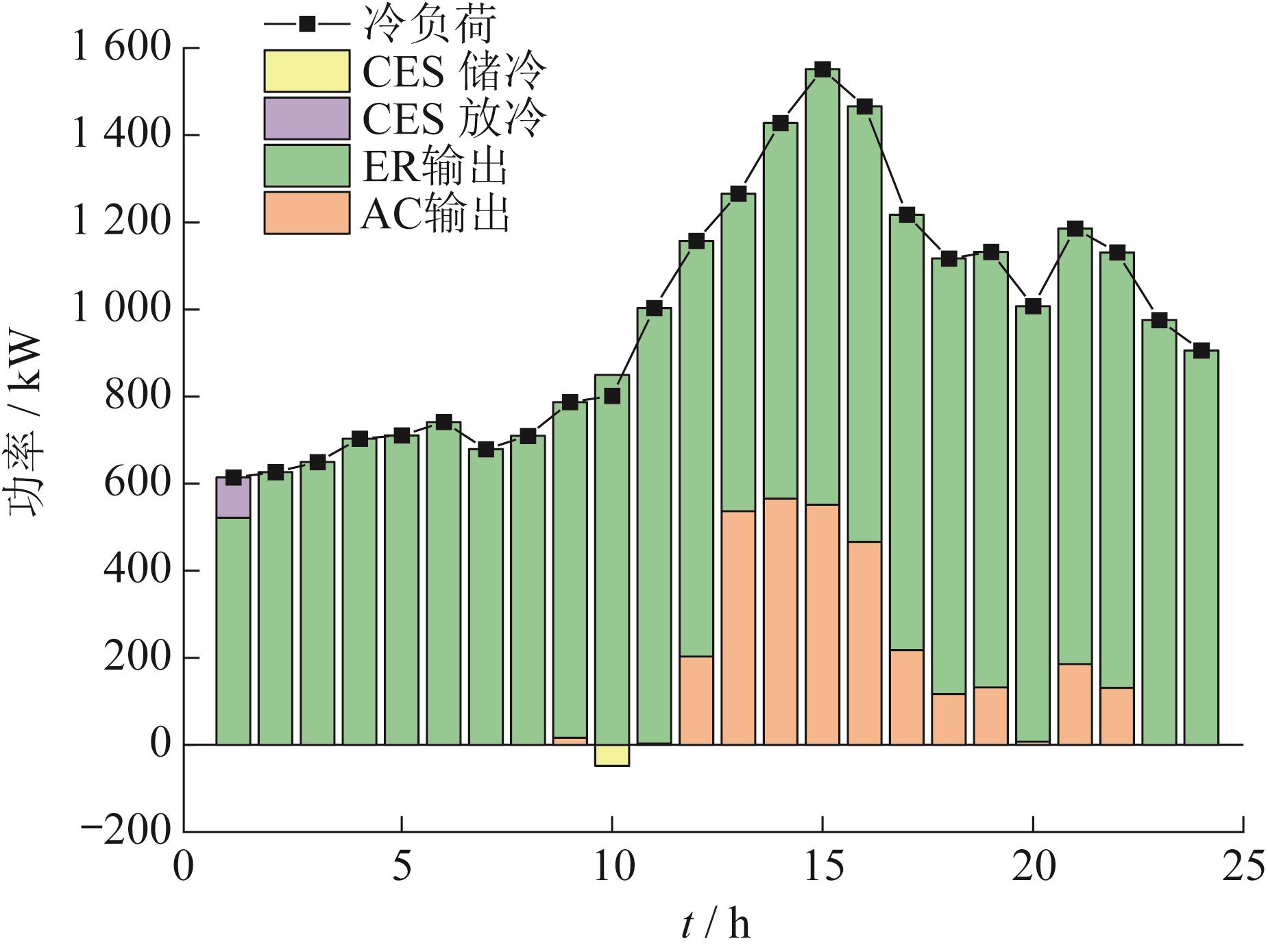

图8

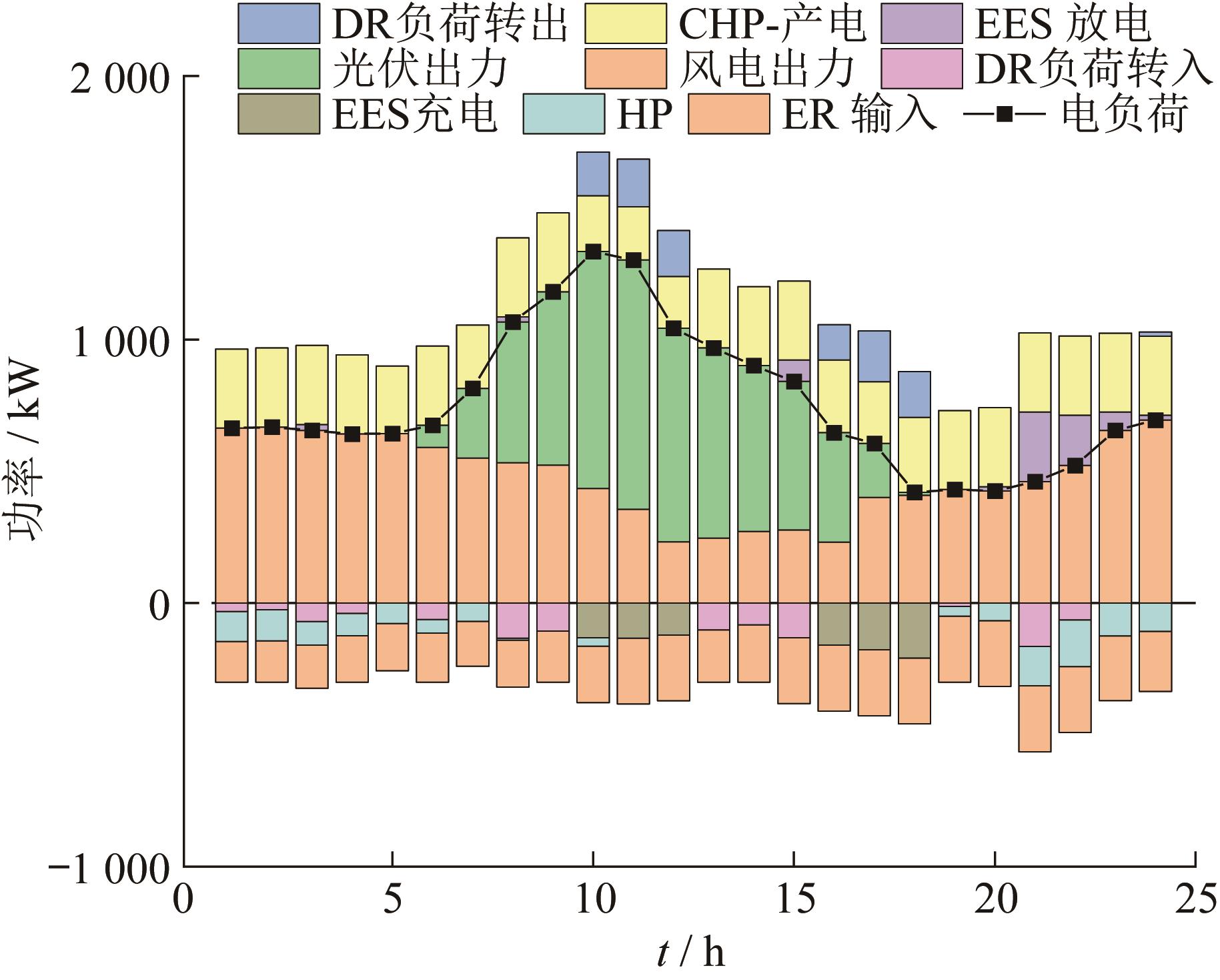

图9

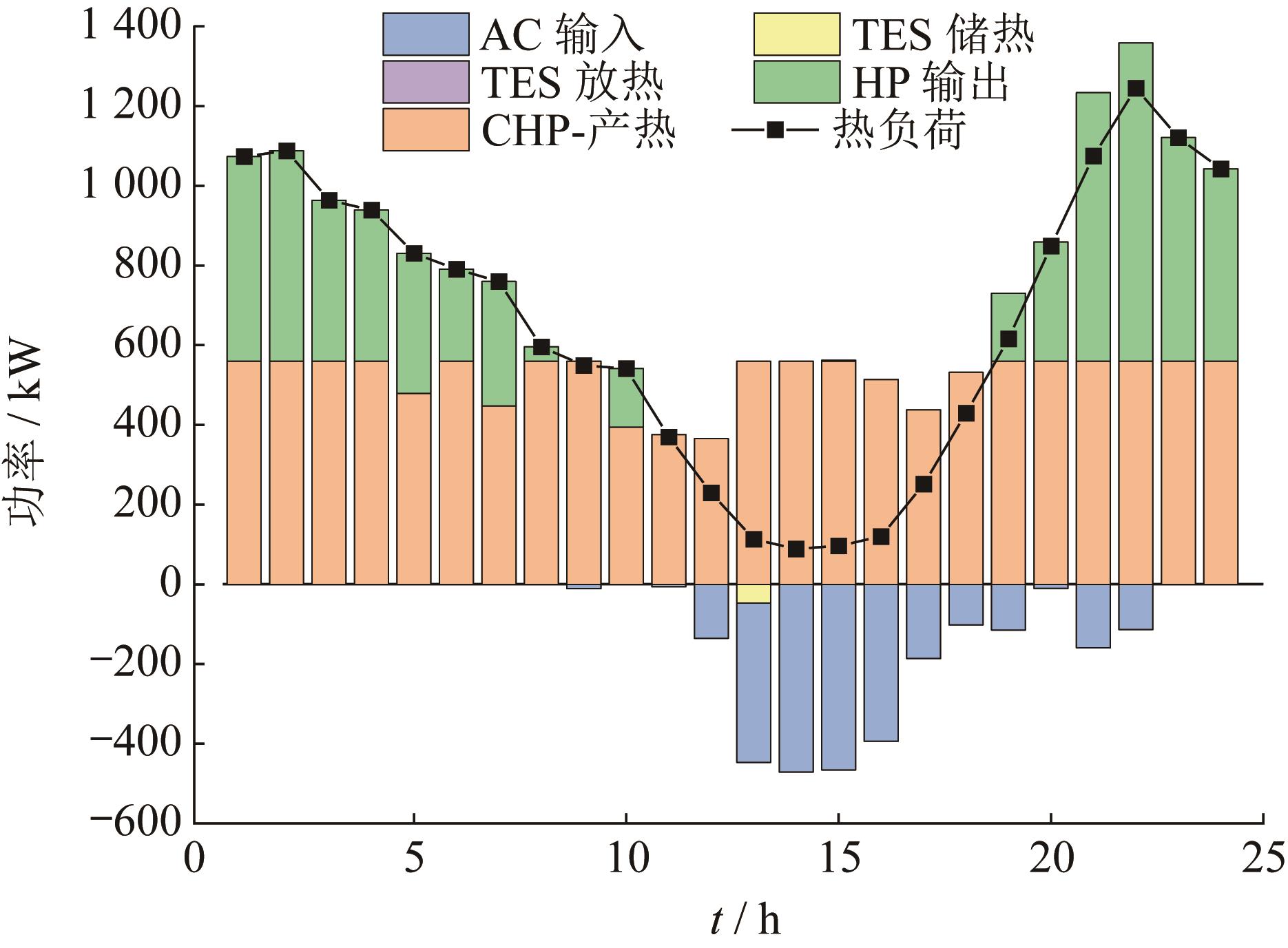

图10

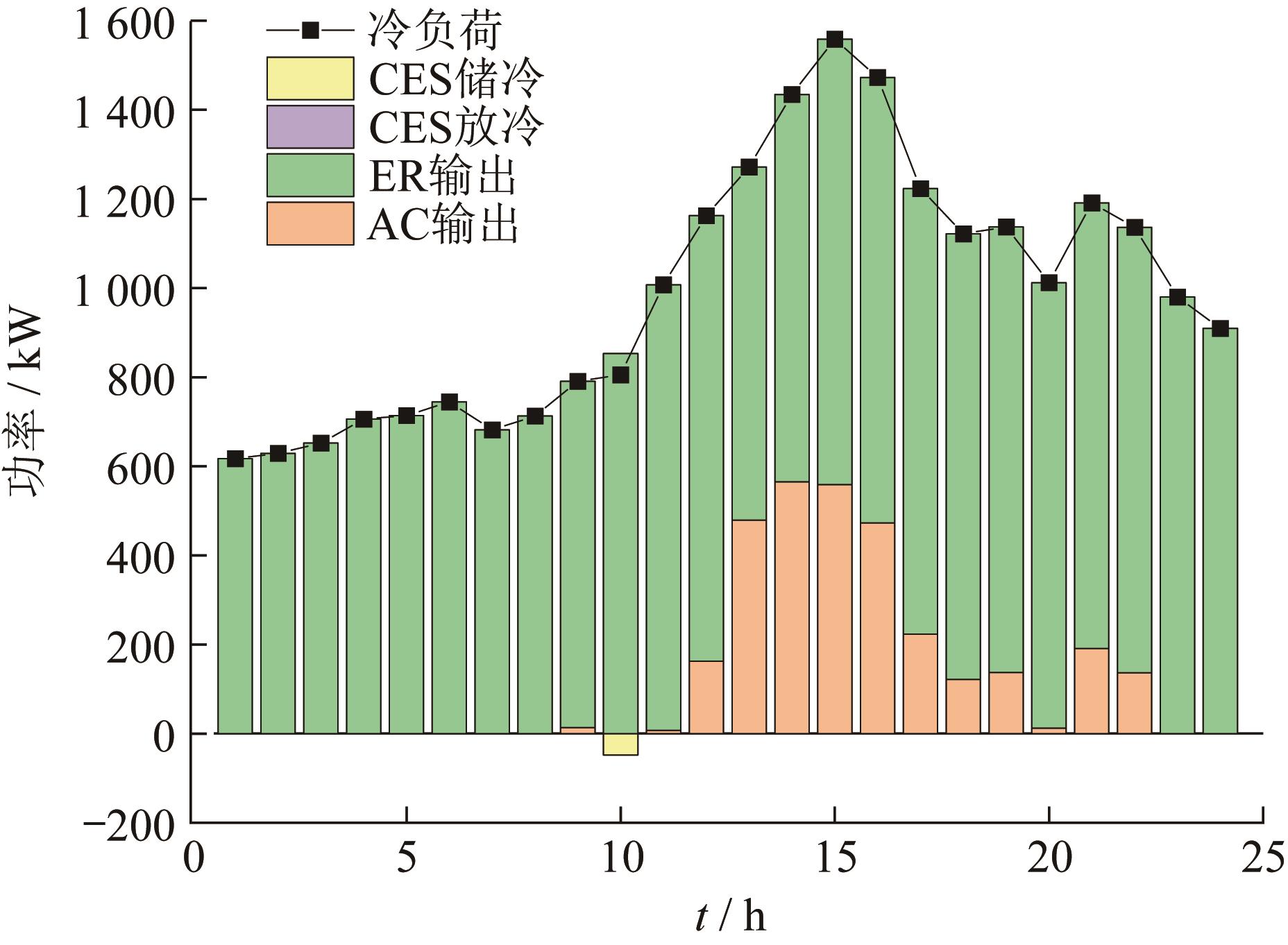

图11

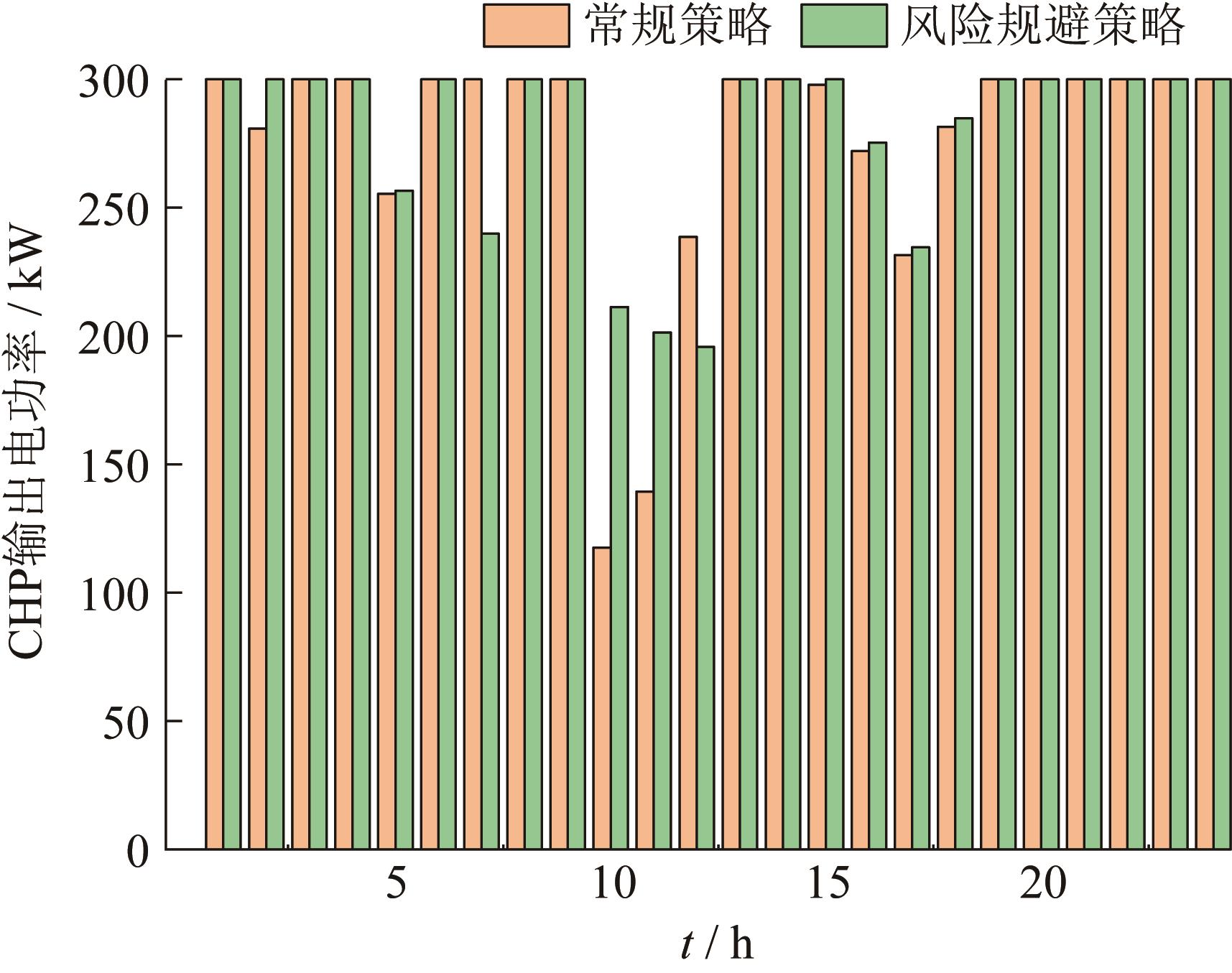

图12

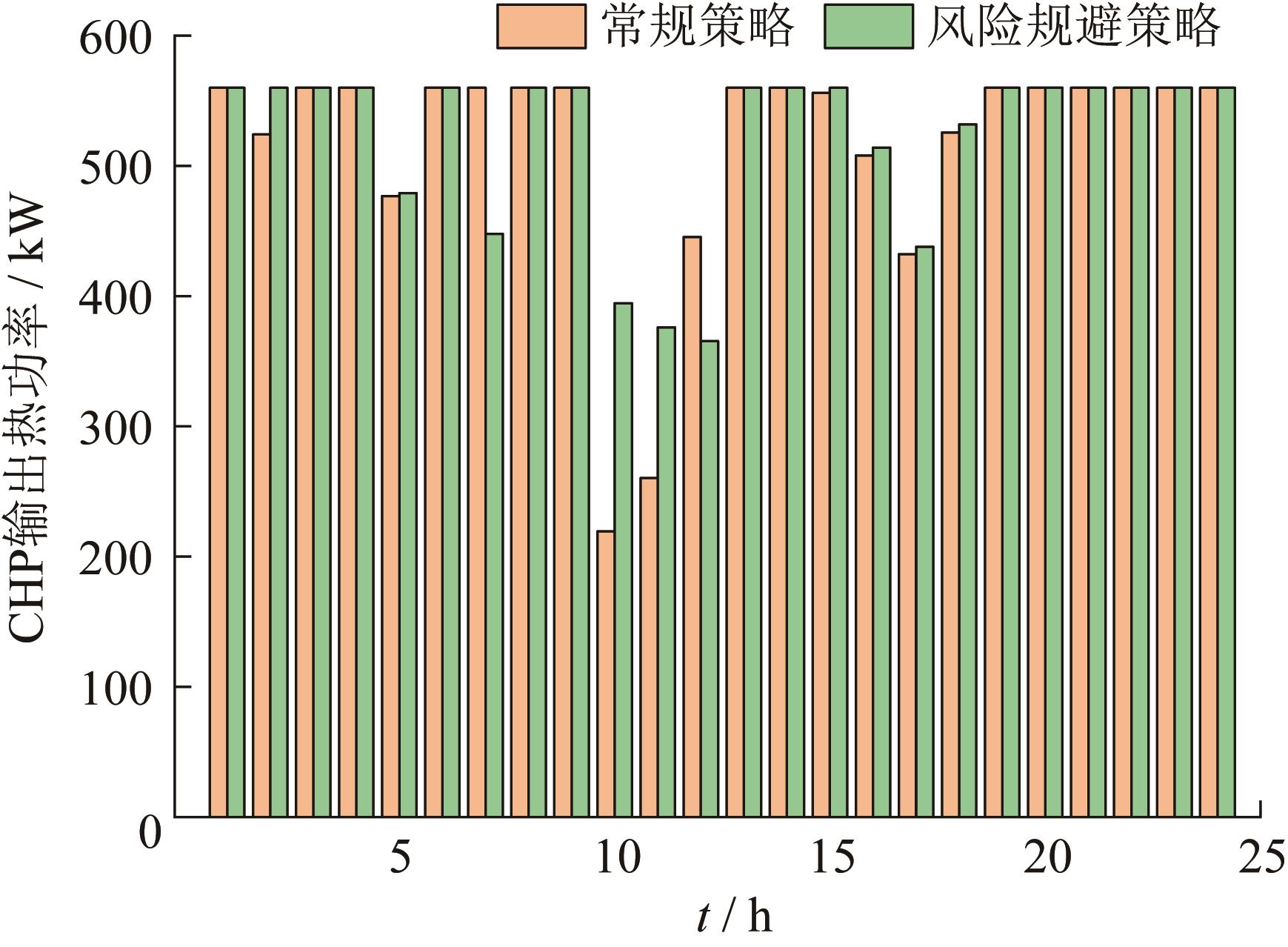

图13

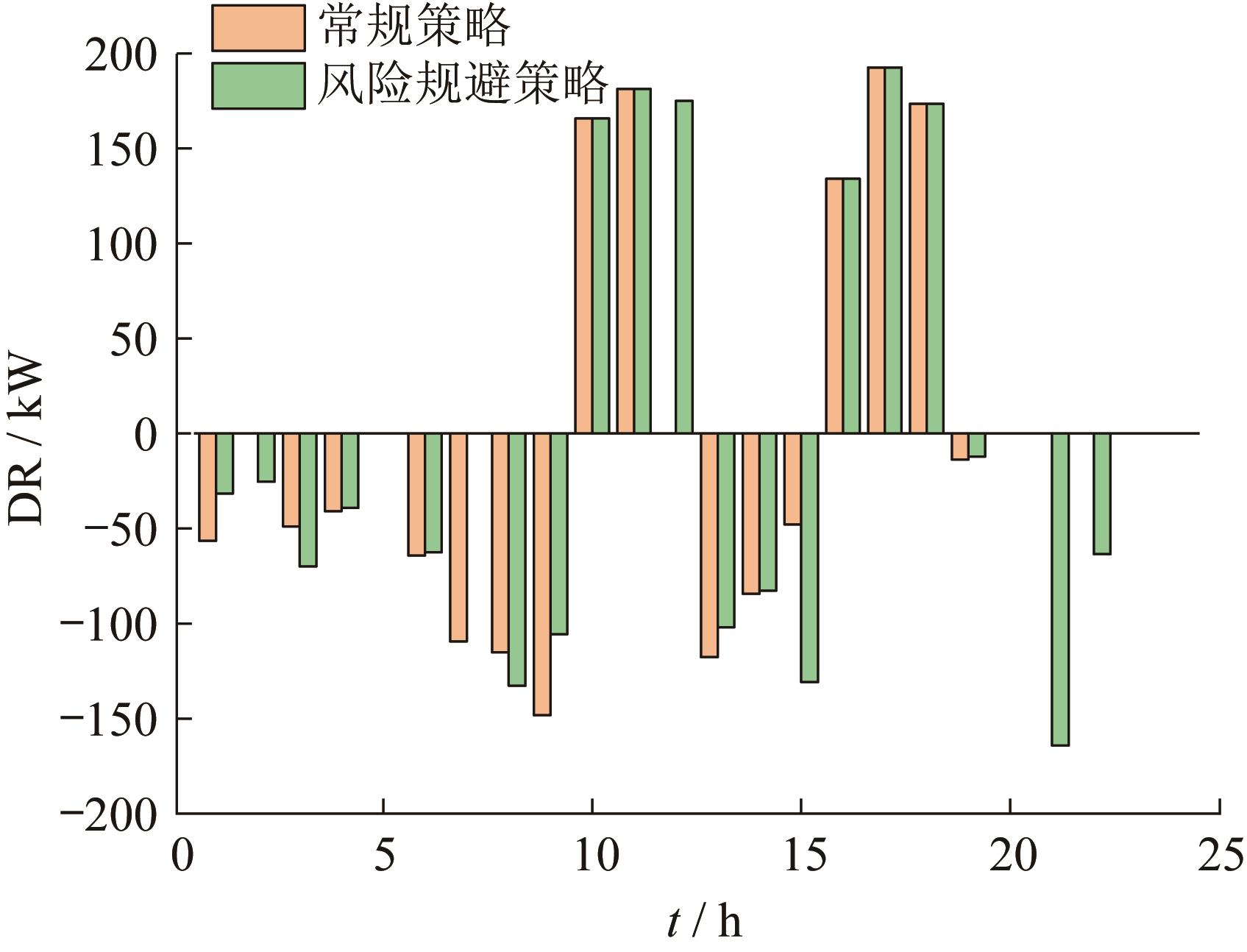

图14

参考文献 18

1	曾鸣, 王俐英. "双碳"目标下的电力需求侧管理进阶与变革[J]. 中国电力企业管理, 2021(10): 23-25.
	Zeng Ming, Wang Liying. Advanced and Reform of Power Demand Side Management under the "Double Carbon" Goal[J]. China Power Enterprise Management,2021(10): 23-25.
2	马立新, 程颍. 计及可中断负荷的园区综合能源系统优化调度[J]. 系统仿真学报, 2022, 34(4): 817-825.
	Ma Lixin, Cheng Ying. Optimal Operation for Park Integrated Energy System Considering Interruptible Loads[J]. Journal of System Simulation,2022,34(4):817-825.
3	张松枝. 基于季节负荷差异性的区域综合能源系统模型[J]. 系统仿真学报, 2021, 33(3): 562-571.
	Zhang Songzhi. Regional Integrated Energy System Model Based on Seasonal Load Difference[J]. Journal of System Simulation, 2021, 33(3): 562-571.
4	Liu W, Huang Y, Li Z, et al. Optimal Allocation for Coupling Device in an Integrated Energy System Considering Complex Uncertainties of Demand Response[J]. Energy, 2020, 198: 1-13.
5	陈锦鹏, 胡志坚, 陈嘉滨, 等. 考虑阶梯式碳交易与供需灵活双响应的综合能源系统优化调度[J]. 高电压技术,2021, 47(9): 3094-3106.
	Chen Jinpeng, Hu Zhijian, Chen Jiabin, et al. Optimal Dispatch of Integrated Energy System Considering Ladder-type Carbon Trading and Flexible Double Response of Supply and Demand[J]. High Voltage Engineering,2021, 47(9): 3094-3106.
6	刘小琰. 考虑奖惩阶梯型碳交易和负荷不确定性的综合能源规划[D]. 秦皇岛: 燕山大学, 2020.
	Liu Xiaoyan. Integrated energy planning considering a reward and punishment ladder-type carbon trading and load uncertainty [D]. Qinhuangdao: YanShan University, 2020.
7	刘乾晖, 唐岚, 杨乔丹, 等. 信息间隙决策理论在电力系统中的应用[J]. 电力科学与工程, 2021, 37(1): 1-15.
	Liu Qianhui, Tang Lan, Yang Qiaodan, et al. Application of Information Gap Decision Theory in Power System [J]. Electric Power Science and Engineering, 2021, 37(1): 1-15.
8	He S, Gao H, Wang L, et al. Distributionally Robust Planning for Integrated Energy Systems Incorporating Electric-thermal Demand Response[J]. Energy, 2020, 213: 118783.
9	Ahmadi S E, Rezaei N. An IGDT-based Robust Optimization Model for Optimal Operational Planning of Cooperative Microgrid Clusters: A Normal Boundary Intersection Multi-objective Approach[J]. International Journal of Electrical Power & Energy Systems, 2021, 127: 106634.
10	Jordehi A R, Javadi M S, Shafie-Khah M, et al. Information Gap Decision Theory (IGDT)-Based Robust Scheduling of Combined Cooling, Heat and Power Energy hubs[J]. Energy, 2021, 231:120918.
11	魏震波, 郭毅, 魏平桉, 等. 基于IGDT的电-气互联综合能源系统多目标扩展规划模型[J]. 高电压技术, 2022, 48(2): 526-537.
	Wei Zhenbo, Guo Yi, Wei Ping´an, et al. An IGDT Based Multi-objective Expansion Planning Model for Integrated Natural Gas and Electric Power Systems [J]. High Voltage Engineering,2022,48(2):526-537.
12	潘乐真, 赵璞, 郑思源, 等. 基于信息间隙决策理论的储能电站鲁棒优化配置[J].电力工程技术, 2021, 40(6):165-172.
	Pan Lezhen, Zhao Pu, Zheng Siyuan, et al. Robust Optimal Configuration of Energy Storage Power Plant Based on Information Gap Decision Theory [J]. Electric Power Engineering Technology, 2021, 40(6):165-172.
13	Ben-Haim Y.Info-gap Decision Theory:Decisions under Severe Uncertainty[M]. 2nd ed.London:Academic Press, 2006: 384-390.
14	陶然, 赵冬梅, 王浩翔. 基于信息间隙决策理论的配电网韧性提升规划方法[J]. 电力系统自动化, 2022, 46(9):32-41.
	Tao Ran, Zhao Dongmei, Wang Haoxiang. Planning Method for Resilience Improvement in Distribution Network Based on Information Gap Decision Theory[J]. Automation of Electric Power Systems, 2022, 46(9):32-41.
15	李至骜, 陈来军, 刘当武, 等. 基于主从博弈的储能电站容量电费定价方法[J]. 高电压技术, 2020, 46(2): 519-526.
	Li Zhiao, Chen Laijun, Liu Dangwu, et al. Subsidy Pricing Method for Stackelberg-game-based Energy Storage System[J]. High Voltage Engineering, 2020,46(2): 519-526.
16	王凌云, 李佳勇, 杨波. 考虑电储能设备碳排放的综合能源系统低碳经济运行[J]. 科学技术与工程, 2021,21(6): 2334-2342.
	Wang Lingyun, Li Jiayong, Yang Bo. Low Carbon Economy Operation of Integrated Energy System Considering Carbon Emission of Energy Storage Systems[J]. Science Technology and Engineering, 2021, 21(6): 2334-2342.
17	徐业琰, 廖清芬, 刘涤尘, 等. 基于综合需求响应和博弈的区域综合能源系统多主体日内联合优化调度[J]. 电网技术, 2019, 43(7): 2506-2518.
	Xu Yeyan, Liao Qingfen, Liu Dichen, et al. Multi-player Intraday Optimal Dispatch of Integrated Energy System Based on Integrated Demand Response and Games[J]. Power System Technology, 2019, 43(7): 2506-2518.
18	叶鹤林, 刘松, 胡剑, 等. 基于IGDT的含光热电站电力系统多源联合调度策略[J]. 电力系统保护与控制, 2021, 49(23): 35-43.
	Ye Helin, Liu Song, Hu Jian, et al. Multi-source Joint Dispatching Strategy for a Power System with Concentrating Solar Power Plants based on IGDT[J]. Power System Protection and Control, 2021, 49(23): 35-43.

设备	机组容量/kW	能效比	运维成本/ (¥/kW)	爬升速率/ (kW/h)	碳排放分配额/ (g/kWh)	碳排放强度/ (g/kWh)
GB	1 000	0.93	0.25	500	0.152	0.2
CHP	1 000	电0.3/热0.56	0.25	500	0.424	0.7/0.4
EF	1 000	4	0.3	-	-	-
HP	1 000	4.5	0.3	-	-	-
AC	1 000	1.2	0.3	-	-	-
电网	1 500	-	-	-	0.798	0.8
