考虑光伏不确定性的工业园区光-储鲁棒优化配置

doi:10.16182/j.issn1004731x.joss.21-0601

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (11): 2396-2405.doi: 10.16182/j.issn1004731x.joss.21-0601

考虑光伏不确定性的工业园区光-储鲁棒优化配置

薛贵挺¹(), 单博雅¹, 王倜¹, 王晓¹, 幸伟²(), 孙伟卿²

^1.国网北京海淀供电公司，北京　100195
^2.上海理工大学　机械工程学院，上海　200093

收稿日期:2021-06-29 修回日期:2021-10-08 出版日期:2022-11-18 发布日期:2022-11-25
通讯作者: 幸伟 E-mail:xueguiting@163.com;xingwei9810@163.com
作者简介:薛贵挺(1982-)，男，博士，高工，研究方向为微电网运行优化。E-mail：xueguiting@163.com
基金资助:
国网北京市电力公司科技项目(520204200068)

Robust Optimal Configuration of PV-Energy Storage in Industrial Parks Considering the Uncertainty of Photovoltaics

Guiting Xue¹(), Boya Shan¹, Ti Wang¹, Xiao Wang¹, Wei Xing²(), Weiqing Sun²

^1.State Grid Beijing Haidian Electric Power Supply Company, Beijing 100195, China
^2.School of Mechanical Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China;

Received:2021-06-29 Revised:2021-10-08 Online:2022-11-18 Published:2022-11-25
Contact: Wei Xing E-mail:xueguiting@163.com;xingwei9810@163.com

摘要/Abstract

摘要：

研究利用工业园区屋顶资源开发光伏项目并合理配置储能，有助于提升园区的用能经济性。为得到最优光-储配置方案，选取存在冷、热、电三种类型负荷需求的工业园区，在考虑光伏不确定性引起园区购电成本增加的背景下，以运行收益最优作为目标函数建立园区光-储鲁棒优化配置模型。该模型利用鲁棒优化理论中的盒式不确定集对光照强度进行处理，采用对偶优化理论将模型线性化。算例分析表明，合理配置光伏发电装置与储能能够有效降低园区运行成本，鲁棒优化在降低由于光伏出力不确定性带来的园区购电成本增加风险的同时也会增加系统投资成本，以收益的保守性换取更高的确定性。

关键词: 工业园区, 鲁棒优化, 储能配置, 光伏配置

Abstract:

Research on using rooftop resources in industrial parks to develop photovoltaic projects and reasonable configuration of energy storage will help improve the park's energy economy. To obtain the optimal PV-storage configuration scheme, an industrial park with three types of load demand, namely, cold, heat and electricity, is selected, and a robust optimization allocation model of park PV-storage is established with optimal operating profit as the objective function, considering the increased cost of power purchase caused by the PV uncertainty. The model uses the box uncertainty set in robust optimization for PV intensity, and linearizes the model using pairwise optimization theory. The analysis shows that reasonable allocation of PV-storage can effectively reduce the park operation cost, and robust optimization can increase system investment cost while reducing the risk of increasing park power purchase cost due to the uncertainty of PV output, and exchange the conservativeness of income for higher certainty.

Key words: industrial park, robust optimization, energy storage allocation, PV allocation

中图分类号:

薛贵挺, 单博雅, 王倜, 王晓, 幸伟, 孙伟卿. 考虑光伏不确定性的工业园区光-储鲁棒优化配置[J]. 系统仿真学报, 2022, 34(11): 2396-2405.

Guiting Xue, Boya Shan, Ti Wang, Xiao Wang, Wei Xing, Weiqing Sun. Robust Optimal Configuration of PV-Energy Storage in Industrial Parks Considering the Uncertainty of Photovoltaics[J]. Journal of System Simulation, 2022, 34(11): 2396-2405.

图/表 11

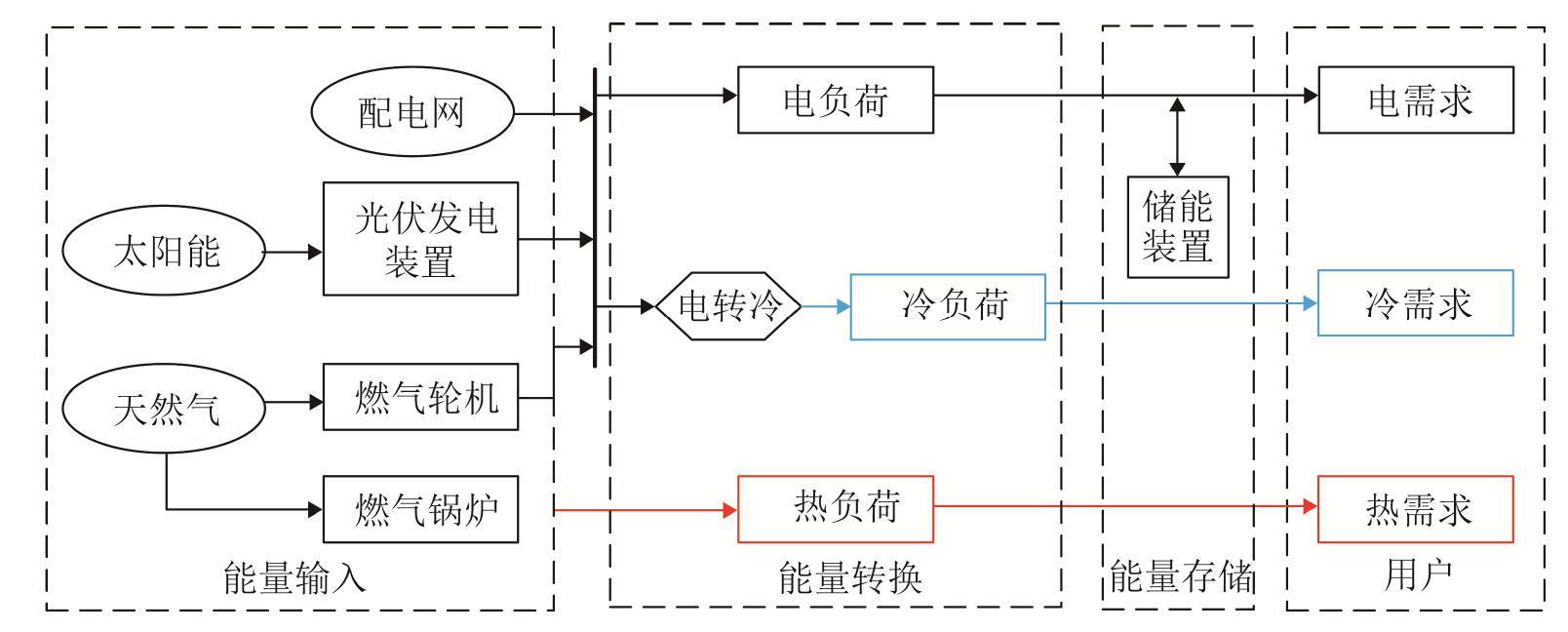

图1

表1

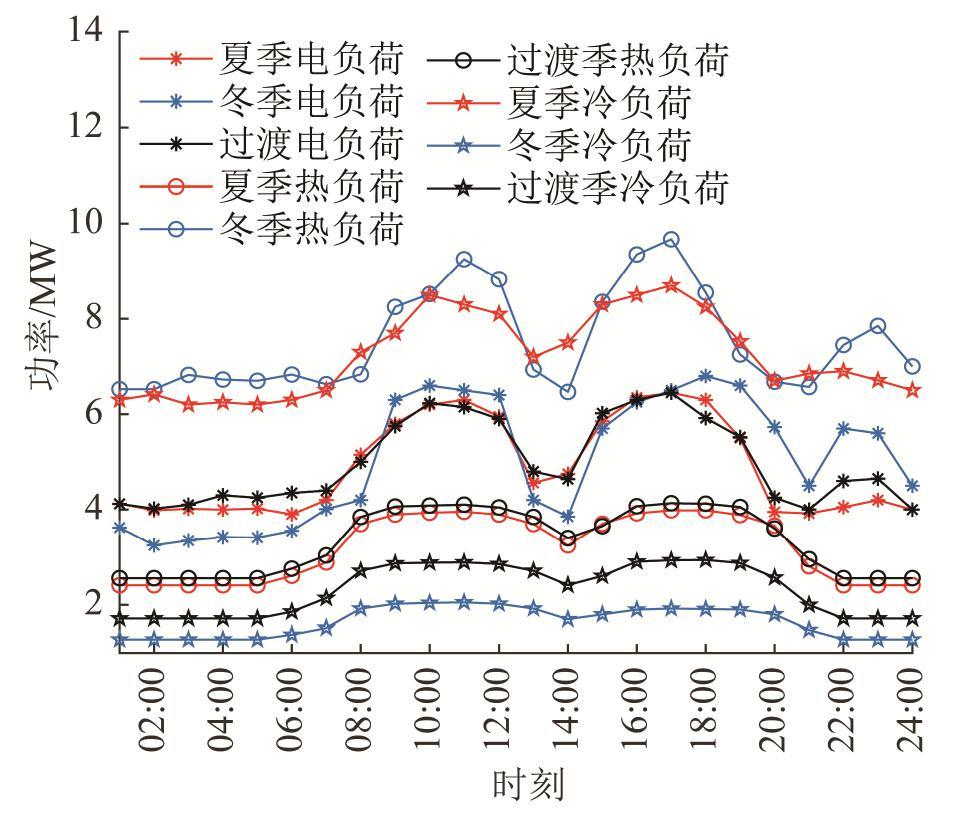

图2

表2

表3

表4

表5

表6

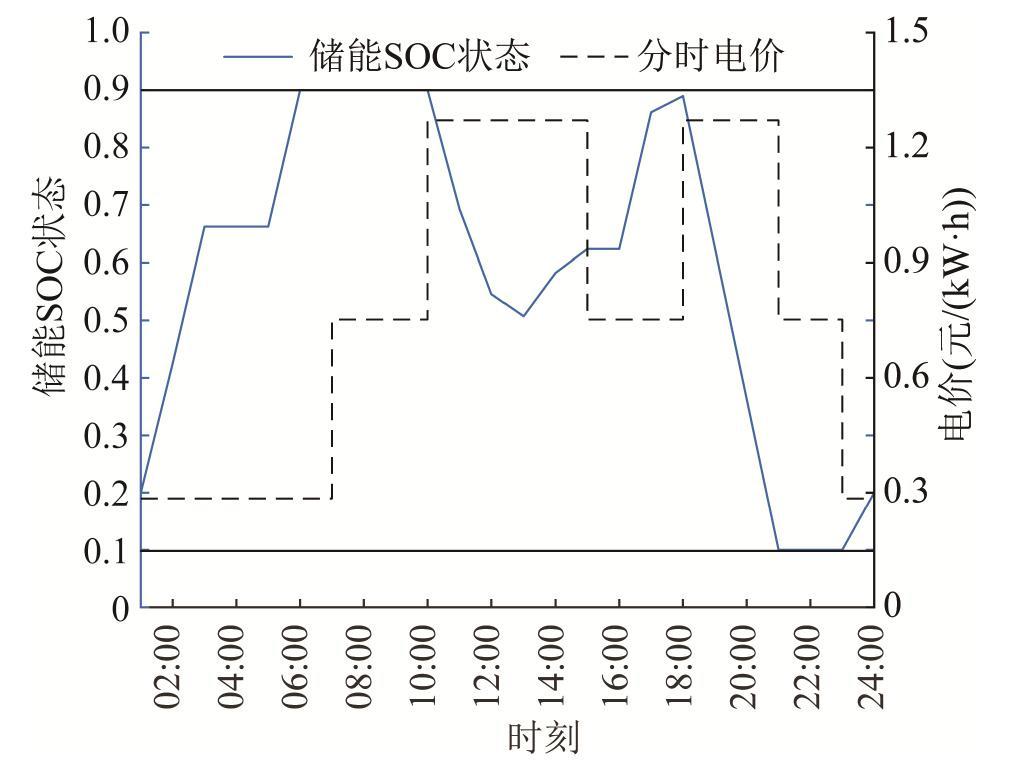

图3

图4

表7

参考文献 20

[1]	金红光, 隋军. 变革性能源利用技术—分布式能源系统[J]. 分布式能源, 2016, 1(1): 1-5.
	Jin Hongguang, Sui Jun. Transformational Technology Innovation-Distributed Energy System[J]. Distributed Energy, 2016, 1(1): 1-5.
[2]	杨经纬, 张宁, 王毅, 等. 面向可再生能源消纳的多能源系统：述评与展望[J]. 电力系统自动化, 2018, 42(4): 11-24.
	Yang Jingwei, Zhang Ning, Wang Yi, et al. Multi-energy System Towards Renewable Energy Accommodation: Review and Prospect[J]. Automation of Electric Power Systems, 2018, 42(4): 11-24.
[3]	Liu X H, Zhao T, Chang C, et al. China's Renewable Energy Strategy and Industrial Adjustment Policy[J]. Renewable Energy (S0960-1481), 2021, 170: 1382-1395.
[4]	Huang J S, Li W P, Guo L J, et al. Renewable Energy and Household Economy in Rural China[J]. Renewable Energy (S0960-1481), 2020, 155: 669-676.
[5]	杨策, 孙伟卿, 韩冬, 等. 考虑风电出力不确定的分布鲁棒经济调度[J]. 电网技术, 2020, 44(10): 3649-3655.
	Yang Ce, Sun Weiqing, Han Dong, et al. Distributionally-robust Economic Dispatch Considering Uncertain Wind Power Output[J]. Power System Technology, 2020, 44(10): 3649-3655.
[6]	Zhang Y, Farnoosh A. Analyzing the Dynamic Impact of Electricity Futures on Revenue and Risk of Renewable Energy in China[J]. Energy Policy (S0301-4215), 2019, 132: 678-690.
[7]	刘练, 李林, 丁明, 等. 面向园区的光储型微电网设计与应用[J]. 电力系统保护与控制, 2020, 48(3): 171-179.
	Liu Lian, Li Lin, Ding Ming, et al. Design and Application of Photovoltaic and Energy Storage Microgrid for the Park[J]. Power System Protection and Control, 2020, 48(3): 171-179.
[8]	张金平, 汪宁渤, 黄蓉, 等. 高渗透率光伏参与电力系统调频研究综述[J]. 电力系统保护与控制, 2019, 47(15): 179-186.
	Zhang Jinping, Wang Ningbo, Huang Rong, et al. Survey on Frequency Regulation Technology of Power Grid by High-penetration Photovoltaic[J]. Power System Protection and Control, 2019, 47(15): 179-186.
[9]	孙伟卿, 李臻, 谈一鸣, 等. 基于灵活性提升的电力系统储能装置定容方法[J]. 系统仿真学报, 2018, 30(1): 235-241.
	Sun Weiqing, Li Zhen, Tan Yiming, et al. Method of Power System Energy Storage Configuration Based on Flexibility Promotion[J]. Journal of System Simulation, 2018, 30(1): 235-241.
[10]	尚龙龙, 魏碧桧, 王伟, 等. 主动配电网储能动态配置规划方法[J]. 电力系统保护与控制, 2020, 48(17): 84-92.
	Shang Longlong, Wei Bihui, Wang Wei, et al. A Planning Method of Dynamic Energy Storage Configuration in an Active Distribution Network[J]. Power System Protection and Control, 2020, 48(17): 84-92.
[11]	李春华, 朱新坚, 吉小鹏. 光伏系统中蓄电池管理策略研究[J]. 系统仿真学报, 2012, 24(11): 2378-2382.
	Li Chunhua, Zhu Xinjian, Ji Xiaopeng. Study on Battery Management Strategy in Photovoltaic System[J]. Journal of System Simulation, 2012, 24(11): 2378-2382.
[12]	鲍冠南, 陆超, 袁志昌, 等. 基于动态规划的电池储能系统削峰填谷实时优化[J]. 电力系统自动化, 2012, 36(12): 11-16.
	Bao Guannan, Lu Chao, Yuan Zhichang, et al. Load Shift Real-time Optimization Strategy of Battery Energy Storage System Based on Dynamic Programming[J]. Automation of Electric Power Systems, 2012, 36(12): 11-16.
[13]	Zhou Z, Liu P, Li Z, et al. An Engineering Approach to the Optimal Design of Distributed Energy Systems in China[J]. Applied Thermal Engineering (S1359-4311), 2013, 53(2): 387-396.
[14]	Han L, Eseye A T, Zhang J, et al. Optimal Energy Management for Industrial Microgrids with High-penetration Renewables[J]. Protection and Control of Modern Power Systems (S2367-2617), 2017, 2(1): 12.
[15]	张松枝. 基于季节负荷差异性的区域综合能源系统模型[J]. 系统仿真学报, 2021, 33(3): 562-571.
	Zhang Songzhi. Regional Integrated Energy System Model Based on Seasonal Load Difference[J]. Journal of System Simulation, 2021, 33(3): 562-571.
[16]	王蕾, 李娜, 曾鸣. 基于动态规划的微网储能系统经济运行决策模型研究[J]. 中国电力, 2013, 46(8): 40-42.
	Wang Lei, Li Na, Zeng Ming. Profit Maximization Model for Energy Storage System in Microgrids Based on Dynamic Programming[J]. Electric Power, 2013, 46(8): 40-42.
[17]	陈磊, 徐飞, 王晓, 等. 储热提升风电消纳能力的实施方式及效果分析[J]. 中国电机工程学报, 2015, 35(17): 4283-4290.
	Chen Lei, Xu Fei, Wang Xiao, et al. Implementation and Effect of Thermal Storage in Improving Wind Power Accommodation[J]. Proceedings of the CSEE, 2015, 35(17): 4283-4290.
[18]	李斯, 周任军, 童小娇, 等. 基于盒式集合鲁棒优化的风电并网最大装机容量[J]. 电网技术, 2011, 35(12): 208-213.
	Li Si, Zhou Renjun, Tong Xiaojiao, et al. Robust Optimization With Box Set for Maximum Installed Capacity of Wind Farm Connected to Grid[J]. Power System Technology, 2011, 35(12): 208-213.
[19]	杨锡运, 张璜, 修晓青, 等. 基于商业园区源/储/荷协同运行的储能系统多目标优化配置[J]. 电网技术, 2017, 41(12): 3996-4003.
	Yang Xiyun, Zhang Huang, Xiu Xiaoqing, et al. Multi-Objective Optimal Configuration of Energy Storage Systems Based on Coordinated Operation of Source/Storage/Load in Commercial Park[J]. Power System Technology, 2017, 41(12): 3996-4003.
[20]	郭久亿, 刘洋, 郭焱林, 等. 不同典型用户侧储能配置评估与运行优化模型[J]. 电网技术, 2020, 44(11): 4245-4254.
	Guo Jiuyi, Liu Yang, Guo Yanlin, et al. Configuration Evaluation and Operation Optimization Model of Energy Storage in Different Typical User-side[J], Power System Technology, 2020, 44(11): 4245-4254.

机组	a	b	c	/kW	/kW
1	5.635	55×10^-3	40×10^-6	3 500	400
2	5.635	55×10^-3	40×10^-6	3 500	400
3	2.052	58×10^-3	46×10^-6	2 000	200

时段	时间段	购电电价(元/( kW·h ))
峰时段	10:00—15:00, 18:00—21:00	1.271 0
平时段	07:00—10:00, 15:00—18:00, 21:00—23:00	0.752 3
谷时段	23:00—07:00	0.284 9

参数名称	符号	数值
单位容量价格(元/kW)		5 600
单位容量年运行成本(元/kW)		77
使用寿命(年)		20
贴现率		0.05

参数名称	符号	数值
单位功率价格(元/kW)		900
单位容量价格(元/( kW·h ))		1600
单位容量年运行成本(元/( kW·h ))		5.16
使用寿命(年)		10
贴现率		0.05
充电效率		0.95
放电效率		0.95
荷电状态下限		0.1
荷电状态上限		0.9
最大充电功率/kW		0.25 E_max
最大放电功率/kW		0.25 E_max

季节	制热费用	制冷费用
夏季	281.42	816.30
冬季	630.18	741.09
过渡季	560.19	1 487.90

考虑光伏不确定性的工业园区光-储鲁棒优化配置

Robust Optimal Configuration of PV-Energy Storage in Industrial Parks Considering the Uncertainty of Photovoltaics

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 11

参考文献 20

相关文章 2

编辑推荐

Metrics

本文评价

季节	场景	购电费用	总运行成本
夏季	1	863.20	1 960.92
	2	436.02	1 533.74
	3	292.78	1 390.50
冬季	1	904.91	2 276.18
	2	701.49	2 072.76
	3	536.40	1 907.67
过渡季	1	1742.20	3 790.29
	2	1148.80	3 196.89
	3	834.70	2 882.79

	夏季购电	过渡季购电	冬季购电	总购电成本
0	252.74	771.44	510.63	1 534.81
15%	292.78	834.70	536.40	1 663.88
25%	321.29	886.21	564.23	1 771.73
30%	336.63	916.60	578.36	1 831.59
