基于铁路行车规则的环形轨道RGV调度仿真研究

doi:10.16182/j.issn1004731x.joss.25-1122

摘要/Abstract

摘要：

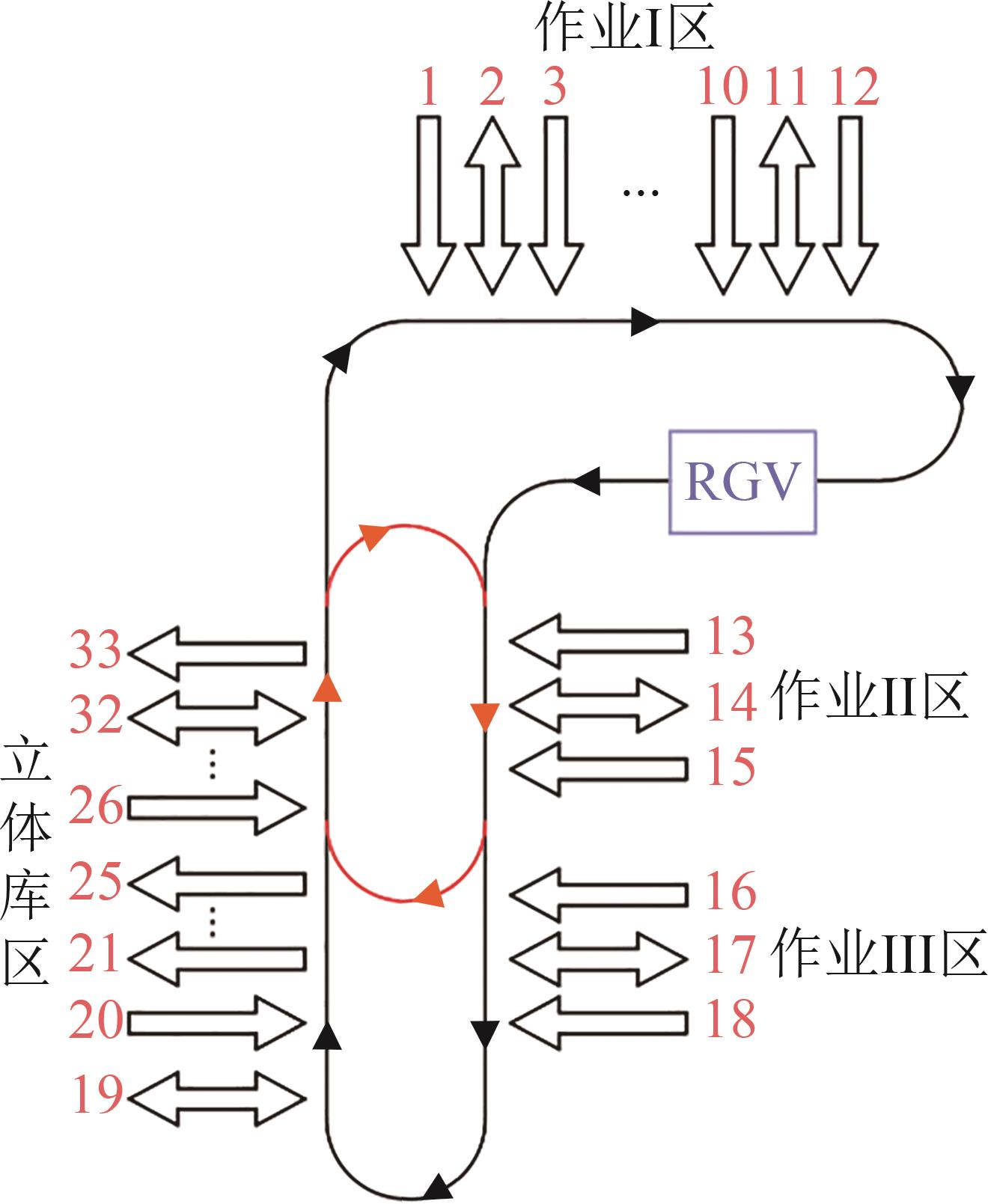

针对高密度作业条件下环形RGV系统运行结构单一、并行能力受限的问题，围绕复杂运行需求下的轨道结构与调度运行机制展开研究。基于AnyLogic平台的Agent建模方法，构建了一种嵌套环形轨道布局的RGV系统仿真模型，在传统环形轨道结构中引入带有变轨装置的内嵌子环。结合铁路行车组织中的区间运行与越行思想，设计了适用于嵌套环形结构的RGV运行与调度规则。仿真结果表明：嵌套环形轨道结构在提升任务并行性、缓解环形轨道运行瓶颈以及支持系统规模扩展方面具有一定优势。相关研究可为复杂环形RGV系统的结构设计与调度策略分析提供参考。

关键词: 自动化立体仓库, 环形轨道穿梭车, AnyLogic仿真, 铁路行车组织, 调度优化

Abstract:

To address the limitations of circular RGV systems under high-density operating conditions, including a simple operational structure and limited parallel operation capability, this study investigates track structures and dispatching mechanisms for complex operational requirements. Based on the agent-based modeling method implemented on the AnyLogic platform, a simulation model of an RGV system with a nested circular track layout was developed, in which an embedded sub-loop equipped with track-switching devices is introduced into the traditional circular track structure. Operating and dispatching rules suitable for the nested circular structure are designed by incorporating the concepts of section operation and overtaking in railway traffic organization. The simulation results indicate that the nested circular track structure offers advantages in improving task parallelism, alleviating bottlenecks in circular track operations, and supporting system scalability. The findings provide references for the structural design and dispatching strategy analysis of complex circular RGV systems.

Key words: automated storage and retrieval system, circular rail guided vehicle, AnyLogic simulation, railway traffic organization, scheduling optimization

中图分类号:

TP391.9

王花兰,王莉,傅忠宁 . 基于铁路行车规则的环形轨道RGV调度仿真研究[J]. 系统仿真学报, 2026, 38(10): 3015-3027.

Wang Hualan,Wang Li,Fu Zhongning . Simulation Study on Circular-track RGV Scheduling Based on Railway Operating Rules[J]. Journal of System Simulation, 2026, 38(10): 3015-3027.

图/表 20

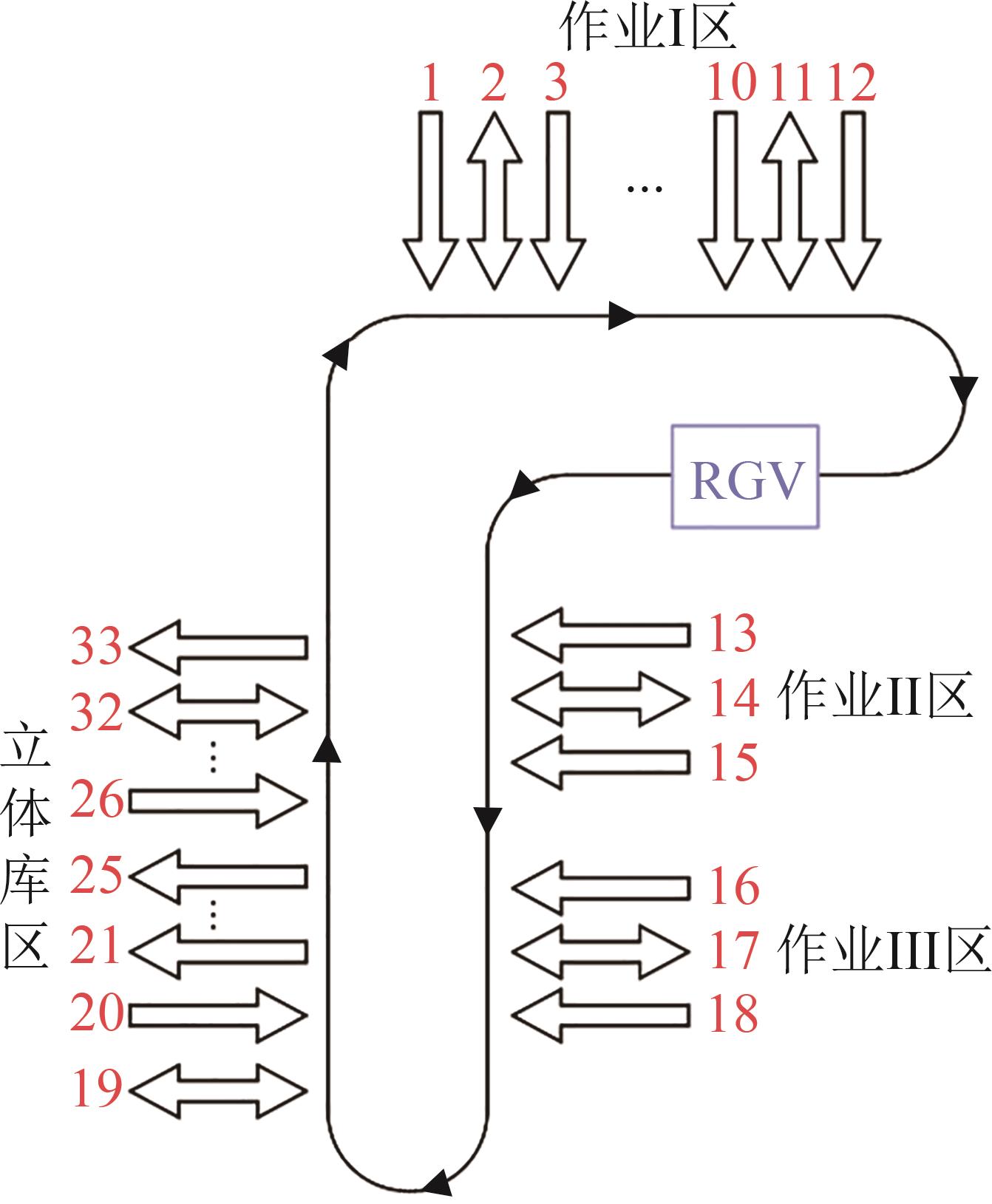

图1

表1

表2

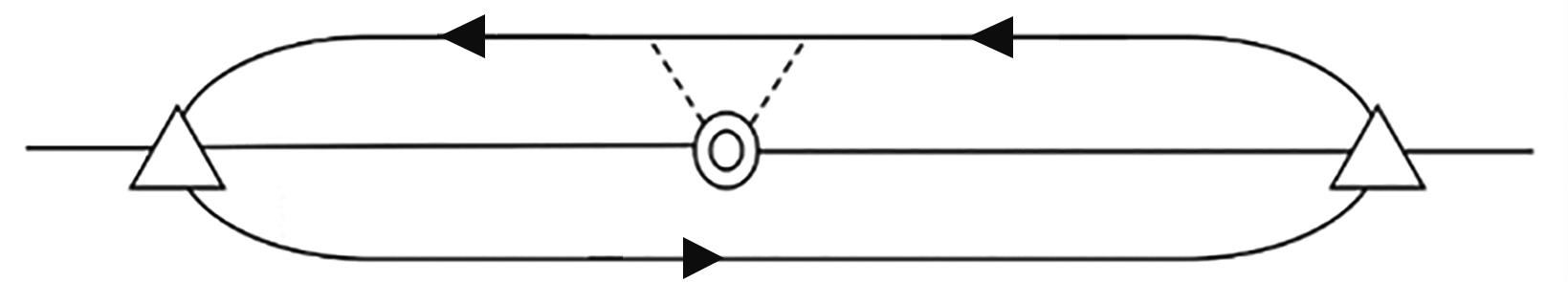

图2

表3

图3

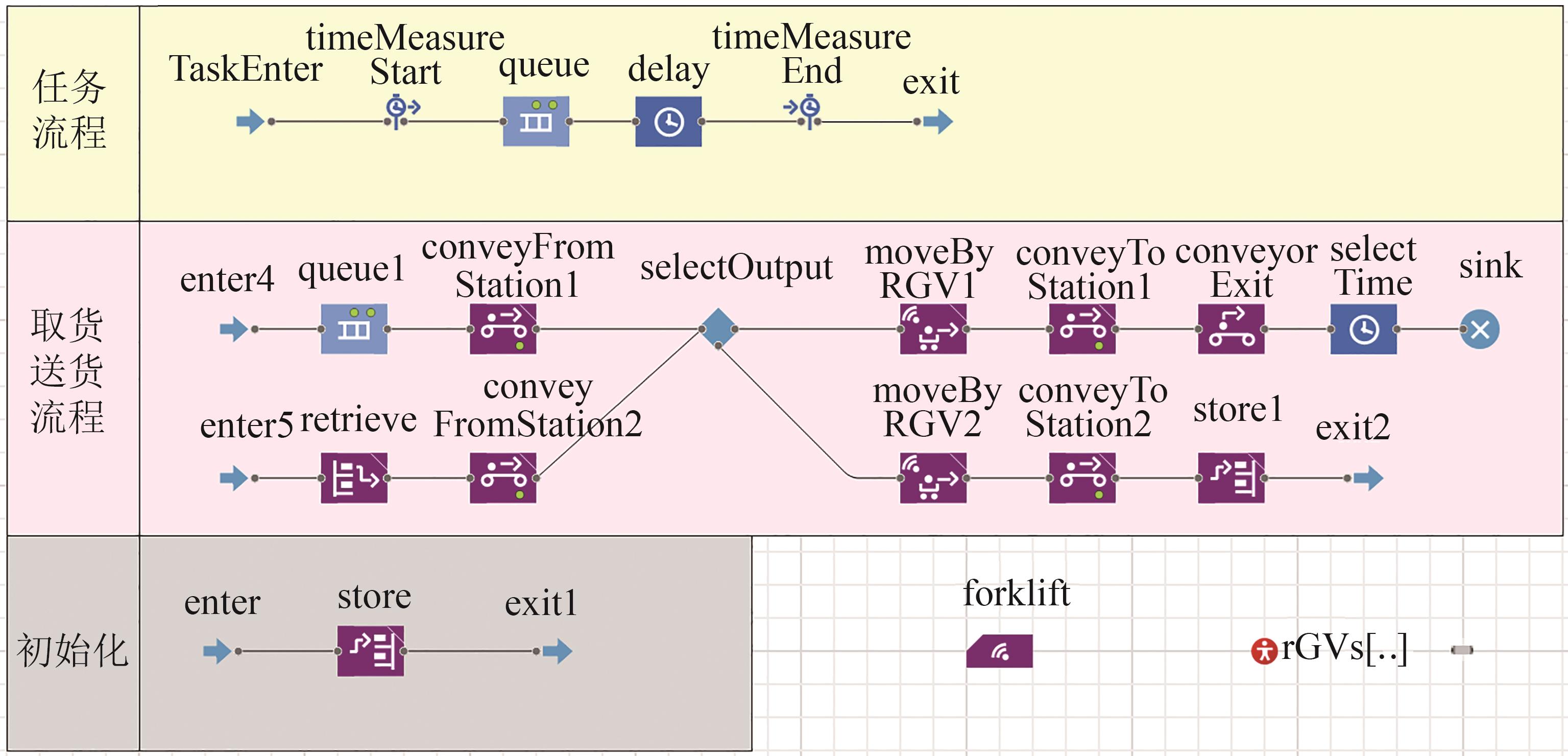

图4

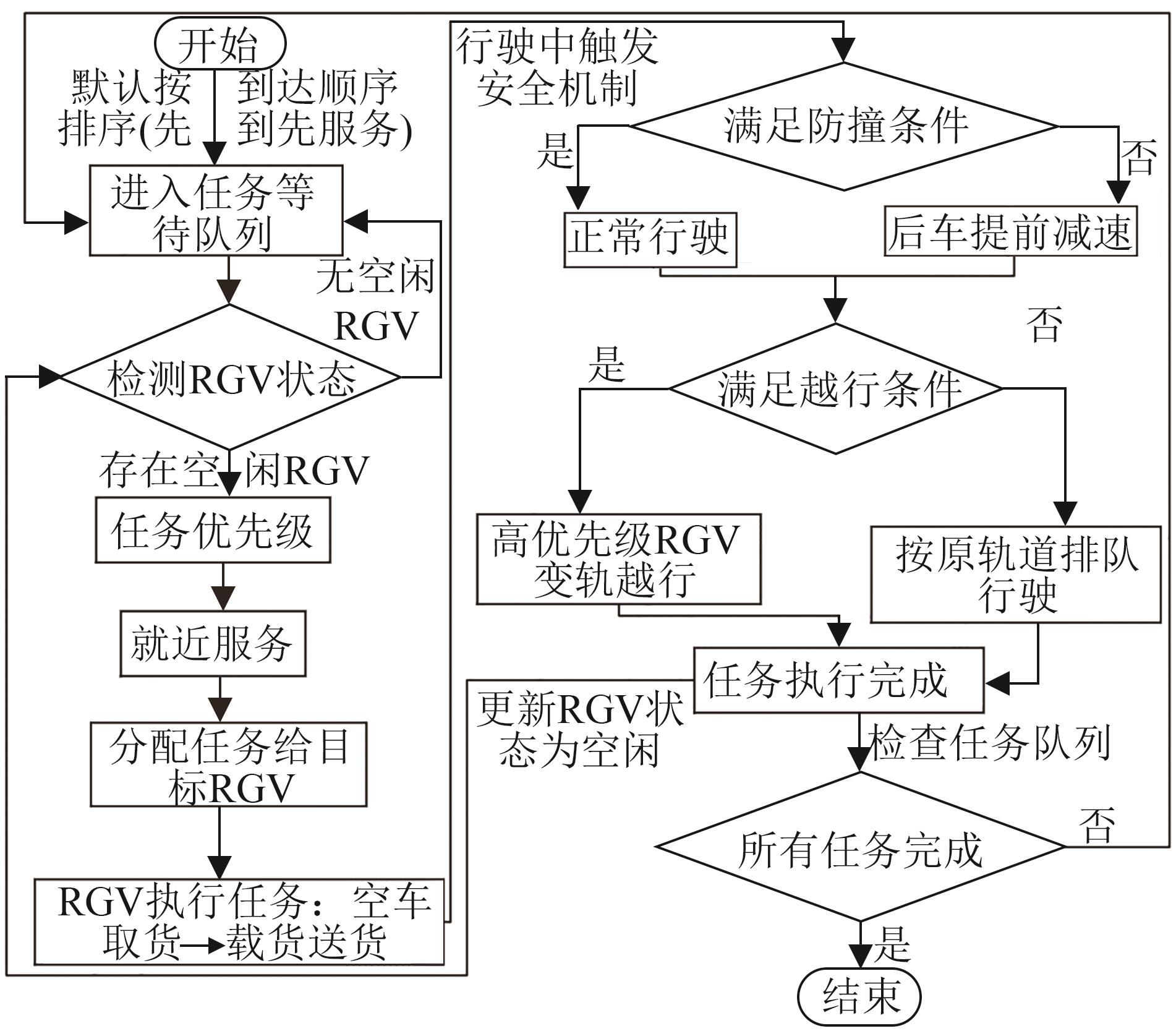

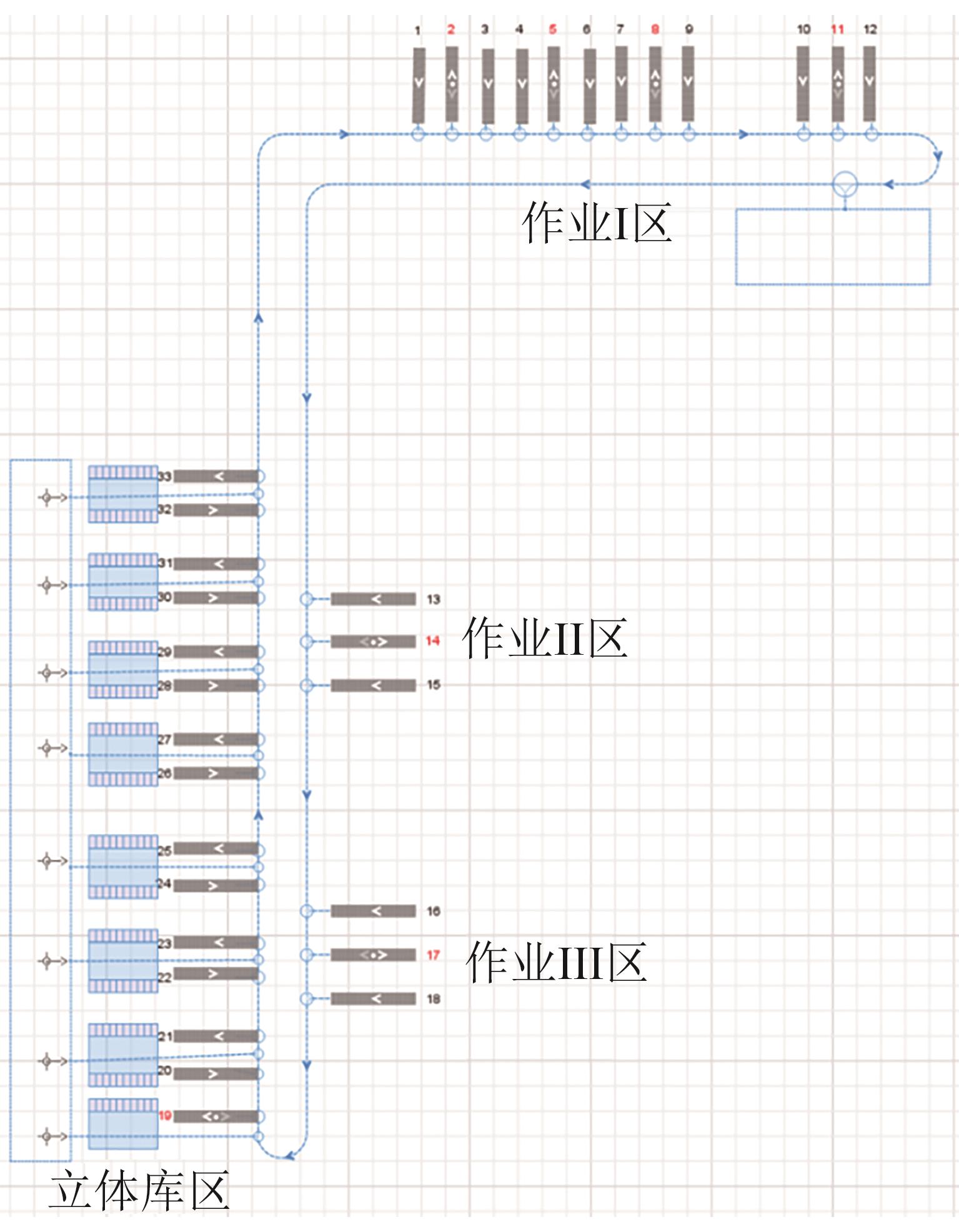

图5

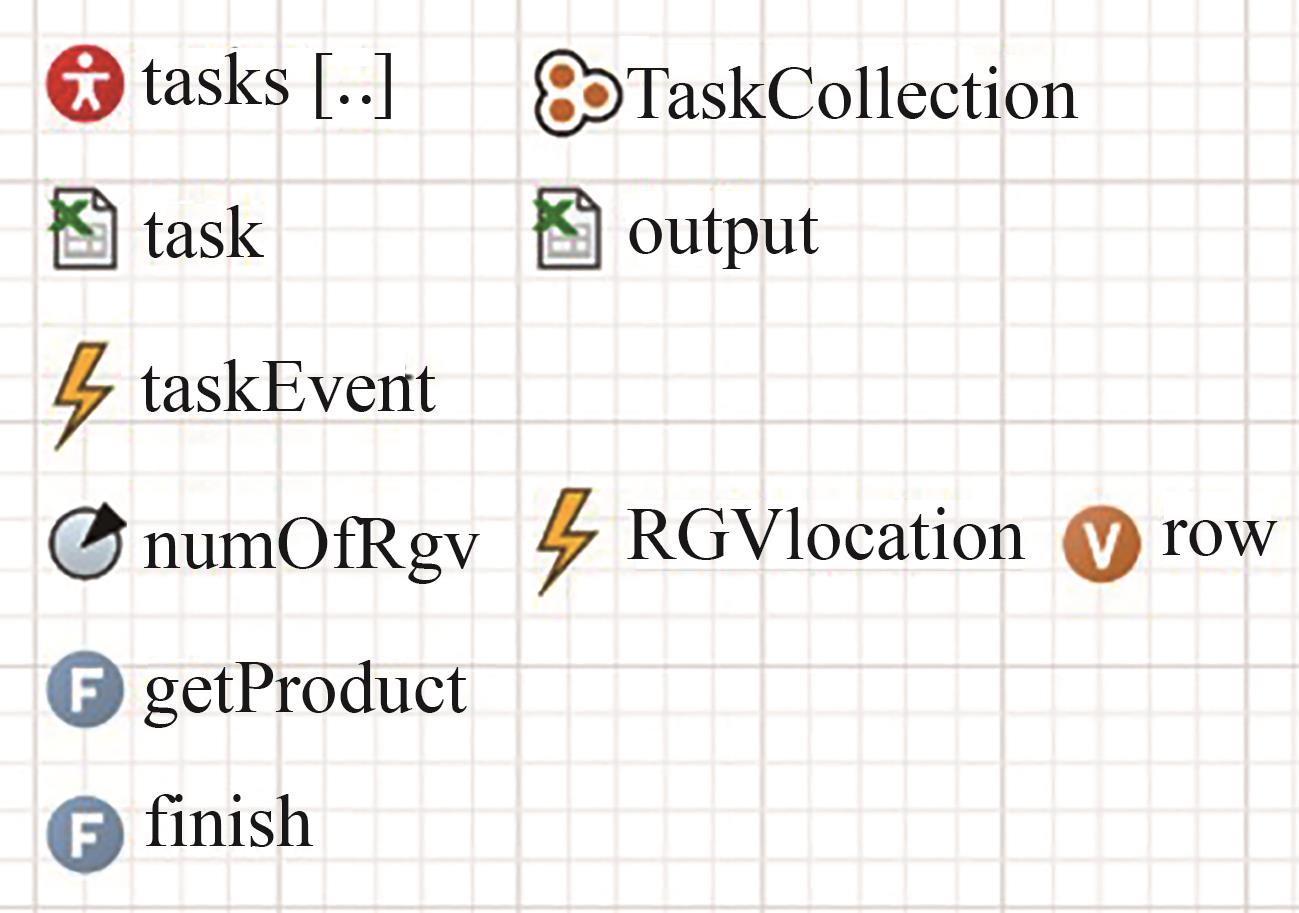

图6

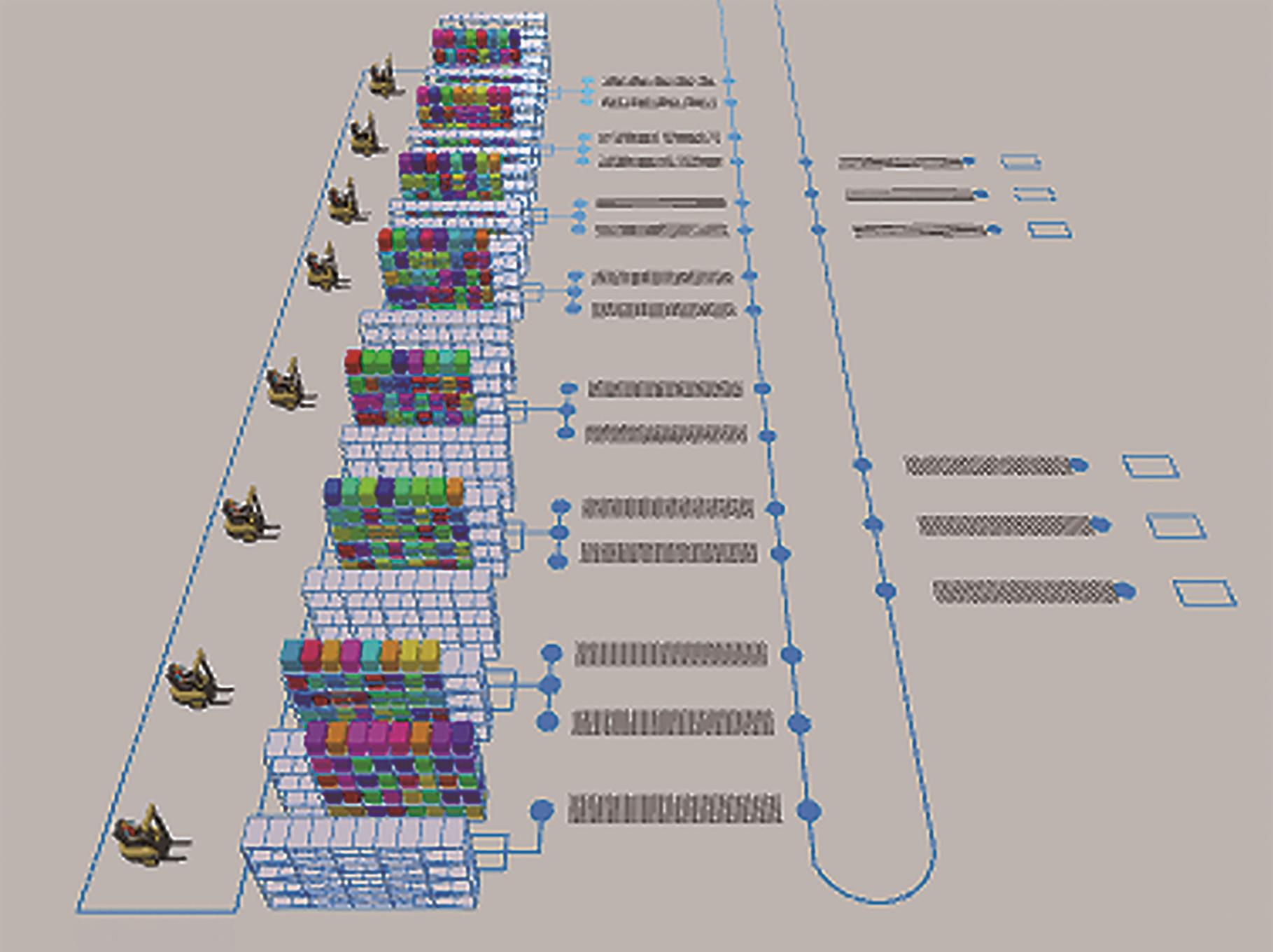

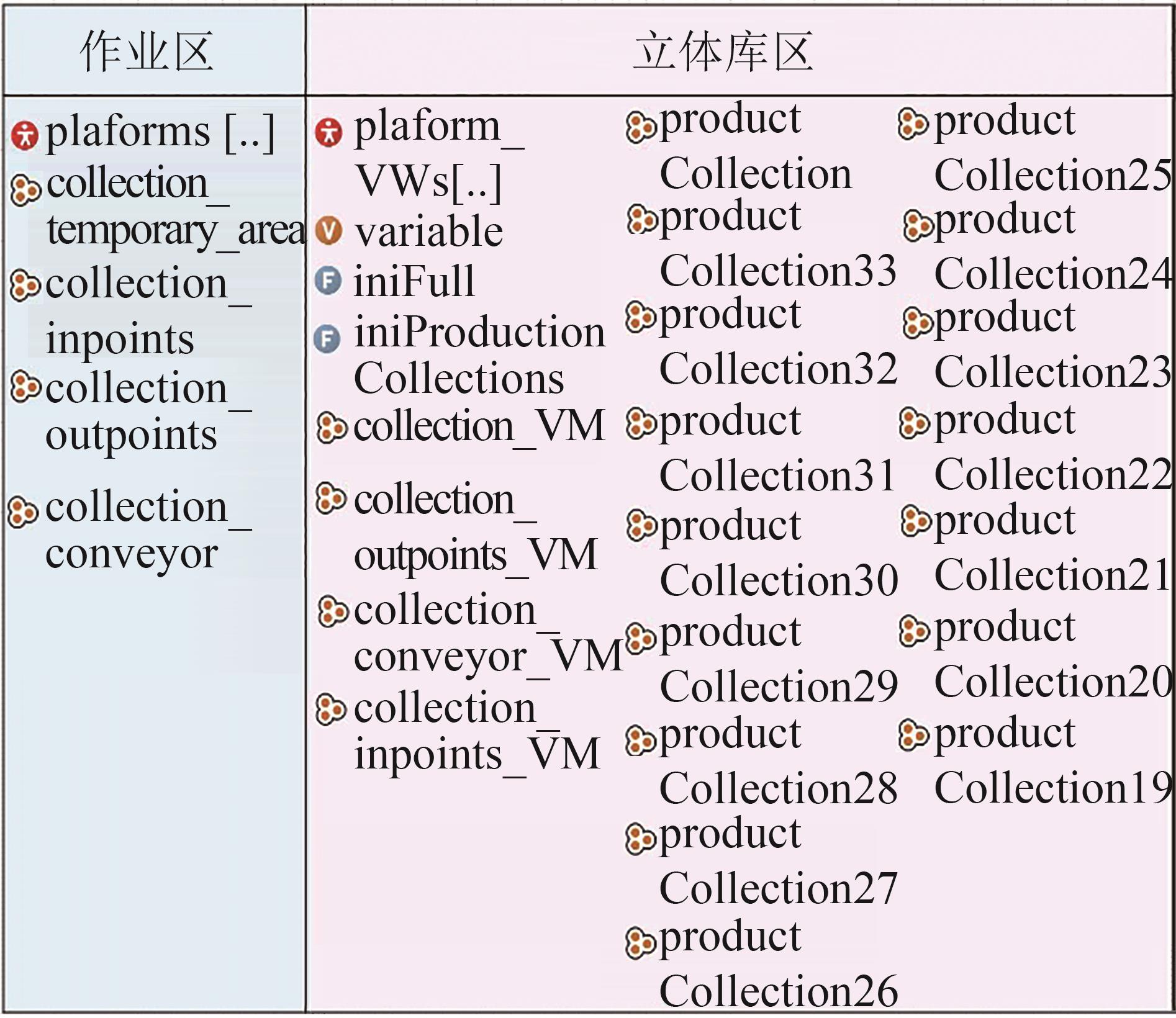

图7

图8

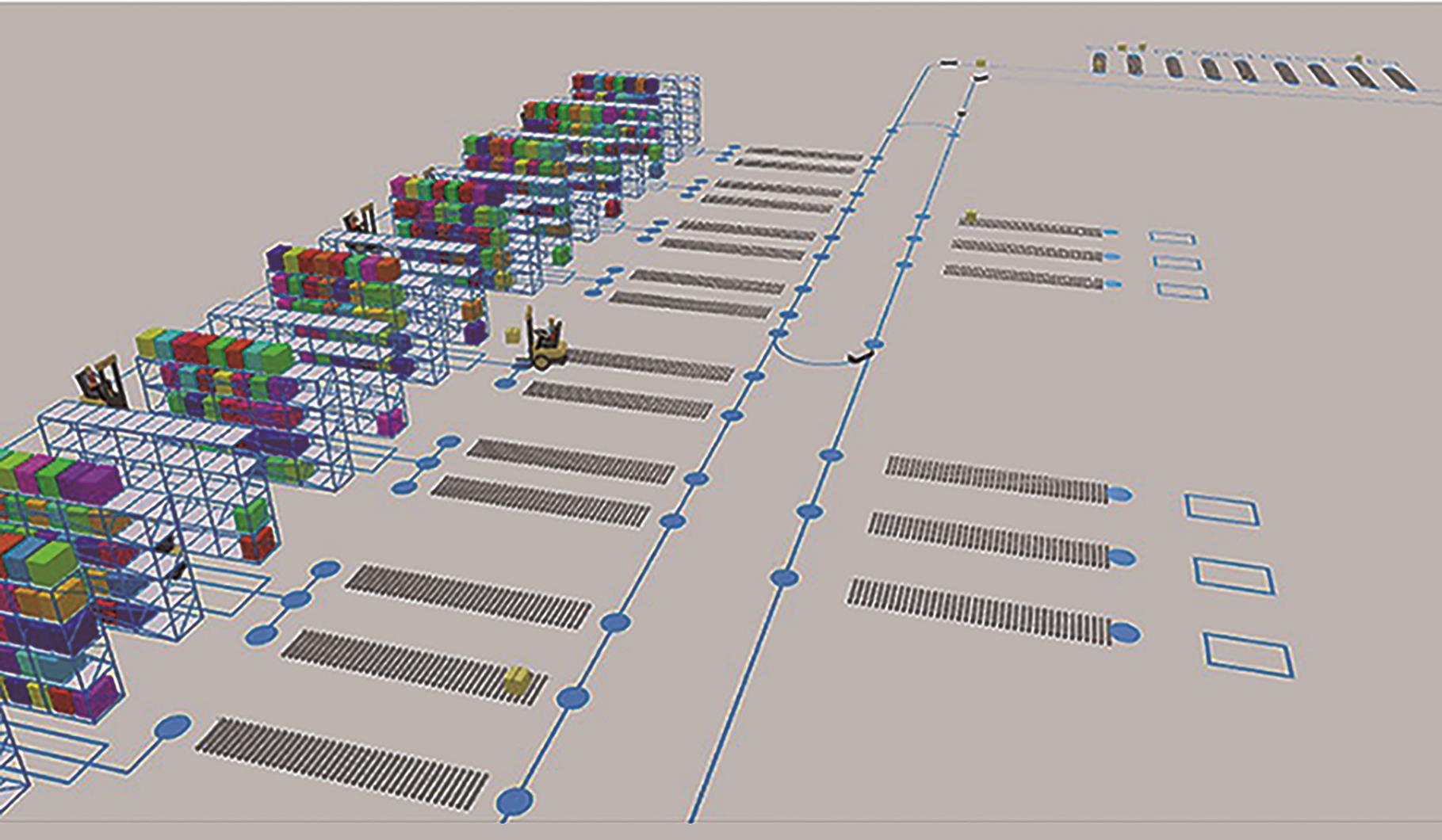

图9

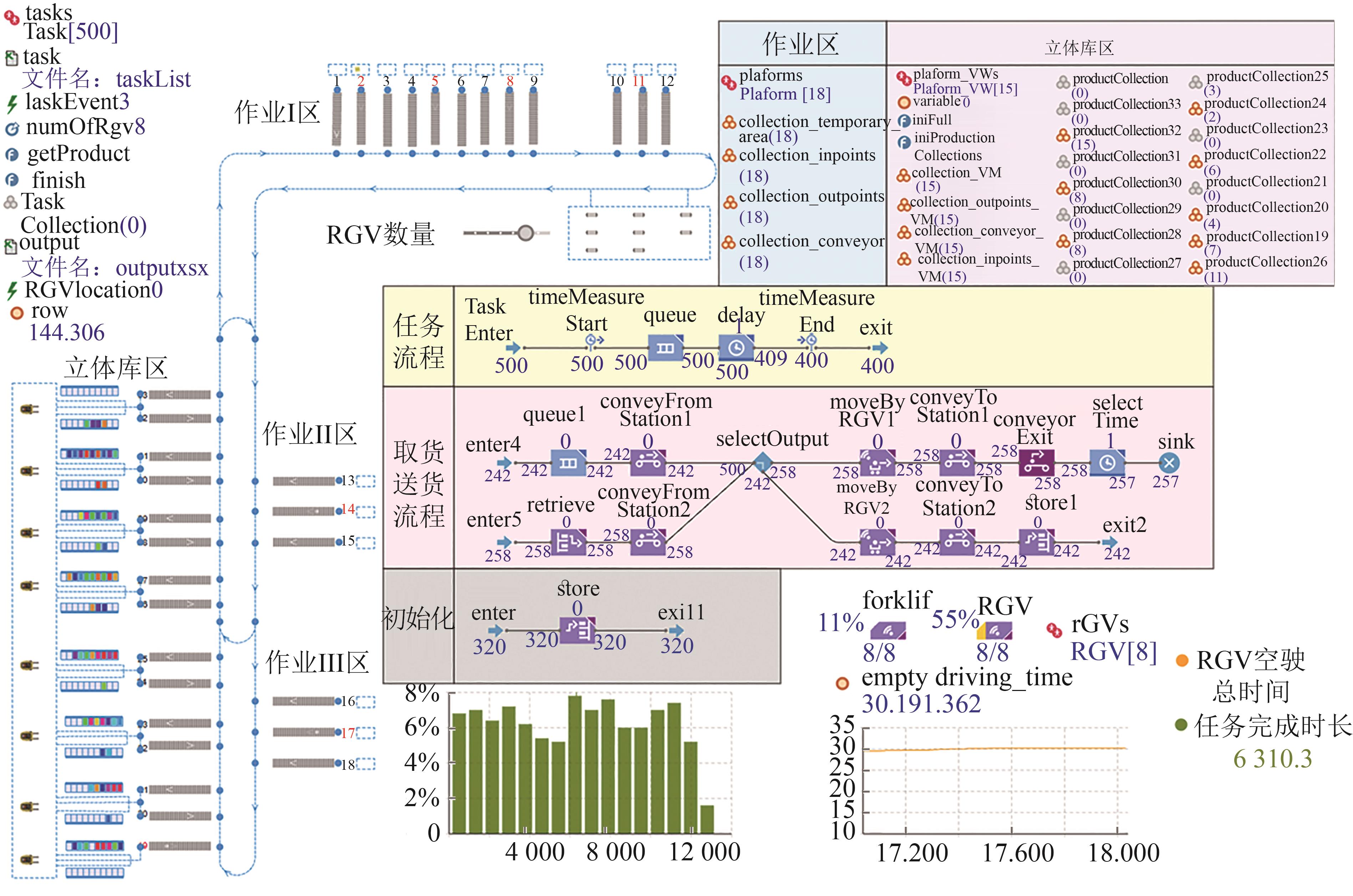

图10

图11

图12

表4

表5

表6

图13

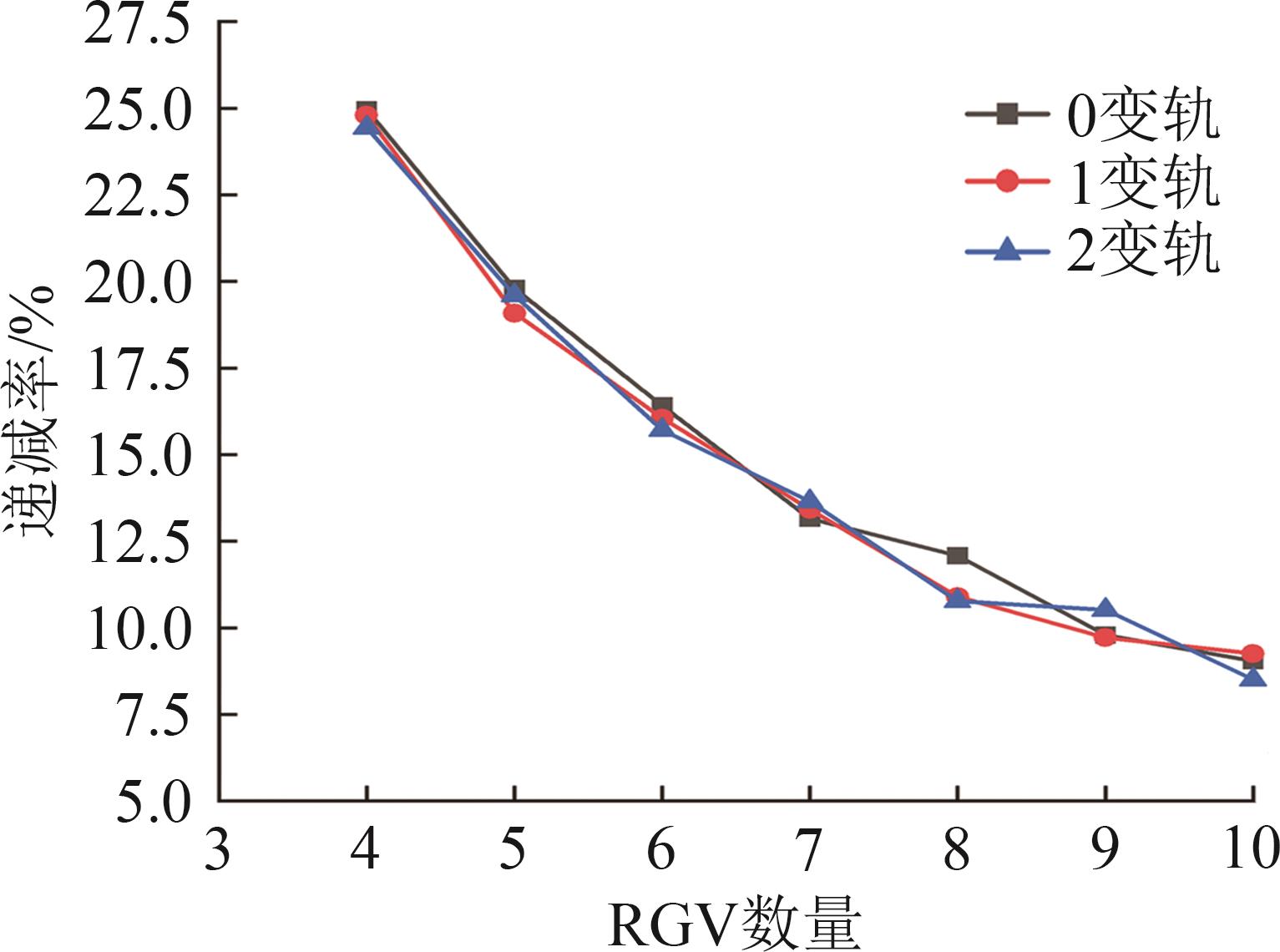

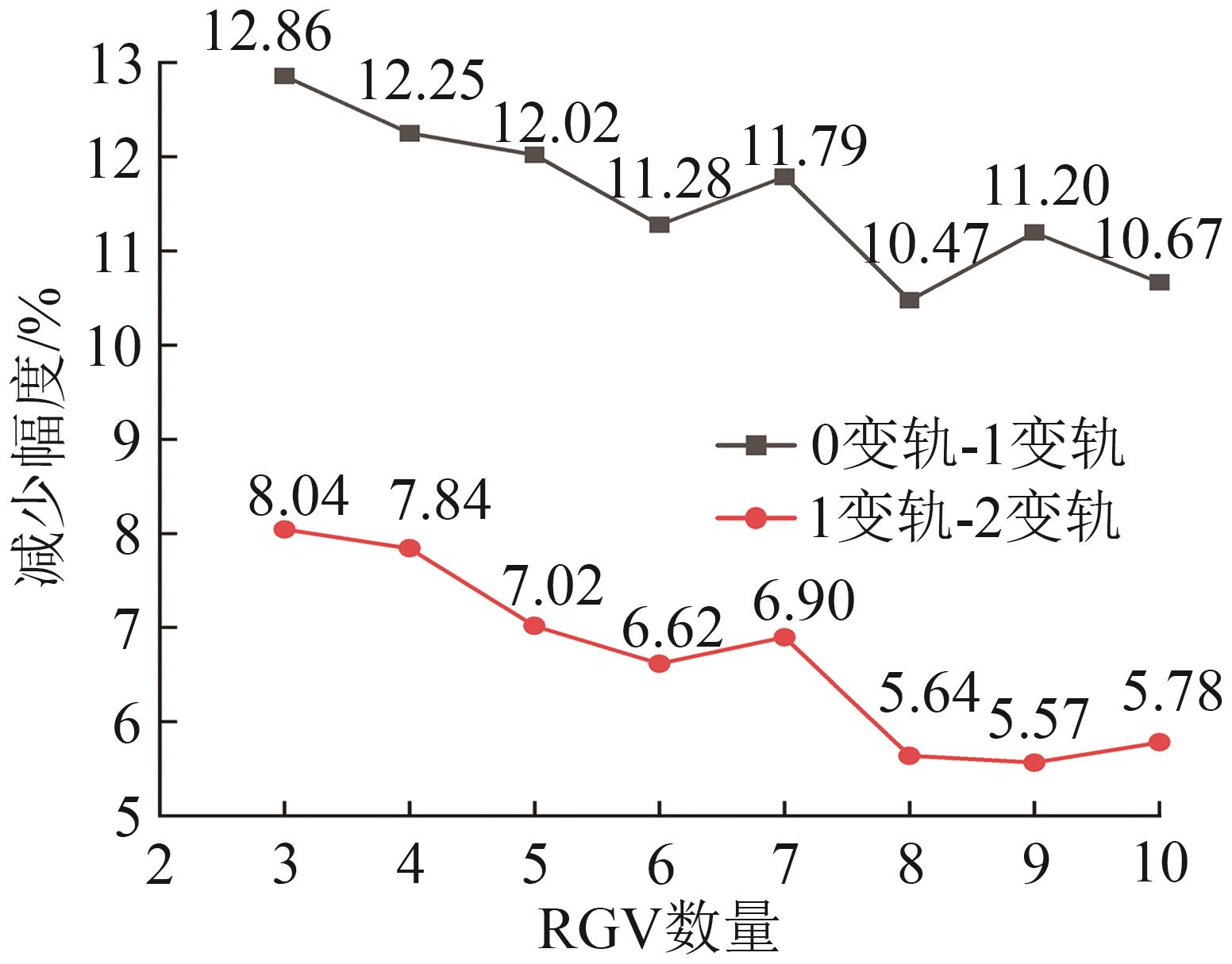

图14

参考文献 22

[1]	丁飞阳, 张逸博, 邱洪斌, 等. 结合贪心策略的RGV动态规划调度模型[J]. 电子技术与软件工程, 2021(21): 121-124.
[2]	李涛, 汪翼, 丁祥海. 自动化立体仓库中RGV货物出仓调度策略仿真[J]. 信息与管理研究, 2022, 7(2): 48-55.
	Li Tao, Wang Yi, Ding Xianghai. Simulation on RGV Scheduling Policies in Automatic Storage Warehouse[J]. Journal of Information and Management, 2022, 7(2): 48-55.
[3]	丁扬. 面向密集仓储的多AGV与RGV协同调度研究[D]. 上海: 东华大学, 2018.
	Ding Yang. Research on Multi AGV and RGV Cooperative Scheduling for Dense Storage[D]. Shanghai: Donghua University, 2018.
[4]	张同锋. 基于自动化立体货架系统的多穿梭车调度及应用研究[D]. 杭州: 浙江科技学院, 2021.
	Zhang Tongfeng. Research on Multi-shuttle Vehicle Scheduling and Application Based on Automatic Stereoscopic Shelving System[D]. Hangzhou: Zhejiang University of Science and Technology, 2021.
[5]	Li Xinlin, Wu Xuzhen, Wang Peipei, et al. Bi-objective Circular Multi-rail-guided Vehicle Scheduling Optimization Considering Multi-type Entry and Delivery Tasks: A Combined Genetic Algorithm and Symmetry Algorithm[J]. Symmetry, 2024, 16(9): 1205.
[6]	陈颖, 葛显龙. 智能RGV的动态调度策略研究[J]. 物流技术, 2019, 38(4): 35-43.
	Chen Ying, Ge Xianlong. Research on Dynamic Scheduling Strategy of Intelligent RGV[J]. Logistics Technology, 2019, 38(4): 35-43.
[7]	马昌谱, 周炳海. 自动存取系统多载量轨道小车避碰调度方法[J]. 上海交通大学学报, 2020, 54(2): 126-134.
	Ma Changpu, Zhou Binghai. Scheduling of Multi-load Rail Guided Vehicles in AS/RS with Collision Avoidance Constrains[J]. Journal of Shanghai Jiao Tong University, 2020, 54(2): 126-134.
[8]	陈元. 基于FlexSim仿真的自动化物流系统立体仓库调度优化研究[J]. 自动化与仪器仪表, 2025(4): 132-135, 140.
	Chen Yuan. Research on Optimization of Automated Logistics System Stereoscopic Warehouse Scheduling Based on FlexSim Simulation[J]. Automation & Instrumentation, 2025(4): 132-135, 140.
[9]	赵启胜. 基于AnyLogic的自动化立体仓库调度系统仿真优化研究[D]. 天津: 天津工业大学, 2020.
[10]	姚星宇. A医药企业物流中心自动化立体仓库仿真优化研究[D]. 广州: 广东工业大学, 2024.
	Yao Xingyu. Research on Simulation and Optimization of Automated Stereoscopic Warehouse in Logistics Center of Pharmaceutical Enterprise A[D]. Guangzhou: Guangdong University of Technology, 2024.
[11]	Brailsford S C, Eldabi T, Kunc M, et al. Hybrid Simulation Modelling in Operational Research: A State-of-the-art Review[J]. European Journal of Operational Research, 2019, 278(3): 721-737.
[12]	Ghasemi Amir, Farajzadeh F, Heavey Cathal, et al. Simulation Optimization Applied to Production Scheduling in the Era of Industry 4.0: A Review and Future Roadmap[J]. Journal of Industrial Information Integration, 2024, 39: 100599.
[13]	何瑞春, 赵敏, 向万里. 基于AnyLogic的系统建模与仿真[M]. 北京: 化学工业出版社, 2020.
[14]	René de Koster, Le-Duc Tho, Kees Jan Roodbergen. Design and Control of Warehouse Order Picking: A Literature Review[J]. European Journal of Operational Research, 2007, 182(2): 481-501.
[15]	Gong, Yeming, B M de Koster René. A Review on Stochastic Models and Analysis of Warehouse Operations[J]. Logistics Research, 2011, 3(4): 191-205.
[16]	林兵, 冯毅. 随机情景下MTS/MTO串联生产系统库存控制策略[J]. 工业工程, 2024, 27(3): 98-105.
	Lin Bing, Feng Yi. An Inventory Control Strategy for MTS/MTO Tandem Production Systems in Stochastic Scenarios[J]. Industrial Engineering Journal, 2024, 27(3): 98-105.
[17]	杨林辉, 杨中华. 电子商务仓储环境下基于改进A*算法的AGV路径规划研究[J]. 电子商务评论, 2025, 14(11): 3025-3037.
	Yang Linhui, Yang Zhonghua. Research on AGV Path Planning Based on Improved A* Algorithm in E-commerce Warehousing Environment[J]. E-Commerce Letters, 2025, 14(11): 3025-3037.
[18]	黎永壹, 韩开旭. 基于排队论智能RGV的动态调度策略的研究[J]. 中国电子科学研究院学报, 2019, 14(6): 660-666, 670.
	Li Yongyi, Han Kaixu. On Dynamic Scheduling Strategy of Intelligent RGV Based on Queuing Theory[J]. Journal of China Academy of Electronics and Information Technology, 2019, 14(6): 660-666, 670.
[19]	盖宇仙, 陈宜吉. 铁路货运组织[M]. 北京: 中国铁道出版社, 2011.
	Ge Yuxian, Chen Yiji. Railway Freight Transportation Organization[M]. Beijing: China Railway Publishing House, 2011.
[20]	何华武. 铁路行车组织[M]. 北京: 中国铁道出版社, 2015: 488.
	He Huawu. Railway Traffic Organization[M]. Beijing: China Railway Publishing House, 2015: 488.
[21]	陈雷雷. 基于列车运行图阶段调整的机车运用优化研究[D]. 北京: 北京交通大学, 2017.
	Chen Leilei. Research on Optimization of the Locomotive Scheduling Based on Phase Adjustment of Working Diagram[D]. Beijing: Beijing Jiaotong University, 2017.
[22]	董晋廷. 高铁快运列车"装配-时刻表-停站"方案优化研究[D]. 北京: 北京交通大学, 2024.
	Dong Jinting. Optimization of "Allocation-timetable-stopping" Scheme for High-speed Railway Express Trains[D]. Beijing: Beijing Jiaotong University, 2024.

类别	排队系统	铁路机车运用计划
出入库订单	顾客	列车开行计划
RGV	服务台	机车
出入库站台	顾客等待服务场所	铁路站段

RGV数量	系统服务强度	系统空闲概率	平均排队货物数	系统平均货物数	边际平均货物数减少量区间	系统总费用/(元/天)
6	0.83	0.004 5	2.77	3.6		624.00
7	0.71	0.003 3	0.42	1.13	0.442~2.470	605.20
8	0.625	0.001 5	0.063	0.688	0.119~0.442	667.52
9	0.56	0.000 56	0.009	0.569	0.068~0.119	742.76
10	0.5	0.000 21	0.001	0.501		820.04

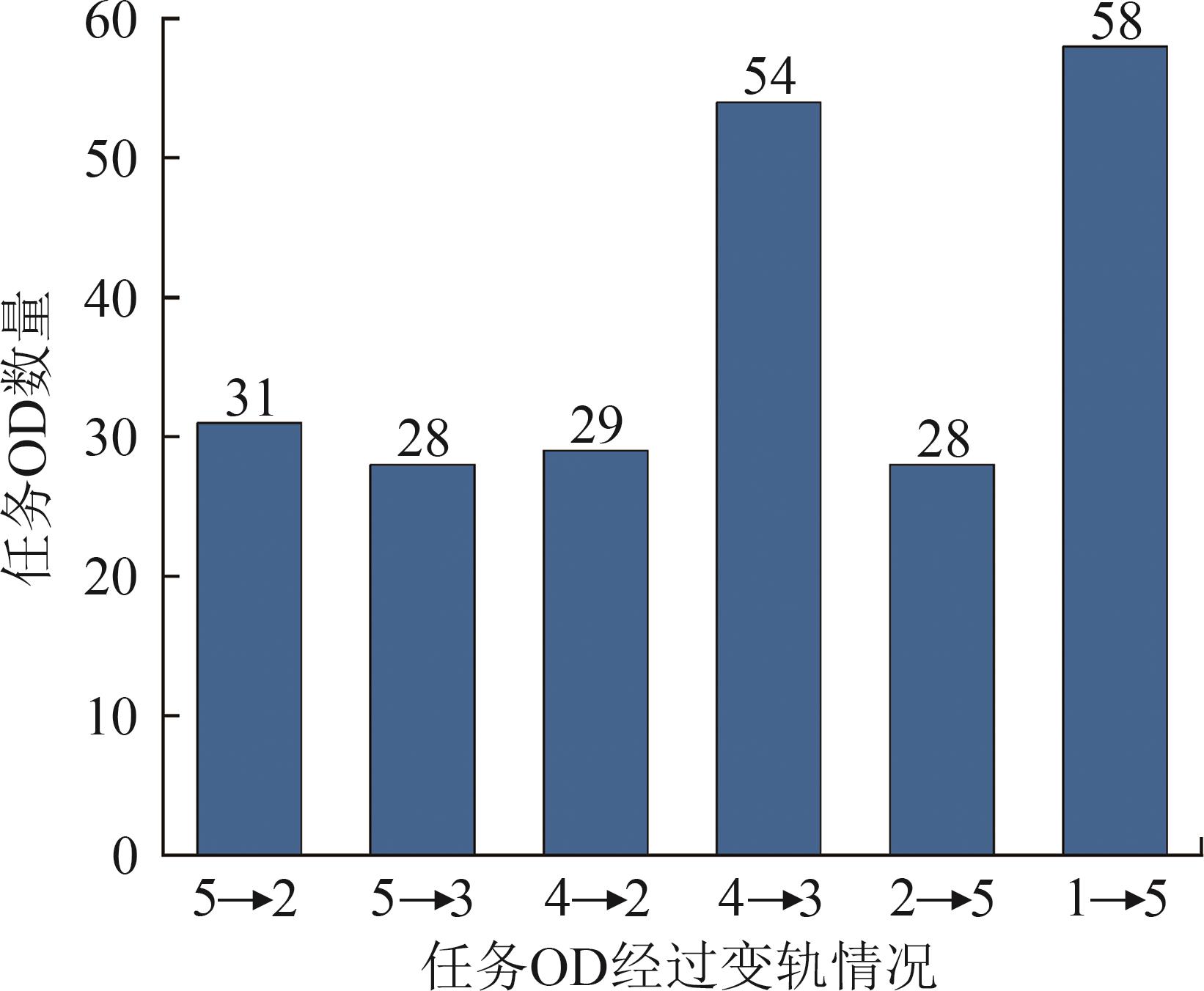

O→D	区I	区II	区III	区IV	区V
区I	0	0	0	63	53
区II	0	0	0	30	28
区III	0	0	0	32	36
区IV	58	29	54	0	0
区V	58	31	28	0	0
