TOHF：一种针对资源受限室内VSLAM的特征提取器

doi:10.16182/j.issn1004731x.joss.23-1334

摘要/Abstract

摘要：

为解决现有VSLAM特征提取器在室内环境中对纹理和光照变化敏感、特征点冗余导致的局部依赖性过强以及硬件资源受限时的存储开销问题，提出了一种面向纹理的均匀FAST特征提取器（texture-oriented and homogenized FAST feature extractor，TOHF）。结合HVS（human visual system），采用二阶段阈值策略来更敏感地应对纹理的清晰度和复杂度差异。根据特征点密度的变化来动态调整特征点的分布，在兼顾计算效率和存储开销的同时，保证特征点分布结构信息。在资源受限设备录制的数据集和官方EuRoc数据集上基于ORB-SLAM3框架开展实验，采用匹配率、重投影误差、绝对轨迹误差（ATE）和耗时作为评估指标。实验结果表明：TOHF在视觉加惯导模式下带来更高精度和鲁棒性的同时，仍满足实时性要求。

关键词: VSLAM, HVS, 特征提取, ORB-SLAM3, 纹理

Abstract:

To address the issues of sensitivity to texture and lighting variations, excessive local dependence caused by feature point redundancy, and storage overhead under hardware resource constraints in existing VSLAM feature extractors in indoor environments, We propose the Texture-Oriented and Homogenized FAST Feature Extractor (TOHF), which integrates HVS (Human Visual System) for enhanced texture analysis. TOHF employs a two-stage thresholding strategy and dynamically adjusts feature point distribution, balancing computational efficiency and storage needs. We conducted experimental verification based on the ORB-SLAM3 framework on dataset from resource-limited device and the EuRoc dataset, focusing on matching rate, reprojection error, absolute trajectory error(ATE), and time efficiency. Results show that TOHF improves accuracy and robustness in vision-inertial navigation modes while maintaining real-time performance.

Key words: VSLAM, human visual system(HVS), feature extract, ORB-SLAM3, texture

中图分类号:

TP391.9

李若晴,赵瑶池,胡祝华等 . TOHF：一种针对资源受限室内VSLAM的特征提取器[J]. 系统仿真学报, 2025, 37(3): 691-703.

Li Ruoqing,Zhao Yaochi,Hu Zhuhua,et al . TOHF: A Feature Extractor for Resource-constrained Indoor VSLAM[J]. Journal of System Simulation, 2025, 37(3): 691-703.

图/表 13

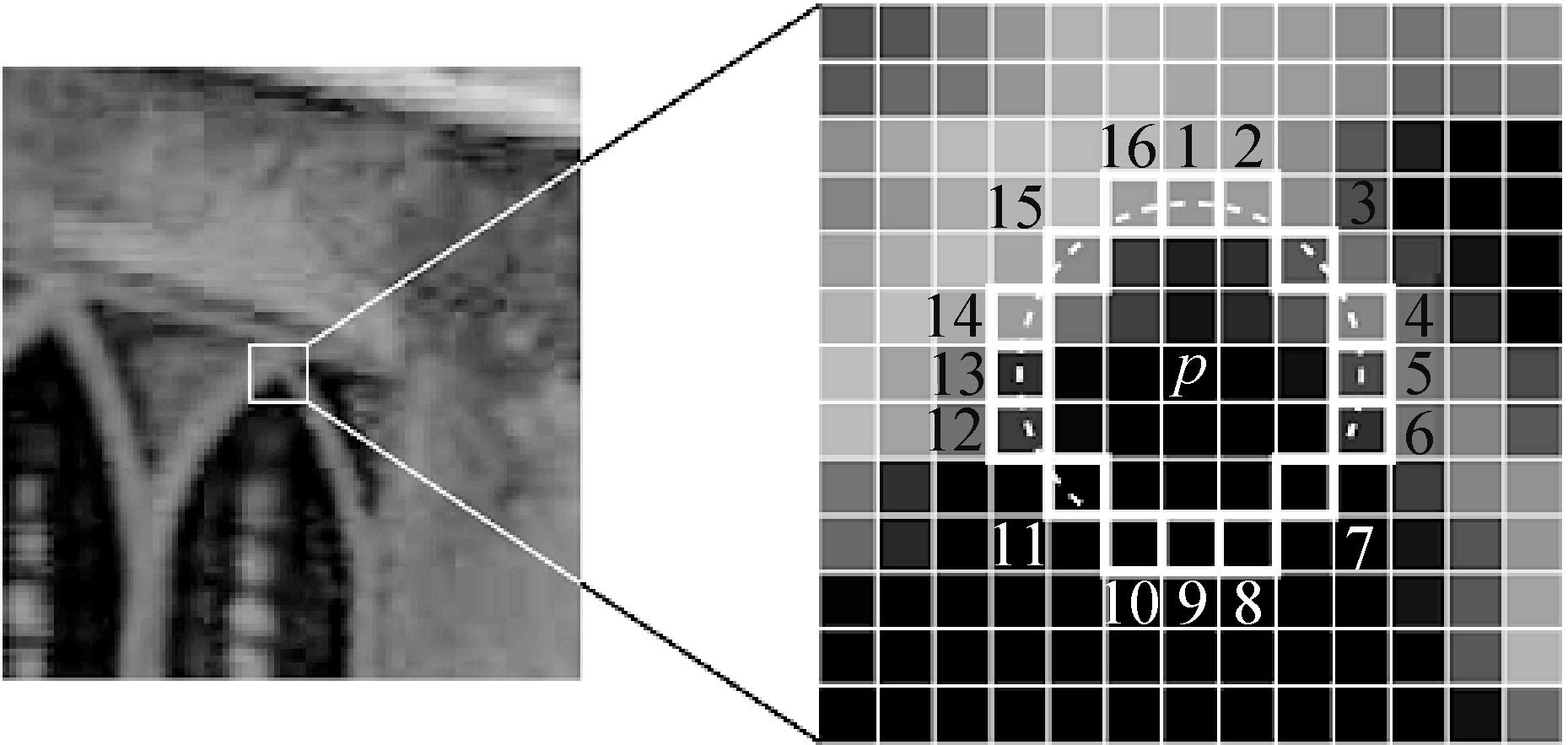

图1

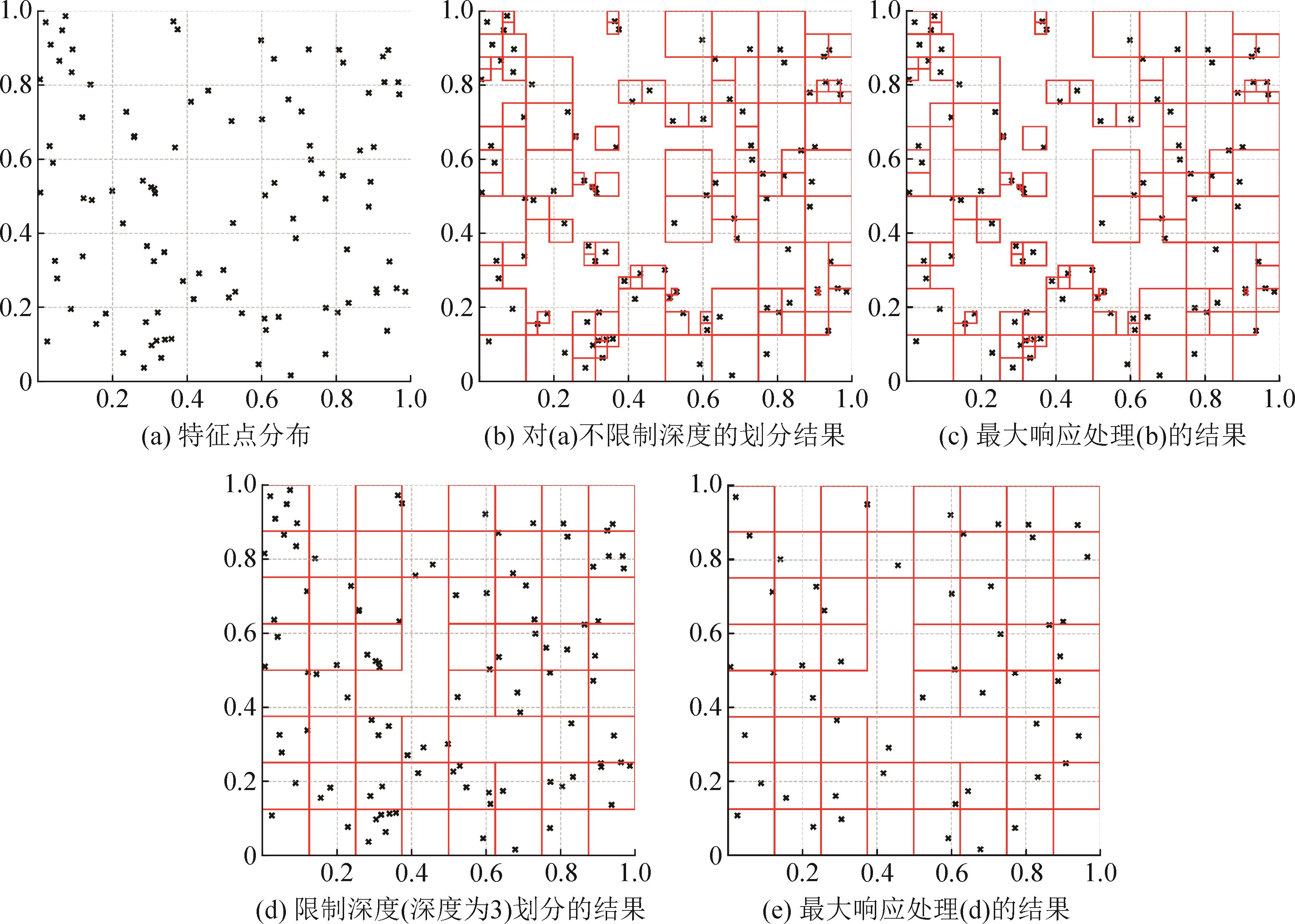

图2

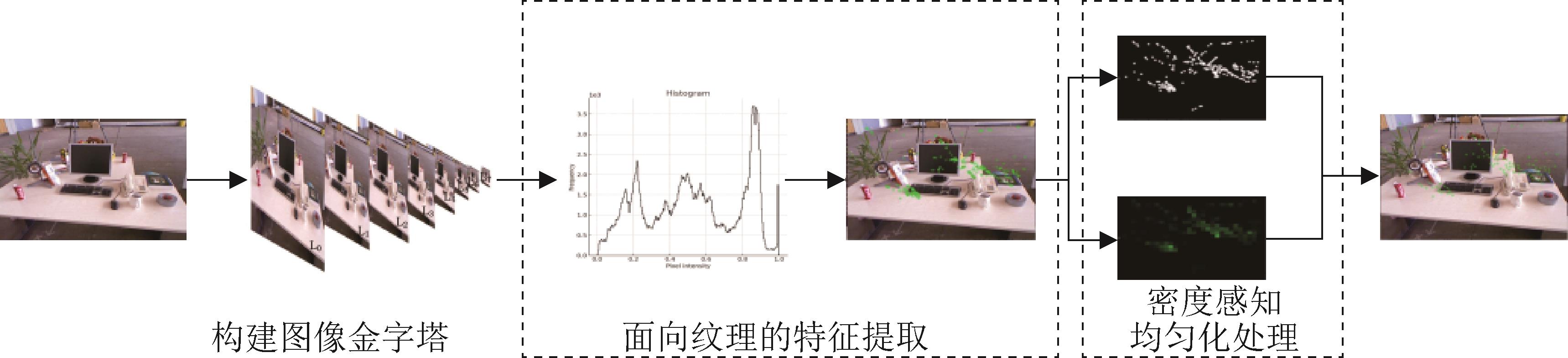

图3

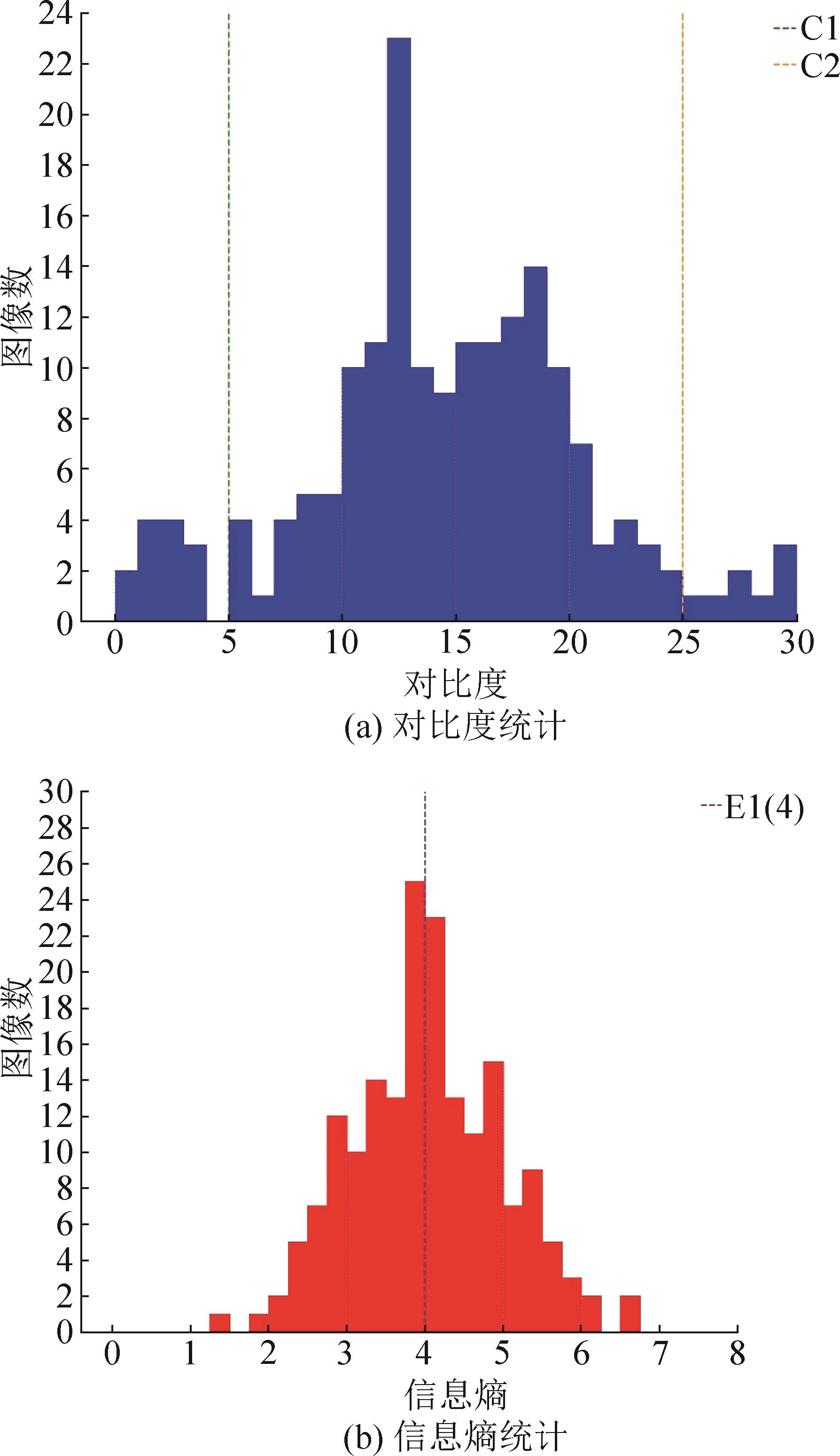

图4

图5

表1

原图的特征匹配结果比较

方法	场景	$N k 1$	$N k 2$	$N m$	$P / %$
FAST (阈值7)	简单	2	0	0	0
	复杂	3 823	3 647	3 373	92.49
	一般	5 401	5 128	4 109	80.13
FAST (阈值20)	简单	0	0	0	0
	复杂	1 790	1 730	1 689	97.63
	一般	1 484	1 037	891	85.92
BRISK	简单	1	0	0	0
	复杂	1 271	1 206	1 108	91.87
	一般	1 874	1 734	1 508	86.97
AKAZE	简单	0	0	0	0
	复杂	554	525	489	93.14
	一般	1 128	1 061	956	89.16
TOHF	简单	86	60	50	83.33
	复杂	814	760	738	97.10
	一般	1 199	951	857	90.12

表1

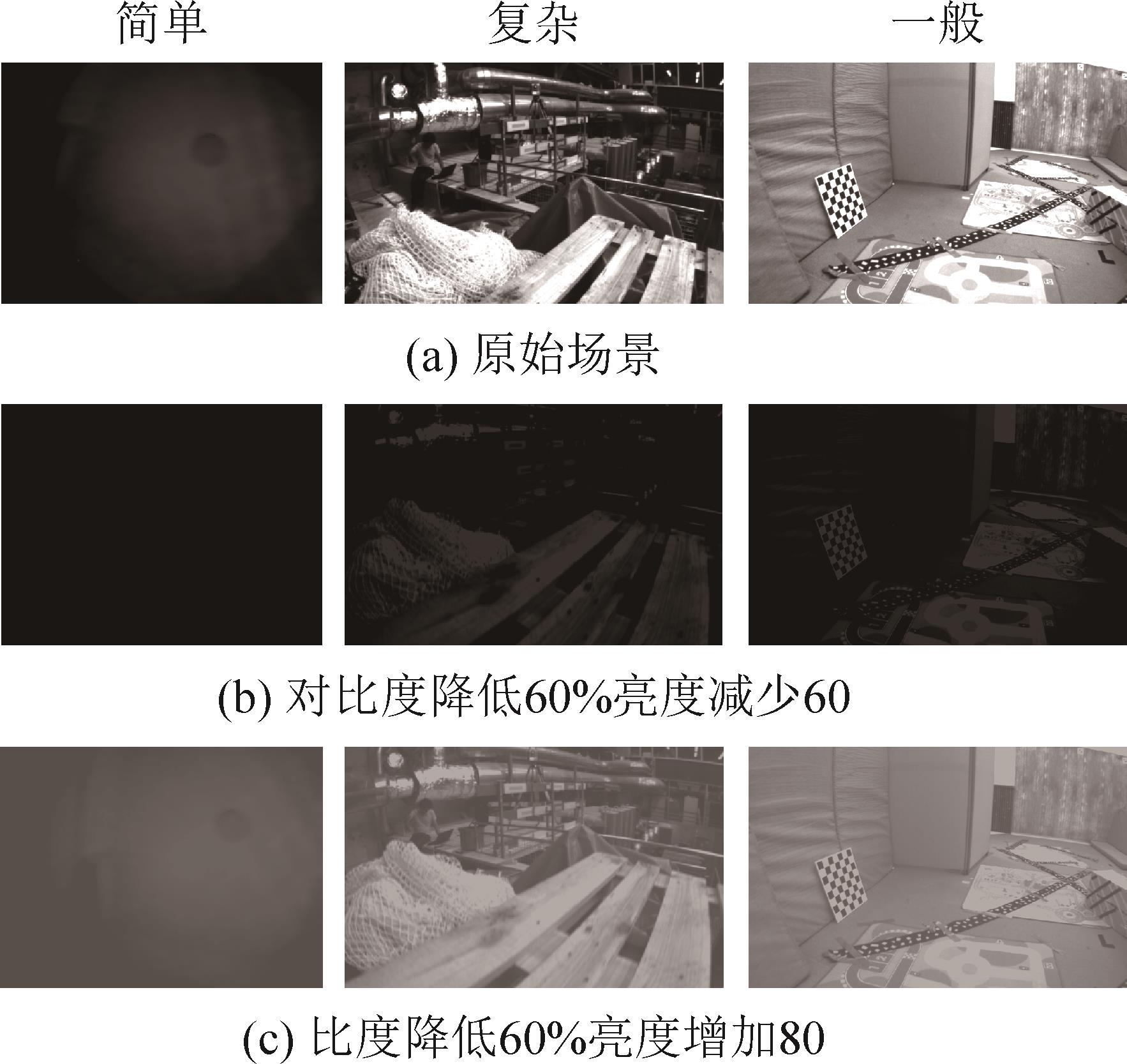

表2

对比度降低60%亮度减少60的特征匹配结果

方法	场景	$N k 1$	$N k 2$	$N m$	$P / %$
FAST (阈值7)	简单	0	0	0	0
	复杂	733	639	621	97.18
	一般	1 137	954	843	88.36
FAST (阈值20)	简单	0	0	0	0
	复杂	102	94	76	80.85
	一般	274	248	211	85.08
BRISK	简单	0	0	0	0
	复杂	14	11	5	45.45
	一般	150	132	112	84.85
AKAZE	简单	0	0	0	0
	复杂	3	1	0	0
	一般	176	116	101	87.07
TOHF	简单	0	0	0	0
	复杂	685	616	598	97.08
	一般	100	84	78	92.86

表2

表3

对比度降低60%亮度增加80的特征匹配结果

方法	场景	$N k 1$	$N k 2$	$N m$	$P / %$
FAST (阈值7)	简单	0	0	0	0
	复杂	1417	1281	1200	93.68
	一般	1593	1281	1104	86.18
FAST (阈值20)	简单	0	0	0	0
	复杂	261	217	189	87.10
	一般	447	386	341	88.34
BRISK	简单	0	0	0	0
	复杂	156	134	116	86.57
	一般	523	516	455	88.18
AKAZE	简单	0	0	0	0
	复杂	106	89	78	87.64
	一般	434	417	371	88.97
TOHF	简单	71	66	54	81.82
	复杂	763	696	653	93.82
	一般	427	373	345	92.49

表3

图6

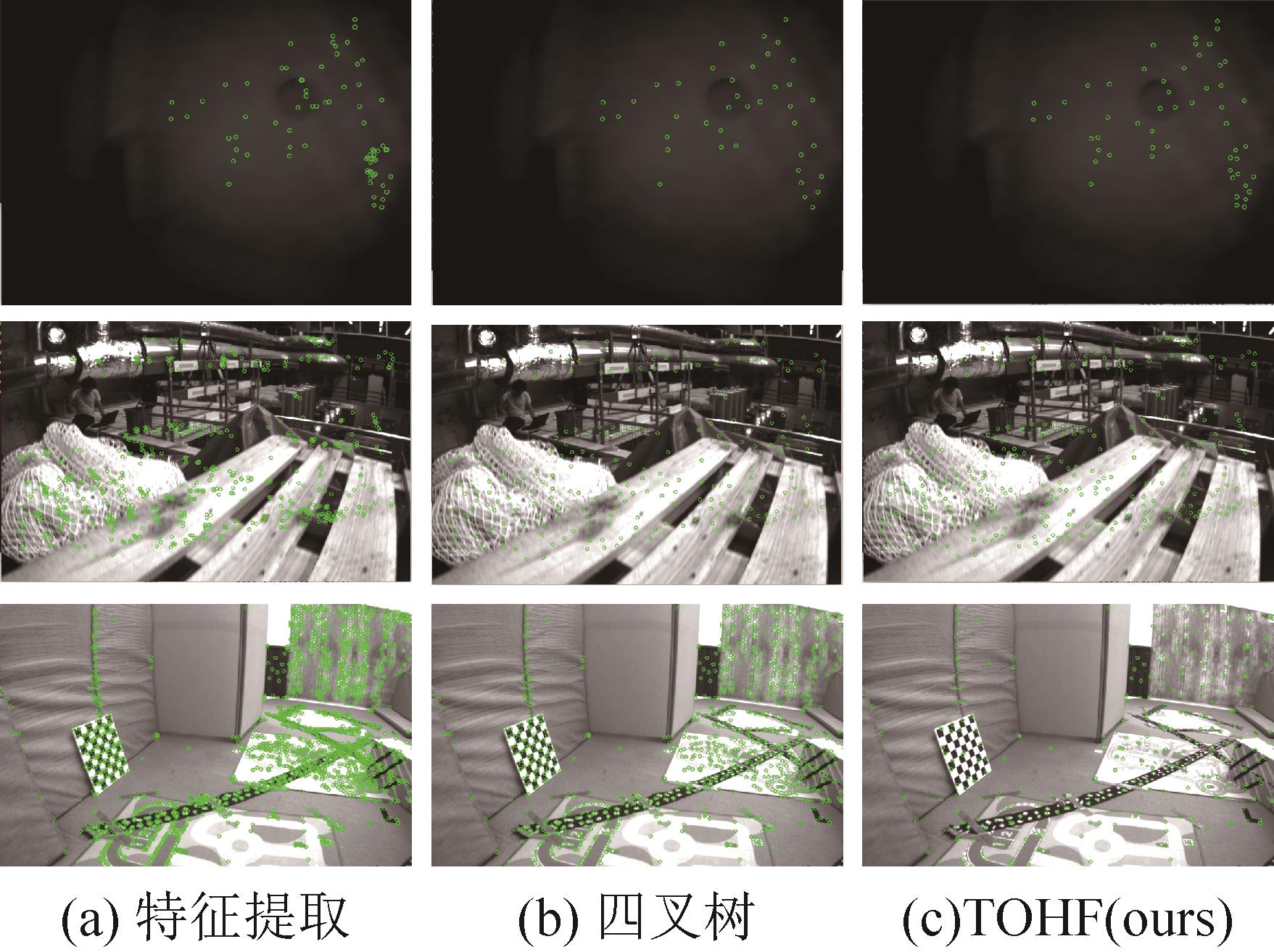

表4

TOHF的定量比较

方法	场景	$N k$	$N h$	$N m$	$P / %$
特征提取	简单	86	—	50	83.33
	复杂	814	—	638	96.67
	一般	1 199	—	407	90.24
四叉树方法	简单	86	42	37	88.09
	复杂	814	184	178	96.74
	一般	1 199	973	897	92.19
TOHF	简单	86	53	49	92.45
	复杂	814	283	278	98.23
	一般	1 199	287	264	91.99

表4

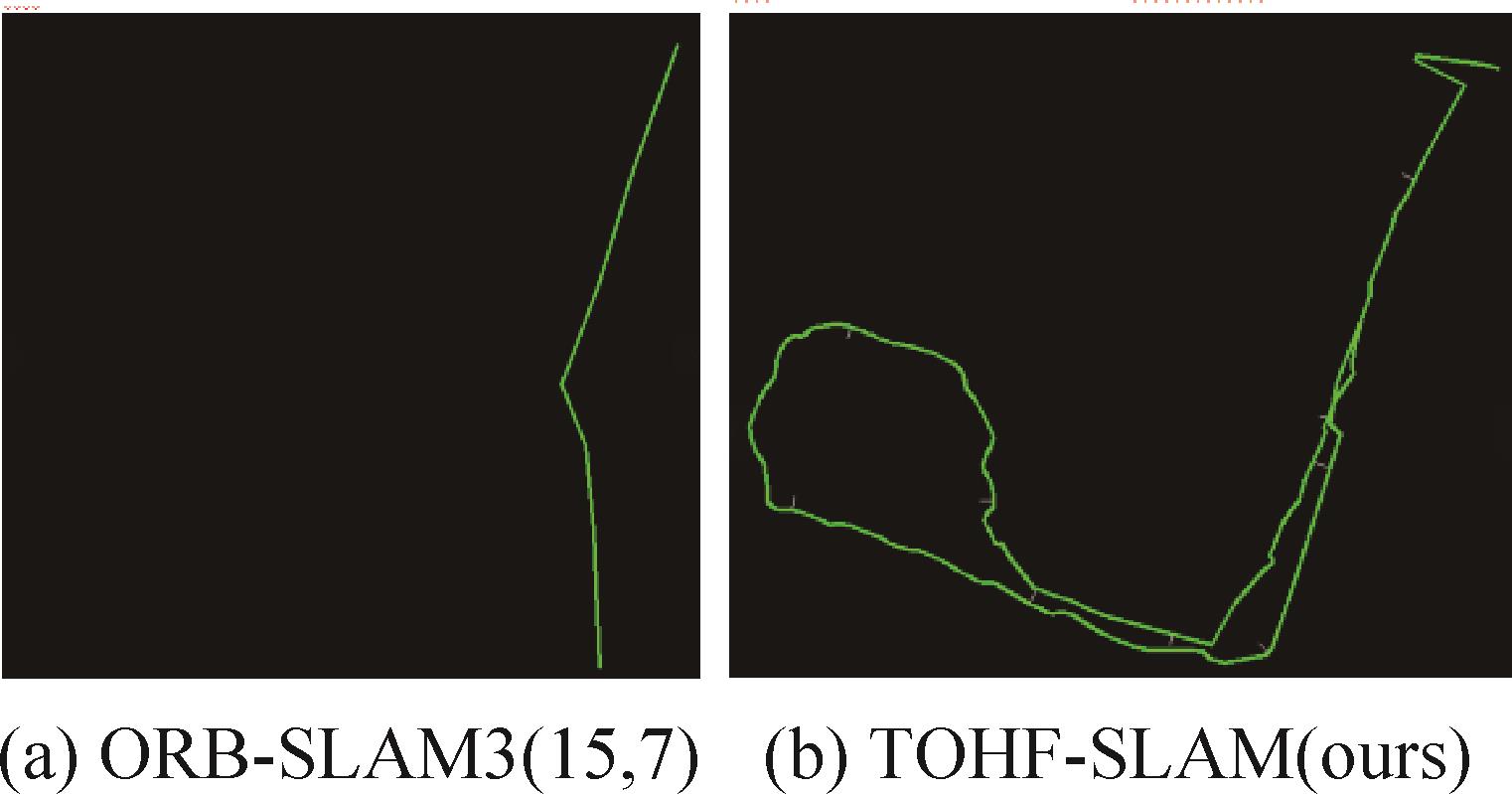

表5

EuRoc数据集不同子数据集上的实验结果

数据集	ORB-SLAM3 (20,7)			面向纹理的特征提取 (消融1)			密度感知均匀化处理 (消融2)			TOHF-SLAM
数据集	ATE	$N k f$	$t / s$	ATE	$N k f$	$t / s$	ATE	$N k f$	$t / s$	ATE	$N k f$	$t / s$
MH01	0.057	3 681	203.7	0.029	3 680	213.7	0.025	3 679	204.4	0.018	3 687	209.9
MH02	0.068	3 043	180.3	0.038	3 042	179.1	0.019	3 040	169.9	0.021	3 047	177.7
MH03	0.059	2 704	154.0	0.047	2 697	150.6	0.038	2 706	155.8	0.036	2 705	155.3
MH04	0.129	2 029	114.0	0.108	2 031	114.2	0.082	2 033	115.9	0.097	2 032	114.2
MH05	0.077	2 274	127.2	0.053	2 272	130.4	0.058	2 273	1276	0.053	2 271	129.6
V101	0.045	2 913	160.8	0.038	2 916	163.8	0.041	2 912	162.6	0.040	2 910	165.9
V102	0.027	1 705	97.1	0.014	1 704	97.1	0.014	1 710	99.2	0.013	1 716	98.6
V103	0.036	2 149	120.1	0.028	2 144	119.8	0.031	2 153	127.6	0.025	2 140	123.7
V201	0.051	2 283	128.1	0.043	2 276	132.4	0.042	2 281	127.6	0.041	2 287	128.5
V202	0.019	2 346	132.1	0.011	2 353	145.1	0.016	2 344	131.4	0.014	2 339	130.7
V203	0.053	1 994	128.8	0.018	1 992	128.5	0.030	1 999	132.6	0.021	1 987	127.9
平均值	0.056	—	140.6	0.039	—	143.1	0.036	—	141.3	0.035	—	142.0

表5
