基于智能融合算法的冷热电联供系统灵活性运行优化研究

doi:10.16182/j.issn1004731x.joss.23-0699

摘要/Abstract

摘要：

为了进一步提高燃气轮机仿真模型的模拟精度，在建立燃气轮机机理仿真模型和BP仿真模型基础上，基于模型替代技术、BP神经网络算法以及最优加权法、动态权重分配法，分别建立了3种燃气轮机串联智能融合仿真模型和2种并联智能融合仿真模型；通过将上述仿真模型的模拟结果与实际运行数据进行对比分析，遴选出模拟效果最优的仿真模型；以燃气轮机智能融合仿真模型作为燃气轮机的出力约束，建立了考虑热电解耦技术的冷热电联供系统灵活性运行优化仿真模型。结果表明：该模型不仅可以提高仿真结果的模拟精度，而且通过对出力设备的灵活性调整，可有效应对负荷侧能源需求量的动态变化，避免出现能源浪费现象，提升系统的经济效益。

关键词: 智能融合算法, 燃气轮机, 仿真模型, 热电解耦, 灵活性运行优化

Abstract:

To further improve the accuracy of gas turbine simulation models, based on the construction of a gas turbine mechanism simulation model and BP simulation model, through model substitution technology and BP neural network algorithm three intelligent fusion simulation models for gas turbines, and two intelligent fusion simulation models for parallel gas turbines are constructed respectively as well as the combination of, by comparing the simulated results of the above models with the actual operating data, the simulation model with the best performance was selected. Using the intelligent fusion simulation model of the gas turbine as the output constraint, a flexibility operation optimization simulation model for the combined cooling, heating, and power system was established, taking into account the heat and power decoupling technology. The results show that the model not only improves the simulation accuracy of results, but also effectively responds to the dynamic changes in energy demand on the load side by adjusting the flexibility of output equipment, which avoids the energy waste and improve the economic benefits of the system.

Key words: intelligent fusion algorithm, gas turbine, simulation model, heat-power decoupling, flexible operation optimization

中图分类号:

TK01

包哲,张潇方,李薇等 . 基于智能融合算法的冷热电联供系统灵活性运行优化研究[J]. 系统仿真学报, 2024, 36(10): 2330-2344.

Bao Zhe,Zhang Xiaofang,Li Wei,et al . Research on Flexible Operational Optimization of CCHP System Based on Intelligent Fusion Algorithm[J]. Journal of System Simulation, 2024, 36(10): 2330-2344.

图/表 13

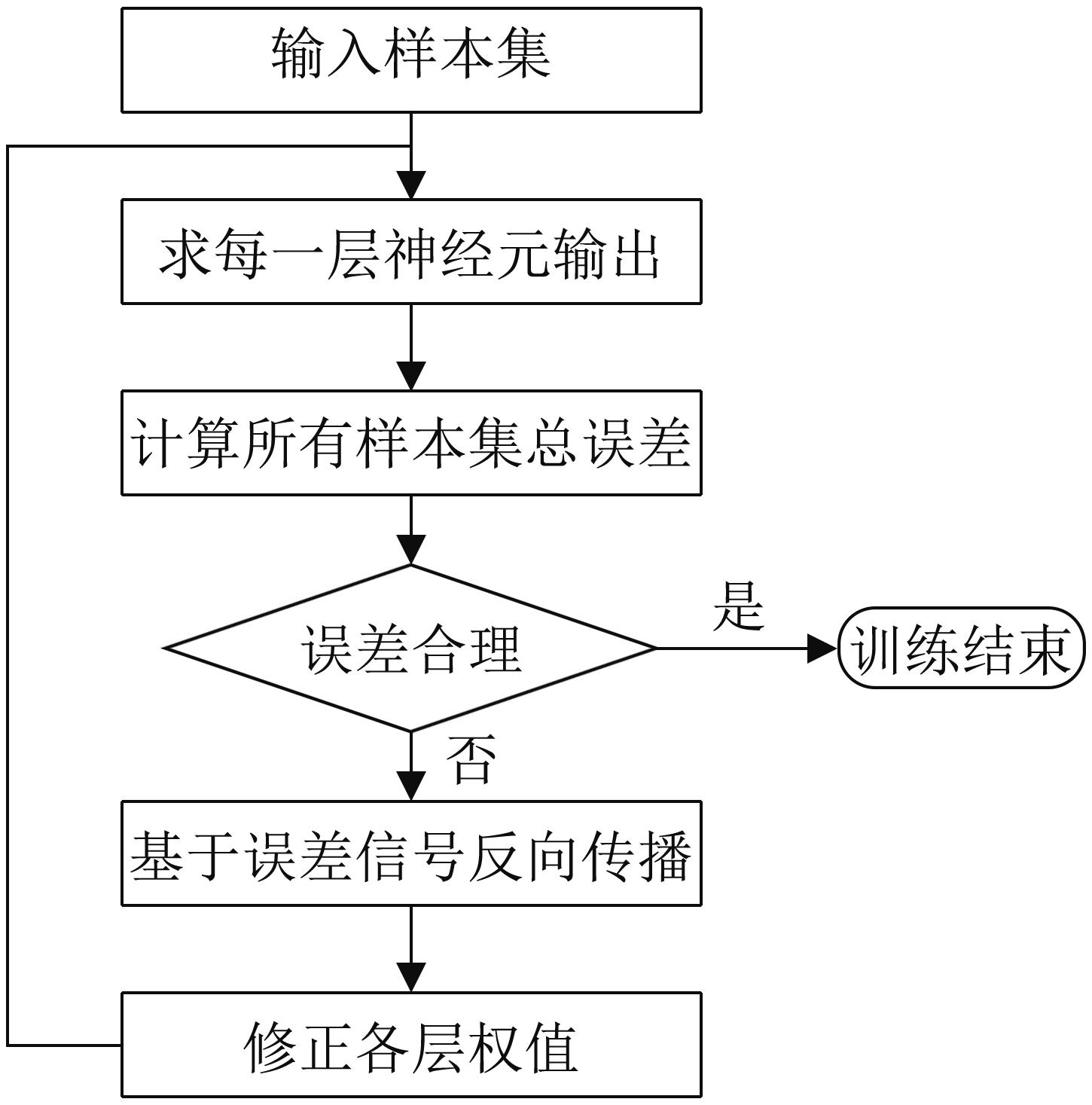

图1

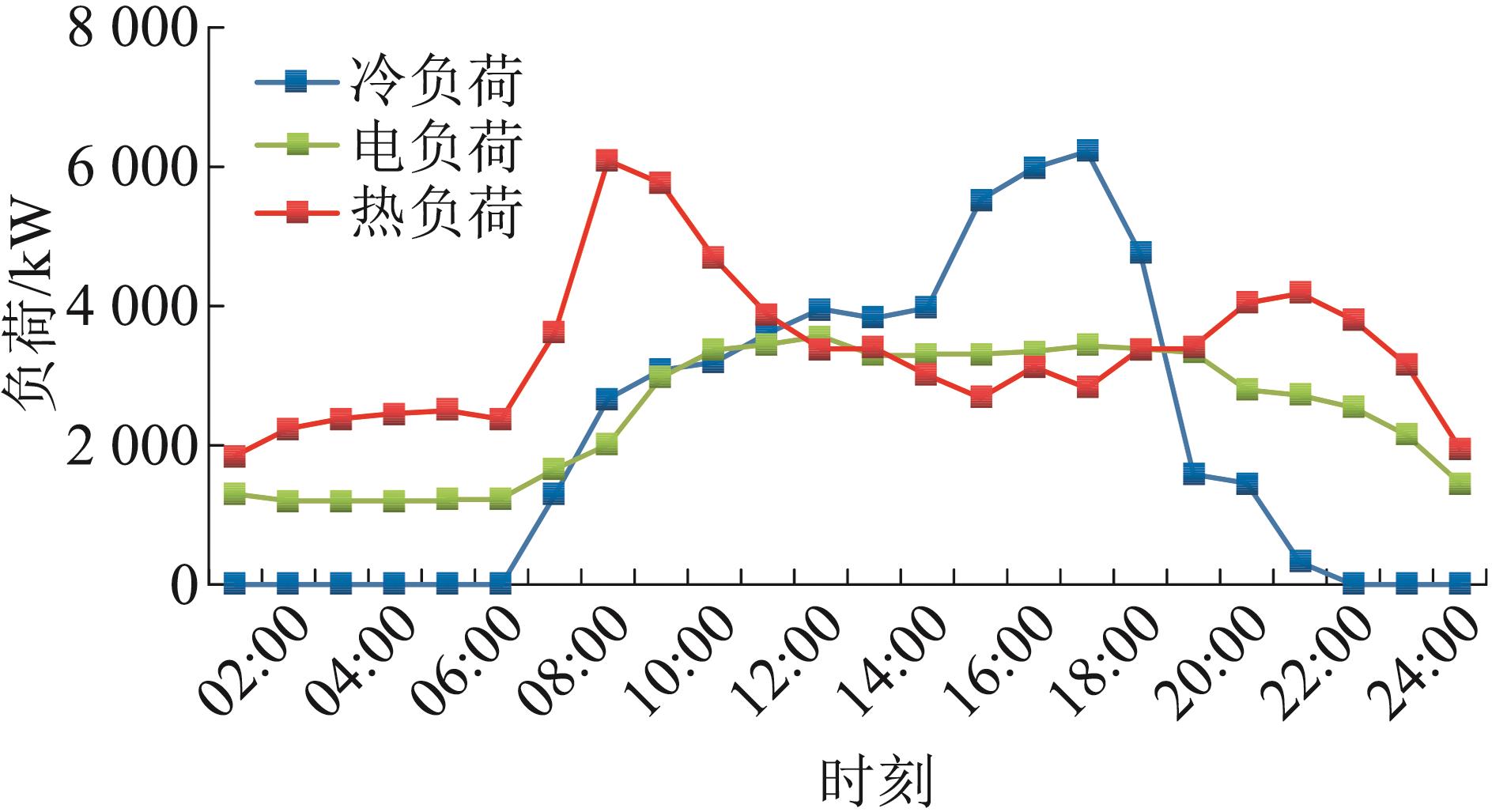

图2

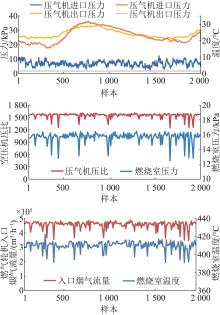

图3

表1

表2

系统参数

主要经济性参数
燃气轮机维护成本单价 $/ (元 / k W · h)$		0.03
吸收式制冷机组维护成本单价 $/ (元 / k W · h)$		0.007 2
电热泵维护成本单价 $/ (元 / k W · h)$		0.022
电制冷机组维护成本单价 $/ (元 / k W · h)$		0.021
天然气价格 $/ (元 / m 3)$		2.12
燃气轮机额定功率 $/ M W$		10
储热设备额定功率 $/ M W$		2
电热泵效率		0.93
吸收式制冷机组制冷系数		1.2
	电制冷机组制冷系数	3.2

表2

表3

图4

表4

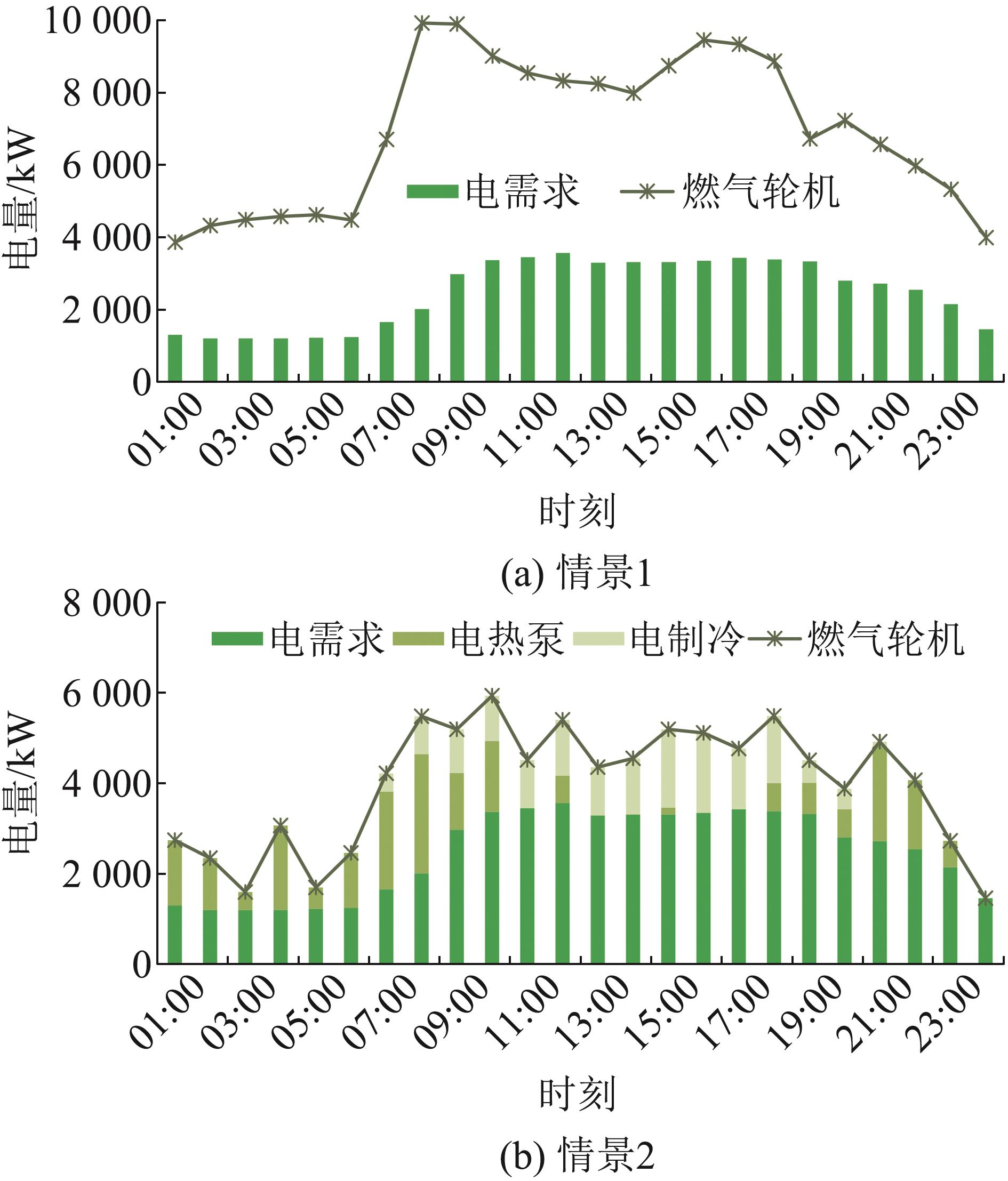

图5

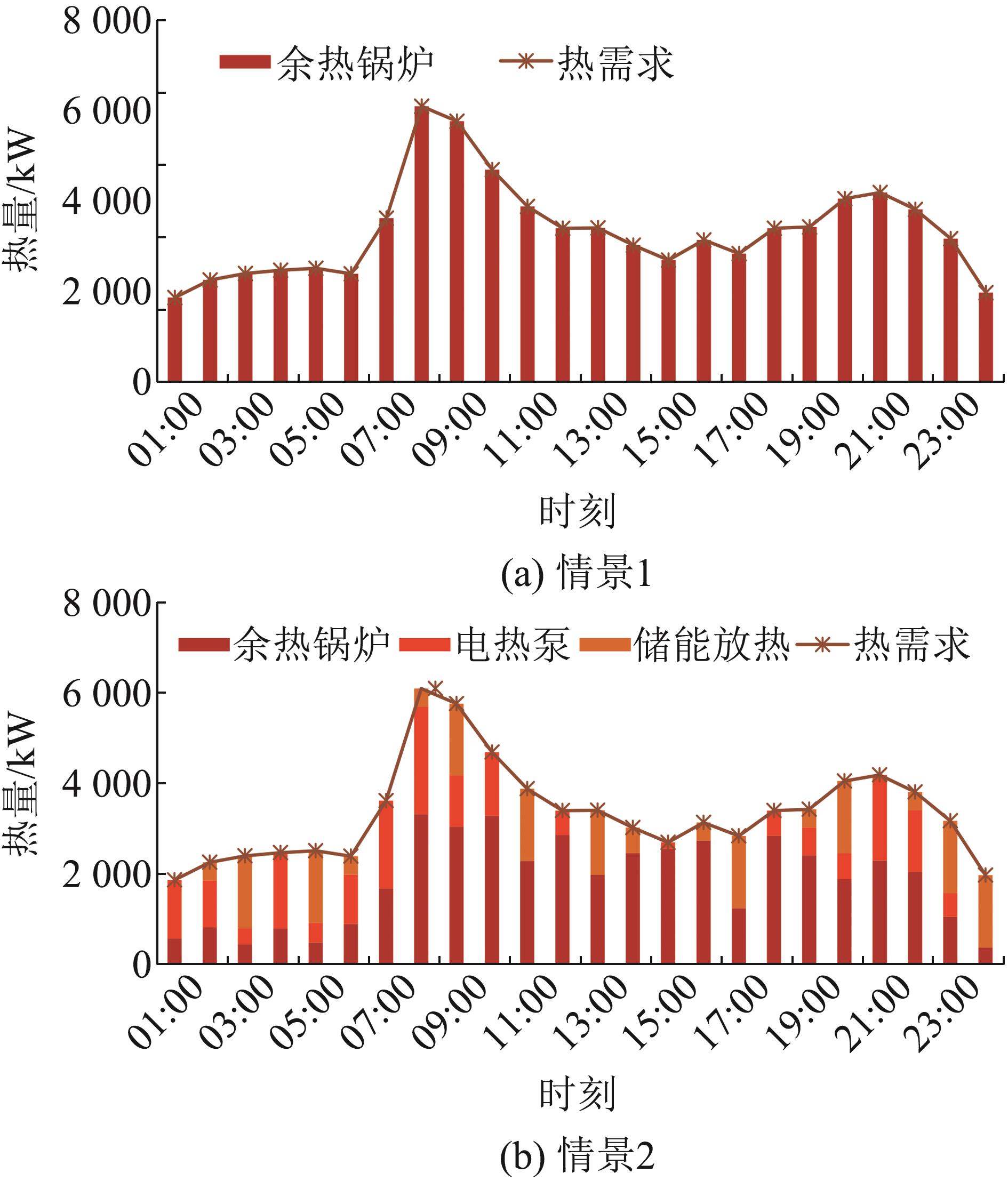

图6

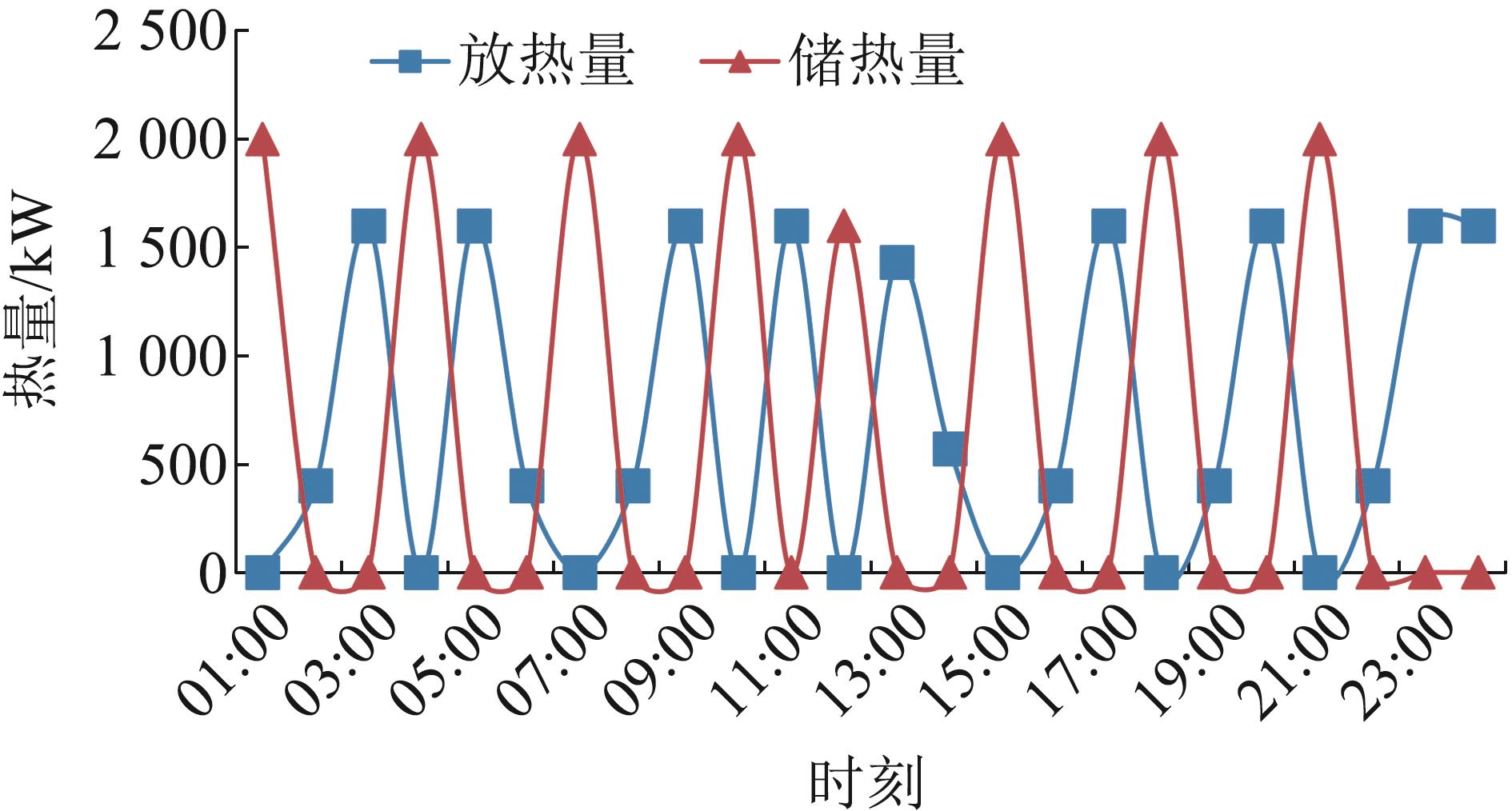

图7

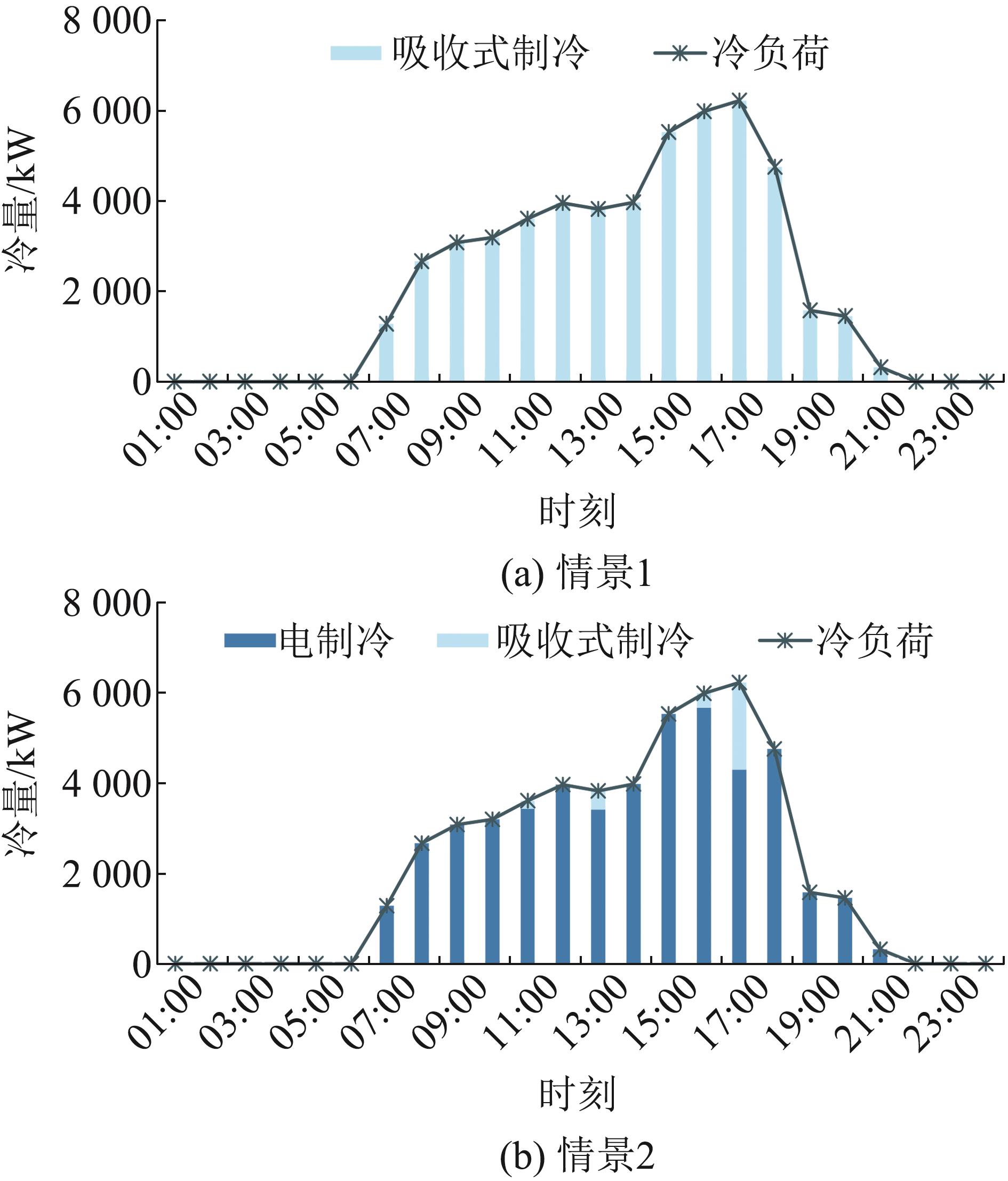

图8

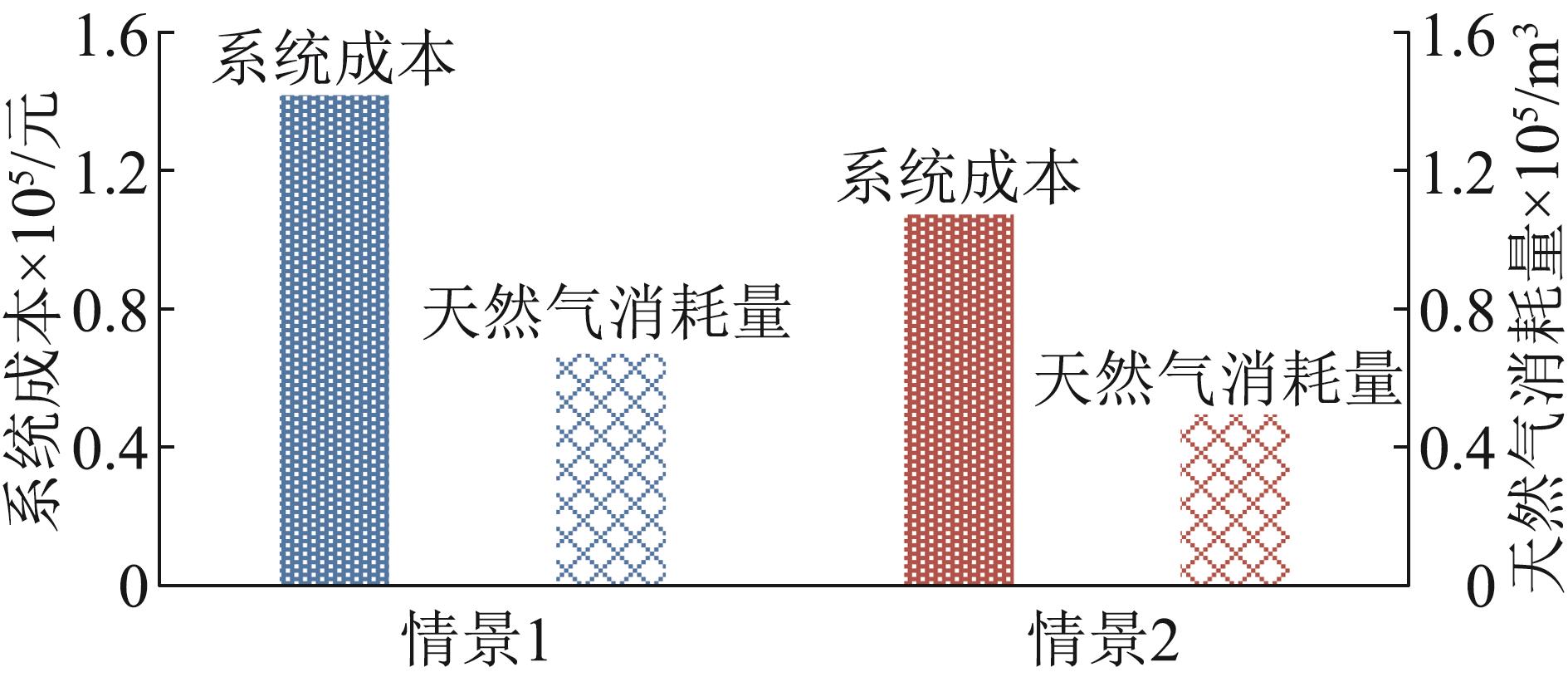

图9

参考文献 22

1	王俐英, 林嘉琳, 董厚琦, 等. 计及阶梯式碳交易的综合能源系统优化调度[J]. 系统仿真学报, 2022, 34(7): 1393-1404.
	Wang Liying, Lin Jialin, Dong Houqi, et al. Optimal Dispatch of Integrated Energy System Considering Ladder-type Carbon Trading[J]. Journal of System Simulation, 2022, 34(7): 1393-1404.
2	康重庆, 姚良忠. 高比例可再生能源电力系统的关键科学问题与理论研究框架[J]. 电力系统自动化, 2017, 41(9): 1-11.
	Kang Zhongqing, Yao Liangzhong. Key Scientific Issues and Theoretical Research Framework for Power Systems with High Proportion of Renewable Energy[J]. Automation of Electric Power Systems, 2017, 41(9): 1-11.
3	汪茹康, 周家辉, 徐钢, 等. 深度调峰背景下的厂级热电负荷分配优化[J]. 动力工程学报, 2023, 43(2): 185-193.
	Wang Rukang, Zhou Jiahui, Xu Gang, et al. Optimization of Plant-level Thermal and Power Load Distribution Under the Back-ground of Deep Peak Shaving[J]. Journal of Chinese Society of Power Engineering, 2023, 43(2): 185-193.
4	王子杰, 顾煜炯, 刘浩晨, 等. 热电联产机组热电解耦技术对比分析[J]. 化工进展, 2022, 41(7): 3564-3572.
	Wang Zijie, Gu Yujiong, Liu Haochen, et al. Comparison and Analysis of Heat-power Decoupling Technologies for CHP Units[J]. Chemical Industry and Engineering Progress, 2022, 41(7): 3564-3572.
5	陈艳波, 马彦虎, 郑国栋, 等. 计及需求响应的多CHP机组热电解耦协调规划[J]. 电网技术, 2022, 46(10): 3821-3830.
	Chen Yanbo, Ma Yanhu, Zheng Guodong, et al. Coordinated Planning of Thermo-electrolytic Coupling for Multiple CHP Units Considering Demand Response[J]. Power System Technology, 2022, 46(10): 3821-3830.
6	袁桂丽, 刘骅骐, 禹建芳, 等. 含碳捕集热电机组的虚拟电厂热电联合优化调度[J]. 中国电机工程学报, 2022, 42(12): 4440-4448, 中插14.YuanGuili, LiuHuaqi, YuJianfang, et al. Combined Heat and Power Optimal Dispatching in Virtual Power Plant with Carbon Capture Cogeneration Unit[J]. Proceedings of the CSEE, 2022, 42(12): 4440-4448, S14.
7	刘铸, 宋建成, 马素霞, 等. 2×300 MW热电联产机组灵活性供热控制策略研发[J]. 动力工程学报, 2022, 42(4): 387-392.
	Liu Zhu, Song Jiancheng, Ma Suxia, et al. Research and Development of Flexible Heating Control Strategy for 2×300 MW Cogeneration Units[J]. Journal of Chinese Society of Power Engineering, 2022, 42(4): 387-392.
8	Sabah Ahmed Abdul-Wahab, Abubaker Sayed Mohamed Omer, Yetilmezsoy Kaan, et al. Modelling the Clogging of Gas Turbine Filter Houses in Heavy-duty Power Generation Systems[J]. Mathematical and Computer Modelling of Dynamical Systems, 2020, 26(2): 119-143.
9	Lu Shilei, Li Yuwei, Xia Hongwei. Study on the Configuration and Operation Optimization of CCHP Coupling Multiple Energy System[J]. Energy Conversion and Management, 2018, 177: 773-791.
10	龚烽. 超临界机组汽轮机系统的机理建模[D]. 保定: 华北电力大学, 2018.
	Gong Feng. Mechanism Modeling of Steam Turbine System of Supercritical Unit[D]. Baoding: North China Electric Power University, 2018.
11	余圣方, 刘树清, 张瑞鹏, 等. 500MW/800MW超临界火电机组一机多模仿真机的研制与开发[J]. 中国电力, 2005, 38(12): 93-96.
	Yu Shengfang, Liu Shuqing, Zhang Ruipeng, et al. Development of Simulator with Multi-models for 500 MW/800 MW Supercritical Thermal Power Unit[J]. Electric Power, 2005, 38(12): 93-96.
12	Salehnasab B, Poursaeidi E. Mechanism and Modeling of Fatigue Crack Initiation and Propagation in the Directionally Solidified CM186 LC Blade of a Gas Turbine Engine[J]. Engineering Fracture Mechanics, 2020, 225: 106842.
13	Chen Feier, Ruan Can, Yu Tao, et al. Effects of Fuel Variation and Inlet Air Temperature on Combustion Stability in a Gas Turbine Model Combustor[J]. Aerospace Science and Technology, 2019, 92: 126-138.
14	包哲. 基于智能算法的综合能源系统动态建模仿真与协同运行优化集成研究[D]. 北京: 华北电力大学, 2020.
	Bao Zhe. Study on Coupled Dynamic Simulation and Synergistic Operation Optimization of Integrated Energy System Based on Intelligent Algorithm[D]. Beijing: North China Electric Power University, 2020.
15	郑露霞. 重型燃气轮机透平冷却建模与热力性能分析[D]. 北京: 中国科学院大学, 2019.
	Zheng Luxia. Cooling Turbine Modeling and Thermal Performance Analysis for Heavy-duty Gas Turbines[D]. Beijing: University of Chinese Academy of Sciences, 2019.
16	董亚明. 融合机理模型与智能模型的复杂过程混合建模研究[D]. 上海: 华东理工大学, 2015.
	Dong Yaming. Hybrid Modeling Approach for Complex Process Combining Mechanism Model and Intelligent Model[D]. Shanghai: East China University of Science and Technology, 2015.
17	Psichogios D C, Ungar L H. A Hybrid Neural Network-first Principles Approach to Process Modeling[J]. AIChE Journal, 1992, 38(10): 1499-1511.
18	Acuña Gonzalo, Cubillos Francisco, Thibault Jules, et al. Comparison of Methods for Training Grey-box Neural Network Models[J]. Computers & Chemical Engineering, 1999, 23(S1): S561-S564.
19	Simon Levente L, Fischer Ulrich, Hungerbühler Konrad. Modeling of a Three-phase Industrial Batch Reactor Using a Hybrid First-principles Neural-network Model[J]. Industrial & Engineering Chemistry Research, 2006, 45(21): 7336-7343.
20	Su Hongte, Bhat N, Minderman P A, et al. Integrating Neural Networks with First Principles Models for Dynamic Modeling[M]//Balchen JG. Dynamics and Control of Chemical Reactors, Distillation Columns and Batch Processes. Oxford: Pergamon, 1993: 327-332.
21	Chen Libei, Hontoir Yves, Huang Dexian, et al. Combining First Principles with Black-box Techniques for Reaction Systems[J]. Control Engineering Practice, 2004, 12(7): 819-826.
22	Hinchliffe M, Montague G, Willis M, et al. Hybrid Approach to Modeling an Industrial Polyethylene Process[J]. AIChE Journal, 2003, 49(12): 3127-3137.

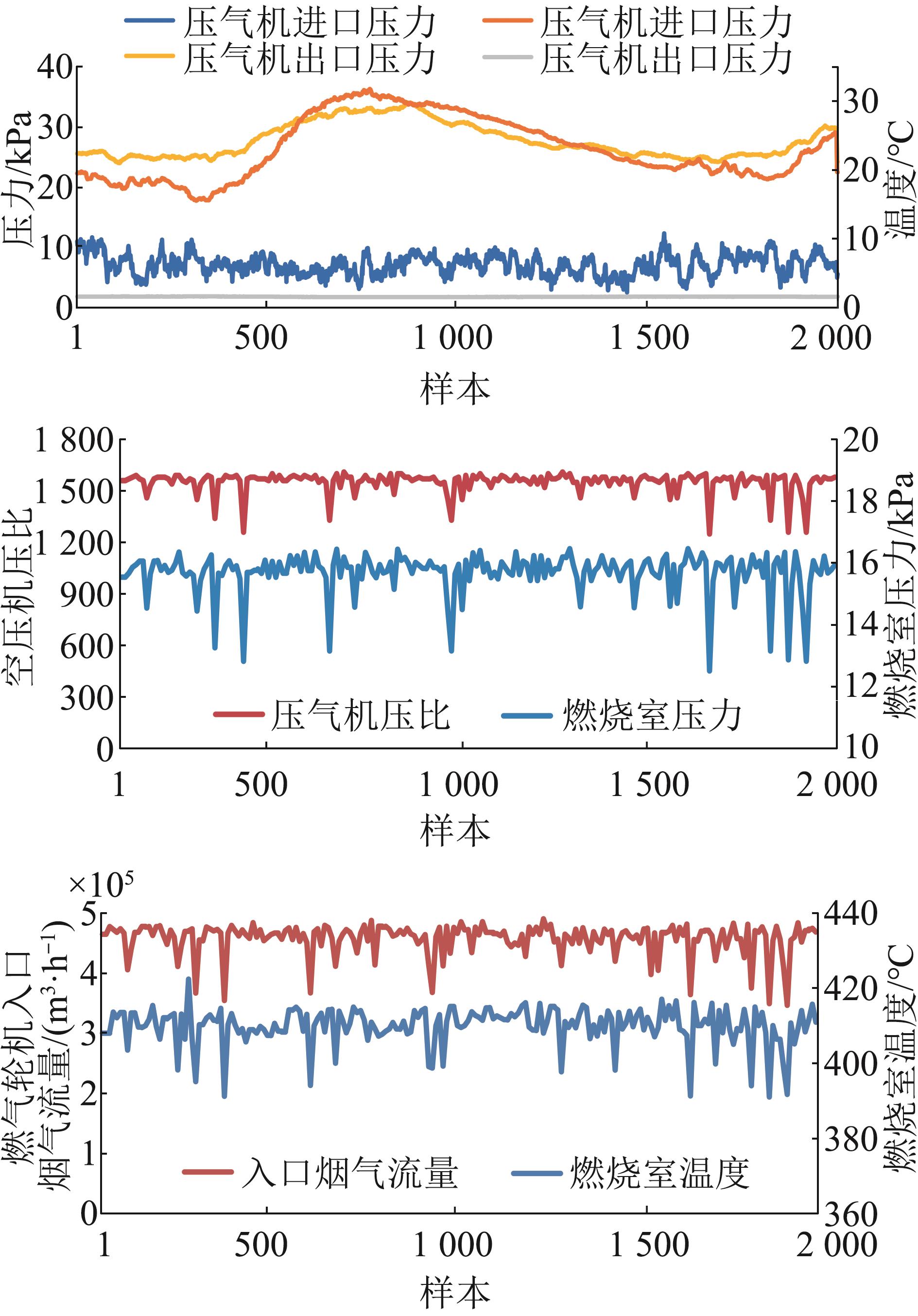

参数	相关系数	参数	相关系数
压气机进口压力/kPa	0.056	压气机出口温度/℃	0.833
环境压力/kPa	-0.06	烟气流量/(m³·h^-1)	0.974
转速/(r/min)	-0.013	压气机进口温度/℃	-0.617
空压机压比	0.965	燃烧室温度/℃	0.826
燃烧室压力/kPa	0.995	透平温度/℃	0.702

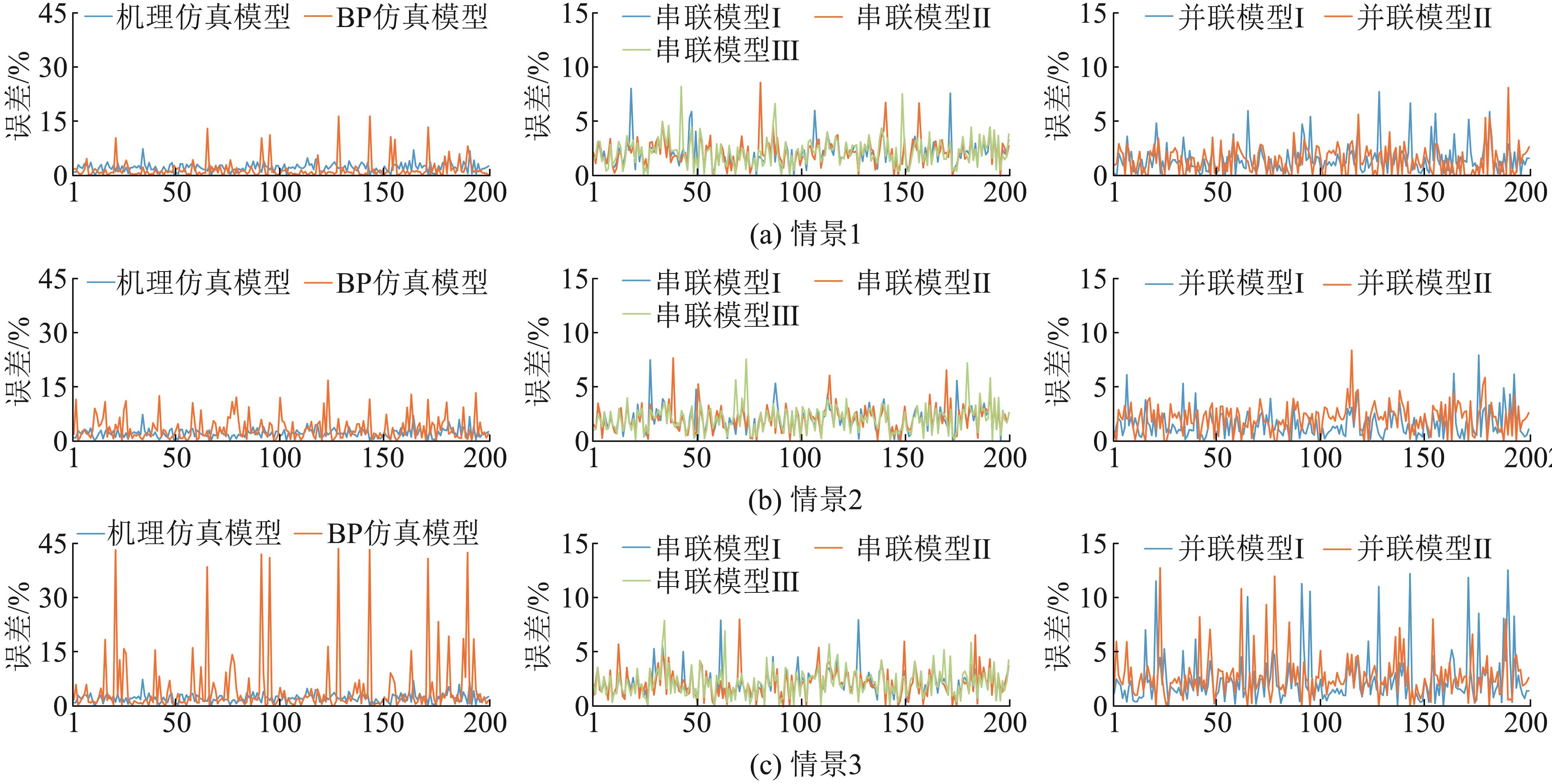

情景	评价指标	机理仿真模型	BP神经网络仿真模型	串联模型Ⅰ	串联模型Ⅱ	串联模型Ⅲ	并联模型Ⅰ	并联模型Ⅱ
情景1	R²	0.973	0.885	0.979	0.975	0.973	0.965	0.959
情景1	RMSE	4.315	4.893	4.104	4.155	4.258	3.206	3.243
情景2	R²	0.973	0.801	0.974	0.972	0.972	0.964	0.947
情景2	RMSE	4.315	8.371	4.184	4.185	4.195	3.421	4.329
情景3	R²	0.973	0.581	0.974	0.970	0.972	0.922	0.904
情景3	RMSE	4.315	15.871	4.266	4.306	4.393	5.691	6.075
