空间操作任务的分布式仿真系统

doi:10.16182/j.issn1004731x.joss.22-1260

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (3): 533-544.doi: 10.16182/j.issn1004731x.joss.22-1260

• 论文 • 下一篇

空间操作任务的分布式仿真系统

刘云昭¹(), 王明明¹^,²(), 李劲涛¹, 刘传凯³, 罗建军¹^,²

^1.西北工业大学航天飞行动力学技术国家重点实验室, 陕西西安 710072
^2.西北工业大学深圳研究院, 广东深圳 518057
^3.北京航天飞行控制中心, 北京 100094

收稿日期:2022-10-20 修回日期:2022-12-19 出版日期:2024-03-15 发布日期:2024-03-14
通讯作者: 王明明 E-mail:yzhliu@mail.nwpu.edu.cn;mwang@nwpu.edu.cn
第一作者简介:刘云昭(1995-)，男，博士生，研究方向为航天飞行动力学与控制。E-mail：yzhliu@mail.nwpu.edu.cn
基金资助:
国家自然科学基金(61973256)

A Distributed Simulation System for Space Operation Missions

Liu Yunzhao¹(), Wang Mingming¹^,²(), Li Jintao¹, Liu Chuankai³, Luo Jianjun¹^,²

^1.National Key Laboratory of Aerospace Flight Dynamics, Northwestern Polytechnical University, Xi'an 710072, China
^2.Research & Development Institute of Northwestern Polytechnical University in Shenzhen, Shenzhen 518057, China
^3.Beijing Aerospace Control Center, Beijing 100094, China

Received:2022-10-20 Revised:2022-12-19 Online:2024-03-15 Published:2024-03-14
Contact: Wang Mingming E-mail:yzhliu@mail.nwpu.edu.cn;mwang@nwpu.edu.cn

摘要/Abstract

摘要：

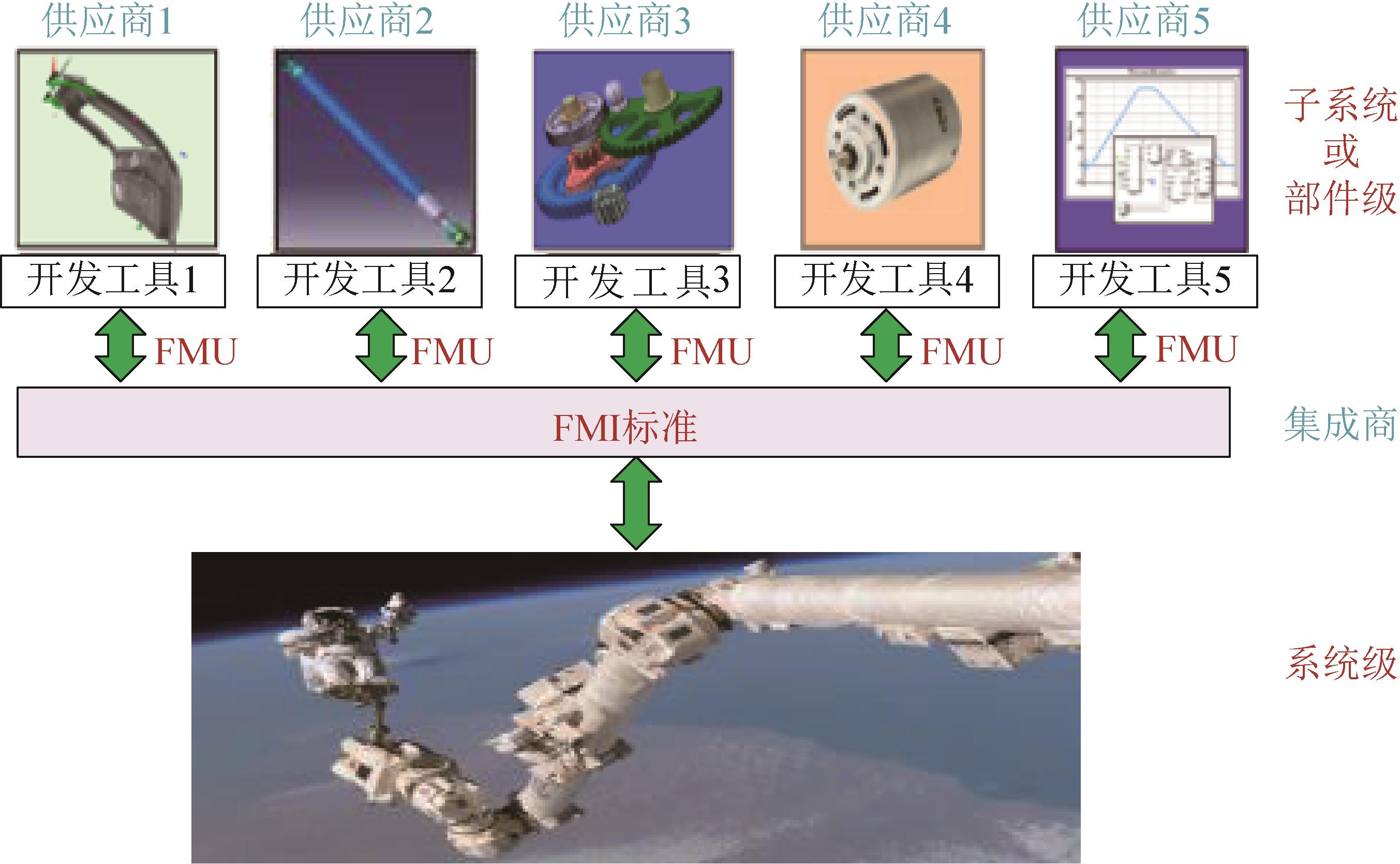

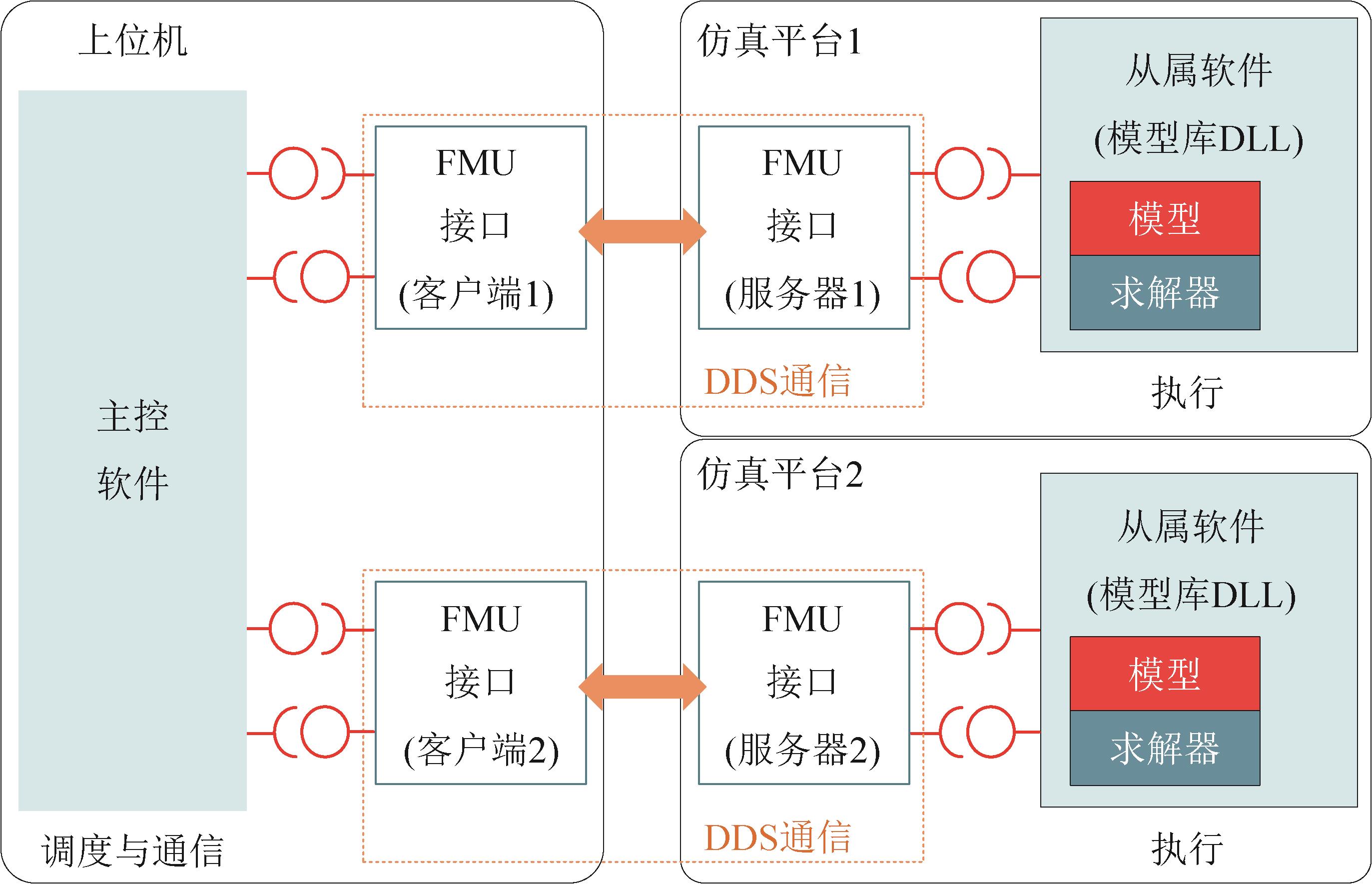

针对非合作目标抓捕、在轨维护、空间装配等复杂空间操作任务的地面验证需求，构建一套分布式仿真系统，主要由后台仿真模型、前端视景演示系统和前端主控制器组成。为实现不同建模工具或编程语言之间的多学科模型耦合与交互，引入FMI( functional mock-up interface)标准进行系统集成，提高了系统的模块化程度、通用性与可移植性。为充分利用计算资源、提高仿真效率，分布式部署仿真子系统与模块，利用DDS(data distribution service)通信机制实现高效、可靠的数据交互。双臂空间机器人抓捕非合作目标的演示案例表明，该仿真系统能够高保真模拟从远距离导引到近距离操作的全过程，满足实时仿真的要求。

关键词: 仿真系统, 空间操作, FMI, 航天器, 在轨服务

Abstract:

For the ground verification requirements of complex space operation missions such as non-cooperative target capture, on-orbit maintenance, and in-space assembly, a distributed simulation system is developed, which mainly consists of a back-end simulation model, a front-end visual demonstration system, and a front-end main controller. In order to realize the multidisciplinary model coupling and interaction among different modeling tools or programming languages, the functional mock-up interface (FMI) standard is introduced for system integration, improving the modularity, generality, and portability of the system. To fully utilize computing resources and improve the simulation efficiency, simulation subsystems and modules are deployed in a distributed manner, and the data distribution service (DDS) communication mechanism is used to achieve efficient and reliable data interaction. A demonstration case of a dual-armed space robot capturing a non-cooperative target shows that the simulation system can simulate the whole process from long-range guidance to close operation in real time, with high fidelity.

Key words: simulation system, space operation, functional mock-up interface(FMI), spacecraft, on-orbit service

中图分类号:

TP391.9

刘云昭,王明明,李劲涛等 . 空间操作任务的分布式仿真系统[J]. 系统仿真学报, 2024, 36(3): 533-544.

Liu Yunzhao,Wang Mingming,Li Jintao,et al . A Distributed Simulation System for Space Operation Missions[J]. Journal of System Simulation, 2024, 36(3): 533-544.

图/表 17

图1

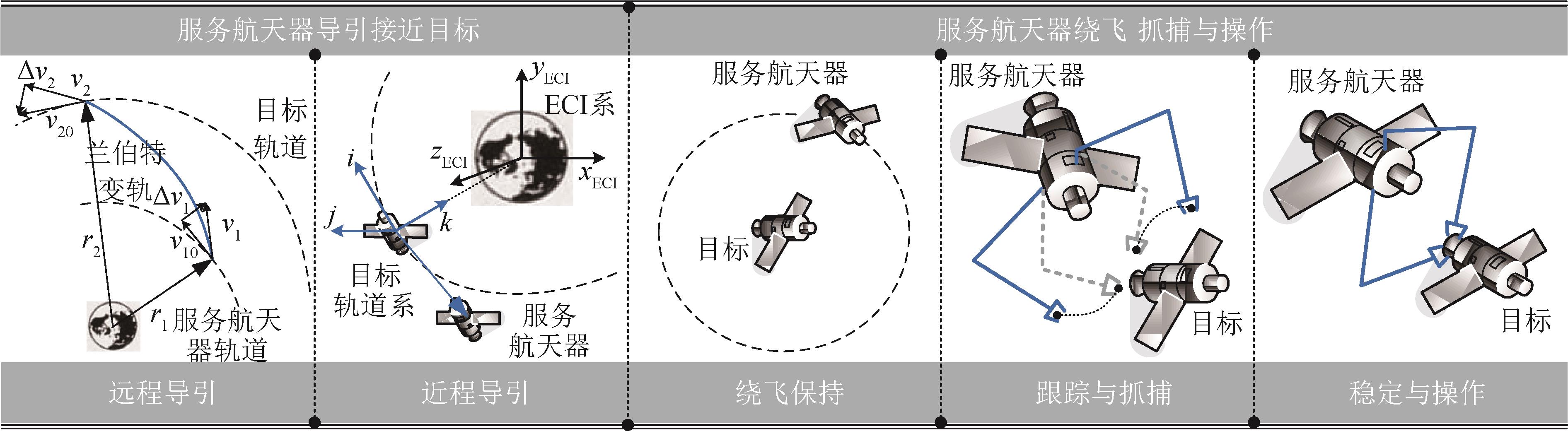

图2

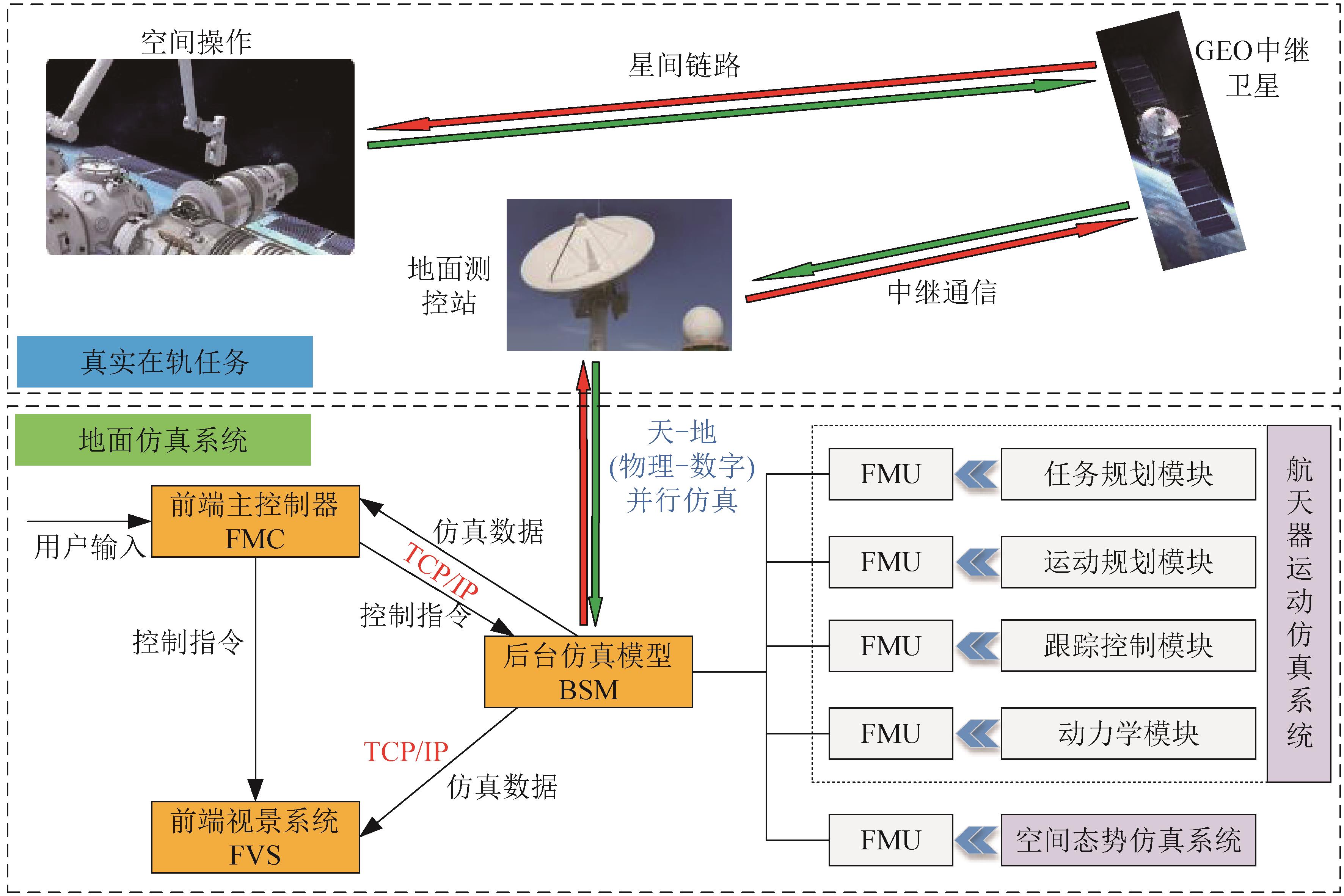

图3

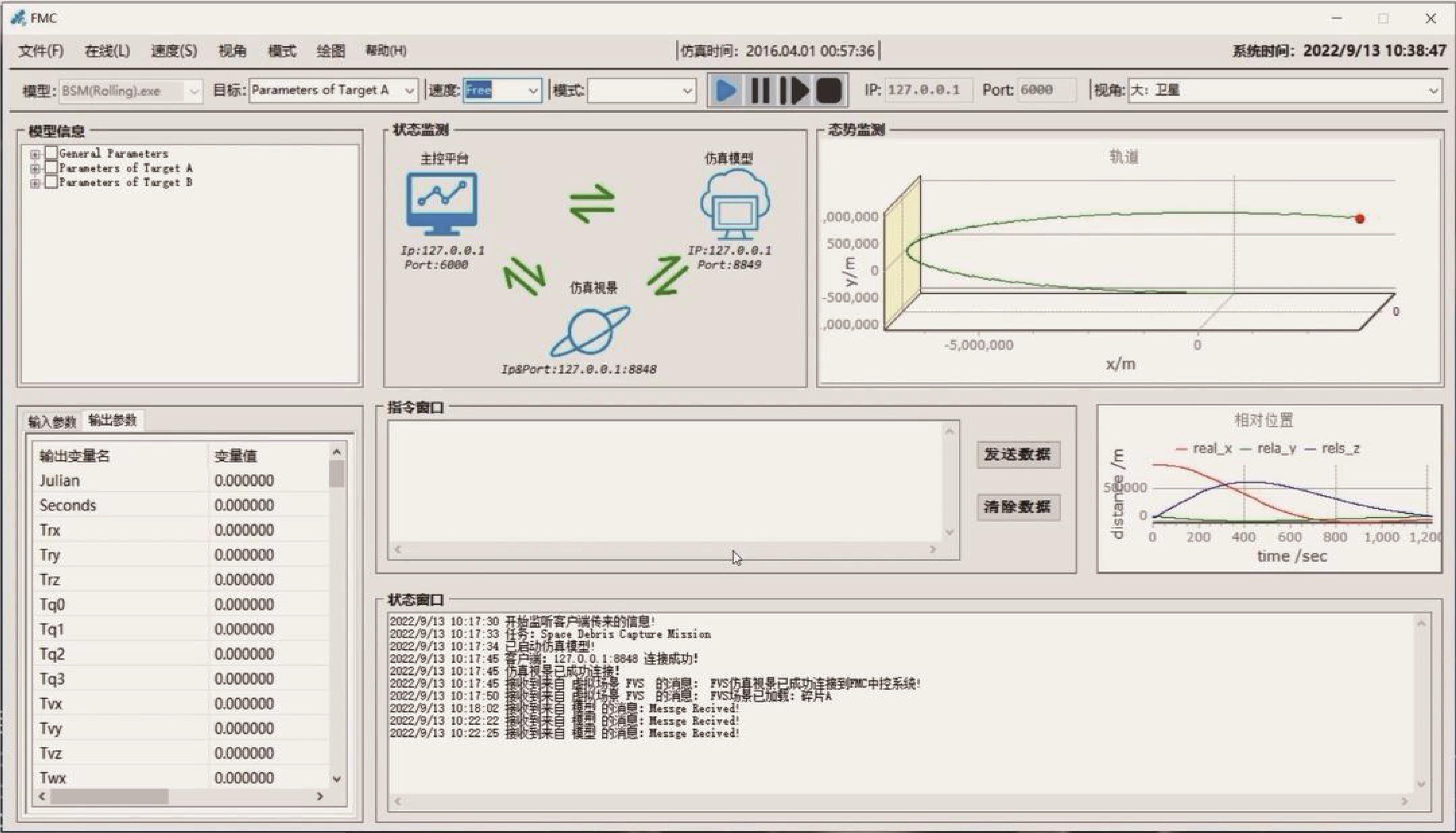

图4

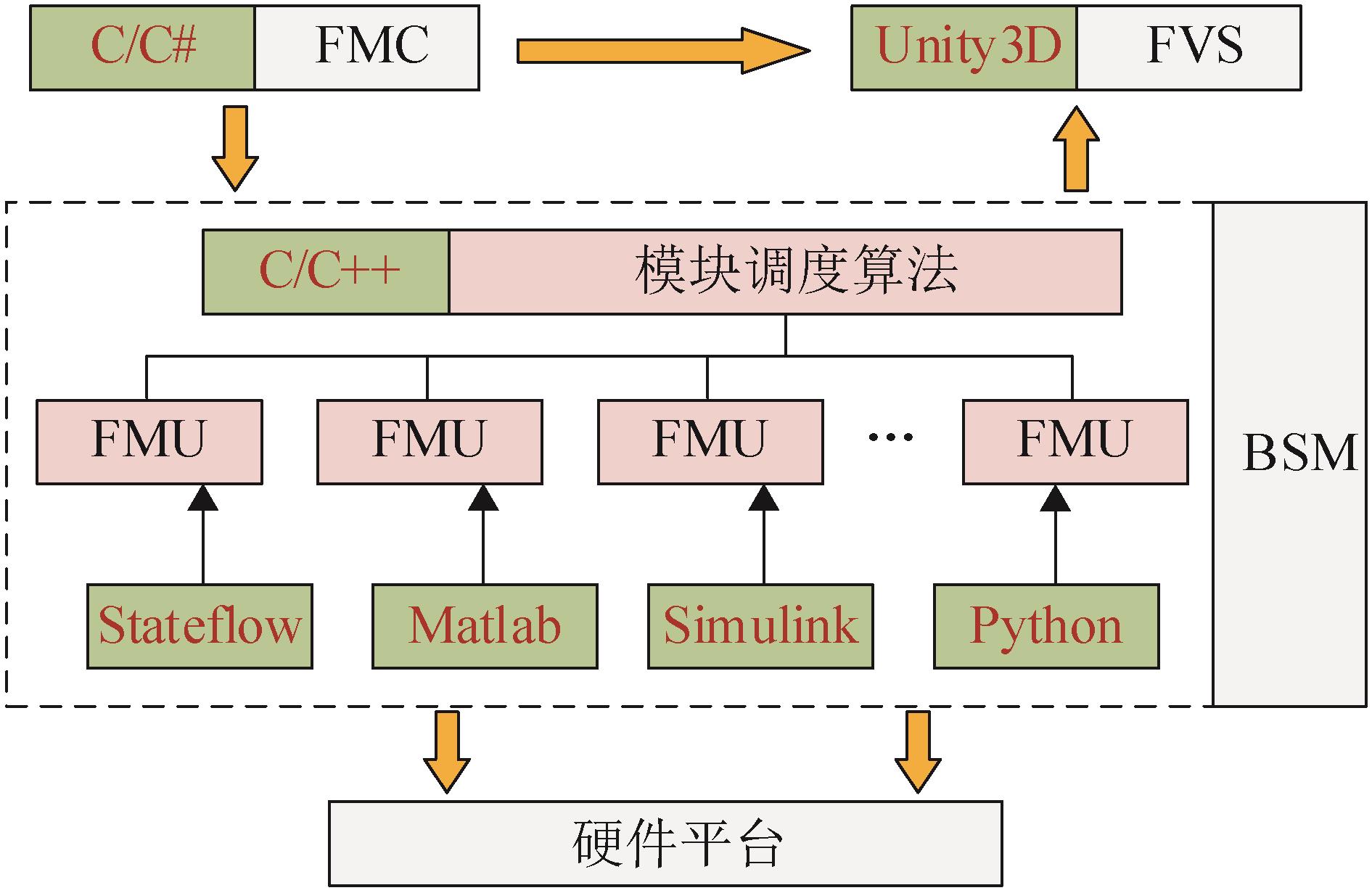

图5

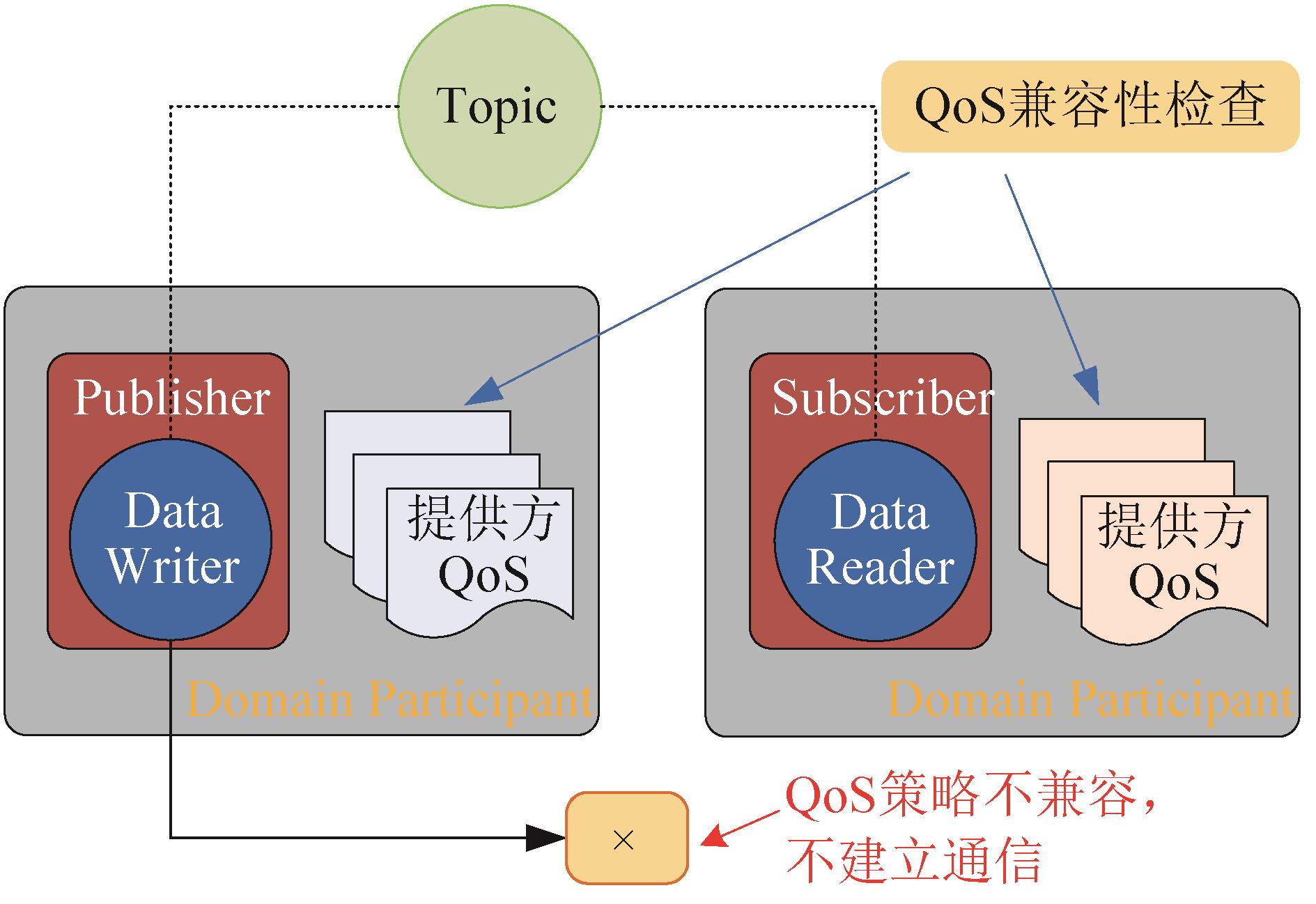

图6

图7

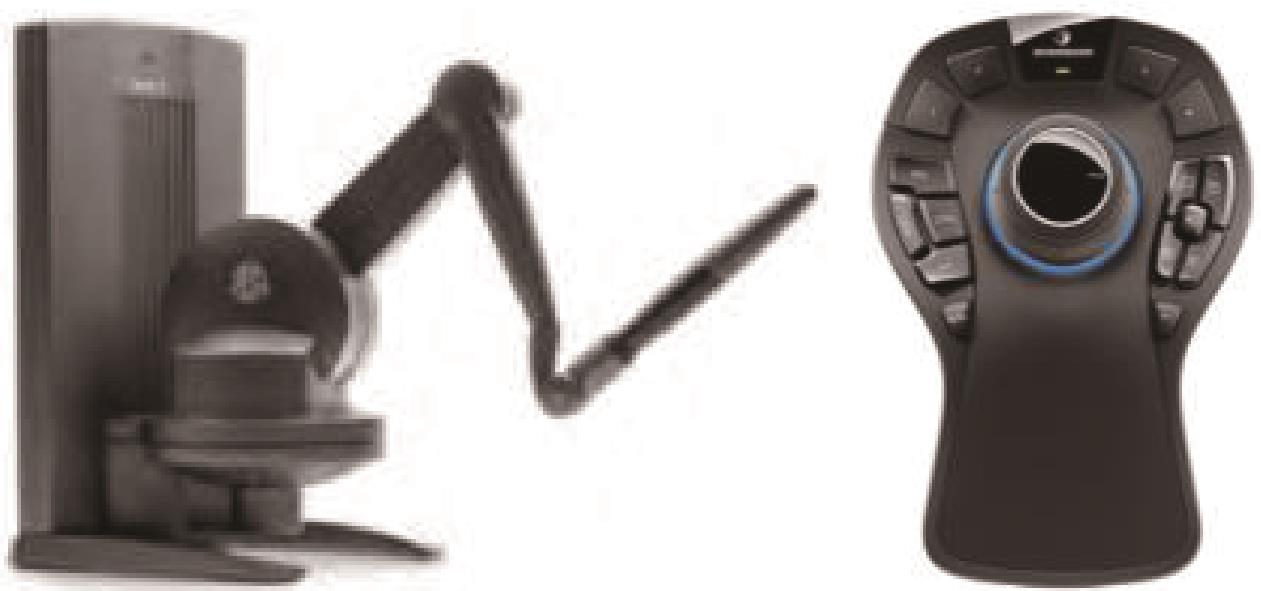

图8

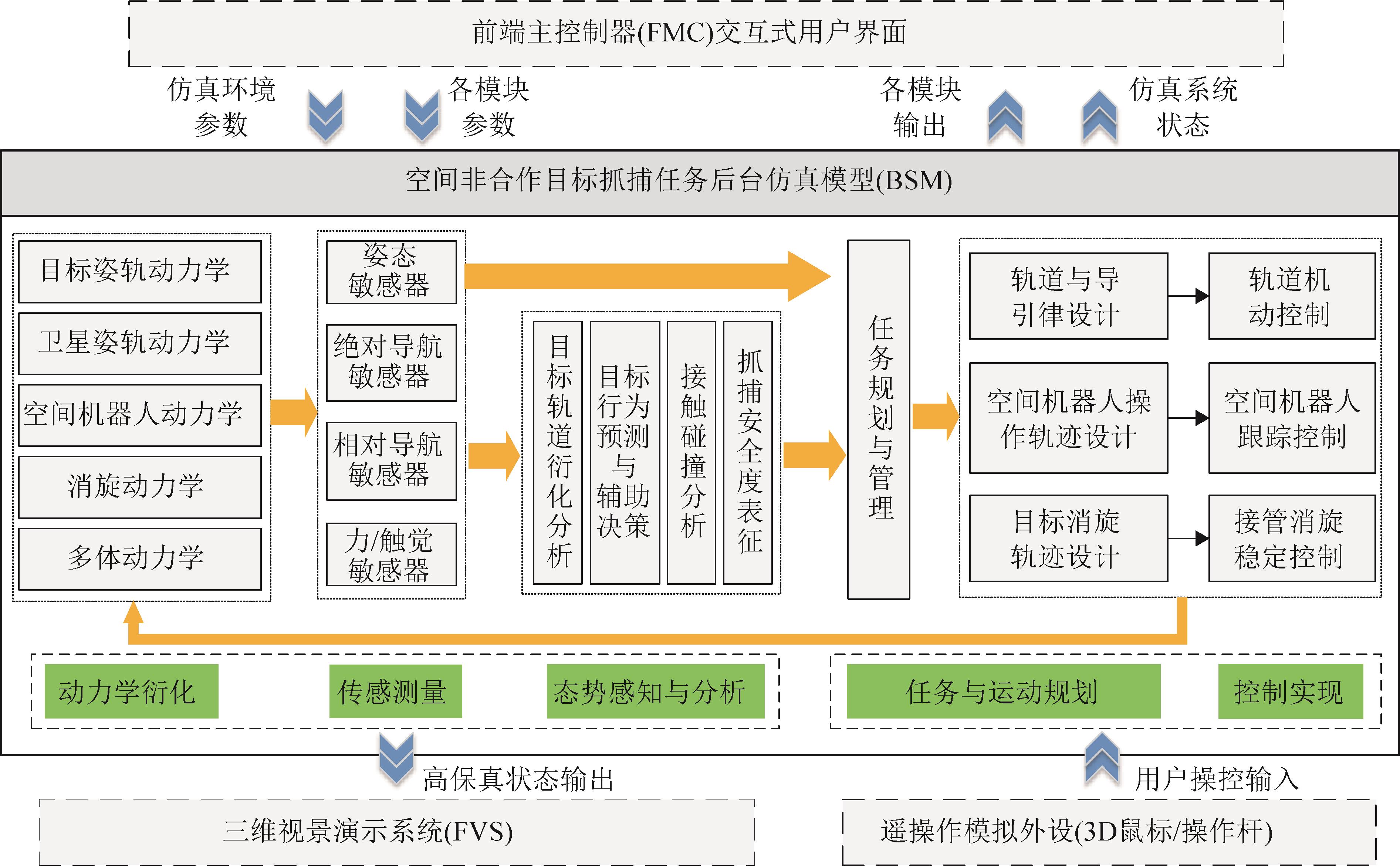

图9

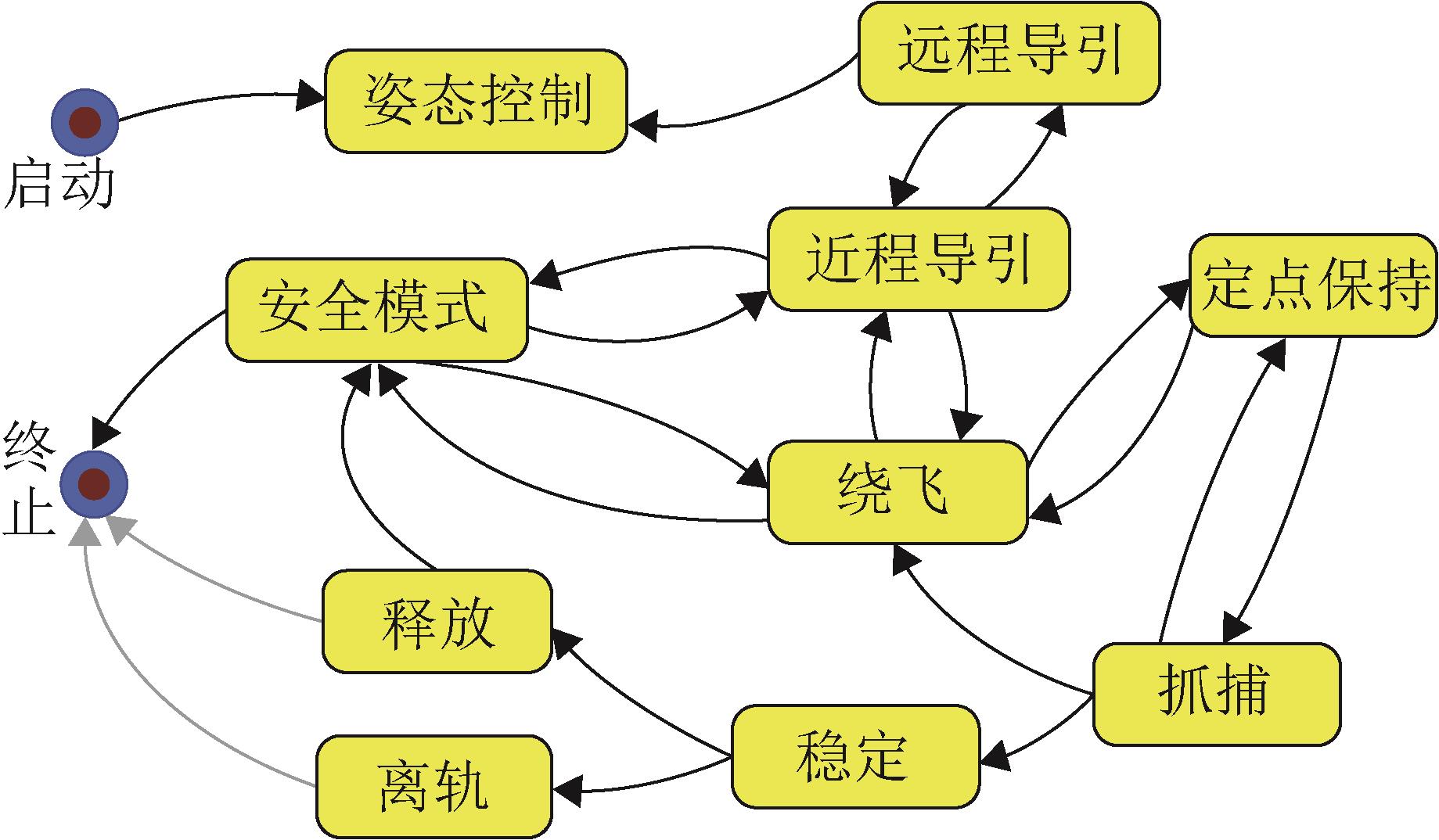

图10

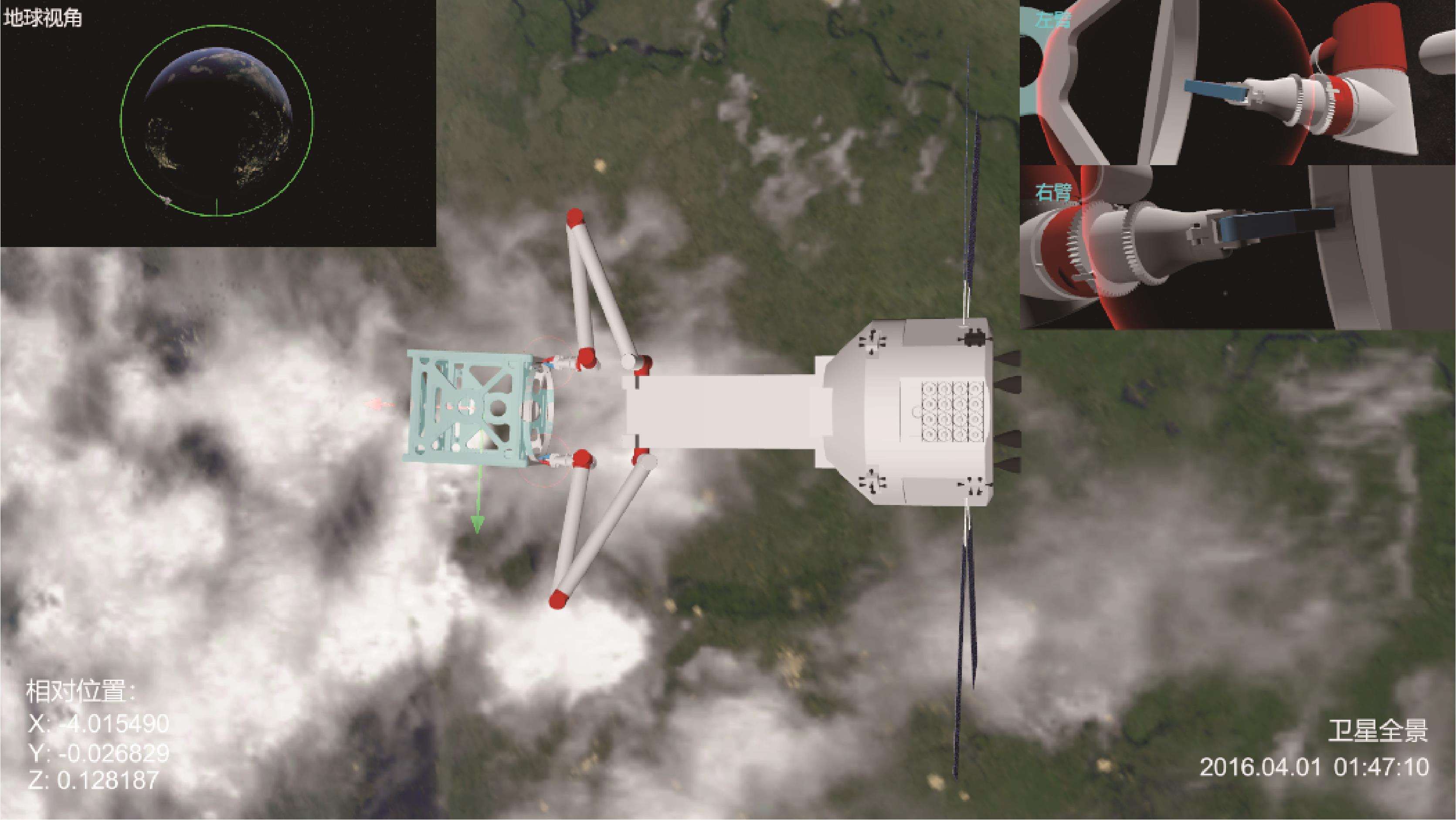

图11

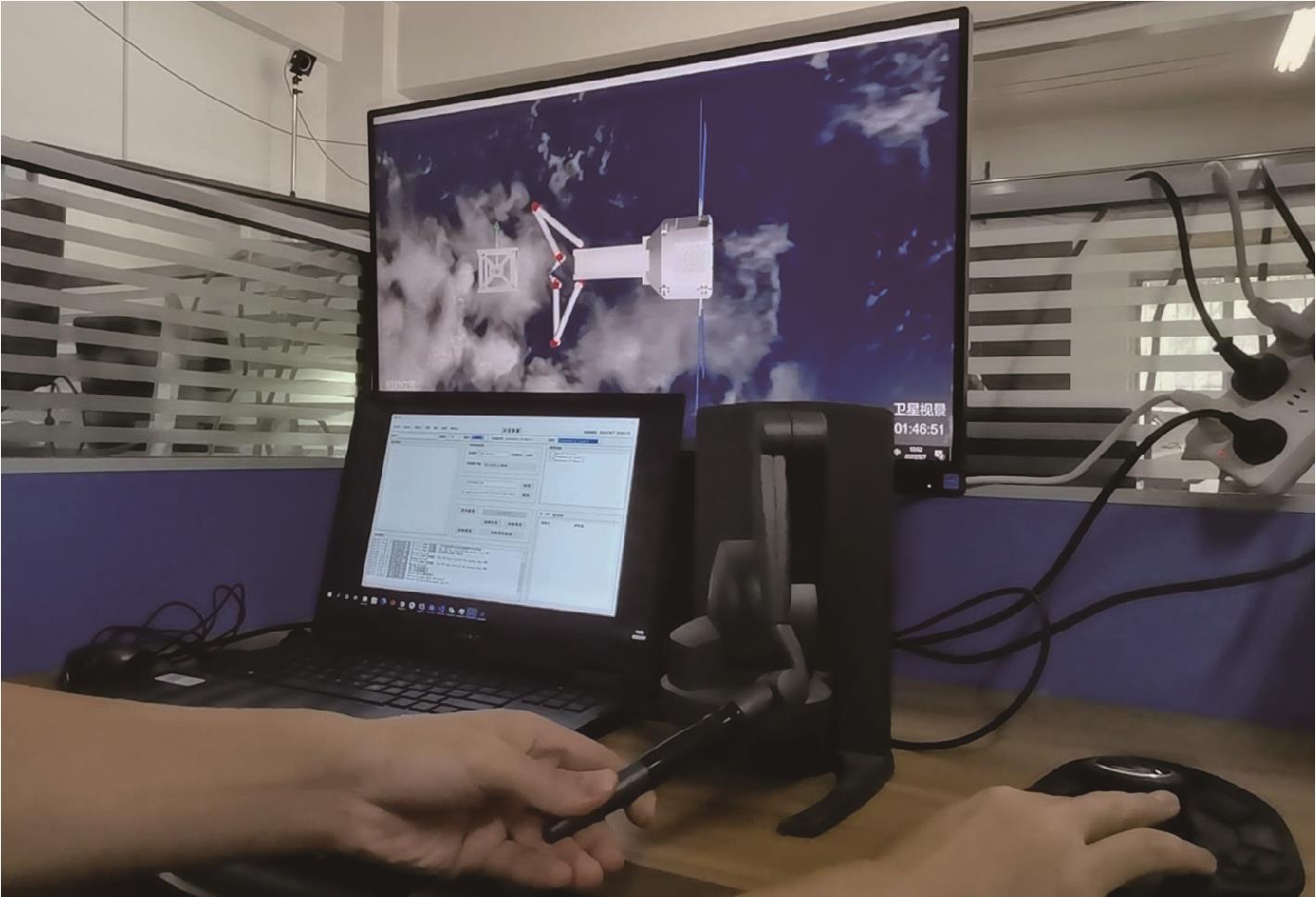

图12

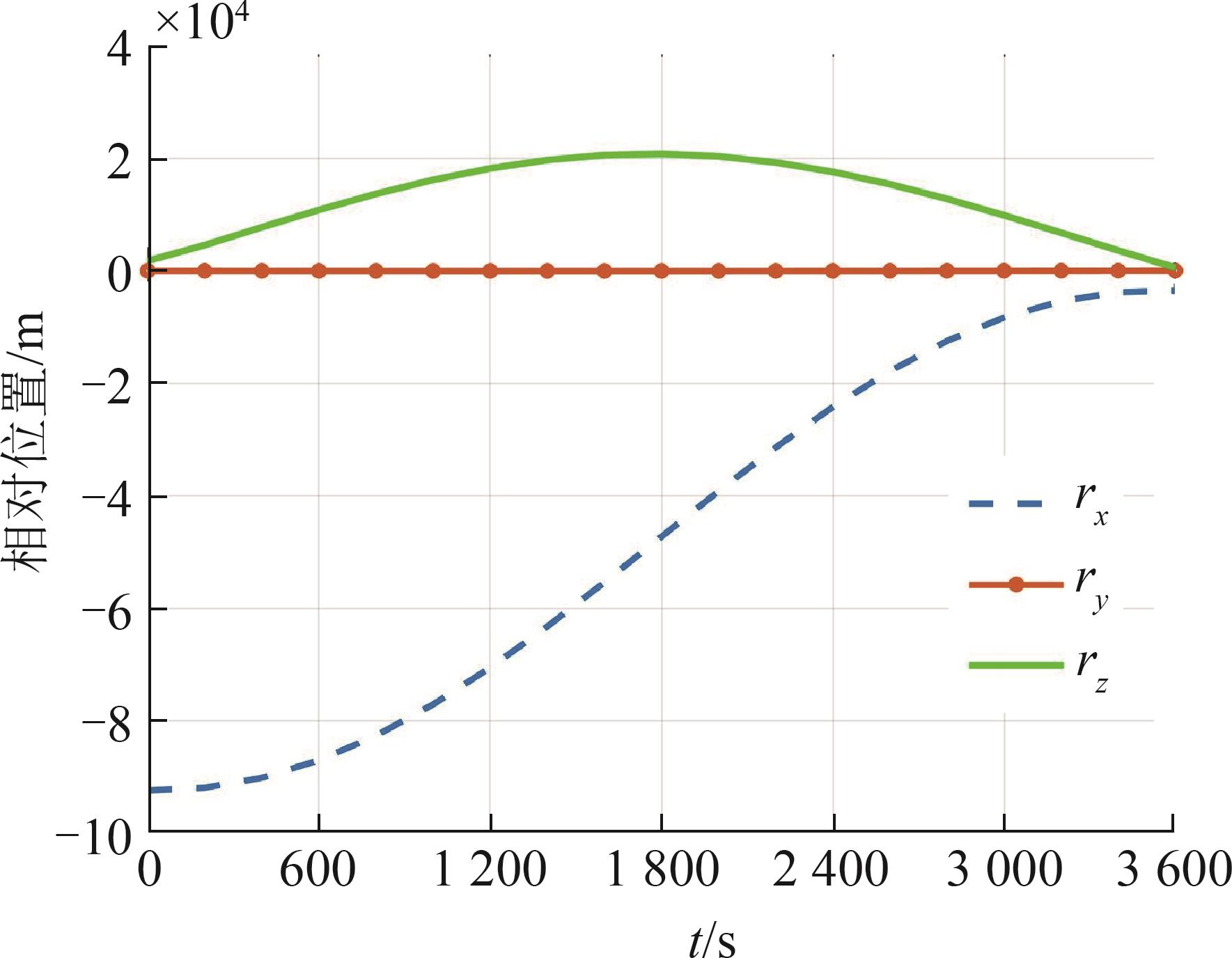

图13

图14

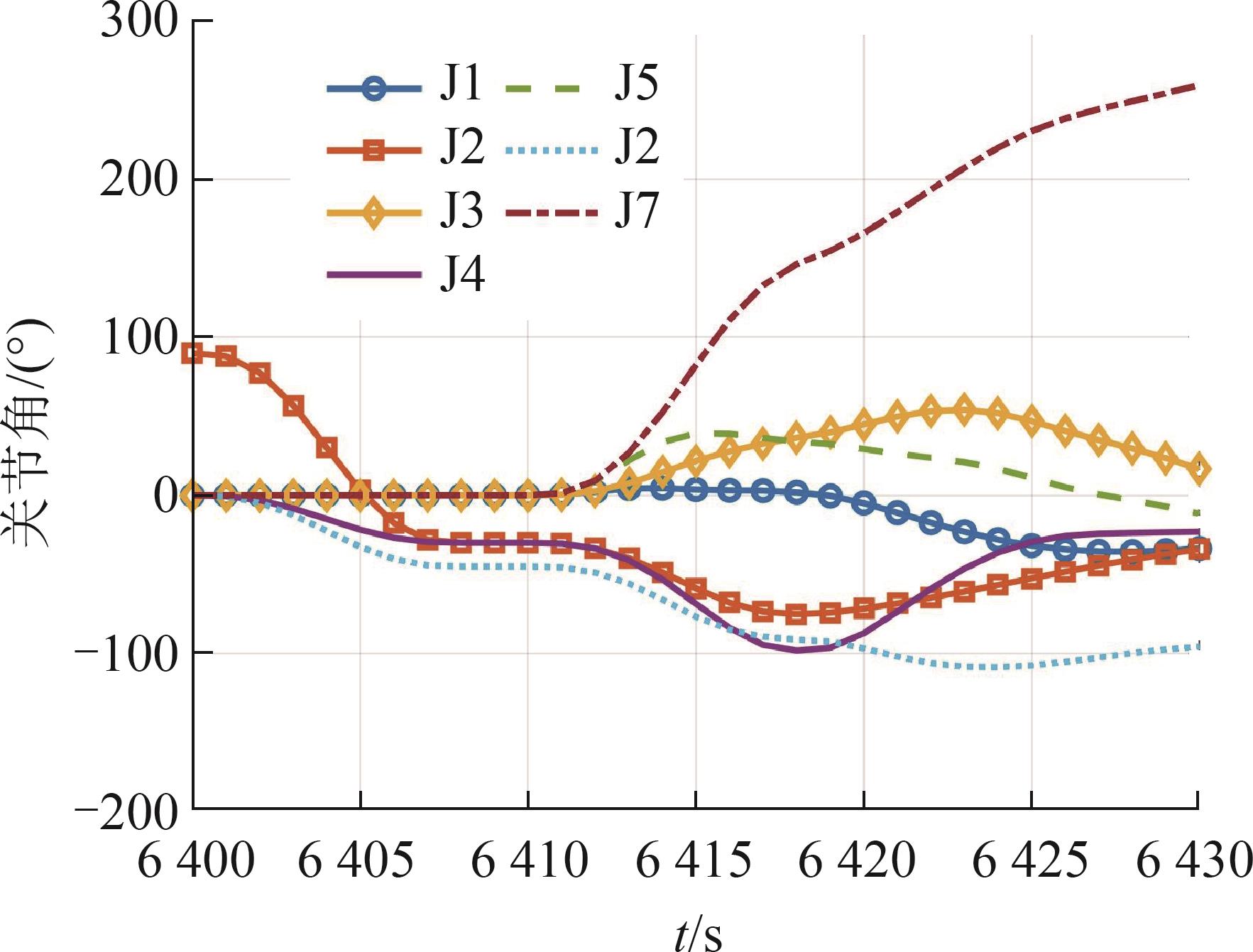

图15

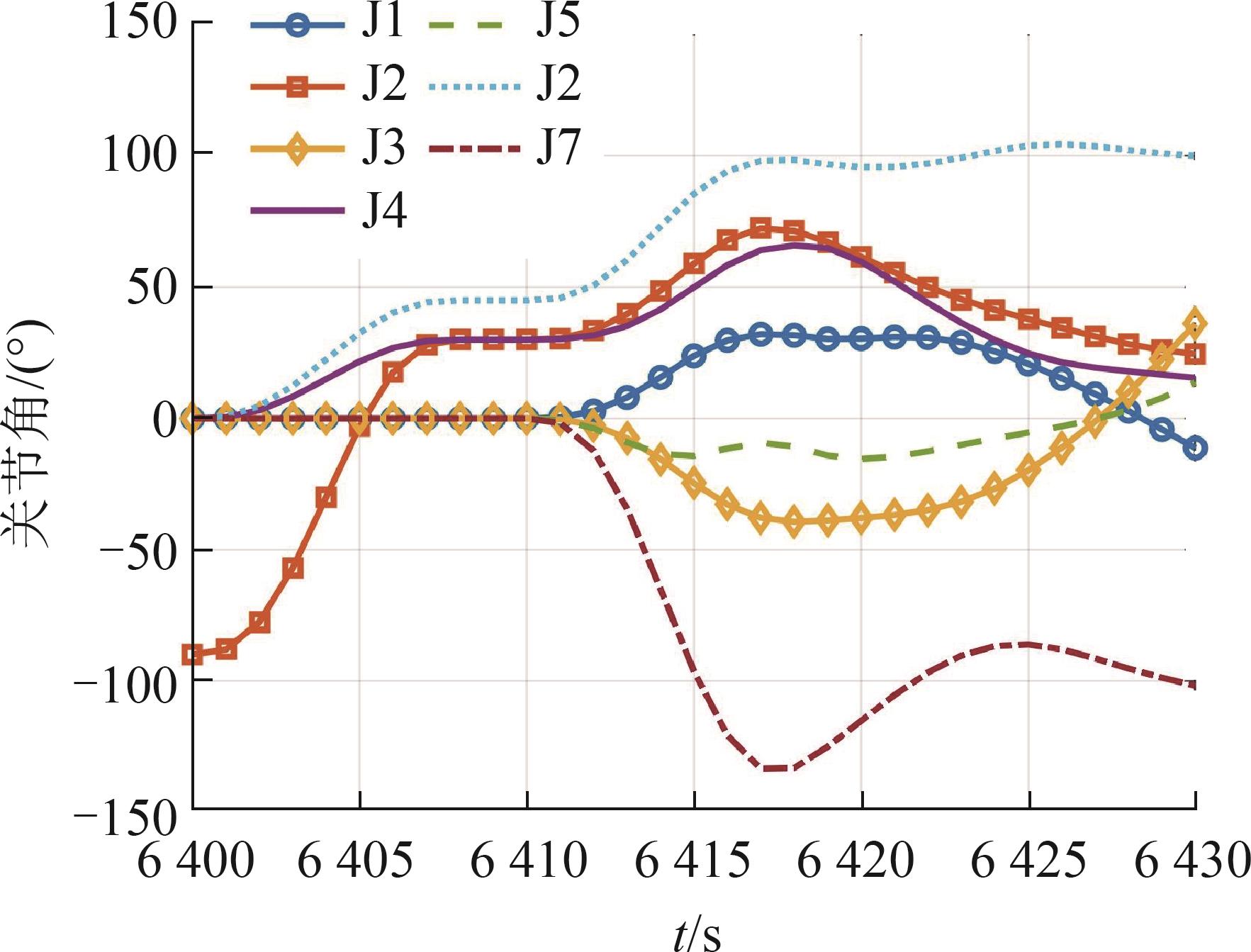

图16

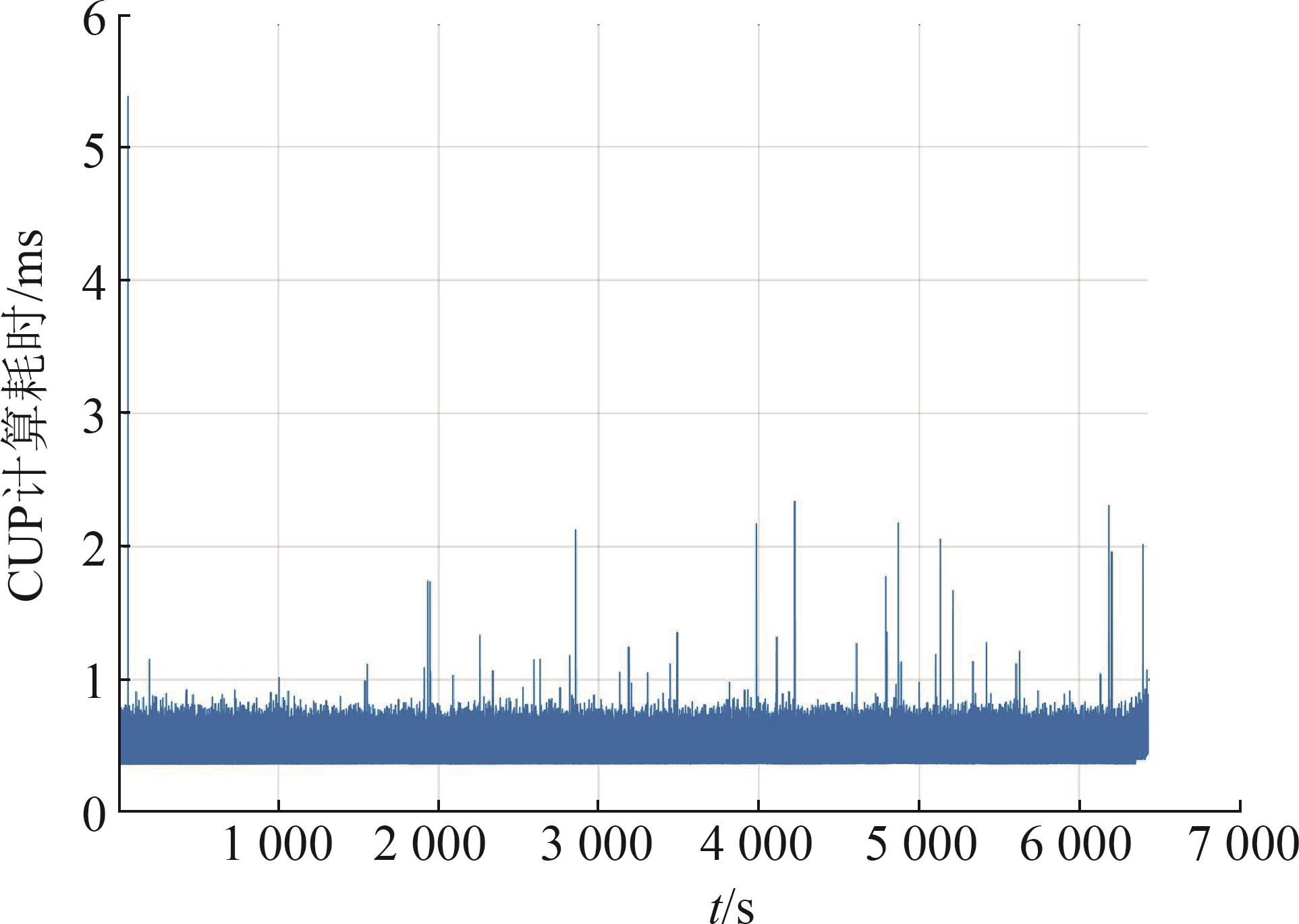

图17

参考文献 20

1	Li Weijie, Cheng Dayi, Liu Xigang, et al. On-orbit Service (OOS) of Spacecraft: A Review of Engineering Developments[J]. Progress in Aerospace Sciences, 2019, 108: 32-120.
2	中华人民共和国国务院新闻办公室. «2021 中国的航天»白皮书[EB/OL]. (2022-01-28) [2022-09-03]. .
3	Dahmann J S, Fujimoto R M, Weatherly R M. The DoD High Level Architecture[C]//Proceedings of the 1998 Winter Simulation Conference. Washington, DC, USA: [s.n.], 1998: 797-804.
4	Nemeth S, Demarest P. Research and Development in Application of the Simulation Model Portability Standard[C]//SpaceOps 2010 Conference. Huntsville, Alabama: [s.n.], 2010: 2268.
5	安昊, 屈桢深, 王常虹. 基于Matlab的交会对接全数字仿真系统[J]. 系统仿真学报, 2015, 27(6): 1227-1234.
	An Hao, Qu Zhenshen, Wang Changhong. Rendezvous and Docking Digital Simulation System Based on Matlab[J]. Journal of System Simulation, 2015, 27(6): 1227-1234.
6	Wang Mingming, Walter Ulrich, Luo Jianjun, et al. A DDS Based Real-time Simulation Architecture for Space Robotic Tele-operation[C]//64th International Astronautical Congress 2013. [S.l.]: [s.n.], 2013: 7912-7921.
7	王远明, 卢宽, 贾倩, 等. 基于Unigine的舰载航空视景仿真技术研究[J]. 系统仿真学报, 2017, 29(9): 2087-2092.
	Wang Yuanming, Lu Kuan, Jia Qian, et al. Research on Techniques of Shipboard Aviation Scene Simulation Based on Unigine[J]. Journal of System Simulation, 2017, 29(9): 2087-2092.
8	张绍杰, 孟庆开. 飞翼布局飞行器容错控制可视化仿真平台开发[J]. 系统仿真学报, 2018, 30(10): 3732-3738.
	Zhang Shaojie, Meng Qingkai. Design of Fault Tolerant Control Visual Simulation System for Flying Wing Aircrafts[J]. Journal of System Simulation, 2018, 30(10): 3732-3738.
9	樊卿. 基于FMI的飞行器联合仿真技术研究[D]. 成都: 电子科技大学, 2018.
	Fan Qing. Research of Aircraft Co-simulation Technology Based on FMI[D]. Chengdu: University of Electronic Science and Technology of China, 2018.
10	Neema H, Gohl J, Lattmann Z, et al. Model-based Integration Platform for FMI Co-simulation and Heterogeneous Simulations of Cyber-physical Systems[C]//Proceedings of the 10th International Modelica Conference. Linköping: Linköping University Electronic Press, 2014: 235-245.
11	王鸿亮, 廉东本, 徐久强. 基于FMI的分布式联合仿真技术研究[J]. 计算机仿真, 2017, 34(4): 256-261.
	Wang Hongliang, Lian Dongben, Xu Jiuqiang. Research on Distributed Co-simulation Based on FMI[J]. Computer Simulation, 2017, 34(4): 256-261.
12	李伟林, 王雨峰, 赵宏卫, 等. 基于FMI的多电飞机用电设备多物理域建模[C]//第十七届中国CAE工程分析技术年会论文集. 海口: 中国力学学会产学研工作委员会, 中国航空学会结构与强度分会, 中国塑料加工工业协会注塑制品专业委员会, 陕西省国防科技工业信息化协会, 2021: 219-224.
13	段伟. 平行仿真的内涵、发展与应用[J]. 指挥与控制学报, 2019, 5(2): 82-86.
	Duan Wei. Parallel Simulation: Motivation, Concept and Application[J]. Journal of Command and Control, 2019, 5(2): 82-86.
14	葛承垄, 朱元昌, 邸彦强, 等. 装备平行仿真技术的基础理论问题[J]. 系统工程与电子技术, 2017, 39(5): 1169-1177.
	Ge Chenglong, Zhu Yuanchang, Di Yanqiang, et al. Basic Theoretical Issues of Equipment Parallel Simulation Technology[J]. Systems Engineering and Electronics, 2017, 39(5): 1169-1177.
15	孙宇祥, 周献中, 唐博建, 等. 智能指挥与控制系统发展路径与未来展望[J]. 火力与指挥控制, 2020, 45(11): 60-66.
	Sun Yuxiang, Zhou Xianzhong, Tang Bojian, et al. Research on Development Path and Future Prospect of Intelligent Command and Control System[J]. Fire Control & Command Control, 2020, 45(11): 60-66.
16	Junghanns Andreas, Gomes Cláudio, Schulze Christian, et al. The Functional Mock-up Interface 3.0 - New Features Enabling New Applications[C]//Proceedings of 14th Modelica Conference 2021. Linköping: Linköping University Electronic Press, 2021: 17-26.
17	Broman D, Brooks C, Greenberg L, et al. Determinate Composition of FMUs for Co-simulation[C]//2013 Proceedings of the International Conference on Embedded Software (EMSOFT). Piscataway, NJ, USA: IEEE, 2013: 1-12.
18	程瑞洲, 黄攀峰, 刘正雄, 等. 一种面向在轨服务的空间遥操作人机交互方法[J]. 宇航学报, 2021, 42(9): 1187-1196.
	Cheng Ruizhou, Huang Panfeng, Liu Zhengxiong, et al. A Human-Robot Interaction Method of On-orbit Service-Oriented Space Teleoperation[J]. Journal of Astronautics, 2021, 42(9): 1187-1196.
19	Yuan J, Yuan J P, Wang M M, et al. Digital Simulation Platform for Space Operations Mission Verification[C]//68th International Astronautical Congress. Adelaide, Australia: [s.n.], 2017: 730-735.
20	杨胜, 王鑫哲, 李蒙. 基于有限状态机的交会对接飞行任务规划方法[J]. 北京航空航天大学学报, 2019, 45(9): 1741-1746.
	Yang Sheng, Wang Xinzhe, Li Meng. RVD Flight Mission Planning and Scheduling Method Based on Finite State Machine[J]. Journal of Beijing University of Aeronautics and Astronautics, 2019, 45(9): 1741-1746.
