基于递推子空间的机组数字孪生模型预测精度优化方法

doi:10.16182/j.issn1004731x.joss.22-0989

摘要/Abstract

摘要：

由于机理分析的简化假设条件或设备实际运行中参数特性偏移等因素，导致机理建模不可避免存在模型误差。针对该问题，提出一种基于递推子空间的火电机组数字孪生模型预测精度优化方法。分析机组关键设备的运行机制，结合典型工况小样本数据，建立火电机组的全设备多工况非线性动态机理模型，确保数字孪生系统模型具有较好的可解释性与泛化性能；基于递推子空间辨识方法，建立预测精度优化模型并实时进行在线更新，补偿机理模型产生的误差，提高整体模型的预测精度，保证数字孪生模型的高保真性。仿真实验验证了所提方法的有效性。

关键词: 数字孪生, 火电机组, 模型预测精度优化, 子空间辨识, 数据驱动

Abstract:

Due to factors such as simplified assumptions or equipment characteristic deviation, modeling errors are inevitable in the mechanism modeling of thermal power units. To deal with the problem, this paper proposes a novel model refinement method based on recursive subspace for the digital twin of thermal power units. Firstly, the digital twin models are built based on mechanism analysis and combined with small sample data of typical conditions, ensuring interpretability and generalization performance. Secondly, based on the recursive subspace identification method, the refinement model is built and updated online in real time to compensate for the modeling error, improving the prediction accuracy and ensuring the high fidelity of the overall digital twin model. Finally, simulation results validate the effectiveness of the proposed method.

Key words: digital twin, thermal power unit, model refinement, subspace identification, data driven

中图分类号:

TP391.9

赵彦博,蔡远利,胡怀中 . 基于递推子空间的机组数字孪生模型预测精度优化方法[J]. 系统仿真学报, 2024, 36(1): 195-202.

Zhao Yanbo,Cai Yuanli,Hu Huaizhong . Recursive Subspace-based Model Refinement Method for Digital Twin of Thermal Power Unit[J]. Journal of System Simulation, 2024, 36(1): 195-202.

图/表 14

表1

变量及参数释义

变量	释义
$W g$	给煤量
$μ h p c$	主蒸汽阀门开度
$P h p c$	主蒸汽压力
$P w$	输出功率
$T w$	水冷壁惯性时间常数
$T B$	锅炉惯性时间常数
$K D$	汽包比例系数
$K u$	汽包到过热器泄流系数
$K B$	锅炉比例系数
$T D$	汽包惯性时间常数
$K H$	高压缸比例增益
$K I$	中压缸比例增益
$K L$	低压缸比例增益
$T H$	高压缸惯性时间常数
$T I$	中压缸惯性时间常数
$T L$	低压缸惯性时间常数
$K q$	锅炉入口热量修正系数
$Q n e t, a r$	燃煤低位发热量

表1

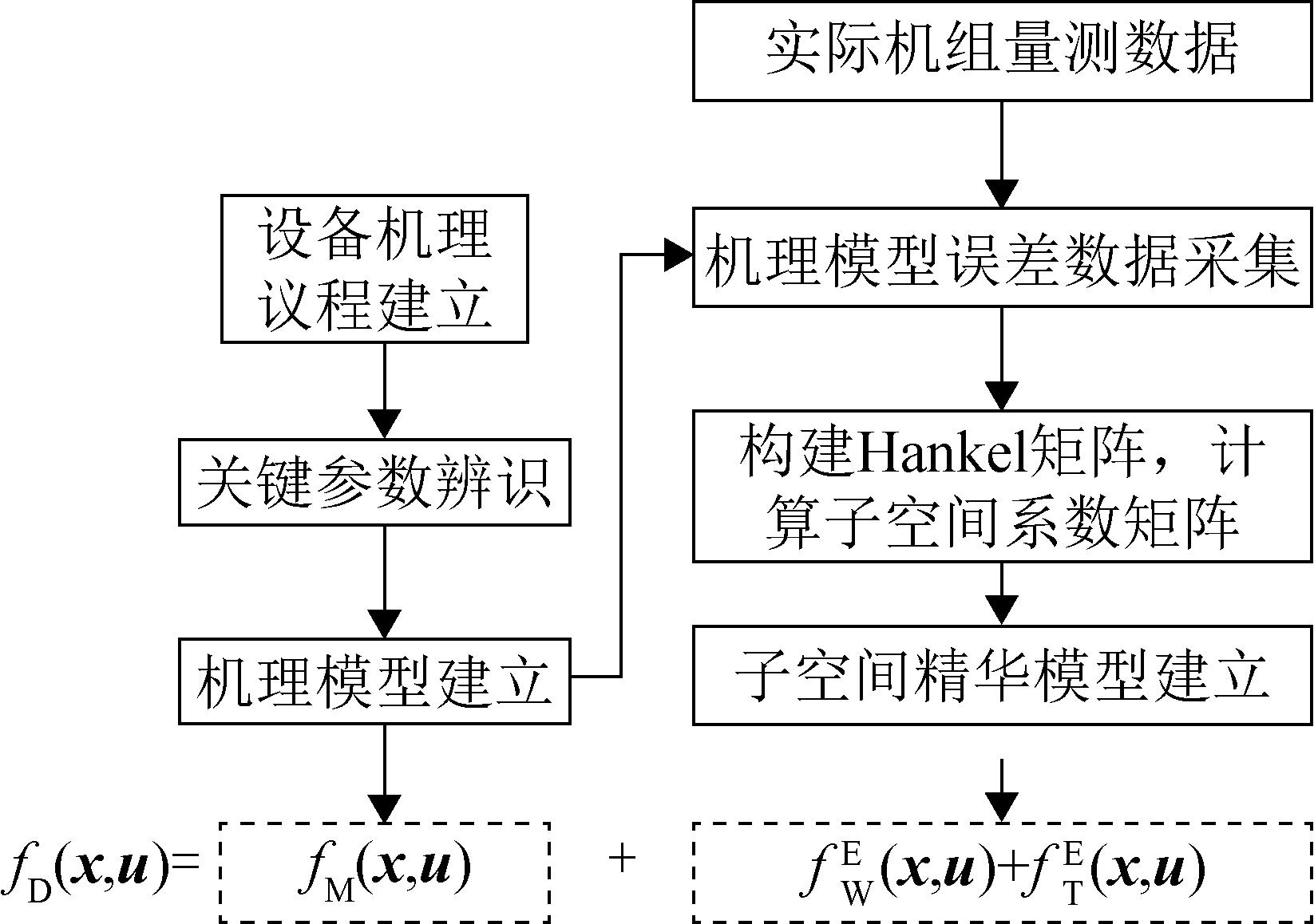

图1

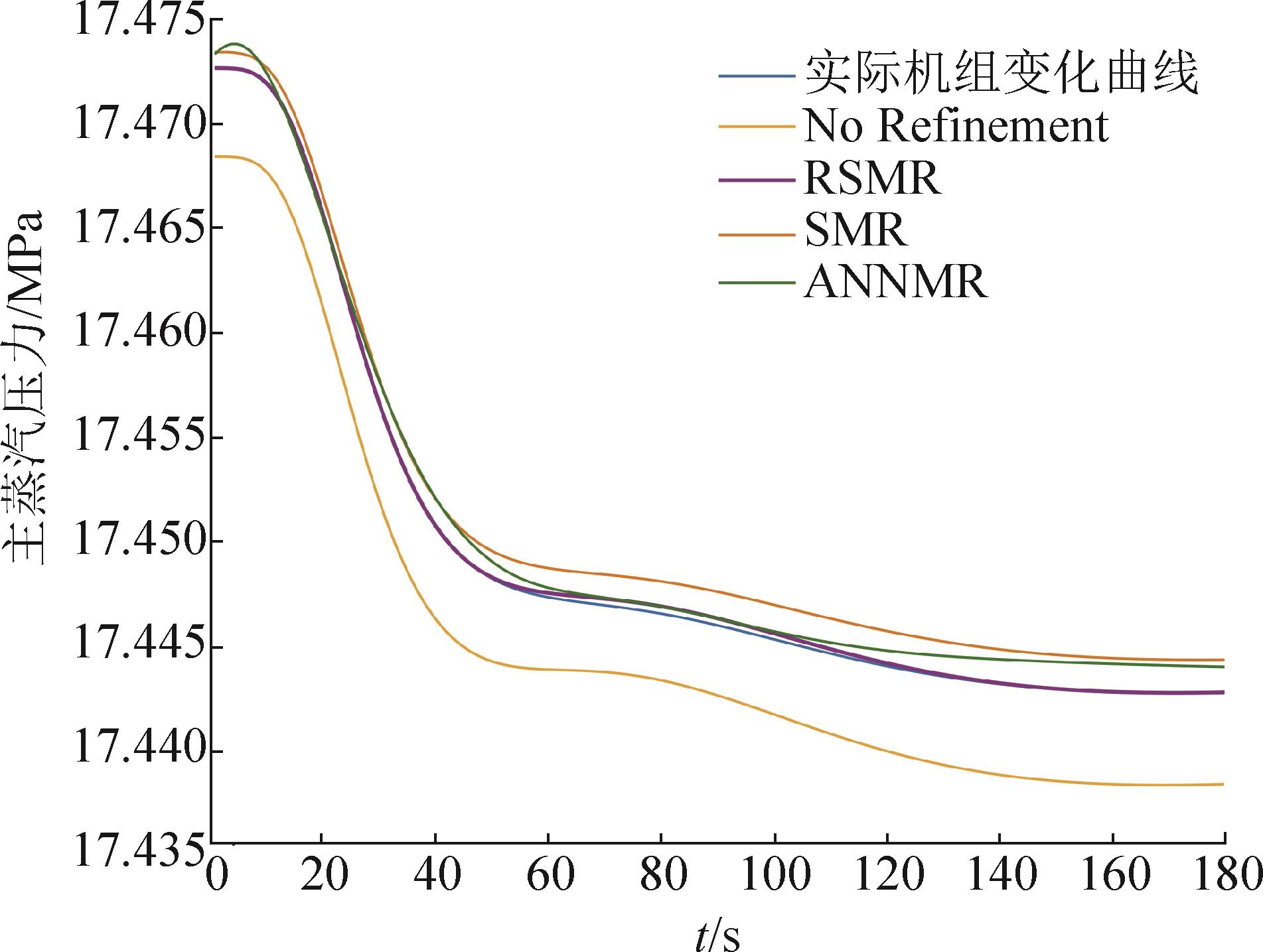

图2

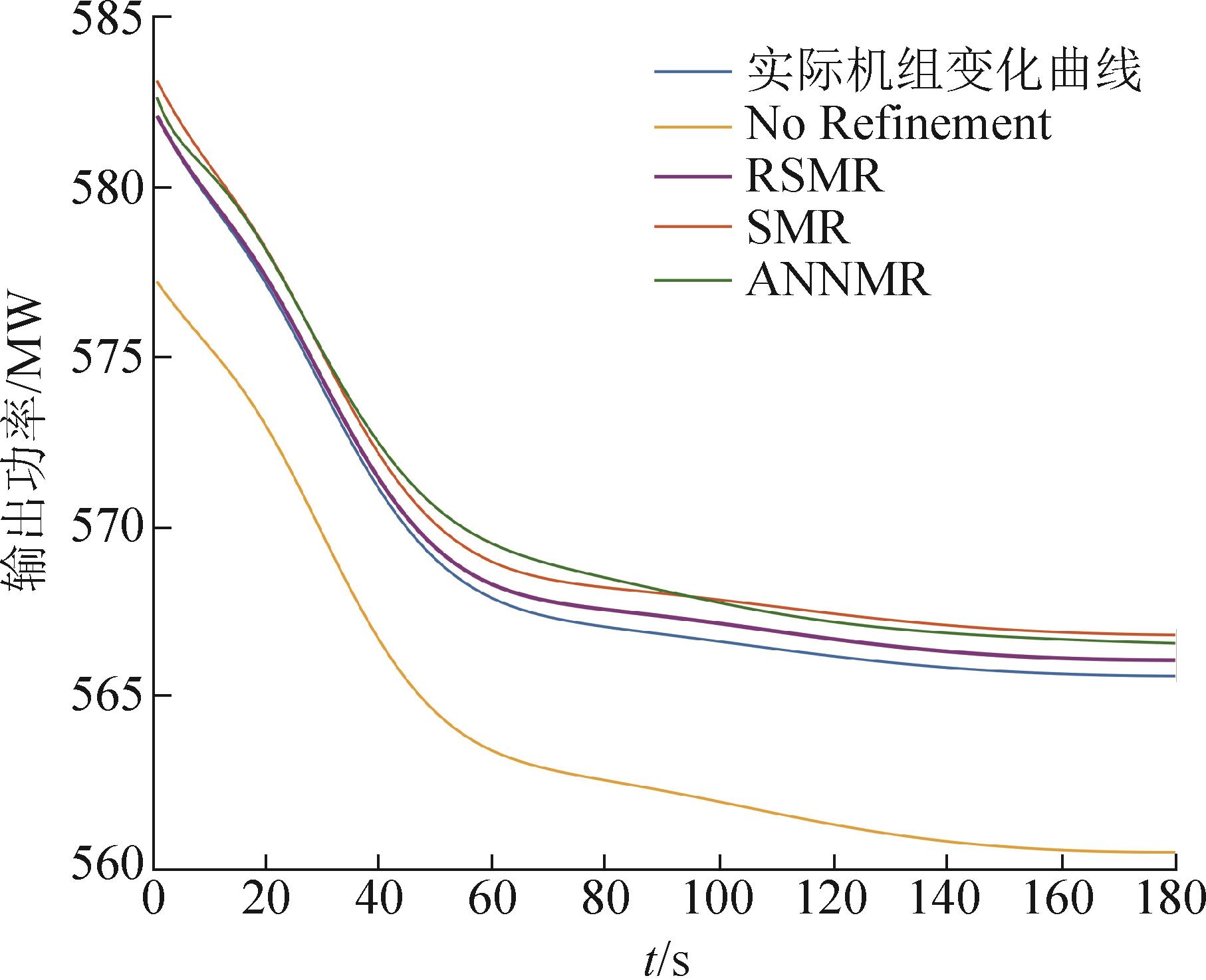

图3

表2

表3

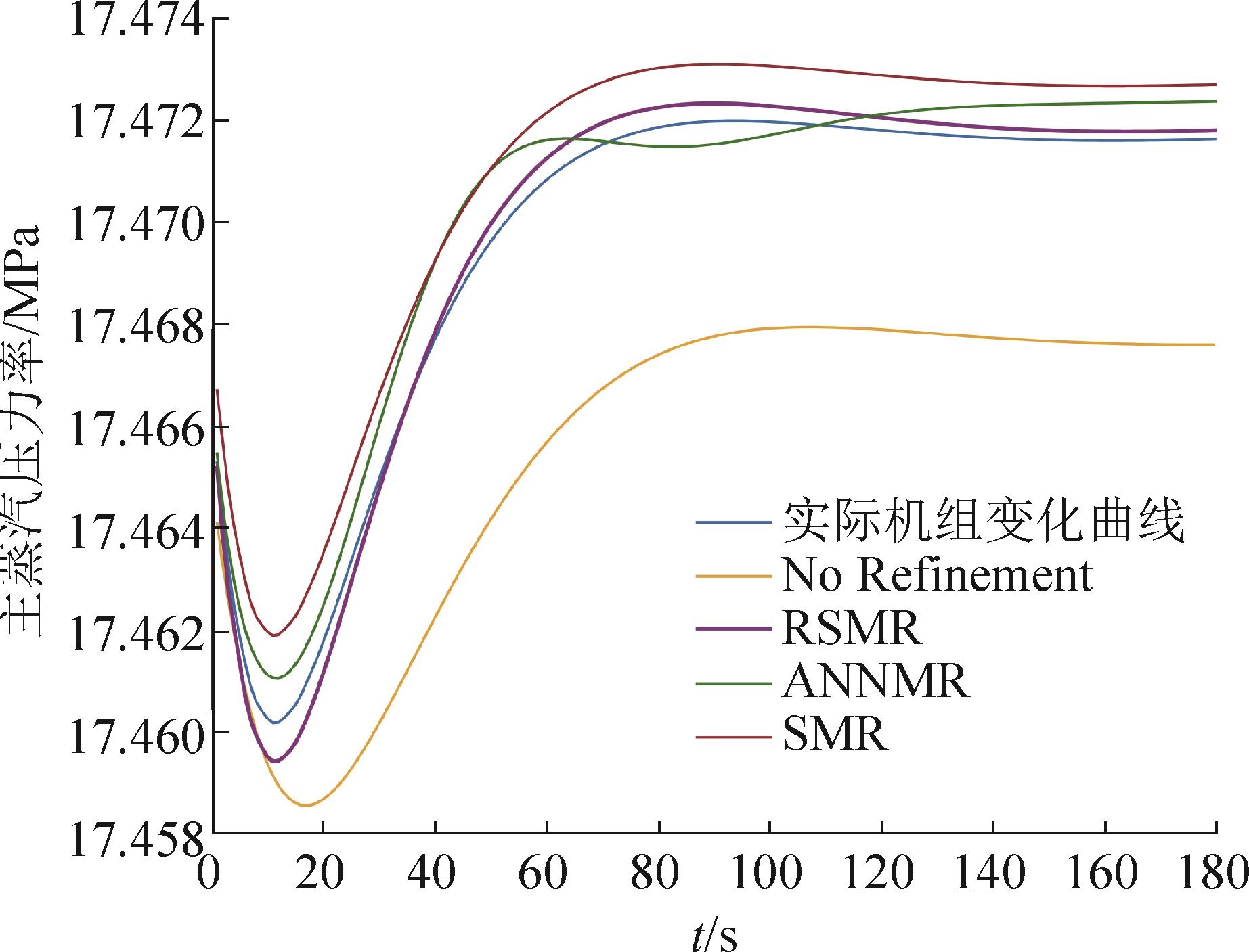

图4

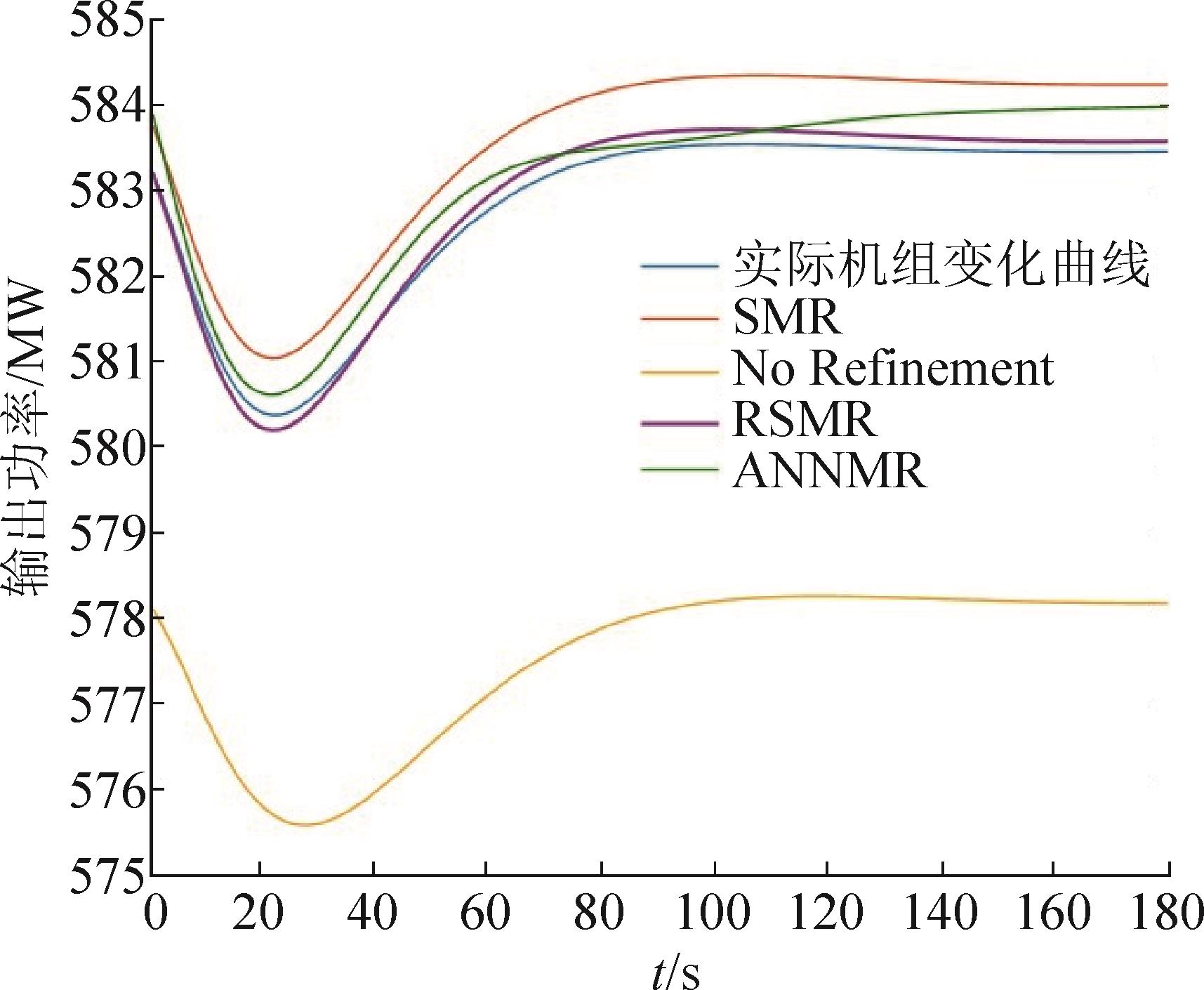

图5

表4

表5

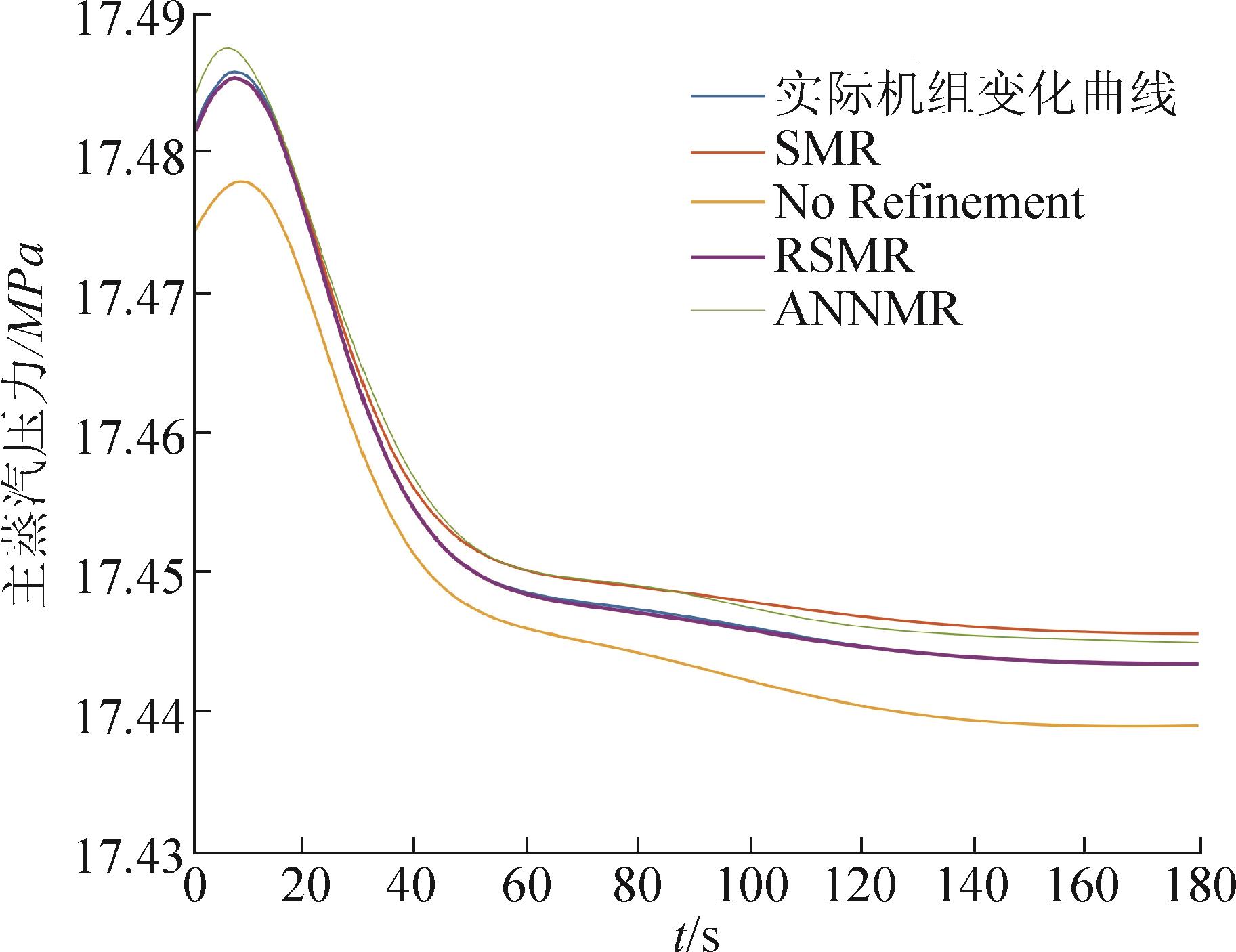

图6

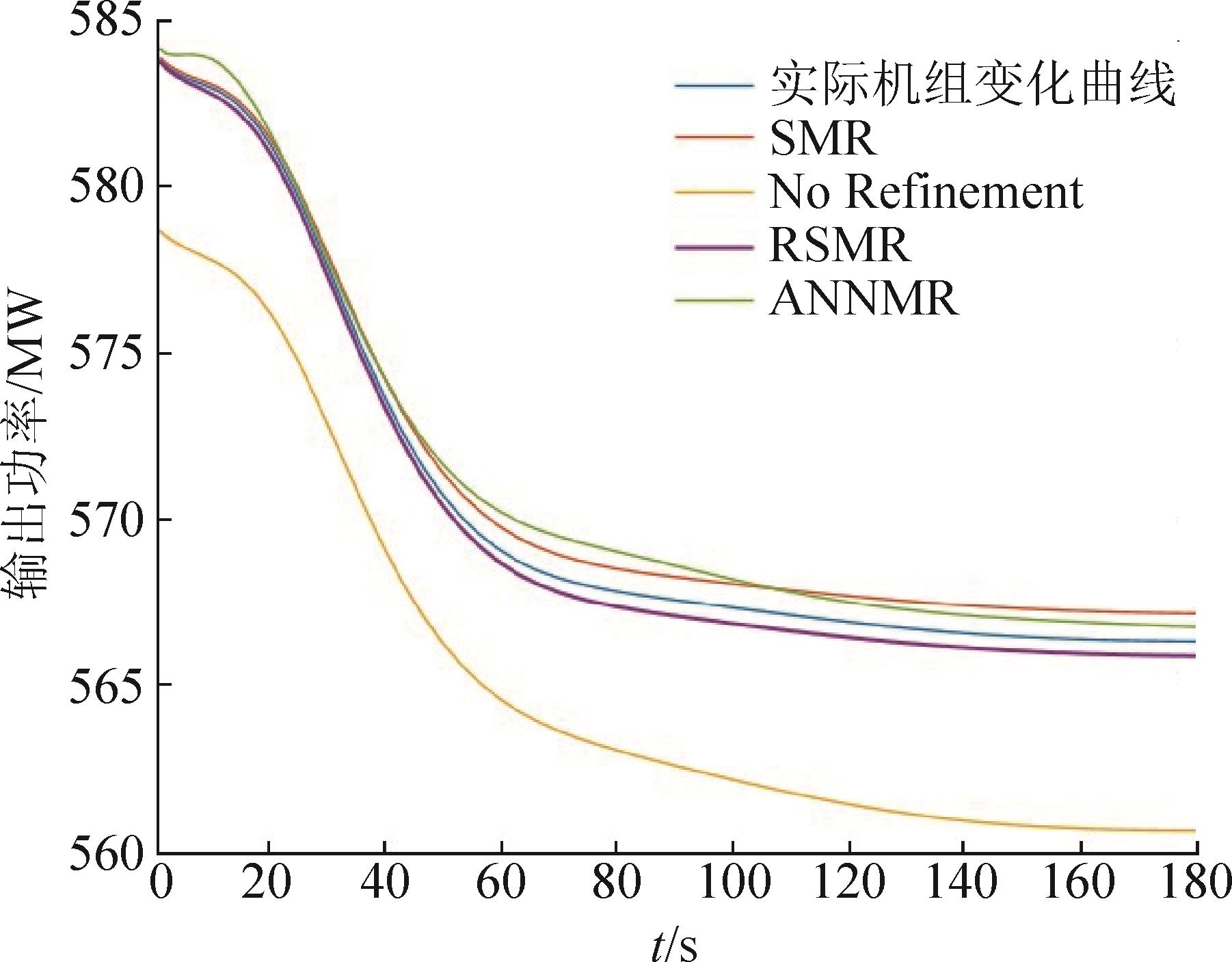

图7

表6

表7
