考虑后视效应和速度差的智能驾驶模型仿真

doi:10.16182/j.issn1004731x.joss.22-0341

系统仿真学报 ›› 2023, Vol. 35 ›› Issue (7): 1562-1571.doi: 10.16182/j.issn1004731x.joss.22-0341

考虑后视效应和速度差的智能驾驶模型仿真

徐银¹^,²(), 蒲云¹^,², 刘海旭¹^,²(), 谭一帆¹^,²^,³

^1.西南交通大学交通运输与物流学院, 四川成都 611756
^2.西南交通大学综合交通大数据应用技术国家工程实验室, 四川成都 611756
^3.威斯康星大学麦迪逊分校土木与环境工程系, 威斯康星州麦迪逊 53706

收稿日期:2022-04-12 修回日期:2022-05-06 出版日期:2023-07-29 发布日期:2023-07-19
通讯作者: 刘海旭 E-mail:xuyin@my.swjtu.edu.cn;hxliu@swjtu.edu.cn
作者简介:徐银(1995-)，男，硕士生，研究方向为交通建模与仿真。E-mail：xuyin@my.swjtu.edu.cn
基金资助:
湖北省交通运输厅科技项目(2022-11-1-5);国家自然科学基金(52002339);四川省科技计划(2021YJ0535)

An Intelligent Driver Model Simulation Considering Both Backward Looking Effect and Velocity Difference

Yin Xu¹^,²(), Yun Pu¹^,², Haixu Liu¹^,²(), Yifan Tan¹^,²^,³

^1.School of Transportation and Logistics, Southwest Jiaotong University, Chengdu 611756, China
^2.National Engineering Laboratory of Application Technology of Integrated Transportation Big Data, Southwest Jiaotong University, Chengdu 611756, China
^3.Department of Civil and Environment Engineering, University of Wisconsin-Madison, Madison 53706, USA

Received:2022-04-12 Revised:2022-05-06 Online:2023-07-29 Published:2023-07-19
Contact: Haixu Liu E-mail:xuyin@my.swjtu.edu.cn;hxliu@swjtu.edu.cn

摘要/Abstract

摘要：

针对实际跟驰驾驶中驾驶员通过后视镜观察后方车辆来调整本车运动的现象，提出了一种同时考虑后视效应和速度差的智能驾驶模型，应用线性稳定性分析获得了模型的临界稳定性条件。设计仿真实验，分析了车辆加速过程中的跟驰特性，对模型进行了交通安全性评价。采用周期性边界条件下的小扰动仿真实验，验证了模型稳定性理论分析与数值模拟结论的一致性。研究表明：在改进模型中车辆加速度变化更平缓，车辆达到最大速度进入匀速状态的时间更短；考虑后视效应和速度差有助于提高交通流稳定性和交通安全性。

关键词: 智能驾驶模型, 后视效应, 交通流稳定性, 交通安全性, 数值仿真

Abstract:

Aiming at the phenomenon that driver adjusts vehicle movement by observing the following vehicles through rearview mirror in the actual car-following driving, an improved intelligent driver model accounting forboth backward looking effect and velocity difference is proposed, and the critical stability condition of the new model is obtained by employing the linear stability analysis. Based on the numerical simulation experiments, the car following characteristics analysis during the acceleration process of the vehicle and the traffic safety evaluation are carried out. A small disturbance simulation under the periodic boundary condition is used to verify the conclusion consistency of stability theoretical analysis and numerical simulation. Results show that the vehicle acceleration changes more smoothly, and the time for the vehicle to reach the maximum speed and enter a constant speed state is shorter; the simultaneous consideration of the backward looking effect and velocity difference also plays an important role in strengthening the traffic flow stability and traffic safety.

Key words: intelligent driver model, backward looking effect, traffic flow stability, traffic safety, numerical simulation

中图分类号:

TP391.9

徐银, 蒲云, 刘海旭, 谭一帆. 考虑后视效应和速度差的智能驾驶模型仿真[J]. 系统仿真学报, 2023, 35(7): 1562-1571.

Yin Xu, Yun Pu, Haixu Liu, Yifan Tan. An Intelligent Driver Model Simulation Considering Both Backward Looking Effect and Velocity Difference[J]. Journal of System Simulation, 2023, 35(7): 1562-1571.

图/表 6

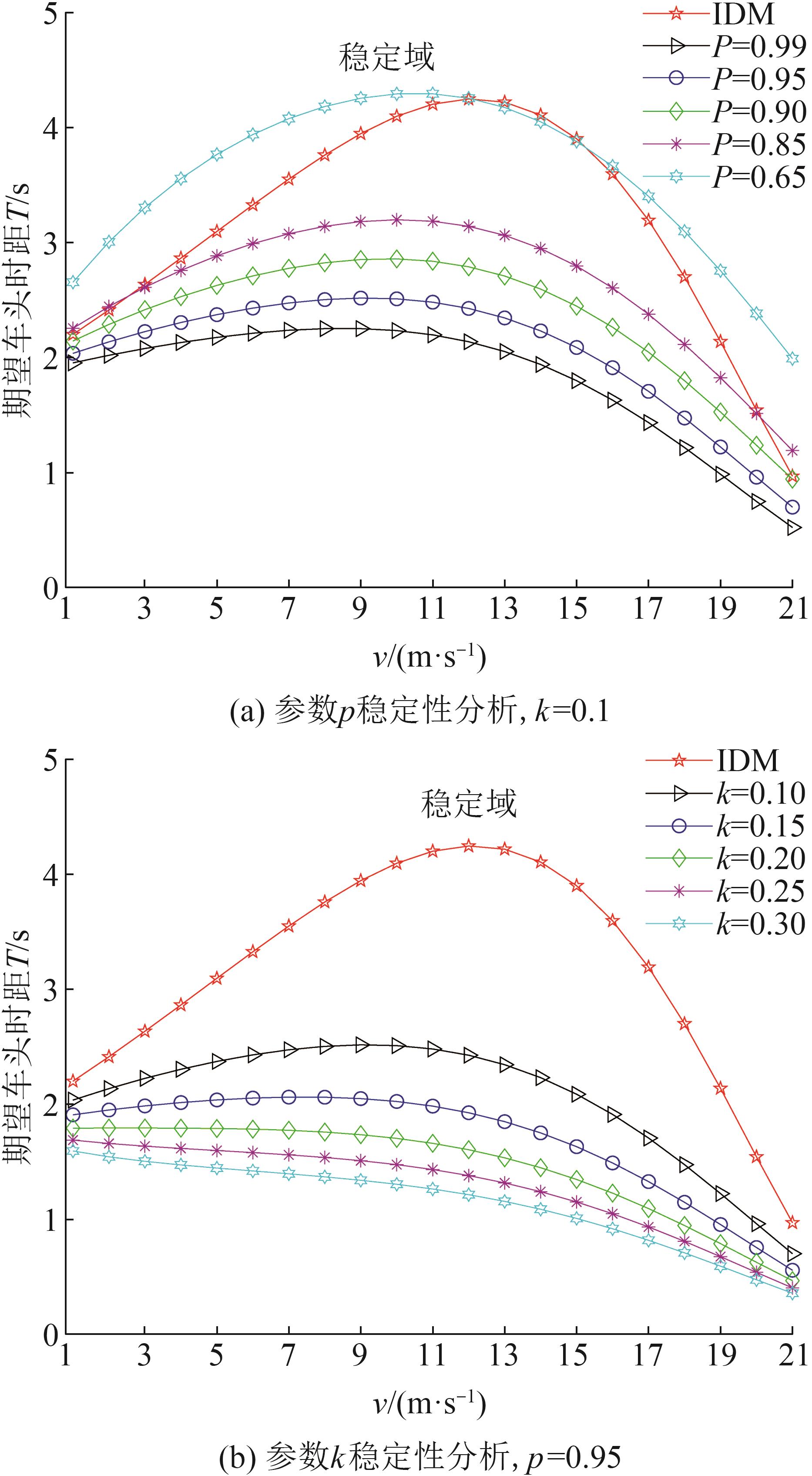

图1

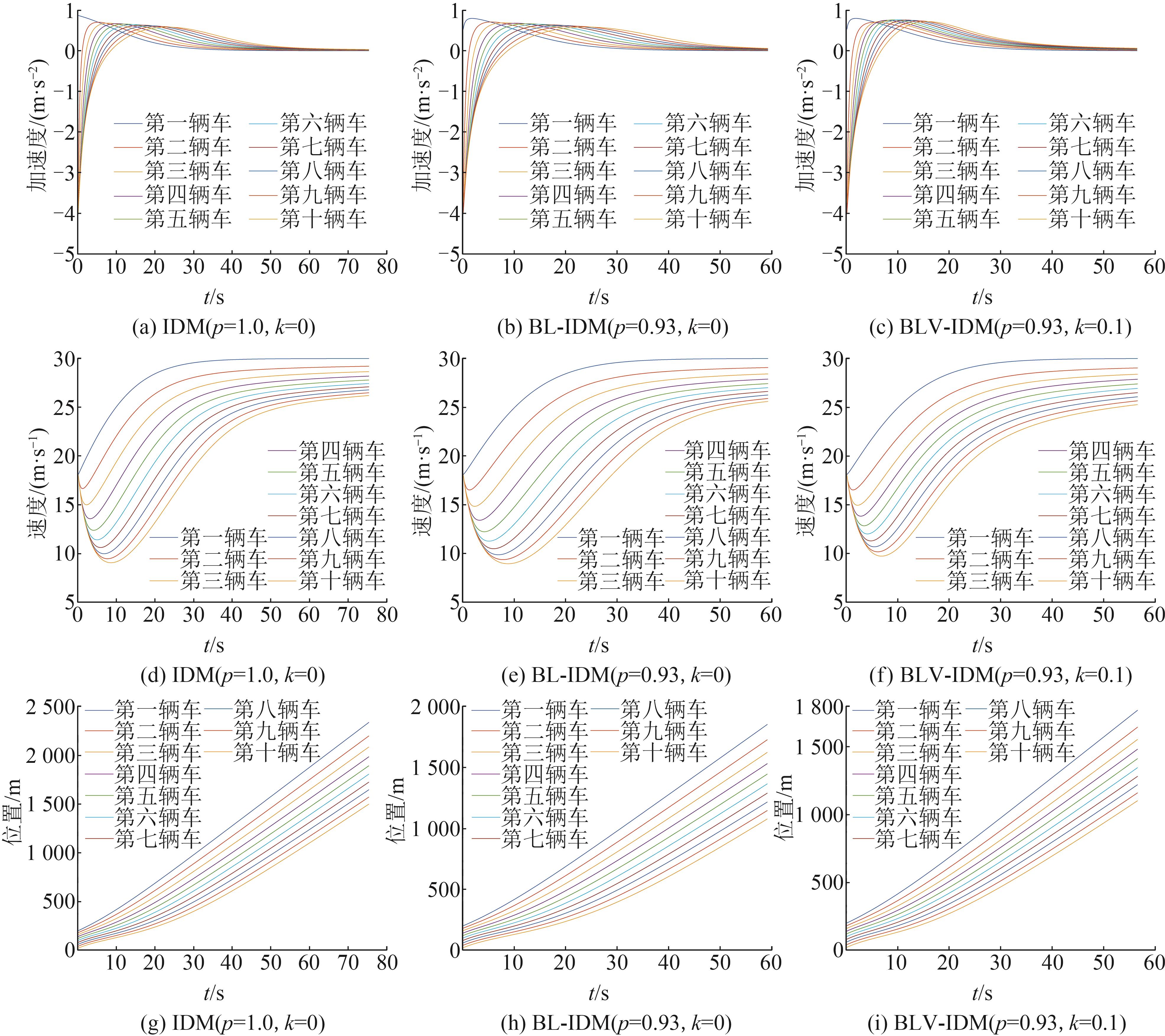

图2

表1

不同k值对TET指标

k	不同 $T E T$ 计算值
k	2.0	2.5	3.0	3.5
0.10	11.4	30.9	42.5	51.5
0.15	5.0	17.2	33.1	43.0
0.20	4.8	8.1	18.4	33.9
0.25	3.0	8.0	11.4	13.4
0.30	2.9	6.8	10.4	12.7

表1

表2

不同k值对TIT指标

k	不同 $T I T$ 计算值
k	2.0	2.5	3.0	3.5
0.10	1.57	13.01	31.50	55.07
0.15	1.29	5.66	18.86	37.99
0.20	1.10	4.37	9.87	23.45
0.25	0.91	3.91	8.53	14.32
0.30	0.83	3.13	7.58	13.41

表2

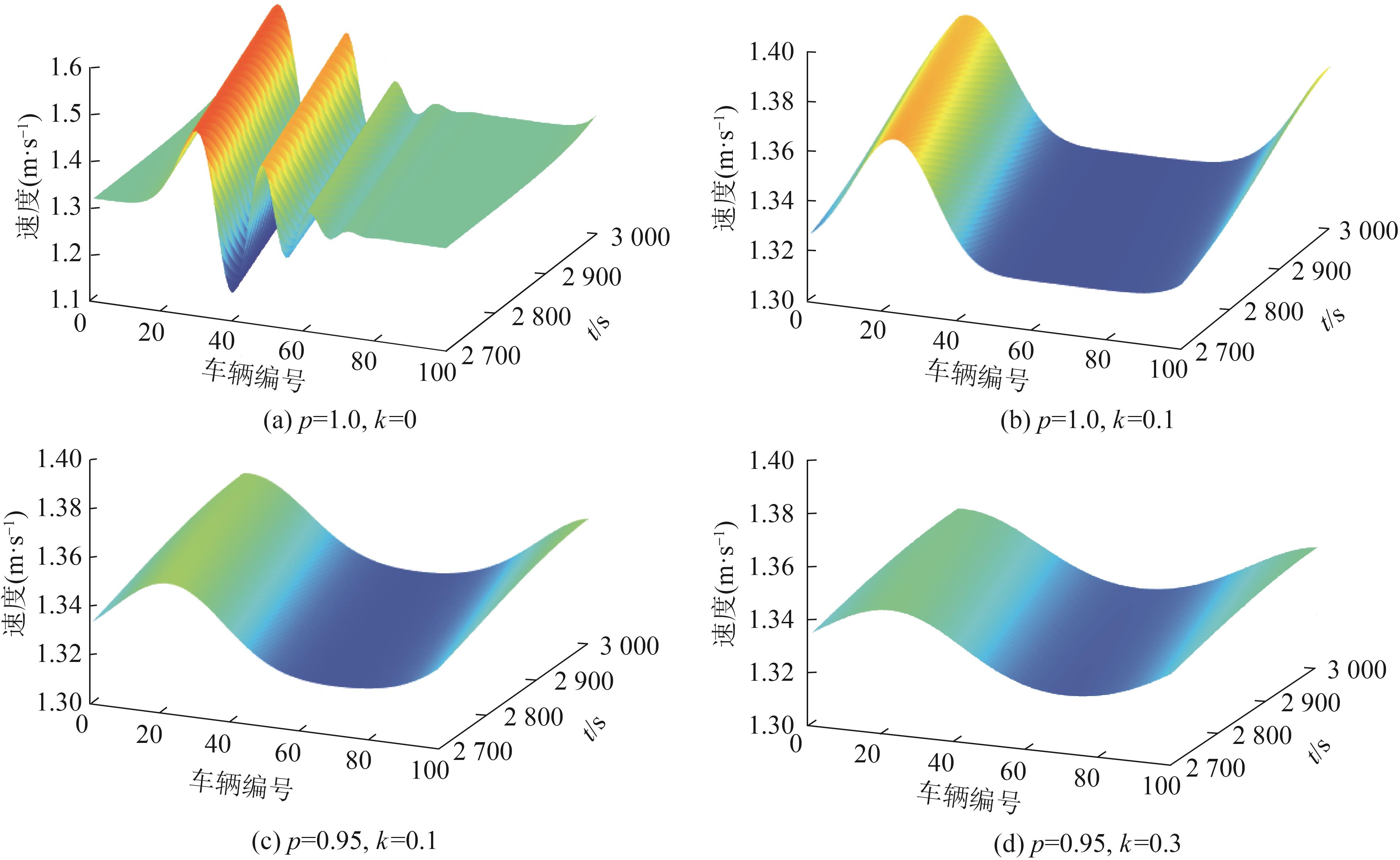

图3

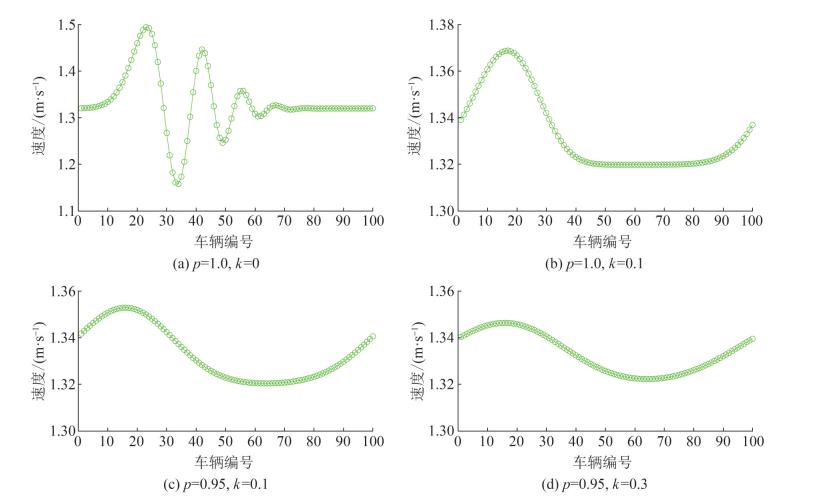

图4

参考文献 26

1	王殿海, 金盛. 车辆跟驰行为建模的回顾与展望[J]. 中国公路学报, 2012, 25(1): 115-127.
	Wang Dianhai, Jin Sheng. Review and Outlook of Modeling of Car Following Behavior[J]. China Journal of Highway and Transport, 2012, 25(1): 115-127.
2	费蓉, 刘方, 谢国, 等. 基于门控循环单元的车辆跟驰行为仿真模型[J]. 系统仿真学报, 2020, 32(10): 1862-1873.
	Fei Rong, Liu Fang, Xie Guo, et al. GRU-based Car-following Behavior Simulation Model[J]. Journal of System Simulation, 2020, 32(10): 1862-1873.
3	Pipes L A. An Operational Analysis of Traffic Dynamics[J]. Journal of Applied Physics, 1953, 24(3): 274-281.
4	Gipps P G. A Behavioural Car-following Model for Computer Simulation[J]. Transportation Research Part B: Methodological, 1981, 15(2): 105-111.
5	Nagel K, Schreckenberg M. A Cellular Automaton Model for Freeway Traffic[J]. Journal De Physique, 1992, 2(12): 2221-2229.
6	Bando M, Hasebe K, Nakayama A, et al. Dynamical Model of Traffic Congestion and Numerical Simulation[J]. Physical Review E, 1995, 51(2): 1035-1042.
7	Treiber M, Hennecke A, Helbing D. Congested Traffic States in Empirical Observations and Microscopic Simulations[J]. Physical Review E, 2000, 62(2): 1805-1824.
8	Jiang Rui, Wu Qingsong, Zhu Zuojin. Full Velocity Difference Model for A Car-following Theory[J]. Physical Review E, 2001, 64(1): 017101.
9	Derbel O, Péter Tamás, Zebiri H, et al. Modified Intelligent Driver Model[J]. Periodica Polytechnica Transportation Engineering, 2012, 40(2): 53-60.
10	Milanés Vicente, Shladover S E. Modeling Cooperative and Autonomous Adaptive Cruise Control Dynamic Responses Using Experimental Data[J]. Transportation Research Part C: Emerging Technologies, 2014, 48: 285-300.
11	Liu Pengfei, Fan Wei. Exploring the Impact of Connected and Autonomous Vehicles on Freeway Capacity Using a Revised Intelligent Driver Model[J]. Transportation Planning and Technology, 2020, 43(3): 279-292.
12	Saifuzzaman M, Zheng Zuduo, Mazharul Haque M, et al. Revisiting the Task-capability Interface Model for Incorporating Human Factors into Car-following Models[J]. Transportation Research Part B: Methodological, 2015, 82: 1-19.
13	Treiber M, Kesting A. The Intelligent Driver Model With Stochasticity-new Insights Into Traffic Flow Oscillations[J]. Transportation Research Part B: Methodological, 2018, 117: 613-623.
14	肖新平, 姜蒙, 文江辉, 等. 基于改进IDM-GARCH模型的速度波动不确定性研究[J]. 中国公路学报, 2019, 32(2): 155-164.
	Xiao Xinping, Jiang Meng, Wen Jianghui, et al. Uncertainty of Velocity Fluctuation Based on an Improved IDM-GARCH Model[J]. China Journal of Highway and Transport, 2019, 32(2): 155-164.
15	Sharath M N, Velaga N R. Enhanced Intelligent Driver Model for Two-dimensional Motion Planning in Mixed Traffic[J]. Transportation Research Part C: Emerging Technologies, 2020, 120: 102780.
16	王顺超, 李志斌, 吴瑶, 等. 面向瓶颈多簇运动波消除的拥堵吸收智能驾驶模型[J]. 中国公路学报, 2022, 35(1): 137-150.
	Wang Shunchao, Li Zhibin, Wu Yao, et al. An Intelligent Jam-absorbing Driving Strategy for Eliminating Multiple Traffic Oscillations at Bottlenecks[J]. China Journal of Highway and Transport, 2022, 35(1): 137-150.
17	Alhariqi A, Gu Ziyuan, Saberi M. Calibration of the Intelligent Driver Model (IDM) With Adaptive Parameters for Mixed Autonomy Traffic Using Experimental Trajectory Data[J]. Transportmetrica B: Transport Dynamics, 2022, 10(1): 421-440.
18	Ma Dongfang, Han Yueyi, Qu Fengzhong, et al. Modeling and Analysis of Car-following Behavior Considering Backward-looking Effect[J]. Chinese Physics B, 2021, 30(3): 034501.
19	Ma Guangyi, Ma Minghui, Liang Shidong, et al. An Improved Car-following Model Accounting for the Time-delayed Velocity Difference and Backward Looking Effect[J]. Communications in Nonlinear Science and Numerical Simulation, 2020, 85: 105221.
20	Chen Can, Cheng Rongjun, Ge Hongxia. An Extended Car-following Model Considering Driver'S Sensory Memory and the Backward Looking Effect[J]. Physica A: Statistical Mechanics and Its Applications, 2019, 525: 278-289.
21	Ma Guangyi, Ma Minghui, Liang Shidong, et al. Nonlinear Analysis of the Car-following Model Considering Headway Changes With Memory and Backward Looking Effect[J]. Physica A: Statistical Mechanics and Its Applications, 2021, 562: 125303.
22	Zheng Liang, Ran Bin, Huang Helai. Safety Evaluation for Driving Behaviors Under Bidirectional Looking Context[J]. Journal of Intelligent Transportation Systems, 2017, 21(4): 255-270.
23	Yi Ziwei, Lu Wenqi, Xu Linghui, et al. Intelligent Back-looking Distance Driver Model and Stability Analysis for Connected and Automated Vehicles[J]. Journal of Central South University, 2020, 27(11): 3499-3512.
24	Jin P J, Yang Da, Ran Bin, et al. Bidirectional Control Characteristics of General Motors and Optimal Velocity Car-Following Models: Implications for Coordinated Driving in a Connected Vehicle Environment[J]. Transportation Research Record, 2013, 2381(1): 110-119.
25	吴兵, 王文璇, 李林波, 等. 多前车影响的智能网联车辆纵向控制模型[J]. 交通运输工程学报, 2020, 20(2): 184-194.
	Wu Bing, Wang Wenxuan, Li Linbo, et al. Longitudinal Control Model for Connected Autonomous Vehicles Influenced by Multiple Preceding Vehicles[J]. Journal of Traffic and Transportation Engineering, 2020, 20(2): 184-194.
26	Minderhoud M M, Bovy P H L. Extended Time-to-collision Measures for Road Traffic Safety Assessment[J]. Accident Analysis & Prevention, 2001, 33(1): 89-97.
