基于OPNET的机群数据链混合TDMA协议仿真

doi:10.16182/j.issn1004731x.joss.21-0449

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (09): 1933-1940.doi: 10.16182/j.issn1004731x.joss.21-0449

• 仿真建模理论与方法 • 下一篇

基于OPNET的机群数据链混合TDMA协议仿真

傅妍芳¹(), 张楠¹, 魏佳宁², 曲少春¹, 卢颖¹, 刘畅²

^1.西安工业大学　计算机科学与工程学院，陕西　西安　710021
^2.北京机电工程研究所　复杂系统控制与智能协同技术重点实验室，北京　100074

收稿日期:2021-05-19 修回日期:2021-07-13 出版日期:2022-09-18 发布日期:2022-09-23
作者简介:傅妍芳（1978-），女，博士，教授，研究方向为系统建模与计算机仿真。E-mail：fuyanfang@xatu.edu.cn

OPNET Based Simulation of Hybrid TDMA Protocol for Helicopters Datalink

Yanfang Fu¹(), Nan Zhang¹, Jianing Wei², Shaochun Qu¹, Ying Lu¹, Chang Liu²

^1.School of Computer Science and Engineering Xi’an Technological University, Xi’an 710021, China
^2.Science and Technology on Complex System Control and Intelligent Agent Cooperation Laboratory, Beijing Electro-mechanical Engineering Institute, Beijing 100074, China

Received:2021-05-19 Revised:2021-07-13 Online:2022-09-18 Published:2022-09-23

摘要/Abstract

摘要：

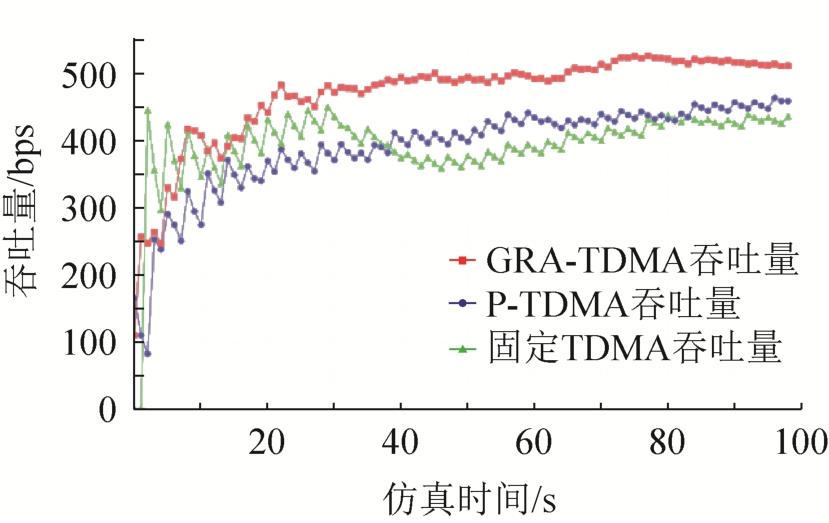

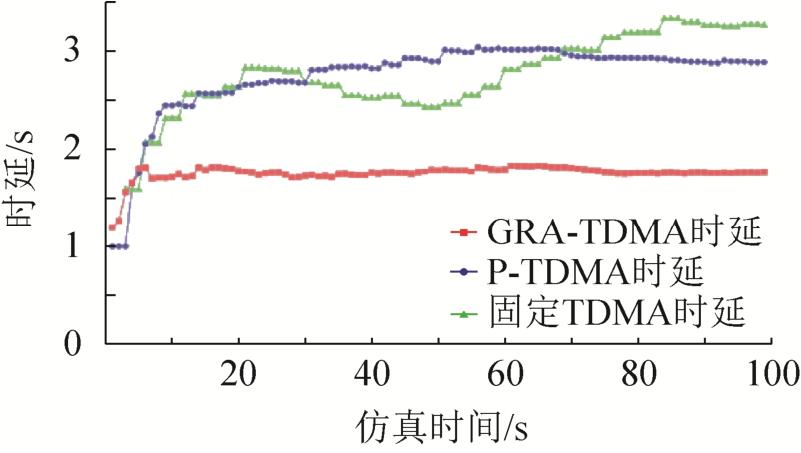

针对当前数据链的时隙分配问题，提出并实现了一种基于灰色关联分析法的混合时隙分配协议。通过灰色关联分析法对吞吐量、时延和当前报文缓冲区的负载程度做聚合，得到各节点综合得分，根据综合得分对时隙进行动态分配，同时采用固定时隙分配的方式保证网络中的节点最少有一个时隙可用。仿真结果表明：与固定TDMA(time division multiple access)协议和P-TDMA(priority-TDMA)协议相比，该协议在减少竞争冲突的同时，也保证了较低的时延、相对较高的吞吐量和高时隙利用率。

关键词: OPNET, Link-16, 固定TDMA协议, 混合时隙分配协议, 机群数据链

Abstract:

For the current time slot allocation problem of the data link, an improved hybrid time slot allocation protocol based on grey relational analysis is proposed and implemented. Through the aggregation of throughput, delay and load of current message buffer by grey relational analysis, the comprehensive evaluation index is obtained, and the time slot is allocated dynamically. The fixed time slot allocation is also adopted to ensure that at least one time slot is available for nodes in the network.Simulation results show that compared with the fixed TDMA(time division multiple access) protocol and the P-TDMA(priority-TDMA) protocol, the proposed protocol not only reduces contention conflicts, but also guarantees a lower delay, a relatively high throughput and a high time slot utilization rate.

Key words: OPNET, Link-16, fixed TDMA (time division multiple access) protocol, mixed time slot allocation protocol, helicopters datalink

中图分类号:

TP391.9

傅妍芳, 张楠, 魏佳宁, 曲少春, 卢颖, 刘畅. 基于OPNET的机群数据链混合TDMA协议仿真[J]. 系统仿真学报, 2022, 34(09): 1933-1940.

Yanfang Fu, Nan Zhang, Jianing Wei, Shaochun Qu, Ying Lu, Chang Liu. OPNET Based Simulation of Hybrid TDMA Protocol for Helicopters Datalink[J]. Journal of System Simulation, 2022, 34(09): 1933-1940.

图/表 15

表1

表2

表3

表4

表5

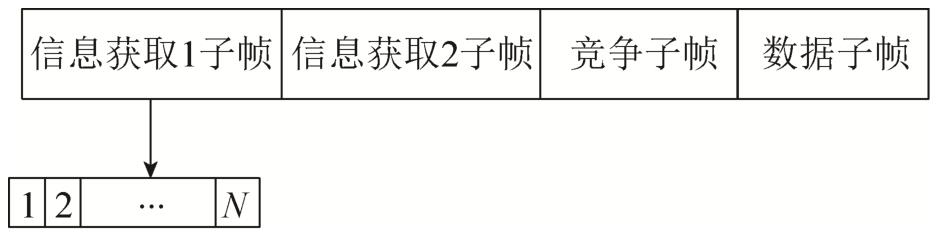

图1

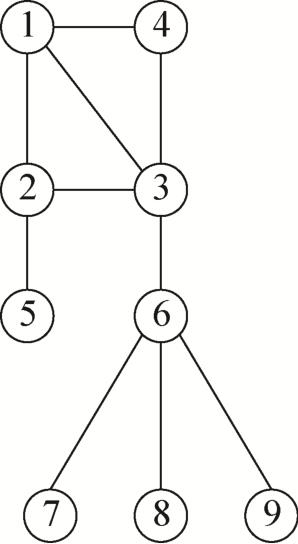

图2

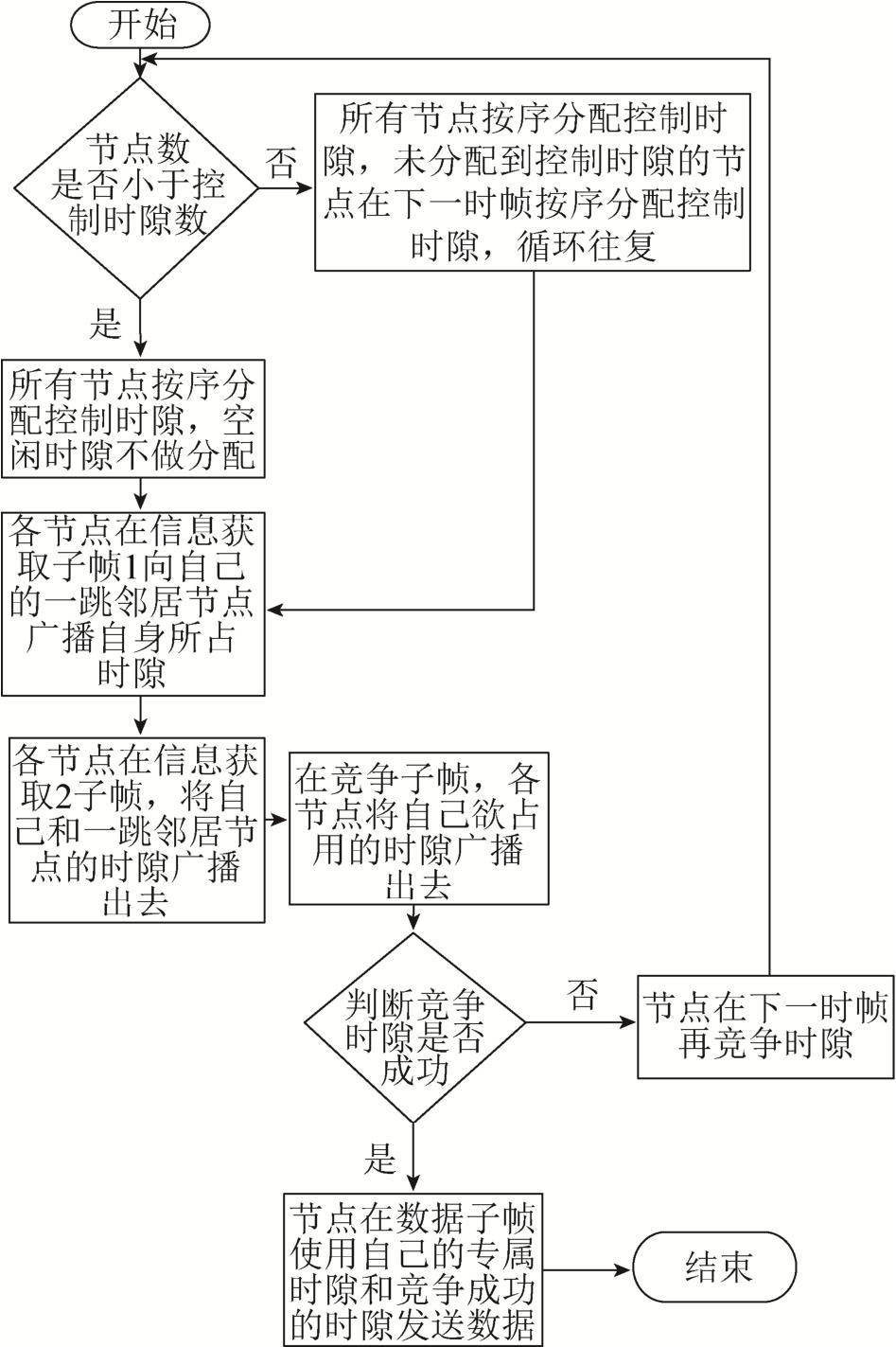

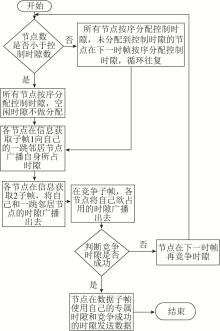

图3

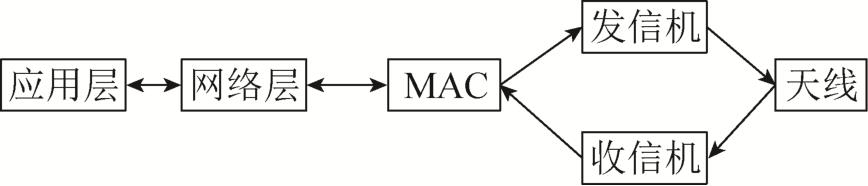

图4

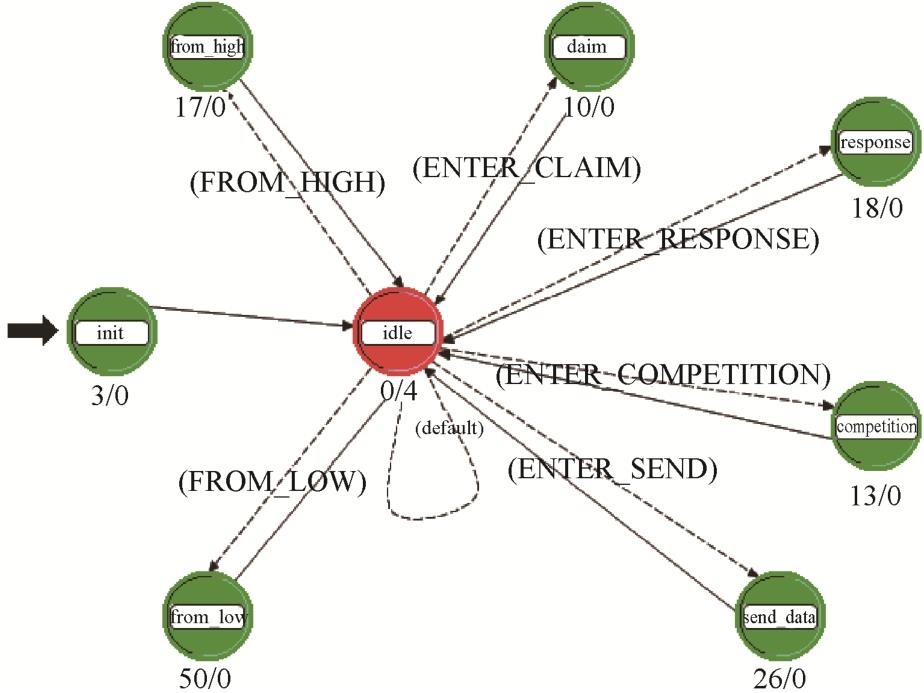

图5

图6

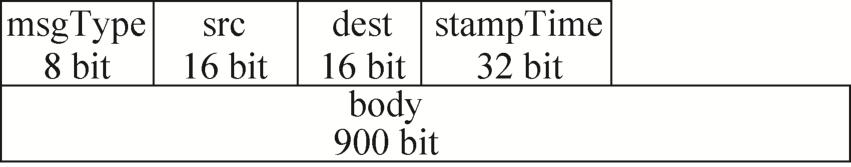

图7

图8

图9

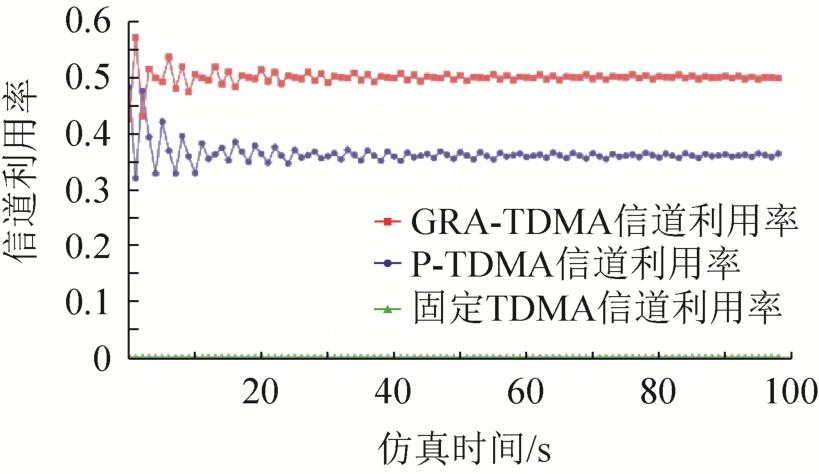

图10

参考文献 15

[1]	吕娜, 张岳彤, 陈柯帆, 等. 数据链理论与系统[M].北京: 电子工业出版社, 2011.
	Lü Na, Zhang Yuetong, Chen Kefan, et al. Theroy and System of Data Link[M]. Beijing: Publishing House of Electronics Industry, 2011.
[2]	梅文华, 蔡善法. JTIDS/Link16数据链[M]. 北京: 国防工业出版社, 2007.
	Mei Wenhua, Cai Shanfa. JTIDS/Link16 Data Link[M].Beijing: National Defense Industry Press, 2007.
[3]	Zhu Chenxi, Corson M S. A Five-Phase Reservation Protocol (FPRP) for Mobile Ad Hoc Networks[C]//Seventeenth Annual Joint Conference of the IEEE Computer and Communications Societies. San Francisco, CA, USA: IEEE, 1998: 322-331.
[4]	彭革新, 谢胜利, 陈彩云. 一种基于固定TDMA的无冲突动态时隙分配算法[J]. 信息安全与通信保密, 2005(11): 116-121.
	Peng Gexin, Xie Shengli, Chen Caiyun. A Collision-Avoid Dynamic Slots Assignment Algorithm Based on Fixed TDMA[J]. Information Security and Communication Confidentiality, 2005(11): 116-121.
[5]	李志文. 数据链动态时隙分配算法的仿真与分析[D].郑州: 郑州大学, 2018.
	Li Zhiwen. Simulation and Analysis of Dynamic Time Slot Allocation Algorithm for Data Link[D]. Zhengzhou: Zhengzhou University, 2018.
[6]	牛东来, 刘昭含. 基于灰色关联分析的我国上市超市经营效益综合评价研究[J]. 商业经济, 2021(1): 180-182.
	Niu Donglai, Liu Zhaohan. Research on Comprehensive Evaluation of Operating Benefit of Listed Supermarkets in China Based on Grey Relational Analysis[J]. Business& Economy, 2021(1): 180-182.
[7]	杨强. 基于灰色关联度模型的中药上市企业绩效评估研究[D]. 西安: 西安建筑科技大学, 2020.
	Yang Qiang. Enterprise Performance Evaluation of A Company in China Based on Gray Relationl Model[D].Xi'an: Xi'an University of Architecture and Technology, 2020.
[8]	蓝燕金, 简文彬, 罗金妹, 等. 基于灰色定权聚类模型的公路边坡水毁风险等级评价[J]. 福州大学学报 (自然科学版), 2021, 49(1): 101-107.
	Lan Yanjin, Jian Wenbin, Luo Jinmei, et al. Risk Grade Evalutaion of Highway Slope Water Damage Based on Grey Fixed-Weight Cluster Model[J]. Journal of Fuzhou University (Natural Science Edition), 2021, 49(1): 101-107.
[9]	杨存. 多终端协同下的网络选择算法研究[D]. 南京: 南京邮电大学, 2015.
	Yang Cun. Research on Access Network Selection Algorithm in Multi-terminal Coordinated Network[D].Nanjing: Nanjing University of Posts and Telecommunication, 2015.
[10]	张硕. 基于多网络接入的无线网络选择算法研究[D].南京: 南京邮电大学, 2016.
	Zhang Shuo. Research on Multi-access Network Selection Methods in Heterogeneous Wireless Networks[D]. Nanjing: Nanjing University of Posts and Telecommunication, 2016.
[11]	胡文生, 杨剑锋, 赵明. 基于灰色聚类算法的需求分析[J]. 计算机科学, 2016, 43(增1): 471-475.
	Hu Wensheng, Yang Jianfeng, Zhao Ming. Requirements Analysis Based on Grey Clustering Algorithm[J].Computer Science, 2016, 43(S1): 471-475.
[12]	马媛. 灰色关联度分析法下西安市中小企业融资效率研究[J]. 财会月刊, 2010(36): 66-68.
	Ma Yuan. Research on Financing Efficiency of Small and Medium-Sized Enterprises in Xi'an Based on Grey Relational Analysis[J]. Finance and Accounting Monthly, 2010(36): 66-68.
[13]	刘建民, 杨瑞娟, 程宏斌, 等. 基于Opnet的Link16网络仿真与性能分析[J]. 现代防御技术, 2010, 38(3): 58-64,69.
	Liu Jianmin, Yang Ruijuan, Cheng Hongbin, et al. Simulation and Performance Analysis of Link16 Network Based on Opnet[J]. Modern Defence Technology, 2010, 38(3): 58-64,69.
[14]	郜林. 基于OPNET的通信网仿真[M]. 西安: 西安电子科技大学出版社, 2018: 14-19.
	Gao Lin. Communication Network Simulation Based on OPNET[M]. Xi'an: Xidian University Press, 2018: 14-19.
[15]	陈敏. OPNET网络编程[M]. 北京: 清华大学出版社, 2004.
	Chen Min. OPNET Network Simulation[M]. Beijing: Tsinghua University Press, 2004.

节点	时延/s	吞吐量/(个/s)	缓冲区负载程度
1	2.54	26	0.30
2	2.12	23	0.36
3	2.37	26	0.17
4	1.98	20	0.41
5	2.03	18	0.23
6	2.24	24	0.12
7	1.72	16	0.37
8	1.68	21	0.22
9	1.84	24	0.20
10	2.17	28	0.33

节点	时延/s	吞吐量/(个/s)	缓冲区负载程度
1	1.00	0.83	0.62
2	0.51	0.58	0.82
3	0.80	0.83	0.17
4	0.34	0.33	1.00
5	0.41	0.17	0.38
6	0.65	0.67	0
7	0.05	0	0.86
8	0	0.42	0.34
9	0.19	0.67	0.28
10	0.57	1.00	0.72

节点	时延/s	吞吐量/(个/s)	缓冲区负载程度
1	0.22	0.15	0.12
2	0.11	0.11	0.16
3	0.18	0.15	0.03
4	0.08	0.06	0.19
5	0.09	0.03	0.07
6	0.14	0.12	0
7	0.01	0	0.17
8	0	0.08	0.07
9	0.04	0.12	0.05
10	0.13	0.18	0.14

指标	时延/s	吞吐量/(个/s)	缓冲区负载程度
信息熵H	0.868	0.905	0.889
权重W	0.391	0.281	0.328

节点	评分	节点	评分
1	0.168	6	0.088
2	0.126	7	0.059
3	0.122	8	0.045
4	0.110	9	0.065
5	0.067	10	0.147
