基于规则的混合动力矿用自卸车能量管理策略研究

doi:10.16182/j.issn1004731x.joss.23-1218

系统仿真学报 ›› 2025, Vol. 37 ›› Issue (2): 487-497.doi: 10.16182/j.issn1004731x.joss.23-1218

• 研究论文 • 上一篇

基于规则的混合动力矿用自卸车能量管理策略研究

刘建功¹^,², 张远辉¹, 魏菲³, 王毅颖¹^,⁴, 李晓岭⁵, 刘佩情¹, 司冯淼¹

^1.河北工程大学机械与装备工程学院，河北邯郸 056038
^2.河北省煤矿生态保护开采产业技术研究院，河北邯郸 056038
^3.天津康复疗养中心信息科，天津 300191
^4.河北省冀南新区现代装备制造协同创新中心，河北邯郸 056038
^5.邯郸科技职业学院计算机系，河北邯郸 056046

收稿日期:2023-10-10 修回日期:2023-12-05 出版日期:2025-02-14 发布日期:2025-02-10
通讯作者: 李晓岭
第一作者简介:刘建功(1956-)，男，教授，博士，研究方向为智能装备、智能控制。
基金资助:
河北省高等学校科学技术研究项目(CXY2023002)

Research on Rule-based Energy Management Strategy of Hybrid Mining Dump Truck

Liu Jiangong¹^,², Zhang Yuanhui¹, Wei Fei³, Wang Yiying¹^,⁴, Li Xiaoling⁵, Liu Peiqing¹, Si Fengmiao¹

^1.School of Mechanical and Equipment Engineering, Hebei University of Engineering, Handan 056038, China
^2.Hebei Institute of Coal Mining Technology for Ecological Protection, Handan 056038, China
^3.Information Department of Tianjin Rehabilitation and Recuperation Center, Tianjin 300191, China
^4.Collaborative Innovation Center of Modern Equipment Manufacturing of Jinan New Area(Hebei), Handan 056038, China
^5.Department of Computer, Handan Vocational College of Science and Technology, Handan 056046, China

Received:2023-10-10 Revised:2023-12-05 Online:2025-02-14 Published:2025-02-10
Contact: Li Xiaoling

摘要/Abstract

摘要：

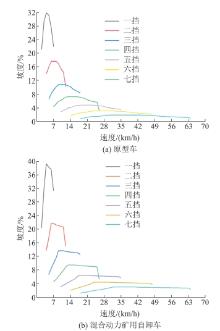

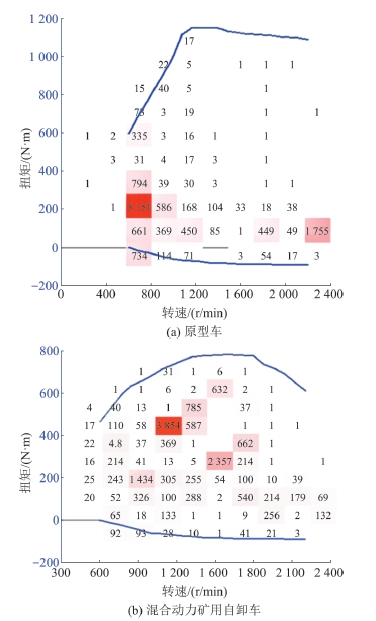

为改善传统柴油矿用自卸车存在的动力性不足、燃油经济性不佳等问题，提出一种分布式混合动力传动系统结构和基于规则的能量管理策略。通过对矿用自卸车的运动特征进行分析，构建分布式混合动力系统结构，给出车辆行驶工况，制定了相关的模式切换规则。仿真结果表明：分布式混合动力系统结构使车辆在使用第三挡进行爬坡时，其爬坡能力提高了27%；同时通过采用基于规则能量管理策略，混合动力矿用自卸车的油耗较原型车降低了19%。基于规则的能量管理策略提高了燃油经济性，为提升能源利用效率和环境友好性提供了支持。

关键词: 混合动力矿车, 基于规则, 能量管理策略, 动力性, 燃油经济性

Abstract:

A distributed hybrid powertrain system structure and a rule-based energy management strategy are proposed to address the problems of insufficient power and poor fuel economy in conventional diesel-powered mining dump trucks. By analyzing the operational characteristics of mining dump trucks, a distributed hybrid powertrain system structure and vehicle driving conditions are established, relevant mode-switching rules are formulated. The results demonstrate that the proposed distributed hybrid powertrain system structure enhances the climbing capability of the vehicle by 27% when using the third gear for uphill driving. In addition, the adoption of the rule-based energy management strategy results in an 19% reduction in fuel consumption compared to the prototype vehicle. The rule-based energy management strategy improves fuel consumption and helps to increase energy efficiency and environmental friendliness.

Key words: hybrid mine car, based on rules, energy management strategy, powerfulness, fuel economy

中图分类号:

TP391.9

刘建功,张远辉,魏菲等 . 基于规则的混合动力矿用自卸车能量管理策略研究[J]. 系统仿真学报, 2025, 37(2): 487-497.

Liu Jiangong,Zhang Yuanhui,Wei Fei,et al . Research on Rule-based Energy Management Strategy of Hybrid Mining Dump Truck[J]. Journal of System Simulation, 2025, 37(2): 487-497.

图/表 16

图1

表1

表2

表3

图2

图3

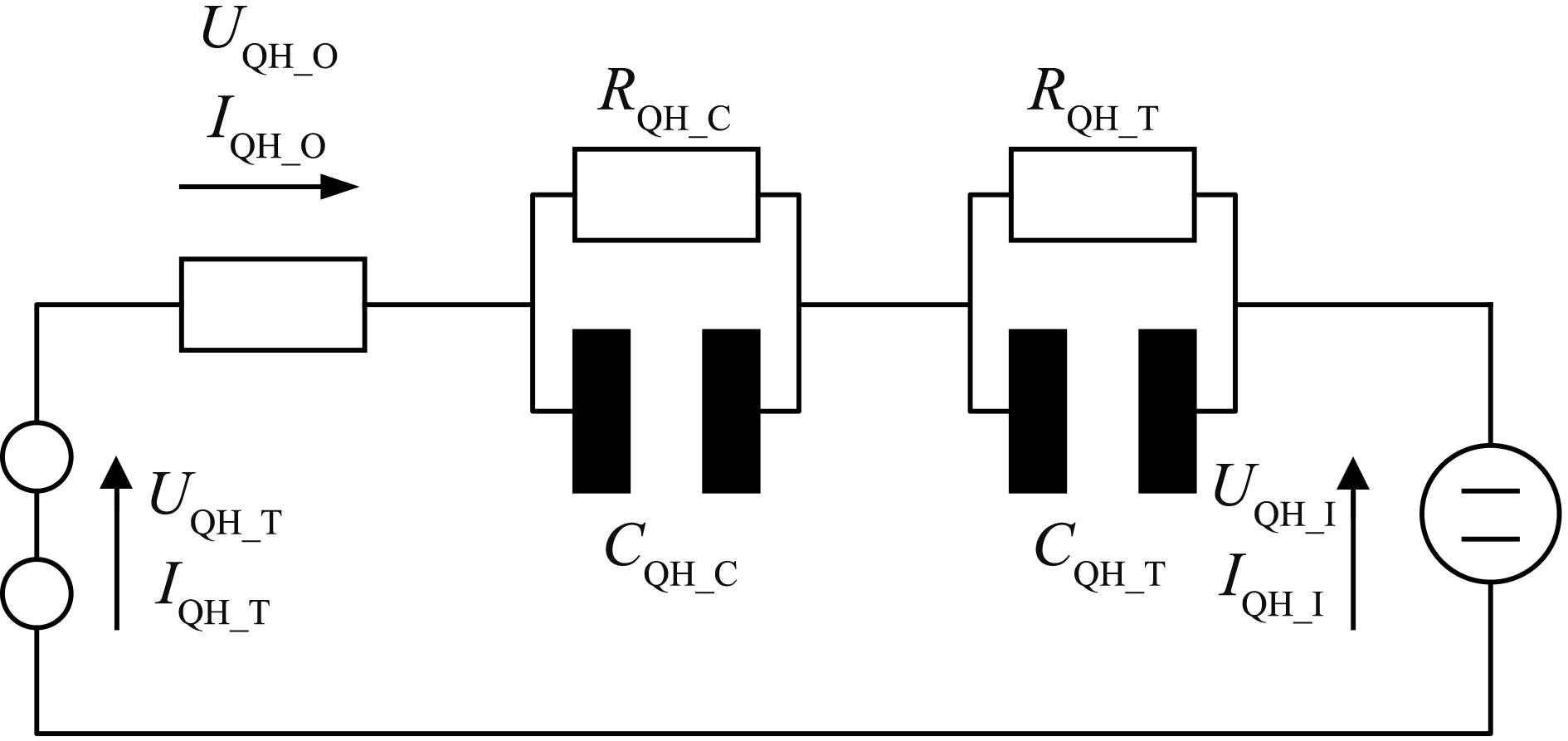

图4

表4

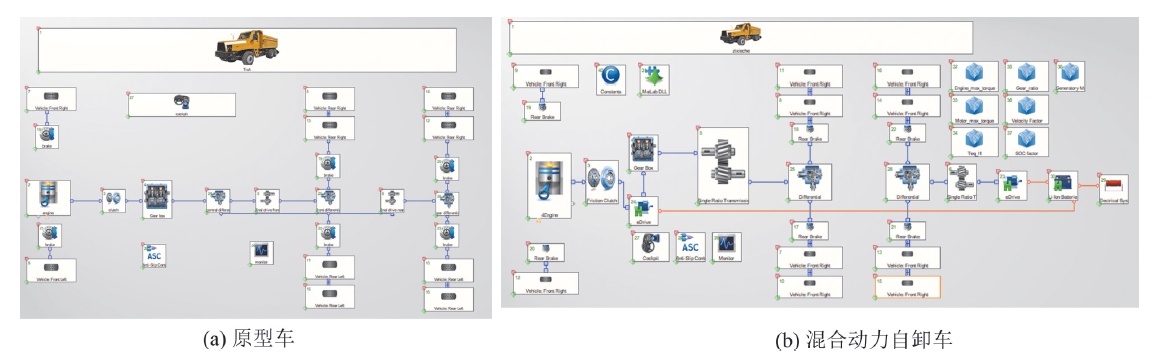

图5

表5

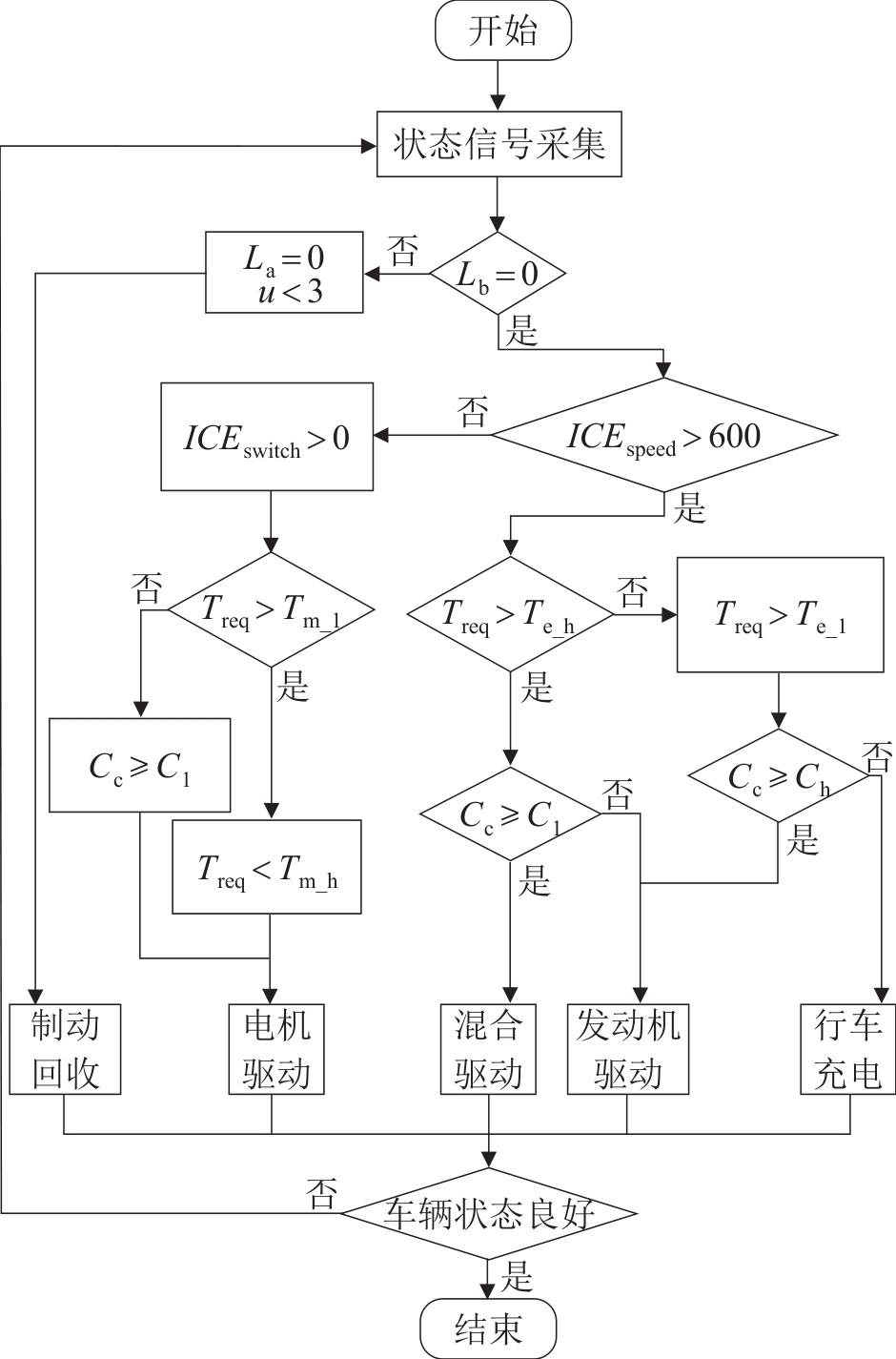

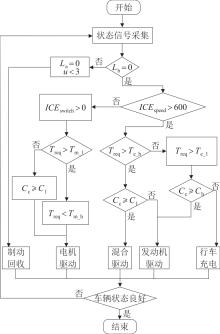

各模式下的动力部件扭矩分配

工作模式	发动机输出扭矩	电机输出扭矩
发动机驱动	T_req	0
电机驱动	0	T_req
混合驱动	T_req–T_m	min( $T m_m a x$ , $T r e q - T e p$ )
行车充电	$T e_l$	$T r e q - T e_l$
制动回收	0	max( $T b r e q, T m r e, m a x$ )

表5

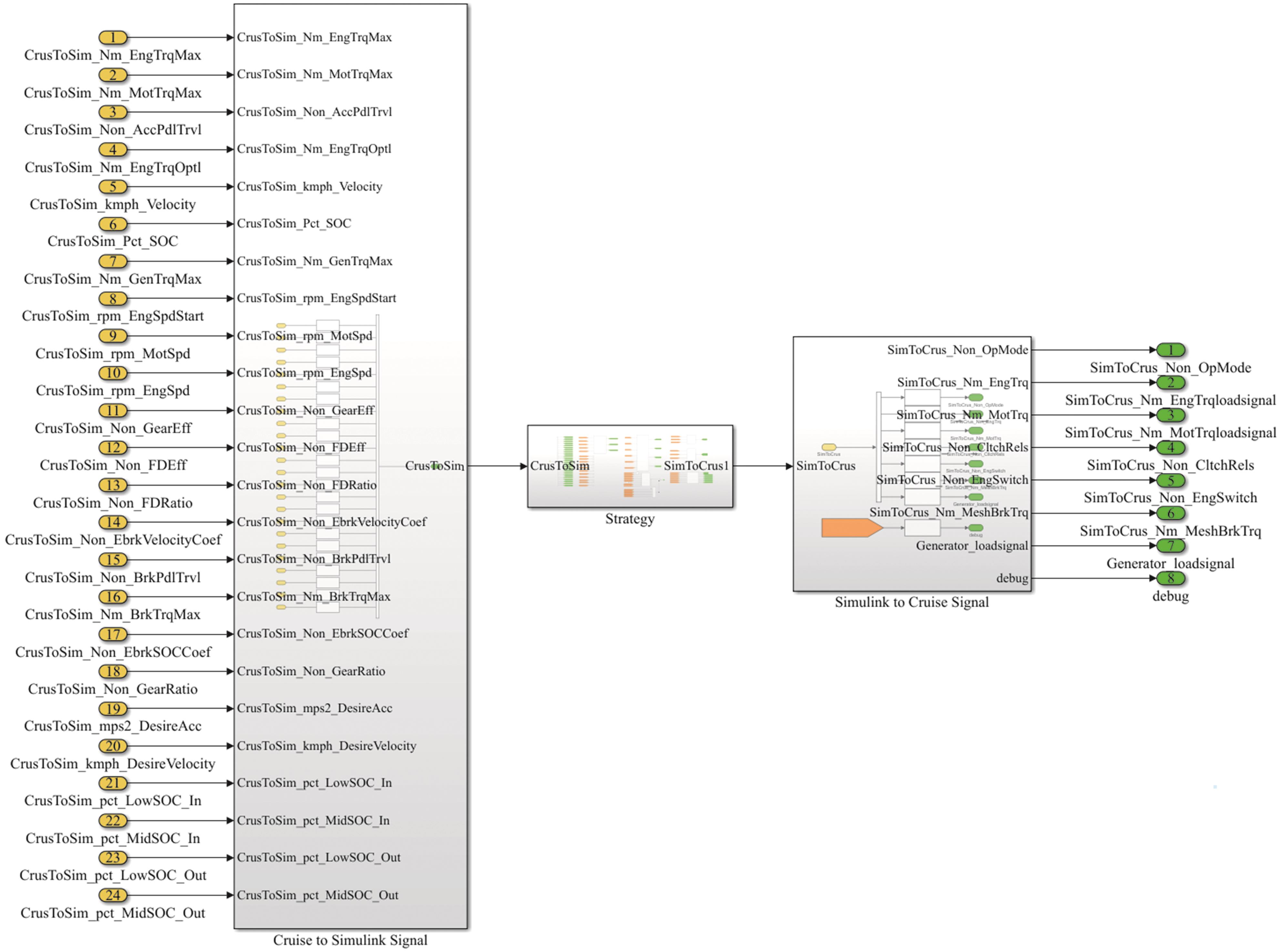

图6

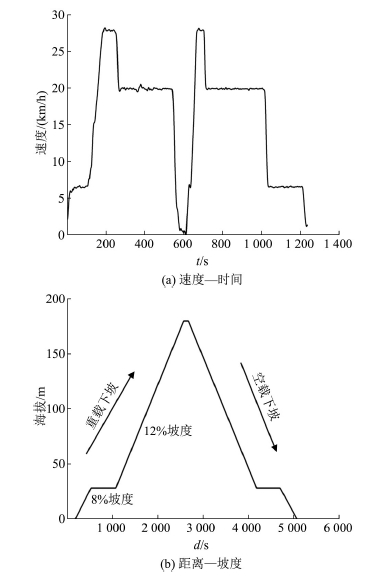

图7

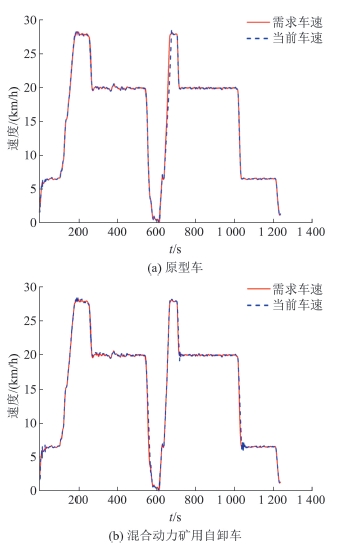

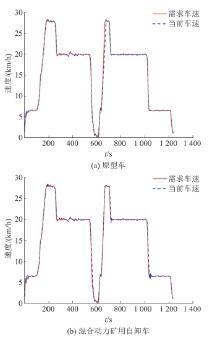

图8

图9

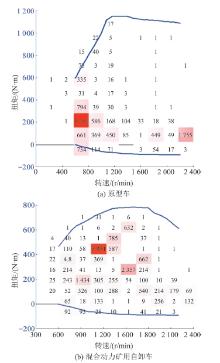

图10

图11

参考文献 20

1	孙蕾, 林歆悠, 莫李平. 基于随机模型预测控制的插电式混合动力汽车多目标能量管理策略[J]. 控制理论与应用, 2022, 39(12): 2274-2282.
	Sun Lei, Lin Xinyou, Mo Liping. Multi-objective Energy Management Strategy Based on Stochastic Model Predictive Control for a Plug-in Hybrid Electric Vehicle[J]. Control Theory & Applications, 2022, 39(12): 2274-2282.
2	文刚, 王宇航, 刘健, 等. 大型矿车能量回收变换器设计及其优化控制[J]. 电力电子技术, 2023, 57(8): 98-103.
	Wen Gang, Wang Yuhang, Liu Jian, et al. Design and Optimal Control of Energy Recovery Converter for Large Tramcar[J]. Power Electronics, 2023, 57(8): 98-103.
3	冯仁华, 孙旺兵, 赵智超, 等. 增程式混合动力汽车能量管理策略设计与优化研究[J]. 重庆理工大学学报(自然科学), 2022, 36(8): 11-20.
	Feng Renhua, Sun Wangbing, Zhao Zhichao, et al. Research on Energy Management Strategy Design and Optimization of Extended Range Hybrid Electric Vehicle[J]. Journal of Chongqing University of Technology(Natural Science), 2022, 36(8): 11-20.
4	韩爱国, 孟开创, 张瑞鹏, 等. 电辅助式混合动力矿用自卸车驱动系统设计与仿真研究[J]. 汽车技术, 2018(2): 29-35.
	Han Aiguo, Meng Kaichuang, Zhang Ruipeng, et al. Drive System Design and Simulation Research for Electrically Assisted Hybrid Mining Dump Truck[J]. Automobile Technology, 2018(2): 29-35.
5	武小兰, 白志峰, 史小辉, 等. PHEV模糊能量管理策略优化设计[J]. 系统仿真学报, 2018, 30(1): 242-248.
	Wu Xiaolan, Bai Zhifeng, Shi Xiaohui, et al. Optimization Design of Fuzzy Energy Management for Plug-in Hybrid Electric Vehicles[J]. Journal of System Simulation, 2018, 30(1): 242-248.
6	Maximiliano Asensio E, Magallán Guillermo A, Cristian H De Angelo, et al. Energy Management on Battery/Ultracapacitor Hybrid Energy Storage System Based on Adjustable Bandwidth Filter and Sliding-mode Control[J]. Journal of Energy Storage, 2020, 30: 101569.
7	Zdravković Stefan, Vujanović Davor, Stokić Marko, et al. Evaluation of Professional Driver's Eco-driving Skills Based on Type-2 Fuzzy Logic Model[J]. Neural Computing and Applications, 2021, 33(18): 11541-11554.
8	Qi Wanqiang. Fuzzy Control Strategy of Pure Electric Vehicle Based on Driving Intention Recognition[J]. Journal of Intelligent & Fuzzy Systems, 2020, 39(4): 5131-5139.
9	刘楠, 于博轩, 郭爱, 等. 燃料电池混合动力的功率跟随管理策略分析[J]. 西南交通大学学报, 2020, 55(6): 1147-1154.
	Liu Nan, Yu Boxuan, Guo Ai, et al. Analysis of Power Tracking Management Strategy for Fuel Cell Hybrid System[J]. Journal of Southwest Jiaotong University, 2020, 55(6): 1147-1154.
10	Lian Renzong, Peng Jiankun, Wu Yuankai, et al. Rule-interposing Deep Reinforcement Learning Based Energy Management Strategy for Power-split Hybrid Electric Vehicle[J]. Energy, 2020, 197: 117297.
11	朱兰馨, 周长登, 崔佳伦. 基于随机动态规划的PHEV队列分层优化控制策略研究[J]. 汽车技术, 2023(9): 9-17.
	Zhu Lanxin, Zhou Changdeng, Cui Jialun. Hierarchical Optimization Control Strategy for Plug-in Hybrid Electric Vehicles Queue Based on Stochastic Dynamic Programming[J]. Automobile Technology, 2023(9): 9-17.
12	付翔, 袁雷, 纪剑. 单轴并联式混合动力汽车动力系统转矩分配策略研究[J]. 公路交通科技, 2018, 35(1): 129-136.
	Fu Xiang, Yuan Lei, Ji Jian. Study on Torque Distribution Strategy of Power System of Single Axis Parallel Hybrid Power Vehicle[J]. Journal of Highway and Transportation Research and Development, 2018, 35(1): 129-136.
13	黄康, 王强, 邱明明, 等. 考虑模式切换频率的多模式混合动力汽车参数优化[J]. 西安交通大学学报, 2019, 53(7): 99-107.
	Huang Kang, Wang Qiang, Qiu Mingming, et al. Parameter Optimization of Multi-mode Hybrid Vehicle Considering Mode-switching Frequency[J]. Journal of Xi'an Jiaotong University, 2019, 53(7): 99-107.
14	唐智, 范晶晶, 魏鹏程, 等. 基于动态规划的混联式混合动力客车能量管理控制策略研究[J]. 重庆理工大学学报(自然科学), 2019, 33(3): 59-65.
	Tang Zhi, Fan Jingjing, Wei Pengcheng, et al. Energy Management Control Strategy for Serial-parallel Hybrid Bus Based on Dynamic Programming[J]. Journal of Chongqing University of Technology(Natural Science), 2019, 33(3): 59-65.
15	Krishna Veer Singh, Hari Om Bansal, Singh Dheerendra. Feed-forward Modeling and Real-time Implementation of an Intelligent Fuzzy Logic-based Energy Management Strategy in a Series-parallel Hybrid Electric Vehicle to Improve Fuel Economy[J]. Electrical Engineering, 2020, 102(2): 967-987.
16	陈超, 赵亮, 鲍久圣, 等. 重型运输车驱动技术现状及分布式混合动力方案探究[J]. 煤炭技术, 2019, 38(11): 163-167.
	Chen Chao, Zhao Liang, Bao Jiusheng, et al. Present Situation of Heavy Truck Driving Technology and Study on Scheme of Distributed Hybrid Power System[J]. Coal Technology, 2019, 38(11): 163-167.
17	鲍久圣, 邹学耀, 陈超, 等. 重型煤炭运输车分布式混合动力系统设计及控制策略[J]. 煤炭学报, 2021, 46(2): 667-676.
	Bao Jiusheng, Zou Xueyao, Chen Chao, et al. Design and Control Strategy of Distributed Hybrid Drive System for Heavy Coal Trucks[J]. Journal of China Coal Society, 2021, 46(2): 667-676.
18	Laue Vincent, Röder Fridolin, Krewer Ulrike. Practical Identifiability of Electrochemical P2D Models for Lithium-ion Batteries[J]. Journal of Applied Electrochemistry, 2021, 51(9): 1253-1265.
19	Yan Haotian, Gajjar P D, Ezekoye O A. Electrothermal Characterization and Modeling of Lithium-ion Pouch Cells in Thermal Runaway[J]. Fire Technology, 2023, 59(2): 623-661.
20	Qian Kangfeng, Liu Xintian, Wang Yiquan, et al. Modified Dual Extended Kalman Filters for SOC Estimation and Online Parameter Identification of Lithium-ion Battery via Modified Gray Wolf Optimizer[J]. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 2022, 236(8): 1761-1774.

参数名称	数值
轴数	6×4
驱动轮数	4
整备质量/kg	11 000
额定载重量/kg	22 000
外形尺寸(长×宽×高)/mm	7 600×2 450×2 500
车轮半径/m	0.483
迎风面积/m²	6.13
轴距/mm	3 600+1 600
风阻系数	0.65
主减速比	6.62/20.68
变速箱传动比	9.3/5.43/3.64/2.53/1.92/1.33/1

名称	参数
发动机	6缸，额定功率140 kW，额定转矩780 N·m，额定转速2 200 r/min

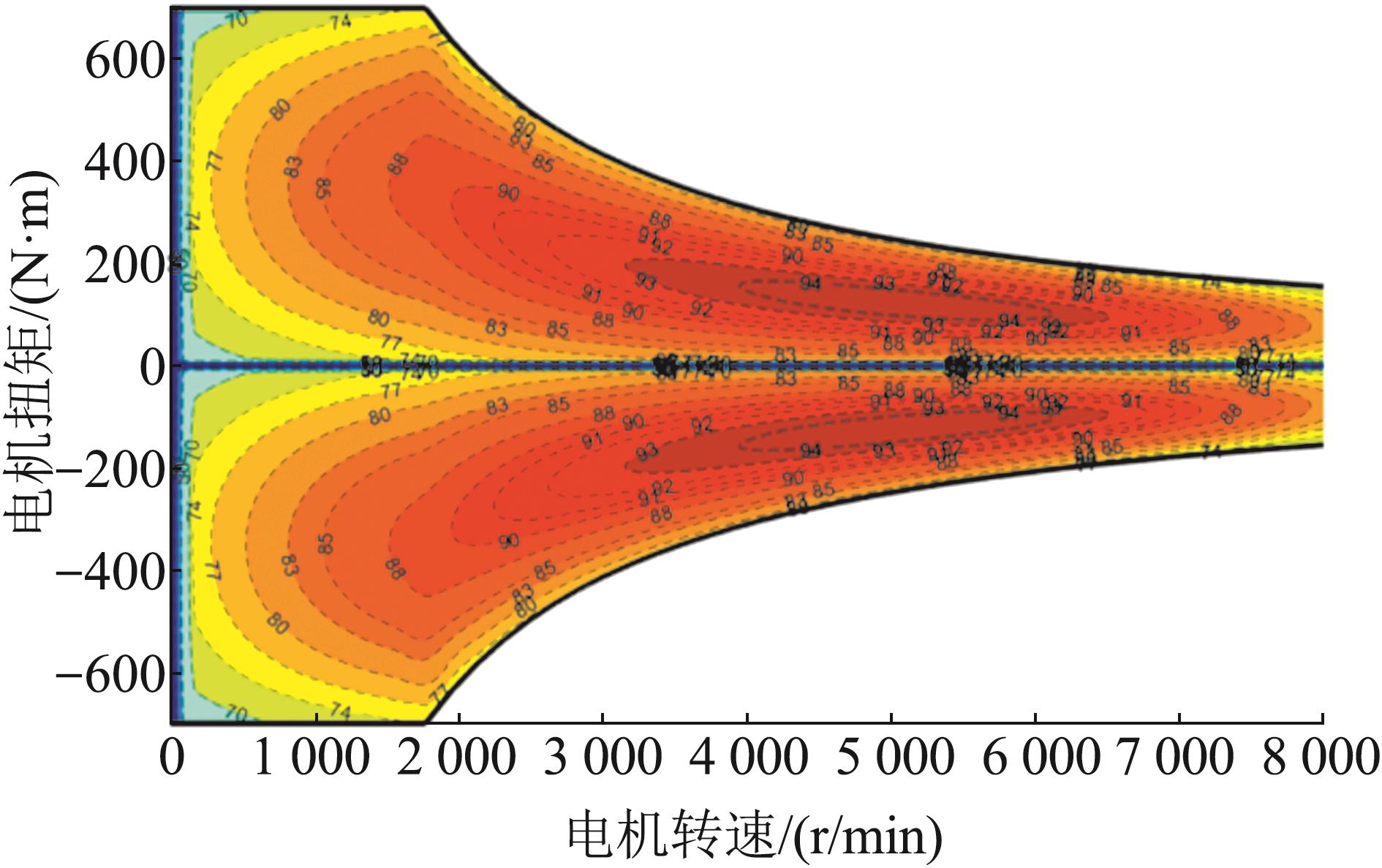

电机	最大扭矩710 N·m，额定功率76 kW，额定扭矩300 N·m
动力电池	容量175 Ah

变量名	含义	门限值
C_c	动力电池当前SoC值	—
C_l/%	允许动力电池放电最小电荷量	10
C_h/%	允许动力电池充电最大电荷量	85
T_req	车辆需求扭矩	—
T_{e_l}	发动机低负荷转矩曲线	查表
T_{e_h}	发动机高负荷转矩曲线	查表
u/(km/h)	允许制动能量回收的最小车速	3
