两栖车辆海上偏航试验仿真技术研究

doi:10.16182/j.issn1004731x.joss.25-1035

摘要/Abstract

摘要：

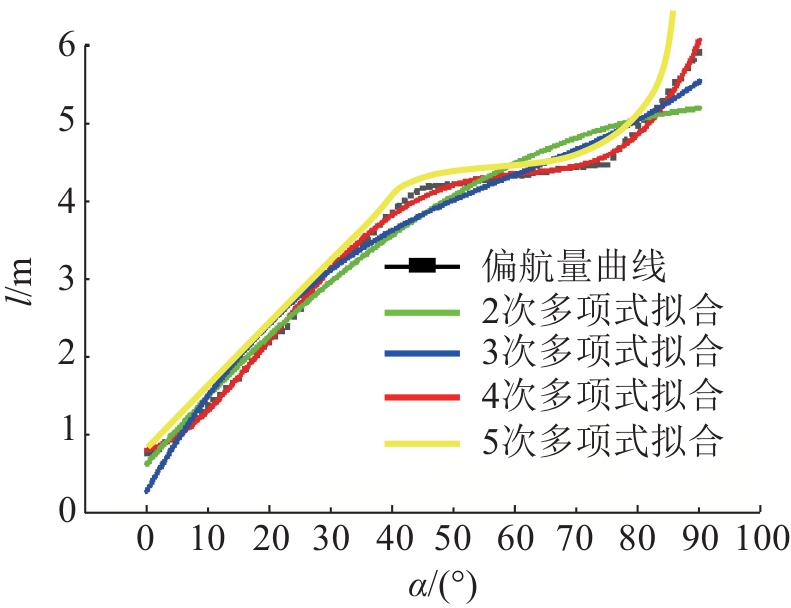

针对两栖车海上偏航试验中极限工况难以实现、偏航性能边界条件不明的问题，提出基于CFD仿真与三维水动力分层模型的航向‒流向夹角映射分析方法。以2级(波高0.5 m、风速3.3 m/s)和3级(波高1.0 m/s、风速5.1 m/s)海况为环境条件，模拟百米偏航试验，揭示偏航量与航向‒流向夹角的非线性演化规律。仿真结果表明：2级海况下极限偏航量为4.94 m，满足航向保持要求；3级海况下极限偏航量达5.92 m，超出临界阈值。通过数据拟合建立0~90°范围内四次多项式映射模型(拟合精度99.83%)，确定3级海况下偏航量不超限的边界条件为航向‒流向夹角小于80.4°。该方法为两栖车海上偏航性能评估与试验设计提供了量化依据和先验验证手段。

关键词: 两栖车, 百米偏航试验, CFD仿真, 航向流向夹角, 性能底数验证

Abstract:

Addressing the challenges of achieving extreme operating conditions and understanding the boundary conditions of yaw performance in offshore yaw tests for amphibious vehicles, a heading-flow direction angle mapping analysis method based on computational fluid dynamics (CFD) simulation and a three-dimensional hydrodynamic stratified model is proposed. Under environmental conditions of second-level (wave height of 0.5 m, wind speed of 3.3 m/s) and third-level (wave height of 1.0 m, wind speed of 5.1 m/s) sea states, a hundred-meter yaw test is simulated to reveal the nonlinear evolution law of yaw displacement and heading-flow direction angle. The research indicates that the extreme yaw displacement under sea state 2 is 4.94 m, meeting the heading maintenance requirements; under sea state 3, the extreme yaw displacement reaches 5.92 m, exceeding the critical threshold. A quartic polynomial mapping model within the range of 0~90° is established through data fitting (fitting accuracy of 99.83%), determining that the boundary condition for the yaw displacement not exceeding the limit under sea state 3 is a heading-flow direction angle less than 80.4°. This method provides a quantitative basis and a priori verification method for the evaluation and test design of offshore yaw performance of amphibious vehicles.

Key words: amphibious vehicle, 100-meters yaw test, computational fluid dynamics (CFD) simulation, heading-flow direction angle, performance base verification

中图分类号:

TJ811+.6

钟岳,季文龙,冯世琪等 . 两栖车辆海上偏航试验仿真技术研究[J]. 系统仿真学报, 2026, 38(9): 2647-2658.

Zhong Yue,Ji Wenlong,Feng Shiqi,et al . Research on Simulation Technology of Sea Yawing Test for Amphibious Vehicles[J]. Journal of System Simulation, 2026, 38(9): 2647-2658.

图/表 18

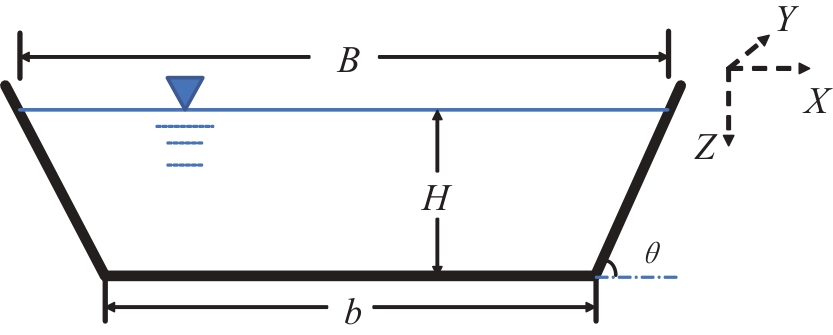

图1

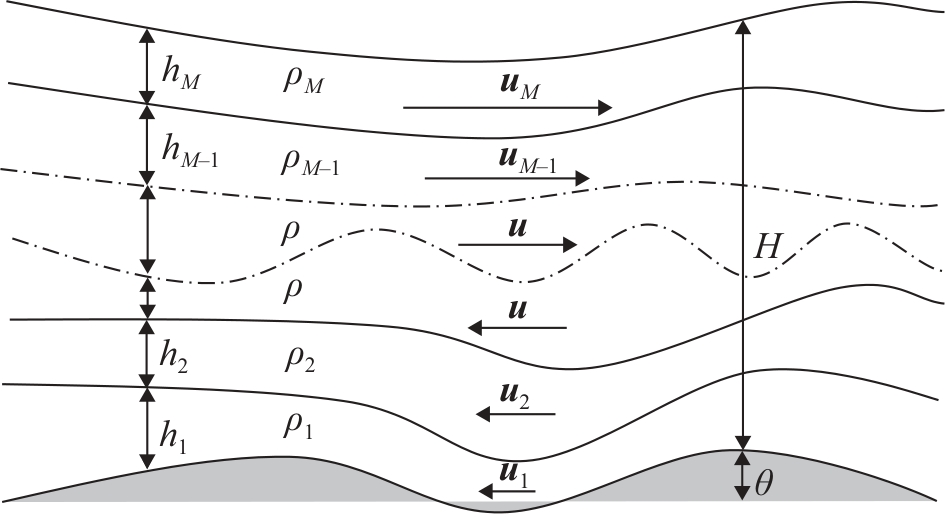

图2

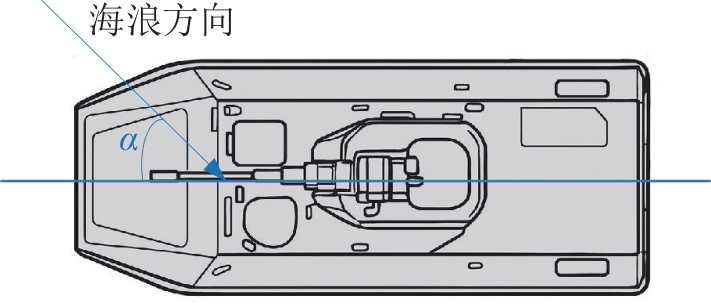

图3

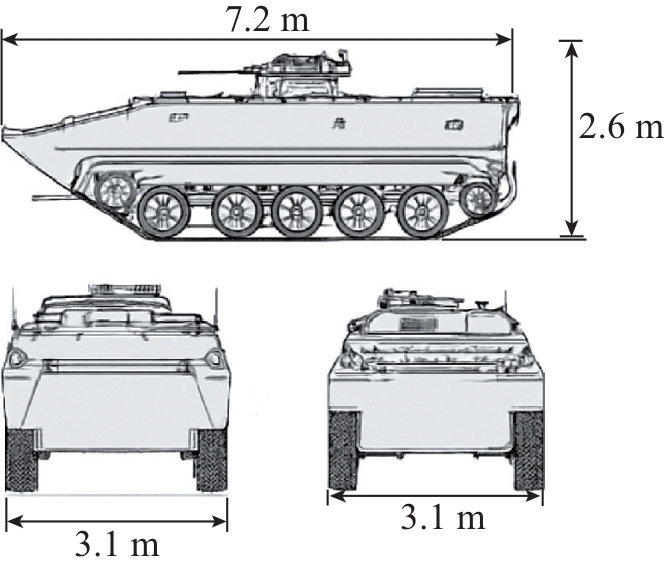

图4

表1

表2

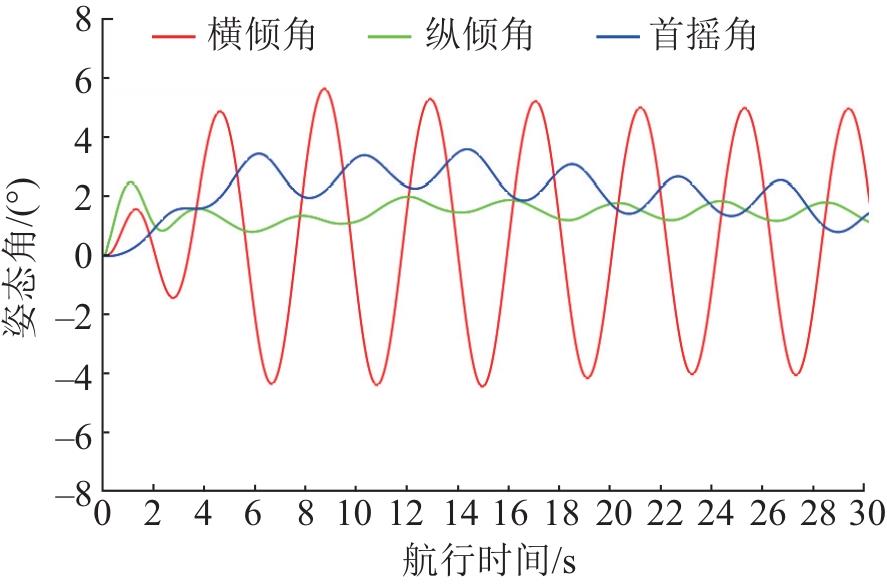

图5

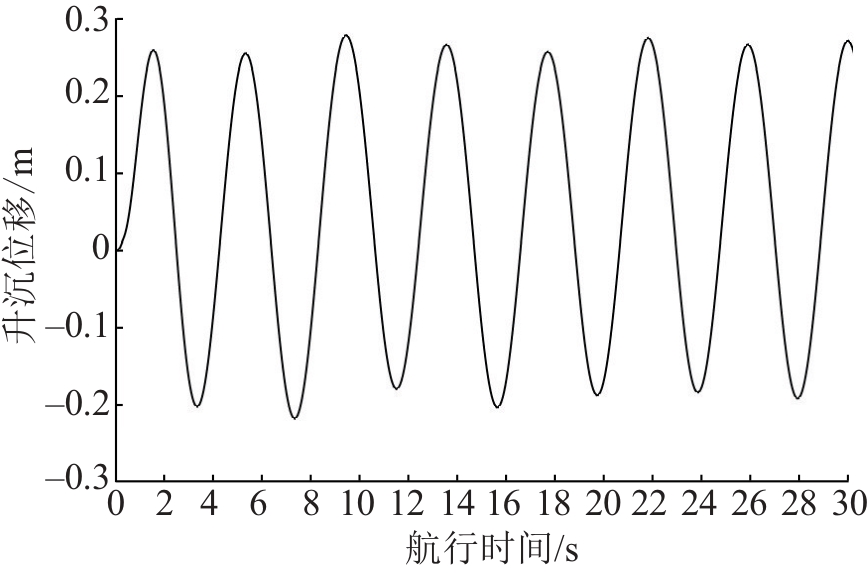

图6

图7

表3

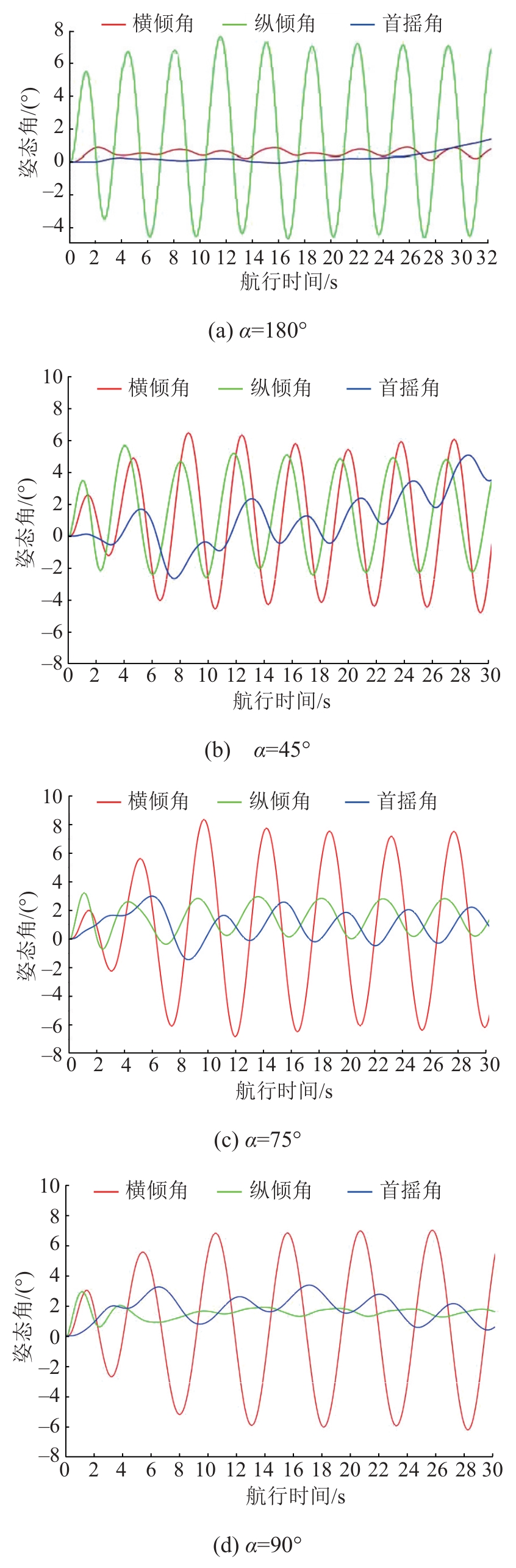

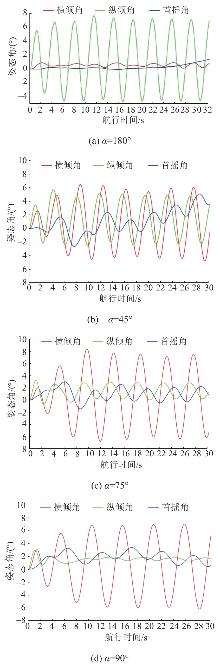

图8

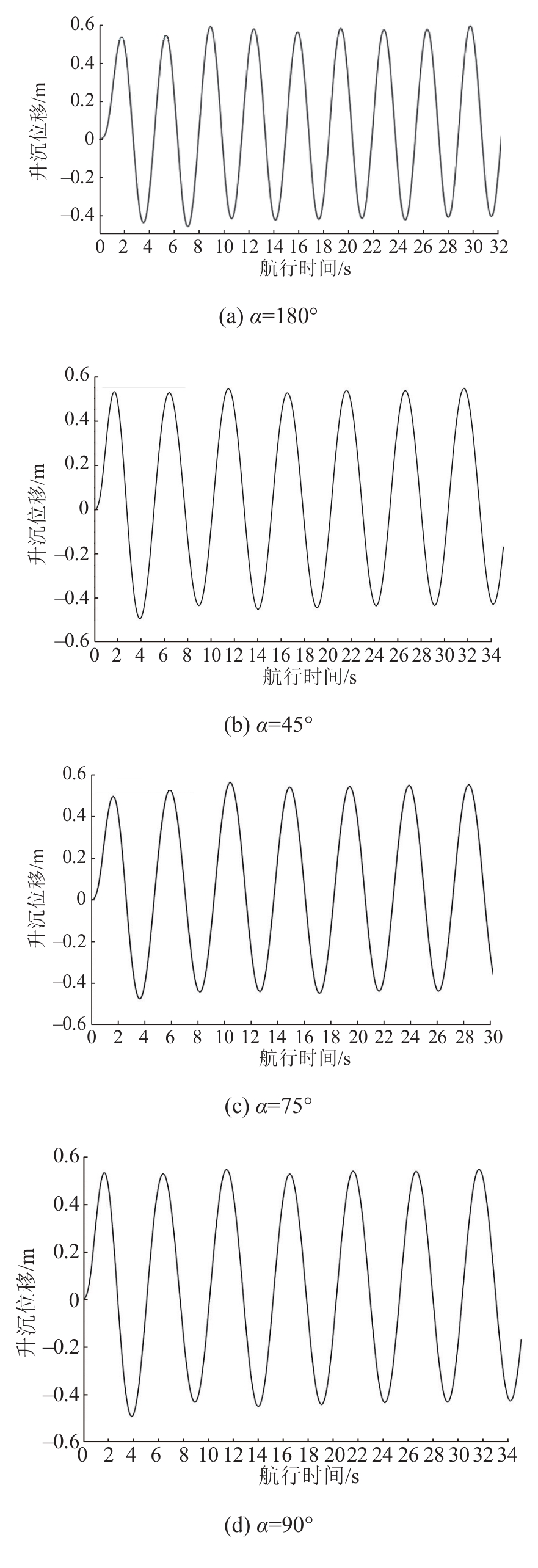

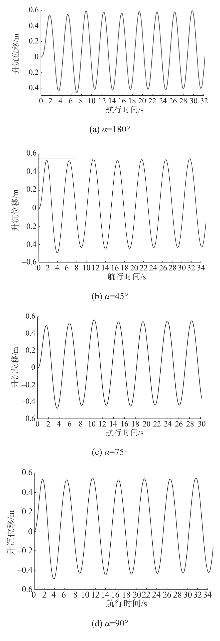

图9

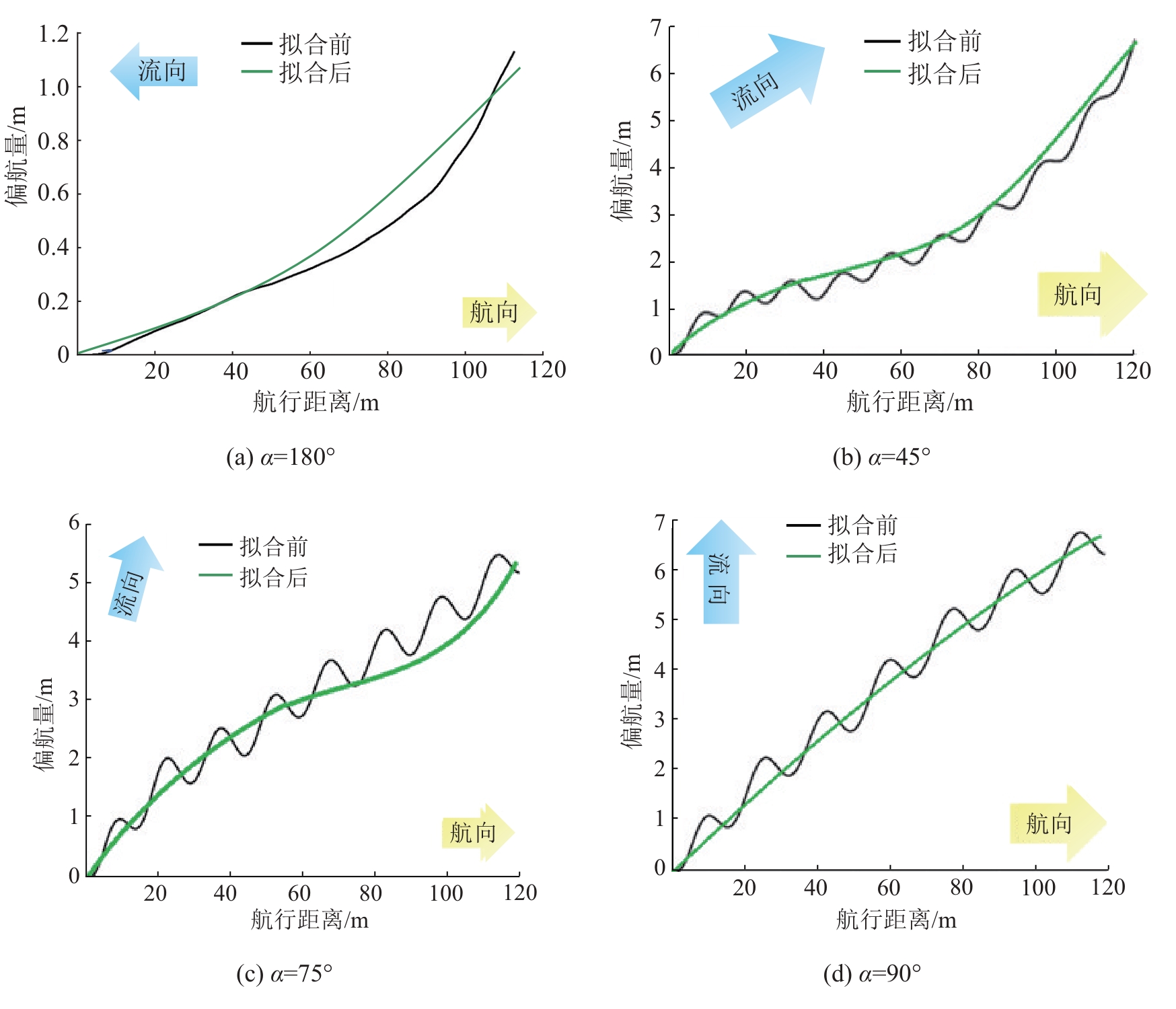

图10

表4

表5

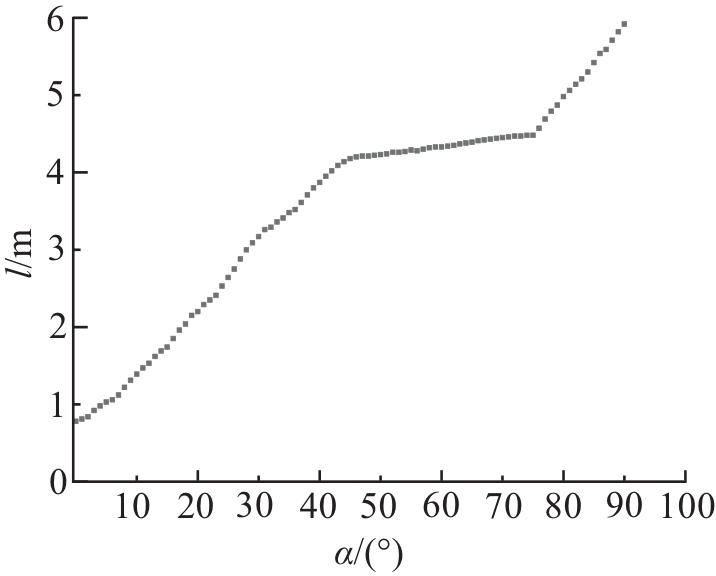

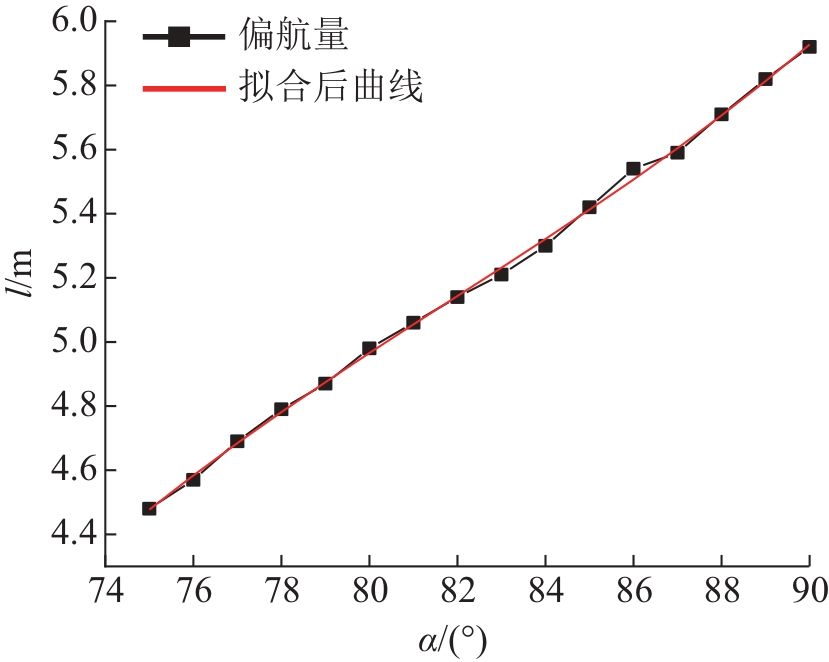

75°~90°区间内偏航值变化

$α$ /(°)	百米偏航值/m	$α$ /(°)	百米偏航值/m
75	4.48	83	5.21
76	4.57	84	5.30
77	4.69	85	5.42
78	4.79	86	5.54
79	4.87	87	5.59
80	4.98	88	5.71
81	5.06	89	5.82
82	5.14	90	5.92

表5

图11

图12

图13

参考文献 25

[1]	Sun Chengliang, Xu Xiaojun, Wang Wenhao, et al. Influence on Stern Flaps in Resistance Performance of a Caterpillar Track Amphibious Vehicle[J]. IEEE Access, 2020, 8: 123828-123840.
[2]	王少新, 王涵, 金国庆, 等. 水陆两栖车水动力性能与防浪板受力特性研究[J]. 兵器装备工程学报, 2020, 41(1): 1-6.
	Wang Shaoxin, Wang Han, Jin Guoqing, et al. Study on Hydrodynamic Performance of Amphibious Vehicle and Mechanical Characteristics of Wave Board[J]. Journal of Ordnance Equipment Engineering, 2020, 41(1): 1-6.
[3]	王超, 李秋月, 赵雷明, 等. 耦合黏-势流数值计算的CLT桨水动力性能预报[J]. 华中科技大学学报(自然科学版), 2024, 52(4): 82-87.
	Wang Chao, Li Qiuyue, Zhao Leiming, et al. Prediction for Hydrodynamic Performance of CLT Propeller by Coupling Viscous and Potential Numerical Calculation[J]. Journal of Huazhong University of Science and Technology(Natural Science Edition), 2024, 52(4): 82-87.
[4]	王野, 陈慧岩, 席军强, 等. 水陆两栖车辆水上航行研究综述[J]. 兵工学报, 2025, 46(7): 11-37.
	Wang Ye, Chen Huiyan, Xi Junqiang, et al. An Overview of Research on Navigation of Amphibious Vehicle on Water[J]. Acta Armamentarii, 2025, 46(7): 11-37.
[5]	Marquardt J G, Alvarez J, D von Ellenrieder Karl. Characterization and System Identification of an Unmanned Amphibious Tracked Vehicle[J]. IEEE Journal of Oceanic Engineering, 2014, 39(4): 641-661.
[6]	Jang Jung-Yau, Liu Tsung-Lung, Pan Kuancheng. Numerical Investigation on the Hydrodynamic Performance of Amphibious Wheeled Armored Vehicles[J]. Journal of the Chinese Institute of Engineers, 2019, 42(8): 700-711.
[7]	Sun Chengliang, Xu Xiaojun, Zhang Lei, et al. Investigation on Hydrodynamic Evaluation of an Amphibious Transport Vehicle[C]//2021 IEEE International Conference on Electrical Engineering and Mechatronics Technology (ICEEMT). Piscataway: IEEE, 2021: 412-416.
[8]	Shihua J M, Liem R P, Li Ye. An Improved Experimental Framework of Amphibious Marine Vehicle Hull Hydrodynamics[J]. IEEE Journal of Oceanic Engineering, 2024, 49(1): 80-91.
[9]	王少新, 金国庆, 王涵, 等. 双车厢两栖车静水直航下的水动力性能研究[J]. 兵工学报, 2020, 41(3): 434-441.
	Wang Shaoxin, Jin Guoqing, Wang Han, et al. Research on the Hydrodynamic Performance of a Double-carriage Amphibious Vehicle Sailing in Still Water[J]. Acta Armamentarii, 2020, 41(3): 434-441.
[10]	张国卿, 冯亿坤, 徐小军. 进水流道对水陆两栖车水动力性能的影响研究[J]. 华中科技大学学报(自然科学版), 2024, 52(10): 47-53.
	Zhang Guoqing, Feng Yikun, Xu Xiaojun. Research on Effect of Inlet Duct on Hydrodynamic Performance of Amphibious Vehicle[J]. Journal of Huazhong University of Science and Technology(Natural Science Edition), 2024, 52(10): 47-53.
[11]	王野, 陈慧岩, 汪泰霖, 等. 矢量喷水推进两栖车航行姿态的数值及试验分析[J]. 兵工学报, 2022, 43(12): 3172-3185.
	Wang Ye, Chen Huiyan, Wang Tailin, et al. Numerical and Experimental Analysis on the Navigation Attitude of Vector Waterjet Propelled Amphibian Vehicles[J]. Acta Armamentarii, 2022, 43(12): 3172-3185.
[12]	鲁航, 刘昊然, 陈泰然, 等. 喷水推进两栖车辆水面航行特性试验与数值计算研究[J]. 兵工学报, 2024, 45(8): 2629-2645.
	Lu Hang, Liu Haoran, Chen Tairan, et al. Experimental and Numerical Study on Navigation Characteristics of Waterjet Propulsion Amphibian Vehicle[J]. Acta Armamentarii, 2024, 45(8): 2629-2645.
[13]	鲁航, 张富毅, 陈泰然, 等. 喷水推进舰艇自航运动数值计算研究[J]. 船舶力学, 2022, 26(8): 1140-1149.
	Lu Hang, Zhang Fuyi, Chen Tairan, et al. Numerical Investigation on the Self-propelled Motion of Water Jet Propelled Ship[J]. Journal of Ship Mechanics, 2022, 26(8): 1140-1149.
[14]	汪泰霖, 王野, 张富毅, 等. 水陆两栖车矢量喷口装置设计与仿真[J]. 兵工学报, 2022, 43(4): 826-850.
	Wang Tailin, Wang Ye, Zhang Fuyi, et al. Design and Simulation of Vector Nozzle on Amphibious Vehicle[J]. Acta Armamentarii, 2022, 43(4): 826-850.
[15]	陈泰然, 耿昊, 王典, 等. 水陆两栖车辆水上运动特性实时仿真系统研究[J]. 兵工学报, 2024, 45(5): 1402-1415.
	Chen Tairan, Geng Hao, Wang Dian, et al. Research on the Real-time Simulation System for Hydrodynamic Characteristics of Amphibious Vehicle[J]. Acta Armamentarii, 2024, 45(5): 1402-1415.
[16]	Tan Qifan, Zhang Xinyu, Liu Huaping, et al. Multimodal Dynamics Analysis and Control for Amphibious Fly-drive Vehicle[J]. IEEE/ASME Transactions on Mechatronics, 2021, 26(2): 621-632.
[17]	李抗彬, 沈冰, 李智录, 等. 基于非恒定水流模拟的渠道运行状态分析及渗漏检测方法[J]. 农业工程学报, 2011, 27(6): 13-18.
	Li Kangbin, Shen Bing, Li Zhilu, et al. Irrigation Canal Running Status Analysis and Leakage Detection Method Based on Unsteady Flow Simulation[J]. Transactions of the Chinese Society of Agricultural Engineering, 2011, 27(6): 13-18.
[18]	Liu Yuhong, Yang Yanpeng, Zhang Hongwei, et al. Computational Fluid Dynamics Prediction of the Dynamic Behavior of Autonomous Underwater Vehicles[J]. IEEE Journal of Oceanic Engineering, 2020, 45(3): 724-739.
[19]	张小峰. 圣维南方程处理普适性问题的方法及其科学意义[J]. 泥沙研究, 2023, 48(5): 75-80.
	Zhang Xiaofeng. The Method of Dealing with Universal Problems in Saint Venant's Equations and Its Scientific Significance[J]. Journal of Sediment Research, 2023, 48(5): 75-80.
[20]	Ruan Kunlin, Fu Xianlei. A Modified Kozeny-carman Equation for Predicting Saturated Hydraulic Conductivity of Compacted Bentonite in Confined Condition[J]. Journal of Rock Mechanics and Geotechnical Engineering, 2022, 14(3): 984-993.
[21]	孙卫红, 逄勇, 姚琪. 三维水动力学方程模拟太湖风生流[J]. 水资源保护, 2003, 19(3): 27-30.
	Sun Weihong, Pang Yong, Yao Qi. Simulation of Wind-driven Circulation in Taihu Lake by 3-D Hydrodynamic Equations[J]. Water Resources Protection, 2003, 19(3): 27-30.
[22]	王峰, 刘双瑞, 王佳盈, 等. 尺寸和形状效应对多孔结构风阻系数的影响[J]. 吉林大学学报(工学版), 2023, 53(6): 1677-1685.
	Wang Feng, Liu Shuangrui, Wang Jiaying, et al. Size and Shape Effects of Wind Drag Coefficients for Porous Structures[J]. Journal of Jilin University(Engineering and Technology Edition), 2023, 53(6): 1677-1685.
[23]	Zhang Xiaobin, Zhang Wei, Zhang Xuejun. Modeling Droplet Vaporization and Combustion with the Volume of Fluid Method at a Small Reynolds Number[J]. Journal of Zhejiang University Science A, 2012, 13(5): 361-374.
[24]	张玉全, 刘志强, 张继生, 等. 偏航工况下潮流能水轮机水动力特性[J]. 中国电机工程学报, 2023, 43(15): 5925-5932.
	Zhang Yuquan, Liu Zhiqiang, Zhang Jisheng, et al. Hydrodynamic Characteristics of Tidal Current Turbine Under Yaw Condition[J]. Proceedings of the CSEE, 2023, 43(15): 5925-5932.
[25]	Kumar Praveen, Priyanka P, Dhanya J, et al. Analyzing the Performance of Univariate and Multivariate Machine Learning Models in Soil Movement Prediction:A Comparative Study[J]. IEEE Access, 2023, 11: 62368-62381.

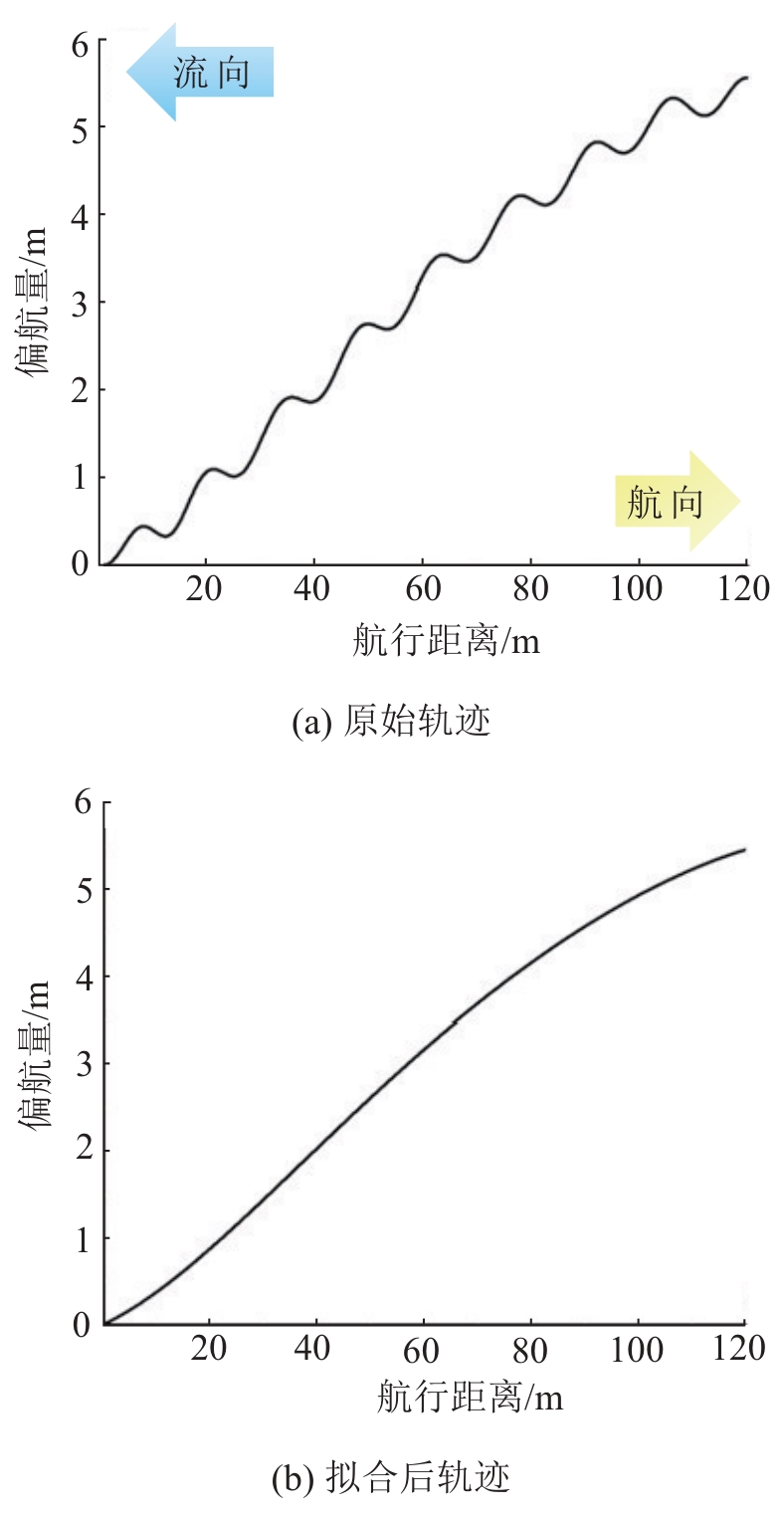

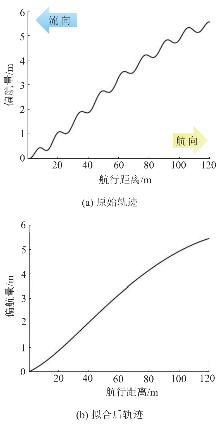

航行距离/m	偏航量/m
20	0.89
40	2.08
60	3.21
80	4.20
100	4.94
