微焦点X射线管的仿真设计

doi:10.16182/j.issn1004731x.joss.25-1028

系统仿真学报 ›› 2026, Vol. 38 ›› Issue (9): 2607-2615.doi: 10.16182/j.issn1004731x.joss.25-1028

• 论文 • 上一篇

微焦点X射线管的仿真设计

赵浩东¹, 魏世宗², 俞道龙², 刘志霞², 陈越中², 徐季¹

^1.南京信息工程大学集成电路学院，江苏南京 210000
^2.南京信息工程大学电子与信息工程学院，江苏南京 210000

收稿日期:2025-10-23 修回日期:2025-12-12 出版日期:2026-09-30 发布日期:2026-10-02
通讯作者: 徐季
第一作者简介:赵浩东(2001-)，男，硕士生，研究方向为微焦点X射线源。
基金资助:
国家重点研发计划课题(2022YFB4401301);国家自然科学基金(92264103);国家自然科学基金(62401399)

Design and Research of a Microfocus X-Ray Tube

Zhao Haodong¹, Wei Shizong², Yu Daolong², Liu Zhixia², Chen Yuezhong², Xu Ji¹

^1.School of Integrated Circuits, Nanjing University of Information Science and Technology, Nanjing 210000, China
^2.School of Electronics and Information Engineering, Nanjing University of Information Science and Technology, Nanjing 210000, China

Received:2025-10-23 Revised:2025-12-12 Online:2026-09-30 Published:2026-10-02
Contact: Xu Ji

摘要/Abstract

摘要：

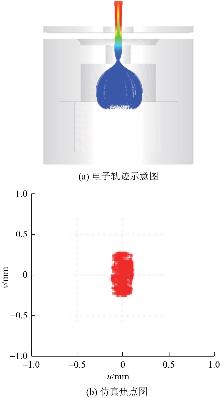

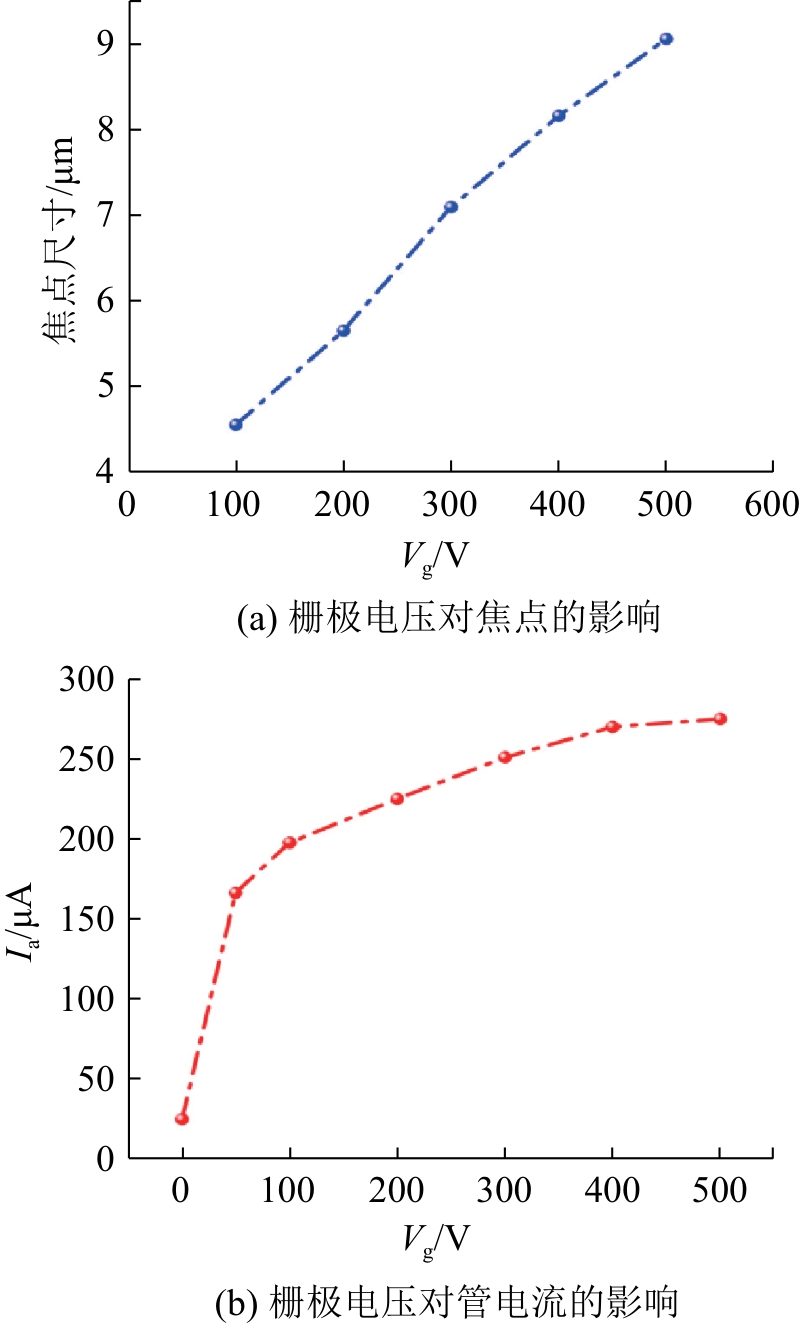

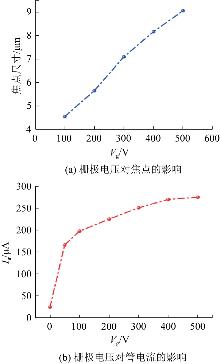

随着高分辨率成像与微纳检测技术的迅速发展，微焦点X射线源在工业无损检测、生物医学成像及材料微结构分析等领域展现出广泛应用前景。实现亚10微米级焦点尺寸对于提升空间分辨率具有关键意义，但传统X射线管受限于热源尺寸、电子束发散与聚焦能力，难以兼顾焦点微型化与足够的辐射强度。采用CST有限元电磁仿真软件对热阴极电子枪进行建模。通过仿真分析第一阳极对阴极发射电子的影响，并引入带聚焦电极的控制结构对发射电子进行预聚焦，以获得理想的电子束形状和稳定发射电流。系统性分析了聚焦电极、栅极电压及阳极电压对焦斑尺寸和管电流的影响。最终设计实现焦点尺寸约5 $μ m$ 的微聚焦X射线管。

关键词: 焦点尺寸, 聚焦电极, 管电流, 电子枪, 聚焦结构

Abstract:

With the rapid advancement of high-resolution imaging and Micro-nano detection technology, microfocus X-ray sources show great potential for applications in industrial non-destructive testing, biomedical imaging, and material microstructure analysis. Achieving a focal spot size below 10  $μ m$ is essential for enhancing spatial resolution. However, traditional X-ray tubes are constrained by heat source dimensions, electron beam divergence, and limited focusing capabilities, which makes it challenging to simultaneously achieve focal spot miniaturization and adequate radiation intensity. In this study, a hot cathode electron gun is modeled using CST particle studio. Simulations are conducted to analyze the influence of the first anode on electrons emitted from the cathode.A control structure with a focusing electrode is implemented to pre-focus the emitted electrons, aiming to achieve an appropriate electron beam shape and stable emission current. The effects of the focusing electrode, gate voltage, and anode voltage on the focal spot size and tube current are systematically analyzed. Ultimately,a micro-focus X-ray tube with a focal spot size of approximately 5 $μ m$ is achieved in the final design.

Key words: focus size, focusing electrode, tube current, electron gun, focus on structure

中图分类号:

TN24

赵浩东,魏世宗,俞道龙等 . 微焦点X射线管的仿真设计[J]. 系统仿真学报, 2026, 38(9): 2607-2615.

Zhao Haodong,Wei Shizong,Yu Daolong,et al . Design and Research of a Microfocus X-Ray Tube[J]. Journal of System Simulation, 2026, 38(9): 2607-2615.

图/表 14

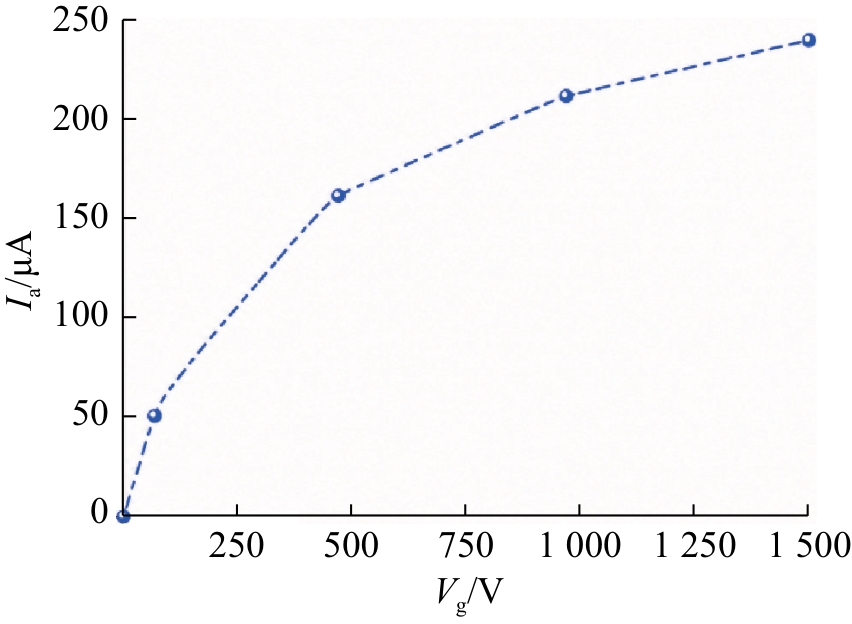

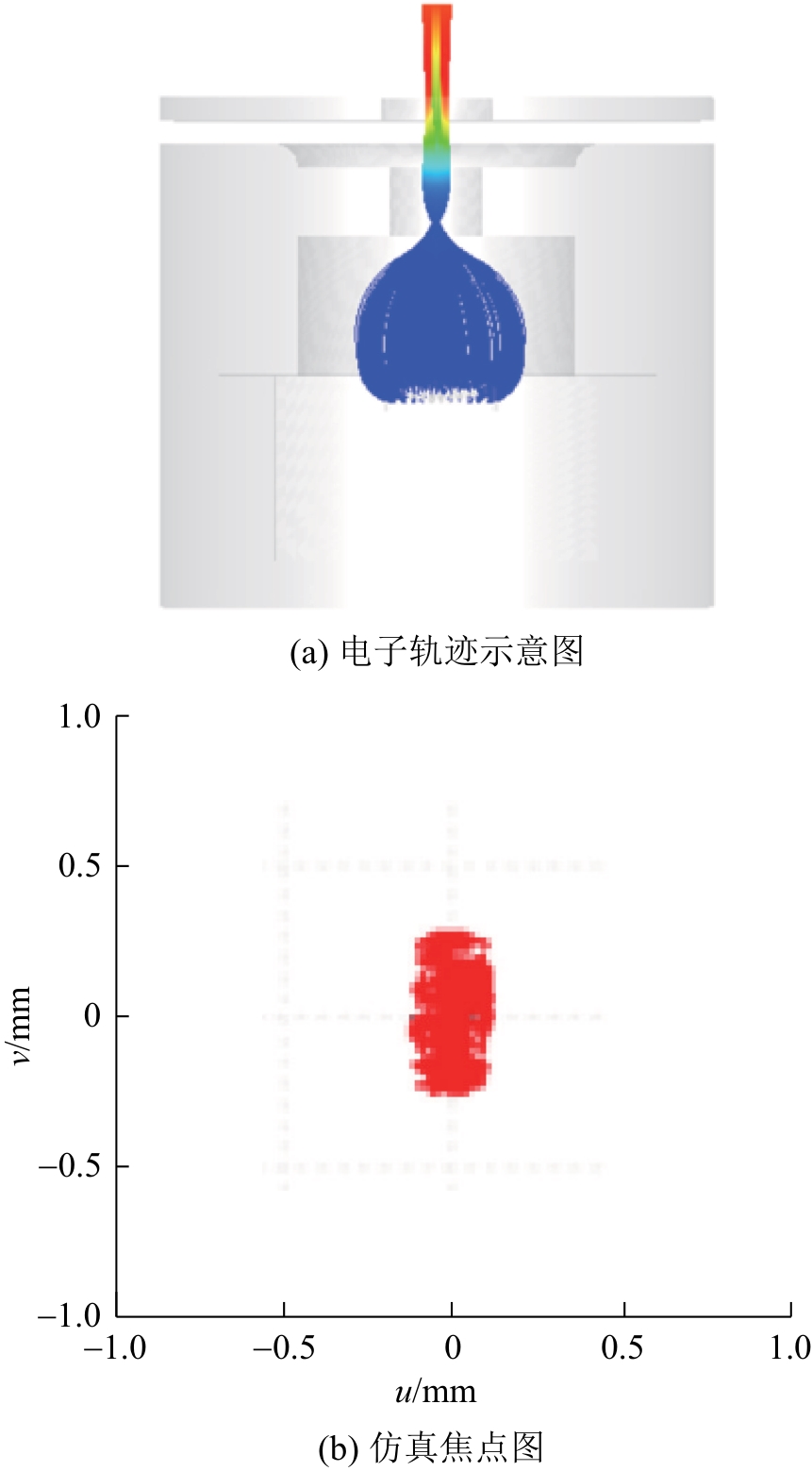

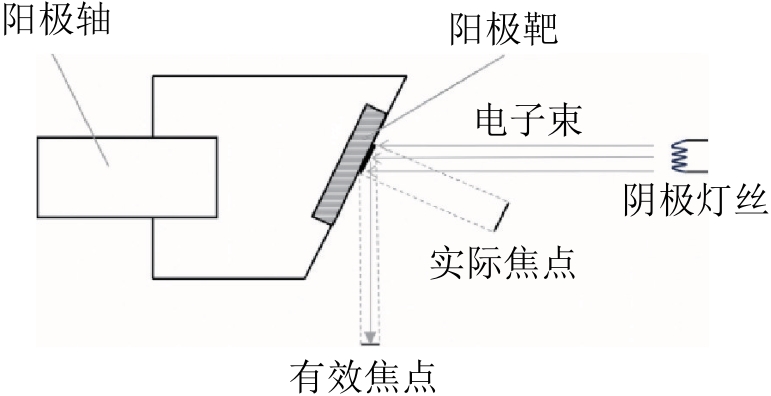

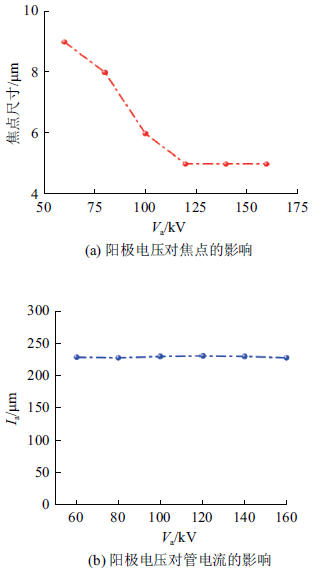

图1

图2

图3

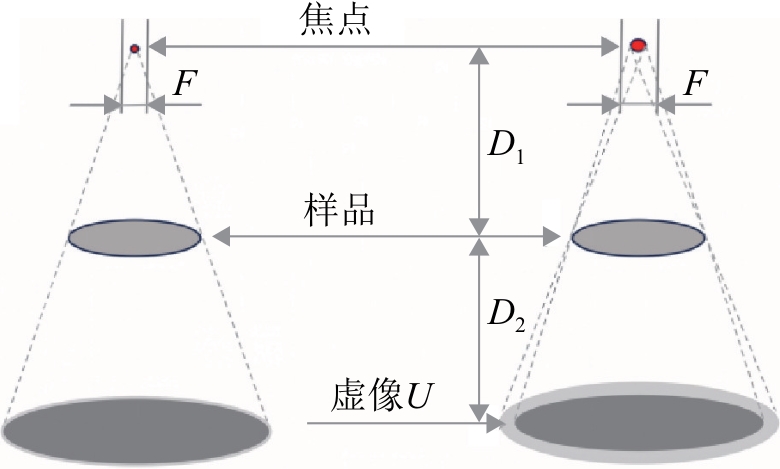

图4

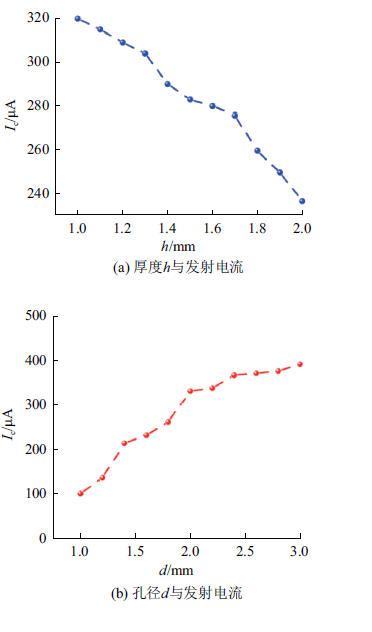

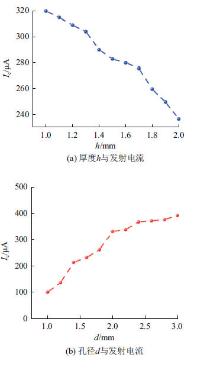

图5

图6

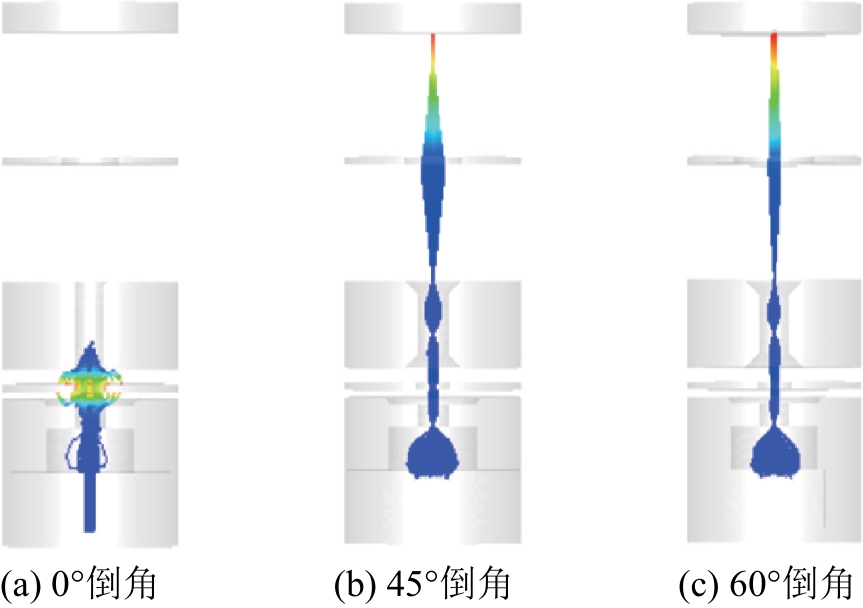

图7

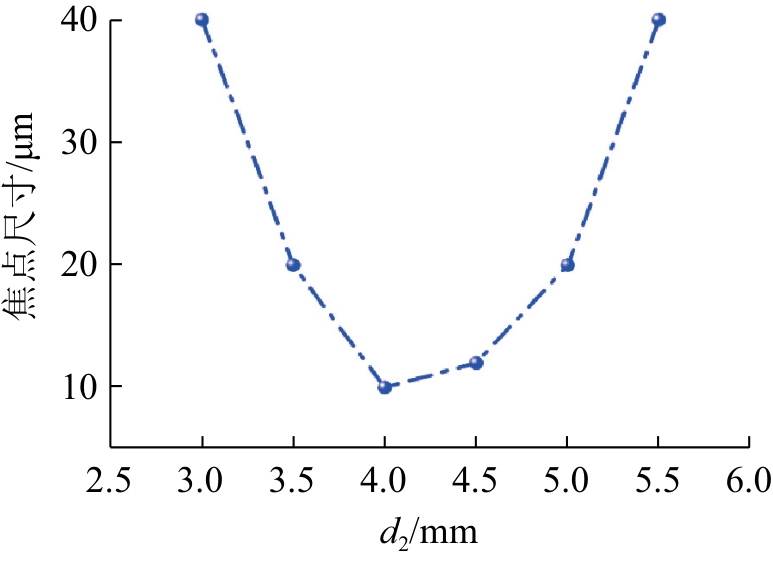

图8

图9

图10

表1

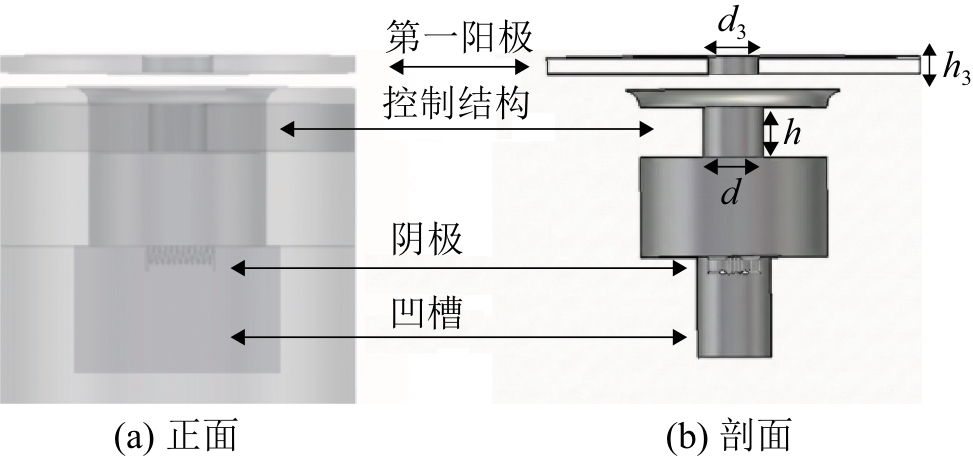

电子枪结构尺寸 (mm)

R	$R 1$	$R 2$	d	h	$h 3$	d₃
2.4	2	1	2	1.5	0.5	1.6

表1

表2

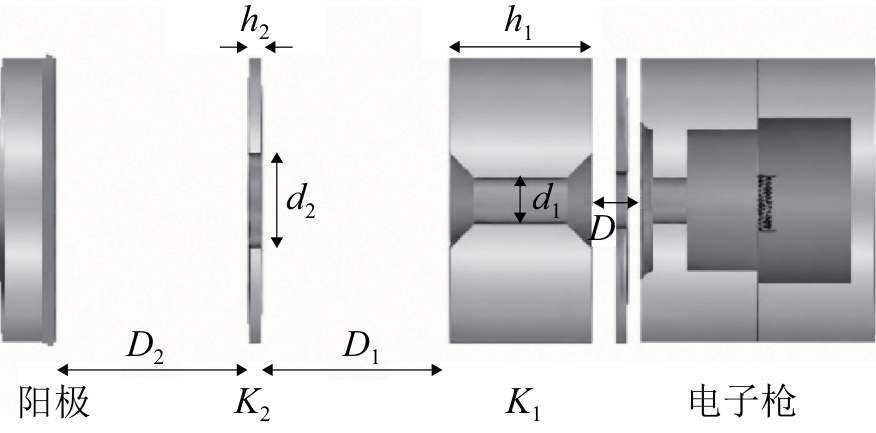

聚焦结构尺寸 (mm)

D	$D 1$	$D 2$	$h 1$	$h 2$	$d 1$	$d 2$
1	8	7.5	6	1.5	2	5

表2

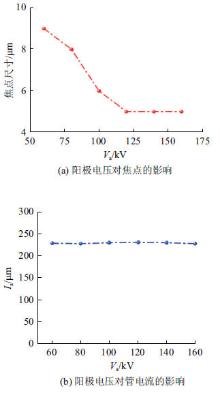

图11

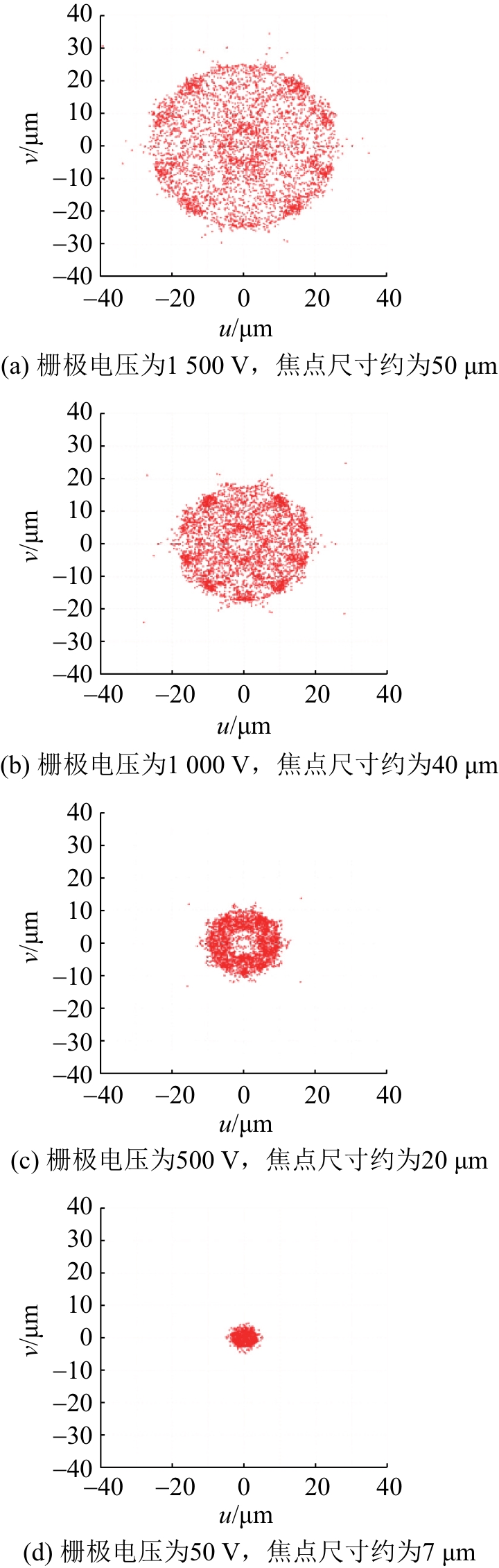

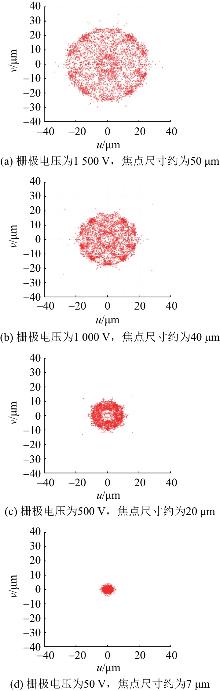

图12

参考文献 25

[1]	Kienböck R. Über Die Einwirkung des Röntgen-lichtes Auf Die Haut[M]. [S.l.] : Braumüller, 1900.
[2]	Giannini Cinzia, Ladisa Massimo, Altamura Davide, et al. X-ray Diffraction: A Powerful Technique for the Multiple-length-scale Structural Analysis of Nanomaterials[J]. Crystals, 2016, 6(8): 87.
[3]	Watson J D, Crick F H C. Molecular Structure of Nucleic Acids: A Structure for Deoxyribose Nucleic Acid[J]. Nature, 1953, 171(4356): 737-738.
[4]	Max Von Laue. Concerning the Detection of X-ray Interferences[R/OL]. [2025-09-19]. .
[5]	Bull C R, Zwiggelaar R, Speller R D. Review of Inspection Techniques Based on the Elastic and Inelastic Scattering of X-rays and Their Potential in the Food and Agricultural Industry[J]. Journal of Food Engineering, 1997, 33(1/2): 167-179.
[6]	Couture R A, Dymek R F. A Reexamination of Absorption and Enhancement Effects in X-ray Fluorescence Trace Element Analysis[J]. American Mineralogist, 1996, 81(5/6): 639-650.
[7]	Patel U, Guruswamy T, Krzysko A J, et al. High-resolution Compton Spectroscopy Using X-ray Microcalorimeters[EB/OL]. (2022-04-01) [2025-10-11]. .
[8]	Nishiyama Yoshiharu, Kuga Shigenori, Okano Takeshi. Mechanism of Mercerization Revealed by X-ray Diffraction[J]. Journal of Wood Science, 2000, 46(6): 452-457.
[9]	Fernández J E. Rayleigh and Compton Scattering Contributions to X-ray Fluorescence Intensity[J]. X-Ray Spectrometry, 1992, 21(2): 57-68.
[10]	Du Zhe, Hu Yongguang, Noman Ali Buttar, et al. X-ray Computed Tomography for Quality Inspection of Agricultural Products: A Review[J]. Food Science & Nutrition, 2019, 7(10): 3146-3160.
[11]	Wei Keong Tan, Husin Zulkifli, Muhammad Luqman Yasruddin, et al. Recent Technology for Food and Beverage Quality Assessment: A Review[J]. Journal of Food Science and Technology, 2023, 60(6): 1681-1694.
[12]	Kumar Anish, Arnold Walter. High Resolution in Non-destructive Testing: A Review[J]. Journal of Applied Physics, 2022, 132(10): 100901.
[13]	Zhang Qianru, Zhang Meng, Gamanayake Chinthaka, et al. Deep Learning Based Defect Detection for Solder Joints on Industrial X-ray Circuit Board Images[C]//2020 IEEE 18th International Conference on Industrial Informatics (INDIN). Piscataway: IEEE, 2020: 74-79.
[14]	Madsen J U. Focal Spot Size Measurements for Microfocus X-ray Sets[J]. NDT International, 1989, 22(5): 292-296.
[15]	Liu Zejian, Yang Guang, Lee Y Z, et al. Carbon Nanotube Based Microfocus Field Emission X-ray Source for Microcomputed Tomography[J]. Applied Physics Letters, 2006, 89(10): 103111.
[16]	Bavendiek Klaus, Ewert Uwe, Riedo Adrian, et al. New Measurement Methods of Focal Spot Size and Shape of X-ray Tubes in Digital Radiological Applications in Comparison to Current Standards[C]//18th World Conference on Nondestructive Testing. Mayen: NDT.net, 2012: 12653.
[17]	Sultana S, Calderón-Colón Xiomara, Cao Guohua, et al. Design and Characterization of a Carbon-nanotube-based Micro-focus X-ray Tube for Small Animal Imaging[C]//Proceedings of the Medical Imaging 2010: Physics of Medical Imaging. Richardson: SPE, 2010: 76225G.
[18]	Sung Hwan Heo, Ihsan Aamir, Sung Oh Cho. Transmission-type Microfocus X-ray Tube Using Carbon Nanotube Field Emitters[J]. Applied Physics Letters, 2007, 90(18): 183109.
[19]	Liu Zejian, Zhang Jian, Yang Guang, et al. Development of a Carbon Nanotube Based Microfocus X-ray Tube with Single Focusing Electrode[J]. Review of Scientific Instruments, 2006, 77(5): 054302.
[20]	Trucchi Daniele M, Melosh Nicholas A. Electron-emission Materials: Advances, Applications, and Models[J]. MRS Bulletin, 2017, 42(7): 488-492.
[21]	杜秉初, 汪健如. 电子光学[M]. 北京: 清华大学出版社, 2002.
[22]	Schaber Jana, Xiang Rong, Gaponik Nikolai. Review of Photocathodes for Electron Beam Sources in Particle Accelerators[J]. Journal of Materials Chemistry C, 2023, 11(9): 3162-3179.
[23]	Rose H H. Optics of High-performance Electron Microscopes[J]. Science and Technology of Advanced Materials, 2008, 9(1): 014107.
[24]	聂洋洋, 白国栋, 王瑞海, 等. X射线管的焦点优化设计[J]. 真空电子技术, 2020(3): 54-59.
	Nie Yangyang, Bai Guodong, Wang Ruihai, et al. Focal Spot Optimization Design of X-ray Tubes[J]. Vacuum Electronics, 2020(3): 54-59.
[25]	吕文峰, 李育林. 开放式X射线管在SMT应用的重要性——X射线3DCT技术的应用[C]//2014中国高端SMT学术会议论文集. 成都: 四川省电子学会SMT专委会, 2014: 401-409.
