基于Dissado-Hill模型的高铁站内绝缘节瞬态电场研究

doi:10.16182/j.issn1004731x.joss.25-0986

摘要/Abstract

摘要：

高铁站内绝缘节在雷电冲击电压下的瞬态电场分布对绝缘节的正常工作至关重要。雷电冲击电压下，考虑绝缘节材料的松弛极化，建立其瞬态电场频域数学模型。基于Dissado-Hill模型，通过对实测频域介电谱的拟合分析，揭示绝缘节的微观结构特性及极化过程中微观粒子的相互作用特性。仿真结果表明：绝缘节的相对介电常数随着雷电压谐波频率的增大而减小。绝缘节中的载流子和偶极子排列比较规律。轨道电路正常工作过程中，绝缘节的介电损耗很小。雷电冲击电压下，绝缘节电位、电场分布与外加激励变化趋势一致，均在2.4 μs附近达到峰值。松弛极化对绝缘节整体电位、电场分布影响不显著，但对绝缘节表面电场强度的影响呈现出一定的空间差异性和时间动态性。

关键词: 绝缘节, 瞬态电场, 雷电冲击电压, 松弛极化, Dissado-Hill模型, 高速铁路

Abstract:

The transient electric field distribution of insulated rail joints in high-speed railway stations under lightning impulse voltages is critical to their normal operation.Under lightning impulse voltages, considering the relaxation polarization of the insulated rail joint material, a frequency-domain mathematical model of its transient electric field was established. Based on Dissado-Hill model, the measured frequency-domain dielectric spectra were fitted and analyzed to reveal the microstructural characteristics of insulated rail joints and the interaction characteristics between microscopic particles during the polarization process. The results indicate that the relative permittivity of insulated rail joints decreases with the increasing harmonic frequency of the lightning voltage. The arrangement of charge carriers and dipoles within the insulated rail joints exhibits a relatively regular pattern. During the normal operation of the track circuit, the dielectric loss of the insulated rail joints is very low. Under lightning impulse voltages, the potential and electric field distribution of the insulated rail joints show a consistent trend with the variation of the applied excitation, both reaching peak values around 2.4 μs. Relaxation polarization has an insignificant effect on the overall potential and electric field distribution of the insulated rail joints, but its effect on the surface electric field intensity exhibits certain spatial variability and temporal dynamics.

Key words: insulated rail joints, transient electric field, lightning impulse voltages, relaxation polarization, Dissado-Hill model, high-speed railway

中图分类号:

TM852

李军丽,张友鹏 . 基于Dissado-Hill模型的高铁站内绝缘节瞬态电场研究[J]. 系统仿真学报, 2026, 38(8): 2282-2293.

Li Junli,Zhang Youpeng . Study on Transient Electric Field of Insulated Rail Joints in High-speed Railway Stations Based on Dissado-Hill Model[J]. Journal of System Simulation, 2026, 38(8): 2282-2293.

图/表 18

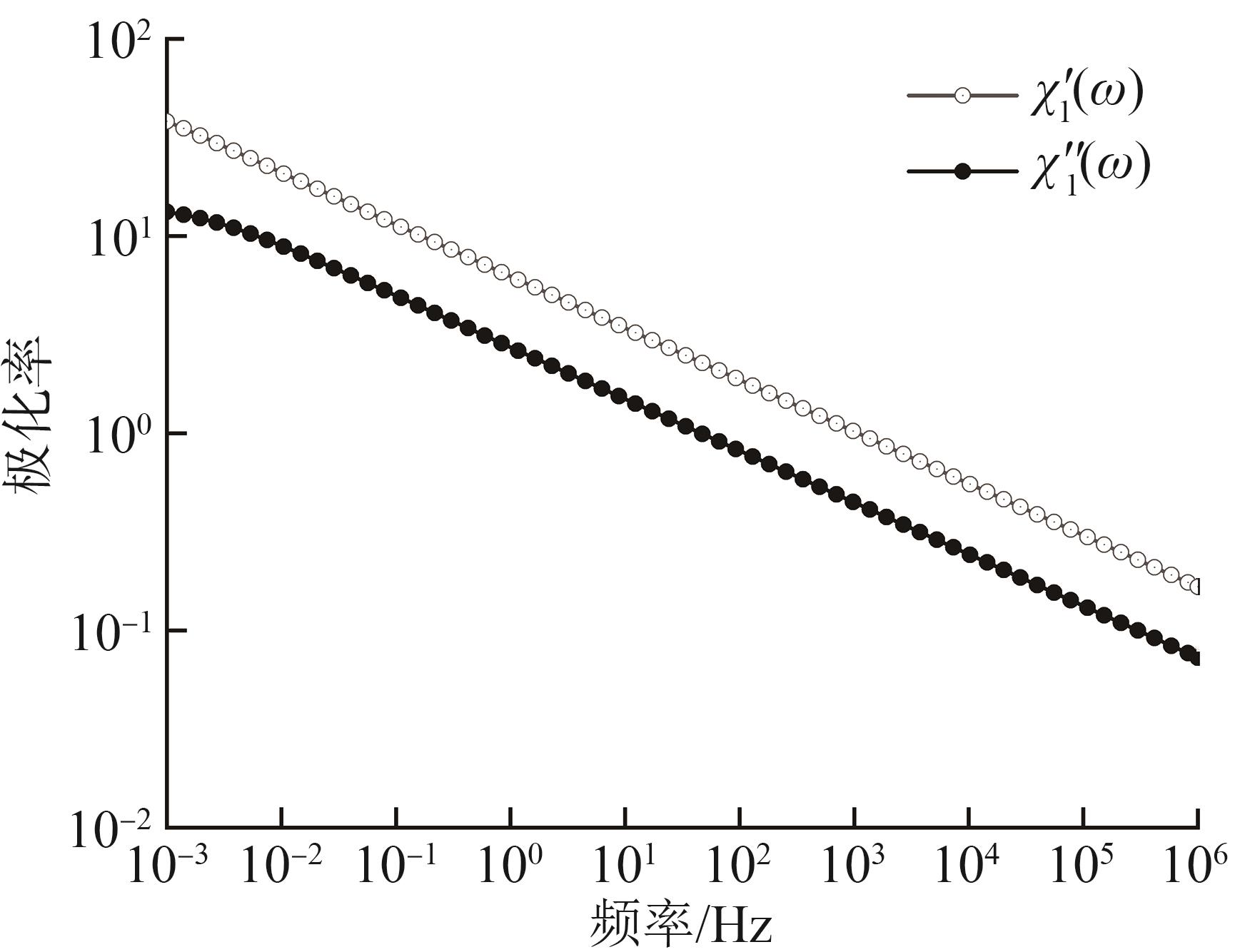

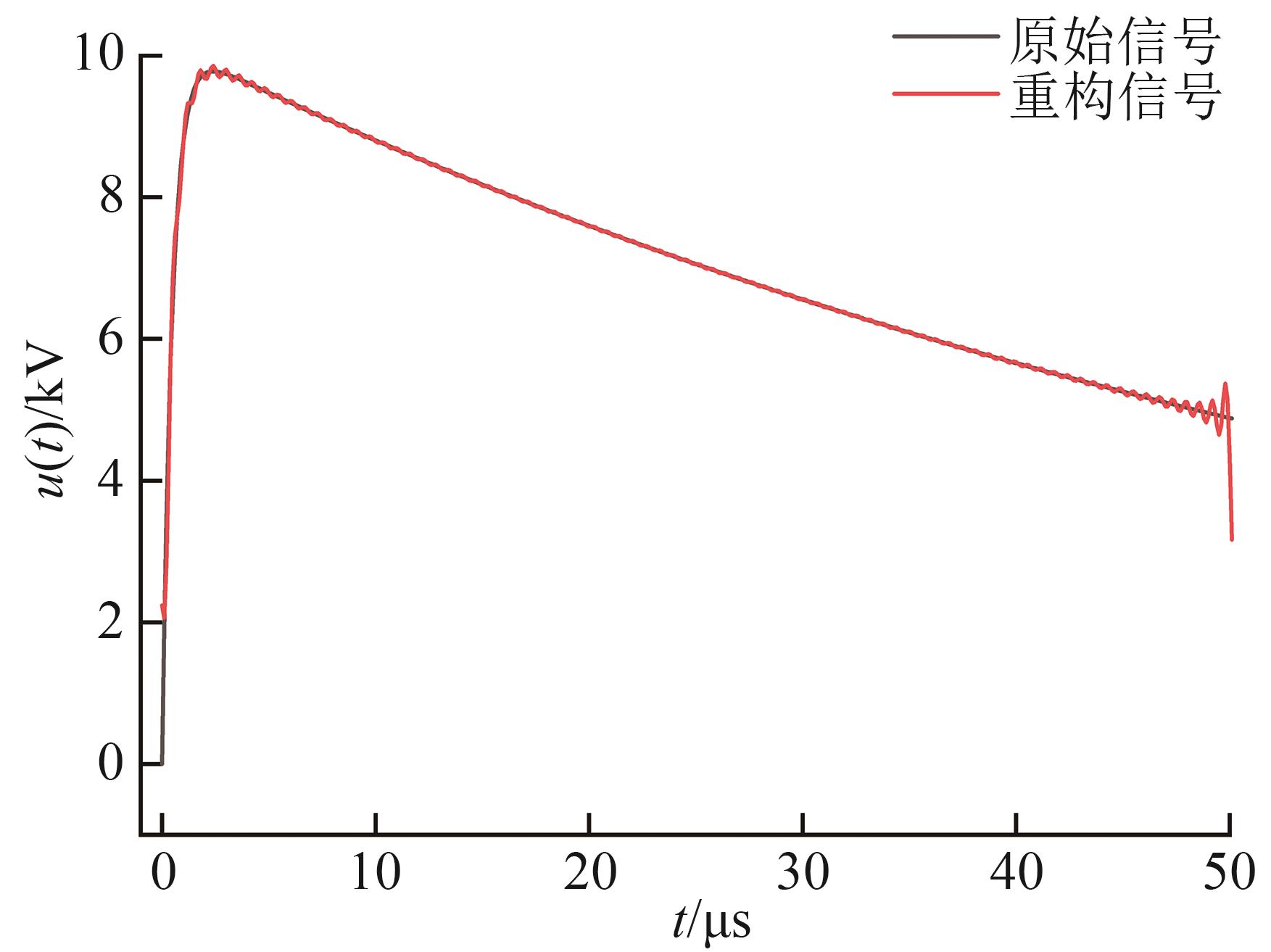

图1

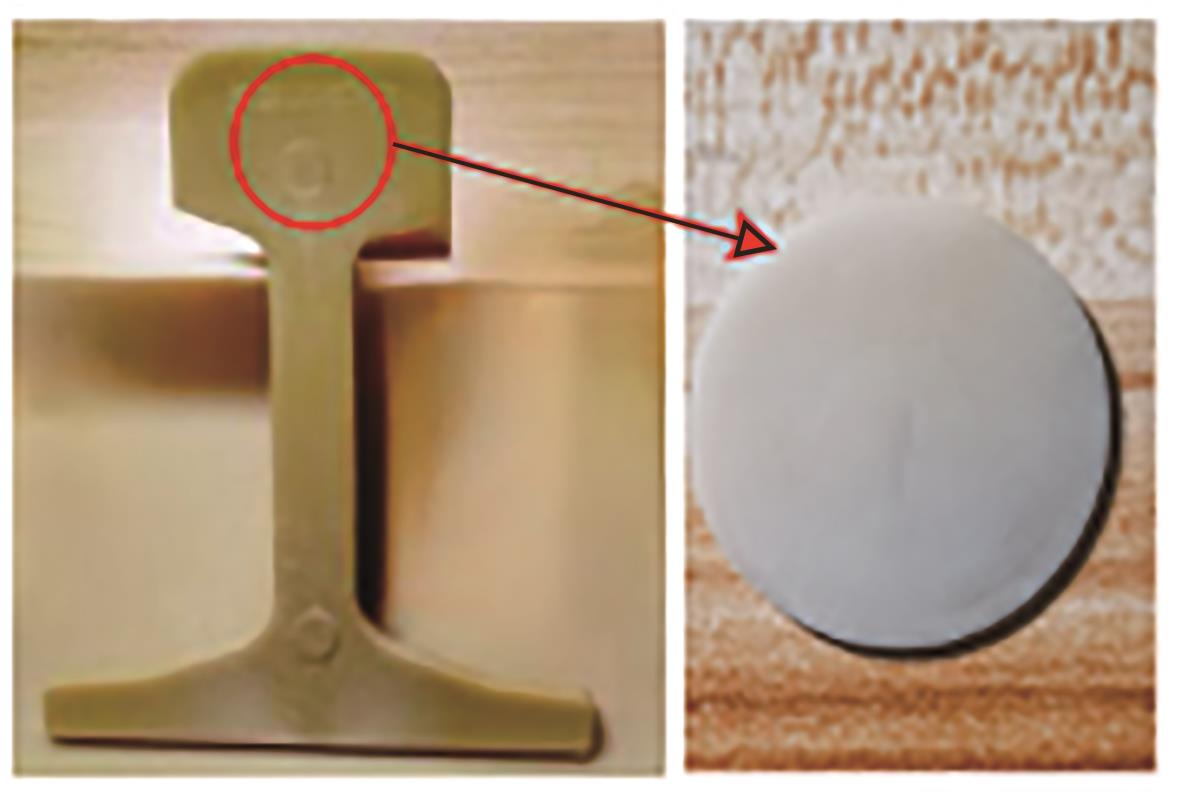

图2

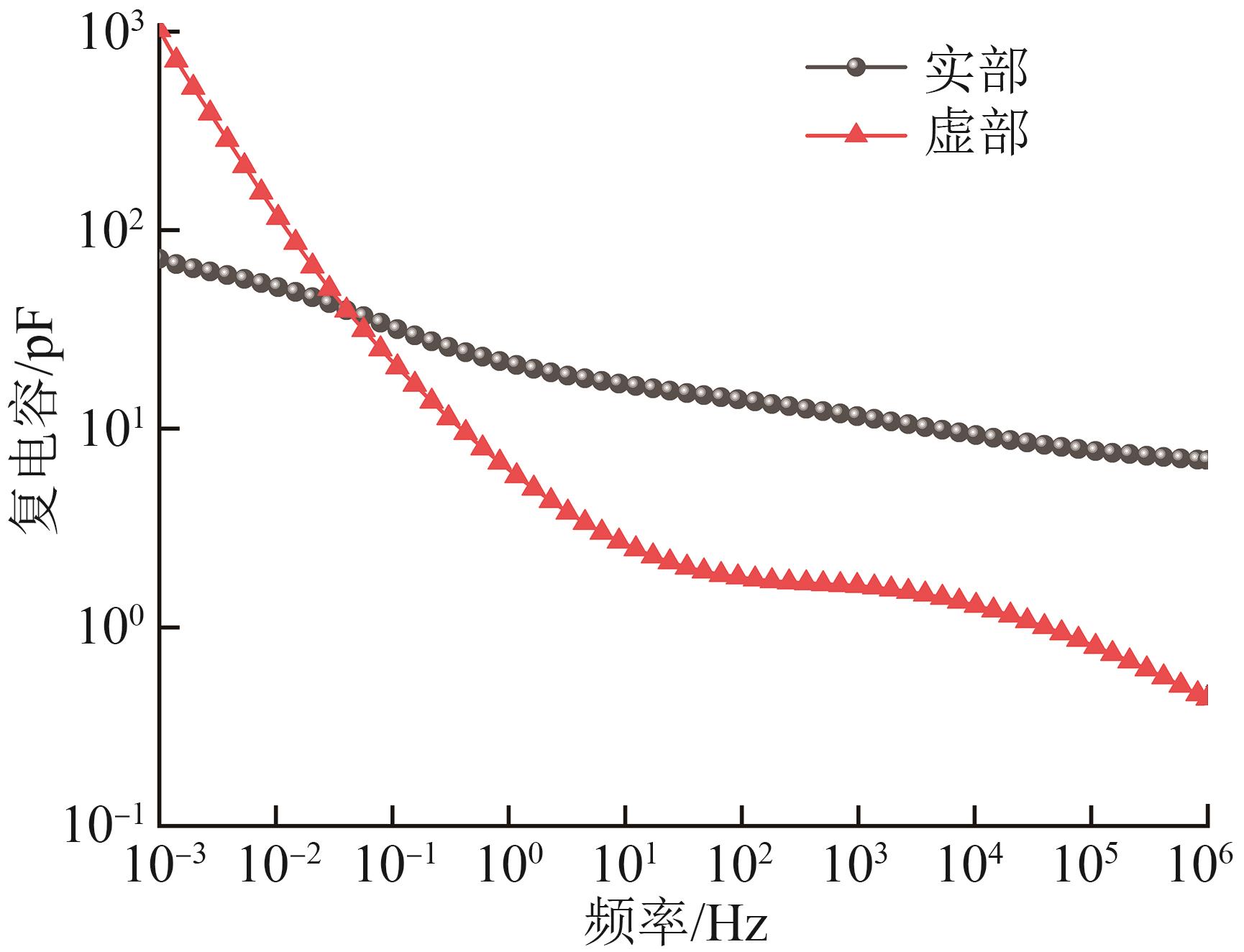

图3

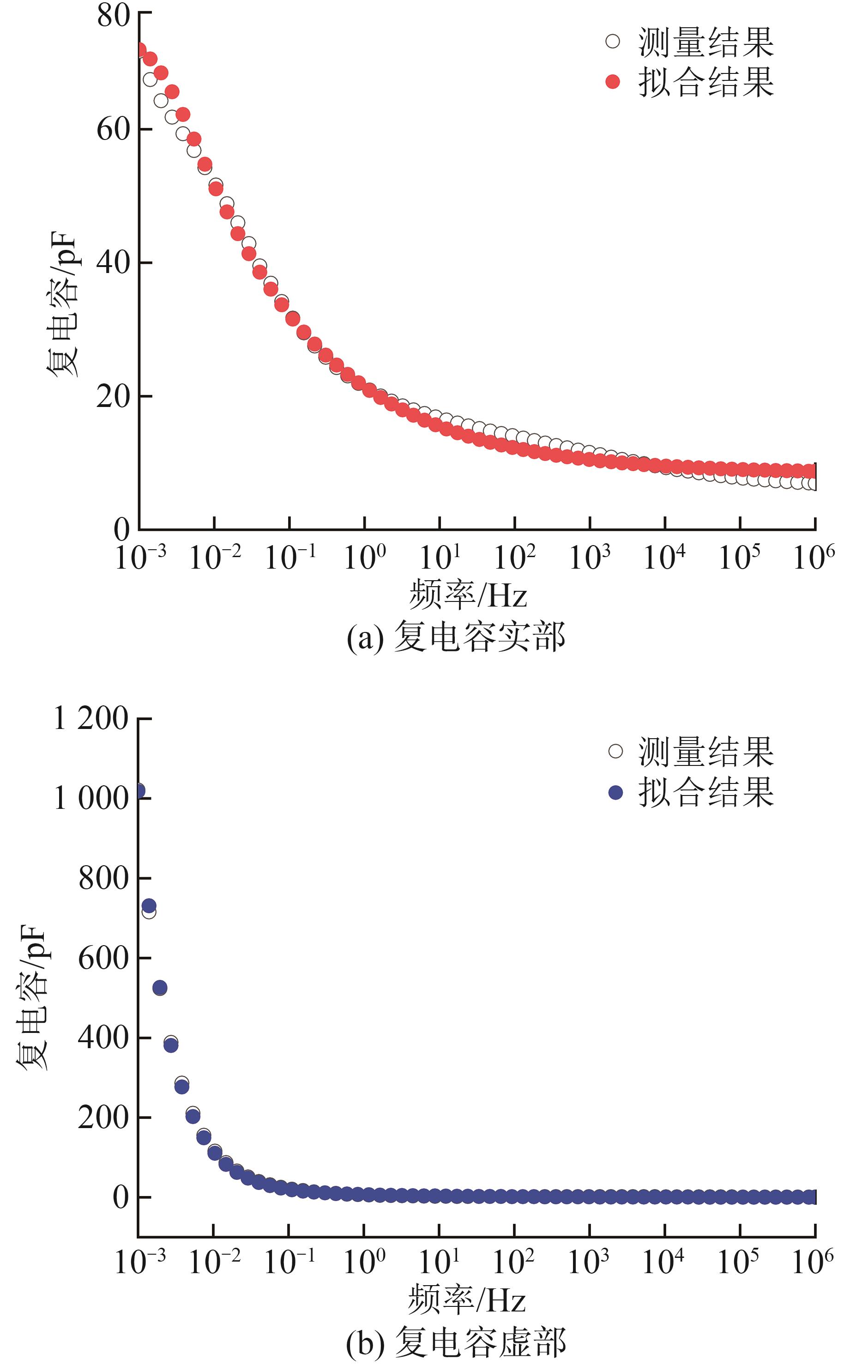

图4

表1

拟合得到的Dissado-Hill loss peak模型参数

$χ 1 (0)$	$ω p / H z$	n₁	m	G₁/pS
2.728 7	0.012	0.737 5	0.004 5	5.330 1

表1

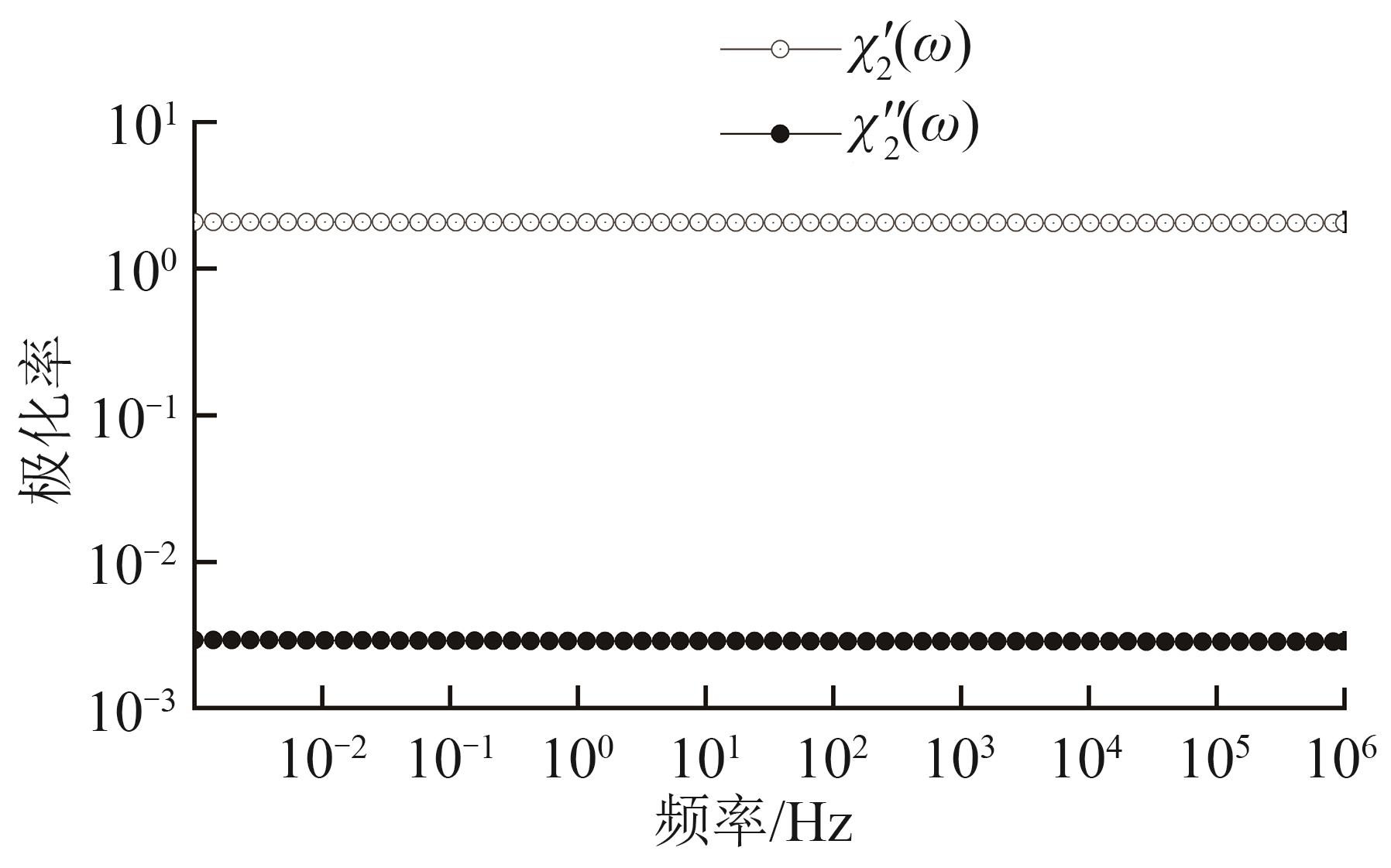

表2

拟合得到的Dissado-Hill QDC模型参数

$χ 2 (0)$	$ω c / H z$	n₂	p	G₂/pS
4.96	0.719 9	0.999 1	0.003	1.024

表2

图5

图6

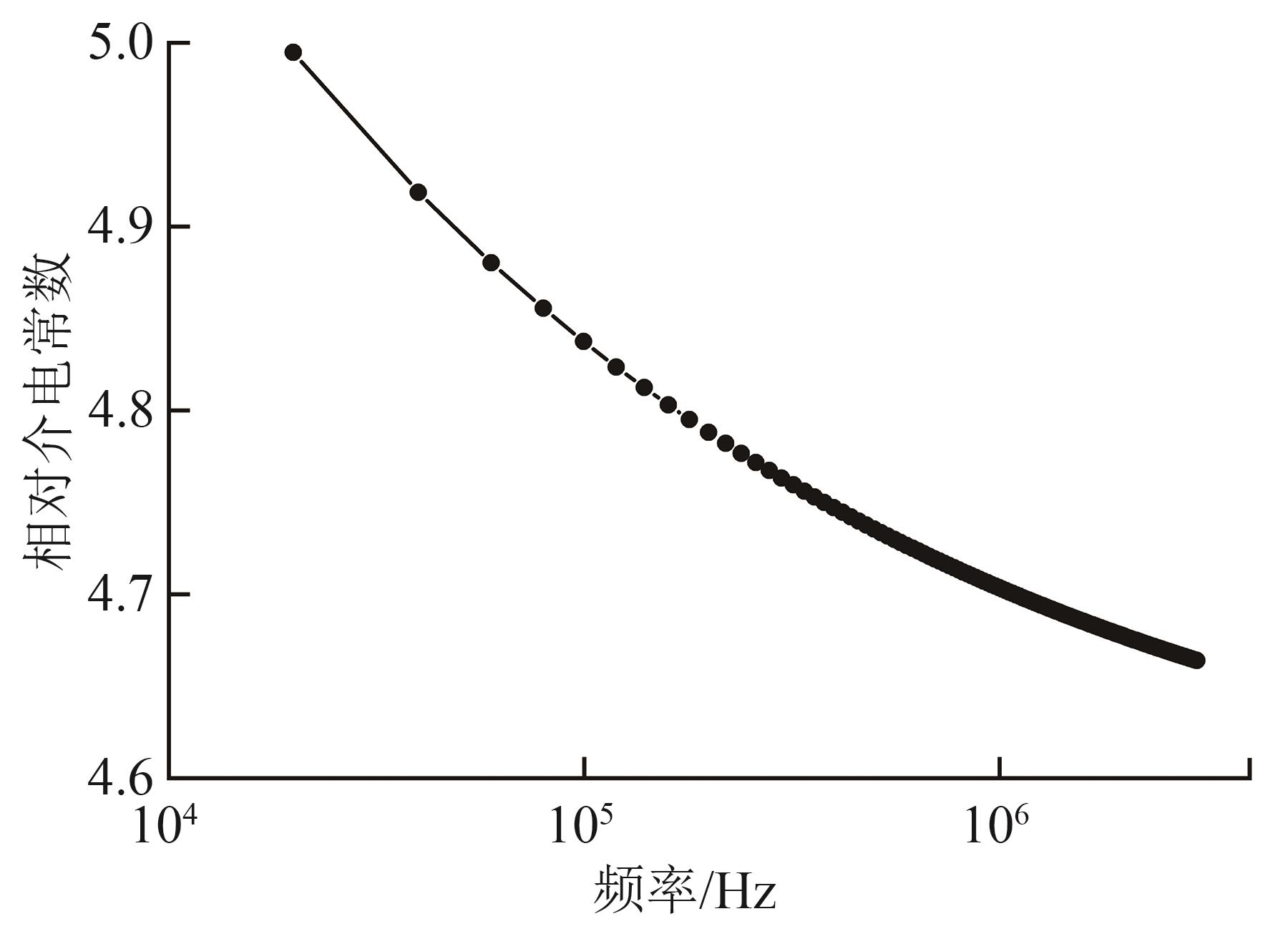

图7

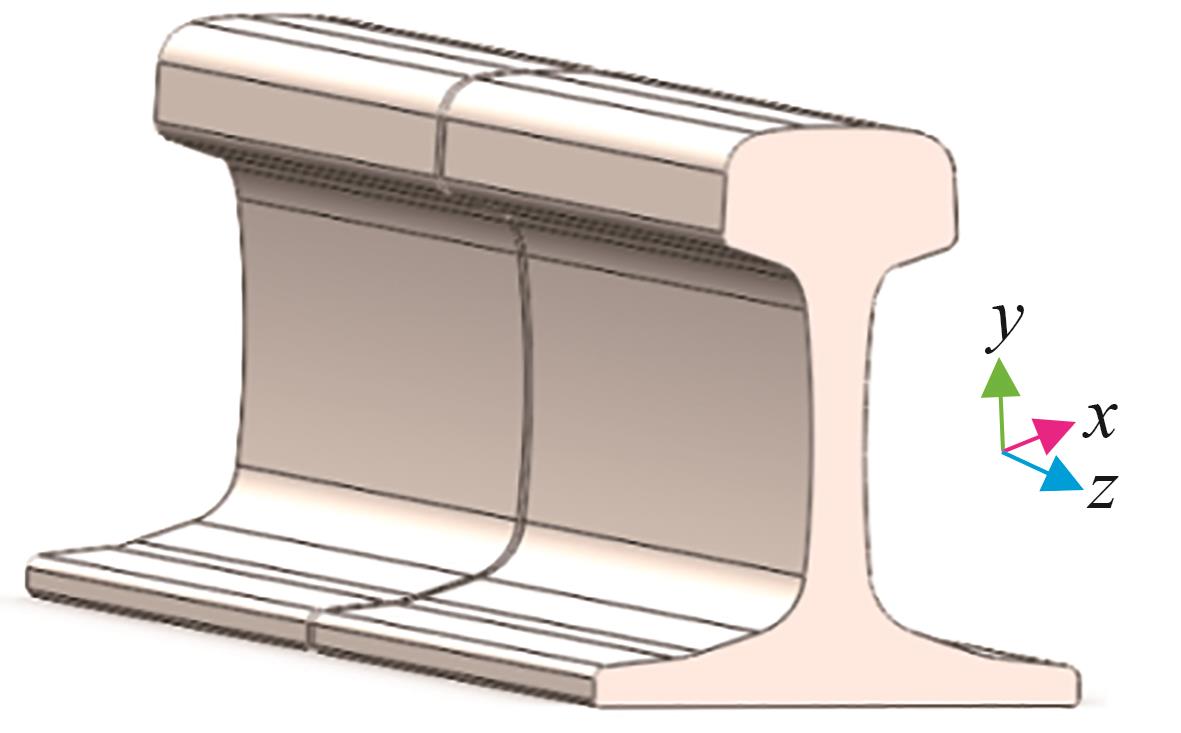

图8

表3

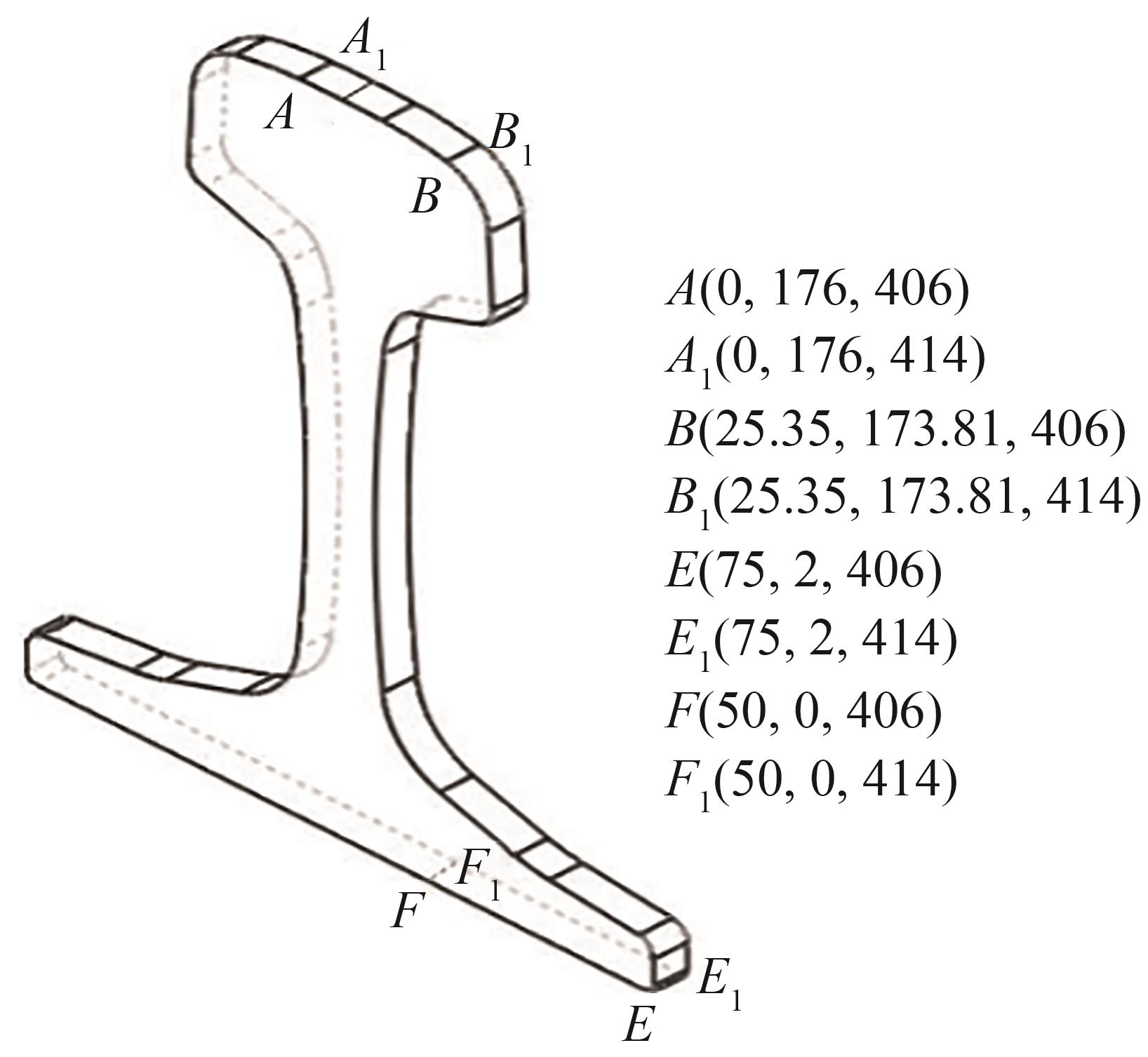

图9

图10

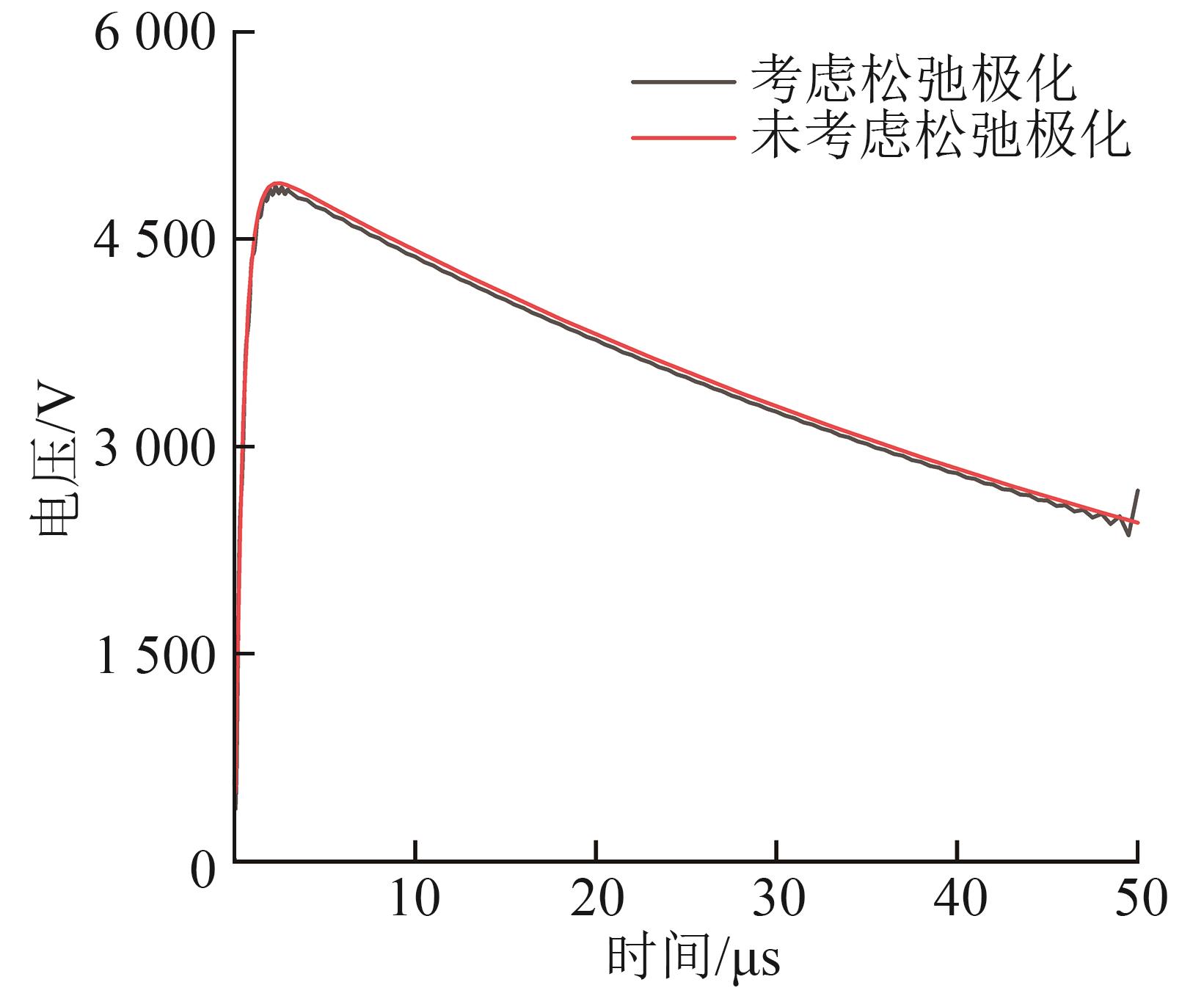

图11

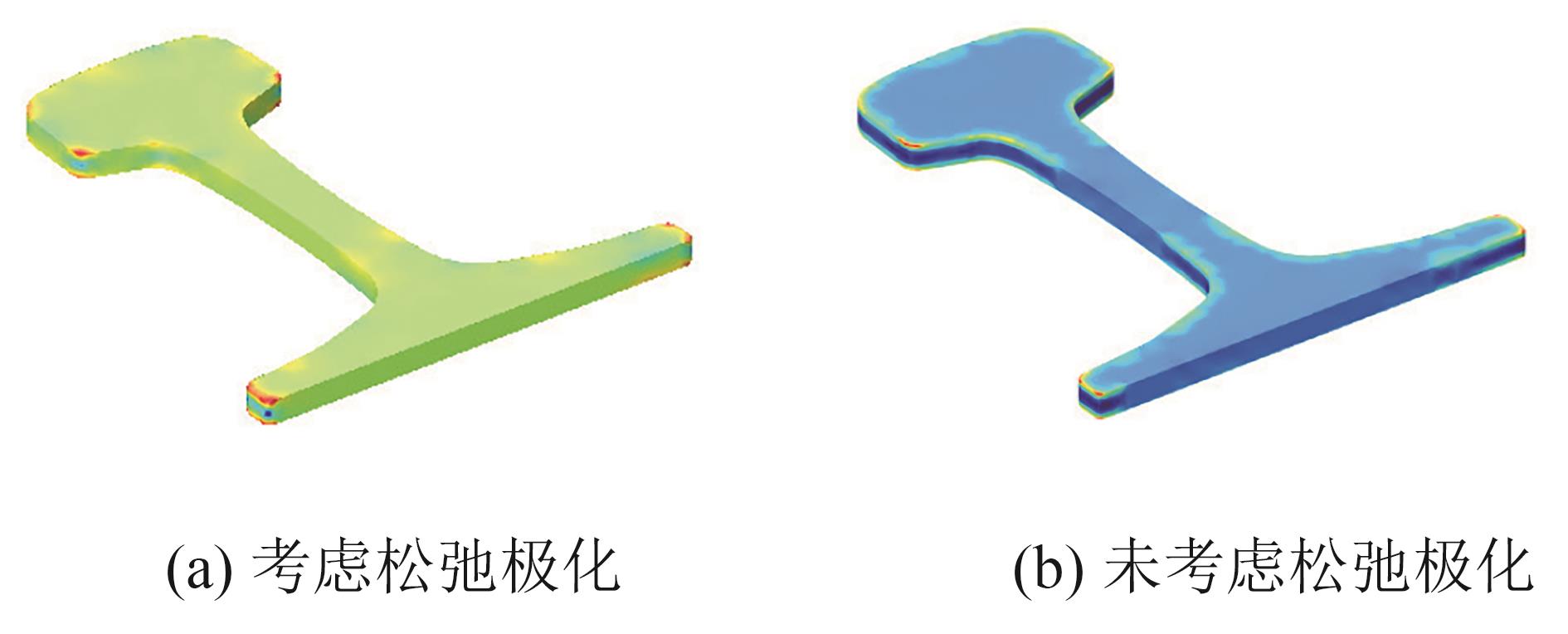

图12

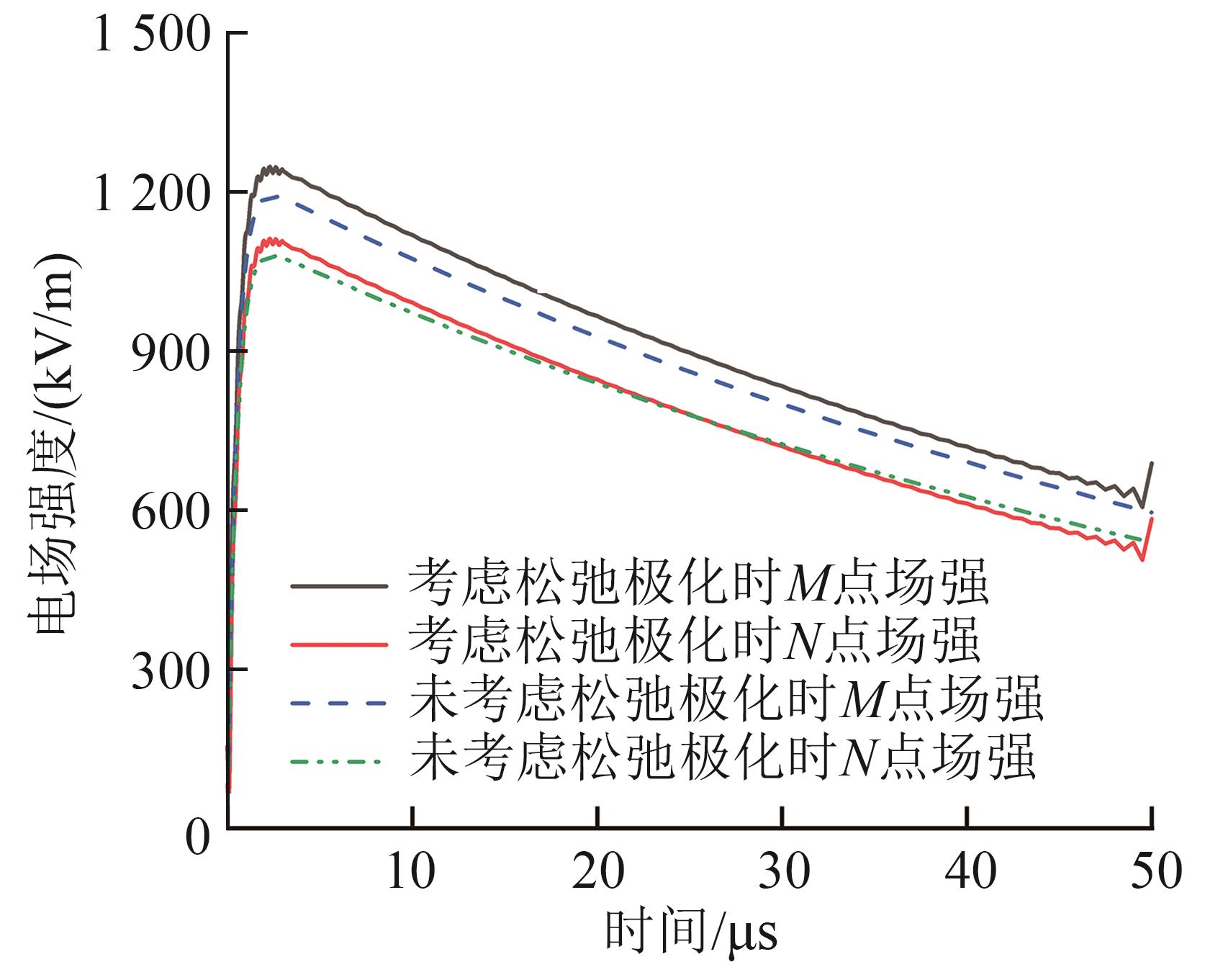

图13

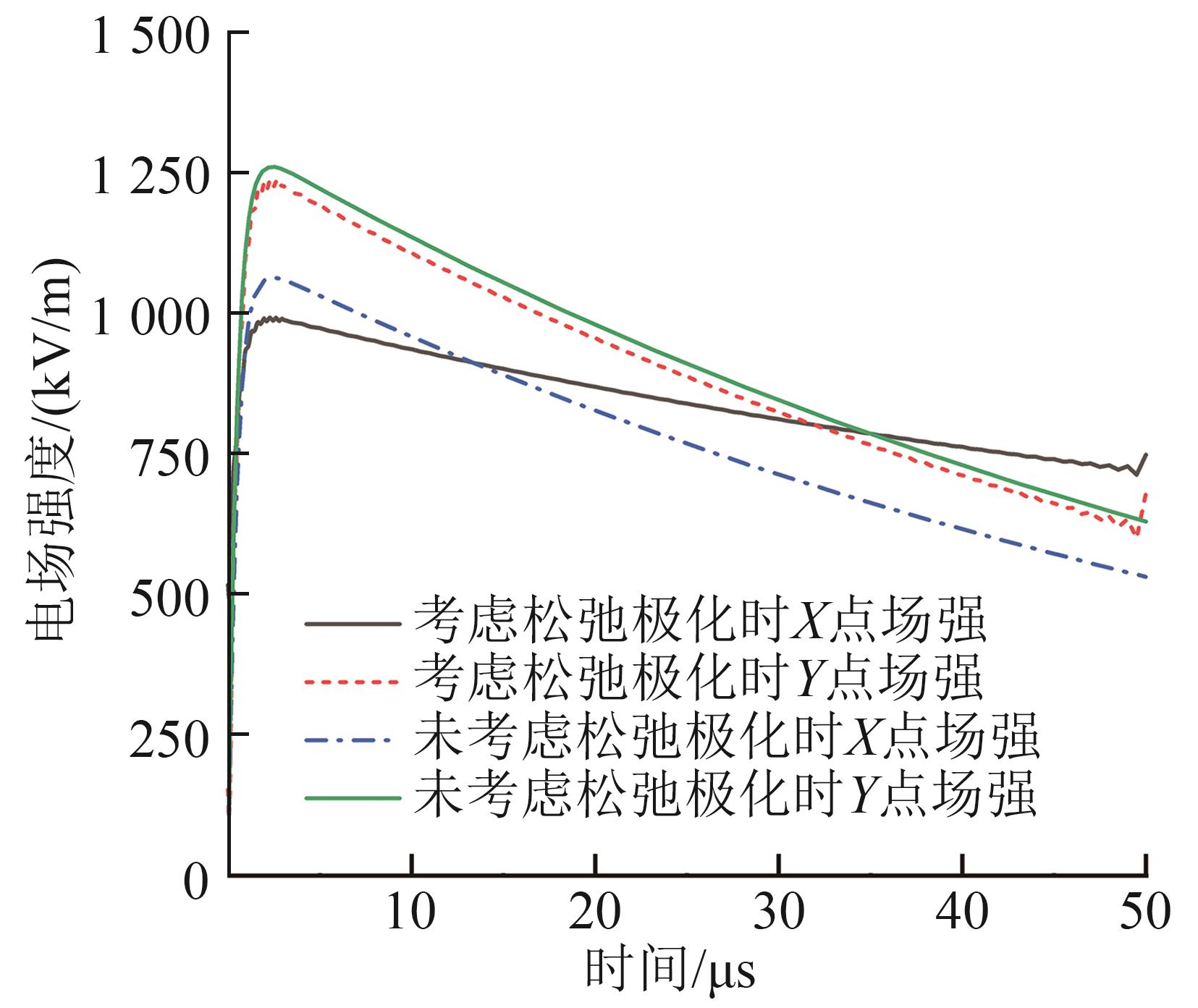

图14

表4

参考文献 32

[1]	肖嵩, 曹野, 吴广宁, 等. 高铁过电压对车载牵引供电系统的影响机理及抑制方法: 系统性综述[J]. 中国电机工程学报, 2024, 44(12): 4682-4701.
	Xiao Song, Cao Ye, Wu Guangning, et al. Influence Mechanism and Suppression Methodologies of the Overvoltage of High-speed Railway on the Vehicle-mounted Traction Power Supply System: Systematic Review[J]. Proceedings of the CSEE, 2024, 44(12): 4682-4701.
[2]	曹晓斌, 唐逢光, 何祥照, 等. 不同类型机械绝缘节快速暂态过电压产生机理[J]. 中国铁道科学, 2020, 41(1): 85-91.
	Cao Xiaobin, Tang Fengguang, He Xiangzhao, et al. Generation Mechanism of Fast Transient Overvoltage in Different Types of Mechanical Insulation Joints[J]. China Railway Science, 2020, 41(1): 85-91.
[3]	Li Junli, Zhang Youpeng, Zhao Bin. Analysis and Suppression Study of Transient Overvoltage of Mechanical Insulated Rail Joint in High-speed Railway Station[J]. Journal of Applied Science and Engineering, 2024, 27(9): 3143-3152.
[4]	Ryabchik Tatyana A, Sidrakov Andrey A, Grechishnikov Viktor A, et al. The Emergence of Electrical Burning of Insulated Rail Joints in the Moscow Metro[C]//2020 IEEE Conference of Russian Young Researchers in Electrical and Electronic Engineering (EIConRus). Piscataway: IEEE, 2020: 1667-1669.
[5]	乔志超, 向念文, 阳晋, 等. 高速铁路信号系统的雷电暂态模型研究[J]. 铁道学报, 2018, 40(9): 90-96.
	Qiao Zhichao, Xiang Nianwen, Yang Jin, et al. Research of Lightning Transient Model for High-speed Railway Signal System[J]. Journal of the China Railway Society, 2018, 40(9): 90-96.
[6]	杨世武, 李奕霖, 陈海康, 等. 基于高速铁路典型车站牵引供电系统仿真模型的降低绝缘节两端电位差方案[J]. 中国铁道科学, 2016, 37(2): 70-77.
	Yang Shiwu, Li Yilin, Chen Haikang, et al. Solution to Reduction of Potential Difference on Both Ends of Insulation Joint Based on Simulation Model of Traction Power Supply System in Typical Station of High Speed Railway[J]. China Railway Science, 2016, 37(2): 70-77.
[7]	肖嵩, 朱涛, 段君璋, 等. 高速列车过绝缘节轮轨间拉弧机理分析及抑制[J]. 铁道学报, 2024, 46(6): 46-55.
	Xiao Song, Zhu Tao, Duan Junzhang, et al. Mechanism Analysis and Suppression of Arcing Between Wheel and Rail of High-speed Train over Insulated Joints[J]. Journal of the China Railway Society, 2024, 46(6): 46-55.
[8]	苏鹏飞, 谭丽, 温润. 高速铁路轮轨电弧烧损绝缘节的研究[J]. 铁道学报, 2022, 44(8): 36-41.
	Su Pengfei, Tan Li, Wen Run. Research on High-speed Railway Wheel Rail Arc Burned Insulation Joint[J]. Journal of the China Railway Society, 2022, 44(8): 36-41.
[9]	张友鹏, 郑泽荣, 李军丽, 等. 高铁站内机械绝缘节烧损碳化与钢轨表面温升研究[J]. 中国铁道科学, 2023, 44(3): 155-163.
	Zhang Youpeng, Zheng Zerong, Li Junli, et al. Study on Burning Loss and Carbonization of Mechanical Insulation Joint and Temperature Rise of Rail Surface in High-speed Railway Station[J]. China Railway Science, 2023, 44(3): 155-163.
[10]	Kaya Utku. Detection of Spark Erosion on Insulated Rail Joints by Deep Learning[J]. IEEE Access, 2025, 13: 79291-79303.
[11]	Xiao S, Yan J, Wu G, et al. Analysis of Reflux Characteristics of High-speed Train over Insulated Joint and Rolling Arc Suppression Measures[C]//2024 IEEE International Conference on Plasma Science (ICOPS). Piscataway: IEEE, 2024: 1.
[12]	Xiao Song, Yu Jie, Wu Guangning, et al. Influence Mechanism of the Mobile Grounding Reflux on the "Wheel-rail" Rolling Arc at Insulated Joints of High-speed Railway[J]. IEEE Transactions on Vehicular Technology, 2024, 73(1): 482-493.
[13]	李军丽, 张友鹏, 赵斌, 等. 高铁站内机械绝缘节电场分布建模与仿真研究[J]. 湖南大学学报(自然科学版), 2025, 52(6): 144-154.
	Li Junli, Zhang Youpeng, Zhao Bin, et al. Modeling and Simulation Study on Electric Field Distribution of Mechanical Insulated Rail Joint in High-speed Railway Station[J]. Journal of Hunan University(Natural Sciences), 2025, 52(6): 144-154.
[14]	赵斌, 李森森, 宋玉华, 等. 基于端口宏模型的移频轨道电路雷击响应分析[J]. 铁道科学与工程学报, 2025, 22(2): 852-862.
	Zhao Bin, Li Sensen, Song Yuhua, et al. Analysis of Lightning Strike Response in Frequency-shifted Track Circuit Based on Port Macro-model[J]. Journal of Railway Science and Engineering, 2025, 22(2): 852-862.
[15]	邱浩, 李鸣霄, 王曙鸿, 等. 动车组车顶高压电器箱的电场计算及优化设计[J]. 电网技术, 2021, 45(1): 372-380.
	Qiu Hao, Li Mingxiao, Wang Shuhong, et al. Electric Field Calculation and Optimization of High Voltage Apparatus Box on Car Roof of Electric Multiple Unit[J]. Power System Technology, 2021, 45(1): 372-380.
[16]	Cambareri Pasquale, Carlo de Falco, Luca Di Rienzo, et al. Electric Field Calculation During Voltage Transients in HVDC Cables: Contribution of Polarization Processes[J]. IEEE Transactions on Power Delivery, 2022, 37(6): 5425-5432.
[17]	高有华, 王尔智, 曹云东. 500 kV GIS盆式绝缘子的暂态电场分析[J]. 电工技术学报, 2001, 16(6): 41-45.
	Gao Youhua, Wang Erzhi, Cao Yundong. Transient Electric Field Analysis of 500 kV Disc-type Spacer[J]. Transactions of China Electrotechnical Society, 2001, 16(6): 41-45.
[18]	Wang Haoran, Peng Zongren, Li Naiyi, et al. Transient Electric Field Calculation of UHV GIS Spacer Under Lightning Impulse[C]//2014 IEEE Conference on Electrical Insulation and Dielectric Phenomena (CEIDP). Piscataway: IEEE, 2014: 542-545.
[19]	杨为, 朱太云, 田宇, 等. 雷电冲击电压下GIS盆式绝缘子暂态电场分析[J]. 高电压技术, 2020, 46(3): 807-814.
	Yang Wei, Zhu Taiyun, Tian Yu, et al. Analysis for Transient Electric Field Computation of GIS Basin Insulator Under Lightning Impulse Voltage[J]. High Voltage Engineering, 2020, 46(3): 807-814.
[20]	Badics Z. Charge Density-scalar Potential Formulation for Adaptive Time-integration of Nonlinear Electroquasistatic Problems[J]. IEEE Transactions on Magnetics, 2011, 47(5): 1338-1341.
[21]	Yang Xi, Wang Qingyu, Wang Haoran, et al. Transient Electric Field Computation for Composite Cross-arm in 750 kV AC Transmission Line Under Lightning Impulse Voltage[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23(4): 1942-1950.
[22]	Dai Xize, Hao Jian, Mohamed El Moursi, et al. Dielectric Mechanisms and Health State Estimation for High-voltage XLPE Cable Insulation Under Nonuniform Thermal Aging[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2025, 32(5): 2868-2876.
[23]	梁曦东, 高岩峰, Dissado L A. Dissado-Hill模型在电介质介电响应分析中的应用[J]. 中国电机工程学报, 2016, 36(21): 6002-6011.
	Liang Xidong, Gao Yanfeng, Dissado L A. Application of the Dissado-Hill Model in the Analysis of Dielectric Response[J]. Proceedings of the CSEE, 2016, 36(21): 6002-6011.
[24]	郭蕾, 张传辉, 廖维, 等. 基于Dissado-Hill模型的油纸绝缘受潮参数特征与评估方法[J]. 电工技术学报, 2021, 36(23): 5058-5068.
	Guo Lei, Zhang Chuanhui, Liao Wei, et al. Oil-paper Insulation Moisture Parameter Characteristics and Evaluation Method Based on Dissado-Hill Model[J]. Transactions of China Electrotechnical Society, 2021, 36(23): 5058-5068.
[25]	Zhang Yiyi, Liu Yansong, Wei Wenchang, et al. Study on Nonuniform Thermal Aging State of XLPE Based on Dissado-Hill Model[J]. IEEE Transactions on Plasma Science, 2022, 50(11): 4566-4575.
[26]	Wang Qian, Lei Ting, Deng Jingyu, et al. Temperature Dependence of the Polarisation Characteristics of Epoxy Resin for Electrical Insulation[J]. IET Nanodielectrics, 2025, 8(1): e70013.
[27]	陈绍东, 王孝波, 李斌, 等. 标准雷电波形的频谱分析及其应用[J]. 气象, 2006, 32(10): 11-19.
	Chen Shaodong, Wang Xiaobo, Li Bin, et al. Frequency Spectrum of Standard Lightning Currents and Its Application[J]. Meteorological Monthly, 2006, 32(10): 11-19.
[28]	Arai Hideki, Fujita Hiroyuki, Ono Yuto. Effect Evaluation of Lightning Protection Measures on Train Detectors for Level Crossing System[C]//2018 34th International Conference on Lightning Protection (ICLP). Piscataway: IEEE, 2018: 7.
[29]	Limbrock Jonas K, Kemna Andreas. Relationship Between Cole-cole Model Parameters in Permittivity and Conductivity Formulation[J]. Geophysical Journal International, 2024, 239(2): 964-970.
[30]	Das-Gupta D K, Scarpa P C N. Modeling of Dielectric Relaxation Spectra of Polymers in the Condensed Phase[J]. IEEE Electrical Insulation Magazine, 1999, 15(2): 23-32.
[31]	Dissado L A, Hill R M. A Cluster Approach to the Structure of Imperfect Materials and Their Relaxation Spectroscopy[J]. Proceedings of the Royal Society of London. A. Mathematical and Physical Sciences, 1983, 390(1798): 131-180.
[32]	张彪, 邹哲, 陈书界, 等. 基于仿射变换与Levenberg-Marquardt算法的织物图像配准[J]. 光学学报, 2017, 37(1): 351-359.
	Zhang Biao, Zou Zhe, Chen Shujie, et al. Fabric Image Registration Based on Affine Transform and Levenberg-marquardt Algorithm[J]. Acta Optica Sinica, 2017, 37(1): 351-359.

剖分方式	单元数	节点数
I	716 036	131 095
II	2 979 362	508 844
III	5 074 585	858 655

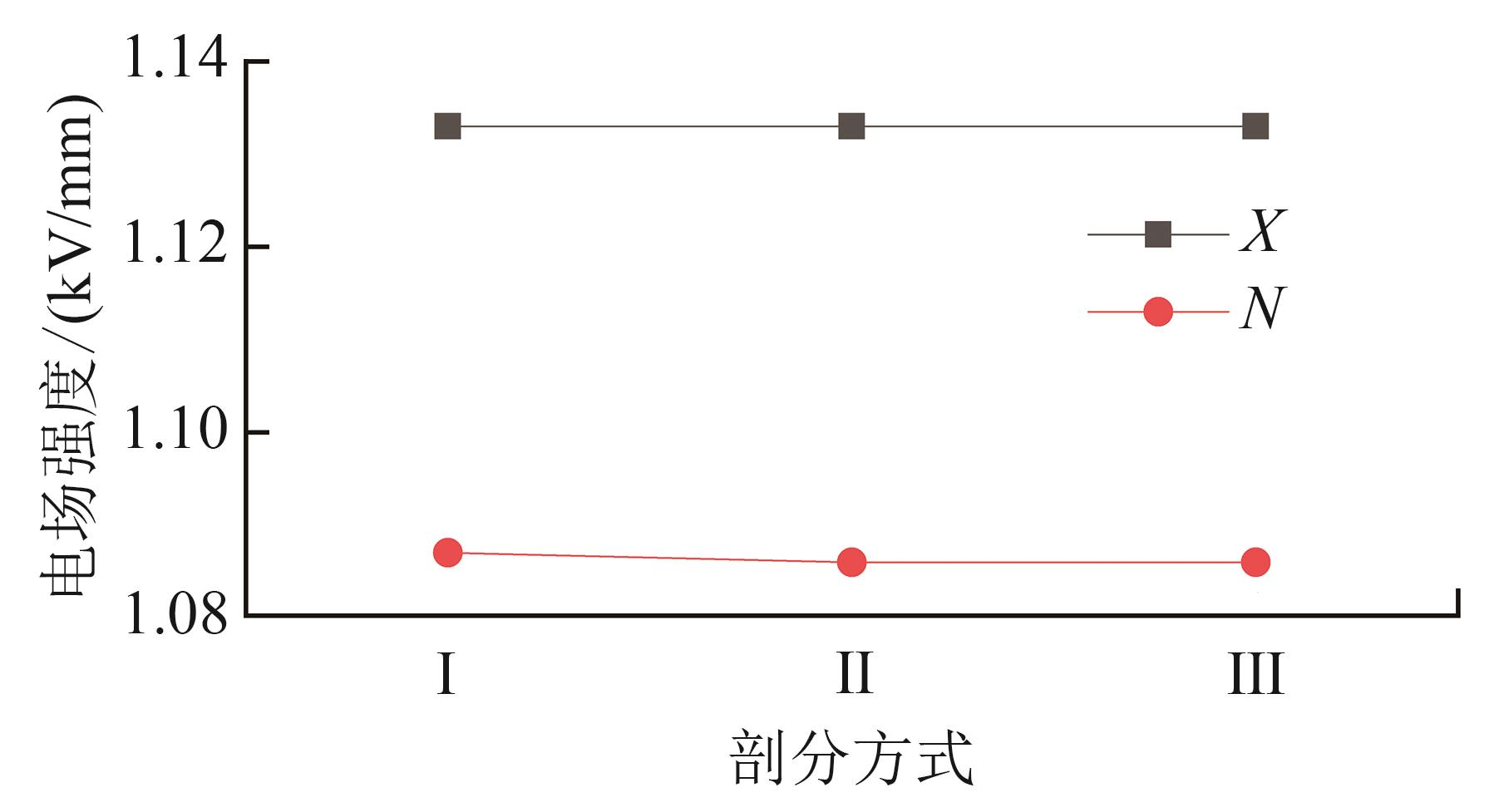

位置	电场强度/(kV/m)		差值/%
