基于改进麻雀算法的喷涂机器人轨迹优化研究

doi:10.16182/j.issn1004731x.joss.25-0756

摘要/Abstract

摘要：

为应对复杂作业环境对喷涂机器人轨迹规划提出的挑战，以时间效率与运动平稳性为双重优化目标，提出一种多策略融合改进麻雀搜索算法(multi-strategy integrated sparrow search algorithm， MISSA)。采用3-5-3多项式插值法设计轨迹曲线，以保证角位移、角速度及角加速度全程连续；以轨迹总时长为性能指标，构建带关节约束的多维优化问题；利用融合折射反向学习、正余弦自适应调节及柯西变异的 MISSA 对插值节点时间参数进行寻优，实现时间最小化。仿真结果表明：MISSA 在 12 个典型测试函数上的表现优于ISSA、SSA、PSO 及 GWO 算法，展现出更强的全局搜索能力与更高的收敛精度。轨迹优化实验显示，优化后轨迹时间由12 s缩短至5.515 5 s，效率提升54.04%，且各关节运动曲线平滑，满足工程约束。激光跟踪仪实测验证机器人在1 600 mm/s速度下直线轨迹重复性RP仅为0.177 mm，满足高精度作业需求，验证了算法的工程适用性与鲁棒性。

关键词: 喷涂机器人, 时间最优轨迹, 麻雀搜索算法, 3-5-3多项式插值, 折射反向学习

Abstract:

To address the challenges posed by the complex working environment to the trajectory planning of the spray painting robot, a multi-strategy integrated sparrow search algorithm (MISSA) was proposed with the dual optimization objectives of time efficiency and motion smoothness.The 3-5-3 polynomial interpolation method was adopted to design the trajectory curve, aiming to ensure continuous angular displacement, angular velocity, and angular acceleration throughout the process. A multi-dimensional optimization problem with joint constraints was constructed using the total trajectory duration as the performance index. MISSA, which integrates refraction reverse learning, sine-cosine adaptive adjustment, and Cauchy mutation, was utilized to optimize the time parameters of interpolation nodes to achieve time minimization. The simulation results show that MISSA outperforms the ISSA, SSA, PSO, and GWO algorithms on 12 typical test functions, demonstrating stronger global search ability and higher convergence accuracy. The trajectory optimization experiment shows that the trajectory time is shortened from 12 s to 5.515 5 s after optimization; the efficiency is improved by 54.04%, and the motion curves of all joints are smooth, meeting engineering constraints. Actual measurements by a laser tracker verify that the straight-line trajectory repeatability RP of the robot at a speed of 1 600 mm/s is only 0.177 mm, which meets the requirements for high-precision operations, thus verifying the engineering applicability and robustness of the algorithm.

Key words: spray painting robot, time-optimal trajectory, sparrow search algorithm, 3-5-3 polynomial interpolation, refraction reverse learning

中图分类号:

TP242.2

杨杰,熊珍凯,王龙严 . 基于改进麻雀算法的喷涂机器人轨迹优化研究[J]. 系统仿真学报, 2026, 38(7): 1978-1992.

Yang Jie,Xiong Zhenkai,Wang Longyan . Study on Trajectory Optimization of Spray Painting Robot Based on Improved Sparrow Search Algorithm[J]. Journal of System Simulation, 2026, 38(7): 1978-1992.

图/表 20

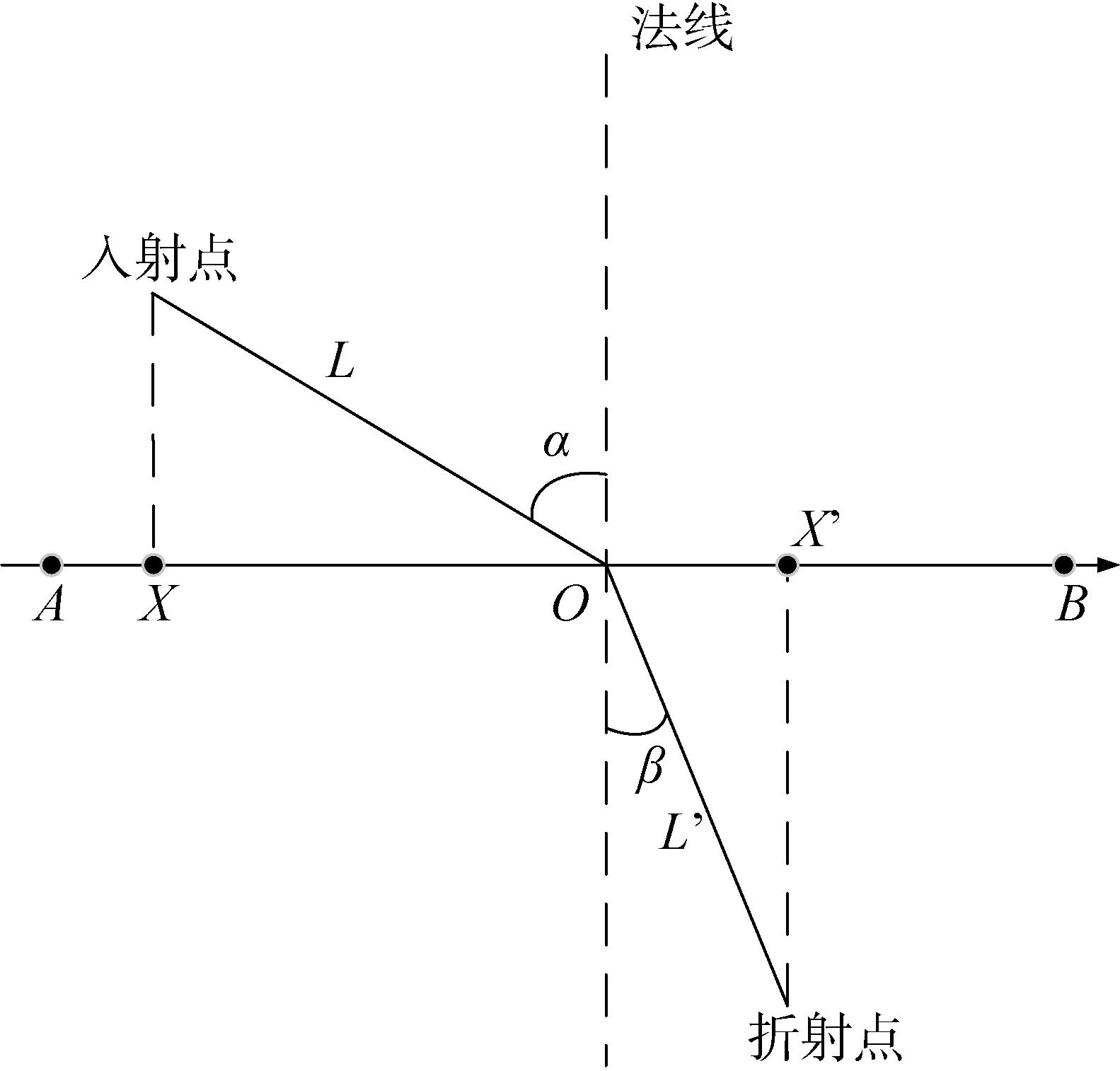

图1

表1

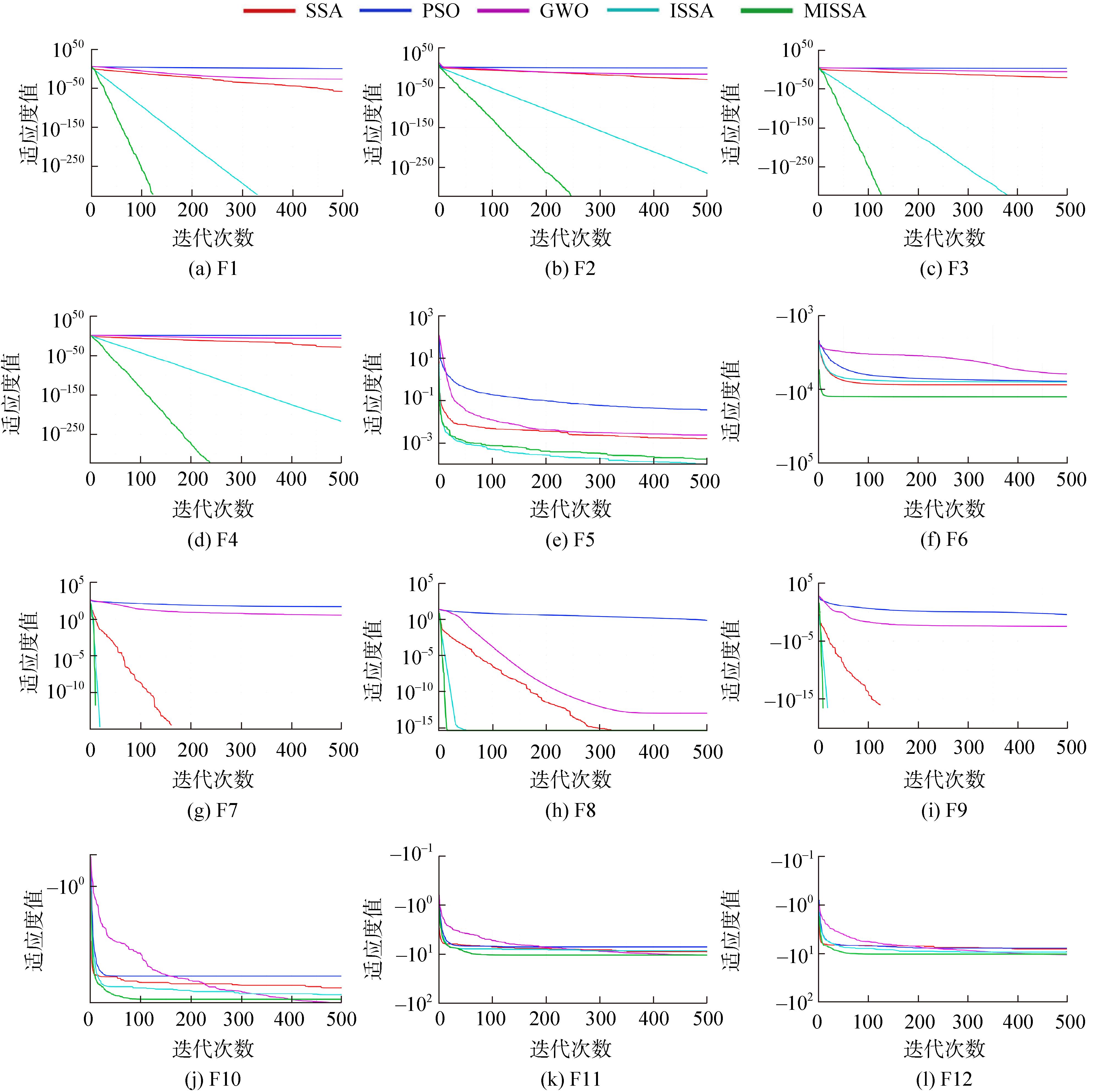

测试函数

	函数名称	测试函数	维数	搜索范围
单峰函数	Sphere	$F 1 (x) = ∑ i = 1 n x i 2$	30	[-100,100]
	Schwefel 2.22	$F 2 (x) = ∑ i = 1 n \| x i \| + ∏ i = 1 n \| x i \|$	30	[-10,10]
	Schwefel 1.2	$F 3 (x) = ∑ i = 1 n (∑ j = 1 i x) 2$	30	[-100,100]
	Schwefel 2.21	$F 4 (x) = m a x i \| x i \|, 1 ≤ i ≤ n$	30	[-100,100]
多峰函数	Quartic	$F 5 (x) = ∑ i = 1 n i x i 4 + r a n d [0,1)$	30	[-1.28,1.28]
	Schwefel 2.26	$F 6 (x) = ∑ i = 1 n - x i s i n (\| x i \|)$	30	[-500,500]
	Rastrigin	$F 7 (x) = ∑ i = 1 n \| x i 2 - 10 c o s (2 π x i) + 10$	30	[-5.12,5.12]
	Ackley	$F 8 (x) = - 20 e x p - 0.2 1 n ∑ i = 1 n x i 2 - e x p 1 n ∑ i = 1 n c o s 2 π x i + 20 + e$	30	[-32,32]
	Griewank	$F 9 (x) = 1 4 000 ∑ i = 1 n x i 2 - ∏ i n c o s (x i / i) + 1$	30	[-600,600]
固定低维多峰函数	Shekel 5	$F 10 (x) = - ∑ i = 1 5 [(x - a i) (x - a i) T + c i] - 1$	4	[0,10]
	Shekel 7	$F 11 (x) = - ∑ i = 1 7 [(x - a i) (x - a i) T + c i] - 1$	4	[0,10]
	Shekel 10	$F 12 (x) = - ∑ i = 1 10 [(x - a i) (x - a i) T + c i] - 1$	4	[0,10]

表1

图2

表2

图3

表3

表4

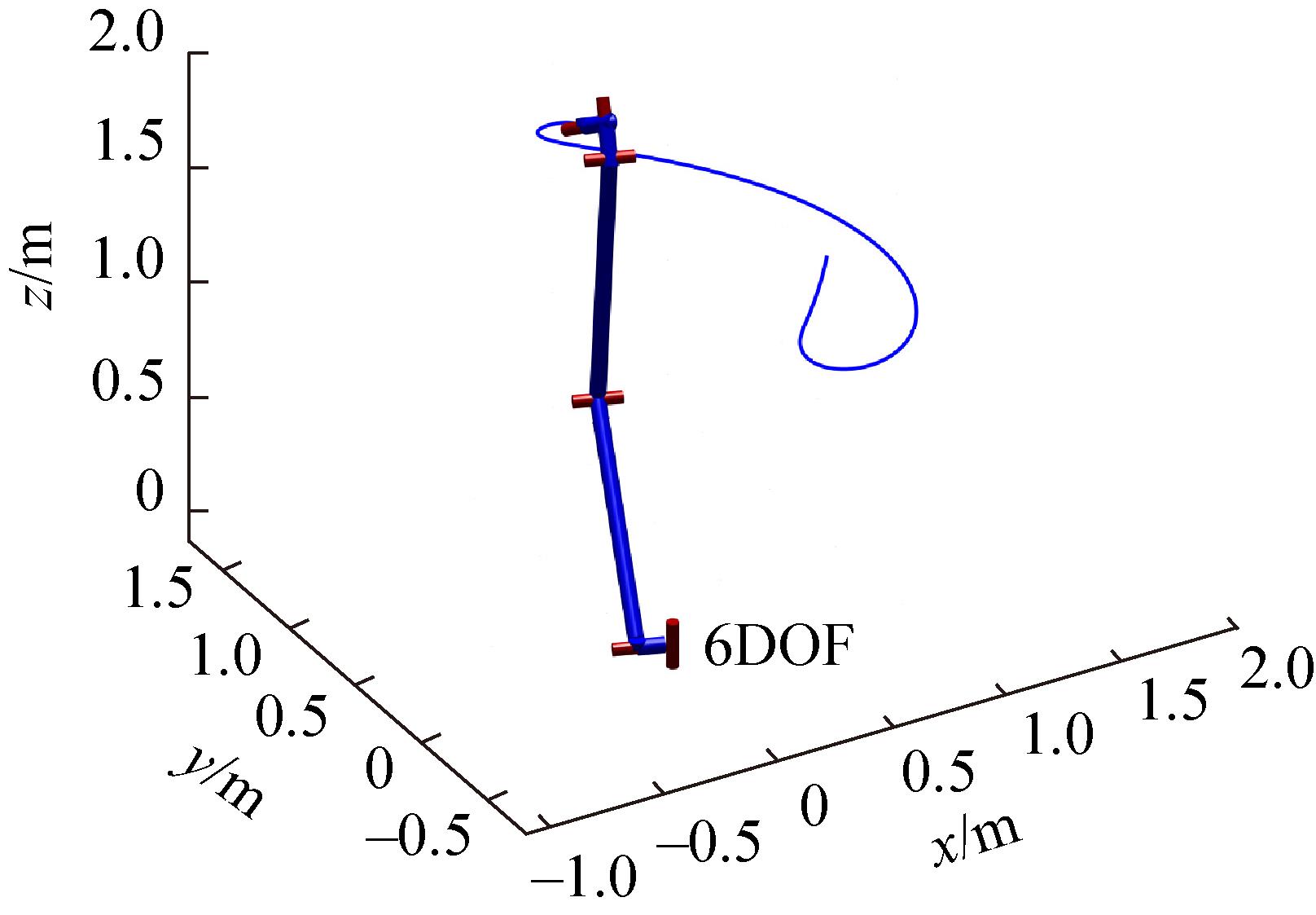

图4

图5

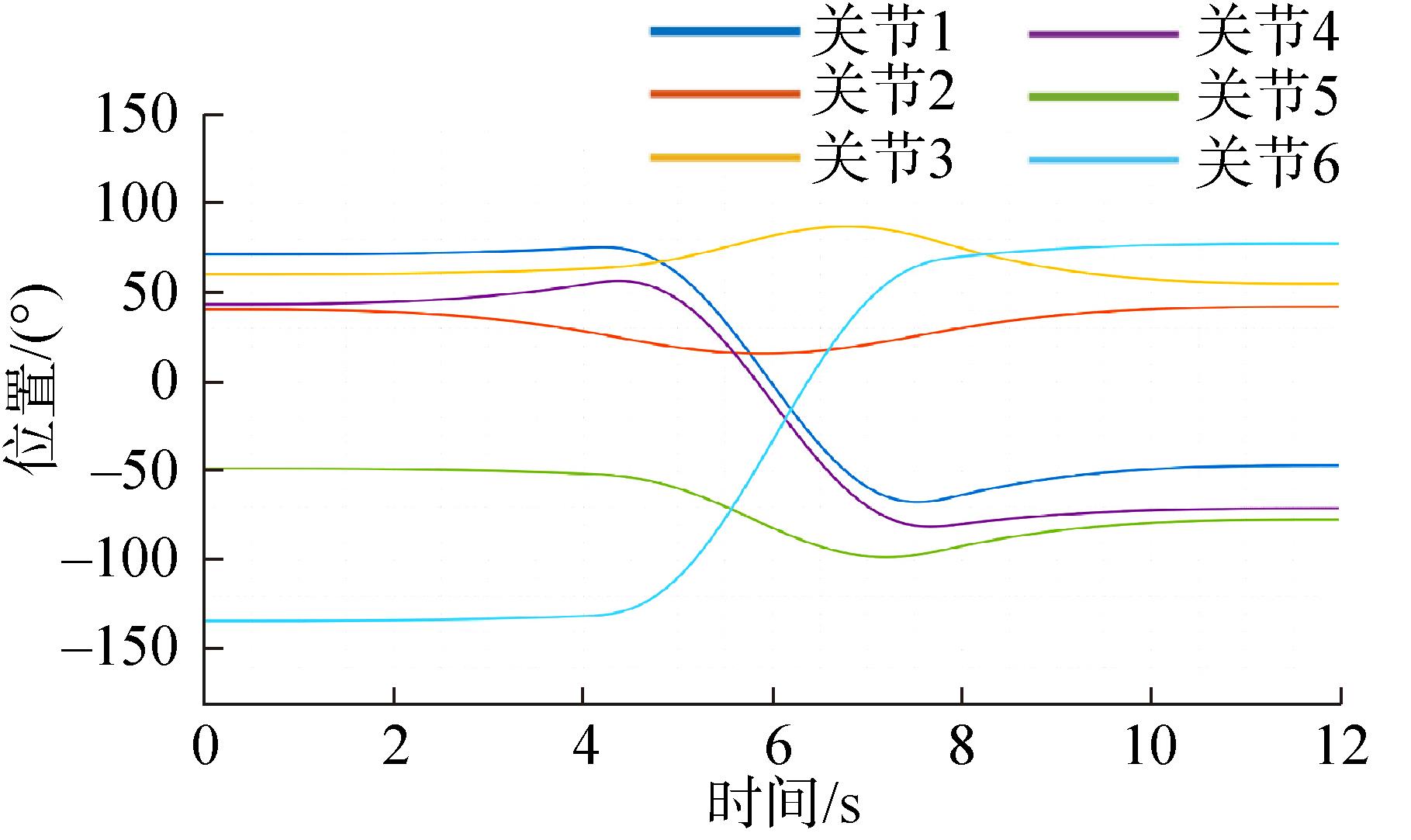

图6

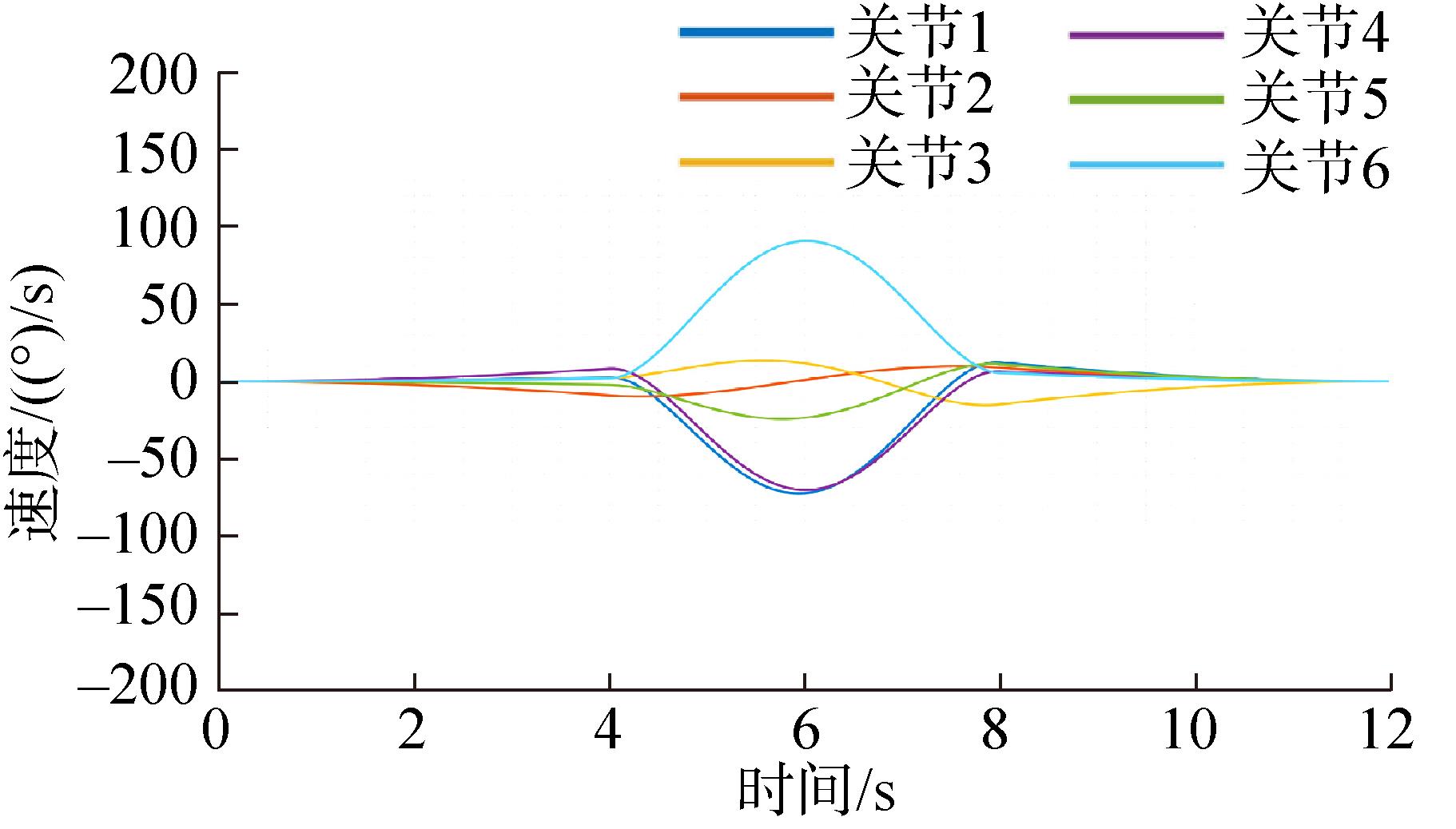

图7

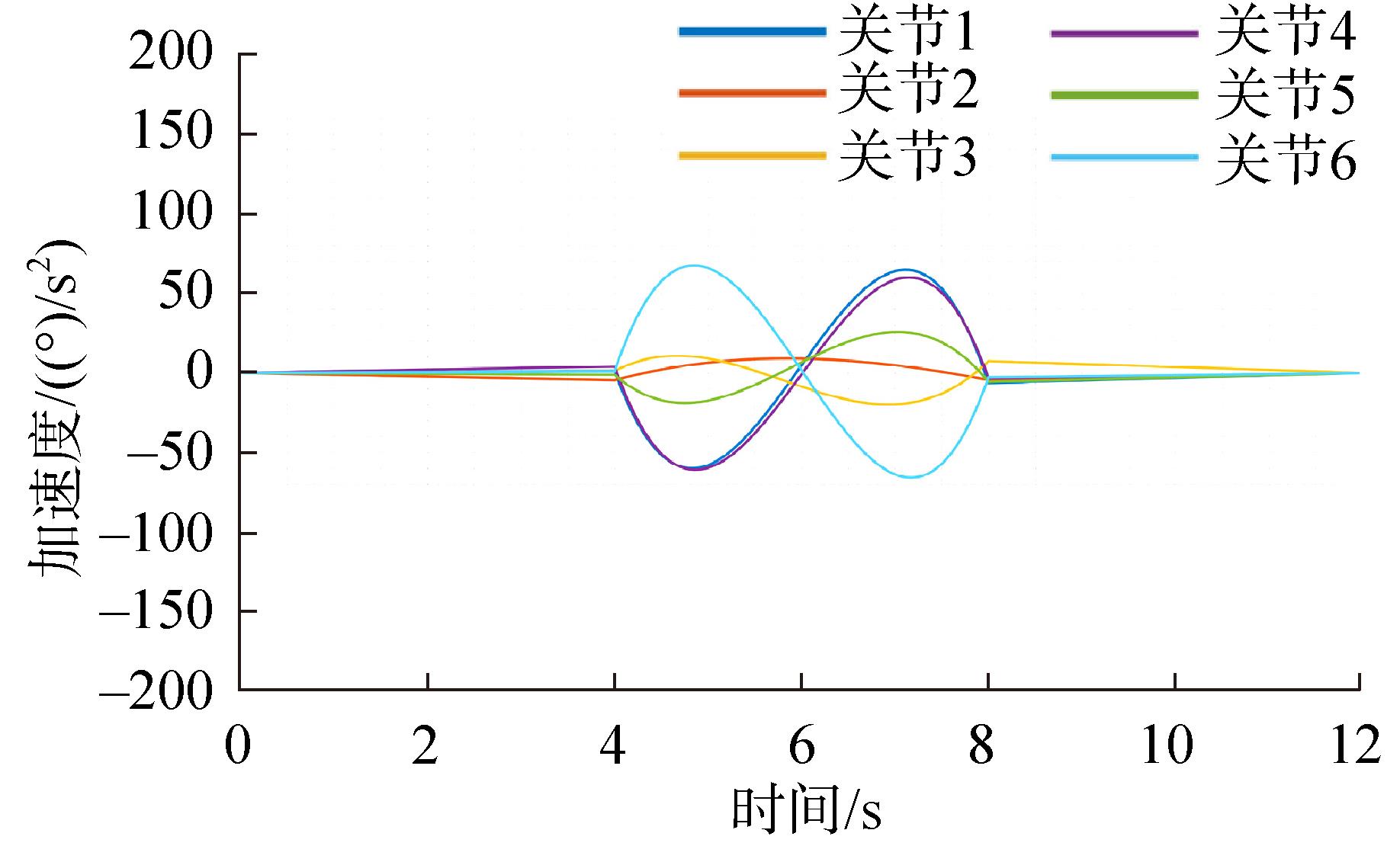

图8

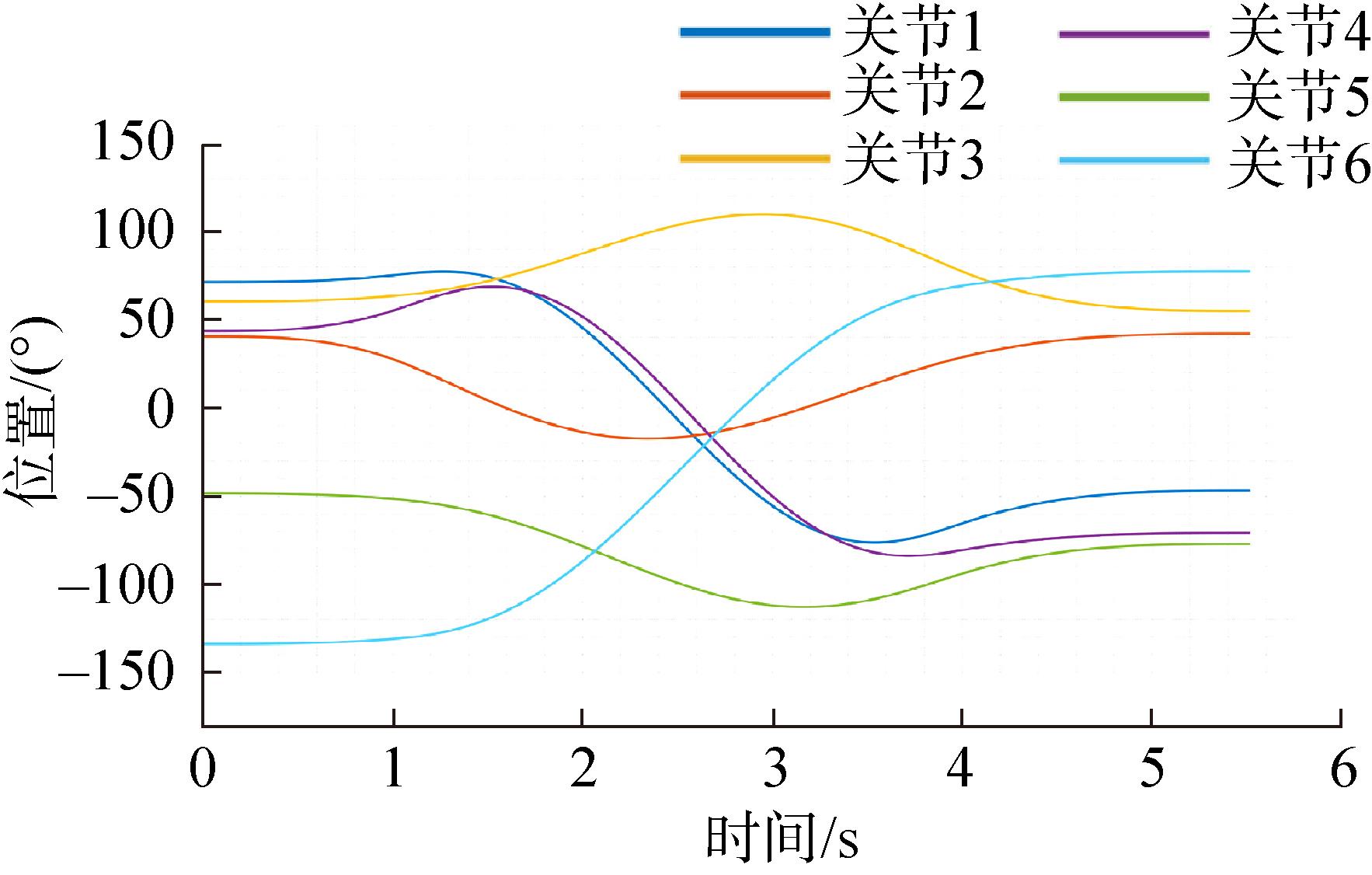

图9

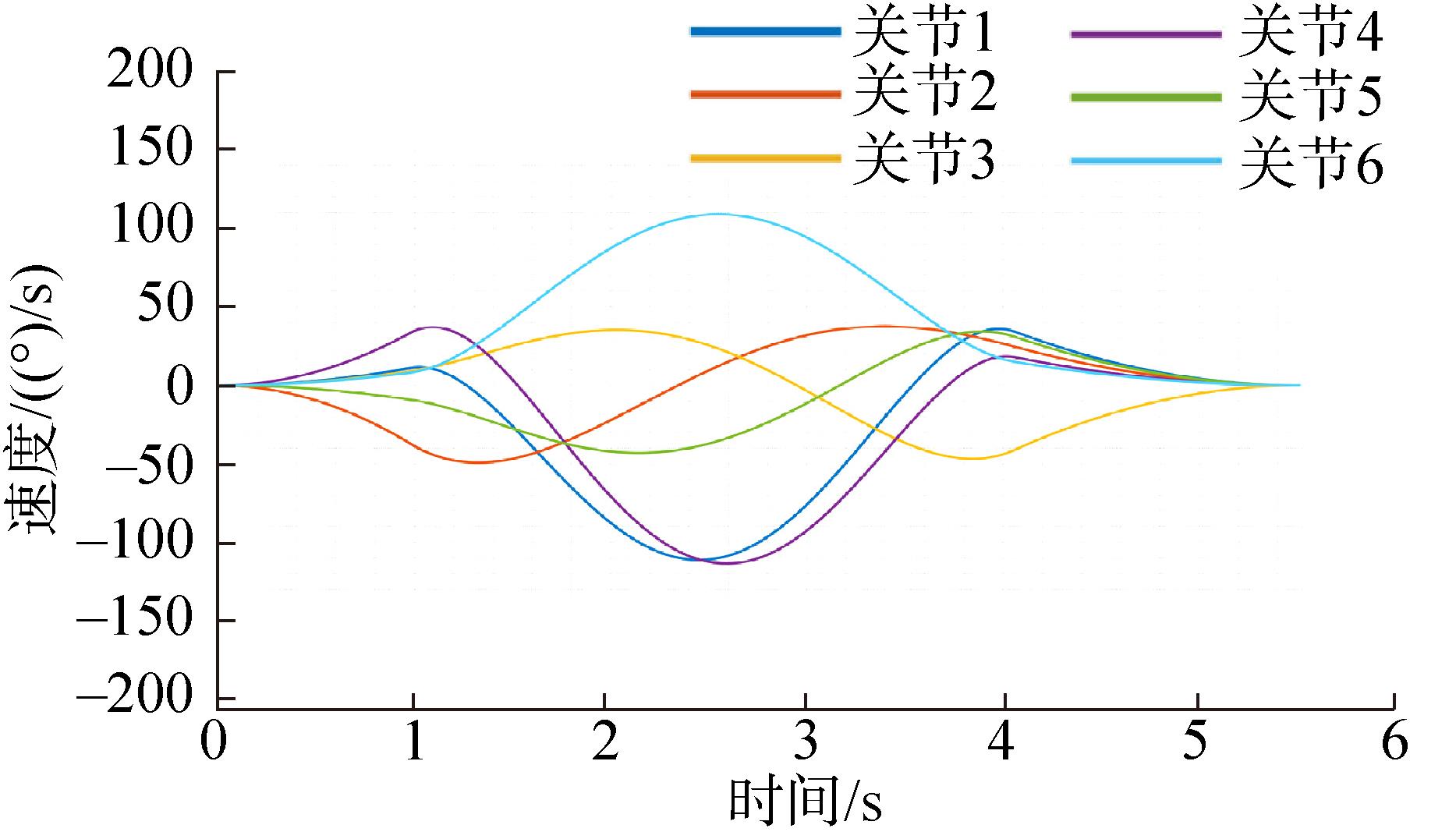

图10

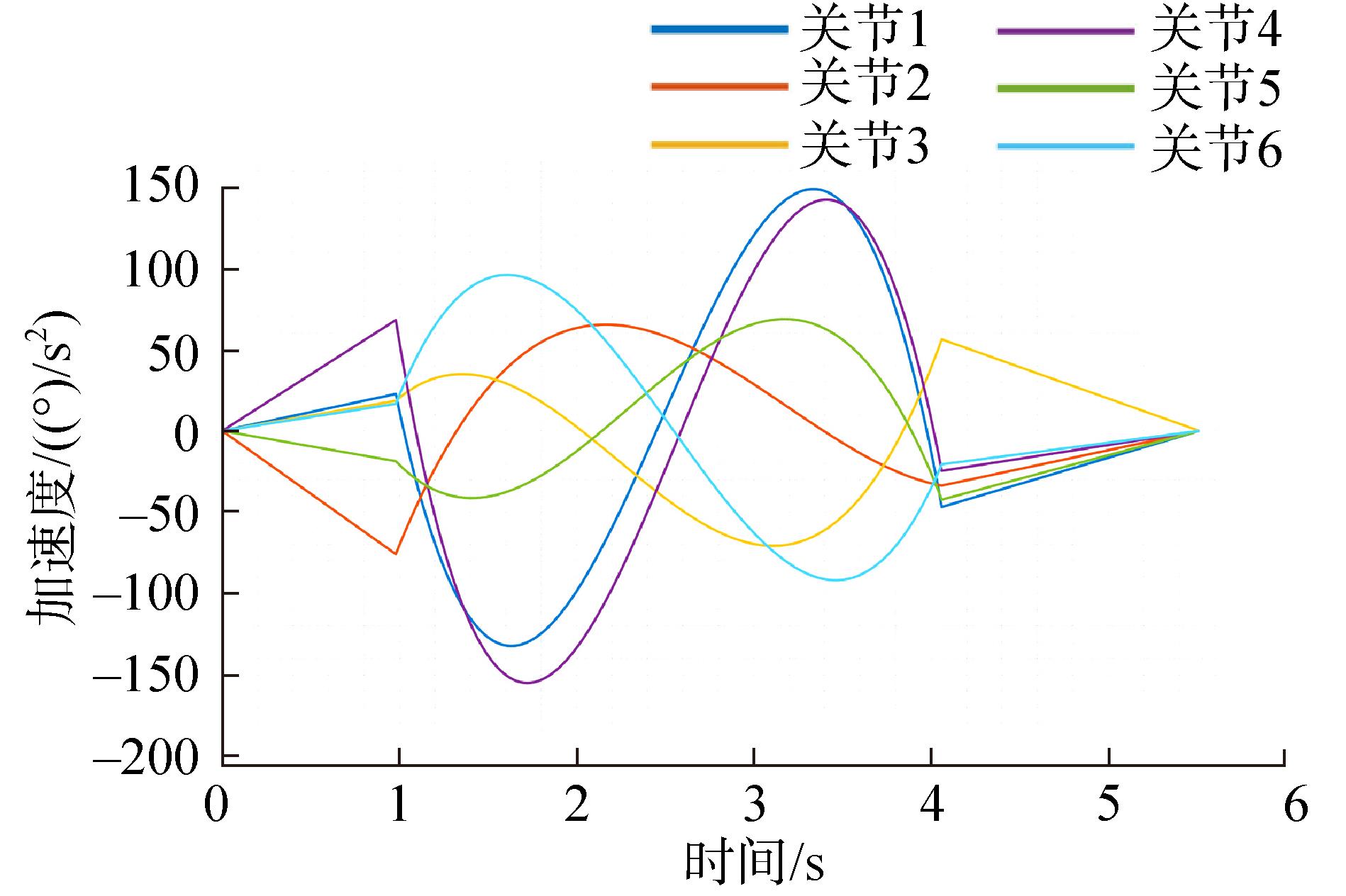

图11

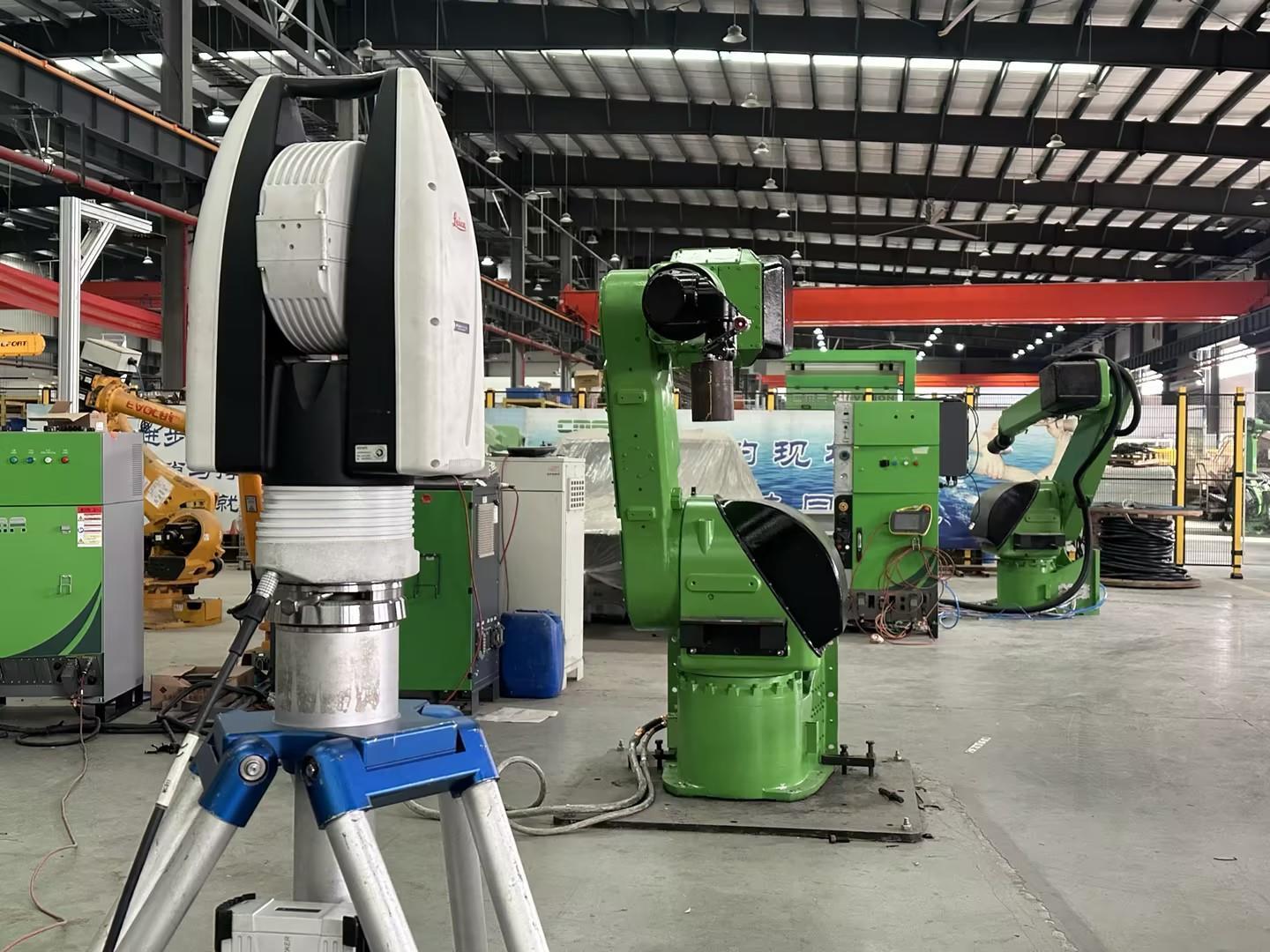

图12

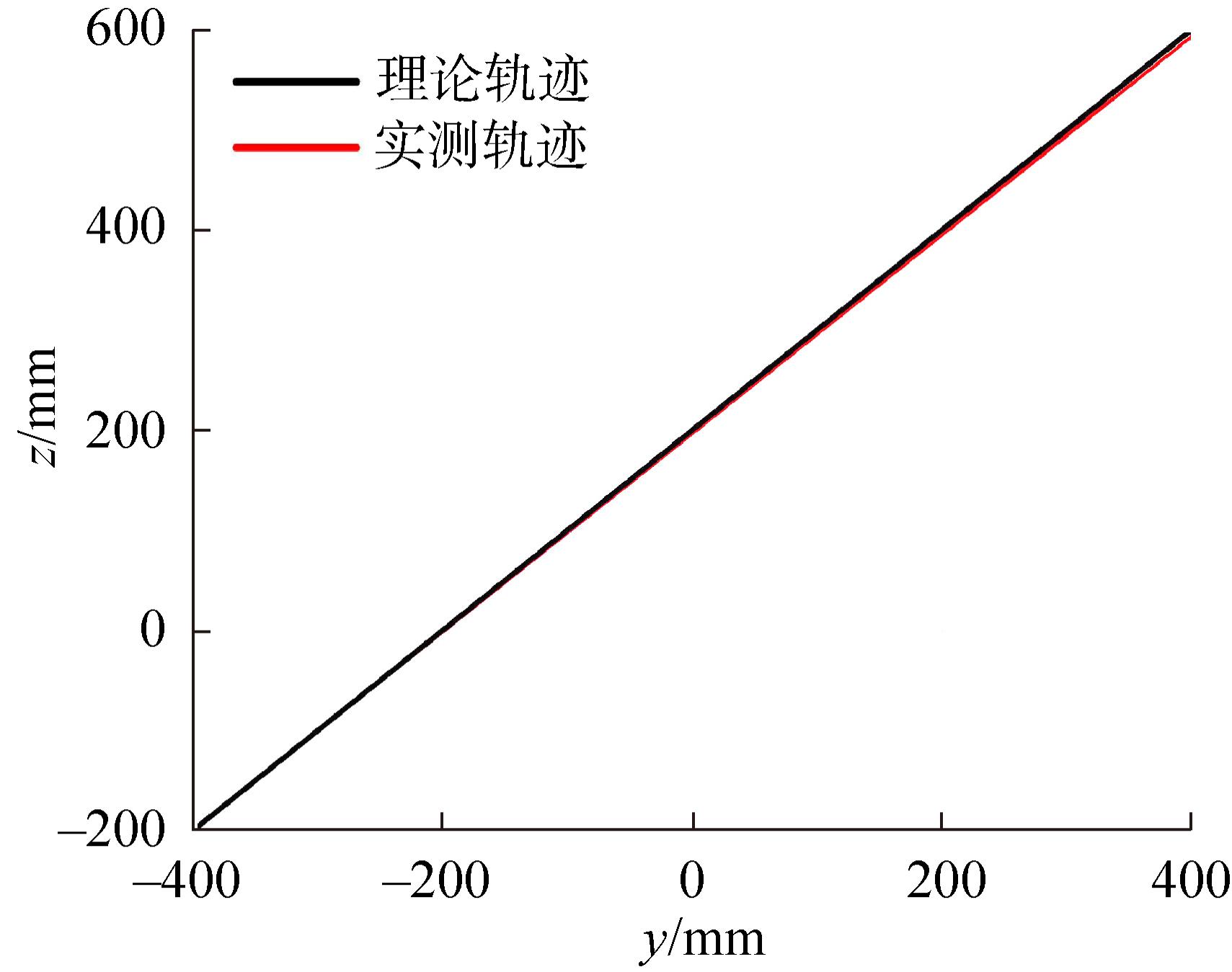

图13

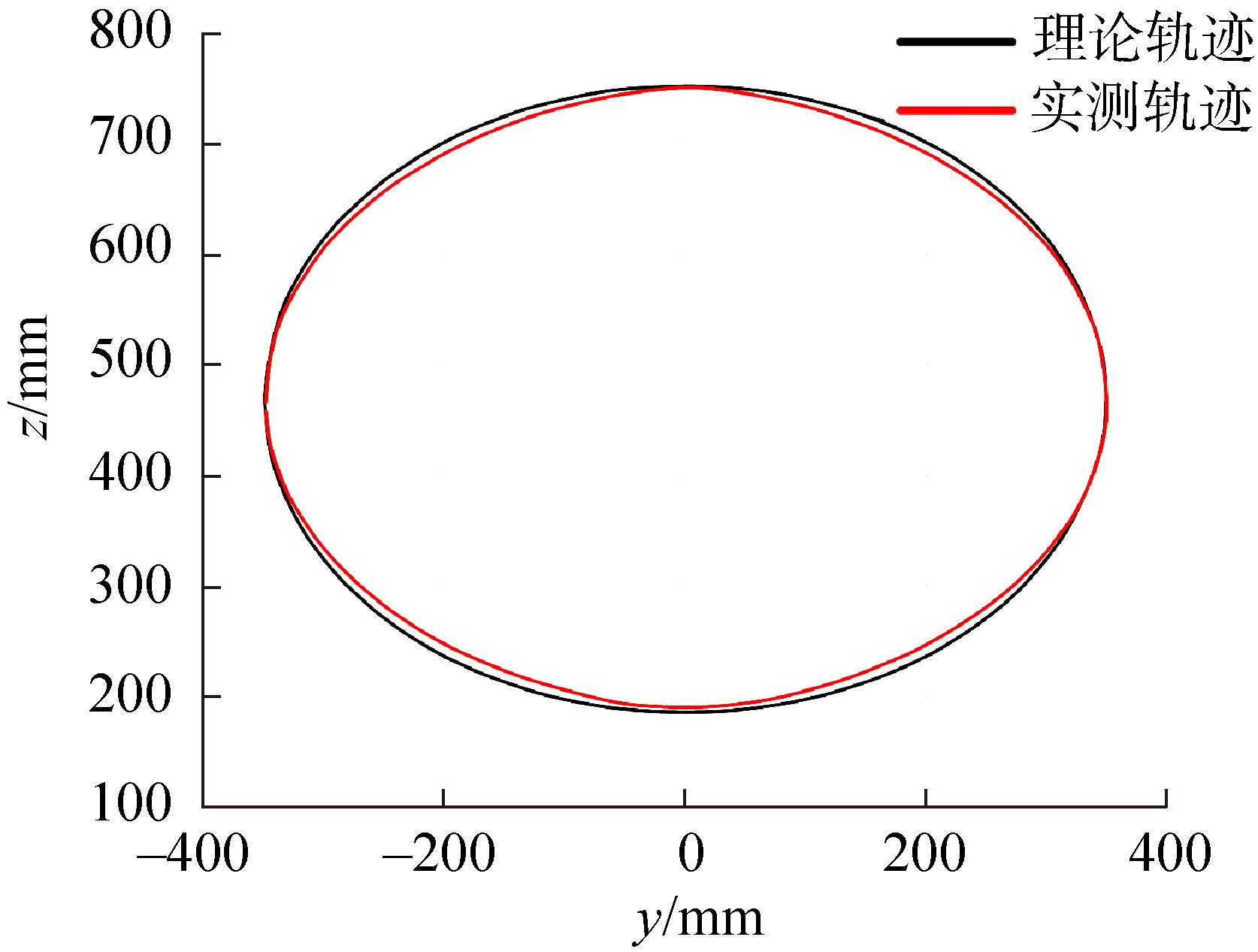

图14

表5

表6

参考文献 22

[1]	祁若龙, 任康, 朱光, 等. 复杂曲面机器人自适应磨削规划与稳态位姿跟踪[J/OL]. 机械工程学报. (2025-07-04) [2025-07-12]. .
	Qi Ruolong, Ren Kang, Zhu Guang, et al. Robot Adaptive Grinding Planning and Steady State Tracking for Complex Surface[J/OL]. Journal of Mechanical Engineering. (2025-07-04) [2025-07-12]. .
[2]	梁坤, 易承修, 李荆澳, 等. 基于改进蜣螂算法的机械臂轨迹规划[J]. 组合机床与自动化加工技术, 2025(6): 43-48.
	Liang Kun, Yi Chengxiu, Li Jingao, et al. Trajectory Planning of Manipulator Based on Improved Dung Beetle Algorithm[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2025(6): 43-48.
[3]	邱冰, 李小兵, 石志新, 等. 多策略改进麻雀算法在机械臂时间最优轨迹规划中的应用[J]. 机械科学与技术, 2024, 43(10): 1714-1722.
	Qiu Bing, Li Xiaobing, Shi Zhixin, et al. Application of Multi-strategy Improved Sparrow Algorithm in Time Optimal Trajectory Planning of Manipulator[J]. Mechanical Science and Technology for Aerospace Engineering, 2024, 43(10): 1714-1722.
[4]	季海涛, 靳华伟. 多策略改进型麻雀算法在水下伸缩臂轨迹定位的应用[J]. 机床与液压, 2023, 51(15): 50-56.
	Ji Haitao, Jin Huawei. Application of Multi-strategy Improved Sparrow Algorithm in Trajectory Location of Underwater Telescopic Boom[J]. Machine Tool & Hydraulics, 2023, 51(15): 50-56.
[5]	郭北涛, 金福鑫, 张丽秀. 基于改进遗传算法对机械臂最优时间轨迹规划[J]. 组合机床与自动化加工技术, 2024(10): 63-67.
	Guo Beitao, Jin Fuxin, Zhang Lixiu. Robot Time Trajectory Optimization Based on Improved Genetic Algorithm[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2024(10): 63-67.
[6]	Zhou Yaosheng, Han Guirong, Wei Ziang, et al. Optimal Trajectory Planning of Robot Energy Consumption Based on Improved Sparrow Search Algorithm[J]. Measurement and Control, 2024, 57(7): 1014-1021.
[7]	赵玮凡, 李波, 李金泉. 改进麻雀搜索算法下机械臂轨迹规划[J]. 组合机床与自动化加工技术, 2024(3): 49-53.
	Zhao Weifan, Li Bo, Li Jinquan. Mechanical Arm Rajectory Planning with Improved Sparrow Search Algorithm[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2024(3): 49-53.
[8]	段现银, 张灿, 朱泽润, 等. 逆解多目标优化的六自由度机械手轨迹规划[J]. 系统仿真学报, 2021, 33(9): 2128-2137.
	Duan Xianyin, Zhang Can, Zhu Zerun, et al. Trajectory Planning of 6-DOF Manipulator Based on Inverse Multi-objective Optimization[J]. Journal of System Simulation, 2021, 33(9): 2128-2137.
[9]	盖荣丽, 王康, 王晓红. 基于混沌莱维粒子群算法的机械臂轨迹规划[J]. 组合机床与自动化加工技术, 2025(5): 101-105, 109.
	Ge Rongli, Wang Kang, Wang Xiaohong. Trajectory Planning of Robotic Arm Based on Tent-levy Particle Swarm Optimization Algorithm[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2025(5): 101-105, 109.
[10]	Xu Hanwen, Gao Wengen, Zhu Jiaming, et al. Time-optimal Trajectory Planning for Manipulator Based on an Improved Sparrow Search Algorithm[J]. Journal of Physics: Conference Series, 2024, 2816(1): 012056.
[11]	许艳涛, 邹光明, 王众玄, 等. 基于改进麻雀算法机械臂时间最优轨迹规划[J]. 组合机床与自动化加工技术, 2024(9): 86-90, 97.
	Xu Yantao, Zou Guangming, Wang Zhongxuan, et al. Optimal Trajectory Planning for Robotic Arms Based on Improved Sparrow Algorithm[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2024(9): 86-90, 97.
[12]	Leng Yuefeng, Cui Chunlai, Jiang Zhichao. Enhanced Crayfish Optimization Algorithm: Orthogonal Refracted Opposition-based Learning for Robotic Arm Trajectory Planning[J]. PLoS One, 2025, 20(2): e0318203.
[13]	Manish Kumar Singh, Yogendra Kumar Verma. Refraction Reverse Learning Based Hybrid Namib Antenna Beetle Optimization for Resource Allocation in NB-IoT Platform[J]. Multimedia Tools and Applications, 2024, 83(18): 53687-53713.
[14]	杨翔宇, 高博. 基于折射反向学习和自适应策略的哈里斯鹰优化算法[J]. 计算机应用, 2024, 44(增2): 129-133.
	Yang Xiangyu, Gao Bo. Harris Hawk Optimization Algorithm Based on Refracted Opposition-based Learning and Adaptive Strategy[J]. Journal of Computer Applications, 2024, 44(S2): 129-133.
[15]	Xu Yubao, Zhang Jinzhong. A Hybrid Nonlinear Whale Optimization Algorithm with Sine Cosine for Global Optimization[J]. Biomimetics, 2024, 9(10): 602.
[16]	Wang Shuxin, Cao Li, Chen Yaodan, et al. Gorilla Optimization Algorithm Combining Sine Cosine and Cauchy Variations and Its Engineering Applications[J]. Scientific Reports, 2024, 14(1): 7578.
[17]	Mirjalili Seyedali. SCA: A Sine Cosine Algorithm for Solving Optimization Problems[J]. Knowledge-Based Systems, 2016, 96: 120-133.
[18]	赵亮, 刘瑞雪, 张玮奇, 等. 基于自适应混沌麻雀搜索算法的机械臂最优时间轨迹规划[J]. 信息与控制, 2024, 53(6): 739-749.
	Zhao Liang, Liu Ruixue, Zhang Weiqi, et al. Optimal Time Trajectory Planning of Robotic Arm Based on Adaptive Chaotic Sparrow Search Algorithm[J]. Information and Control, 2024, 53(6): 739-749.
[19]	Wu Lei, Wu Jiawei, Wang Tengbin. The Improved Grasshopper Optimization Algorithm with Cauchy Mutation Strategy and Random Weight Operator for Solving Optimization Problems[J]. Evolutionary Intelligence, 2024, 17(3): 1751-1781.
[20]	Lai Yanhui, Chen Zuobing, Mao Ya. Research on the Application of a Model Combining Improved Optimization Algorithms and Neural Networks in Trajectory Tracking of Robotic Arms[J]. Alexandria Engineering Journal, 2025, 127: 336-356.
[21]	徐强, 徐坚磊, 胡燕海, 等. 基于改进模拟退火遗传算法的机械臂轨迹优化[J]. 系统仿真学报, 2025, 37(2): 404-412.
	Xu Qiang, Xu Jianlei, Hu Yanhai, et al. Trajectory Optimization of Robotic Arm Based on Improved Simulated Annealing Genetic Algorithm[J]. Journal of System Simulation, 2025, 37(2): 404-412.
[22]	王桂荣, 倪志强, 周坤, 等. 多策略改进粒子群算法的机械臂时间最优轨迹规划[J]. 中国机械工程, 2025, 36(5): 1044-1053.
	Wang Guirong, Ni Zhiqiang, Zhou Kun, et al. Time-optimal Trajectory Planning of Robotic Arms Based on MIPSO Algorithm[J]. China Mechanical Engineering, 2025, 36(5): 1044-1053.

函数	算法	最优值	平均值	标准差
F1	SSA	1.90×10^-316	1.33×10^-62	5.76×10^-62
	PSO	7.06×10^-1	2.35×10^-1	1.32×10^-1
	GWO	1.06×10^-29	1.06×10^-27	1.45×10^-27
	ISSA	0	0	0
	MISSA	0	0	0
F2	SSA	4.26×10^-203	5.19×10^-30	2.82×10^-29
	PSO	5.78×10^-2	1.19×10^-2	1.11×10^-2
	GWO	1.37×10^-17	8.96×10^-17	6.63×10^-17
	ISSA	6.09×10^-281	2.89×10^-266	1.00×10^-266
	MISSA	0	0	0
F3	SSA	0	1.10×10^-21	6.05×10^-21
	PSO	7.41×10¹	2.58×10¹	1.17×10¹
	GWO	1.77×10^-8	4.68×10^-6	1.14×10^-5
	ISSA	0	0	0
	MISSA	0	0	0
F4	SSA	0	4.71×10^-29	2.38×10^-28
	PSO	1.00×10¹	6.98×10⁰	1.15×10⁰
	GWO	7.48×10^-8	7.38×10^-7	7.69×10^-7
	ISSA	0	2.32×10^-218	5.00×10^-219
	MISSA	0	0	0
F5	SSA	1.39×10^-4	1.61×10^-3	1.20×10^-3
	PSO	2.99×10^-1	1.75×10^-1	5.33×10^-2
	GWO	7.49×10^-4	2.38×10^-3	1.33×10^-4
	ISSA	8.37×10^-6	1.02×10^-4	7.62×10^-5
	MISSA	4.23×10^-6	1.74×10^-4	1.50×10^-4
F6	SSA	-9.76×10³	-8.59×10³	5.85×10²
	PSO	-5.00×10²	-3.97×10²	9.84×10¹
	GWO	-7.20×10³	-6.13×10³	7.28×10²
	ISSA	-9.23×10³	-7.90×10³	6.60×10²
	MISSA	-1.25×10⁴	-1.25×10⁴	8.54×10^-1
F7	SSA	0	0	0
	PSO	5.12×10	2.53×10⁰	9.76×10^-1
	GWO	5.68×10^-14	3.67×10⁰	4.99×10⁰
	ISSA	0	0	0
	MISSA	0	0	0
F8	SSA	4.44×10^-16	4.44×10^-16	0
	PSO	1.09×10⁰	3.62×10^-1	3.98×10^-1
	GWO	7.51×10^-14	1.05×10^-13	1.85×10^-14
	ISSA	4.44×10^-16	4.44×10^-16	0
	MISSA	4.44×10^-16	4.44×10^-16	0
F9	SSA	0	0	0
	PSO	1.10×10¹	3.69×10⁰	3.01×10⁰
	GWO	0	3.46×10^-3	7.67×10^-3
	ISSA	0	0	0
	MISSA	0	0	0
F10	SSA	-1.01×10¹	-7.09×10⁰	2.54×10⁰
	PSO	-1.00×10⁰	-5.40×10⁰	-1.69×10⁰
	GWO	-1.01×10¹	-9.48×10⁰	2.10×10⁰
	ISSA	-1.01×10¹	-8.11×10⁰	2.54×10⁰
	MISSA	-1.01×10¹	-8.86×10⁰	3.36×10⁰
F11	SSA	-1.04×10¹	-8.81×10⁰	2.48×10⁰
	PSO	-3.00×10⁰	-4.47×10⁰	-1.38×10⁰
	GWO	-1.04×10¹	-1.04×10¹	8.01×10^-4
	ISSA	-1.04×10¹	-8.46×10⁰	2.60×10⁰
	MISSA	-1.04×10¹	-1.04×10¹	1.48×10^-15
F12	SSA	-1.05×10¹	-8.01×10⁰	2.74×10⁰
	PSO	-1.01×10⁰	-4.08×10⁰	-1.33×10⁰
	GWO	-1.05×10¹	-1.05×10¹	1.33×10^-3
	ISSA	-1.05×10¹	-9.27×10⁰	2.33×10⁰
	MISSA	-1.05×10¹	-1.02×10¹	1.87×10⁰

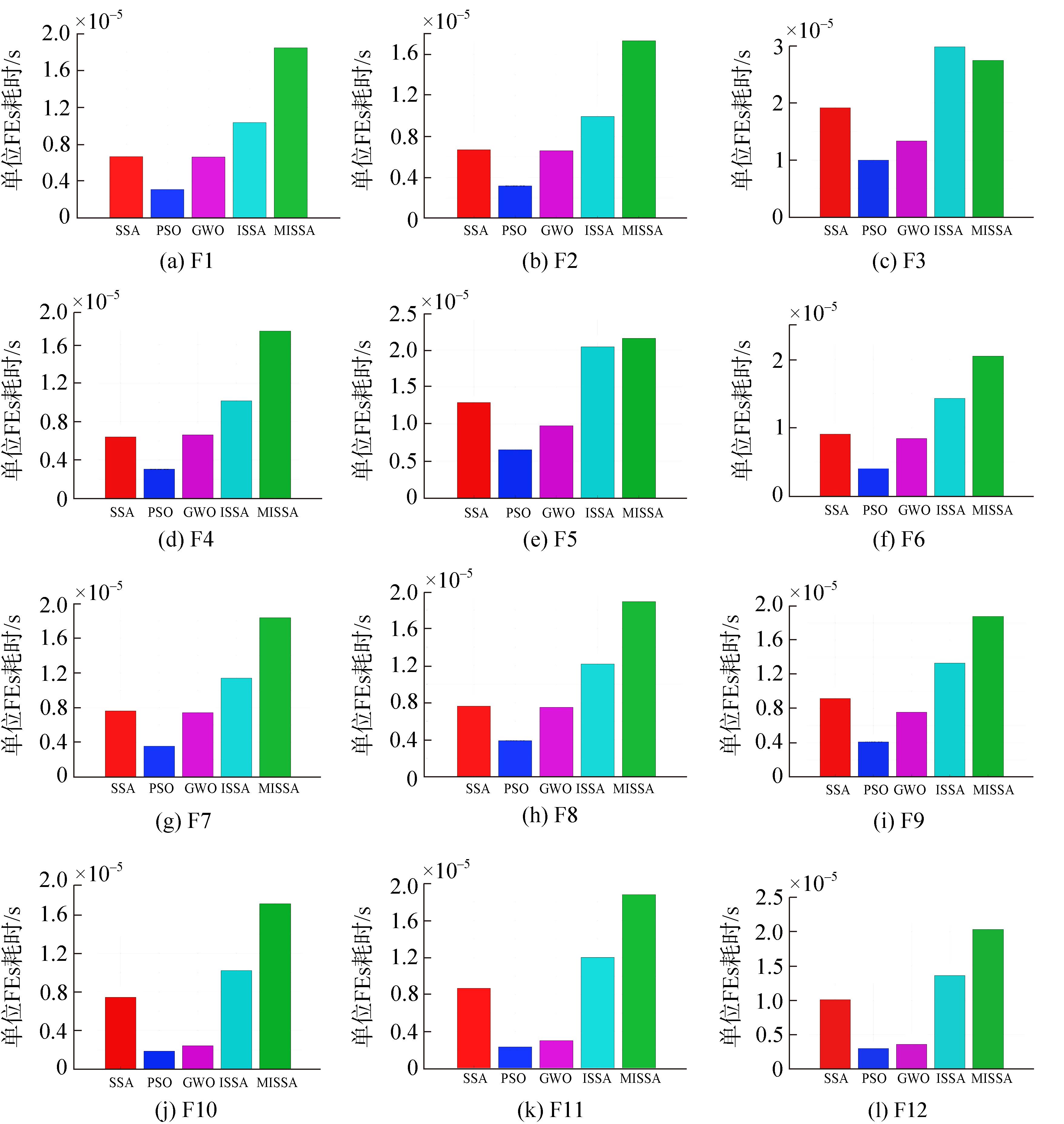

函数	SSA	PSO	GWO	ISSA	MISSA
F1	6.68×10^-6	3.10×10^-6	6.64×10^-6	1.03×10^-5	1.85×10^-5
F2	6.70×10^-6	3.18×10^-6	6.60×10^-6	9.95×10^-6	1.73×10^-5
F3	1.91×10^-5	1.00×10^-5	1.34×10^-5	2.98×10^-5	2.74×10^-5
F4	6.40×10^-6	3.04×10^-6	6.60×10^-6	1.02×10^-5	1.74×10^-5
F5	1.29×10^-5	6.52×10^-6	9.77×10^-6	2.04×10^-5	2.16×10^-5
F6	9.08×10^-6	4.07×10^-6	8.45×10^-6	1.43×10^-5	2.05×10^-5
F7	7.62×10^-6	3.54×10^-6	7.43×10^-6	1.14×10^-5	1.84×10^-5
F8	7.64×10^-6	3.89×10^-6	7.49×10^-6	1.22×10^-5	1.89×10^-5
F9	9.16×10^-6	4.10×10^-6	7.56×10^-6	1.33×10^-5	1.87×10^-5
F10	7.45×10^-6	1.85×10^-6	2.43×10^-6	1.02×10^-5	1.72×10^-5
F11	8.67×10^-6	2.33×10^-6	3.04×10^-6	1.02×10^-5	1.88×10^-5
F12	1.01×10^-5	2.97×10^-6	3.61×10^-6	1.36×10^-5	2.03×10^-5

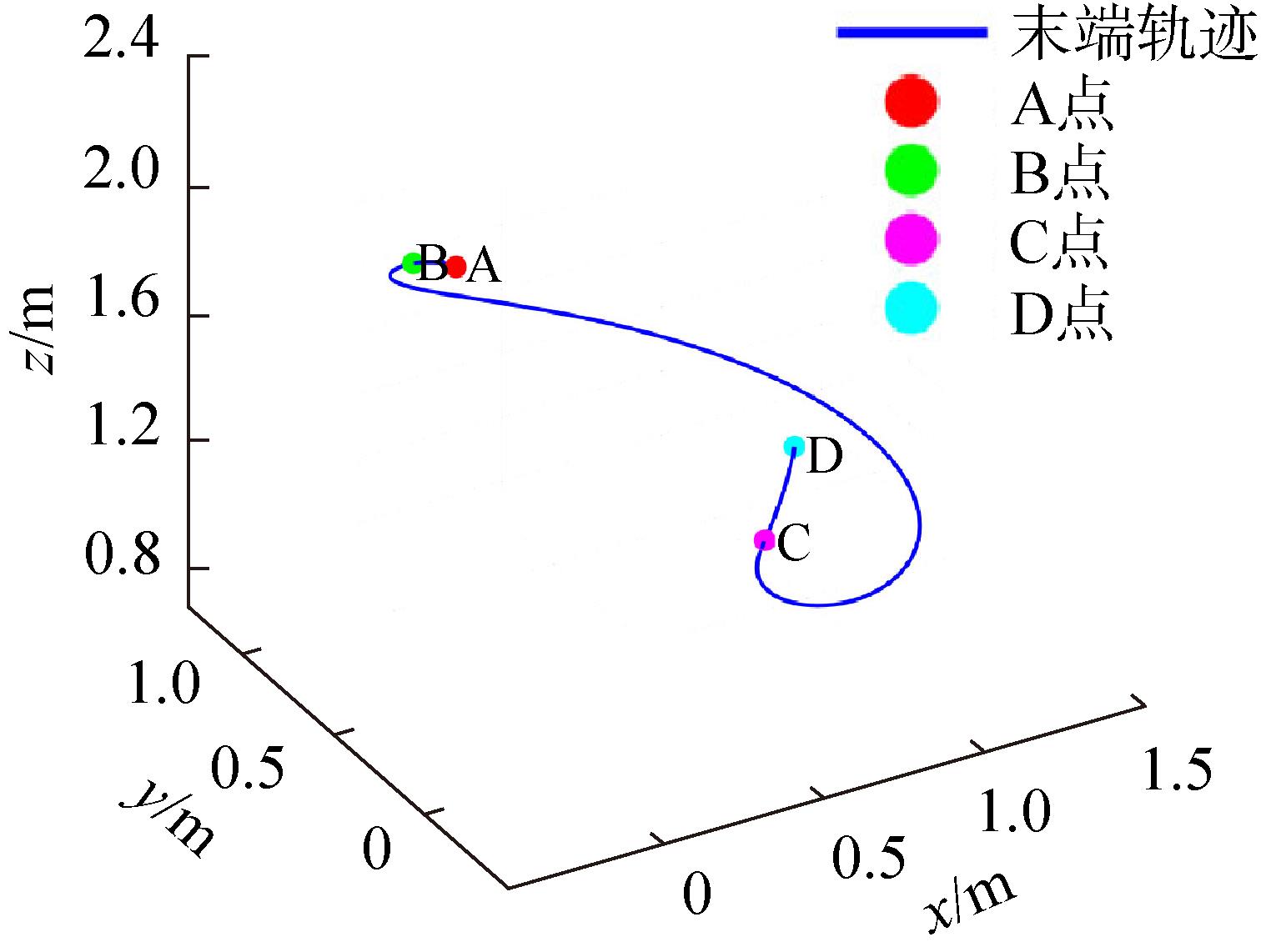

路径点	关节1	关节2	关节3	关节4	关节5	关节6
A	71.42	40.62	60.40	43.57	-48.43	-133.84
B	75.05	28.50	63.36	54.47	-51.41	-131.18
C	-63.30	30.34	74.86	-79.53	-91.99	70.29
D	-46.80	42.21	55.01	-70.86	-77.08	77.54

速度等级/%	实际速度/(mm/s)	AP/mm	RP/mm
10	160	1.604	0.090
50	800	2.716	0.129
100	1 600	6.455	0.177

速度等级/%	实际速度/(mm/s)	AP/mm	RP/mm
10	160	13.330	3.627
50	800	16.552	4.794
100	1 600	25.591	7.710
