落角约束的高超声速飞行器俯冲机动制导方法

doi:10.16182/j.issn1004731x.joss.25-0668

系统仿真学报 ›› 2026, Vol. 38 ›› Issue (6): 1699-1710.doi: 10.16182/j.issn1004731x.joss.25-0668

• 论文 • 上一篇

落角约束的高超声速飞行器俯冲机动制导方法

王和¹, 雷刚¹, 李少朋¹^,²

^1.火箭军工程大学导弹工程学院，陕西西安 710025
^2.清华大学自动化学院，北京 100083

收稿日期:2025-07-14 修回日期:2025-08-21 出版日期:2026-06-25 发布日期:2026-06-25
通讯作者: 雷刚
第一作者简介:王和(2001-)，男，硕士生，研究方向为高超声速飞行器导航、制导与控制。
基金资助:
国家自然科学基金(62103432)

Impact Angle-constrained Dive Maneuver Guidance Method for Hypersonic Vehicles

Wang He¹, Lei Gang¹, Li Shaopeng¹^,²

^1.School of Missile Engineering, Rocket Force University of Engineering, Xi'an 710025, China
^2.School of Automation, Tsinghua University, Beijing 100083, China

Received:2025-07-14 Revised:2025-08-21 Online:2026-06-25 Published:2026-06-25
Contact: Lei Gang

摘要/Abstract

摘要：

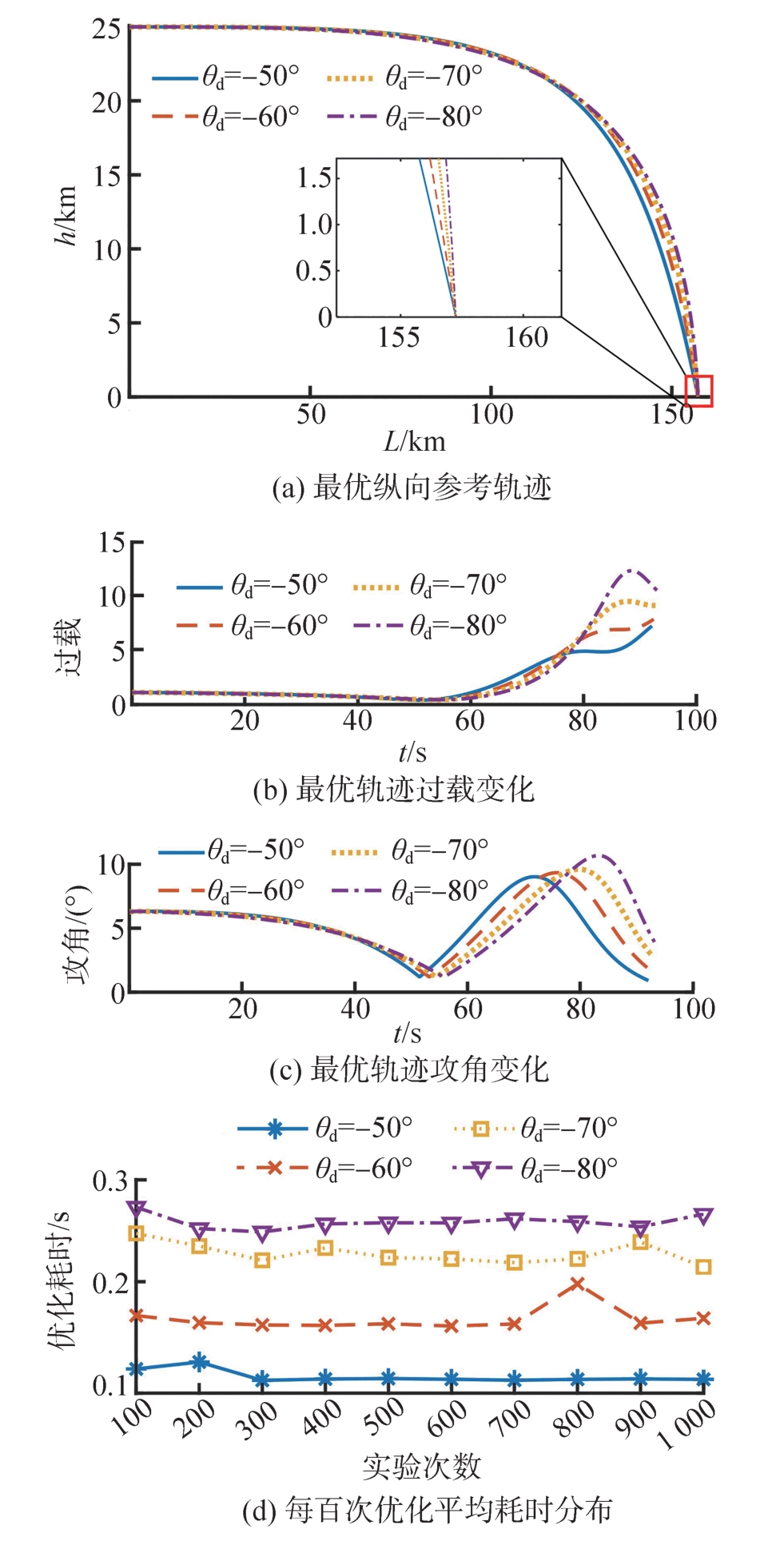

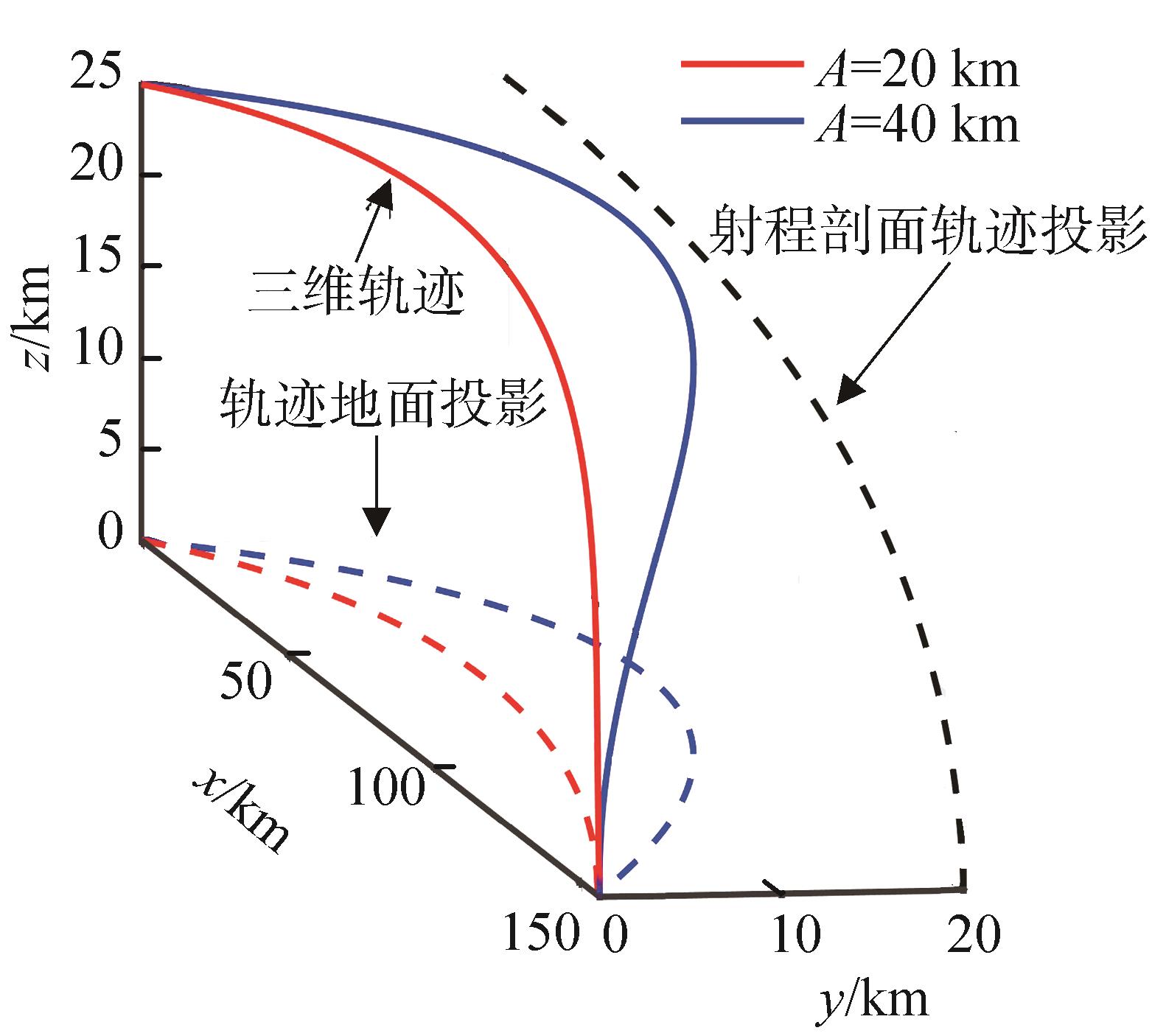

为解决高超声速飞行器俯冲段落角控制与机动飞行问题，提出一种融合最优贝塞尔曲线和超螺旋滑模控制的跟踪制导方法。设计了一条满足落角约束的三维贝塞尔曲线轨迹，并通过添加动态控制点实现了俯冲段机动飞行；为实现落速最优，推导得到了飞行器沿曲线飞行时落速的快速求解方法，通过序列二次规划对控制点参数寻优得到最优的参考弹道；为确保对弹道的准确跟踪，设计了基于超螺旋滑模控制的跟踪制导律。仿真结果表明：该制导方法具有较高的落点、落角控制精度；扰动条件下，仍具有较好的鲁棒性和较高的终端控制精度。

关键词: 高超声速飞行器, 俯冲制导, 落角控制, 贝塞尔曲线, 鲁棒跟踪

Abstract:

To address the impact angle control and maneuvering flight problem of hypersonic vehicles in the dive phase, this paper proposed a tracking guidance method integrating optimal Bézier curves and super-twisting sliding mode control. A three-dimensional Bézier curve trajectory satisfying the impact angle constraint was designed, and the maneuvering flight in dive phase was achieved by adding dynamic control points; to optimize impact velocity, a rapid calculation method for the impact velocity of the vehicle flying along the curve was derived, and the optimal reference trajectory was obtained by optimizing the control point parameters through sequential quadratic programming; to ensure precise tracking of the trajectory, a tracking guidance law based on super-twisting sliding mode control was designed. Simulation results demonstrate that this guidance method achieves high control accuracy of impact point and impact angle; under disturbance conditions, it still maintains good robustness and high terminal control precision.

Key words: hypersonic vehicle, dive guidance, impact angle control, Bézier curve, robust tracking

中图分类号:

TP391

王和,雷刚,李少朋 . 落角约束的高超声速飞行器俯冲机动制导方法[J]. 系统仿真学报, 2026, 38(6): 1699-1710.

Wang He,Lei Gang,Li Shaopeng . Impact Angle-constrained Dive Maneuver Guidance Method for Hypersonic Vehicles[J]. Journal of System Simulation, 2026, 38(6): 1699-1710.

图/表 15

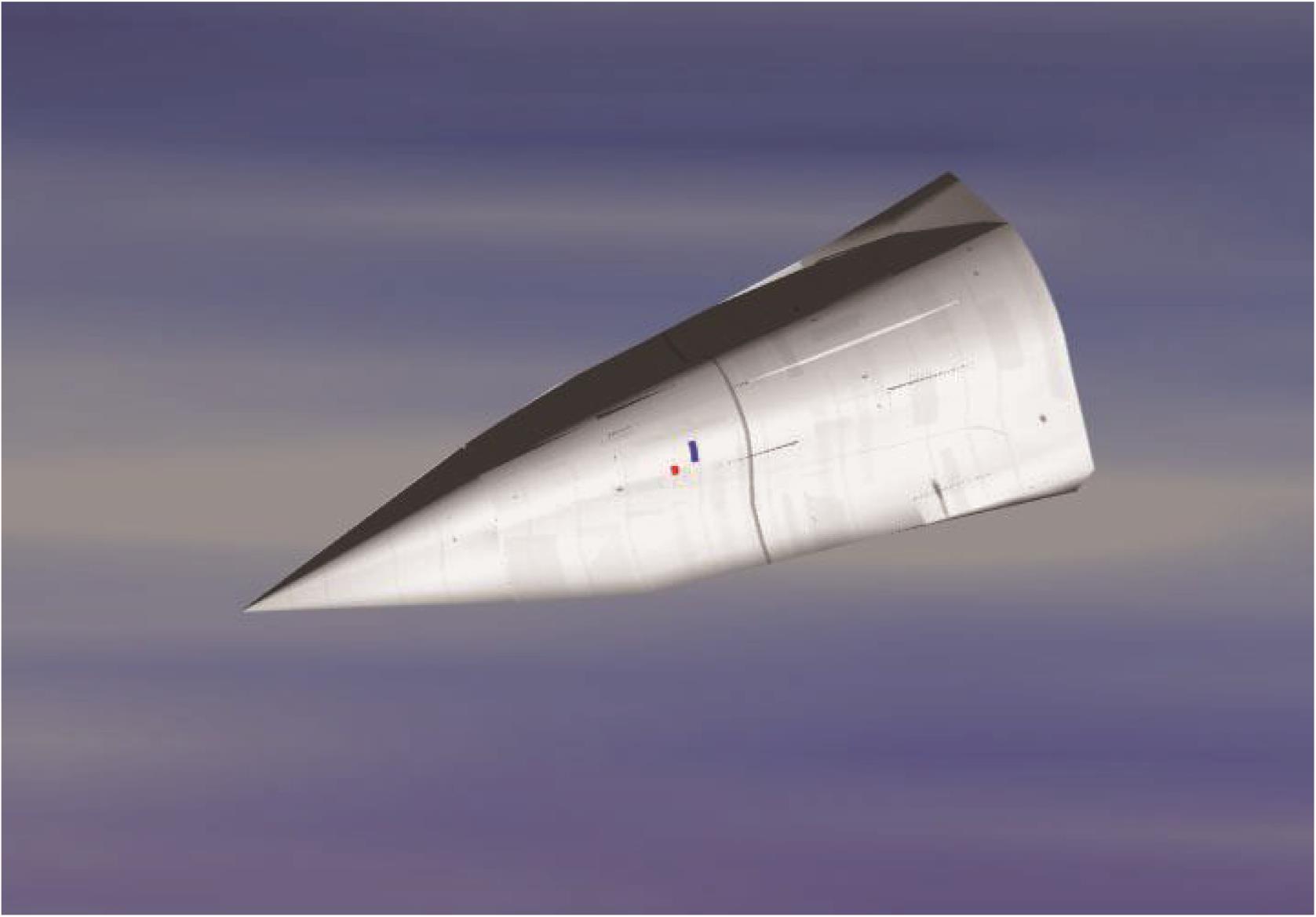

图1

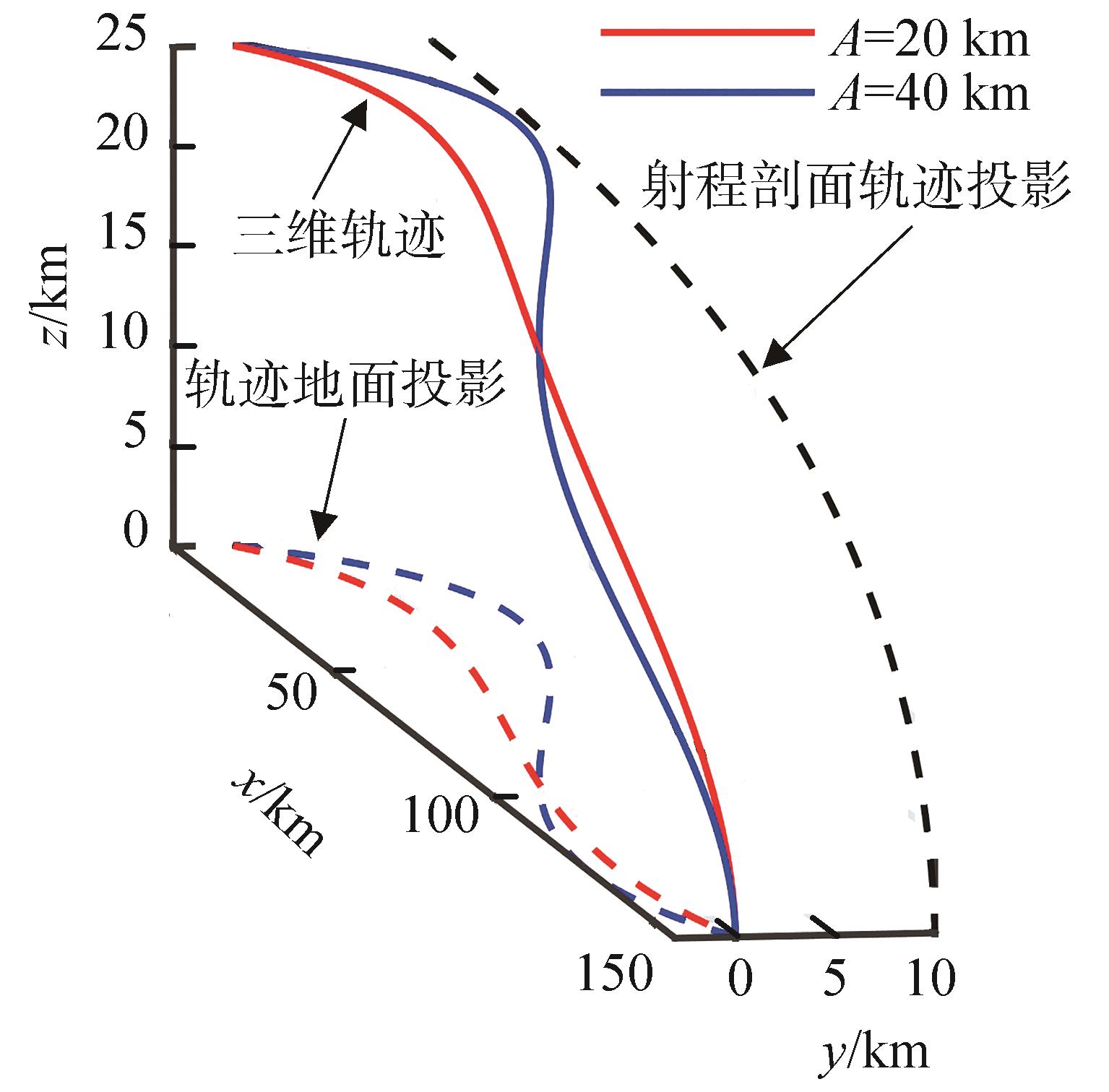

图2

图3

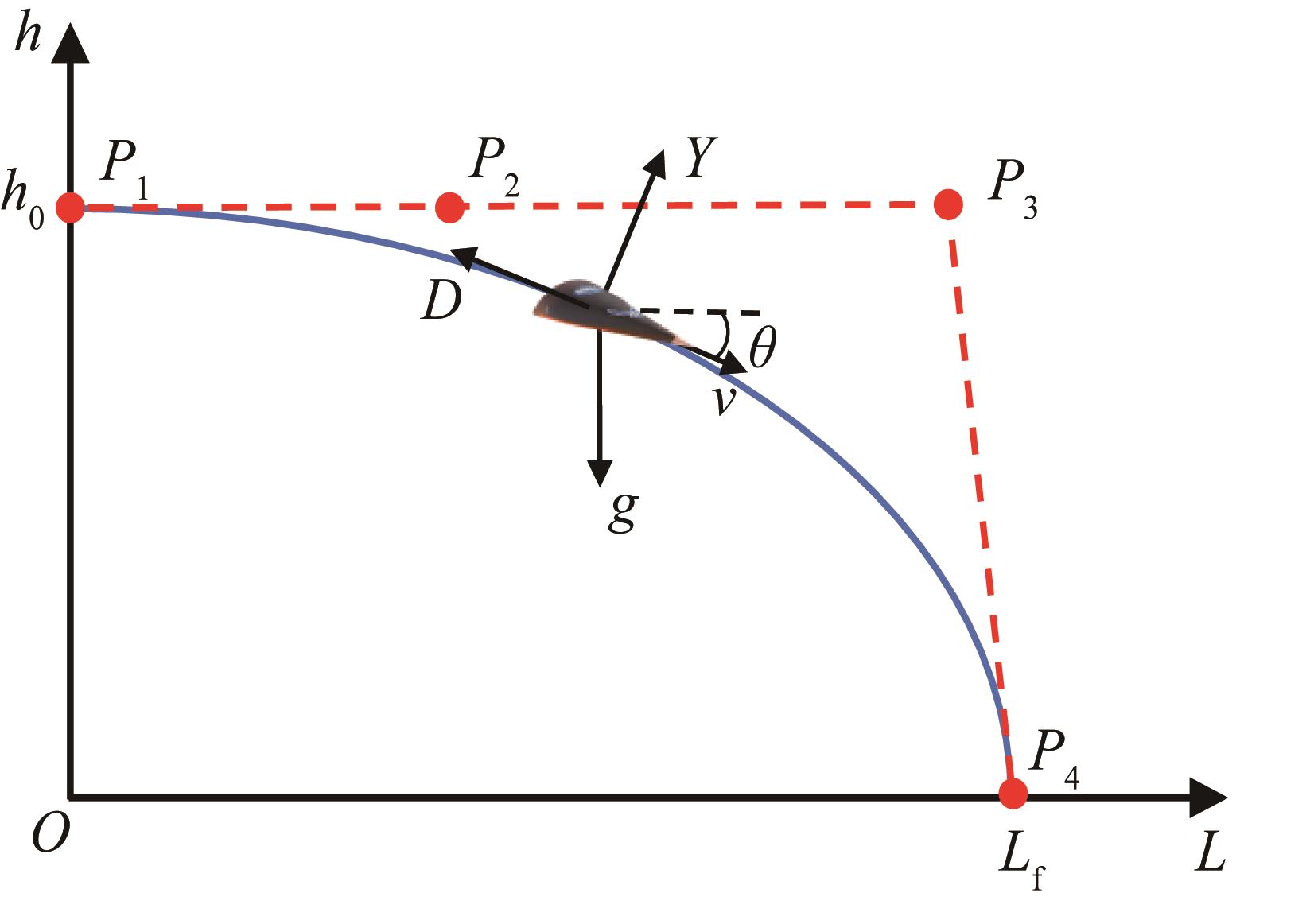

图4

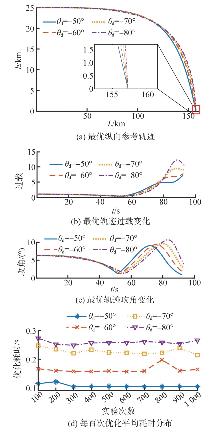

图5

表1

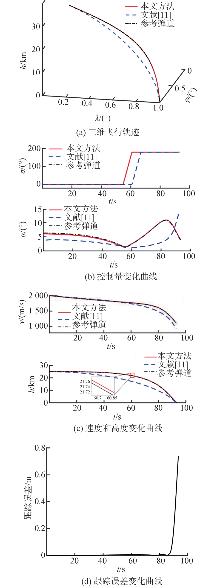

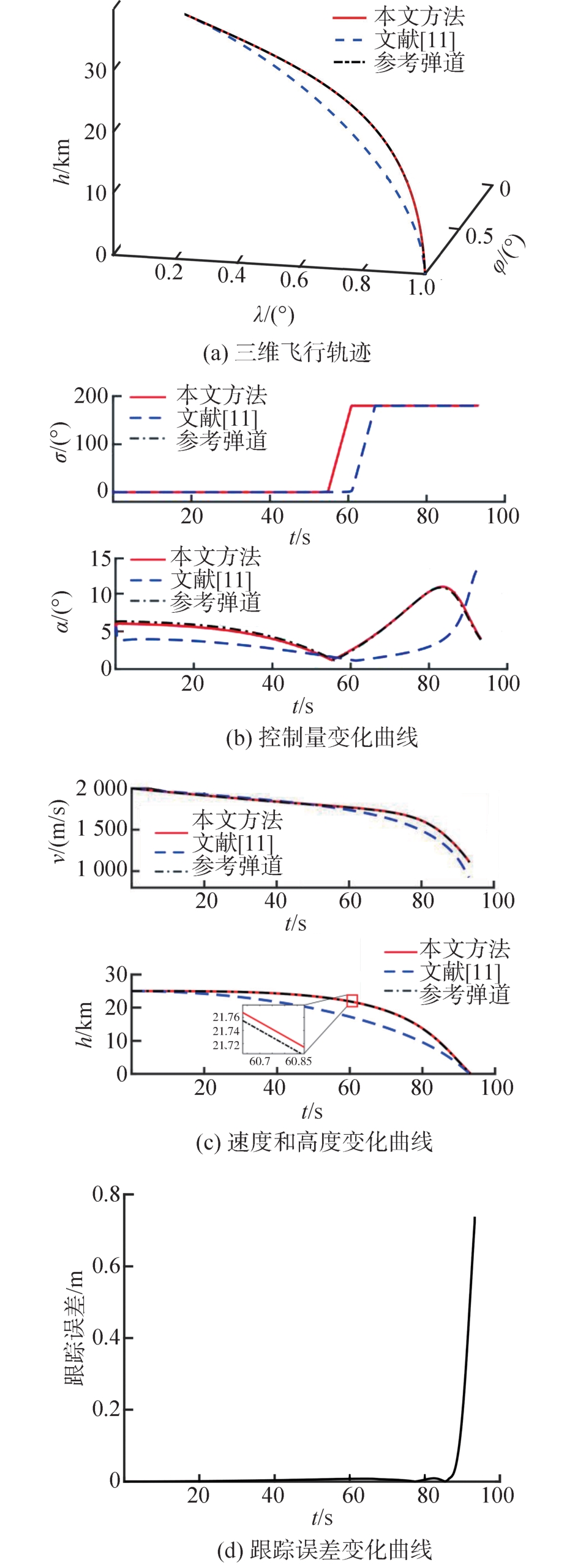

图6

表2

图7

表3

表4

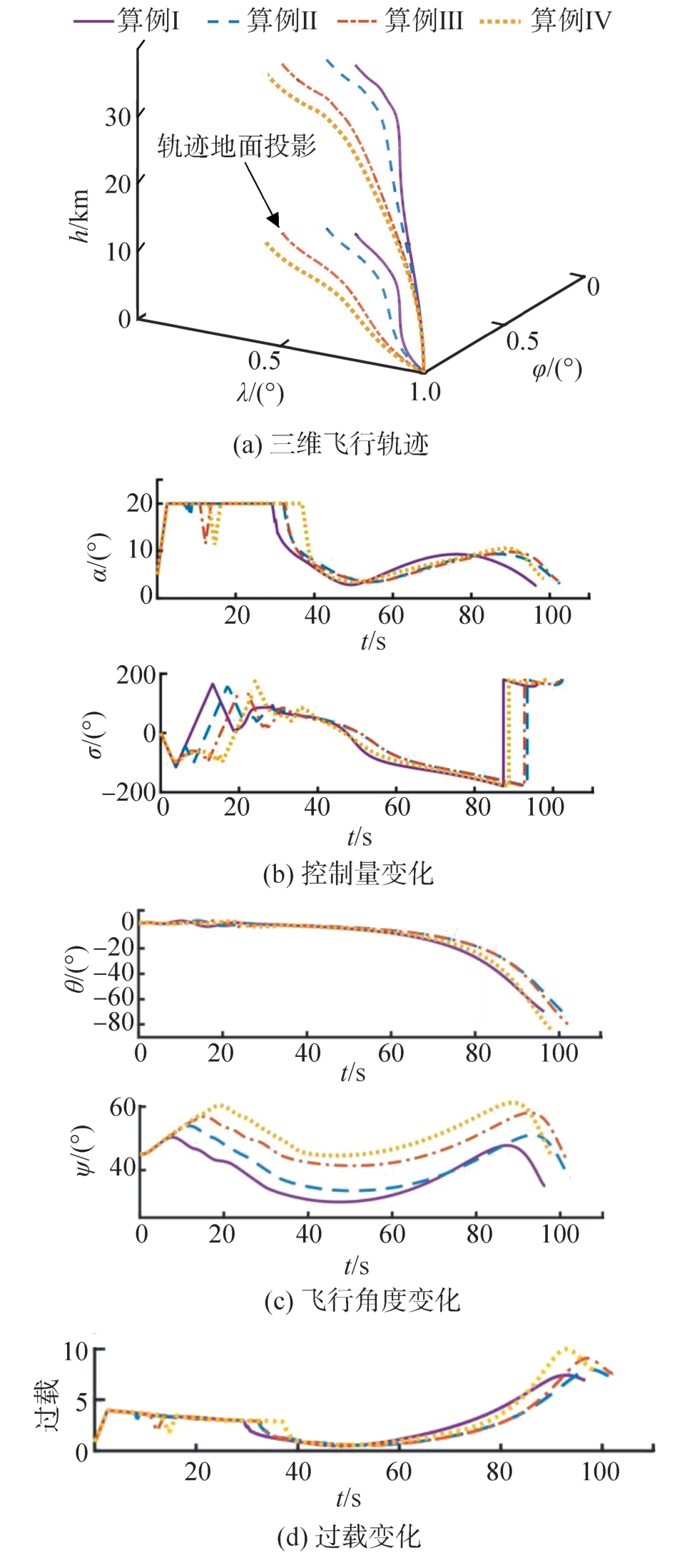

图8

表5

表6

图9

参考文献 20

[1]	张远, 黄旭, 路坤锋, 等. 高超声速飞行器控制技术研究进展与展望[J]. 宇航学报, 2022, 43(7): 866-879.
	Zhang Yuan, Huang Xu, Lu Kunfeng, et al. Research Progress and Prospect of the Hypersonic Flight Vehicle Control Technology[J]. Journal of Astronautics, 2022, 43(7): 866-879.
[2]	方洋旺, 柴栋, 毛东辉, 等. 吸气式高超声速飞行器制导与控制研究现状及发展趋势[J]. 航空学报, 2014, 35(7): 1776-1786.
	Fang Yangwang, Chai Dong, Mao Donghui, et al. Status and Development Trend of the Guidance and Control for Air-breathing Hypersonic Vehicle[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35(7): 1776-1786.
[3]	Ding Yibo, Yue Xiaokui, Chen Guangshan, et al. Review of Control and Guidance Technology on Hypersonic Vehicle[J]. Chinese Journal of Aeronautics, 2022, 35(7): 1-18.
[4]	Kim M, Grider K V. Terminal Guidance for Impact Attitude Angle Constrained Flight Trajectories[J]. IEEE Transactions on Aerospace and Electronic Systems, 1973, (6): 852-859.
[5]	Ratnoo Ashwini, Ghose Debasish. Impact Angle Constrained Interception of Stationary Targets[J]. Journal of Guidance, Control, and Dynamics, 2008, 31(6): 1817-1822.
[6]	Lee Sangmin, Lee Youngjun, Kim Youdan, et al. Impact Angle Control Guidance Considering Seeker's Field-of-view Limit Based on Reinforcement Learning[J]. Journal of Guidance, Control, and Dynamics, 2023, 46(11): 2168-2182.
[7]	Zhou Zhiming, Yao Xiaoxian. Polynomial Guidance Law for Impact Angle Control with a Seeker Look Angle Limit[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2020, 234(3): 857-870.
[8]	Cho Dongsoo, Kim Seung-Hwan. Direct Impact Angle Control Guidance for Passive Homing Missiles[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2020, 234(15): 2139-2152.
[9]	Lu Ping, Doman D B, Schierman J D. Adaptive Terminal Guidance for Hypervelocity Impact in Specified Direction[J]. Journal of Guidance, Control, and Dynamics, 2006, 29(2): 269-278.
[10]	He Lei, Yan Xiaodong. Adaptive Terminal Guidance Law for Spiral-diving Maneuver Based on Virtual Sliding Targets[J]. Journal of Guidance, Control, and Dynamics, 2018, 41(7): 1591-1601.
[11]	Liu Luhua, Zhu Jianwen, Tang Guojian, et al. Diving Guidance via Feedback Linearization and Sliding Mode Control[J]. Aerospace Science and Technology, 2015, 41: 16-23.
[12]	Sheng Yongzhi, Gan Jiahao, Xia Lei. Predefined-time Fractional-order Time-varying Sliding Mode Control and Its Application in Hypersonic Vehicle Guidance Law[J]. Nonlinear Dynamics, 2023, 111(15): 14177-14198.
[13]	Liao Yuxin, Li Huifeng, Bao Weimin. Three-dimensional Diving Guidance for Hypersonic Gliding Vehicle via Integrated Design of FTNDO and AMSTSMC[J]. IEEE Transactions on Industrial Electronics, 2018, 65(3): 2704-2715.
[14]	梁子璇, 黄美伊, 冉宇寰, 等. 带落速落角约束的高超声速飞行器俯冲轨迹规划方法[J]. 宇航学报, 2022, 43(8): 1052-1060.
	Liang Zixuan, Huang Meiyi, Ran Yuhuan, et al. Diving Trajectory Planning Method for Hypersonic Vehicles with Terminal Velocity and Impact Angle Constraints[J]. Journal of Astronautics, 2022, 43(8): 1052-1060.
[15]	Zhang Hao, Zhu Jianwen, Li Xiaopin, et al. Intelligent Diving Guidance with Terminal Angle and Velocity Constraints via Deep Reinforcement Learning[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2024, 238(13): 1326-1337.
[16]	Phillips T H. A Common Aero Vehicle(CAV) Model, Description, and Employment Guide[R]. USA: Schafer Corporation for AFRL and AFSPC, 2003: 1-2.
[17]	Forrest A R. Interactive Interpolation and Approximation by Bézier Polynomials[J]. The Computer Journal, 1972, 15(1): 71-79.
[18]	Levant Arie. Robust Exact Differentiation via Sliding Mode Technique[J]. Automatica, 1998, 34(3): 379-384.
[19]	Moreno Jaime A, Osorio Marisol. Strict Lyapunov Functions for the Super-twisting Algorithm[J]. IEEE Transactions on Automatic Control, 2012, 57(4): 1035-1040.
[20]	孙勇, 段广仁, 张卯瑞, 等. 高超声速飞行器再入过程改进气动系数模型[J]. 系统工程与电子技术, 2011, 33(1): 134-137.
	Sun Yong, Duan Guangren, Zhang Maorui, et al. Modified Aerodynamic Coefficient Models of Hypersonic Vehicle in Reentry Phase[J]. Systems Engineering and Electronics, 2011, 33(1): 134-137.

参数	取值	参数	取值
高度/km	25	航迹角/(°)	0
速度/(m/s)	2 000	航向角/(°)	45
倾侧角/(°)	0	初始点经纬度/(°)	(0, 0)
攻角/(°)	5	目标点经纬度/(°)	(1, 1)

制导方法	落速/(m/s)	落角/(°)	脱靶量/m
参考弹道	1 107.340	-80.000	0
本文方法	1 106.065	-79.892	0.743
文献[11]	925.113	-79.864	1.273

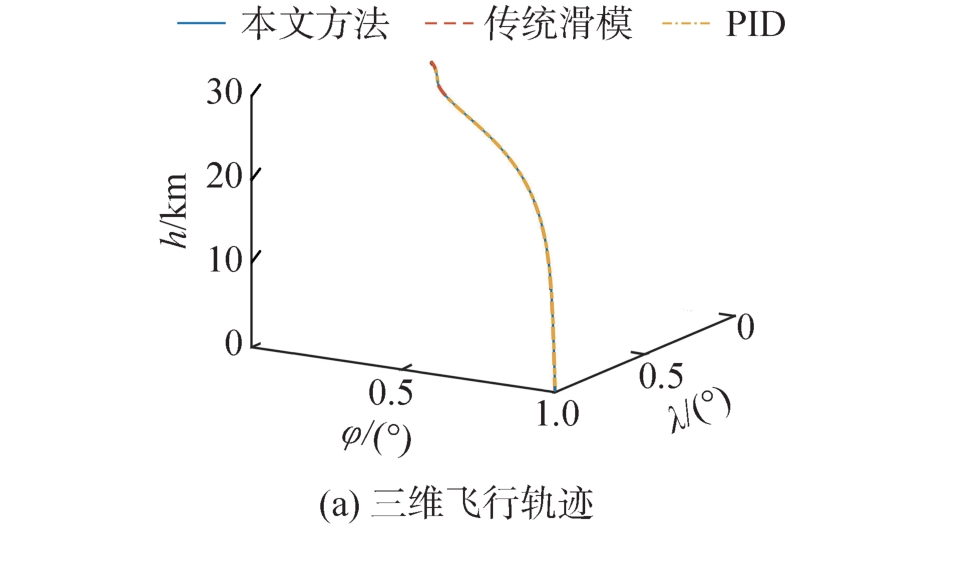

制导方法	落角/(°)	脱靶量/m
本文方法	-79.902	1.086
传统滑模	-79.855	1.567
PID控制	-79.638	5.423

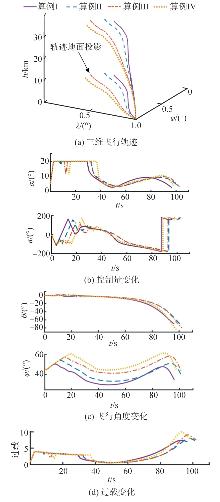

算例	起始点/(°)	期望落角/(°)
I	(0.2, 0)	-70
II	(0.1, 0)	-75
III	(0, 0.1)	-80
IV	(0, 0.2)	-85

算例	x₁/km	x₂/km	实际落角/(°)	脱靶量/m
Ⅰ	81.394	133.219	-69.965	2.473
Ⅱ	87.037	142.838	-74.953	2.024
Ⅲ	84.050	145.146	-79.944	1.513
Ⅳ	72.915	140.187	-84.930	0.637

落角约束的高超声速飞行器俯冲机动制导方法

Impact Angle-constrained Dive Maneuver Guidance Method for Hypersonic Vehicles

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 15

参考文献 20

相关文章 9

编辑推荐

Metrics

本文评价

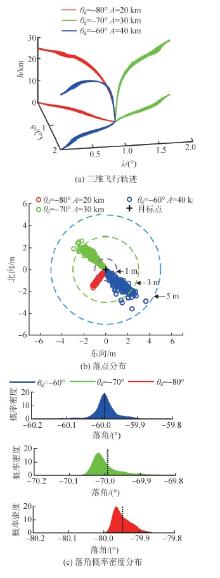

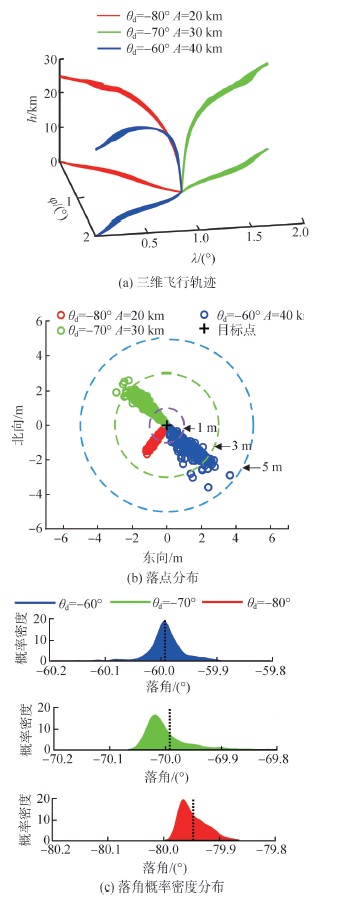

参数	3σ	参数	3σ
高度/m	200	航迹角/(°)	0.1
速度/(m/s)	50	飞行器质量/kg	30
大气密度	20%	升力系数	20%
航向角/(°)	5	阻力系数	20%
