模块化多电平换流器谐波阻抗建模与振荡分析

doi:10.16182/j.issn1004731x.joss.24-FZ0803E

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (12): 2755-2770.doi: 10.16182/j.issn1004731x.joss.24-FZ0803E

• 论文 • 上一篇

模块化多电平换流器谐波阻抗建模与振荡分析

王渝红¹, 陈文晟¹, 高仕林¹, 廖建权¹, 程杨帆²

^1.四川大学电气工程学院，四川成都 610065
^2.国家电网嘉兴供电公司，浙江嘉兴 314000

收稿日期:2024-07-22 修回日期:2024-09-27 出版日期:2024-12-20 发布日期:2024-12-20
通讯作者: 高仕林

Harmonic Impedance Modeling and Oscillation Analysis of Modular Multilevel Converter

Wang Yuhong¹, Chen Wensheng¹, Gao Shilin¹, Liao Jianquan¹, Cheng Yangfan²

^1.College of Electrical Engineering, Sichuan University, Chengdu 610065, China
^2.State Grid Jiaxing Electric Power Supply Company, Jiaxing 314000, China

Received:2024-07-22 Revised:2024-09-27 Online:2024-12-20 Published:2024-12-20
Contact: Gao Shilin
About author:Wang Yuhong(1971-), female, professor, PhD, research area: power system stability and control.
Supported by:
National Natural Science Foundation of China(52307127);State Key Laboratory of Power System Operation and Control(SKLD23KZ07)

摘要/Abstract

摘要：

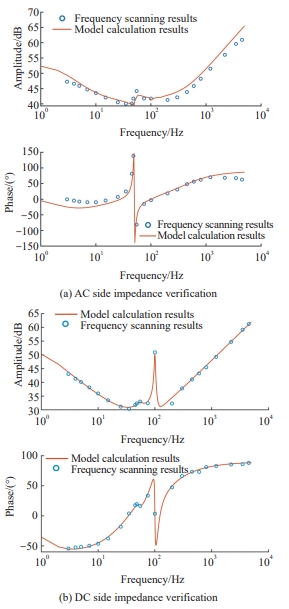

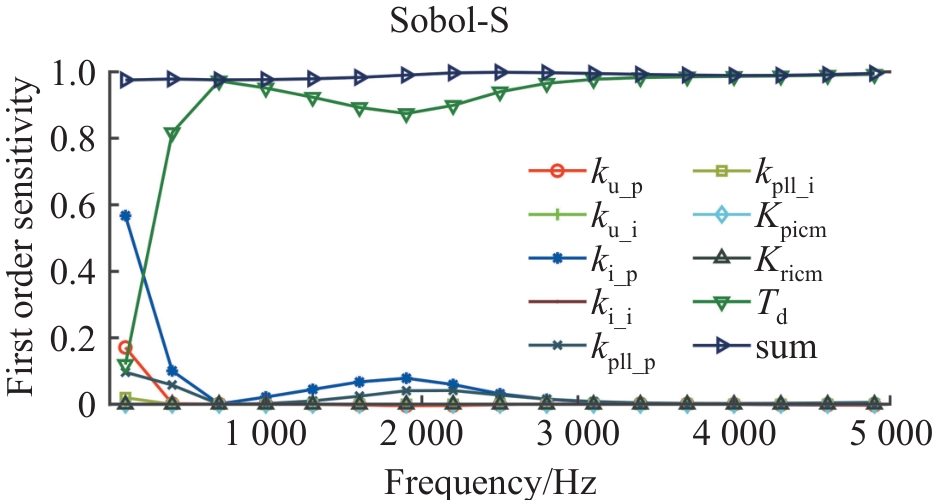

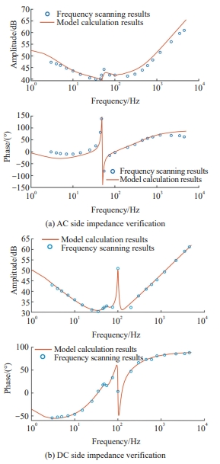

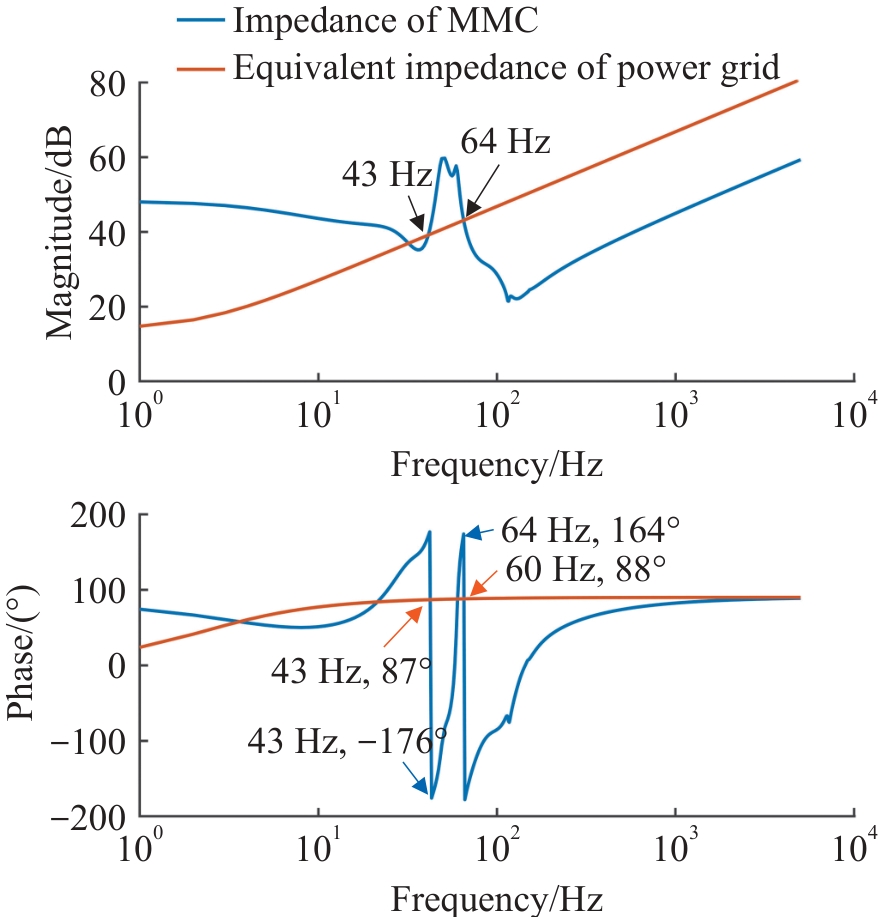

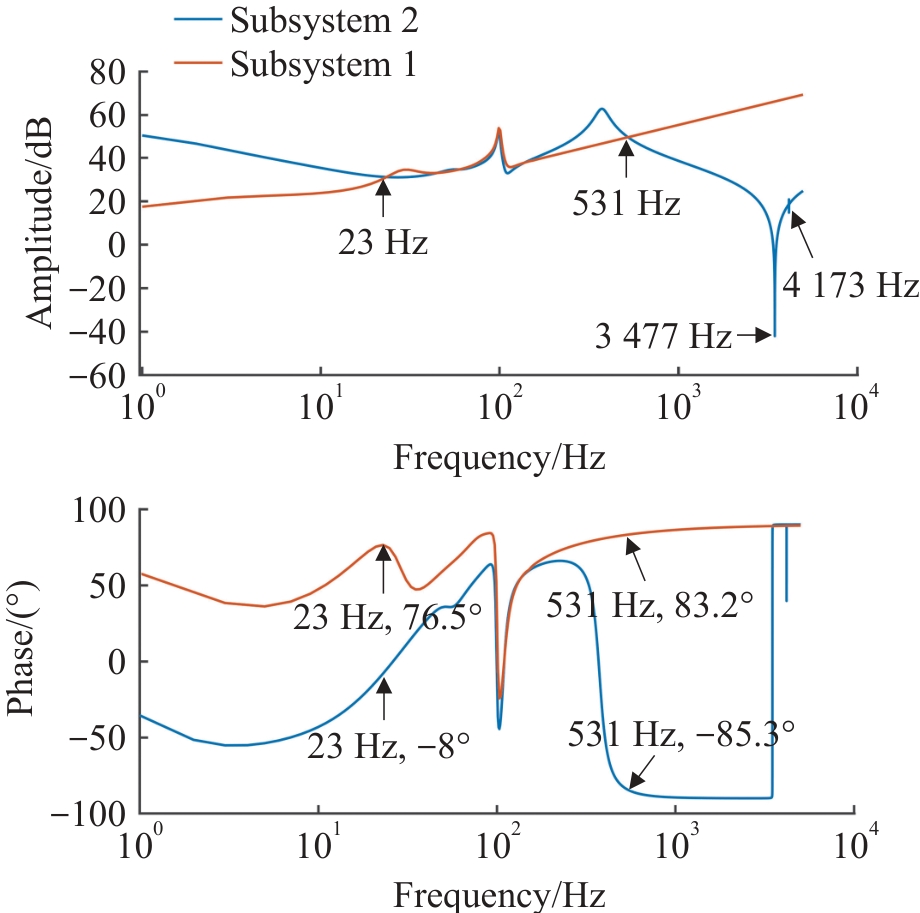

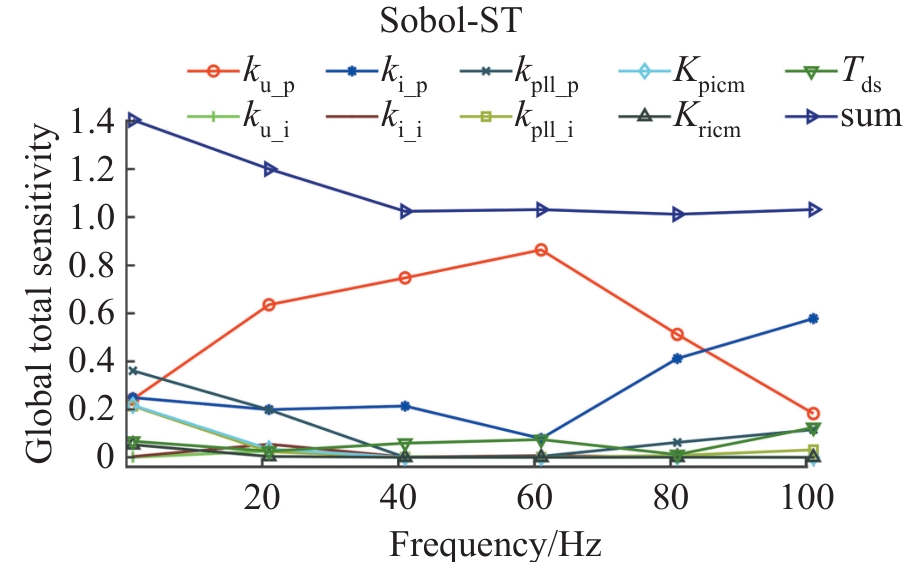

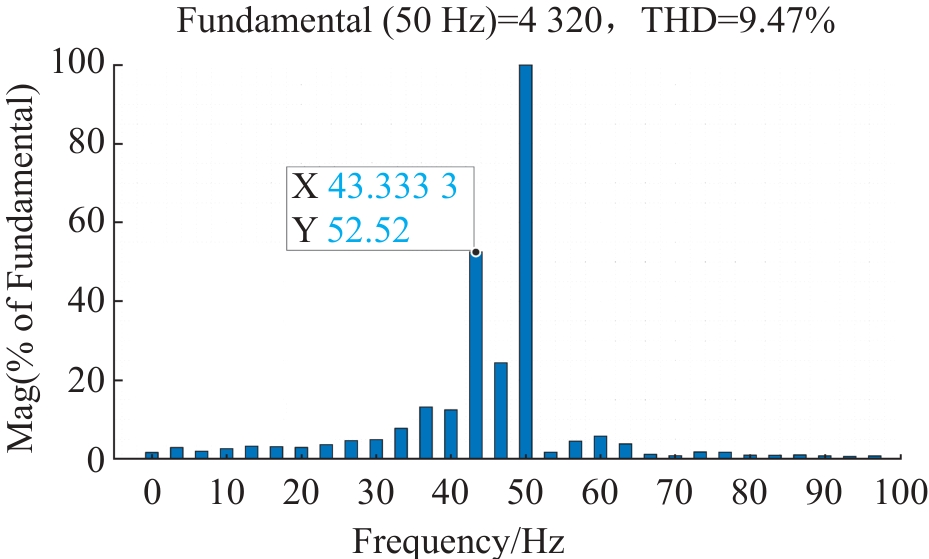

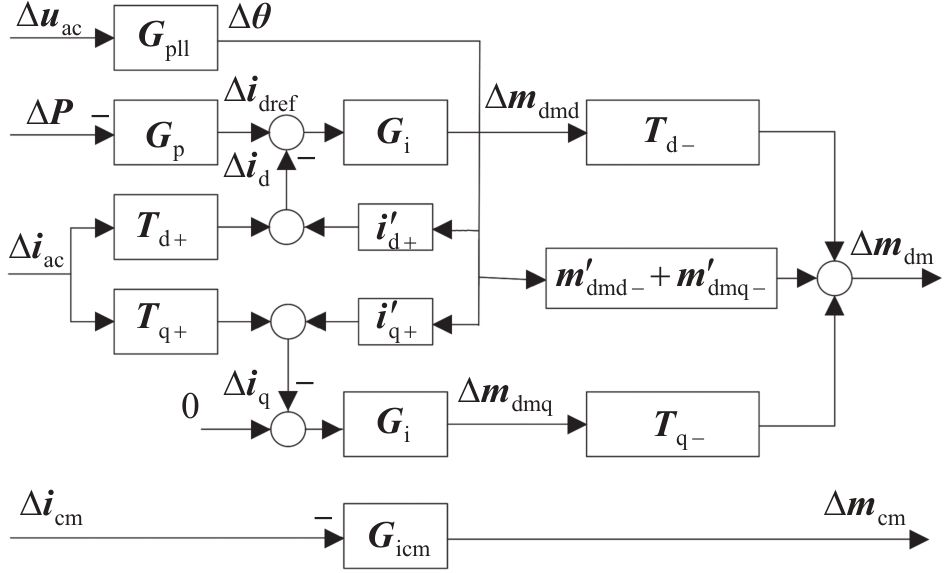

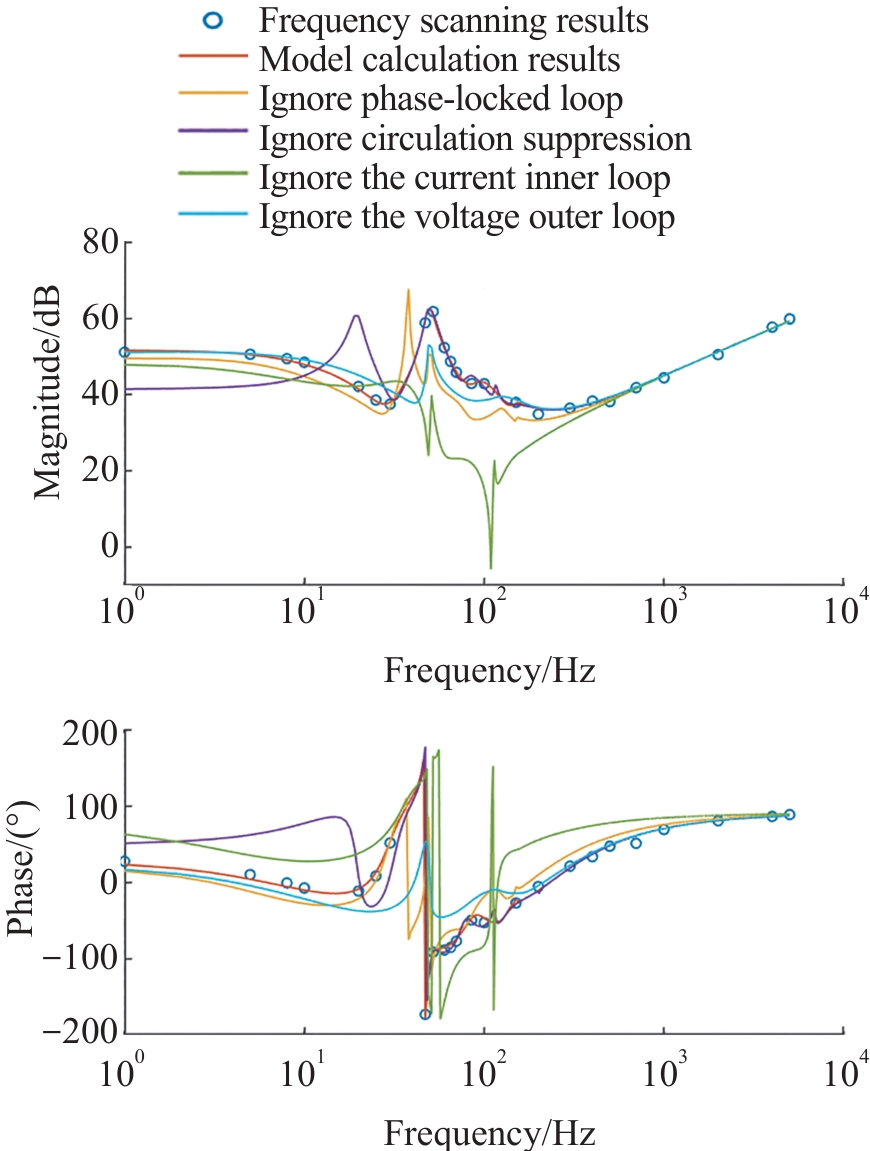

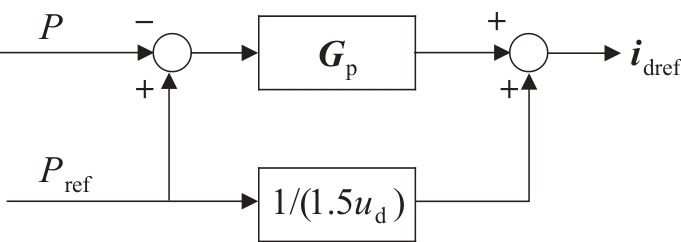

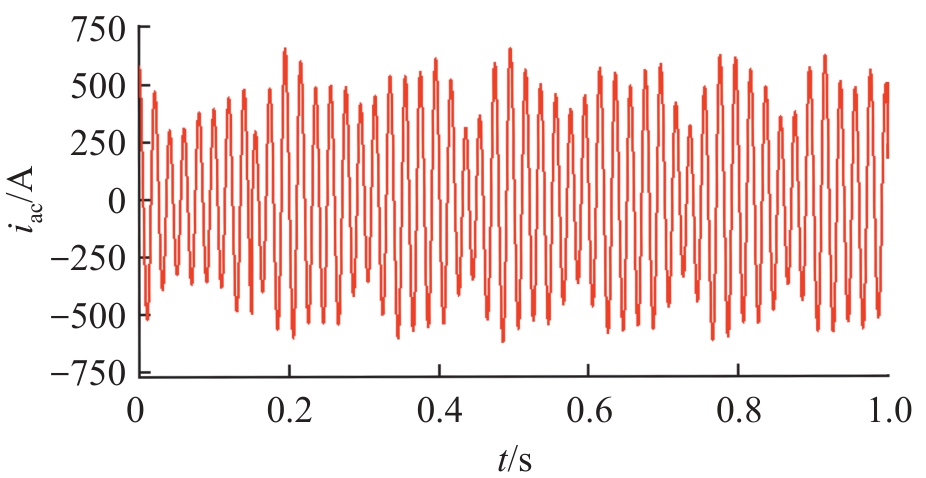

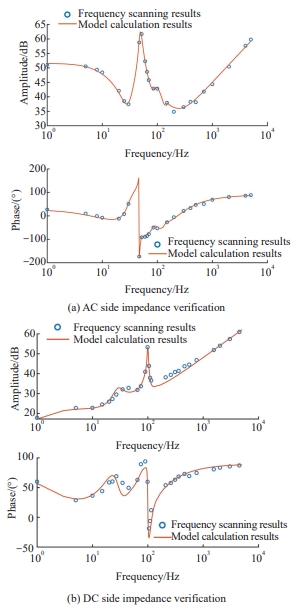

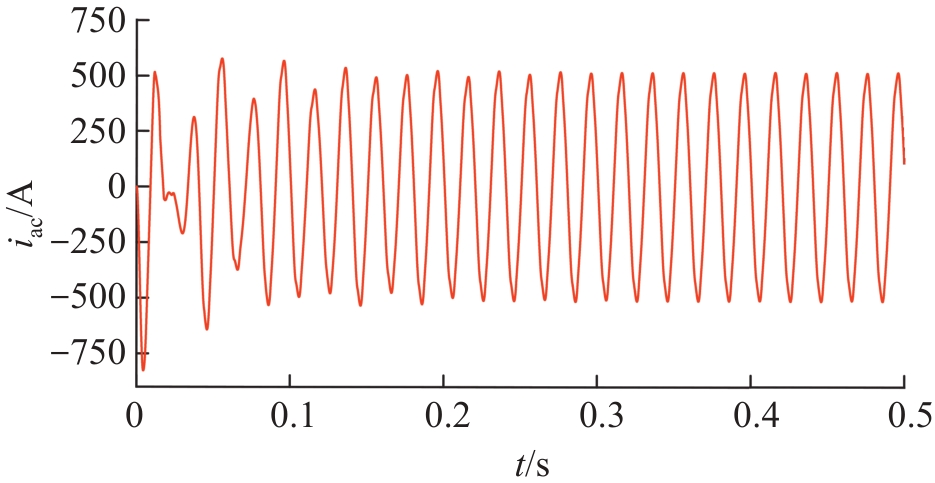

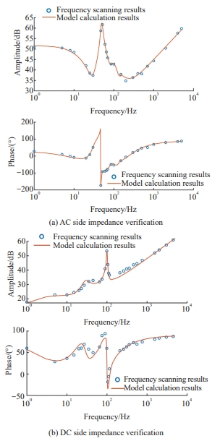

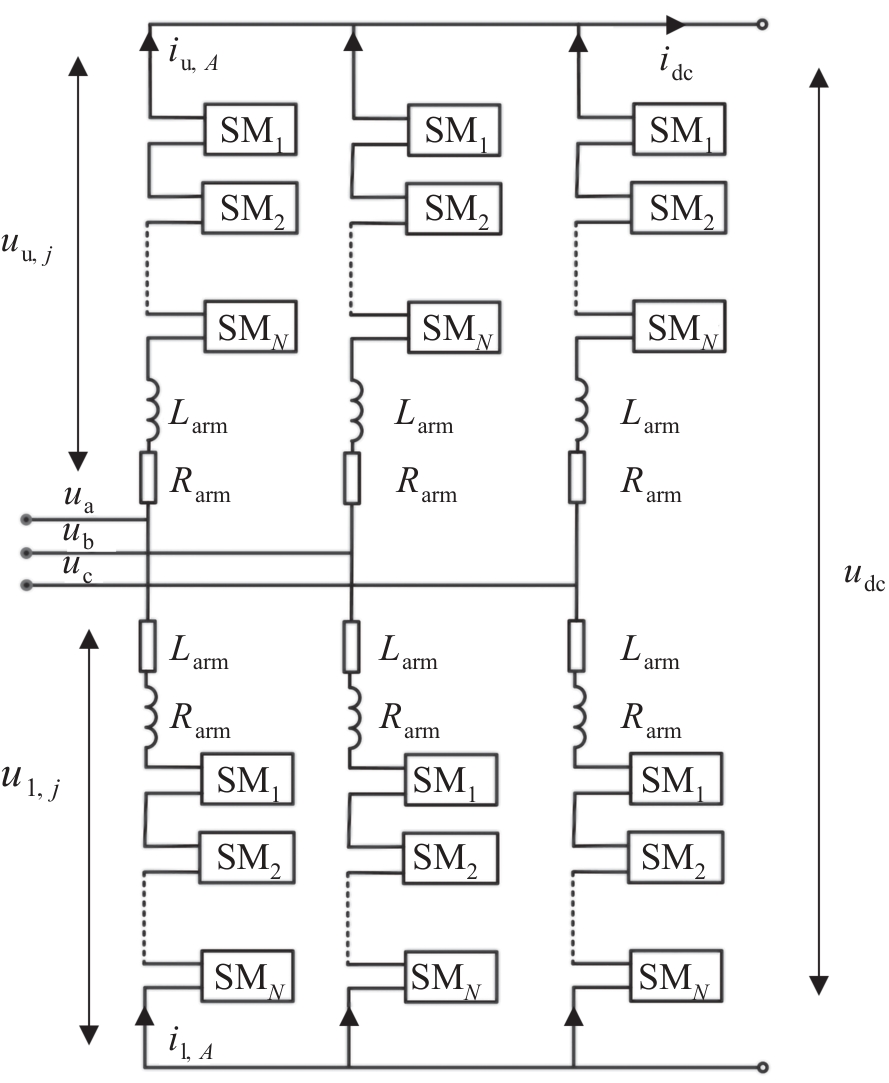

为快速分析基于模块化多电平换流器的高压直流输电系统(MMC-HVDC)的振荡稳定机理，简化MMC阻抗特性获取过程中的仿真流程，利用谐波状态空间方法建立了考虑不同控制方式的MMC闭环阻抗数学简化仿真模型，包含交流侧阻抗模型和直流侧阻抗模型；根据基于奈奎斯特判据的阻抗分析法研究了MMC交、直流侧的稳定机理；提出了一种基于数据驱动的振荡稳定性分析方法，即基于快速模型的结果利用全局灵敏度算法分析影响MMC振荡稳定的关键参数，并根据灵敏度分析结果，提出振荡抑制的参数调整策略。在MATLAB/Simulink中建立的MMC模型验证了方法的有效性。

关键词: 模块化多电平换流器, 阻抗建模, 谐波状态空间, 全局灵敏度, 阻抗分析法

Abstract:

To facilitate rapid analysis of the oscillation stability mechanism in modular multilevel converter-based high voltage direct current (MMC-HVDC) systems and streamline the simulation process for determining MMC impedance characteristics, a simplified mathematical simulation model for MMC closed-loop impedance is developed using the harmonic state space method. This model considers various control strategies and includes both AC-side and DC-side impedance models. By applying a Nyquist criterion-based impedance analysis method, the stability mechanisms on the AC and DC sides of the MMC are examined. In addition, a data-driven oscillation stability analysis method is also proposed, leveraging a global sensitivity algorithm based on fast model results to identify key parameters influencing MMC oscillation stability. Based on sensitivity analysis results, a parameter adjustment strategy for oscillation suppression is proposed. The simulation results from the MATLAB/Simulink-based MMC model validate the effectiveness of the proposed method.

Key words: modular multilevel converter, impedance modeling, harmonic state space, global sensitivity, impedance analysis

中图分类号:

TP391

王渝红,陈文晟,高仕林等 . 模块化多电平换流器谐波阻抗建模与振荡分析[J]. 系统仿真学报, 2024, 36(12): 2755-2770.

Wang Yuhong,Chen Wensheng,Gao Shilin,et al . Harmonic Impedance Modeling and Oscillation Analysis of Modular Multilevel Converter[J]. Journal of System Simulation, 2024, 36(12): 2755-2770.

图/表 26

参考文献 20

1	Mai Huong Nguyen, Tapan Kumar Saha, Eghbal Mehdi. Input/Output Selection for Wide-area Power Oscillation Damper of Hybrid Multi-terminal High-voltage Direct Current to Connect Remotely Located Renewable Energy Resources[J]. IET Generation, Transmission & Distribution, 2015, 9(5): 483-493.
2	Zhao Ligang, Xu Guangyue, Hong Chao, et al. Fast Simulation of MMC-HVDC Systems Using a Generalized Equivalent Circuit Model of MMC[C]//2020 IEEE 16th International Conference on Control & Automation (ICCA). Piscataway: IEEE, 2020: 1605-1611.
3	Debnath S, Qin Jiangchao, Bahrani B, et al. Operation, Control, and Applications of the Modular Multilevel Converter: A Review[J]. IEEE Transactions on Power Electronics, 2015, 30(1): 37-53.
4	Leon Jose I, Vazquez Sergio, Franquelo Leopoldo G. Multilevel Converters: Control and Modulation Techniques for Their Operation and Industrial Applications[J]. Proceedings of the IEEE, 2017, 105(11): 2066-2081.
5	Peralta Jaime, Saad Hani, Dennetiere Sébastien, et al. Detailed and Averaged Models for a 401-level MMC-HVDC System[J]. IEEE Transactions on Power Delivery, 2012, 27(3): 1501-1508.
6	Rong Fei, Gong Xichang, Huang Shoudao. A Novel Grid-connected PV System Based on MMC to Get the Maximum Power Under Partial Shading Conditions[J]. IEEE Transactions on Power Electronics, 2017, 32(6): 4320-4333.
7	Zhang Haitao, Saeedifard M, Wang Xiuli, et al. System Harmonic Stability Analysis of Grid-tied Interlinking Converters Operating Under AC Voltage Control Mode[J]. IEEE Transactions on Power Systems, 2022, 37(5): 4106-4109.
8	Jing Lü, Cai Xu, Amin M, et al. Sub-synchronous Oscillation Mechanism and Its Suppression in MMC-based HVDC Connected Wind Farms[J]. IET Generation, Transmission & Distribution, 2018, 12(4): 1021-1029.
9	Zou Changyue, Rao Hong, Xu Shukai, et al. Analysis of Resonance Between a VSC-HVDC Converter and the AC Grid[J]. IEEE Transactions on Power Electronics, 2018, 33(12): 10157-10168.
10	郭春义, 殷子寒, 赵成勇. MMC-HVDC系统在整流和逆变工作模式下的小干扰稳定性对比研究[J]. 中国电机工程学报, 2018, 38(24): 7349-7358.
	Guo Chunyi, Yin Zihan, Zhao Chengyong. Comparative Study on Small-signal Stability of MMC-HVDC System Under Rectification and Inversion Modes[J]. Proceedings of the CSEE, 2018, 38(24): 7349-7358.
11	Wang Wenyuan, Barnes M, Marjanovic O, et al. Impact of DC Breaker Systems on Multiterminal VSC-HVDC Stability[J]. IEEE Transactions on Power Delivery, 2016, 31(2): 769-779.
12	Sun Jian, Liu Hanchao. Sequence Impedance Modeling of Modular Multilevel Converters[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2017, 5(4): 1427-1443.
13	Mollerstedt E, Bernhardsson B. Out of Control Because of Harmonics-an Analysis of the Harmonic Response of an Inverter Locomotive[J]. IEEE Control Systems Magazine, 2000, 20(4): 70-81.
14	Jing Lü, Zhang Xin, Cai Xu, et al. Harmonic State-space Based Small-signal Impedance Modeling of a Modular Multilevel Converter with Consideration of Internal Harmonic Dynamics[J]. IEEE Transactions on Power Electronics, 2019, 34(3): 2134-2148.
15	Xu Zigao, Li Binbin, Han Linjie, et al. A Complete HSS-based Impedance Model of MMC Considering Grid Impedance Coupling[J]. IEEE Transactions on Power Electronics, 2020, 35(12): 12929-12948.
16	Zhang Yang, Chen Xin, Sun Jian. Sequence Impedance Modeling and Analysis of MMC in Single-star Configuration[J]. IEEE Transactions on Power Electronics, 2020, 35(1): 334-346.
17	Sobol′ I M. Global Sensitivity Indices for Nonlinear Mathematical Models and Their Monte Carlo Estimates[J]. Mathematics and Computers in Simulation, 2001, 55(1/3): 271-280.
18	Zhang Chi, Chu Jinggang, Fu Guangtao. Sobol's Sensitivity Analysis for a Distributed Hydrological Model of Yichun River Basin, China[J]. Journal of Hydrology, 2013, 480: 58-68.
19	Chen Qiang, Jing Lü, Li Rui, et al. Impedance Modeling of Modular Multilevel Converter Based on Harmonic State Space[C]//2016 IEEE 17th Workshop on Control and Modeling for Power Electronics (COMPEL). Piscataway: IEEE, 2016: 1-5.
20	Xu Zigao, Li Binbin, Wang Shengbo, et al. Generalized Single-phase Harmonic State Space Modeling of the Modular Multilevel Converter with Zero-sequence Voltage Compensation[J]. IEEE Transactions on Industrial Electronics, 2019, 66(8): 6416-6426.

Parameter	Symbol	Value
Number of bridge arm submodules	N	216
Rated voltage of submodule capacitance/kV	u_CN	1.6
Capacitance value of submodule/mF	C	10
Arm inductance/ mH	L₀	60
Arm resistance/Ω	R₀	1
DC side voltage/kV	U_dc	±320
Effective value of AC measured voltage/kV	u_s	220
Equivalent inductance of AC grid/mH	L_n	220
Equivalent resistance of AC grid/Ω	R_n	14

Parameter	Value
PLL parameters	k_{pll_p}=0.008, k_{pll_i}=1
inner-loop control parameters	k_{i_p}= 45, k_{i_i}= 1 000
DC voltage control parameters	k_{u_p}= 0.1, k_{u_i}=1
power control parameters	K_{p_PQ}= 8×10^-6, K_{i_PQ}= 8×10^-4;
circulating current suppressor parameters/(rad/s)	K_picm= 50, K_ricm= 500
circulating current suppressor parameters/(rad/s)	ω_r= 200 π, ω_c= 10
system delay/μs	T_ds= 400

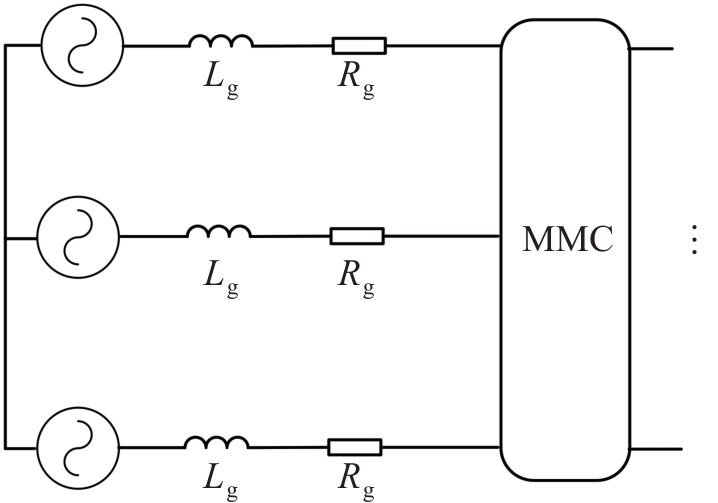

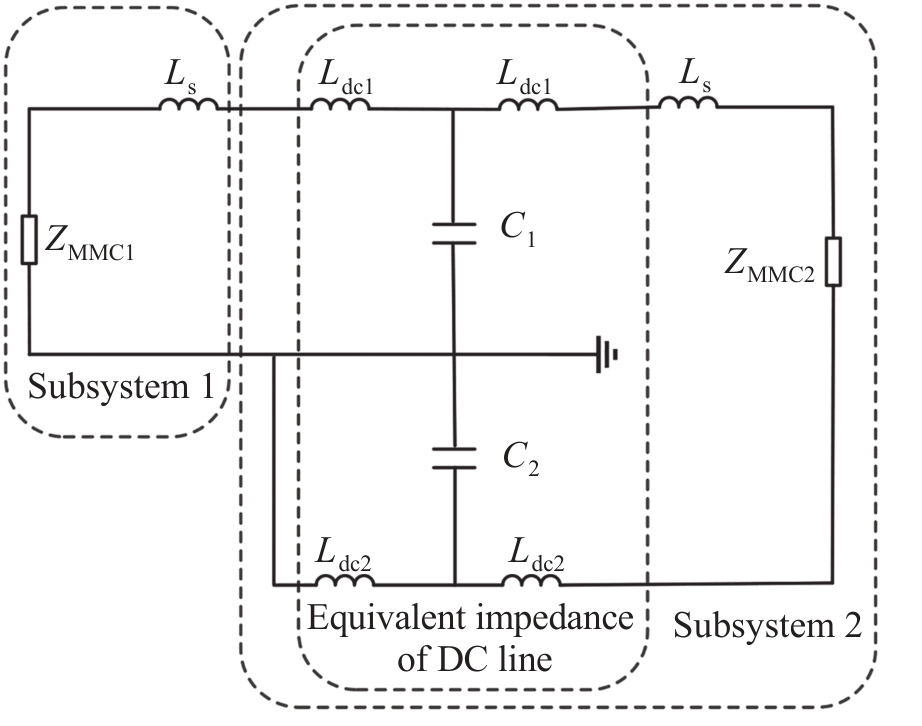

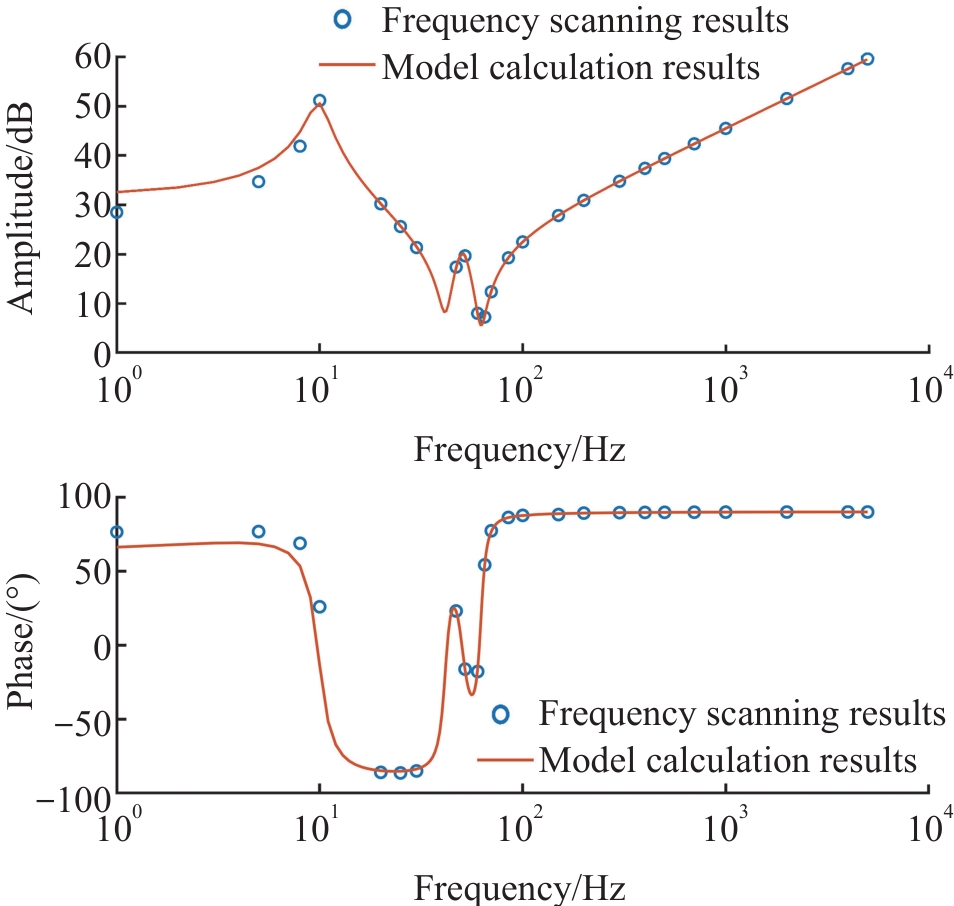

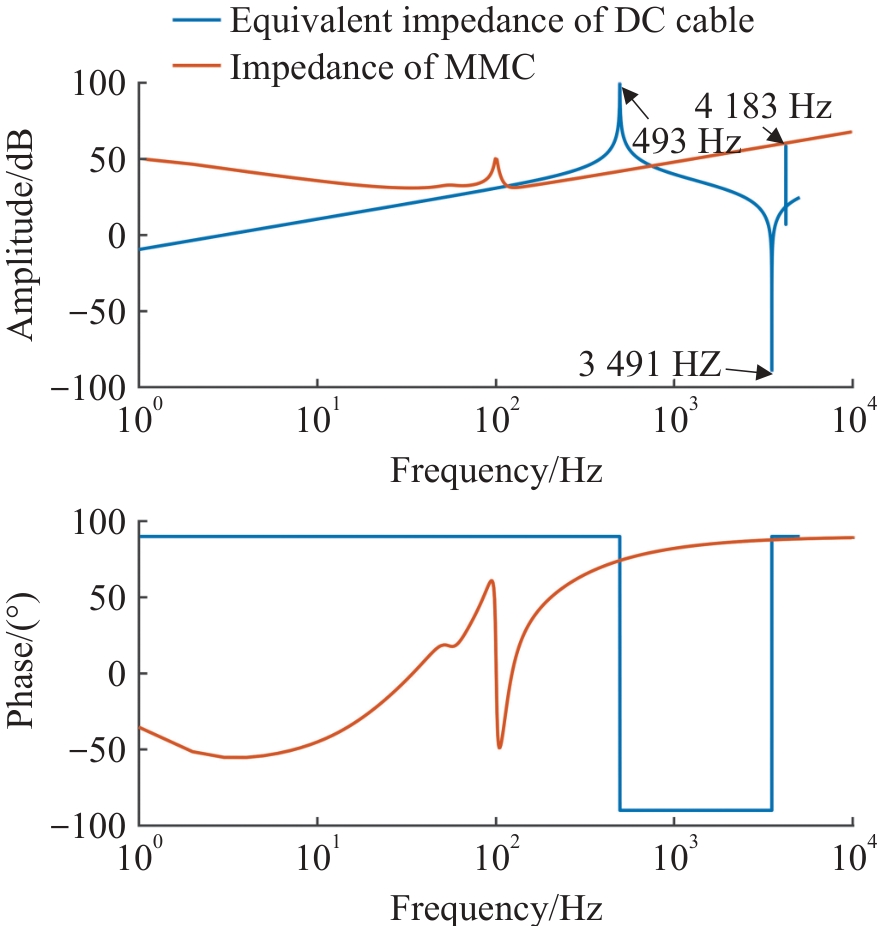

Parameter	DC cable 1	DC cable 2
Length/km	10.7	10.7
Resistance/(Ω/km)	0.01	0.01
Inductance/(mh/km)	0.198	0.107
Capacitance/(μF/km)	0.187	0.239

Parameter	Symbol	Value

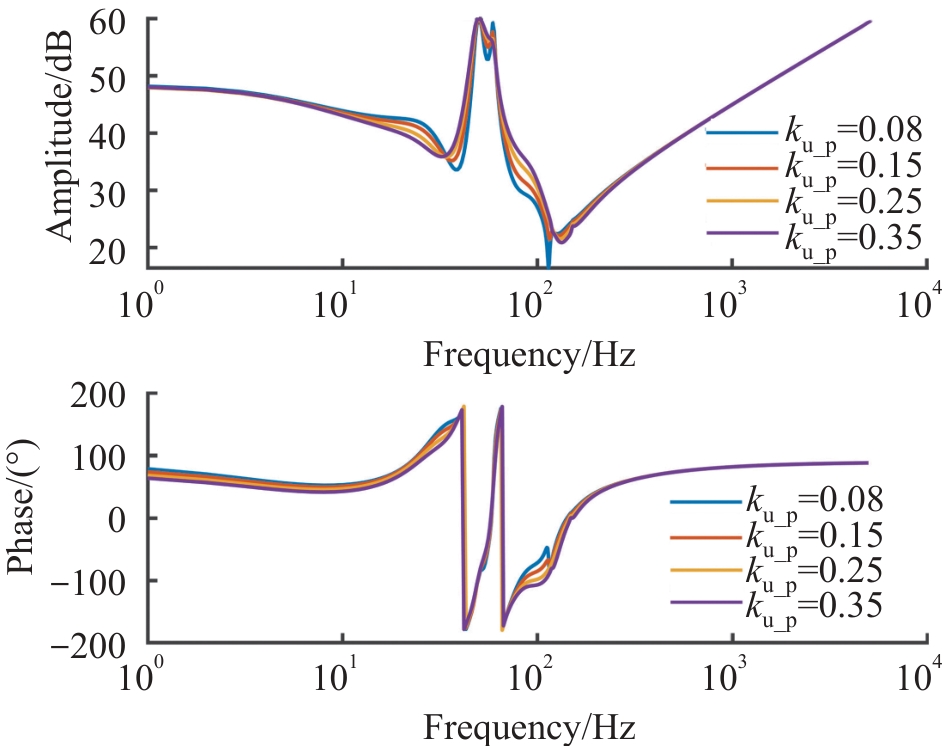

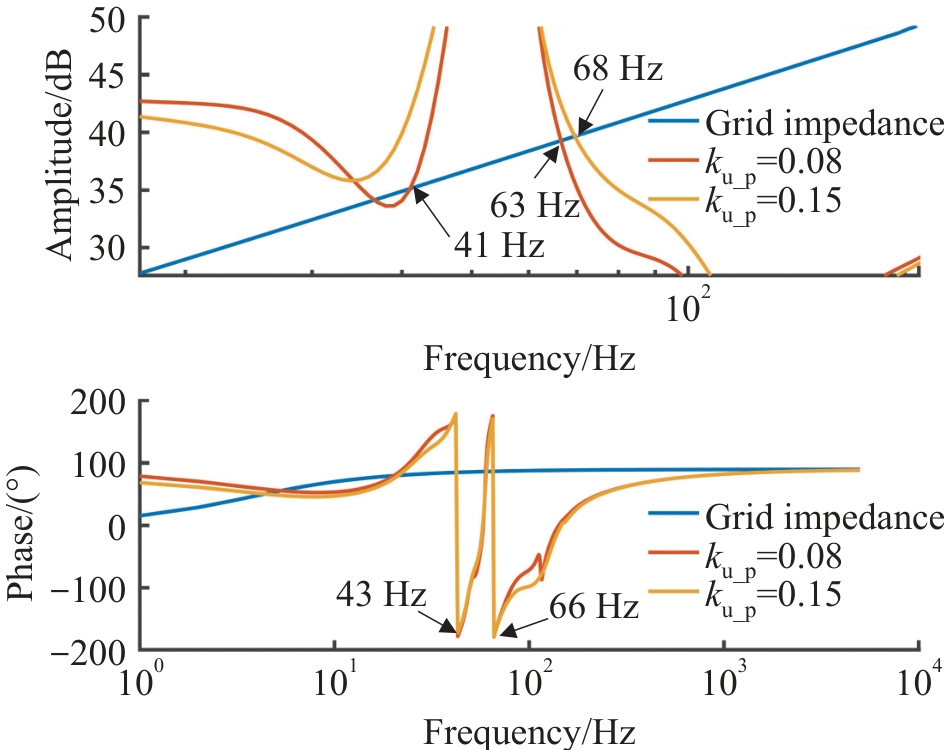

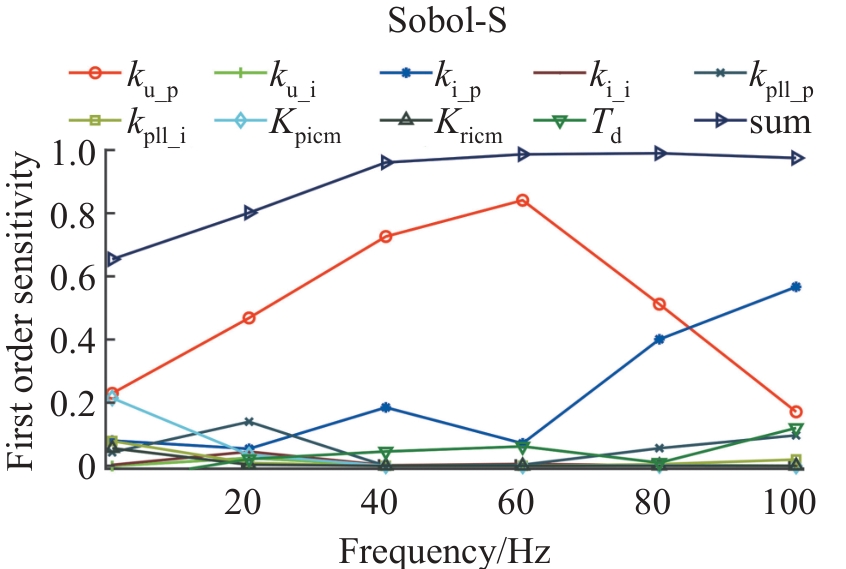

Voltage outer loop PI parameters	k_{u_p}	0.05~0.3
Voltage outer loop PI parameters	k_{u_i}	0.5~2.5
PI parameters of current inner loop	k_{i_p}	30~60
PI parameters of current inner loop	k_{i_i}	700~1 300
PI parameters of PLL	k_{pll_p}	0.004~0.016
PI parameters of PLL	k_{pll_i}	0.5~1.5
Circulation control PR parameter	K_picm	30~70
Circulation control PR parameter	K_ricm	350~650
System delay	T_ds/μs	0~500
