基于3D激光雷达的水面无人艇靠泊参数估计

doi:10.16182/j.issn1004731x.joss.24-0262

摘要/Abstract

摘要：

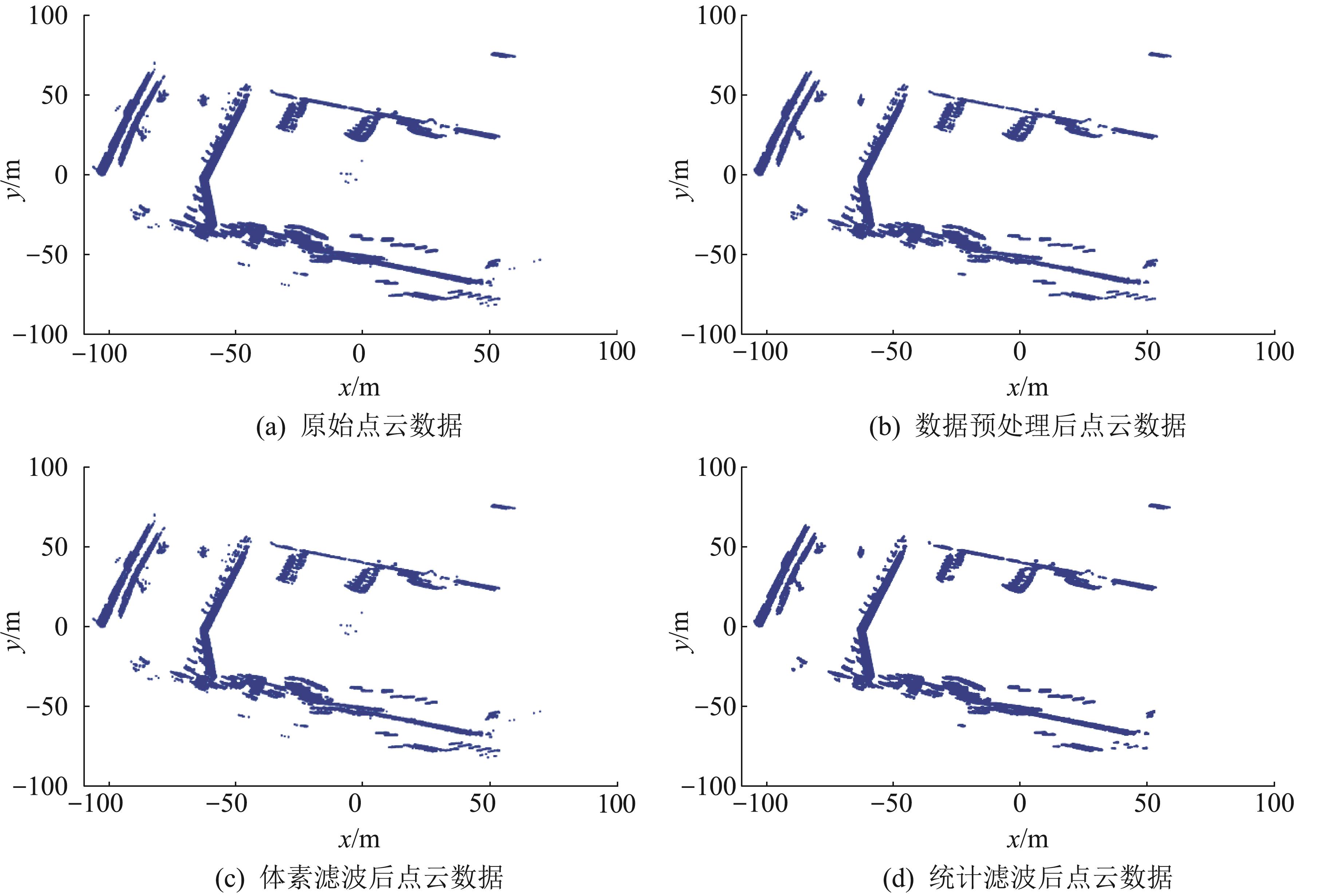

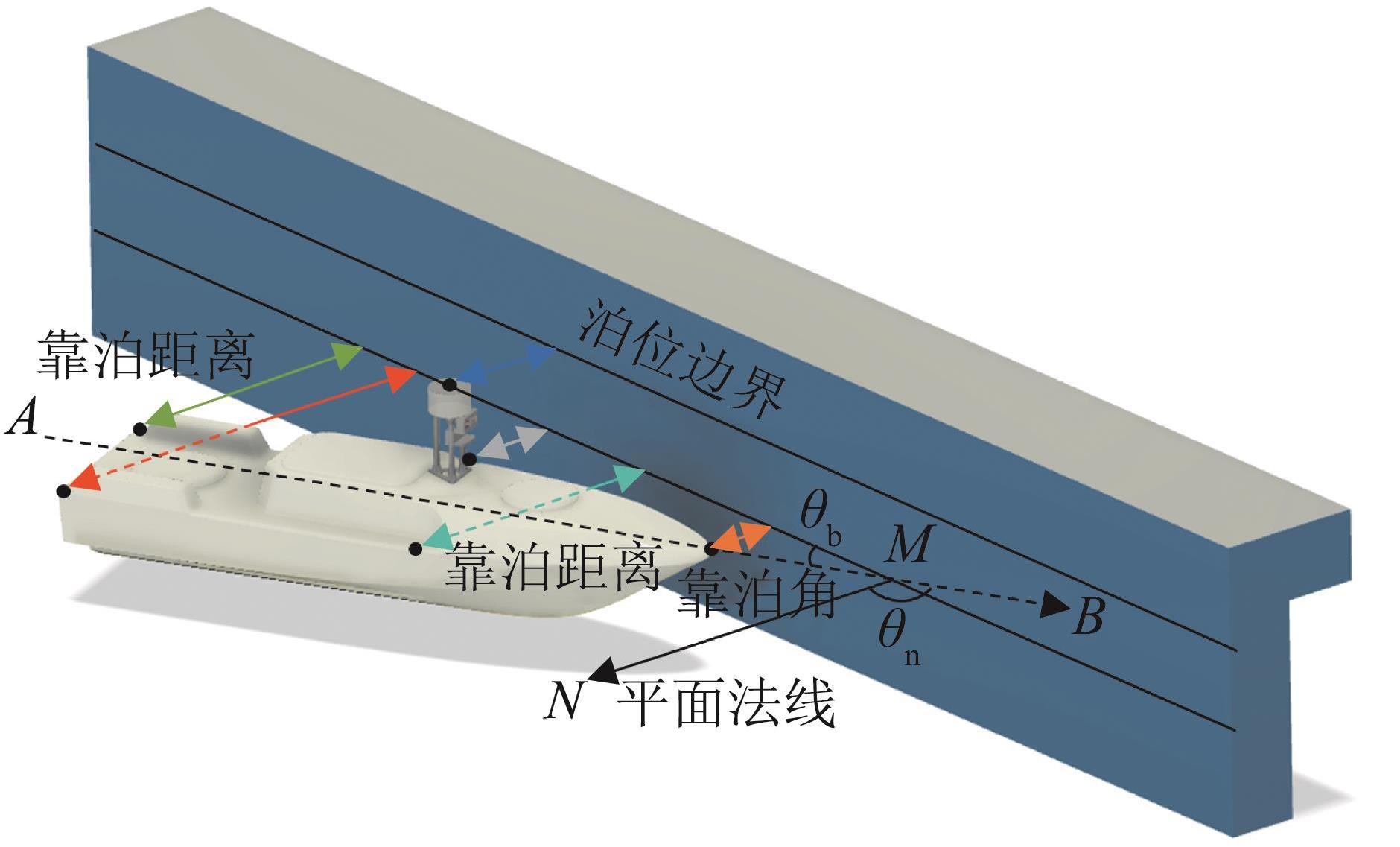

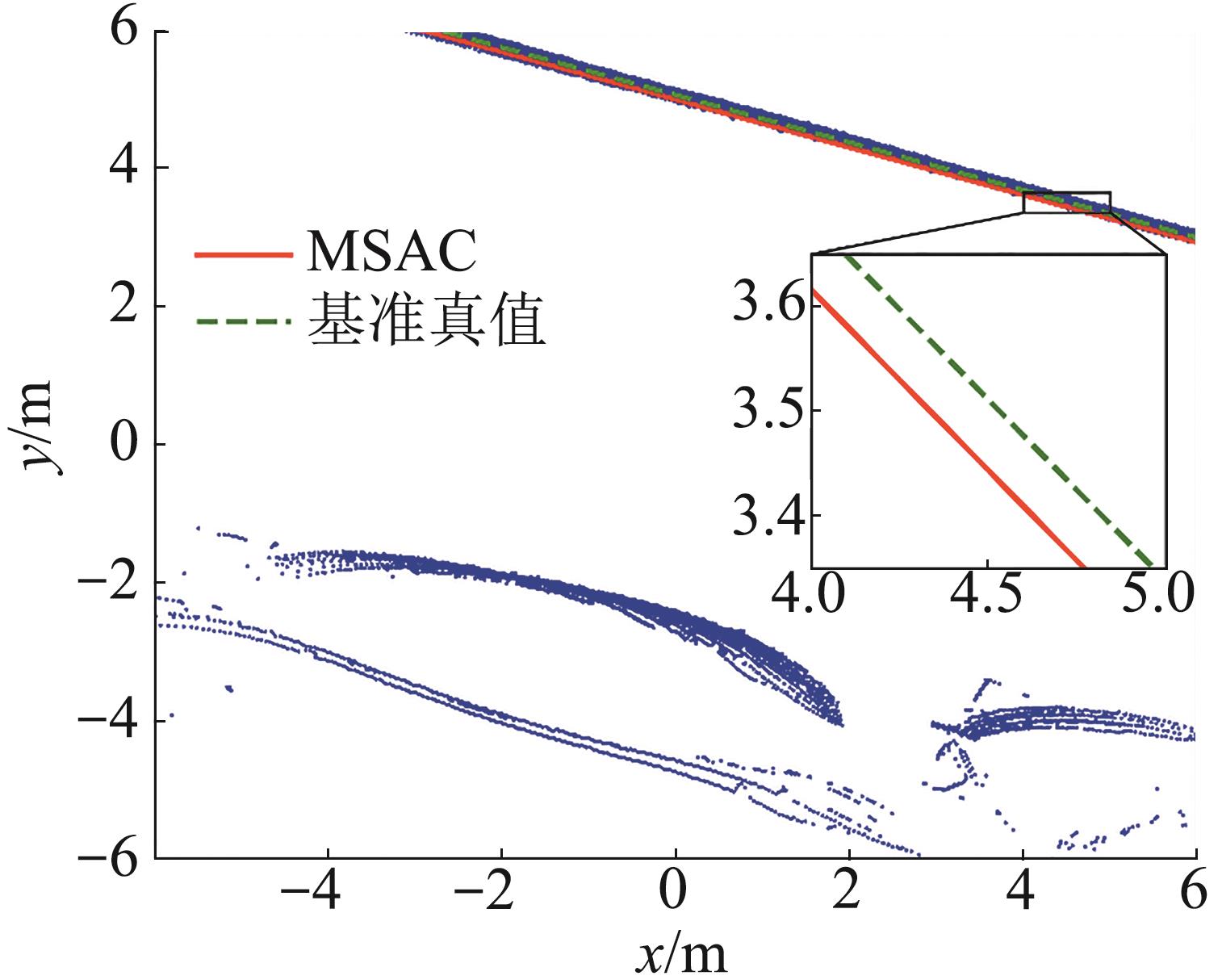

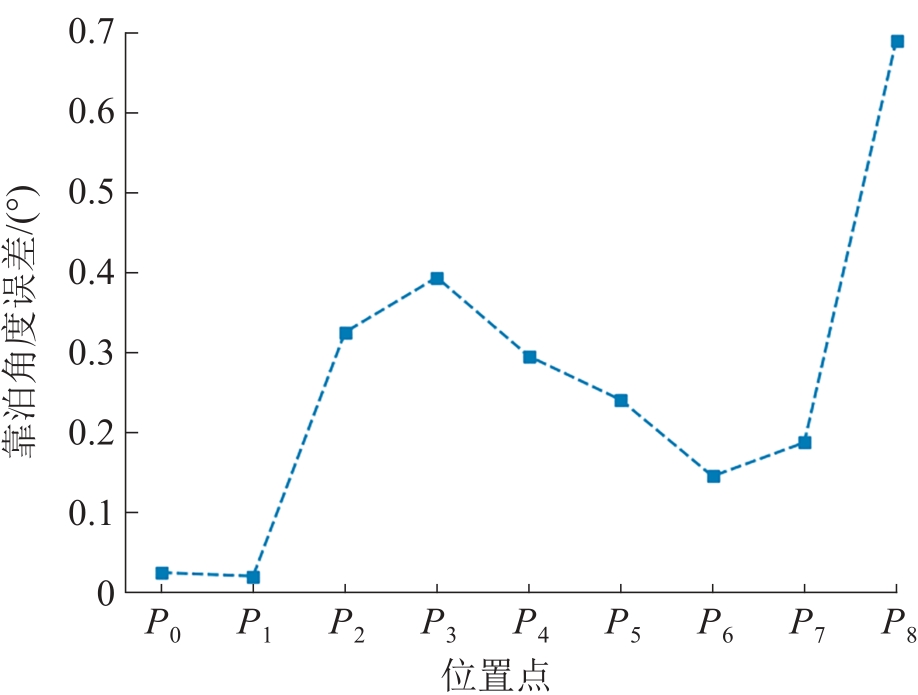

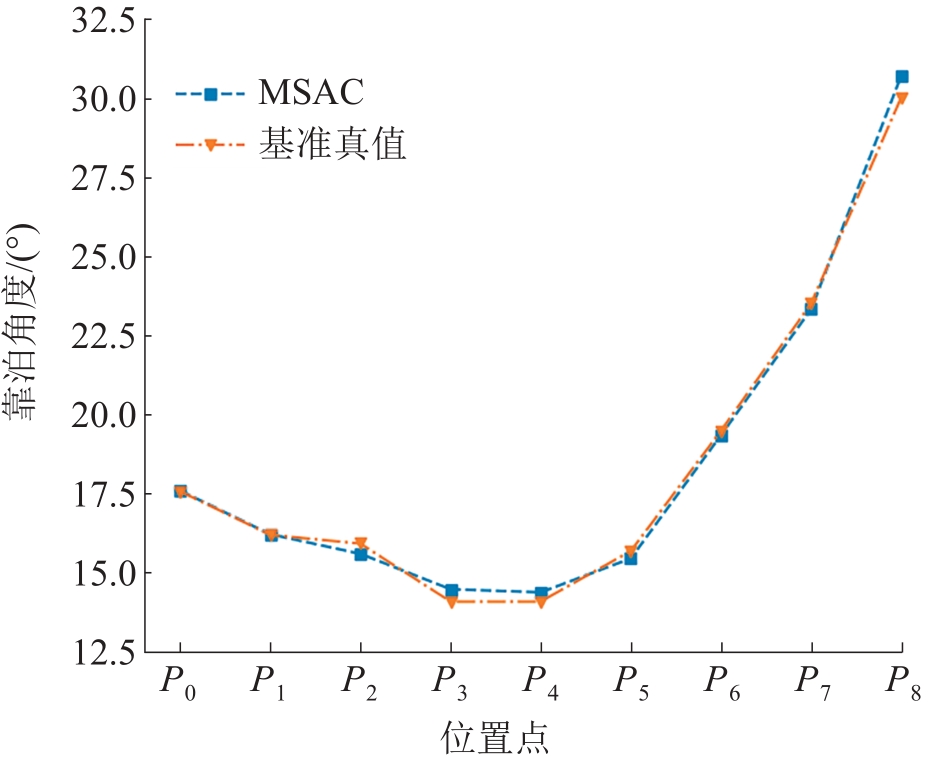

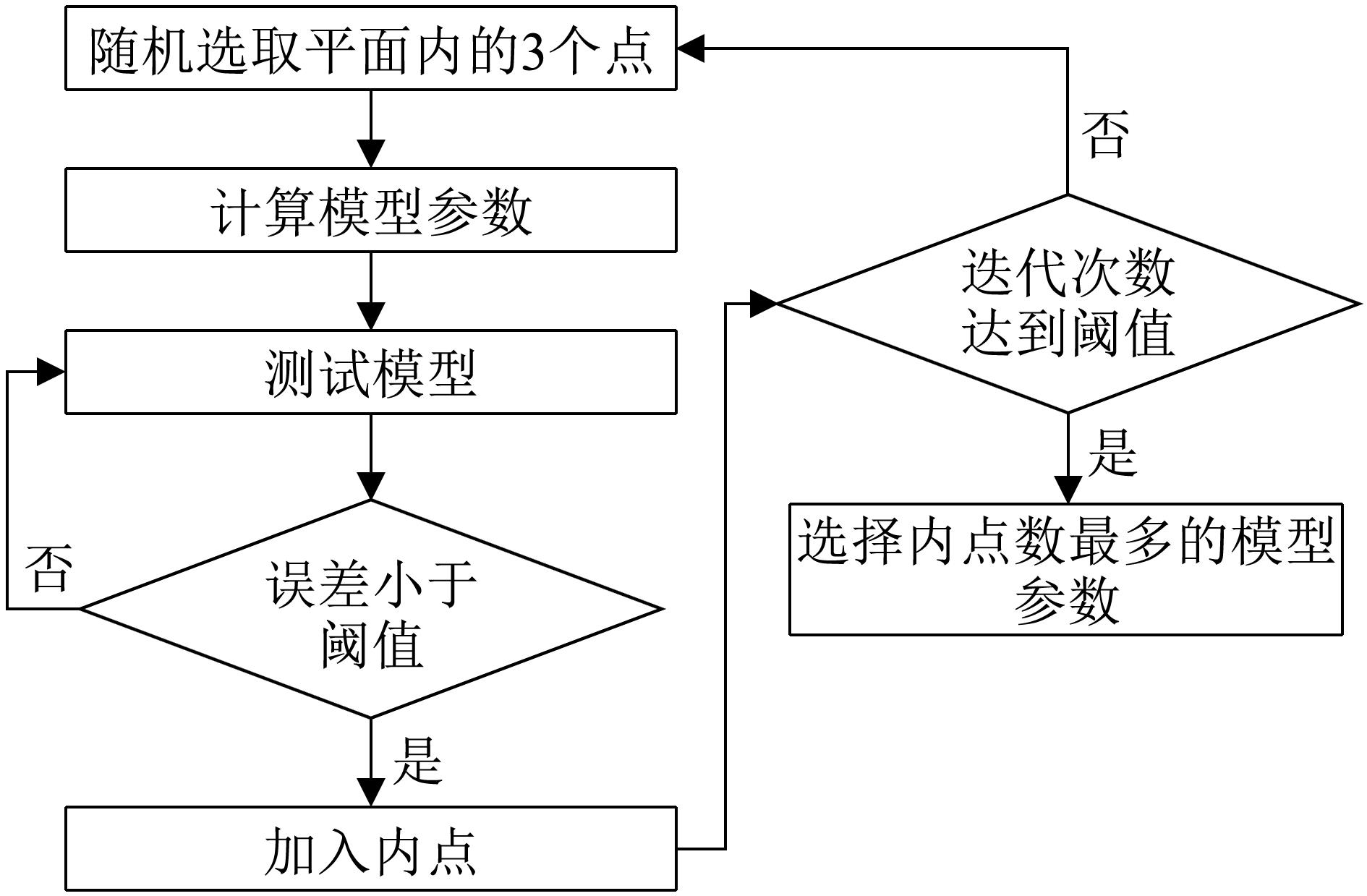

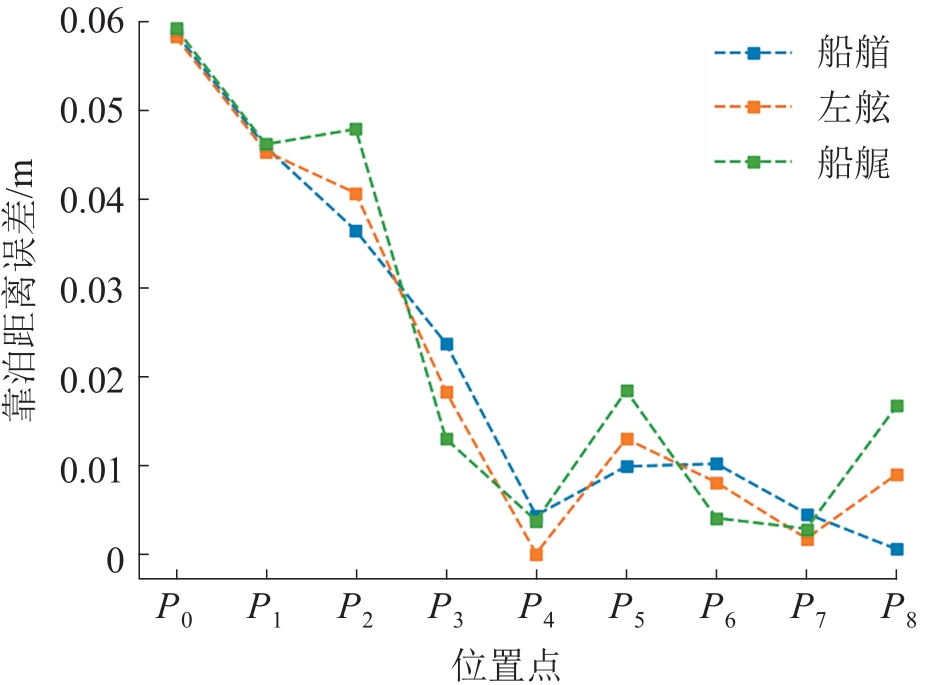

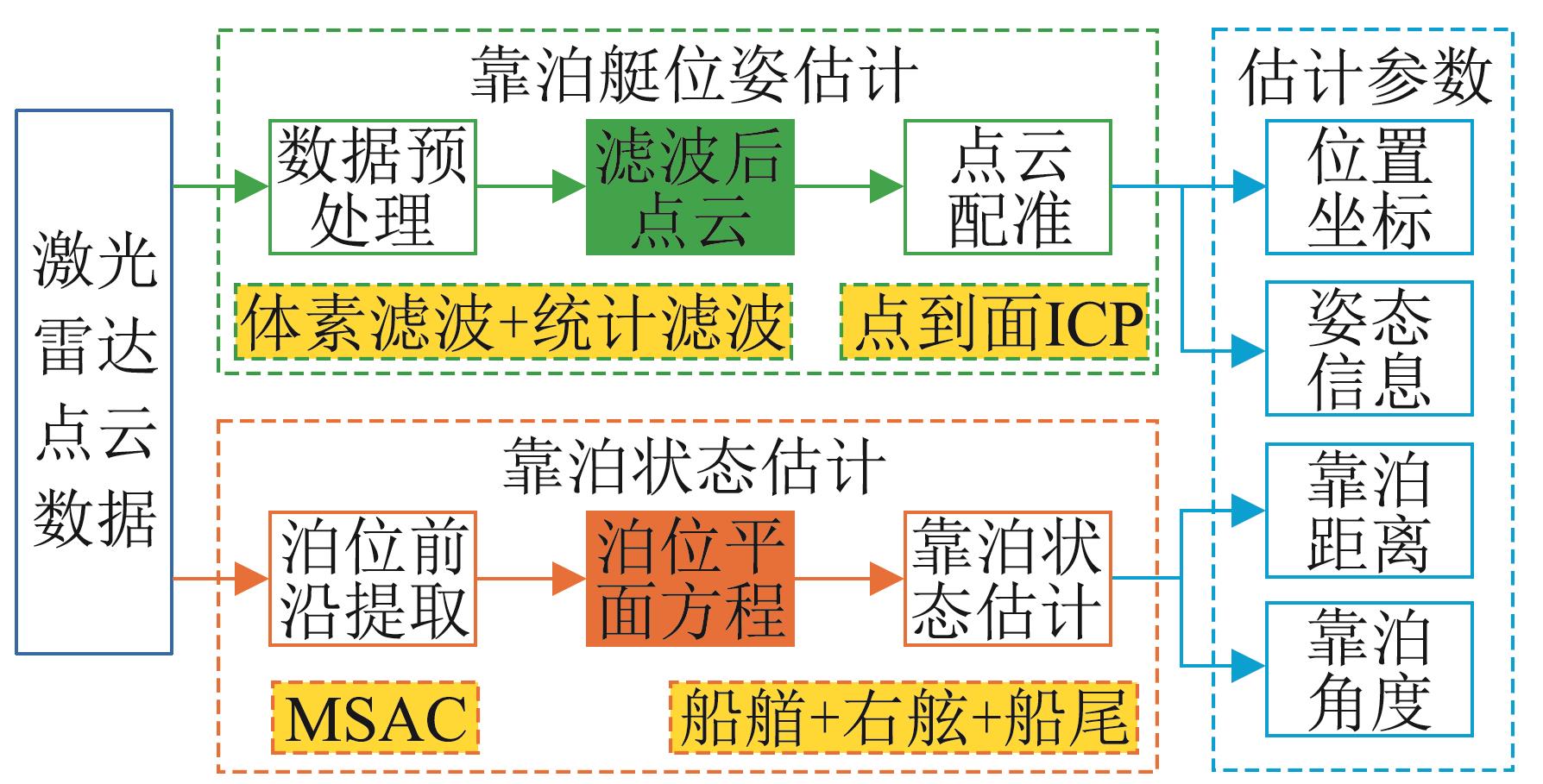

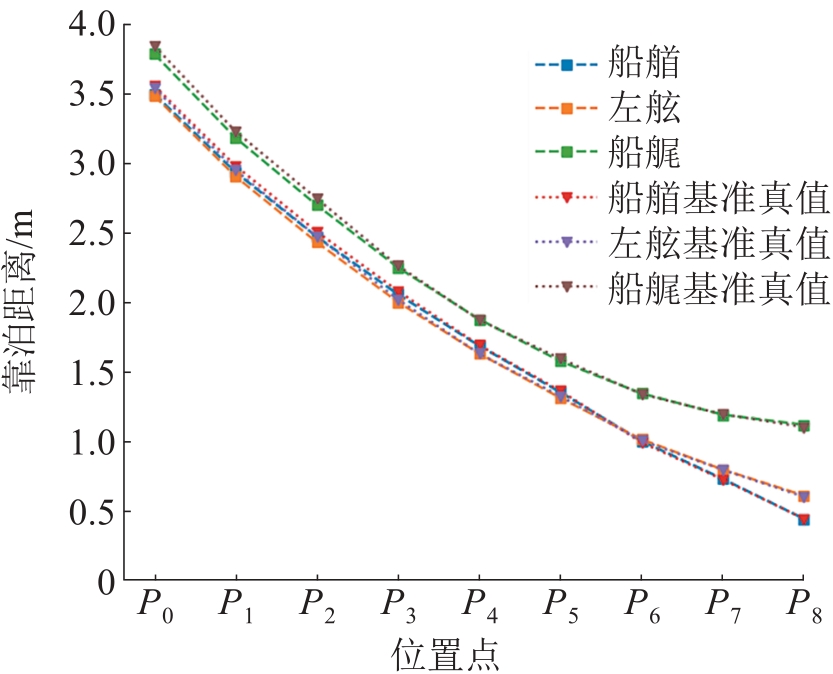

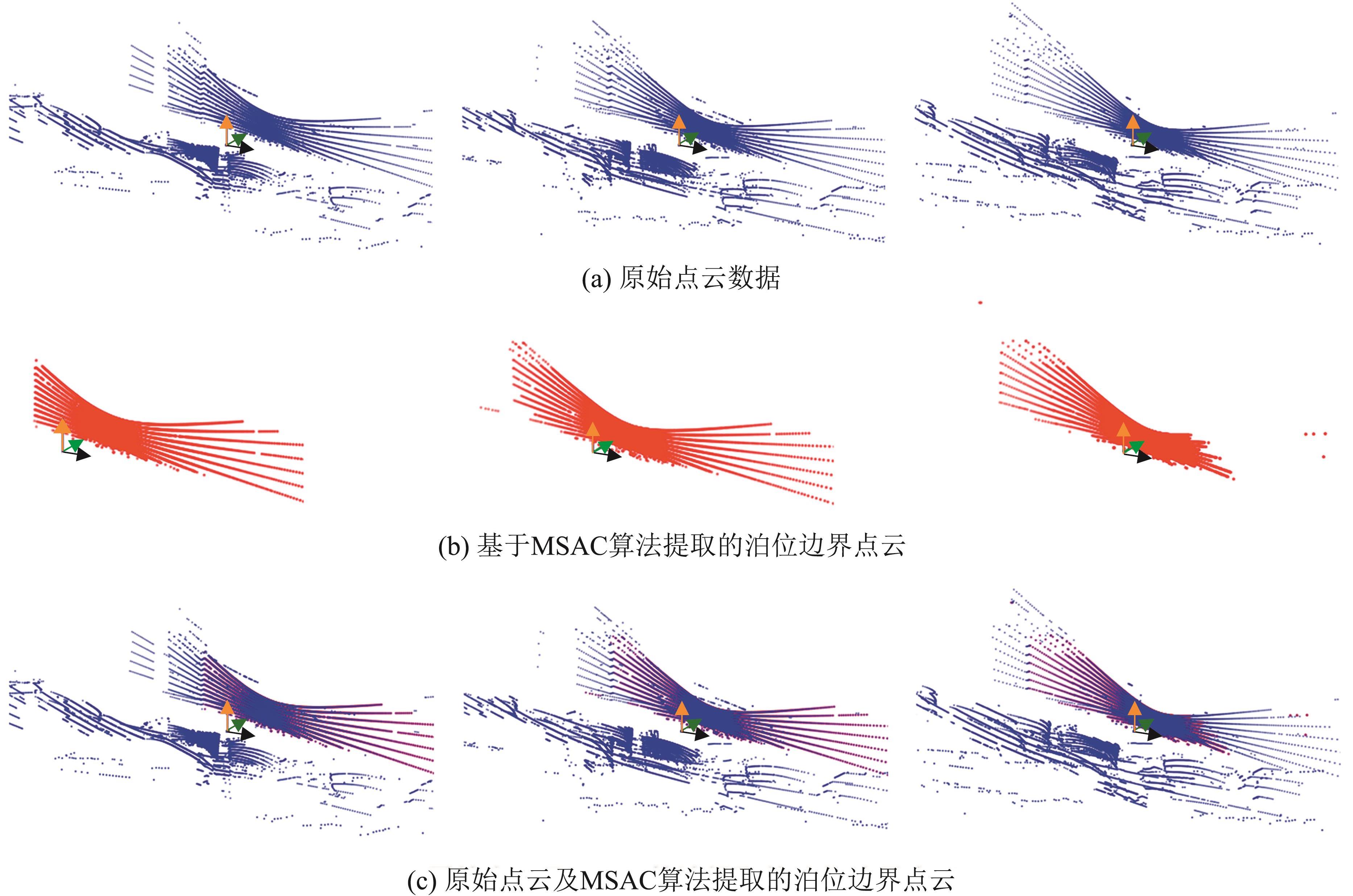

为准确地估计靠泊参数，提出了一种基于艇载3D激光雷达的靠泊参数估计方法。该方法包括2个主要模块：无人艇位姿估计和靠泊状态估计。无人艇位姿估计模块采用点云预处理算法对原始点云进行降采样并滤除异常值，利用点云配准算法实现了无人艇靠泊过程中的位姿估计。靠泊状态估计模块通过MSAC算法提取泊位边界信息，并基于此信息计算靠泊参数。实验结果表明：该算法所得无人艇位姿信息和靠泊参数信息均与实际相符，平均靠泊距离误差小于0.023 m，平均角度误差小于0.26°，验证了该靠泊参数估计算法的准确性和合理性。

关键词: 水面无人艇, 靠泊参数估计, 无人艇位姿估计, 靠泊状态估计, 点云配准

Abstract:

Accurate estimation of berthing parameters is a prerequisite for unmanned surface vessel autonomous berthing. A method for berthing parameter estimation is proposed based on shipborne 3D LiDAR. The method consists of two main modules: ship pose estimation and berthing state estimation. In the berthing position estimation module, raw point cloud data undergoes preprocessing algorithms aims at downsampling and removing outliers. Point cloud registration algorithms are employed to determine the vessel's position during the berthing process. The berthing state estimation module extracts berth boundary information by using the MSAC algorithm, and on the basis of this information, calculates the berthing parameters. Experimental analysis results show that the ship pose information and berthing parameter information obtained by the algorithm are consistent with reality. The average berthing distance error is less than 0.023 m, and the average angle error is less than 0.26°, which verifies the accuracy and rationality of this berthing parameter estimation algorithm.

Key words: unmanned surface vessels, berthing parameters estimation, ship pose estimation, berthing state estimation, point cloud registration

中图分类号:

U675.6+2

王海超,尹勇,景乾峰等 . 基于3D激光雷达的水面无人艇靠泊参数估计[J]. 系统仿真学报, 2024, 36(8): 1737-1748.

Wang Haichao,Yin Yong,Jing Qianfeng,et al . Estimation of the Berthing Parameter of Unmanned Surface Vessels Based on 3D LiDAR[J]. Journal of System Simulation, 2024, 36(8): 1737-1748.

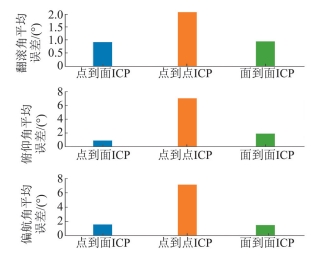

图/表 23

图1

图2

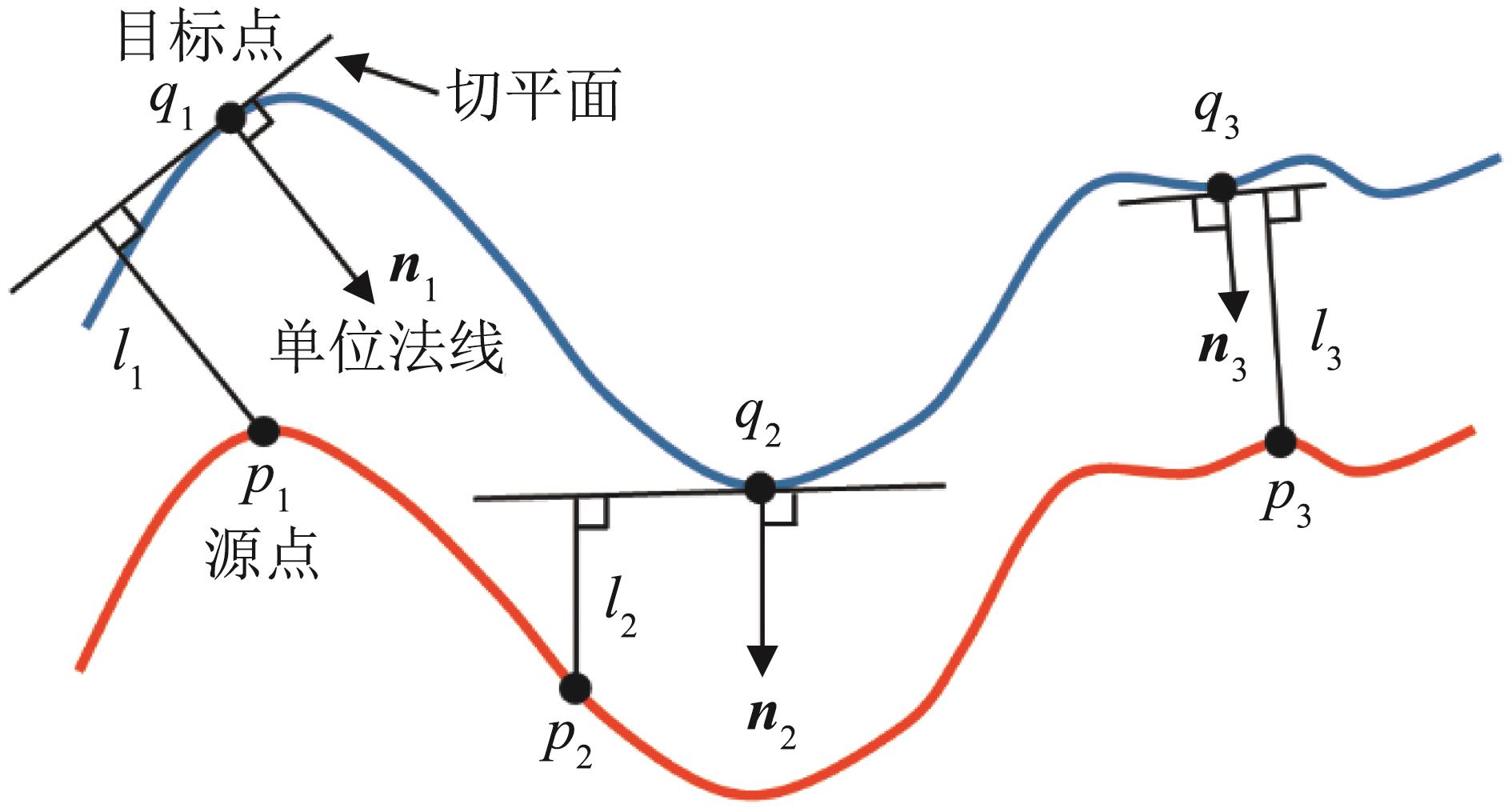

图3

图4

图5

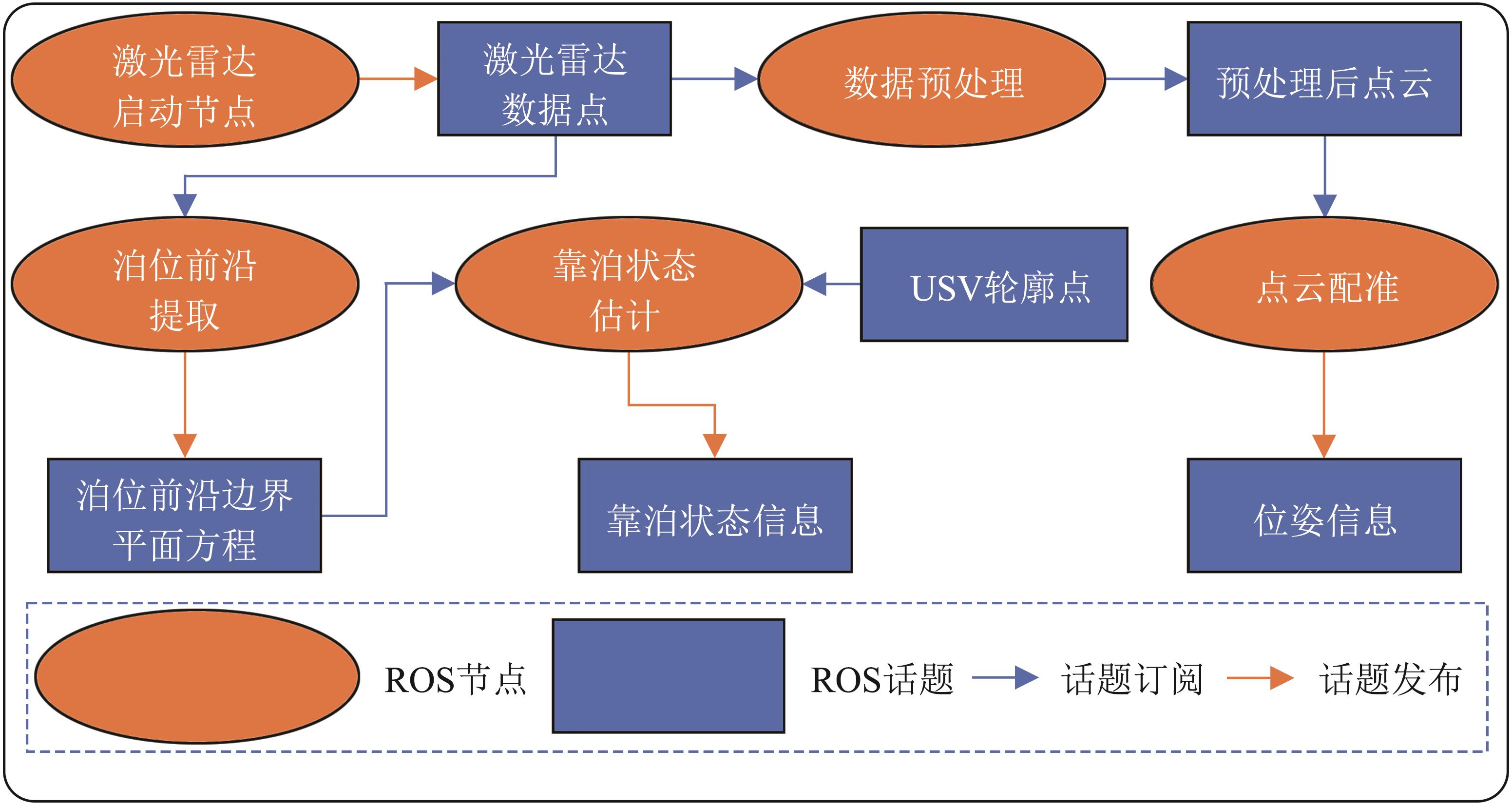

图6

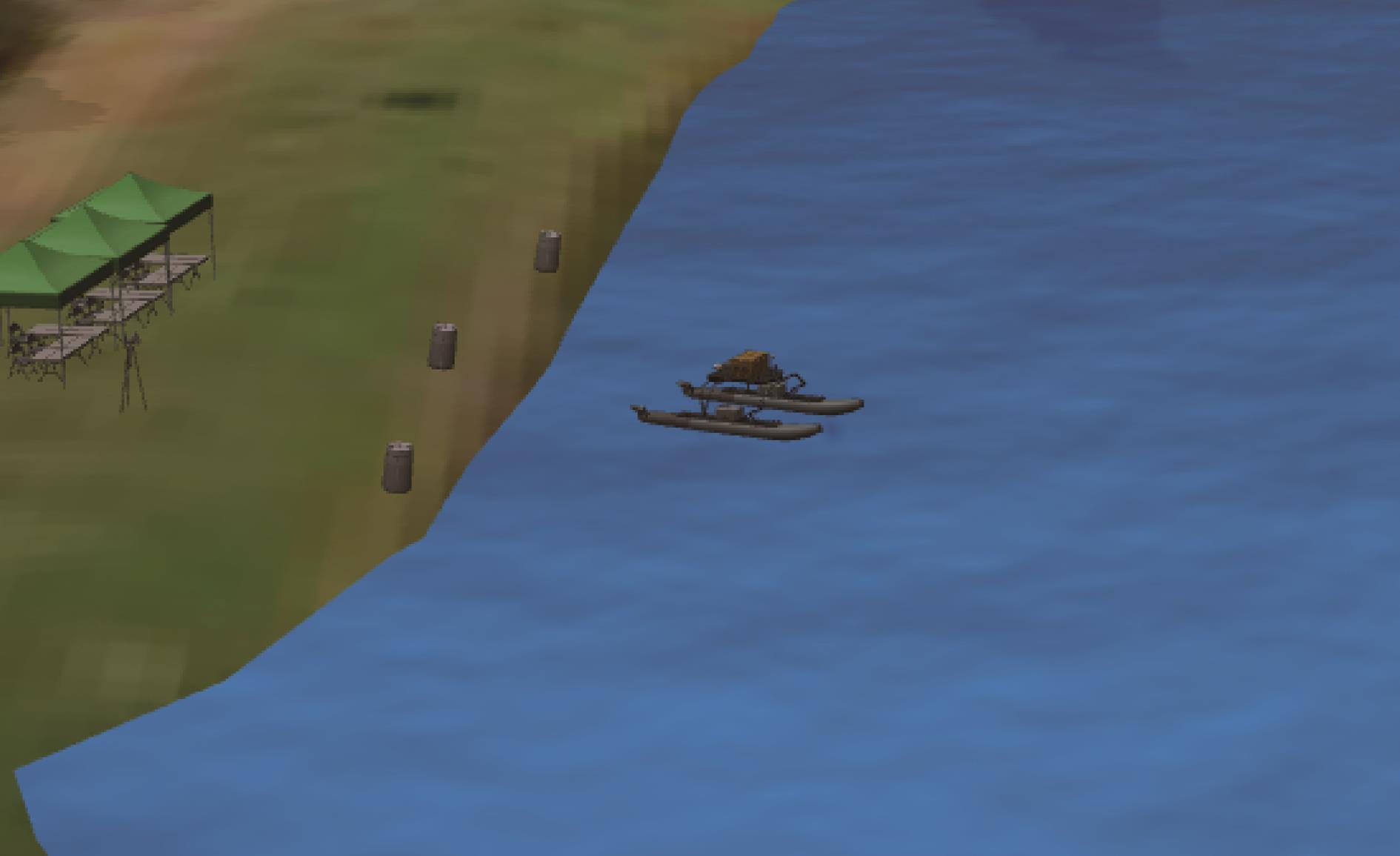

图7

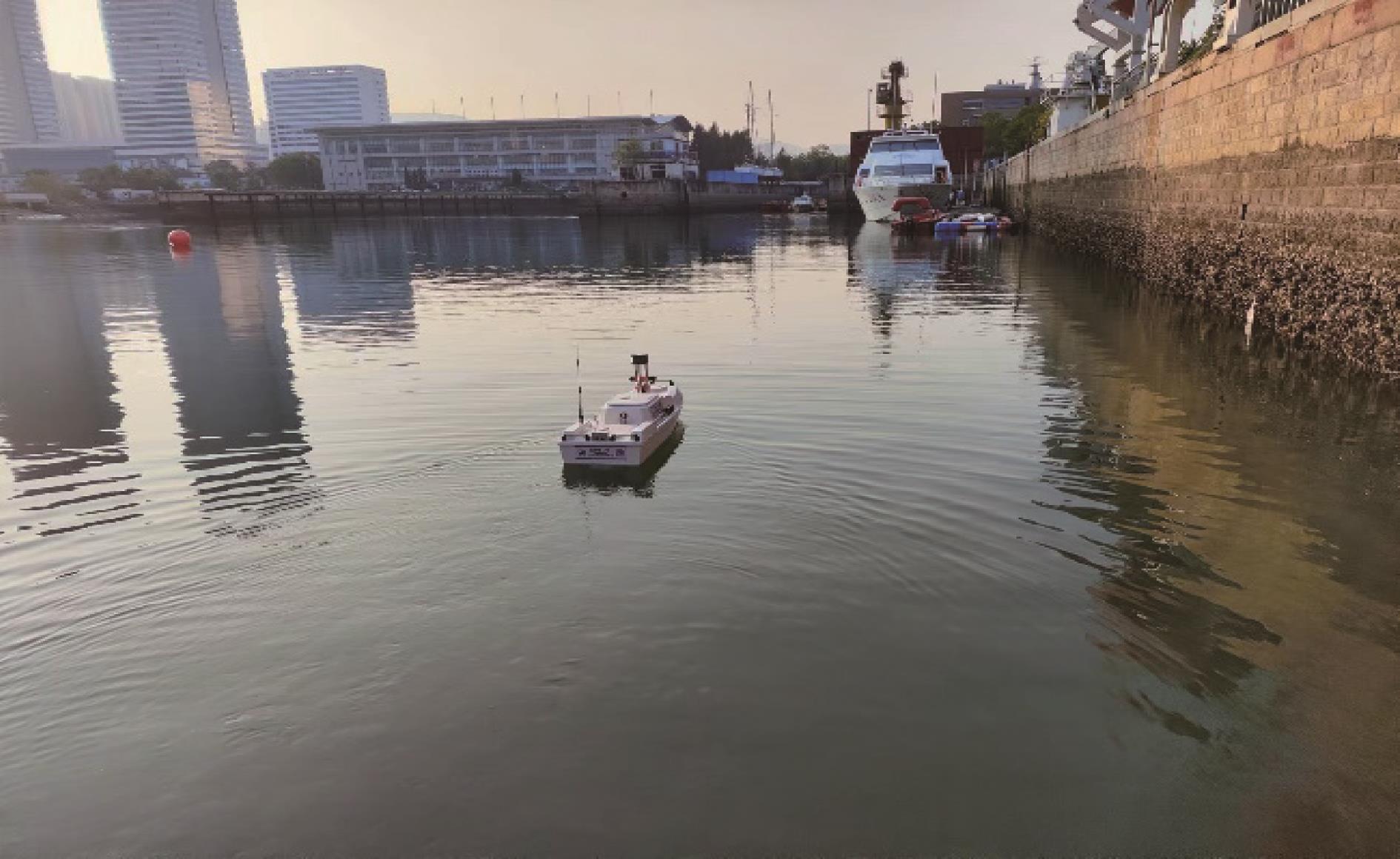

图8

表1

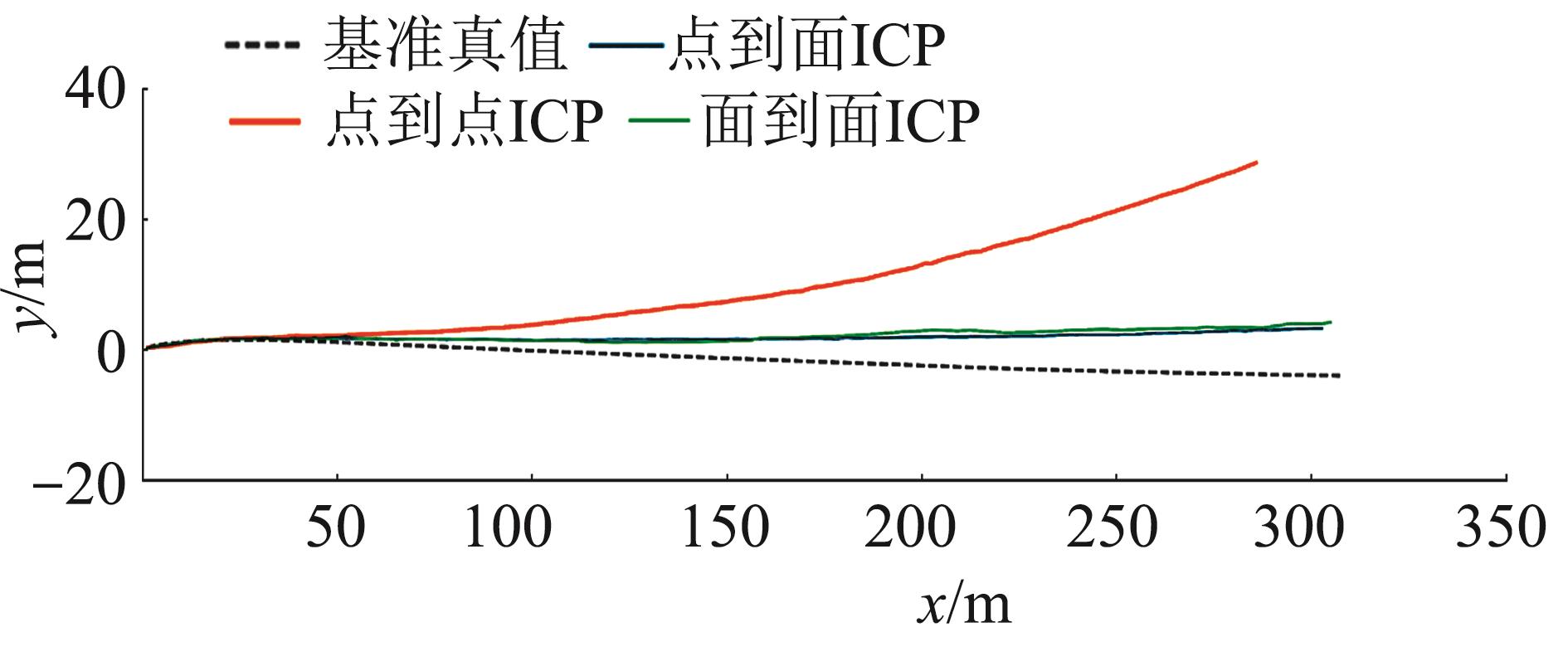

图9

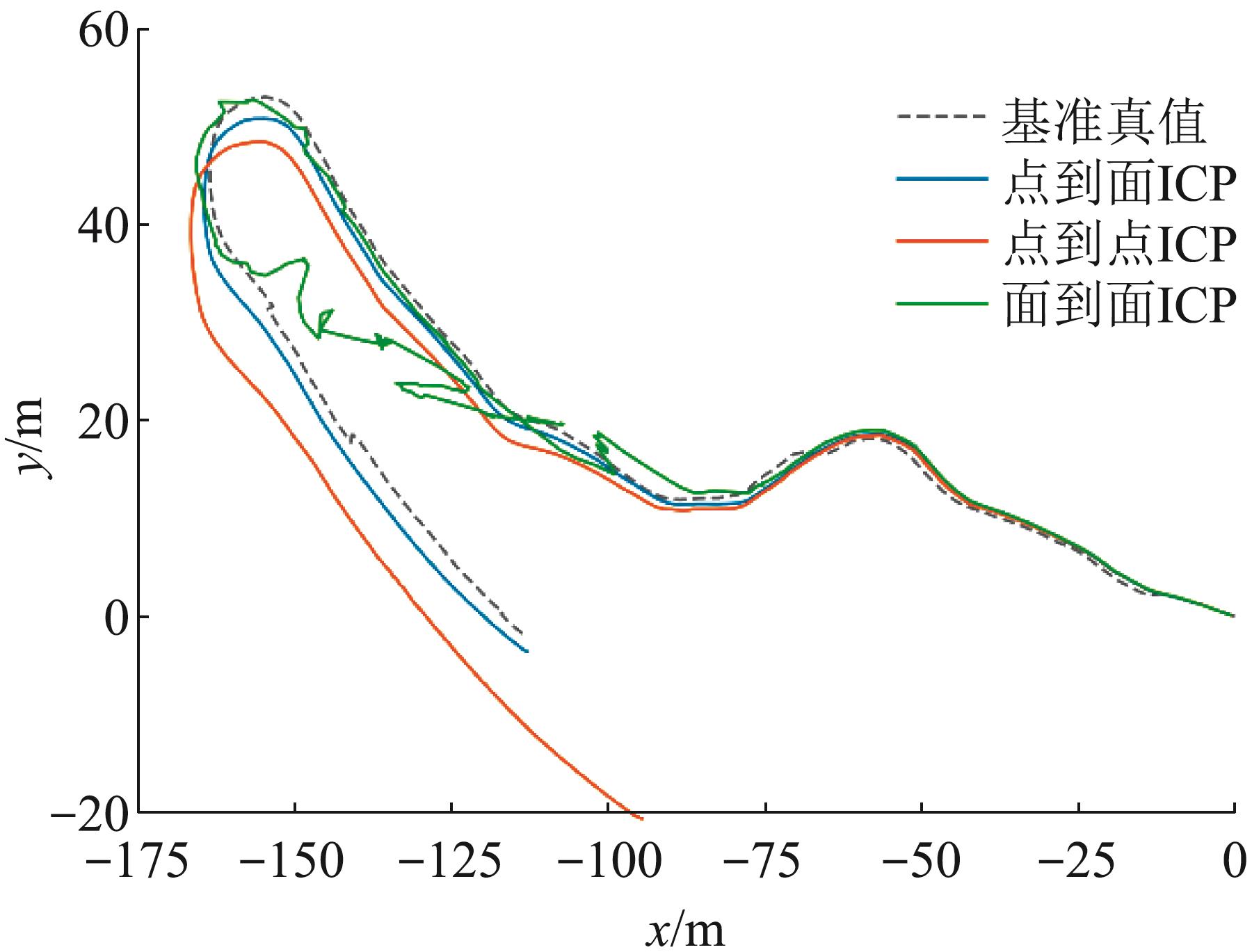

图10

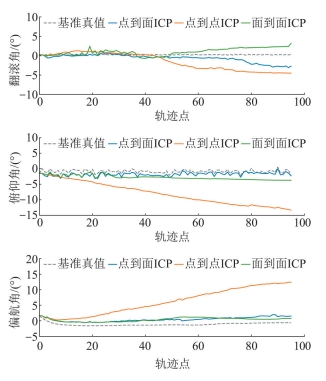

图11

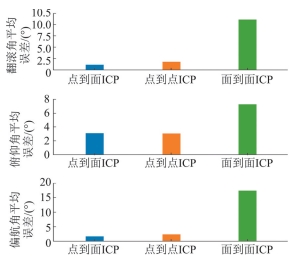

图12

图13

图14

图15

图16

图17

图18

图19

图20

图21

图22

参考文献 28

1	Peng Zhouhua, Wang Jun, Wang Dan, et al. An Overview of Recent Advances in Coordinated Control of Multiple Autonomous Surface Vehicles[J]. IEEE Transactions on Industrial Informatics, 2021, 17(2): 732-745.
2	杨飞, 王国永. 水上应急救援无人船关键技术应用及实验研究[J]. 科技创新与应用, 2024, 14(4): 50-54.
3	曾江峰, 谢杨柳, 金哲毅, 等. 水面无人艇集群编队控制技术综述[J]. 导航定位与授时, 2023, 10(5): 7-17.
	Zeng Jiangfeng, Xie Yangliu, Jin Zheyi, et al. Review for Swarm Formation Control Technology of Unmanned Surface Vehicles[J]. Navigation Positioning and Timing, 2023, 10(5): 7-17.
4	Liu Zhixiang, Zhang Youmin, Yu Xiang, et al. Unmanned Surface Vehicles: An Overview of Developments and Challenges[J]. Annual Reviews in Control, 2016, 41: 71-93.
5	Bejarano Guillermo, N-Yo Sufiyan, Orihuela Luis. Velocity and Disturbance Robust Nonlinear Estimator for Autonomous Surface Vehicles Equipped with Position Sensors[J]. IEEE Transactions on Control Systems Technology, 2022, 30(5): 2235-2242.
6	Jones D O B, Gates A R, Huvenne V A I, et al. Autonomous Marine Environmental Monitoring: Application in Decommissioned Oil Fields[J]. Science of the Total Environment, 2019, 668: 835-853.
7	嵇艳鞠, 王远, 徐江, 等. 无人飞艇长导线源时域地空电磁勘探系统及其应用[J]. 地球物理学报, 2013, 56(11): 3640-3650.
	Ji Yanju, Wang Yuan, Xu Jiang, et al. Development and Application of the Grounded Long Wire Source Airborne Electromagnetic Exploration System Based on an Unmanned Airship[J]. Chinese Journal of Geophysics, 2013, 56(11): 3640-3650.
8	Gu Nan, Peng Zhouhua, Wang Dan, et al. Antidisturbance Coordinated Path Following Control of Robotic Autonomous Surface Vehicles: Theory and Experiment[J]. IEEE/ASME Transactions on Mechatronics, 2019, 24(5): 2386-2396.
9	Rätsep Margus, Kevin E Parnell, Soomere Tarmo, et al. Surface Vessel Localization from Wake Measurements Using an Array of Pressure Sensors in the Littoral Zone[J]. Ocean Engineering, 2021, 233: 109156.
10	Yi Tinghua, Li Hongnan, Gu Ming. Effect of Different Construction Materials on Propagation of GPS Monitoring Signals[J]. Measurement, 2012, 45(5): 1126-1139.
11	李德刚, 路建华, 任小英. 航班GPS受干扰原因及防范措施探讨[J]. 中国无线电, 2022(5): 73-76.
	Li Degang, Lu Jianhua, Ren Xiaoying. Causes and Prevention Measures in Civil Aviation GPS Interference[J]. China Radio, 2022(5): 73-76.
12	Zhu Ni, Marais Juliette, Bétaille David, et al. GNSS Position Integrity in Urban Environments: A Review of Literature[J]. IEEE Transactions on Intelligent Transportation Systems, 2018, 19(9): 2762-2778.
13	刘翔宇, 王健, 王效盖, 等. 基于3DSIFT特征点的改进ICP点云配准算法[J]. 应用激光, 2023, 43(11): 153-160.
	Liu Xiangyu, Wang Jian, Wang Xiaogai, et al. Point Cloud Registration Algorithm Based on the 3DSIFT Feature Points with Improved ICP Algorithm[J]. Applied Laser, 2023, 43(11): 153-160.
14	Biber P, Strasser W. The Normal Distributions Transform: A New Approach to Laser Scan Matching[C]//Proceedings 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS 2003). Piscataway: IEEE, 2003: 2743-2748.
15	王嘉琛, 叶周润, 欧鑫, 等. 基于GPU的并行ICP点云配准算法研究[J]. 合肥工业大学学报(自然科学版), 2023, 46(11): 1501-1505.
	Wang Jiachen, Ye Zhourun, Xin Ou, et al. Research on GPU-based Parallel ICP Point Cloud Registration Algorithm[J]. Journal of Hefei University of Technology(Natural Science), 2023, 46(11): 1501-1505.
16	刘志林, 苑守正, 郑林熇, 等. 船舶自动靠泊技术的发展现状和趋势[J]. 中国造船, 2021, 62(4): 293-304.
	Liu Zhilin, Yuan Shouzheng, Zheng Linhe, et al. Development Status and Trend of Ship Automatic Berthing Technology[J]. Shipbuilding of China, 2021, 62(4): 293-304.
17	贾玉鹏, 神和龙, 尹勇, 等. 基于神经网络的无人船自主靠泊模拟研究[J]. 中国航海, 2021, 44(4): 107-111, 117.
	Jia Yupeng, Shen Helong, Yin Yong, et al. A Neural Network-based Unmanned Ship Autonomously Berthing Controller[J]. Navigation of China, 2021, 44(4): 107-111, 117.
18	Zhang Qiang, Zhang Xianku, Im Nam-kyun. Ship Nonlinear-feedback Course Keeping Algorithm Based on MMG Model Driven by Bipolar Sigmoid Function for Berthing[J]. International Journal of Naval Architecture and Ocean Engineering, 2017, 9(5): 525-536.
19	Ablyakimov Ilyas S, Shirokov Igor B. Operation of Local Positioning System for Automatic Ship Berthing[C]//2017 IEEE East-West Design & Test Symposium (EWDTS). Piscataway: IEEE, 2017: 1-5.
20	Leite Pedro, Silva Renato, Matos Aníbal, et al. An Hierarchical Architecture for Docking Autonomous Surface Vehicles[C]//2019 IEEE International Conference on Autonomous Robot Systems and Competitions (ICARSC). Piscataway: IEEE, 2019: 1-6.
21	Hu Bin, Liu Xiuwen, Jing Qianfeng, et al. Estimation of Berthing State of Maritime Autonomous Surface Ships Based on 3D LiDAR[J]. Ocean Engineering, 2022, 251: 111131.
22	Wang Zhuolin, Zhang Yingjun. Estimation of Ship Berthing Parameters Based on Multi-LiDAR and MMW Radar Data Fusion[J]. Ocean Engineering, 2022, 266, Part 5: 113155.
23	Besl P J, McKay N D. Method for Registration of 3-D Shapes[C]//Proceedings of the Sensor Fusion IV: Control Paradigms and Data Structures. Bellingham: SPIE, 1992: 586-606.
24	Chen Yang, Medioni Gérard. Object Modelling by Registration of Multiple Range Images[J]. Image and Vision Computing, 1992, 10(3): 145-155.
25	Segal A, Haehnel D, Thrun S. Generalized-icp[C]// Robotics: Science and Systems, 2009, 2(4): 435.
26	Torr P, Zisserman A. Robust Computation and Parametrization of Multiple View Relations[C]//Sixth International Conference on Computer Vision. Piscataway: IEEE, 1998: 727-732.
27	Bingham B, Agüero Carlos, McCarrin M, et al. Toward Maritime Robotic Simulation in Gazebo[C]//Oceans 2019 MTS/IEEE Seattle. Piscataway: IEEE, 2019: 1-10.
28	Koenig N, Howard A. Design and Use Paradigms for Gazebo, an Open-source Multi-robot Simulator[C]//2004 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2004: 2149-2154.

参数	值
波长/nm	905
激光等级	Class 1
线数	16
垂直视场角/(°)	30(-15~15)
垂直角分辨率/(°)	2
水平视场角/(°)	360
水平角分辨率/(°)	0.09/0.18/0.36
最大测量距离/m	200
测距精度/cm 质量/g 外形尺寸/mm×mm	2 750 113×71.9
