基于EFSM的智能车间制造系统生产物流建模与仿真

doi:10.16182/j.issn1004731x.joss.22-0802

系统仿真学报 ›› 2023, Vol. 35 ›› Issue (12): 2655-2668.doi: 10.16182/j.issn1004731x.joss.22-0802

基于EFSM的智能车间制造系统生产物流建模与仿真

李柳臻¹(), 金超¹, 林廷宇², 朱耀琴¹()

^1.南京理工大学，江苏南京 210094
^2.北京仿真中心，北京 100854

收稿日期:2022-07-11 修回日期:2022-09-07 出版日期:2023-12-15 发布日期:2023-12-12
通讯作者: 朱耀琴 E-mail:llz980807@163.com;zhuyaoqin@njust.edu.cn
第一作者简介:李柳臻(1998-)，女，硕士生，研究方向为智能车间生产物流建模与仿真。E-mail：llz980807@163.com
基金资助:
装备发展部预先研究项目(50904040201)

Modeling and Simulation on Production Logistics of Intelligent Workshop Manufacturing System Based on EFSM

Li Liuzhen¹(), Jin Chao¹, Lin Tingyu², Zhu Yaoqin¹()

^1.Nanjing University of Science and Technology, Nanjing 210094, China
^2.Beijing Simulation Center, Beijing 100854, China

Received:2022-07-11 Revised:2022-09-07 Online:2023-12-15 Published:2023-12-12
Contact: Zhu Yaoqin E-mail:llz980807@163.com;zhuyaoqin@njust.edu.cn

摘要/Abstract

摘要：

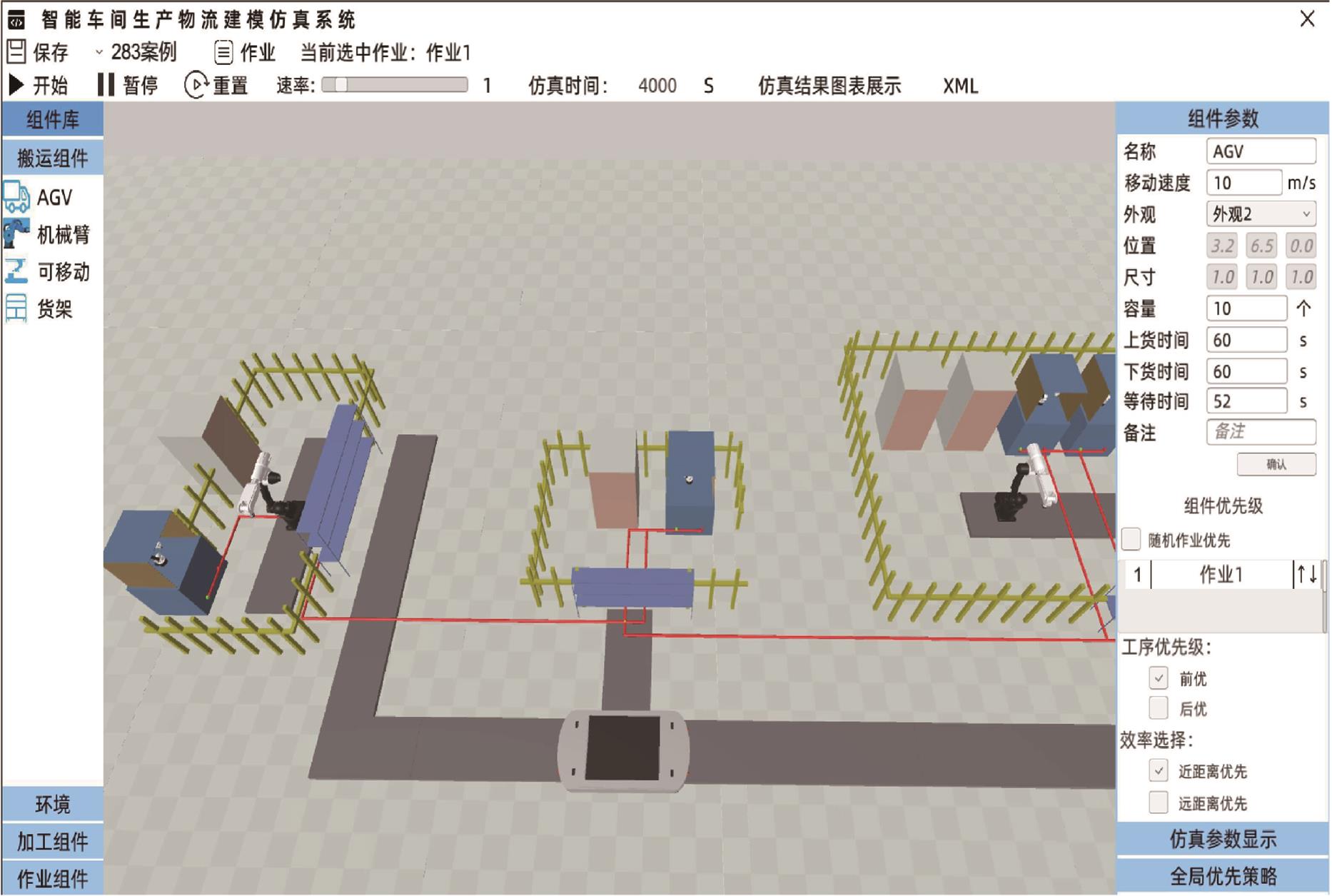

制造业的生产物流方式处于不断变革中，对其建模仿真可为制造系统规划设计、分析及改造提供决策支持。依“人-机-物-环-法”分类给出了智能车间制造系统中实体元素的描述，结合EFSM(extended finite state machine)和组件化建模思想，建立了生产和物流组件化EFSM模型；阐述了智能车间多作业生产的建模过程以及组件模型实例化方法；通过EFSM-DEVS(discrete event system specification)模型自动转换及DEVS引擎完成了仿真运行。仿真结果表明：该方法所建立的模型更符合车间实际状况，适用性更广；组件化建模思想能构造更具扩展性的软件；建模及仿真运行的3D可视化使软件直观性更好，其仿真结果与AnyLogic保持一致。

关键词: 生产物流建模与仿真, EFSM(extended finite state machine), 组件化建模, DEVS(discrete event system specification), 多作业建模

Abstract:

The production logistics mode of manufacturing industry is developing rapidly, on which the modeling and simulation can provide the decision support for the design, analysis and transformation of manufacturing system. A description of the entity elements in intelligent workshop manufacturing system is given according to the classification of "human machine material environment rule". A production and logistics componentized EFSM model is created on the basis of EFSM and componentized modeling ideas. The modeling process for multi-job production in smart shop and the component model instantiation methodology are elaborated. The simulation running through the automatic conversion of EFSM-DEVS model and DEVS engine is completed. The simulation results show that the model established by this method is more in line with the actual situation of the workshop and is more applicable. The idea of component modeling can construct the more scalable software; Modeling and the simulation running of 3D visualization makes the software more intuitive, and the simulation results are consistent with AnyLogic.

Key words: modeling and simulation of production and logistics, extended finite state machine(EFSM), component-based modeling, discrete event system specification(DEVS), multi-job modeling

中图分类号:

TP391.9

李柳臻,金超,林廷宇等 . 基于EFSM的智能车间制造系统生产物流建模与仿真[J]. 系统仿真学报, 2023, 35(12): 2655-2668.

Li Liuzhen,Jin Chao,Lin Tingyu,et al . Modeling and Simulation on Production Logistics of Intelligent Workshop Manufacturing System Based on EFSM[J]. Journal of System Simulation, 2023, 35(12): 2655-2668.

图/表 17

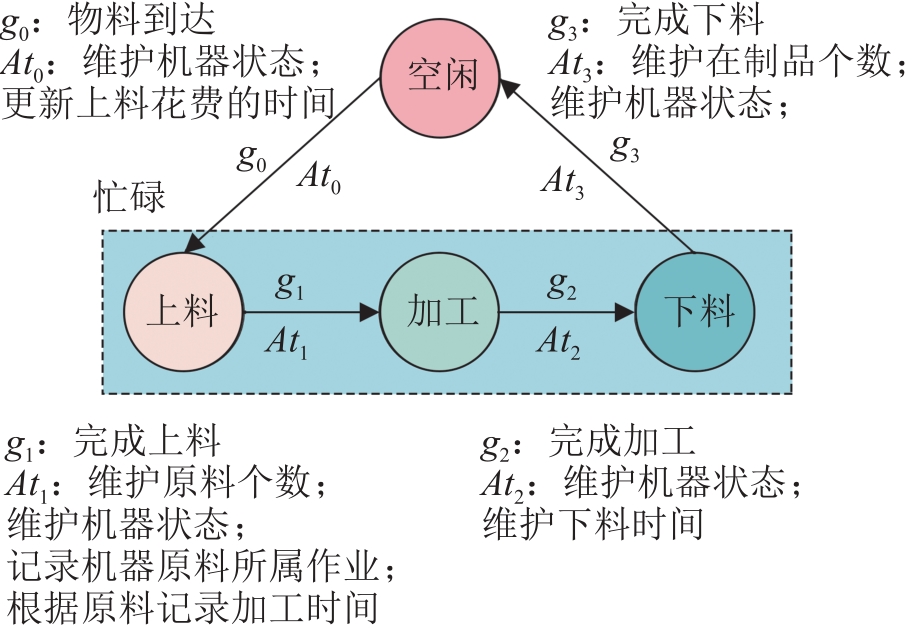

图1

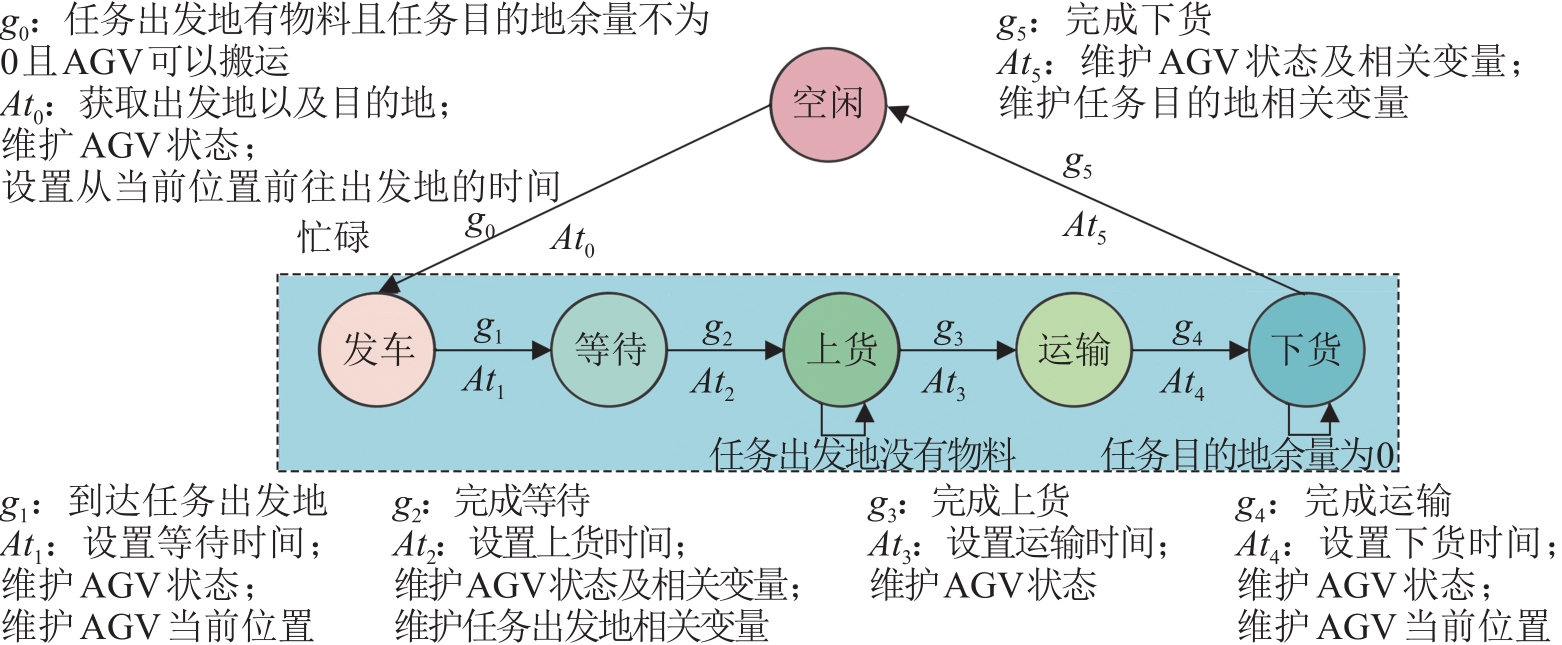

图 2

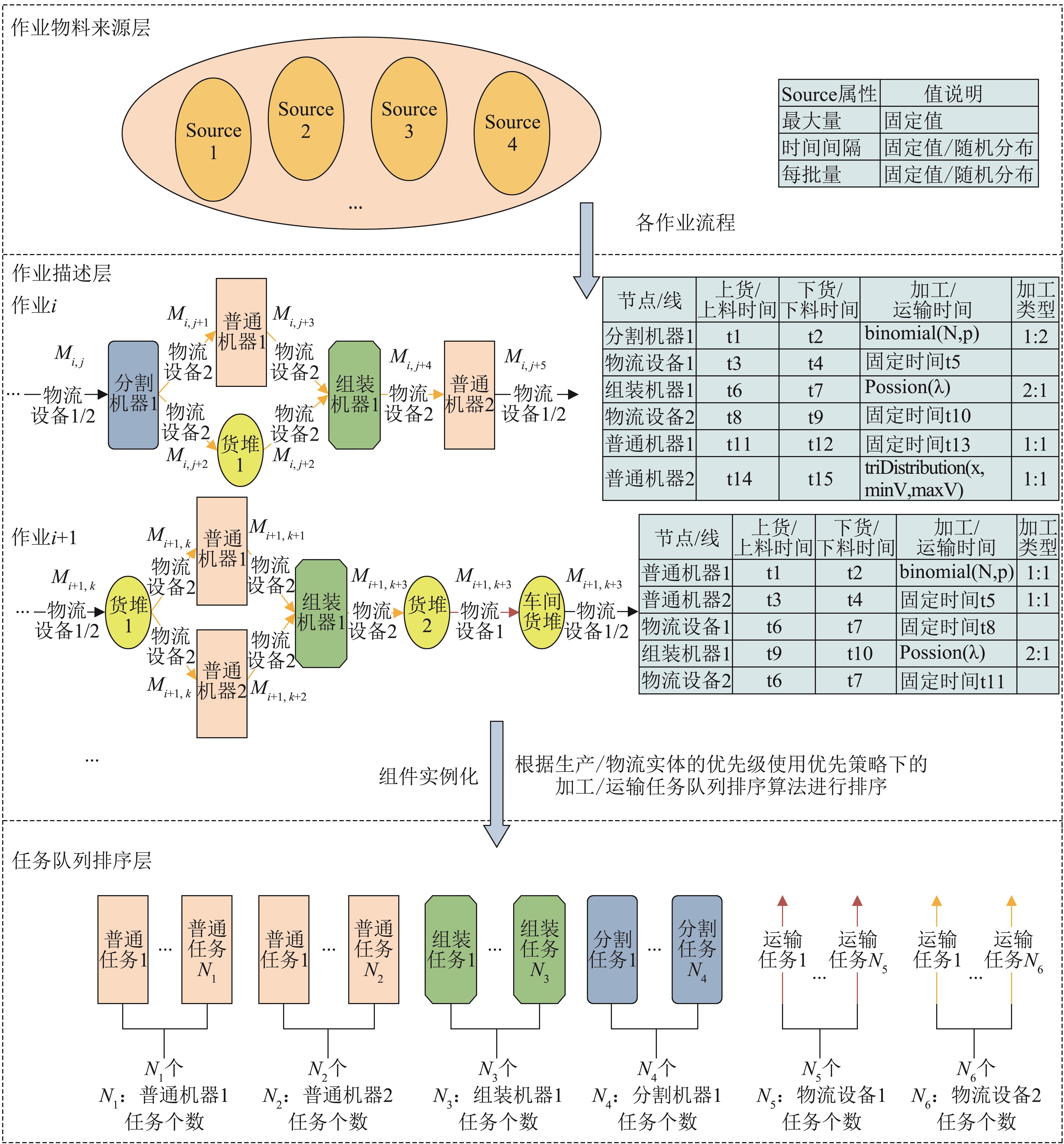

图 3

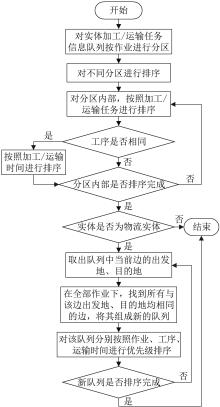

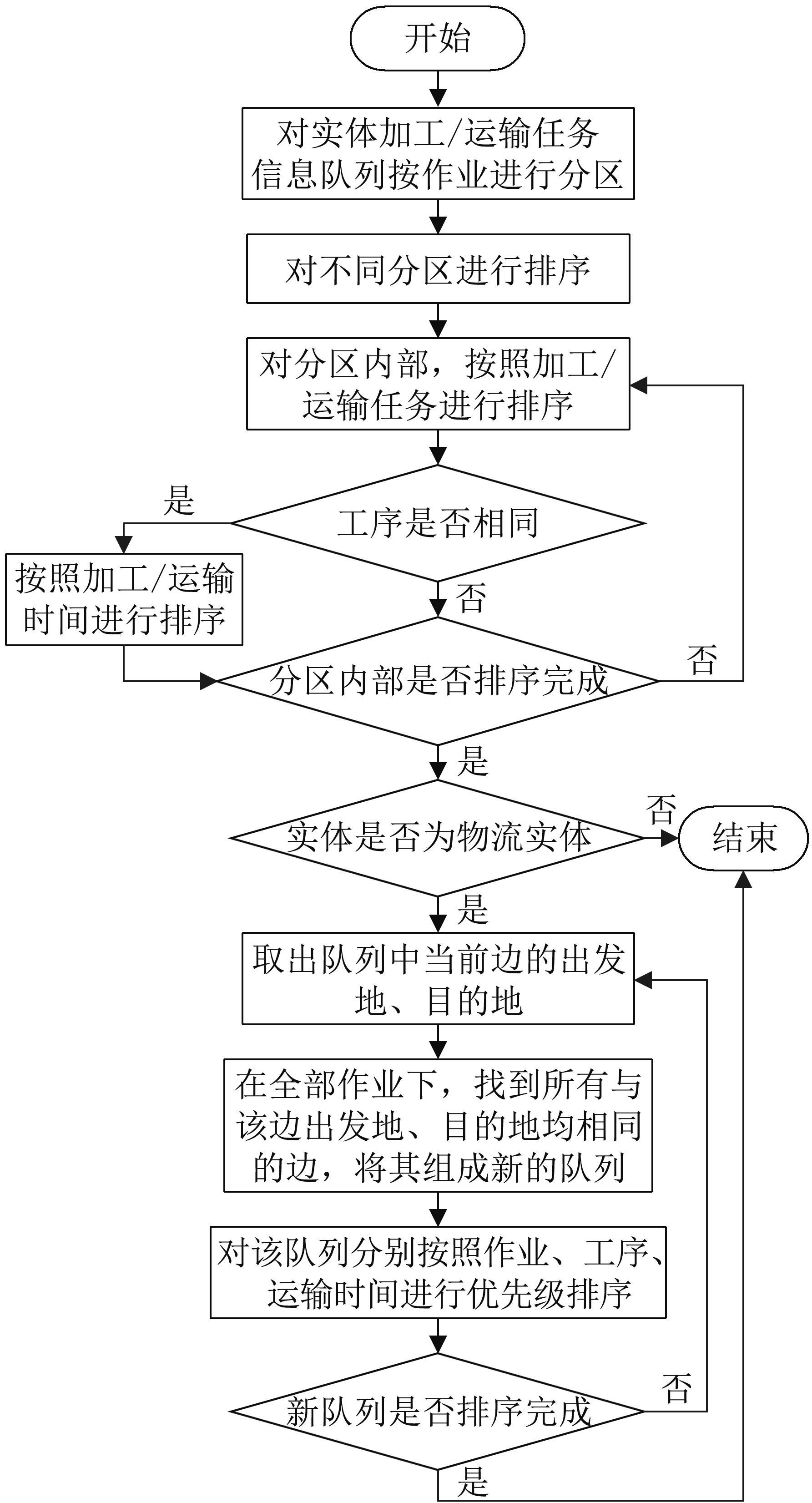

图4

图 5

图6

表1

图7

表2

表3

表4

图8

图9

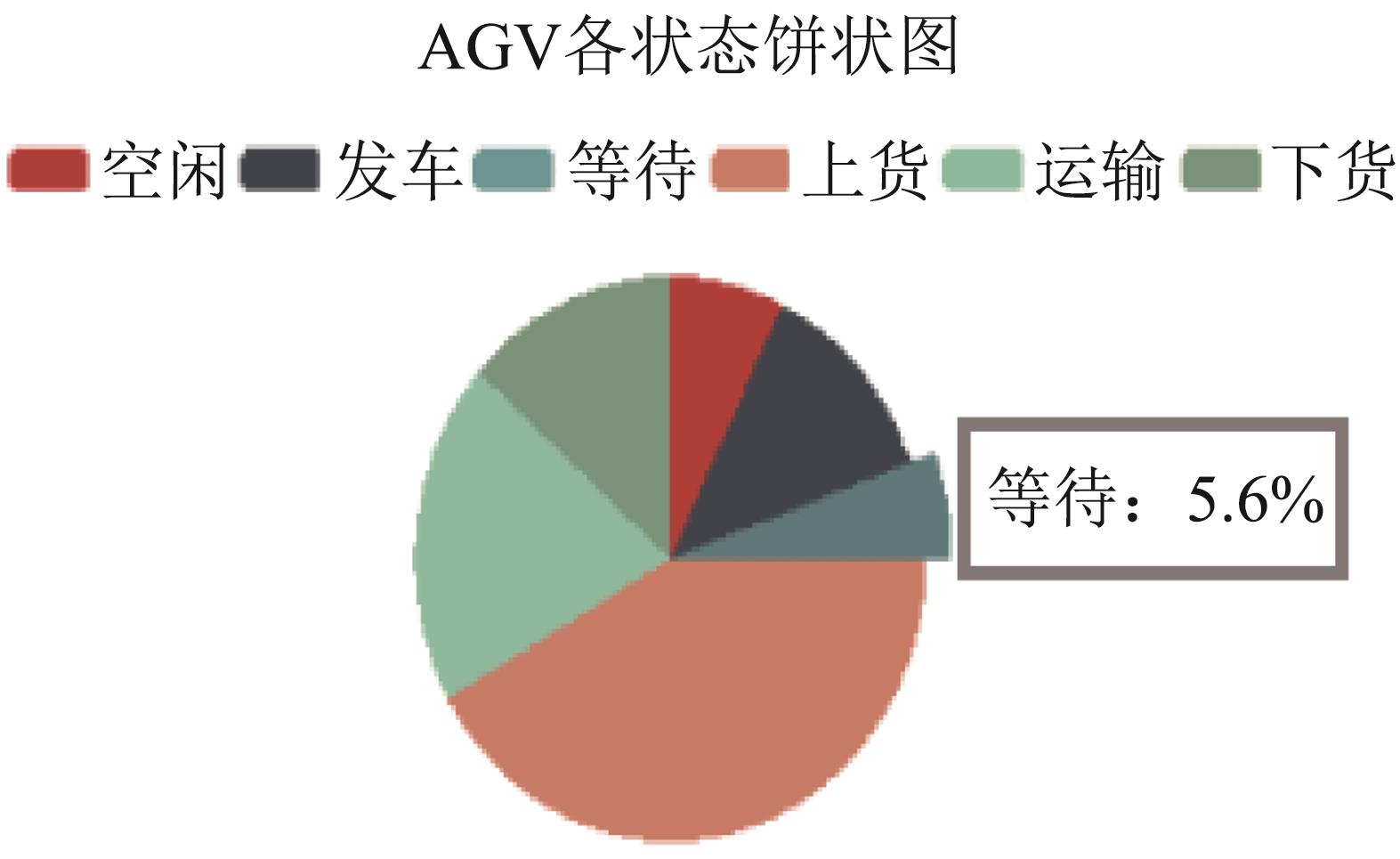

图10

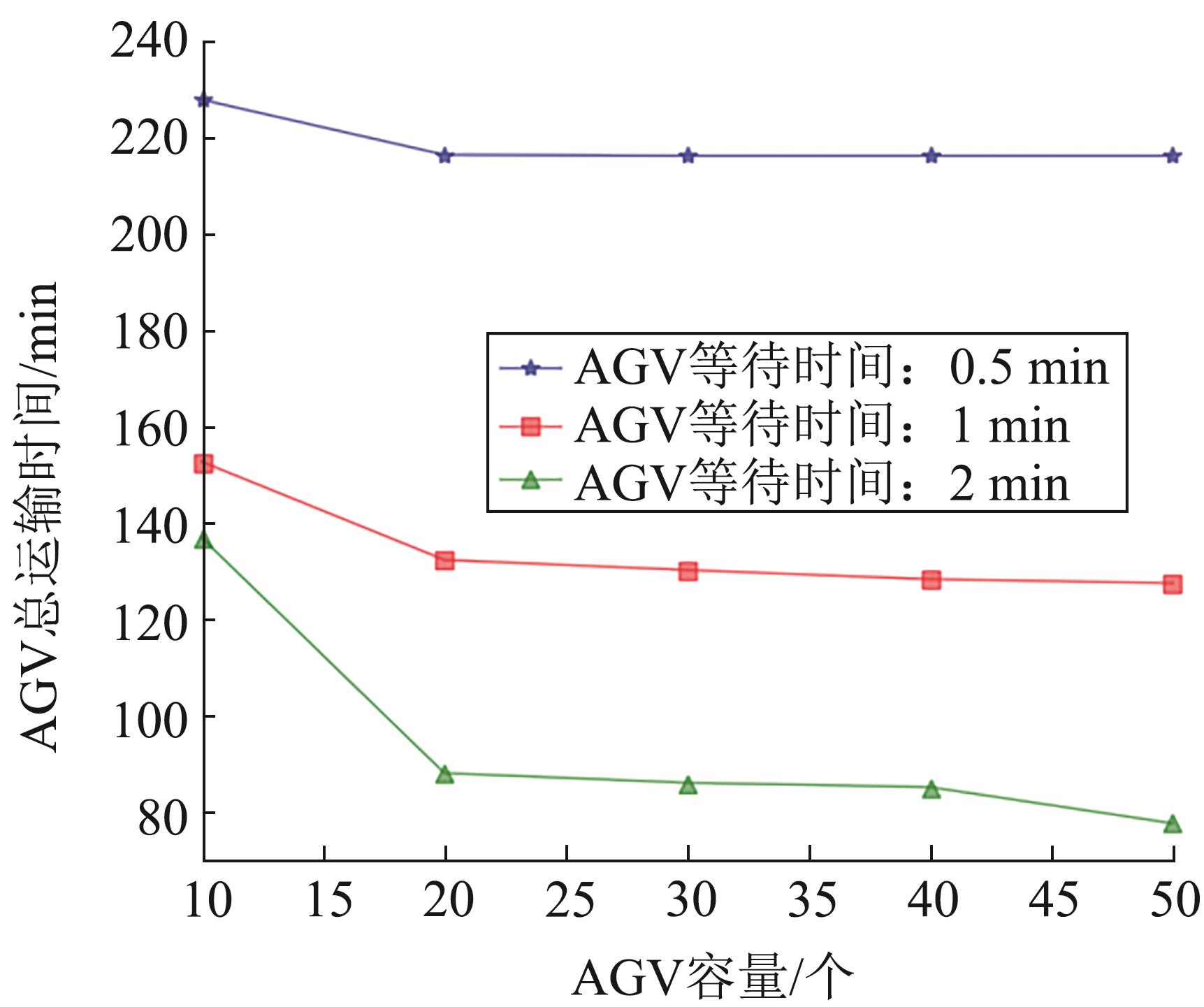

图11

图 12

表5

参考文献 17

1	陈琦. 智能制造正当时: 杜尔为中国重汽打造高水平涂装车间[J]. 汽车与配件, 2021(21): 84-85.
2	杜万全. 图书印刷智能制造生产线的建设[J]. 印刷经理人, 2022(1): 76-77.
3	胡小荣. 基于Unity3D的全自动筒子纱印染生产线仿真研究[D]. 上海: 东华大学, 2020.
	Hu Xiaorong. Simulation Research on Automatic Bobbin Yarn Printing and Dyeing Production Line Based on Unity3D[D]. Shanghai: Donghua University, 2020.
4	刘名远, 谢家翔, 吴豪, 等. 基于有限状态机的车间逻辑建模与仿真研究[J]. 系统仿真学报, 2023, 35(4): 853-861.
	Liu Mingyuan, Xie Jiaxiang, Wu Hao, et al. Research on Workshop Logic Modeling and Simulation Based on Finite State Machine[J]. Journal of System Simulation, 2023, 35(4): 853-861.
5	周韶武, 胡晓兵, 彭正超, 等. 基于Petri网和Witness的SMT生产物流系统仿真及优化[J]. 现代制造工程, 2020(11): 99-105.
	Zhou Shaowu, Hu Xiaobing, Peng Zhengchao, et al. Modeling and Simulation Optimization of SMT Production Logistics System Based on Petri Net and Witness[J]. Modern Manufacturing Engineering, 2020(11): 99-105.
6	李任江, 李玉晨. 面向对象的赋时着色Petri网在FMS中的建模与仿真[J]. 机械设计与制造, 2018(10): 36-39.
	Li Renjiang, Li Yuchen. Modeling and Analysis of Object Oriented Timed Colored Petri Net in Flexible Manufacturing System[J]. Machinery Design & Manufacture, 2018(10): 36-39.
7	范熙. 递阶流水线整体生产计划的研究[D]. 南京: 东南大学, 2006.
	Fan Xi. Study for Integrated Production Planning of Hierarchical Flow Line[D]. Nanjing: Southeast University, 2006.
8	程咏喜. 基于上、下游生产线的分布式仿真软件的研究与实现[D]. 南京: 东南大学, 2005.
	Cheng Yongxi. Research and Implementation of Distributed Simulation Software Based on Multiple Product Lines[D]. Nanjing: Southeast University, 2005.
9	王海涛. 基于离散事件的排故过程建模与仿真方法研究[D]. 天津: 中国民航大学, 2017.
	Wang Haitao. Research on Modeling and Simulation of Troubleshooting Process Based on Discrete Event[D]. Tianjin: Civil Aviation University of China, 2017.
10	侯宇戡. 复杂装配系统瞬态行为建模方法研究[D]. 西安: 西北工业大学, 2019.
	Hou Yukan. Research on Modeling of System Behavior of Complex Assembly Lines During Transients[D]. Xi'an: Northwestern Polytechnical University, 2019.
11	Petrenko A, Boroday S, Groz R. Confirming Configurations in EFSM Testing[J]. IEEE Transactions on Software Engineering, 2004, 30(1): 29-42.
12	李伯虎, 柴旭东, 侯宝存. "新基建"赋能智能+时代工业互联网——工业互联网2.0[J]. 中国经贸导刊, 2020(14): 31-34.
13	方磊, 李德宝, 唐火红, 等. 数字化车间生产状态实时监测系统的研究与实现[J]. 组合机床与自动化加工技术, 2017(12): 117-120, 124.
	Fang Lei, Li Debao, Tang Huohong, et al. Research and Realization of Real-time Monitoring System for Digital Factory Status[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2017(12): 117-120, 124.
14	党少杰. Job Shop作业车间多智能配送单元物料配送策略研究[D]. 合肥: 合肥工业大学, 2017.
	Dang Shaojie. Research on Material Distribution Strategy of Multi Intelligent Distribution Unit in Job Shop Workshop[D]. Hefei: Hefei University of Technology, 2017.
15	付宜利, 田立中, 董正卫, 等. 装配关系的有向图表达方法研究[J]. 计算机集成制造系统-CIMS, 2003, 9(2): 149-153.
	Fu Yili, Tian Lizhong, Dong Zhengwei, et al. Representation of Assembly Relations by Directional Assembly Connection Graph[J]. Computer Integrated Manufacturing Systems, 2003, 9(2): 149-153.
16	郑丽钰. 基于DEVS的石化多层次物流模型建模和仿真研究[D]. 杭州: 浙江大学, 2008.
	Zheng Liyu. Research on Modeling and Simulation of Petrochemical Multi-level Material Flow Model Based on DEVS[D]. Hangzhou: Zhejiang University, 2008.
17	苏春. 制造系统建模与仿真[M]. 北京: 机械工业出版社, 2008: 161-169.
	Su Chun. Modeling and Simulation for Manufacturing System[M]. Beijing: China Machine Press, 2008: 161-169.

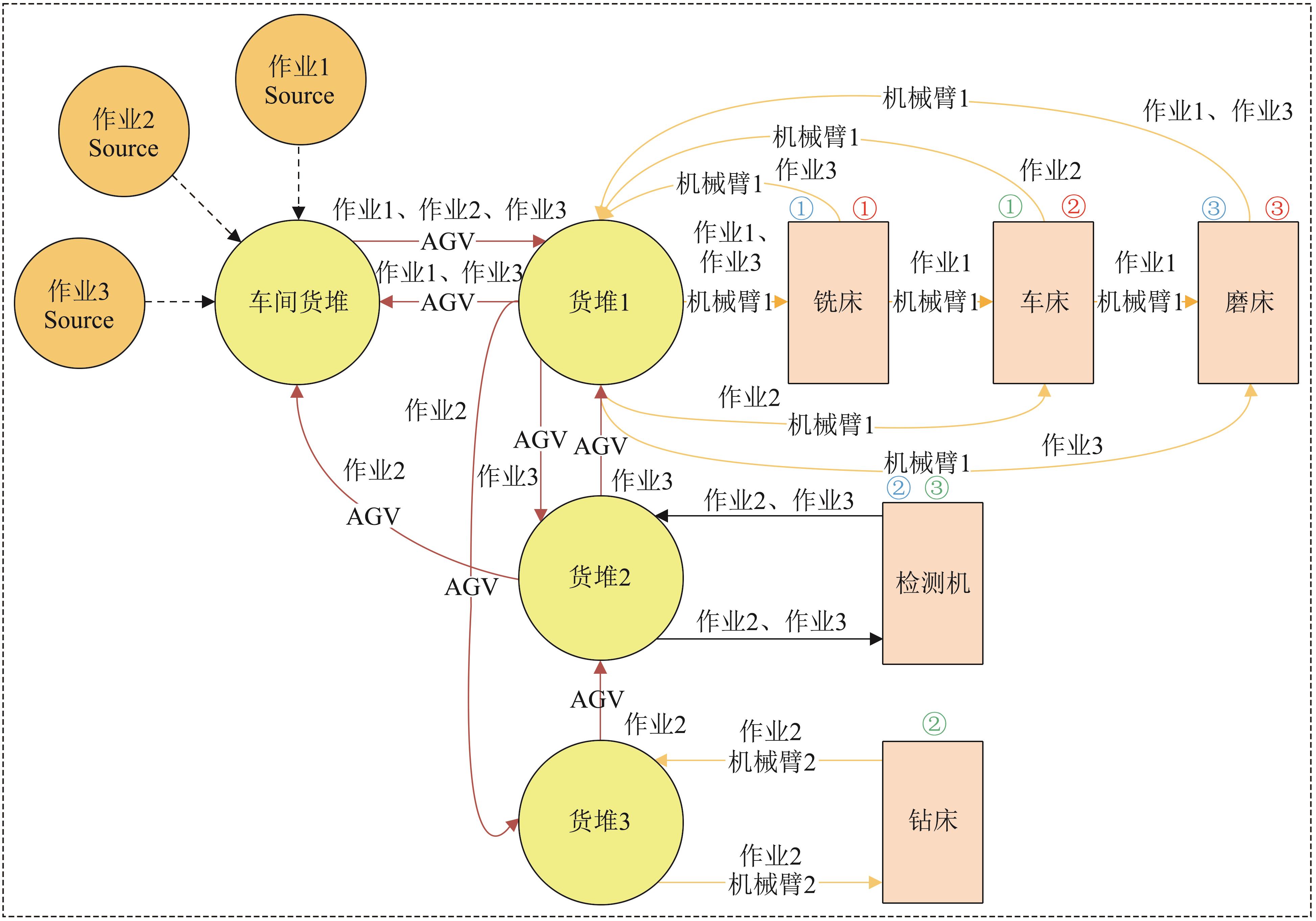

作业	节点/线	上货/上料时间/min	下货/下料时间/min	加工/运输时间/min
1	铣床	0	0	Possion(2)
	车床	0	0	3
	磨床	0	0	6
	机械臂1	1	1	0
	AGV	1	1	5
2	车床	0	0	5
	钻床	0	0	6
	检测机	0	0	6
	机械臂1	1	1	0
	机械臂2	1	1	0
	AGV	1	1	5
3	铣床	0	0	4
	检测机	0	0	6
	磨床	0	0	7
	机械臂1	1	1	0
	AGV	1	1	5

优先级策略	优先级具体设置
作业优先级	作业1>作业2>作业3
工序优先级	前序优先
效率优先级	短时间优先

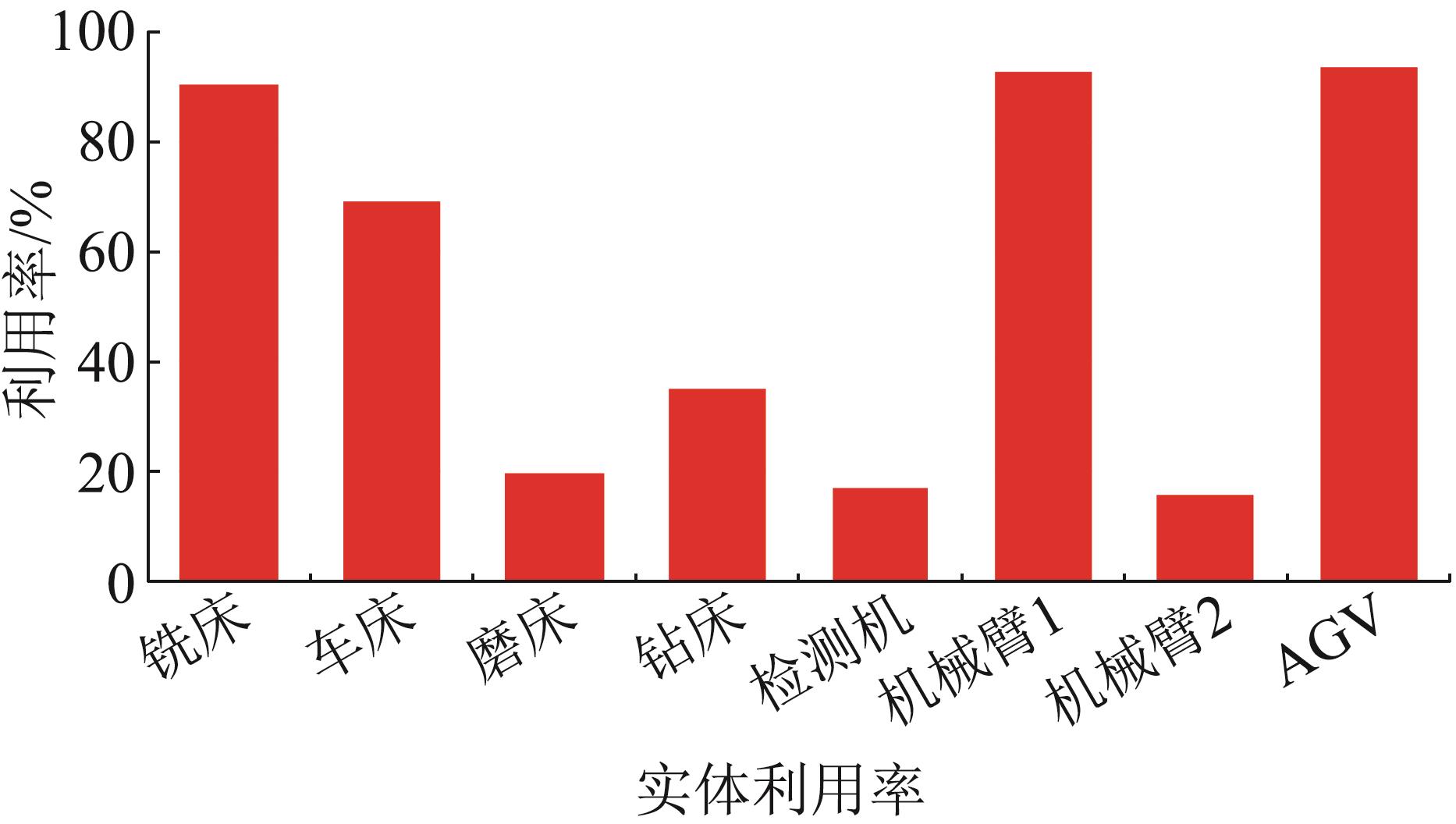

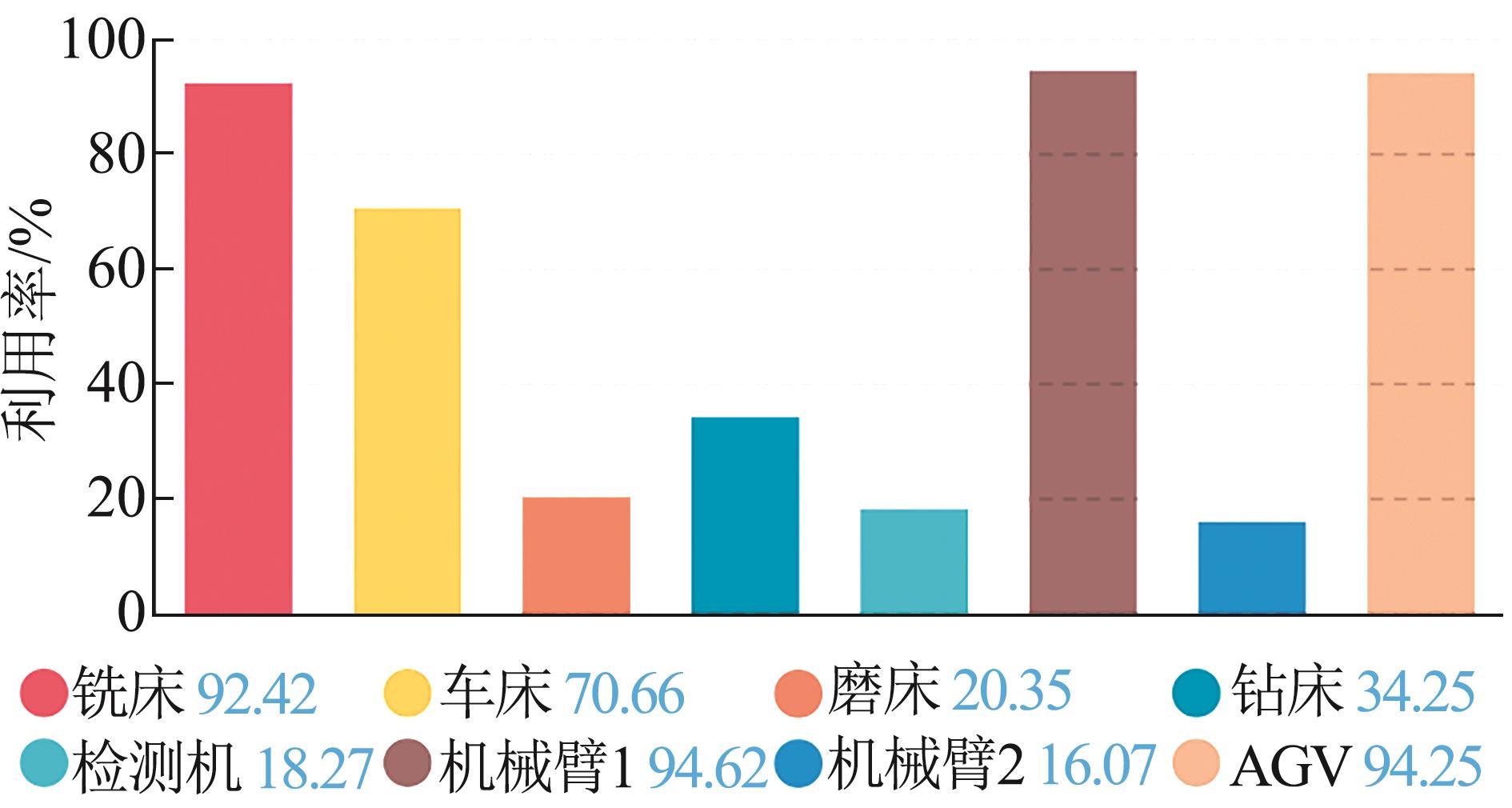

设备	本文	AnyLogic	相对误差
铣床	90.25	92.42	2.35
车床	68.53	70.66	3.01
磨床	19.56	20.35	3.88
钻床	32.58	34.25	4.88
检测机	17.55	18.27	3.94
机械臂1	93.43	94.62	1.26
机械臂2	15.74	16.07	2.05
AGV	92.76	94.25	1.58
