帝王蝶算法优化粒子滤波在SLAM中的应用研究

doi:10.16182/j.issn1004731x.joss.22-0090

摘要/Abstract

摘要：

为解决传统粒子滤波重采样时易出现权值退化及粒子多样性丧失导致滤波精度下降，使机器人定位不准确及地图构建不精确的问题，提出一种基于改进帝王蝶算法优化的粒子滤波算法。以帝王蝶个体代替粒子个体，将帝王蝶算法中的迁移算子和调整算子融入粒子滤波算法中。在帝王蝶的迭代更新过程中引入自适应遗传参数，在粒子滤波重采样时采用线性组合优化重采样方法提高粒子多样性。结果表明：基于改进帝王蝶算法的粒子滤波算法与原算法相比预测精度和运行速度分别提高了29.7%及5.6%以上，应用于机器人定位与地图构建方面也能提高了40%以上的地图构建精度及10.5%的运行速度。

关键词: 粒子滤波, 帝王蝶算法, 重采样, 即时定位与地图构建

Abstract:

In traditional particle filter resampling, weight degradation and loss of particle diversity are prone to occur, which leads to the decrease in filtering accuracy and result in inaccurate robot positioning and inaccurate mapping. An optimized particle filter algorithm based on the improved monarch butterfly algorithm is proposed. The algorithm replaces the particle individual with the monarch butterfly individual, and integrates the migration operator and adjustment operator in the monarch butterfly algorithm into the particle filter algorithm. The adaptive genetic parameters are introduced to the iterative update process of the monarch butterfly, and the linear combination optimization resampling method is used to improve the particle diversity during particle filter resampling. It is verified by simulation experiments that compared with the original algorithm, the proposed particle filter algorithm based on the improved monarch butterfly algorithm improves the prediction accuracy and running speed by more than 29.7% and 5.6% respectively. It can also improve the mapping accuracy by more than 40% and the running speed by 10.5% when applied to the robot simultaneous localization and mapping.

Key words: particle filter, monarch butterfly optimization, resampling, simultaneous localization and mapping

中图分类号:

TP242

陈志强, 曹梦龙, 赵文彬. 帝王蝶算法优化粒子滤波在SLAM中的应用研究[J]. 系统仿真学报, 2023, 35(6): 1351-1361.

Zhiqiang Chen, Menglong Cao, Wenbin Zhao. Research on Application of Monarch Butterfly Optimization Particle Filter in SLAM[J]. Journal of System Simulation, 2023, 35(6): 1351-1361.

图/表 13

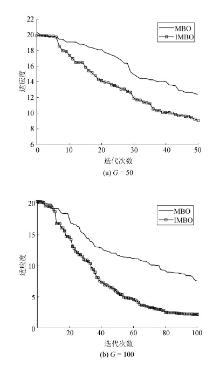

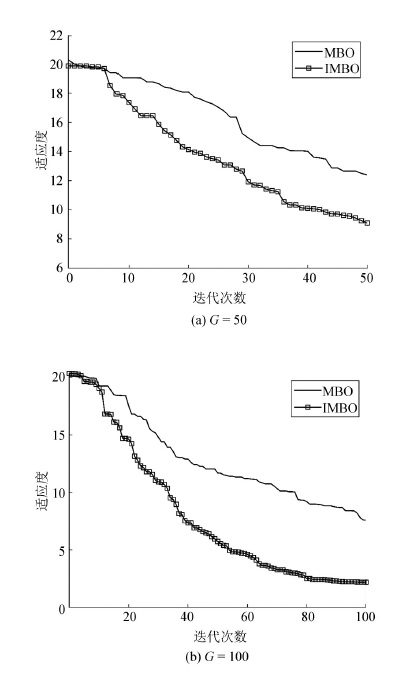

图1

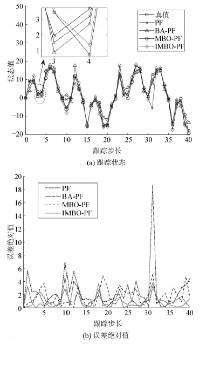

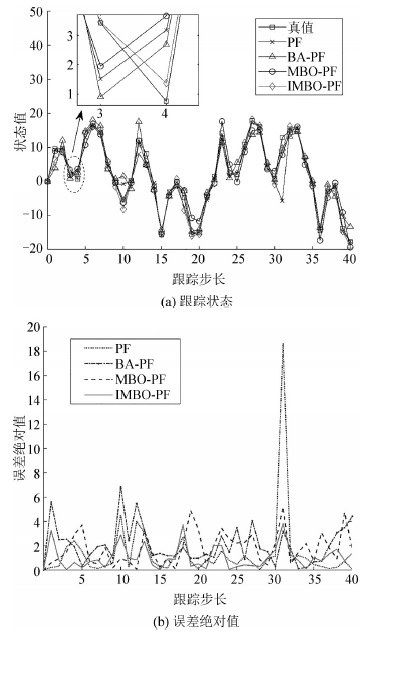

图2

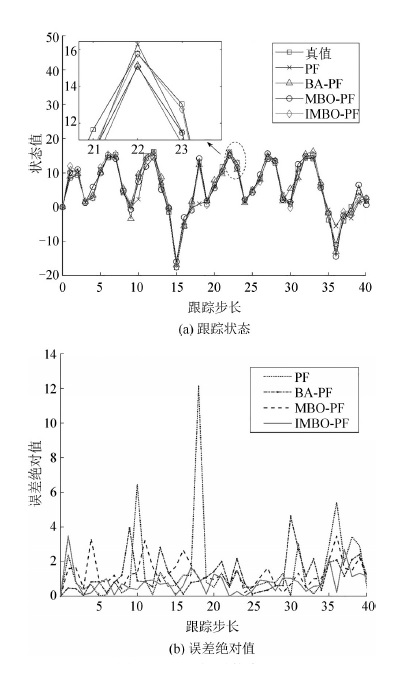

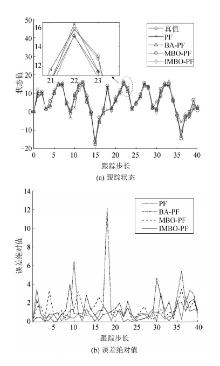

图3

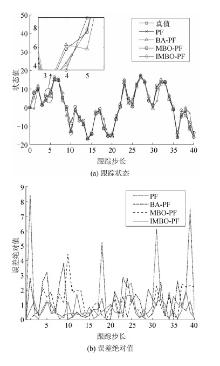

图4

表1

表2

图5

图6

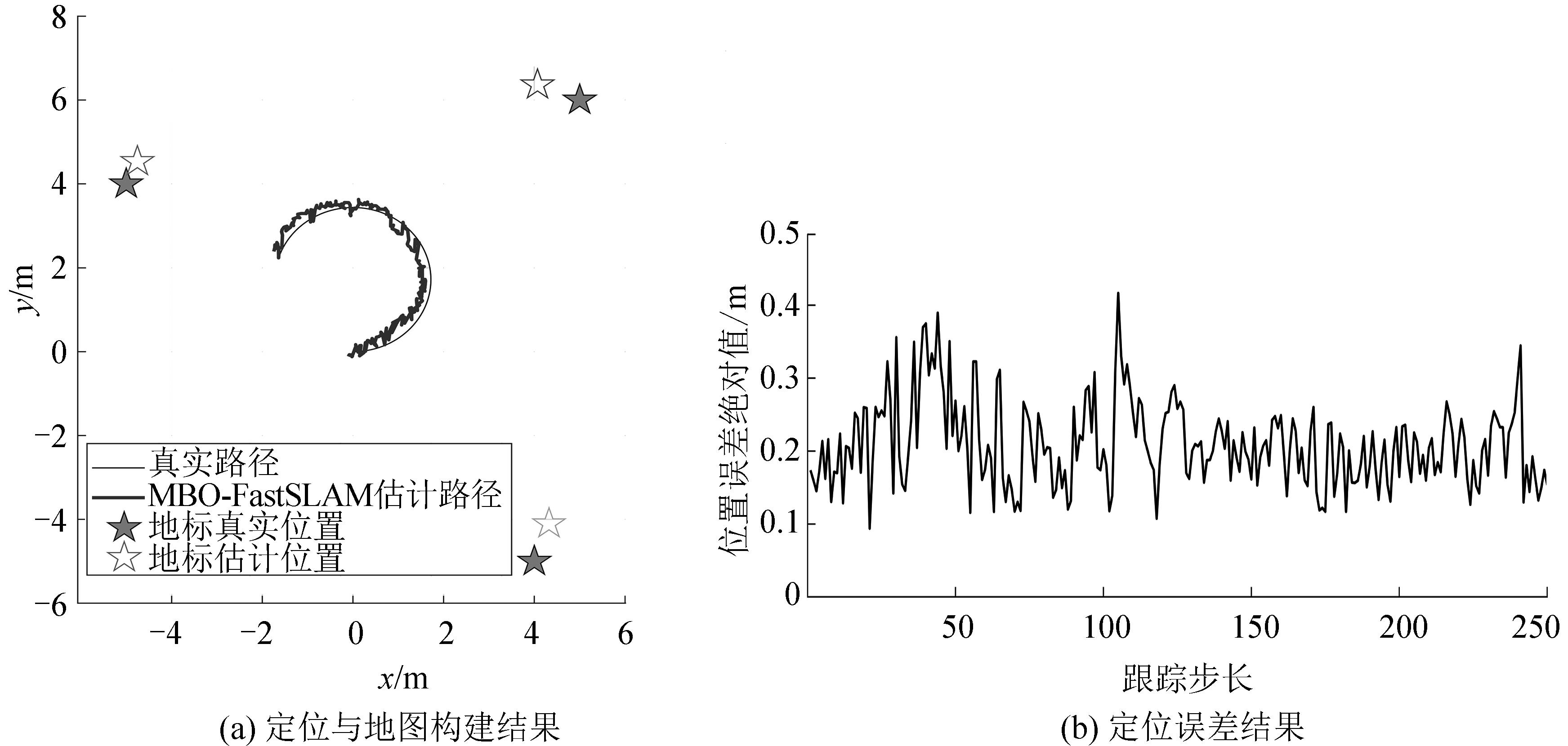

图7

图8

表3

表4

表5

参考文献 20

1	李天成, 范红旗, 孙树栋. 粒子滤波理论、方法及其在多目标跟踪中的应用[J]. 自动化学报, 2015, 41(12): 1981-2002.
	Li Tiancheng, Fan Hongqi, Sun Shudong. Particle Filtering: Theory, Approach, and Application for Multitarget Tracking[J]. Acta Automatica Sinica, 2015, 41(12): 1981-2002.
2	Blok P M, van Boheemen K, van Evert F K, et al. Robot Navigation in Orchards with Localization Based on Particle Filter and Kalman Filter[J]. Computers and Electronics in Agriculture, 2019, 157: 261-269.
3	田梦楚, 薄煜明, 吴盘龙, 等. 基于萤火虫优化粒子滤波的新型机动目标跟踪算法[J]. 控制与决策, 2017, 32(10): 1758-1766.
	Tian Mengchu, Bo Yuming, Wu Panlong, et al. Novel Target Tracking Method Based on Firefly Algorithm Optimized Particle Filter[J]. Control and Decision, 2017, 32(10): 1758-1766.
4	夏飞, 王志成, 郝硕涛, 等. 基于卡尔曼粒子滤波算法的锂电池SOC估计[J]. 系统仿真学报, 2020, 32(1): 44-53.
	Xia Fei, Wang Zhicheng, Hao Shuotao, et al. State of Charge Estimation of the Lithium-Ion Battery Based on Improved Extended Kalman Particle Filter Algorithm[J]. Journal of System Simulation, 2020, 32(1): 44-53.
5	Ullah I, Su Xin, Zhang Jinxiu, et al. Evaluation of Localization by Extended Kalman Filter, Unscented Kalman Filter, and Particle Filter-Based Techniques[J]. Wireless Communications and Mobile Computing, 2020: 8898672.
6	代嘉惠, 许鹏程, 李小波. 二阶中心差分粒子滤波FastSLAM算法[J]. 控制理论与应用, 2018, 35(9): 1382-1390.
	Dai Jiahui, Xu Pengcheng, Li Xiaobo. Second Order Central Difference Particle Filter FastSLAM Algorithm[J]. Control Theory & Applications, 2018, 35(9): 1382-1390.
7	Zhang Qibin, Wang Peng, Chen Zonghai. An Improved Particle Filter for Mobile Robot Localization Based on Particle Swarm Optimization[J]. Expert Systems with Applications, 2019, 135: 181-193.
8	张九龙, 王晓峰, 芦磊, 等. 若干新型智能优化算法对比分析研究[J]. 计算机科学与探索, 2022, 16(1): 88-105.
	Zhang Jiulong, Wang Xiaofeng, Lu Lei, et al. Analysis and Research of Several New Intelligent Optimization Algorithms[J]. Journal of Frontiers of Computer Science & Technology, 2022, 16(1): 88-105.
9	李维刚, 李阳, 赵云涛, 等. 基于改进灰狼算法的粒子滤波算法研究[J]. 系统仿真学报, 2021, 33(1): 37-45.
	Li Weigang, Li Yang, Zhao Yuntao, et al. Research on Particle Filter Algorithm Based on Improved Grey Wolf Algorithm[J]. Journal of System Simulation, 2021, 33(1): 37-45.
10	张建春, 康凤举, 梁洪涛, 等. 基于鸡群优化的粒子滤波算法研究[J]. 系统仿真学报, 2017, 29(2): 295-300, 308.
	Zhang Jianchun, Kang Fengju, Liang Hongtao, et al. Research on Chicken Swarm Optimization-Based Particle Filter[J]. Journal of System Simulation, 2017, 29(2): 295-300, 308.
11	陈志敏, 田梦楚, 吴盘龙, 等. 基于蝙蝠算法的粒子滤波法研究[J]. 物理学报, 2017, 66(5): 32-42.
	Chen Zhimin, Tian Mengchu, Wu Panlong, et al. Intelligent particle filter Based on Bat Algorithm[J]. Acta Physica Sinica, 2017, 66(5): 32-42.
12	武风波, 刘瑶, 朱代先, 等. 鲸群优化的粒子滤波算法研究[J]. 应用光学, 2021, 42(5): 859-866.
	Wu Fengbo, Liu Yao, Zhu Daixian, et al. Particle Filter Algorithm Based on Whale Swarm Optimization[J]. Journal of Applied Optics, 2021, 42(5): 859-866.
13	朱奇光, 肖亚昆, 陈卫东, 等. 基于萤火虫算法改进移动机器人定位方法研究[J]. 仪器仪表学报, 2016, 37(2): 323-329.
	Zhu Qiguang, Xiao Yakun, Chen Weidong, et al. Research on the Improved Mobile Robot Localization Approach Based on Firefly Algorithm[J]. Chinese Journal of Scientific Instrument, 2016, 37(2): 323-329.
14	Wang Gaige, Deb S, Cui Zhihua. Monarch Butterfly Optimization[J]. Neural Computing and Applications, 2019, 31(7): 1995-2014.
15	Ghanem W A H M, Jantan A. Hybridizing Artificial Bee Colony with Monarch Butterfly Optimization for Numerical Optimization Problems[J]. Neural Computing and Applications, 2018, 30(1): 163-181.
16	孙林, 赵婧, 徐久成, 等. 基于改进帝王蝶优化算法的特征选择方法[J]. 模式识别与人工智能, 2020, 33(11): 981-994.
	Sun Lin, Zhao Jing, Xu Jiucheng, et al. Feature Selection Method Based on Improved Monarch Butterfly Optimization Algorithm[J]. Pattern Recognition and Artificial Intelligence, 2020, 33(11): 981-994.
17	Chen Mingyang. An Enhanced Monarch Butterfly Optimization with Self-Adaptive Crossover Operator for Unconstrained and Constrained Optimization Problems[J]. Natural Computing, 2021, 20(1): 105-126.
18	Zhang Heng, Miao Qiang, Zhang Xin, et al. An Improved Unscented Particle Filter Approach for Lithium-Ion Battery Remaining Useful Life Prediction[J]. Microelectronics Reliability, 2018, 81: 288-298.
19	Taheri H, Xia Zhaochun. SLAM; Definition and Evolution[J]. Engineering Applications of Artificial Intelligence, 2021, 97: 104032.
20	崔昊杨, 张宇, 周坤, 等. 基于仿生算法改进粒子滤波的SLAM算法精度预测[J]. 控制与决策, 2021, 36(1): 166-172.
	Cui Haoyang, Zhang Yu, Zhou Kun, et al. Accuracy Predition of SLAM Algorithm Based on Bionic Algorithm to Improve Particle Filter[J]. Control and Decision, 2021, 36(1): 166-172.

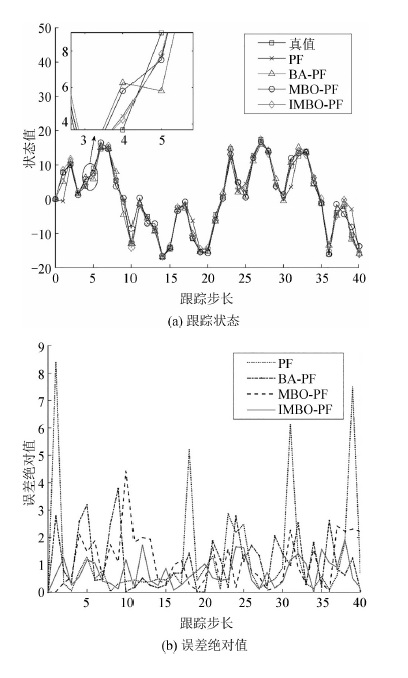

算法	N=50	N =100	N =150
PF	3.271 6	2.674 9	2.380 5
BA-PF	2.594 7	1.606 6	1.543 9
MBO-PF	2.260 7	1.548 5	1.479 1
IMBO-PF	1.450 4	1.088 3	0.907 7

算法	N=50	N =100	N =150
PF	0.053 8	0.092 5	0.147 9
BA-PF	0.101 4	0.153 6	0.199 1
MBO-PF	0.095 6	0.158 5	0.201 6
IMBO-PF	0.086 9	0.145 0	0.190 3

算法	真实坐标	估计坐标	误差距离/m

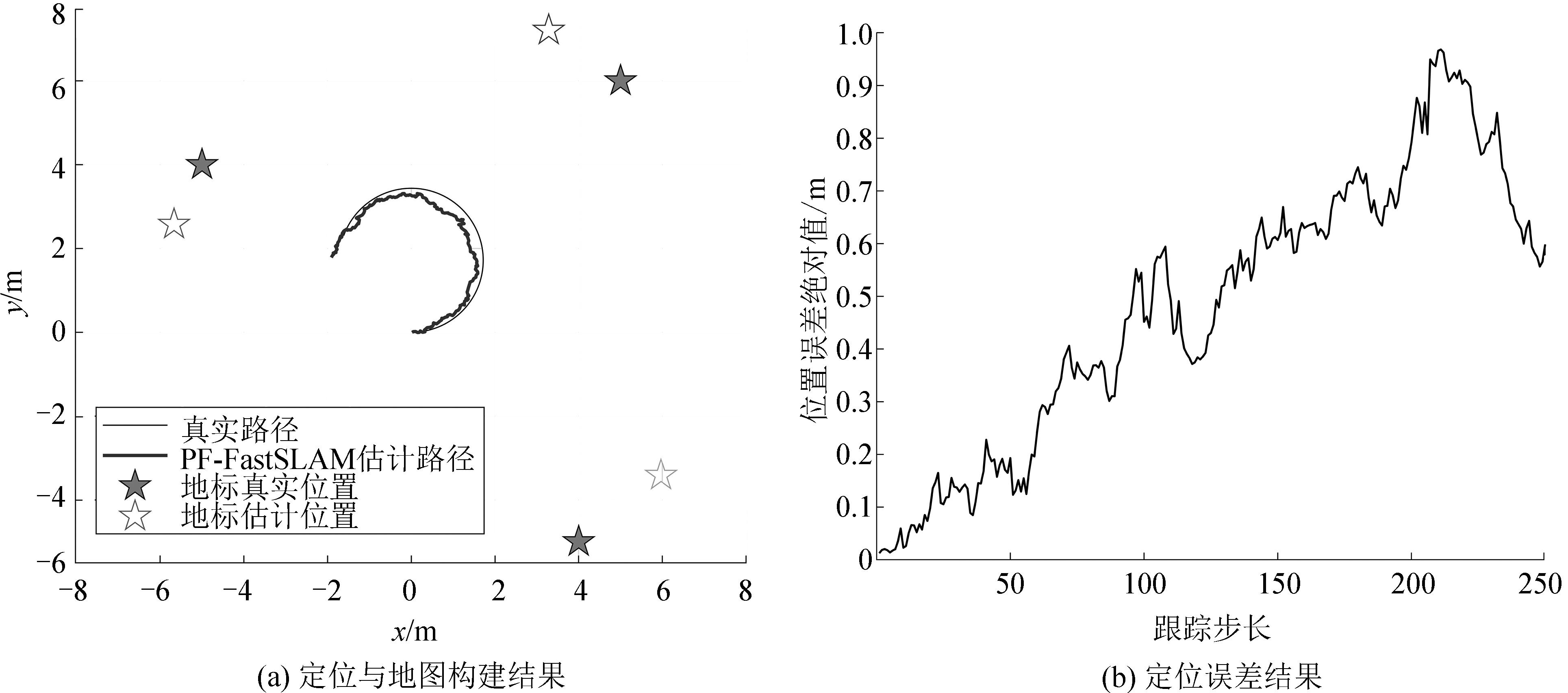

PF-FastSLAM	(-5， 4)	(-5.67， 2.58)	1.57

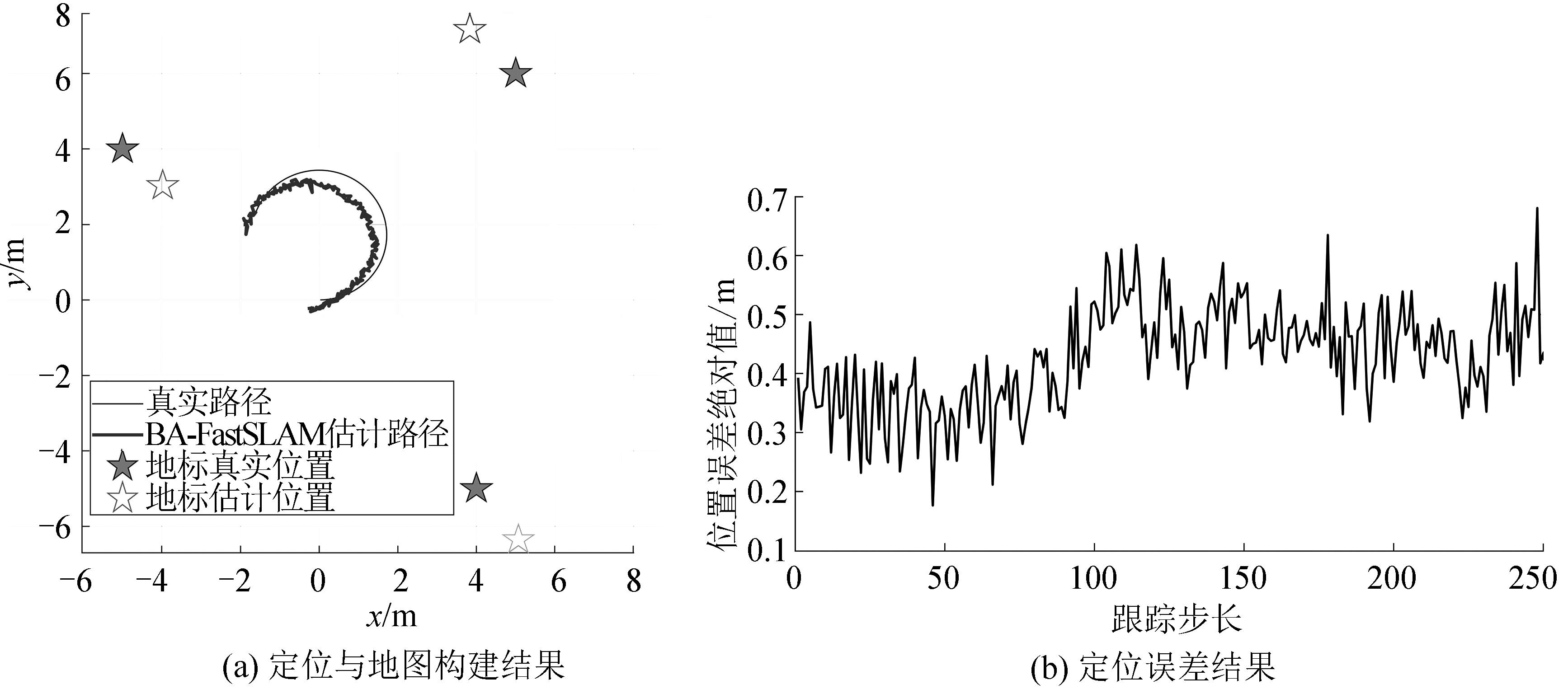

BA-FastSLAM	(-5， 4)	(-3.98， 3.03)	1.41
MBO-FastSLAM	(-5， 4)	(-4.75， 4.53)	0.59

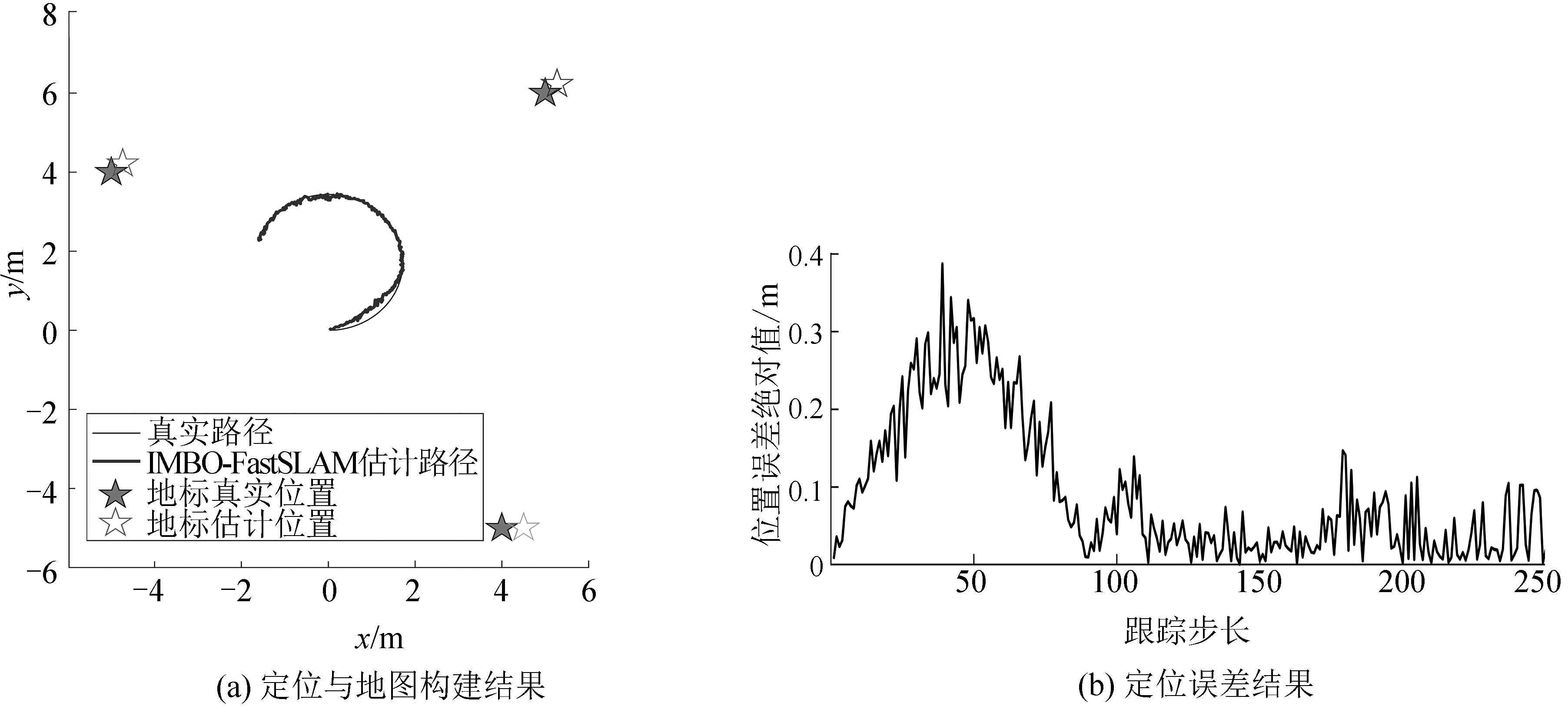

IMBO-FastSLAM	(-5， 4)	(-4.73， 4.22)	0.35

算法	真实坐标	估计坐标	误差距离/m
PF-FastSLAM	(4， -5)	(5.97， -3.41)	2.53
BA-FastSLAM	(4， -5)	(5.07， -6.35)	1.72
MBO-FastSLAM	(4， -5)	(4.35， -4.10)	0.97
IMBO-FastSLAM	(4， -5)	(4.50， -4.99)	0.50

算法	真实坐标	估计坐标	误差距离/m
PF-FastSLAM	(5， 6)	(3.28， 7.20)	2.09
BA-FastSLAM	(5， 6)	(3.83， 7.17)	1.65
MBO-FastSLAM	(5， 6)	(4.06， 6.36)	1.01
IMBO-FastSLAM	(5， 6)	(5.27， 6.23)	0.35
