面向小型航空器应用的光学复眼仿真软件设计

doi:10.16182/j.issn1004731x.joss.21-0317

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (09): 1999-2008.doi: 10.16182/j.issn1004731x.joss.21-0317

面向小型航空器应用的光学复眼仿真软件设计

祁启明¹^,²(), 傅瑞罡¹, 王平¹, 汪敏¹, 范红旗¹()

^1.国防科技大学　自动目标识别重点实验室，湖南　长沙　410073
^2.中国人民解放军32139部队，北京　101200

收稿日期:2021-04-15 修回日期:2021-05-31 出版日期:2022-09-18 发布日期:2022-09-23
通讯作者: 范红旗 E-mail:qiqiming19@163.com;fanhongqi@nudt.edu.cn
作者简介:祁启明（1994-），男，硕士生，研究方向为自动目标识别。E-mail：qiqiming19@163.com

Design of Optical Compound Eye Simulation Software for Small Aircraft Applications

Qiming Qi¹^,²(), Ruigang Fu¹, Ping Wang¹, Min Wang¹, Hongqi Fan¹()

^1.National University of Defense Technology, National Key Laboratory of Science and Technology on ATR, Changsha 410073, China
^2.Unit 32139 of the Chinese PLA, Beijing 101200, China

Received:2021-04-15 Revised:2021-05-31 Online:2022-09-18 Published:2022-09-23
Contact: Hongqi Fan E-mail:qiqiming19@163.com;fanhongqi@nudt.edu.cn

摘要/Abstract

摘要：

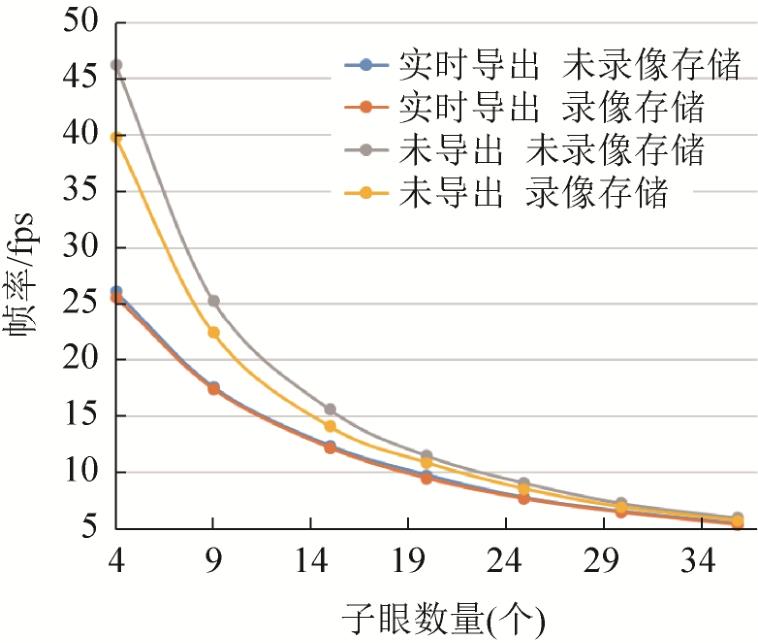

光学复眼视场大、视角多、分辨率高，具备与小型航空器共形结合的优势，在侦察监视、目标探测和图像导航等方面具有应用价值。针对实际应用中存在的光学复眼设计研制周期长、航空器飞行成本高的现状，设计了一种面向小型航空器应用的光学复眼仿真软件。该软件集复眼成像、航空器模拟、数据管理于一体，各功能接口可扩展。仿真表明，在9个子眼的配置下仿真帧率可达到23.3 fps，结果精确。该软件可用于光学复眼设计方案优选与应用算法验证，对面向航空器应用的复眼系统研制具有重要意义。

关键词: 光学复眼, 航空器, 仿真软件, Unigine, Qt

Abstract:

Optical compound eye has the advantages of large field of view, multiple viewing angles and high resolution. With another advantage that it can conformal combine with small aircraft, optical compound eye has application value in reconnaissance and surveillance, target detection, image navigation and other aspects. An optical compound eye simulation software for small aircraft is designed for the current situation of long development period of optical compound eye design and high cost of flight test in practical applications. The software integrates compound eye imaging, aircraft simulation and data management, and each functional module is extensible. The simulation results show that the frame rate can reach 23.3 fps under the configuration of 9 sub-eyes, and the results are accurate. The software can be used for the optimization of optical compound eye design scheme and the test of processing algorithms, which is of great significance to the development of aircraft application.

Key words: optical compound eye, aircraft, simulation software, Unigine, Qt

中图分类号:

TP391.9

祁启明, 傅瑞罡, 王平, 汪敏, 范红旗. 面向小型航空器应用的光学复眼仿真软件设计[J]. 系统仿真学报, 2022, 34(09): 1999-2008.

Qiming Qi, Ruigang Fu, Ping Wang, Min Wang, Hongqi Fan. Design of Optical Compound Eye Simulation Software for Small Aircraft Applications[J]. Journal of System Simulation, 2022, 34(09): 1999-2008.

图/表 19

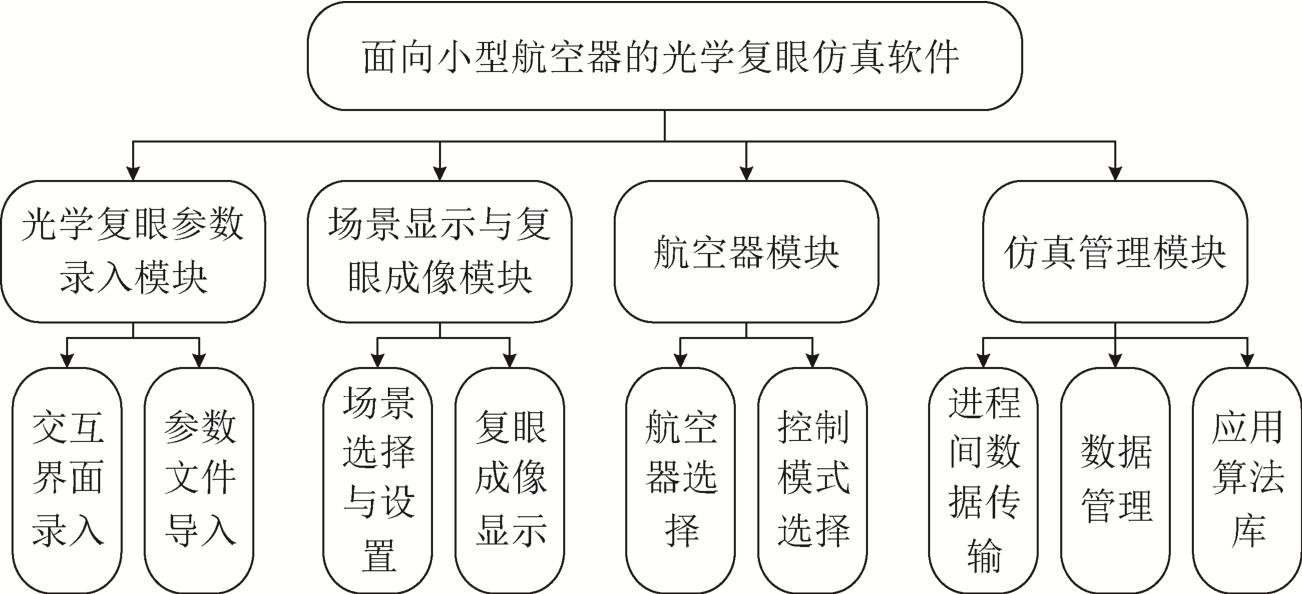

图1

图2

表1

图3

图4

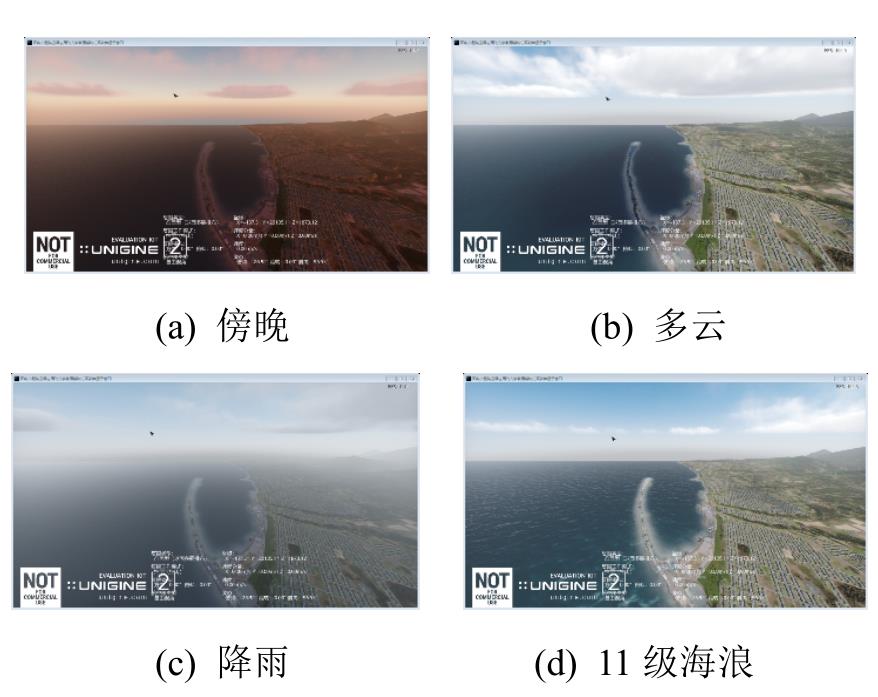

图5

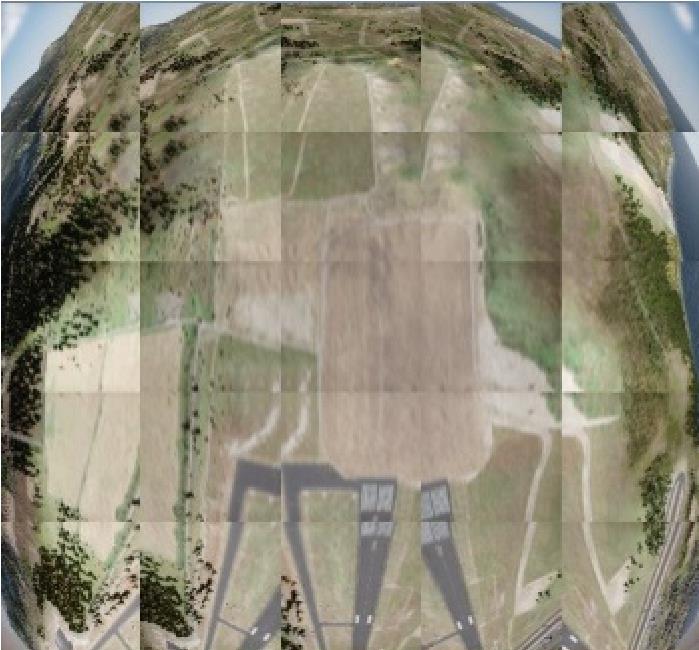

图6

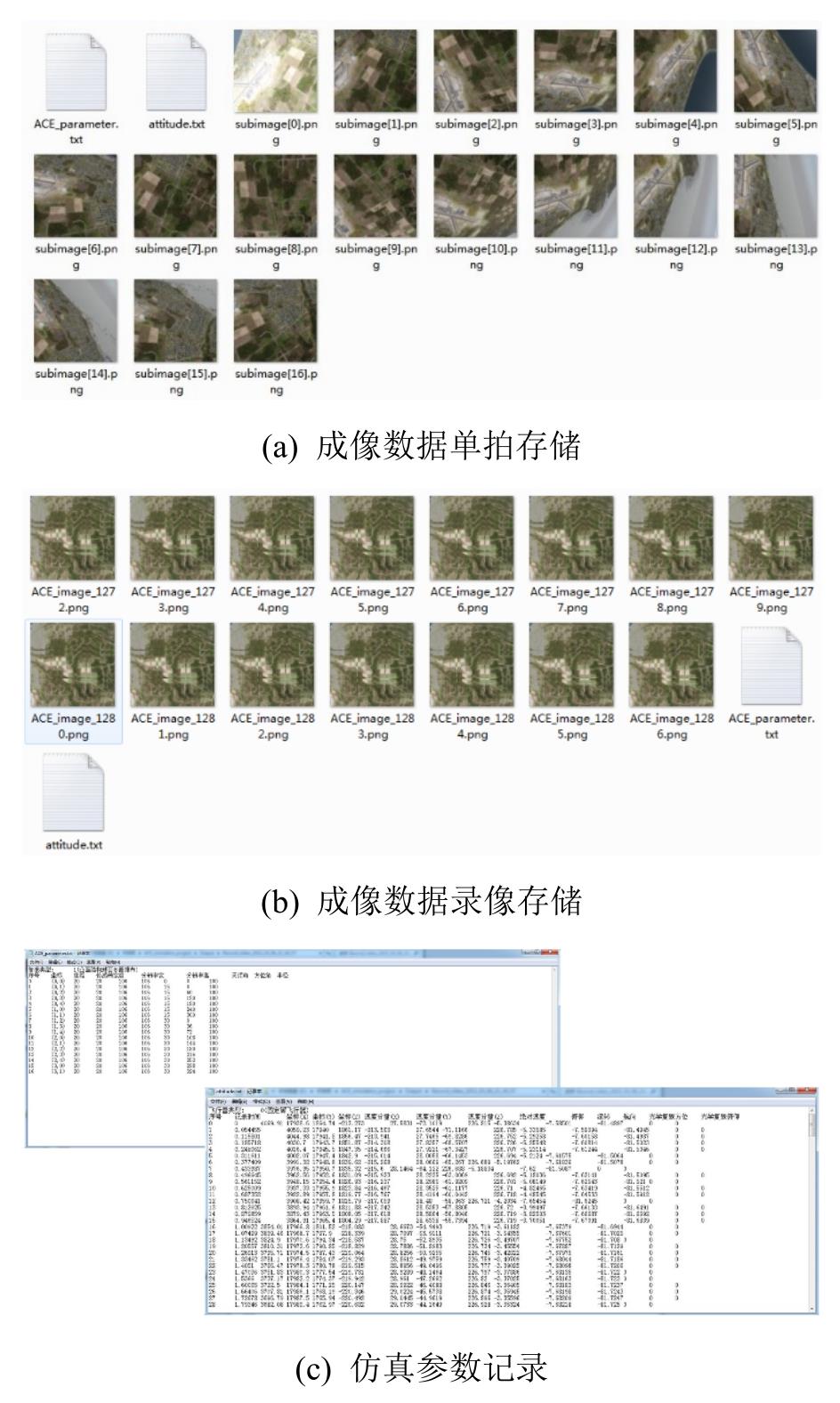

图7

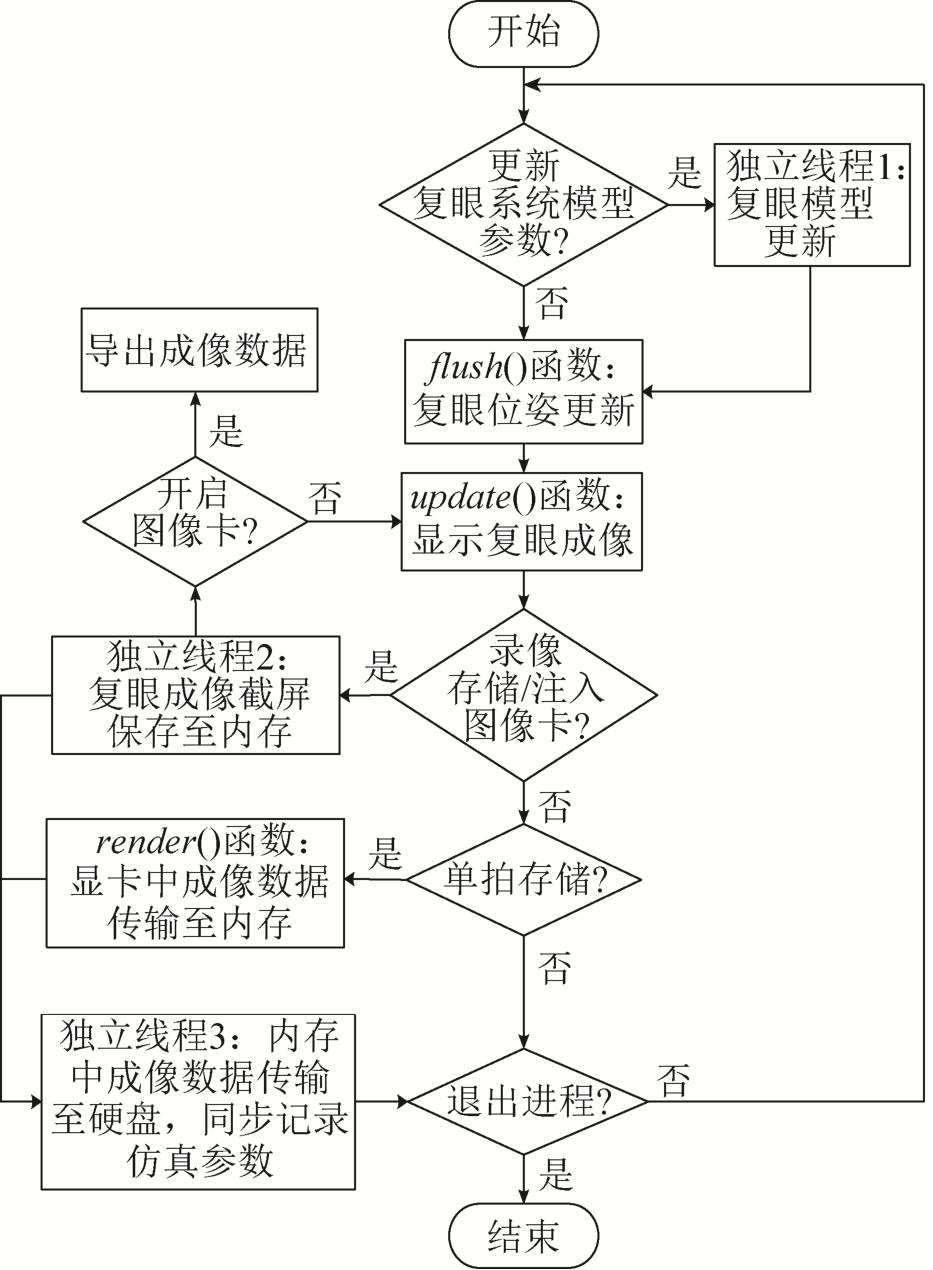

图8

表2

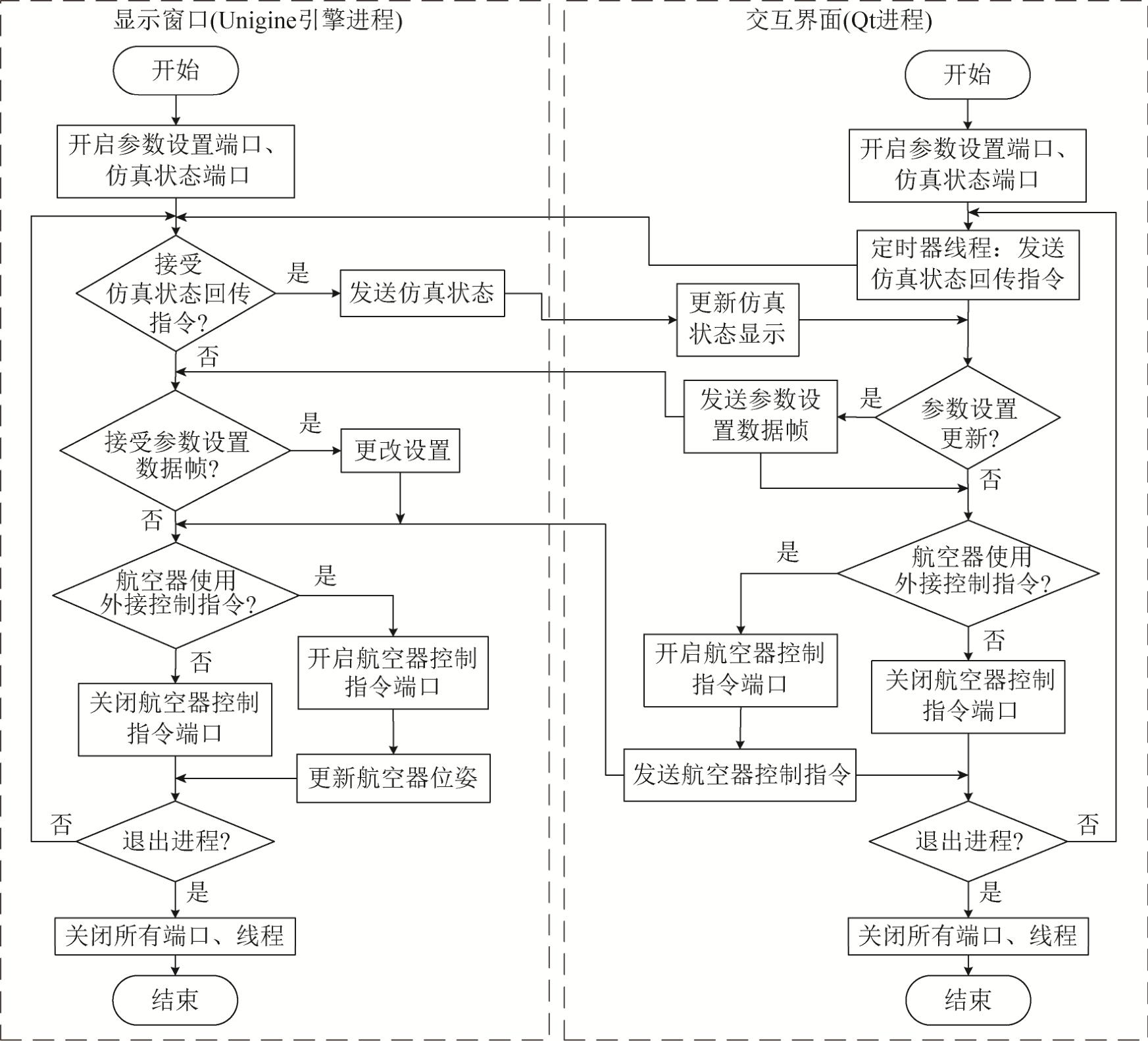

图9

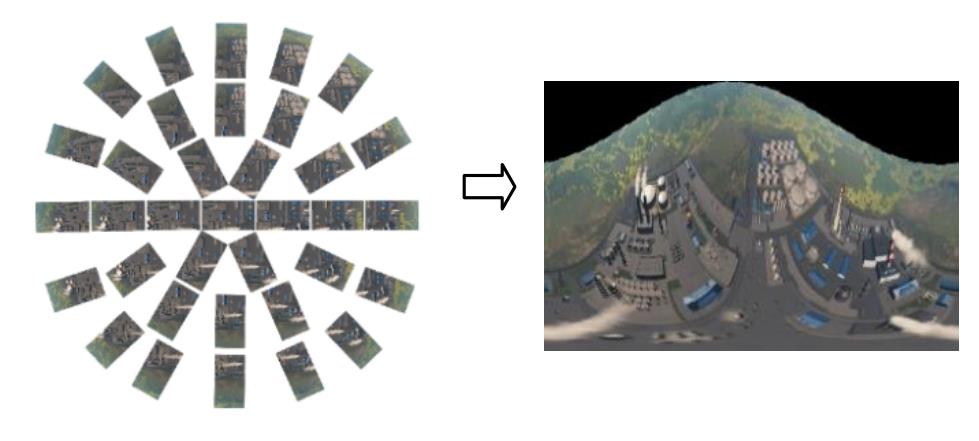

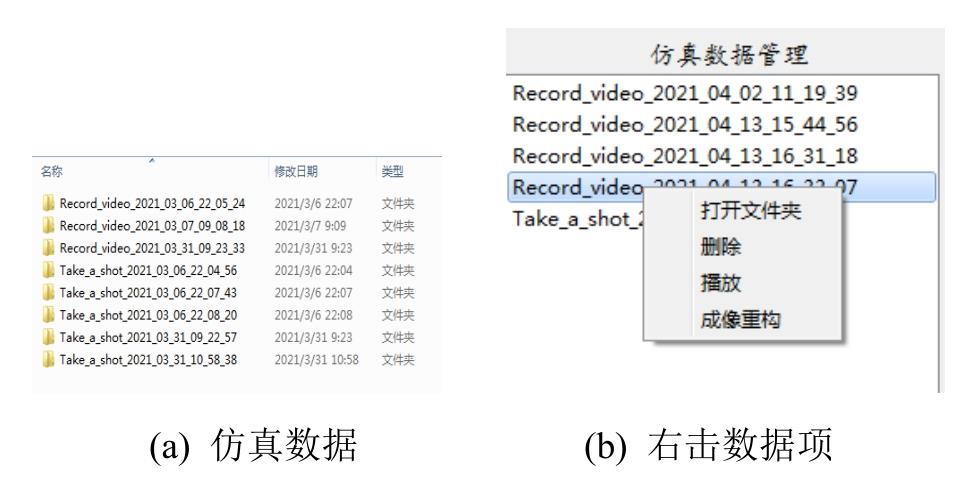

图10

图11

表3

表4

图12

表5

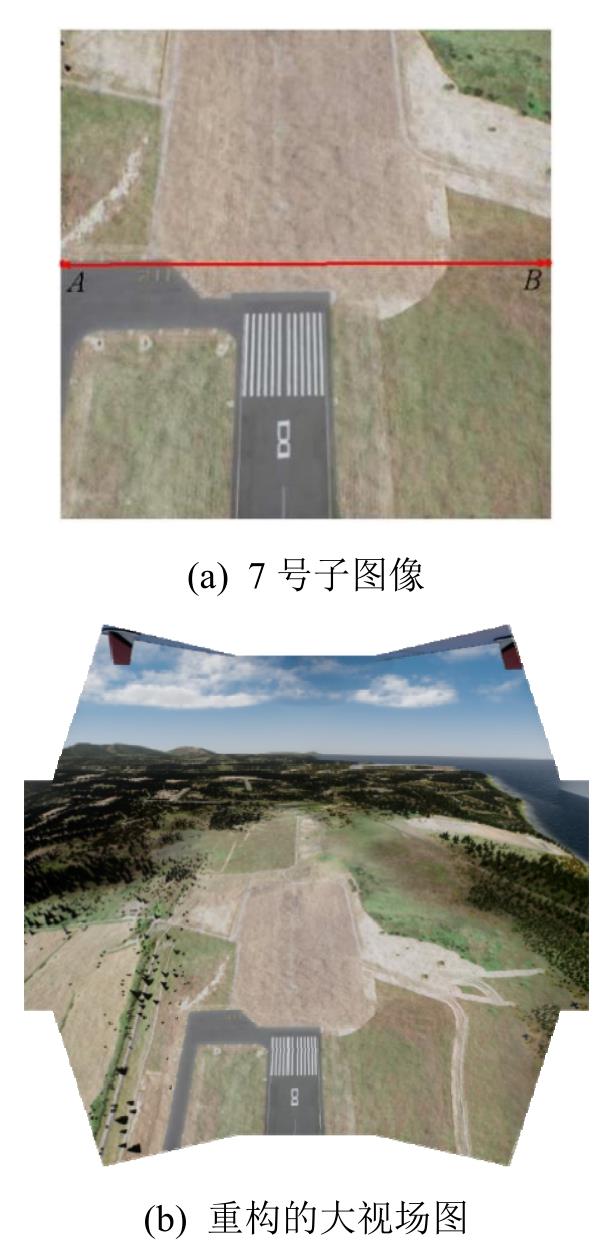

图13

图14

参考文献 16

[1]	文超, 马涛, 王偲, 等. 昆虫复眼结构及视觉导航研究进展[J]. 应用昆虫学报, 2019, 56(1): 28-36.
	Wen Chao, Ma Tao, Wang Cai, et al. Progress in Research on the Compound Eye Structure and Visual Navigation of Insects[J]. Chinese Journal of Applied Entomology, 2019, 56(1): 28-36.
[2]	Wu Sidong, Jiang Tao, Zhang Gexiang, et al. Artificial Compound Eye: A Survey of the State-of-the-art[J]. Artificial Intelligence Review (S0269-2821), 2017, 48(4): 573-603.
[3]	Liu Yan, Shi Lifang, Shi Ruiying, et al. An Artificial Compound Eye System for Large Field Imaging[C]//Optoelectronic Imaging and Multimedia Technology II.Beijing: SPIE, 2012: 8558.
[4]	Qiu Weichao, Zhong Fangwei, Zhang Yi, et al. UnrealCV:Virtual Worlds for Computer Vision[C]// 25th ACM International Conference on Multimedia. New York:Association for Computing Machinery, 2017: 23-27.
[5]	Pollok Thomas, Junglas Lorenz, Ruf Boitumelo, et al. UnrealGT: Using Unreal Engine to Generate Ground Truth Datasets[M]. Switzerland: Springer International Publishing, 2019: 670-682.
[6]	Shah Shital, Dey Debadeepta, Lovett Chris, et al. AirSim: High-fidelity Visual and Physical Simulation for Autonomous Vehicles[M]. Switzerland: Springer International Publishing, 2017: 621-635.
[7]	Matthias Müller, Vincent Casser, Jean Lahoud, et al. Sim4cv: A Photo-realistic Simulator for Computer Vision Applications[J]. International Journal of Computer Vision (S0920-5691), 2018, 126: 902-919.
[8]	Venkataraman Kartik, Lelescu Dan, Duparré JJacques, et al. Picam: An Ultra-thin High Performance Monolithic Camera Array[J]. ACM Trans. on Graphics (S0730-0301), 2013, 32(6): 166.1-166.13.
[9]	Wilburn Bennett, Joshi Neel, Vaish Vaibhav, et al. High Performance Imaging Using Large Camera Arrays[J].ACM Trans. Graph (S0730-0301), 2005, 24(3): 765-776.
[10]	于晓丹, 张远杰, 王元元, 等. 小型无人机载大视场复眼相机光学系统设计[J]. 光子学报, 2019, 48(7): 17-24.
	Yu Xiaodan, Zhang Yuanjie, Wang Yuanyuan, et al. Optical Design of A Compound Eye Camera with a Large Field of View for Unmanned Aerial Vehicles[J]. Acta Photonica Sinica, 2019, 48(7): 17-24.
[11]	Afshari Hossein, Akin Abdulkadir, Popovic Vladan, et al. Real-time FPGA Implementation of Linear Blending Vision Reconstruction Algorithm Using a Spherical Light Field Camera[C]// IEEE Workshop on Signal Processing Systems. Quebec City, Canada: IEEE, 2012: 49-54.
[12]	Shi Chengyong, Wang Yuanyuan, Liu Chenyang, et al. SCECam: A Spherical Compound Eye Camera for Fast Location and Recognition of Objects at a Large Field of View[J]. Optics Express (S1094-4087), 2017, 25(26): 32333-32345.
[13]	Deng Zefang, Chen Feng, Yang Qing, et al. Dragonfly-Eye-Inspired Artificial Compound Eyes with Sophisticated Imaging[J]. Advanced Functional Materials (S1616-301X), 2016, 26(12): 1995-2001.
[14]	Song Youngmin, Xie Yizhu, Malyarchuk Viktor, et al. Digital Cameras with Designs Inspired by the Arthropod Eye[J]. Nature (S1476-4687), 2013, 497(7447): 95-99.
[15]	Leitel Robert, Brückner Andreas, Buß Wolfgang, et al. Curved Artificial Compound-eyes for Autonomous Navigation[C]// Spie Photonics Europe. Brussels, Belgium:International Society for Optics and Photonics, 2014.
[16]	Zarrad Anis. Game Engine Solutions[M/OL]. London: Intech, 2018.[2021-07-02]. .

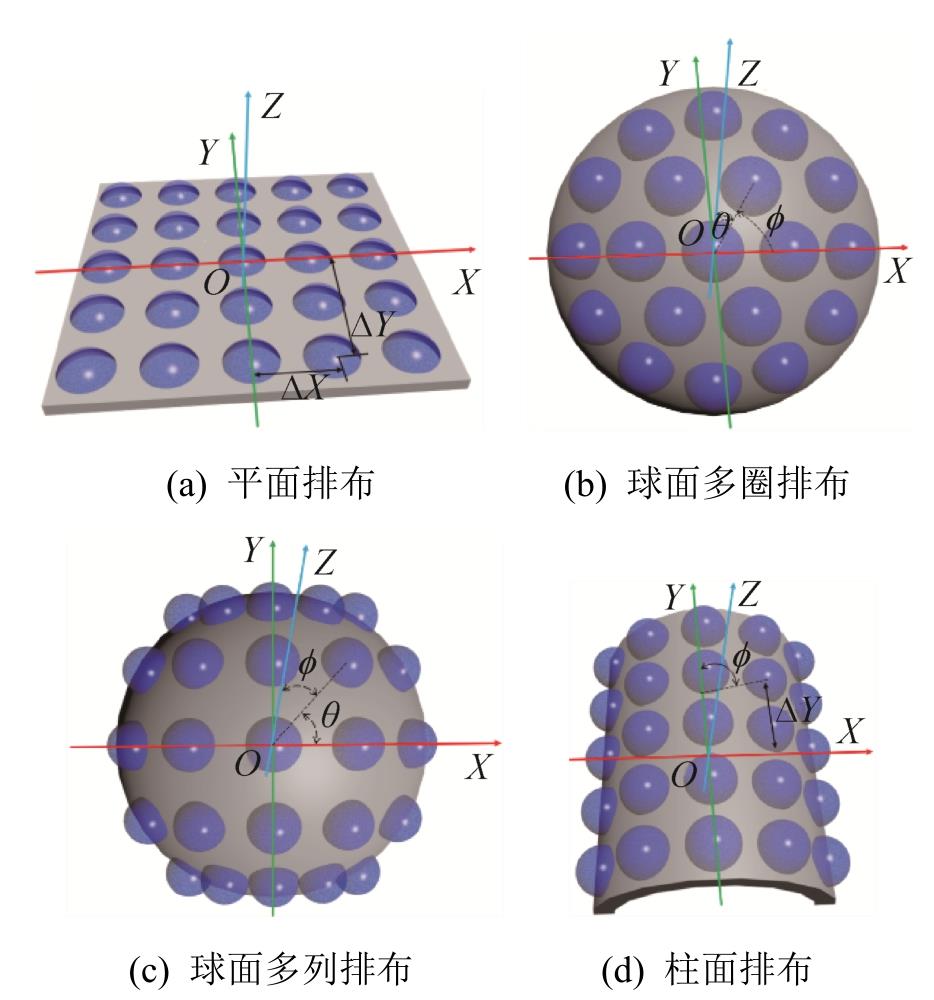

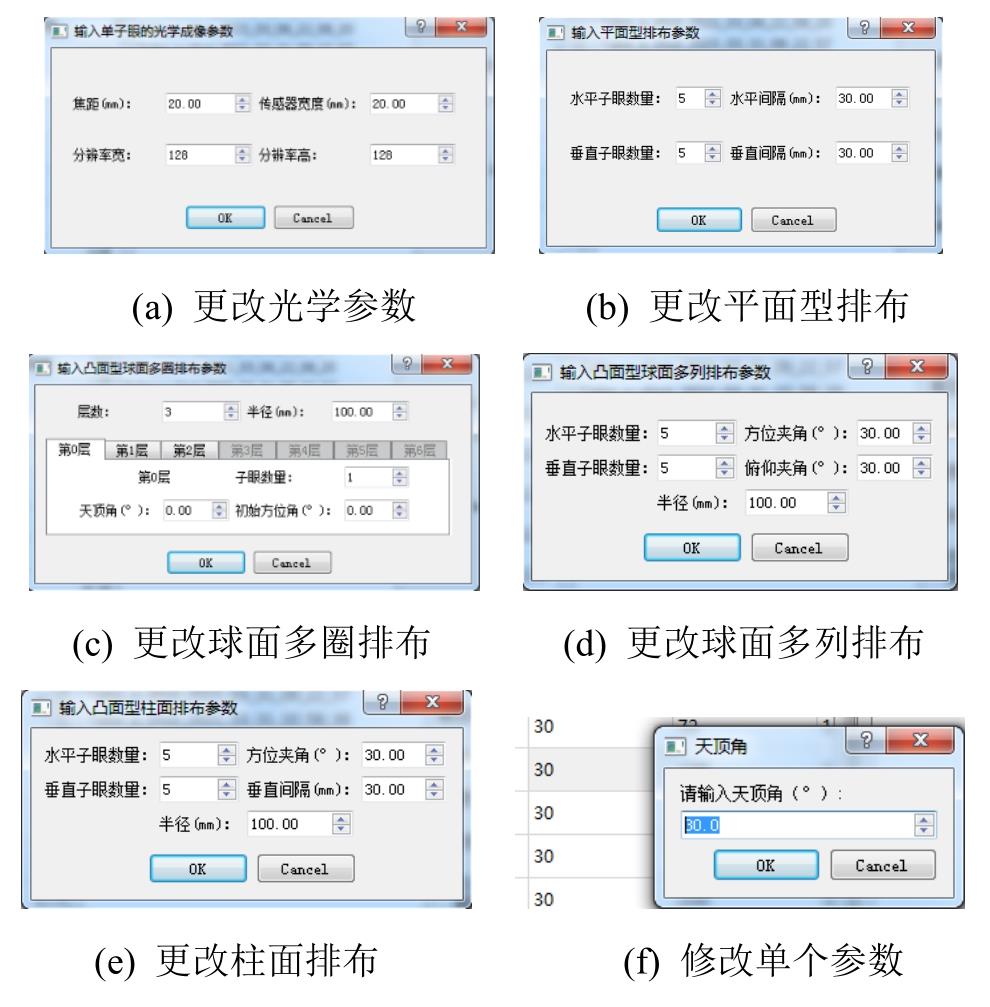

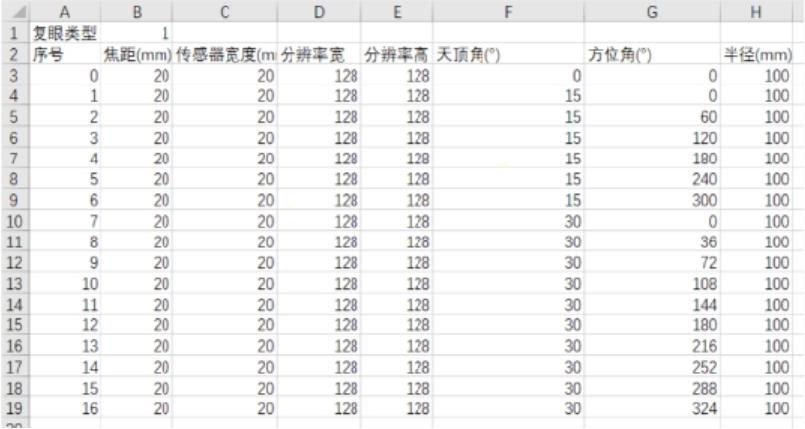

类型	单个子眼的参数
平面排布	f、d、N_u、N_v、∆X、∆Y
球面多圈排布	f、d、N_u、N_v、θ、φ、R
球面多列排布	f、d、N_u、N_v、φ、θ、R
柱面排布	f、d、N_u、N_v、φ、∆Y、R

航空器	键位
固定翼	加减速：[]、俯仰：SW、滚转：AD、偏航：QE、收放着陆轮：回车、观察视角：方向键
四旋翼	升降：[]、倾斜：ASDW、偏航：QE、观察视角：方向键
自由视角	前后移动：WS、左右移动：AD、上下移动：EQ、加速：Shift、观察视角：方向键/鼠标

名称	内容
显卡	Nvidia RTX 2070 SUPER
CPU	Intel Core i7-9700K
硬盘	固态1TB
内存	8 GB
操作系统	Windows 7

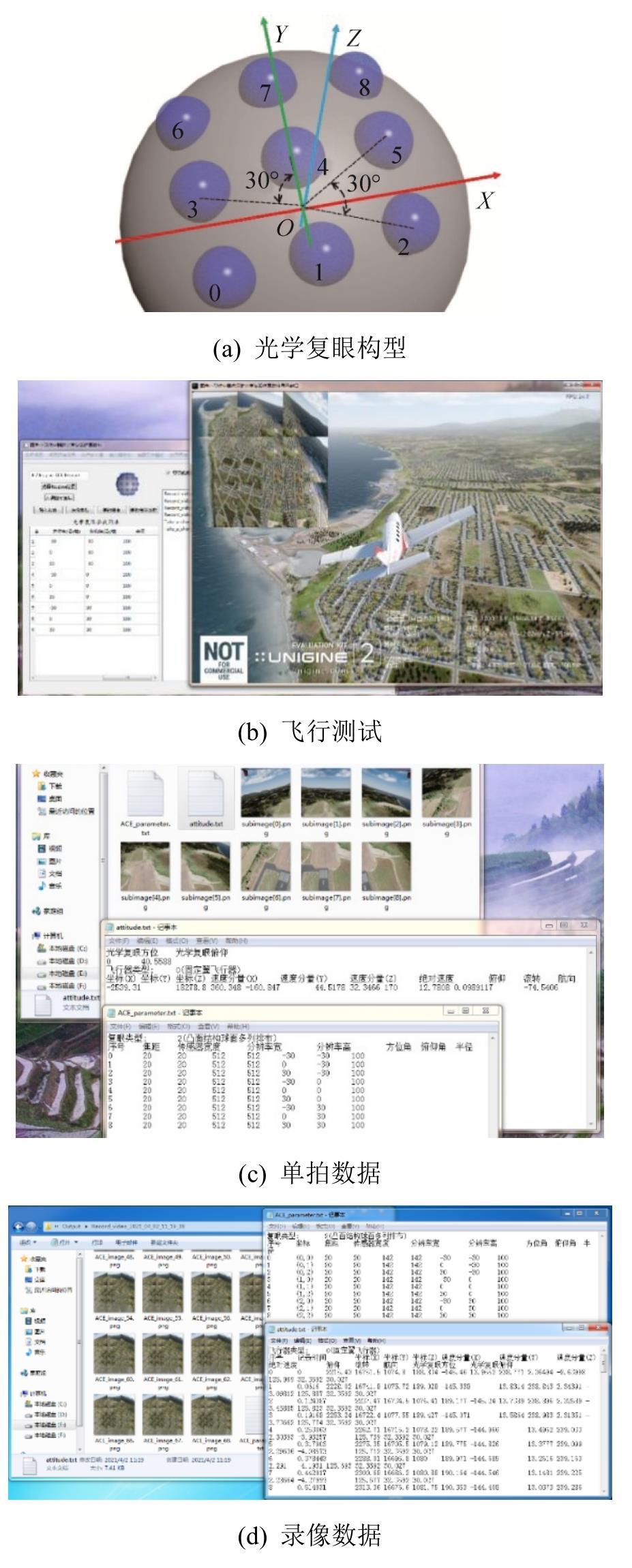

参数	数值
子眼数量(个)	水平：3、垂直：3
方位夹角/(°)	30
俯仰夹角/(°)	30
球面半径/mm	100
子眼焦距/mm	20
子眼传感器宽度/mm	20
子眼分辨率	512×512

序号	光心坐标(X,Y,Z)	光轴向量(X,Y,Z)
0	–2 547.182,18 281.252,362.852	–0.983,–0.178,–0.046
1	–2 547.179,18 281.296,362.845	–0.957,0.264,–0.116
2	–2 547.159,18 281.335,362.852	–0.752,0.657,–0.047
3	–2 547.164,18 281.240,362.805	–0.803,–0.298,–0.516
4	–2 547.161,18 281.291,362.797	–0.774,0.212,–0.597
5	–2 547.137,18 281.336,362.805	–0.537,0.666,–0.518
6	–2 547.124,18 281.236,362.772	–0.408,–0.338,–0.848
7	–2 547.122,18 281.280,362.765	–0.382,0.104,–0.918
8	–2 547.101,18 281.319,362.772	–0.177,0.497,–0.850
