基于TS模糊的导弹编队协同控制设计与仿真

doi:10.16182/j.issn1004731x.joss.21-0146

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (7): 1559-1567.doi: 10.16182/j.issn1004731x.joss.21-0146

基于TS模糊的导弹编队协同控制设计与仿真

张业鑫(), 程禹, 闫宏雁, 范旭伟, 张旭, 田义

上海机电工程研究所上海 201109

收稿日期:2021-02-26 修回日期:2021-04-01 出版日期:2022-07-30 发布日期:2022-07-20
作者简介:张业鑫（1991-），男，硕士，工程师，研究方向为制导控制仿真。E-mail：1024918042@qq.com

Design And Simulation of TS Fuzzy Based Cooperative Control of Missile Formation

Yexin Zhang(), Yu Cheng, Hongyan Yan, Xuwei Fan, Xu Zhang, Yi Tian

Shanghai Electro-Mechanical Engineering Institute, Shanghai 201109, China

Received:2021-02-26 Revised:2021-04-01 Online:2022-07-30 Published:2022-07-20

摘要/Abstract

摘要：

针对多导弹编队协同作战的需求，提出了一种基于TS（takagi-sugeno）模糊控制理论的多导弹编队协同控制算法。采用了领弹?从弹模式的导弹编队飞行系统，以导弹飞行速度、弹道倾角以及弹道偏角为参考量，在整个飞行过程中通过多组平衡点对系统局部线性化的方法完成局部的渐近稳定控制器的设计。随后通过专家经验法，设计符合该系统的隶属度函数和模糊规则，结合TS模糊理论，完成整个多导弹协同控制系统的设计以及其稳定性的证明，并完成相关的仿真验证，验证结果表明：TS模糊控制提高了系统的鲁棒性。

关键词: 多弹协同, 分段线性化, TS模糊控制, 抗干扰

Abstract:

Aiming at the requirement of cooperative operation of multi-missile formation, a cooperative control algorithm of multi-missile formation based on Takagi-Sugeno(TS) fuzzy control theory is proposed.The flight speed, trajectory angle and trajectory deflection angle of the missile are taken as parameters in the leader-follower mode missile formation flying system.The local asymptotically stable controller is designed by using the systemlocal linearization of multiple groups of equilibrium pointsduring the whole flight process.Through the expert experience method,the membership function and fuzzy rules for the system are designedwith TS fuzzy theory, and the whole multi-missile cooperative control system is completed and the stability of the system is proofedby relevant simulation verification.Simulation result shows that TS fuzzy control improves the robustness of the system.

Key words: multi-missile cooperation, piecewise linearization, TS fuzzy control, anti-interference

中图分类号:

TP271+

张业鑫, 程禹, 闫宏雁, 范旭伟, 张旭, 田义. 基于TS模糊的导弹编队协同控制设计与仿真[J]. 系统仿真学报, 2022, 34(7): 1559-1567.

Yexin Zhang, Yu Cheng, Hongyan Yan, Xuwei Fan, Xu Zhang, Yi Tian. Design And Simulation of TS Fuzzy Based Cooperative Control of Missile Formation[J]. Journal of System Simulation, 2022, 34(7): 1559-1567.

图/表 11

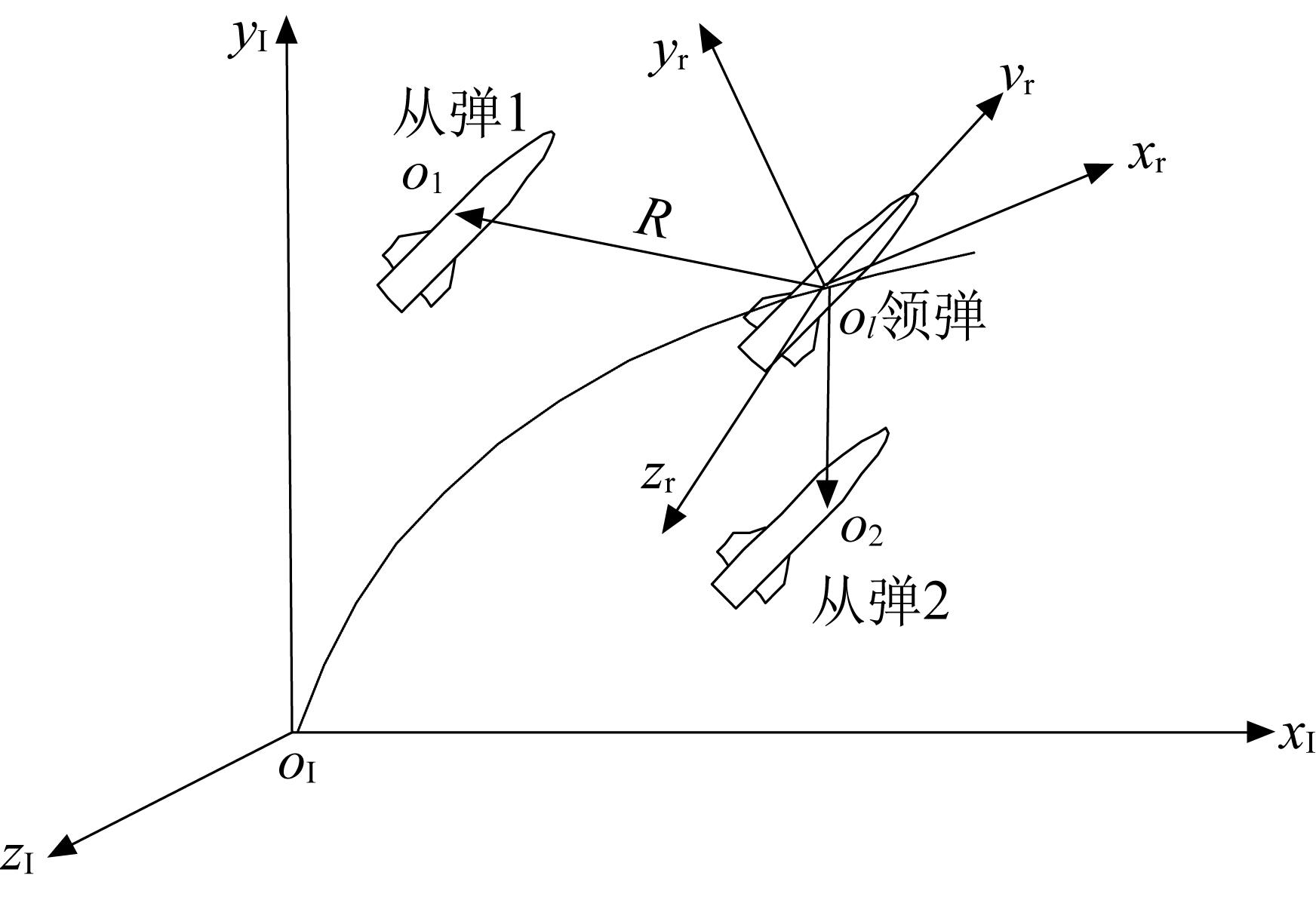

图1

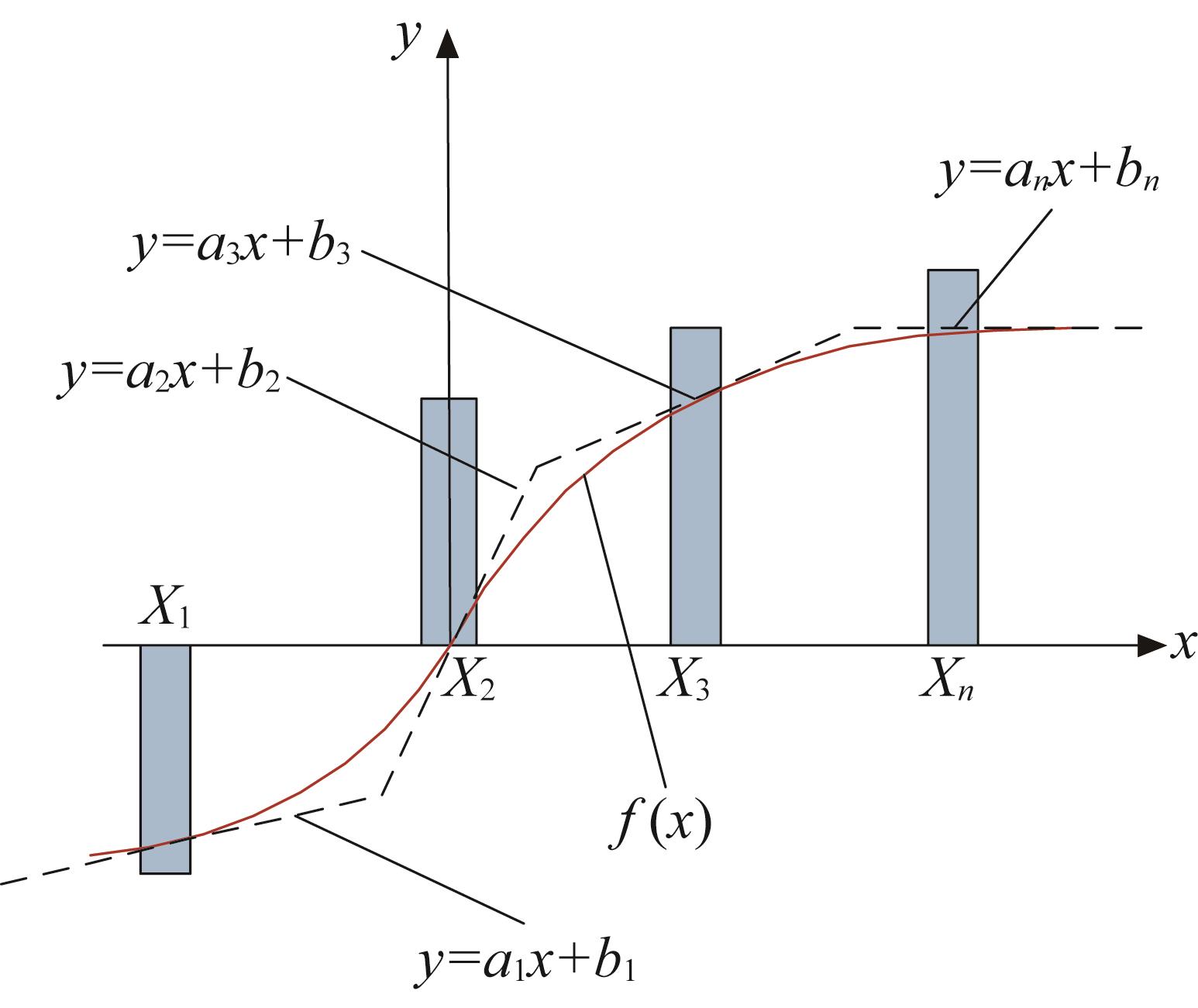

图2

表1

被控对象工作点

_工工作点

模糊子集

Δ X 1

-1

-0.4

-0.1

0.1

0.4

Δ X 2

-0.8

-0.5

-0.4

0.4

0.5

0.8

Δ X 3

-1

-0.6

-0.3

0.3

0.6

表1

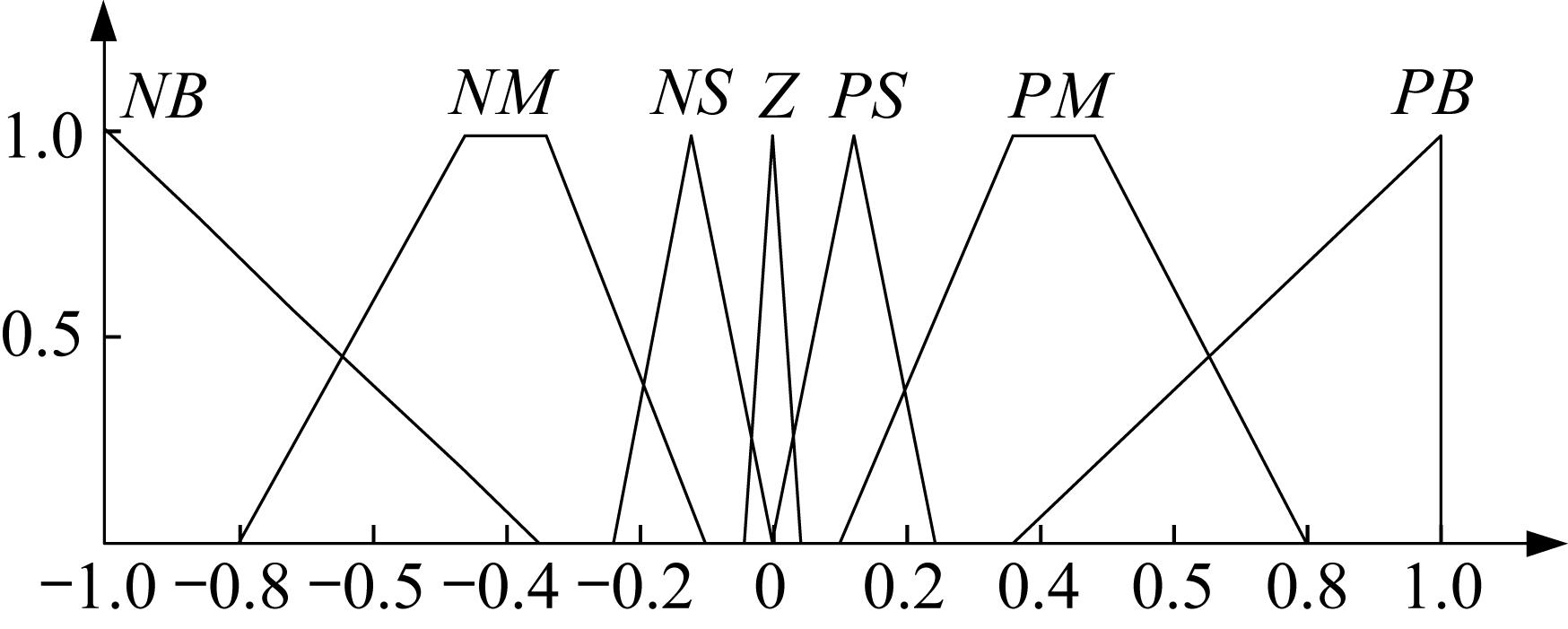

图3

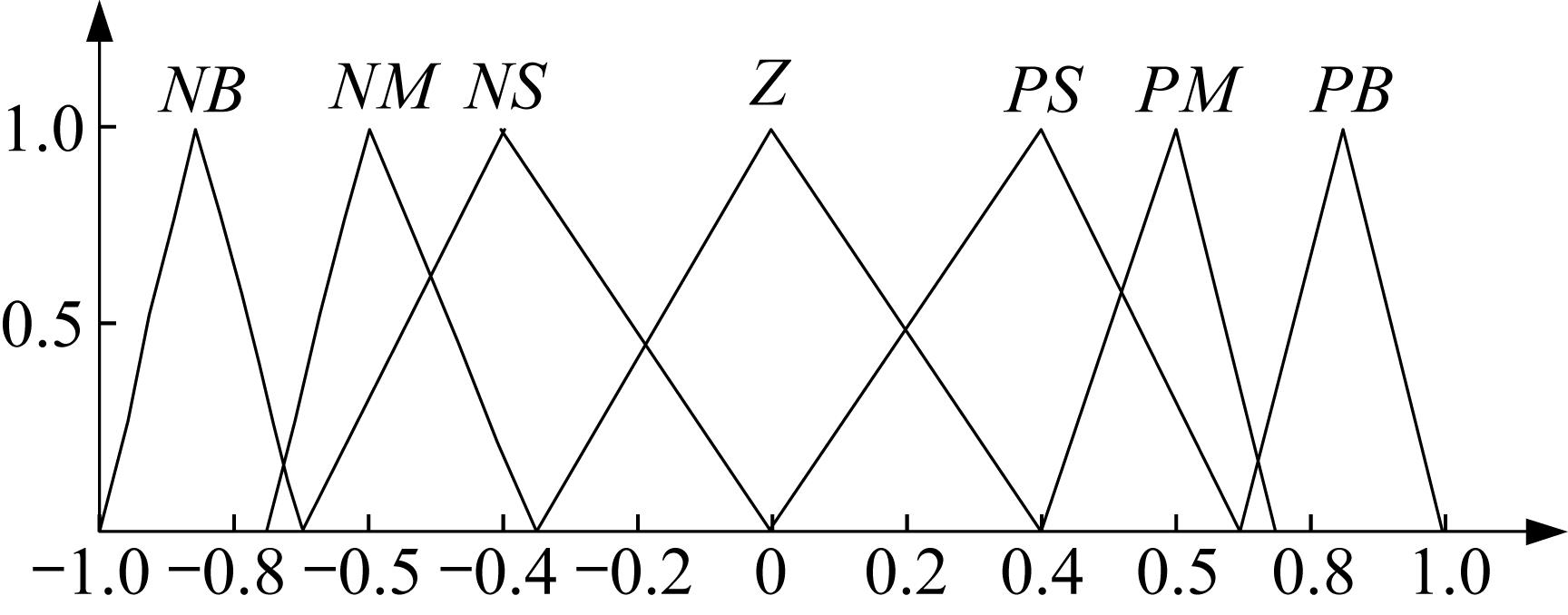

图4

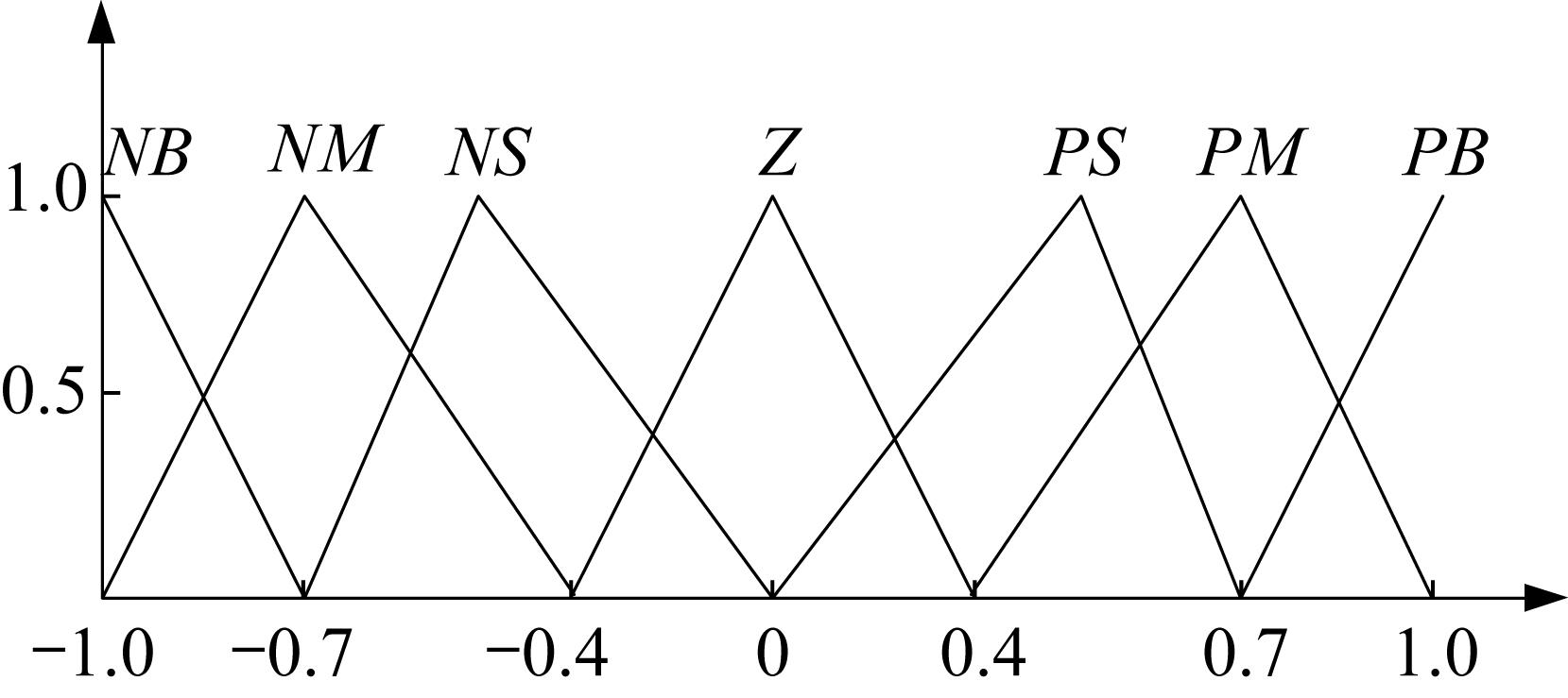

图5

表2

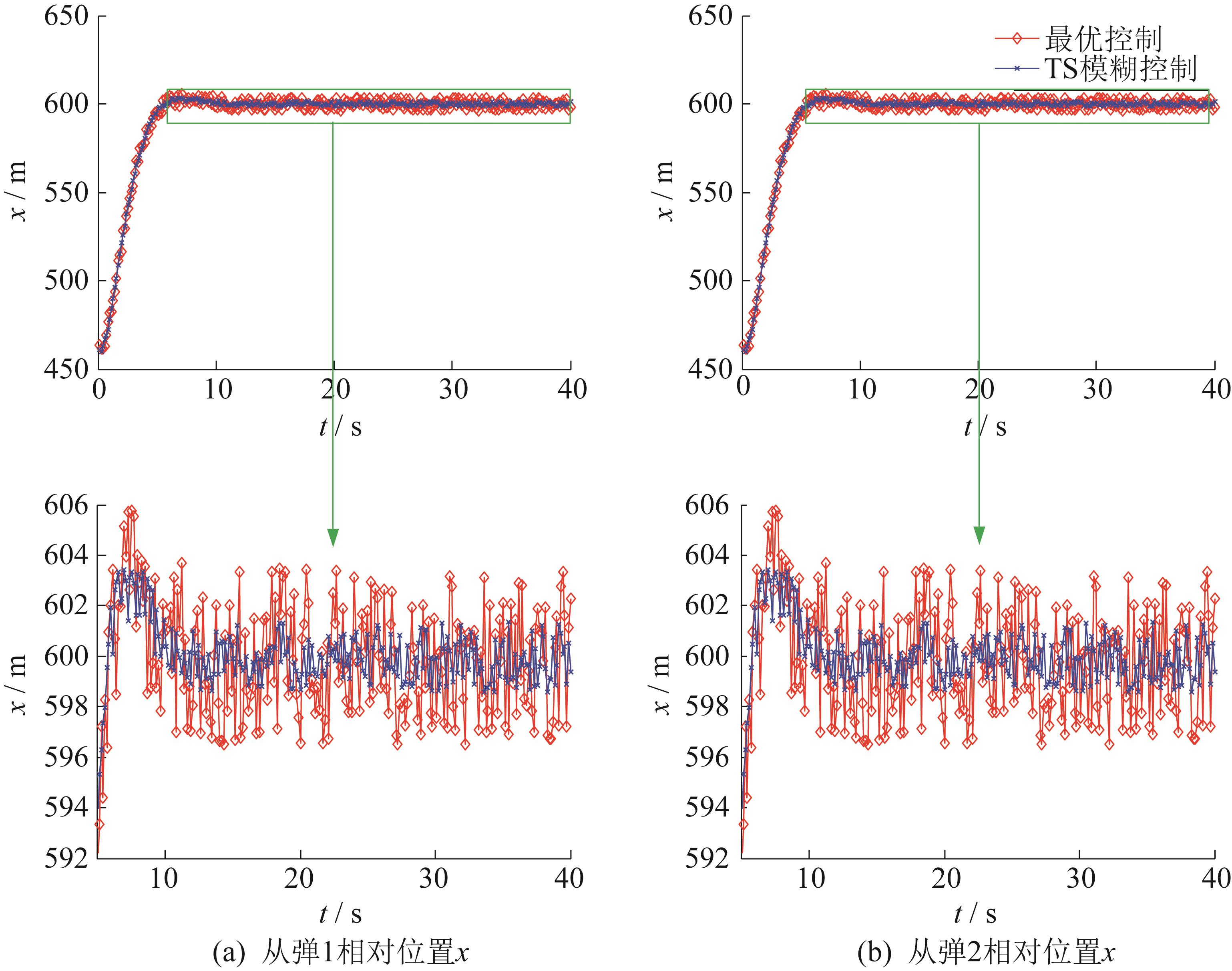

图6

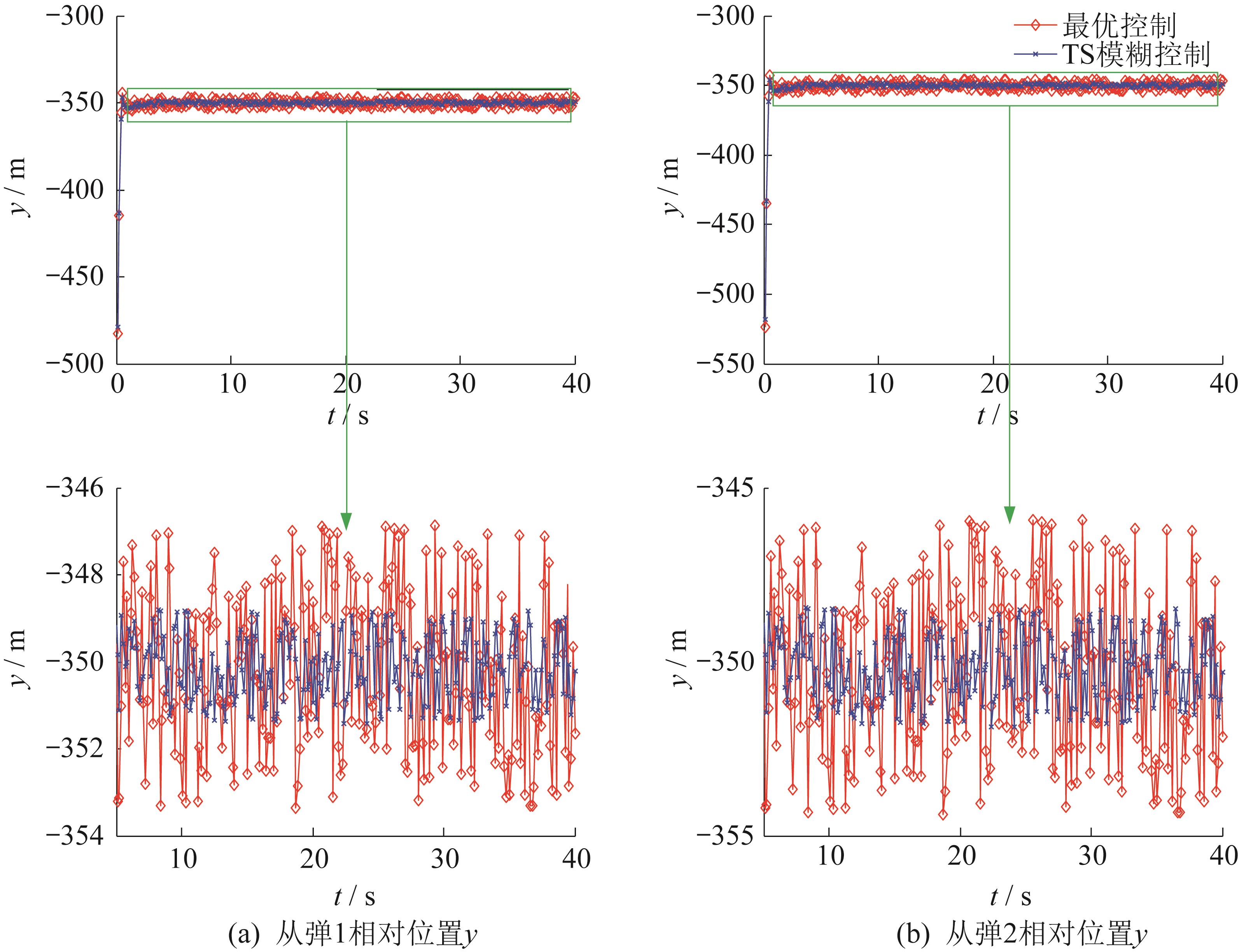

图7

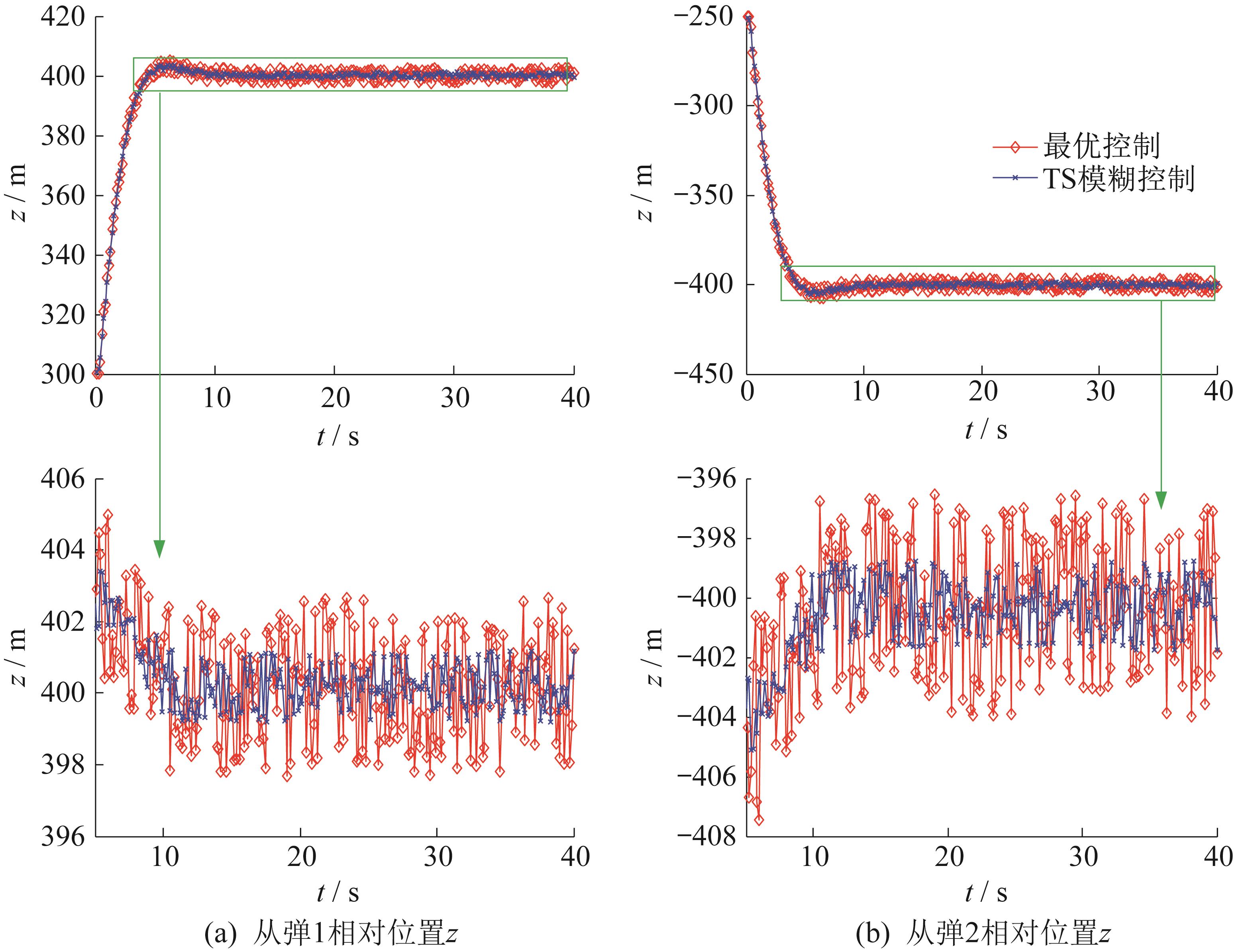

图8

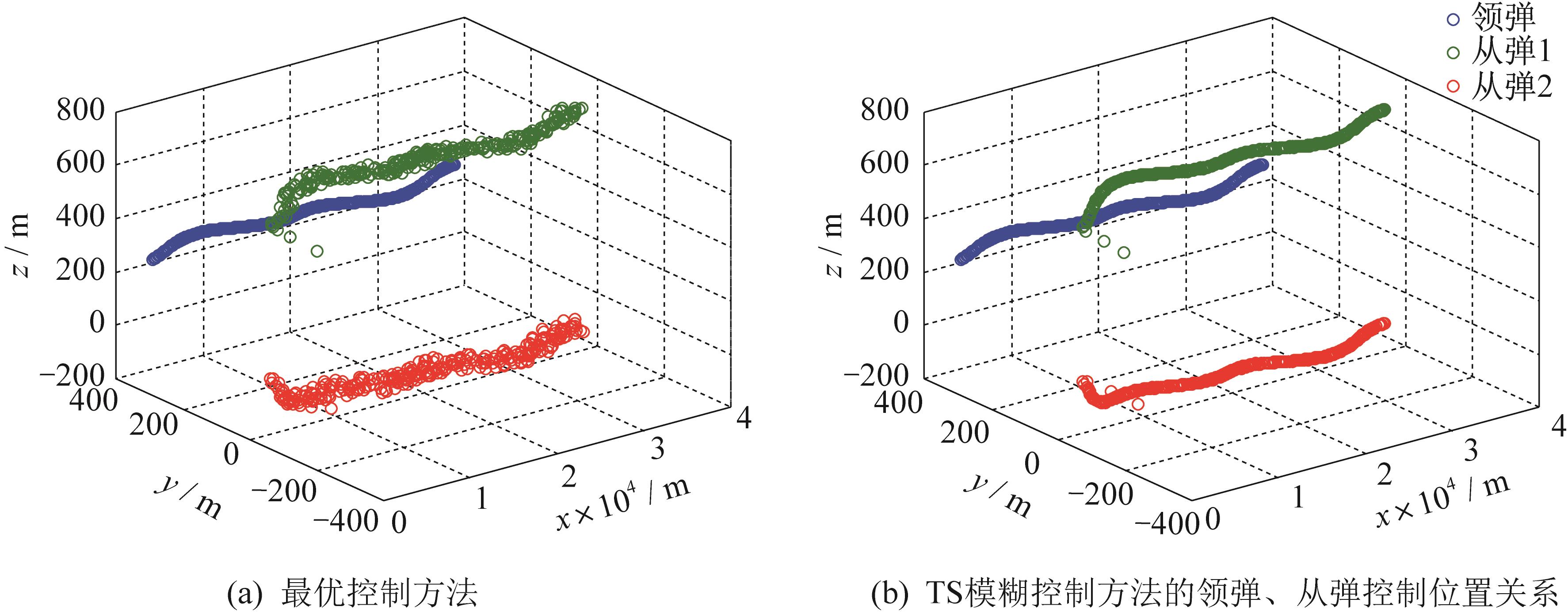

图9

参考文献 15

1	陈宝文, 孙经广.考虑通讯延迟的多导弹协同分布饱和控制器[J]. 控制工程, 2019, 11(1): 1-6.
	Chen Baowen, Sun Jingguang. Anti-Saturation Multi-Missile Cooperative Controller with Communication Delay[J]. Control Engineering of China, 2019, 11(1): 1-6.
2	Park S, Hwang I, Park C. Collision Avoidance Algorithm for Satellite Formation Reconfiguration under the Linearized Central Gravitational Fields[J]. International Journal of Aeronautical & Space Sciences (S2093-1409), 2013, 30(1): 11-15.
3	Breger L S, How J P. Model Predictive Control for Formation Flying Spacecraft[M]. Boston: Master thesis of MIT, 2004.
4	Mishne D. Formation Control of Satellites Subject to Drag Variations and J2 Perturbations[J]. Journal of Guidance Control & Dynamics (S0731-5090), 2012, 27(4): 685-692.
5	张磊, 方洋旺, 刁兴华, 等. 多导弹协同攻击编队非线性最优控制器设计[J]. 北京航空航天大学学报, 2014(3):120-125.
	Zhang Lei, Fang Yangwang, Diao Xinghua, et al. Design of Nonlinear Optimal Controller for Multi-missile Formation.Journal of Beijing University of Aeronautics and Astronautics[J]. 2014(3): 120-125.
6	李浩, 毛昱天, 吴丹, 等. 基于理想视线制导的多导弹协同攻击策略[J]. 导航定位与授时, 2015(4): 5-10.
	Li Hao, Mao Yutian, Wu Dan, et al. Cooperative Attack of Multiple Missiles with Ideal-Line-of-Sight-Guidance.Navigation Positioning &Timing[J]. 2015(4): 5-10.
7	赵建博, 杨树兴, 熊芬芬. 基于领弹-从弹架构的无导引头导弹协同定位与制导方法[J]. 兵器学报, 2019(4):673-679.
	Zhao Jianbo, Yang Shuxing, Xiong Fenfen. Cooperative Localization and Guidance for Seeker-less Missile Based on Leader-follower Framework[J]. Journal of China Ordnance. 2019(4): 673-679.
8	王晓芳, 张艺伟, 田震. 分布式通信模式下的多导弹协同制导与控制率[J]. 北京理工大学学报, 2018(6): 593-599.
	Wang Xiaofang, Zhang Yiwei, Tian Zhen. Cooperative Guidance and Control Law Based on Decentralized Communication Topology[J]. Transactions of Beijing Institute of Technology, 2018(6): 593-599.
9	马培蓓, 纪军. 多导弹三维编队控制[J]. 航空学报, 2010(8):166-172.
	Ma Peibei, Ji Jun. Three-Dimetional Multi-Missile Formation Control[J]. ActaAeronatics ET Astronautics Sinica, 2010(8): 166-172.
10	殷玮, 祁文治. 基于IMM_UKF的自抗扰控制导引律研究[J]. 空天防御, 2018, 1(1): 56-62.
	Yin Wei, Qi Wenzhi. Research on the ADRC Guidance Law Based on IMM_UKF[J]. AIR & SPACE DEFENSE,2018, 1(1): 56-62.
11	Yin J, Han C. Optimal Impulsive Maneuvers for Formation Reconfiguration Using Relative Orbit Elements[C]// Control Science and Systems Engineering (CCSSE). Yantai: IEEE, 2014: 70-75.
12	Morgan D, Chung S J, Hadaegh F Y. Model Predictive Control of Swarms of Spacecraft Using Sequential Convex Programming[J]. Journal of Guidance Control &Dynamics (S0731-5090), 2014, 37: 1-16.
13	Liu Y, Li Y, Xi J. Design And Simulation Of Satellite Formation Flying Position-Keeping Control Method[C]// 3rd International workshop on Advanced Computational, Intelligence. Suzhou: IEEE, 2010: 502-505.
14	IvanaTodic, Kuzmanavic Vladimir. Hardware in the Loop Simulation for Homing Missiles[J]. Materials Today (S1369-7031), 2019(12): 514-520.
15	B.Mihoubi, B.Bouzouia, K.Tebani, et al. Hardware in the Loop Simulation for Product Driven Control of a Cyber-physical Manufacturing System[J]. Production Engineering(S1863-7353), 2020(14): 1-15.

状态	从弹1	从弹2
相对坐标系下初始位置/m	x=400	x=460
	y=-480	y=-520
	z=300	z=-250
相对坐标系下期望位置/m	x=600	x=600
	y=-350	y=-350
	z=400	z=-400
初始速度/(m·s^-1)	150	165
初始弹道倾角(°)	3.5	-5.6
初始弹道偏角(°)	4	6.2
