态势热点非线性评估方法研究

doi:10.16182/j.issn1004731x.joss.20-0731

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (2): 285-292.doi: 10.16182/j.issn1004731x.joss.20-0731

态势热点非线性评估方法研究

毛腾蛟(), 张东戈, 梁雪峰, 牛彦杰, 禹明刚, 何明

陆军工程大学指挥控制工程学院，江苏南京 210007

收稿日期:2020-09-22 修回日期:2021-01-20 出版日期:2022-02-18 发布日期:2022-02-23
作者简介:毛腾蛟(1992-)，男，硕士生，研究方向为复杂系统分析。E-mail：89008659@qq.com
基金资助:
国家自然科学基金青年科学基金(71901217);军内重点科研项目资助(LJ20191A020107)

Research on Nonlinear Evaluation Method of Situational Hot Spots

Tengjiao Mao(), Dongge Zhang, Xuefeng Liang, Yanjie Niu, Minggang Yu, Ming He

College of Command and Control Engineering, Army Engineering University of PLA, Nanjing 210007, China

Received:2020-09-22 Revised:2021-01-20 Online:2022-02-18 Published:2022-02-23

摘要/Abstract

摘要：

态势图中数据信息量过大，海量态势信息容易产生超过生理极限的巨大认知负载，这将导致指挥员感知、判断、决策的迟滞，严重时可以导致决策活动崩溃。为解决认知负载过重问题，需要对态势信息进行处理，以评估和突出态势热点。基于协同目标聚集因素，将态势目标造成有效影响的可能性以及目标之间的协同作为判别指标，推导出关注度函数，设计了态势热点值计算

方法

。通过示例仿真计算可见，本方法在时效性和准确程度水平上可以更好地评估态势热点的变化情况，降低指挥员的认知负载和认知偏差。

关键词: 目标协同, 认知负载, 热点值, 有效影响

Abstract:

The excessive amount of data and information in the situation map is likely to produce a huge cognitive load that exceeds the physiological limit. This can lead to delays in the perception, judgment, and decision-making of the commander, or even failure of decision-making activities in severe cases. For this reason, situation information needs to be processed to assess and highlight situational hotspots so that cognitive overload can be tackled. Based on the aggregation factors of collaborative targets, this paper takes the effective impact possibility of situational targets and the collaboration as the indicators, derives the attention function, and designs the computing method of situational hotspot value. As indicated by the calculation results of simulation cases, this method can better evaluate the changes of situational hotspots in terms of timeliness and accuracy and reduce the commander's cognitive load and cognitive bias.

Key words: target collaboration, cognitive load, hotspot value, effective impact

中图分类号:

E917

毛腾蛟, 张东戈, 梁雪峰, 牛彦杰, 禹明刚, 何明. 态势热点非线性评估方法研究[J]. 系统仿真学报, 2022, 34(2): 285-292.

Tengjiao Mao, Dongge Zhang, Xuefeng Liang, Yanjie Niu, Minggang Yu, Ming He. Research on Nonlinear Evaluation Method of Situational Hot Spots[J]. Journal of System Simulation, 2022, 34(2): 285-292.

图/表 8

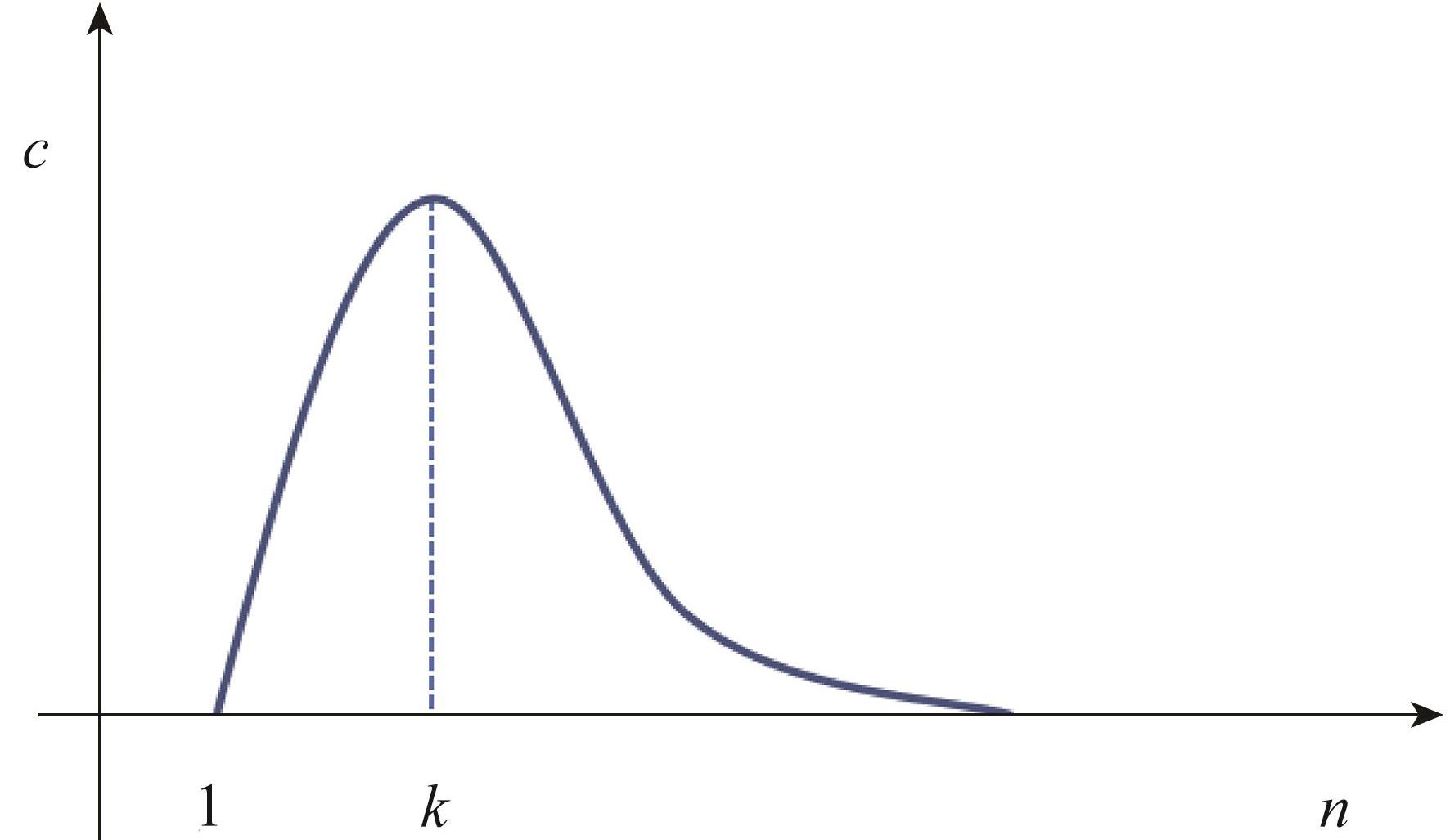

图1

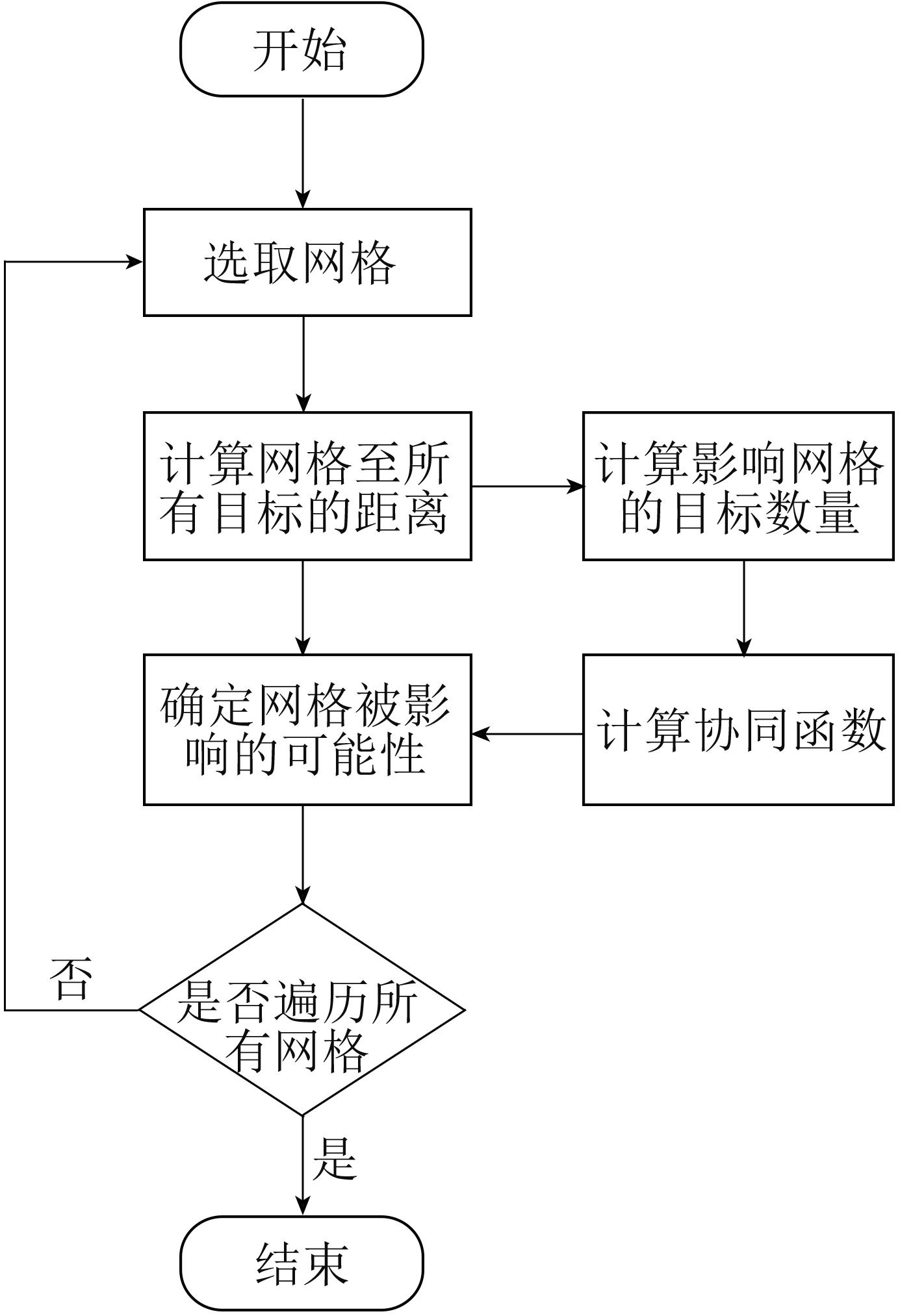

图2

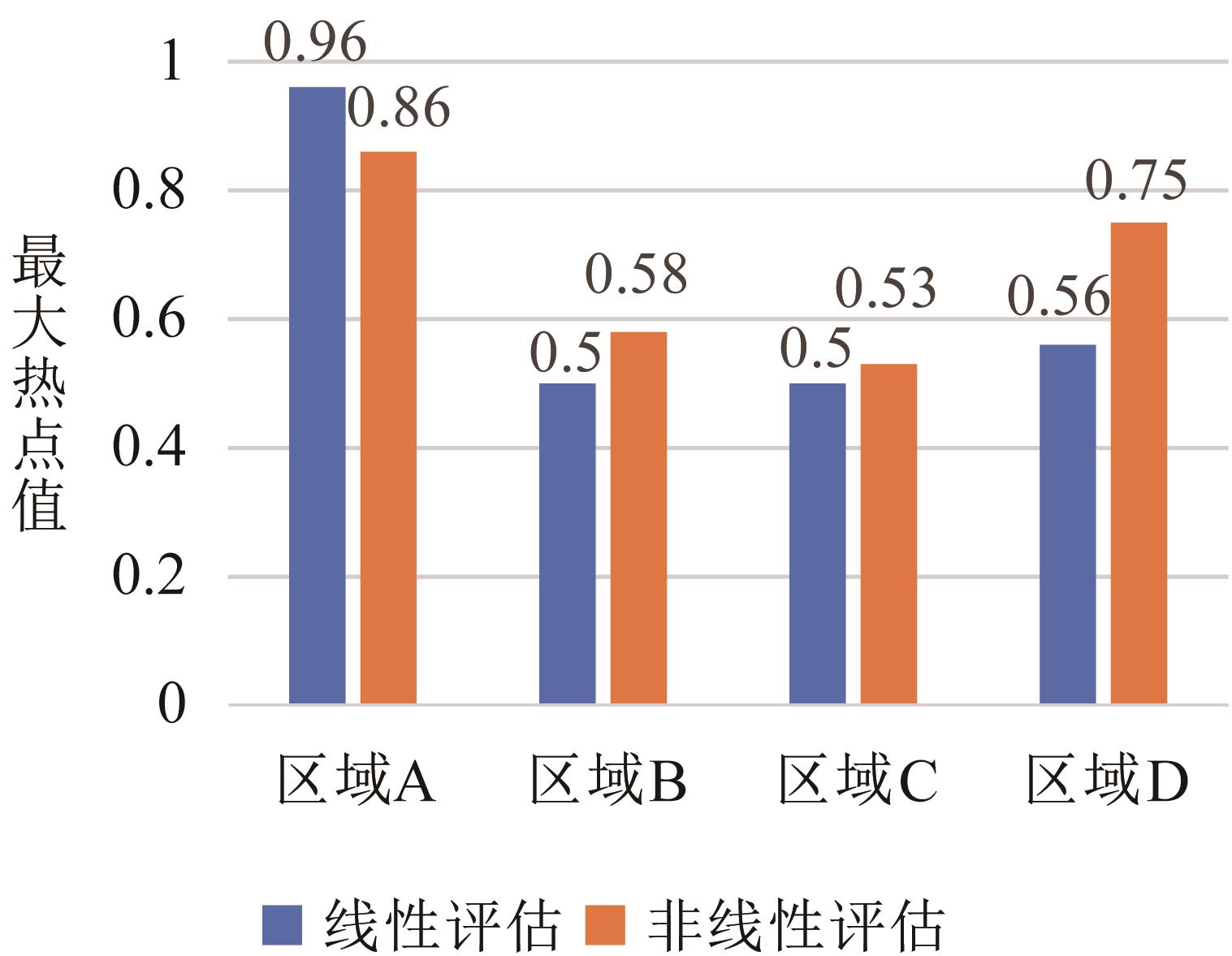

图3

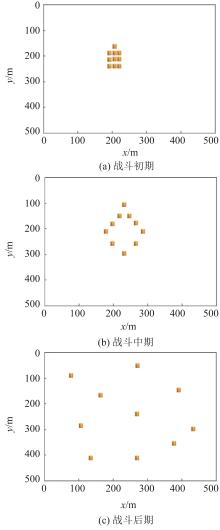

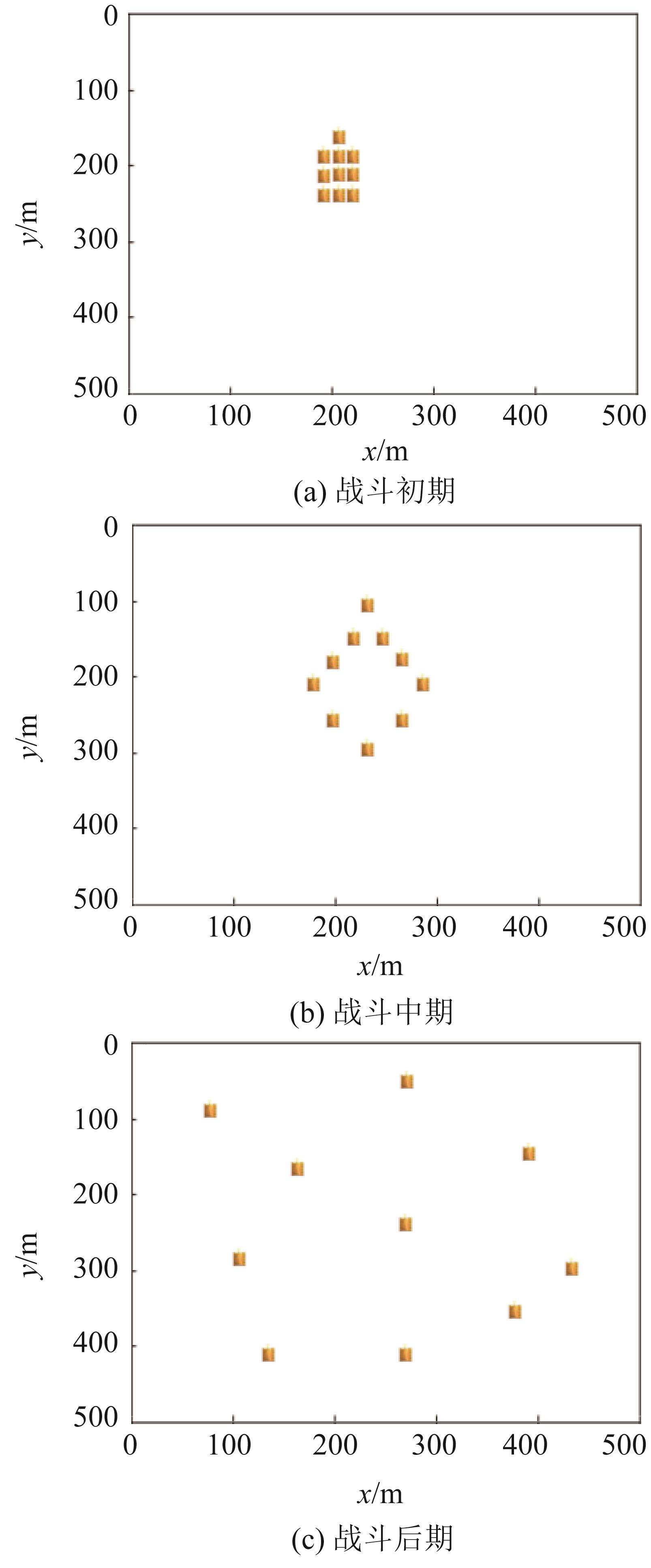

图4

表1

目标信息

时刻 $t$	坐标	影响值 $p i$	影响范围 $r i$
1	（200，300）	0.15	20
2	（203，303）	0.10	20
3	（205，307）	0.08	20
4	（204，295）	0.15	20
5	（196，304）	0.20	20
6	（195，297）	0.11	20
7	（208，306）	0.10	20
8	（199，309）	0.05	20
9	（200，305）	0.06	20

表1

表2

线性评估方法区域Z最大热点值

时刻 $t$	最大热点值
1	0.15
2	0.25
3	0.33
4	0.48
5	0.68
6	0.79
7	0.89
8	0.94
9	1

表2

表3

非线性评估方法区域Z最大热点值

时刻 $t$	最大热点值
1	0.15
2	0.33
3	0.45
4	0.60
5	0.67
6	0.71
7	0.61
8	0.63
9	0.66

表3

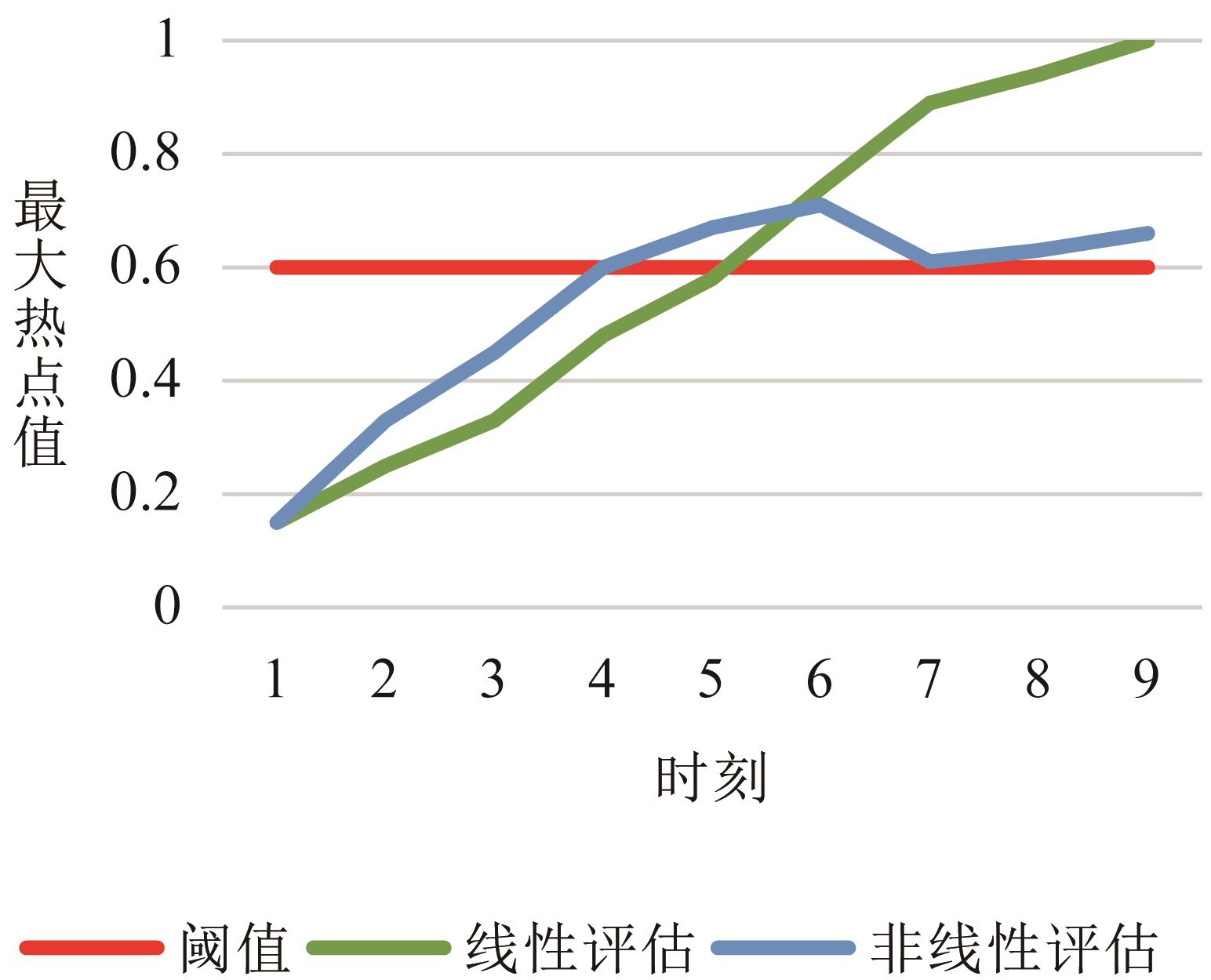

图5

参考文献 15

1	Hoffman R. Origins of Situation Awareness: Cautionary Tales from the History of Concepts of Attention[J]. Journal of Cognitive Engineering and Decision Making(S1555-3434), 2015, 9(1): 73-83.
2	Möbus C, Eilers M, Garbe H. Predicting the Focus of Attention and Deficits in Situation Awareness with A Modular Hierarchical Bayesian Driver Model[C]//Springer Berlin Heidelberg. Berlin: Springer, 2011: 1-10.
3	孔亦思, 胡晓峰, 朱丰, 等. 战场态势感知中的注意力机制探析[J]. 系统仿真学报, 2017, 29(10): 2233-2240.
	Kong Yisi, Hu Xiaofeng, Zhu Feng, et al. Attention Mechanism in Battlefield Situation Awareness[J]. Journal of System Simulation, 2017, 29(10): 2233-2240.
4	Zhao H, Zhang D, Meng H, et al. Analytical Measurement Method for Situation Elements' Dynamic Characteristics[J]. Journal of Systems Engineering and Electronics(S1004-4132), 2017, 28(6): 1126-1132.
5	N.W, N.H, S.R,et al. Verification of a Battlefield Visualization Framework in Military Decision Making using Holograms (3D) and Multi-touch Technology[C]// 2016 International Conference on Information and Communication Technology (ICICTM). Kuala Lumpur: IEEE, 2016: 23-26.
6	董浩洋, 张东戈, 万贻平, 等. 战场态势热力图构建方法研究[J]. 指挥控制与仿真, 2017, 39(5): 1-8.
	Dong Haoyang, Zhang Dongge, Wan Yiping, et al. Research on Construction Method of Heat Map for Battlefield Situation[J]. Command control & Simulation, 2017, 39(5): 1-8.
7	卢丹, 吴文涛. 战场目标分布热力图构建方法研究[J]. 信息化研究, 2019, 45(3): 11-16.
	Lu Dan, Wu Wentao. Research on the Construction Method of Distributed Thermal Diagram of Battlefield Targets[J]. Informatization Research, 2019, 45(3): 11-16.
8	Moradi-Pari E, Tahmasbi-Sarvestani A, Fallah Y P. A Hybrid Systems Approach to Modeling Real-Time Situation-Awareness Component of Networked Crash Avoidance Systems[J]. IEEE Systems Journal(S1932-8814), 2016,10(1): 169-178.
9	Eskandari N, Dumont G A, Wang Z J. An Observer/Predictor-Based Model of the User for Attaining Situation Awareness[J]. IEEE Transactions on Human-Machine Systems(S2168-2291), 2016, 46(2): 279-290.
10	He X, Qiu R C, Ai Q, et al. Designing for Situation Awareness of Future Power Grids: An Indicator System Based on Linear Eigenvalue Statistics of Large Random Matrices[J]. IEEE ACCESS(S2169-3536), 2016, 4: 3557-3568.
11	Hervella L S, Rouco José, Novo J, et al. Deep Multi-Instance Heatmap Regression for the Detection of Retinal Vessel Crossings and Bifurcations in Eye Fundus Images[J]. Computer Methods and Programs in Biomedicine(S2666-9900), 2019, 186: 105201.
12	Steury T D, Mccarthy J E, Roth T C, et al. Evaluation of Root‐n Bandwidth Selectors for Kernel Density Estimation[J]. Journal of Wildlife Management(S0022-541X), 2011, 74(3): 539-548.
13	Tauno, Metsalu, Jaak, et al. ClustVis: a Web Tool for Visualizing Clustering of Multivariate Data using Principal Component Analysis and Heatmap[J]. Nucleic Acids Research(S0305-1048), 2015, 43: 566-570.
14	徐克虎, 陈金玉, 孔德鹏, 等. 装甲分队目标威胁评估指标体系研究[J]. 火力与指挥控制, 2015(2): 36-39.
	Xu Kehu, Chen Jinyu, Kong Depeng, et al. Research on Indexes of Target's Threat Assessment of Armored Unit[J]. Fire Control & Command Control, 2015(2): 36-39.
15	Xu K, Kong D, Chen J. Target Threat Assessment Based on Improved RBF Neural Network[C]// Springer Berlin Heidelberg. Berlin: Springer, 2015: 559-566.
